Key Features
- 11" GM diaphragm pressure plate with 12-5/8" EQ bolt pattern
- Low lever height pressure plate engineered specifically for hydraulic release systems
- Organic/Organic facings for smooth, progressive street engagement
- Ford 10 x 1-1/16" splined hub for Ford T5, TKX, and TKO transmissions
- 350 ft-lb torque capacity rated for street performance
- Custom pilot bushing included for GM-to-Ford drivetrain conversions
- Hand-assembled in-house with double-checked tolerances before shipping
- Performance Proven - tested on and off the track
- Made in the USA with a 1-year free-from-defect warranty
Description
Building a mixed-manufacturer drivetrain - say, an LS behind a Ford 5-speed - means solving a geometry puzzle that off-the-shelf clutches simply cannot. This MDL Superior clutch set bridges that gap, pairing a GM 11" pressure plate with a Ford 10-spline clutch disk so you can mate GM-pattern flywheels to Ford T5, TKX, or TKO transmissions without compromise.
The diaphragm pressure plate features a low lever height specifically engineered for hydraulic release systems. That reduced lever height eliminates the geometry conflicts that cause premature throwout bearing wear, incomplete disengagement, and pedal-effort issues when running hydraulic slaves behind GM-pattern clutches. If you are using an internal or external hydraulic slave cylinder, this is the pressure plate design you need.
Organic/Organic facings deliver the smooth, progressive engagement that street-driven vehicles demand. Unlike aggressive ceramic or metallic compounds that grab hard and chatter at low RPM, organic facings engage predictably in stop-and-go traffic, ease away from stoplights without drama, and dissipate heat effectively during extended use. Rated at 350 ft-lb, this clutch handles healthy street performance without sacrificing daily drivability.
Every MDL Superior clutch disk is hand-assembled in-house in Caldwell, Idaho, and double-checked for accuracy before it ships. That means verified tolerances, balanced assemblies, and zero guesswork when you open the box. The included custom pilot bushing ensures correct crankshaft-to-input-shaft alignment for GM-to-Ford conversions. Made in the USA and backed by a 1-year free-from-defect warranty.

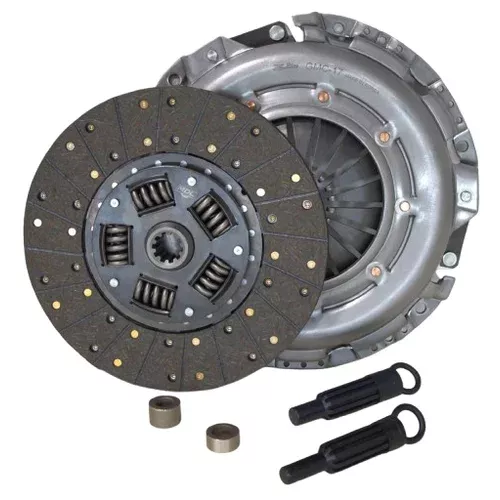

Kit Includes
- 11" GM diaphragm pressure plate with low lever height for hydraulic release (12-5/8" EQ bolt pattern)
- Organic/Organic clutch disk with Ford 10 x 1-1/16" splined hub
- Custom pilot bushing for GM-to-Ford conversion applications
- Clutch alignment tool (10-spline)
- Installation and break-in instructions
