Key Features
- 12-5/8 inch equidistant bolt pattern fits GM 11-inch flywheel applications
- Ford 10-spline x 1-1/16 inch clutch disk for T5, T-45, TR3650, and factory T56 compatibility
- Organic/organic friction facings deliver smooth engagement and daily drivability
- 350 ft-lbs torque rating for street performance builds
- Custom pilot bushing included for proper Ford input shaft alignment
- Diaphragm pressure plate provides consistent clamping force and easy pedal effort
- Hand-built clutch disks assembled in-house with double-riveted construction
- 1-year defect-free warranty
Description
Running a Ford transmission behind a GM engine? This MDL Superior clutch kit solves the cross-platform compatibility challenge. The pressure plate bolts directly to GM 11-inch flywheels using the standard 12-5/8 inch equidistant bolt pattern with 3/8-16 fasteners, while the clutch disk features the Ford 10-spline x 1-1/16 inch hub found on factory Ford manual transmissions including the T5, T-45, TR3650, and OEM T56.
The organic friction material on both sides of the disk provides the ideal balance for street applications -- smooth, progressive engagement without the harsh grab of aggressive compounds. This makes it perfect for daily drivers and weekend cruisers where drivability matters as much as holding power. The sprung hub design absorbs drivetrain shock and reduces gear rattle at idle.
MDL hand-builds every Superior clutch disk in-house, allowing complete control over tolerances and balance. Each disk is double-riveted for durability and inspected before shipping. The diaphragm pressure plate delivers consistent clamping force throughout its service life with lighter pedal effort than Borg & Beck designs. The 350 ft-lbs torque rating handles most street performance applications without issue.
The included custom pilot bushing ensures proper Ford transmission input shaft alignment in the GM crankshaft, eliminating binding and premature wear. Designed for mechanical clutch release systems. Made in the USA and backed by MDL's 1-year defect-free warranty and lifetime technical support.

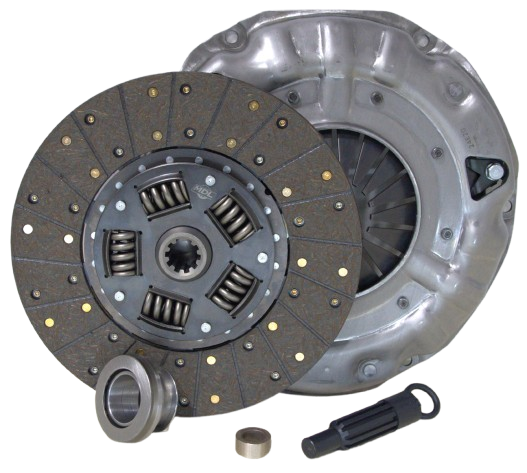

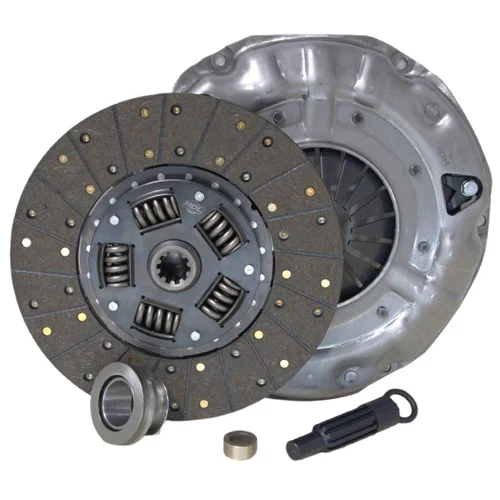

Kit Includes
- Diaphragm pressure plate -- 12-5/8 inch equidistant bolt pattern, 3/8-16 bolt size
- Organic/organic clutch disk -- 11-inch diameter, 10-spline x 1-1/16 inch, sprung hub
- Throw-out bearing
- Custom pilot bushing for Ford 10-spline applications
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
