Key Features
- Dual-friction disc -- Kevlar on pressure plate side, steel-backed organic on flywheel side for grip plus smooth engagement
- 11" diaphragm pressure plate with 12-5/8" equalizer bolt pattern
- Ford 10 x 1-1/16" spline hub -- matches TREMEC TKO and TKX 10-spline input shafts
- Custom pilot bushing included for precise crankshaft-to-transmission alignment
- Sprung hub design absorbs drivetrain shock for smoother engagement
- Hydraulic release compatible -- works with internal or external hydraulic throwout bearing systems
- Hand-built in-house with quality control and double-checked accuracy before shipping
- Rated for Performance Street Plus applications up to 400 lb-ft
- 1-year defect warranty backed by lifetime tech support
Description
GM-to-Ford transmission swaps demand a clutch that bridges two worlds -- the GM bellhousing bolt pattern with a Ford input shaft spline count. This Superior clutch kit solves that exact fitment puzzle while delivering serious holding power for modified engines. The dual-friction disc uses Kevlar on the pressure plate side for high heat tolerance and aggressive grip, while steel-backed organic on the flywheel side provides the smooth, progressive engagement you need for daily drivability.
The diaphragm pressure plate design is the key to balancing clamp load with pedal effort. Unlike archaic three-finger Long-style clutches that create brutal pedal pressure regardless of engine RPM, the diaphragm design generates strong clamping force with reasonable pedal effort -- no knee-replacement-inducing commutes. The 12-5/8" equalizer bolt pattern fits standard GM 11" bellhousing configurations.
The Ford 10 x 1-1/16" spline hub is specifically sized for TREMEC TKO and TKX transmissions with 10-spline input shafts -- a common configuration when swapping a modern 5-speed into a classic build. The sprung hub design absorbs drivetrain shock loads for smoother engagement and extended disc life. A custom pilot bushing ensures precise crankshaft-to-transmission centerline alignment, eliminating the vibration and premature bearing wear caused by misaligned pilots.
Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where quality and tolerances are double-checked before shipping. You receive a ready-to-install premium piece backed by a 1-year defect warranty and lifetime technical support. Made in the USA.

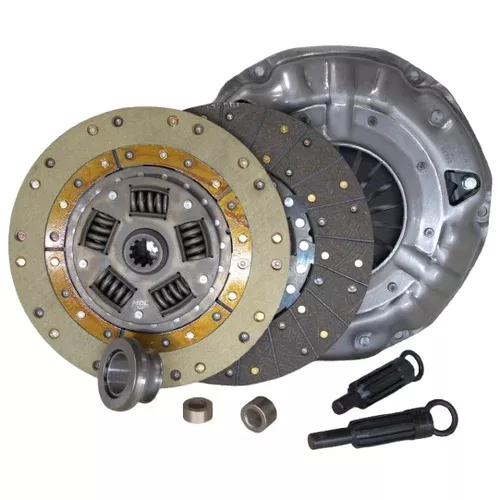

Kit Includes
- 11" diaphragm pressure plate -- 12-5/8" EQ bolt pattern
- Dual-friction clutch disc -- Kevlar/steel-backed organic, Ford 10 x 1-1/16" spline, sprung hub
- Custom pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
