Key Features
- Kevlar facing on pressure plate side with steel-backed organic on flywheel side for balanced engagement and durability
- Ford 10 x 1-1/16" spline hub configuration for T5 and TKO transmission compatibility behind GM engines
- Custom pilot bushing kit includes two bushings: 1.094" x .670" ID and 1.094" x .590" ID
- Two precision alignment tools included - one matched to each pilot bushing
- Hand-assembled in-house with double-checked tolerances for ready-to-install quality
- 400 lb-ft torque rating for performance street applications
- Diaphragm pressure plate with 12-5/8" bolt pattern for mechanical clutch linkage
- Sprung hub design absorbs drivetrain shock and reduces gear rattle
- Made in the USA with 1-year free-from-defect warranty
Description
Running a Ford T5 or TKO behind your GM small block or big block? This Superior clutch assembly solves the pilot bearing puzzle that comes with GM-to-Ford transmission swaps. The included custom pilot bushing kit provides two different ID options - 1.094" x .670" ID and 1.094" x .590" ID - to accommodate the most common crankshaft pilot bore variations found in GM applications. No more hunting for oddball pilot bearings or machining custom solutions.
The dual-facing design pairs Kevlar material on the pressure plate side with steel-backed organic on the flywheel side. This combination delivers the best of both worlds: the Kevlar facing provides aggressive initial bite and superior heat resistance for spirited driving, while the steel-backed organic ensures smooth, progressive engagement and extended service life. The 400 lb-ft torque rating handles built small blocks and mild big blocks in performance street applications.
MDL's Superior clutch disks are hand-built in-house to ensure quality, exacting tolerances, and flawless operation - all double-checked for accuracy before shipping. The diaphragm pressure plate delivers consistent pedal feel and reliable release characteristics with mechanical linkage setups. The sprung hub design absorbs drivetrain shock for smoother engagement and reduced gear rattle at idle.
Engineered for Ford transmissions with 10 x 1-1/16" input shaft spline counts - including the T5 and TKO-500. Each kit ships with two precision alignment tools matched to the included pilot bushings, ensuring proper clutch disk installation and preventing binding during assembly. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

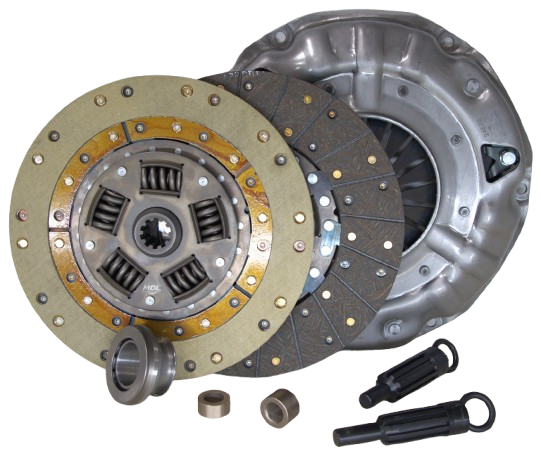

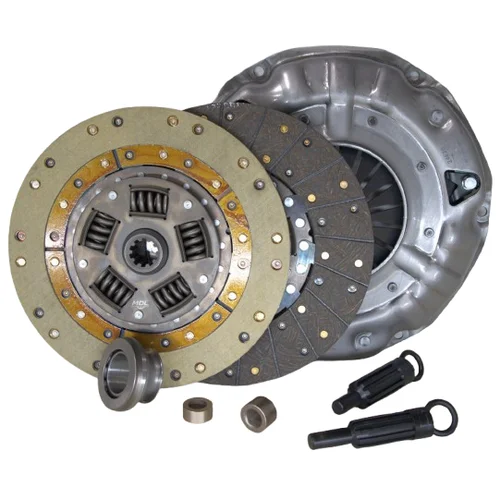

Kit Includes
- Diaphragm pressure plate with 12-5/8" bolt pattern
- 11" Kevlar/steel-backed organic clutch disk with sprung hub (10 x 1-1/16" spline)
- Throw-out bearing
- Two custom pilot bushings (1.094" x .670" ID and 1.094" x .590" ID)
- Two precision alignment tools (one for each pilot bushing)
- Installation and break-in instructions
- Lifetime technical support
