Key Features
- 550 ft-lb torque rating for aggressive street and drag applications
- Kevlar facing on pressure plate side, ceramic facing on flywheel side for progressive engagement with maximum grip
- 11" diaphragm pressure plate with 12-5/8" equalizing bolt pattern
- 26-spline x 1-1/8" input shaft diameter for GM applications
- Sprung hub design reduces drivetrain shock and improves drivability
- Hand-assembled in-house at MDL with double-riveted construction
- Complete mechanical release system with throwout bearing included
- Made in the USA with 1-year defect-free warranty
Description
When your GM build demands serious holding power without sacrificing street manners, the MDL Superior Heavy Duty Clutch Kit delivers. This hybrid friction setup pairs smooth-engaging Kevlar on the pressure plate side with bite-hard ceramic on the flywheel side--giving you progressive engagement off the line but maximum grip under power. The ceramic facing's higher coefficient of friction means this 11" setup grips like a larger diameter clutch while maintaining the compact packaging your application demands.
Ceramics and semi-metallics have a higher coefficient of friction than the other materials MDL offers, so they bite harder and hold more power given the same clamping force. MDL ceramics contain iron particles that actually create more friction as the material gets hotter--the opposite of fade. This makes the Kevlar/ceramic combination ideal for higher horsepower applications, quicker shifts in road racing, and hard-hitting launches in drag racing. When going to a larger diameter clutch or heavier pressure plate isn't an option, this friction material combination delivers the holding power you need in a compact package.
All MDL Superior clutches are hand-assembled in-house with absolute care, using the finest components available. Every disk is checked and double-checked for accuracy before shipping, so you receive a ready-to-install premium piece right out of the box. The double-riveted construction ensures quality and flawless operation under demanding conditions. This mechanical release kit pairs perfectly with TREMEC transmission swaps and other applications requiring traditional fork-style clutch actuation. Backed by a 1-year free-from-defect warranty and MDL's Performance Proven reputation--these components have survived the rigorous challenges of racing on and off the track.

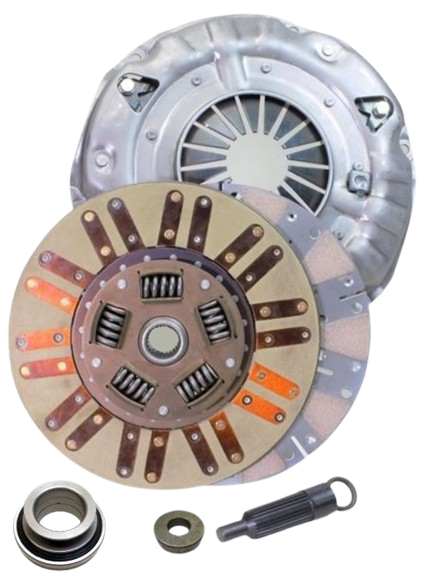

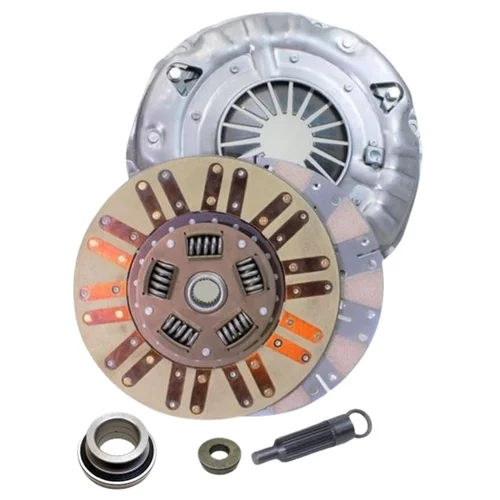

Kit Includes
- 11" diaphragm pressure plate with 12-5/8" equalizing bolt pattern
- Kevlar/ceramic clutch disc--26-spline x 1-1/8" with sprung hub
- Throwout bearing for mechanical release systems
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year defect-free warranty
