Key Features
- Dual Kevlar facings deliver smooth engagement with 2-3x the lifespan of organic friction materials
- 10.5" clutch disc with 26-spline, 1-1/8" hub for AMC transmission compatibility
- Diaphragm pressure plate with 11-5/8" bolt pattern and 3/8" mounting holes
- 400 ft-lb torque rating handles modified street and open track applications
- Sprung hub design absorbs driveline shock and eliminates chatter
- Recovers from overheating without permanent damage--outlasts organic discs under repeated high-heat cycles
- Hand-assembled in the USA with 1-year warranty coverage
Description
Organic clutches work fine for daily driving, but they fall short when your AMC sees repeated high-heat cycles from spirited street driving or track sessions. Once an organic disc overheats, it sustains permanent damage and loses its coefficient of friction. Kevlar solves this problem: it actually increases torque capacity as temperature rises, then recovers fully once cooled--no glazing, no permanent degradation.
This Superior Series clutch set pairs dual Kevlar facings with a diaphragm pressure plate engineered specifically for AMC applications. The full-face Kevlar disc provides smooth, progressive engagement that feels streetable while offering durability that organic materials simply cannot match. The sprung hub isolates driveline shock loads, protecting your transmission synchros and eliminating the chatter common with rigid-hub competition discs.
The diaphragm pressure plate delivers consistent clamping force across the full pedal travel--no pressure spikes, no finger fatigue on long drives. With a 400 ft-lb torque rating, this setup handles bolt-on modifications and mild engine builds without breaking a sweat. The 11-5/8" bolt pattern and 3/8" mounting holes fit standard AMC flywheels, while the 26-spline, 1-1/8" hub matches common AMC transmission input shafts.
Each clutch disc is hand-assembled at MDL's Caldwell, Idaho facility with quality-controlled tolerances and inspected before shipping. Designed for mechanical clutch actuation systems. Note: pilot and throwout bearings are not included--size these to your specific application. Made in the USA and backed by a 1-year defect warranty.
Kit Includes

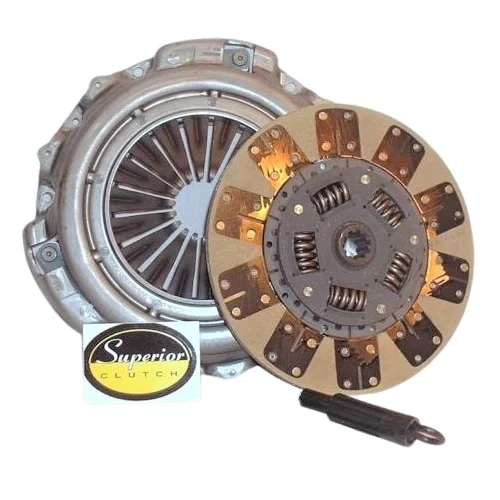

- AMC profile diaphragm pressure plate (11-5/8" bolt pattern, 3/8" mounting holes)
- 10.5" Kevlar/Kevlar clutch disc, 26-spline 1-1/8", sprung hub
- Clutch alignment tool
- Installation and break-in instructions
- 1-year warranty coverage
- Lifetime technical support
