Key Features
- 500 ft-lb torque rating for modified street applications
- 10.5" diaphragm pressure plate with 11-5/8" equidistant bolt pattern
- Kevlar/steel back organic friction disc for superior heat resistance and smooth engagement
- 10 x 1-1/8" 10-spline hub compatible with GM mechanical-release bellhousings
- Sprung hub design reduces driveline shock and NVH
- Includes both Chevy and BOP pilot bushings for broad GM V8 coverage
- Complete kit with GM mechanical throw-out bearing and alignment tool
- Hand-assembled in-house with double-checked tolerances before shipping
- 1-year free-from-defect warranty — Made in the USA
When you're building a GM muscle car or street machine with a modified powerplant pushing up to 500 ft-lbs of torque, the factory clutch becomes the weak link. The Superior Series Kevlar/Steel Back Organic clutch kit solves this problem with a purpose-built combination engineered for Performance Street Plus applications — delivering the holding power for spirited driving without sacrificing daily drivability.
The 10.5" diaphragm pressure plate provides increased clamp load over stock units while maintaining manageable pedal effort. The friction disc features Kevlar/steel back construction paired with organic facing material — a hybrid approach that combines Kevlar's exceptional thermal stability with organic's progressive engagement characteristics. This means confident holding power during hard launches without the grabby, on-off feel of full ceramic facings. The sprung hub design isolates driveline shock and dampens vibration for smooth operation in stop-and-go traffic.
This kit covers a broad range of GM V8 applications using the standard 11-5/8" equidistant pressure plate bolt pattern. The 10 x 1-1/8" 10-spline disc matches transmissions with 10-spline input shafts, including many TREMEC conversions and period 4-speeds. MDL includes both Chevy and BOP (Buick, Oldsmobile, Pontiac) pilot bushings so you're covered regardless of which GM block you're running.
Every Superior Series clutch kit is hand-assembled in MDL's Caldwell, Idaho facility. Components are precision-matched and double-checked for accuracy before boxing — so you receive a ready-to-install assembly backed by a 1-year free-from-defect warranty and lifetime technical support.

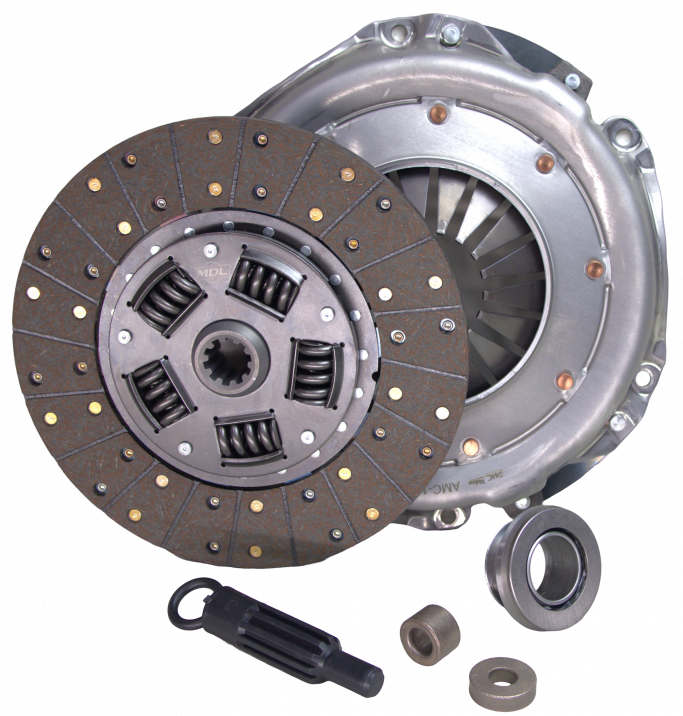

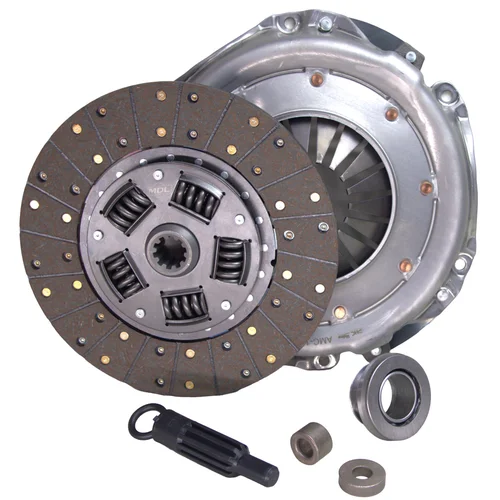

Kit Includes
- 10.5" diaphragm pressure plate with 11-5/8" equidistant bolt pattern
- 10 x 1-1/8" 10-spline Kevlar/steel back organic clutch disc with sprung hub
- GM mechanical throw-out bearing
- Chevy pilot bushing
- BOP (Buick, Oldsmobile, Pontiac) pilot bushing
- Clutch alignment tool (1-1/8" x 10-spline)
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
