Key Features
- Chevy 10.5" diaphragm pressure plate with 11-5/8" bolt pattern for proper flywheel fitment
- 250 ft-lbs torque capacity - sized right for street-driven small blocks
- Organic/organic facings deliver smooth, progressive engagement and long service life
- Ford 10-spline 1-1/16" clutch disk with sprung hub absorbs driveline shock
- Hand-assembled by MDL technicians in Caldwell, Idaho
- Kit includes .670" ID pilot bushing and alignment tool - ready to install
- 1-year warranty against manufacturing defects
Description
Swapping a Ford transmission behind a Chevy engine? This Superior organic clutch kit bridges the gap, pairing a Chevy-pattern 10.5" diaphragm pressure plate with a Ford 10-spline 1-1/16" clutch disk. The result is a complete clutch solution for hybrid powertrains running TREMEC T-5, TKO-500, TKX, or other Ford-pattern 10-spline transmissions behind GM small blocks and other Chevy-bolt-pattern engines.
The diaphragm pressure plate delivers consistent clamping force with manageable pedal effort - a significant improvement over long-style clutches for street driving. Rated at 250 ft-lbs, this kit handles stock and mildly modified engines without overkill. The organic/organic facing combination provides the smoothest engagement characteristics available, making it forgiving for daily drivers while still delivering the durability serious enthusiasts demand.
Every Superior clutch disk is hand-built at MDL's Caldwell, Idaho facility. The sprung hub design isolates the drivetrain from engine harmonics, reducing gear rattle and extending component life. The 11-5/8" bolt pattern matches standard Chevy flywheels, and the included .670" ID pilot bushing ensures proper input shaft support. This American-made kit arrives ready to install with an alignment tool and full break-in instructions.
NOTE: This kit does not include a throwout bearing. Select the appropriate bearing for your bellhousing and release system separately.

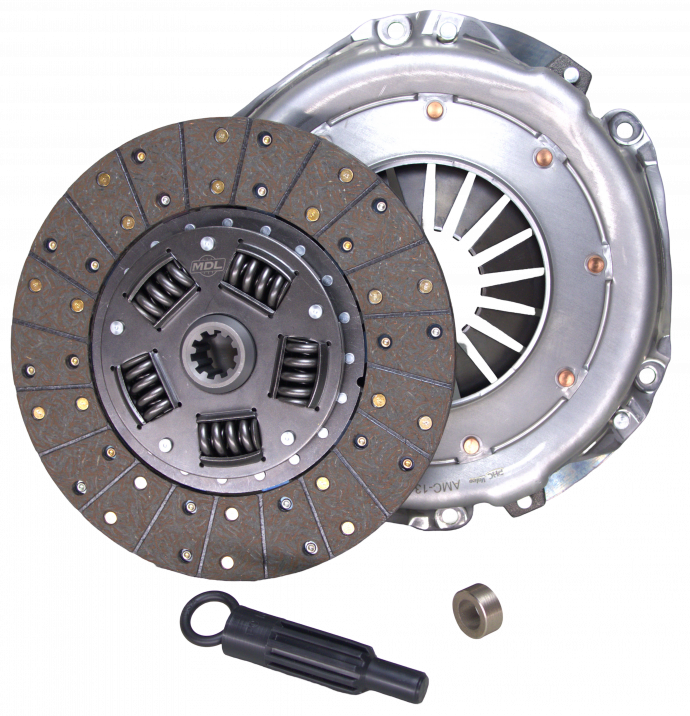

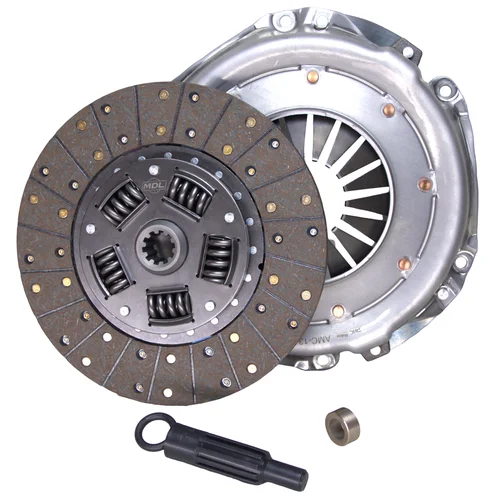

Kit Includes
- Chevy 10.5" diaphragm pressure plate (11-5/8" bolt pattern)
- Ford 10-spline 1-1/16" clutch disk with organic/organic facings and sprung hub
- .670" inside diameter pilot bushing
- .670" clutch alignment tool
- Installation and break-in instructions
- 1-year warranty coverage
- MDL lifetime technical support
