Key Features
- Ford dual-drilled pressure plate fits both 3-3/8" and 12-3/8" bolt circles
- 300 ft-lb torque capacity for street performance builds
- 11" long diaphragm pressure plate with low lever height for reduced pedal effort
- 23-spline, 1" disk hub for TREMEC and modern transmission compatibility
- Organic/organic full-face friction material for smooth engagement and extended wear
- Designed for hydraulic clutch actuation systems
- Hand-built in-house with double-checked tolerances
- Made in the USA with 1-year free-from-defect warranty
Description
Ford transmission swaps and performance builds often run into clutch compatibility headaches—mismatched bolt patterns, wrong spline counts, or pressure plates that don't clear hydraulic throwout bearings. The MDL Superior Organic Clutch Kit eliminates these problems with a dual-drilled pressure plate that bolts to both 3-3/8" and 12-3/8" Ford flywheel patterns, giving you flexibility whether you're working with a factory flywheel or an aftermarket unit.
The 23-spline, 1" hub disk matches modern TREMEC input shafts, while the organic/organic friction facings deliver the smooth, progressive engagement that makes daily driving enjoyable. Full-face organic material provides excellent wear resistance and minimal noise—no aggressive grab or chatter. The diaphragm-style pressure plate features a low lever height specifically designed for hydraulic release systems, reducing pedal effort compared to long-style mechanical setups.
Every MDL Superior clutch disk is hand-built in Caldwell, Idaho, with tolerances double-checked before shipping. This isn't mass-produced overseas product—it's American manufacturing with the quality control that performance applications demand. Rated at 300 ft-lb torque capacity, this kit handles naturally aspirated street builds with confidence while maintaining the drivability you want for stoplight-to-stoplight duty.
MDL offers multiple friction material options across their Superior clutch line—organic, Kevlar, ceramic, and hybrid combinations—in both 10-spline and 26-spline configurations. If your build requires different specs, contact MDL's tech support for recommendations tailored to your power level and driving style.

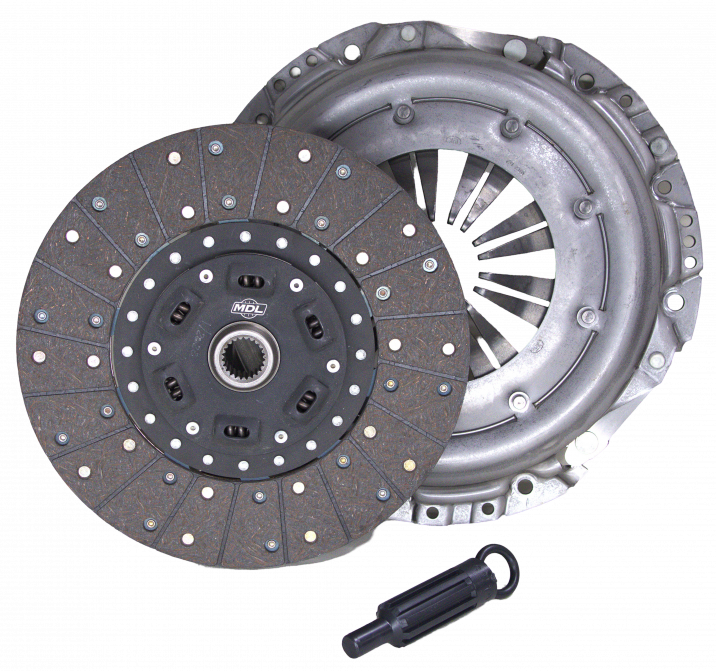

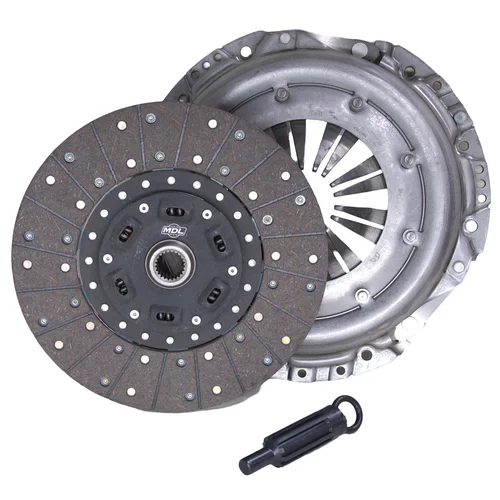

Kit Includes
- 11" long diaphragm pressure plate with dual-drilled 3-3/8" and 12-3/8" Ford bolt patterns
- Organic/organic full-face clutch disk with 23-spline, 1" hub
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support from MDL
Note: Throwout bearing and pilot bearing sold separately. Contact MDL technical support for proper bearing selection based on your specific application and bellhousing.
