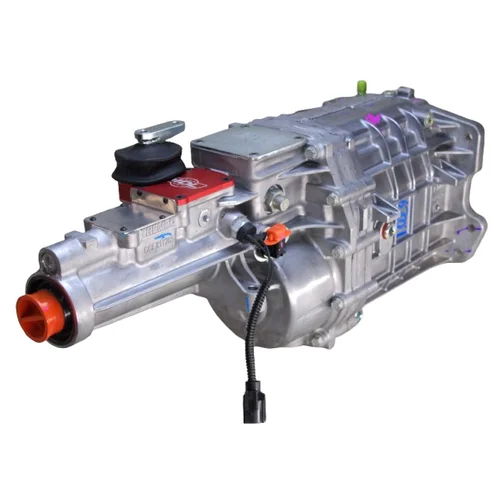

MDL modified Tremec TKXRR five speed for Sunbeam Tiger, OEM shift lever. 2.87, 1.89, 1.28, 1, .81od, 26 spline input, 31 spline output, Mechanical and Analog Electric speedo drive, (Torque rated for 600ft/lbs, Tri cone Synchronizers 8,000 RPM shift capability for a smooth fast shift. Slim line, end loading case
Specifications
- Shifter Side Shift
- Yes
- Bellhousing Bolt Pattern
- Ford Wide Pattern
- Gear Ratio 1st Gear
- 2.87
- Gear Ratio 2nd Gear
- 1.89
- Gear Ratio 3rd Gear
- 1.28
- Gear Ratio 4th Gear
- 1.0
- Gear Ratio 5th Gear
- 0.81
- Input spline count
- 26.0
- Oil Type Requirements
- ATF Dextron III
- Output spline count
- 31.0
- Shift Positions
- Rear Position
- Transmission
- TKX
