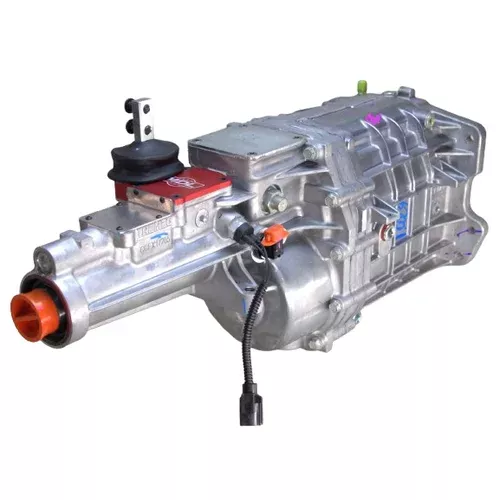

MDL Tremec Ford TKX 18086 5-Spd, Sunbeam Tiger, Stub Shift Lever

The shifter is a close-ratio custom-made piece that is now an integral part of the transmissionthis is an upgraded transmission, this isnt just a bolted-on shifter.
They are all prepared at our facility by hand to ensure quality & precision.Many hours of R&D were put forth to provide this to you our customer.

No upgraded TKX leaves here unless its right.

MDL modifications bring the shifter stub up in OE positionWe achieve this by carefully machining, updating, and integrating new pieces tothis HOT NEW must-have transmissionNot available through TREMEC.

Features:
Gear Ratios 2.87, 1.89, 1.28, 1, .68od 26 spline input, 31 spline output

THIS IS THE HOT NEW MUST-HAVE TRANSMISSION from TREMEC

• a slimmer case design for greater tunnel clearance
• increased case strength, and fewer case seams.

• Sintered carbon/bronze-Hybrid triple cone synchroswith a non-leading tooth profile
• All new Slim End loading case designed for superior strength and greater tunnel clearance.
• Sintered carbon/bronze-Hybrid triple cone synchros with a non-leading tooth profile
• Close gear ratio (2.87, 1.89, 1.28, 1.00, .68) high-performance applications Rated at 600+ft/lbs
• Utilizes Ford TKO bolt pattern 7.2? length input shaft...(with the short input shaft option...You can bolt to a Ford close pattern 3-4 speed bellhousing)
• 26-spline input shaft with a 31-spline output shaft for added strength.
• Ford .670 pilot tip and 1.430? OD throwout bearing guild tube.
• Robust design with an internal 3-rail shift system & steel shift forks.
• All gears & shafts are made from special grade steel (ASTM 4615) providing increased torque carrying capacity.
• Single-piece countershaft provides an increased torque-carrying capacity
• Tapered roller bearings on input, output, and counter shafts improve performance (reduced noise factor) with caged needle bearing on the main shaft.
• Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean crisp shifts.(Optional offsetMDLshifter available for even more custom fit)
• A new smaller mid-position shifter mounting base reduced the footprint
• Built-in reverse light switch on the left side
• The cruise control safety switch is located on the right side of the TKX.
• The rear main-shaft support bushing moved from the tail closer to the gearbox provides better support.
• All mating surfaces are sealed with gaskets



• We extend the manufacturers warranty by an extra year with a 1-year grace period.
• We have the best in the industry customer service.
• lifetime technical support.

• Three shifter locations are standard. (For the Mid position, an additional kit is required)

• Ford Mechanical 7-tooth speedometer cable drive-gear
• OSS two-wire Analog speedometer sensor built-in.
• Reduce engine rpm to a level that makes it fun to drive besides enhancing fuel efficiency.
