Key Features
- 600 lb-ft torque capacity with 8,000 RPM engine speed capability and 7,500 RPM shift zone
- Close-ratio gear set: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive with 2.56 reverse
- 26-spline input shaft (1-1/8" diameter), 31-spline output shaft for maximum drivetrain strength
- 2" left side mounted front shifter position with 1" or 1.5" forward offset stub - MDL exclusive configuration not available through TREMEC
- Multi-cone synchronizers with sintered carbon/bronze hybrid construction for smooth, fast shifts at high RPM
- Slim-line, end-loading case design reduces tunnel modifications while increasing structural rigidity
- Mechanical and analog electric speedometer drive compatibility
- Ford Wide Pattern bellhousing bolt pattern
Description
Road racers and serious track builders know the frustration: the stock shifter position puts the lever exactly where you don't want it. This MDL-modified TREMEC TKX solves that problem with a 2" left side mounted front shifter configuration and 1" or 1.5" forward offset stubs, giving you the precise lever placement that tight cockpits and modified chassis demand. This configuration is not available through TREMEC's standard catalog - it's an MDL exclusive built for builders who need maximum shifter positioning flexibility.
The TKX platform delivers race-ready performance with its multi-cone synchronizer package featuring sintered carbon/bronze hybrid construction. This advanced synchronizer design eliminates the shift quality issues that plagued earlier five-speeds at high engine speeds, enabling smooth, positive engagement at 7,500 RPM shifts while the engine screams toward its 8,000 RPM ceiling. The internal three-rail shift system with steel shift forks provides the robust, notchy feel that road racers expect when banging through gears under pressure.
The end-loading case architecture is what sets the TKX apart from legacy five-speeds. The slim-line, three-piece aluminum housing creates a narrower profile that clears most transmission tunnels without extensive floor work, while the ribbed construction delivers increased structural stiffness critical for repeated competition stress. Wide gear widths, caged needle bearings in all gear positions, and gears/shafts machined from ASTM 4615 special grade steel ensure durability under sustained high-load conditions. Tapered roller bearings on input, output, and countershafts reduce NVH while improving longevity.
The close-ratio gear set (2.87 first, 0.68 overdrive) keeps your engine in its powerband during aggressive driving while providing a highway-friendly cruise ratio. The 26-spline input and 31-spline output configuration handles 600 lb-ft of torque with confidence. Compatible with Ford Wide Pattern bellhousings and accepts Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF (2.7 quart capacity).
Kit Includes

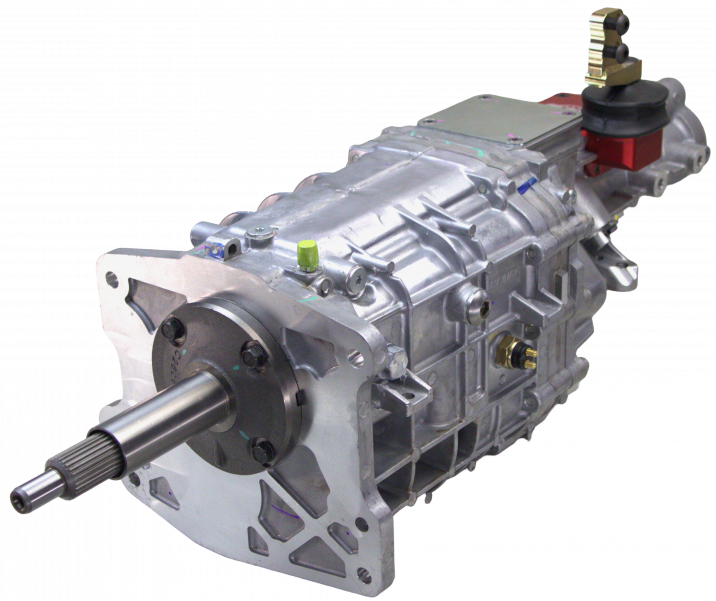

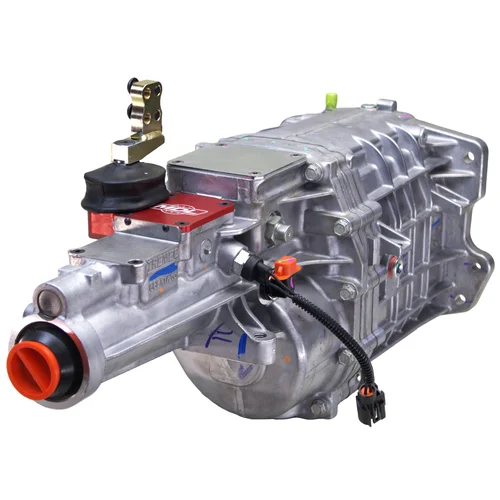

- TREMEC TKX 5-speed transmission assembly with 2" left side mounted front shifter
- 1" or 1.5" forward offset shift stubs
- TREMEC operation and maintenance manual
- MDL lifetime technical support
