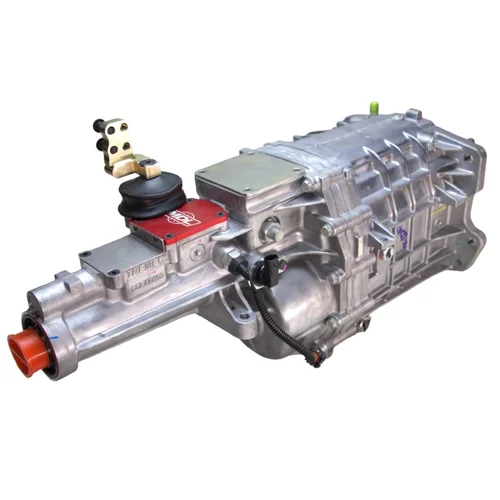

MDL TREMEC GM TKX Road Race 5-Speed | 2.87 First, 0.81 OD | 2” Left Side Shift Front, 1” left, .65” or 1.15” Backward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• MDL side shift modification with a 1” left, .65” or 1.15” backward offset stub - precise shifter placement without compromise
• Shifter Stub Location: 3” left of center line, 17.40” or 17.90” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

When your shifter needs to land in exactly the right spot without cutting floor pans or compromising shift quality, this MDL-exclusive side shift TKX delivers. The TKX already features the slimmest 5-speed case on the market for improved tunnel clearance, but sometimes even that isn't enough. Our custom offset shifter stub positions the shift lever 3" to the left and moves it rearward by .65" or 1.15" backward--taking all the guesswork out of shifter placement in tight cockpits where the narrow shift body will clear the shifter hole without cutting the floor.

This road race-spec TKX handles 600 lb-ft of torque and engine speeds up to 8,000 RPM with shift capability at 7,500 RPM. The close-ratio gear set (2.87 first through 0.81 overdrive) keeps your engine in the power band during aggressive driving. Multi-cone synchronizers with hybrid synchronizer rings made of sintered bronze and carbon deliver smooth, positive shifts even at redline, while ASTM 4615 special-grade steel gears and shafts provide the strength to handle serious power.

The end-loading case design creates a slimmer profile for better tunnel clearance and increased structural stiffness via the ribbed, 3-piece aluminum housing. The 26-spline input and 31-spline output shafts are built for durability, while the integrated speedometer drives work with both mechanical and electronic setups. This GM-pattern TKX bolts directly to standard Muncie/Richmond bellhousings and takes 2.7 quarts of Dexron III ATF (or TREMEC HP-MTF, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh).

This is an MDL exclusive modification not available through TREMEC. The side front socket positioning with custom offset shifter stub eliminates the need for floor modifications while putting your shifter exactly where you need it for optimal ergonomics and control.

Kit Includes

• TREMEC TKX 5-speed transmission (TCET17722) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter (2” left side shift front, 1” Left, .65” or 1.15” backward offset)
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
