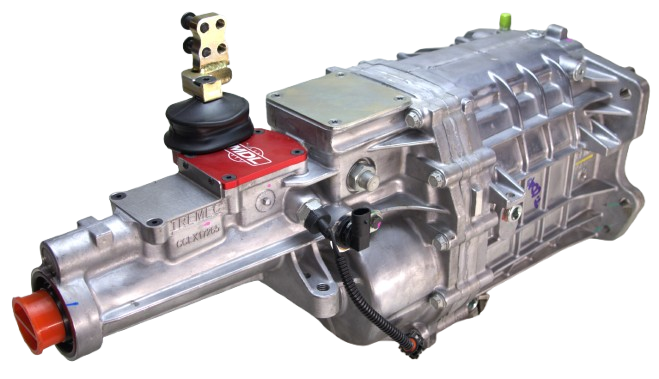

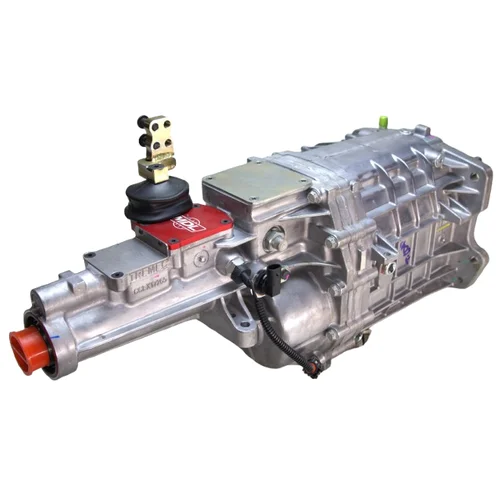

MDL TREMEC GM TKX 5-Speed | 3.27 First, 0.72 OD | 2” Left Side Shift Front Shifter, 1” Left, .65” or 1.15” Forward Offset Stub

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing Ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• MDL side shift modification with a 1” Left, .65” or 1.15” forward offset stub - precise shifter placement without compromise
• Shifter Stub Location: 3” left of center line, 15.60” or 16.10” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

The TREMEC TKX represents the next generation in 5-speed manual transmissions, purpose-built to handle today's power outputs while fitting where older transmissions could not. This GM-pattern TKX (TCET18083) features MDL's custom side-shift configuration with front socket mounting - positioning the shifter at 15.60"-16.10" from the bellhousing face with 1" left offset and .65" or 1.15" forward adjustment. This precision shifter placement solves console clearance issues that plague muscle car builds.

The revolutionary end-loading case design creates a slimmer profile while increasing structural strength and reducing case seams. The ribbed, 3-piece aluminum housing delivers outstanding structural stiffness through main case, intermediate plate, and rear extension components. All gears and shafts are machined from special-grade ASTM 4615 steel, while tapered roller bearings on input, output, and counter shafts improve performance and reduce noise. Caged needle bearings support all gear positions for extended durability.

This wide-ratio configuration delivers a 3.27 first gear for aggressive acceleration off the line and a 0.72 overdrive fifth that drops highway RPMs for comfortable cruising and improved fuel efficiency. The sintered carbon/bronze hybrid triple-cone synchronizers with non-leading tooth profile provide superior shift-ability at high RPMs. The robust internal three-rail shift system with steel shift forks ensures crisp, precise gear changes.

Bolts directly to any GM 3- or 4-speed Muncie or Richmond bellhousing and accepts the GM .590" pilot bearing. The rear main-shaft support bushing is positioned closer to the gearbox for improved support. Built-in cruise control safety-switch location on the right side. All mating surfaces are sealed with gaskets for leak-free installation. Built from 100% brand-new OEM-quality components.

Kit Includes

• TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter (2” left side shift front, 1” Left, .65” or 1.15” forward offset stub)
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
