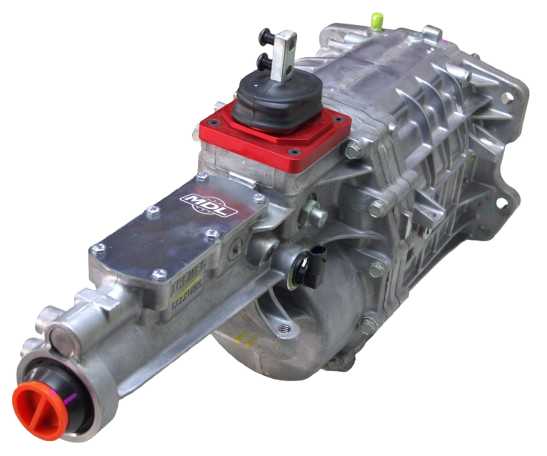

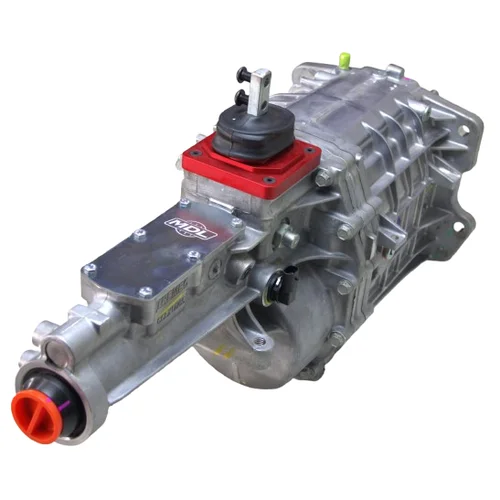

MDL TREMEC GM TKX 5-Speed | 3.27 First, 0.72 OD | Short Body Front Shifter, Straight Up Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Front Mount Short Body Shifter with Straight Up Offset
• Shifter Stub Location: 12.68” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

Getting the shifter exactly where you need it in a console-equipped GM build is one of the biggest headaches in any manual transmission swap. Standard TKX shifter positions rarely land in the factory opening, forcing builders into offset stubs, aftermarket shifters, or console modifications. This MDL-modified TREMEC TKX eliminates that problem with a short body front shift position and zero offset on the stub shaft - placing the lever precisely where your console expects it, with no guesswork and no fabrication.

The engineering behind this modification preserves everything that makes the TKX the gold standard in 5-speed swaps. The 600 lb-ft torque capacity handles serious small-block and big-block power, while multi-cone synchronizers and hybrid carbon/bronze synchronizer rings deliver smooth, precise shifts at engine speeds up to 8,000 RPM. The wide-ratio gear set opens with a deep 3.27 first gear for strong launches and closes with a 0.72 overdrive fifth that drops highway RPM for relaxed cruising and improved fuel efficiency.

The TKX's end-loading, three-piece aluminum case design is slimmer than the TKO it replaces, fitting GM A-body tunnels - Chevelle, GTO, Cutlass, Nova, Camaro - without cutting the floor. The ribbed housing provides outstanding structural stiffness while controlling NVH, and oversized gear widths with caged needle bearings in all gear positions ensure long-term durability. Both mechanical and analog electronic speedometer outputs are built in, so you can retain your factory gauge or run a modern digital setup.

The transmission bolts directly to any GM Muncie-pattern bellhousing and accepts standard 26-spline clutch discs. This front-socket, zero-offset configuration is an MDL exclusive - you will not find it in TREMEC's standard catalog.

Kit Includes

• TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter (front position short body, straight up offset)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
