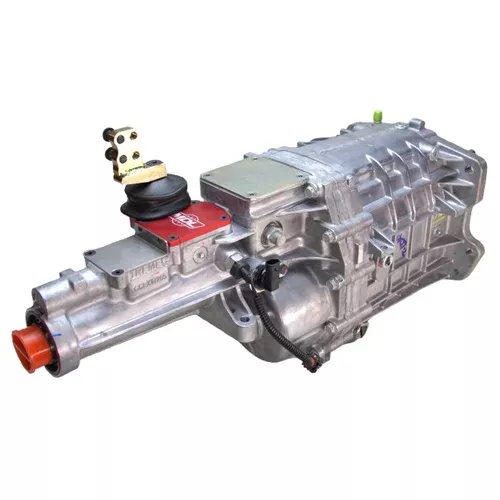

MDL TREMEC GM TKX Road Race 5-Speed | 2.87 First, 0.81 OD | 2” Left Side Shift Front, 1” or 1.5” Backward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• MDL side shift modification with 1” or 1.5” backward offset stub - precise shifter placement without compromise
• Shifter Stub Location: 2” left of center line, 17.75” or 18.25” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

Road course competitors and track day warriors demand a transmission that survives sustained high-RPM punishment while delivering predictable, consistent shifts lap after lap. This MDL-modified TREMEC TKX delivers exactly that - a 600 lb-ft torque capacity with the close-ratio gear spread that keeps your engine in its powerband through technical sections where momentum is everything.

The 2.87 first gear through 0.81 overdrive configuration eliminates the RPM gaps that kill corner exit speed. TREMEC's multi-cone synchronizers with sintered bronze and carbon hybrid rings enable clean, crisp shifts even under heavy braking and aggressive downshifts at competition speeds. The internal three-rail shift system with steel shift forks provides the mechanical precision serious drivers require.

MDL's custom shifter modification places the lever 2" left of center line with a 1" or 1.5" backward offset stub - precisely located for optimal ergonomics in race-prepped cockpits where every inch of shift throw matters. The ribbed three-piece aluminum housing with oversized gear widths and caged needle bearings delivers the structural rigidity and durability demanded by sustained high-load operation. All gears and shafts are machined from special-grade ASTM 4615 steel for maximum torque-carrying capacity.

This GM-pattern TKX bolts directly to Muncie and Richmond bellhousings, making it a straightforward swap for vintage Corvettes, GTOs, Chevelles, Camaros, and other GM muscle. The slim end-loading case design fits most factory tunnels without floorpan surgery. Fluid capacity is 2.7 quarts using ATF Dexron III, TREMEC HP-MTF, or equivalent.

What's Included

• TREMEC TKX 5-speed transmission (TCET17722) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter (side shift front, 2” Left, 17.75” or 18.25” backward offset)
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
