Key Features
- Application-specific fitment for 1979-1993 Fox body Mustang with TKO or TKX transmission
- 3.0-inch DOM steel tube construction for high torsional strength
- Forged steel 31-spline slip yoke matches TKO/TKX output shaft
- 1330 series u-joints (1.062-inch cap diameter, 3.625-inch span)
- Ford 8.8 small flange compatibility (2.5 x 2.5-inch bolt pattern)
- High-speed balanced and black painted finish
- Custom built to your vehicle's measurements
- Made in the USA
Description

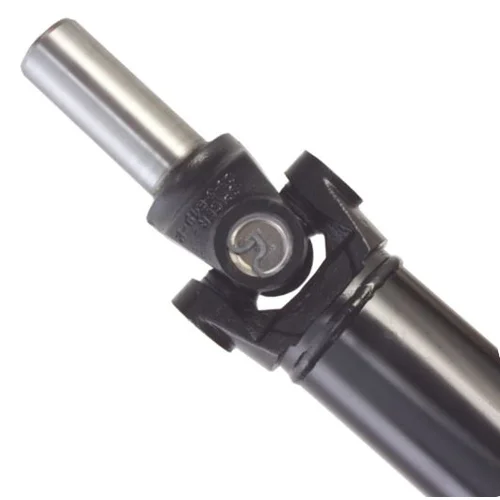

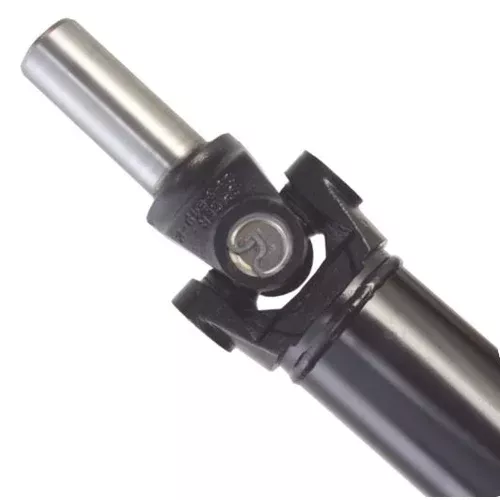

Swapping to a TREMEC TKO or TKX in your Fox body Mustang means the factory driveshaft no longer fits. The TKO and TKX use a 31-spline output shaft - larger than stock - and the transmission's overall length differs from the original T5. This custom steel driveshaft solves both problems with application-specific engineering that ensures proper fitment and reliable power transfer to your Ford 8.8 rear axle.
The foundation is a 3.0-inch diameter DOM (drawn over mandrel) steel tube that delivers significantly more torsional strength than smaller factory units. DOM tubing provides consistent wall thickness and superior concentricity compared to standard ERW tubing, critical for a driveshaft that must spin true at highway speeds. The forged steel 31-spline slip yoke mates directly to the TKO or TKX output shaft, handling the increased torque capacity these transmissions deliver - up to 600 lb-ft.
Premium 1330 series u-joints with 1.062-inch bearing caps and 3.625-inch span connect the driveshaft to the slip yoke and rear flange. This driveshaft is specifically configured for Ford 8.8 rear axles with the small flange pattern (2.5 x 2.5-inch bolt spacing), commonly found on Fox body Mustangs. Each unit undergoes professional high-speed balancing and receives a durable black painted finish for corrosion resistance.
Because every build is different - varying engine setback, transmission mount position, and suspension modifications all affect driveshaft length - this is a custom-built unit. Submit your completed driveshaft build sheet with measurements from your finished vehicle to info@moderndriveline.com, and we'll build a driveshaft tailored to your exact specifications. Made in the USA with lifetime technical support.
Kit Includes
- Complete steel driveshaft assembly with 3.0-inch DOM steel tube
- Forged steel 31-spline slip yoke
- 1330 series u-joints (front and rear)
- Ford 8.8 small flange driveshaft flange
- Professional high-speed balancing
- Black painted finish
- Lifetime technical support
