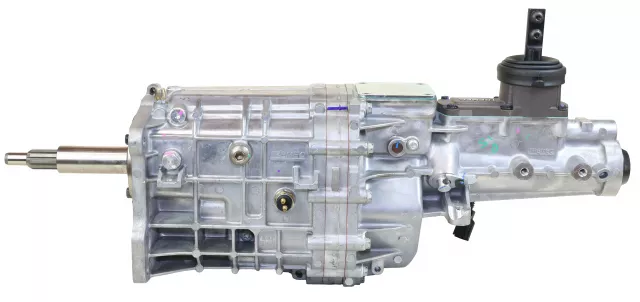

TREMEC Ford TKX 5-Speed Transmission | 2.87 First, 0.68 Overdrive | 26-Spline

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8-inch diameter), 31-spline output shaft
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21-inch Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Two shifter locations are standard; mid-position kit available separately
• High-performance billet aluminum short-throw shifter included
• Shifter Stub Locations: center line, 12.68”, 16.75” or 19.52” back from the bellhousing face
• Gaskets at all mating surfaces eliminate fluid leaks
• 99 lbs dry weight; 2.7-quart fluid capacity

Overview

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• High-performance short-throw billet aluminum shifter
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• OSS two-wire electronic speedometer sensor (built-in)
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27, first gear with 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.81 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

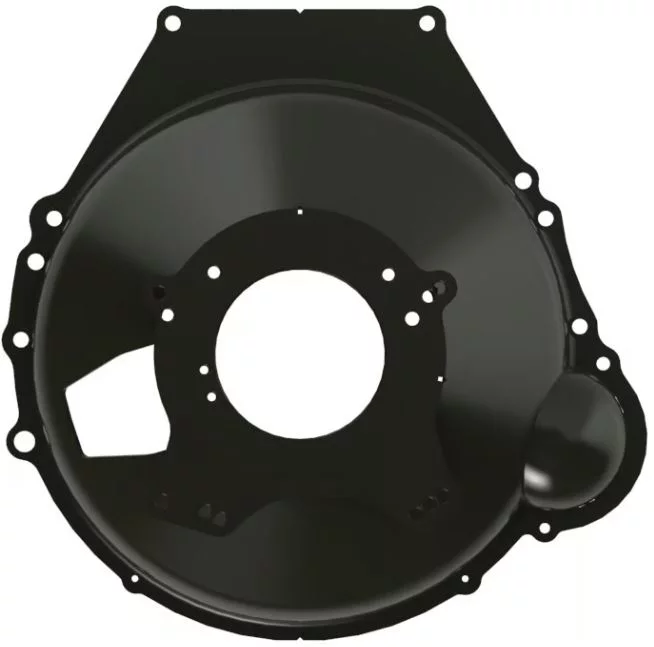

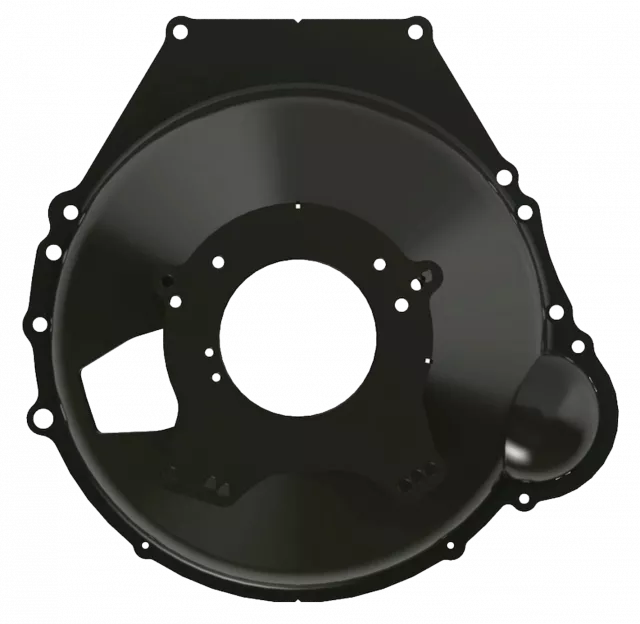

Key Features

• Spin-formed steel cone construction - over 2x stronger than rolled or stamped bellhousings
• Work-hardened to 80,000+ PSI tensile strength for extreme durability
• Universal transmission bore: 4.685", 4.850", and 4.910" compatibility
• Fits Ford 351M, 400, 429, and 460 big block engines (385/335 series bolt pattern)
• Compatible with Ford Toploader, Borg-Warner T-10, and TKO 500/600 (short shaft) transmissions
• Clears 176-tooth flywheel and up to 12" clutch assemblies
• 6.450" overall height with 22 lb. weight
• Supports mechanical or hydraulic clutch operation
• Patent pending QuickTime manufacturing process
• 100% Made in the USA

Description

When you're building serious power with Ford's 385-series big blocks or 335-series modified engines, bellhousing flex isn't just an inconvenience - it's a performance killer and safety hazard. The QuickTime RM-8011 delivers the most accurate bellhousing available due to unique manufacturing processes, eliminating the dimensional instability that plagues lesser steel units and ensures your drivetrain stays perfectly aligned through the entire RPM range.

The engineering difference is in the construction. The QuickTime cone is spun, not rolled or stamped, allowing the bellhousing to be the most dimensionally stable on the market. This spin-forming process creates consistent wall thickness and incredible strength while the high-grade steel work-hardens to over 80,000 PSI - more than twice the strength of any other steel bellhousing. The result: less drivetrain wear and increased horsepower from perfect alignment that eliminates binding and power-robbing misalignment.

Built specifically for Ford 351M, 400, 429, and 460 engines, this bellhousing handles Ford Toploader transmissions, Borg-Warner T10s, and TREMEC TKO 500/600 units with shortened input shafts. The universal transmission bore accommodates 4.685", 4.850", and 4.910" input shaft diameters, while the robust design clears 176-tooth flywheels and full 12" clutch assemblies. Whether you're running mechanical linkage or hydraulic operation, the RM-8011 provides the mounting provisions and clearances needed for reliable operation.

Designed with input from OEMs, engine builders, transmission builders, and racers for circle track, strip, and high-performance street applications where precision matters. 100% built in the USA with QuickTime's patent-pending manufacturing process and backed by lifetime technical support from Modern Driveline.

What's Included

• QuickTime RM-8011 spin-formed steel bellhousing (black finish)
• Mechanical pivot ball assembly
• Shifter fork brackets for diaphragm or cable linkage
• Full engine block mounting plate
• Grade 8 mounting bolt hardware
• Installation instructions
• Lifetime technical support from Modern Driveline

Key Features

• Bolt lengths sized specifically for steel bellhousing applications - not interchangeable with aluminum bellhousing hardware
• Grade 8 steel construction for maximum clamping force and durability
• Hardened washers included for proper load distribution across mounting surfaces
• Complete hardware set for attaching Ford TKX transmission to steel bellhousings
• Compatible with QuickTime and Lakewood steel scatter shields for Ford applications
• Made in the USA

Description

When upgrading to a TREMEC TKX 5-speed transmission, factory T5 transmission-to-bellhousing bolts are incompatible with TKX applications. This hardware kit provides the correct bolt lengths and grade specifically engineered for steel bellhousing installations on Ford applications. Steel bellhousings require different bolt lengths than aluminum bellhousing kits - using the wrong hardware can result in improper engagement, case damage, or unsafe mounting conditions.

This MDL hardware kit solves the sourcing headache by providing the exact fasteners needed for your steel bellhousing installation. The Grade 8 bolts deliver the clamping force necessary to handle the TKX's 600 lb-ft torque capacity, while hardened washers ensure even load distribution across the bellhousing mounting flange. Proper hardware is critical - never use transmission-to-bellhousing bolts to draw or pull the transmission up to the bellhousing, as damage to the pilot bearing and transmission case ears may result.

This kit is designed for use with popular steel scatter shields including QuickTime and Lakewood bellhousings for Ford small block applications paired with the TKX transmission. When installing, ensure the transmission is fully seated by hand against the bellhousing before torquing fasteners to specification. Made in the USA with lifetime tech support from MDL.

What's Included

• Grade 8 steel transmission-to-bellhousing bolts (sized for steel bellhousing applications)
• Hardened steel washers
• Lifetime tech support from MDL

Key Features

• Lightweight 30-pound billet steel construction - significantly lighter than stock cast iron flywheels
• Zero balance design for internally balanced 1969-1978 Ford 429/460 engines
• CNC-machined from high-strength lighten billet steel for durability under high-RPM and high-torque loads
• 176-tooth ring gear for proper starter engagement
• Dual pressure plate bolt patterns: 12-3/8" EQ and 11.5" Long (BBCO) for broad clutch compatibility
• Six 7/16" crankshaft mounting bolt holes for secure attachment
• 5/16" pressure plate bolt holes
• Accepts 11" single-disc clutch assemblies
• Made in the USA

Description

Stock cast iron flywheels on Ford 429/460 big blocks carry serious rotating mass - mass that robs acceleration and slows engine response. This billet steel flywheel solves that problem, trimming weight down to just 30 pounds while maintaining the strength needed for street and strip duty. The result is quicker throttle response and faster acceleration without sacrificing durability.

CNC-machined from high-grade lighten billet steel, this flywheel delivers the toughness required for high-horsepower applications. The zero balance design matches the internal balance configuration of Ford 429 and 460 engines from 1969 through 1978 - no external counterweights required. Simply bolt it to your crankshaft using the six 7/16" mounting holes and you're ready for clutch installation.

Clutch compatibility is built in. The flywheel accepts 11" single-disc clutch assemblies and features dual pressure plate bolt patterns - both 12-3/8" EQ and 11.5" Long (BBCO) - so you can run a variety of aftermarket clutch systems. Pressure plate bolts use 5/16" holes. The 176-tooth ring gear ensures proper engagement with your factory or aftermarket starter.

Made in the USA with precision tolerances throughout. This flywheel represents the ideal balance of weight reduction and billet steel strength for Ford big block performance builds.

What's Included

• One lighten billet steel flywheel with 176-tooth ring gear
• CNC-machined clutch friction surface for 11" single-disc clutches
• Zero balance configuration for internally balanced 429/460 engines
• Dual pressure plate bolt patterns (12-3/8" EQ and 11.5" Long BBCO)

Key Features

• Lighten billet steel construction - stronger than cast iron with reduced rotating mass
• 24oz external balance counterweight - precision-matched to 1979-1999 Ford 460 crankshaft requirements
• 176-tooth hardened ring gear for reliable starter engagement
• Six-bolt crankshaft pattern with 7/16" flywheel bolts
• Multi-pattern clutch compatibility: 11" Long, BBCO, and 12-3/8" EQ pressure plate bolt patterns
• 5/16" pressure plate bolt holes
• 30 lb flywheel weight - optimized balance of drivability and performance
• Made in the USA

Description

When Ford switched the 460 big block to external balance in 1979, flywheel selection became critical - install an internally balanced flywheel on a '79-and-later 460 and you'll have vibration issues that no amount of tuning will fix. This Lighten Billet Steel Flywheel is engineered specifically for 1979-1999 Ford 460 engines, with a precision-machined 24oz counterweight that matches the external balance requirements of these later big blocks.

Machined from lighten billet steel, this flywheel delivers the strength and heat capacity of steel while shedding unnecessary weight compared to heavy cast iron OEM units. The 30-pound design strikes the right balance - light enough to improve throttle response and reduce drivetrain inertia, yet heavy enough to maintain smooth idle characteristics and provide adequate thermal mass for demanding clutch applications. The 176-tooth hardened ring gear ensures positive starter engagement and long service life.

The flywheel attaches to the crankshaft via a six-bolt pattern using 7/16" bolts, and the clutch side is drilled for multiple pressure plate configurations including 11" Long, BBCO, and 12-3/8" EQ patterns with 5/16" bolt holes. This versatility accommodates a wide range of high-performance clutch systems, whether you're running a single-disc street setup or stepping up to a more aggressive combination. Compatible with single-disc clutch assemblies using 11" discs.

Designed and manufactured in the USA, this flywheel is the correct choice for anyone doing a manual transmission swap or clutch upgrade on a 1979-1999 Ford 460 - whether it's powering a heavy-duty F-Series truck or a big-block swap project.

What's Included

• Lighten billet steel flywheel with precision-machined friction surface
• 176-tooth hardened steel ring gear (permanently installed)
• 24oz external balance counterweight (integral to flywheel)

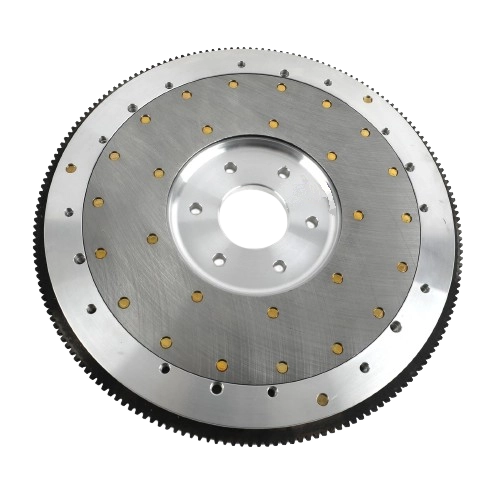

Key Features

• Zero balance (internally balanced) design for Ford 429-460 Big Block engines
• 176-tooth steel ring gear mechanically fastened to prevent separation under high stress
• Riveted steel clutch facing surface for durability and proper friction characteristics
• Aluminum construction dramatically reduces rotating mass versus OEM steel flywheels
• 6-bolt crankshaft mounting pattern with BBCO clutch bolt pattern
• Compatible with 11-inch clutch assemblies
• Made in the USA

Description

Ford 429 and 460 Big Blocks are heavy-rotating engines that benefit enormously from reduced flywheel mass. This MDL aluminum flywheel cuts rotating weight significantly compared to factory steel units, letting your BBF rev faster and respond more quickly to throttle inputs. For racing and high-RPM street applications where rapid engine acceleration matters, aluminum is the clear choice.

Engineered specifically for internally balanced (zero balance) 429-460 engines, this flywheel eliminates the external counterweights required by post-1978 externally balanced 460s. The 176-tooth steel ring gear is mechanically fastened to the aluminum body--not simply pressed on--so it cannot spin or walk off under repeated high-load starter engagement or aggressive driving.

The riveted steel clutch facing gives you the heat resistance and friction consistency that aluminum alone cannot provide. The steel insert handles the wear surface duties while the aluminum body keeps overall weight down. The BBCO bolt pattern accepts standard 11-inch long-style and diaphragm clutches commonly used with Ford Big Block applications.

Note: Aluminum flywheels spin up faster but store less rotational energy, making them easier to stall at low RPM. Best suited for performance-oriented driving rather than rock crawling or low-speed off-road work. Pairing with a dual-disc clutch can help offset driveability concerns. Do not pair with ceramic or bronze clutch discs--the added heat they generate is not compatible with aluminum flywheel surfaces. It is recommended to warm the flywheel before installing on the crankshaft. Made in the USA.

What's Included

• Aluminum flywheel body with riveted steel clutch facing surface
• 176-tooth mechanically retained steel ring gear (pre-installed)

Key Features

• 11.5-inch long pattern diaphragm pressure plate for Ford Big Block Change Over applications
• Organic/organic facings deliver smooth engagement and progressive pedal feel
• 26-spline x 1-1/8-inch hub for TREMEC TKX, TKO, and T56 Magnum transmission compatibility
• 400 lb-ft torque rating ideal for street-driven Ford big blocks
• Hydraulic release design - no throwout bearing included (designed for hydraulic slave systems)
• Sprung hub design absorbs driveline shock and protects transmission synchronizers
• Hand-built in-house with double-checked quality control and exacting tolerances
• 1-year free-from-defect warranty
• Made in the USA

Description

When upgrading a Ford big block to a modern TREMEC transmission, the clutch has to bridge two worlds - the original Ford bolt pattern and a 26-spline input shaft that the factory never anticipated. The Big Block Change Over (BBCO) pattern solves this, and MDL's Superior series clutch set delivers the quality and precision that serious builders demand. Hand-assembled in-house at MDL's Caldwell, Idaho facility, every clutch disc is double-checked for accuracy and tolerances before shipping, so you get a ready-to-install premium piece right out of the box.

The organic/organic facing combination offers the ideal balance for street-driven Ford FE, 385-series, and other big block applications. Unlike harsh ceramic or metallic facings that grab aggressively, organic material provides smooth, progressive engagement that's forgiving in stop-and-go traffic while still delivering a solid 400 lb-ft torque capacity. The 11.5-inch long pattern diaphragm pressure plate delivers consistent clamping force across the full disc face with lighter pedal effort than traditional three-finger Long-style pressure plates.

The 26-spline x 1-1/8-inch hub is purpose-built for TREMEC transmission swaps, mating directly to TKX, TKO, and T56 Magnum input shafts. The sprung hub design dampens driveline shock that would otherwise stress synchronizers and input shaft bearings - critical protection when pairing big block torque with a high-performance manual gearbox. This kit is configured for hydraulic release systems (internal or external slave cylinders), so no mechanical throwout bearing is included.

Every Superior series clutch is backed by MDL's 1-year free-from-defect warranty and lifetime technical support. Made in the USA with the precision and attention to detail that Ford big block builders expect.

What's Included

• 11.5-inch long pattern diaphragm pressure plate
• 26-spline x 1-1/8-inch clutch disc with organic/organic facings and sprung hub
• Ford big block pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

Key Features

• 11.5-inch long pattern diaphragm pressure plate for big block Ford changeover applications
• Kevlar/steel back organic faced clutch disk rated at 500 ft-lbs torque capacity
• 26-spline x 1-1/8-inch hub fits TREMEC TKO, TKX, and T-56 Magnum transmissions
• Hydraulic release profile on clutch fingers for smooth, consistent pedal feel
• Sprung hub design absorbs drivetrain shock and improves shift quality
• Hand-assembled in-house with precision tolerances and double-checked for accuracy
• Big Block Ford pilot bushing and clutch alignment tool included
• Performance Proven engineering - track-tested for street/strip reliability
• Made in the USA with 1-year free-from-defect warranty

Description

The MDL Superior Big Block Change Over (BBCO) clutch kit solves the fitment challenge of adapting modern TREMEC 5-speed and 6-speed transmissions to classic Ford big block engines. The 11.5-inch long pattern design provides the correct geometry for BBF-to-TREMEC swaps, delivering serious torque capacity without sacrificing the smooth engagement characteristics needed for street driving.

This clutch assembly features a diaphragm pressure plate with a hydraulic release finger profile, eliminating the binding and inconsistent pedal feel common with mechanical linkage setups. The Kevlar/steel back organic facing provides excellent heat resistance and progressive engagement - perfect for performance street applications where you need both durability and drivability. At 500 ft-lbs torque capacity, this clutch handles serious power while maintaining a predictable, streetable pedal.

The 26-spline x 1-1/8-inch hub matches TREMEC TKO, TKX, and T-56 Magnum input shafts, making this the ideal upgrade for Ford muscle car transmission conversions. The sprung hub design absorbs drivetrain shock during aggressive shifts, protecting both transmission and differential components while improving overall shift quality.

Every MDL Superior clutch disk is hand-built in-house to exacting tolerances, then inspected and double-checked before boxing. You receive a ready-to-install, Performance Proven clutch assembly backed by a 1-year free-from-defect warranty. Note: This kit is designed for hydraulic throwout bearing systems - throwout bearing sold separately. Made in the USA.

What's Included

• 11.5-inch long pattern diaphragm pressure plate with hydraulic release profile
• Kevlar/steel back organic faced clutch disk - 26-spline x 1-1/8-inch, sprung hub
• Big Block Ford (BBF) pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Big Block Change Over (BBCO) 11.5" long pattern diaphragm pressure plate for Ford 429/460 applications
• Hybrid facing design: Kevlar on pressure plate side, steel-backed organic on flywheel side
• 26-spline x 1-1/8" sprung hub disk for smooth engagement and transmission compatibility
• Profiled clutch fingers for reduced pedal effort in hydraulic release systems
• 650 ft-lbs torque capacity for performance street and strip use
• Hand-assembled in-house with double-riveted construction for durability
• Includes Big Block Ford pilot bushing and alignment tool
• Made in the USA with 1-year free-from-defect warranty

Description

Ford's 385-series big blocks--the 429 and 460--were designed as luxury-car torque monsters, but builders have been putting manual transmissions behind them for decades. The challenge? Finding a clutch that can handle serious torque without requiring a leg press workout at every stoplight. This Superior Series Big Block Change Over clutch kit delivers 650 ft-lbs of torque capacity through an 11.5" long pattern diaphragm pressure plate, giving you the clamping force needed for high-power street and strip duty while keeping pedal effort manageable in hydraulic release setups.

The hybrid friction material strategy is engineered for optimal performance and longevity. Kevlar on the pressure plate side handles initial engagement heat and provides excellent fade resistance under hard use, while the steel-backed organic facing on the flywheel side delivers smooth, progressive engagement for streetable manners. This combination gives you the best of both worlds--aggressive holding power when you need it, civilized behavior when you don't. The profiled clutch fingers ensure even pressure distribution across the entire friction surface.

Every MDL Superior clutch disk is hand-assembled in-house to exacting tolerances. Double-riveted construction ensures the facings stay put under repeated high-load cycles, and each assembly is inspected before it goes in the box. The 26-spline x 1-1/8" sprung hub provides proper damping and matches common Ford performance transmission input shafts. This kit is designed for hydraulic throwout bearing setups--note that the throwout bearing itself is not included.

Compatible with 11.5" long pattern flywheels on Ford big block applications. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• 11.5" long pattern diaphragm pressure plate
• Kevlar/steel-backed organic clutch disk, 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• Flywheel pattern reference chart
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Kevlar/ceramic dual-surface disc for aggressive street and drag applications
• 11.5" long pattern diaphragm pressure plate for Big Block Change Over (BBCO) applications
• 26-spline x 1-1/8" sprung hub absorbs driveline shock
• 650 ft-lb torque capacity rating
• Designed for hydraulic throwout bearing systems
• Big Block Ford pilot bushing included
• Hand-built in MDL's Idaho facility with double quality inspection
• Made in the USA with 1-year warranty

Description

When your Ford big block swap needs serious holding power but you're constrained by the 11.5" long pattern bolt circle, the Superior Kevlar/Ceramic clutch kit delivers. The Kevlar/ceramic friction surfaces provide a higher coefficient of friction than standard organic materials, allowing the same clamping force to hold significantly more power--rated at 650 ft-lb of torque capacity. This makes it ideal for high-horsepower street builds, drag racing launches, and road racing where aggressive engagement is critical.

The ceramic face is engineered for racing applications where quick engagement and extreme heat resistance are essential. MDL's ceramic formulation includes iron content that actually increases friction as temperatures rise, making this clutch stronger under punishment rather than weaker. The Kevlar backing provides smooth street manners while the ceramic face delivers race-proven bite.

The 11.5" long pattern diaphragm pressure plate is specifically designed for Ford Big Block Change Over (BBCO) applications. Every Superior clutch disc is hand-built in MDL's Idaho facility to exacting tolerances, then double-checked for accuracy before shipping. The 26-spline x 1-1/8" sprung hub accommodates common Ford transmission input shafts while absorbing driveline shock for smoother engagement.

This kit is designed for hydraulic release systems--throwout bearing is not included. Includes a Big Block Ford pilot bushing and alignment tool for proper installation. Made in the USA and backed by MDL's 1-year warranty.

What's Included

• 11.5" long pattern diaphragm pressure plate
• 11" Kevlar/ceramic clutch disc with 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• 1-year warranty

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

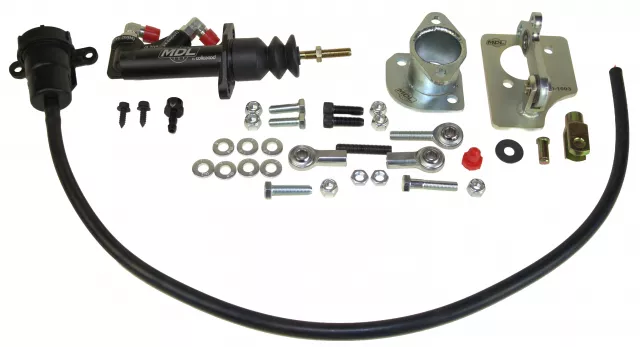

MDL LF Series 66-70 Fairlane/Falcon | 68-71 Torino Clutch Master Kit | .700 Bore | Plastic Reservoir

Whether you are converting your 66-70 Falcon, Fairlane, or Torino to a manual T-5/TKX/T-56 transmission or just wanting to upgrade your current clutch actuation method, the MDL LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The plastic reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Mustang, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote plastic reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

MDL LF Series 66-70 Fairlane/Falcon | 68-71 Torino Clutch Master Kit | .700 Bore | Black Billet Reservoir

Whether you are converting your 66-70 Falcon, Fairlane, or Torino to a manual transmission or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The black billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Ford, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote black billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

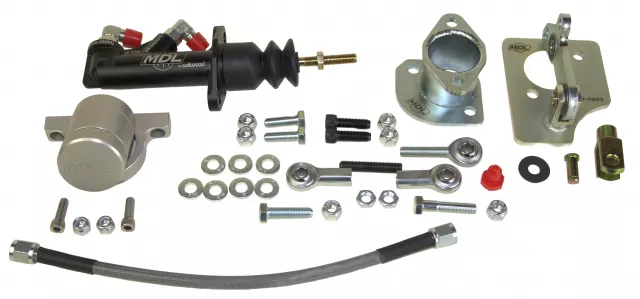

MDL LF Series 66-70 Fairlane/Falcon | 68-71 Torino Clutch Master Kit | .700 Bore | Silver Billet Reservoir

Whether you are converting your 1966-1970 Falcon, Fairlane, or 68-71 Torino to a manual transmission or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The silver billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Ford, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote silver billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

Key Features

• Billet aluminum body and piston precision-machined in-house at Tilton Engineering
• Stainless steel threaded sleeve provides nearly 1.25" of height adjustment (1.77" to 3.00")
• Slip-on installation over stock bearing retainer - no modifications required
• High-temperature mono-seal design with quad tensioner ensures proper seal tension
• Constant contact design self-adjusts for clutch wear, maintaining consistent pedal feel
• Flat face bearing with 1.71" to 3.03" contact diameter fits 8.5" to 11" bent-finger and lever-type clutches
• Full 0.7" piston travel for maximum clutch engagement range
• Double O-ring swivel fittings thoroughly tested to prevent leakage
• Complete kit - steel braided lines, union fitting, and anti-rotation hardware included
• Requires 1.430" bearing retainer guide tube diameter

Description

External slave cylinders create clearance headaches and bellhousing compatibility issues that derail Ford TKO and TKX swaps. The Tilton 6000 Series Hydraulic Release Bearing eliminates those problems entirely. This internal hydraulic design slips directly over the transmission's bearing retainer - no machining, no adapter plates, no fighting for space. The result is a clean installation that works with most bellhousings, including original 4-speed and big block bells that external slaves can't accommodate.

Tilton builds this bearing to race-proven standards. The billet aluminum body and piston are precision-machined in-house at Tilton Engineering, then fitted with a high-temperature mono-seal that incorporates a quad tensioner to maintain proper seal tension under extreme conditions. The constant contact design keeps the bearing face against the pressure plate fingers at all times - no gap to manage, no adjustment as the clutch wears. Pedal feel stays consistent from fresh install through the clutch's entire service life.

The stainless steel threaded adjustment sleeve delivers nearly 1.25" of height adjustability, accommodating bearing heights from 1.77" to 3.00" to work with a wide range of clutch configurations. The flat face bearing design with 1.71" to 3.03" contact diameter is engineered for 8.5" to 11" bent-finger and lever-type pressure plates. With 0.7" of piston travel, this bearing handles aggressive clutch setups without running out of stroke.

Compatible with Ford TKO and TKX transmissions with 1.430" bearing retainer guide tube diameter. Will not work with big-input Toploaders. For a complete hydraulic clutch system, pair with an MDL LF Series Master Clutch Kit and a steel braided line of appropriate length (24" recommended for most applications).

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• Steel braided supply line with AN4 fittings
• Steel braided bleed line with fittings
• Union fitting for main supply line connection
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions
• MDL lifetime technical support

Key Features

• 24-inch stainless steel braided hose with 1/4-inch I.D. and PTFE (Teflon) inner lining
• -4AN female straight fittings on both ends with stainless steel crimp sleeves
• Clear plastic outer coating protects braid and allows visual inspection
• Ideal length for Tilton 6000 HRB units with -4AN male union to firewall-mounted master cylinders
• Pressure tested before shipping for quality assurance
• 100% made in the USA

Description

Hydraulic clutch systems demand leak-free, pressure-resistant fluid lines that won't degrade over time or expand under load. This 24-inch stainless steel braided line delivers the durability and consistent pedal feel that separates a professional hydraulic clutch installation from a compromise. The PTFE (Teflon) inner lining provides excellent chemical compatibility with all common hydraulic fluids while resisting the swelling and deterioration that plague standard rubber lines.

The stainless steel braided construction prevents expansion under pressure, maintaining a firm, responsive clutch pedal. Unlike rubber hoses that can balloon and soften pedal feel, stainless braided PTFE lines keep the inner diameter uniform for efficient fluid transfer. The clear plastic outer coating shields the braid from abrasion, contamination, and corrosion while letting you visually inspect line condition at a glance.

At 24 inches with a 1/4-inch I.D., this line is sized specifically for hydraulic clutch applications. It's an excellent choice when pairing a Tilton 6000 HRB with an -4AN male union to a firewall-mounted or bulkhead-mounted master cylinder. The straight -4AN female fittings on both ends connect directly to standard -4AN male adapters without additional fittings, reducing potential leak points and simplifying installation.

Every line is pressure tested before leaving the facility to verify seal integrity. Premium stainless steel crimp sleeves and fittings ensure a permanent, vibration-resistant connection. Proudly manufactured in the United States.

What's Included

• One 24-inch stainless steel braided hydraulic line with PTFE inner lining
• -4AN female straight fittings pre-crimped on both ends
• Clear plastic protective coating (factory applied)
• Pressure tested before shipping

Key Features

• High-strength, wear-resistant nylon construction outlasts original bushings
• 5/8" length matches original Ford B7AZ-2471-A specifications
• Fits 5/8" OD pedal pivot shafts
• Works in both clutch and brake pedal assemblies
• Manual transmission cars require six bushings; automatics require four
• Fits 1960-2004 Ford Mustang, Cougar, Fairlane, Falcon, and many Ford applications

Description

Worn pedal bushings create sloppy, imprecise pedal feel that only gets worse with every drive. This high-strength nylon bushing restores tight, responsive pedal action by eliminating the play and binding that develops when original bushings deteriorate over decades of use.

Made from durable, wear-resistant plastic, this bushing handles the constant pivoting forces of clutch and brake pedal operation without cracking or wearing out prematurely. The precise 5/8" length matches the original Ford B7AZ-2471-A specification for correct pedal geometry and feel.

This bushing works in both clutch and brake pedal assemblies that share the same 5/8" OD pivot shaft. Manual transmission cars require six bushings total—four in the common pivot shaft plus two additional at the clutch pedal. Automatic cars need four bushings. Note that '67 and later Mustangs with power brakes only require two bushings at the clutch pedal, since the power brake lever pivots on a separate shaft.

Direct replacement for Ford part number B7AZ-2471-A. Fits 1960-2004 Ford applications including Mustang, Cougar, Fairlane, Falcon, and many others.

** For GM application see part number MD-402-1009

What's Included

• One high-strength nylon pedal shaft bushing (5/8" length)

Key Features

• Steel roller bearings replace failure-prone factory plastic bushings
• Reduces clutch pedal effort and delivers smoother, more consistent pedal travel
• Zinc-plated pivot supports clip directly into factory pedal hanger openings
• Includes reinforcement washer for worn pedal hangers - weldable for permanent repair
• Direct replacement for Ford part number C5ZZ-2478-RB
• Fits 1965-1973 Mustang plus many other 1960s-70s Ford applications

Description

Factory plastic pedal bushings are one of the most common failure points in classic Mustang clutch systems. They wear quickly, creating sloppy pedal feel, increased effort, and inconsistent clutch engagement. This roller bearing kit permanently solves that problem by replacing those soft plastic pieces with steel roller bearings that deliver smooth, precise pedal action for years.

The roller bearing design dramatically reduces friction at the pivot point, translating directly to lighter pedal effort and more tactile clutch feel. Instead of fighting a sticky, binding pedal during spirited driving, you get consistent engagement every time. The zinc-plated roller bearing supports clip directly into your existing factory mounting points, maintaining OEM appearance while delivering superior durability.

For pedal hangers that show wear from years of use, the kit includes a reinforcement washer that can be welded in place to restore structural integrity before installing the new bearings. This is a straightforward upgrade once the pedal support assembly is removed from the vehicle. Note that 1969-1973 applications may require minor modification to the pedal bracket assembly for proper fitment.

Designed as a direct replacement for Ford part number C5ZZ-2478-RB, this kit fits 1965-1973 Mustangs and works with many other Ford applications from the same era. If your clutch pedal feels agricultural instead of precise, worn bushings are likely the culprit - and this kit is the permanent fix.

Kit Includes

• Steel roller bearing clutch pedal pivot supports (zinc-plated)
• Reinforcement washer for worn pedal hanger repair
• Mounting hardware

Key Features

• Removable pivot shaft for simplified installation without wrestling the assembly through tight firewall clearances
• Laser-cut steel construction with precision CNC bends for consistent fitment
• OEM replacement design maintains factory mounting points and pedal geometry
• Swing-mounted pedal configuration for proper ergonomics and travel
• Compatible with automatic-to-manual conversions using existing pedal support bracket
• 100% made in the USA

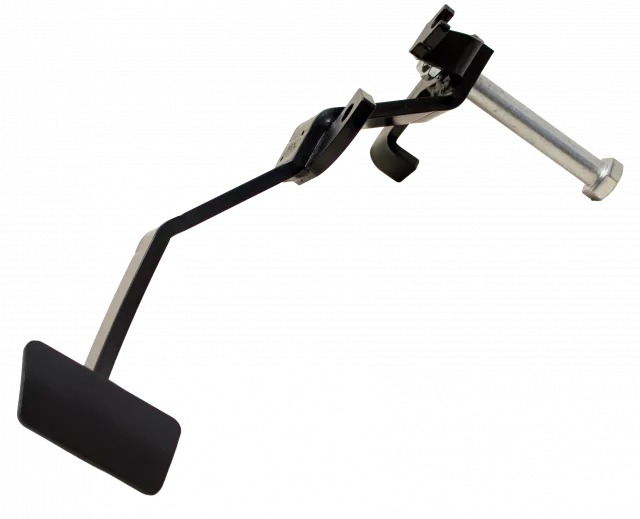

Description

Stop hunting through salvage yards for corroded, worn-out original clutch pedals. This MDL clutch pedal assembly delivers a brand-new, precision-manufactured solution for your '70-'71 Falcon or Torino manual transmission conversion or restoration. The removable pivot shaft design is the key differentiator here--it allows you to install the complete assembly without fighting to maneuver the entire pedal through cramped firewall openings or dealing with seized pivot points that plague decades-old factory parts.

MDL engineers this pedal using laser-cut steel and CNC-formed bends rather than traditional stamping methods. This manufacturing approach produces cleaner edges, tighter tolerances, and eliminates the weak points found in lesser reproductions. The result is a pedal that maintains proper geometry under load and delivers consistent clutch feel mile after mile.

When converting from an automatic transmission, the stock pedal support bracket is retained and your existing brake pedal gets trimmed on the left side to accommodate clutch operation. This approach preserves the factory mounting structure while providing the necessary clearance for manual transmission operation. The swing-mounted design ensures proper pedal travel and driver ergonomics that match original Ford specifications.

Fits 1970-1971 Ford Falcon and Torino models. Whether you're performing a full automatic-to-manual swap or replacing a worn original pedal assembly, this MDL pedal provides the fit and durability your build demands. Proudly made in the USA.

What's Included

• Laser-cut steel clutch pedal assembly with CNC-formed bends
• Removable pivot shaft
• Lifetime MDL technical support

Clutch & Manual Brake Pedal Pad Kit with Trim Rings | 1965-1968 Mustang

Key Features

• Complete two-pad kit for clutch and manual brake pedals
• Stainless steel trim rings included for factory-correct appearance
• Textured rubber surface provides secure grip under hard braking and clutch engagement
• Direct-fit replacement slides over factory metal pedal pads
• Fits 1965-1968 Mustang and Cougar, plus 1966-73 Fairlane, Falcon, and Torino
• Proudly made in the USA

Description

Worn, cracked, or missing pedal pads compromise both safety and the finished look of your interior. Over time, factory rubber pads lose their textured grip surface, split at the edges, or fall off entirely, leaving bare metal that's slick under foot and rough on the eyes. This complete pedal pad kit restores proper grip and original appearance to manual transmission Ford classics.

Each kit includes replacement pads for both the clutch and manual brake pedals, engineered to slip directly over your existing factory metal pedal faces. The durable rubber compound features the correct textured surface pattern for secure foot placement during aggressive driving, heel-toe downshifts, or everyday cruising. Stainless steel trim rings complete the package, delivering the polished factory-correct finish that sets a quality restoration apart.

Application coverage spans the full range of mid-60s to early-70s Ford platforms sharing this pedal design: 1965-1968 Mustang and Cougar, plus 1966-1973 Fairlane, Falcon, and Torino. Whether you're finishing a full restoration, completing a manual transmission conversion, or simply refreshing tired pedals, this kit delivers the components you need. Engineered for quality and long service life, made in the USA.

Kit Includes

• Clutch pedal pad with textured rubber grip surface
• Manual brake pedal pad with textured rubber grip surface
• Stainless steel trim ring for clutch pedal
• Stainless steel trim ring for brake pedal

Key Features

• Complete clutch and brake pedal pad replacement kit for disc brake applications
• Stainless steel trim rings restore factory-correct polished appearance
• Direct-fit replacement for worn or missing original pedal pads
• Fits 1965-1968 Mustang/Cougar and 1966-1973 Fairlane/Falcon/Torino
• Engineered and carefully crafted for quality and long service life
• Made in the USA

Description

Factory pedal pads take decades of abuse from boots, sneakers, and bare feet. The original rubber deteriorates, cracks, and eventually disintegrates entirely--leaving you with bare metal pedals that compromise grip and destroy the period-correct look of your interior. This complete pedal pad kit restores both safety and factory appearance with precision-manufactured replacements designed specifically for disc brake-equipped manual transmission cars.

Each kit delivers both clutch and brake pedal pads engineered to replicate factory specifications, complete with stainless steel trim rings that duplicate the original polished appearance. The pads feature correct ribbing patterns for secure grip and are manufactured from durable materials built to last another few decades. Installation is straightforward--the pads slip over your existing factory metal pedal faces for a direct replacement that requires no modification.

Applications span the classic first-generation Mustang era from 1965-1968, Mercury Cougar from the same years, plus the broader Ford intermediate lineup including Fairlane, Falcon, and Torino through 1973. Specifically designed for disc brake applications--if you have drum brakes, you need the manual brake version instead. Proudly made in the USA with the quality and attention to detail that ensures proper fit and long service life.

Kit Includes

• Clutch pedal pad
• Disc brake pedal pad
• Stainless steel trim rings (2)

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Billet aluminum trim ring with ball-milled edges for premium show-quality appearance
• Outer dimensions: 6-3/4" x 5-1/4" - fits standard floor-mount shifter openings
• Inner dimensions: 5-1/2" x 4" - accommodates most aftermarket shifter levers
• Black Naugahyde construction for durability and classic hot rod styling
• Foam rubber seal eliminates airflow and road noise through floor opening
• Boot hugs shifter lever cleanly - no unsightly pull ties or laces
• Includes stainless steel mounting screws for secure installation
• Made in the USA with lifetime warranty

Description

A cheap shift boot can ruin an otherwise clean interior build. This Lokar rectangular shift boot delivers the finishing touch your hot rod or muscle car deserves, combining durable black Naugahyde construction with a precision-machined billet aluminum trim ring featuring ball-milled edges. The result is a show-quality appearance that complements everything from traditional street rods to resto-mod builds.

The engineering centers on a smart billet bezel design that sits atop the boot and fits over the shifter lever. A foam rubber seal underneath blocks airflow and road noise from entering through the floor opening - a critical comfort detail that cheaper boots ignore. Unlike bargain alternatives that use visible pull ties or laces, this boot hugs the shifter lever for a clean, integrated look with no exposed fasteners marring your interior.

With outer dimensions of 6-3/4" x 5-1/4" and inner dimensions of 5-1/2" x 4", this rectangular boot fits standard floor-mount and cable-operated shifter applications. The rectangular footprint is specifically designed for floor-mount shifters rather than transmission-mounted units, making it the correct choice for TREMEC TKX, TKO, and T-56 Magnum installations in vehicles without center consoles. The complete kit includes everything needed for a straightforward installation.

Kit Includes

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 63" cable length engineered specifically for T5, TKO, TKX, and AOD transmission swaps
• OEM-style clip connection mates directly with factory mechanical speedometer
• Direct fitment for 1969-1973 Mustang and Cougar applications
• Ford slip-in driven gear connection at transmission end
• Drop-in solution for five-speed and AOD conversions

Description

Swapping a T5, TKO, TKX, or AOD into your '69-'73 Mustang or Cougar means the stock speedometer cable won't reach or route correctly. This 63" speedometer cable delivers the correct length for proper routing from the transmission to your factory mechanical speedometer, eliminating the binding, kinking, or slack that comes with using a generic or incorrect-length cable.

The cable features OEM-style clip connections at the speedometer head, ensuring direct compatibility with your factory gauge cluster without modification. At the transmission end, the cable uses a Ford slip-in connection that interfaces with the driven gear housing on T5, TKO, TKX, and AOD transmissions. This is the correct cable for maintaining your mechanical speedometer function after a modern drivetrain swap.

Unlike screw-on or barrel-style cables used in other Mustang years, '69-'73 models require this clip-style termination. If you're running long-tube headers, consider wrapping the cable where it routes near the exhaust to protect it from heat.

What's Included

• 63" speedometer cable with clip-style speedometer connection
• Ford slip-in transmission connection

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• Forged chromoly steel construction for maximum strength in high-horsepower applications
• 28-spline internal configuration for TREMEC and Ford transmissions
• 1330 series U-joint with 1-1/16-inch bearing cups
• 5.910-inch centerline-to-end length with 4.500-inch barrel
• 1.499-inch journal diameter for proper seal contact
• Black oxide finish inhibits rust and pitting
• Precision-machined splines mate smoothly with output shaft
• Smooth outer journal promotes proper fore/aft yoke action and prevents leaks
• Made in the USA

Description

Converting to a TREMEC manual or Ford automatic transmission often requires upgrading your slip yoke to handle increased torque and ensure proper driveline function. Factory cast yokes can become the weak link in a high-performance build -- this Sonnax forged chromoly slip yoke delivers the strength and precision your drivetrain demands, whether you're on the street, drag strip, or dirt oval track.

Forged from chromoly steel rather than cast, this 28-spline slip yoke starts with a material that offers superior tensile strength under load. All dimensions are precision-machined to guarantee a consistent, concentric slip yoke that eliminates vibration and binding. The clean-cut splines mate smoothly with the transmission output shaft, while the smooth outer journal provides uniform contact with the tail housing seal to prevent leaks and promote proper fore/aft yoke action.

The 1330 series U-joint configuration accepts bearing caps measuring 1-1/16 inches, providing the right balance of strength and serviceability for most street and performance applications. With a centerline-to-end length of 5.910 inches, a 4.500-inch barrel, and a 1.499-inch journal diameter, this yoke is built to OEM dimensional standards while exceeding factory strength.

Compatible with TREMEC TKO, TKX, Magnum, select T56, Ford C6, FMX, C4, AOD/AODE, T5, and Toploader transmissions. The black oxide finish resists corrosion while maintaining the precision surface finish required for optimal seal performance. Made in the USA.

What's Included

• One Sonnax forged chromoly slip yoke with black oxide finish
• 28-spline internal configuration
• 1330 series U-joint bores (1-1/16-inch bearing cup size)
• Lifetime technical support from MDL

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)
