Tremec Super Duty T5 5-Speed | 1983-1993 Ford Mustang V8 | 2.95 First, 0.63 OD | Stock Shifter

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• 7-tooth speedometer drive gear (6 and 8-tooth available)
• Just 75 lbs dry - TREMEC's most compact transmission
• Direct replacement for 1983-1993 V8 Mustangs
• Optional 0.73:1 overdrive ratio available
• Shifter Stub Location: straight up on center line, 19.50” back from the bellhousing face

Description

Need overdrive performance in a tight engine bay? The TREMEC Super Duty T5 is the answer. As the smallest and lightest transmission in the TREMEC lineup, it fits where others simply cannot - making it the go-to choice for classic car retrofits, hot rods, and kit cars where space is at a premium. At just 75 lbs dry weight, you get 5-speed capability without the bulk of larger transmissions.

This Z-specification unit represents a significant upgrade over the original equipment T5s found in '83-'93 Mustangs. Where the '83-'84 non-World Class units ran a 2.95 first with 0.63 overdrive but suffered from weaker synchronizers, and the '85-'93 World Class versions switched to a 3.35 first with 0.68 overdrive, the Super Duty combines the best of both worlds: the preferred 2.95/0.63 gear set with World Class internals including carbon fiber synchro rings on gears 1-4, tapered carrier bearings, and main needle bearings. The steel front bearing retainer and Cobra-style pocket bearing eliminate common failure points that plagued earlier designs.

The 2.95 first gear provides strong acceleration off the line, while the deep 0.63 overdrive significantly reduces highway RPM - cutting noise, heat, and wear while improving fuel economy. This transmission safely handles 330 ft-lb of torque and is suitable for street cars up to 450 horsepower on DOT-approved tires. It serves as a direct replacement for 1983-1993 V8 Mustangs and is ideal behind any small-block Ford engine, or as an upgrade for inline-four and six-cylinder applications. Requires 2.75 quarts of ATF Dexron III fluid.

For 1994-1995 5.0L V8 Mustangs or 1994-1998 3.8L V6 Mustangs, see part number MD-552-0251-94 for the SN95 version with longer input shaft.

What's Included

• TREMEC Super Duty T5 transmission assembly (TREMEC part number 1352-251) with 2.95, 1.94, 1.34, 1.00, 0.63 gear ratios
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• Fill and drain plugs
• Installation instructions
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from Modern Driveline

Qwik Stik Short-Throw Shifter | T5/T45 | 1965-1973 Mustang

Key Features

• Close-ratio/short-throw design for lightning-quick shifts
• 1" or 1.5" backward offset positions shifter in factory location
• Precision-machined billet aluminum construction for weight savings
• Small top turret clears tight floor openings
• Belleville washer detent system delivers crisp 2-3 shifts
• No stops to break or service--spring-loaded design allows easy maintenance
• 7/8" on-center stub mounting fits most aftermarket shift levers
• High-temperature lower dust/oil boot included
• Red anodized finish for corrosion resistance
• Proudly made in the USA

Description

Swapping a TREMEC T5 (with Mustang tail housing) or T45 into a '65-'73 Mustang often leaves the factory shifter position off by inches. The Qwik Stik solves that problem with precision-machined billet aluminum plates that bolt directly to the transmission, bringing the shift lever back to the factory location with a 1" or 1.5" backward offset. No more guessing, shimming, or cutting--just attach your lever, boot, and knob and you're ready to row gears.

Unlike traditional shifters that rely on internal stops, the Qwik Stik uses Belleville washers to create excellent detent feel. This spring-loaded design eliminates the breakable stops found in other shifters while delivering crisp, precise 2-3 shifts. When service is eventually needed, the stop-free design makes disassembly and reassembly straightforward.

The compact top turret is sized specifically to clear the factory floor opening in early Mustangs, and the 7/8" on-center stub mounting accepts most aftermarket shift levers. A high-temperature lower dust/oil boot protects the internal components from contamination and fluid loss. Note: This shifter is designed for rear shifter position and rear socket position only. It will not fit Camaro or S-10 T5 transmissions.

Proudly manufactured in the USA from billet aluminum with a durable black anodized finish. Compatible with TREMEC T5 transmissions equipped with Mustang tail housings and T45 transmissions.

What's Included

• Billet aluminum Qwik Stik shifter assembly (red anodized)
• High-temperature lower dust/oil boot
• Belleville washers
• 1" or 1.5" backward offset stub
• Lifetime technical support: 208-453-9800

Key Features

• SFI 6.1 certified steel scattershield for high-performance and racing applications
• Spun cone construction (not rolled or stamped) delivers superior dimensional stability and concentricity
• High-grade steel work-hardens to over 80,000 PSI strength - more than 2x stronger than other steel bellhousings
• Fits Ford 5-bolt small blocks: 221, 260, and early 289 engines (through August 1964)
• Mates to TREMEC T5, TKO, TKX, and TR3550 transmissions
• 6.950-inch height with 4.85/4.91/5.12-inch transmission bore diameters
• Accepts 10.5-inch clutch disc with 157-tooth flywheel
• Requires 6-bolt block style clutch release arm
• Patent pending on 16 points of bellhousing design and process
• 100% built in the USA

Description

Finding a high-strength bellhousing for early Ford 5-bolt small blocks has always been a challenge - until now. The QuickTime RM-6067 delivers SFI 6.1 certified protection specifically engineered for 221, 260, and early 289 engines built through August 1964, mating them to modern TREMEC T5, TKO, TKX, or TR3550 transmissions. Whether you're building a period-correct '64-1/2 Mustang or dropping a numbers-matching 260 into a Falcon, this bellhousing solves the 5-bolt fitment puzzle with race-proven strength.

QuickTime's manufacturing advantage lies in their spun cone construction. Unlike competitors who roll or stamp their cones, QuickTime spins theirs from high-grade steel that work-hardens to over 80,000 PSI - delivering more than twice the strength of any other steel bellhousing on the market. This precision process creates the most dimensionally stable bellhousing available, keeping your engine and transmission in perfect alignment through the entire RPM range. The result? Eliminated drivetrain flex, reduced wear, and maximum power transfer to the wheels.

The RM-6067 features a 6.950-inch height and accepts multiple transmission bore diameters (4.85/4.91/5.12 inches) for broad TREMEC compatibility. It's designed for use with 10.5-inch clutch discs and 157-tooth flywheels. Note that this application requires a 6-bolt block style clutch release arm - the bellhousing uses the 6-bolt fork configuration while bolting to your 5-bolt engine block. This bellhousing is compatible with cable, hydraulic, or mechanical clutch release setups.

Developed with input from OEM engineers, transmission builders, racers, and enthusiasts, QuickTime holds patents pending on 16 points of bellhousing design and process innovation. When your build demands the strongest, most accurate bellhousing available for early Ford small blocks, the RM-6067 delivers - proudly made 100% in the USA.

What's Included

• QuickTime RM-6067 steel bellhousing with black finish
• Full engine block plate
• Grade 8 mounting bolts
• Pivot ball fork brackets
• 4.850-inch register ring
• Installation instructions
• Lifetime technical support from Modern Driveline

Key Features

• Complete fastener set for mounting Ford T5 transmission to Small Block Ford steel bellhousing
• Metric thread transmission-to-bellhousing bolts sized specifically for T5 applications
• Eliminates hardware store guesswork with correct thread pitch, length, and head style
• Proper fastener grade for secure drivetrain connection
• Direct replacement for worn, stripped, or missing factory hardware

Description

Installing a Ford T5 transmission with a steel bellhousing means dealing with hardware that's easy to get wrong. The T5's transmission-to-bellhousing bolts are metric thread--a detail that catches many builders off guard when mixing SAE and metric fasteners. This install hardware kit from MDL provides the correct fasteners for Small Block Ford steel bellhousing applications, so you're not hunting through bins at the hardware store trying to match thread pitch and head size.

Steel bellhousings require specific bolt lengths and configurations that differ from aluminum bellhousing setups. This kit is assembled specifically for SBF steel bellhousing applications, ensuring proper thread engagement and secure mounting. Whether you're completing a 5-speed swap, replacing corroded hardware during a rebuild, or upgrading from a worn factory set, having the right fasteners eliminates fitment headaches.

The kit includes all necessary fasteners to complete the bellhousing-to-transmission connection. Each component is selected for the correct thread size and grade to handle the loads a drivetrain connection demands.

What's Included

• Transmission-to-bellhousing mounting bolts (metric thread) [VERIFY: exact quantity and dimensions]
• Associated washers and hardware as required for steel bellhousing installation [VERIFY: complete contents list]

Key Features

• Direct-fit replacement for 1979-1993 Fox-Body Mustang cable-style bellhousings
• Compatible with both factory cable actuation and external hydraulic slave cylinder setups
• Works with TREMEC T5, TKO, and 1993 & earlier Windsor T56 transmissions
• Correct 9 o'clock fork position specific to Fox-Body applications - not interchangeable with SN95 forks
• Proper pivot point geometry for reliable clutch engagement

Description

When you're building or maintaining a Fox-Body Mustang with a manual transmission, using the correct clutch fork isn't optional - it's critical. This clutch lever is specifically engineered for 1979-1993 Mustangs and delivers the proper pivot geometry required for clean, consistent clutch engagement with cable-style bellhousings.

The Fox-Body clutch fork positions at the 9 o'clock location when viewed from the rear of the bellhousing - a distinctly different orientation than the SN95's 7 o'clock position. This isn't just a cosmetic difference: the lever length and pivot points are purpose-built for Fox applications. Using the wrong fork creates severe cable angle problems, premature cable wear, and inconsistent clutch feel. SN95 forks are longer with different pivot spacing and cannot be substituted.

This fork works equally well whether you're running the original cable actuation or upgrading to an external hydraulic slave cylinder. When paired with external hydraulics, the fork operates as a pusher instead of the traditional cable pull - eliminating the stretching, snapping, and binding issues that plague factory clutch cables over time. The result is smoother pedal effort and more reliable engagement, especially with high-performance clutches.

Compatible with 1979-1993 Mustang applications running TREMEC T5, TKO, or 1993 & earlier Windsor T56 transmissions. Requires a compatible cable-style small-block bellhousing for proper fitment.

What's Included

• One (1) clutch fork/lever for 1979-1993 Fox-Body Mustang

Key Features

• Dual clutch pattern accepts both 10" long-style and 10.4" metric diaphragm clutches — upgrade to high-performance clutch setups without swapping flywheels
• 157-tooth ring gear for compatibility with small-diameter bellhousings and starters
• 28oz external imbalance matches pre-1981 Ford small block engines (260, 289, 302, 351W, 351C)
• 6-bolt crank mounting pattern with 7/16" bolts
• Cast iron construction weighing 19 lbs for smooth idle characteristics and excellent heat absorption
• Precision machined to improve clutch performance, durability, and reduce vibration
• Pre-installed metric alignment pins for accurate 10.4" clutch indexing
• Replaces OEM part numbers C3AZ-6375-J and C3AZ-75-A

Description

Running a classic Ford small block and want flexibility in your clutch setup? This dual-pattern cast iron flywheel eliminates the one-flywheel-per-clutch-size limitation that plagues so many builds. The machined face accepts both the 10" long-style diaphragm clutches found in vintage applications and the 10.4" metric diaphragm clutches used on high-performance '79–'01 Mustangs — so you can start with a stock-style clutch and upgrade to a higher-capacity unit later without pulling the flywheel.

Cast iron construction delivers the rotating mass needed for civilized street manners: smooth idle, progressive engagement, and excellent heat absorption during stop-and-go driving. The 157-tooth ring gear mates with the smaller-diameter bellhousings and starters common on '64–'68 Mustangs and other early Ford small block applications. Precision machining ensures a flat, true friction surface that improves clutch performance and reduces vibration.

The 28oz external imbalance is correct for pre-1981 Ford Windsor and Cleveland engines — 260, 289, 302, 351W, and 351C. (Post-1981 5.0L engines use a 50oz imbalance; verify your engine's balance before ordering.) The 6-bolt crank pattern with 7/16" hardware provides a secure connection to the crankshaft flange.

Compatible with 3-speed, 4-speed, and T5 5-speed manual transmissions. While cast iron flywheels work for light motorsports use, understand the RPM and load limits — billet steel offers better stability for sustained high-RPM or competition applications.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and dual clutch pattern (10" long / 10.4" metric)
• Pre-installed metric alignment pins for 10.4" clutch pattern
• Clutch alignment pins

Key Features

• Cast iron construction for durability and heat dissipation in street applications
• 157-tooth ring gear for proper starter engagement with small-block Ford bellhousings
• 50oz external balance engineered specifically for 1981-1995 Ford 5.0L Windsor engines
• 10.4" metric clutch pattern with equalizing pin holes for diaphragm-style pressure plates
• 6-bolt crankshaft mounting pattern matches Ford factory configuration
• 19 lbs flywheel weight provides optimal rotational mass for smooth street driving
• Includes clutch alignment pins for precise pressure plate installation

Description

When Ford switched the 302 to the 5.0L designation in 1981, they also changed the external balance from 28oz to 50oz. That means every '81-'95 5.0L Windsor needs a flywheel with the correct counterweight to maintain proper engine balance and eliminate vibration. This cast iron flywheel delivers exactly that - the right balance for your late-model small-block Ford, with the 157-tooth ring gear that mates to standard small-block bellhousings and starters.

The 10.4" metric clutch pattern is a Ford-specific design that uses alignment pins rather than shouldered bolts to locate the pressure plate. These equalizing pins ensure precise concentricity between the pressure plate and flywheel - critical for smooth clutch engagement and even wear. The metric pattern accommodates modern diaphragm-style pressure plates with 8mm hardware, making it compatible with factory and aftermarket clutch assemblies designed for '83-'95 Mustangs and other 5.0L applications.

Cast iron provides the strength and thermal stability needed for street duty, absorbing and dissipating heat through repeated clutch engagements without the hot spots that can develop on lighter materials. At 19 lbs, this flywheel maintains enough rotational mass for smooth idle and progressive engagement - the kind of drivability you want in a daily driver or weekend cruiser. The 6-bolt crankshaft pattern bolts directly to the factory crank flange with no adapters or modifications required.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and 50oz counterweight
• Clutch alignment pins for 10.4" metric pressure plate installation

Key Features

• Billet steel construction weighing just 19 lbs - significantly lighter than cast iron OEM units
• 157 tooth ring gear for compatibility with small bellhousings and starters
• Zero balance (internally balanced) for stroker motors and Ford Racing crate engines
• Dual clutch bolt patterns for 10" and 10.5" diaphragm clutch assemblies
• 6-bolt crankshaft mounting pattern for direct Ford small block fitment
• Clutch alignment pins included for precision disc positioning
• Made in the USA

Description

When you're building a high-output Ford small block that needs to shed rotating mass without sacrificing durability, this Lighten Billet Steel Flywheel delivers. Machined from billet steel and weighing just 19 pounds, it removes significant weight compared to cast iron factory flywheels - translating to quicker engine response and faster acceleration through the gears.

The 157 tooth ring gear works with small-pattern bellhousings and corresponding starters, making it the right choice for classic Mustangs and other Ford applications using the compact bellhousing configuration. Zero balance (internally balanced) design means this flywheel pairs with internally balanced rotating assemblies - including stroker builds, aftermarket cranks, and Ford Racing's 363 and 427 cubic inch crate engines.

Dual clutch bolt patterns accept both 10" and 10.5" diaphragm clutch assemblies, giving you flexibility whether you're running a stock-replacement clutch or upgrading to a higher-capacity performance unit. The 6-bolt crankshaft pattern provides direct fitment to Ford 289, 302, and 351 Windsor engines. Included alignment pins ensure proper clutch disc positioning during installation.

Compatible with Ford 289, 302, and 351 Windsor engines requiring zero balance. Also fits Ford Racing 363ci and 427ci performance engines. Made in the USA.

Kit Includes

• Lighten Billet Steel Flywheel (19 lbs)
• Clutch alignment pins

Key Features

• SFI certified billet steel construction for high-RPM safety and durability
• 157-tooth ring gear for classic Ford small block applications
• Zero balance (internally balanced) - no external counterweight required
• Dual clutch pattern: 10" long and 10.4" metric diaphragm compatible
• 6.00" clutch damper counter-bore diameter
• 6-bolt crankshaft mounting pattern
• Weight: [VERIFY: Product description states 22 lbs, custom field states 19 lbs - confirm correct weight]
• Pre-installed metric alignment pins for 10.4" clutch setup
• Made in the USA with US-milled steel

Description

When you're building a high-revving Ford small block, your flywheel needs to handle the abuse without becoming a liability. Cast iron flywheels can crack under stress, and non-certified components may not meet the safety standards required at the track. This SFI certified billet steel flywheel delivers the strength and peace of mind that serious builds demand - meeting the rigorous testing standards established by the SFI Foundation for replacement flywheels and clutch assemblies.

The billet steel construction provides superior tensile strength compared to cast alternatives, resisting the centrifugal forces that tear lesser flywheels apart at high RPM. The lightweight design reduces rotating mass for quicker throttle response and faster revs, while maintaining enough thermal mass for consistent clutch engagement. Zero balance (internal balance) simplifies installation on Ford 289, 302, 351W, and 351C engines that use internally balanced rotating assemblies.

Versatility is built into the design with dual clutch bolt patterns. The 10" long pattern accepts 5/16" pressure plate bolts, while the 10.4" metric pattern uses 8mm bolts - and the metric alignment pins come pre-installed so you're ready for either setup. The 6.00" clutch damper counter-bore provides proper clearance for diaphragm-style pressure plates. Note that 157-tooth flywheels require a 3/4" offset starter (often labeled as "automatic" in parts catalogs) for proper ring gear engagement.

Manufactured in the USA with US-milled steel, this flywheel delivers the quality and consistency that American craftsmanship is known for. Whether you're building a weekend warrior or a dedicated track car, SFI certification means this flywheel meets the standards required by most sanctioning bodies for competition use.

Kit Includes

• Billet steel flywheel with 157-tooth ring gear
• Pre-installed 10.4" metric clutch alignment pins

Key Features

• Lighten billet steel construction resists stress cracking and handles higher RPM loads than cast iron
• 157-tooth ring gear with 28oz external imbalance for pre-1982 Ford 289/302/351W engines
• Dual clutch bolt patterns accommodate both 10" and 10.5" pressure plates
• 19 lb weight balances reduced rotational mass with smooth street drivability
• 6-bolt crankshaft mounting pattern; clutch alignment pins included
• Compatible with Ford Racing 363/427ci crate engines
• Precision-machined from US-milled steel; Made in the USA

Overview

Factory cast iron flywheels have their limits. At high RPM or under aggressive clutch clamping loads, they can develop stress cracks that compromise both performance and safety. This lighten billet steel flywheel replaces that weak link with a material that's fundamentally stronger—billet steel resists cracking and remains stable under the demands of performance driving.

The "lighten" designation refers to strategic material removal that reduces rotational mass without sacrificing structural integrity. At 19 lbs, this flywheel strikes the sweet spot between weight reduction and street manners—light enough for improved throttle response and quicker revs, yet heavy enough to maintain smooth idle characteristics and prevent the stalling issues common with ultra-lightweight aluminum units. The result is a flywheel that feels responsive on throttle tip-in while still delivering civilized behavior in traffic.

Dual clutch bolt patterns machined into the friction surface eliminate fitment guesswork, accepting both 10" and 10.5" pressure plates. The 157-tooth ring gear and 28oz external imbalance match OE specifications for pre-December 1982 small block Fords, ensuring proper starter engagement and crankshaft balance. This flywheel fits Ford 289, 302, and 351W Windsor engines, plus Ford Racing 363ci and 427ci stroker crate motors that use the 28oz balance specification.

Six-bolt crankshaft mounting provides secure attachment, while included clutch alignment pins ensure proper disc positioning during installation. Every flywheel is precision-machined from US-milled steel and manufactured in the USA.

What's Included

• Lighten billet steel flywheel (19 lbs)
• 157-tooth ring gear (installed)
• Clutch alignment pins

Billet Steel SFI Flywheel | Ford Small Block | 157 Tooth | 28oz | 10"-10.5" Clutch

Key Features

• Lightened billet steel construction -- stronger than cast iron with reduced rotational mass at just 19 lbs
• SFI certified for racing sanctioning bodies requiring SFI-rated drivetrain components
• 28oz external balance for pre-1982 Ford 221, 260, 289, 302, and 351W engines
• Dual bolt pattern accepts both 10" and 10.5" clutch assemblies
• 157-tooth hardened ring gear for proper starter engagement
• Six-bolt crankshaft mounting pattern -- standard Ford small block fitment
• CNC-machined friction surface for consistent clutch engagement
• Made in the USA with lifetime technical support from MDL

Description

Cast iron flywheels can't handle serious RPM or the repeated abuse of high-horsepower launches. This billet steel flywheel is precision CNC-machined from certified steel, engineered to survive the stress levels that crack and shatter cast units. At 19 pounds, it sheds significant rotating mass compared to heavy OEM flywheels -- translating to quicker revs, faster deceleration between shifts, and reduced parasitic drag on the crankshaft.

The 28oz external balance is critical: all Ford 221, 260, 289, 302, and 351W engines built before December 1982 use a 28-ounce offset balance. Mismatch the balance weight and you'll introduce severe harmonic vibration that punishes bearings and shortens engine life. Post-1981 5.0L High Output engines switched to a 50oz balance -- this flywheel is not for those applications. Match your balance weight to your engine's build date, not the vehicle year.

The dual bolt pattern accommodates both 10" and 10.5" clutch assemblies, giving you flexibility when selecting or upgrading your pressure plate without swapping flywheels. The 157-tooth ring gear is the standard configuration for most small block Ford manual transmission applications in vintage Mustangs, Falcons, Fairlanes, and similar platforms.

SFI certified for competition use where sanctioning bodies require rated flywheel and clutch assemblies. Compatible with Ford small block Windsor engines using the standard six-bolt crankshaft mounting pattern and requiring 28oz external balance. Made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel (19 lbs) with CNC-machined friction surface
• 157-tooth hardened steel ring gear (installed)
• 28oz external balance weight (installed)
• Clutch alignment pins
• Lifetime technical support from MDL

Key Features

• Billet steel construction - stronger than cast iron, resists stress cracking at high RPM
• Lightened design at 22 lbs. [VERIFY: custom field lists 19 lbs., description states 22 lbs.] - reduced rotational mass for improved throttle response
• 50oz external balance - correct for factory 1981-1995 Ford 5.0L Windsor engines
• Dual clutch pattern - accommodates both 10.5" metric diaphragm and 10" long-style pressure plates
• 157-tooth ring gear for high-performance starter applications
• 6-bolt crankshaft mounting pattern
• 6.00" clutch damper counter-bore
• Metric alignment pins pre-installed - eliminates installation guesswork
• Made in the USA with domestically-milled steel

Description

Factory cast iron flywheels become the weak link when you push serious power through a 5.0L Windsor. Cast iron is prone to stress cracking under repeated high-RPM clutch engagement, and a cracked flywheel at speed is a catastrophic failure waiting to happen. This lightened billet steel flywheel delivers the strength needed for high-performance street builds and competition use while shaving weight to improve engine response.

Billet steel is considerably stronger than cast iron and remains free of the stress cracks that plague factory flywheels under heavy use. The lightened design reduces rotational mass compared to standard-weight flywheels, allowing faster throttle response on acceleration and quicker RPM drop on deceleration - a noticeable improvement whether you're rowing through gears on the street or chasing lap times. The 50oz external balance matches factory 5.0L engine specifications for 1981-1995 applications, ensuring smooth operation with no vibration.

The dual clutch pattern provides flexibility in clutch selection, accepting both 10.5" metric diaphragm pressure plates and 10" long-style setups. Metric alignment pins come pre-installed to ensure proper clutch disc centering during installation. Note that diaphragm clutches require metric pressure plate bolts (MD-403-2003 or MD-403-2003ARP), while the 10" long pattern uses 5/16" bolts (MD-403-2004).

Engineered for Ford small block Windsor engines with 157-tooth starter ring gear applications. Fits all 1981-1995 Ford 5.0L engines requiring 50oz external balance. Proudly made in the USA using US-milled billet steel.

What's Included

• Lightened billet steel flywheel with 157-tooth ring gear
• Metric clutch alignment pins (pre-installed)

Key Features

• Lightweight aluminum construction at 19 lbs - significantly lighter than cast iron for faster engine response
• Riveted steel clutch facing for superior durability and heat dissipation
• Dual clutch bolt pattern: 10" Long and 10.4" metric with dowel pins for maximum compatibility
• Zero balance configuration standard; can be ordered with 28 oz or 50 oz counterweight options
• 157-tooth steel ring gear mechanically fastened to flywheel body - prevents ring gear separation
• 6-bolt crankshaft mounting pattern for Ford small block engines
• Made in the USA

Description

Shed rotational mass without sacrificing reliability. This lightweight aluminum flywheel weighs just 19 lbs compared to heavy cast iron units, helping your engine reach higher RPMs quicker due to reduced rotating mass. That reduced inertia translates to improved throttle response and acceleration - the engine spends less energy spinning up the flywheel and more energy putting power to the wheels.

The riveted steel clutch facing provides superior heat dissipation and wear characteristics compared to bonded surfaces. Unlike cheaper aluminum flywheels that use pressed-on ring gears, this 157-tooth steel ring gear is mechanically fastened to the flywheel body, preventing the ring gear separation failures that can occur under high-stress conditions. The dual bolt pattern accommodates both vintage 10" Long-style and modern 10.4" metric pressure plates with dowel pins - eliminating compatibility guesswork across Ford's clutch evolution.

Engineered specifically for Ford small block 289, 302, and 351W Windsor engines, this flywheel comes standard as zero balance for internally balanced engines. For externally balanced applications, 28 oz or 50 oz counterweight options are available to match your specific crankshaft requirements - pre-1981 302s and all 351Ws use 28 oz imbalance, while 1981+ 302/5.0L engines require 50 oz.

Note: Aluminum flywheels spin up faster but have less stored energy than cast iron, which can make the engine easier to stall at low RPMs. If paired with a dual clutch set, this helps offset some of the characteristics. Aluminum flywheels should never be paired with ceramic or bronze clutches due to the added heat they generate. It is recommended to warm the flywheel before installing on the crank. Not SFI approved - intended for street performance and moderate competition use. Made in the USA with lifetime technical support.

What's Included

• CNC-machined aluminum flywheel body (19 lbs)
• Riveted steel clutch facing
• 157-tooth steel ring gear (mechanically fastened)
• Clutch alignment dowel pins for 10.5" clutch applications
• Lifetime technical support

Key Features

• Lightweight aluminum flywheel body with riveted steel clutch facing for superior heat dissipation
• 157-tooth ring gear for small bellhousing applications
• 28oz external balance for pre-1981 Ford 289, 302, and all 351W engines
• 6-bolt crankshaft mounting pattern
• Includes dowel pins for 10.5-inch diaphragm clutch pattern
• High-carbon steel ring gear riveted to flywheel body prevents slipping under load
• Made in the USA

Description

Ditch the heavy factory cast iron flywheel and drop serious rotating mass from your Ford small block. This aluminum flywheel delivers the weight reduction performance builds demand while maintaining the durability street engines require. Lighter rotating mass means quicker engine response and faster acceleration through the gears - your engine revs up and recovers faster between shifts.

The engineering here focuses on heat management and longevity. The riveted steel clutch facing provides a durable friction surface that handles heat far better than aluminum-on-aluminum contact, preventing warping and premature wear in spirited driving. The high-carbon steel ring gear is riveted to the aluminum body rather than pressed or shrunk on - this prevents the ring gear from walking off the flywheel under the repeated thermal cycling and shock loads of hard use.

This flywheel carries the correct 28oz external balance for pre-1981 Ford 289 and 302 engines, as well as all 351 Windsor engines regardless of year. The 157-tooth ring gear is sized for small bellhousing applications - the compact aluminum bellhousing, not the larger cast iron 164-tooth style. Includes dowel pins for proper clutch alignment with 10.5-inch diaphragm clutch kits.

Installation note: It is recommended to warm the flywheel before installing on the crankshaft for proper thermal expansion and fit. Aluminum flywheels should not be paired with ceramic or bronze-faced clutch discs due to the excessive heat these materials generate. Made in the USA.

What's Included

• Aluminum flywheel with steel clutch facing
• 157-tooth steel ring gear (riveted)
• Clutch alignment dowel pins for 10.5-inch clutch

Key Features

• Riveted steel clutch facing permanently fastened to aluminum body - prevents ring gear separation under high loads
• 157-tooth ring gear for proper starter engagement on 5.0L HO applications
• 50oz external counterweight matches factory balance on 1981-1995 Ford 5.0L HO engines
• 19 lb total weight - reduces rotating mass versus stock cast iron flywheels
• Six-bolt crankshaft mounting pattern for direct replacement installation
• 10.4" metric clutch bolt pattern with alignment pins
• Made in the USA

Description

Cut rotating mass from your 5.0L drivetrain with this aluminum flywheel, purpose-built for 1981-1995 Ford 5.0L HO engines. Weighing just 19 lbs, it delivers noticeably quicker throttle response and faster RPM changes compared to stock cast iron units - ideal for road racing, autocross, and spirited street driving where nimble engine response matters more than low-RPM grunt.

The critical engineering detail is the riveted steel clutch facing. Unlike cheaper aluminum flywheels that rely on shrink-fit alone, this design permanently fastens the steel ring gear to the aluminum body using mechanical fasteners. This prevents the ring gear from walking or separating under hard launches and high-heat clutch engagement - a common failure mode when differential thermal expansion rates cause the steel ring gear to loosen on an aluminum body.

The 50oz external imbalance is factory-correct for Ford 5.0L HO engines from 1981-1995, ensuring smooth operation without vibration. The 157-tooth ring gear matches OEM specifications for proper starter motor engagement. Six-bolt crankshaft attachment follows Ford's original pattern, and the 10.4" metric clutch bolt pattern with alignment pins accommodates most performance clutch upgrades.

Important: Aluminum flywheels reduce stored rotational energy, which can make low-RPM driving feel less forgiving - they're easier to stall from a stop. This flywheel should not be paired with ceramic or bronze clutch discs, as the excessive heat generated can damage the aluminum body. It is recommended to warm the flywheel before installing on the crankshaft for optimal fit. Made in the USA.

What's Included

• Aluminum flywheel with riveted steel clutch facing
• Clutch alignment pins

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Key Features

• 10.4" metric bolt pattern with integral dowel pins for precise flywheel alignment
• Diaphragm pressure plate delivers consistent clamping force with smooth pedal feel
• Organic/organic disc facings for progressive engagement and long service life
• 10 x 1-1/16" splined hub fits stock 10-spline input shafts
• Sprung hub design dampens driveline vibration and protects synchronizers
• 225 lb-ft torque rating handles stock 5.0L output plus moderate bolt-ons
• Hand-assembled in-house with double-checked tolerances before shipping
• 1-year free-from-defect warranty with lifetime tech support

Description

Ford's '86-'95 Mustang 5.0L introduced the metric clutch system, and that unique bolt pattern stops plenty of builders in their tracks. This MDL Superior clutch set solves the fitment puzzle with a complete kit engineered specifically for the 10.4" metric bolt pattern with integral dowel pins found on these applications.

The diaphragm-style pressure plate sits at the heart of this kit, providing even clamping pressure across the entire friction surface. Unlike long-style clutches that rely on coil springs, the diaphragm design eliminates hot spots and maintains consistent pedal feel throughout the disc's service life. The organic/organic friction material delivers the smooth, progressive engagement that daily drivers and weekend cruisers demand--no grabby on-off engagement that makes stop-and-go traffic miserable.

The sprung hub construction dampens torsional vibration between the engine and transmission, protecting synchronizers and reducing gear rattle at idle. With a 225 lb-ft torque rating, there's headroom for bolt-on modifications while maintaining streetable manners. The 10 x 1-1/16" splined hub fits stock 10-spline input shafts found in factory T-5 transmissions.

Compatible with 1986-1995 5.0L applications using cable-actuated throwout bearings. Every Superior clutch kit is hand-assembled at MDL's Caldwell, Idaho facility and inspected before shipping. Made in the USA.

What's Included

• Diaphragm pressure plate with 10.4" metric bolt pattern
• 10.4" clutch disc with organic/organic facings and sprung hub
• Cable-actuated throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

Key Features

• Kevlar facing on flywheel side, organic on pressure plate side for balanced grip and smooth engagement
• 10-spline, 1-1/16-inch hub for Ford 10.4" metric pattern applications
• 300 lb-ft torque capacity rated for Performance Street Plus use
• Hand-assembled in-house with double-riveted construction for quality assurance
• Diaphragm pressure plate with 8mm metric bolt pattern and alignment dowels
• Sprung hub disc absorbs drivetrain shock for street-friendly manners
• Cable-style throwout bearing included for direct installation
• Backed by 1-year free-from-defect warranty
• Made in the USA

Description

This Superior clutch set delivers the ideal balance between holding power and street driveability for Ford applications using the 10.4" metric bolt pattern. The hybrid facing configuration puts Kevlar on the flywheel side for increased grip and heat resistance, while the organic facing on the pressure plate side ensures smooth, progressive engagement without the chatter associated with aggressive racing clutches. This combination makes the clutch ideal for Performance Street Plus applications where you need 300 lb-ft torque capacity without sacrificing daily-driver manners.

The engineering behind this facing combination is deliberate. Kevlar provides approximately twice the service life of standard organic materials while maintaining excellent heat dissipation characteristics. Pairing it with organic on the opposite side moderates engagement behavior, giving you confidence at stoplights and in parking lots while still delivering when you need to put the power down. The sprung hub design further smooths engagement and absorbs drivetrain shock.

MDL's Superior line clutches are hand-assembled in-house rather than mass-produced overseas. Every disc is double-riveted and inspected for exacting tolerances before it goes in the box. The included cable-style throwout bearing, pilot bearing, and alignment tool mean you have everything needed for a complete installation. The diaphragm pressure plate uses 8mm metric fasteners with three alignment dowels in the Ford 10.4" metric pattern.

Compatible with Ford vehicles using the 10.4" metric flywheel pattern and 10-spline transmission input shafts. Made in the USA with MDL's commitment to precision manufacturing and backed by lifetime technical support.

What's Included

• Diaphragm pressure plate with 8mm metric bolt pattern
• Clutch disc with Kevlar/organic facings, sprung hub, 10-spline x 1-1/16" center
• Cable-style throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Steel-backed organic disc facings deliver smooth engagement with increased rotational strength
• 10.4" metric bolt pattern (8mm bolts with 3 alignment dowel pins) for '86-95 5.0L and similar Ford applications
• 10-spline, 1-1/16" input shaft fits T5, T45, Toploader 4-speed, TKO, and TKX transmissions
• Diaphragm pressure plate provides consistent clamping force across the disc surface
• 400 lb-ft torque capacity handles bolt-on modifications and mild power builds
• Sprung hub construction reduces driveline shock for improved street drivability
• Hand-assembled in Caldwell, Idaho with double-checked tolerances
• Performance Proven designation -- tested in racing applications on and off track
• Made in the USA with 1-year free-from-defect warranty

Description

When your Ford needs a clutch upgrade that bridges the gap between worn factory components and harsh race-only setups, the Superior Super King Cobra delivers. This complete clutch set solves the common problem of slipping stock clutches on modified 5.0L engines while maintaining the progressive engagement that makes daily driving tolerable. The steel-backed organic disc construction provides significantly more rotational strength than standard organic discs, giving you durability that matches your power goals without sacrificing pedal feel.

The engineering centers on the steel backing plate bonded to organic friction material -- a design that dramatically increases structural integrity under load while preserving the smooth, linear engagement that organic compounds are known for. Unlike full ceramic or Kevlar setups that can feel grabby at low speeds, steel-backed organic facings offer predictable modulation from parking lot crawls to full-throttle launches. The diaphragm pressure plate ensures even clamping force distribution, eliminating hot spots that cause premature wear and inconsistent engagement.

Every Superior clutch disc is hand-assembled at MDL's facility in Caldwell, Idaho. This in-house assembly allows complete control over tolerances and quality -- each component is double-checked for accuracy before it goes in the box. The 10.4" metric bolt pattern with 8mm bolts and alignment dowel pins fits Ford 5.0L applications from '86-95 and similar configurations. Designed for the 10-spline, 1-1/16" input shaft found in T5, T45, Toploader 4-speed, TKO, and TKX transmissions.

Rated at 400 lb-ft torque capacity, the Super King Cobra handles bolt-on modifications and street performance builds with authority. The cable-style throwout bearing makes this kit correct for cable-actuated clutch systems. Backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• Diaphragm pressure plate, 10.4" metric bolt pattern
• Steel-backed organic clutch disc, 10.4" diameter, 10-spline 1-1/16" sprung hub
• Cable-style throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Flywheel clutch pattern reference chart
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Dual-Material Disc: Kevlar facing on the pressure plate side paired with steel-backed organic on the flywheel side for balanced grip and smooth engagement
• 450 ft-lb Torque Rating: Performance Street Plus capacity handles modified engines without sacrificing daily drivability
• 10.4" Metric Pattern: Uses 8mm pressure plate bolts with metric alignment dowels for proper Ford 5.0L HO fitment
• Sprung Hub Design: Dampened engagement reduces driveline shock and improves pedal modulation in stop-and-go traffic
• Cable Profile Throw-Out Bearing: Purpose-built geometry for cable-actuated clutch systems
• 1-1/16" x 10-Spline Input: Direct fit for Ford transmissions with 10-spline input shafts
• Hand-Assembled in Idaho: Double-checked for accuracy before shipping, backed by 1-year warranty
• Made in the USA

Description

When you need more holding power than stock but refuse to give up street manners, the Superior Kevlar/Organic clutch set delivers. This dual-material design pairs Kevlar on the pressure plate side with steel-backed organic facing on the flywheel side--a deliberate engineering choice that exploits the strengths of both materials. Kevlar's coefficient of friction actually increases with temperature, meaning the harder you drive it, the better it grips. The organic side provides the smooth, progressive engagement that keeps this clutch civilized in traffic.

Rated at 450 ft-lbs for Performance Street Plus applications, this clutch handles the demands of modified 5.0L engines, bolt-on power adders, and weekend track days without the harsh pedal feel or chatter of full-race setups. The sprung hub dampens engagement shock that would otherwise stress your transmission and driveshaft, while the diaphragm-style pressure plate delivers consistent clamping force through the full range of pedal travel.

The 10.4" metric pattern uses 8mm pressure plate bolts--a critical distinction from the SAE-thread 10.5" pattern found on GM and some Ford applications. This kit is purpose-built for Ford applications requiring a 1-1/16" x 10-spline input shaft and cable clutch actuation. Every Superior clutch is hand-assembled at MDL's Caldwell, Idaho facility and double-checked for accuracy before it leaves the shop.

Kit Includes

• Diaphragm-type heavy-duty pressure plate (10.4" metric bolt pattern)
• 10.4" clutch disc with Kevlar/steel-backed organic facings and sprung hub
• Cable profile throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Hand-assembled in-house with double-checked tolerances before shipping
• Full Kevlar/Kevlar disc facings for aggressive bite and extended service life
• 10.4" metric bolt pattern with 8mm pressure plate bolts and alignment dowels
• 10-spline x 1-1/16" sprung hub fits Ford T-5, 3550, TKO, and TKX transmissions
• Dual-compatible throw-out bearing works with both cable and hydraulic actuation systems
• Diaphragm-style pressure plate for consistent pedal feel
• Rated for 500 lb-ft torque capacity
• 1-year free-from-defect warranty

Description

Finding a quality clutch kit for Ford's 10.4" metric bolt pattern that actually meets the tolerances a performance build demands isn't easy. Mass-produced clutches cut corners on QC, leaving you to discover runout or engagement problems after the bellhousing is bolted up. The MDL Superior clutch line eliminates that gamble -- every disc is hand-assembled at MDL's Idaho facility and double-checked for accuracy before it ships.

This kit uses full Kevlar facings on both the flywheel and pressure plate sides of the disc. Kevlar delivers aggressive initial bite without the chatter and harsh engagement of ceramic compounds, making it ideal for performance street and open-track applications where you still want a streetable pedal. The sprung hub absorbs drivetrain shock loads and dampens harmonics that solid hubs transmit straight to the transmission.

The 10-spline x 1-1/16" hub matches factory Ford T-5, 3550, TKO, and TKX input shafts. The included throw-out bearing features a cable profile that also works with hydraulic actuation systems -- critical flexibility when you're upgrading from a factory cable setup or running a hydro conversion. The metric pressure plate bolts up with 8mm fasteners and alignment dowels to Ford 5.0L HO flywheels from '86-'95 applications.

Performance Proven means this clutch has survived the rigorous demands of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 10.4" diaphragm pressure plate with metric bolt pattern
• Kevlar/Kevlar faced clutch disc with 10-spline x 1-1/16" sprung hub
• Cable/hydraulic compatible throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

Key Features

• Premium-grade 8740 chromoly construction hardened to 180,000 PSI tensile strength
• 8mm x 1.25 thread size with 10mm hex head for proper socket access
• Black oxide finish for corrosion resistance and professional appearance
• Application-specific design ensures optimum grip length for Ford 302/351W engines
• Large diameter, low profile design increases clamping force over stock hardware
• Complete kit includes washers for proper installation
• Set of 6 bolts replaces all factory pressure plate fasteners

Description

The importance of pressure plate bolts in racing or high-performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Factory pressure plate bolts are notorious weak points that can stretch or fail under power, leading to clutch slippage, pressure plate distortion, or catastrophic failure. When you're building serious power, the last thing you want is substandard hardware compromising your drivetrain.

ARP engineered these High Performance Series bolts specifically for 1986-1995 Ford 302 and 351 Windsor applications. Each bolt is forged from premium-grade 8740 chromoly steel and heat-treated prior to thread rolling and machining, achieving a nominal tensile strength of 180,000 PSI. The application-specific design ensures optimum grip length for your Ford V8, eliminating the guesswork that comes with generic hardware.

The 8mm x 1.25 threading matches factory specs while delivering vastly superior strength. Each bolt features a hex head design with 10mm socket access for easy installation and removal. The black oxide finish provides corrosion resistance while maintaining a clean appearance under the hood. The large diameter, low profile design increases clamping force compared to stock bolts, reducing the risk of pressure plate flex under high-load conditions.

Fits all 1986-1995 Ford applications equipped with 302 or 351W engines, including Mustang 5.0L, F-150 trucks, Bronco, E-Series vans, and Crown Victoria. Kit includes six pressure plate bolts with washers for complete replacement of all factory fasteners.

What's Included

• 6 x ARP pressure plate bolts (8mm x 1.25, 10mm hex head, black oxide finish)
• 6 x Washers

Key Features

• Removable pivot shaft design allows installation without moving the pedal support
• Direct fit for both automatic and manual transmission pedal supports
• Laser-cut steel construction with precision CNC bends
• Black powder coat finish for corrosion resistance and clean appearance
• Includes integrated pedal spring pivot point
• Eliminates need for separate manual brake pedal - trim existing automatic pad to fit
• Made in the USA

Description

Installing a clutch pedal in an early Mustang usually means contorting yourself under the dash to remove the pedal support - a frustrating job in a cramped footwell. This reproduction clutch pedal solves that problem with a removable pivot shaft that bolts into place, letting you install the pedal without disturbing the factory pedal support. It is a simple engineering improvement to an otherwise stock-style pedal that saves real time on auto-to-manual conversions.

The pedal works with all factory pedal supports, whether your car started life as an automatic or manual. For automatic conversions, there is no need to source a separate manual brake pedal - simply trim the left side of your existing automatic brake pedal pad using the manual pad as a template. This approach reuses your factory mounting points and keeps the conversion straightforward.

Laser-cut from steel with CNC bends, this pedal duplicates the original geometry while delivering the precision fit and clean lines you expect from a quality reproduction. The black powder coat finish protects against corrosion and daily wear. Note that when using with clutch cable or hydraulic release systems, the pedal spring is not used.

Fits 1964-1/2 through 1966 Mustang. This is a reproduction pedal engineered to replace the original equipment part. Made in the USA.

What's Included

• Clutch pedal assembly with removable pivot shaft
• Pedal spring pivot point
• Black powder coat finish
• Lifetime tech support

Key Features

• Essential component for automatic-to-manual transmission conversions
• Bolts directly to left side of pedal support assembly
• Prevents clutch pedal over-travel and binding
• Complete mounting hardware included -- bolt and nut
• Precise fit for 1965-66 Mustang, 1962-66 Fairlane, and 1960-61 Galaxie

Description

Converting from automatic to manual transmission requires more than just swapping the gearbox -- the clutch pedal needs a proper stop point to function correctly. Automatic-equipped cars never came with this component because they had no clutch pedal, so when you add one during a conversion, you need a way to limit pedal travel at the top of its stroke. This MDL clutch pedal stop provides exactly that: a solid mechanical stop that positions the clutch pedal at the correct rest position for proper master cylinder operation and smooth clutch release.

The stop assembly mounts to the left side of the pedal support bracket, placing it in the exact position to contact the clutch pedal arm at full extension. Without proper pedal travel control, clutch systems can feel spongy, fail to return smoothly, or cause premature wear on linkage and hydraulic components. This component eliminates those issues by providing a consistent, repeatable stop point that keeps the clutch system geometry correct.

Designed specifically for mid-1960s Ford applications where automatic-to-manual swaps are common. The stop works with both mechanical Z-bar linkage and hydraulic clutch systems, making it compatible with period-correct restorations and modern conversion kits alike. Installation is straightforward -- no drilling, cutting, or fabrication required.

Applications include 1965-66 Mustang, 1962-66 Fairlane, and 1960-61 Galaxie models originally equipped with automatic transmissions.

What's Included

• Clutch pedal stop assembly
• Mounting bolt
• Mounting nut

Clutch & Manual Brake Pedal Pad Kit with Trim Rings | 1965-1968 Mustang

Key Features

• Complete two-pad kit for clutch and manual brake pedals
• Stainless steel trim rings included for factory-correct appearance
• Textured rubber surface provides secure grip under hard braking and clutch engagement
• Direct-fit replacement slides over factory metal pedal pads
• Fits 1965-1968 Mustang and Cougar, plus 1966-73 Fairlane, Falcon, and Torino
• Proudly made in the USA

Description

Worn, cracked, or missing pedal pads compromise both safety and the finished look of your interior. Over time, factory rubber pads lose their textured grip surface, split at the edges, or fall off entirely, leaving bare metal that's slick under foot and rough on the eyes. This complete pedal pad kit restores proper grip and original appearance to manual transmission Ford classics.

Each kit includes replacement pads for both the clutch and manual brake pedals, engineered to slip directly over your existing factory metal pedal faces. The durable rubber compound features the correct textured surface pattern for secure foot placement during aggressive driving, heel-toe downshifts, or everyday cruising. Stainless steel trim rings complete the package, delivering the polished factory-correct finish that sets a quality restoration apart.

Application coverage spans the full range of mid-60s to early-70s Ford platforms sharing this pedal design: 1965-1968 Mustang and Cougar, plus 1966-1973 Fairlane, Falcon, and Torino. Whether you're finishing a full restoration, completing a manual transmission conversion, or simply refreshing tired pedals, this kit delivers the components you need. Engineered for quality and long service life, made in the USA.

Kit Includes

• Clutch pedal pad with textured rubber grip surface
• Manual brake pedal pad with textured rubber grip surface
• Stainless steel trim ring for clutch pedal
• Stainless steel trim ring for brake pedal

Key Features

• Complete clutch and brake pedal pad replacement kit for disc brake applications
• Stainless steel trim rings restore factory-correct polished appearance
• Direct-fit replacement for worn or missing original pedal pads
• Fits 1965-1968 Mustang/Cougar and 1966-1973 Fairlane/Falcon/Torino
• Engineered and carefully crafted for quality and long service life
• Made in the USA

Description

Factory pedal pads take decades of abuse from boots, sneakers, and bare feet. The original rubber deteriorates, cracks, and eventually disintegrates entirely--leaving you with bare metal pedals that compromise grip and destroy the period-correct look of your interior. This complete pedal pad kit restores both safety and factory appearance with precision-manufactured replacements designed specifically for disc brake-equipped manual transmission cars.

Each kit delivers both clutch and brake pedal pads engineered to replicate factory specifications, complete with stainless steel trim rings that duplicate the original polished appearance. The pads feature correct ribbing patterns for secure grip and are manufactured from durable materials built to last another few decades. Installation is straightforward--the pads slip over your existing factory metal pedal faces for a direct replacement that requires no modification.

Applications span the classic first-generation Mustang era from 1965-1968, Mercury Cougar from the same years, plus the broader Ford intermediate lineup including Fairlane, Falcon, and Torino through 1973. Specifically designed for disc brake applications--if you have drum brakes, you need the manual brake version instead. Proudly made in the USA with the quality and attention to detail that ensures proper fit and long service life.

Kit Includes

• Clutch pedal pad
• Disc brake pedal pad
• Stainless steel trim rings (2)

Key Features

• High-strength, wear-resistant nylon construction outlasts original bushings
• 5/8" length matches original Ford B7AZ-2471-A specifications
• Fits 5/8" OD pedal pivot shafts
• Works in both clutch and brake pedal assemblies
• Manual transmission cars require six bushings; automatics require four
• Fits 1960-2004 Ford Mustang, Cougar, Fairlane, Falcon, and many Ford applications

Description

Worn pedal bushings create sloppy, imprecise pedal feel that only gets worse with every drive. This high-strength nylon bushing restores tight, responsive pedal action by eliminating the play and binding that develops when original bushings deteriorate over decades of use.

Made from durable, wear-resistant plastic, this bushing handles the constant pivoting forces of clutch and brake pedal operation without cracking or wearing out prematurely. The precise 5/8" length matches the original Ford B7AZ-2471-A specification for correct pedal geometry and feel.

This bushing works in both clutch and brake pedal assemblies that share the same 5/8" OD pivot shaft. Manual transmission cars require six bushings total—four in the common pivot shaft plus two additional at the clutch pedal. Automatic cars need four bushings. Note that '67 and later Mustangs with power brakes only require two bushings at the clutch pedal, since the power brake lever pivots on a separate shaft.

Direct replacement for Ford part number B7AZ-2471-A. Fits 1960-2004 Ford applications including Mustang, Cougar, Fairlane, Falcon, and many others.

** For GM application see part number MD-402-1009

What's Included

• One high-strength nylon pedal shaft bushing (5/8" length)

Key Features

• Steel roller bearings replace failure-prone factory plastic bushings
• Reduces clutch pedal effort and delivers smoother, more consistent pedal travel
• Zinc-plated pivot supports clip directly into factory pedal hanger openings
• Includes reinforcement washer for worn pedal hangers - weldable for permanent repair
• Direct replacement for Ford part number C5ZZ-2478-RB
• Fits 1965-1973 Mustang plus many other 1960s-70s Ford applications

Description

Factory plastic pedal bushings are one of the most common failure points in classic Mustang clutch systems. They wear quickly, creating sloppy pedal feel, increased effort, and inconsistent clutch engagement. This roller bearing kit permanently solves that problem by replacing those soft plastic pieces with steel roller bearings that deliver smooth, precise pedal action for years.

The roller bearing design dramatically reduces friction at the pivot point, translating directly to lighter pedal effort and more tactile clutch feel. Instead of fighting a sticky, binding pedal during spirited driving, you get consistent engagement every time. The zinc-plated roller bearing supports clip directly into your existing factory mounting points, maintaining OEM appearance while delivering superior durability.

For pedal hangers that show wear from years of use, the kit includes a reinforcement washer that can be welded in place to restore structural integrity before installing the new bearings. This is a straightforward upgrade once the pedal support assembly is removed from the vehicle. Note that 1969-1973 applications may require minor modification to the pedal bracket assembly for proper fitment.

Designed as a direct replacement for Ford part number C5ZZ-2478-RB, this kit fits 1965-1973 Mustangs and works with many other Ford applications from the same era. If your clutch pedal feels agricultural instead of precise, worn bushings are likely the culprit - and this kit is the permanent fix.

Kit Includes

• Steel roller bearing clutch pedal pivot supports (zinc-plated)
• Reinforcement washer for worn pedal hanger repair
• Mounting hardware

Key Features

• Steel roller bearings replace factory plastic bushings for lifetime reliability and dramatically reduced pedal effort
• Includes replacement clutch pedal shaft welded to the stock pedal arm for scored or worn shaft applications
• Roller bearing supports clip directly into factory pedal bracket openings
• Repair washer included for worn pedal support mounting surfaces
• Designed and manufactured by Scott Drake for proven quality
• Note: 1969-1973 applications may require minor modification to the pedal bracket assembly

Description

After decades of use, factory plastic clutch pedal bushings wear out, creating sloppy pedal feel and increased effort that makes every shift a chore. This premium roller bearing kit solves that problem permanently by replacing those worn plastic components with precision steel roller bearings that distribute load evenly and eliminate metal-on-metal contact.

The kit replaces the worn zinc clutch pedal pivot supports with steel roller bearing supports that clip directly into the factory openings in your pedal bracket. Unlike simple bushing replacements, roller bearings reduce friction dramatically, translating to noticeably lighter pedal pressure and smoother operation that will last for years. The included repair washer addresses situations where the pedal support itself has been damaged from worn bushings and can be welded in place.

What sets this kit apart is the included replacement clutch pedal shaft that comes pre-welded to the stock clutch pedal arm. This addresses the common issue where the original shaft becomes scored or damaged from years of worn bushings grinding against it. The new shaft ensures the roller bearings have a clean, undamaged surface to ride on for optimal performance.

Fits 1965-1973 Ford Mustang as well as many other 1960s-1970s Ford applications. Note that 1969-1973 Mustangs may require minor modification to the pedal bracket assembly for proper fitment. Designed and manufactured by Scott Drake.

What's Included

• Steel roller bearing pivot supports (2)
• Replacement clutch pedal shaft (pre-welded to pedal arm)
• Repair washer for worn pedal support
• Installation hardware
• Installation instructions

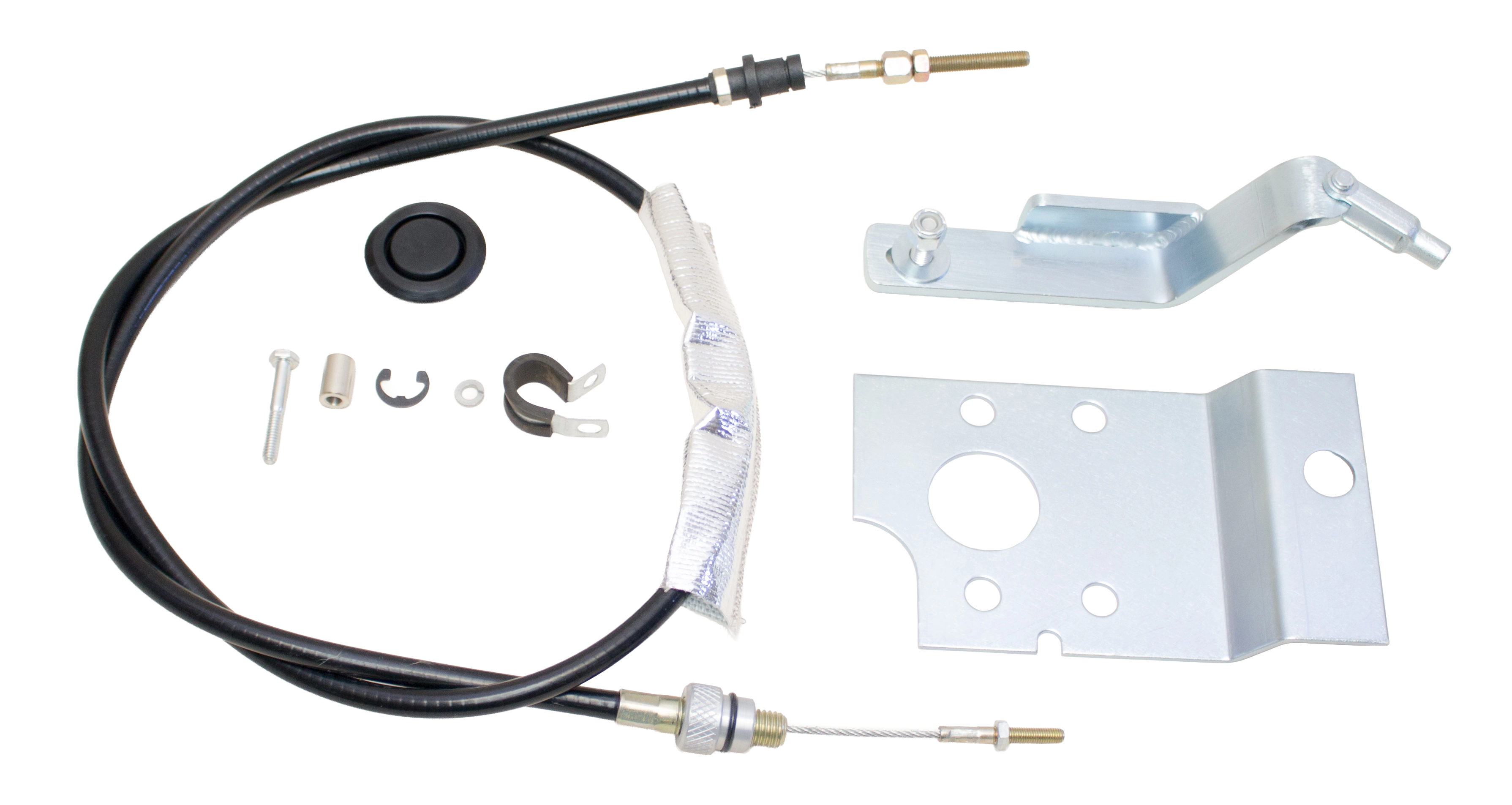

Clutch Cable Conversion Kit | 1964.5-1966 Mustang | Cable Release Bellhousings

Key Features

• Heavy-duty lined clutch cable delivers smoother pedal feel than worn mechanical linkage
• Purpose-built cable routing designed specifically for early Mustang exhaust clearance - not a repurposed Fox Body cable
• Bolt-on adjustable pedal bracket reuses stock clutch pedal with no welding required
• Tool-free firewall adjuster allows precise cable tuning without removing panels
• Compatible with T5, T45, TR3650, T56, TKO and TKX transmissions using cable-release bellhousings
• Works with both manual brakes and most power brake boosters including OE Bendix 8-inch units
• Fully adjustable rod end provides precise clutch fork engagement
• Requires bellhousing with cable mounting provision and minimum 7-inch depth
• Works with pull-style clutch forks only

Description

Worn Z-bar linkage and binding pivot points make clutch engagement unpredictable and fatiguing. This cable conversion kit eliminates the mechanical linkage entirely and replaces it with a modern cable clutch system purpose-built for 1964.5-1966 Mustangs. The result is a smoother, more consistent pedal feel that makes daily driving and spirited runs far more enjoyable.

Unlike generic Fox Body cables that create clearance nightmares around early Mustang exhaust manifolds, this system uses a heavy-duty lined cable specifically engineered to route ahead of the exhaust and follow the oil pan flange. The cable housing mounts securely using one of the oil pan bolts, keeping everything tight and rattle-free. A fully adjustable rod end connects to your pull-style clutch fork, allowing fine-tuned engagement without shims or guesswork.

The bolt-on adjustable pedal bracket preserves your original clutch pedal - no cutting, no welding. The reinforced firewall plate mounts cleanly behind your brake master cylinder or factory booster and includes a tool-free cable adjuster that you can access without crawling under the car or removing interior panels. MDL designed the system to work with both manual brakes and most power brake boosters, including the original Bendix 8-inch unit. Note: this kit will not work with Midland (band clamp) boosters or certain aftermarket 8-inch and larger boosters.

This kit supports TREMEC T5, T45, TR3650, T56, and TKO transmission swaps when paired with a cable-compatible bellhousing or scatter shield with minimum 7-inch depth. Short headers are recommended with at least one inch of clearance; long-tube or Tri-Y headers are not recommended as exhaust heat can damage the cable housing and restrict movement. For builds requiring aggressive headers, consider an internal hydraulic throwout bearing setup instead. Made in the USA.

What's Included

• Heavy-duty lined clutch cable with early Mustang-specific routing
• Bolt-on adjustable clutch pedal bracket
• Reinforced firewall support plate with tool-free adjuster
• Fully adjustable rod end for clutch fork connection
• Cable housing mounting hardware (uses oil pan bolt)
• Complete mounting hardware package
• Detailed installation instructions

LF Series Hydraulic Clutch Master Kit | 1964.5-1966 Mustang | 0.700" Bore, Plastic Reservoir

Key Features

• Revolutionary pedal linkage design maintains stock clutch pedal pivot point for factory-like feel
• 0.700" bore x 1.4" stroke master cylinder generates 0.539 cubic inches of fluid volume
• Long-stroke design reduces firewall loading and delivers lighter pedal effort than traditional setups
• Uses existing clutch rod hole where possible—no firewall modifications required
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Remote plastic reservoir mounts separately for clean installation and easy fluid access
• Includes complete One-Man-Bleeder Kit for air-free hydraulic system setup
• Made in the USA with comprehensive installation instructions

Description

Converting your '64.5–'66 Mustang to hydraulic clutch actuation eliminates the binding, inconsistent engagement, and heavy pedal effort that plague mechanical rod linkage systems. The MDL LF Series Master Cylinder Kit delivers modern hydraulic precision while preserving the stock pedal feel you expect from a classic Mustang.

The engineering breakthrough is in the innovative pedal linkage design. Traditional hydraulic conversions bolt a 3/4" or 7/8" bore master cylinder directly to the pedal, requiring high mounting positions that interfere with firewall components and create punishing pedal effort due to short stroke lengths. MDL's revolutionary linkage system allows the 0.700" bore, 1.4" stroke master cylinder to mount in the optimal position while matching pedal travel to master cylinder stroke. This creates mechanical advantage that dramatically reduces pedal effort while generating 0.539 cubic inches of fluid volume—enough to actuate any aftermarket external slave cylinder or internal hydraulic release bearing.

The remote plastic reservoir mounts cleanly on the firewall, eliminating the packaging constraints of integral reservoir designs. The system uses DOT 3 or DOT 4 brake fluid and includes MDL's complete One-Man-Bleeder Kit for foolproof hydraulic system setup. Installation uses the existing clutch rod hole where possible, preserving the firewall integrity of your classic Mustang.

Important Note: Will NOT work with band-clamp brake boosters or certain aftermarket brake boosters 8" and larger. This kit relies on factory pedal and firewall components to be in good working condition—any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder assembly
• Innovative pedal linkage system with mounting hardware
• Remote plastic reservoir with mounting hardware
• Hydraulic lines and fittings
• Complete One-Man-Bleeder Kit
• All mounting brackets and hardware
• Comprehensive installation instructions

LF Series Hydraulic Clutch Master Kit | 1964.5-1966 Mustang | 0.700" Bore Black Reservoir

Key Features

• Revolutionary pedal linkage maintains stock clutch pedal pivot point for factory pedal feel
• 0.700" bore with 1.4" stroke generates sufficient fluid volume for most aftermarket external and internal slave systems
• Long-stroke master cylinder dramatically reduces clutch pedal effort compared to traditional short-stroke designs
• Uses stock clutch pedal and rod hole location - no firewall modifications required
• Remote anodized black billet aluminum reservoir mounts cleanly to firewall
• Firewall plate with mechanical linkage reduces firewall loading and provides design flexibility
• Includes One-Man-Bleeder Kit for easy solo bleeding
• Made in the USA

Description

Whether you're converting your 1964.5-1966 Mustang to a T-5, TKX, or T-56 Magnum manual transmission or upgrading your current clutch actuation system, the LF Series Master Cylinder Kit delivers modern hydraulic technology without compromising your classic Mustang's authenticity. This kit solves the common problem of heavy clutch pedal pressure that plagues most hydraulic conversions.

Traditional approaches use a 3/4" or 7/8" bore master cylinder with only 1" stroke, connected directly to the pedal. This creates improper pedal pressure and requires mounting the cylinder higher than the stock clutch rod linkage hole, causing interference with the firewall and pedal assembly. The short stroke ultimately results in heavy pedal effort that makes daily driving unpleasant.

The LF Series features a revolutionary linkage design that matches pedal travel with a long-stroke master cylinder. The 0.700" bore paired with 1.4" stroke provides the fluid volume needed for most aftermarket slave systems while dramatically reducing pedal effort. The innovative mechanical linkage allows use of the stock clutch rod hole and maintains the original pedal pivot point, preserving the factory pedal feel your Mustang was designed to have.

The anodized black billet aluminum reservoir mounts remotely on the firewall for a clean, professional installation. Each kit includes the unique One-Man-Bleeder Kit and comprehensive instructions for straightforward installation. Compatible with most aftermarket external and internal slave cylinders. Fits original factory clutch pedals and OE reproduction aftermarket pedals. Made in the USA.

Kit Includes

• 0.700" bore master cylinder with 1.4" stroke
• Mechanical pedal linkage assembly
• Anodized black billet aluminum reservoir
• Hydraulic lines
• All mounting hardware and brackets
• One-Man-Bleeder Kit
• Comprehensive installation instructions
• Lifetime technical support

Important Notes

• Will NOT work with band clamp brake boosters or certain aftermarket 8" and larger brake boosters
• This kit relies on factory components being in good working order - any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance
• Uses DOT 3 or DOT 4 brake fluid only
• Fits 1964.5-1966 Mustang with stock or OE reproduction clutch pedal

LF Series Hydraulic Clutch Master Kit | 1964.5-1966 Mustang | 0.700" Bore Silver

Key Features

• 0.700" bore x 1.4" stroke master cylinder generates 0.539 cubic inches of fluid volume per stroke
• Innovative pedal linkage maintains stock clutch pedal pivot point for factory pedal feel
• Firewall plate with mechanical linkage reduces pedal effort while providing design flexibility
• Anodized silver billet aluminum remote reservoir mounts cleanly on firewall
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Includes One-Man-Bleeder Kit for simplified bleeding
• Works with factory clutch pedal and OE reproduction aftermarket pedals
• Made in the USA

Description

Converting your early Mustang to modern hydraulic clutch actuation typically means fighting firewall interference, heavy pedal effort, and awkward master cylinder mounting. The MDL LF Series Master Cylinder Kit solves all three problems with a revolutionary linkage design that lets you retrofit hydraulics without the usual compromises.

The conventional approach -- bolting a 3/4" or 7/8" bore master cylinder with a short 1" stroke directly to the pedal -- creates brutal pedal pressure and forces the cylinder to mount above the stock clutch rod linkage hole, causing firewall and pedal assembly interference. The LF Series takes a different path: a small-bore 0.700" master cylinder with an extended 1.4" stroke generates 0.539 cubic inches of fluid volume per stroke, enough to actuate most aftermarket external or internal slave systems. The innovative pedal linkage matches pedal travel to the long-stroke cylinder, dramatically reducing clutch pedal load while maintaining the stock pedal pivot point for a natural pedal feel.

The anodized silver billet aluminum reservoir mounts remotely on the firewall for a clean installation and easy fluid level checks. The system uses standard DOT 3 or 4 brake fluid -- no special high-temp fluid required. Each kit includes MDL's proprietary One-Man-Bleeder Kit to eliminate the frustration of bleeding hydraulic clutch systems solo. Fits 1964.5-1966 Ford Mustangs with factory pedal assemblies or OE reproduction aftermarket pedals in good working condition.

Important Compatibility Notes: Will NOT work with band-clamp brake boosters or certain aftermarket brake boosters 8" and larger. This system relies on factory firewall, pedal, and pedal hanger components being in good working order -- any modifications or damage will affect master cylinder performance.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder
• Anodized silver billet aluminum remote reservoir
• Firewall mounting plate and mechanical linkage assembly
• Pre-bent hydraulic lines with fittings
• One-Man-Bleeder Kit
• All mounting hardware and brackets
• Comprehensive installation instructions
• Lifetime technical support

Key Features

• Three adjustable master cylinder positions on the custom pedal arm for fine-tuning pedal action and feel - the only kit on the market with this capability
• Maintains stock clutch pedal pivot point with zero modifications to the OEM pedal support
• Spherical mounting points eliminate binding and deliver smooth, consistent clutch operation
• Sealed reversible bulkhead assembly mounts through the factory clutch rod hole - keeps moisture and engine fumes out of the interior
• 2100 Series billet aluminum reservoir with black anodized finish and improved side-top vents to prevent water entry
• -4AN stainless steel braided lines throughout for durability and leak-free sealing
• OEM-appearance clutch pedal arm maintains factory look while delivering hydraulic performance
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Made in the USA with lifetime tech support

Description

Factory mechanical clutch linkage in vintage Mustangs suffers from wear, inconsistent engagement, and pedal effort that only gets worse over time. The Stealth Series Hydraulic Clutch Master Kit transforms your '65-'66 Mustang's clutch operation with modern hydraulic technology while maintaining a factory-clean appearance - everything mounts neatly behind the dash on the factory pedal hanger where it stays hidden.

This is the only hydraulic conversion kit that offers three master cylinder mounting positions on the custom pedal arm, letting you dial in the exact pedal ratio and feel for your specific clutch setup. The spherical mounting points eliminate the binding common with mechanical linkages, while the sealed bulkhead assembly uses your existing clutch rod hole to keep installation clean and protect your interior from engine bay contaminants. The system retains your original clutch pedal pivot point, so pedal effort and travel feel remain familiar - with no modifications required to the OEM pedal support.

The kit includes the 2100 Series billet aluminum reservoir with a black anodized finish. The improved cap design features side-top venting to prevent water intrusion, and the compact size offers flexible mounting options inside or outside the firewall. Stainless steel braided -4AN lines handle the hydraulic connections with professional-grade reliability throughout the system.

Compatible with 1965-1966 Ford Mustang applications and works with most existing industry slave cylinders and hydraulic release bearings. Engineered and manufactured in the USA with lifetime technical support from trained technicians. Requires DOT 3 or DOT 4 brake fluid.

What's Included

• Reversible silver/black firewall plate assembly with sealed bulkhead and AN4 fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustable master cylinder mounting positions
• -4AN stainless steel braided hydraulic lines
• 2100 Series billet aluminum reservoir with black anodized finish
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime tech support by trained technicians

Key Features

• Transmission-mounted design bolts to the left two bellhousing bolts on QuickTime RM-6060/RM-6065 steel bellhousings
• Converts cable-actuated clutch release to smooth hydraulic operation
• 0.75-inch bore slave cylinder with adjustable pushrod for precise clutch adjustment
• Uses existing OEM cable-style clutch fork and pivot socket - no fork modifications required
• External mounting clears long-tube headers and provides easy access for bleeding and service
• -4AN braided stainless steel line and fittings included
• Low-to-medium pedal effort rating for comfortable street driving
• Made in the USA with lifetime technical support

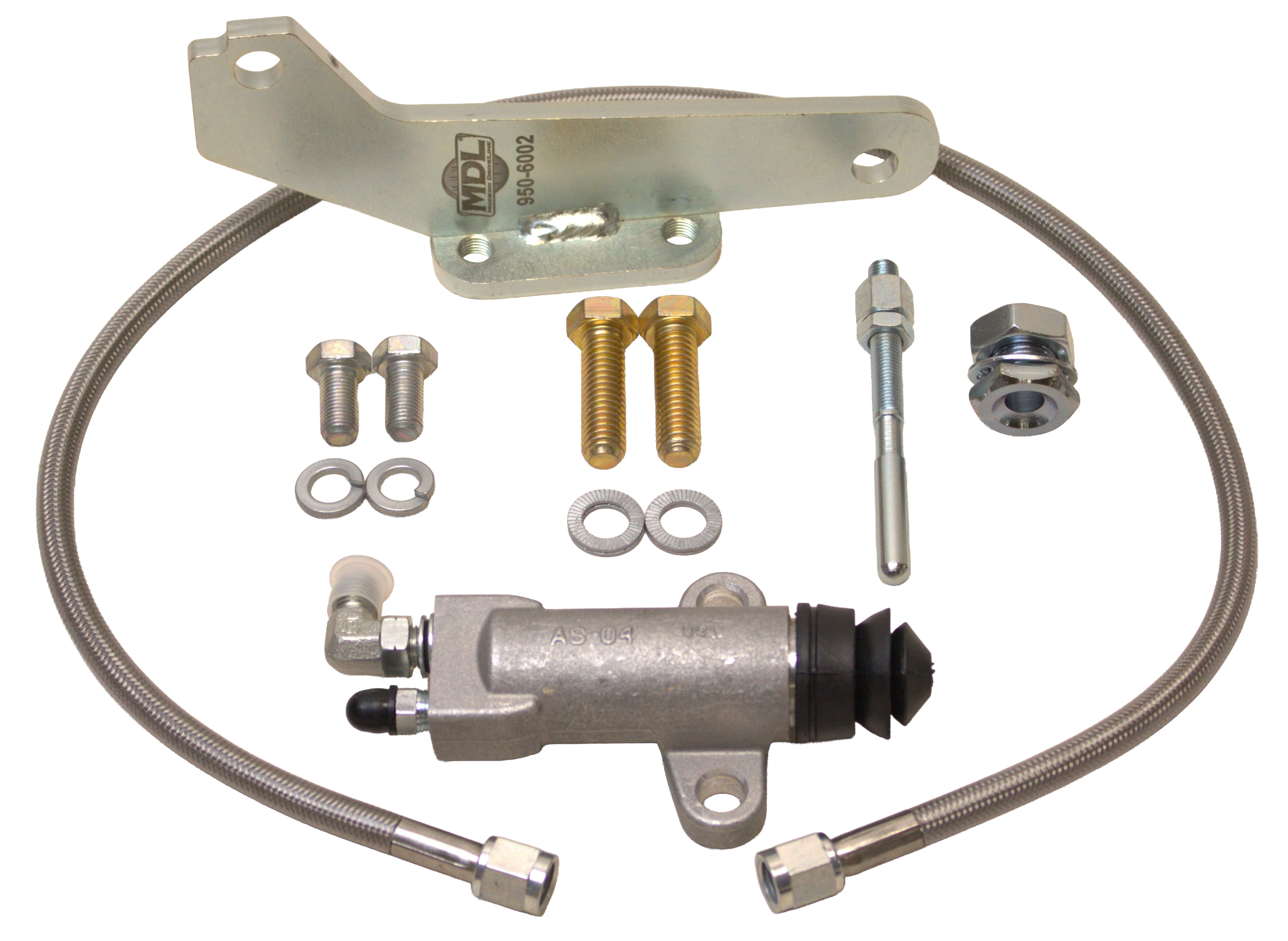

Description

Clutch cables on Fox-body and SN95 Mustangs wear out, bind, and add unnecessary pedal effort - especially when routed around long-tube headers. The LF Series External Hydraulic Slave Kit eliminates those headaches by converting QuickTime RM-6060 and RM-6065 steel bellhousings from cable actuation to smooth, consistent hydraulic release. Designed specifically for small block Ford applications running TKO 500/600, TKX, TR3550, or T5 transmissions, this transmission-mounted system delivers reliable clutch engagement without the clearance compromises of internal slave designs.

The key to this kit's simplicity is its external, transmission-mounted bracket design. Rather than replacing your cable-style clutch fork, the 0.75-inch bore slave cylinder bolts directly to the left two bellhousing bolts and pushes from the rear of the fork - mimicking the mechanical action of a cable system with the precision of hydraulics. The adjustable pushrod allows fine-tuning of clutch engagement point without disassembly, while the external bleeder port makes maintenance straightforward. The compact mounting location tucks the cylinder out of the way of headers and exhaust components that typically interfere with cable routing.

When paired with an MDL LF Series master cylinder kit, you get a complete engineered hydraulic clutch system designed to work together. The matched bore sizes and stroke lengths take the guesswork out of hydraulic ratio calculations, delivering consistent pedal feel and full clutch disengagement. This kit is compatible with both the QuickTime RM-6060 (non-SFI) and RM-6065 (SFI 6.1 certified) bellhousings for small block Ford 302/351W applications. Uses DOT 3 or DOT 4 brake fluid - no special high-temp fluid required. Made in the USA.

What's Included

• 0.75-inch bore external hydraulic slave cylinder
• Transmission mounting bracket and hardware
• Bolt-on pivot socket for cable-style clutch fork
• -4AN braided stainless steel hydraulic line
• -4AN fittings
• Adjustable pushrod
• Installation instructions
• Lifetime technical support

Key Features

• 1/2"-20 thread pattern matches original OEM shift lever specification
• OEM-style appearance with white painted 5-speed shift pattern
• Highly polished finish replicates factory quality
• Direct thread-on installation to original-style shift levers
• Made in the USA

Description

When you upgrade your classic '65-'66 Mustang to a modern 5-speed transmission, the original 3-speed or 4-speed shift knob no longer matches your new gate pattern. This OEM-style reproduction shift knob solves that problem by delivering the authentic look and feel of original Ford hardware while displaying the correct 5-speed pattern for your modern drivetrain.

This is a truly fine reproduction manufactured from the same material as the originals. The highly polished finish and white painted 5-speed shift pattern maintain the period-correct aesthetic that belongs in a properly restored interior. The black polymer resin construction provides durability for daily driving while matching the factory appearance down to the details.

Installation is straightforward since this knob uses the factory 1/2"-20 thread pattern. It threads directly onto original OEM-style shift levers without modification, making it a direct swap for anyone running the stock-style lever with their 5-speed conversion.

Compatible with 1965-1966 Mustang, Falcon, and Cobra applications. Made in the USA with quality standards that match the original manufacturing.

What's Included

• One black polymer resin shift knob with white 5-speed pattern
• 1/2"-20 threaded mounting

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• 2-1/8 inch diameter black aluminum shift ball with brushed finish
• 16mm x 1.5 internal thread - designed for use with thread reducers to adapt to various shifter handle sizes
• Lightweight aluminum construction reduces shifter mass for quicker throws
• Black finish with brushed texture complements modern performance interiors
• 5-speed shift pattern engraving
• Compatible with MDL thread reducer inserts (sold separately) for SAE and metric applications

Description

Factory shift knobs rarely deliver the grip, weight, or aesthetics that a performance build deserves. This MDL 5-Speed Black Aluminum Shift Ball solves that problem with a 2-1/8 inch diameter that fills the palm for confident, positive shifts and a brushed black aluminum finish that looks at home in any performance-oriented cockpit.

The 16mm x 1.5 internal thread is engineered to work with MDL's line of thread reducer inserts, giving you the flexibility to mount this shift ball on virtually any shifter handle. Thread reducers are available in both SAE sizes (3/8-16, 3/8-24) and metric sizes (8mm-1.25, 9mm-1.25, 12mm-1.75) to accommodate Hurst, Lokar, TREMEC, and other popular shifter configurations. This universal approach means one shift ball works across multiple builds and applications.

Constructed from lightweight aluminum, this shift ball reduces rotating mass compared to heavier steel or weighted knobs - a deliberate choice for drivers who prioritize quick, precise shifts over added heft. The brushed aluminum base with black finish provides durability and corrosion resistance while maintaining a clean appearance that won't fade or chip under heavy use.

Note: This shift ball requires a separate thread reducer insert and jam nut (sold separately) to properly mount to your shifter handle. Check MDL's selection of thread reducers to find the correct adapter for your specific shifter lever thread size.

What's Included

• One 2-1/8 inch black aluminum shift ball with brushed finish and 5-speed pattern
• 16mm x 1.5 internal thread (thread reducer insert required - sold separately)

Key Features

• OEM-style appearance matches original 1965-67 Mustang shifter aesthetic
• Chrome-plated high-strength steel construction for long-lasting finish
• Direct bolt-on compatibility with TREMEC T5, TKX, and T56 Magnum transmissions
• 8mm mounting holes on 7/8-inch center-to-center spacing
• 8.5-inch lever height for proper shift feel and reach
• 1/2-inch x 20 thread size for standard shift knob compatibility
• Includes complete mounting hardware for T5 shifters
• Simulated reverse lockout styling for period-correct appearance

Description

Swapping a modern five-speed into a classic Mustang creates a problem: the original shift lever won't bolt up to a TREMEC shifter, and generic levers look out of place in a period-correct interior. This OEM-appearance shift lever solves both issues by combining mid-'60s Mustang styling with the correct mounting pattern for modern TREMEC transmissions.

Built from high-strength steel with a chrome-plated finish, this lever replicates the factory design down to the simulated reverse lockout feature. The lockout is cosmetic only—it provides the correct visual cues without functional lockout action, since TREMEC transmissions handle reverse lockout internally. The 8mm mounting holes are precisely spaced at 7/8-inch center-to-center to bolt directly to stock T5 shifter mechanisms without modification.

At 8.5 inches tall, the lever delivers the proper shift feel and ergonomics that made the original setup intuitive. The 1/2-inch x 20 threaded tip accepts standard shift knobs, making it easy to complete your period-correct interior. If you're running an aftermarket shifter, you may need to enlarge the mounting holes to accommodate 3/8-inch bolts—but the included hardware covers stock T5 installations.

This lever is compatible with TREMEC T5, TKX, and T56 Magnum transmissions, making it ideal for vintage Mustang restorations and pro-touring builds that demand authentic styling without sacrificing modern driveline performance.

What's Included

• Chrome-plated high-strength steel shift lever (8.5-inch height)
• Complete mounting hardware for T5 shifter installation

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Exact reproduction of Ford OE part C5ZZ-7277-B - identical to original 3-speed and 4-speed boots
• Compression molded EPDM rubber construction with textured skin matching factory appearance
• Internal steel insert reinforcement - replicates OEM engineering for proper fit and durability
• Rectangular base with 4 mounting holes - uses existing factory hardware locations
• Designed for round OEM style shifter levers only
• Black finish matches original factory appearance
• Scott Drake quality - Ford-licensed reproduction parts manufacturer

Description

A cracked, dry-rotted, or missing shift boot ruins the cockpit appearance of your classic Mustang and lets dirt, debris, and noise flood through the transmission tunnel opening. This OEM style shift boot delivers an exact reproduction of Ford's original C5ZZ-7277-B part number, restoring the clean factory look to your shifter assembly while sealing the tunnel opening properly.

Scott Drake engineered this boot using compression molded EPDM rubber with a textured surface that precisely matches the original Ford piece. Unlike cheap aftermarket boots that look obviously wrong, this reproduction captures the exact appearance and feel of the factory component. The internal steel insert reinforces the base just like the originals, ensuring proper seating in the transmission tunnel opening and preventing the boot from collapsing or deforming during use.

The rectangular base mounts directly to your existing hardware locations with 4 mounting holes positioned to match the factory pattern. No cutting, trimming, or modification required - this is a direct replacement that installs in minutes. The upper opening is sized specifically for round OEM style shifter levers common to 3-speed and 4-speed manual transmissions of the era.

Compatible with 1965-1968 Ford Mustang models equipped with factory 3-speed or 4-speed manual transmissions using round shifter levers. For a complete restoration look, pair with the optional chrome bezel (see part number MD-321-1061-B).

Kit Includes

• 1 - Black EPDM rubber shift boot with internal steel insert (OE style reproduction)

Key Features

• OE-style chrome finish replicates factory appearance (OE# C5ZZ-7262-C)
• Steel construction with chrome plating for durability
• Rectangular/square base shape for correct fitment
• Designed for non-console manual transmission Mustangs
• Floater plate design for proper boot retention
• Compatible with shift boot MD-321-1061

Description

Nothing finishes off a manual transmission floor shift like a factory-correct bezel. This OE-style chrome shift boot retainer restores the clean, professional look Ford intended for 1965-1968 Mustang interiors equipped with manual transmissions and no center console. If your original bezel is pitted, scratched, or missing entirely, this reproduction brings back the polished detail that makes a restoration complete.

Constructed from steel with a bright chrome finish, this bezel matches the original Ford C5ZZ-7262-C part specification. The rectangular base shape and floater plate design ensure proper fitment and secure boot retention around the shifter opening. Unlike universal bezels that require modification, this piece drops in exactly where the factory part lived - no cutting, bending, or fabrication required.

Manufactured by Scott Drake - a leading supplier of classic Mustang reproduction parts - this bezel maintains the quality and dimensional accuracy restoration enthusiasts demand. Pair it with the matching MD-321-1061 shift boot for a complete, factory-correct shifter assembly that looks right whether you are building a concours show car or a weekend driver.

Direct fitment for 1965-1968 Ford Mustang models with manual transmission and no center console. Also compatible with Falcons and Cougars of the same era.

What's Included

• Chrome shift boot bezel/retainer - steel construction

Key Features

• OE reproduction of Ford part number C4ZB-7262-B with correct fitment
• High-quality chrome-accented surround trim over black camera case textured background
• Square base design for direct bolt-in installation on non-console applications
• Compatible with 3-speed, 4-speed, and 5-speed manual transmission shifters
• Includes period-correct mounting screw hardware

Description

If you're running a floor-mounted manual shifter in your '64-'68 Mustang without a console, the area around the shift lever can look unfinished or utilitarian. This deluxe chrome shift bezel solves that problem by framing your shifter with OEM-style trim that elevates the entire interior.

Originally designed for early Mustangs and Falcons, this reproduction bezel features the correct black camera case textured background with chrome-accented surround trim that matches the factory deluxe interior appearance. The square base configuration provides direct bolt-in fitment for non-console Mustang applications from 1964 through 1968.

Engineered for use with 3-speed and 4-speed factory shifters, this bezel also accommodates 5-speed conversion shifters, making it an ideal finishing piece whether you're restoring to stock or building a TKX or TKO swap. Purpose-built mounting screws are included for straightforward installation without sourcing additional hardware.

What's Included

• Deluxe shift bezel with chrome surround and black textured background
• Period-correct mounting screw hardware

Key Features

• OE-style deluxe shift bezel for non-console 1964-1968 Mustangs
• Satin chrome finish with black camera case textured background
• Die-cast zinc construction for long-lasting durability
• Square base shape fits 3-speed, 4-speed, and 5-speed manual shifters
• Purpose-built mounting screws included for direct installation
• Also fits 1967-1968 Mercury Cougar non-console applications
• OE part number C4ZB-7262-S

Description

Non-console Mustangs deserve better than a basic shifter boot floating on bare carpet. This deluxe floor-mounted shift bezel transforms the shifter area from utilitarian to upscale, providing the refined interior detailing that sets early Mustangs apart. Where standard bezels look plain and unfinished, this deluxe version adds show-quality trim without the bulk of a full center console.

The die-cast zinc construction delivers the heft and durability of the original Ford design, while the satin chrome finish strikes the perfect balance between show-quality appearance and daily-driver practicality. The black camera case textured background provides correct contrast to highlight the satin chrome trim ring, matching the factory aesthetic of deluxe-optioned Mustangs.

This OEM-style bezel is a direct-fit replacement for 1964-1968 Mustangs with standard manual transmissions. The square base shape works with 3-speed, 4-speed, and 5-speed manual shifters, making it equally suited for original restorations and modern 5-speed swaps. Installation is straightforward with the included purpose-built mounting screws that thread directly into the original floor pan holes. Also fits 1967-1968 Mercury Cougar non-console applications.

What's Included

• Deluxe shift bezel with satin chrome finish and black camera case textured background
• Purpose-built mounting screws

Key Features

• 5/8" barrel-style speedometer connection for '65-'66 Mustang dash
• 59" overall cable length sized for five-speed and AOD swap routing
• Direct fit for T5, TKO, TKX, and AOD transmission conversions
• Connects modern transmission speedometer output to original mechanical speedometer
• Also compatible with original 3-speed manual and automatic transmission setups

Description

Swapping a T5, TKO, TKX, or AOD into your '65-'66 Mustang means your original speedometer cable won't reach or connect properly to the new transmission. This 59" speedometer cable solves that problem, routing from your factory mechanical speedometer head to the speedometer drive on your modern transmission while maintaining accurate speed readings on your original dash.

The cable features the correct 5/8" barrel-style fitting that interfaces directly with the speedometer head used in 1965-1966 Mustangs. At 59" long, it provides proper reach for the routing requirements created by T5, TKO, TKX, and AOD transmission placements in these chassis. The cable also works with original 3-speed manual and automatic transmission configurations, making it a versatile solution whether you're completing a five-speed conversion or simply replacing a worn cable on an automatic-equipped car.

For builders who want to keep the original instrument cluster looking stock while running a modern drivetrain, this mechanical speedometer cable eliminates the need for electronic speedometer conversions or aftermarket gauges. Pair it with the correct driven gear for your tire size and rear axle ratio to dial in accurate speed readings.

What's Included

• 59" speedometer cable with 5/8" barrel connector
• Manufacturer's warranty

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

T5 Crossmember | 1965-1966 Mustang | E-Brake Bracket Included

Key Features

• Heavy-duty steel construction, laser-cut and CNC bent for precise fitment
• Integrated e-brake cable bracket positions routing in factory-correct location
• Engineered for maximum exhaust clearance -- no header interference
• Designed specifically for convertible applications
• Stock-like appearance maintains OE aesthetics under the car
• Black powder coat finish for long-lasting corrosion resistance
• Complete sub-frame mounting hardware included
• Made in the USA

Description

Converting your '65-'66 Mustang to a T5 five-speed requires more than just swapping transmissions -- you need a crossmember designed for the T5's unique mounting points. The factory crossmember won't work because the mounting points for the T5 are different than the OE manual transmission and automatic C4. This precision-engineered crossmember solves the fitment challenge with heavy-duty steel construction that's laser-cut and CNC bent for perfect alignment with your Mustang's factory sub-frame mounting locations.

The engineering behind this crossmember addresses real-world installation challenges. Maximum exhaust clearance prevents header interference that plagues generic solutions. The integrated e-brake bracket positions your parking brake cable routing exactly where Ford intended, eliminating the binding and adjustment issues common with aftermarket setups that force you to improvise cable routing.

Built from heavy-duty steel with precision laser cutting and CNC forming, this crossmember delivers the structural integrity your drivetrain demands. Convertible-specific design ensures proper support without compromising any body-specific clearances. The black powder coat finish provides durable corrosion protection while maintaining a stock appearance that looks right on a restored or resto-mod build.

Direct replacement for 1965-1966 Ford Mustang applications with 1983-1993 Ford T5 transmissions. Works with both hardtop and convertible body styles. Made in the USA with lifetime technical support from MDL.

Kit Includes

• Heavy-duty steel T5 crossmember with black powder coat finish
• Integrated e-brake cable bracket
• Complete sub-frame mounting hardware
• Installation instructions
• Lifetime technical support

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks
• Made in the USA

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made in the USA with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• Forged chromoly steel construction for maximum strength in high-horsepower applications
• 28-spline internal configuration for TREMEC and Ford transmissions
• 1330 series U-joint with 1-1/16-inch bearing cups
• 5.910-inch centerline-to-end length with 4.500-inch barrel
• 1.499-inch journal diameter for proper seal contact
• Black oxide finish inhibits rust and pitting
• Precision-machined splines mate smoothly with output shaft
• Smooth outer journal promotes proper fore/aft yoke action and prevents leaks
• Made in the USA

Description

Converting to a TREMEC manual or Ford automatic transmission often requires upgrading your slip yoke to handle increased torque and ensure proper driveline function. Factory cast yokes can become the weak link in a high-performance build -- this Sonnax forged chromoly slip yoke delivers the strength and precision your drivetrain demands, whether you're on the street, drag strip, or dirt oval track.

Forged from chromoly steel rather than cast, this 28-spline slip yoke starts with a material that offers superior tensile strength under load. All dimensions are precision-machined to guarantee a consistent, concentric slip yoke that eliminates vibration and binding. The clean-cut splines mate smoothly with the transmission output shaft, while the smooth outer journal provides uniform contact with the tail housing seal to prevent leaks and promote proper fore/aft yoke action.

The 1330 series U-joint configuration accepts bearing caps measuring 1-1/16 inches, providing the right balance of strength and serviceability for most street and performance applications. With a centerline-to-end length of 5.910 inches, a 4.500-inch barrel, and a 1.499-inch journal diameter, this yoke is built to OEM dimensional standards while exceeding factory strength.

Compatible with TREMEC TKO, TKX, Magnum, select T56, Ford C6, FMX, C4, AOD/AODE, T5, and Toploader transmissions. The black oxide finish resists corrosion while maintaining the precision surface finish required for optimal seal performance. Made in the USA.

What's Included

• One Sonnax forged chromoly slip yoke with black oxide finish
• 28-spline internal configuration
• 1330 series U-joint bores (1-1/16-inch bearing cup size)
• Lifetime technical support from MDL

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)
