Key Features

• MDL Exclusive 2" left side-mounted front socket shifter with 1" or 1.5" forward offset shift stubs - not available through TREMEC
• 600 lb-ft torque capacity with 8,000 RPM engine speed and 7,500 RPM shift capability
• Close-ratio gear set: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive
• 26-spline input shaft and 31-spline output shaft
• Shift location: 15.25"-15.75" from bellhousing face; offset: 1.75"-2.25" left of centerline
• Multi-cone synchronizers with hybrid sintered bronze/carbon rings for smooth, fast shifts
• Slim-line, end-loading three-piece aluminum case for improved tunnel clearance
• Mechanical and analog electric speedometer drives included
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

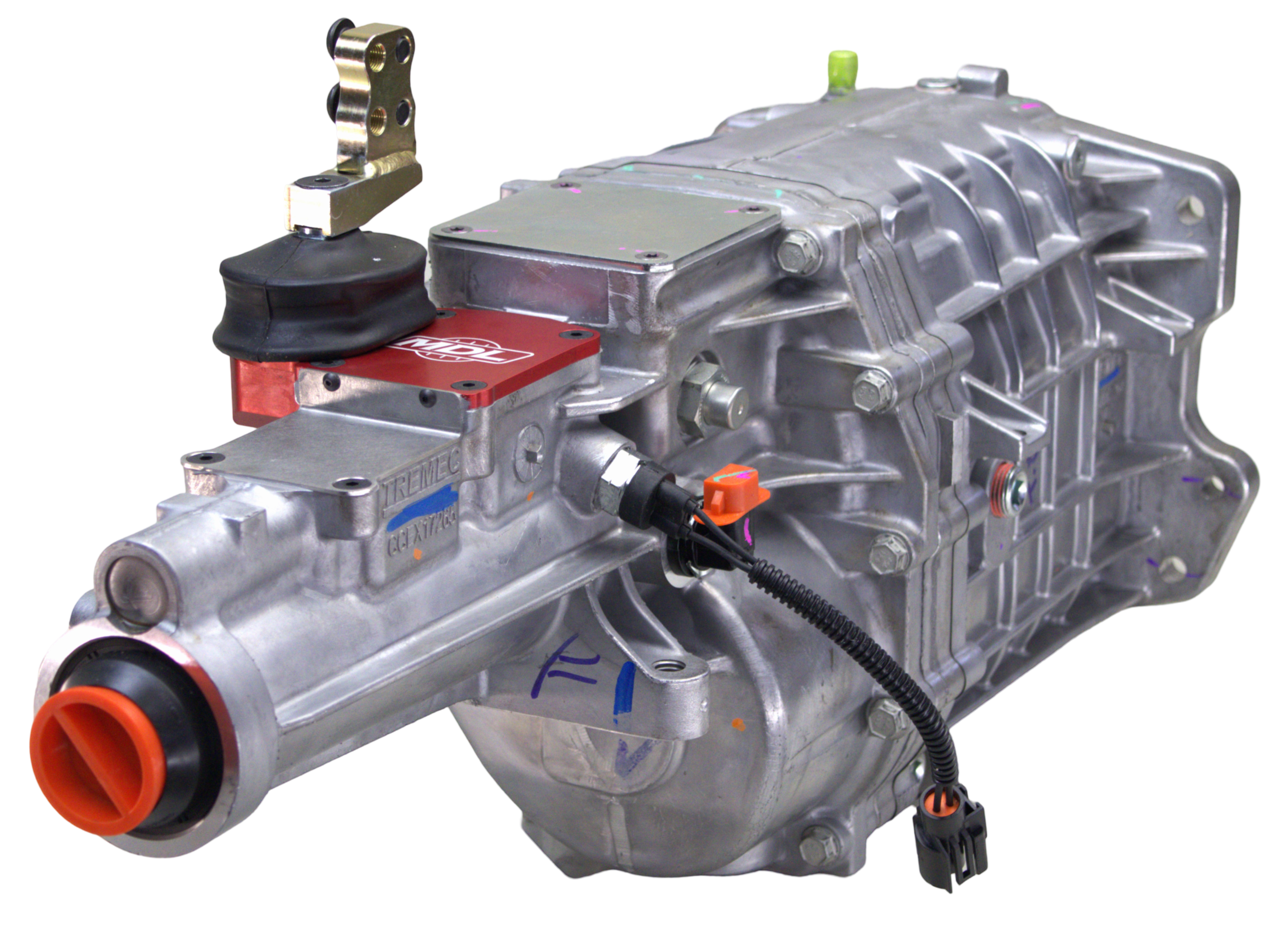

This MDL-modified TREMEC TKX solves the shifter placement challenge that plagues many Ford swaps. The stock TKX offers three factory shifter positions, but Ford applications often demand additional adjustment to clear consoles, bench seats, or floor bracing. MDL's exclusive 2" left side shifter configuration moves the shifter left from centerline and includes both 1" and 1.5" forward offset shift stubs - giving you precise control over shifter placement. This configuration is not available through TREMEC; it is an MDL exclusive modification.

The TKX was designed from the ground up specifically for the aftermarket, not adapted from an OEM application. The result is a compact, end-loading case that fits inside many stock classic car and truck transmission tunnels without floor modifications. The three-piece ribbed aluminum housing delivers outstanding structural stiffness while keeping weight to just 99 lbs dry. Gaskets at all flanges eliminate fluid leaks and simplify installation.

Inside, the TKX delivers the shift quality that made TREMEC's Magnum 6-speed legendary. Multi-cone synchronizers with hybrid sintered bronze and carbon rings enable confident shifts at up to 7,500 RPM. Special chamfers and dedicated ball detents for each of the three shift rails eliminate the notchy feel that plagued earlier 5-speeds. All gears and shafts are machined from special-grade ASTM 4615 steel, with oversized gear widths for maximum durability under the 600 lb-ft torque rating.

This Ford-pattern TKX uses the Ford wide bellhousing bolt pattern and a 26-spline input shaft for broad clutch compatibility. The 31-spline output shaft accepts Ford C6-style slip yokes. TREMEC recommends HP-MTF, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh lubricants. Both mechanical and electronic speedometer outputs are standard for maximum versatility across build combinations.

What's Included

• TREMEC TKX 5-speed transmission - Ford wide bellhousing pattern
• MDL exclusive 2" left side-mounted front socket shifter assembly
• 1" or 1.5" forward offset shift stub
• MDL lifetime technical support

Key Features

• 600 lb-ft torque capacity with 8,000 RPM engine speed capability and 7,500 RPM shift zone
• Close-ratio gear set: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive with 2.56 reverse
• 26-spline input shaft (1-1/8" diameter), 31-spline output shaft for maximum drivetrain strength
• 2" left side mounted front shifter position with 1" or 1.5" forward offset stub - MDL exclusive configuration not available through TREMEC
• Multi-cone synchronizers with sintered carbon/bronze hybrid construction for smooth, fast shifts at high RPM
• Slim-line, end-loading case design reduces tunnel modifications while increasing structural rigidity
• Mechanical and analog electric speedometer drive compatibility
• Ford Wide Pattern bellhousing bolt pattern

Description

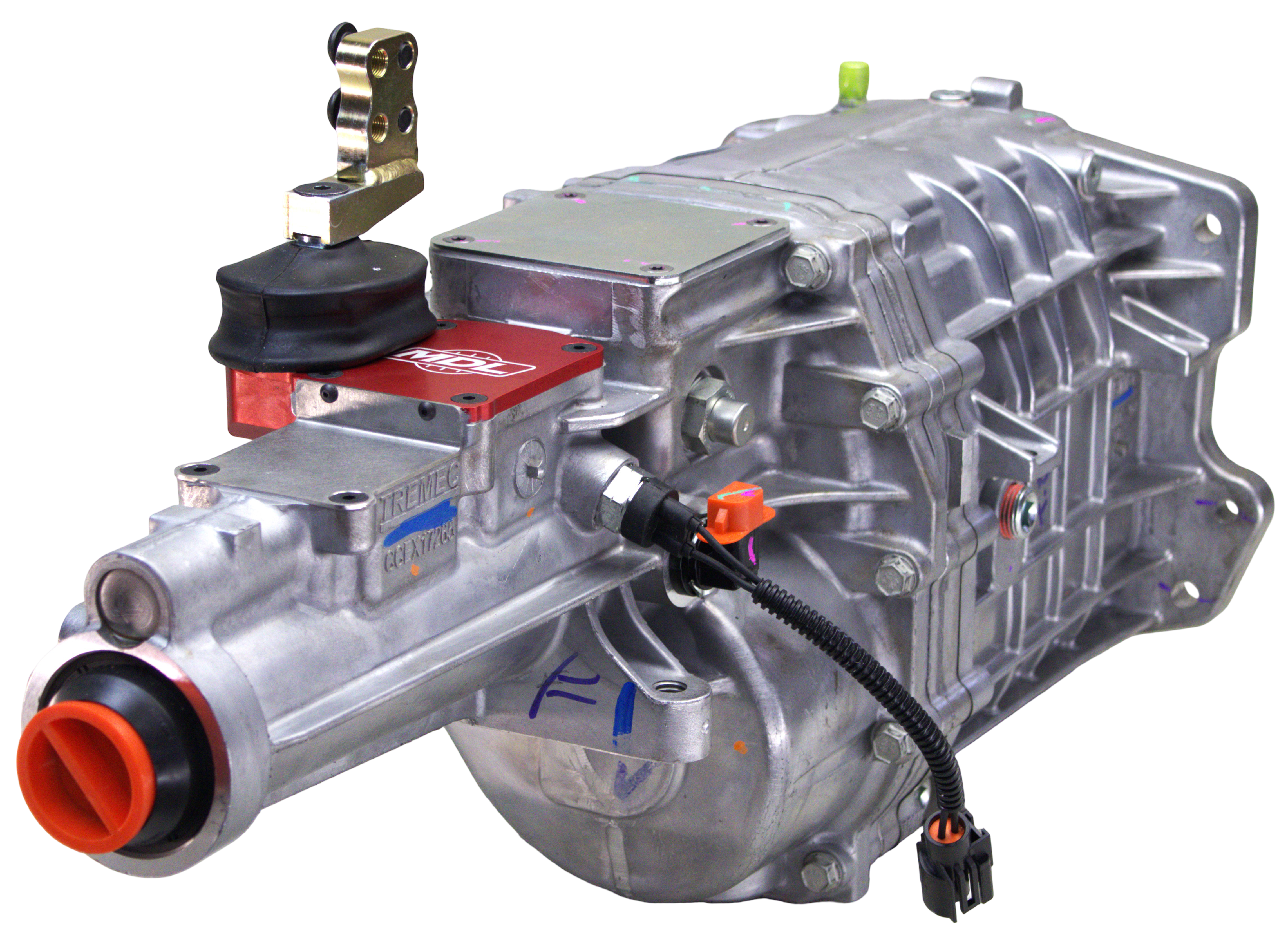

Road racers and serious track builders know the frustration: the stock shifter position puts the lever exactly where you don't want it. This MDL-modified TREMEC TKX solves that problem with a 2" left side mounted front shifter configuration and 1" or 1.5" forward offset stubs, giving you the precise lever placement that tight cockpits and modified chassis demand. This configuration is not available through TREMEC's standard catalog - it's an MDL exclusive built for builders who need maximum shifter positioning flexibility.

The TKX platform delivers race-ready performance with its multi-cone synchronizer package featuring sintered carbon/bronze hybrid construction. This advanced synchronizer design eliminates the shift quality issues that plagued earlier five-speeds at high engine speeds, enabling smooth, positive engagement at 7,500 RPM shifts while the engine screams toward its 8,000 RPM ceiling. The internal three-rail shift system with steel shift forks provides the robust, notchy feel that road racers expect when banging through gears under pressure.

The end-loading case architecture is what sets the TKX apart from legacy five-speeds. The slim-line, three-piece aluminum housing creates a narrower profile that clears most transmission tunnels without extensive floor work, while the ribbed construction delivers increased structural stiffness critical for repeated competition stress. Wide gear widths, caged needle bearings in all gear positions, and gears/shafts machined from ASTM 4615 special grade steel ensure durability under sustained high-load conditions. Tapered roller bearings on input, output, and countershafts reduce NVH while improving longevity.

The close-ratio gear set (2.87 first, 0.68 overdrive) keeps your engine in its powerband during aggressive driving while providing a highway-friendly cruise ratio. The 26-spline input and 31-spline output configuration handles 600 lb-ft of torque with confidence. Compatible with Ford Wide Pattern bellhousings and accepts Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF (2.7 quart capacity).

What's Included

• TREMEC TKX 5-speed transmission assembly with 2" left side mounted front shifter
• 1" or 1.5" forward offset shift stubs
• TREMEC operation and maintenance manual
• MDL lifetime technical support

Key Features

• MDL Exclusive: 2" left Side mounted front shifter with 1" or 1.5" forward offset shift stubs - not available from TREMEC
• 600 lb-ft torque capacity with 8,000 RPM engine speed capability and shifts at 7,500 RPM
• Close-ratio gearing: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive for high-performance applications
• 26-spline input shaft with 31-spline output shaft for enhanced drivetrain strength
• Multi-cone synchronizers with hybrid carbon/bronze synchronizer rings for smooth, high-RPM shifts
• Compact end-loaded case design provides clearance in most transmission tunnels without floor modifications
• Three-piece ribbed aluminum housing for increased structural stiffness
• Mechanical and analog electric speedometer drive compatibility
• 99 lbs dry weight with 2.7-quart fluid capacity
• Ford Wide Pattern bellhousing bolt pattern

Description

Classic Ford interiors and aftermarket consoles demand precise shifter placement - and the stock TREMEC shifter locations don't always cooperate. This MDL-modified TREMEC TKX solves that problem with an exclusive 2" left side mounted front shifter, paired with interchangeable 1" or 1.5" forward offset shift stubs. This configuration gives builders the flexibility to dial in exact shifter placement for custom consoles, aftermarket shifters, or specific ergonomic requirements - a modification not available through TREMEC or other distributors.

The TKX was designed from the ground up specifically for the aftermarket, not adapted from OEM applications. Multi-cone synchronizers with hybrid carbon/bronze rings deliver superior shift quality even at high RPMs, while the internal 3-rail shift system with steel shift forks provides precise, positive engagement. All gears and shafts are machined from ASTM 4615 special-grade steel, with oversized gear widths and caged needle bearings in all gear positions optimizing durability under high-torque loads.

The close-ratio gear set (2.87, 1.89, 1.28, 1.00, 0.68) is purpose-built for high-performance applications, providing tight ratio spacing through the gears with a deep 0.68 overdrive for reduced highway RPM. The compact end-loaded case design tucks into tight transmission tunnels, and the slimline profile reduces or eliminates the floor modifications required by older TKO transmissions.

This transmission accepts Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF. Both mechanical speedometer cable drive and two-wire analog electronic speedometer outputs are included. When you purchase from MDL, you get an extended warranty beyond the manufacturer's coverage plus lifetime technical support from specialists who know these transmissions inside and out.

Kit Includes

• TREMEC TKX 5-speed manual transmission with Ford Wide Pattern bellhousing bolt pattern
• MDL 2" left side mounted front shifter
• 1" or 1.5" forward offset shift stub
• Billet aluminum short-throw shifter
• Ford mechanical 7-tooth speedometer cable drive gear
• Two-wire analog OSS speedometer sensor (built-in)
• TREMEC installation documentation
• MDL lifetime technical support

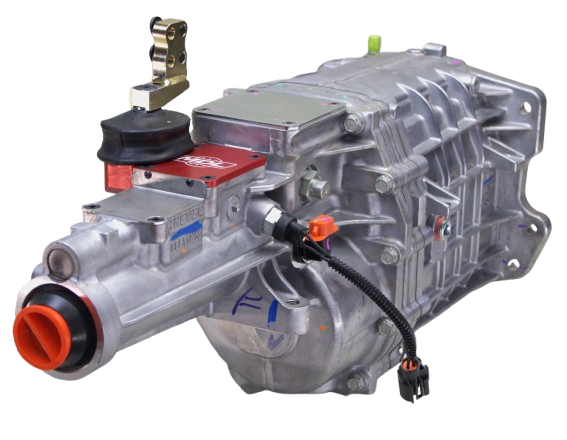

MDL TREMEC Ford TKX 5-Speed | 3.27 First, .72 OD | 10-Spline | 2” Left Side Shift Front Shifter, 1” or 1.5” Forward Offset Stub

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 10-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• MDL 2” left side shift front modification with a 1” or 1.5” Forward Offset Stub - precise shifter placement without compromise
• Shifter Stub Location: 2” left of center line, 15.25” or 15.75” back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27 first through 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18086) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter (2” left side shift front, 1” or 1.5” forward Offset Stub)
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support

Key Features

• Spun steel cone construction work-hardens to over 80,000 PSI - more than 2x stronger than rolled or stamped bellhousings
• 7.05-inch bellhousing depth matched for standard-length Ford TKO, TKX, T5 Mustang, and TR3550 transmissions
• Universal transmission bore accepts 4.850-inch, 4.910-inch, and 5.12-inch input bearing retainers
• Accommodates up to 184-tooth flywheel and 12-inch clutch
• Designed for Ford OE mechanical fork or hydraulic throwout bearing systems
• Patent pending on 16 points of bellhousing design and manufacturing process
• Universal fit - not vehicle specific, ideal for custom builds and swaps
• NOT SFI 6.1 certified - intended for street and mild performance applications
• 100% built in the USA

Description

Adding a modern overdrive transmission behind your Ford FE big block means solving the bellhousing puzzle - and cheap adapters just create new problems. The QuickTime RM-6056 delivers the dimensional precision that keeps your drivetrain aligned and your clutch releasing cleanly, whether you're bolting up a TKO, TKX, T5 Mustang, or TR3550 behind your 352, 360, 390, 427, or 428 FE.

QuickTime's proprietary spin-forming process creates a fundamentally different bellhousing than competitors. Where others stamp or roll their cones - introducing distortion and stress risers - QuickTime spins theirs from high-grade steel that work-hardens to over 80,000 PSI. That's more than twice the strength of conventional steel bellhousings. The result is a cone that maintains perfect dimensional stability through the entire RPM range, eliminating the flex that causes accelerated input bearing wear, pilot bushing failure, and power loss.

The RM-6056 features a 7.05-inch bellhousing depth paired with a universal transmission bore that accepts Ford T5, TKO500/600, TKX, and TR3550 input bearing retainers. It handles up to a 184-tooth flywheel with a 12-inch clutch and works with both Ford OE mechanical fork linkage and hydraulic throwout bearing systems. This is a universal-fit bellhousing, not vehicle-specific, making it the go-to solution for FE swaps and custom builds where factory pieces don't exist.

Note: This bellhousing is NOT SFI 6.1 certified. Many sanctioning bodies require SFI certification for cars running 11.49 or faster in the quarter mile - if that's your application, look for the RM-6056SFI. Founded by former dirt track racer Ross McCombs, QuickTime earned their reputation building bellhousings tough enough for racing abuse. Every RM-6056 is manufactured in the United States.

What's Included

• QuickTime RM-6056 spun steel bellhousing
• Steel block plate
• Mounting hardware
• Installation instructions

Key Features

• SFI 6.1 certified steel bellhousing - mandatory for NHRA/IHRA competition at 11.49 ET or faster
• Spun steel cone construction work-hardens to over 80,000 PSI tensile strength - more than double standard steel bellhousings
• 7.05-inch bellhousing depth with 4.850-inch/4.910-inch transmission bore diameter
• Fits Ford FE engines: 352, 360, 390, 427, 428, and 410 Mercury
• Compatible with Ford T5, TKO-500, TKO-600, TKX, and TR-3550 transmissions
• Requires 184-tooth flywheel; accepts up to 12-inch clutch disc
• Universal clutch operation - works with mechanical, cable, or hydraulic release systems
• 24 lbs. total weight
• 100% made in the USA

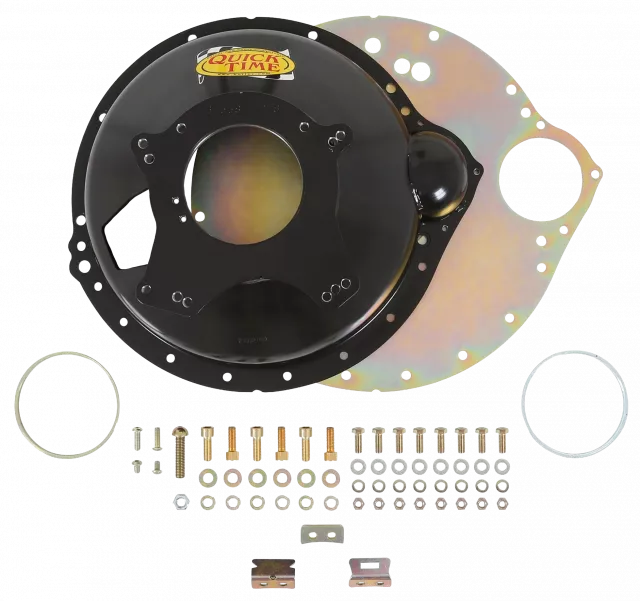

Overview

Bolting a modern TREMEC 5-speed behind a classic Ford FE big block demands a bellhousing that won't compromise alignment under high-RPM loads. The QuickTime RM-6056SFI delivers SFI 6.1 certification for sanctioned competition while providing the dimensional accuracy that keeps your drivetrain aligned from idle to redline.

What separates QuickTime from conventional steel bellhousings is their exclusive spin-forming process. Rather than rolling or stamping the cone - processes that introduce stress risers and dimensional inconsistencies - QuickTime spins each cone from high-grade steel. This spin-forming process work-hardens the material to over 80,000 PSI tensile strength, delivering more than twice the strength of other steel bellhousings while maintaining the dimensional stability that prevents binding and premature drivetrain wear.

The RM-6056SFI bridges Ford FE engines (352, 360, 390, 427, 428, and 410 Mercury) to Ford-pattern TREMEC transmissions including the T5, TKO-500, TKO-600, TKX, and TR-3550. The dual transmission bore diameter (4.850-inch/4.910-inch) ensures proper fit across these applications. This bellhousing requires a 184-tooth flywheel and accommodates clutch discs up to 12 inches in diameter. Clutch release is your choice - the design accepts mechanical linkage, cable actuation, or hydraulic slave cylinder setups.

QuickTime holds patents on 16 points of bellhousing design and manufacturing process, developed with input from OEMs, engine builders, transmission builders, and racers. When you need the strength for serious horsepower and the precision to protect your investment, this is the bellhousing that delivers. Made 100% in the USA.

Kit Includes

• QuickTime RM-6056SFI steel bellhousing with SFI 6.1 certification
• Mounting hardware
• Installation instructions
• Lifetime technical support from MDL

Key Features

• Bolt lengths sized specifically for steel bellhousing applications - not interchangeable with aluminum bellhousing hardware
• Grade 8 steel construction for maximum clamping force and durability
• Hardened washers included for proper load distribution across mounting surfaces
• Complete hardware set for attaching Ford TKX transmission to steel bellhousings
• Compatible with QuickTime and Lakewood steel scatter shields for Ford applications
• Made in the USA

Description

When upgrading to a TREMEC TKX 5-speed transmission, factory T5 transmission-to-bellhousing bolts are incompatible with TKX applications. This hardware kit provides the correct bolt lengths and grade specifically engineered for steel bellhousing installations on Ford applications. Steel bellhousings require different bolt lengths than aluminum bellhousing kits - using the wrong hardware can result in improper engagement, case damage, or unsafe mounting conditions.

This MDL hardware kit solves the sourcing headache by providing the exact fasteners needed for your steel bellhousing installation. The Grade 8 bolts deliver the clamping force necessary to handle the TKX's 600 lb-ft torque capacity, while hardened washers ensure even load distribution across the bellhousing mounting flange. Proper hardware is critical - never use transmission-to-bellhousing bolts to draw or pull the transmission up to the bellhousing, as damage to the pilot bearing and transmission case ears may result.

This kit is designed for use with popular steel scatter shields including QuickTime and Lakewood bellhousings for Ford small block applications paired with the TKX transmission. When installing, ensure the transmission is fully seated by hand against the bellhousing before torquing fasteners to specification. Made in the USA with lifetime tech support from MDL.

What's Included

• Grade 8 steel transmission-to-bellhousing bolts (sized for steel bellhousing applications)
• Hardened steel washers
• Lifetime tech support from MDL

Key Features

• Billet steel construction delivers superior strength and crack resistance over cast iron at high RPM
• Zero balance (0.0 oz) for internally balanced Ford FE 390, 427, and 428 engines
• 184-tooth ring gear for proper starter engagement
• 30-pound optimized weight balances reduced rotating mass with strong launch capability
• 11-inch clutch bolt pattern compatibility (Long and Big Block Chevy Offset patterns)
• Six-bolt crankshaft mounting configuration
• Precision-machined friction surface resists heat checking
• Made in the USA

Description

Factory cast iron flywheels served their purpose in stock applications, but they become a liability in performance builds. Cast iron is prone to stress cracking under high RPM and increased clutch clamping loads, and at elevated engine speeds, a failing iron flywheel can be catastrophic. This billet steel flywheel solves those problems while retaining the rotational mass needed for confident launches in torque-heavy Ford FE applications.

Billet construction starts with solid steel bar stock that is completely machined to final dimensions. This process eliminates the internal stresses and porosity inherent in castings, resulting in a flywheel that resists cracking and handles higher clamping forces from performance clutches. The material is significantly stronger than gray iron while maintaining the thermal stability needed for repeated heat cycles from aggressive driving.

At 30 pounds, this flywheel strikes the right balance for Ford FE street/strip builds. It is light enough to improve throttle response over a factory cast piece, yet heavy enough to store the rotational energy needed for smooth engagement and strong launches in heavier vehicles. The precision-machined friction surface works effectively with modern organic and ceramic clutch materials.

Designed as a direct bolt-in replacement for internally balanced (zero balance) Ford FE engines including the 390, 427, and 428. The 184-tooth ring gear ensures proper starter engagement, and the 11-inch clutch bolt pattern accepts standard pressure plates. Made in the USA with precision manufacturing standards.

What's Included

• Billet steel flywheel with 184-tooth ring gear
• Precision-machined friction surface
• Zero balance for internally balanced FE engines
• Lifetime technical support from MDL

Key Features

• Billet steel construction eliminates stress cracks and withstands high RPM and heavy clutch clamping loads
• 28oz external balance matches Ford 428ci FE engine requirements
• 184-tooth ring gear for correct FE starter engagement
• 30-pound optimized weight balances rotational inertia with improved throttle response
• 6-bolt asymmetric crankshaft mounting ensures proper counterweight indexing
• 11" clutch bolt pattern compatible with Long style and BBCO pressure plates
• Precision-machined friction surface for consistent clutch engagement
• Made in the USA

Description

Ford's 428ci FE is one of the few FE engines that requires external balance - 28oz of counterweight on the flywheel to offset the longer stroke. Cast iron flywheels handle the job adequately in stock applications, but under performance conditions they become stress-crack liabilities. When you're running aggressive clutch clamping forces and high RPM, you need billet steel.

This Lighten Billet Steel flywheel is machined from solid steel bar stock, delivering the structural integrity that cast iron simply cannot match. The 30-pound weight is deliberately optimized - heavy enough to store adequate rotational energy for smooth launches and drivability, yet light enough to sharpen throttle response compared to stock cast units. The integrated 28oz counterweight is precision-positioned and indexed via Ford's asymmetric 6-bolt crankshaft pattern, ensuring proper balance alignment every time.

The 184-tooth ring gear is correct for Ford FE engines from 1965-on and engages properly with standard FE starters. The 11" friction surface is machined for 11" and 11.5" Long style pressure plate bolt patterns - the same configurations used on factory FE clutch systems. This gives you flexibility to run either traditional Long style three-pair bolt patterns or modern diaphragm-style pressure plates designed for the Long pattern.

Direct bolt-in replacement for Ford 428ci FE engines requiring 28oz external balance. Also fits externally balanced 410ci FE applications. Single-disc clutch compatible. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• One (1) Lighten Billet Steel flywheel, precision-machined from solid bar stock (30 lbs)
• 184-tooth ring gear, pressed and secured
• 28oz external counterweight, integrated
• Precision-machined 11" clutch friction surface
• 6-bolt asymmetric crankshaft mounting holes
• 11" Long style and BBCO pressure plate bolt pattern
• Lifetime technical support

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Key Features

• 11.5-inch long pattern diaphragm pressure plate for Ford Big Block Change Over applications
• Organic/organic facings deliver smooth engagement and progressive pedal feel
• 26-spline x 1-1/8-inch hub for TREMEC TKX, TKO, and T56 Magnum transmission compatibility
• 400 lb-ft torque rating ideal for street-driven Ford big blocks
• Hydraulic release design - no throwout bearing included (designed for hydraulic slave systems)
• Sprung hub design absorbs driveline shock and protects transmission synchronizers
• Hand-built in-house with double-checked quality control and exacting tolerances
• 1-year free-from-defect warranty
• Made in the USA

Description

When upgrading a Ford big block to a modern TREMEC transmission, the clutch has to bridge two worlds - the original Ford bolt pattern and a 26-spline input shaft that the factory never anticipated. The Big Block Change Over (BBCO) pattern solves this, and MDL's Superior series clutch set delivers the quality and precision that serious builders demand. Hand-assembled in-house at MDL's Caldwell, Idaho facility, every clutch disc is double-checked for accuracy and tolerances before shipping, so you get a ready-to-install premium piece right out of the box.

The organic/organic facing combination offers the ideal balance for street-driven Ford FE, 385-series, and other big block applications. Unlike harsh ceramic or metallic facings that grab aggressively, organic material provides smooth, progressive engagement that's forgiving in stop-and-go traffic while still delivering a solid 400 lb-ft torque capacity. The 11.5-inch long pattern diaphragm pressure plate delivers consistent clamping force across the full disc face with lighter pedal effort than traditional three-finger Long-style pressure plates.

The 26-spline x 1-1/8-inch hub is purpose-built for TREMEC transmission swaps, mating directly to TKX, TKO, and T56 Magnum input shafts. The sprung hub design dampens driveline shock that would otherwise stress synchronizers and input shaft bearings - critical protection when pairing big block torque with a high-performance manual gearbox. This kit is configured for hydraulic release systems (internal or external slave cylinders), so no mechanical throwout bearing is included.

Every Superior series clutch is backed by MDL's 1-year free-from-defect warranty and lifetime technical support. Made in the USA with the precision and attention to detail that Ford big block builders expect.

What's Included

• 11.5-inch long pattern diaphragm pressure plate
• 26-spline x 1-1/8-inch clutch disc with organic/organic facings and sprung hub
• Ford big block pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

Key Features

• 11.5-inch long pattern diaphragm pressure plate for big block Ford changeover applications
• Kevlar/steel back organic faced clutch disk rated at 500 ft-lbs torque capacity
• 26-spline x 1-1/8-inch hub fits TREMEC TKO, TKX, and T-56 Magnum transmissions
• Hydraulic release profile on clutch fingers for smooth, consistent pedal feel
• Sprung hub design absorbs drivetrain shock and improves shift quality
• Hand-assembled in-house with precision tolerances and double-checked for accuracy
• Big Block Ford pilot bushing and clutch alignment tool included
• Performance Proven engineering - track-tested for street/strip reliability
• Made in the USA with 1-year free-from-defect warranty

Description

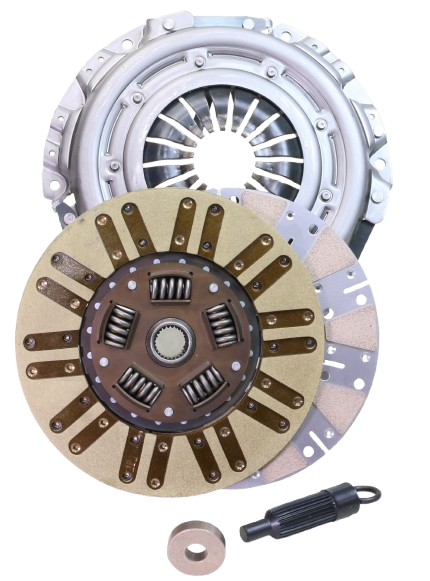

The MDL Superior Big Block Change Over (BBCO) clutch kit solves the fitment challenge of adapting modern TREMEC 5-speed and 6-speed transmissions to classic Ford big block engines. The 11.5-inch long pattern design provides the correct geometry for BBF-to-TREMEC swaps, delivering serious torque capacity without sacrificing the smooth engagement characteristics needed for street driving.

This clutch assembly features a diaphragm pressure plate with a hydraulic release finger profile, eliminating the binding and inconsistent pedal feel common with mechanical linkage setups. The Kevlar/steel back organic facing provides excellent heat resistance and progressive engagement - perfect for performance street applications where you need both durability and drivability. At 500 ft-lbs torque capacity, this clutch handles serious power while maintaining a predictable, streetable pedal.

The 26-spline x 1-1/8-inch hub matches TREMEC TKO, TKX, and T-56 Magnum input shafts, making this the ideal upgrade for Ford muscle car transmission conversions. The sprung hub design absorbs drivetrain shock during aggressive shifts, protecting both transmission and differential components while improving overall shift quality.

Every MDL Superior clutch disk is hand-built in-house to exacting tolerances, then inspected and double-checked before boxing. You receive a ready-to-install, Performance Proven clutch assembly backed by a 1-year free-from-defect warranty. Note: This kit is designed for hydraulic throwout bearing systems - throwout bearing sold separately. Made in the USA.

What's Included

• 11.5-inch long pattern diaphragm pressure plate with hydraulic release profile
• Kevlar/steel back organic faced clutch disk - 26-spline x 1-1/8-inch, sprung hub
• Big Block Ford (BBF) pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Big Block Change Over (BBCO) 11.5" long pattern diaphragm pressure plate for Ford 429/460 applications
• Hybrid facing design: Kevlar on pressure plate side, steel-backed organic on flywheel side
• 26-spline x 1-1/8" sprung hub disk for smooth engagement and transmission compatibility
• Profiled clutch fingers for reduced pedal effort in hydraulic release systems
• 650 ft-lbs torque capacity for performance street and strip use
• Hand-assembled in-house with double-riveted construction for durability
• Includes Big Block Ford pilot bushing and alignment tool
• Made in the USA with 1-year free-from-defect warranty

Description

Ford's 385-series big blocks--the 429 and 460--were designed as luxury-car torque monsters, but builders have been putting manual transmissions behind them for decades. The challenge? Finding a clutch that can handle serious torque without requiring a leg press workout at every stoplight. This Superior Series Big Block Change Over clutch kit delivers 650 ft-lbs of torque capacity through an 11.5" long pattern diaphragm pressure plate, giving you the clamping force needed for high-power street and strip duty while keeping pedal effort manageable in hydraulic release setups.

The hybrid friction material strategy is engineered for optimal performance and longevity. Kevlar on the pressure plate side handles initial engagement heat and provides excellent fade resistance under hard use, while the steel-backed organic facing on the flywheel side delivers smooth, progressive engagement for streetable manners. This combination gives you the best of both worlds--aggressive holding power when you need it, civilized behavior when you don't. The profiled clutch fingers ensure even pressure distribution across the entire friction surface.

Every MDL Superior clutch disk is hand-assembled in-house to exacting tolerances. Double-riveted construction ensures the facings stay put under repeated high-load cycles, and each assembly is inspected before it goes in the box. The 26-spline x 1-1/8" sprung hub provides proper damping and matches common Ford performance transmission input shafts. This kit is designed for hydraulic throwout bearing setups--note that the throwout bearing itself is not included.

Compatible with 11.5" long pattern flywheels on Ford big block applications. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• 11.5" long pattern diaphragm pressure plate
• Kevlar/steel-backed organic clutch disk, 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• Flywheel pattern reference chart
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Kevlar/ceramic dual-surface disc for aggressive street and drag applications
• 11.5" long pattern diaphragm pressure plate for Big Block Change Over (BBCO) applications
• 26-spline x 1-1/8" sprung hub absorbs driveline shock
• 650 ft-lb torque capacity rating
• Designed for hydraulic throwout bearing systems
• Big Block Ford pilot bushing included
• Hand-built in MDL's Idaho facility with double quality inspection
• Made in the USA with 1-year warranty

Description

When your Ford big block swap needs serious holding power but you're constrained by the 11.5" long pattern bolt circle, the Superior Kevlar/Ceramic clutch kit delivers. The Kevlar/ceramic friction surfaces provide a higher coefficient of friction than standard organic materials, allowing the same clamping force to hold significantly more power--rated at 650 ft-lb of torque capacity. This makes it ideal for high-horsepower street builds, drag racing launches, and road racing where aggressive engagement is critical.

The ceramic face is engineered for racing applications where quick engagement and extreme heat resistance are essential. MDL's ceramic formulation includes iron content that actually increases friction as temperatures rise, making this clutch stronger under punishment rather than weaker. The Kevlar backing provides smooth street manners while the ceramic face delivers race-proven bite.

The 11.5" long pattern diaphragm pressure plate is specifically designed for Ford Big Block Change Over (BBCO) applications. Every Superior clutch disc is hand-built in MDL's Idaho facility to exacting tolerances, then double-checked for accuracy before shipping. The 26-spline x 1-1/8" sprung hub accommodates common Ford transmission input shafts while absorbing driveline shock for smoother engagement.

This kit is designed for hydraulic release systems--throwout bearing is not included. Includes a Big Block Ford pilot bushing and alignment tool for proper installation. Made in the USA and backed by MDL's 1-year warranty.

What's Included

• 11.5" long pattern diaphragm pressure plate
• 11" Kevlar/ceramic clutch disc with 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• 1-year warranty

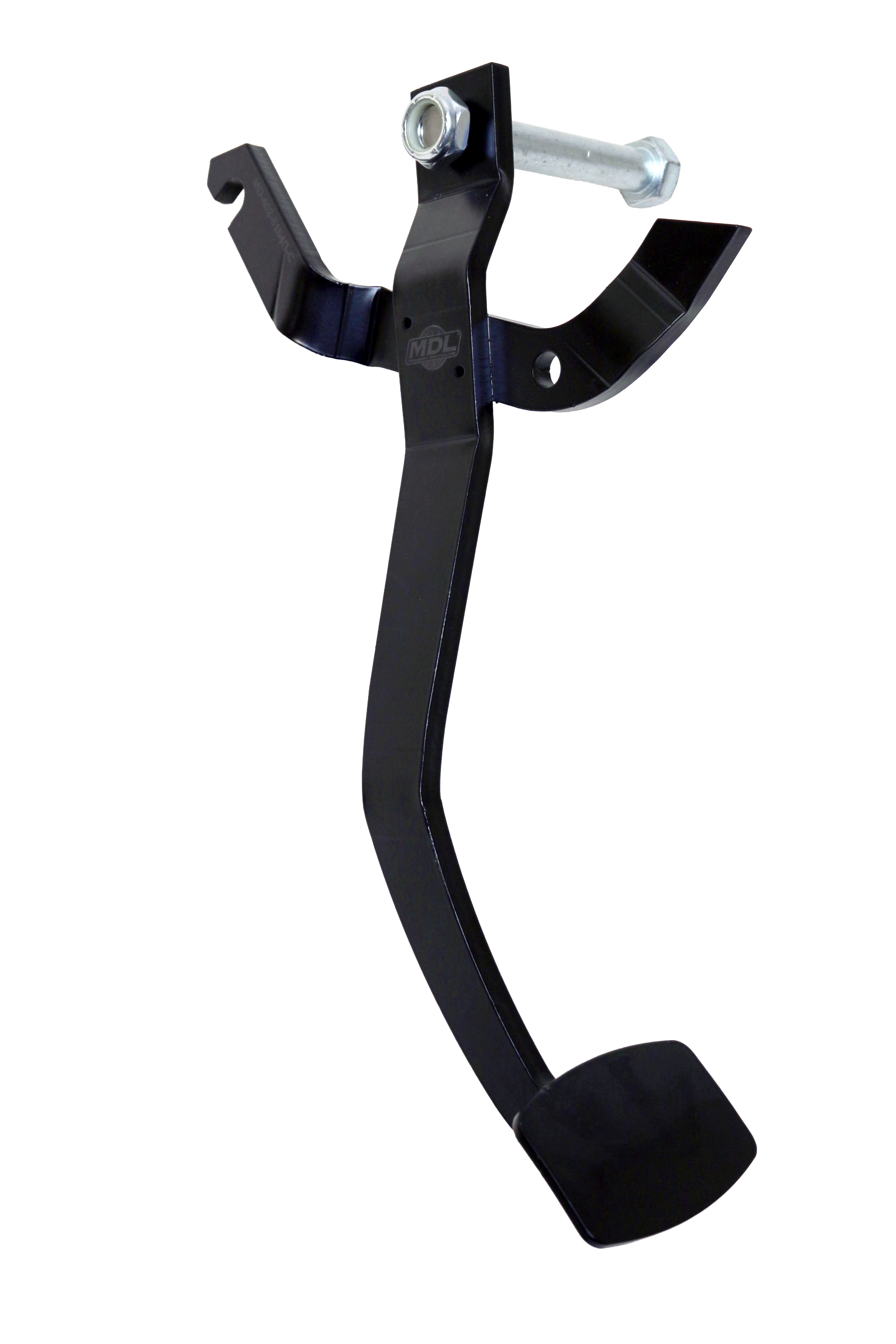

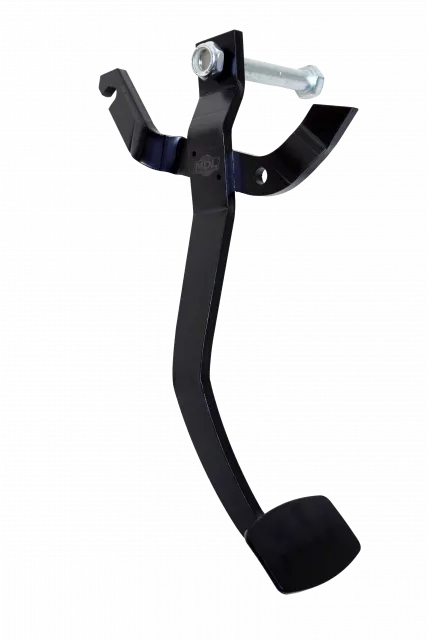

Key Features

• Removable pivot shaft design for simplified installation in tight underdash spaces
• OEM replacement precision fit for 1961-1964 Ford Galaxie and 1962-1965 Ford Fairlane
• Laser-cut construction with CNC-formed bends for consistent pedal geometry
• Reuses existing automatic pedal support assembly for seamless manual conversion
• Swing-mounted design matches factory pedal box architecture
• 100% Made in the USA

Description

Converting your early Galaxie or Fairlane from automatic to manual transmission means solving a fundamental problem: getting a proper clutch pedal into the existing pedal box without tearing apart the entire underdash. MDL's engineered clutch pedal addresses this with a removable pivot shaft design that dramatically simplifies installation. Instead of wrestling a one-piece assembly into cramped quarters, you position the pedal, slide the pivot shaft into place, and secure it - no contortionist work required.

The pedal itself is laser-cut from quality materials with CNC-formed bends, ensuring the geometry matches factory specifications for proper clutch engagement travel and pedal feel. This precision matters - inconsistent pedal geometry means inconsistent clutch engagement, which translates to a car that's harder to drive smoothly. The swing-mounted design integrates with your existing pedal support structure, maintaining the factory layout your feet already know.

When converting from automatic, the stock pedal support is reused and the brake pedal is trimmed on the left side to create proper clearance for the new clutch pedal. This approach preserves the structural integrity of your original pedal box while adding the clutch function you need for a TREMEC or other manual transmission swap. The result is an installation that looks and feels factory-correct.

Engineered and manufactured in Caldwell, Idaho, this pedal is part of MDL's complete drivetrain conversion ecosystem. Pair it with the appropriate hydraulic clutch system, bellhousing, and transmission package for a comprehensive manual swap solution backed by lifetime technical support.

What's Included

• Laser-cut steel clutch pedal assembly
• Removable steel pivot shaft
• Lifetime technical support from MDL

Key Features

• Reproduction of Ford OEM pedal pad part number B7A-2457-A
• Kit includes both brake and clutch pedal pads
• Fits Ford F-Series trucks 1957-1980, Bronco 1966-1996, E100/E300 1961-1972
• Also fits Falcon 1960-1965, Fairlane 1962-1965, and Galaxie 1960-1964
• Direct replacement for worn, cracked, or missing original rubber pads

Description

Worn or missing pedal pads are more than a cosmetic issue--they compromise pedal grip and detract from the finished look of any restoration. This reproduction pedal pad kit replicates Ford's original B7A-2457-A specification, giving you properly fitting brake and clutch pads that restore both function and authenticity to your classic Ford.

The B7A-2457-A design was used across an enormous range of Ford vehicles spanning nearly four decades. This kit covers F-Series trucks from '57 to '80, early Broncos through '96, Econoline vans from '61 to '72, plus the Falcon, Fairlane, Comet, Ranchero, and Galaxie passenger cars of the early-to-mid 1960s. That wide application range means one kit handles the pedal replacement needs for a huge swath of Ford's truck and car lineup.

Each pad slides directly onto your existing pedal arms without modification. Whether you're doing a concours-level restoration or just want functional pedal coverage that looks correct, this kit delivers OEM-style fit and appearance at a fraction of dealer pricing. The included pads cover both your brake and clutch pedal needs in a single purchase.

Kit Includes

• Brake pedal pad (reproduction B7A-2457-A)
• Clutch pedal pad (reproduction B7A-2457-A)

Key Features

• Essential component for automatic-to-manual transmission conversions
• Bolts directly to left side of pedal support assembly
• Prevents clutch pedal over-travel and binding
• Complete mounting hardware included -- bolt and nut
• Precise fit for 1965-66 Mustang, 1962-66 Fairlane, and 1960-61 Galaxie

Description

Converting from automatic to manual transmission requires more than just swapping the gearbox -- the clutch pedal needs a proper stop point to function correctly. Automatic-equipped cars never came with this component because they had no clutch pedal, so when you add one during a conversion, you need a way to limit pedal travel at the top of its stroke. This MDL clutch pedal stop provides exactly that: a solid mechanical stop that positions the clutch pedal at the correct rest position for proper master cylinder operation and smooth clutch release.

The stop assembly mounts to the left side of the pedal support bracket, placing it in the exact position to contact the clutch pedal arm at full extension. Without proper pedal travel control, clutch systems can feel spongy, fail to return smoothly, or cause premature wear on linkage and hydraulic components. This component eliminates those issues by providing a consistent, repeatable stop point that keeps the clutch system geometry correct.

Designed specifically for mid-1960s Ford applications where automatic-to-manual swaps are common. The stop works with both mechanical Z-bar linkage and hydraulic clutch systems, making it compatible with period-correct restorations and modern conversion kits alike. Installation is straightforward -- no drilling, cutting, or fabrication required.

Applications include 1965-66 Mustang, 1962-66 Fairlane, and 1960-61 Galaxie models originally equipped with automatic transmissions.

What's Included

• Clutch pedal stop assembly
• Mounting bolt
• Mounting nut

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder Kit | .700 Bore | Plastic Reservoir

Whether you are converting your 1962-1965 Fairlane to a manual transmission or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote plastic reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Ford, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote plastic reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder | .700 Bore | Black Billet Reservoir

Whether you are converting your 1962-1965 Fairlane to a manual T-5/TKX/T-56 or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote black billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Fairlane, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote black billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder | .700 Bore | Silver Billet Reservoir

Whether you are converting your 1962-1965 Ford Fairlane to a manual T-5/TKX/T-56 or just wanting to upgrade your current clutch actuation method, the MDL LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote silver billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Fairlane, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote silver billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

Key Features

• Billet aluminum body and piston precision-machined in-house at Tilton Engineering
• Stainless steel threaded sleeve provides nearly 1.25" of height adjustment (1.77" to 3.00")
• Slip-on installation over stock bearing retainer - no modifications required
• High-temperature mono-seal design with quad tensioner ensures proper seal tension
• Constant contact design self-adjusts for clutch wear, maintaining consistent pedal feel
• Flat face bearing with 1.71" to 3.03" contact diameter fits 8.5" to 11" bent-finger and lever-type clutches
• Full 0.7" piston travel for maximum clutch engagement range
• Double O-ring swivel fittings thoroughly tested to prevent leakage
• Complete kit - steel braided lines, union fitting, and anti-rotation hardware included
• Requires 1.430" bearing retainer guide tube diameter

Description

External slave cylinders create clearance headaches and bellhousing compatibility issues that derail Ford TKO and TKX swaps. The Tilton 6000 Series Hydraulic Release Bearing eliminates those problems entirely. This internal hydraulic design slips directly over the transmission's bearing retainer - no machining, no adapter plates, no fighting for space. The result is a clean installation that works with most bellhousings, including original 4-speed and big block bells that external slaves can't accommodate.

Tilton builds this bearing to race-proven standards. The billet aluminum body and piston are precision-machined in-house at Tilton Engineering, then fitted with a high-temperature mono-seal that incorporates a quad tensioner to maintain proper seal tension under extreme conditions. The constant contact design keeps the bearing face against the pressure plate fingers at all times - no gap to manage, no adjustment as the clutch wears. Pedal feel stays consistent from fresh install through the clutch's entire service life.

The stainless steel threaded adjustment sleeve delivers nearly 1.25" of height adjustability, accommodating bearing heights from 1.77" to 3.00" to work with a wide range of clutch configurations. The flat face bearing design with 1.71" to 3.03" contact diameter is engineered for 8.5" to 11" bent-finger and lever-type pressure plates. With 0.7" of piston travel, this bearing handles aggressive clutch setups without running out of stroke.

Compatible with Ford TKO and TKX transmissions with 1.430" bearing retainer guide tube diameter. Will not work with big-input Toploaders. For a complete hydraulic clutch system, pair with an MDL LF Series Master Clutch Kit and a steel braided line of appropriate length (24" recommended for most applications).

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• Steel braided supply line with AN4 fittings
• Steel braided bleed line with fittings
• Union fitting for main supply line connection
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions
• MDL lifetime technical support

Key Features

• 30-inch length with 1/4-inch ID stainless steel braided construction
• Teflon (PTFE) inner lining for chemical resistance and smooth fluid flow
• Clear plastic outer coating protects braid while maintaining clean appearance
• Straight -4AN female stainless steel fittings permanently crimped on both ends
• Pressure tested for quality assurance
• 100% made in the USA

Description

Factory plastic clutch lines deteriorate under heat and age, leading to spongy pedal feel and inconsistent clutch engagement. This premium stainless steel braided hydraulic line eliminates that weak link with high-strength construction rated for racing and high-heat applications. The Teflon inner lining delivers chemical compatibility with all brake fluids while providing smooth, unrestricted fluid flow that translates directly to crisp pedal response.

The stainless steel braid resists expansion under pressure—a critical factor in hydraulic clutch performance. Unlike rubber lines that balloon slightly under load, braided stainless maintains consistent internal volume for immediate, predictable clutch actuation. The clear plastic outer coating shields the braid from road debris and corrosion while preserving the polished stainless appearance gearheads expect in a quality engine bay.

This is the same 30-inch hydraulic line included in MDL's LF Series slave cylinder kits, proven across thousands of transmission swaps from mild street builds to extreme-duty track cars. Straight -4AN female fittings on both ends provide universal compatibility with hydraulic clutch systems, master cylinders, and slave cylinders across Ford, GM, and Mopar applications. Whether you're completing a TREMEC five or six-speed swap or upgrading your existing hydraulic clutch setup, this line delivers the durability and pedal feel your build demands.

What's Included

• One 30-inch stainless steel braided hydraulic line with Teflon (PTFE) lining
• Clear plastic protective coating over stainless braid
• Two straight -4AN female stainless steel fittings (permanently crimped)
• Manufacturer's warranty

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• 2-1/8 inch diameter black aluminum shift ball with brushed finish
• 16mm x 1.5 internal thread - designed for use with thread reducers to adapt to various shifter handle sizes
• Lightweight aluminum construction reduces shifter mass for quicker throws
• Black finish with brushed texture complements modern performance interiors
• 5-speed shift pattern engraving
• Compatible with MDL thread reducer inserts (sold separately) for SAE and metric applications

Description

Factory shift knobs rarely deliver the grip, weight, or aesthetics that a performance build deserves. This MDL 5-Speed Black Aluminum Shift Ball solves that problem with a 2-1/8 inch diameter that fills the palm for confident, positive shifts and a brushed black aluminum finish that looks at home in any performance-oriented cockpit.

The 16mm x 1.5 internal thread is engineered to work with MDL's line of thread reducer inserts, giving you the flexibility to mount this shift ball on virtually any shifter handle. Thread reducers are available in both SAE sizes (3/8-16, 3/8-24) and metric sizes (8mm-1.25, 9mm-1.25, 12mm-1.75) to accommodate Hurst, Lokar, TREMEC, and other popular shifter configurations. This universal approach means one shift ball works across multiple builds and applications.

Constructed from lightweight aluminum, this shift ball reduces rotating mass compared to heavier steel or weighted knobs - a deliberate choice for drivers who prioritize quick, precise shifts over added heft. The brushed aluminum base with black finish provides durability and corrosion resistance while maintaining a clean appearance that won't fade or chip under heavy use.

Note: This shift ball requires a separate thread reducer insert and jam nut (sold separately) to properly mount to your shifter handle. Check MDL's selection of thread reducers to find the correct adapter for your specific shifter lever thread size.

What's Included

• One 2-1/8 inch black aluminum shift ball with brushed finish and 5-speed pattern
• 16mm x 1.5 internal thread (thread reducer insert required - sold separately)

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Round rubber construction for OE-correct restoration appearance
• Direct replacement for Ford OE# C2AZ-7277-A
• 4-7/8" diameter bolt pattern for precise fitment to factory floor shift assembly
• Designed for 4-speed manual transmissions without console
• Durable rubber material resists cracking and environmental degradation

Description

Cracked, missing, or deteriorated shift boots are more than an eyesore - they allow dust, debris, and road noise to enter the cabin through the transmission tunnel. This round rubber shift boot is a direct replacement for Ford OE# C2AZ-7277-A, restoring the factory seal and period-correct appearance to your classic Ford or Mercury build.

Engineered specifically for 4-speed manual transmission applications without console, this boot features a 4-7/8" diameter bolt pattern that matches your factory floor shift mounting points. The round base design slips directly over your shift lever and bolts down using the existing hardware locations - no modifications, adapters, or trimming required. Simply remove the old boot and install the new one for an instant interior upgrade.

The durable rubber construction maintains flexibility through temperature extremes while providing long-term resistance to UV exposure, ozone, and general wear. Whether you're completing a concours-level restoration or just tidying up a driver-quality cruiser, this shift boot delivers the authentic OE fitment that separates a professional build from a parts-store compromise.

Fits 1962-64 Ford Galaxie, Falcon, Ranchero, and Mercury Comet models equipped with 4-speed manual transmissions without console. Also fits Cobra applications of the same era.

Kit Includes

• Round rubber shift boot (OE# C2AZ-7277-A replacement)

Speedometer Cable | 1967-1968 Mustang/Cougar | 5/8" Barrel | T5/TKO/TKX/AOD

Key Features

• 5/8" barrel-style connector matches factory Ford speedometer interface
• 63" overall length accommodates driver-side routing required by T5, TKO, and TKX transmissions [VERIFY: Product description states 63", key_features field states 59" - confirm correct length]
• Designed specifically for '67-'68 Mustang and Cougar five-speed and AOD conversions
• Compatible with Ford T5, TKO, TKX, and AOD transmissions
• Also fits Falcon conversions using MDL front-shift tailhousing or front-shift T5 packages

Description

When you swap from a factory four-speed to a modern T5, TKO, or TKX five-speed, the speedometer cable routing changes completely. These TREMEC transmissions position the mechanical speedometer drive on the driver's (left) side of the case, meaning your original cable won't reach - and trying to force an ill-fitting cable creates binding, premature wear, and inaccurate readings.

This application-specific speedometer cable solves that problem for '67-'68 Mustang and Cougar owners. The 5/8" barrel-style connector interfaces correctly with the Ford speedometer head, while the 63" overall length provides the reach needed for proper left-side routing without binding or excessive slack. The result is a clean installation that keeps your factory speedometer functioning accurately with your new overdrive transmission.

Beyond T5 and TKO/TKX manual swaps, this cable also works for AOD automatic conversions in '67-'68 Mustang and Cougar applications. Falcon owners converting to five-speed can use this cable when paired with MDL front-shift tailhousings or front-shift T5 packages. If you're upgrading to modern overdrive and want to keep your factory speedometer working, this is the cable that makes it happen.

What's Included

• Speedometer cable with 5/8" barrel connector (63" length)

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
