Key Features

• MDL Exclusive 2" left side-mounted front socket shifter with 1" or 1.5" forward offset shift stubs - not available through TREMEC
• 600 lb-ft torque capacity with 8,000 RPM engine speed and 7,500 RPM shift capability
• Close-ratio gear set: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive
• 26-spline input shaft and 31-spline output shaft
• Shift location: 15.25"-15.75" from bellhousing face; offset: 1.75"-2.25" left of centerline
• Multi-cone synchronizers with hybrid sintered bronze/carbon rings for smooth, fast shifts
• Slim-line, end-loading three-piece aluminum case for improved tunnel clearance
• Mechanical and analog electric speedometer drives included
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

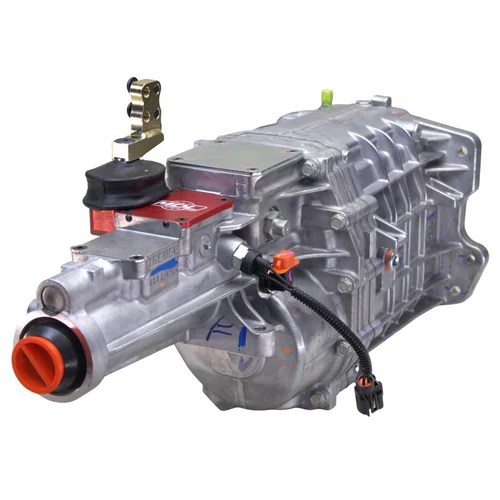

This MDL-modified TREMEC TKX solves the shifter placement challenge that plagues many Ford swaps. The stock TKX offers three factory shifter positions, but Ford applications often demand additional adjustment to clear consoles, bench seats, or floor bracing. MDL's exclusive 2" left side shifter configuration moves the shifter left from centerline and includes both 1" and 1.5" forward offset shift stubs - giving you precise control over shifter placement. This configuration is not available through TREMEC; it is an MDL exclusive modification.

The TKX was designed from the ground up specifically for the aftermarket, not adapted from an OEM application. The result is a compact, end-loading case that fits inside many stock classic car and truck transmission tunnels without floor modifications. The three-piece ribbed aluminum housing delivers outstanding structural stiffness while keeping weight to just 99 lbs dry. Gaskets at all flanges eliminate fluid leaks and simplify installation.

Inside, the TKX delivers the shift quality that made TREMEC's Magnum 6-speed legendary. Multi-cone synchronizers with hybrid sintered bronze and carbon rings enable confident shifts at up to 7,500 RPM. Special chamfers and dedicated ball detents for each of the three shift rails eliminate the notchy feel that plagued earlier 5-speeds. All gears and shafts are machined from special-grade ASTM 4615 steel, with oversized gear widths for maximum durability under the 600 lb-ft torque rating.

This Ford-pattern TKX uses the Ford wide bellhousing bolt pattern and a 26-spline input shaft for broad clutch compatibility. The 31-spline output shaft accepts Ford C6-style slip yokes. TREMEC recommends HP-MTF, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh lubricants. Both mechanical and electronic speedometer outputs are standard for maximum versatility across build combinations.

What's Included

• TREMEC TKX 5-speed transmission - Ford wide bellhousing pattern
• MDL exclusive 2" left side-mounted front socket shifter assembly
• 1" or 1.5" forward offset shift stub
• MDL lifetime technical support

Key Features

• 600 lb-ft torque capacity with 8,000 RPM engine speed capability and 7,500 RPM shift zone
• Close-ratio gear set: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive with 2.56 reverse
• 26-spline input shaft (1-1/8" diameter), 31-spline output shaft for maximum drivetrain strength
• 2" left side mounted front shifter position with 1" or 1.5" forward offset stub - MDL exclusive configuration not available through TREMEC
• Multi-cone synchronizers with sintered carbon/bronze hybrid construction for smooth, fast shifts at high RPM
• Slim-line, end-loading case design reduces tunnel modifications while increasing structural rigidity
• Mechanical and analog electric speedometer drive compatibility
• Ford Wide Pattern bellhousing bolt pattern

Description

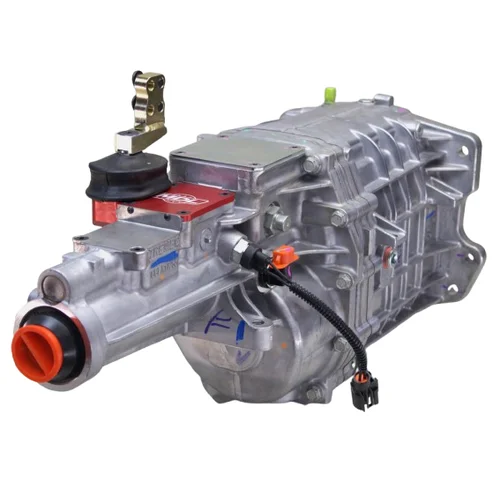

Road racers and serious track builders know the frustration: the stock shifter position puts the lever exactly where you don't want it. This MDL-modified TREMEC TKX solves that problem with a 2" left side mounted front shifter configuration and 1" or 1.5" forward offset stubs, giving you the precise lever placement that tight cockpits and modified chassis demand. This configuration is not available through TREMEC's standard catalog - it's an MDL exclusive built for builders who need maximum shifter positioning flexibility.

The TKX platform delivers race-ready performance with its multi-cone synchronizer package featuring sintered carbon/bronze hybrid construction. This advanced synchronizer design eliminates the shift quality issues that plagued earlier five-speeds at high engine speeds, enabling smooth, positive engagement at 7,500 RPM shifts while the engine screams toward its 8,000 RPM ceiling. The internal three-rail shift system with steel shift forks provides the robust, notchy feel that road racers expect when banging through gears under pressure.

The end-loading case architecture is what sets the TKX apart from legacy five-speeds. The slim-line, three-piece aluminum housing creates a narrower profile that clears most transmission tunnels without extensive floor work, while the ribbed construction delivers increased structural stiffness critical for repeated competition stress. Wide gear widths, caged needle bearings in all gear positions, and gears/shafts machined from ASTM 4615 special grade steel ensure durability under sustained high-load conditions. Tapered roller bearings on input, output, and countershafts reduce NVH while improving longevity.

The close-ratio gear set (2.87 first, 0.68 overdrive) keeps your engine in its powerband during aggressive driving while providing a highway-friendly cruise ratio. The 26-spline input and 31-spline output configuration handles 600 lb-ft of torque with confidence. Compatible with Ford Wide Pattern bellhousings and accepts Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF (2.7 quart capacity).

What's Included

• TREMEC TKX 5-speed transmission assembly with 2" left side mounted front shifter
• 1" or 1.5" forward offset shift stubs
• TREMEC operation and maintenance manual
• MDL lifetime technical support

Key Features

• MDL Exclusive: 2" left Side mounted front shifter with 1" or 1.5" forward offset shift stubs - not available from TREMEC
• 600 lb-ft torque capacity with 8,000 RPM engine speed capability and shifts at 7,500 RPM
• Close-ratio gearing: 2.87, 1.89, 1.28, 1.00, 0.68 overdrive for high-performance applications
• 26-spline input shaft with 31-spline output shaft for enhanced drivetrain strength
• Multi-cone synchronizers with hybrid carbon/bronze synchronizer rings for smooth, high-RPM shifts
• Compact end-loaded case design provides clearance in most transmission tunnels without floor modifications
• Three-piece ribbed aluminum housing for increased structural stiffness
• Mechanical and analog electric speedometer drive compatibility
• 99 lbs dry weight with 2.7-quart fluid capacity
• Ford Wide Pattern bellhousing bolt pattern

Description

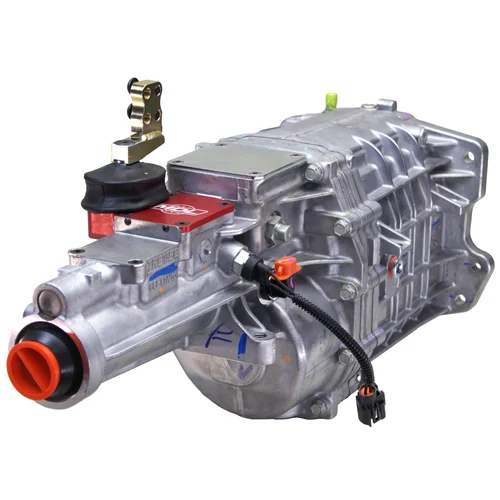

Classic Ford interiors and aftermarket consoles demand precise shifter placement - and the stock TREMEC shifter locations don't always cooperate. This MDL-modified TREMEC TKX solves that problem with an exclusive 2" left side mounted front shifter, paired with interchangeable 1" or 1.5" forward offset shift stubs. This configuration gives builders the flexibility to dial in exact shifter placement for custom consoles, aftermarket shifters, or specific ergonomic requirements - a modification not available through TREMEC or other distributors.

The TKX was designed from the ground up specifically for the aftermarket, not adapted from OEM applications. Multi-cone synchronizers with hybrid carbon/bronze rings deliver superior shift quality even at high RPMs, while the internal 3-rail shift system with steel shift forks provides precise, positive engagement. All gears and shafts are machined from ASTM 4615 special-grade steel, with oversized gear widths and caged needle bearings in all gear positions optimizing durability under high-torque loads.

The close-ratio gear set (2.87, 1.89, 1.28, 1.00, 0.68) is purpose-built for high-performance applications, providing tight ratio spacing through the gears with a deep 0.68 overdrive for reduced highway RPM. The compact end-loaded case design tucks into tight transmission tunnels, and the slimline profile reduces or eliminates the floor modifications required by older TKO transmissions.

This transmission accepts Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF. Both mechanical speedometer cable drive and two-wire analog electronic speedometer outputs are included. When you purchase from MDL, you get an extended warranty beyond the manufacturer's coverage plus lifetime technical support from specialists who know these transmissions inside and out.

Kit Includes

• TREMEC TKX 5-speed manual transmission with Ford Wide Pattern bellhousing bolt pattern
• MDL 2" left side mounted front shifter
• 1" or 1.5" forward offset shift stub
• Billet aluminum short-throw shifter
• Ford mechanical 7-tooth speedometer cable drive gear
• Two-wire analog OSS speedometer sensor (built-in)
• TREMEC installation documentation
• MDL lifetime technical support

Key Features

• Direct bolt-on fitment for TREMEC 3550, TKO, TKO-500, TKO-600, and TKX transmissions - no adapters required
• Fits Ford small block 6-bolt engines: 289, 302, 351W, 351C, and 5.0L
• Designed for 157 tooth flywheel with diaphragm-style clutch
• 4.850-inch inside diameter register bore
• Triple actuation compatibility: cable, hydraulic (internal or external slave), and mechanical linkage (Fulcrum sold separately)
• OEM-quality cast aluminum construction - not SFI approved
• Stock replacement for '79-'82 Mustang SROD 4-speed bellhousing (D9ZC-6394-BA)
• Recommended for street applications under 500hp - steel bellhousing advised for racing or 500hp+ builds
• Includes factory-installed pivot ball stud and washer

Description

Upgrading a Ford small block to a modern TREMEC 5-speed shouldn't require a stack of adapters and custom machining. This aluminum bellhousing provides direct bolt-on fitment between 6-bolt Ford small block V8 engines and TREMEC's entire 5-speed lineup - the TKX, TKO, TKO-500, TKO-600, and TR-3550 - with no modifications required. It's also a stock replacement for the '79-'82 Mustang SROD 4-speed bellhousing (OE part D9ZC-6394-BA), making it ideal for both TREMEC upgrades and period-correct restorations.

Cast aluminum construction keeps weight manageable while delivering the strength needed for street performance builds. The 4.850-inch register bore and 157 tooth flywheel compatibility ensure proper geometry with your diaphragm-style clutch setup. The factory-installed pivot ball stud provides the precise mounting point for clutch fork actuation, eliminating guesswork during assembly.

Versatile clutch actuation options make this bellhousing work with virtually any build direction. Cable-actuated systems connect directly, while hydraulic setups - whether running internal or external slave cylinders - mount without modification. Mechanical linkage conversions are also supported; pair with MDL fulcrum adapters for proper geometry. A matching block plate (MD-401-1106) completes the installation.

This bellhousing is designed for street cruising applications under 500 horsepower. For racing or builds exceeding 500hp, a steel scatter shield bellhousing is recommended for safety. Compatible engines include Ford 289, 302, 351W, 351C, and 5.0L small blocks with the 6-bolt bellhousing pattern. Made in the USA.

What's Included

• Cast aluminum bellhousing with natural finish
• Pivot ball stud (pre-installed)
• Washers for pivot stud (installed)

Key Features

• Spin-formed high-grade steel construction work-hardens to over 80,000 PSI -- more than twice the strength of rolled or stamped steel bellhousings
• 6.925-inch bellhousing depth with universal 4.850/4.910-inch transmission bore
• Requires 157-tooth flywheel with maximum 10.5-inch clutch diameter
• Approximately 20 lbs. -- lightweight design without sacrificing protection
• Universal fit bellhousing (not vehicle-specific) -- ideal for engine swaps and custom builds
• Compatible with mechanical, cable, or hydraulic clutch release systems
• Non-SFI certified (not legal for quarter-mile times of 11.49 or faster)
• 100% made in the USA

Description

Eliminate bellhousing flex and the accelerated drivetrain wear that comes with it. The QuickTime RM-6060 steel bellhousing connects Ford small block engines (289, 302, 351C, 351W) to Ford T5 Mustang, TKO 500/600, TKX, or TR3550 transmissions using standard-length input shafts. Unlike cheaper alternatives made from rolled or stamped steel, QuickTime's unique spin-forming process creates a cone that maintains perfect engine-to-transmission alignment throughout the entire RPM range.

The engineering advantage is measurable: high-grade steel that work-hardens to over 80,000 PSI delivers more than twice the strength of competing steel bellhousings while keeping weight down to approximately 20 pounds. This rigidity translates directly to reduced input shaft wear, consistent clutch engagement, and improved power transfer. The bellhousing is 6.925 inches deep with a universal transmission bore of 4.850/4.910 inches, designed for use with 157-tooth flywheels and clutches up to 10.5 inches.

This is a universal-fit bellhousing -- not vehicle-specific -- making it ideal for engine swaps, restomod builds, and custom applications where the factory bellhousing won't work. Universal shifter fork brackets accommodate mechanical, cable, or hydraulic clutch linkages. Note that transmission mounting bolts are not included. QuickTime holds patents on 16 points of bellhousing design and process, with input from OEM engineers, engine builders, transmission builders, and racers. Made in the USA.

Important: This bellhousing is NOT SFI certified. Many sanctioning bodies require SFI 6.1 certification for cars running 11.49 or faster in the quarter mile. If you need SFI certification, see QuickTime RM-6065.

Kit Includes

• QuickTime RM-6060 steel bellhousing with black painted finish
• Full engine block plate
• Pivot ball
• Universal shifter fork brackets (for diaphragm or cable-operated linkage)
• Grade 8 mounting bolts (engine side)
• Installation instructions
• MDL lifetime technical support

Key Features

• SFI 6.1 certified - required for quarter-mile times of 11.49 seconds or faster
• Spun cone construction - not rolled or stamped - for maximum dimensional stability and accuracy
• High-grade steel work hardens to over 80,000 PSI strength
• Over twice the strength of other steel bellhousings at only 22 pounds
• Universal transmission bore: 4.850/4.910 inches
• 6.925-inch bellhousing depth
• Uses 157-tooth flywheel with clutches up to 10.5 inches
• Universal fit - not vehicle specific
• Compatible with cable, hydraulic, or mechanical clutch release
• Pivot ball and fork brackets included
• 100% made in the USA

Description

When you're running deep into the 11s or faster, track officials aren't going to let you stage without an SFI-certified bellhousing. The QuickTime RM-6065 delivers that certification while solving another critical problem: bellhousing flex. Lesser bellhousings made from rolled or stamped steel distort under load, causing accelerated wear on your input shaft, pilot bearing, and clutch assembly. QuickTime's patented spin-forming process creates a bellhousing that maintains perfect engine-to-transmission alignment throughout the entire RPM range.

The difference is in the manufacturing. QuickTime cones are spun rather than rolled or stamped, resulting in the most dimensionally stable bellhousing on the market. This high-grade steel construction work hardens to over 80,000 PSI - more than twice the strength of conventional steel bellhousings - while keeping weight down to just 22 pounds. The compact design provides clearance for headers without requiring tunnel modifications.

The RM-6065 connects 6-bolt small block Ford engines (289, 302, 351W, 351C) to Ford-pattern T5 (standard-length input shaft), TR3550, TKO 500/600, or TKX transmissions. The universal 4.850/4.910-inch transmission bore accommodates all these gearboxes, while the 157-tooth flywheel compatibility and 10.5-inch maximum clutch diameter handle serious power. Universal fork brackets work with diaphragm or cable-operated linkage, and the bellhousing accepts cable, hydraulic, or mechanical clutch release systems.

This is a universal fit bellhousing - not vehicle specific - making it ideal for swaps, restorations, and custom builds where you need proven SFI 6.1 protection without compromise. Proudly made in the USA with patents on 16 points of bellhousing design and process.

Kit Includes

• QuickTime RM-6065 steel bellhousing with black finish
• Full engine block plate
• Pivot ball
• Fork brackets
• Grade 8 mounting hardware
• Installation instructions

Note: Transmission mounting bolts not included.

Key Features

• Direct-fit replacement for 1979-1993 Fox-Body Mustang cable-style bellhousings
• Compatible with both factory cable actuation and external hydraulic slave cylinder setups
• Works with TREMEC T5, TKO, and 1993 & earlier Windsor T56 transmissions
• Correct 9 o'clock fork position specific to Fox-Body applications - not interchangeable with SN95 forks
• Proper pivot point geometry for reliable clutch engagement

Description

When you're building or maintaining a Fox-Body Mustang with a manual transmission, using the correct clutch fork isn't optional - it's critical. This clutch lever is specifically engineered for 1979-1993 Mustangs and delivers the proper pivot geometry required for clean, consistent clutch engagement with cable-style bellhousings.

The Fox-Body clutch fork positions at the 9 o'clock location when viewed from the rear of the bellhousing - a distinctly different orientation than the SN95's 7 o'clock position. This isn't just a cosmetic difference: the lever length and pivot points are purpose-built for Fox applications. Using the wrong fork creates severe cable angle problems, premature cable wear, and inconsistent clutch feel. SN95 forks are longer with different pivot spacing and cannot be substituted.

This fork works equally well whether you're running the original cable actuation or upgrading to an external hydraulic slave cylinder. When paired with external hydraulics, the fork operates as a pusher instead of the traditional cable pull - eliminating the stretching, snapping, and binding issues that plague factory clutch cables over time. The result is smoother pedal effort and more reliable engagement, especially with high-performance clutches.

Compatible with 1979-1993 Mustang applications running TREMEC T5, TKO, or 1993 & earlier Windsor T56 transmissions. Requires a compatible cable-style small-block bellhousing for proper fitment.

What's Included

• One (1) clutch fork/lever for 1979-1993 Fox-Body Mustang

TKX Transmission-to-Bellhousing Hardware Kit | Ford Small Block | Aluminum Bell

Key Features

• Complete transmission-to-bellhousing fastener set sized specifically for aluminum bellhousing applications
• Engineered for TREMEC TKX installations on Ford Small Block engines (289, 302, 351W)
• Bolt lengths optimized for aluminum bellhousing thread engagement - not compatible with steel bellhousing kits
• High-grade steel construction with hardened washers for reliable clamping force
• Eliminates hardware guesswork when upgrading from factory T5 or other transmissions

Description

Factory T5 transmission-to-bellhousing bolts are incompatible with TREMEC TKX transmissions, and aluminum bellhousings demand different fastener lengths than their steel counterparts. This hardware kit eliminates the guesswork by providing the correct transmission-to-bellhousing fasteners specifically sized for TKX-to-aluminum bellhousing installations on Ford Small Block applications.

Aluminum bellhousings have different thread depth characteristics than cast iron or steel units, which means using the wrong bolt length risks either insufficient thread engagement or bottoming out before achieving proper clamp load. This kit contains bolts cut to the precise length required for aluminum bellhousing applications, ensuring full thread engagement without interference.

Built from high-grade steel with hardened washers included, these fasteners deliver the clamping force needed to keep your transmission securely mounted under hard acceleration and aggressive shifting. Whether you're building a Foxbody Mustang, classic small block-powered Ford, or any other vehicle running a TKX behind a 289, 302, or 351W, this kit ensures you have the right hardware for a proper installation.

Note: This "AL" kit is specifically for aluminum bellhousing applications. Bellhousing bolt lengths differ between aluminum and steel bellhousings - some bellhousing manufacturers include their own bellhousing-to-block bolts, so this kit focuses on the transmission-to-bellhousing fasteners you need to complete the job.

What's Included

• High-grade steel transmission-to-bellhousing bolts (lengths optimized for aluminum bellhousing)
• Hardened steel washers

Key Features

• Bolt lengths sized specifically for steel bellhousing applications - not interchangeable with aluminum bellhousing hardware
• Grade 8 steel construction for maximum clamping force and durability
• Hardened washers included for proper load distribution across mounting surfaces
• Complete hardware set for attaching Ford TKX transmission to steel bellhousings
• Compatible with QuickTime and Lakewood steel scatter shields for Ford applications
• Made in the USA

Description

When upgrading to a TREMEC TKX 5-speed transmission, factory T5 transmission-to-bellhousing bolts are incompatible with TKX applications. This hardware kit provides the correct bolt lengths and grade specifically engineered for steel bellhousing installations on Ford applications. Steel bellhousings require different bolt lengths than aluminum bellhousing kits - using the wrong hardware can result in improper engagement, case damage, or unsafe mounting conditions.

This MDL hardware kit solves the sourcing headache by providing the exact fasteners needed for your steel bellhousing installation. The Grade 8 bolts deliver the clamping force necessary to handle the TKX's 600 lb-ft torque capacity, while hardened washers ensure even load distribution across the bellhousing mounting flange. Proper hardware is critical - never use transmission-to-bellhousing bolts to draw or pull the transmission up to the bellhousing, as damage to the pilot bearing and transmission case ears may result.

This kit is designed for use with popular steel scatter shields including QuickTime and Lakewood bellhousings for Ford small block applications paired with the TKX transmission. When installing, ensure the transmission is fully seated by hand against the bellhousing before torquing fasteners to specification. Made in the USA with lifetime tech support from MDL.

What's Included

• Grade 8 steel transmission-to-bellhousing bolts (sized for steel bellhousing applications)
• Hardened steel washers
• Lifetime tech support from MDL

Key Features

• Dual clutch pattern accepts both 10" long-style and 10.4" metric diaphragm clutches — upgrade to high-performance clutch setups without swapping flywheels
• 157-tooth ring gear for compatibility with small-diameter bellhousings and starters
• 28oz external imbalance matches pre-1981 Ford small block engines (260, 289, 302, 351W, 351C)
• 6-bolt crank mounting pattern with 7/16" bolts
• Cast iron construction weighing 19 lbs for smooth idle characteristics and excellent heat absorption
• Precision machined to improve clutch performance, durability, and reduce vibration
• Pre-installed metric alignment pins for accurate 10.4" clutch indexing
• Replaces OEM part numbers C3AZ-6375-J and C3AZ-75-A

Description

Running a classic Ford small block and want flexibility in your clutch setup? This dual-pattern cast iron flywheel eliminates the one-flywheel-per-clutch-size limitation that plagues so many builds. The machined face accepts both the 10" long-style diaphragm clutches found in vintage applications and the 10.4" metric diaphragm clutches used on high-performance '79–'01 Mustangs — so you can start with a stock-style clutch and upgrade to a higher-capacity unit later without pulling the flywheel.

Cast iron construction delivers the rotating mass needed for civilized street manners: smooth idle, progressive engagement, and excellent heat absorption during stop-and-go driving. The 157-tooth ring gear mates with the smaller-diameter bellhousings and starters common on '64–'68 Mustangs and other early Ford small block applications. Precision machining ensures a flat, true friction surface that improves clutch performance and reduces vibration.

The 28oz external imbalance is correct for pre-1981 Ford Windsor and Cleveland engines — 260, 289, 302, 351W, and 351C. (Post-1981 5.0L engines use a 50oz imbalance; verify your engine's balance before ordering.) The 6-bolt crank pattern with 7/16" hardware provides a secure connection to the crankshaft flange.

Compatible with 3-speed, 4-speed, and T5 5-speed manual transmissions. While cast iron flywheels work for light motorsports use, understand the RPM and load limits — billet steel offers better stability for sustained high-RPM or competition applications.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and dual clutch pattern (10" long / 10.4" metric)
• Pre-installed metric alignment pins for 10.4" clutch pattern
• Clutch alignment pins

Key Features

• Cast iron construction for durability and heat dissipation in street applications
• 157-tooth ring gear for proper starter engagement with small-block Ford bellhousings
• 50oz external balance engineered specifically for 1981-1995 Ford 5.0L Windsor engines
• 10.4" metric clutch pattern with equalizing pin holes for diaphragm-style pressure plates
• 6-bolt crankshaft mounting pattern matches Ford factory configuration
• 19 lbs flywheel weight provides optimal rotational mass for smooth street driving
• Includes clutch alignment pins for precise pressure plate installation

Description

When Ford switched the 302 to the 5.0L designation in 1981, they also changed the external balance from 28oz to 50oz. That means every '81-'95 5.0L Windsor needs a flywheel with the correct counterweight to maintain proper engine balance and eliminate vibration. This cast iron flywheel delivers exactly that - the right balance for your late-model small-block Ford, with the 157-tooth ring gear that mates to standard small-block bellhousings and starters.

The 10.4" metric clutch pattern is a Ford-specific design that uses alignment pins rather than shouldered bolts to locate the pressure plate. These equalizing pins ensure precise concentricity between the pressure plate and flywheel - critical for smooth clutch engagement and even wear. The metric pattern accommodates modern diaphragm-style pressure plates with 8mm hardware, making it compatible with factory and aftermarket clutch assemblies designed for '83-'95 Mustangs and other 5.0L applications.

Cast iron provides the strength and thermal stability needed for street duty, absorbing and dissipating heat through repeated clutch engagements without the hot spots that can develop on lighter materials. At 19 lbs, this flywheel maintains enough rotational mass for smooth idle and progressive engagement - the kind of drivability you want in a daily driver or weekend cruiser. The 6-bolt crankshaft pattern bolts directly to the factory crank flange with no adapters or modifications required.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and 50oz counterweight
• Clutch alignment pins for 10.4" metric pressure plate installation

Key Features

• Billet steel construction weighing just 28 lbs
• 157 tooth ring gear for compatibility with small bellhousings and starters
• Zero balance (internally balanced) for stroker motors and Ford Racing crate engines
• Dual clutch bolt patterns for 10" and 10.5" diaphragm clutch assemblies
• 6-bolt crankshaft mounting pattern for direct Ford small block fitment
• Clutch alignment pins included for precision disc positioning
• Made in the USA

Description

The 157 tooth ring gear works with small-pattern bellhousings and corresponding starters, making it the right choice for classic Mustangs and other Ford applications using the compact bellhousing configuration. Zero balance (internally balanced) design means this flywheel pairs with internally balanced rotating assemblies - including stroker builds, aftermarket cranks, and Ford Racing's 363 and 427 cubic inch crate engines.

Dual clutch bolt patterns accept both 10" and 10.5" diaphragm clutch assemblies, giving you flexibility whether you're running a stock-replacement clutch or upgrading to a higher-capacity performance unit. The 6-bolt crankshaft pattern provides direct fitment to Ford 289, 302, and 351 Windsor engines. Included alignment pins ensure proper clutch disc positioning during installation.

Compatible with Ford 289, 302, and 351 Windsor engines requiring zero balance. Also fits Ford Racing 363ci and 427ci performance engines. Made in the USA.

Kit Includes

• Lighten Billet Steel Flywheel (28 lbs)
• Clutch alignment pins

Key Features

• SFI certified billet steel construction for high-RPM safety and durability
• 157-tooth ring gear for classic Ford small block applications
• Zero balance (internally balanced) - no external counterweight required
• Dual clutch pattern: 10" long and 10.4" metric diaphragm compatible
• 6.00" clutch damper counter-bore diameter
• 6-bolt crankshaft mounting pattern
• Weight: 28 lbs
• Pre-installed metric alignment pins for 10.4" clutch setup
• Made in the USA with US-milled steel

Description

When you're building a high-revving Ford small block, your flywheel needs to handle the abuse without becoming a liability. Cast iron flywheels can crack under stress, and non-certified components may not meet the safety standards required at the track. This SFI certified billet steel flywheel delivers the strength and peace of mind that serious builds demand - meeting the rigorous testing standards established by the SFI Foundation for replacement flywheels and clutch assemblies.

The billet steel construction provides superior tensile strength compared to cast alternatives, resisting the centrifugal forces that tear lesser flywheels apart at high RPM. The lightweight design reduces rotating mass for quicker throttle response and faster revs, while maintaining enough thermal mass for consistent clutch engagement. Zero balance (internal balance) simplifies installation on Ford 289, 302, 351W, and 351C engines that use internally balanced rotating assemblies.

Versatility is built into the design with dual clutch bolt patterns. The 10" long pattern accepts 5/16" pressure plate bolts, while the 10.4" metric pattern uses 8mm bolts - and the metric alignment pins come pre-installed so you're ready for either setup. The 6.00" clutch damper counter-bore provides proper clearance for diaphragm-style pressure plates. Note that 157-tooth flywheels require a 3/4" offset starter (often labeled as "automatic" in parts catalogs) for proper ring gear engagement.

Manufactured in the USA with US-milled steel, this flywheel delivers the quality and consistency that American craftsmanship is known for. Whether you're building a weekend warrior or a dedicated track car, SFI certification means this flywheel meets the standards required by most sanctioning bodies for competition use.

Kit Includes

• Billet steel flywheel with 157-tooth ring gear
• Pre-installed 10.4" metric clutch alignment pins

Key Features

• Lighten billet steel construction resists stress cracking and handles higher RPM loads than cast iron
• 157-tooth ring gear with 28oz external imbalance for pre-1982 Ford 289/302/351W engines
• Dual clutch bolt patterns accommodate both 10" and 10.5" pressure plates
• 28 lb weight balances reduced rotational mass with smooth street drivability
• 6-bolt crankshaft mounting pattern; clutch alignment pins included
• Compatible with Ford Racing 363/427ci crate engines
• Precision-machined from US-milled steel; Made in the USA

Overview

Factory cast iron flywheels have their limits. At high RPM or under aggressive clutch clamping loads, they can develop stress cracks that compromise both performance and safety. This lighten billet steel flywheel replaces that weak link with a material that's fundamentally stronger—billet steel resists cracking and remains stable under the demands of performance driving.

The "lighten" designation refers to strategic material removal that reduces rotational mass without sacrificing structural integrity. At 19 lbs, this flywheel strikes the sweet spot between weight reduction and street manners—light enough for improved throttle response and quicker revs, yet heavy enough to maintain smooth idle characteristics and prevent the stalling issues common with ultra-lightweight aluminum units. The result is a flywheel that feels responsive on throttle tip-in while still delivering civilized behavior in traffic.

Dual clutch bolt patterns machined into the friction surface eliminate fitment guesswork, accepting both 10" and 10.5" pressure plates. The 157-tooth ring gear and 28oz external imbalance match OE specifications for pre-December 1982 small block Fords, ensuring proper starter engagement and crankshaft balance. This flywheel fits Ford 289, 302, and 351W Windsor engines, plus Ford Racing 363ci and 427ci stroker crate motors that use the 28oz balance specification.

Six-bolt crankshaft mounting provides secure attachment, while included clutch alignment pins ensure proper disc positioning during installation. Every flywheel is precision-machined from US-milled steel and manufactured in the USA.

What's Included

• Lighten billet steel flywheel (28 lbs)
• 157-tooth ring gear (installed)
• Clutch alignment pins

Billet Steel SFI Flywheel | Ford Small Block | 157 Tooth | 28oz | 10"-10.5" Clutch

Key Features

• Lightened billet steel construction
• SFI certified for racing sanctioning bodies requiring SFI-rated drivetrain components
• 28oz external balance for pre-1982 Ford 221, 260, 289, 302, and 351W engines
• Dual bolt pattern accepts both 10" and 10.5" clutch assemblies
• 157-tooth hardened ring gear for proper starter engagement
• Six-bolt crankshaft mounting pattern -- standard Ford small block fitment
• CNC-machined friction surface for consistent clutch engagement
• Made in the USA with lifetime technical support from MDL

Description

Cast iron flywheels can't handle serious RPM or the repeated abuse of high-horsepower launches. This billet steel flywheel is precision CNC-machined from certified steel, engineered to survive the stress levels that crack and shatter cast units. At 19 pounds, it sheds significant rotating mass compared to heavy OEM flywheels -- translating to quicker revs, faster deceleration between shifts, and reduced parasitic drag on the crankshaft.

The 28oz external balance is critical: all Ford 221, 260, 289, 302, and 351W engines built before December 1982 use a 28-ounce offset balance. Mismatch the balance weight and you'll introduce severe harmonic vibration that punishes bearings and shortens engine life. Post-1981 5.0L High Output engines switched to a 50oz balance -- this flywheel is not for those applications. Match your balance weight to your engine's build date, not the vehicle year.

The dual bolt pattern accommodates both 10" and 10.5" clutch assemblies, giving you flexibility when selecting or upgrading your pressure plate without swapping flywheels. The 157-tooth ring gear is the standard configuration for most small block Ford manual transmission applications in vintage Mustangs, Falcons, Fairlanes, and similar platforms.

SFI certified for competition use where sanctioning bodies require rated flywheel and clutch assemblies. Compatible with Ford small block Windsor engines using the standard six-bolt crankshaft mounting pattern and requiring 28oz external balance. Made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel (28lbs) with CNC-machined friction surface
• 157-tooth hardened steel ring gear (installed)
• 28oz external balance weight (installed)
• Clutch alignment pins
• Lifetime technical support from MDL

Key Features

• Billet steel construction - stronger than cast iron, resists stress cracking at high RPM
• 50oz external balance - correct for factory 1981-1995 Ford 5.0L Windsor engines
• Dual clutch pattern - accommodates both 10.5" metric diaphragm and 10" long-style pressure plates
• 157-tooth ring gear for high-performance starter applications
• 6-bolt crankshaft mounting pattern
• 6.00" clutch damper counter-bore
• Metric alignment pins pre-installed - eliminates installation guesswork
• Made in the USA with domestically-milled steel

Description

Factory cast iron flywheels become the weak link when you push serious power through a 5.0L Windsor. Cast iron is prone to stress cracking under repeated high-RPM clutch engagement, and a cracked flywheel at speed is a catastrophic failure waiting to happen. This lightened billet steel flywheel delivers the strength needed for high-performance street builds and competition use while shaving weight to improve engine response.

Billet steel is considerably stronger than cast iron and remains free of the stress cracks that plague factory flywheels under heavy use. The lightened design reduces rotational mass compared to standard-weight flywheels, allowing faster throttle response on acceleration and quicker RPM drop on deceleration - a noticeable improvement whether you're rowing through gears on the street or chasing lap times. The 50oz external balance matches factory 5.0L engine specifications for 1981-1995 applications, ensuring smooth operation with no vibration.

The dual clutch pattern provides flexibility in clutch selection, accepting both 10.5" metric diaphragm pressure plates and 10" long-style setups. Metric alignment pins come pre-installed to ensure proper clutch disc centering during installation. Note that diaphragm clutches require metric pressure plate bolts (MD-403-2003 or MD-403-2003ARP), while the 10" long pattern uses 5/16" bolts (MD-403-2004).

Engineered for Ford small block Windsor engines with 157-tooth starter ring gear applications. Fits all 1981-1995 Ford 5.0L engines requiring 50oz external balance. Proudly made in the USA using US-milled billet steel.

What's Included

• Lightened billet steel flywheel with 157-tooth ring gear
• Metric clutch alignment pins (pre-installed)

Key Features

• Lightweight aluminum construction at 19 lbs - significantly lighter than cast iron for faster engine response
• Riveted steel clutch facing for superior durability and heat dissipation
• Dual clutch bolt pattern: 10" Long and 10.4" metric with dowel pins for maximum compatibility
• Zero balance configuration standard; can be ordered with 28 oz or 50 oz counterweight options
• 157-tooth steel ring gear mechanically fastened to flywheel body - prevents ring gear separation
• 6-bolt crankshaft mounting pattern for Ford small block engines
• Made in the USA

Description

Shed rotational mass without sacrificing reliability. This lightweight aluminum flywheel weighs just 19 lbs compared to heavy cast iron units, helping your engine reach higher RPMs quicker due to reduced rotating mass. That reduced inertia translates to improved throttle response and acceleration - the engine spends less energy spinning up the flywheel and more energy putting power to the wheels.

The riveted steel clutch facing provides superior heat dissipation and wear characteristics compared to bonded surfaces. Unlike cheaper aluminum flywheels that use pressed-on ring gears, this 157-tooth steel ring gear is mechanically fastened to the flywheel body, preventing the ring gear separation failures that can occur under high-stress conditions. The dual bolt pattern accommodates both vintage 10" Long-style and modern 10.4" metric pressure plates with dowel pins - eliminating compatibility guesswork across Ford's clutch evolution.

Engineered specifically for Ford small block 289, 302, and 351W Windsor engines, this flywheel comes standard as zero balance for internally balanced engines. For externally balanced applications, 28 oz or 50 oz counterweight options are available to match your specific crankshaft requirements - pre-1981 302s and all 351Ws use 28 oz imbalance, while 1981+ 302/5.0L engines require 50 oz.

Note: Aluminum flywheels spin up faster but have less stored energy than cast iron, which can make the engine easier to stall at low RPMs. If paired with a dual clutch set, this helps offset some of the characteristics. Aluminum flywheels should never be paired with ceramic or bronze clutches due to the added heat they generate. It is recommended to warm the flywheel before installing on the crank. Not SFI approved - intended for street performance and moderate competition use. Made in the USA with lifetime technical support.

What's Included

• CNC-machined aluminum flywheel body (19 lbs)
• Riveted steel clutch facing
• 157-tooth steel ring gear (mechanically fastened)
• Clutch alignment dowel pins for 10.5" clutch applications
• Lifetime technical support

Key Features

• Lightweight aluminum flywheel body with riveted steel clutch facing for superior heat dissipation
• 157-tooth ring gear for small bellhousing applications
• 28oz external balance for pre-1981 Ford 289, 302, and all 351W engines
• 6-bolt crankshaft mounting pattern
• Includes dowel pins for 10.5-inch diaphragm clutch pattern
• High-carbon steel ring gear riveted to flywheel body prevents slipping under load
• Made in the USA

Description

Ditch the heavy factory cast iron flywheel and drop serious rotating mass from your Ford small block. This aluminum flywheel delivers the weight reduction performance builds demand while maintaining the durability street engines require. Lighter rotating mass means quicker engine response and faster acceleration through the gears - your engine revs up and recovers faster between shifts.

The engineering here focuses on heat management and longevity. The riveted steel clutch facing provides a durable friction surface that handles heat far better than aluminum-on-aluminum contact, preventing warping and premature wear in spirited driving. The high-carbon steel ring gear is riveted to the aluminum body rather than pressed or shrunk on - this prevents the ring gear from walking off the flywheel under the repeated thermal cycling and shock loads of hard use.

This flywheel carries the correct 28oz external balance for pre-1981 Ford 289 and 302 engines, as well as all 351 Windsor engines regardless of year. The 157-tooth ring gear is sized for small bellhousing applications - the compact aluminum bellhousing, not the larger cast iron 164-tooth style. Includes dowel pins for proper clutch alignment with 10.5-inch diaphragm clutch kits.

Installation note: It is recommended to warm the flywheel before installing on the crankshaft for proper thermal expansion and fit. Aluminum flywheels should not be paired with ceramic or bronze-faced clutch discs due to the excessive heat these materials generate. Made in the USA.

What's Included

• Aluminum flywheel with steel clutch facing
• 157-tooth steel ring gear (riveted)
• Clutch alignment dowel pins for 10.5-inch clutch

Key Features

• Riveted steel clutch facing permanently fastened to aluminum body - prevents ring gear separation under high loads
• 157-tooth ring gear for proper starter engagement on 5.0L HO applications
• 50oz external counterweight matches factory balance on 1981-1995 Ford 5.0L HO engines
• 19 lb total weight - reduces rotating mass versus stock cast iron flywheels
• Six-bolt crankshaft mounting pattern for direct replacement installation
• 10.4" metric clutch bolt pattern with alignment pins
• Made in the USA

Description

Cut rotating mass from your 5.0L drivetrain with this aluminum flywheel, purpose-built for 1981-1995 Ford 5.0L HO engines. Weighing just 19 lbs, it delivers noticeably quicker throttle response and faster RPM changes compared to stock cast iron units - ideal for road racing, autocross, and spirited street driving where nimble engine response matters more than low-RPM grunt.

The critical engineering detail is the riveted steel clutch facing. Unlike cheaper aluminum flywheels that rely on shrink-fit alone, this design permanently fastens the steel ring gear to the aluminum body using mechanical fasteners. This prevents the ring gear from walking or separating under hard launches and high-heat clutch engagement - a common failure mode when differential thermal expansion rates cause the steel ring gear to loosen on an aluminum body.

The 50oz external imbalance is factory-correct for Ford 5.0L HO engines from 1981-1995, ensuring smooth operation without vibration. The 157-tooth ring gear matches OEM specifications for proper starter motor engagement. Six-bolt crankshaft attachment follows Ford's original pattern, and the 10.4" metric clutch bolt pattern with alignment pins accommodates most performance clutch upgrades.

Important: Aluminum flywheels reduce stored rotational energy, which can make low-RPM driving feel less forgiving - they're easier to stall from a stop. This flywheel should not be paired with ceramic or bronze clutch discs, as the excessive heat generated can damage the aluminum body. It is recommended to warm the flywheel before installing on the crankshaft for optimal fit. Made in the USA.

What's Included

• Aluminum flywheel with riveted steel clutch facing
• Clutch alignment pins

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Superior Ford 10.4" Metric HD Clutch Set | Kevlar/Steel-Backed Organic | 26-Spline Cable

Key Features

• Hybrid friction material - Kevlar facing on pressure plate side, steel-backed organic on flywheel side for aggressive bite with smooth engagement
• 450 ft-lbs torque capacity handles serious small-block Ford power
• Diaphragm-style pressure plate with 10.4" metric bolt pattern and alignment dowel pins
• 26-spline x 1-1/8" input shaft compatibility for TKO, TKX, 3550, and T-5 transmissions
• Sprung hub design absorbs driveline shock and protects transmission components
• Cable-actuated throw-out bearing included for mechanical release systems
• Hand-built in-house with double-checked tolerances for ready-to-install precision
• Made in the USA with 1-year defect-free warranty

Description

MDL's Superior Series clutch sets deliver the precise balance of engagement characteristics that performance street builds demand. This 10.4" metric clutch features a hybrid friction material strategy - Kevlar facing on the pressure plate side provides aggressive bite and exceptional heat resistance, while steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. The result is a clutch that hooks up decisively under power yet remains streetable for daily driving.

The diaphragm-style pressure plate uses Ford's 10.4" metric bolt pattern with 8mm bolts and precision dowel pins for rock-solid alignment and zero chatter. With a 450 ft-lbs torque capacity, this clutch handles serious small-block Ford power while the sprung hub absorbs the driveline shock that would otherwise stress transmission synchronizers and gears. The 26-spline x 1-1/8" disc fits TKO, TKX, 3550, and T-5 transmissions equipped with the larger input shaft.

Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where tolerances are verified twice before shipping. This attention to detail ensures proper balance, smooth engagement, and long service life right out of the box. The kit includes everything needed for installation - precision pilot bearing, cable-actuated throw-out bearing, and alignment tool. Backed by MDL's 1-year defect-free warranty and made in the USA.

Kit Includes

• Diaphragm pressure plate - 10.4" metric bolt pattern with alignment dowel pins, uses 8mm bolts
• Clutch disc - 26-spline x 1-1/8", sprung hub, Kevlar/steel-backed organic facings
• Cable-actuated throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

Key Features

• Dual Kevlar friction facings on both flywheel and pressure-plate sides for consistent engagement and heat resistance
• Heavy-duty diaphragm pressure plate matched to 26-spline x 1-1/8" input hub
• Cable-profile throwout bearing also compatible with hydraulic release systems
• 10.4" metric bolt pattern with alignment dowel pin holes - uses 8mm pressure plate bolts
• Hand-assembled in-house with double-riveted construction for balance and durability
• Sprung hub design absorbs driveline shock for smoother engagement
• 500 ft-lb torque capacity for performance street and open tracking applications
• 1-year free-from-defect warranty

Description

When you're building a Ford with a 26-spline transmission and need a clutch that handles real power without fighting you in traffic, this Superior 10.4" metric kit delivers. The dual Kevlar friction surfaces provide aggressive holding power with manageable street manners - Kevlar's thermal stability means consistent engagement under repeated hard use without the grabby, on-off characteristics of ceramic facings. This is the clutch for performance street builds and open track days where you need confidence in the drivetrain, not a sore left leg.

MDL builds every Superior clutch disk in-house with double-riveted construction - not bonded like cheaper alternatives. This assembly method ensures precise balance across the disc, eliminates hot spots that cause premature failure, and maintains structural integrity under high heat and repeated engagement cycles. The heavy-duty diaphragm pressure plate increases clamp load over stock units to support the 500 ft-lb torque rating.

The 26-spline x 1-1/8" input hub with sprung center fits modern TREMEC TKX, TKO-600, and T5 transmissions, as well as period-correct '86-'95 Ford 5.0L applications with upgraded transmissions. The cable-profile throwout bearing is designed for Ford cable-actuated systems but also works with hydraulic release setups, giving you flexibility for transmission swaps and clutch system upgrades.

Every component is checked and double-checked for accuracy before shipping - you receive a ready-to-install premium assembly right out of the box. Performance Proven products have survived the rigorous challenges of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pin holes
• 10.4" clutch disc with dual Kevlar friction facings - sprung hub
• 26-spline x 1-1/8" input shaft hub
• Cable-profile throwout bearing (hydraulic compatible)
• Pilot bearing
• Clutch disc alignment tool
• Installation and break-in instructions
• Lifetime technical support

Superior 10.4" Metric Clutch Kit | Ford 1986-1995 | Kevlar/Ceramic 26-Spline Cable

Key Features

• Kevlar facing on flywheel side, ceramic facing on pressure plate side for aggressive bite with smooth engagement
• 600 lb-ft torque rating handles serious street/strip power
• 26-spline, 1-1/8" hub diameter fits TREMEC TKO, TKX, and T5 with 26-spline input
• 10.4" metric bolt pattern with 3 alignment dowel pin holes
• Cable-style throw-out bearing included (also compatible with hydraulic systems)
• Diaphragm-style pressure plate with 8mm bolt holes
• Sprung hub design reduces drivetrain shock and chatter
• Hand-assembled and double-riveted in MDL's Caldwell, Idaho facility
• 1-year free-from-defect warranty

Description

When you need more holding power than a full-Kevlar disc can deliver but want to preserve some street manners, the Superior Kevlar/Ceramic clutch assembly is the answer. This hybrid design places Kevlar on the flywheel side for smooth engagement and extended life, while the ceramic facing on the pressure plate side delivers the aggressive bite and heat resistance demanded by drag launches and high-RPM road racing shifts. Great for 1986-1995 Ford applications running the 10.4" metric bolt pattern.

Ceramic friction material works harder as temperatures climb--the iron content in MDL's ceramic compound actually increases friction under heat, making this clutch stronger during abuse rather than weaker. That's why ceramic is the go-to choice for higher horsepower builds, quick shifts in road racing, and hard-launching drag cars. When a larger diameter disc isn't an option, the higher coefficient of friction delivers more holding power from the same surface area and clamp load.

Every Superior clutch assembly is hand-built in MDL's Caldwell facility using double-riveted construction and exacting quality standards. Each unit is checked and double-checked for accuracy before it ships, so you receive a ready-to-install premium product right out of the box. The 26-spline, 1-1/8" hub fits transmissions like the TREMEC TKO, TKX, or any 26-spline T5 variant. The included cable-profile throw-out bearing also works with hydraulic release systems, giving you flexibility in your drivetrain setup.

Designed for the 10.4" metric pressure plate pattern with 3 alignment dowel pin holes--uses 8mm pressure plate bolts. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Diaphragm-style pressure plate (8mm bolt holes, metric pattern)
• Clutch disc with Kevlar/ceramic hybrid facings, 26-spline x 1-1/8" sprung hub
• Cable-profile throw-out bearing (hydraulic compatible)
• Pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty

Key Features

• 800 horsepower capacity for high-performance street applications
• 26 x 1-1/8" input spline configuration with 246mm (9.687") disc diameter
• Economically priced twin disc design - uses your existing flywheel
• Organic/organic friction facings deliver smooth engagement with soft pedal effort
• Sprung hub discs for excellent release characteristics and driveability
• Diaphragm pressure plate with 10" Long bolt pattern and 8mm hardware
• Small ring adapter fits Ford 157T flywheels
• Street-focused design - not intended for competition use
• Made in the USA

Description

When you've built serious power but need a clutch that remains civilized on the street, the McLeod RST twin disc clutch kit delivers an economically priced solution for high-horsepower Ford applications. This kit solves the fundamental problem of single-disc clutches that either slip under power or become unbearably harsh for daily driving - without requiring you to purchase a new flywheel.

Capable of handling 800 horsepower, this clutch manages extreme power while remaining street-friendly. The twin-disc design spreads clamping loads across two organic friction surfaces, reducing pressure plate spring tension compared to equivalent single-disc setups. Organic-faced twin sprung hub friction discs provide smooth engagement with soft pedal effort and excellent release characteristics, making this ideal for enthusiasts who demand performance without sacrificing driveability.

The small ring adapter configuration works with Ford 157T flywheel bolt patterns. The 26 x 1-1/8" input spline accommodates transmissions like the TKO-500/600, TKX, and T56 Magnum. McLeod's patent-pending adapter ring ensures proper pressure plate positioning and prevents the binding issues common with universal adapters. This kit requires your existing flywheel, which must be properly resurfaced before installation. Flywheel surface must have a coarse texture from a stone grinder - if you run your fingernail across it, the texture should catch your nail.

Compatible with Ford applications using 10" Long bolt patterns with 8mm hardware for 10.5" bellhousing configurations. Note: This clutch is designed for high-horsepower street use and is not intended for competition environments. Made in the USA.

What's Included

• Diaphragm pressure plate (10" Long bolt pattern)
• Two organic friction discs (246mm diameter, 26 x 1-1/8" spline, sprung hub)
• Floater plate
• McLeod patent-pending small ring adapter
• Pilot alignment tool
• Installation instructions
• Flywheel clutch pattern chart

Note: This kit does not include a pilot bearing or throwout bearing.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• Premium-grade 8740 chromoly construction hardened to 180,000 PSI tensile strength
• 8mm x 1.25 thread size with 10mm hex head for proper socket access
• Black oxide finish for corrosion resistance and professional appearance
• Application-specific design ensures optimum grip length for Ford 302/351W engines
• Large diameter, low profile design increases clamping force over stock hardware
• Complete kit includes washers for proper installation
• Set of 6 bolts replaces all factory pressure plate fasteners

Description

The importance of pressure plate bolts in racing or high-performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Factory pressure plate bolts are notorious weak points that can stretch or fail under power, leading to clutch slippage, pressure plate distortion, or catastrophic failure. When you're building serious power, the last thing you want is substandard hardware compromising your drivetrain.

ARP engineered these High Performance Series bolts specifically for 1986-1995 Ford 302 and 351 Windsor applications. Each bolt is forged from premium-grade 8740 chromoly steel and heat-treated prior to thread rolling and machining, achieving a nominal tensile strength of 180,000 PSI. The application-specific design ensures optimum grip length for your Ford V8, eliminating the guesswork that comes with generic hardware.

The 8mm x 1.25 threading matches factory specs while delivering vastly superior strength. Each bolt features a hex head design with 10mm socket access for easy installation and removal. The black oxide finish provides corrosion resistance while maintaining a clean appearance under the hood. The large diameter, low profile design increases clamping force compared to stock bolts, reducing the risk of pressure plate flex under high-load conditions.

Fits all 1986-1995 Ford applications equipped with 302 or 351W engines, including Mustang 5.0L, F-150 trucks, Bronco, E-Series vans, and Crown Victoria. Kit includes six pressure plate bolts with washers for complete replacement of all factory fasteners.

What's Included

• 6 x ARP pressure plate bolts (8mm x 1.25, 10mm hex head, black oxide finish)
• 6 x Washers

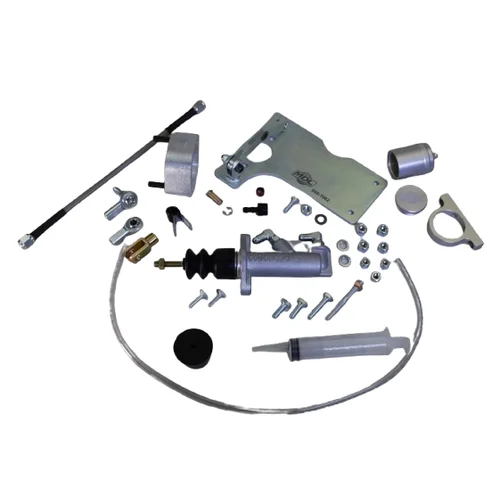

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder Kit | .700 Bore | Plastic Reservoir

Whether you are converting your 1962-1965 Fairlane to a manual transmission or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote plastic reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Ford, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote plastic reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

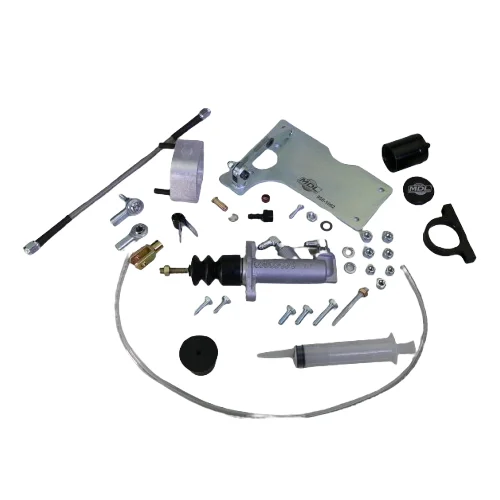

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder | .700 Bore | Black Billet Reservoir

Whether you are converting your 1962-1965 Fairlane to a manual T-5/TKX/T-56 or just wanting to upgrade your current clutch actuation method, the Modern Driveline LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote black billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Fairlane, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote black billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

MDL LF Series 62-65 Fairlane Hydraulic Clutch Master Cylinder | .700 Bore | Silver Billet Reservoir

Whether you are converting your 1962-1965 Ford Fairlane to a manual T-5/TKX/T-56 or just wanting to upgrade your current clutch actuation method, the MDL LF Series Master Cylinder Kit is a great solution to add modern technology to your classic! The MDL LF Series Hydraulic Clutch Master features a revolutionary design for retrofitting hydraulics into your classic car and features an innovative pedal linkage that matches pedal travel with a long-stroke master cylinder for a reduced clutch pedal load. The common approach was to use a 3/4 or 7/8 inch bore by 1 inch stroke master cylinder connected to the pedal directly resulting in improper pedal pressure. Also, the mounting of the cylinder needed to be raised higher than the stock clutch rod linkage hole causing interference issues on the firewall and pedal assembly. Due to the short stroke, this ultimately results in a heavy pedal pressure. Our revolutionary linkage allows for great design flexibility and greatly improved driver's experience. The remote silver billet reservoir simply mounts on the firewall for a clean and simple installation. The .700 bore and 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems. Each kit comes complete with everything you need to install including our unique One-Man-Bleeder Kit and comprehensive instructions. If you are looking to elevate the performance of your classic Fairlane, look no further than the Modern Driveline LF Series Clutch Master Cylinder Kit.

FEATURES AND BENEFITS:

• Maintains stock clutch pedal pivot point for a stock pedal feel
• Optimizes full pedal stroke for better control of the clutch.
• Linkage Design creates leverage for improved driver's experience.
• Works with existing industry slave cylinders and hydraulic release bearings
• All mounting hardware, brackets, and installation instructions.
• Features a remote silver billet reservoir.
• Made in the USA

IMPORTANT NOTE:

• This kit relies on the factory components to be in good working order, any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

Key Features

• Converts cable-actuated aluminum bellhousing to smooth hydraulic clutch release
• 0.75-inch bore aluminum slave cylinder with adjustable pushrod for precise clutch engagement
• Mounts directly to bellhousing fork opening - pushes fork from rear for long-tube header clearance
• Utilizes OEM cable fork with bolt-on pivot socket - no bellhousing removal required for installation or service
• -4AN braided stainless steel line with fittings included
• Easy-access bleed port for simple system maintenance
• Compatible with stock clutch pedals and OE reproduction pedals
• Made in the USA

Description

Fox-body and SN95 Mustang clutch cables are notorious for clearance headaches, binding against headers, and developing a heavy, draggy pedal feel as they wear. This MDL Lightfoot Series external hydraulic slave cylinder kit eliminates those problems by converting your 1979-1993 Mustang's aluminum T5, TKO, or TKX bellhousing from cable operation to reliable hydraulic actuation.

The slave cylinder mounts directly to the bellhousing fork opening behind the original cable fork, pushing the fork instead of pulling it for proper clutch release. This rear-push design provides exhaust clearance that clutch cables simply cannot match, making it compatible with long-tube headers while keeping the cylinder accessible for installation and service. The adjustable pushrod allows you to dial in precise clutch engagement without pulling the bellhousing.

Engineered as a complete system, this kit pairs seamlessly with MDL LF Series master cylinder kits for a fully integrated hydraulic clutch conversion. The 0.75-inch bore slave cylinder delivers consistent pedal feel and full clutch release when matched with the appropriate master cylinder. No bellhousing removal is required - the bolt-on pivot socket works with your existing OEM cable fork, and the easy-access bleed port simplifies initial bleeding and future maintenance.

This kit fits 1979-1993 Ford Mustangs equipped with aluminum T5, TKO, or TKX bellhousings and works with both factory clutch pedals and OE reproduction aftermarket pedals. Uses DOT 3 or DOT 4 brake fluid. Made in the USA with lifetime technical support included.

What's Included

• 0.75-inch bore aluminum external slave cylinder
• Adjustable pushrod
• Bolt-on pivot socket for OEM cable fork
• -4AN braided stainless steel hydraulic line
• -4AN fittings
• Complete mounting hardware
• Installation instructions
• Lifetime technical support

Key Features

• Transmission-mounted design bolts to the left two bellhousing bolts on QuickTime RM-6060/RM-6065 steel bellhousings
• Converts cable-actuated clutch release to smooth hydraulic operation
• 0.75-inch bore slave cylinder with adjustable pushrod for precise clutch adjustment
• Uses existing OEM cable-style clutch fork and pivot socket - no fork modifications required
• External mounting clears long-tube headers and provides easy access for bleeding and service
• -4AN braided stainless steel line and fittings included
• Low-to-medium pedal effort rating for comfortable street driving
• Made in the USA with lifetime technical support

Description

Clutch cables on Fox-body and SN95 Mustangs wear out, bind, and add unnecessary pedal effort - especially when routed around long-tube headers. The LF Series External Hydraulic Slave Kit eliminates those headaches by converting QuickTime RM-6060 and RM-6065 steel bellhousings from cable actuation to smooth, consistent hydraulic release. Designed specifically for small block Ford applications running TKO 500/600, TKX, TR3550, or T5 transmissions, this transmission-mounted system delivers reliable clutch engagement without the clearance compromises of internal slave designs.

The key to this kit's simplicity is its external, transmission-mounted bracket design. Rather than replacing your cable-style clutch fork, the 0.75-inch bore slave cylinder bolts directly to the left two bellhousing bolts and pushes from the rear of the fork - mimicking the mechanical action of a cable system with the precision of hydraulics. The adjustable pushrod allows fine-tuning of clutch engagement point without disassembly, while the external bleeder port makes maintenance straightforward. The compact mounting location tucks the cylinder out of the way of headers and exhaust components that typically interfere with cable routing.

When paired with an MDL LF Series master cylinder kit, you get a complete engineered hydraulic clutch system designed to work together. The matched bore sizes and stroke lengths take the guesswork out of hydraulic ratio calculations, delivering consistent pedal feel and full clutch disengagement. This kit is compatible with both the QuickTime RM-6060 (non-SFI) and RM-6065 (SFI 6.1 certified) bellhousings for small block Ford 302/351W applications. Uses DOT 3 or DOT 4 brake fluid - no special high-temp fluid required. Made in the USA.

What's Included

• 0.75-inch bore external hydraulic slave cylinder
• Transmission mounting bracket and hardware
• Bolt-on pivot socket for cable-style clutch fork
• -4AN braided stainless steel hydraulic line
• -4AN fittings
• Adjustable pushrod
• Installation instructions
• Lifetime technical support

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• 2-1/8 inch diameter black aluminum shift ball with brushed finish
• 16mm x 1.5 internal thread - designed for use with thread reducers to adapt to various shifter handle sizes
• Lightweight aluminum construction reduces shifter mass for quicker throws
• Black finish with brushed texture complements modern performance interiors
• 5-speed shift pattern engraving
• Compatible with MDL thread reducer inserts (sold separately) for SAE and metric applications

Description

Factory shift knobs rarely deliver the grip, weight, or aesthetics that a performance build deserves. This MDL 5-Speed Black Aluminum Shift Ball solves that problem with a 2-1/8 inch diameter that fills the palm for confident, positive shifts and a brushed black aluminum finish that looks at home in any performance-oriented cockpit.

The 16mm x 1.5 internal thread is engineered to work with MDL's line of thread reducer inserts, giving you the flexibility to mount this shift ball on virtually any shifter handle. Thread reducers are available in both SAE sizes (3/8-16, 3/8-24) and metric sizes (8mm-1.25, 9mm-1.25, 12mm-1.75) to accommodate Hurst, Lokar, TREMEC, and other popular shifter configurations. This universal approach means one shift ball works across multiple builds and applications.

Constructed from lightweight aluminum, this shift ball reduces rotating mass compared to heavier steel or weighted knobs - a deliberate choice for drivers who prioritize quick, precise shifts over added heft. The brushed aluminum base with black finish provides durability and corrosion resistance while maintaining a clean appearance that won't fade or chip under heavy use.

Note: This shift ball requires a separate thread reducer insert and jam nut (sold separately) to properly mount to your shifter handle. Check MDL's selection of thread reducers to find the correct adapter for your specific shifter lever thread size.

What's Included

• One 2-1/8 inch black aluminum shift ball with brushed finish and 5-speed pattern
• 16mm x 1.5 internal thread (thread reducer insert required - sold separately)

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Precision-machined from solid billet aluminum with brushed silver finish
• 30-degree kickback angle positions hand for natural, ergonomic shifting
• Direct bolt-on for TKO-500, TKO-600, TKX, and T-56 transmissions with standard 2-bolt flange
• Industrial through pocket design reduces weight while maintaining structural rigidity
• 10" overall length for balanced leverage and throw characteristics
• 3/8"-16 threaded stud accepts standard aftermarket shift knobs
• Mounting holes machined 0.890" center-to-center with 3/8" diameter for precise fitment

Description

Factory TREMEC shift levers get the job done, but they lack the style and ergonomic refinement that a performance build deserves. This Bowler billet aluminum shift lever transforms your interior with precision-machined construction and a sleek brushed silver finish that complements both classic and modern builds.

The 30-degree kickback angle is the key ergonomic feature here. Rather than forcing your wrist into an awkward position during aggressive shifts, the angled design places your hand naturally where it wants to be. The result is faster, more comfortable gear changes with reduced fatigue during spirited driving or track sessions.

Machined from solid billet aluminum using an industrial through pocket design, this lever delivers exceptional strength without unnecessary weight. The through pocket construction removes material strategically, creating visual interest while maintaining the structural integrity needed for hard shifts. At 10" in length, the lever provides optimal leverage for crisp gear engagement without excessive throw.

Installation is straightforward with direct bolt-on compatibility for TKO-500, TKO-600, TKX, and T-56 transmissions using the standard 2-bolt mounting flange. Mounting holes are precision-machined to 0.890" center-to-center with 3/8" diameter for perfect alignment. The 3/8"-16 threaded stud accepts most aftermarket shift knobs, so you can complete your interior with your preferred knob style.

Kit Includes

• Billet aluminum shift lever with brushed silver finish
• 3/8"-16 half nut for shift knob retention
• Mounting hardware

Note: Shift knob sold separately.

Billet Aluminum Shift Lever | Black Anodized | 10 in. 30 Degree Kickback

Key Features

• Direct bolt-on for TREMEC TKO-500, TKO-600, TKX, and T56 transmissions with standard 2-bolt flange
• Precision-machined billet aluminum construction with black anodized finish
• 30-degree kickback design positions shift knob closer to the driver for improved ergonomics
• Industrial through-pocket design provides rigidity under aggressive shifting loads
• 10-inch overall length for optimal shift feel and knob positioning
• 0.890-inch center-to-center mounting holes with 3/8-inch bolt diameter
• 3/8-16 threaded stud accepts most aftermarket shift knobs

Description

Factory shift levers get the job done, but they rarely complement a custom interior or deliver the precise feel a performance build deserves. This billet aluminum shift lever from Bowler was purpose-built for the TREMEC enthusiast who demands both function and aesthetics. Machined from solid billet aluminum and finished in durable black anodize, it delivers the strength to handle aggressive shifts while adding a sleek, modern look to your cockpit.

The 30-degree kickback angle pulls the shift knob rearward and closer to the driver, improving reach and reducing fatigue during spirited driving or long cruises. At 10 inches tall, this lever strikes the ideal balance between throw reduction and mechanical advantage, giving you crisp gate engagement without requiring excessive effort. The industrial through-pocket design creates a rigid structure that eliminates flex under load, ensuring consistent shift feel whether you're rowing through traffic or banging gears at the track.

Installation is straightforward: the lever bolts directly to the standard 2-bolt flange found on TKO-500, TKO-600, TKX, and T56 transmissions using the included hardware. Mounting holes are spaced 0.890 inches center-to-center with 3/8-inch diameter. The 3/8-16 threaded stud at the top accepts virtually any aftermarket shift knob, allowing you to complete your interior upgrade with your preferred grip style. Pair this lever with one of MDL's shift bezels and knobs for a fully coordinated shifter assembly that matches the quality of your TREMEC transmission.

What's Included

• Black anodized billet aluminum shift lever (10 in., 30-degree kickback)
• Mounting hardware for 2-bolt flange installation
• 3/8-16 half nut for shift knob retention

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Lokar 10in Lay-Back Steel Shifter Lever | Black Powder-Coat | 3/8in-24 Thread

Key Features

• Lay-back design: 4in back offset x 9in tall with 30-degree bend for optimal hand position
• Tubular steel construction with black powder-coated finish
• Direct bolt-on fitment for TREMEC and Borg Warner shifters with standard 7/8in center-to-center 2-bolt flange
• Compatible with T5, T45, T56, TKO, and Magnum transmissions
• Machined mounting stud drilled and countersunk for included metric cap screws
• 3/8in-24 thread accepts most aftermarket shift knobs
• Made in the USA with lifetime warranty

Description

Stock shifter levers rarely put the shift knob where you actually want it. This Lokar lay-back steel shifter lever solves that problem with a 30-degree bend that positions your hand exactly where it needs to be for quick, confident shifts. The 4-inch back offset and 9-inch height put the knob in the optimal ergonomic position without sacrificing mechanical leverage.

Built from tubular steel with a durable black powder-coated finish, this lever delivers the rigidity serious shifting demands while resisting corrosion and looking sharp in any interior. The machined mounting stud features countersunk holes for a clean, smooth appearance that eliminates the exposed fastener look of lesser shifters.

Installation is straightforward bolt-on for any TREMEC or Borg Warner transmission using the standard 2-bolt flange measuring 7/8 inch center to center between bolt holes. That covers T5, T45, T56, TKO-500, TKO-600, and Magnum applications with both stock and aftermarket 5-speed and 6-speed shifter assemblies. The 3/8in-24 thread at the top accepts virtually any aftermarket shift knob, giving you full control over the final look and feel.

All Lokar products are made in the USA and backed by a lifetime warranty. Shift knob, boot, and trim ring are sold separately.

What's Included

• 10in tubular steel shifter lever with lay-back bend (black powder-coated)
• Machined mounting stud with countersunk cap screw holes
• Metric cap screws for installation

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Billet aluminum trim ring with ball-milled edges for premium show-quality appearance
• Outer dimensions: 6-3/4" x 5-1/4" - fits standard floor-mount shifter openings
• Inner dimensions: 5-1/2" x 4" - accommodates most aftermarket shifter levers
• Black Naugahyde construction for durability and classic hot rod styling
• Foam rubber seal eliminates airflow and road noise through floor opening
• Boot hugs shifter lever cleanly - no unsightly pull ties or laces
• Includes stainless steel mounting screws for secure installation
• Made in the USA with lifetime warranty

Description

A cheap shift boot can ruin an otherwise clean interior build. This Lokar rectangular shift boot delivers the finishing touch your hot rod or muscle car deserves, combining durable black Naugahyde construction with a precision-machined billet aluminum trim ring featuring ball-milled edges. The result is a show-quality appearance that complements everything from traditional street rods to resto-mod builds.

The engineering centers on a smart billet bezel design that sits atop the boot and fits over the shifter lever. A foam rubber seal underneath blocks airflow and road noise from entering through the floor opening - a critical comfort detail that cheaper boots ignore. Unlike bargain alternatives that use visible pull ties or laces, this boot hugs the shifter lever for a clean, integrated look with no exposed fasteners marring your interior.

With outer dimensions of 6-3/4" x 5-1/4" and inner dimensions of 5-1/2" x 4", this rectangular boot fits standard floor-mount and cable-operated shifter applications. The rectangular footprint is specifically designed for floor-mount shifters rather than transmission-mounted units, making it the correct choice for TREMEC TKX, TKO, and T-56 Magnum installations in vehicles without center consoles. The complete kit includes everything needed for a straightforward installation.

Kit Includes

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 5-inch round black Naugahyde boot with brushed billet aluminum trim ring featuring ball-milled edge detail
• Polished stainless steel bezel fits cleanly over shifter lever for a finished look
• Foam rubber seal eliminates air flow from floor through boot
• Boot hugs shifter lever tightly - no unsightly pull ties or laces
• Complete kit includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A quality hot rod build deserves details that match the craftsmanship under the hood. Cheap, floppy shift boots with visible pull ties or laces cheapen an otherwise well-executed interior. This Lokar Classic Shifter Boot solves that problem with a tight-fitting black Naugahyde boot that hugs the shifter lever cleanly - no ties, no laces, just a professional appearance that signals attention to detail.

The billet aluminum trim ring features Lokar's signature ball-milled edge, adding machined precision that complements polished or brushed interior accents. Up top, a polished stainless steel bezel fits over the shifter lever, creating a finished transition between boot and stick. The included foam rubber seal prevents air from flowing up through the floor - keeping road noise, heat, and debris where they belong.

At 5 inches round, this boot fits floor-mounted shifter applications in hot rods, customs, and classic builds. The round configuration accommodates round shifter levers and provides the clean, symmetric look traditional hot rod interiors demand. Lokar manufactures these boots in the USA and backs them with a lifetime warranty.

What's Included

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge (brushed finish)
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Key Features

• Black anodized billet aluminum ring with ball-milled edge for coordinated hot rod styling
• 5-1/4-inch outer diameter with 4-inch inner diameter fits most floor shifter openings
• Black naugahyde boot construction delivers classic hot rod aesthetics
• Polished stainless bezel fits over shifter lever for clean transition
• Integrated foam rubber seal eliminates air flow from floor through boot
• Form-fitting design hugs shifter lever with no pull ties or laces
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

Gaps around shifter levers look sloppy and let road noise, dust, and exhaust fumes into the cabin. This Lokar Midnight Series shift boot kit solves both problems with a clean, form-fitting design that delivers classic hot rod styling while sealing the floor opening around your shifter.

The 5-inch round boot features a black anodized billet aluminum ring with ball-milled edges that provide both visual depth and tactile grip during installation. The ball-milled edge treatment creates shadow lines that enhance the three-dimensional appearance while coordinating with other black interior components. Unlike cheaper stainless options, the black anodized finish delivers the blacked-out look modern hot rodders demand.

Unlike inferior boots with visible drawstrings or laces, this design hugs the shifter lever naturally for a factory-quality appearance. The polished stainless bezel on top of the boot fits over the shifter lever, creating a seamless transition. An integrated foam rubber seal eliminates air flow from beneath the vehicle into the cabin, keeping dust, debris, and exhaust fumes where they belong.

The black naugahyde boot material provides authentic period-correct styling while offering excellent durability against heat, UV exposure, and daily use. Compatible with most transmission-mounted and floor-mounted manual shifters in hot rod and classic car applications. Made in the USA by Lokar and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot
• Black anodized billet aluminum ring with ball-milled edge (5-1/4" OD x 4" ID)
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Speedometer Cable | 1967-1968 Mustang/Cougar | 5/8" Barrel | T5/TKO/TKX/AOD

Key Features

• 5/8" barrel-style connector matches factory Ford speedometer interface
• 63" overall length accommodates driver-side routing required by T5, TKO, and TKX transmissions [VERIFY: Product description states 63", key_features field states 59" - confirm correct length]
• Designed specifically for '67-'68 Mustang and Cougar five-speed and AOD conversions
• Compatible with Ford T5, TKO, TKX, and AOD transmissions
• Also fits Falcon conversions using MDL front-shift tailhousing or front-shift T5 packages

Description

When you swap from a factory four-speed to a modern T5, TKO, or TKX five-speed, the speedometer cable routing changes completely. These TREMEC transmissions position the mechanical speedometer drive on the driver's (left) side of the case, meaning your original cable won't reach - and trying to force an ill-fitting cable creates binding, premature wear, and inaccurate readings.

This application-specific speedometer cable solves that problem for '67-'68 Mustang and Cougar owners. The 5/8" barrel-style connector interfaces correctly with the Ford speedometer head, while the 63" overall length provides the reach needed for proper left-side routing without binding or excessive slack. The result is a clean installation that keeps your factory speedometer functioning accurately with your new overdrive transmission.

Beyond T5 and TKO/TKX manual swaps, this cable also works for AOD automatic conversions in '67-'68 Mustang and Cougar applications. Falcon owners converting to five-speed can use this cable when paired with MDL front-shift tailhousings or front-shift T5 packages. If you're upgrading to modern overdrive and want to keep your factory speedometer working, this is the cable that makes it happen.

What's Included

• Speedometer cable with 5/8" barrel connector (63" length)

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

MDL Transmission Mount for Early 60's Ford,

Fits:

• Galaxie
• F Series Truck thru 1976
• Fairlane thru 1965

This High-quality mount is, precision welded & powder coated to last.

BACK TO MOUNTS HOME PAGE

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Billet steel construction for enhanced strength and durability [VERIFY: MDL lists as "Billet Steel" but Sonnax specs show T3-3-2491HP is "Forged Chromoly" - confirm correct material]
• 31-spline count matches TREMEC TKO, TKX, T56 Magnum, and Ford C6/FMX output shafts
• 1350 series U-joint compatibility - handles up to 1000hp on the street without large shock loads
• 1-3/16" U-joint cap diameter with 3.625" overall width
• Leak-free plug tested to 40 psi for optimum sealing
• Precision-machined for exceptional balance and minimal runout
• Made in the USA

Description

Converting to a TREMEC TKX or T56 Magnum often demands upgrading from the factory slip yoke to handle increased torque and horsepower. A Sonnax slip yoke is never the weak link in your driveline - this billet steel unit delivers the strength and precision your high-performance build deserves.

Unlike cast alternatives, this slip yoke is fully machined from billet steel for enhanced strength and durability. All dimensions are precision machined to guarantee a consistent, concentric slip yoke, eliminating the runout and balance issues that plague lesser components. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. Every unit is leak-free plug tested to 40 psi, ensuring optimum sealing under pressure.

Built for 31-spline TREMEC transmissions including TKO-500, TKO-600, TKX, and T56 Magnum series, plus Ford C6 and FMX automatic applications. The 1-3/16" U-joint cap diameter accepts standard 1350 series U-joints for maximum driveline compatibility. Handles up to 1000hp on the street without large shock loads - perfect for high-performance street cars, drag strip duty, and dirt oval applications.

Sonnax slip yokes set the standard for incredible performance and value - a winning combination for high-horsepower builds running on the street, drag strip, or dirt oval track. Made in the USA with precision manufacturing standards you can trust.

What's Included

• (1) Sonnax billet steel slip yoke, 31-spline, 1350 series
• Lifetime tech support from MDL

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
