TREMEC Ford TKX 5-Speed Transmission | 2.87 First, 0.68 Overdrive | 26-Spline

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8-inch diameter), 31-spline output shaft
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21-inch Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Two shifter locations are standard; mid-position kit available separately
• High-performance billet aluminum short-throw shifter included
• Shifter Stub Locations: center line, 12.68”, 16.75” or 19.52” back from the bellhousing face
• Gaskets at all mating surfaces eliminate fluid leaks
• 99 lbs dry weight; 2.7-quart fluid capacity

Overview

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• High-performance short-throw billet aluminum shifter
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• OSS two-wire electronic speedometer sensor (built-in)
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27, first gear with 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.81 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

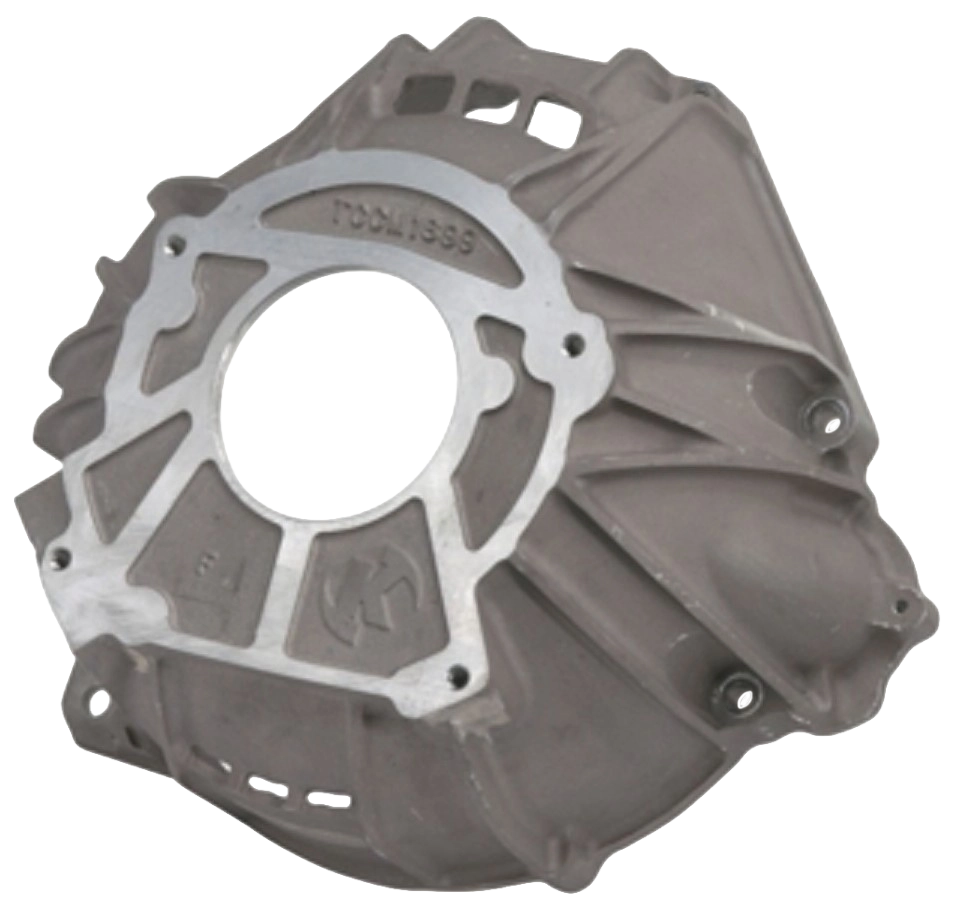

Key Features

• TREMEC model TCCM1899 / Ford Performance part number M-6392-M46
• Direct bolt-up to TREMEC 3550, TKO-500, TKO-600, and TKX transmissions - no adapters required
• Cast aluminum construction with all factory mounting positions
• 7:00 o'clock fork position for optimized header clearance
• Compatible with cable clutch release, internal hydraulic throwout bearings, and external slave cylinders
• Fits Ford 4.6L, 5.0L 4V Ti-VCT (Coyote), and 5.4L modular engines
• Made in the USA

Description

Upgrading your Ford Modular V8 to a TREMEC 5-speed? Factory Ford transmissions use a different bolt pattern than TREMEC units, making a proper bellhousing essential for any modular-to-TREMEC conversion. This Ford Performance cast aluminum bellhousing (M-6392-M46 / TREMEC TCCM1899) provides direct bolt-up compatibility between 4.6L, 5.0L 4V Ti-VCT, and 5.4L modular engines and TREMEC 3550, TKO-500, TKO-600, or TKX transmissions - no cutting, grinding, or adapter plates required.

Cast aluminum construction keeps weight down while maintaining OEM-level durability for street builds. All factory mounting positions are retained for straightforward installation, though minor modifications may be required for transmission clearance in some vehicle applications. The 7:00 o'clock fork opening position provides optimal clearance around long tube headers while maintaining proper clutch geometry.

This bellhousing supports multiple clutch actuation methods. Factory cable setups bolt right in, while internal hydraulic throwout bearings and external slave cylinders mount without modification. Whether you're building a street cruiser or track car, the versatility accommodates your preferred clutch release system.

Requires block plate MD-401-1106 for complete installation. Can also be used with Ford Performance starter index plate M-7007-A, clutch release lever M-7515-A, and bellhousing installation kit M-7771-A. Made in the USA with Ford Performance quality standards.

What's Included

• Cast aluminum bellhousing (Ford Performance M-6392-M46 / TREMEC TCCM1899)
• Clutch lever pivot
• Clutch lever cover and Hardware

Key Features

• Spun steel cone construction - not stamped or rolled - delivers twice the strength of conventional steel bellhousings while work hardening to over 80,000 PSI
• 6.925-inch depth clears 164-tooth flywheel with 11-inch clutch; transmission bore of 4.685/4.910 inches
• Lightweight 20-pound construction without sacrificing protection or dimensional stability
• Maintains pinpoint engine-to-transmission alignment through entire RPM range, eliminating drivetrain wear from bellhousing flex
• Patent pending on 16 points of bellhousing design and manufacturing process
• Universal fork bracket accommodates both diaphragm and cable-operated linkage
• 100% Made in the USA with Grade 8 hardware included

Description

When you're mating a Ford Modular engine to a TREMEC transmission, the bellhousing is the critical link that determines whether your drivetrain operates with precision or suffers from alignment issues that accelerate wear on input shaft bearings, pilot bushings, and clutch components. This QuickTime bellhousing eliminates those problems with spun steel cone construction that delivers dimensional accuracy lesser housings simply cannot match.

Unlike stamped or rolled bellhousings that can flex under load and lose concentricity, QuickTime's proprietary spin-forming process produces a cone that work-hardens to over 80,000 PSI - more than twice the strength of other steel bellhousings. That strength-to-weight ratio allows QuickTime to deliver a 20-pound bellhousing that keeps your engine and transmission in perfect alignment throughout the entire RPM range. The result is reduced drivetrain wear, smoother clutch engagement, and improved power transfer.

This bellhousing connects 4.6L, 5.0L (Coyote), 5.4L, 5.8L, and 6.2L Ford Modular engines to Ford TKX, TKO 500-600, TR3550, and T5 Mustang transmissions. With 6.925 inches of depth, it clears 164-tooth flywheels paired with 11-inch clutches. The universal transmission bore (4.685/4.910 inches) ensures proper fit across the supported transmission range. Universal shifter fork brackets work with both diaphragm and cable-operated linkage.

QuickTime was founded by former race car driver Ross McCombs, who developed his own bellhousings to withstand the rigors of dirt track racing. That racing DNA shows in every detail - from the patent-pending 16-point design to the Grade 8 hardware included with every kit. For SFI-certified applications, see part numbers RM-6081 and RM-6082.

What's Included

• QuickTime spun steel bellhousing, black painted finish
• Full engine block plate
• Pivot ball
• Universal fork brackets (for diaphragm or cable-operated linkage)
• Grade 8 mounting hardware
• Installation instructions
• Lifetime technical support from MDL

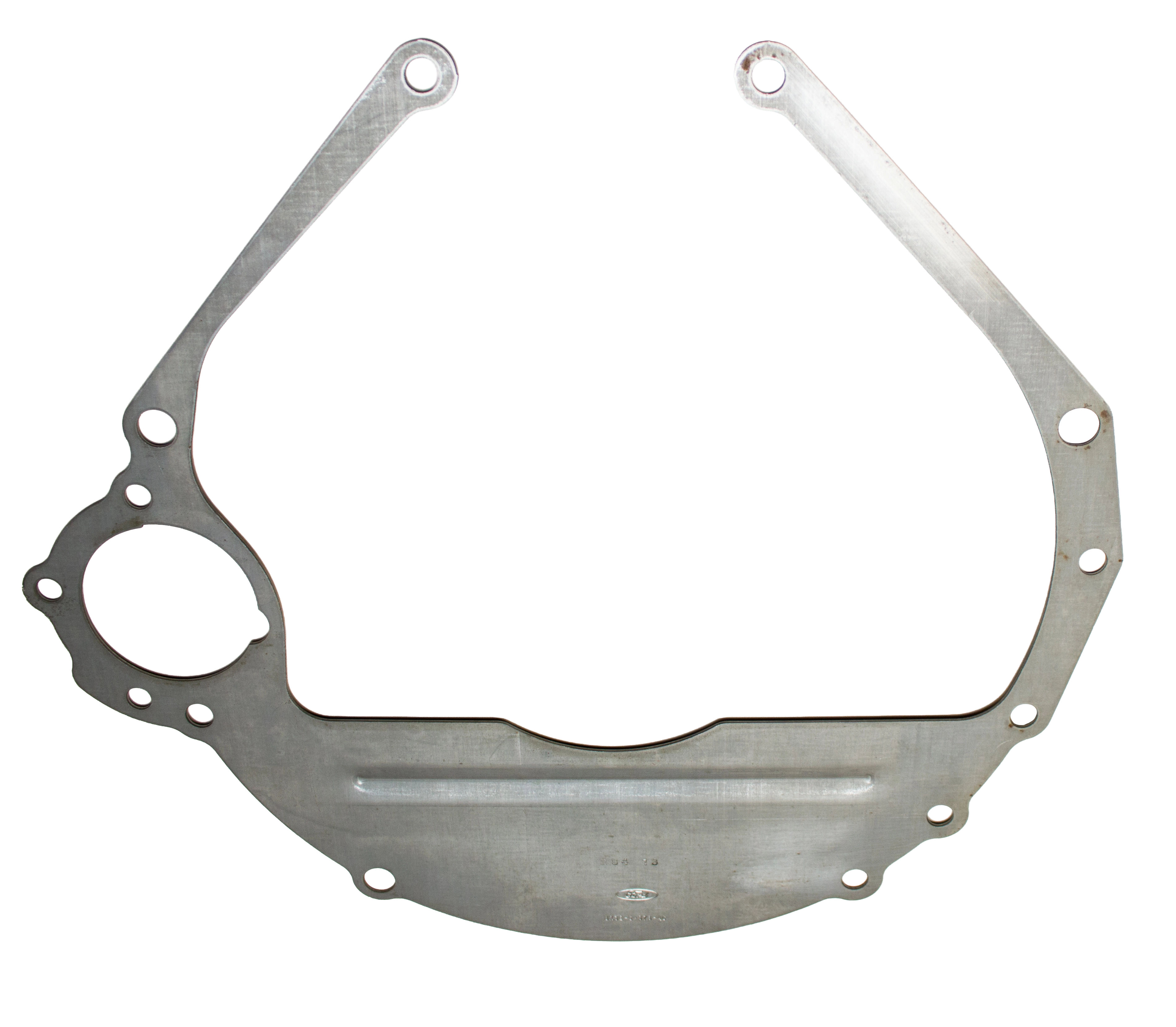

Key Features

• 0.080-inch steel construction for durability and flywheel/clutch containment
• Positions starter for precise ring gear alignment - eliminates grinding and premature wear
• Fits Ford Modular 4.6L, 5.0L Coyote, and 5.4L engines with manual transmissions
• Works with aluminum bellhousings for T45, 3650, and T56 Magnum transmissions
• Bolt-on installation - no modifications required to block or bellhousing
• Equivalent to Ford Racing M-7007-A specification
• Made in the USA

Description

Proper starter-to-flywheel alignment is non-negotiable on Ford Modular engines running manual transmissions. Misalignment causes grinding engagement, premature starter failure, and ring gear damage - problems that only get worse over time. This steel starter index plate solves the issue by positioning the starter precisely where it needs to be for clean, consistent engagement every time.

The plate installs between the engine block and bellhousing, indexing the starter to ensure optimal starter drive to flywheel ring gear alignment. Built from 0.080-inch steel, the plate provides the strength needed to help contain flywheel or clutch breakage while maintaining that critical starter position under all operating conditions. The steel construction also protects the engine block face from direct contact with the bellhousing.

Engineered specifically for Ford Modular 4.6L, 5.0L Coyote, and 5.4L engines, this plate works with aluminum bellhousings for T45, 3650, and T56 Magnum transmissions. Installation is straightforward bolt-on - no modifications to the bellhousing or engine block required. Equivalent to Ford Racing M-7007-A, so you get OEM-spec fitment and performance. Note: Does not fit the Ford GT supercar application.

What's Included

• Steel starter index plate (0.080-inch thick, natural finish)

Key Features

• Transmission-to-bellhousing bolts sized specifically for Ford modular aluminum bellhousings
• Correct bolt lengths for aluminum bellhousing applications - different than steel bellhousing kits
• Complete mounting hardware for TREMEC TKX to aluminum bellhousing interface
• Eliminates guesswork when pairing TKX with Ford 4.6L, 5.0L Coyote, or 5.4L modular engine bellhousings

Description

Factory T-5 and stock Ford transmission hardware won't work when you're bolting a TREMEC TKX to a modular aluminum bellhousing - the bolt lengths are simply wrong for the application. This dedicated hardware kit solves that problem by providing transmission-to-bellhousing bolts engineered specifically for the aluminum bellhousing interface found on Ford modular engine conversions.

Why does bellhousing material matter for bolt selection? Aluminum bellhousings have different flange thicknesses than their steel counterparts, requiring specific bolt lengths to achieve proper thread engagement without bottoming out. Using the wrong hardware risks either inadequate clamping force or mechanical interference - neither of which you want in a drivetrain connection.

This kit is designed to complement Ford modular aluminum bellhousings (like the Ford Performance M-6392-M46) when paired with a TREMEC TKX transmission. Note that some bellhousing manufacturers include transmission-to-bellhousing bolts with their bellhousing - in those cases, this kit provides the remaining hardware your installation requires. If you're running a steel bellhousing, see our steel bellhousing hardware kit instead.

What's Included

• Transmission-to-bellhousing mounting bolts (aluminum bellhousing specific lengths)

Key Features

• Bolt lengths sized specifically for steel bellhousing applications - not interchangeable with aluminum bellhousing hardware
• Grade 8 steel construction for maximum clamping force and durability
• Hardened washers included for proper load distribution across mounting surfaces
• Complete hardware set for attaching Ford TKX transmission to steel bellhousings
• Compatible with QuickTime and Lakewood steel scatter shields for Ford applications
• Made in the USA

Description

When upgrading to a TREMEC TKX 5-speed transmission, factory T5 transmission-to-bellhousing bolts are incompatible with TKX applications. This hardware kit provides the correct bolt lengths and grade specifically engineered for steel bellhousing installations on Ford applications. Steel bellhousings require different bolt lengths than aluminum bellhousing kits - using the wrong hardware can result in improper engagement, case damage, or unsafe mounting conditions.

This MDL hardware kit solves the sourcing headache by providing the exact fasteners needed for your steel bellhousing installation. The Grade 8 bolts deliver the clamping force necessary to handle the TKX's 600 lb-ft torque capacity, while hardened washers ensure even load distribution across the bellhousing mounting flange. Proper hardware is critical - never use transmission-to-bellhousing bolts to draw or pull the transmission up to the bellhousing, as damage to the pilot bearing and transmission case ears may result.

This kit is designed for use with popular steel scatter shields including QuickTime and Lakewood bellhousings for Ford small block applications paired with the TKX transmission. When installing, ensure the transmission is fully seated by hand against the bellhousing before torquing fasteners to specification. Made in the USA with lifetime tech support from MDL.

What's Included

• Grade 8 steel transmission-to-bellhousing bolts (sized for steel bellhousing applications)
• Hardened steel washers
• Lifetime tech support from MDL

Key Features

• Cast iron construction for superior heat absorption and thermal stability in street-driven applications
• 164-tooth ring gear with 11-inch clutch pattern (10.4-inch metric bolt circle)
• 6-bolt crankshaft pattern for Ford 4.6L "large valley" Romeo-built engines
• Zero-balanced design for internally balanced 4.6L modular engines
• Includes alignment pins for precise clutch installation and proper component positioning
• Direct fitment for 1996-June 1999 and 2001-2010 Mustang GT applications

Description

Street-driven 4.6L Mustangs need a flywheel that can handle daily abuse without warping or developing hot spots. Cast iron's superior thermal mass absorbs repeated clutch engagements far better than lightweight alternatives, making it the ideal choice for commuter cars, weekend cruisers, and moderate-power builds where longevity matters more than shaving rotating weight.

This flywheel is engineered specifically for Ford's 4.6L modular engines with the 6-bolt "large valley" crankshaft configuration. Romeo-built 4.6L engines use this 6-bolt pattern, while Windsor-built and Cobra engines use an 8-bolt configuration--so verify your engine's build before ordering. The zero-balanced design works with the internally balanced rotating assembly found in all 4.6L SOHC engines, eliminating the external counterweights required by older Ford V8s.

The 164-tooth ring gear ensures reliable starter engagement across all temperature conditions, while the 11-inch clutch pattern with 10.4-inch metric bolt circle accommodates standard diaphragm pressure plates from the modular Mustang era. Alignment pins are included to guarantee proper clutch disc and pressure plate positioning during installation.

Compatible with 1996-June 1999 and 2001-2010 Mustang GT vehicles equipped with the 4.6L 2V SOHC engine. [VERIFY: Why is the year 2000 excluded from fitment? Confirm whether this is intentional due to a mid-year engineering change or if it should be included.]

What's Included

• Cast iron flywheel with 164-tooth ring gear
• Alignment pins for clutch installation

Key Features

• Cast steel construction with 164-tooth ring gear for reliable starter engagement
• 8-bolt crankshaft mounting pattern fits 1999-2010 Mustang GT, 2001-2004 Cobra, and 2011+ 5.0L Coyote engines
• Zero balance (internally balanced) design - no counterweight balancing required
• 11" clutch bolt pattern with 12-3/8" equal spacing for metric 11" diaphragm clutches
• Cost-effective OE-style replacement for street-driven applications
• Single-disc clutch compatible

Description

When your high-mileage Mustang starts showing signs of a worn clutch surface or you need a reliable flywheel for a stock rebuild, this cast steel unit delivers OE-quality fitment without the premium price of billet. Designed specifically for Ford's 4.6L and 5.0L modular engine family with the 8-bolt crankshaft pattern, this flywheel provides the mass and durability street-driven vehicles need for smooth engagement and everyday drivability.

The 164-tooth ring gear ensures proper starter motor mesh across the full range of compatible applications - from '99-'10 Mustang GTs and '01-'04 SVT Cobras to modern 5.0L Coyote swaps. Zero balance (internally balanced) construction means you won't need additional counterweight balancing during installation, simplifying the job whether you're working in a professional shop or your home garage.

Cast steel offers the ideal combination of rotating mass and affordability for daily drivers and mild performance builds. The added inertia helps smooth out clutch engagement at low speeds - a real advantage over lightweight aluminum or billet units that can feel grabby in stop-and-go traffic. For dedicated track cars or high-RPM racing applications, billet steel is the better choice, but for street use and moderate performance, cast steel delivers proven reliability.

The 11" clutch bolt pattern features 12-3/8" equal spacing holes drilled for metric diaphragm pressure plates, ensuring compatibility with both OEM and aftermarket 11" clutch systems. Direct bolt-on fitment for your 4.6L 2V/4V or 5.0L Coyote manual transmission application.

What's Included

• Cast steel flywheel with integrated 164-tooth ring gear
• 8-bolt crankshaft mounting pattern
• Zero balance design (no counterweight required)
• Pins included

Key Features

• 27-pound lightened billet steel construction reduces rotational mass versus heavy factory cast iron
• 8-bolt crank pattern for secure mounting to Ford Modular, Coyote, and Roadrunner crankshafts
• 164-tooth ring gear for proper starter engagement
• Dual clutch bolt patterns: 10.4" metric (8mm) and 11" metric (10mm) for maximum pressure plate compatibility
• Small clutch valley design accommodates single-disk and twin-disk aftermarket clutch systems
• Zero-balance design works with internally balanced Ford Modular engines
• Precision-machined alignment pins included for accurate clutch installation
• Made in the USA

Description

Factory cast iron flywheels add significant rotational mass that slows engine acceleration and dulls throttle response. This lightened billet steel flywheel cuts weight to just 27 pounds, reducing the rotating assembly mass your engine has to spin. The result is faster revs, sharper throttle response, and quicker shifts—whether you're running through the gears on the street or chasing lap times at the track.

Machined from billet steel, this flywheel delivers the durability needed for repeated high-RPM use while significantly undercutting factory weight. The 8-bolt crank pattern ensures secure attachment to the crankshaft, and the 164-tooth ring gear maintains compatibility with factory starters. Zero-balance design means no external weights are required—it bolts directly to internally balanced Ford Modular and Coyote engines.

The dual clutch bolt pattern is a standout feature. Both 10.4" metric (8mm) and 11" metric (10mm) patterns are machined into the friction surface, giving you the flexibility to run virtually any aftermarket clutch setup. The small clutch valley design takes compatibility further, accommodating everything from street-friendly single-disk clutches to high-performance twin-disk racing units. Precision-machined alignment pins ensure the clutch disc centers properly during installation.

This flywheel fits 1996-1999 and 2000-up Mustang Cobra models, 1999-2000 Mustang GT, 2005-2010 Mustang GT 4.6L, and 2011-current 5.0L/5.2L Coyote and Roadrunner V8 applications. Proudly made in the USA.

Kit Includes

• One (1) lightened billet steel flywheel with 164-tooth ring gear
• Precision-machined alignment pins

Key Features

• Designed for Ford 4.6L Modular engines with 6-bolt crankshaft configuration (Romeo-type engines)
• Dual clutch bolt pattern accepts both 10.4" and 11" pressure plates with metric bolts and dowel pins
• Lightened billet steel construction reduces rotational mass while maintaining strength for high-performance applications
• 164-tooth ring gear for proper starter motor engagement
• Zero balanced from the factory for smooth, vibration-free operation
• 27-pound weight optimizes throttle response and acceleration over heavier OEM flywheels
• Made in the USA with precision CNC machining

Description

Ford's 4.6L Modular V8 came from two different plants with distinct crankshaft configurations: Romeo engines use a 6-bolt flywheel flange, while Windsor engines use an 8-bolt pattern. This lightened billet steel flywheel is purpose-built for the 6-bolt Romeo configuration, giving you a drop-in solution for manual transmission conversions and clutch upgrades on properly matched 4.6L applications.

The dual bolt pattern design accommodates both 10.4" and 11" clutch assemblies, using metric pressure plate bolts and alignment dowel pins. This flexibility lets you choose the clutch setup that best matches your power level and driving style without buying a different flywheel. The 164-tooth ring gear ensures reliable starter engagement, and the zero-balance specification eliminates vibration concerns in your drivetrain.

Machined from billet steel rather than cast iron, this flywheel delivers superior strength for high-horsepower applications while shedding rotational mass. At 27 pounds, it provides noticeably quicker throttle response and faster acceleration compared to heavy factory flywheels, without sacrificing the durability needed for street driving or track use. CNC machining ensures precise tolerances and perfect crankshaft registration every time.

Made in the USA with MDL's commitment to quality and backed by lifetime technical support. Verify your engine's bolt count before ordering, as Romeo (6-bolt) and Windsor (8-bolt) engines are not interchangeable, even though both are 4.6L Modular V8s.

What's Included

• One lightened billet steel flywheel (27 lbs)
• 164-tooth ring gear pre-installed
• Zero balanced assembly
• Dowel pins included
• MDL lifetime technical support

Key Features

• 8740 chromoly steel construction rated at 180,000 psi tensile strength
• 12-point head design with 5/8" socket size for precise torque application
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• M10 x 1.00 thread pitch with 1.000" Under Head Length (UHL)
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• Black oxide finish for corrosion resistance
• 8-piece kit covers all Ford 4.6L and 5.4L modular V8 applications
• Made in the USA

Description

Factory flywheel bolts are the weak link in high-performance Ford modular builds. Stock hardware uses inferior metallurgy and undersized shanks that stretch under load, leading to flywheel movement, clutch chatter, and potential failure. These ARP flywheel bolts eliminate that vulnerability with aerospace-grade 8740 chromoly steel engineered specifically for the demanding duty cycle of performance applications.

These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining. They feature an exclusive, flat 12-point head design and larger-than-stock shank diameter for increased strength and improved flywheel register. The 12-point head provides superior grip and prevents rounding during installation, while the increased shank diameter distributes clamping loads more effectively across the flywheel mounting surface.

Each bolt is precision-machined to M10 x 1.00 specifications with a 1.000" Under Head Length designed specifically for Ford modular cranks. The chromoly construction delivers a 180,000 psi tensile strength rating--vastly superior fatigue resistance compared to factory hardware. This makes these bolts ideal for naturally aspirated engines, forced induction setups, and high-RPM applications where flywheel security is critical.

This kit fits all Ford 4.6L and 5.4L modular V8 engines. Installation requires proper torque sequencing in a star pattern. Made in the USA and backed by ARP's industry-leading quality standards.

What's Included

• 8 x ARP 8740 chromoly flywheel bolts (M10 x 1.00 x 1.000" UHL, 12-point head, black oxide finish)
• Installation grease packet for proper assembly lubrication
• Manufacturer's warranty against defects

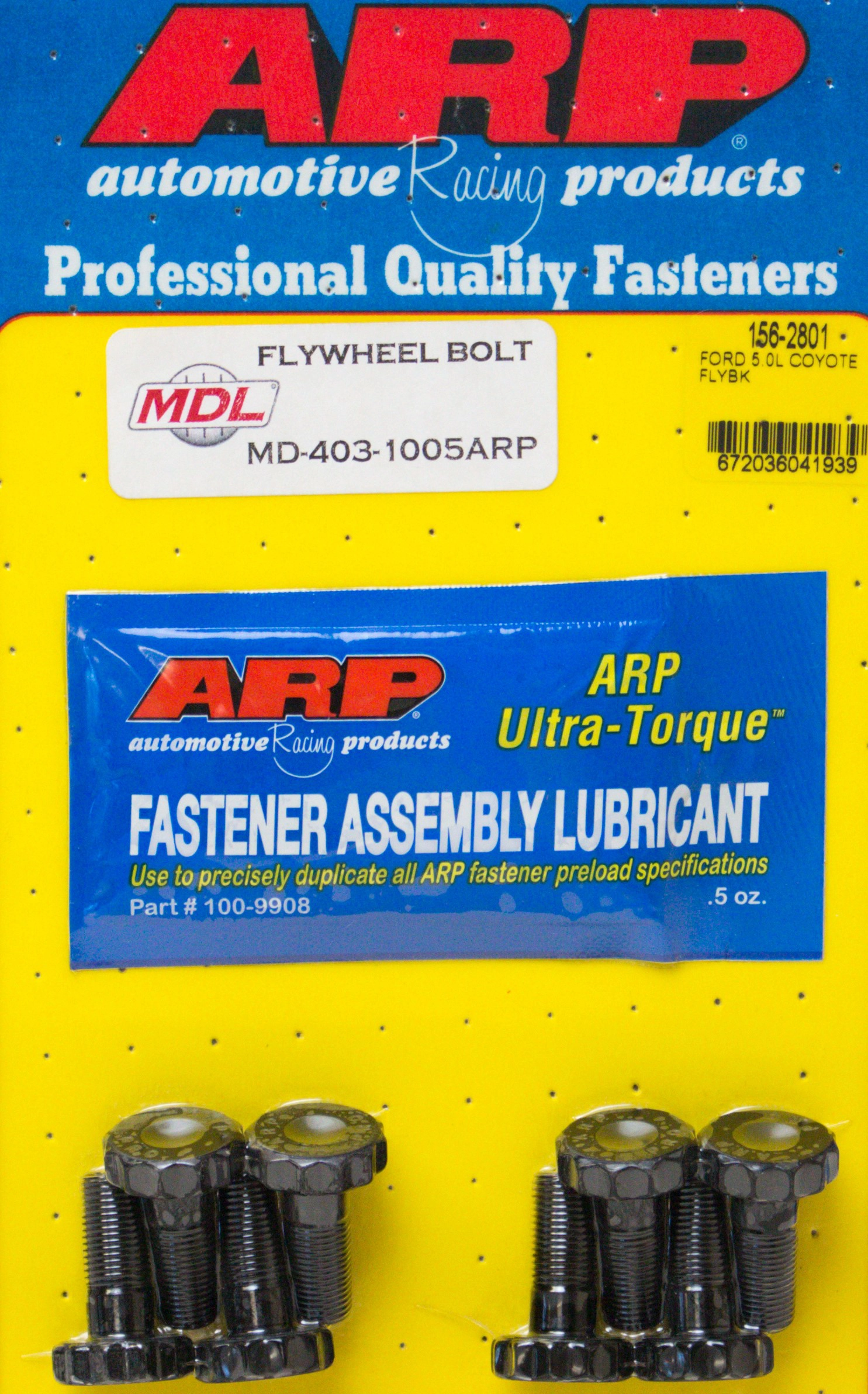

Key Features

• Heat-treated chromoly steel forged from aerospace alloy for superior tensile strength
• Flat 12-point head design with larger-than-stock shank diameter for improved flywheel register
• M10 x 1.00 thread pitch with 0.975-inch under-head length
• Black oxide finish for corrosion resistance
• 3/4-inch 12-point socket size for professional installation
• Complete 8-piece kit with installation grease included
• Made in the USA

Description

Flywheel bolt failure is a catastrophic event that can destroy transmissions, flywheels, and pressure plates in seconds. These bolts secure the flywheel to the crankshaft, making their integrity critical to your drivetrain's safety and performance—especially when pushing the 5.0L Coyote to 7,000+ RPM. ARP's engineering addresses this vulnerability with fasteners that far exceed OEM specifications.

Forged from aerospace alloy and heat-treated prior to thread rolling and machining, these ARP flywheel bolts deliver the strength needed for high-RPM operation and competition use. The exclusive flat 12-point head design features a larger-than-stock shank diameter for increased strength and improved flywheel register. The wider diameter bolt head allows for more even distribution of torque across the flywheel to reduce stress, fatigue, and prevent cracking.

The black oxide finish provides corrosion protection while maintaining the precise tolerances required for proper clamping force distribution. Each bolt features rolled threads for superior fatigue resistance compared to cut threads, and the included installation grease ensures proper torque values during assembly.

Engineered specifically for Ford Coyote 5.0L applications. This is a direct replacement for factory flywheel bolts with significantly improved strength characteristics. Made in the USA with ARP's legendary quality control standards.

What's Included

• 8 ARP flywheel bolts—M10 x 1.00 thread, 0.975-inch UHL, chromoly steel
• Black oxide finish
• Installation grease packet
• Manufacturer's warranty against defects

[VERIFY: Sources conflict on whether part number 156-2801 is High Performance Series (180,000 psi tensile strength) or Pro Series (190,000-200,000 psi). Summit Racing and JEGS list as Pro Series, while Steeda lists as High Performance at 180,000 psi. Need to confirm actual series designation and tensile strength rating before publishing.]

Superior Steel-Back Organic Clutch Kit | 2003-2004 Ford Mustang Cobra | Cable Release

Key Features

• 400 ft-lb torque capacity - handles moderate power upgrades beyond the factory supercharged 4.6L output
• Steel-backed organic facing - improved durability and heat dissipation over standard organic discs with smooth, street-friendly engagement
• Ford Metric 10mm bolt pattern nodular diaphragm pressure plate - direct replacement for factory Terminator Cobra applications
• Cable release finger profile - pressure plate machined specifically for mechanical cable clutch actuation
• 11-inch clutch disc, 26-spline x 1-1/8-inch hub - maximizes surface area for smooth power transfer [VERIFY: Product listing states 26-spline, but factory Terminator T56 used 10-spline input shaft - confirm correct spline count for intended application]
• Hand-built in Caldwell, Idaho - each disc assembled and inspected in-house for precise tolerances
• Complete kit - includes all components needed for installation

Description

The 2003-2004 Terminator Cobra arrived from the factory with 390 hp and 390 lb-ft of torque from its supercharged 4.6L DOHC V8 - and most owners don't leave it there. Once you start adding boost or supporting modifications, the stock clutch becomes the weak link. This Superior Series steel-backed organic clutch kit delivers 400 ft-lb of holding capacity while preserving the smooth, progressive engagement characteristics that make a Terminator livable on the street.

The steel backing plate behind the organic friction material provides two key advantages over standard organic discs: increased structural rigidity under high clamp loads and better heat dissipation during aggressive driving. The result is longer clutch life without the harsh engagement or chatter that comes with full-metallic or ceramic facings. The nodular iron diaphragm pressure plate uses Ford's Metric 10mm bolt pattern and features clutch fingers specifically profiled for cable release operation, ensuring consistent pedal feel and proper throwout bearing geometry.

Every Superior clutch disc is hand-assembled at MDL's facility, where technicians verify spring tension, rivet placement, and balance before shipping. The 11-inch disc diameter provides ample surface area for smooth torque transfer, and the kit includes a cable-style throwout bearing, pilot bearing, and alignment tool - everything needed for a complete installation. This kit is designed for Terminator Cobra owners who want a clutch upgrade that handles bolt-on power levels while maintaining daily-driver manners.

Fits 2003-2004 Ford Mustang SVT Cobra with cable clutch actuation. Made in the USA and backed by a 1-year warranty against manufacturing defects.

Kit Includes

• Ford Metric 10mm pattern nodular diaphragm pressure plate with cable release finger profile
• 11-inch steel-backed organic clutch disc, 26-spline x 1-1/8-inch [VERIFY: confirm spline count matches intended transmission application]
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• 1-year warranty coverage
• Lifetime technical support

Key Features

• Dual Kevlar friction facings deliver 550 ft-lb torque capacity with smooth, progressive engagement
• 26-spline x 1-1/8" sprung hub for upgraded input shaft compatibility
• Ford 11" metric 10mm bolt pattern with dowel pin alignment
• Nodular iron diaphragm pressure plate profiled for cable release actuation
• Sprung hub design absorbs drivetrain shock and reduces gear rattle
• Hand-built in-house with exacting tolerances and double-checked quality control
• Performance Proven designation validated through on- and off-track racing
• Made in the USA with 1-year free-from-defect warranty

Description

Stock clutches in modified 1999-2004 4.6L Cobras become the weak link as soon as power modifications enter the picture. This Superior Kevlar/Kevlar clutch kit delivers 550 ft-lb torque capacity to handle supercharged, nitrous, or aggressive naturally aspirated builds while maintaining street-friendly pedal feel and engagement characteristics.

The dual Kevlar friction facings on both sides of the 11" disk provide superior heat resistance and longer service life compared to organic materials, without the harsh engagement of full ceramic setups. The sprung hub isolates drivetrain shock loads and dampens gear rattle for improved drivability in daily-driven applications. The 26-spline x 1-1/8" hub provides significantly more strength than the factory 10-spline design, though it requires a matching upgraded input shaft.

The nodular iron diaphragm pressure plate uses the Ford 11" metric 10mm bolt pattern with dowel pin positioning for precise alignment. The diaphragm design is specifically profiled for cable release actuation, ensuring proper throwout bearing travel and consistent pedal effort throughout the clutch's service life.

Every Superior clutch disk is hand-built at MDL's facility with exacting tolerances and undergoes quality inspection before shipping. The Performance Proven designation means this kit has survived the rigorous demands of real-world racing, both on track and off. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

What's Included

• 11" dual Kevlar friction clutch disk with 26-spline x 1-1/8" sprung hub
• Nodular iron diaphragm pressure plate (cable release design)
• Cable-type throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Superior Kevlar/Ceramic Clutch Kit | 2001-2004 4.6L Mustang Cobra | 11" Metric

Key Features

• Kevlar/ceramic dual-faced disk delivers smooth engagement with aggressive high-torque holding power
• 600 lb-ft torque rating for aggressive street and street-drag applications
• 11" metric diaphragm pressure plate with 10mm bolt pattern
• Finger profile machined specifically for cable release systems
• 26-spline x 1-1/8" hub configuration with sprung center for smooth engagement
• Hand-assembled in Caldwell, Idaho with double-riveted construction
• Complete kit with cable throwout bearing, pilot bearing, and alignment tool
• Performance Proven designation - tested in on-track and off-track racing
• Made in the USA with 1-year warranty

Description

Stock clutches can't keep pace with modified 4.6L Cobra engines - and when you're running cable actuation, your options get even more limited. The MDL Superior Kevlar/Ceramic clutch kit solves both problems with a purpose-built upgrade designed specifically for 2001-2004 Mustang Cobra (will also fit Modular 5.0L with cable release) applications using cable clutch release.

The dual-faced disk design is where this clutch earns its reputation. The Kevlar face provides the smooth, progressive engagement characteristics you need for street driving and traffic, while the ceramic face delivers the high coefficient of friction required for hard launches and high-torque applications. As temperatures climb under aggressive use, the ceramic material actually increases its grip - ideal for repeated pulls at the strip or spirited canyon runs.

The 11" metric pressure plate uses a 10mm bolt pattern with a diaphragm design that's been finger-profiled specifically for cable release geometry. The 26-spline x 1-1/8" disk hub matches upgraded input shaft configurations, and the sprung hub design dampens drivetrain shock while maintaining crisp engagement. Every Superior disk is hand-assembled at MDL's Idaho facility using double-riveted construction and the finest available components - then double-checked for tolerances before shipping.

This kit carries MDL's Performance Proven designation, meaning it's been validated in real-world racing conditions both on and off the track. Fits 2001-2004 Ford Mustang Cobra with 4.6L DOHC engine and cable clutch actuation. Made in the USA and backed by a 1-year warranty.

What's Included

• 11" metric diaphragm pressure plate with 10mm bolt pattern and cable release finger profile
• 11" Kevlar/ceramic dual-faced clutch disk with 26-spline x 1-1/8" sprung hub
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• Clutch installation and break-in instructions
• 1-year warranty against defects
• Lifetime technical support

Key Features

• Kevlar/steel backed organic facings with integrally bonded steel backing for strength under high clamp loads and temperatures
• 450 ft-lb torque capacity rated for Performance Street Plus applications
• Nodular diaphragm pressure plate with clutch finger profile optimized for cable release
• 26-spline x 1-1/8-inch input shaft compatibility
• Ford 11-inch Metric 10mm bolt pattern with pins
• Sprung hub design for smooth engagement and vibration dampening
• Hand-built in-house with double-checked tolerances before shipping
• 1-year free-from-defect warranty

Description

When your 4.6L Cobra demands more than stock clutch performance, the MDL Superior Kevlar/Steel Back Organic clutch delivers the balance of streetability and enhanced torque capacity that modified engines require. This isn't your typical organic clutch--the advanced Kevlar/steel backed facings provide significantly better heat resistance and clamp load strength compared to standard organic materials, while maintaining the smooth engagement characteristics enthusiasts expect from a daily driver.

The engineering advantage starts with the integrally bonded steel backing that prevents facing delamination under high temperatures and aggressive launches. The Kevlar fibers woven into the organic compound create a friction surface that grips progressively rather than grabbing, eliminating the harsh engagement common with full-race clutches. The nodular diaphragm pressure plate features specifically profiled clutch fingers designed for cable actuation systems, ensuring proper release geometry and consistent pedal feel throughout the clutch's service life.

Every MDL Superior clutch assembly is hand-built at our Caldwell, Idaho facility, where each component undergoes double-checking for dimensional accuracy and proper assembly before packaging. This quality control process ensures your clutch arrives ready for installation without the fitment issues or premature wear that plague mass-produced units. The sprung hub design absorbs drivetrain shock while maintaining precise torque transmission--critical for preserving synchronizers and preventing driveline vibration.

Designed specifically for 1999-2004 4.6L Cobra applications with 26-spline input shafts and the Ford 11-inch Metric 10mm bolt pattern. Rated at 450 ft-lb torque capacity, this clutch bridges the gap between stock replacement and full race applications, making it ideal for Cobras with intake, exhaust, and tune modifications that push power beyond factory limits. Made in the USA and backed by MDL's comprehensive 1-year warranty.

What's Included

• Nodular diaphragm pressure plate with 11-inch Metric 10mm bolt pattern
• Kevlar/steel backed organic clutch disk--26-spline x 1-1/8-inch with sprung hub
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

Key Features

• 800 horsepower capacity for high-powered street builds
• Twin organic-lined friction discs deliver smooth engagement with soft pedal effort
• 26-spline hub with 1.125-inch input shaft diameter for TREMEC T-56 compatibility
• 246mm (9.687-inch) disc diameter for maximum clamping surface
• Sprung hub design with diaphragm-style pressure plate
• McLeod patented adapter ring fits Ford 164-tooth Modular flywheels
• Fits 2001-up Mustang V8 applications: 4.6L, 5.0L Coyote, and 5.4L
• Made in the USA

Description

When your Mustang's power output pushes past what a single-disc clutch can reliably hold, the McLeod RST Twin Disc delivers an economical twin-disc solution rated to 800 horsepower while maintaining genuine street manners. This clutch kit solves the common problem of choosing between holding capacity and daily driveability—you don't have to sacrifice one for the other.

The twin 246mm organic-lined friction discs double the engagement surface compared to single-disc setups. Organic facings provide smooth, progressive engagement with a soft pedal effort, making this clutch kit ideal for the street performance enthusiast who doesn't want the harsh, grabby engagement of metallic race compounds. The sprung hub design absorbs drivetrain shock, while the diaphragm-style pressure plate delivers consistent clamping force through the entire rpm range.

McLeod's patented adapter ring system allows this clutch to work with Ford 164-tooth Modular engine flywheels (4.6L, 5.0L Coyote, 5.4L). The 26-spline hub with 1.125-inch diameter pairs directly with TREMEC T-56 six-speed transmissions. Note that this kit requires a small valley ID flywheel configuration—it will not fit 2011-2017 factory flywheels. For GM LS-X applications, this kit works only with LS1/LS6 flat-style flywheels; recessed LS2/LS3/LS7 flywheels will not work.

This is a street performance clutch—not designed for competition use where sustained high-heat drag racing or track sessions demand more aggressive friction materials. Proper break-in requires 500-750 miles of stop-and-go city driving to actuate the clutch 1,200 to 1,500 times before any hard use. Made in the USA.

Kit Includes

• Diaphragm-style pressure plate
• Two organic-lined friction discs with sprung hubs
• Floater plate
• McLeod patented adapter ring (large gold metric ring)
• Pilot alignment tool
• Installation instructions

Note: Pilot bushing and throwout bearing not included. Flywheel resurfacing and bellhousing alignment check recommended during installation.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• 850 lb-ft torque capacity with dual organic discs and sprung hubs for smooth street engagement
• Precision-machined aluminum clutch cover delivers superior strength, stiffness, and balance versus stamped steel competitors
• High-mass pressure plate and floater plate machined from proprietary racing-grade materials resist warpage under sustained loads
• Heavy-duty straps connect plates to cover, minimizing noise and ensuring clean clutch release
• Chromoly steel flywheel with 164-tooth integrated ring gear and precision register for optimal balance
• 246mm (9.7-inch) twin-disc design doubles friction surface area without increasing pedal effort
• Floater plate twice the thickness of most competitors for improved heat dissipation and gear chatter elimination
• 26-spline x 1-1/8-inch hub for TREMEC TKO, TKX, T56 Magnum, and Magnum XL compatibility
• Zero-balance configuration for Ford 4.6L and 5.0L modular engines with 8-bolt crank flanges
• Compatible with most OEM release bearings

Description

When your Ford 4.6L or 5.0L modular engine is making serious power, OEM-style clutches and their stamped steel pressure plates become the weak link. The Tilton ST-246 was designed from the ground up as a true performance twin-disc clutch -- not an OEM-type stamped steel pressure plate with a floater tacked on. Tilton Engineering has been the leading supplier of small-diameter racing clutches since 1972, winning championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. That racing pedigree is engineered directly into this street-capable assembly.

The aluminum clutch cover shares technology from Tilton's championship-winning OT-Series racing clutches, delivering superior strength and stiffness compared to stamped steel alternatives. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warpage resistance under sustained high-torque loads. The floater plate is twice the thickness of most competing twin-disc designs, which allows for the sprung-hub disc configuration, eliminates gear chatter, and provides dramatically better heat dissipation. Heavy-duty straps connecting the plates to the cover eliminate the noise and inconsistent engagement plaguing lesser twin-disc designs.

This assembly's dual 246mm organic discs with sprung center hubs deliver 850 lb-ft capacity while dampening engine vibrations and reducing gearbox noise for smooth street engagement. The chromoly steel flywheel features an integrated 164-tooth ring gear and precision register that locates the clutch for optimal balance -- a critical upgrade over the loose-fitting bolts and dowels used with stamped steel clutches. The result is a clutch system that handles serious power while maintaining street manners.

Fits Ford 4.6L and 5.0L modular engines with 8-bolt crank flanges. The 26-spline x 1-1/8-inch hub works with TREMEC TKO, TKX, T56 Magnum, and Magnum XL transmissions. Note: TREMEC transmission models 11010, 11011, and 16884 require the guide tube to be trimmed 0.5 inches to prevent disc interference. Magnum XL applications require hydraulic kit MD-900-2505-A, hose, and fitting (sold separately). Does not include pilot bearing or throwout bearing. Made in the USA.

What's Included

• Chromoly steel flywheel with integrated 164-tooth ring gear (zero balance)
• Precision-machined aluminum clutch cover with heavy-duty straps
• High-mass pressure plate machined from proprietary racing materials
• High-mass floater plate machined from proprietary racing materials
• Two 246mm organic clutch discs with 26-spline x 1-1/8-inch sprung center hubs
• Flywheel mounting bolt set
• Clutch cover mounting bolt set
• Clutch alignment tool
• Installation instructions

Key Features

• 1250 lb-ft torque capacity with solid-hub cerametallic discs for precise street/strip engagement
• 246mm twin-disk design with double-thick floater plate eliminates gear clatter and improves heat dissipation
• Precision-machined aluminum cover shares technology with Tilton's championship-winning OT-Series racing clutches
• Billet chromoly flywheel with 164-tooth ring gear and precision register for optimal balance
• Heavy-duty straps attach pressure plate and floater to cover, minimizing noise and ensuring clean release
• Fits Ford 4.6L/5.0L/5.2L Voodoo engines with 8-bolt cranks and 1-1/8" x 26-spline input shafts
• High-mass pressure plate and floater machined from proprietary racing materials resist warpage
• Zero-balance flywheel design

Description

When you're pushing serious power through a Ford modular engine and need clutch engagement that won't slip under load, you don't compromise on components. This Tilton ST-246 twin-disk assembly delivers 1250 lb-ft of holding power with the precise, positive engagement characteristics that high-horsepower street/strip applications demand. Unlike stamped steel performance clutches that simply add a floater plate as an afterthought, the ST-246 was engineered from the ground up as a true twin-disk clutch system.

The precision-machined aluminum pressure plate cover incorporates technology proven in Tilton's championship-winning OT-Series racing clutches, providing superior strength, stiffness, and dynamic balance compared to OEM-type stamped steel covers. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's motorsport applications—delivering exceptional heat capacity and warpage resistance under hard use. The floater plate is twice the thickness of most twin-disk competitors, which allows for the solid hub construction while eliminating gear clatter and providing superior heat dissipation.

The cerametallic discs feature solid center hubs for maximum strength and positive engagement—essential for high-horsepower applications where precise modulation matters more than street comfort. Heavy-duty straps attach both the pressure plate and floater plate to the aluminum cover, minimizing noise and providing fast, clean release between shifts.

Designed for Ford 4.6L/5.0L/5.2L Voodoo engines with 8-bolt cranks and TREMEC transmissions with 1-1/8" x 26-spline input shafts. The billet chromoly flywheel features a 164-tooth ring gear with zero balance and a precision register to locate the clutch for optimal assembly balance. Note: TREMEC models 11010, 11011, and 16884 require guide tube trimming by 0.5" to prevent disc interference. Magnum XL kits require MD-900-2505-A adapter, hose, and fitting. This assembly does not include a pilot bearing or hydraulic release bearing. Made in the USA by Tilton Engineering.

What's Included

• Precision-machined aluminum clutch cover with heavy-duty straps
• High-mass pressure plate (proprietary racing materials)
• Double-thick floater plate (proprietary racing materials)
• Two 246mm cerametallic discs with solid center hubs (26-spline)
• Billet chromoly flywheel with integrated 164-tooth ring gear (zero balance, 8-bolt)
• Flywheel bolt kit
• Clutch mounting bolt kit
• Alignment tool

Key Features

• M10 x 1.5mm x 23.5mm dimensions for precise Ford Modular and AMC V8 fitment
• 8740 chromoly steel construction with black oxide finish for corrosion resistance
• Tensile strength of 180,000 PSI — far exceeds OEM hardware
• Exclusive 12mm hex head design for improved wrench engagement
• Larger-than-stock shank diameter increases clamping strength and improves pressure plate register
• Aerospace alloy forged construction with heat treatment prior to thread rolling
• Application-specific grip length ensures proper thread engagement

Description

Pressure plate bolts are critical safety components that secure your clutch assembly under extreme clamp loads and heat cycles. Factory hardware is engineered for economy, not performance — it can stretch, fatigue, or fail under racing or aggressive street use. These ARP High Performance Series bolts solve that problem with premium 8740 chromoly steel hardened to a nominal tensile strength of 180,000 PSI, significantly stronger than OEM fasteners.

Each bolt is forged from aerospace-grade alloy and heat-treated before thread rolling and machining, ensuring maximum grain structure integrity and fatigue resistance. The black oxide finish provides corrosion protection while maintaining proper torque characteristics. The exclusive 12mm hex head design delivers better tool engagement than standard fasteners, reducing the risk of rounding during installation or removal at high torque values.

The larger-than-stock shank diameter increases clamping force and improves register accuracy between the pressure plate and flywheel — critical for maintaining concentricity and preventing clutch chatter. These bolts are application-specific for Ford 4.6L, 5.0L, and 5.4L Modular V8 engines, plus AMC V8 applications (call for AMC fitment details), ensuring proper grip length and thread engagement for your specific combination.

When you're building a high-performance drivetrain, don't let bargain-bin hardware be the weak link. ARP fasteners are the trusted choice of professional engine builders and racers worldwide. Backed by ARP's manufacturer warranty against defects.

What's Included

• Six (6) M10 x 1.5mm x 23.5mm pressure plate bolts
• 8740 chromoly steel construction with black oxide finish
• 12mm hex head design
• ARP manufacturer's warranty against defects

Key Features

• Aluminum quadrant replaces failure-prone OE plastic unit for long-term reliability
• Fully adjustable cable at the clutch fork for precise pedal engagement tuning
• Self-adjusting cable with high-lubricity liner for smooth operation and consistent pedal feel
• Complete kit - includes all components needed to convert stock non-adjustable setup
• Direct-fit Ford Performance engineering (M-7553-B302) for 1982-1995 V8 Mustangs
• Compatible with OE Bendix 8-inch brake boosters
• Pull-style clutch fork applications only

Description

The factory plastic clutch quadrant in Fox-body and SN95 Mustangs is a notorious weak point - it cracks under stress, degrades with heat cycling, and when it fails, you're stuck. This Ford Performance Adjustable Clutch Cable Kit (M-7553-B302) solves both the reliability and adjustability problems in a single upgrade, replacing the fragile OE quadrant with a machined aluminum unit and adding full cable adjustability at the clutch fork.

The self-adjusting cable features a high-lubricity liner that delivers smooth operation and improved pedal feel compared to worn stock components. Unlike the OE setup, this kit lets you dial in clutch pedal travel to match your driving habits - whether you prefer a stock-like feel or need to accommodate an aggressive aftermarket clutch setup with different engagement characteristics.

This is a complete conversion kit engineered by Ford Performance. All necessary hardware is included to convert your stock non-adjustable clutch cable to a fully adjustable type - no additional parts to source, no surprises mid-install. The aluminum quadrant construction stands up to abusive track use and aggressive driving that would destroy the plastic OE component.

Fits 1982-1995 V8 Mustangs with manual transmissions. This kit requires a pull-style clutch fork and will not work with push-style applications. Compatible with OE Bendix 8-inch brake boosters but not Midland brake boosters (band clamp style) or certain aftermarket 8-inch and larger units. Note: If running headers, shorties with at least one inch of clearance are recommended - excessive heat from headers can damage the cable's outer casing and restrict movement.

What's Included

• Ford Performance adjustable clutch cable with high-lubricity liner
• Machined aluminum quadrant (replaces plastic OE unit)
• All necessary mounting hardware
• Ford Performance installation instructions
• MDL technical support

Key Features

• Exact reproduction of original Ford specification
• Durable spring steel construction for long-lasting retention
• Secures clutch cable to bellhousing and prevents cable movement
• Direct fit for all 1979-2004 Mustang manual transmission applications

Description

A missing or broken clutch cable retaining clip is a common headache on Fox-body, SN95, and New Edge Mustangs. Without it, your clutch cable can slip and shift inside the bellhousing, leading to inconsistent pedal feel, premature cable wear, and potential binding. This simple but critical clip keeps everything locked in place.

This retaining clip slides into the groove of the clutch cable after it passes through the bellhousing. Once seated, it holds the cable securely and prevents any lateral movement during clutch operation. The spring steel construction provides the right balance of flexibility for installation and the rigidity needed to maintain a solid hold under repeated cycling.

Engineered as an exact reproduction of the original Ford part, this clip delivers OE fit and function across all 1979-2004 Mustang models equipped with a cable-actuated clutch. Whether you are replacing a lost clip during a transmission swap or restoring proper clutch feel on a daily driver, this is the correct part for the job.

What's Included

• Spring steel clutch cable retaining clip (1)

Clutch & Brake Pedal Pad | 1979-1993 Mustang | Manual Transmission

Key Features

• Daniel Carpenter reproduction built to OEM specifications for factory fit
• Ribbed texture surface for positive pedal grip during shifting and braking
• Slip-on installation over factory metal pedal assembly - no tools required
• Direct replacement for OEM part number D1FZ-2457-B
• Also fits 1974-1978 Mustang II and 1979-1986 Mercury Capri
• Sold individually - order two for complete brake and clutch pedal refresh

Description

Worn-out pedal pads are a common problem on Fox Body Mustangs - after decades of hard shifting, heavy braking, and daily driving, the original rubber wears smooth or disappears entirely. When you can see metal through your pedal pad or your foot slips during aggressive driving, it's time to replace. This Daniel Carpenter reproduction pedal pad restores proper grip and factory appearance to your 1979-1993 Mustang's clutch and brake pedals.

Daniel Carpenter is a trusted name in the Mustang restoration community, known for producing high-quality reproduction parts built to OEM specifications. This pedal pad replicates the original D1FZ-2457-B design with ribbed texture that provides consistent traction whether you're heel-and-toeing through corners or modulating the clutch in stop-and-go traffic. The quality rubber construction delivers longer service life than worn factory pads.

Installation takes minutes with no special tools. Simply pull off the old pad (or what's left of it) and slip the new pad over the metal pedal until the retaining lips seat fully around the perimeter. The factory-style fit ensures the pad stays firmly in place without twisting or shifting during use.

Direct replacement for all 1979-1993 Mustangs with manual transmissions. Also fits 1974-1978 Mustang II and 1979-1986 Mercury Capri manual transmission applications. Sold individually - Ford used identical pads for both brake and clutch pedals on these models, so order two for a complete pedal refresh.

What's Included

• One (1) black rubber pedal pad with ribbed texture
• Slip-on design fits factory metal pedal assembly

Key Features

• Direct-fit replacement for 1979-1993 Fox-Body Mustang cable-style bellhousings
• Compatible with both factory cable actuation and external hydraulic slave cylinder setups
• Works with TREMEC T5, TKO, and 1993 & earlier Windsor T56 transmissions
• Correct 9 o'clock fork position specific to Fox-Body applications - not interchangeable with SN95 forks
• Proper pivot point geometry for reliable clutch engagement

Description

When you're building or maintaining a Fox-Body Mustang with a manual transmission, using the correct clutch fork isn't optional - it's critical. This clutch lever is specifically engineered for 1979-1993 Mustangs and delivers the proper pivot geometry required for clean, consistent clutch engagement with cable-style bellhousings.

The Fox-Body clutch fork positions at the 9 o'clock location when viewed from the rear of the bellhousing - a distinctly different orientation than the SN95's 7 o'clock position. This isn't just a cosmetic difference: the lever length and pivot points are purpose-built for Fox applications. Using the wrong fork creates severe cable angle problems, premature cable wear, and inconsistent clutch feel. SN95 forks are longer with different pivot spacing and cannot be substituted.

This fork works equally well whether you're running the original cable actuation or upgrading to an external hydraulic slave cylinder. When paired with external hydraulics, the fork operates as a pusher instead of the traditional cable pull - eliminating the stretching, snapping, and binding issues that plague factory clutch cables over time. The result is smoother pedal effort and more reliable engagement, especially with high-performance clutches.

Compatible with 1979-1993 Mustang applications running TREMEC T5, TKO, or 1993 & earlier Windsor T56 transmissions. Requires a compatible cable-style small-block bellhousing for proper fitment.

What's Included

• One (1) clutch fork/lever for 1979-1993 Fox-Body Mustang

Stealth Series Hydraulic Clutch Master Kit | 1981-1993 Mustang | Black Reservoir

Key Features

• Three-position master cylinder mounting for adjustable pedal ratio and feel - the only kit on the market with this tuning capability
• Mounts behind the dash on factory pedal hanger for a completely hidden installation
• Zero modifications to OEM pedal support required - retains stock clutch pedal pivot point
• Spherical mounting points eliminate binding and inconsistent clutch feel
• Sealed bulkhead assembly installs in the factory clutch cable hole to keep moisture and engine fumes out of the interior
• 2100 Series billet aluminum reservoir with black anodized finish and improved side-vent cap design to prevent water entry
• -4AN stainless steel braided lines for leak-free durability
• 1.4-inch master cylinder throw distance optimized for proper clutch disengagement
• Compatible with existing industry slave cylinders and hydraulic release bearings
• Uses DOT 3 or DOT 4 brake fluid
• Made in the USA

Description

The Stealth Series solves the compromises inherent in both cable-actuated clutches and conventional hydraulic conversions on Fox Body Mustangs. Cable systems bind, stretch, and create clearance nightmares with long-tube headers or high-clamp-load pressure plates. Most bolt-on hydraulic kits change pedal geometry, alter feel, or require cutting the firewall. This system does none of that - it mounts entirely behind the dash on your factory pedal hanger, uses the existing clutch cable hole for its sealed bulkhead, and retains the OEM pivot point for stock pedal feel.

The engineering centerpiece is the three-position master cylinder mounting system built into the custom clutch pedal arm. This is the only kit on the market that lets you tune pedal ratio to match your driving style and clutch setup - dial in quick engagement for autocross or progressive action for street cruising. Spherical mounting points ensure smooth, bind-free operation regardless of chassis flex, eliminating the inconsistent feel that plagues rigid-mount systems.

Installation uses existing OEM features with zero cutting or permanent modifications to the pedal support. The sealed bulkhead assembly threads into the factory clutch cable hole, keeping moisture and engine compartment fumes out of your interior while routing the -4AN stainless steel braided lines to your slave cylinder. The 2100 Series billet aluminum reservoir features a black anodized finish and redesigned cap with side-top vents to prevent water intrusion, with compact sizing for flexible mounting options.

This master cylinder kit works with most existing industry slave cylinders and hydraulic release bearings, making it compatible with T5, TKO, TKX, and T56 Magnum applications. The system requires a matching slave cylinder kit to complete the hydraulic clutch release system. Made in the USA and backed by lifetime technical support.

Kit Includes

• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three-position master cylinder mounting and spherical pivot points
• Black anodized firewall plate assembly with sealed bulkhead and -4AN fittings
• 2100 Series billet aluminum reservoir with black anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime technical support from trained technicians

Key Features

• Three adjustable master cylinder positions for precise pedal tuning - the ONLY kit on the market with this feature
• Maintains stock clutch pedal pivot point for familiar OEM pedal feel
• Zero modification required to factory pedal support bracket
• Spherical mounting points eliminate binding for smooth, consistent clutch action
• Sealed bulkhead assembly mounts in factory clutch cable hole to block moisture and engine fumes
• 2100 Series billet aluminum reservoir with clear anodized finish and side-vented cap
• -4AN stainless steel braided lines throughout for leak-free durability
• Compatible with most industry-standard slave cylinders and hydraulic release bearings
• Made in the USA

Description

Fox Body Mustang owners know the frustration of worn clutch cables - heavy pedal effort, inconsistent engagement, and clearance headaches around headers. The Stealth Series In-Dash Hydraulic Master System eliminates these problems while delivering the ultimate in clutch control precision. This kit transforms your mechanical linkage into a modern hydraulic system that mounts completely hidden behind the dashboard on your factory pedal hanger.

The engineering centerpiece is the adjustable pedal design with three distinct master cylinder mounting positions. This allows you to fine-tune pedal ratio and feel to match your specific clutch and driving style - something no other kit on the market offers. The spherical mounting points provide smooth, bind-free operation while the sealed bulkhead assembly uses your existing clutch cable hole to keep engine bay contaminants out of the cabin. The system maintains your stock pedal pivot point, preserving that familiar OEM pedal feel.

The kit includes the newly designed 2100 Series billet reservoir with a clear anodized finish and improved side-vented cap that prevents water intrusion while promoting flexible mounting options. Professional-grade -4AN stainless steel braided lines ensure leak-free operation and long service life. The system is engineered to work with most industry-standard slave cylinders and hydraulic release bearings, giving you flexibility in your clutch setup.

Designed specifically for 1981-1993 Ford Mustangs, this complete conversion requires zero modifications to your factory pedal support structure. Installation uses existing OEM mounting points and the factory clutch rod hole for a clean, professional result. Proudly made in the USA with lifetime technical support from trained technicians.

What's Included

• Silver anodized firewall plate assembly with bulkhead fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustment positions
• 2100 Series billet aluminum reservoir with clear anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Detailed installation instructions
• Lifetime technical support

LF Series External Hydraulic Slave Kit | Ford Modular 4.6L/5.0L TKO/TKX Aluminum Bell

Key Features

• 0.750-inch bore x 1.4-inch stroke external slave cylinder delivers 0.619 cu/in fluid volume per stroke
• Bellhousing-mounted design pushes from rear of fork, clearing long tube headers
• Engineered specifically for Ford Modular V8 4.6L/5.0L aluminum bellhousing (TREMEC TCCM1899)
• Compatible with 7:00 o'clock fork opening position cable fork setup
• Stainless steel braided hydraulic line with fittings included
• Complete mounting hardware for bolt-on installation
• Works with stock clutch pedal and rod hole for straightforward conversion
• Made in the USA

Description

Converting from cable to hydraulic clutch release on Ford Modular TKO/TKX swaps solves multiple problems at once. The MDL LF Series External Hydraulic Slave Kit eliminates cable clearance headaches around headers while delivering the smooth, consistent pedal feel that hydraulics provide. This is a purpose-built solution for the specific challenges of mating Ford Modular engines to TREMEC five-speeds using the aluminum TCCM1899 bellhousing.

The slave cylinder mounts directly to the bellhousing and pushes from the rear of the clutch fork, keeping the cylinder clear of long tube headers where cable routing becomes a nightmare. The 0.750-inch bore generates 0.619 cubic inches of fluid volume per 1.4-inch stroke, precisely matched to work with MDL's LF Series master cylinders for optimal pedal ratio and effort. No more heavy pedal feel from worn cables that drag. No more clearance issues that force awkward routing compromises.

Application is specific to Ford Modular V8 4.6L/5.0L engines using the TREMEC TCCM1899 aluminum bellhousing with the 7:00 o'clock fork opening position. The engineering accounts for the cable fork geometry, making this a direct-fit solution rather than a compromise adaptation. When paired with MDL LF Series master cylinder kits, you get an engineered system that takes the guesswork out of hydraulic conversion while providing maximum results.

The stainless steel braided line routes cleanly and handles pressure without expansion, giving you the crisp engagement response that cable systems simply cannot match. Installation is straightforward with comprehensive instructions and lifetime technical support from MDL. Made in the USA with the quality that builders expect from Modern Driveline.

What's Included

• 0.750-inch bore external hydraulic slave cylinder
• Stainless steel braided hydraulic line with fittings
• Complete mounting hardware
• Installation instructions
• Lifetime technical support

Key Features

• 1-7/8-inch diameter black shift ball with white 5-speed shift pattern and MDL logo
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded beneath the surface - cannot wear off or fade
• Lightweight 4-ounce construction for reduced shift effort
• Precision-machined and polished to a high-gloss finish
• Includes jam nut for secure installation
• Thread adapters available for virtually any shift lever configuration
• Made in the USA

Description

Upgrade your interior with this premium 5-speed shift ball featuring the MDL logo - a clean, purposeful look that signals you mean business under the hood. Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball delivers the durability and temperature resistance needed for performance driving while maintaining a premium appearance that won't crack or fade over time.

The 1-7/8-inch diameter provides an ideal grip size for quick, confident shifts. Unlike cheap decals or surface printing, the white 5-speed shift pattern graphics are embedded beneath the surface - they're part of the ball itself and physically cannot wear away. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry standards with over 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring rock-solid attachment to your shift lever even under aggressive driving conditions.

At just 4 ounces, this lightweight design reduces shift effort while the polymer construction provides excellent grip characteristics in all weather conditions - no burning your hand on hot summer days or freezing on cold mornings. The included jam nut ensures secure installation. For shift levers with different thread sizes, MDL stocks a full range of thread adapters - just confirm your shift lever thread size when ordering so we can recommend the correct adapter for your application.

Manufactured in the USA by a company that has been producing precision shift knobs since 1952, this ball represents decades of engineering refinement focused on quality, precision, and style. The polymer resin is specifically formulated for the automobile industry to resist stress cracks with aging - a common failure point in lesser shift knobs.

What's Included

• Black polymer resin shift ball with white 5-speed pattern and MDL logo
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Premium 1-7/8" diameter white polymer shift ball with crisp 5-speed pattern graphics
• High-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics permanently embedded beneath the surface - cannot wear off or fade
• 16mm x 1.5mm brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque specs
• Compatible with metric and SAE shifter threads via thread reducers (sold separately)
• Lightweight 4-ounce design for reduced shifter mass and quicker throws
• Precision-machined and polished to a high-gloss finish
• Made in the USA

Description

Upgrade your shifter with this precision-engineered white 5-speed shift ball featuring the MDL logo. This isn't bargain-bin plastic - it's crafted from a specially formulated high-impact polymer resin developed specifically for automotive applications. The material resists stress cracking from temperature cycling and age, a common failure point in cheaper shift knobs that see years of daily use and abuse.

The 1-7/8" diameter provides optimal palm grip for aggressive shifting, while the 5-speed pattern graphics are permanently embedded below the polished surface where heat, UV exposure, and thousands of shifts can't touch them. The precision-machined brass master insert threads directly onto 16mm x 1.5mm shift levers, and with MDL's thread reducers, you can adapt this shift ball to virtually any metric or SAE threaded shifter - just know your shift lever's thread size when ordering so we can recommend the correct adapter.

At just 4 ounces, this shift ball reduces rotating mass compared to heavy solid alternatives, translating to slightly quicker shift action without sacrificing durability. The brass insert exceeds automotive industry specifications for 200 ft-lbs static pull and 20 ft-lbs twist torque resistance - it's not coming loose under hard use. Proudly made in the USA.

What's Included

• White 5-speed polymer shift ball with subsurface graphics and MDL logo
• 16mm x 1.5mm brass master insert (installed)
• Brass jam nut

Key Features

• 1-7/8in. diameter classic shift ball with authentic muscle car era styling
• High-gloss black polymer resin construction with molded-in brass thread insert
• Engraved 5-speed shift pattern with reverse lower right - permanent inlay design that won't wear off
• 16mm x 1.50 master thread for universal compatibility via thread reducing inserts (sold separately)
• Compatible with MD-313 series thread reducing inserts for fitment to most shifters
• Made in USA

Description

When your shifter needs the finishing touch that screams performance, this classic 5-speed black shift ball delivers the authentic muscle car aesthetic that's been the industry standard for over 50 years. The instant you grip this knob.

Constructed from high-gloss, high-strength polymer resin, this shift ball features an engraved 5-speed shift pattern (reverse lower right) that's permanently inlaid - the graphics are subsurface and cannot wear off from repeated use. The molded-in brass thread insert ensures the threads won't strip under hard shifting forces, while the 1-7/8in. diameter provides the perfect grip size for precise gear changes.

The 16mm x 1.50 master thread makes this shift ball universally compatible when paired with Modern Driveline's thread reducing inserts. Whether you're running a Mustang T5, GM transmission, or aftermarket shifter with different thread specs, the appropriate MD-313 series reducer (sold separately) allows this classic shift ball to mount securely on virtually any manual shifter. Simply select the reducing insert and jam nut kit that matches your shift lever's thread pitch.

Kit Includes

• One 5-speed black shift ball with engraved shift pattern (reverse lower right)
• Brass thread insert (16mm x 1.50) molded into ball
• Jam nut for secure mounting

Note: Thread reducing insert required for most applications - see MD-313 series kits sold separately.

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

R-Series 5-Speed Black Shift Ball with Pearl-Gray Racing Stripe

Key Features

• 2-1/8" diameter high-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface pearl-gray racing stripe graphics permanently inlaid beneath the surface - cannot wear, fade, or peel
• 16mm x 1.50 solid brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque industry specs
• Precision-machined and polished to a high-gloss finish
• 4-ounce weight for optimal shift feel without excessive mass
• Made in the USA with proprietary polymer resin formulated to resist stress cracking

Description

Ditch the factory plastic shift knob that cracks, fades, and looks tired after a few seasons. This R-Series shift ball is built from specially formulated high-impact polymer resin designed specifically for the automotive industry - engineered to handle performance-level torque loads and temperature extremes without developing stress cracks over time.

The pearl-gray racing stripes that wrap around this 2-1/8" diameter ball are not painted, printed, or applied as decals. They are permanently inlaid beneath the surface during manufacturing, giving you graphics that physically cannot wear off no matter how many miles you put on the car. The entire surface is precision-machined and polished to a high-gloss finish that maintains its showroom appearance under daily use.

At the core sits a 16mm x 1.50 solid brass master insert that exceeds the automotive industry specification of 200 ft-lbs static pull and 20 ft-lbs twist torque - this knob is not coming loose. The included brass jam nut locks everything down tight. Thread adapters are available if your shifter uses a different thread pattern.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Note: Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs (different thread pattern required). Made in the USA.

Kit Includes

• R-Series 2-1/8" black shift ball with pearl-gray racing stripe graphics
• 16mm x 1.50 solid brass master insert (installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction formulated for performance-level torque and temperature demands
• Subsurface red racing stripe graphics embedded during manufacturing--cannot chip, fade, or wear off
• Clean racing stripe design without 5-speed shift pattern graphics on surface
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce design for positive shifts without stressing shifter mechanisms
• Thread adapters available for non-16mm applications
• Made in the USA by a manufacturer shifting gears since 1952

Description

When your 5-speed build demands a clean, race-inspired aesthetic without the visual clutter of shift pattern graphics, the R-Series delivers. This premium shift knob features bold red racing stripes on a black body--nothing else. No numbers, no gate patterns, just the classic motorsport look that belongs in serious performance builds.

The construction isn't generic plastic. This knob is made from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Where cheap knobs crack under UV exposure and temperature cycling, this formulation stays solid season after season. The red racing stripes are subsurface--embedded during manufacturing rather than painted or printed on top--so they physically cannot chip, fade, or wear off no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert provides solid, rattle-free engagement with your shifter, and the included jam nut locks everything tight. At 4 ounces, this knob adds just enough mass for positive, confident shifts without the excessive weight that can stress shifter mechanisms over time. The 2-1/8" diameter provides excellent grip while maintaining classic proportions.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs due to different thread requirements (GT500 uses 10mm x 1.25). Thread adapters are available for other applications--contact us with your shifter's thread size. Made in the USA.

What's Included

• One 2-1/8" diameter black polymer resin shift knob with red racing stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• Subsurface white racing stripe graphics that cannot wear off
• Specially formulated high-impact polymer resin designed for performance-level torque and temperature requirements
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter professional racing design
• 4-ounce weight for optimal shift feel
• Precision machined and polished to a high-gloss finish
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

Upgrade your interior with this R-Series 5-speed shift ball featuring a classic white racing stripe on black polymer resin. The clean stripe graphic runs across the top of the ball without intersecting the 5-speed shift pattern, delivering a professional motorsport aesthetic that complements any performance build.

This shift ball is constructed from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Unlike cheap plastic alternatives, this polymer is formulated specifically for the automotive industry to resist stress cracking with age. The white stripe graphics are subsurface--embedded in the material itself--so they cannot wear off even after years of hard shifting.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, ensuring the knob stays locked to your shift lever under aggressive driving. At 4 ounces, this shift ball provides the right heft for positive shift engagement without being too heavy for rapid-fire gear changes. The polymer construction is precision machined and polished to a high-gloss finish for a quality look and feel.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Not compatible with 2010-2014 GT500 (requires 10mm x 1.25 thread) or 2015-2020 GT350/GT350R models. Thread reducers available separately for other applications. Made in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series black polymer shift ball with white racing stripe (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• 2-1/8" diameter with 4-ounce lightweight construction
• Subsurface graphics permanently embedded -- will not wear, chip, or fade
• 16mm x 1.50 brass master insert with jam nut included
• Clean racing stripe design without shift pattern markings
• Direct fit for 2011-2022 Mustang, Fiesta ST, Focus ST, and Focus RS applications
• Made in the USA by a manufacturer with 65+ years of shifter expertise

Description

The factory shift knob is one of the most-touched surfaces in your cockpit, and worn plastic or faded graphics detract from an otherwise clean interior. The R-Series 5-Speed Shift Knob delivers a premium upgrade with subsurface graphics that cannot wear off, chip, or fade under years of hard use. The gray base with white racing stripe offers a clean, period-correct aesthetic that works equally well in restored classics and modern performance builds.

Built from specially formulated high-impact polymer resin, this shift knob meets performance-level requirements for both torque resistance and temperature stability. The material will not develop stress cracks with age, and the brass master insert exceeds automotive industry specifications. At just 4 ounces, the lightweight construction delivers responsive shifting feel without adding unnecessary mass to the shift lever.

The 2-1/8" diameter provides an optimal grip size for quick, confident shifts. This design omits shift pattern markings, giving you a clean look that suits any 5-speed application. The 16mm x 1.50 brass master insert threads directly onto factory Ford shift levers, with a jam nut included for secure installation. Thread adapters are available separately for applications requiring different thread sizes.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread) or 2015-2020 Shelby GT350/GT350R. Made in the USA.

What's Included

• R-Series gray polymer resin shift knob with white racing stripe
• 16mm x 1.50 brass master insert (installed)
• Jam nut

R-Series 5-Speed White Shift Ball | Black Racing Stripe | 2-1/8" | 16mm Insert

Key Features

• R-Series premium 2-1/8" diameter white polymer resin with black racing stripes that do not intersect the shift pattern
• 16mm x 1.50 solid brass master insert exceeds auto industry specs: 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics that cannot wear off, fade, or peel
• High-impact polymer resin engineered to resist stress cracks and withstand performance-level torque and temperature
• 4-ounce weight provides positive shift engagement without excessive heat retention
• Compatible with 2011-2022 Mustang, Focus ST/RS, and Fiesta ST via thread reducers
• Made in the USA

Description

Ditch the hollow factory plastic and upgrade to an R-Series shift ball built to perform. This 2-1/8" diameter white shift knob features bold black racing stripes that frame the 5-speed shift pattern without crossing through it -- a clean, purposeful design that looks right in any classic muscle car, late-model pony car, or hot hatch interior.

The engineering starts where it counts: at the 16mm x 1.50 solid brass master insert. This insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, so it won't strip, spin, or work loose no matter how hard you bang through gears. The polymer resin body is specially formulated to resist stress cracks with aging and handles the temperature swings and abuse of daily driving and track use alike.

Unlike painted or printed shift knobs that wear through to bare plastic within a season, the R-Series uses subsurface graphics embedded beneath the polished surface. The stripes and shift pattern cannot wear off, fade, or peel -- they're part of the knob itself. At 4 ounces, the weight delivers positive shift engagement and tactile feedback without the palm-burning heat retention of metal alternatives on summer days.

Fits 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS when paired with appropriate thread reducers (sold separately). Not compatible with 2010-2014 Shelby GT500, 2015-2020 Shelby GT350, or GT350R Mustangs due to different thread requirements. Built in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series white shift ball with black racing stripes (2-1/8" diameter)
• 16mm x 1.50 solid brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin construction engineered for performance-level torque and temperature demands
• Subsurface graphics permanently embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert with included jam nut for secure, rattle-free mounting
• Lightweight 4-ounce design reduces shift effort and improves tactile feedback
• 2-1/8" diameter provides optimal palm grip for quick, confident shifts
• 5-speed shift pattern - gray rally stripes do not intersect the gear graphics
• Direct fit for 2011-2022 Mustang GT, V6, EcoBoost, Boss 302, plus Focus ST/RS and Fiesta ST
• Made in the USA

Description

Upgrade your interior with the R-Series 5-speed shift ball, combining classic rally-inspired aesthetics with materials engineered for years of aggressive shifting. The white polymer resin body with dual gray racing stripes delivers that authentic motorsports look while the specially formulated high-impact resin handles the thermal cycling and mechanical stress of performance driving without cracking, fading, or becoming brittle.

Unlike cheap printed or decal-based shift knobs, the R-Series features subsurface graphics that are embedded into the resin during manufacturing. The 5-speed shift pattern and racing stripes are part of the knob itself - they cannot wear off, chip, or fade no matter how many miles you put on them. The stripes are positioned to complement the shift pattern without crossing through the gear graphics, maintaining a clean, professional appearance.

The 16mm x 1.50 brass master insert threads securely onto your shift lever, and the included jam nut locks everything in place to eliminate loosening or rattle. At just 4 ounces, this shift ball keeps rotating mass low for quicker shifts and better feedback through your hand. The 2-1/8" diameter fits naturally in your palm - large enough for positive grip, not so big it becomes awkward during spirited driving.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread), 2015-2020 Shelby GT350, or GT350R. Thread adapters are available separately for applications with different shift lever threads. Made in the USA.

What's Included

• R-Series 5-speed shift ball in white high-impact polymer resin with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure mounting

Rally Series 5-Speed Shift Knob | Black with Pearl Gray Stripes | 2-1/8" | 16mm

Key Features

• 2-1/8" diameter high-impact polymer resin body -- formulated specifically for automotive performance temperature and torque demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Subsurface pearl gray rally stripe graphics embedded into the material -- will not chip, peel, or wear off
• Rally stripes follow the 5-speed shift pattern layout for classic racing aesthetics
• 4-ounce weight provides solid shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Compatible with thread reducers for universal shift lever fitment (sold separately)
• Made in the USA

Description

Cheap plastic shift knobs crack, fade, and lose their graphics after a few seasons of hard driving. The Rally Series solves that problem with a premium 2-1/8" diameter knob that combines classic rally racing aesthetics with materials engineered specifically for performance applications.

The knob body uses a specially formulated high-impact polymer resin developed for the automotive industry -- not generic plastic that develops stress cracks with age and temperature cycling. This material maintains structural integrity through years of daily driving and spirited shifting. The pearl gray rally stripes are applied subsurface during manufacturing, embedded into the material itself rather than painted on top. They will never chip, peel, or wear off no matter how many miles you put on the shifter.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications for static pull (200 ft-lb) and twist torque (20 ft-lb), ensuring rock-solid engagement with your shift lever. The included brass jam nut locks the knob securely in place. Thread reducers are available separately for compatibility with common shift lever threads including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, 1/2-20, and various metric sizes -- contact MDL to confirm the correct adapter for your application.

At 4 ounces, this knob delivers the right balance between a solid palm feel and quick, precise shifts. The precision-machined polymer is polished to a high-gloss finish that resists scratching and maintains its appearance through years of use. Made in the USA by a manufacturer that has been producing quality shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift knob -- black polymer resin with pearl gray rally stripes
• One 16mm x 1.50 brass master insert (pre-installed)
• One brass jam nut

Key Features

• Precision 2-1/8 in. diameter black polymer resin construction with subsurface red rally stripes through the 5-speed shift pattern
• 16mm x 1.50 brass master insert with jam nut - exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque
• Subsurface graphics are permanent - will not chip, fade, or wear off
• Rally stripe red closely matches MOPAR Bright Red/Stryker Red, Ford Vermilion Red/Fleet Red/Rangoon Red, and Corvette Rally Red/GM Victory Red
• High-impact polymer resin formulated for automotive temperature extremes and repeated high-torque shifting
• Lightweight 4-ounce design with precision-machined, high-gloss polished finish
• Compatible with thread reducing adapters for universal shift lever fitment
• Made in the USA

Description

Give your 5-speed manual a period-correct rally look with this premium shift ball featuring bold red racing stripes that flow through the engraved shift pattern. Unlike cheap aftermarket knobs with printed or painted graphics, the red stripes on this Rally Series ball are embedded subsurface during manufacturing - they're permanent and will never chip, peel, or fade no matter how many miles you put on the car.

The high-impact polymer resin is specifically formulated for automotive applications, engineered to resist stress cracking through years of temperature cycling and aggressive shifting. Unlike metal knobs that freeze your hand in winter and burn it in summer, polymer maintains a comfortable grip year-round. The precision-machined surface receives a high-gloss polish that holds up to daily use.

At the core sits a 16mm x 1.50 brass master insert that exceeds automotive industry specifications - tested to 200 ft-lbs static pull strength and 20 ft-lbs twist torque resistance. This isn't a threaded plastic insert that will strip or pull out; it's a solid brass core that will outlast the vehicle. The 16mm thread pitch works with reducing adapters (sold separately) to fit virtually any shift lever thread pattern from classic American iron to late-model applications. Know your shift lever's thread size when ordering so we can recommend the right adapter.

The rally stripe red is color-matched to factory racing colors including MOPAR Bright Red and Stryker Red, Ford Vermilion Red, Fleet Red, and Rangoon Red, plus Corvette Rally Red and GM Victory Red. At just 4 ounces, it provides positive feedback during shifts without adding unnecessary weight to your shifter assembly. Made in the USA by a manufacturer that has been producing precision shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift ball in black polymer resin with red rally stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut for secure mounting

Key Features

• 2-1/8" diameter high-impact polymer resin designed for performance torque and temperature demands
• Subsurface white rally stripe graphics with 5-speed shift pattern - cannot wear, fade, or chip off
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design for precise shift feel
• Precision-machined and polished to a high-gloss finish
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

The Rally Series shift ball delivers classic motorsport styling with graphics that will never let you down. Unlike surface-printed knobs that wear through after a few thousand shifts, this ball features subsurface white rally stripes that run through the complete 5-speed pattern. The graphics are embedded within the material itself, making them completely impervious to wear, heat, UV exposure, and the oils from your hands.

Construction is high-impact polymer resin specifically formulated for the automotive industry. This isn't generic plastic that develops stress cracks with age and thermal cycling - it's an engineered material designed to handle the torque loads and temperature swings of performance driving while maintaining its structural integrity and high-gloss finish for years. The 2-1/8" diameter provides a comfortable, substantial grip that fills your palm naturally for positive engagement.

The 16mm x 1.50 brass master insert accepts thread reducers (sold separately), allowing installation on virtually any shift lever regardless of thread pitch. The brass insert is engineered to exceed automotive industry standards with testing to 200 ft. lbs. static pull and 20 ft. lbs. twist torque - far beyond what any shift throw could generate. At just 4 ounces, the ball provides enough mass for a quality feel without excessive momentum that can cause overshoot on quick shifts.

This shift ball comes from a manufacturer that has been producing premium knobs since 1952 and supplies OEM, aftermarket, classic, custom, and hot rod industries. When ordering, know your shift lever's thread size so MDL can recommend the correct thread reducer for your application. Made in the USA.

What's Included

• One 2-1/8" black polymer shift ball with white rally stripes and 5-speed pattern
• One 16mm x 1.50 brass master insert (pre-installed)
• One jam nut

Note: Thread reducers required for most applications and sold separately. Contact MDL with your shift lever thread size for adapter recommendations.

Key Features

• High-impact polymer resin formulated for automotive use - resists stress cracking and exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface rally stripe graphics that cannot wear off, scratch away, or fade
• Precision machined and polished to a high gloss finish
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce construction for positive shifting feedback
• 2-1/8" diameter with 5-speed shift pattern
• Made in the USA

Description

The Rally Series shift ball replaces worn, faded, or uncomfortable OEM shift knobs with a premium upgrade that combines classic styling and serious durability. Built from high-impact polymer resin specifically formulated for the automobile industry, this knob delivers the longevity and tactile feel that daily drivers and performance builds demand.

The engineering behind this design centers on durability under real-world conditions. The polymer formulation won't develop stress cracks with aging - a common failure point with cheaper alternatives. The brass master insert exceeds automotive industry specifications with 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring the knob stays put through years of aggressive shifting. The white rally stripe graphics are embedded subsurface during manufacturing, so they won't wear off, scratch away, or fade under UV exposure like surface-applied decals or painted designs.

The 16mm x 1.50 threading is the industry standard for aftermarket shift knobs, compatible with thread adapters (sold separately) for common shift lever sizes including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, and 1/2-20. Know your shift lever's thread size before ordering - MDL stocks adapters to match. At just 4 ounces, the knob provides positive shifting feedback without excessive weight that can stress synchronizers on long throws.

Each knob is precision machined and polished to a high gloss finish for a premium appearance that complements both classic muscle cars and modern performance builds. Made in the USA with lifetime quality construction.

What's Included

• One 2-1/8" gray polymer shift ball with white rally stripes and 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction engineered for performance-level torque and temperature requirements
• 16mm x 1.5 brass master insert with jam nut -- exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface black rally stripe graphics and 5-speed shift pattern embedded during manufacturing -- cannot wear off
• Precision machined and polished to high-gloss ivory finish
• Lightweight 4-ounce design for quick, responsive shifts
• Universal compatibility via thread adapters (sold separately) for any shift lever
• Made in the USA since 1952

Description

Add motorsports-inspired style to your manual transmission with the Rally Series 5-speed shift knob. The classic white body with black rally stripes running through the shift pattern delivers authentic racing aesthetics -- not the generic look of painted-on graphics that chip and fade. These subsurface graphics are embedded into the polymer during manufacturing, making them a permanent part of the knob structure that will stay crisp for the life of your build.

This shift knob is built from a specially formulated high-impact polymer resin engineered specifically for the automotive industry -- not brittle plastic that develops stress cracks with age. The 2-1/8" diameter fills your palm for confident shifts, while the 4-ounce weight provides quick throw response without feeling flimsy. Every surface is precision machined and polished to a high-gloss finish that looks and feels premium.

The brass master insert is what separates quality shift knobs from the set-screw designs that wobble and fail. Threaded at 16mm x 1.5, this insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque -- it will not come loose or strip under aggressive driving. The included jam nut locks everything in place for a rock-solid feel every time you row through the gears. Unlike steel inserts, brass will not rust or corrode over time.

If your shift lever uses a different thread pitch, MDL stocks adapters to fit virtually any application. Simply confirm your shift lever's thread size when ordering so we can recommend the correct adapter if needed. Made in the USA by a manufacturer that has been building shift knobs since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with black rally stripes and shift pattern
• 16mm x 1.5 brass threaded master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• 2-1/8 inch diameter high-impact polymer resin engineered for performance torque and temperature demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• Subsurface rally stripe graphics embedded into the material -- cannot peel, chip, or wear off
• 5-speed shift pattern integrated into white finish with bold gray stripes
• 4-ounce weight delivers positive shift feel without excess mass
• Precision machined and polished to high-gloss finish
• Includes jam nut for secure positioning
• Made in the USA

Description

The Rally Series shift knob delivers authentic motorsport aesthetics with the durability to back it up. This 2-1/8 inch diameter knob features bold gray rally stripes running through a clean 5-speed shift pattern on a crisp white background -- giving your cockpit that classic competition look without the compromises of cheaper alternatives that crack, fade, or peel over time.

The knob is comprised of specially formulated high-impact polymer resin engineered specifically for automotive performance applications. This isn't generic plastic -- it's a purpose-built compound designed to handle the torque loads and temperature swings of real-world use while maintaining its finish for the long haul. The rally stripe graphics are subsurface, meaning they're embedded into the material itself rather than applied as decals or paint. They physically cannot wear off, no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert is the foundation of this knob's strength, exceeding automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque. The included brass jam nut allows you to clock the shift pattern exactly where you want it and lock it down tight. Since most shifter applications use different thread sizes, MDL stocks the complete range of SAE and metric thread adapters for proper fitment to your specific shift lever.

At 4 ounces, the weight provides positive shift feel without being overly heavy or sluggish. Precision machining and high-gloss polishing ensure smooth hand feel and a finish that complements any interior. Made in the USA by a manufacturer who has been shifting gears since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• Heavy-duty steel construction built to factory length and bends
• Correct M12x1.75 thread pitch works with factory and most aftermarket shift knobs
• Satin black e-coat finish - more rust-resistant than original paint
• Clamshell design with preinstalled rubber isolators reduces driveline vibration
• 7/8" on-center mounting hole spacing for precise OEM fit
• Includes rubber shift boot support to eliminate gaps below the knob
• Silver zinc-plated mounting bolts included
• Made to factory dimensions and tolerances

Description

On most Mustangs, the factory shifter lever is long gone - swapped out for an aftermarket unit that often creates an awkward shifting position due to shortened levers. This OEM-style reproduction shifter lever restores the comfortable, positive shifting feel your Mustang was designed to deliver. Whether you are restoring your Mustang to original condition or replacing a damaged lever, this factory-spec replacement gets the job done right.

Constructed from durable, heavy-duty steel to the factory length and bends, this shift lever features the correct M12x1.75 thread pitch for compatibility with both factory shift knobs and most aftermarket knobs. A satin black e-coat finish mimics the original black-painted shift lever while providing superior rust resistance for long-term durability.

The clamshell design with preinstalled rubber isolators and sleeves exactly replicates the original equipment. These rubber isolators on the handle and clamshell reduce driveline vibration felt through the shift lever while driving - a detail often overlooked on cheap replacements. A rubber shift boot support holds your shift boot up to the bottom of the knob, ensuring there are no unsightly gaps in your interior.

Mounting hole spacing is 7/8" on center. Installation can be performed with common hand tools using the supplied silver zinc-plated shifter bolts. Note: Mounting bushings are sold separately and required for installation - use MD-320-1043-B-3/8 for TKO applications or MD-320-1043-B-8mm for T5 applications. This shifter lever does not fit TREMEC-supplied TKX or T56 Magnum shifters.

What's Included

• (1) Steel shift lever with satin black e-coat finish and preinstalled rubber isolators
• (2) Silver zinc-plated mounting bolts
• Rubber shift boot support

Key Features

• Genuine black leather construction with quality stitching
• Includes steel retaining plate for secure console mounting
• Square base shape designed specifically for Fox Body console opening
• Direct replacement for worn or damaged factory boot
• Compatible with factory and aftermarket shifters

Description

After 30+ years, that original Fox Body shift boot has likely seen better days. Cracked vinyl, torn seams, and faded material make even a clean interior look neglected. This genuine black leather shift boot restores your 1987-1993 Mustang's cockpit to factory-fresh condition while upgrading the material quality over the original vinyl boot.

The full-grain leather construction delivers the authentic look and feel that synthetic materials simply cannot replicate. Quality stitching ensures the seams hold up to years of daily shifting, while the included steel retaining plate provides secure mounting to your console. The zinc plating on the retaining plate prevents corrosion around the shifter opening where moisture can accumulate.

Designed as a direct replacement for all 1987-1993 Ford Mustangs equipped with manual transmissions, this shift boot features the correct square base geometry to fit the Fox Body console opening precisely. Installation is straightforward - remove the old boot and install this premium leather replacement using the included mounting plate. Works with both factory shifters and most aftermarket units.

Compatible with LX, GT, and SVT Cobra models from the final generation of Fox Body Mustangs.

Kit Includes

• Black genuine leather shift boot
• Steel retaining/mounting plate

Key Features

• Compression molded EPDM rubber construction with integrated metal retaining trim ring
• Exact OEM reproduction for perfect factory fit on all 1979-2004 manual transmission Mustangs
• Seals shifter opening to block road noise, exhaust fumes, and debris from entering cabin
• Mounts under exterior leather shift boot in stock location on transmission tunnel
• Improved shift movement and clearance compared to worn original boots

Description

After years of heat cycling from the exhaust and constant shifter movement, your factory lower shift boot cracks and deteriorates - letting road noise, exhaust fumes, and debris into the cabin every time you row through the gears. This OEM-spec replacement restores the critical seal between your shifter and the transmission tunnel, eliminating those unwanted intrusions while improving overall shift feel.

Manufactured from compression molded EPDM rubber, this lower dust boot replicates the original factory design with the durability to outlast the stock part. The integrated metal retaining trim ring provides structural rigidity and ensures proper mounting to the transmission tunnel, maintaining consistent seal compression around the shifter mechanism. Unlike worn-out original boots that flex and bind, a fresh boot delivers improved shift movement and clearance.

This boot mounts in the stock location on top of the transmission hump, underneath your center console and exterior leather shift boot. The four-bolt mounting pattern aligns with the factory holes in the tunnel for straightforward installation. Whether you are restoring a Fox Body or SN95 Mustang to factory condition or installing an aftermarket short throw shifter, replacing the lower boot is essential to maintaining a sealed, quiet interior.

Fits all 1979-2004 Ford Mustangs equipped with manual transmissions, including GT, LX, Cobra, and V6 models across the Fox Body (1979-1993) and SN95 (1994-2004) platforms.

What's Included

• Compression molded EPDM rubber lower dust boot
• Metal retaining trim ring/support frame

Key Features

• Grade 8.8 steel hex flange bolts - no separate flat washers required
• Zinc finish for corrosion resistance
• Complete 4-bolt set for full installation
• Direct replacement for worn, stripped, or missing factory hardware
• Fits all 1979-2004 Ford Mustang and Capri manual transmission applications

Description

Replacing damaged or missing lower shift boot bolts is one of those small details that makes a big difference in a finished interior. These Grade 8.8 steel hex flange bolts secure the lower shift boot to the transmission tunnel, maintaining the seal that keeps road noise, heat, and debris out of the cabin while protecting your shifter mechanism.

The hex flange head design integrates a built-in washer surface, eliminating the need for separate flat washers and simplifying installation. This design provides even clamping force distribution across the boot mounting surface. The zinc finish protects against corrosion - particularly important for hardware exposed to moisture and temperature swings inside the transmission tunnel.

Sold as a complete 4-bolt set, this kit gives you everything needed to properly secure the lower shift boot in one purchase. Compatible with all 1979-2004 Ford Mustang and Mercury Capri models equipped with manual transmissions, including Fox Body, SN95, and New Edge platforms. Works with both OEM shift boots and aftermarket replacements.

What's Included

• (4) Hex flange bolts, Grade 8.8 steel, zinc finish

Key Features

• Factory-style U-nut clips for secure lower shift boot mounting
• Set of four clips--complete hardware for one shift boot installation
• Direct fit for 1979-2004 Ford Mustang manual transmission applications
• Clips attach around shifter access hole on transmission tunnel

Description

Missing or corroded shift boot hardware is one of the most common issues when installing a new shifter or refreshing your Mustang's interior. These factory-style U-nut clips restore proper mounting for the lower shift boot extension, ensuring a tight seal around the shifter opening in the transmission tunnel.

The clips attach directly to the sheet metal around the shifter access hole, providing threaded receptacles for the mounting bolts. This design sandwiches the lower shift boot flange securely to the floor pan, sealing out road noise, moisture, and debris that would otherwise enter the cabin. Without properly functioning clip nuts, shift boots cannot maintain their seal--leading to rattles, drafts, and contaminants in the interior.

Sold as a set of four clips to provide complete hardware coverage for one shift boot installation. Direct replacement for 1979-2004 Ford Mustang models equipped with manual transmissions.

What's Included

• (4) Factory-style U-nut clips

Manual Transmission Tunnel Hump | 1979-2004 Mustang Fox-Body & SN95

Key Features

• Essential for any automatic-to-manual conversion on '79-'04 Fox-body and SN95 Mustangs
• Factory-correct reproduction of the manual transmission tunnel extension
• 18-gauge press-bent steel construction for precise fit and durability
• Pre-primed finish ready for paint to match your interior
• Pre-punched mounting holes for clutch cable retaining clips
• Compatible with T-5, TKO, TKX, and T-56 Magnum transmissions
• Installs with pop rivets, tap screws, or welding

Description

Factory automatic Fox-body and SN95 Mustangs used a completely different transmission tunnel height than their manual-equipped counterparts. Manual transmission cars came from the factory with a raised tunnel extension - often called the "hump" - that provides the extra clearance needed around the shifter area and gives the lower shifter boot a proper mounting surface. Without this hump, an automatic-to-manual swap forces you to hack up your floor pan or live with a shifter boot that doesn't seal correctly.

This high-quality tunnel hump is a factory-correct reproduction of the piece that Ford originally spot-welded to manual transmission Mustangs. Formed from 18-gauge press-bent steel, it matches the original factory dimensions and contours. The panel includes pre-punched mounting holes for clutch cable retaining clips, so your cable routing is correct from the start. A pre-primed finish provides corrosion protection and a clean base for painting to match your interior.

Installation is straightforward: the hump slides over your existing automatic transmission tunnel and can be secured with pop rivets, tap screws, or welded into place - your call on how permanent you want the installation. This panel provides the correct location and hole size for the lower shift boot, giving your conversion a factory-finished look.

Direct fit for 1979-1993 Fox-body Mustang, Capri, and Fairmont, as well as 1994-2004 SN95 Mustang conversions. Compatible with T-5, TKO, TKX, and T-56 Magnum transmission installations.

What's Included

• 18-gauge press-bent steel tunnel extension panel
• Pre-primed finish
• Pre-punched mounting holes for clutch cable clips

Key Features

• Direct-fit OEM replacement for manual transmission Fox-body Mustangs
• Black textured finish matches factory console appearance
• Seals shifter opening to block road noise, debris, and exhaust fumes
• Provides mounting point for upper shifter boot
• Includes 4 mounting clips for secure console attachment
• Made in the USA

Description

After three decades of shifts, spills, and disassemblies, the original shift bezel on your Fox-body Mustang has likely cracked, faded, or broken altogether. This OEM-specification replacement restores the critical console trim piece that seals the shifter opening and provides a clean mounting surface for your upper shift boot.

This black plastic bezel seats into the center console opening and snaps securely into place using four integrated mounting clips. Beyond aesthetics, it serves a functional purpose: sealing off the shifter area to prevent road noise, tunnel heat, and exhaust fumes from entering the cabin through the gap around your shifter.

The textured finish matches the factory grain pattern found on original '87-'93 consoles, ensuring a seamless appearance whether you're doing a full interior restoration or simply replacing a worn-out part. Direct-fit design means no trimming, drilling, or modification required.

Fits all 1987-1993 Mustang GT, LX, and Cobra models equipped with manual transmissions. Made in the USA.

What's Included

• OEM-specification shift bezel in black textured finish
• 4 mounting clips for console attachment

Key Features

• Single tube design delivers maximum stiffness without excess weight
• Adjustable mounting sleeves and repositionable spacers accommodate T5, TR-3550, TKO, AOD, AODE, 4R70W, and C6 transmissions
• Low-deflection polyurethane bushings dampen driveline vibrations and noise
• Direct bolt-in to factory 4.5-inch wide body mounts - no fabrication required
• Engineered to maintain pinion angle with OEM and aftermarket transmission mounts
• Low-profile design provides more exhaust clearance than OEM crossmember
• Compatible with setback engine configurations
• Optional solid bushings available for racing applications

Description

The factory Fox Body crossmember is a stamped steel weak link that flexes under hard launches and limits your exhaust options. This Stifflers tubular crossmember replaces that compromise with a single-tube design that delivers dramatically greater stiffness and strength - all without adding unnecessary weight to your drivetrain.

What sets this crossmember apart is its adjustability. Instead of buying separate crossmembers for different transmissions, simply slide the mounting sleeves and reposition the included spacers to accommodate both manual (T5, TR-3550, TKO) and automatic (AOD, AODE, 4R70W, C6) applications. This versatility makes it ideal for builds in progress or future transmission upgrades. The crossmember bolts directly to your factory 4.5-inch wide body mounts with no cutting, welding, or fabrication required.

Low-deflection polyurethane bushings isolate driveline vibrations and noise for street-driven cars. For racing applications where maximum rigidity matters more than NVH, the poly bushings can be replaced with optional solid mounts. The engineering maintains your pinion angle whether you're running OEM or aftermarket transmission mounts, and offset bushings allow you to raise or lower the entire crossmember if needed.

Fits 1982-1993 Mustang, Capri, and other Fox Body-based vehicles. Note: TKOs require additional spacing due to their shorter mounting pad height - all necessary hardware is included. The slim tubular profile clears aftermarket headers and exhaust systems that would interfere with the bulky factory stamping.

What's Included

• Single tube crossmember with black powder coat finish
• Adjustable mounting sleeves and repositionable spacers
• Low-deflection polyurethane mounting bushings
• Complete hardware kit including new crossmember-to-body bolts
• Installation instructions

Key Features

• Precision welded steel construction for maximum durability and mounting integrity
• Rubber contact pad isolates drivetrain vibration while maintaining secure transmission support
• Protective coating resists corrosion from heat, oil, and road debris
• Direct bolt-in replacement for OEM mount - no modifications required
• Compatible with manual and automatic transmissions: T5, TKO, TKX, T45, and AOD
• Fits 1979-1995 Mustangs plus 1996-1997 GT models
• Made in the USA

Description

Factory rubber transmission mounts deteriorate over time from constant exposure to heat, oil, and the stress of supporting your transmission. A worn mount causes excessive drivetrain vibration, sloppy shifting under hard acceleration, and poor driveline alignment between your transmission tailshaft and crossmember. This precision-welded transmission mount restores solid mounting integrity while isolating vibration through its integrated rubber contact pad.

The welded steel construction delivers the rigidity your drivetrain demands, eliminating the flex and movement that plague degraded OEM mounts. Unlike cheap replacement mounts that sacrifice durability for cost savings, this mount features a protective coating that resists corrosion in harsh underhood and undercar environments. The rubber cushion absorbs vibration without the harshness of a solid mount, maintaining driving comfort while dramatically improving shift quality.

Designed as a direct bolt-in replacement for the factory mount, installation requires no modifications to your crossmember or transmission housing. This mount is compatible with all common manual and automatic transmissions including the T5, TKO, TKX, T45, and AOD - covering everything from stock rebuilds to TREMEC performance upgrades. Fits all 1979-1995 Mustangs as well as 1996 and 1997 GT models. Made in the USA and backed by MDL's commitment to quality drivetrain components.

What's Included

• Precision welded transmission mount with rubber cushion pad
• Protective coating applied

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• OE replacement transmission tunnel harness for manual transmission Fox Body Mustangs
• Pre-installed body grommet for clean firewall pass-through
• Provides reverse light and speedometer circuits for proper function
• Compatible with T5, TKO, TKX, 3650, and T56 transmissions
• Direct plug-and-play installation with factory-style connectors
• Eliminates splicing and cobbled wiring during transmission swaps

Description

When you swap to an aftermarket manual transmission in your 1987-1993 Fox Body Mustang, your new gearbox may require different electrical connections to ensure your reverse lights and speedometer function properly. This OE replacement transmission tunnel harness solves that problem with a direct-fit solution that routes from the driver's side footwell, under the carpet, through the transmission tunnel, and out to the transmission.

The harness features a pre-installed body grommet for a clean, factory-style pass-through at the firewall. Unlike universal wiring that requires splicing and custom modifications, this harness utilizes factory-style connectors that plug directly into your transmission and existing vehicle wiring. The design eliminates the guesswork and potential electrical issues that come with pieced-together connections during a swap.

This harness is engineered to work with T5, TKO, TKX, 3650, and T56 manual transmissions. Whether you're rebuilding a stock T5 setup or upgrading to a high-performance TREMEC, this harness ensures your reverse lights illuminate when you shift into reverse and your speedometer receives the proper signal from the transmission's speed sensor.

Direct fit for 1987-1993 Fox Body Mustangs with manual transmissions. For applications requiring a separate reverse switch connector adaptation, see MD-700-0010.

What's Included

• Manual transmission main wiring harness with factory-style connectors
• Body grommet (pre-installed)
• Full installation instructions
• 1-year manufacturer's warranty

Reverse Switch Wiring Harness | 1987-1993 Mustang | Manual Transmission

Key Features

• Direct replacement for Ford OE part number F1ZZ-14405
• Fits all 1987-1993 Mustang models with 5-speed manual transmission
• 14-inch harness length with factory-style connector
• Includes retainer clip to secure harness away from moving components
• Plug-and-play installation - no splicing or wire modification required

Description

Dead backup lights on your Fox Body? The factory reverse switch harness is often the culprit. After three decades of heat cycles, road spray, and transmission vibration, the original wiring becomes brittle and the connector corrodes - leaving you without functional reverse lights when you need them most.

This replacement harness restores reliable backup light operation with a factory-correct pigtail connector that plugs directly into the reverse switch on your T5 transmission. Built to match Ford's original F1ZZ-14405 specification, the 14-inch harness provides the correct length to route cleanly from the transmission to the vehicle's main wiring harness without excess slack or tension.

The included retainer clip secures the harness away from the driveshaft and other rotating components - a detail often overlooked with generic replacements that can lead to chafing and premature failure. Installation takes minutes: disconnect the old harness from the reverse switch, connect the new one, and secure with the retainer. No splicing, no wire stripping, no electrical tape required.

Compatible with all 1987-1993 Mustang variants equipped with manual transmission, including LX, GT, and SVT Cobra models.

What's Included

• Reverse switch wiring harness with factory-style 2-pin connector (14 inches)
• Harness retainer clip

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
