TREMEC Magnum-F 6-Speed | 1998-2002 GM F-Body | Close Ratio 2.66 First

Key Features

• 700 lb-ft torque capacity - handles serious power without compromise
• Close-ratio gears (2.66, 1.78, 1.30, 1.00, 0.80, 0.63) - optimized for high-performance street and road racing
• Double overdrive (5th: 0.80, 6th: 0.63) - highway cruising efficiency with performance gearing
• 26-spline input shaft, 31-spline output shaft - heavy-duty drivetrain interface
• Wider gear face widths than T-56 - increased contact area for enhanced durability
• Double and triple-cone synchronizers - smooth, precise shifts even under load
• Enhanced main case webbing - increased structural integrity over factory T-56
• Built-in cooler circuit provisions - ready for high-demand applications
• Isolator-type shifter - reduces cabin noise and vibration while maintaining crisp engagement
• 7,800 RPM rating - high-rev capability for performance builds
• 31.8-inch overall length - direct-fit for F-body tailhousing and torque arm applications
• 4616 chromoly gears and shafts with one-piece countershaft - OEM-quality construction
• 100% brand-new components - no remanufactured or offshore parts

Description

Stop hunting through salvage yards for a worn-out T-56. The TREMEC Magnum-F delivers TR-6060 architecture in a purpose-built package for 1998-2002 Camaros and Firebirds, eliminating the need for questionable "Stage 6" or "Level X" rebuilds assembled with inferior offshore parts. This close-ratio variant (TUET16362) features a 2.66 first gear - ideal for high-performance street driving and road racing where tight ratio spacing keeps you in the powerband through every gear.

Inside, the Magnum-F shares componentry with today's hardest-hitting OEM muscle cars. Compared to the factory T-56, you get wider face-width on all gears, a robust combination of double and triple-cone synchronizers, enhanced webbing in the main case, and provisions for an external cooler circuit. The 4616 chromoly gears and shafts with a one-piece countershaft deliver the durability to back up the 700 lb-ft torque rating. TREMEC also upgraded to an isolator-type shifter - the same design found in the Magnum XL - which reduces in-cabin noise and vibration while delivering the precise, communicative shift feel the Magnum line is known for.

The Magnum-F's unique shifter location solves a longstanding fitment problem in the Magnum lineup. At 31.8 inches overall length, it's shorter than both the standard Magnum and the Magnum XL, placing the shifter exactly where the factory F-body console expects it. This makes it a direct swap for LS1-powered fourth-gen cars using the factory bellhousing, and it also fits third-generation F-bodies, LT1-powered fourth-gens, and sport compact applications like A80 Supras and FD RX-7s that previously relied on salvage F-body T-56 units for the correct shifter position.

Note: Requires changing the slip yoke to 31-spline from the stock 27-spline. Accepts factory internal slave cylinder from 1998-2002 F-body. The included isolator shifter will not accept 1993-2002 Camaro/Firebird shifter levers - for proper console fitment without modification, a 1993-2002 F-body style shifter is required. Fluid capacity: 4 quarts (TREMEC HP-MTF, Dexron-III, or Mobil 1 ATF). Dry weight: 128 lbs.

Kit Includes

• Complete TREMEC Magnum-F 6-speed transmission assembly (TUET16362)
• Isolator-type shifter with precision engagement
• Internal hydraulic slave cylinder mounting provisions
• 17-tooth electronic speedometer drive gear
• Factory TREMEC 1-year/12,000-mile warranty
• Extended MDL warranty - additional year with 1-year grace period when purchased as part of a complete MDL conversion package
• Lifetime technical support from Modern DriveLine

Key Features

• 700 lb-ft torque capacity (constant load rated, unmodified) - strongest 6-speed manual ever built
• Wide ratio gearset: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 - deep first gear with double overdrive for street performance and highway efficiency
• F-body tailcase positions shifter at 29.4 inches from bellhousing face - direct T56 replacement location for 1998-2002 Camaros and Firebirds
• 26-spline input shaft, 31-spline output shaft - 4616 chromoly gears and shafts with one-piece countershaft
• Increased face width on all gears with double and triple cone synchronizers - superior strength and shift quality over original T56
• Isolator-type shifter reduces in-cabin noise and vibration while delivering precise, communicative engagement
• 7,800 RPM rating - exceeds most street and track demands
• 128 lbs dry weight, 31.8 inches overall length - compact packaging for F-body tunnel clearance
• Accepts factory 1998-2002 Camaro/Firebird internal slave cylinder
• 100% brand-new OEM-quality components - no remanufactured or offshore parts

Description

Hunting junkyard cores and paying for questionable "Stage 6" rebuilds ends here. The TREMEC Magnum-F leverages proven TR-6060 architecture to deliver a brand-new, factory-quality 6-speed that bolts directly into 1998-2002 LS1-powered Camaros and Firebirds. Built from 100% new OEM-grade components, the Magnum-F eliminates the shrinking parts supply and reliability concerns that plague aging T56 transmissions while delivering substantially improved performance.

Inside, the Magnum-F features the same durable componentry found in today's hardest-hitting OEM muscle cars. Compared to the original T56, the Magnum-F boasts increased face width on all gears, a robust combination of double and triple cone synchronizers for smooth high-RPM shifts, enhanced webbing in the main case for rigidity, and provisions for a cooler circuit on demanding applications. The 4616 chromoly gears and one-piece countershaft handle 700 lb-ft of torque without breaking a sweat - no modifications required.

The Magnum-F's shifter location solves the fitment puzzle that has frustrated F-body and sport compact builders for years. Where the standard Magnum positions the shifter too far forward and the Magnum XL places it too far back, the Magnum-F's 29.4-inch location from the bellhousing face hits the factory-correct spot for fourth-gen F-bodies. This same position makes the Magnum-F ideal for third-gen F-bodies, LT1-powered fourth-gens, LS-swapped late models, and sport compact applications like A80 Supras and FD RX-7s that previously relied on factory F-body T56 units for their shifter placement.

The included isolator-type shifter - the same design found on the Magnum XL - reduces in-cabin noise and vibration while delivering the precise, communicative shift feel that defines the Magnum lineup. Installation requires a 31-spline slip yoke (replacing the factory 27-spline) and driveshaft length adjustment. The transmission accepts the factory 1998-2002 Camaro/Firebird internal slave cylinder for a straightforward hydraulic clutch setup. Fluid capacity is 4 quarts; TREMEC HP-MTF, Dexron III, or Mobil 1 ATF recommended.

What's Included

• TREMEC Magnum-F 6-speed manual transmission (TUET16363)
• Isolator-type shifter assembly
• Electronic speedometer output (17-tooth)
• MDL extended warranty - manufacturer warranty plus one additional year with one-year grace period
• Lifetime technical support from MDL

Note: Requires 31-spline slip yoke and driveshaft modification. LT1-powered 1993-1997 applications require flywheel, clutch, and hydraulic slave changes. Ships LTL freight only - call 208-453-9800 to order.

Key Features

• 700 lb-ft torque capacity - strongest 6-speed manual ever built for aftermarket applications
• Wide-ratio gear set: 2.97, 1.78, 1.30, 1.00, 0.74, 0.50 - deep 0.50 sixth gear for relaxed highway cruising
• Direct bolt-in replacement for 1998-2002 GM F-body T-56 transmissions
• 4616 chromoly gears and shafts with one-piece countershaft construction
• 26-spline input shaft (1.125 in. diameter), 31-spline output shaft
• Double and triple cone synchronizers with increased face width on all gears
• Enhanced main case webbing with provisions for external transmission cooler
• Isolator-type shifter reduces cabin noise and vibration while maintaining precise shift feel
• Shifter location 29.4 in. from rear face of bellhousing - ideal F-body positioning
• Overall length: 31.8 in. - two inches shorter than standard Magnum
• Dry weight: approximately 128-135 lbs
• 7,800 RPM rating
• 100% brand-new OEM-quality components - no cores, no offshore rebuild parts

Description

Stop crawling through junkyards for usable T-56 cores. The pool of quality F-body T-56 replacement parts has been shrinking for years, leaving fourth-gen Camaro and Firebird owners with limited options: hunt for salvage transmissions of questionable condition, or pay for over-hyped "Stage 6" rebuilds using inferior offshore components. The TREMEC Magnum-F eliminates both problems by delivering a brand-new, purpose-built 6-speed with 700 lb-ft of torque capacity and the F-body-specific shifter location that makes it a direct swap.

Built on the proven TR-6060/Magnum architecture found in today's factory muscle cars, the Magnum-F packs serious engineering advantages over the original T-56. All gears feature substantially increased face width, and the 4616 chromoly gears and shafts use two-piece laser-beam welded construction for superior control of tooth angles, pitch, and alignment. A robust combination of double and triple cone synchronizers delivers crisp engagement, while enhanced webbing in the main case adds strength. Provisions for an external cooler circuit handle the thermal demands of high-performance applications.

This wide-ratio variant (TUET17638) features a 2.97 first gear paired with ultra-tall 0.74 fifth and 0.50 sixth gear overdrives - perfect for pro-touring builds, highway cruisers, and street machines that need strong launch capability plus relaxed freeway RPM. The isolator-type shifter, similar to the unit found on the Magnum XL and late-model OEM applications, reduces cabin noise and vibration without sacrificing the short throws and communicative shift feel that define the Magnum experience.

Designed first and foremost as a direct replacement for 1998-2002 LS1-powered F-bodies, the Magnum-F also fits third-generation F-bodies and 1993-1997 LT1 models with minimal modification. The unique shifter location - positioned between the standard Magnum (too far forward) and the Magnum XL (too far back) - also makes it ideal for sport compact applications like A80 Supras and FD RX-7s. Note: Requires 31-spline slip yoke (replaces stock 27-spline) and driveshaft modifications. 1993-1997 LT1 applications require push-style clutch conversion. Fluid capacity is 4 quarts; use TREMEC HP-MTF, GM Synchromesh, or Dexron III ATF.

What's Included

• TREMEC Magnum-F 6-speed manual transmission assembly (TUET17638)
• Isolator-type shifter mechanism
• Electronic speedometer pickup (17-tooth)
• Internal hydraulic clutch release (concentric slave cylinder) mounting provisions
• TREMEC factory 12-month/12,000-mile warranty
• MDL extended warranty - additional year with 1-year grace period
• Lifetime technical support from MDL

Key Features

• Genuine TREMEC aluminum bellhousing (GM #12453263 / TREMEC #1386-212-005)
• Factory OE replacement for 1998-2002 Chevrolet Camaro and Pontiac Firebird with T56
• Also fits 2004-2006 Pontiac GTO with LS1/LS2 and T56 transmission
• Compatible with GM T56 and T56 Magnum transmissions
• Lightweight aluminum construction - approximately 8.1 lbs
• Gen V LT engine compatible (note: top bolt will not attach)
• Direct bolt-on replacement - no modifications required

Description

When your F-Body or GTO T56 build needs a bellhousing you can trust, don't settle for cheap knockoffs. This is the genuine TREMEC aluminum bellhousing - the same unit that came factory-installed on LS1-powered 1998-2002 Camaro and Firebird models, as well as the 2004-2006 Pontiac GTO. Factory machining ensures proper transmission alignment, starter positioning, and clutch clearance for a direct bolt-on installation with no modifications required.

Cast from lightweight aluminum at approximately 8.1 lbs, this bellhousing delivers the perfect interface between your LS engine and T56 transmission. It fits all GM T56 transmissions from F-Body and GTO applications, plus the aftermarket T56 Magnum. Whether you're restoring an F-Body to stock condition, building an LS swap, or upgrading to a Magnum, this is the bellhousing that thousands of LS/T56 combinations have depended on for reliable, factory-spec performance.

This bellhousing also fits Gen V LT engines, though note that the top bolt location will not be utilized in LT applications. Cross-referenced as GM part number 12453263 and TREMEC 1386-212-005 (also 92142856). When you need OE engineering with a proven track record, accept no substitutes.

What's Included

• TREMEC aluminum T56 bellhousing (GM #12453263 / TREMEC #1386-212-005)
• Mounting hardware
• Installation instructions

Key Features

• SFI 6.1 certified - required by sanctioning bodies for cars running 11.49 or faster in the quarter-mile
• Spun steel cone construction - not rolled or stamped - delivers maximum dimensional stability and accuracy
• Work-hardens to over 80,000 PSI strength - over twice the strength of other steel bellhousings
• Universal fit design - non-vehicle-specific for custom builds and LS/LT swaps
• Designed for hydraulic throwout bearing operation
• Fits up to 168-tooth flywheel and 11-inch clutch
• Bellhousing height: 5.555 inches
• Weight: 20 pounds
• Semi-gloss black powder coat finish
• Uses OEM-style starter placement
• Made in the USA

Description

Running 11.49s or quicker demands SFI-certified protection between your engine and transmission. The QuickTime RM-8020 delivers race-grade safety and precision for high-horsepower LS and LT builds, connecting Gen 3 and Gen 4 LS engines plus Late Model LT1/LT4 (2014-current) powerplants to T56 Chevy LS and T56 Magnum 6-speed transmissions.

QuickTime's proprietary spin-forming process sets this bellhousing apart from competitors using rolled or stamped steel. The spun cone construction creates the most dimensionally stable bellhousing available, with pinpoint concentricity and parallelism that keeps your engine and transmission in perfect alignment through the entire RPM range. This precision eliminates the bellhousing flex that accelerates drivetrain wear in high-stress applications.

Built from high-grade steel that work-hardens to over 80,000 PSI, the RM-8020 delivers more than twice the strength of other steel bellhousings while maintaining a lightweight 20-pound design. The semi-gloss black powder coat finish provides long-term corrosion resistance. MIG-welded thread inserts for transmission mounting ensure professional-grade durability.

This universal-fit bellhousing accommodates up to a 168-tooth flywheel and 11-inch clutch, with design optimized for hydraulic throwout bearing systems. OEM-style starter placement simplifies installation. Patent-pending on 16 points of bellhousing design and manufacturing process. Note: Transmission mounting bolts not included. Made in the USA.

What's Included

• QuickTime RM-8020 steel bellhousing with semi-gloss black powder coat finish
• Full engine block plate
• Grade 8 mounting hardware
• Installation instructions

Key Features

• SFI 6.1 certified steel scattershield - required by most sanctioning bodies for 11.49-second or quicker quarter-mile passes
• Built from high-grade steel that work-hardens to over 80,000 PSI strength - more than twice the strength of other steel bellhousings
• Spin-formed cone construction (not rolled or stamped) delivers superior dimensional stability and concentricity
• Includes integrated fork pivot ball - eliminates the need for hydraulic clutch systems
• Uses Chevy push-style mechanical clutch fork (fork not included)
• Fits GM Gen III/IV LS and Gen V LT1/LT4 (2014-current) engines to LS-pattern T56 and T56 Magnum transmissions
• Compatible with 168-tooth flywheels and up to 11-inch clutches
• 5.500-inch bellhousing height
• 22-pound weight with durable powder-coated finish
• Full engine plate and Grade 8 mounting bolts included
• Universal fit - not vehicle-specific, ideal for custom builds and swaps
• Patent pending on 16 points of bellhousing design and manufacturing process
• 100% Made in the USA

Description

When you are building serious horsepower with an LS or late-model LT engine and need bulletproof protection for your T56 swap, the QuickTime RM-8020PB delivers the strength and precision that aluminum bellhousings simply cannot match. This SFI 6.1 certified steel scattershield connects Gen III and Gen IV LS engines as well as Gen V LT1/LT4 (2014-current) powerplants to LS-pattern T56 and T56 Magnum six-speed transmissions - providing the mandatory safety barrier required by most sanctioning bodies for cars running 11.49 seconds or quicker in the quarter mile.

QuickTime's patent-pending manufacturing process sets this bellhousing apart from inferior stamped or rolled alternatives. The cone is spin-formed using a unique process that creates exceptionally high material strength - work-hardening to over 80,000 PSI. That is more than twice the strength of competing steel bellhousings. This spin-forming technique also makes QuickTime bellhousings the most dimensionally stable and accurate available, maintaining precise parallelism and concentricity. The engine and transmission stay in perfect alignment through the entire RPM range, eliminating accelerated drivetrain wear caused by bellhousing flex and maximizing horsepower transfer to the wheels.

The RM-8020PB variant includes an integrated fork pivot ball, enabling the use of a traditional Chevy push-style mechanical clutch fork rather than a hydraulic throwout bearing. This is the right choice for builds where hydraulic complexity is not wanted or needed - whether you are building a dedicated track car with a cable clutch setup or restoring mechanical simplicity to a modern drivetrain. The bellhousing accepts 168-tooth flywheels and clutches up to 11 inches in diameter. At 5.500 inches of bellhousing height and 22 pounds, it provides maximum protection without unnecessary bulk.

This is a universal-fit bellhousing and is not vehicle-specific, making it ideal for custom builds, engine swaps, and pro-touring projects where precise fitment is critical. The included full engine plate and Grade 8 hardware ensure proper installation strength and eliminate the guesswork of sourcing mounting hardware separately. Note that transmission mounting bolts and clutch fork are not included. All QuickTime bellhousings are designed with input from OEMs, engine builders, transmission builders, and racers - then manufactured and tested in the United States.

What's Included

• QuickTime RM-8020PB steel bellhousing with integrated fork pivot ball
• Full engine plate
• Grade 8 mounting bolts - complete hardware pack
• Installation instructions
• Lifetime technical support from MDL

Key Features

• Application-specific hardware for T56 Magnum to aluminum bellhousing mounting
• M10x1.5 thread pitch bolts sized specifically for aluminum bellhousing thickness
• Bolt lengths differ from steel bellhousing kits to ensure proper thread engagement
• Designed for GM Magnum (GM/Viper version) T56 transmissions
• Eliminates the guesswork of sourcing correct fasteners for your LS swap

Description

When bolting a T56 Magnum to an aluminum bellhousing in your LS-powered build, generic hardware or bolts pulled from a steel bellhousing setup won't cut it. Aluminum bellhousings have different material thickness and thread engagement requirements than their steel counterparts, which means you need fasteners specifically sized for the application. Using the wrong length bolts can result in insufficient thread engagement or, worse, bottoming out before achieving proper clamping force.

This hardware kit provides the correct M10x1.5 bolts engineered specifically for aluminum bellhousing installations. The bolt lengths account for the aluminum bellhousing's material thickness, delivering proper thread engagement into the T56 Magnum's transmission case. This ensures a secure, reliable connection between your bellhousing and transmission without the risk of stripped threads or loose fasteners.

Designed for use with GM Magnum (GM/Viper version) T56 transmissions and compatible aluminum bellhousings in Chevy LS applications. Whether you're building an F-body restomod, an LS swap project, or a custom performance build, this kit gives you the exact hardware you need for a proper installation.

Kit Includes

• M10x1.5 transmission-to-bellhousing bolts (aluminum bellhousing specific length)
• transmission to bellhousing bolts, transmission mount hardware, speedo cable hardware, Bellhousing block plate bolts
• Complete hardware for bellhousing-to-transmission connection

Key Features

• Complete bolt set for mounting Chevy LS steel bellhousing to engine and T56 Magnum transmission
• 26 total fasteners including 10mm hex flange bolts and Grade 8 hardware
• Black finish on primary 10mm mounting bolts for corrosion resistance
• Grade 8 7/16-14 x 1 inch UNC bolts for high-stress mounting points
• Includes all necessary lock washers in 7/16-inch sizing
• Designed specifically for steel bellhousing applications - aluminum bellhousings require different hardware

Description

Sourcing the correct hardware for a T56 Magnum installation can derail an otherwise straightforward build. Different bolt lengths, thread pitches, and grades are required at various mounting points throughout the bellhousing assembly, and mixing up specifications leads to stripped threads, improper clamping force, or worse. This hardware kit eliminates the guesswork by providing every fastener needed to properly mount your steel bellhousing to an LS engine block and bolt the T56 Magnum transmission to the bellhousing.

The kit includes eight 10mm-1.5 x 50mm hex flange bolts with black finish for the primary bellhousing-to-engine connection, along with eight 10mm-1.5 x 40mm black hex flange bolts for transmission-to-bellhousing mounting. Two shorter 10mm-1.5 x 30mm hex flange bolts handle secondary mounting locations. For high-stress connection points, two Grade 8 7/16-14 x 1 inch UNC hex bolts deliver the strength needed to handle drivetrain loads without stretching or backing out.

Two Grade 5 6mm-1.0 x 16mm hex bolts round out the fastener selection for accessory mounting points. Lock washers in 7/16-inch sizing are included to prevent loosening under vibration. Each fastener is sized and graded for its specific location in the assembly - the right hardware in the right place every time.

This kit is designed specifically for steel bellhousing installations. Aluminum bellhousings use different bolt lengths due to material thickness differences. Compatible with Chevrolet LS engines paired with TREMEC T56 Magnum transmissions.

What's Included

• (8) 10mm-1.5 x 50mm hex flange bolts, black finish
• (8) 10mm-1.5 x 40mm hex flange bolts, black finish
• (2) 10mm-1.5 x 30mm hex flange bolts
• (2) 6mm-1.0 x 16mm hex bolts, Grade 5
• (2) 7/16-14 x 1 inch UNC hex bolts, Grade 8
• (2) 7/16-inch lock washers
• (1) Bolt, 1/4"-20 thread
• (2) Lock washers

Key Features

• 24-pound lightweight billet steel construction - precision-machined from solid billet for strength without excess rotating mass
• Dual pressure plate mounting patterns - accepts both 12-5/8" clutches with dowel pins and 10mm bolts, plus 12-5/8" pattern with 3/8" shouldered bolts
• 168-tooth ring gear for reliable starter engagement
• 2.485" crank registration size for precise centering on 6-bolt LS cranks
• Zero (neutral) balance for internally balanced LS applications
• 11mm x 1.5mm crank bolt pattern
• Compatible with 11" single-disc clutch assemblies
• Made in the USA

Description

When your LS swap demands a flywheel that delivers billet steel strength with reduced rotating mass, this lightweight flywheel solves the problem. Precision-machined from a solid piece of billet steel and lightened to just 24 pounds, it matches OE cast flywheel weight while providing superior strength and durability over factory cast units. The lightened design reduces rotational inertia for improved throttle response and quicker acceleration without sacrificing the smooth engagement characteristics needed for street driving.

The dual pressure plate mounting pattern design eliminates compatibility guesswork. It accepts both the LS-style 11" clutches using dowel pins with 10mm pressure plate bolts, as well as GM 11" clutches using shouldered 3/8" pressure plate bolts. The 2.485" crank registration ensures perfect centering on LS1, LS2, LS3, LS6, and LS7 engines equipped with 6-bolt crankshafts. Zero balance construction makes it the correct choice for these internally balanced LS applications.

CNC-machined in the USA from solid billet steel, each flywheel undergoes precision finishing for optimal surface quality and dimensional accuracy. The 168-tooth ring gear provides reliable starter engagement with standard LS starters. Whether you're completing a classic car LS swap or upgrading a late-model manual transmission vehicle, this flywheel delivers the billet steel strength you need at a weight that won't bog down your build.

What's Included

• Lightweight billet steel flywheel (24 lbs)
• 168-tooth ring gear (pre-installed)
• Dual pressure plate bolt patterns (12-5/8" with dowels/10mm bolts and 12-5/8" with 3/8" bolts)
• 2.485" crank registration bore
• Zero balance configuration

Note: Flywheel bolts sold separately. It is never recommended to reuse flywheel bolts when installing a new or used flywheel.

Key Features

• 24 lb lightened billet steel construction - reduces rotational mass for improved throttle response while retaining steel's durability
• Dual clutch bolt pattern - accepts both 11" (with EQ pins) and 12-5/8" pressure plates for maximum clutch selection flexibility
• Zero balance configuration - matches internally balanced GM LSA, LSX, and Gen V LT engines
• 168-tooth ring gear - ensures reliable starter engagement
• 8-bolt crankshaft mounting with 11mm x 1.5mm bolt holes
• Pressure plate bolt threads: 3/8" and 10mm for broad compatibility
• Made in the USA

Description

This lightened billet steel flywheel bridges the gap between heavy OEM dual-mass units and ultra-light aluminum flywheels that can sacrifice low-speed drivability. At 24 lbs, it sheds significant rotational mass compared to stock castings, delivering noticeably quicker throttle response and faster revs without the chatter or aggressive engagement characteristics common to featherweight aluminum designs. Steel's inherent density provides better harmonic dampening than aluminum, helping absorb the vibrations common in high-output LS and LT builds while smoothing out drivetrain noise.

Machined from billet steel rather than cast, this flywheel offers superior strength and consistency over traditional OEM-style castings. The CNC-machined friction surface provides a flat, true mating surface for consistent clutch engagement. Whether you're building a street/strip LSA, an LSX crate engine swap, or a Gen V LT1/LT4 project, the robust construction handles the torque without concern.

The dual bolt pattern design accommodates both 11" pressure plates (with equalizer pins) and 12-5/8" pressure plates, giving you flexibility to run anything from a mild street clutch to an aggressive multi-disc setup. With both 3/8" and 10mm pressure plate bolt threads, compatibility extends across most popular GM and aftermarket clutch kits. The zero-balance configuration matches the internal balance of LSA, LSX, and Gen V LT engines - no external weights required.

Designed for GM's modern performance V8s including LSA supercharged applications, LSX crate motors, and Gen V LT1/LT4 engines with 8-bolt crankshafts. Compatible with both hydraulic and mechanical clutch release systems. Made in the USA with precision CNC machining for reliable performance across street, strip, and road course duty.

What's Included

• Lightened billet steel flywheel (24 lbs)
• 168-tooth ring gear (installed)
• Dual clutch bolt pattern (11" EQ pins and 12-5/8")

Key Features

• Lightened billet steel construction - 24 lbs for quicker throttle response while retaining rotational inertia for solid launches
• Dual clutch pattern compatibility - accepts both LS pressure plate and 12-5/8" pressure plates for maximum clutch flexibility
• LS9-specific 9-bolt crankshaft flange mounting - direct fit for GM's supercharged 6.2L engines
• Zero balance design - precision balanced for smooth, vibration-free operation
• 168-tooth integrated ring gear - reliable starter engagement
• Single-disc configuration - compatible with 11" clutch disc diameter
• 11mm x 1.5mm flywheel bolt pattern - uses standard LS9 hardware
• Made in the USA

Description

GM's supercharged LS9 features a unique 9-bolt crankshaft flange that demands a purpose-built flywheel. This lightened billet steel flywheel delivers the strength required for high-torque supercharged applications while shedding unnecessary mass for improved throttle response. At 24 pounds, it strikes the right balance between quick engine acceleration and the rotational inertia needed for consistent power delivery off the line.

Billet steel construction provides superior strength over cast alternatives, handling the increased forces generated by forced-induction engines without the stress points and potential cracking found in lesser materials. The precision-machined clutch surface ensures flat, true contact with your pressure plate for consistent engagement and extended clutch life.

The dual clutch pattern accommodates both 11" and 12-5/8" pressure plate configurations, giving you flexibility for your current clutch setup and future upgrades. Whether you're running an OE-style 11" pressure plate with equidistant pins or stepping up to a larger 12-5/8" unit, this flywheel has you covered. The zero balance design matches the LS9's internally balanced rotating assembly for smooth operation throughout the RPM range.

Direct fit for 2009-2013 Corvette ZR1 applications and LS9 crate engine builds. The integrated 168-tooth ring gear ensures reliable starter engagement. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel - 24 lbs, zero balance
• 168-tooth integrated ring gear
• Precision-machined clutch surface for 11" disc
• 9-bolt crankshaft mounting pattern (11mm x 1.5mm)
• Dual pressure plate bolt pattern (11" EQ pins and 12-5/8" EQ)
• Lifetime technical support

Key Features

• M11 x 1.5 thread pitch — OEM specification for all GM LS crankshaft applications
• Hex head design for positive wrench engagement during installation and removal
• Complete set of 6 bolts for full flywheel mounting
• Direct fit for LS1, LS2, LS3, LS6, LS7, and L92 series engines
• Follow GM three-stage torque procedure: 15 ft-lbs > 37 ft-lbs > 74 ft-lbs for proper bolt loading

Description

The flywheel-to-crankshaft connection is one of the most critical fastener applications in your drivetrain. LS engines — with their cross-plane crankshaft design — generate significant vibrations and torque pulses that place heavy demands on flywheel hardware. Using the correct fasteners with proper torque specs prevents bolts from backing out, which can destroy the clutch assembly, rod bearings, and transmission bearings.

This hex head flywheel bolt kit is built to M11 x 1.5 specification for direct compatibility with GM Gen III and Gen IV LS crankshafts. The hex head design provides reliable wrench engagement, reducing the risk of rounded fasteners during high-torque installation. These bolts deliver the clamping force your LS engine demands whether you're completing an LS swap, a rebuild, or replacing worn factory hardware.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 series engines. Always use new flywheel bolts when installing a flywheel — reusing stretched or fatigued hardware on this critical connection invites failure. Follow GM's recommended three-stage torque sequence: first pass at 15 ft-lbs, second pass at 37 ft-lbs, and final torque at 74 ft-lbs in a star pattern for even clamping.

What's Included

• 6 hex head flywheel bolts (M11 x 1.5 thread pitch)
• Manufacturer's warranty against defects

GM LS Flywheel Bolt Kit | LS1, LS2, LS3, LS6, LS7, L92 Engines | Set of 8

Key Features

• Complete 8-bolt set for GM LS-series and L92 engines
• M11 x 1.5 thread pitch - OEM specification for LS crankshafts
• Hex head design for standard socket tools
• Direct replacement for worn, damaged, or missing factory hardware
• Engineered for proper clamping force and vibration resistance

Description

Loose or worn flywheel bolts are a ticking time bomb in any LS build. When flywheel hardware backs out, the resulting damage cascades through the drivetrain - destroying clutch assemblies, damaging rod bearings, and taking out transmission bearings. This flywheel bolt kit delivers the OEM-spec hardware your LS engine demands for secure flywheel mounting.

Each bolt features an M11 x 1.5 thread pitch matched to GM LS crankshaft specifications. The hex head design works with standard sockets for straightforward installation - no specialty tools required. LS engines are notorious for the significant vibration generated by their cross-plane crankshafts, and with displacements reaching 7.0 liters in some variants, proper flywheel mounting hardware is critical to drivetrain longevity.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 Series engines. Follow the GM-recommended three-pass torque sequence: 15 lb-ft on the first pass, 37 lb-ft on the second pass, and 74 lb-ft final torque. This staged approach ensures even compression across the flywheel face. GM recommends applying blue thread locker to each bolt when using this torque pattern to prevent loosening under the extreme rotational forces these bolts endure.

Kit Includes

• (8) Flywheel bolts with hex heads
• M11 x 1.5 thread pitch specification
• Manufacturer's warranty against defects

Flywheel Bolt Kit | GM LS9 9-Bolt Crankshaft | Set of 9

Key Features

• Complete nine-bolt set specifically designed for LS9 crankshaft flange pattern
• M11-1.5 x 23.5mm thread specification matching OEM dimensions
• Torque sequence: 15 lb-ft > 37 lb-ft > 74 lb-ft (three-pass)
• Eliminates sourcing hassle for the LS9's unique 9-bolt configuration
• Backed by manufacturer's warranty against defects

Description

The LS9's supercharged 6.2L V8 didn't just get more horsepower than its LS siblings--it got a completely different flywheel bolt pattern. While standard LS engines use a 6-bolt crankshaft flange and newer LSA/LT variants moved to 8 bolts, the LS9 stands alone with its 9-bolt configuration. This kit delivers all nine bolts you need to properly secure your flywheel to that unique crankshaft flange.

Each bolt features M11-1.5 threading with 23.5mm length, matching GM's factory specifications exactly. Proper installation requires a three-pass torque sequence: first tighten all bolts to 15 lb-ft, then 37 lb-ft, and finally 74 lb-ft in a crisscross pattern. This graduated approach ensures even clamping force distribution across the flywheel face, preventing the distortion and bolt loosening that plague improperly torqued assemblies. Incorrect flywheel bolt torque on high-output LS engines can cause bolts to back out, destroying the clutch assembly and eventually damaging rod bearings and transmission components.

Whether you're building a Corvette ZR1 restoration, dropping an LS9 crate engine into a swap project, or refreshing an existing clutch setup, this complete nine-piece kit ensures you have the correct hardware on hand. No more hunting for individual bolts or questioning whether you have the right count for that distinctive 9-bolt pattern.

What's Included

• Nine M11-1.5 x 23.5mm flywheel bolts
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel construction - aerospace-grade alloy forged for maximum strength
• Pro Series 200,000 psi tensile strength rating - far superior to OEM hardware
• 12-point head design with 1/2-inch socket compatibility - superior grip and reduced rounding risk
• 0.880-inch under-head length (UHL) - optimized for LS Series crankshaft specifications
• M11 x 1.50 thread pitch - direct OEM fitment for all LS applications
• Black oxide finish - corrosion resistance with clean appearance
• Heat-treated before thread rolling - increased fatigue resistance and dimensional accuracy
• Larger-than-stock shank diameter - improved flywheel register and clamping force
• Complete 6-bolt set - everything needed for one LS engine

Description

Factory flywheel bolts are a weak link in high-performance LS builds. OEM hardware simply is not engineered to handle the stress of aggressive clutch dumps, high-RPM shifts, or sustained track use. ARP's Pro Series Flywheel Bolt Kit delivers the strength upgrade serious LS builders demand, replacing marginal factory fasteners with aerospace-grade hardware rated at 200,000 psi tensile strength.

Each bolt is forged from 8740 chromoly steel - a nickel-chromium-molybdenum alloy prized for its exceptional balance of tensile strength, toughness, and fatigue resistance. ARP heat-treats the material before thread rolling and machining, a critical sequence that maximizes thread integrity and dimensional accuracy. The exclusive flat 12-point head design accepts a standard 1/2-inch socket and provides superior engagement compared to hex heads, reducing the risk of rounding under high torque loads.

The larger-than-stock shank diameter does more than just add strength - it improves flywheel register by filling more of the mounting hole, reducing the chance of flywheel movement under load. The 0.880-inch under-head length is engineered specifically for LS Series crankshafts, ensuring proper thread engagement without bottoming out. Black oxide finish provides corrosion protection while maintaining the professional appearance serious builders expect.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 series engines. Complete 6-bolt set includes everything needed to secure your flywheel with confidence.

Kit Includes

• Six (6) 8740 chromoly flywheel bolts with black oxide finish
• Manufacturer's warranty against defects
• MDL lifetime technical support

Key Features

• Steel-backed organic facings deliver smooth engagement with enhanced burst strength for street performance
• Diaphragm pressure plate with LS bolt pattern for hydraulic actuation
• 26-spline x 1-1/8" sprung hub matches T56 Magnum and Magnum-F input shaft specifications
• 350 ft-lb torque rating sized for performance street applications
• Hand-assembled in-house with double-checked accuracy for ready-to-install quality
• 1-year free-from-defect warranty
• Made in the USA by MDL

Description

Finding the right clutch for a GM LS to T56 swap shouldn't mean compromising on quality or pedal feel. This Superior Series clutch set delivers exactly what a street performance build demands: reliable holding power, smooth engagement, and the correct spline count to mate your LS engine to a T56 Magnum or Magnum-F transmission without adapter headaches.

The steel-backed organic design strikes the ideal balance between daily drivability and durability. Steel backing increases clamping force and provides superior burst strength compared to standard organic discs, while the organic friction material ensures civilized takeoffs and excellent pedal modulation. The diaphragm pressure plate features the correct LS bolt pattern and is configured for hydraulic release systems, eliminating the fitment problems common with mechanical linkage conversions.

Every MDL Superior clutch is hand-assembled in-house to ensure quality and flawless operation. Each unit is checked and double-checked for proper balance, precise tolerances, and reliable function before it ships. This process guarantees a ready-to-install component right out of the box. Note that a throwout bearing is not included with this kit and must be purchased separately based on your specific bellhousing and slave cylinder configuration.

Compatible with GM LS engines paired to T56 Magnum and Magnum-F transmissions using the 26-spline input shaft. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• Diaphragm pressure plate with LS bolt pattern
• 11" clutch disc with steel-backed organic facings and 26-spline x 1-1/8" sprung hub
• Pilot bearing
• Clutch alignment tool
• Pressure plate bolts (3/8")
• Installation and break-in instructions
• Lifetime technical support from MDL

Key Features

• Dual-friction disc: Kevlar facing on flywheel side, steel-backed organic facing on pressure plate side
• 26-spline x 1-1/8" hub for GM LS engines mated to T56 or T56 Magnum transmissions
• Diaphragm-style pressure plate designed for hydraulic actuation
• Sprung hub disc for smooth engagement and reduced drivetrain shock
• Hand-built Superior clutch disc manufactured in-house with double-checked tolerances
• 500 lb-ft torque capacity—Performance Street Plus rated
• Made in the USA with 1-year defect-free warranty and lifetime tech support

Description

Extracting maximum performance from a high-torque LS engine requires a clutch that bridges the gap between aggressive track bite and civilized street manners. This dual-friction Superior clutch disc solves that challenge by pairing Kevlar on the flywheel side with a steel-backed organic facing on the pressure plate side. The result is a clutch that hooks hard under load yet remains smooth and predictable in stop-and-go traffic.

Why the hybrid configuration? Kevlar's coefficient of friction actually increases with temperature—meaning torque capacity goes up, not down, under hard use. It also resists burning and delivers exceptional longevity. Meanwhile, the steel-backed organic side provides the smooth modulation and forgiving engagement drivers expect on the street. This combination delivers more grip than a pure organic disc while maintaining better driveability than an all-Kevlar setup—the sweet spot for street performance and weekend track duty.

Every Superior clutch disc is hand-built in MDL's Caldwell, Idaho facility. Each disc goes through rigorous quality control—checked and double-checked for tolerances—before it ships. The 11" diaphragm pressure plate provides high clamping force without excessive pedal effort, and the sprung hub dampens engagement shock for chatter-free operation. Rated at 500 lb-ft, this kit is sized right for naturally aspirated and moderately boosted LS builds.

Fits GM LS engines paired with T56 or T56 Magnum transmissions using a 26-spline, 1-1/8" input shaft. Designed exclusively for hydraulic clutch actuation systems. Note: No throwout bearing or pilot bearing included—order separately based on your bellhousing and crankshaft configuration. Made in the USA with MDL's 1-year defect-free warranty and lifetime technical support.

What's Included

• 11" diaphragm pressure plate (LS bolt pattern)
• Superior clutch disc with Kevlar/steel-backed organic dual-friction facings
• Sprung hub design (26-spline x 1-1/8")
• 3/8" pressure plate bolts
• Clutch alignment tool
• Lifetime technical support

Note: No throwout bearing or pilot bearing included with this kit.

Superior 11" Kevlar Clutch Set | GM LS | 26-Spline T56/TKX

Key Features

• 550 lb-ft torque capacity for high-performance LS builds
• Kevlar/Kevlar friction surfaces deliver smooth engagement with superior heat tolerance
• 26-spline x 1-1/8" hub fits T56, Magnum, TR-6060, TKO and TKX transmissions
• Sprung hub design dampens drivetrain shock for improved drivability
• Diaphragm pressure plate with 12-5/8" equal bolt pattern
• Hand-assembled in-house with rigorous quality inspection before shipping
• Engineered for performance street driving and open track applications
• Made in the USA

Description

High-performance LS builds demand clutch systems that can handle serious power while maintaining streetability. The MDL Superior 11" Kevlar clutch set delivers exactly that balance—rated at 550 lb-ft of torque capacity with dual Kevlar friction surfaces that actually increase grip under hard use rather than fading like organic compounds. When heat builds during aggressive driving, Kevlar's coefficient of friction rises, giving you more holding power precisely when you need it most.

Unlike organic materials that lose torque capacity at elevated temperatures and can burn when slipped excessively, Kevlar resists wear significantly better and won't sustain permanent heat damage under demanding conditions. The sprung hub design absorbs drivetrain shock loads, delivering smooth engagement without the chatter common to solid-hub racing clutches. This combination makes the Superior series ideal for vehicles that split time between spirited street driving and open track days.

The diaphragm-style pressure plate provides progressive pedal feel with clamping force that actually increases over the life of the clutch—delivering lower pedal effort than Long-style pressure plates while maintaining consistent performance. The 12-5/8" equal bolt pattern matches standard GM LS flywheel configurations, and the 26-spline x 1-1/8" hub provides direct compatibility with T56 and T5 transmissions.

Every Superior clutch set is hand-assembled in MDL's facility, where each assembly undergoes rigorous inspection to ensure exacting tolerances and flawless operation before it ships. You receive a ready-to-install, precision-balanced clutch set backed by a 1-year free-from-defect warranty.

What's Included

• Diaphragm pressure plate with 12-5/8" equal bolt pattern
• 11" Kevlar/Kevlar clutch disc with 26-spline x 1-1/8" sprung hub
• Pilot bearing
• Clutch alignment tool
• Pressure plate bolt set
• Installation and break-in instructions
• 1-year free-from-defect warranty

Key Features

• 800hp torque capacity for serious street builds
• Twin organic friction discs (9.687" diameter) for smooth engagement
• 26-spline x 1-1/8" input shaft compatibility
• Universal fitment: GM V8 ('55-'85), BOP ('59-'79), Ford 11"/11.5"/12" Long patterns
• Sprung hub design absorbs driveline shock while maintaining engagement control
• Large red adapter ring (6911/6921 series) fits 168T GM, Ford 164T/176T/180T/184T, BOP 160T/166T flywheels
• Soft pedal effort with excellent release characteristics
• Diaphragm-style pressure plate for consistent clamp load

Description

The McLeod RST twin disc clutch delivers 800hp holding power in a street-friendly package--no harsh engagement, no leg-day pedal effort, no excuses. It's engineered for the enthusiast running serious power who still wants to daily-drive their build without fighting the clutch in traffic.

The twin organic friction discs provide the clamping force of a multi-disc setup while maintaining the smooth, progressive engagement characteristics you expect from a streetable clutch. Sprung hubs absorb driveline shock during aggressive launches, protecting the transmission input shaft while delivering precise pedal modulation. The diaphragm pressure plate maintains consistent clamp load across the RPM range with a lighter pedal feel than Borg & Beck designs.

McLeod's patented adapter ring system is the key to the RST's universal fitment. The large red adapter ring included with this kit bolts directly to large-diameter flywheels--Chevy 168-tooth, Ford 164T/176T/180T/184T, and BOP 160T/166T--eliminating the need for a dedicated flywheel. This covers GM V8 applications from '55-'85, Buick/Olds/Pontiac from '59-'79, and Ford 11"/11.5"/12" Long bolt patterns.

This clutch kit is designed for high-horsepower street use and is not intended for competition. For drag racing or sustained track use, step up to the RXT or RXT 1200 series. Pilot bushing and throwout bearing sold separately. Professional installation with proper flywheel resurfacing recommended. Backed by McLeod's 90-day limited warranty.

What's Included

• Diaphragm pressure plate assembly
• Two organic friction discs (9.687" diameter, 26-spline x 1-1/8", sprung hub)
• Floater plate
• Large red adapter ring for large-diameter flywheels
• Pilot alignment tool, (Pilot bushing sold separately)
• Installation instructions
• Lifetime technical support from MDL

Key Features

• 1,000 HP torque capacity - handles extreme horsepower while remaining street-driveable
• Two ceramic friction discs (9.687" diameter) with slightly aggressive engagement and soft pedal effort
• Solid hub design for maximum durability under high-torque loads
• Floater plate architecture for dual-disc holding power with excellent release characteristics
• 26-spline, 1-1/8" input shaft compatibility for T56, TKX, and similar transmissions
• McLeod patent-pending large diameter adapter ring - fits existing large-diameter flywheels without dedicated flywheel purchase
• Diaphragm-style pressure plate for lighter-than-stock pedal feel
• Compatible with multiple flywheel bolt patterns: 11" Long, 11-5/8" EQ, 11-5/12" Long, 12-3/8" EQ

Description

Street-legal performance cars are making more power than ever, and if you're rowing your own gears past the 500 HP mark, you need a clutch that can handle the abuse without sacrificing daily driveability. The McLeod RXT Twin Disc Clutch Kit solves the classic high-horsepower dilemma - massive holding power without the harsh engagement and heavy pedal effort that make twin-disc setups miserable in traffic.

Rated at 1,000 HP, the RXT uses two ceramic-faced 9.687" friction discs mounted to a solid hub, distributing clamping loads across four friction surfaces for superior heat dissipation and consistent engagement under hard launches. The ceramic facings provide slightly aggressive engagement - enough bite to transfer serious torque without the on/off grabbiness that plagues race-only clutches. The diaphragm-style pressure plate delivers lighter-than-stock pedal effort, making this a genuinely streetable setup for stop-and-go driving.

This economical kit uses McLeod's patent-pending large diameter adapter ring system, allowing you to retain your existing large-diameter flywheel rather than purchasing a dedicated unit. The large red adapter ring fits common big-flywheel applications including Chevy 168T, Ford 164T/176T/180T/184T, Chrysler 143T/172T, and Buick/Olds/Pontiac 160T/166T configurations. The 26-spline, 1-1/8" input shaft configuration matches T56, TKX, and other performance transmissions.

Compatible with 1955-85 Chevy V8 engines equipped with large diameter flywheels. Note: McLeod street performance clutches require a 500-750 mile break-in period of stop-and-go city driving (1,200-1,500 clutch cycles) before wide-open-throttle use or dyno tuning. This kit does not include a pilot bearing or throwout bearing. Made in the USA.

What's Included

• Diaphragm-style pressure plate
• Two ceramic friction discs (9.687" diameter, 26-spline, 1-1/8" hub)
• Solid hub assembly
• Steel floater plate
• McLeod patent-pending large diameter adapter ring
• Clutch alignment pilot tool
• Installation instructions with break-in procedure

Note: Pilot bearing and throwout bearing not included - inspect and replace as needed during installation.

Key Features

• 1,200 horsepower capacity for extreme street/strip builds
• Twin ceramic friction discs with slightly aggressive engagement and soft pedal effort
• Patent-pending large red adapter ring fits large-diameter flywheels including Chevy 168T
• 26-spline x 1-1/8" input shaft compatibility for aftermarket transmissions
• Diaphragm-style pressure plate for consistent clamping force
• Blanchard-ground floater plate with multiple straps reduces noise for streetability
• Economically priced kit without flywheel - uses your existing flat-style flywheel
• Made in the USA

Description

When you have pushed past 1,000 horsepower and still need to drive to the track, run hard, and drive home, the McLeod RXT 1200 delivers the holding power without the leg cramps. This twin-disc clutch handles up to 1,200 crank horsepower while maintaining a comfortable pedal feel that will not leave you massaging a charlie horse after a trip through downtown at rush hour.

The RXT 1200 features ceramic-lined clutch discs that provide slightly aggressive engagement with soft pedal effort. The higher clamp load compared to the standard RXT gives you the grip needed for serious power while the twin-disc design keeps rotating mass low for quick revs. The Blanchard-ground floater plate with multiple straps minimizes driveline noise - you may hear some feedback tones between 1200-1900 RPM, which is normal for twin-disc applications.

McLeod's patent-pending large red adapter ring system eliminates the need for a dedicated flywheel. The ring mounts to your existing large-diameter flat-style flywheel (Chevy 168T and similar) and provides the proper mounting surface for the twin-disc assembly. This adapter ring approach reduces cost while maintaining strength. Note: This kit requires a flat-style flywheel with a crank relief of 6.250" or less for proper fitment - it will not work with recessed or stepped flywheels.

Compatible with 1955-1985 Chevy V8 applications using transmissions with a 26-spline x 1-1/8" input shaft. Break-in requires 500-750 miles of stop-and-go city driving to properly seat the discs - actuate the clutch 1,200-1,500 times before any wide-open throttle driving. Pilot and throwout bearings sold separately. Backed by lifetime technical support from Modern Driveline.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs
• Blanchard-ground floater plate
• McLeod patent-pending large red adapter ring
• Pilot alignment tool
• Installation instructions
• Lifetime technical support

Note: Pilot bearing and throwout bearing not included. Flywheel not included - kit uses existing flat-style flywheel with adapter ring.

Key Features

• 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
• 246mm (9.7-inch) twin-disc design reduces rotating mass and increases heat capacity over single-disc clutches
• Precision-machined aluminum clutch cover derived from Tilton's OT-Series racing clutch technology
• Double-thickness floater plate eliminates gear chatter and provides superior heat dissipation
• Billet chromoly flywheel with 153-tooth ring gear and precision clutch register for optimal balance [VERIFY: custom field shows 157-tooth]
• 26-spline, 1-1/8-inch input compatible with TREMEC T-56 Magnum and TKO transmissions
• Heavy-duty straps attach pressure plate and floater to minimize noise and ensure clean release
• Compatible with most OEM release bearings (C6 Corvette applications require Tilton 6000-Series HRB)
• Made in the USA by Tilton Engineering

Description

High-horsepower LS builds demand a clutch that won't slip, chatter, or fail under load. The Tilton ST-246 twin-disc clutch and flywheel assembly delivers 850 lb-ft of holding power while maintaining the smooth engagement characteristics you need for daily street duty. Unlike the stamped steel "performance" clutches flooding the market, the ST-246 was engineered from the ground up as a true twin-disc clutch—not an OEM pressure plate with a floater bolted on as an afterthought.

The precision-machined aluminum clutch cover shares technology directly from Tilton's championship-winning OT-Series racing clutches used in F1, NASCAR, IMSA, IndyCar, and Formula Drift. This design delivers superior strength, stiffness, and dynamic balance compared to stamped steel alternatives. The high-mass main pressure plate and floater plate are machined from proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warpage resistance. The floater plate is twice the thickness of most competitor twin-disc clutches—this extra mass allows for the sprung hub design while eliminating gear chatter and improving heat dissipation during hard use.

The sprung-hub organic discs dampen engine vibrations and reduce transmission noise, delivering engagement characteristics you can live with in traffic. The included billet chromoly flywheel features a precision register that locates the clutch for optimal balance—a significant improvement over the loose-fitting bolts and dowels found on stamped steel clutch assemblies. Internal balance matches LS1, LS2, LS3, LS6, and LS7 engines with 6-bolt crankshaft flanges.

This kit works with most OEM hydraulic release bearings. C6 Corvette and Gen5 Camaro applications require a Tilton 6000-Series hydraulic release bearing (sold separately for this kit). Pilot bearing and throwout bearing are not included. Designed for TREMEC T-56 Magnum and TKO transmissions with 26-spline, 1-1/8-inch input shafts.

What's Included

• Billet chromoly steel flywheel with 153-tooth ring gear, internally balanced [VERIFY: custom field shows 157-tooth]
• Precision-machined aluminum clutch cover with OT-Series racing technology
• High-mass main pressure plate with heavy-duty attachment straps
• Double-thickness steel floater plate with heavy-duty attachment straps
• Two 246mm organic clutch discs with sprung hubs (26-spline, 1-1/8-inch)
• Flywheel mounting bolts
• Clutch cover mounting bolts
• Clutch alignment tool
• Installation instructions

Tilton ST-246 Twin-Disc Clutch Kit | GM LSA/LSX 8-Bolt | 850 lb-ft Organic

Key Features

• 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
• Precision-machined aluminum pressure plate cover - superior strength and balance vs. stamped steel OEM-style units
• Double-thick floater plate eliminates gear chatter and provides superior heat dissipation
• Billet chromoly flywheel with 153-tooth ring gear and precision register for optimal balance [VERIFY: Product data lists both 153-tooth and 168-tooth ring gear - confirm correct spec]
• Heavy-duty straps connect pressure plate and floater to minimize noise and ensure clean release
• 26-spline disc hub (26 x 1-1/8") - compatible with TREMEC T-56, TKO, and similar transmissions
• Internally balanced (zero-balance) flywheel for GM LSA/LSX 8-bolt crank flange
• Tilton HR throwout bearing included [VERIFY: Main description says included, custom field says not included - confirm kit contents]
• Engineered from 50+ years of Tilton racing clutch technology

Description

When your LSA or LSX build pushes beyond what factory clutches can handle, the Tilton ST-246 delivers race-proven holding power with street-friendly manners. Rated at 850 lb-ft of torque, this twin-disc assembly was engineered from the ground up as a true performance clutch - not an afterthought OEM stamped-steel cover with a floater plate tacked on. The precision-machined aluminum pressure plate cover shares technology directly from Tilton's championship-winning OT-Series racing clutches, providing superior strength, stiffness, and dynamic balance compared to the stamped steel alternatives.

The ST-246's secret weapon is its floater plate design - machined at twice the thickness of competing twin-disc clutches. This extra mass serves three critical functions: it allows the use of sprung-hub discs for smooth engagement, eliminates the gear chatter common in twin-disc setups, and provides significantly greater thermal capacity to resist warpage under hard use. Heavy-duty straps connect the pressure plate and floater to the cover, minimizing noise and delivering a clean, predictable release.

The organic friction discs feature sprung center hubs that dampen engine vibrations and reduce gearbox noise - essential for a streetable driving experience. The billet chromoly flywheel includes an integrated ring gear and a precision register bore that locates the clutch assembly perfectly, eliminating the loose-fitting bolts and dowel pins that create imbalance in lesser setups. This kit is designed specifically for GM LSA and LSX engines with 8-bolt crankshaft flanges and mates to 26-spline input shaft transmissions including TREMEC T-56 and TKO variants.

Since 1972, Tilton Engineering has supplied championship-winning clutches to the highest levels of motorsport - F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. The ST-246 brings that proven expertise to the high-performance street market at a competitive price point.

What's Included

• Precision-machined aluminum clutch cover assembly with heavy-duty straps
• High-mass pressure plate machined from proprietary racing clutch materials
• Double-thick steel floater plate
• Two organic friction discs with sprung center hubs (26 x 1-1/8" spline)
• Billet chromoly steel flywheel with integrated ring gear (internally balanced for 8-bolt LSA/LSX)
• Clutch alignment tool
• Flywheel bolts
• Clutch cover bolts
• Tilton HR throwout bearing [VERIFY: Confirm if throwout bearing is included or not]
• Installation instructions

Note: Pilot bearing not included.

Key Features

• Solid-hub cerametallic discs rated for 1250 lb-ft of torque - delivers race-proven strength for street/strip use
• Precision-machined aluminum clutch cover - higher strength, stiffness, and better dynamic balance than OE-type stamped steel covers
• Floater plate twice the thickness of most twin-disc clutches - enables solid-hub design, eliminates gear clatter, and provides superior heat dissipation
• Billet chromoly flywheel with integrated 168-tooth ring gear - reduces rotating mass while delivering long-term durability
• High-mass pressure plates machined from proprietary racing materials - provides exceptional heat capacity and resists warpage
• 246mm (9.7") disc diameter with 26-spline x 1-1/8" input - direct fit for TREMEC T56 and TKO transmissions
• Heavy-duty straps attach plates to cover - minimize noise and provide clean clutch release
• Compatible with most OEM release bearings

Description

High-output LS engines demand more than stamped steel clutches can deliver. The Tilton ST-246 solves the torque capacity problem without sacrificing streetability. Unlike many performance clutches on the market, ST-246 clutches were designed from the ground up as a true performance twin-disc clutch - not an OEM-type stamped steel pressure plate with a floater added. This complete assembly delivers racing technology in a package engineered specifically for street/strip use.

The aluminum clutch cover shares technology from Tilton's championship-winning line of OT-Series racing clutches, providing superior strength and balance compared to stamped steel alternatives. The ultra-thick floater plate design enables the solid-hub cerametallic discs to handle extreme torque loads while eliminating the gear rattle common with thinner designs. Proprietary pressure plate materials deliver exceptional heat dissipation - critical for repeated hard launches and track use.

The billet chromoly flywheel features a precision register system that ensures optimal clutch positioning and balance, eliminating the loose-fitting bolt patterns that plague lesser designs. The integrated 168-tooth ring gear reduces weight compared to separate press-fit rings while maintaining the strength needed for high-RPM operation. Since 1972, Tilton Engineering has been the leading supplier of small-diameter racing clutches, with championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE.

Designed for Chevy LS1, LS2, LS3, LS6, and LS7 engines with 6-bolt crank flanges. The 26-spline x 1-1/8" hub pattern provides direct compatibility with TREMEC T56 and TKO transmissions. Can be used with most OEM release bearings. Pilot bearing and throwout bearing not included.

What's Included

• Precision-machined aluminum clutch cover assembly
• High-mass pressure plate with proprietary racing material construction
• Ultra-thick floater plate with heavy-duty mounting straps
• Two 246mm solid-hub cerametallic friction discs
• Billet chromoly flywheel with integrated 168-tooth ring gear
• Flywheel mounting bolts
• Clutch mounting hardware
• Alignment tool
• Installation instructions

Key Features

• 1,250 lb-ft torque capacity with solid-hub cerametallic discs - built for serious street/strip power
• 246mm (9.7") disc diameter provides superior heat dissipation and clamping force
• Precision-machined aluminum clutch cover - higher strength and stiffness than stamped steel OEM designs
• Billet chromoly steel flywheel with integrated 168-tooth ring gear and precision clutch register
• Floater plate twice the thickness of most competitors - eliminates gear chatter and dramatically improves heat capacity
• Heavy-duty straps connect pressure plate and floater to cover - minimizes noise, provides clean release
• 26-spline x 1-1/8" input shaft compatibility - direct fit for TREMEC T56, TKO, TKX, and Magnum transmissions
• 8-bolt crank flange pattern for LSA, LSX, LT1, and LT4 engines
• Complete assembly weight: 46.4 lbs

Description

When you're pushing serious power through an LSX or LT4 engine, clutch failure isn't an option. The Tilton ST-246 was engineered from the ground up as a true performance twin-disc clutch - not an OEM-type stamped steel pressure plate with a floater tacked on as an afterthought. This is race-derived technology built for the street, drawing on Tilton's nearly 50 years of championship-winning experience in F1, NASCAR, IMSA, IndyCar, and Formula Drift.

The engineering details set the ST-246 apart. The precision-machined aluminum clutch cover shares technology with Tilton's OT-Series racing clutches, delivering higher strength, better stiffness, and superior dynamic balance compared to stamped steel competitors. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warp resistance. That floater plate runs twice the thickness of typical twin-disc setups - this eliminates gear chatter and provides dramatically better heat dissipation under hard use.

This specific kit features solid-hub cerametallic discs rated for 1,250 lb-ft of torque, delivering the positive, precise engagement characteristics needed for street/strip applications. The billet chromoly steel flywheel includes an integrated 168-tooth ring gear and precision register system that provides optimal clutch-to-flywheel balance - no loose-fitting bolts or dowels like stamped steel units. Heavy-duty straps connect the plates to the cover, minimizing noise while ensuring fast, clean releases between shifts.

Designed for Chevy LSA, LSX, LT1, and LT4 engines with 8-bolt crank flange patterns. Compatible with TREMEC T56, TKO, TKX, and Magnum transmissions via the 26-spline x 1-1/8" input shaft. This assembly does not include a pilot bearing or throwout bearing - it can be used with most OEM release bearings, or pair it with a Tilton 6000-Series hydraulic release bearing for optimal performance.

Kit Includes

• Billet chromoly steel flywheel with integrated 168-tooth ring gear (internally balanced)
• Precision-machined aluminum clutch cover
• High-mass pressure plate (proprietary racing materials)
• Heavy-duty floater plate (2x thickness vs. competitors)
• Two cerametallic clutch discs with solid-hub centers (26-spline x 1-1/8")
• Heavy-duty connecting straps
• Clutch mounting bolts
• Flywheel mounting bolts
• Spline grease
• Alignment tool
• Lifetime technical support from MDL

Note: Pilot bearing and throwout bearing not included.

Key Features

• 1.096" outer diameter x 0.590" inner diameter - sized for TREMEC input shafts
• 0.720" width provides proper input shaft support depth
• Inner landing design fits the innermost pocket of LS crankshaft flanges
• Sealed bearing construction prevents contamination and lubricant loss
• Correct bearing for LS3 T-56 conversion applications and similar setups
• Compatible with GM LS1, LS3, and LS6 engines

Description

Selecting the correct pilot bearing for an LS engine and TREMEC transmission combination is critical - the wrong bearing position or size leaves the input shaft unsupported, causing shifting issues and accelerated transmission wear. This sealed pilot bearing is engineered for applications requiring the small-diameter bearing that seats in the innermost pocket (Position A) of the LS crankshaft flange.

The 1.096" outer diameter press-fits into the inner landing of LS1, LS3, and LS6 crankshafts, while the 0.590" bore matches the pilot tip diameter of standard TREMEC T-56, Magnum, and TKO input shafts. The 0.720" width ensures adequate support depth at the pilot tip - the most critical point for maintaining input shaft alignment and preventing premature bearing failure.

Use this bearing when your transmission input shaft protrudes approximately 3/4" to 1" past the front face of the bellhousing. For T-56 conversions behind LS3 engines using aftermarket bellhousings, this is typically the correct bearing position. Always verify input shaft protrusion and crankshaft pocket dimensions before installation - the bearing should be a slight interference fit into the crankshaft. Install by pressing on the outer race only, and ensure the sealed side faces outward (toward the transmission) to retain lubrication.

What's Included

• 1x Sealed pilot bearing (1.096" OD x 0.590" ID x 0.720" width)

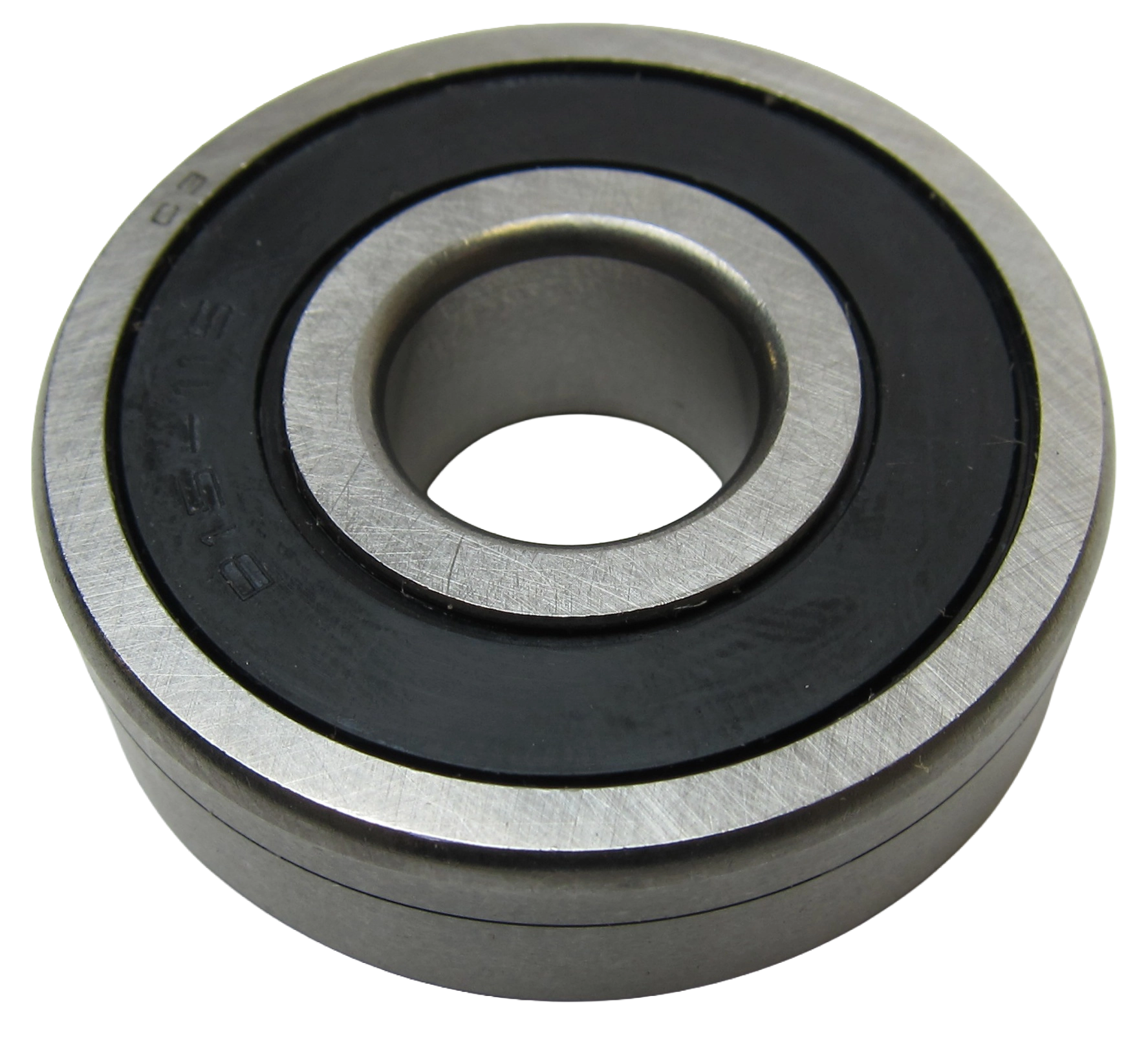

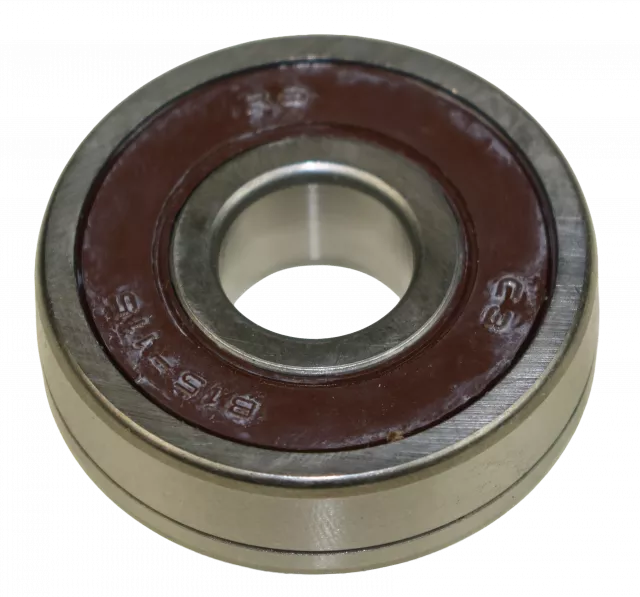

Key Features

• Oversize 1.705" outer diameter fits enlarged pilot bores in aftermarket crankshafts and GM crate engines
• 0.590" inner diameter accepts standard GM transmission input shafts
• 0.511" thick sealed roller bearing design
• Installs in the outer pocket (position "B") of the LS crankshaft flange
• Double-sealed construction allows installation in either direction
• Compatible with LS2, LS3, LS7, and LT4 applications

Description

When you're running an aftermarket crankshaft or GM crate engine with an oversized pilot bore, standard pilot bearings won't cut it. This oversize pilot bearing solves that fitment problem with a 1.705" outer diameter designed specifically for enlarged crankshaft bores. The larger OD ensures a proper press fit in the outer pocket of the crankshaft flange, maintaining the precise alignment between engine and transmission that prevents input shaft wear and shift quality issues.

The 0.590" inner diameter accepts standard GM transmission input shafts, making this bearing compatible with T56, T56 Magnum, TKO, and TKX applications when paired with the appropriate bellhousing combination. The sealed roller bearing design provides smooth, low-friction support for the input shaft pilot tip while preventing contamination from clutch dust and debris.

Double-sealed construction means you can install this bearing in either direction into the crankshaft flange. For proper installation, always use a mechanical pilot bearing puller for removal - never hydraulic methods, as many GM LS engines use a press-in oil plug deep inside the crankshaft flange that must not be disturbed. Press only on the outer race during installation and verify the inner portion spins freely once seated.

Fits LS2, LS3, LS7, and LT4 engines where the crankshaft pilot bearing bore has been machined oversize or was manufactured oversize from the factory. Always measure your crankshaft bore diameter before ordering to confirm fitment.

What's Included

• (1) Double-sealed pilot bearing - 1.705" OD x 0.590" ID x 0.511" thick

Key Features

• Heat-treated Grade 8 steel construction with 120,000 psi tensile strength for critical clutch safety
• 3/8-16 thread pitch with 1.000-inch underhead length fits dozens of Ford and Chevy applications
• Black oxide finish resists rust and corrosion in harsh automotive environments
• Hex head design with 9/16-inch wrench diameter for standard tool compatibility
• Lock washers included for secure assembly — companion nuts sold separately
• Set of 6 bolts covers complete pressure plate installation

Description

Pressure plate bolts are often overlooked until they fail — and that failure can destroy your clutch, flywheel, and bellhousing in seconds. These pressure plate bolts eliminate that risk with precision-machined Grade 8 steel construction that delivers the strength and reliability your drivetrain demands.

Each bolt is heat-treated to Grade 8 specifications, providing 120,000 psi tensile strength — the benchmark for high-stress fastener applications. The black oxide finish provides corrosion resistance while maintaining the precise tolerances needed for proper clutch operation. The hex head design uses standard 9/16-inch tooling, and the 1.000-inch underhead length ensures proper thread engagement in Ford and Chevy bellhousing applications from the ’50s forward.

These Ultra-Seal specialty fasteners replace factory hardware that may have stretched, corroded, or been lost during rebuilds. The included lock washers prevent loosening under the extreme forces generated by clutch engagement, while the precise 3/8-16 thread pitch ensures proper fit in OEM pressure plate bolt holes.

Compatible with dozens of Ford and Chevy engine applications spanning multiple decades. Each kit includes six bolts and lock washers — everything needed for complete pressure plate installation. Companion nuts are sold separately.

What's Included

• Six (6) Grade 8 steel pressure plate bolts with black oxide finish
• Six (6) steel lock washers
• 3/8-16 thread pitch x 1.000-inch underhead length
• Hex head design with 9/16-inch wrench diameter

ARP Pressure Plate Bolt Kit | GM 265-502 V8 | 3/8-16 Chrome Moly (Set of 6)

Key Features

• Premium chrome moly construction hardened to 180,000 PSI tensile strength
• 3/8-16 thread pitch with 9/16" hex head for secure tool engagement
• Black oxide finish for corrosion resistance
• Application-specific engineering ensures optimum grip length for GM V8 applications
• Forged from aerospace alloy and heat-treated prior to thread rolling
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• Set of 6 bolts for complete pressure plate installation

Description

Pressure plate bolts play a critical role in the performance and safety of any high-performance street machine or race car. Stock fasteners are engineered for economy, not durability under extreme clamping loads and high-RPM operation. When your clutch system needs to handle serious power, ARP's High-Performance Series pressure plate bolts deliver the strength and reliability that OEM hardware simply cannot match.

These bolts are manufactured from premium-grade chrome moly steel and hardened to a nominal tensile strength of 180,000 PSI--far exceeding standard factory hardware. The forging process uses aerospace alloy material that is heat-treated prior to thread rolling and machining, resulting in exceptional toughness under repeated thermal cycling and mechanical stress. ARP engineered these fasteners to be application-specific for Chevrolet 265-502 V8 engines, ensuring the optimum grip length for proper pressure plate clamping across small block and big block applications.

The exclusive hex head design with 9/16" wrench size provides superior tool engagement during installation, while the larger-than-stock shank diameter increases overall strength and improves flywheel register integrity. Black oxide finish protects against corrosion for long-term durability in demanding environments. Whether you're building a weekend warrior or a dedicated track car, these ARP fasteners eliminate the weak link in your clutch system.

Originally developed for NASCAR Cup competition, ARP fasteners are trusted by professional engine builders and racers worldwide. This kit includes everything needed for a complete pressure plate bolt replacement on GM V8 engines.

Kit Includes

• 6 - ARP chrome moly pressure plate bolts (3/8-16 thread, 9/16" hex head)
• Black oxide finish
• Manufacturer's warranty against defects

Key Features

• 0.750" bore x 1.4" stroke -- optimized bore-to-stroke ratio for hydraulic clutch conversions
• Direct OEM replacement for 1993-1997 Camaro fourth-gen F-body applications
• Small-bore, long-stroke design delivers proper fluid volume for internal and external slave cylinders
• DOT 3 or DOT 4 brake fluid compatible -- no high-temp fluid required
• Made in the USA

Description

Fourth-gen Camaro clutch hydraulics are notorious for pedal issues -- stuck pedals, spongy feel, and incomplete disengagement that makes high-RPM shifting a nightmare. This OEM-specification 0.750" bore master cylinder solves those problems with proper fluid volume delivery for 1993-1997 Camaro applications.

The engineering advantage is in the bore-to-stroke ratio. At 0.750" bore with a full 1.4" stroke, this cylinder moves the fluid volume modern slave cylinders demand -- whether you're running an internal hydraulic release bearing or an external slave setup. Undersized or short-stroke cylinders leave you with incomplete clutch release and all the shifting headaches that follow. This unit is sized to work, not just fit.

The master cylinder accepts DOT 3 or DOT 4 brake fluid -- no high-temp racing fluid required for clutch applications. It's a direct bolt-in replacement that maintains factory pedal geometry and feel, making it ideal for restorations, transmission swaps, or clutch upgrades on your fourth-gen F-body.

Built in the USA with OEM-grade construction and materials. Pair with internal hydraulic release bearings or external slave cylinders for a complete hydraulic clutch solution on T5, TKO, TKX, or T56 Magnum conversions.

What's Included

• GM clutch master cylinder, 0.750" bore x 1.4" stroke
• OEM-quality seals and construction

Key Features

• 90-degree elbow configuration for tight routing in confined spaces
• Male roll pin to male -4AN adapter for hydraulic clutch line conversion
• Steel construction with black finish for durability and corrosion resistance
• 1/4-inch line size capacity with -4AN thread sizing
• Enables use of aftermarket braided lines with factory roll pin hydraulic connections
• Ideal for transmission swaps and hydraulic clutch system upgrades

Description

Factory roll pin hydraulic connections don't always cooperate when you're upgrading to high-performance braided clutch lines or performing a transmission swap. This 90-degree elbow fitting bridges that gap, converting a male roll pin port to a male -4AN connection so you can run modern steel braided hydraulic lines to your slave cylinder or master cylinder.

The 90-degree angle is the key here—it allows clean, low-profile routing in tight quarters where a straight fitting would kink the line or interfere with adjacent components. Whether you're tucking lines behind a bellhousing or routing around exhaust, this elbow keeps your hydraulic plumbing neat and functional.

Steel construction handles the hydraulic pressure demands of performance clutch systems without flex or fatigue, while the black finish provides corrosion resistance and a clean underhood appearance. The -4AN sizing delivers optimal flow for quick clutch engagement and release—an important consideration for performance driving where pedal feel and response matter.

This fitting is commonly used in applications like GM F-Body vehicles with TREMEC T56 transmissions, as well as any build where you need to adapt factory roll pin hydraulic components to aftermarket AN-style braided lines. Installation instructions are included to guide you through the process.

Kit Includes

• One steel 90-degree elbow fitting—male roll pin to male -4AN
• Black finish
• Installation instructions

Key Features

• OE-style concentric slave cylinder (CSC) with integrated hydraulic throwout bearing
• GM quick disconnect fitting for easy high-pressure line connection
• Remote vent fitting allows bleeding outside the bellhousing
• Bolt-on installation to GM T56, Magnum, and Super Magnum six-speed transmissions
• Designed for LS engine swaps and performance builds in hot rods, muscle cars, and street rods

Description

GM-style T56 and Magnum transmissions use a concentric slave cylinder to operate the clutch release mechanism -- the CSC combines the slave cylinder and throwout bearing into a single unit that mounts to the transmission input shaft bearing retainer. This OE-style hydraulic release bearing from MDL delivers reliable clutch actuation for your LS swap or performance build, featuring a GM quick disconnect fitting that makes high-pressure line routing straightforward.

The quick disconnect fitting snaps directly onto the CSC body for fast, leak-free connections to your hydraulic clutch line. A remote vent fitting routes the bleeder port outside the bellhousing, eliminating the messy and time-consuming process of bleeding the system from inside the bell. This design is ideal for aftermarket applications where bellhousing access is limited or where you need to service the hydraulics without pulling the transmission.

Fitment includes GM LS-pattern T56, T56 Magnum, and Super Magnum six-speed transmissions when installed in aftermarket hot rod, muscle car, or street rod applications. Note that the quick disconnect fitting does protrude from the bellhousing -- if clearance is an issue in your chassis, MDL also offers a low-clearance version (MD-900-2100-LC) with flexible braided lines instead of the quick disconnect.

What's Included

• OE-style hydraulic concentric slave cylinder with integrated throwout bearing
• GM quick disconnect fitting
• Remote vent fitting

Key Features

• Billet aluminum body and piston precision-machined in-house at Tilton for race-proven street reliability
• Nearly 1.25 inches of height adjustment via stainless steel threaded sleeve - accommodates wide variety of clutch setups
• Adjustable bearing height from 1.77 inches to 3.00 inches covers most performance applications
• Full 0.700 inches of piston travel (0.450 inches typical) for complete clutch disengagement
• High-temperature mono-seal design with quad tensioner ensures proper seal tension and maximum reliability
• Dual -4AN stainless steel braided supply and bleed lines - stable pedal feel with easy bleeding access
• Direct bolt-on replacement for OE CSC mounting point on T56/Magnum front plate - no modifications required
• High-quality flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-11 inch bent-finger and lever-type clutches
• Constant-contact design self-adjusts for clutch wear and maintains consistent pedal feel throughout clutch life

Description

OEM concentric slave cylinders in GM T56 applications are notorious for heat-related failures and inconsistent pedal feel under hard use. The MD-900-2505-A solves these problems with Tilton's race-proven 6000-Series hydraulic release bearing technology, packaged as a complete bolt-on kit for GM T56, Magnum, and Magnum XL six-speed transmissions.

The engineering starts with a billet aluminum body and piston, precision-machined at Tilton's California facility. Unlike plastic-bodied OEM units that distort under heat cycling, the all-metal construction maintains tight tolerances even in demanding conditions. The high-temperature mono-seal design incorporates a quad tensioner to maintain proper seal loading - critical for consistent hydraulic pressure and long service life. This constant-contact bearing self-adjusts as your clutch wears, eliminating the need for periodic adjustment and maintaining the same pedal feel throughout the clutch's lifespan.

Installation leverages the OE CSC mounting feature on the T56/Magnum front plate, so this kit bolts directly in place of your factory hydraulic release bearing. The stainless steel threaded sleeve provides nearly 1.25 inches of height adjustability (1.77 to 3.00 inches total bearing height), accommodating everything from stock replacement clutches to aggressive racing setups. The full 0.700 inches of piston travel handles even high-clamp-load pressure plates. Dual braided stainless lines with swivel fittings provide both supply and dedicated bleed access, making system bleeding and maintenance straightforward.

Compatible with GM LS T56 and Magnum six-speed transmissions to replace the stock CSC. Also fits 2005-10 Mustang with T5/TR3650, 2007-14 Shelby GT500 TR6060, and 2011+ Mustang with MT-82/GT350 3160. The flat face bearing suits most 8.5 to 11-inch bent-finger and lever-type clutches. This is a complete kit - with MDL, there are no extras to buy.

What's Included

• Tilton 6000-Series billet aluminum hydraulic release bearing assembly
• Bolt-on adjustment mounting base with stainless steel threaded sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Complete installation instructions

Key Features

• 24-inch stainless steel braided line with 1/4-inch ID and clear plastic coating over Teflon inner lining
• GM male quick disconnect fitting to -4AN female straight fitting configuration
• Premium stainless steel crimp sleeves and stainless fittings throughout
• Pressure tested for quality assurance
• Direct replacement for failure-prone OEM plastic clutch lines
• 100% made in the USA

Description

Factory plastic hydraulic clutch lines are notorious failure points in TREMEC swaps and high-performance applications. Under heat and pressure, the OEM plastic hose expands and eventually fails--right when you need clutch actuation most. This MDL stainless steel braided line eliminates that weakness with a premium construction designed for serious drivetrain builds.

The 24-inch length with 1/4-inch ID provides flexibility for routing around exhaust components and headers while the stainless steel braided construction with Teflon inner lining delivers superior durability and heat resistance. The clear plastic coating protects the stainless braid from abrasion while providing a clean, professional appearance that lasts. Premium stainless steel crimp sleeves and stainless fittings ensure reliable connections that won't fail under high-heat racing conditions or extreme-duty street applications.

One end features a GM male quick disconnect fitting that connects directly to GM hydraulic release bearings and slave cylinders found on TREMEC applications. The other end terminates in a straight -4AN female fitting for connection to aftermarket master cylinders or additional hydraulic components. This conversion hose configuration makes it ideal for transmission swaps where you need to bridge OEM-style connections to AN-style plumbing.

Each line is pressure tested for quality assurance and manufactured to precise tolerances. Compatible with most internal and external slave cylinder setups. Proudly made in the USA.

What's Included

• 24-inch stainless steel braided hydraulic line with clear plastic coating and Teflon lining
• GM male quick disconnect fitting (transmission end)
• -4AN female straight stainless steel fitting

Key Features

• 36-inch stainless steel braided line with Teflon (PTFE) inner liner for high-heat and high-pressure clutch applications
• GM male quick disconnect fitting connects directly to GM hydraulic release bearings
• -4AN female straight fitting for universal master cylinder compatibility
• Stainless steel crimp sleeves and stainless fittings eliminate corrosion points
• Clear plastic protective coating shields braid from abrasion while maintaining clean appearance
• Pressure tested for quality assurance
• 100% made in the USA

Description

Factory GM hydraulic clutch systems use plastic hoses that expand under heat and pressure, robbing pedal feel and introducing inconsistency in high-performance applications. This premium stainless steel braided line eliminates those problems with professional-grade construction built for racing, high-heat environments, and extreme-duty transmission swaps.

The 308 stainless steel outer braid resists heat and abrasion while preventing the line expansion that plagues OEM plastic hoses. Inside, the PTFE (Teflon) inner liner provides a smooth bore for consistent fluid flow and chemical compatibility with all common brake and clutch fluids. Stainless steel crimp sleeves and fittings eliminate the corrosion and failure points common with plated hardware—every component is built to last.

At 36 inches, this line is the ideal length for most hydraulic release bearing to master cylinder installations. It routes cleanly around headers and chassis components without excessive loops that can trap air. The GM male quick disconnect plugs directly into factory-style GM hydraulic release bearings, while the -4AN female straight fitting connects to virtually any aftermarket master cylinder or adapts to OEM systems with the appropriate hardware.

The clear plastic outer coating protects the stainless braid from scratches and wear while maintaining the polished look that belongs in a show-quality engine bay. Whether you are building a street car that demands reliability or a race car that requires consistent pedal feel lap after lap, this line delivers the upgrade you can feel through the clutch pedal. Made in the USA with lifetime technical support.

Kit Includes

• 36-inch stainless steel braided hydraulic line with PTFE inner liner
• GM male quick disconnect fitting — stainless steel
• -4AN female straight fitting — stainless steel
• Clear plastic protective coating over entire line length
• Lifetime technical support

Key Features

• 24-inch stainless steel braided line with 1/4-inch ID and clear plastic coating over Teflon inner lining
• GM male quick disconnect fitting to -4AN female straight fitting configuration
• Premium stainless steel crimp sleeves and stainless fittings throughout
• Pressure tested for quality assurance
• Direct replacement for failure-prone OEM plastic clutch lines
• 100% made in the USA

Description

Factory plastic hydraulic clutch lines are notorious failure points in TREMEC swaps and high-performance applications. Under heat and pressure, the OEM plastic hose expands and eventually fails--right when you need clutch actuation most. This MDL stainless steel braided line eliminates that weakness with a premium construction designed for serious drivetrain builds.

The 24-inch length with 1/4-inch ID provides flexibility for routing around exhaust components and headers while the stainless steel braided construction with Teflon inner lining delivers superior durability and heat resistance. The clear plastic coating protects the stainless braid from abrasion while providing a clean, professional appearance that lasts. Premium stainless steel crimp sleeves and stainless fittings ensure reliable connections that won't fail under high-heat racing conditions or extreme-duty street applications.

One end features a GM male quick disconnect fitting that connects directly to GM hydraulic release bearings and slave cylinders found on TREMEC applications. The other end terminates in a straight -4AN female fitting for connection to aftermarket master cylinders or additional hydraulic components. This conversion hose configuration makes it ideal for transmission swaps where you need to bridge OEM-style connections to AN-style plumbing.

Each line is pressure tested for quality assurance and manufactured to precise tolerances. Compatible with most internal and external slave cylinder setups. Proudly made in the USA.

What's Included

• 24-inch stainless steel braided hydraulic line with clear plastic coating and Teflon lining
• GM male quick disconnect fitting (transmission end)
• -4AN female straight stainless steel fitting

Key Features

• Premium black polymer resin construction formulated for performance-level torque and temperature requirements
• White 6-speed shift pattern embedded subsurface - cannot wear off
• Universal 16mm x 1.5 internal thread accepts standard thread reducers (sold separately)
• 2-1/8" diameter provides comfortable grip and positive control
• High-impact polymer resin resists cracking and fading under extreme conditions
• Made in the USA by a manufacturer with over 70 years of shift knob expertise

Description

Shift knobs with painted or surface-applied graphics eventually fade, peel, and look worn out. This 6-speed black shift ball solves that problem with subsurface graphics that are embedded during manufacturing - the white shift pattern literally cannot wear off, no matter how many miles you put on it or how aggressively you shift.

The specially formulated high-impact polymer resin handles serious abuse. Unlike cheap plastic knobs that crack under temperature extremes or hard use, this material is engineered specifically for performance applications where torque loads and heat cycling push lesser materials past their limits. The 2-1/8" diameter strikes the right balance between palm-filling grip and nimble throws during spirited driving.

Designed with a universal 16mm x 1.5 internal thread, this shift ball works with Ford, GM/Chevy, and Mopar applications when paired with the appropriate thread reducer. Standard SAE sizes like 1/2"-20, 3/8"-16, and 7/16"-20, plus metric options from 8mm to 12mm, are all compatible with readily available brass thread adapters. If you're unsure what thread size is on your shift lever, MDL's tech team can help you identify the correct reducer - just call 208-453-9800.

Built in the USA by a manufacturer that has been shifting gears since 1952, this shift ball delivers the quality, precision, and durability that OEM, aftermarket, and custom builders have relied on for over seven decades.

What's Included

• (1) Black polymer resin shift ball with white 6-speed pattern
• 16mm x 1.5 internal thread (thread reducers sold separately)

Key Features

• Subsurface 6-speed shift pattern permanently integrated into material - graphics cannot wear off, fade, or peel
• High-impact polymer resin engineered specifically for performance-level torque and temperature demands
• Universal 16mm x 1.5 internal threading accepts thread reducers for compatibility with virtually any shift lever
• 1-7/8" diameter provides substantial grip surface for positive engagement [VERIFY: Custom field shows 2-1/8in while description states 1-7/8in]
• Clean white finish with bold black 6-speed pattern graphics
• Made in the USA by a manufacturer producing shift knobs since 1952

Description

Put the correct gate positions right at your fingertips with this 6-speed shift knob. Whether you're learning a new transmission layout or making split-second shifts under pressure, the bold black shift pattern gives you instant visual reference without taking your eyes off the road. The graphics aren't a decal or printed surface - they're applied subsurface during manufacturing, making them permanently integrated into the knob material where they cannot wear off, fade, or peel regardless of use.

The polymer construction is engineered specifically for drivetrain duty. This specially formulated high-impact polymer resin is designed to meet performance-level torque and temperature requirements, handling the stress and heat cycles that come with hard shifting better than cheaper materials. The 1-7/8in diameter provides substantial surface area for a secure grip without being oversized or bulky.

Universal 16mm x 1.5 internal threading makes this knob compatible with virtually any shift lever when paired with the appropriate thread reducer (sold separately). Thread reducers allow adaptation to common metric sizes like 8mm, 10mm, and 12mm, as well as SAE thread pitches found on domestic Ford, GM, and Mopar applications. If you're unsure what thread size your shift lever uses, MDL's tech support can help you identify the correct adapter.

Manufactured in the USA by a company that's been producing quality shift knobs since 1952. Their commitment to quality, precision, and style has made them a trusted supplier to OEM, aftermarket, Classic, Custom, and Hot Rod industries. Compatible with Chevy, BOP (Buick/Oldsmobile/Pontiac), Ford, and Mopar transmissions when used with the appropriate thread reducer for your specific shift lever.

What's Included

• 1 white polymer shift knob with black 6-speed pattern
• 16mm x 1.5 female threading (thread reducer sold separately if needed)

Key Features

• High-impact polymer resin construction - specially formulated for performance-level torque and temperature requirements
• Subsurface white 6-speed shift pattern graphics - permanently embedded, will not wear off
• 16mm x 1.50 brass master insert - exceeds industry spec of 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• 1-7/8" diameter ergonomic design with high-gloss polished finish
• 4-ounce weight - balanced for precise shifting feel
• Jam nut included for secure installation
• Made in the USA

Description

Worn, faded shift knobs kill the look of an otherwise clean build - and cheap replacements crack, fade, or spin loose within a season. MDL's 6-Speed Black Shift Ball solves both problems with a high-impact polymer resin formulation specifically engineered for the automotive industry. This isn't generic plastic - it's a performance-grade compound designed to resist stress cracking with age while handling the torque and temperature extremes of hard driving.

The white 6-speed shift pattern is subsurface - meaning it's embedded beneath the outer layer, not printed or painted on top. It won't wear off from palm contact, won't fade from UV exposure, and won't peel at the edges. The 16mm x 1.50 brass master insert is equally overbuilt, exceeding the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque. Precision machining and polishing deliver a high-gloss finish that looks as good as it feels.

The 16mm thread pitch fits most aftermarket performance shifters directly. If your shifter uses a different thread size, MDL stocks thread adapters to match - just know your shifter's thread pitch when ordering so we can recommend the right reducer. This universal approach makes the shift ball compatible with Ford, GM, and Mopar applications when properly matched to your shifter.

At 4 ounces with a 1-7/8" diameter, this shift ball delivers ergonomic comfort and balanced weight for crisp, confident throws. Made in the USA with the quality standards serious builders demand.

What's Included

• MDL 6-speed black shift ball with white subsurface pattern graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure installation

Key Features

• Laser-etched 6-speed shift pattern - permanent, cannot wear off
• Brushed aluminum finish for superior grip and modern aesthetics
• 16mm x 1.5 thread with brass insert for secure mounting
• 1-7/8 in. diameter for comfortable, ergonomic grip
• Universal fitment with thread reducer adapters available separately
• Made in the USA

Description

When you're wrapping up a TREMEC swap or upgrading your 6-speed shifter setup, a flimsy plastic shift ball doesn't match the level of hardware underneath it. This brushed aluminum shift ball delivers the tactile feedback and professional appearance your build deserves, with a laser-etched 6-speed pattern that's permanently embedded into the surface - no fading, peeling, or wearing off over thousands of shifts.

The brushed aluminum finish provides superior grip compared to smooth plastic alternatives, giving you confident control during aggressive driving. The 16mm x 1.5 threaded brass insert ensures secure mounting and threads directly onto compatible shifters. For shift levers with different thread sizes, MDL stocks a full range of thread reducing adapters to match your specific application - whether you're running an '83-'04 Mustang lever (10mm x 1.50), a 2005+ Mustang setup (12mm x 1.25), or other configurations.

Built with precision and finished in the USA, this shift ball combines quality construction with the correct 6-speed gate pattern (reverse to the right and up) for TREMEC T56, Magnum, and similar transmissions. The universal 16mm master thread makes it adaptable to virtually any aftermarket shifter with the right reducer insert.

What's Included

• Brushed aluminum shift ball with laser-etched 6-speed pattern
• 16mm x 1.5 brass threaded insert
• Jam nut

Key Features

• Laser-etched 6-speed shift pattern - permanent marking that won't wear, fade, or rub off
• Gray brushed aluminum finish for a clean, modern cockpit aesthetic
• 2-1/8" diameter provides comfortable palm grip for quick, confident shifts
• Polymer resin construction resists wear while keeping weight down
• Universal 16mm thread accepts standard thread adapters (sold separately)
• Made in the USA

Description

Printed and painted shift patterns wear off - it's only a matter of time before your gate markings fade into an unreadable smear. MDL's 6-speed shift ball solves that problem permanently. The shift pattern is laser-etched directly into the surface, creating a crisp, deep marking that stays readable for the life of the knob regardless of how many shifts you put through it.

The gray brushed aluminum finish delivers a subdued, professional look that complements both classic and modern interiors without screaming for attention. At 2-1/8" diameter, the ball offers enough surface area for a solid palm grip while remaining ergonomic for quick gate-to-gate movement. Polymer resin construction keeps the ball durable and lightweight - you won't be fighting unnecessary mass when banging through gears.

The universal 16mm internal thread is designed to work with thread adapters, making this shift ball compatible with virtually any shifter application. MDL stocks adapters for the most common thread sizes - if you're not sure what thread your shifter has, contact the MDL tech team at 208-453-9800 before ordering to ensure you get the right adapter. Made in the USA.

What's Included

• One 6-speed shift ball with laser-etched pattern
• Gray brushed aluminum finish, polymer resin construction
• 16mm internal thread
• MDL lifetime technical support

Note: Thread adapters sold separately. Contact MDL at 208-453-9800 to determine the correct adapter for your shifter.

Key Features

• 2-1/8" diameter polished aluminum construction for optimal grip and control
• Laser-engraved 6-speed shift pattern on top -- won't fade, chip, or wear off
• MDL logo engraved on the side for authentic branding
• 16mm x 1.50 thread pitch -- compatible with most shifters when paired with MDL thread reducers
• 4-ounce weight provides solid, positive shifts without excessive mass
• Made in the USA

Description

Finish your 6-speed swap the right way. This polished aluminum shift ball from MDL delivers the premium look and feel that separates a proper build from a parts-bin project. The 2-1/8" diameter provides the ideal grip size -- large enough for confident throws under hard driving, compact enough to clear console-mounted components without interference.

The laser-engraved 6-speed shift pattern on top gives you clear gear position reference that will never fade, chip, or wear off over years of aggressive shifting. Unlike printed or embossed patterns that deteriorate with use, the engraving is cut directly into the aluminum surface for permanent legibility. The MDL logo on the side confirms you're running genuine Modern Driveline equipment.

This shift ball features 16mm x 1.50 threading, which is the universal standard for aftermarket shift knobs. MDL stocks thread reducing inserts that adapt the 16mm bore to fit popular shifter thread sizes including 8mm-1.25, 9mm-1.25, 12mm-1.75, and 3/8-24, ensuring compatibility across Ford, GM, and Mopar applications. The 4-ounce weight provides substantial feel in your palm without the excessive mass that can accelerate shifter wear or create unwanted momentum during rapid gear changes.

Proudly made in the USA, this shift ball represents the fit, finish, and attention to detail that serious builders expect from MDL. Grab it, shift it, go.

What's Included

• One polished aluminum shift ball (2-1/8" diameter)
• Laser-engraved 6-speed shift pattern on top
• MDL logo engraved on side
• 16mm x 1.50 internal threading

Note: Thread reducing insert sold separately -- see MDL thread reducers for your specific shifter application.

6-Speed White Shift Ball | 16mm x 1.50 Thread | High-Impact Polymer Resin

Key Features

• 1-7/8" diameter white polymer resin ball with crisp 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics embedded during manufacturing - cannot wear, fade, or peel
• High-impact polymer resin formulated for performance-level torque and temperature cycling
• 4-ounce weight for positive shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Thread adapters available for non-16mm shift levers
• Made in the USA

Description

Worn shift knobs with faded patterns and loose threads make every gear change feel sloppy. This 6-speed polymer resin shift ball delivers the crisp, confident feel your transmission deserves. The high-impact polymer resin is specifically formulated for automotive applications - engineered to resist stress cracking from temperature cycling and aging that destroys cheaper plastic alternatives.

The 16mm x 1.50 brass master insert is the heart of this shift ball's durability. Tested to exceed automotive industry standards of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, it won't strip, loosen, or fail under aggressive shifting. The included jam nut locks everything in place for rattle-free operation. At 4 ounces, the ball provides just enough heft for positive shift engagement without the excessive weight that can mask transmission feedback.

Unlike painted or applied graphics that wear off after a few months, the 6-speed shift pattern on this ball is subsurface - embedded during the manufacturing process where it's protected from your palm, UV exposure, and cleaning chemicals. The precision-machined surface is polished to a high-gloss finish that resists scratching and maintains its appearance over years of use.

This shift ball fits any 16mm threaded shift lever directly. Running a different thread size? MDL stocks thread adapters to fit most common shift lever configurations - just confirm your lever's thread pitch when ordering. Quality American manufacturing ensures consistent tolerances and reliable performance from a company that's been shifting gears since 1952.

What's Included

• White 6-speed high-impact polymer resin shift ball (1-7/8-inch diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics that cannot wear off from use
• 2-1/8" diameter with 6-speed shift pattern and pearl gray racing stripes
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shifting feel
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Cheap shift knobs crack, fade, and strip out under hard use. The R-Series shift ball solves those problems with a specially formulated high-impact polymer resin engineered specifically for the demands of performance driving. This isn't generic plasticit's purpose-built material that won't develop stress cracks with age and maintains its finish through years of daily driving and spirited shifting.

The 16mm x 1.50 brass master insert is where this shift ball proves its worth under load. It exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque test, so it won't strip out or work loose when you're rowing through gears hard. The 6-speed shift pattern and pearl gray racing stripes are subsurface graphicsembedded within the material itself rather than printed on topso they cannot wear off no matter how many miles you put on them.

At 2-1/8" diameter and 4 ounces, the R-Series delivers a substantial grip surface without adding excessive weight to your shift lever. The precision-machined construction is polished to a high-gloss finish that looks right at home in everything from a classic muscle car to a modern build. Thread adapters are available separately if your shift lever uses something other than the standard 16mm x 1.50 threading. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• R-Series black shift ball with pearl gray racing stripes and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• Premium 2-1/8" diameter high-impact polymer resin construction engineered for performance torque and temperature demands
• Subsurface red racing stripe graphics that cannot wear off, fade, or chip -- not surface-applied decals
• Precision-machined 16mm x 1.50 brass master insert for superior thread engagement and durability
• 6-speed shift pattern clearly marked -- stripe design does not interfere with pattern visibility
• Lightweight 4-ounce design for optimal shift feel and quick gear changes
• Includes brass jam nut for secure installation
• Thread adapters available separately for compatibility with various shifter lever thread sizes
• Made in the USA by a manufacturer with 65+ years of shift knob expertise

Description

The R-Series shift ball delivers premium quality and lasting durability for 6-speed manual transmission builds. Constructed from specially formulated high-impact polymer resin, this 2-1/8" diameter knob is engineered to withstand the torque loads and temperature extremes that come with spirited driving -- no cracking, fading, or degradation over time.

What sets the R-Series apart is its subsurface graphics. The red racing stripes are embedded beneath the surface, meaning they physically cannot wear off no matter how many thousands of shifts you throw. The stripe design is deliberately positioned so it does not run through the 6-speed shift pattern, keeping your gate reference clear and legible during aggressive driving. At just 4 ounces, the shift ball maintains optimal weight balance for crisp, precise shifts without excessive mass slowing down quick gear changes.

The precision-machined brass master insert features 16mm x 1.50 threading and comes with a brass jam nut for secure mounting. If your shifter lever uses a different thread pitch, thread adapters are available separately -- contact us with your specific shifter thread size and we'll recommend the correct adapter for your application.

This shift ball comes from a manufacturer that has been shifting gears since 1952. Their commitment to quality, precision, and style has made them a leading supplier for OEM, aftermarket, classic, custom, and hot rod applications. Made in the USA.

What's Included

• One (1) R-Series black shift ball with red racing stripe, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter for optimal palm grip and precise shift feel
• 6-speed shift pattern in contrasting white racing stripe design
• 4-ounce weight balances comfortable grip with controlled shift momentum
• High-gloss scratch-resistant finish maintains appearance through years of use
• Includes jam nut for secure lever mounting
• Made in the USA since 1952

Description

Worn shift knobs with faded patterns and stripped threads are more than cosmetic problems - they compromise shift accuracy and driver confidence. The R-Series 6-Speed Shift Ball delivers the durability and precision your build demands, constructed from specially formulated high-impact polymer resin designed to handle performance-level torque loads and temperature extremes without cracking, fading, or becoming tacky in summer heat.

What separates this shift ball from generic alternatives is the subsurface graphic process. The white racing stripe and 6-speed shift pattern are embedded within the polymer during manufacturing - not silk-screened, etched, or applied as a surface coating. They physically cannot wear off, no matter how many shifts you bang through. The 16mm x 1.50 brass master insert provides the foundation for this durability, exceeding the auto industry's specification of 200 ft-lb static pull and 20 ft-lb twist torque testing.

At 2-1/8" diameter and 4 ounces, this shift ball strikes the ideal balance between palm-filling grip and controlled shift momentum. The high-gloss black finish resists scratches and maintains its showroom appearance through daily driving or weekend track sessions. The included jam nut locks the ball securely to your shift lever, eliminating loosening during aggressive shifting.

Thread adapters are available separately if your shift lever uses a different thread pitch than the 16mm x 1.50 master insert - contact MDL's tech team if you need help identifying your lever's thread size. Built in the USA by a manufacturer that has been shifting gears since 1952, bringing OEM-level quality and precision to classic, custom, and hot rod applications.

What's Included

• One (1) R-Series black shift ball with white racing stripe and 6-speed pattern
• One (1) 16mm x 1.50 brass master insert (pre-installed)
• One (1) jam nut

Key Features

• 2-1/8" diameter gray polymer resin ball with white rally stripe that does not interfere with shift pattern visibility
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• High-impact polymer resin formulated for performance-level temperature and torque demands without stress cracking
• Subsurface graphics that cannot wear off during use
• 4-ounce weight for balanced shift feel
• Precision-machined construction with high-gloss polished finish
• Includes brass jam nut; thread reducers available separately for compatibility with various shifter applications
• Made in the USA

Description

Upgrade your 6-speed manual with this R Series shift ball that delivers classic rally aesthetics and engineered durability in a single package. The 2-1/8" diameter provides comfortable grip for spirited driving, while the white rally stripe adds period-correct styling without cluttering shift pattern visibility.

Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball withstands aggressive shifting and engine bay heat without developing the stress cracks common in inferior materials. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry specifications, tested to 200 ft. lbs. static pull and 20 ft. lbs. twist torque resistance for secure, worry-free mounting.

Subsurface graphics resist wear and fading, maintaining their appearance through years of hard use. At 4 ounces, this shift ball delivers the right balance of mass for crisp, positive shifts without excessive weight that could stress shifter components. The high-gloss polished finish adds a premium look to any interior.

Thread reducers are available separately to adapt the 16mm x 1.50 master insert to match your specific shifter thread size. Proudly made in the USA with the quality and precision that has been shifting gears since 1952.

What's Included

• Gray polymer resin shift ball with white rally stripe and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (factory installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics embedded into the material - will not wear off or fade
• 2-1/8" diameter white base with black rally stripes that wrap around the 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shift feel
• Precision machined and polished to a high gloss finish
• Made in the USA

Description

Factory plastic shift knobs crack, fade, and wear out - the graphics rub off, the threads strip, and the whole thing looks tired after a few seasons of hard use. The R-Series shift ball solves these problems with purpose-built construction designed for real driving conditions.

This 2-1/8" diameter shift knob is molded from a specially formulated high-impact polymer resin engineered specifically for automotive applications. Unlike generic plastics, this material is designed not to develop stress cracks with aging, handling the thermal cycling and mechanical stress of performance driving. The black rally stripes are subsurface - embedded into the white base material rather than printed or painted on top - creating a smooth finish that stays sharp shift after shift.

The 16mm x 1.50 brass master insert is the foundation of this knob's durability. This solid brass threading exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, ensuring it won't strip or fail when you're rowing through gears under load. At 4 ounces, the weight provides positive shift engagement without excessive mass that can stress your synchros. Each knob is precision machined and polished to a high gloss finish.

The 16mm master insert requires a thread reducing adapter (sold separately) to fit your specific shift lever thread size - contact MDL if you need help selecting the correct adapter for your application. A brass jam nut is included for secure installation that prevents loosening during spirited driving. Made in the USA with the quality and precision that serious builders demand.

What's Included

• One (1) R-Series 2-1/8" white polymer resin shift ball with black rally stripes and 6-speed shift pattern
• One (1) 16mm x 1.50 brass master insert (installed)
• One (1) brass jam nut

Thread reducing adapters sold separately - contact MDL to select the correct adapter for your shift lever thread size.

Key Features

• Premium 2-1/8" diameter white polymer resin construction with gray rally stripes
• Subsurface graphics bypass the 6-speed shift pattern and will not wear off
• 16mm x 1.50 brass master insert with included jam nut
• High-impact polymer resin formulated for performance torque and temperature demands
• 4-ounce weight delivers optimal shifting feel and inertia
• Master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add race-inspired style to your 6-speed manual with the R-Series shift ball. This premium 2-1/8" diameter white shift knob features crisp gray rally stripes that bypass the shift pattern for clean gear identification. Unlike painted or pad-printed graphics that wear away with use, the rally stripe graphics on this shift ball are subsurface-printed and physically cannot wear off, ensuring your interior looks sharp for years of spirited driving.

The R-Series is built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements. This isn't generic plastic that will crack, fade, or become brittle with age. The precision-machined construction is polished to a high-gloss finish that resists stress cracking even after years of exposure to heat cycles and UV. At 4 ounces, the shift ball provides just enough mass for crisp, satisfying throws without adding excessive weight that slows down quick shifts.

A 16mm x 1.50 brass master insert is pre-installed and includes a jam nut for secure, rattle-free mounting. The brass insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, meaning this knob stays put no matter how hard you row through the gears. For shifter levers with different thread pitches, MDL stocks a range of thread adapters. Know your shifter's thread size when ordering so the correct adapter can be recommended for proper fitment.

Made in the USA by a manufacturer that has been shifting gears since 1952, the R-Series represents decades of expertise in precision shift knob manufacturing. Compatible with any 6-speed manual transmission application when paired with the appropriate thread adapter.

Kit Includes

• White polymer resin shift ball with gray rally stripes (2-1/8" diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface flame graphics embedded beneath clear coat - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• 2-1/8" diameter translucent blue construction - 4 oz. total weight
• Precision machined and polished to high-gloss finish
• Stress-crack-resistant formula developed specifically for automotive applications
• Made in the USA

Description

Cheap shift knobs crack, fade, and spin loose. This Flame Series knob is built to handle real driving - the kind where you're banging through gears under load and your interior sees triple-digit heat cycles every summer. The specially formulated high-impact polymer resin was developed specifically for the automotive industry, engineered to resist stress cracking as it ages while standing up to the torque and temperature demands of performance shifting.

The bold flame graphics aren't printed or painted on top - they're embedded subsurface beneath the translucent blue finish. That means they physically cannot wear off, chip, or fade no matter how many miles you put on them. The 16mm x 1.50 brass master insert provides superior thread engagement and exceeds the auto industry's specification of 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance. This knob stays put.

Each 2-1/8" diameter knob is precision machined and polished to a high-gloss finish that catches light and complements any interior. At just 4 ounces, it adds visual impact without deadening shift feel. The included jam nut locks everything in place. Thread adapters are available separately if your shift lever uses a different thread pitch - just confirm your shifter's thread size when ordering so we can recommend the right adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

Kit Includes

• Translucent blue Flame Series shift knob (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Premium 2-1/8" diameter translucent green shift knob with bold flame graphics
• Specially formulated high-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics embedded into the material - cannot wear off or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Lightweight 4-ounce design for quick, precise shifts
• Thread adapters available for other shifter thread sizes
• Made in the USA with manufacturing heritage since 1952

Description

Add aggressive hot rod style to your shifter with this Flame Series translucent green shift knob. The vivid flame graphics aren't just printed on the surface - they're embedded beneath the outer layer using subsurface technology, which means they won't wear off, scratch away, or fade no matter how many miles you put on them.

This isn't bargain-bin plastic. The knob is molded from a specially formulated high-impact polymer resin developed specifically for automotive applications. The formula resists stress cracking as the material ages and handles the temperature swings inside a hot engine bay without degrading. The 16mm x 1.50 brass master insert provides serious holding power, exceeding auto industry specifications with 200 ft. lbs. of static pull resistance and 20 ft. lbs. of twist torque capacity - far beyond what you'll ever put through it during aggressive shifting.

At just 4 ounces, this knob delivers a premium feel without adding unnecessary mass to your shifter assembly. Each knob is precision machined and polished to a high-gloss finish for a smooth, professional look and feel. The 2-1/8" diameter provides comfortable grip and confident lever control during spirited driving.

This knob features a 16mm x 1.50 thread and includes a brass jam nut. Thread adapters are available separately to fit other shifter thread sizes - just confirm your shifter's thread pitch when ordering so we can recommend the correct adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series translucent green shift knob (2-1/8" diameter) with subsurface flame graphics
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Flame Series Shifter Ball | Ivory with Red Flames | 2-1/8" Polymer Resin | 16mm Thread

Key Features

• Premium high-impact polymer resin construction - formulated for performance-level torque and temperature demands
• Subsurface flame graphics that cannot wear off, peel, or fade
• 2-1/8-inch diameter for optimal grip and control
• 16mm x 1.50 brass master insert - exceeds industry specs for 200 ft-lbs static pull and 20 ft-lbs twist torque
• Lightweight 4-ounce design for crisper shifts
• High-gloss polished finish resists stress cracking with age
• Includes jam nut for secure installation
• Made in the USA

Description

Bring classic hot rod style to your shifter with this Flame Series ball featuring bold red flames over a translucent ivory base. The 16mm x 1.50 thread pattern works with MDL's thread adapters to fit virtually any manual transmission shifter stick, making this a universal upgrade for your interior.

The polymer resin construction is engineered specifically for automotive applications - formulated to handle the heat cycles, UV exposure, and stress loads that would crack lesser materials over time. Unlike cheap printed or painted knobs, the flame graphics are embedded beneath the surface during manufacturing, so they'll never peel, scratch, or fade no matter how many miles you put on your build. The brass master insert is precision-machined and tested beyond OEM requirements, exceeding 200 ft-lbs of static pull strength and 20 ft-lbs of twist torque resistance.

At 2-1/8 inches in diameter, this shifter ball delivers excellent grip without being cumbersome. The 4-ounce weight adds just enough mass for smooth, positive shifts without making the lever feel sluggish. Every knob is precision-polished to a high-gloss finish that resists the stress cracking common in cheaper plastic alternatives.

MDL stocks thread adapters for common shifter thread sizes including 3/8-16, 3/8-24, 5/16-18, 7/16-20, 1/2-13, and 1/2-20 - contact us with your shifter thread size if you need an adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series shifter ball - translucent ivory base with red flame graphics
• 16mm x 1.50 brass master insert - precision-machined
• Jam nut for secure mounting

Key Features

• Translucent red polymer resin with embedded flame graphics
• 2-1/8" diameter precision machined and polished to high gloss finish
• 16mm x 1.50 brass master insert with included jam nut
• Subsurface graphics that cannot wear off
• Exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specs
• High-impact polymer resin formulated to resist stress cracking with age
• 4 oz. weight for positive shift feel
• Made in the USA

Description

Add some heat to your shifter with the Flame Series shift knob in translucent red. This 2-1/8" diameter shift ball features embedded flame graphics beneath the surface, so your design stays sharp through years of hard shifting rather than wearing away like printed or painted alternatives.

Built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements, this shift knob resists the stress cracking that plagues lesser materials over time. The 16mm x 1.50 brass master insert exceeds automotive industry specifications, handling 200 ft. lbs. of static pull and 20 ft. lbs. of twist torque. Each knob is precision machined and polished to a high gloss finish that catches light through the translucent resin.

At 4 ounces, this shift ball adds just enough heft for a confident, weighted feel without slowing down your shifts. The 16mm master thread works with MDL's thread reducing inserts for universal compatibility with virtually any shift lever. Know your shift lever thread size when ordering so we can recommend the correct adapter if needed.

Manufactured in the USA by a company that has been shifting gears since 1952, these polymer shift knobs represent decades of refinement in quality, precision, and style for OEM, aftermarket, classic, custom, and hot rod applications.

What's Included

• One 2-1/8" diameter translucent red shift ball with flame graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Translucent yellow polymer with subsurface red flame graphics that cannot wear off
• 2-1/8" diameter for positive grip and confident shifts
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design reduces shift lever mass
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• High-impact polymer resin formulated to resist stress cracking with age
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add classic hot rod style to your shifter with the Flame Series shift ball. This 2-1/8" diameter knob features translucent yellow polymer construction with bold red flame graphics molded beneath the surface--they will never fade, chip, or wear off no matter how many miles you put on the car.

The shift ball is constructed from high-impact polymer resin specifically formulated for automotive applications to resist stress cracking as it ages. At its core is a precision-machined 16mm x 1.50 brass master insert that delivers rock-solid thread engagement. The brass insert is engineered to exceed automotive industry specifications, tested to 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque. At just 4 ounces, the knob provides positive feedback without adding unnecessary mass to your shift lever.

Thread adapters are available separately to fit various shift lever thread sizes--contact MDL with your shift lever thread pitch to get matched with the correct adapter. This shift ball comes from a manufacturer with over 70 years of experience serving OEM, aftermarket, classic, custom, and hot rod applications. Precision machined and polished to a high-gloss finish. Made in the USA.

Kit Includes

• Flame Series shift ball--translucent yellow polymer with red flames, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• CNC-machined from solid billet aluminum for maximum rigidity and precise shifts
• Black anodized finish for durable corrosion resistance and professional appearance
• 8-inch straight lever design for optimal reach and shift feel
• Direct bolt-on fitment for TREMEC TKO-500, TKO-600, T-5, T-45 and T-56 with standard 2-bolt flange
• Also compatible with Richmond LGT 700 transmissions
• 3/8"-16 threaded stud accepts most aftermarket shift knobs
• Mounting holes: 3/8-inch diameter on 7/8-inch center-to-center spacing

Description

Factory shift levers are stamped steel compromises. This Bowler Performance billet aluminum shift lever eliminates flex and delivers the solid, precise feel that serious builds demand. CNC-machined from solid billet aluminum, the 8-inch straight design provides clean aesthetics and ergonomic positioning without kickback angle, making it ideal for applications where a vertical lever orientation works best.

The black anodized finish resists corrosion and looks sharp against any interior, whether you are building a pro-touring restomod or a dedicated track car. Unlike hollow or stamped levers, this solid billet construction means zero flex under aggressive shifting, translating your input directly to the transmission for positive gear engagement every time.

Designed specifically for TREMEC transmissions, this lever features direct bolt-on fitment for TKO-500, TKO-600, and T-56 transmissions equipped with the standard 2-bolt mounting flange. It is also compatible with Richmond LGT 700 units. The 3/8"-16 threaded stud at the top accepts most aftermarket shift knobs, letting you complete your interior exactly how you want it. Mounting holes are 3/8-inch diameter on 7/8-inch center-to-center spacing for secure, vibration-free installation.

What's Included

• Black anodized billet aluminum shift lever (8-inch, straight)
• Installation hardware

Key Features

• Precision-machined billet aluminum construction for maximum rigidity and zero flex
• Direct bolt-on fitment for TKO-500, TKO-600, T56, and T-5 shifters with standard 2-bolt flange
• Industrial through pocket design for clean shift knob mounting and structural strength
• 3/8"-16 threaded stud with included half nut for secure knob attachment
• 0.890" center-to-center bolt pattern with 3/8" diameter mounting holes
• 8" straight lever length positions knob at optimal height without tunnel mods
• Brushed aluminum finish for a professional, refined appearance
• Complete mounting hardware included for bolt-on installation

Description

Factory plastic shift levers flex under hard shifts and look out of place in a performance build. This Bowler billet aluminum lever solves both problems with precision-machined construction that delivers direct, solid shift feel while upgrading your interior aesthetics. The 8" straight design maintains stock shift geometry and throw while eliminating the sloppy flex inherent in OEM plastic levers.

The industrial through pocket design is what sets this lever apart from cheap alternatives. Rather than a simple drilled hole for the shift knob stud, the through pocket provides superior strength at the critical stress point where flex would otherwise occur. The 3/8"-16 threaded stud is machined directly into the lever body, not pressed in—so it stays put for the life of the lever regardless of how often you swap knobs.

Fitment is direct bolt-on for TREMEC TKO-500, TKO-600, and T56 transmissions equipped with the standard 2-bolt shifter flange, as well as the LGT 700. The mounting holes measure 3/8" diameter on 0.890" center-to-center spacing—matching the TREMEC factory pattern exactly. The brushed aluminum finish resists corrosion and complements both classic muscle car interiors and modern pro-touring builds.

Kit Includes

• 8" straight brushed billet aluminum shift lever
• 3/8"-16 half nut for shift knob mounting
• Mounting hardware

Key Features

• Direct bolt-on billet aluminum shifter lever for TREMEC and Borg Warner transmissions
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Straight 6" design for traditional shifter positioning
• Machined groove for secure shifter boot attachment
• 3/8"-16 thread for universal shift knob compatibility
• Machined billet steel mounting stud, drilled and countersunk for included metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Worn, bent, or sloppy factory shift levers kill the driving experience in a performance build. This Lokar 6" straight billet aluminum shift lever delivers the solid, precise engagement that gearheads demand from their drivetrain. Machined from billet aluminum, this direct bolt-on lever replaces factory plastic or stamped steel sticks with a piece that looks as good as it feels in your hand.

Designed for TREMEC and Borg Warner manual transmissions, this lever fits the T5, T45, T56, TKO, and T56 Magnum with the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The straight 6" design provides classic shifter positioning, ideal for builds where you want the knob closer to the dash or a more upright throw.

Lokar engineered this lever with a machined mounting stud that's drilled and countersunk for the included metric cap screws, ensuring a clean, professional installation with no exposed bolt heads. The machined groove around the lever provides a secure attachment point for your shifter boot, keeping debris out and maintaining a finished interior appearance. The 3/8"-16 thread at the top accepts virtually any aftermarket shift knob.

Backed by a manufacturer lifetime warranty and made in the USA, this Lokar shift lever delivers the quality and precision that serious builders expect.

What's Included

• 6" straight billet aluminum shift lever
• Metric cap screws for mounting
• Jam nut

Key Features

• 6-inch straight billet aluminum lever with black anodized Midnight Series finish
• Direct bolt-on fitment for TREMEC and Borg Warner shifters with standard 2-bolt flange (7/8 in. center-to-center)
• Machined billet steel mounting stud, drilled and countersunk for included metric cap screws
• 3/8"-16 knob thread accepts most aftermarket shift knobs
• Fits T5, T45, T56, TKO-500, and TKO-600 transmissions
• Lifetime manufacturer warranty, made in the USA

Description

Stock shift levers often leave you reaching too far forward or fighting a bent design that compromises throw feel. This Lokar Midnight Series 6-inch straight shift lever solves that problem with a direct, no-bend design that puts the knob exactly where your hand naturally falls. The black anodized billet aluminum construction delivers the durability and precision that serious builds demand while complementing modern performance interiors.

Engineered as a direct bolt-on replacement for TREMEC and Borg Warner manual transmission shifters, this lever fits any shifter with the standard 2-bolt flange measuring 7/8 in. center-to-center between bolt holes. That covers T5, T45, T56, TKO-500, and TKO-600 applications. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering a clean installation with no visible fastener heads above the mounting plate.

The 6-inch length provides ideal leverage for quick, confident shifts without excessive throw. Standard 3/8"-16 threads at the top accept virtually any aftermarket shift knob, giving you full control over the final look and feel. Backed by Lokar's lifetime manufacturer warranty and made in the USA, this lever brings American craftsmanship to your drivetrain.

Kit Includes

• 6-inch straight black anodized billet aluminum shift lever
• Machined billet steel mounting stud
• Metric cap screws
• Lokar lifetime manufacturer warranty

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Converts 16mm internally-threaded shift knobs to fit 10mm x 1.25 threaded shift levers
• Includes both reducing insert and jam nut for secure, rattle-free installation
• Enables retention of your existing shift knob when upgrading to a new transmission or shifter
• Simple installation with basic hand tools

Description

Thread pitch mismatches are one of the most frustrating surprises when upgrading your drivetrain. You finally get your new TREMEC or aftermarket shifter installed, only to find your favorite shift knob won't thread onto the new lever. This thread reducing insert solves that problem by converting 16mm internally-threaded shift knobs to fit 10mm x 1.25 metric shift levers.

The adapter works in both directions: retain that worn-in shift knob you love when upgrading to a new shifter, or install a new 16mm-threaded knob on your existing 10mm x 1.25 lever. Simply thread the reducer onto your shift lever, then thread your knob onto the adapter. The included jam nut locks everything in place, preventing loosening during aggressive shifts.

MDL stocks a full range of thread reducing inserts covering the most common shift knob and lever thread combinations. If you don't see the thread size you need, call 208-453-9800.

What's Included

• Thread reducing insert - 16mm external threads to 10mm x 1.25 internal threads
• Jam nut - secures adapter position on shift lever

Key Features

• Converts 16mm x 1.50 shift knob threads to 10mm x 1.50 shift lever threads
• Direct fit for 1983-2004 Ford Mustang shift levers
• Includes jam nut to lock insert in place and prevent loosening
• Keep your favorite shift knob when upgrading to a new transmission or shifter
• Mount any 16mm-threaded knob to 10mm x 1.50 aftermarket or OEM levers

Description

Upgrading your transmission or shifter shouldn't mean giving up the shift knob you love. This thread reducing insert solves the common mismatch between 16mm x 1.50 shift knob threads and the 10mm x 1.50 threads found on 1983-2004 Ford Mustang shift levers. Whether you're swapping in a TREMEC transmission with a new lever or simply want to run a different aftermarket knob, this adapter bridges the gap.

The precision-machined insert threads into your 16mm shift knob, then accepts any 10mm x 1.50 shift lever. The included jam nut secures the insert, preventing it from backing out during spirited driving. Installation takes seconds and requires no modifications to your knob or lever.

This is the simple, inexpensive fix for thread compatibility issues. Works with both factory and aftermarket shift levers on Fox Body, SN95, and New Edge Mustangs from 1983-2004.

What's Included

• Thread reducing insert (16mm x 1.50 internal to 10mm x 1.50 external)
• Jam nut

Key Features

• Converts 16mm internal-thread shift knobs to fit 12mm x 1.25 shift levers
• Includes jam nut to lock the adapter in place and prevent rotation
• Direct fit for Ford Focus and 2005-newer Mustang shift levers
• Allows you to retain your preferred aftermarket shift knob when upgrading shifters or transmissions
• Simple thread-on installation with no modifications required

Description

Upgrading to a TREMEC transmission or aftermarket shifter often means dealing with a thread mismatch between your favorite shift knob and the new shift lever. This thread reducing insert solves that problem by adapting any 16mm internal-thread shift knob to fit a 12mm x 1.25 metric shift lever—no new knob purchase required.

The adapter threads directly onto the 12mm x 1.25 shift lever while providing standard 16mm external threads for your existing knob. The included jam nut cinches against the base of the adapter to lock everything in position, eliminating rotation or loosening during aggressive shifting. This is especially important in performance applications where repeated hard shifts can back off an unsecured adapter over time.

Direct fitment for Ford Focus and 2005-newer Mustang applications, which use the 12mm x 1.25 thread pitch on their factory and many aftermarket shift levers. Whether you're swapping in a new short-throw shifter, installing a TREMEC TKX or Magnum, or simply want to run a different knob on your stock lever, this insert bridges the gap between mismatched thread sizes.

What's Included

• Thread reducing insert (16mm external to 12mm x 1.25 internal)
• Jam nut

Key Features

• Precision-machined thread adapter converts 16mm shift knob threads to 12mm x 1.75 shift lever threads
• Includes matching jam nut for secure retention under hard shifting
• Allows you to keep your favorite shift knob when upgrading to a new shifter or lever
• Compatible with '83-'04 Mustang levers, Ford GT, Shelby KR/Super Snake, Shelby American Gen 1, Steeda Tri-ax, and MDG Camaro Retro shaft handles
• Lightweight 2-ounce design adds minimal mass to shifter assembly

Description

Thread mismatches between shift knobs and performance shifters have frustrated builders for years. This precision thread reducing insert solves the compatibility problem, letting you retain your favorite shift knob when upgrading to a new shifter or mate a new knob to the threads you already have. The adapter bridges the gap between the common 16mm knob threading and the 12mm x 1.75 metric threads found on many performance shifters and OEM applications.

The insert provides a clean, permanent solution that maintains proper shift knob height and feel. Unlike bulky universal adapters that introduce play, this reducing insert threads directly into 16mm-threaded knobs and accepts 12mm x 1.75 shift lever threads with a precision fit. The included jam nut locks the knob in position under aggressive shifting and prevents loosening during spirited driving.

This adapter fits popular performance shifter applications including '83-'04 Mustang levers, Ford GT, Shelby KR/Super Snake, Shelby American Generation 1 shifters, Steeda Tri-ax units, and MDG Camaro Retro shaft handles. At just 2 ounces, the adapter adds negligible mass while delivering the threading solution you need for a proper fit. If you don't see your application listed, call MDL at 208-453-9800 for assistance.

What's Included

• Thread reducing insert - 16mm external to 12mm x 1.75 internal threading
• Jam nut - matching thread pitch for secure retention

Key Features

• Triple chrome-plated high-strength steel construction for lasting durability and show-quality appearance
• 6.38" tall with 0.75" setback
• 3/8"-16 thread accepts any Hurst shift knob or T-handle
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and compatible Hurst shifters
• Iconic Hurst name stamped directly into the stick
• 0.375" bolt holes with 0.875" center-to-center spacing
• 10-degree backset angle for improved ergonomics

Description

When your Hurst shifter needs a fresh stick or you're dialing in the perfect shift throw geometry, this chrome Competition/Plus shifter stick delivers the legendary feel Hurst has been known for since 1958. Built for applications where specific height or offset is required, this replacement stick gives you the exact dimensions needed to optimize your shift pattern and driver positioning.

The high-strength steel construction receives triple chrome plating that won't fade or flake under hard use. At 6.38" tall with a compact setback, it positions your shift knob exactly where your hand expects it during aggressive driving. The setback also reduces the forward reach required in tight cockpits, making rowing through gears more natural and less fatiguing.

The two-bolt attachment system ensures this stick bolts directly to Billet/Plus and Competition/Plus shifters without modifications. Standard 3/8"-16 threads at the top accept any Hurst shift knob or classic T-handle, letting you complete the setup with your preferred grip. Whether you're restoring a classic muscle car or maintaining a performance build, this stick maintains the authentic Hurst feel that separates real shifters from imitations.

What's Included

• Triple chrome-plated steel shifter stick - 6.38" tall
• Hurst name stamped into stick body
• 3/8"-16 threaded top for shift knobs
• Two mounting bolt holes - 0.375" diameter, 0.875" center-to-center spacing

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Factory-style 2-wire connector plugs directly into T56 reverse lockout solenoid
• Pre-wired pigtail eliminates custom splicing and unreliable field connections
• Compatible with TREMEC T56 6-speed transmissions
• Essential for wiring to aftermarket reverse lockout control modules, brake switches, or manual toggles

Description

The TREMEC T56 6-speed uses a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a real concern because reverse and 5th are positioned dangerously close in the shift gate. When swapping a T56 into a classic vehicle originally equipped with a T5, T45, or older 4/5-speed transmission, the factory electronics lack support for this solenoid, leaving builders without a clean way to wire the lockout system.

This pre-wired solenoid harness provides the electrical connection your reverse lockout needs. The factory-style connector snaps directly onto the solenoid mounted on the transmission case, eliminating the guesswork and potential wiring errors that come with spliced connections. The solenoid operates simply: when energized at low vehicle speeds, the lockout retracts to allow reverse engagement; de-energized at higher speeds, it mechanically blocks the shift gate from entering reverse.

Use this harness to connect the solenoid to an aftermarket reverse lockout control module (speed-based), a brake pedal switch circuit, or a manual dashboard toggle. The harness gives you the clean starting point you need for whatever activation method you choose--just run your control wiring to this pigtail and plug into the transmission.

Compatible with all TREMEC T56 6-speed transmissions. A simple, inexpensive component that prevents frustrating wiring headaches during your swap or build.

Kit Includes

• Pre-wired 2-wire electrical harness with factory-style solenoid connector

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
