TREMEC TKX 5-Speed Transmission | GM | 2.87 First Gear | 0.68 Overdrive

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: center line, 19.52” back from the bellhousing face

Description

When you need serious torque capacity and crisp shifts in a package that fits classic GM muscle cars without floor surgery, the TREMEC TKX delivers. This all-new 5-speed was designed, tested, and built specifically for the aftermarket - not adapted from OEM production. The result is a transmission purpose-built for Chevelles, GTOs, Cutlasses, Novas, Camaros, and other GM A-bodies with a compact, end-loaded case design that clears most factory transmission tunnels without modifications.

The TCET17805 gear set pairs a 2.87 first gear for strong, manageable launches with a deep 0.68 overdrive that significantly reduces highway RPM for improved fuel economy and reduced engine wear. All gears and shafts are manufactured from ASTM 4615 special grade steel, while the robust internal three-rail shift system with steel shift forks ensures precise engagement through all five gears. Superior shift-ability comes from multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon, allowing confident shifts at engine speeds up to 7,500 RPM.

TREMEC engineers optimized the TKX's three-piece ribbed aluminum housing for structural stiffness while minimizing noise, vibration, and harshness. Tapered roller bearings on the input, output, and counter shafts reduce noise and improve durability, while caged needle bearings support all gear positions to reduce end play. Oversized gear widths increase gear life and torque capacity, and gaskets at all flanges eliminate fluid leaks and simplify installation.

The TKX bolts directly to standard GM Muncie bellhousings, making it a direct replacement for 3-speed and 4-speed Muncie transmissions. The 26-spline input shaft requires a matching clutch disc, while the 31-spline output shaft provides increased strength for high-torque applications. Includes a high-performance short-throw billet aluminum shifter that isolates road noise while delivering clean, crisp shifts. Like all TREMEC aftermarket transmissions, the TKX is made from 100% brand-new OEM-quality components. When purchased as part of an MDL complete conversion package, you receive an extended manufacturer warranty plus lifetime technical support.

Kit Includes

• TREMEC TKX 5-speed transmission (TCET17722) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support

TREMEC GM TKX Road Race 5-Speed | 2.87 First, 0.81 OD

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 19.52” back from the bellhousing face with No Offset

Description

When your classic GM muscle car is making north of 400 horsepower and that antiquated 4-speed is holding you back, the TREMEC TKX delivers the overdrive upgrade you need. Unlike transmissions repurposed from OEM applications, the TKX was designed, tested, and built from the ground up specifically for the aftermarket. The result is a purpose-built 5-speed that combines universal packaging with the durability and shift quality that high-horsepower restomods demand.

The engineering focus shows in every component. All gears and shafts are machined from special-grade ASTM 4615 steel for increased torque-carrying capacity. Sintered carbon/bronze hybrid triple-cone synchronizers deliver smooth, precise shifts even at 7,500 RPM. The gear layout is optimized to minimize noise, vibration, and harshness while oversized gear widths and caged needle bearings in all gear positions maximize durability. A ribbed three-piece aluminum housing provides outstanding structural stiffness while keeping weight down to just 99 lbs dry.

The compact end-loaded case design clears most GM A-body transmission tunnels without cutting - Chevelle, GTO, Cutlass, Nova, and Camaro applications typically bolt right in. Three shifter positions offer flexibility for factory console alignment, and the low-profile shifter plate keeps everything tight. This close-ratio 2.87:1 first gear with 0.81:1 overdrive fifth provides strong acceleration while dropping highway RPM for comfortable cruising and improved fuel efficiency.

Bolts directly to existing GM Muncie bellhousings or Quicktime SFI-approved bellhousings. The GM-pattern input features a 0.590 in. pilot tip and 1.375 in. OD throwout bearing guide tube. Gaskets at all mating surfaces eliminate fluid leaks and simplify installation. MDL backs every transmission with an extended warranty and lifetime technical support.

Kit Includes

• TREMEC TKX 5-speed transmission assembly (TCET17722)
• High-performance short-throw billet aluminum shifter
• Reverse light switch (built-in, left side of case)
• Cruise control safety switch provision (right side of case)
• Mechanical speedometer drive gear (7-tooth Ford style, adaptable to GM)
• Electronic speedometer sensor (OSS two-wire analog)
• Gaskets at all mating surfaces
• MDL extended warranty and lifetime technical support

Specifications

TREMEC GM TKX 5-Speed | 3.27 First, 0.72 Overdrive

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 19.52” back from the bellhousing face

Description

When your four-speed can't keep up with modern horsepower levels and you need a five-speed that actually fits, the TREMEC TKX delivers. This transmission was designed from the ground up specifically for the aftermarket - not adapted from an OE application - with classic muscle car tunnels in mind. The end-loaded case design provides superior tunnel clearance without the floor cutting that other swaps require, making it a true drop-in solution for GM A-bodies like the Chevelle, GTO, Cutlass, Nova, and Camaro.

This wide-ratio version pairs a deep 3.27 first gear for aggressive launches with a 0.72 overdrive fifth that drops highway RPM significantly - the ideal combination for street performance builds where you want strong acceleration off the line without sacrificing cruising comfort. All gears and shafts are machined from special grade steel (ASTM 4615) for increased torque carrying capacity, and tapered roller bearings on the input, output, and countershafts reduce noise while improving durability. The hybrid triple cone synchronizers - combining sintered carbon and bronze materials with a non-leading tooth profile - deliver smooth, positive shifts even at high RPM.

The TKX bolts directly to GM 3-speed and 4-speed Muncie/Richmond bellhousings, using the same mounting points as your factory transmission. The 26-spline input shaft accepts GM-pattern clutch discs, while the beefy 31-spline output shaft handles the transmission's full 600 lb-ft rating. A 0.590-inch pilot tip and 1.375-inch OD throwout bearing guide tube maintain GM compatibility throughout the drivetrain.

Every TKX ships with the high-performance short-throw billet aluminum shifter, reverse light switch (left side), and cruise control safety switch provision (right side). Recommended fluid is Dexron III ATF, Amsoil ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF - capacity is 2.7 quarts. Built by TREMEC from 100% brand-new OEM-quality components, backed by MDL's extended warranty and lifetime technical support.

What's Included

• TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support

Key Features

• Designed exclusively for hydraulic release/throwout bearings - no fork pivot or mechanical linkage provisions
• Fits Chevy LS (Gen III/IV), Gen-V LT (2013+), Small Block, and Big Block engines
• Connects to TREMEC TKO, TKX, Muncie, Saginaw, Borg Warner T10, and most GM-pattern 4-speeds
• Lightweight cast aluminum construction mirrors OE bellhousing design
• 4.684-inch transmission bore diameter with 6.45-inch depth
• 11-inch maximum clutch diameter - compatible with 168-tooth flywheels
• Non-SFI rated - ideal for street builds under 500hp where SFI certification is not required
• Grade 8/10.9 hardware included for both engine and transmission mounting
• No adapters required - direct bolt-on to all compatible engines and transmissions
• Works with OE starters, flywheels, and accessories
• Made in the USA

Description

When you're running a hydraulic release bearing and don't need the weight or expense of an SFI-rated steel bellhousing, this Lakewood aluminum unit delivers the clean, adapter-free connection your Chevy drivetrain deserves. Designed specifically for hydraulic throwout bearings, this bellhousing eliminates the fork pivot and mechanical linkage provisions found on dual-purpose bells - giving you a cleaner package optimized for modern hydraulic clutch actuation.

The cast aluminum construction matches OE bellhousing geometry with a 4.684-inch transmission bore diameter and 6.45-inch depth, ensuring proper clutch release geometry and starter clearance. The 2.125 x 3.30-inch fork opening accommodates hydraulic slave cylinder installations while the included grommet seals off the hydraulic line passage from road debris. Maximum recommended clutch diameter is 11 inches with near-stock style pressure plates for proper clearance.

Compatibility spans the full range of GM V8 powerplants: Chevy LS (Gen III/IV), Gen-V LT (2013 and newer), Small Block, and Big Block engines all bolt up directly. On the transmission side, the standard GM bolt pattern accepts TREMEC TKO-500, TKO-600, TKX, Muncie, Saginaw, Borg Warner T10, and most 4-speed transmissions. Note: Early LT-series engines prior to Generation 5 (pre-2013) are not compatible.

For street cruising applications under 500hp, aluminum bellhousings provide adequate strength while saving weight. If you're racing or pushing beyond 500hp, consider upgrading to an SFI-rated steel bellhousing for added safety. Match your starter tooth count (153 or 168) to your flywheel for proper engagement. Made in the USA with Grade 8/10.9 hardware included for both engine and transmission attachment.

Kit Includes

• Lakewood cast aluminum bellhousing (hydraulic release configuration)
• Stamped steel dust cover
• Hydraulic line grommet
• Grade 8/10.9 engine mounting hardware
• Grade 8/10.9 transmission mounting hardware
• Lifetime tech support: 208-453-9800

Key Features

• SFI 6.1 certified - required by most sanctioning bodies for cars running 11.49 or faster in the quarter mile
• Connects GM LS engines to transmissions using the GM Muncie bolt pattern: TKO-500, TKO-600, TKX, Muncie, Saginaw, Borg Warner T10, Jerico, and T5
• Also compatible with late-model LT1 and LT4 engines
• Spun cone construction - not rolled or stamped - delivers exceptional dimensional stability
• High-grade steel work-hardens to over 80,000 PSI strength
• More than twice the strength of other steel bellhousings on the market
• Accommodates 153-tooth or 168-tooth flywheels with up to 11-inch clutch
• 4.688-inch transmission bore diameter with 6.0-inch bellhousing height
• Compatible with mechanical (standard left-hand fork) or hydraulic clutch release systems
• Patent covers 16 points of bellhousing design and manufacturing process
• Uses OE-style starter location
• 100% manufactured in the USA

Description

When you need bulletproof reliability between your LS engine and GM transmission, this QuickTime steel bellhousing delivers the strength and precision that inferior stamped housings simply cannot match. QuickTime's proprietary spun cone construction - not rolled or stamped like lesser bellhousings - creates a housing that maintains exceptional dimensional stability and accuracy under extreme loads. This keeps your engine and transmission in perfect alignment through the entire RPM range, eliminating accelerated drivetrain wear caused by bellhousing flex.

Built from high-grade steel that work-hardens to over 80,000 PSI, this bellhousing delivers more than twice the strength of any other steel bellhousing on the market. The patented design features 16 patented elements covering critical aspects of bellhousing engineering. SFI 6.1 certification meets the strict safety requirements for drag racing and circle track competition - mandatory for cars running 11.49 or faster in the quarter mile.

This bellhousing connects GM LS engines to transmissions utilizing the GM Muncie bolt pattern, including TREMEC TKO-500, TKO-600, TKX, Muncie, Saginaw, Borg Warner T10, Jerico, and T5 transmissions. It also works with late-model LT1 and LT4 engines. The versatile design handles both mechanical (standard left-hand fork) and hydraulic clutch systems. Sized to accommodate 153-tooth or 168-tooth flywheels with clutches up to 11 inches in diameter.

This is a universal-fit bellhousing - not vehicle-specific - making it ideal for custom builds, engine swaps, and race applications. Proudly manufactured 100% in the United States with QuickTime's industry-leading quality standards.

What's Included

• QuickTime RM-6036 steel bellhousing with spun cone construction
• Full engine block plate
• Pivot ball
• Grade 8 mounting hardware
• SFI 6.1 certification

Note: Transmission mounting bolts and throwout bearing not included. Uses stock shifter fork.

Install Hardware Kit | LS and Late Model LT1/LT4 Engine to TKX | Aluminum Bellhousing

Key Features

• Complete bolt set for LS and late model LS-based LT1/LT4 engines with aluminum bellhousing to TKX
• Includes both bellhousing-to-engine and transmission-to-bellhousing fasteners
• Eliminates parts-counter guesswork with application-specific hardware
• Designed specifically for aluminum bellhousing installations
• Note: For early LT engines, use HWkit-TKX Chevy AL instead

Description

Bolting a TREMEC TKX to an LS or late model LS-based LT1/LT4 engine with an aluminum bellhousing requires specific hardware that the factory never intended to supply. This MDL install hardware kit provides the correct fasteners for both the bellhousing-to-engine block and transmission-to-bellhousing connections, eliminating trips to the hardware store and the headache of sourcing individual bolts with the right thread pitch and length.

The TKX uses a GM-style bolt pattern that shares commonality with classic small-block Chevys, but aluminum bellhousings demand specific bolt lengths to properly engage the softer material without bottoming out or stripping threads. This kit is matched to the dimensional requirements of LS-series (Gen III/IV) and late model LS-based LT1/LT4 (Gen V) engines when paired with aftermarket aluminum bellhousings.

Important: This hardware kit is designed specifically for late model LS-based LT1/LT4 engines. If you're running an early LT engine (1992-1997 LT1/LT4), you'll need the HWkit-TKX Chevy AL kit instead. The bolt patterns are similar but the hardware specifications differ between generations.

Whether you're building a resto-mod with an LS swap or adding a TKX to a late-model Corvette or Camaro powerplant, this kit ensures you have the right fasteners from the start. One less variable to troubleshoot during your transmission installation.

What's Included

• Bellhousing-to-engine block bolts for LS/late model LT1/LT4
• Transmission-to-bellhousing bolts for TKX
• Required washers for proper load distribution

Key Features

• Steel bellhousing-specific hardware kit -- correct bolt lengths for thicker Lakewood and QuickTime steel housings
• Grade 8 fasteners for high-torque, high-vibration drivetrain applications
• Hardened washers distribute clamping loads evenly across mounting surfaces
• Eliminates hardware store guesswork -- one kit, all the fasteners you need
• Torque specification: 35 ft-lbs for transmission-to-bellhousing bolts

Description

Steel bellhousings require different hardware than their aluminum counterparts. The thicker steel construction of Lakewood and QuickTime scatter shields demands specific bolt lengths that you won't find at the local hardware store -- and using the wrong fasteners means either insufficient thread engagement or bolts that bottom out before clamping. This hardware kit solves that problem with precision-selected Grade 8 bolts sized specifically for steel bellhousing applications.

The kit includes everything needed to secure your TREMEC TKX transmission to a GM-pattern steel bellhousing on small block or big block Chevy applications. Grade 8 fasteners deliver the strength required for high-torque drivetrains, while the included hardened washers prevent fastener galling and distribute clamping loads evenly across the mounting flange. Torque all transmission-to-bellhousing bolts to 35 ft-lbs for proper retention.

The GM TKX uses the same Muncie/Richmond 4-speed bolt pattern that's been standard on GM manual transmissions for decades, making bellhousing selection straightforward. This kit pairs with steel bellhousings designed for that pattern -- the thicker steel construction provides added safety in high-horsepower applications where an SFI-rated scatter shield is required or preferred.

What's Included

• Grade 8 transmission-to-bellhousing bolts (steel bellhousing length)
• Hardened steel washers

Key Features

• 24-pound lightweight billet steel construction - precision-machined from solid billet for strength without excess rotating mass
• Dual pressure plate mounting patterns - accepts both 12-5/8" clutches with dowel pins and 10mm bolts, plus 12-5/8" pattern with 3/8" shouldered bolts
• 168-tooth ring gear for reliable starter engagement
• 2.485" crank registration size for precise centering on 6-bolt LS cranks
• Zero (neutral) balance for internally balanced LS applications
• 11mm x 1.5mm crank bolt pattern
• Compatible with 11" single-disc clutch assemblies
• Made in the USA

Description

When your LS swap demands a flywheel that delivers billet steel strength with reduced rotating mass, this lightweight flywheel solves the problem. Precision-machined from a solid piece of billet steel and lightened to just 24 pounds, it matches OE cast flywheel weight while providing superior strength and durability over factory cast units. The lightened design reduces rotational inertia for improved throttle response and quicker acceleration without sacrificing the smooth engagement characteristics needed for street driving.

The dual pressure plate mounting pattern design eliminates compatibility guesswork. It accepts both the LS-style 11" clutches using dowel pins with 10mm pressure plate bolts, as well as GM 11" clutches using shouldered 3/8" pressure plate bolts. The 2.485" crank registration ensures perfect centering on LS1, LS2, LS3, LS6, and LS7 engines equipped with 6-bolt crankshafts. Zero balance construction makes it the correct choice for these internally balanced LS applications.

CNC-machined in the USA from solid billet steel, each flywheel undergoes precision finishing for optimal surface quality and dimensional accuracy. The 168-tooth ring gear provides reliable starter engagement with standard LS starters. Whether you're completing a classic car LS swap or upgrading a late-model manual transmission vehicle, this flywheel delivers the billet steel strength you need at a weight that won't bog down your build.

What's Included

• Lightweight billet steel flywheel (24 lbs)
• 168-tooth ring gear (pre-installed)
• Dual pressure plate bolt patterns (12-5/8" with dowels/10mm bolts and 12-5/8" with 3/8" bolts)
• 2.485" crank registration bore
• Zero balance configuration

Note: Flywheel bolts sold separately. It is never recommended to reuse flywheel bolts when installing a new or used flywheel.

Key Features

• 24 lb lightened billet steel construction - reduces rotational mass for improved throttle response while retaining steel's durability
• Dual clutch bolt pattern - accepts both 11" (with EQ pins) and 12-5/8" pressure plates for maximum clutch selection flexibility
• Zero balance configuration - matches internally balanced GM LSA, LSX, and Gen V LT engines
• 168-tooth ring gear - ensures reliable starter engagement
• 8-bolt crankshaft mounting with 11mm x 1.5mm bolt holes
• Pressure plate bolt threads: 3/8" and 10mm for broad compatibility
• Made in the USA

Description

This lightened billet steel flywheel bridges the gap between heavy OEM dual-mass units and ultra-light aluminum flywheels that can sacrifice low-speed drivability. At 24 lbs, it sheds significant rotational mass compared to stock castings, delivering noticeably quicker throttle response and faster revs without the chatter or aggressive engagement characteristics common to featherweight aluminum designs. Steel's inherent density provides better harmonic dampening than aluminum, helping absorb the vibrations common in high-output LS and LT builds while smoothing out drivetrain noise.

Machined from billet steel rather than cast, this flywheel offers superior strength and consistency over traditional OEM-style castings. The CNC-machined friction surface provides a flat, true mating surface for consistent clutch engagement. Whether you're building a street/strip LSA, an LSX crate engine swap, or a Gen V LT1/LT4 project, the robust construction handles the torque without concern.

The dual bolt pattern design accommodates both 11" pressure plates (with equalizer pins) and 12-5/8" pressure plates, giving you flexibility to run anything from a mild street clutch to an aggressive multi-disc setup. With both 3/8" and 10mm pressure plate bolt threads, compatibility extends across most popular GM and aftermarket clutch kits. The zero-balance configuration matches the internal balance of LSA, LSX, and Gen V LT engines - no external weights required.

Designed for GM's modern performance V8s including LSA supercharged applications, LSX crate motors, and Gen V LT1/LT4 engines with 8-bolt crankshafts. Compatible with both hydraulic and mechanical clutch release systems. Made in the USA with precision CNC machining for reliable performance across street, strip, and road course duty.

What's Included

• Lightened billet steel flywheel (24 lbs)
• 168-tooth ring gear (installed)
• Dual clutch bolt pattern (11" EQ pins and 12-5/8")

Key Features

• Lightened billet steel construction - 24 lbs for quicker throttle response while retaining rotational inertia for solid launches
• Dual clutch pattern compatibility - accepts both LS pressure plate and 12-5/8" pressure plates for maximum clutch flexibility
• LS9-specific 9-bolt crankshaft flange mounting - direct fit for GM's supercharged 6.2L engines
• Zero balance design - precision balanced for smooth, vibration-free operation
• 168-tooth integrated ring gear - reliable starter engagement
• Single-disc configuration - compatible with 11" clutch disc diameter
• 11mm x 1.5mm flywheel bolt pattern - uses standard LS9 hardware
• Made in the USA

Description

GM's supercharged LS9 features a unique 9-bolt crankshaft flange that demands a purpose-built flywheel. This lightened billet steel flywheel delivers the strength required for high-torque supercharged applications while shedding unnecessary mass for improved throttle response. At 24 pounds, it strikes the right balance between quick engine acceleration and the rotational inertia needed for consistent power delivery off the line.

Billet steel construction provides superior strength over cast alternatives, handling the increased forces generated by forced-induction engines without the stress points and potential cracking found in lesser materials. The precision-machined clutch surface ensures flat, true contact with your pressure plate for consistent engagement and extended clutch life.

The dual clutch pattern accommodates both 11" and 12-5/8" pressure plate configurations, giving you flexibility for your current clutch setup and future upgrades. Whether you're running an OE-style 11" pressure plate with equidistant pins or stepping up to a larger 12-5/8" unit, this flywheel has you covered. The zero balance design matches the LS9's internally balanced rotating assembly for smooth operation throughout the RPM range.

Direct fit for 2009-2013 Corvette ZR1 applications and LS9 crate engine builds. The integrated 168-tooth ring gear ensures reliable starter engagement. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel - 24 lbs, zero balance
• 168-tooth integrated ring gear
• Precision-machined clutch surface for 11" disc
• 9-bolt crankshaft mounting pattern (11mm x 1.5mm)
• Dual pressure plate bolt pattern (11" EQ pins and 12-5/8" EQ)
• Lifetime technical support

Key Features

• M11 x 1.5 thread pitch — OEM specification for all GM LS crankshaft applications
• Hex head design for positive wrench engagement during installation and removal
• Complete set of 6 bolts for full flywheel mounting
• Direct fit for LS1, LS2, LS3, LS6, LS7, and L92 series engines
• Follow GM three-stage torque procedure: 15 ft-lbs > 37 ft-lbs > 74 ft-lbs for proper bolt loading

Description

The flywheel-to-crankshaft connection is one of the most critical fastener applications in your drivetrain. LS engines — with their cross-plane crankshaft design — generate significant vibrations and torque pulses that place heavy demands on flywheel hardware. Using the correct fasteners with proper torque specs prevents bolts from backing out, which can destroy the clutch assembly, rod bearings, and transmission bearings.

This hex head flywheel bolt kit is built to M11 x 1.5 specification for direct compatibility with GM Gen III and Gen IV LS crankshafts. The hex head design provides reliable wrench engagement, reducing the risk of rounded fasteners during high-torque installation. These bolts deliver the clamping force your LS engine demands whether you're completing an LS swap, a rebuild, or replacing worn factory hardware.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 series engines. Always use new flywheel bolts when installing a flywheel — reusing stretched or fatigued hardware on this critical connection invites failure. Follow GM's recommended three-stage torque sequence: first pass at 15 ft-lbs, second pass at 37 ft-lbs, and final torque at 74 ft-lbs in a star pattern for even clamping.

What's Included

• 6 hex head flywheel bolts (M11 x 1.5 thread pitch)
• Manufacturer's warranty against defects

GM LS Flywheel Bolt Kit | LS1, LS2, LS3, LS6, LS7, L92 Engines | Set of 8

Key Features

• Complete 8-bolt set for GM LS-series and L92 engines
• M11 x 1.5 thread pitch - OEM specification for LS crankshafts
• Hex head design for standard socket tools
• Direct replacement for worn, damaged, or missing factory hardware
• Engineered for proper clamping force and vibration resistance

Description

Loose or worn flywheel bolts are a ticking time bomb in any LS build. When flywheel hardware backs out, the resulting damage cascades through the drivetrain - destroying clutch assemblies, damaging rod bearings, and taking out transmission bearings. This flywheel bolt kit delivers the OEM-spec hardware your LS engine demands for secure flywheel mounting.

Each bolt features an M11 x 1.5 thread pitch matched to GM LS crankshaft specifications. The hex head design works with standard sockets for straightforward installation - no specialty tools required. LS engines are notorious for the significant vibration generated by their cross-plane crankshafts, and with displacements reaching 7.0 liters in some variants, proper flywheel mounting hardware is critical to drivetrain longevity.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 Series engines. Follow the GM-recommended three-pass torque sequence: 15 lb-ft on the first pass, 37 lb-ft on the second pass, and 74 lb-ft final torque. This staged approach ensures even compression across the flywheel face. GM recommends applying blue thread locker to each bolt when using this torque pattern to prevent loosening under the extreme rotational forces these bolts endure.

Kit Includes

• (8) Flywheel bolts with hex heads
• M11 x 1.5 thread pitch specification
• Manufacturer's warranty against defects

Flywheel Bolt Kit | GM LS9 9-Bolt Crankshaft | Set of 9

Key Features

• Complete nine-bolt set specifically designed for LS9 crankshaft flange pattern
• M11-1.5 x 23.5mm thread specification matching OEM dimensions
• Torque sequence: 15 lb-ft > 37 lb-ft > 74 lb-ft (three-pass)
• Eliminates sourcing hassle for the LS9's unique 9-bolt configuration
• Backed by manufacturer's warranty against defects

Description

The LS9's supercharged 6.2L V8 didn't just get more horsepower than its LS siblings--it got a completely different flywheel bolt pattern. While standard LS engines use a 6-bolt crankshaft flange and newer LSA/LT variants moved to 8 bolts, the LS9 stands alone with its 9-bolt configuration. This kit delivers all nine bolts you need to properly secure your flywheel to that unique crankshaft flange.

Each bolt features M11-1.5 threading with 23.5mm length, matching GM's factory specifications exactly. Proper installation requires a three-pass torque sequence: first tighten all bolts to 15 lb-ft, then 37 lb-ft, and finally 74 lb-ft in a crisscross pattern. This graduated approach ensures even clamping force distribution across the flywheel face, preventing the distortion and bolt loosening that plague improperly torqued assemblies. Incorrect flywheel bolt torque on high-output LS engines can cause bolts to back out, destroying the clutch assembly and eventually damaging rod bearings and transmission components.

Whether you're building a Corvette ZR1 restoration, dropping an LS9 crate engine into a swap project, or refreshing an existing clutch setup, this complete nine-piece kit ensures you have the correct hardware on hand. No more hunting for individual bolts or questioning whether you have the right count for that distinctive 9-bolt pattern.

What's Included

• Nine M11-1.5 x 23.5mm flywheel bolts
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel construction - aerospace-grade alloy forged for maximum strength
• Pro Series 200,000 psi tensile strength rating - far superior to OEM hardware
• 12-point head design with 1/2-inch socket compatibility - superior grip and reduced rounding risk
• 0.880-inch under-head length (UHL) - optimized for LS Series crankshaft specifications
• M11 x 1.50 thread pitch - direct OEM fitment for all LS applications
• Black oxide finish - corrosion resistance with clean appearance
• Heat-treated before thread rolling - increased fatigue resistance and dimensional accuracy
• Larger-than-stock shank diameter - improved flywheel register and clamping force
• Complete 6-bolt set - everything needed for one LS engine

Description

Factory flywheel bolts are a weak link in high-performance LS builds. OEM hardware simply is not engineered to handle the stress of aggressive clutch dumps, high-RPM shifts, or sustained track use. ARP's Pro Series Flywheel Bolt Kit delivers the strength upgrade serious LS builders demand, replacing marginal factory fasteners with aerospace-grade hardware rated at 200,000 psi tensile strength.

Each bolt is forged from 8740 chromoly steel - a nickel-chromium-molybdenum alloy prized for its exceptional balance of tensile strength, toughness, and fatigue resistance. ARP heat-treats the material before thread rolling and machining, a critical sequence that maximizes thread integrity and dimensional accuracy. The exclusive flat 12-point head design accepts a standard 1/2-inch socket and provides superior engagement compared to hex heads, reducing the risk of rounding under high torque loads.

The larger-than-stock shank diameter does more than just add strength - it improves flywheel register by filling more of the mounting hole, reducing the chance of flywheel movement under load. The 0.880-inch under-head length is engineered specifically for LS Series crankshafts, ensuring proper thread engagement without bottoming out. Black oxide finish provides corrosion protection while maintaining the professional appearance serious builders expect.

Compatible with LS1, LS2, LS3, LS6, LS7, and L92 series engines. Complete 6-bolt set includes everything needed to secure your flywheel with confidence.

Kit Includes

• Six (6) 8740 chromoly flywheel bolts with black oxide finish
• Manufacturer's warranty against defects
• MDL lifetime technical support

Key Features

• Steel-backed organic facings deliver smooth engagement with enhanced burst strength for street performance
• Diaphragm pressure plate with LS bolt pattern for hydraulic actuation
• 26-spline x 1-1/8" sprung hub matches T56 Magnum and Magnum-F input shaft specifications
• 350 ft-lb torque rating sized for performance street applications
• Hand-assembled in-house with double-checked accuracy for ready-to-install quality
• 1-year free-from-defect warranty
• Made in the USA by MDL

Description

Finding the right clutch for a GM LS to T56 swap shouldn't mean compromising on quality or pedal feel. This Superior Series clutch set delivers exactly what a street performance build demands: reliable holding power, smooth engagement, and the correct spline count to mate your LS engine to a T56 Magnum or Magnum-F transmission without adapter headaches.

The steel-backed organic design strikes the ideal balance between daily drivability and durability. Steel backing increases clamping force and provides superior burst strength compared to standard organic discs, while the organic friction material ensures civilized takeoffs and excellent pedal modulation. The diaphragm pressure plate features the correct LS bolt pattern and is configured for hydraulic release systems, eliminating the fitment problems common with mechanical linkage conversions.

Every MDL Superior clutch is hand-assembled in-house to ensure quality and flawless operation. Each unit is checked and double-checked for proper balance, precise tolerances, and reliable function before it ships. This process guarantees a ready-to-install component right out of the box. Note that a throwout bearing is not included with this kit and must be purchased separately based on your specific bellhousing and slave cylinder configuration.

Compatible with GM LS engines paired to T56 Magnum and Magnum-F transmissions using the 26-spline input shaft. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• Diaphragm pressure plate with LS bolt pattern
• 11" clutch disc with steel-backed organic facings and 26-spline x 1-1/8" sprung hub
• Pilot bearing
• Clutch alignment tool
• Pressure plate bolts (3/8")
• Installation and break-in instructions
• Lifetime technical support from MDL

Key Features

• Dual-friction disc: Kevlar facing on flywheel side, steel-backed organic facing on pressure plate side
• 26-spline x 1-1/8" hub for GM LS engines mated to T56 or T56 Magnum transmissions
• Diaphragm-style pressure plate designed for hydraulic actuation
• Sprung hub disc for smooth engagement and reduced drivetrain shock
• Hand-built Superior clutch disc manufactured in-house with double-checked tolerances
• 500 lb-ft torque capacity—Performance Street Plus rated
• Made in the USA with 1-year defect-free warranty and lifetime tech support

Description

Extracting maximum performance from a high-torque LS engine requires a clutch that bridges the gap between aggressive track bite and civilized street manners. This dual-friction Superior clutch disc solves that challenge by pairing Kevlar on the flywheel side with a steel-backed organic facing on the pressure plate side. The result is a clutch that hooks hard under load yet remains smooth and predictable in stop-and-go traffic.

Why the hybrid configuration? Kevlar's coefficient of friction actually increases with temperature—meaning torque capacity goes up, not down, under hard use. It also resists burning and delivers exceptional longevity. Meanwhile, the steel-backed organic side provides the smooth modulation and forgiving engagement drivers expect on the street. This combination delivers more grip than a pure organic disc while maintaining better driveability than an all-Kevlar setup—the sweet spot for street performance and weekend track duty.

Every Superior clutch disc is hand-built in MDL's Caldwell, Idaho facility. Each disc goes through rigorous quality control—checked and double-checked for tolerances—before it ships. The 11" diaphragm pressure plate provides high clamping force without excessive pedal effort, and the sprung hub dampens engagement shock for chatter-free operation. Rated at 500 lb-ft, this kit is sized right for naturally aspirated and moderately boosted LS builds.

Fits GM LS engines paired with T56 or T56 Magnum transmissions using a 26-spline, 1-1/8" input shaft. Designed exclusively for hydraulic clutch actuation systems. Note: No throwout bearing or pilot bearing included—order separately based on your bellhousing and crankshaft configuration. Made in the USA with MDL's 1-year defect-free warranty and lifetime technical support.

What's Included

• 11" diaphragm pressure plate (LS bolt pattern)
• Superior clutch disc with Kevlar/steel-backed organic dual-friction facings
• Sprung hub design (26-spline x 1-1/8")
• 3/8" pressure plate bolts
• Clutch alignment tool
• Lifetime technical support

Note: No throwout bearing or pilot bearing included with this kit.

Superior 11" Kevlar Clutch Set | GM LS | 26-Spline T56/TKX

Key Features

• 550 lb-ft torque capacity for high-performance LS builds
• Kevlar/Kevlar friction surfaces deliver smooth engagement with superior heat tolerance
• 26-spline x 1-1/8" hub fits T56, Magnum, TR-6060, TKO and TKX transmissions
• Sprung hub design dampens drivetrain shock for improved drivability
• Diaphragm pressure plate with 12-5/8" equal bolt pattern
• Hand-assembled in-house with rigorous quality inspection before shipping
• Engineered for performance street driving and open track applications
• Made in the USA

Description

High-performance LS builds demand clutch systems that can handle serious power while maintaining streetability. The MDL Superior 11" Kevlar clutch set delivers exactly that balance—rated at 550 lb-ft of torque capacity with dual Kevlar friction surfaces that actually increase grip under hard use rather than fading like organic compounds. When heat builds during aggressive driving, Kevlar's coefficient of friction rises, giving you more holding power precisely when you need it most.

Unlike organic materials that lose torque capacity at elevated temperatures and can burn when slipped excessively, Kevlar resists wear significantly better and won't sustain permanent heat damage under demanding conditions. The sprung hub design absorbs drivetrain shock loads, delivering smooth engagement without the chatter common to solid-hub racing clutches. This combination makes the Superior series ideal for vehicles that split time between spirited street driving and open track days.

The diaphragm-style pressure plate provides progressive pedal feel with clamping force that actually increases over the life of the clutch—delivering lower pedal effort than Long-style pressure plates while maintaining consistent performance. The 12-5/8" equal bolt pattern matches standard GM LS flywheel configurations, and the 26-spline x 1-1/8" hub provides direct compatibility with T56 and T5 transmissions.

Every Superior clutch set is hand-assembled in MDL's facility, where each assembly undergoes rigorous inspection to ensure exacting tolerances and flawless operation before it ships. You receive a ready-to-install, precision-balanced clutch set backed by a 1-year free-from-defect warranty.

What's Included

• Diaphragm pressure plate with 12-5/8" equal bolt pattern
• 11" Kevlar/Kevlar clutch disc with 26-spline x 1-1/8" sprung hub
• Pilot bearing
• Clutch alignment tool
• Pressure plate bolt set
• Installation and break-in instructions
• 1-year free-from-defect warranty

Key Features

• 800hp torque capacity for serious street builds
• Twin organic friction discs (9.687" diameter) for smooth engagement
• 26-spline x 1-1/8" input shaft compatibility
• Universal fitment: GM V8 ('55-'85), BOP ('59-'79), Ford 11"/11.5"/12" Long patterns
• Sprung hub design absorbs driveline shock while maintaining engagement control
• Large red adapter ring (6911/6921 series) fits 168T GM, Ford 164T/176T/180T/184T, BOP 160T/166T flywheels
• Soft pedal effort with excellent release characteristics
• Diaphragm-style pressure plate for consistent clamp load

Description

The McLeod RST twin disc clutch delivers 800hp holding power in a street-friendly package--no harsh engagement, no leg-day pedal effort, no excuses. It's engineered for the enthusiast running serious power who still wants to daily-drive their build without fighting the clutch in traffic.

The twin organic friction discs provide the clamping force of a multi-disc setup while maintaining the smooth, progressive engagement characteristics you expect from a streetable clutch. Sprung hubs absorb driveline shock during aggressive launches, protecting the transmission input shaft while delivering precise pedal modulation. The diaphragm pressure plate maintains consistent clamp load across the RPM range with a lighter pedal feel than Borg & Beck designs.

McLeod's patented adapter ring system is the key to the RST's universal fitment. The large red adapter ring included with this kit bolts directly to large-diameter flywheels--Chevy 168-tooth, Ford 164T/176T/180T/184T, and BOP 160T/166T--eliminating the need for a dedicated flywheel. This covers GM V8 applications from '55-'85, Buick/Olds/Pontiac from '59-'79, and Ford 11"/11.5"/12" Long bolt patterns.

This clutch kit is designed for high-horsepower street use and is not intended for competition. For drag racing or sustained track use, step up to the RXT or RXT 1200 series. Pilot bushing and throwout bearing sold separately. Professional installation with proper flywheel resurfacing recommended. Backed by McLeod's 90-day limited warranty.

What's Included

• Diaphragm pressure plate assembly
• Two organic friction discs (9.687" diameter, 26-spline x 1-1/8", sprung hub)
• Floater plate
• Large red adapter ring for large-diameter flywheels
• Pilot alignment tool, (Pilot bushing sold separately)
• Installation instructions
• Lifetime technical support from MDL

Key Features

• 1,000 HP torque capacity - handles extreme horsepower while remaining street-driveable
• Two ceramic friction discs (9.687" diameter) with slightly aggressive engagement and soft pedal effort
• Solid hub design for maximum durability under high-torque loads
• Floater plate architecture for dual-disc holding power with excellent release characteristics
• 26-spline, 1-1/8" input shaft compatibility for T56, TKX, and similar transmissions
• McLeod patent-pending large diameter adapter ring - fits existing large-diameter flywheels without dedicated flywheel purchase
• Diaphragm-style pressure plate for lighter-than-stock pedal feel
• Compatible with multiple flywheel bolt patterns: 11" Long, 11-5/8" EQ, 11-5/12" Long, 12-3/8" EQ

Description

Street-legal performance cars are making more power than ever, and if you're rowing your own gears past the 500 HP mark, you need a clutch that can handle the abuse without sacrificing daily driveability. The McLeod RXT Twin Disc Clutch Kit solves the classic high-horsepower dilemma - massive holding power without the harsh engagement and heavy pedal effort that make twin-disc setups miserable in traffic.

Rated at 1,000 HP, the RXT uses two ceramic-faced 9.687" friction discs mounted to a solid hub, distributing clamping loads across four friction surfaces for superior heat dissipation and consistent engagement under hard launches. The ceramic facings provide slightly aggressive engagement - enough bite to transfer serious torque without the on/off grabbiness that plagues race-only clutches. The diaphragm-style pressure plate delivers lighter-than-stock pedal effort, making this a genuinely streetable setup for stop-and-go driving.

This economical kit uses McLeod's patent-pending large diameter adapter ring system, allowing you to retain your existing large-diameter flywheel rather than purchasing a dedicated unit. The large red adapter ring fits common big-flywheel applications including Chevy 168T, Ford 164T/176T/180T/184T, Chrysler 143T/172T, and Buick/Olds/Pontiac 160T/166T configurations. The 26-spline, 1-1/8" input shaft configuration matches T56, TKX, and other performance transmissions.

Compatible with 1955-85 Chevy V8 engines equipped with large diameter flywheels. Note: McLeod street performance clutches require a 500-750 mile break-in period of stop-and-go city driving (1,200-1,500 clutch cycles) before wide-open-throttle use or dyno tuning. This kit does not include a pilot bearing or throwout bearing. Made in the USA.

What's Included

• Diaphragm-style pressure plate
• Two ceramic friction discs (9.687" diameter, 26-spline, 1-1/8" hub)
• Solid hub assembly
• Steel floater plate
• McLeod patent-pending large diameter adapter ring
• Clutch alignment pilot tool
• Installation instructions with break-in procedure

Note: Pilot bearing and throwout bearing not included - inspect and replace as needed during installation.

Key Features

• 1,200 horsepower capacity for extreme street/strip builds
• Twin ceramic friction discs with slightly aggressive engagement and soft pedal effort
• Patent-pending large red adapter ring fits large-diameter flywheels including Chevy 168T
• 26-spline x 1-1/8" input shaft compatibility for aftermarket transmissions
• Diaphragm-style pressure plate for consistent clamping force
• Blanchard-ground floater plate with multiple straps reduces noise for streetability
• Economically priced kit without flywheel - uses your existing flat-style flywheel
• Made in the USA

Description

When you have pushed past 1,000 horsepower and still need to drive to the track, run hard, and drive home, the McLeod RXT 1200 delivers the holding power without the leg cramps. This twin-disc clutch handles up to 1,200 crank horsepower while maintaining a comfortable pedal feel that will not leave you massaging a charlie horse after a trip through downtown at rush hour.

The RXT 1200 features ceramic-lined clutch discs that provide slightly aggressive engagement with soft pedal effort. The higher clamp load compared to the standard RXT gives you the grip needed for serious power while the twin-disc design keeps rotating mass low for quick revs. The Blanchard-ground floater plate with multiple straps minimizes driveline noise - you may hear some feedback tones between 1200-1900 RPM, which is normal for twin-disc applications.

McLeod's patent-pending large red adapter ring system eliminates the need for a dedicated flywheel. The ring mounts to your existing large-diameter flat-style flywheel (Chevy 168T and similar) and provides the proper mounting surface for the twin-disc assembly. This adapter ring approach reduces cost while maintaining strength. Note: This kit requires a flat-style flywheel with a crank relief of 6.250" or less for proper fitment - it will not work with recessed or stepped flywheels.

Compatible with 1955-1985 Chevy V8 applications using transmissions with a 26-spline x 1-1/8" input shaft. Break-in requires 500-750 miles of stop-and-go city driving to properly seat the discs - actuate the clutch 1,200-1,500 times before any wide-open throttle driving. Pilot and throwout bearings sold separately. Backed by lifetime technical support from Modern Driveline.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs
• Blanchard-ground floater plate
• McLeod patent-pending large red adapter ring
• Pilot alignment tool
• Installation instructions
• Lifetime technical support

Note: Pilot bearing and throwout bearing not included. Flywheel not included - kit uses existing flat-style flywheel with adapter ring.

Key Features

• 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
• 246mm (9.7-inch) twin-disc design reduces rotating mass and increases heat capacity over single-disc clutches
• Precision-machined aluminum clutch cover derived from Tilton's OT-Series racing clutch technology
• Double-thickness floater plate eliminates gear chatter and provides superior heat dissipation
• Billet chromoly flywheel with 153-tooth ring gear and precision clutch register for optimal balance [VERIFY: custom field shows 157-tooth]
• 26-spline, 1-1/8-inch input compatible with TREMEC T-56 Magnum and TKO transmissions
• Heavy-duty straps attach pressure plate and floater to minimize noise and ensure clean release
• Compatible with most OEM release bearings (C6 Corvette applications require Tilton 6000-Series HRB)
• Made in the USA by Tilton Engineering

Description

High-horsepower LS builds demand a clutch that won't slip, chatter, or fail under load. The Tilton ST-246 twin-disc clutch and flywheel assembly delivers 850 lb-ft of holding power while maintaining the smooth engagement characteristics you need for daily street duty. Unlike the stamped steel "performance" clutches flooding the market, the ST-246 was engineered from the ground up as a true twin-disc clutch—not an OEM pressure plate with a floater bolted on as an afterthought.

The precision-machined aluminum clutch cover shares technology directly from Tilton's championship-winning OT-Series racing clutches used in F1, NASCAR, IMSA, IndyCar, and Formula Drift. This design delivers superior strength, stiffness, and dynamic balance compared to stamped steel alternatives. The high-mass main pressure plate and floater plate are machined from proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warpage resistance. The floater plate is twice the thickness of most competitor twin-disc clutches—this extra mass allows for the sprung hub design while eliminating gear chatter and improving heat dissipation during hard use.

The sprung-hub organic discs dampen engine vibrations and reduce transmission noise, delivering engagement characteristics you can live with in traffic. The included billet chromoly flywheel features a precision register that locates the clutch for optimal balance—a significant improvement over the loose-fitting bolts and dowels found on stamped steel clutch assemblies. Internal balance matches LS1, LS2, LS3, LS6, and LS7 engines with 6-bolt crankshaft flanges.

This kit works with most OEM hydraulic release bearings. C6 Corvette and Gen5 Camaro applications require a Tilton 6000-Series hydraulic release bearing (sold separately for this kit). Pilot bearing and throwout bearing are not included. Designed for TREMEC T-56 Magnum and TKO transmissions with 26-spline, 1-1/8-inch input shafts.

What's Included

• Billet chromoly steel flywheel with 153-tooth ring gear, internally balanced [VERIFY: custom field shows 157-tooth]
• Precision-machined aluminum clutch cover with OT-Series racing technology
• High-mass main pressure plate with heavy-duty attachment straps
• Double-thickness steel floater plate with heavy-duty attachment straps
• Two 246mm organic clutch discs with sprung hubs (26-spline, 1-1/8-inch)
• Flywheel mounting bolts
• Clutch cover mounting bolts
• Clutch alignment tool
• Installation instructions

Tilton ST-246 Twin-Disc Clutch Kit | GM LSA/LSX 8-Bolt | 850 lb-ft Organic

Key Features

• 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
• Precision-machined aluminum pressure plate cover - superior strength and balance vs. stamped steel OEM-style units
• Double-thick floater plate eliminates gear chatter and provides superior heat dissipation
• Billet chromoly flywheel with 153-tooth ring gear and precision register for optimal balance [VERIFY: Product data lists both 153-tooth and 168-tooth ring gear - confirm correct spec]
• Heavy-duty straps connect pressure plate and floater to minimize noise and ensure clean release
• 26-spline disc hub (26 x 1-1/8") - compatible with TREMEC T-56, TKO, and similar transmissions
• Internally balanced (zero-balance) flywheel for GM LSA/LSX 8-bolt crank flange
• Tilton HR throwout bearing included [VERIFY: Main description says included, custom field says not included - confirm kit contents]
• Engineered from 50+ years of Tilton racing clutch technology

Description

When your LSA or LSX build pushes beyond what factory clutches can handle, the Tilton ST-246 delivers race-proven holding power with street-friendly manners. Rated at 850 lb-ft of torque, this twin-disc assembly was engineered from the ground up as a true performance clutch - not an afterthought OEM stamped-steel cover with a floater plate tacked on. The precision-machined aluminum pressure plate cover shares technology directly from Tilton's championship-winning OT-Series racing clutches, providing superior strength, stiffness, and dynamic balance compared to the stamped steel alternatives.

The ST-246's secret weapon is its floater plate design - machined at twice the thickness of competing twin-disc clutches. This extra mass serves three critical functions: it allows the use of sprung-hub discs for smooth engagement, eliminates the gear chatter common in twin-disc setups, and provides significantly greater thermal capacity to resist warpage under hard use. Heavy-duty straps connect the pressure plate and floater to the cover, minimizing noise and delivering a clean, predictable release.

The organic friction discs feature sprung center hubs that dampen engine vibrations and reduce gearbox noise - essential for a streetable driving experience. The billet chromoly flywheel includes an integrated ring gear and a precision register bore that locates the clutch assembly perfectly, eliminating the loose-fitting bolts and dowel pins that create imbalance in lesser setups. This kit is designed specifically for GM LSA and LSX engines with 8-bolt crankshaft flanges and mates to 26-spline input shaft transmissions including TREMEC T-56 and TKO variants.

Since 1972, Tilton Engineering has supplied championship-winning clutches to the highest levels of motorsport - F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. The ST-246 brings that proven expertise to the high-performance street market at a competitive price point.

What's Included

• Precision-machined aluminum clutch cover assembly with heavy-duty straps
• High-mass pressure plate machined from proprietary racing clutch materials
• Double-thick steel floater plate
• Two organic friction discs with sprung center hubs (26 x 1-1/8" spline)
• Billet chromoly steel flywheel with integrated ring gear (internally balanced for 8-bolt LSA/LSX)
• Clutch alignment tool
• Flywheel bolts
• Clutch cover bolts
• Tilton HR throwout bearing [VERIFY: Confirm if throwout bearing is included or not]
• Installation instructions

Note: Pilot bearing not included.

Key Features

• Solid-hub cerametallic discs rated for 1250 lb-ft of torque - delivers race-proven strength for street/strip use
• Precision-machined aluminum clutch cover - higher strength, stiffness, and better dynamic balance than OE-type stamped steel covers
• Floater plate twice the thickness of most twin-disc clutches - enables solid-hub design, eliminates gear clatter, and provides superior heat dissipation
• Billet chromoly flywheel with integrated 168-tooth ring gear - reduces rotating mass while delivering long-term durability
• High-mass pressure plates machined from proprietary racing materials - provides exceptional heat capacity and resists warpage
• 246mm (9.7") disc diameter with 26-spline x 1-1/8" input - direct fit for TREMEC T56 and TKO transmissions
• Heavy-duty straps attach plates to cover - minimize noise and provide clean clutch release
• Compatible with most OEM release bearings

Description

High-output LS engines demand more than stamped steel clutches can deliver. The Tilton ST-246 solves the torque capacity problem without sacrificing streetability. Unlike many performance clutches on the market, ST-246 clutches were designed from the ground up as a true performance twin-disc clutch - not an OEM-type stamped steel pressure plate with a floater added. This complete assembly delivers racing technology in a package engineered specifically for street/strip use.

The aluminum clutch cover shares technology from Tilton's championship-winning line of OT-Series racing clutches, providing superior strength and balance compared to stamped steel alternatives. The ultra-thick floater plate design enables the solid-hub cerametallic discs to handle extreme torque loads while eliminating the gear rattle common with thinner designs. Proprietary pressure plate materials deliver exceptional heat dissipation - critical for repeated hard launches and track use.

The billet chromoly flywheel features a precision register system that ensures optimal clutch positioning and balance, eliminating the loose-fitting bolt patterns that plague lesser designs. The integrated 168-tooth ring gear reduces weight compared to separate press-fit rings while maintaining the strength needed for high-RPM operation. Since 1972, Tilton Engineering has been the leading supplier of small-diameter racing clutches, with championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE.

Designed for Chevy LS1, LS2, LS3, LS6, and LS7 engines with 6-bolt crank flanges. The 26-spline x 1-1/8" hub pattern provides direct compatibility with TREMEC T56 and TKO transmissions. Can be used with most OEM release bearings. Pilot bearing and throwout bearing not included.

What's Included

• Precision-machined aluminum clutch cover assembly
• High-mass pressure plate with proprietary racing material construction
• Ultra-thick floater plate with heavy-duty mounting straps
• Two 246mm solid-hub cerametallic friction discs
• Billet chromoly flywheel with integrated 168-tooth ring gear
• Flywheel mounting bolts
• Clutch mounting hardware
• Alignment tool
• Installation instructions

Key Features

• 1,250 lb-ft torque capacity with solid-hub cerametallic discs - built for serious street/strip power
• 246mm (9.7") disc diameter provides superior heat dissipation and clamping force
• Precision-machined aluminum clutch cover - higher strength and stiffness than stamped steel OEM designs
• Billet chromoly steel flywheel with integrated 168-tooth ring gear and precision clutch register
• Floater plate twice the thickness of most competitors - eliminates gear chatter and dramatically improves heat capacity
• Heavy-duty straps connect pressure plate and floater to cover - minimizes noise, provides clean release
• 26-spline x 1-1/8" input shaft compatibility - direct fit for TREMEC T56, TKO, TKX, and Magnum transmissions
• 8-bolt crank flange pattern for LSA, LSX, LT1, and LT4 engines
• Complete assembly weight: 46.4 lbs

Description

When you're pushing serious power through an LSX or LT4 engine, clutch failure isn't an option. The Tilton ST-246 was engineered from the ground up as a true performance twin-disc clutch - not an OEM-type stamped steel pressure plate with a floater tacked on as an afterthought. This is race-derived technology built for the street, drawing on Tilton's nearly 50 years of championship-winning experience in F1, NASCAR, IMSA, IndyCar, and Formula Drift.

The engineering details set the ST-246 apart. The precision-machined aluminum clutch cover shares technology with Tilton's OT-Series racing clutches, delivering higher strength, better stiffness, and superior dynamic balance compared to stamped steel competitors. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warp resistance. That floater plate runs twice the thickness of typical twin-disc setups - this eliminates gear chatter and provides dramatically better heat dissipation under hard use.

This specific kit features solid-hub cerametallic discs rated for 1,250 lb-ft of torque, delivering the positive, precise engagement characteristics needed for street/strip applications. The billet chromoly steel flywheel includes an integrated 168-tooth ring gear and precision register system that provides optimal clutch-to-flywheel balance - no loose-fitting bolts or dowels like stamped steel units. Heavy-duty straps connect the plates to the cover, minimizing noise while ensuring fast, clean releases between shifts.

Designed for Chevy LSA, LSX, LT1, and LT4 engines with 8-bolt crank flange patterns. Compatible with TREMEC T56, TKO, TKX, and Magnum transmissions via the 26-spline x 1-1/8" input shaft. This assembly does not include a pilot bearing or throwout bearing - it can be used with most OEM release bearings, or pair it with a Tilton 6000-Series hydraulic release bearing for optimal performance.

Kit Includes

• Billet chromoly steel flywheel with integrated 168-tooth ring gear (internally balanced)
• Precision-machined aluminum clutch cover
• High-mass pressure plate (proprietary racing materials)
• Heavy-duty floater plate (2x thickness vs. competitors)
• Two cerametallic clutch discs with solid-hub centers (26-spline x 1-1/8")
• Heavy-duty connecting straps
• Clutch mounting bolts
• Flywheel mounting bolts
• Spline grease
• Alignment tool
• Lifetime technical support from MDL

Note: Pilot bearing and throwout bearing not included.

LF Series Hydraulic Clutch Master Kit | Remote Reservoir | 0.700 Bore

Key Features

• 0.540 cubic inch displacement volume - properly moves most slave cylinders on the market
• 0.700-inch bore with full 1.4-inch stroke for complete clutch disengagement
• Remote reservoir design for flexible mounting in tight engine bays
• Hand-assembled in-house for controlled quality and tolerances
• Includes 1-man bleeder kit for simplified system bleeding
• Tested, proven, and double-checked for fit and finish before shipping
• Compatible with DOT 3 or DOT 4 brake fluid
• Works with stock clutch pedals and OE reproduction aftermarket pedals
• Made in the USA

Description

When you're building a hydraulic clutch system from scratch, piecing together individual components wastes time and often leads to compatibility headaches. MDL bundles this complete master cylinder kit for builders who want everything needed to install a hydraulic clutch master without hunting down fittings, rods, and hardware separately. The LF Series represents MDL's engineered approach to hydraulic clutch actuation - every component selected and tested to work together seamlessly.

This cylinder's 0.700-inch bore paired with a full 1.4-inch stroke delivers 0.540 cubic inches of displacement volume - the sweet spot for actuating most hydraulic throwout bearings and slave cylinders without over-pressurizing the system or requiring excessive pedal travel. Don't confuse this with the Wilwood GS that has a shorter stroke - MDL's full 1.4-inch stroke ensures complete clutch disengagement even with high-clamp-load pressure plates.

The remote reservoir design allows flexible mounting options when firewall space is limited or when you need to keep the fluid reservoir away from engine heat. All MDL hydraulic kits are hand-assembled in-house so that quality and tolerances can be controlled, then tested and double-checked for fit and finish before they go in the box. If you don't use the full stroke of the cylinder, MDL offers 3/4-inch and 7/8-inch bore masters for applications requiring different volume characteristics.

This universal kit works across Ford, GM/Chevy, and Mopar applications with stock clutch pedals or aftermarket reproduction pedals. Uses DOT 3 or DOT 4 brake fluid. Made in the USA with lifetime technical support available at 208-453-9800.

Kit Includes

• 0.700-inch bore x 1.4-inch stroke master cylinder
• Remote reservoir with mounting hardware
• Complete hydraulic line set with fittings
• Pushrod assembly
• 1-man bleeder kit for system bleeding
• Installation instructions
• Lifetime technical support

Key Features

• Precision-machined billet aluminum construction with black anodized finish
• 6-inch straight design for compact, direct shifting
• Direct bolt-on for TREMEC TKO-500, TKO-600, T-5, T-45 and T-56 transmissions with standard 2-bolt flange
• 3/8-16 threaded stud for universal shift knob compatibility
• 3/8" mounting holes on 7/8" center-to-center spacing
• Includes all mounting hardware

Description

When you're building a tight interior or need precise shifter positioning, a quality shift lever makes all the difference. This Bowler Performance billet aluminum shift lever delivers the strength, fit, and finish that serious builds demand. The 6-inch straight design provides a compact, direct path from your hand to the transmission, ideal for applications where console clearance is tight or you prefer a lower shift knob position.

Precision-machined from solid billet aluminum, this lever offers superior strength and dimensional accuracy compared to stamped or cast alternatives. The black anodized finish resists corrosion and wear while delivering a clean, professional appearance that complements any interior. The 3/8-16 threaded stud accepts virtually any aftermarket shift knob, giving you full control over the final look and feel of your shifter setup.

Designed specifically for TREMEC applications, this lever is a direct bolt-on for TKO-500, TKO-600, and T-56 transmissions equipped with the standard 2-bolt flange. The 3/8-inch diameter mounting holes are spaced on 7/8-inch centers for secure, vibration-free attachment. Whether you're finishing a street machine or dialing in a track car, this lever provides the precision and durability your build deserves.

What's Included

• Billet aluminum shift lever with black anodized finish (6" straight)
• 3/8-16 threaded stud for shift knob mounting
• Complete mounting hardware kit

Billet Aluminum Shift Lever | Straight 4" | Industrial Through-Pocket | Raw Finish

Key Features

• Direct bolt-on for TREMEC TKO, TKX, T-5, T-45, 3650 and T-56 with standard 2-bolt flange
• Solid billet aluminum construction with raw machined finish
• Industrial through-pocket design for strength and aggressive aesthetics
• 4-inch straight lever length
• 3/8-16 threaded stud accepts standard aftermarket shift knobs
• Mounting holes: 0.890" center-to-center spacing, 3/8" diameter (7/8" CTC bolt pattern)
• All mounting hardware included

Description

Factory plastic shift levers don't match the precision engineering inside your TREMEC transmission. This Bowler billet aluminum shift lever delivers the solid, direct feel your build deserves while adding a machined industrial aesthetic to your interior. The through-pocket design isn't just for looks--it reduces weight while maintaining rigidity for crisp, confident shifts.

Machined from solid billet aluminum, this 4-inch straight lever bolts directly to any TREMEC TKO, TKX, or T-56 shifter assembly using the standard 2-bolt flange. The 3/8" mounting holes on 7/8" center-to-center spacing match the factory pattern, so installation is straightforward with the included hardware. The raw aluminum finish with machined edges provides the perfect canvas--run it as-is for an industrial look, or polish, anodize, or powder coat it to match your build theme.

The 3/8-16 threaded stud at the top accepts virtually any aftermarket shift knob, giving you complete control over the final look and feel. A half nut is included to secure your knob of choice. At 4 inches tall, this straight lever delivers a compact throw height ideal for applications where tunnel clearance is tight or where you prefer a lower hand position.

Kit Includes

• Billet aluminum shift lever (4" straight, raw finish with machined edges)
• 3/8-16 half nut for shift knob retention
• Mounting hardware

Key Features

• CNC-machined from solid billet aluminum for maximum rigidity and precise shifts
• Black anodized finish for durable corrosion resistance and professional appearance
• 8-inch straight lever design for optimal reach and shift feel
• Direct bolt-on fitment for TREMEC TKO-500, TKO-600, T-5, T-45 and T-56 with standard 2-bolt flange
• Also compatible with Richmond LGT 700 transmissions
• 3/8"-16 threaded stud accepts most aftermarket shift knobs
• Mounting holes: 3/8-inch diameter on 7/8-inch center-to-center spacing

Description

Factory shift levers are stamped steel compromises. This Bowler Performance billet aluminum shift lever eliminates flex and delivers the solid, precise feel that serious builds demand. CNC-machined from solid billet aluminum, the 8-inch straight design provides clean aesthetics and ergonomic positioning without kickback angle, making it ideal for applications where a vertical lever orientation works best.

The black anodized finish resists corrosion and looks sharp against any interior, whether you are building a pro-touring restomod or a dedicated track car. Unlike hollow or stamped levers, this solid billet construction means zero flex under aggressive shifting, translating your input directly to the transmission for positive gear engagement every time.

Designed specifically for TREMEC transmissions, this lever features direct bolt-on fitment for TKO-500, TKO-600, and T-56 transmissions equipped with the standard 2-bolt mounting flange. It is also compatible with Richmond LGT 700 units. The 3/8"-16 threaded stud at the top accepts most aftermarket shift knobs, letting you complete your interior exactly how you want it. Mounting holes are 3/8-inch diameter on 7/8-inch center-to-center spacing for secure, vibration-free installation.

What's Included

• Black anodized billet aluminum shift lever (8-inch, straight)
• Installation hardware

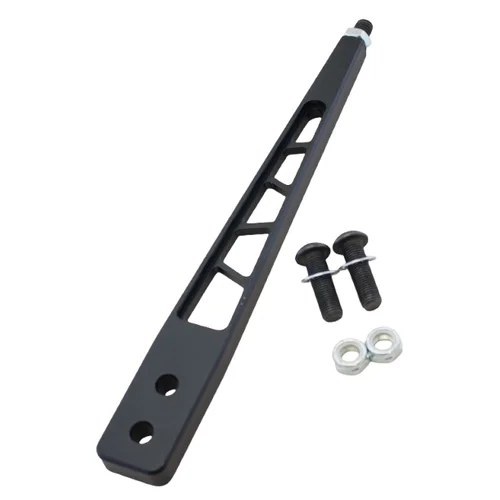

Key Features

• Precision-machined billet aluminum construction for maximum rigidity and zero flex
• Direct bolt-on fitment for TKO-500, TKO-600, T56, and T-5 shifters with standard 2-bolt flange
• Industrial through pocket design for clean shift knob mounting and structural strength
• 3/8"-16 threaded stud with included half nut for secure knob attachment
• 0.890" center-to-center bolt pattern with 3/8" diameter mounting holes
• 8" straight lever length positions knob at optimal height without tunnel mods
• Brushed aluminum finish for a professional, refined appearance
• Complete mounting hardware included for bolt-on installation

Description

Factory plastic shift levers flex under hard shifts and look out of place in a performance build. This Bowler billet aluminum lever solves both problems with precision-machined construction that delivers direct, solid shift feel while upgrading your interior aesthetics. The 8" straight design maintains stock shift geometry and throw while eliminating the sloppy flex inherent in OEM plastic levers.

The industrial through pocket design is what sets this lever apart from cheap alternatives. Rather than a simple drilled hole for the shift knob stud, the through pocket provides superior strength at the critical stress point where flex would otherwise occur. The 3/8"-16 threaded stud is machined directly into the lever body, not pressed in—so it stays put for the life of the lever regardless of how often you swap knobs.

Fitment is direct bolt-on for TREMEC TKO-500, TKO-600, and T56 transmissions equipped with the standard 2-bolt shifter flange, as well as the LGT 700. The mounting holes measure 3/8" diameter on 0.890" center-to-center spacing—matching the TREMEC factory pattern exactly. The brushed aluminum finish resists corrosion and complements both classic muscle car interiors and modern pro-touring builds.

Kit Includes

• 8" straight brushed billet aluminum shift lever
• 3/8"-16 half nut for shift knob mounting
• Mounting hardware

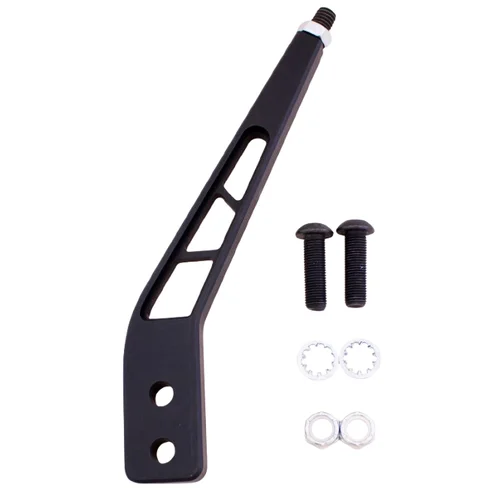

Billet Aluminum Shift Lever | 8" Length | 30 Degree Kickback | Black

Key Features

• Precision-machined billet aluminum construction with black anodized finish
• 30-degree kickback angle positions the shift knob closer to the driver
• 8-inch overall length for optimal leverage without sacrificing console clearance
• Direct bolt-on fitment for TREMEC TKO-500, TKO-600, and T-56 with standard 2-bolt flange
• Mounting holes: 7/8" center-to-center, 3/8" diameter
• 3/8"-16 threaded stud accepts most aftermarket shift knobs

Description

Factory plastic and stamped-steel shift levers flex under aggressive shifting and transmit a vague, disconnected feel to the driver. This Bowler billet aluminum shift lever eliminates that slop entirely. Machined from solid billet aluminum and finished with a durable black anodize, this lever delivers the precise, positive shift feedback that performance builds demand while upgrading the appearance of your interior.

The 30-degree kickback angle pulls the shift knob rearward, positioning it closer to the driver for improved ergonomics during spirited driving. At 8 inches in overall length, this lever strikes the ideal balance between leverage and compact packaging—short enough to clear most console installations while still providing comfortable reach and solid mechanical advantage at the shift knob.

Designed and manufactured by Bowler Performance specifically for TREMEC customers, this lever bolts directly to the standard 2-bolt flange found on TKO-500, TKO-600, and T-56 transmissions, and also fits the LGT 700. The mounting holes are spaced 0.890" center-to-center with 3/8" diameter bores for a precise, rattle-free fit. The pre-installed 3/8"-16 threaded stud accepts most aftermarket shift knobs, and a 3/8"-16 half nut is included for secure knob installation.

What's Included

• Bowler black anodized billet aluminum shift lever (8" length, 30-degree kickback)
• Mounting hardware for TREMEC 2-bolt flange
• 3/8"-16 threaded stud (pre-installed)
• 3/8"-16 half nut for shift knob installation

Key Features

• Direct bolt-on for TKO-500, TKO-600, TKX, T-56, and T-5 transmissions with standard 2-bolt flange
• Billet aluminum construction with industrial through-pocket design for strength and weight savings
• 8-inch tall lever with 30-degree kickback angle positions the knob closer to the driver
• Mounting hardware included with .890-inch center-to-center spacing (3/8-inch diameter holes)
• 3/8"-16 threaded stud for shift knob with half nut included
• Brushed aluminum finish for a refined, modern appearance

Description

Factory shift levers get the job done, but they rarely complement a well-built interior. This Bowler billet aluminum shift lever delivers both the aesthetics and ergonomics your TREMEC-equipped build deserves. The 30-degree kickback angle positions the shift knob closer to the driver, reducing reach and improving shifting comfort during spirited driving or long cruises alike.

Machined from billet aluminum with Bowler's signature industrial through-pocket design, this lever combines visual impact with functional weight savings. The precision-machined pockets remove material where it isn't needed while maintaining rigidity where it counts. The brushed finish provides a refined look that pairs well with both classic and modern interiors.

At 8 inches tall, this lever offers optimal leverage and a natural hand position for most applications. The standard 2-bolt flange pattern with .890-inch center-to-center mounting holes provides direct bolt-on fitment for TKO-500, TKO-600, TKX, T-56, and LGT 700 transmissions. A 3/8"-16 threaded stud at the top accepts most aftermarket shift knobs, and a half nut is included to secure your knob of choice.

Pair this lever with MDL's bezels and shift knobs for a complete, coordinated shifter setup that matches the quality of your TREMEC transmission.

What's Included

• Bowler billet aluminum shift lever (8-inch, 30-degree kickback, brushed finish)
• Mounting hardware for .890-inch center-to-center bolt pattern
• 3/8"-16 half nut for shift knob installation

Key Features

• 10-inch straight billet aluminum construction for extended reach and rigid shift feel
• Black anodized finish for corrosion resistance and clean appearance
• Standard 3/8-16 thread pitch accepts most aftermarket shift knobs
• Direct bolt-on installation with standard 2-bolt flange measuring 7/8". center-to-center
• Machined billet steel mounting stud drilled and countersunk for included metric cap screws
• Fits TREMEC T5, T45, T56, TKO, and all TREMEC shifters with standard 2-bolt flange
• Compatible with Borg Warner 5- and 6-speed shifters
• Made in the USA with manufacturer lifetime warranty

Description

Factory shift levers often leave you reaching too far or fighting vague, sloppy throws. This Lokar 10-inch straight billet aluminum shift lever solves both problems with a rigid, precisely machined design that puts the knob exactly where your hand naturally falls while eliminating the flex inherent in stamped steel sticks.

Machined from solid billet aluminum and finished with a durable black anodized coating, this lever delivers the stiffness and tactile precision that serious drivers demand. The straight 10-inch profile provides extended reach from the transmission tunnel, making it ideal for custom console installations, taller drivers, or anyone who wants the shift knob positioned higher in the cabin. Unlike bent or layback designs, the straight profile maintains consistent leverage throughout the entire shift stroke for predictable, repeatable shifts.

Installation is straightforward on any TREMEC or Borg Warner transmission equipped with the standard 2-bolt flange that measures 7/8 in. center-to-center between bolt holes. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, creating a flush, vibration-resistant connection to your shifter assembly. The 3/8-16 thread pitch at the top accepts virtually any aftermarket shift knob, giving you complete control over your interior's final appearance. Boots, bezels, and knobs sold separately.

What's Included

• 10-inch straight billet aluminum shift lever with black anodized finish
• Machined billet steel mounting stud
• Metric cap screws for installation
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on for T5, TKO-500, TKO-600, TKX, and T56 Magnum transmissions with standard 2-bolt flange
• Billet aluminum construction with brushed silver finish
• Industrial through pocket design reduces weight while maintaining rigidity
• 10-inch straight configuration with no bend or offset
• Mount holes spaced .890 inch center-to-center with 3/8-inch diameter
• 3/8-16 threaded stud accepts standard aftermarket shift knobs
• Complete mounting hardware included

Description

Ditch the factory plastic stick and upgrade to a shift lever engineered for the TREMEC drivetrain. This billet aluminum lever delivers the precise, solid feel that performance builds demand while transforming your interior with clean, modern aesthetics.

The industrial through pocket design removes material where it is not needed while maintaining structural integrity at critical stress points. Machined from solid billet aluminum stock rather than cast or fabricated, this lever provides consistent material properties, superior surface finish, and zero flex under hard shifting. The brushed silver finish complements both classic and modern interiors without the maintenance concerns of polished aluminum.

Fitment is straightforward: the standard 2-bolt flange pattern bolts directly to T5, TKO-500, TKO-600, TKX, and T56 Magnum shifter stubs. Mount holes are precision-machined to .890-inch center-to-center spacing with 3/8-inch diameter for perfect alignment every time. The 3/8-16 threaded stud at the top accepts any standard aftermarket shift knob, and the included half nut locks your knob securely in place.

Pair this lever with MDL bezels and shift knobs for a complete, integrated package that looks factory-engineered. Manufactured by Bowler Transmissions for Modern Driveline.

What's Included

• Brushed billet aluminum shift lever - 10-inch straight
• Mounting hardware pack
• 3/8-16 half nut for shift knob retention

Billet Aluminum Shift Lever | Black Anodized | 10 in. 30 Degree Kickback

Key Features

• Direct bolt-on for TREMEC TKO-500, TKO-600, TKX, and T56 transmissions with standard 2-bolt flange
• Precision-machined billet aluminum construction with black anodized finish
• 30-degree kickback design positions shift knob closer to the driver for improved ergonomics
• Industrial through-pocket design provides rigidity under aggressive shifting loads
• 10-inch overall length for optimal shift feel and knob positioning
• 0.890-inch center-to-center mounting holes with 3/8-inch bolt diameter
• 3/8-16 threaded stud accepts most aftermarket shift knobs

Description

Factory shift levers get the job done, but they rarely complement a custom interior or deliver the precise feel a performance build deserves. This billet aluminum shift lever from Bowler was purpose-built for the TREMEC enthusiast who demands both function and aesthetics. Machined from solid billet aluminum and finished in durable black anodize, it delivers the strength to handle aggressive shifts while adding a sleek, modern look to your cockpit.

The 30-degree kickback angle pulls the shift knob rearward and closer to the driver, improving reach and reducing fatigue during spirited driving or long cruises. At 10 inches tall, this lever strikes the ideal balance between throw reduction and mechanical advantage, giving you crisp gate engagement without requiring excessive effort. The industrial through-pocket design creates a rigid structure that eliminates flex under load, ensuring consistent shift feel whether you're rowing through traffic or banging gears at the track.

Installation is straightforward: the lever bolts directly to the standard 2-bolt flange found on TKO-500, TKO-600, TKX, and T56 transmissions using the included hardware. Mounting holes are spaced 0.890 inches center-to-center with 3/8-inch diameter. The 3/8-16 threaded stud at the top accepts virtually any aftermarket shift knob, allowing you to complete your interior upgrade with your preferred grip style. Pair this lever with one of MDL's shift bezels and knobs for a fully coordinated shifter assembly that matches the quality of your TREMEC transmission.

What's Included

• Black anodized billet aluminum shift lever (10 in., 30-degree kickback)
• Mounting hardware for 2-bolt flange installation
• 3/8-16 half nut for shift knob retention

Key Features

• Precision-machined from solid billet aluminum with brushed silver finish
• 30-degree kickback angle positions hand for natural, ergonomic shifting
• Direct bolt-on for TKO-500, TKO-600, TKX, and T-56 transmissions with standard 2-bolt flange
• Industrial through pocket design reduces weight while maintaining structural rigidity
• 10" overall length for balanced leverage and throw characteristics
• 3/8"-16 threaded stud accepts standard aftermarket shift knobs
• Mounting holes machined 0.890" center-to-center with 3/8" diameter for precise fitment

Description

Factory TREMEC shift levers get the job done, but they lack the style and ergonomic refinement that a performance build deserves. This Bowler billet aluminum shift lever transforms your interior with precision-machined construction and a sleek brushed silver finish that complements both classic and modern builds.

The 30-degree kickback angle is the key ergonomic feature here. Rather than forcing your wrist into an awkward position during aggressive shifts, the angled design places your hand naturally where it wants to be. The result is faster, more comfortable gear changes with reduced fatigue during spirited driving or track sessions.

Machined from solid billet aluminum using an industrial through pocket design, this lever delivers exceptional strength without unnecessary weight. The through pocket construction removes material strategically, creating visual interest while maintaining the structural integrity needed for hard shifts. At 10" in length, the lever provides optimal leverage for crisp gear engagement without excessive throw.

Installation is straightforward with direct bolt-on compatibility for TKO-500, TKO-600, TKX, and T-56 transmissions using the standard 2-bolt mounting flange. Mounting holes are precision-machined to 0.890" center-to-center with 3/8" diameter for perfect alignment. The 3/8"-16 threaded stud accepts most aftermarket shift knobs, so you can complete your interior with your preferred knob style.

Kit Includes

• Billet aluminum shift lever with brushed silver finish
• 3/8"-16 half nut for shift knob retention
• Mounting hardware

Note: Shift knob sold separately.

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• High-strength forged steel construction with triple chrome plating
• 12-inch height with 7.5-inch setback and 2-inch offset toward driver
• 3/8"-16 threaded tip accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on lever
• 3/8-inch bolt holes on 7/8-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Period-correct styling for 1969-1973 Mustang applications
• Compatible with T5, T56, and TKX transmission swaps

Description

When your original shift lever is worn, bent, or missing, this Hurst Competition/Plus chrome shift stick brings back the legendary feel and styling that made Hurst "America's Number 1 Shifter Company." Designed as a direct replacement for 1969-1973 Mustang applications, this lever positions the shift knob exactly where Ford intended -- with dimensions that match the factory Hurst setup.

Hurst bolt-on shifter sticks are ideal for use in custom applications where a particular height or offset is required. This lever measures 12 inches tall with a 7.5-inch setback and 2-inch offset toward the driver, placing the knob in the perfect position for quick, confident shifts. The forged steel construction delivers the rigidity you need for aggressive driving, while the triple chrome plating provides lasting durability and show-quality appearance.

The 3/8"-16 threaded tip accepts any Hurst shift knob or T-handle, giving you flexibility to customize your interior. The dual 3/8-inch mounting holes on 7/8-inch center-to-center spacing ensure rock-solid attachment to any Hurst shifter with two-bolt mounting. This lever offers slightly more offset than the Classic style, making it the correct choice for builders seeking authentic '69-'73 Mustang proportions.

Whether you're restoring a numbers-matching Boss 302 or building a restomod with a modern TREMEC T5, T56, or TKX, this Competition/Plus lever delivers the iconic Hurst heritage and quality that performance enthusiasts have trusted for decades.

What's Included

• Triple chrome-plated forged steel shift lever (Hurst #5388022)

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Hurst Round Shift Lever | Chrome | 7.92" Tall | 30-Degree | 3/8"-16 Thread

Key Features

• High-strength steel construction with triple chrome plating for durability and classic styling
• 7.92-inch height with 3.10-inch setback positions the knob for optimal ergonomics
• 30-degree bend angle delivers natural hand placement during spirited shifting
• 3/8"-16 TPI threads accept all Hurst shift knobs and T-handles
• Iconic Hurst name stamped directly into the steel for authenticity
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 0.875-inch bolt spacing with 0.375-inch bolt holes for secure mounting
• Round stick profile for a classic, period-correct appearance

Description

When your shifter demands a specific height and offset combination, this Hurst replacement stick delivers the legendary feel that built the brand's reputation since 1958. The 30-degree bend angle positions the shift knob exactly where your hand expects it, eliminating awkward reaches that slow down shifts and break concentration during aggressive driving. At 7.92 inches tall with a 3.10-inch setback, this round stick creates the ideal shift arc geometry for most applications.

Built from high-strength steel and finished with triple chrome plating, this shift lever combines the durability to handle aggressive powershifting with the classic Hurst aesthetic that defines serious performance builds. Each stick carries the stamped Hurst name--not a decal or badge, but pressed directly into the steel itself. The round profile provides a period-correct look that complements classic muscle car interiors.

The two-bolt attachment system ensures solid mounting to any Hurst shifter using this proven connection method, including Billet/Plus and Competition/Plus models. Standard 3/8"-16 threads at the top accept the full range of Hurst shift knobs and T-handles, giving you complete control over the final ergonomics and styling of your shifter setup.

Whether you're replacing a worn stick or dialing in the perfect reach and height for your driving position, this Hurst replacement lever transforms your shifter back to factory-fresh performance. Verify your shifter uses the two-bolt stick attachment method before ordering.

What's Included

• Hurst round shift lever, high-strength steel with triple chrome plating
• Hurst name stamped on stick body
• 3/8"-16 TPI threaded top for shift knob attachment

Key Features

• Triple chrome-plated high-strength steel construction with iconic Hurst name stamping
• 11.12-inch height with 2.26-inch rearward setback - optimized for Tri-Five Chevy applications
• Standard 3/8"-16 threads accept all Hurst shift knobs and T-handles
• Two-bolt attachment - 0.375-inch bolt holes with 0.875-inch center spacing
• Fits Hurst Competition/Plus, Billet/Plus, and other two-bolt attachment shifters
• Classic round stick design - authentic Hurst styling since 1958

Description

When your Tri-Five Chevy needs the perfect shift lever placement, this Hurst chrome stick delivers the right combination of height and setback for 1955-1957 Chevrolet applications. The 11.12-inch overall height paired with 2.26 inches of rearward offset positions your shift knob exactly where it needs to be for comfortable, confident shifts in the legendary Bel Air, 150, 210, and Nomad interiors that defined an era.

Built from high-strength steel and finished with triple chrome plating, this shift lever carries the pedigree that made Hurst the go-to name in performance shifters since 1958. The iconic Hurst name stamped directly into the stick identifies this as genuine Hurst equipment - a detail that matters to anyone who takes their drivetrain seriously. The chrome plating provides lasting durability against corrosion while delivering the brilliant finish that complements classic interiors.

The round stick design incorporates standard 3/8"-16 threads at the top, maintaining full compatibility with the entire Hurst ecosystem of shift knobs and T-handles. The two-bolt mounting pattern uses 0.375-inch diameter holes spaced 0.875 inches center-to-center - the standard Hurst attachment configuration that fits Competition/Plus, Billet/Plus, and any other Hurst shifter utilizing two-bolt stick mounting. This makes it a direct replacement for worn or damaged levers on existing Hurst installations.

Whether you are restoring an original Hurst-equipped Tri-Five or completing a modern drivetrain swap with a classic aesthetic, this lever bridges authentic 1950s style with the durability expected from America's most recognized shifter brand.

What's Included

• One Hurst round chrome shift lever with stamped Hurst branding
• High-strength steel construction with triple chrome plating
• Standard 3/8"-16 threads for shift knob attachment

Key Features

• 11.12-inch height with 2.25-inch setback -- flat stick design for precise ergonomics
• Forged steel construction with triple chrome plating for durability and classic styling
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and compatible Hurst shifters
• Bolt pattern: 3/8" holes on 7/8" spacing
• Iconic Hurst name stamped directly into the stick
• Application-specific geometry ideal for Tri-5 Chevrolet and Buick GS interiors

Description

Getting the shift knob in exactly the right spot matters -- especially in classic interiors where console dimensions, seat position, and steering wheel placement create a unique ergonomic equation. This Hurst Competition/Plus bolt-on shift stick delivers 11.12 inches of height with a 2.25-inch setback in a flat stick configuration, engineered to put the knob right where your hand naturally falls in Tri-5 Chevrolet and Buick GS applications.

Hurst builds these sticks from forged steel for rigidity under hard shifting, then applies triple chrome plating for corrosion resistance and that unmistakable classic Hurst appearance. The 3/8"-16 thread at the top accepts any Hurst shift knob or T-handle, letting you customize the final look and feel to match your build. The stamped Hurst name on the stick confirms authenticity and adds period-correct detail.

The two-bolt attachment pattern (3/8" holes on 7/8" spacing) makes this stick compatible with Billet/Plus, Competition/Plus, and other Hurst shifters that use the same mounting method. Installation is straightforward -- unbolt the old stick, bolt on the new one, thread on your preferred knob, and you're shifting. When your build demands specific shift geometry rather than a one-size-fits-all solution, this is the stick that gets the job done.

What's Included

• Hurst Competition/Plus shift stick (forged steel, triple chrome plated)
• 3/8"-16 threaded end for knob attachment

Key Features

• Triple chrome-plated high-strength steel construction for lasting durability and show-quality appearance
• 6.38" tall with 0.75" setback
• 3/8"-16 thread accepts any Hurst shift knob or T-handle
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and compatible Hurst shifters
• Iconic Hurst name stamped directly into the stick
• 0.375" bolt holes with 0.875" center-to-center spacing
• 10-degree backset angle for improved ergonomics

Description

When your Hurst shifter needs a fresh stick or you're dialing in the perfect shift throw geometry, this chrome Competition/Plus shifter stick delivers the legendary feel Hurst has been known for since 1958. Built for applications where specific height or offset is required, this replacement stick gives you the exact dimensions needed to optimize your shift pattern and driver positioning.

The high-strength steel construction receives triple chrome plating that won't fade or flake under hard use. At 6.38" tall with a compact setback, it positions your shift knob exactly where your hand expects it during aggressive driving. The setback also reduces the forward reach required in tight cockpits, making rowing through gears more natural and less fatiguing.

The two-bolt attachment system ensures this stick bolts directly to Billet/Plus and Competition/Plus shifters without modifications. Standard 3/8"-16 threads at the top accept any Hurst shift knob or classic T-handle, letting you complete the setup with your preferred grip. Whether you're restoring a classic muscle car or maintaining a performance build, this stick maintains the authentic Hurst feel that separates real shifters from imitations.

What's Included

• Triple chrome-plated steel shifter stick - 6.38" tall
• Hurst name stamped into stick body
• 3/8"-16 threaded top for shift knobs
• Two mounting bolt holes - 0.375" diameter, 0.875" center-to-center spacing

Key Features

• High-strength steel construction with triple chrome plating for durability and show-quality appearance
• 8-inch height with 3-inch setback for precise shifter positioning
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped into the stick
• Fits all Hurst shifters with two-bolt stick attachment
• 0.375-inch bolt holes with 0.875-inch (7/8") center-to-center spacing
• Single-bend lay-back design

Description

Getting the shift ball exactly where your hand naturally falls makes a real difference in shift speed and accuracy. This Hurst Competition/Plus chrome shift lever solves the common ergonomic problem of poorly positioned factory sticks by providing 8 inches of height with a 3-inch setback - ideal for builds where specific positioning matters.

Built from high-strength steel and finished with triple chrome plating, this shift lever delivers the bulletproof durability and iconic appearance that made Hurst America's number one shifter company since 1958. The Hurst name is stamped directly into the stick - a detail that serious builders recognize immediately. The single-bend lay-back design positions the shift ball rearward for natural hand placement during aggressive driving.

The 3/8"-16 thread at the top accepts any Hurst shift knob or T-handle, giving you flexibility to match your interior. Two-bolt mounting with 0.375-inch holes spaced 0.875 inches center-to-center ensures rock-solid attachment to the shifter base with zero play. This stick fits all Hurst shifters utilizing two-bolt stick attachment, making it a direct replacement for worn or damaged Competition/Plus shift levers or an upgrade from straight-stick configurations.

Whether you're replacing a worn factory stick or dialing in the perfect ergonomics for your build, this Competition/Plus shift lever delivers genuine Hurst heritage backed by legendary quality. Made in the USA.

What's Included

• One chrome-plated high-strength steel shift lever (8" tall x 3" setback, single-bend design)
• Pre-threaded 3/8"-16 tip for knob attachment
• Stamped Hurst logo

Key Features

• 15.5-inch height with 10.32-inch setback for precise positioning in non-console applications
• High-strength forged steel construction with triple chrome plating
• 3/8"-16 thread accepts Hurst shift knobs and T-handles
• Iconic Hurst name stamped on both sides of the stick
• 3/8" I.D. bolt holes with 7/8" center-to-center spacing
• Fits Competition/Plus, Billet/Plus, and other two-bolt attachment Hurst shifters
• Original-equipment replacement for 1962-1970 Mopar B-bodies without center console

Description

When your classic B-body Mopar or custom build demands a shifter stick with specific height and setback dimensions, this Hurst Competition/Plus lever delivers the exact geometry you need. The 15.5-inch height and 10.32-inch setback were engineered specifically for 1962-1970 Mopar B-bodies running without a center console - applications where standard-length sticks leave you reaching too far or too short for confident shifts.

Built from high-strength forged steel and finished with triple chrome plating, this shift lever carries the stamped Hurst name on both sides - the mark that has defined serious shifting since 1958. The forged construction handles the lateral loads of aggressive shifting without flexing or fatiguing, while the chrome finish resists corrosion and maintains its show-quality appearance.

The business end features 3/8"-16 threads, making it compatible with the full range of Hurst shift knobs and T-handles. Unlike slip-in factory sticks, this Competition/Plus lever uses the proven two-bolt attachment method with 3/8" I.D. bolt holes spaced 7/8" center-to-center. This design fits any Hurst shifter using the two-bolt stick attachment, including Competition/Plus and Billet/Plus models.

Whether you are restoring a Road Runner or Charger to factory specs or building a custom application that requires this specific reach and angle, this lever provides the precise positioning that separates adequate shifting from legendary Hurst performance. Note: Does not include lock nut for shift knob installation. Not compatible with OEM Hurst shifters that use slip-in stick design.

What's Included

• One (1) Hurst Competition/Plus shift lever, triple chrome-plated forged steel

Key Features

• 13.5-inch height with 3.5-inch setback -- classic candy cane design ideal for bench seat applications
• High-strength forged steel construction with triple chrome plating
• 3/8"-16 threaded top accepts all Hurst shift knobs and T-handles
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• Iconic "HURST" name stamped on the stick
• 3/8-inch mounting holes on 7/8-inch spacing bolt pattern

Description

When your bench seat setup demands proper shift lever reach and positioning, this Hurst Competition/Plus candy cane stick delivers the solution. The 13.5-inch height combined with a 3.5-inch setback puts the shift knob exactly where your hand naturally falls, eliminating the stretch and awkward positioning common with shorter, straighter sticks in bench seat cars and trucks.

Constructed from high-strength forged steel and finished with triple chrome plating, this lever offers both durability and show-quality appearance. The iconic Hurst name is stamped into the stick, maintaining the authentic Competition/Plus heritage that gearheads have trusted for decades. The 3/8"-16 threaded top accepts any Hurst shift knob or T-handle, letting you complete the setup with your preferred grip.

This stick fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method. The forged steel construction eliminates the flex and vibration issues found in cast alternatives, ensuring precise shift feel and long-term reliability. Installation is straightforward -- simply bolt on using the existing two-bolt pattern with 3/8-inch mounting holes on 7/8-inch spacing and you're ready for crisp, positive shifts.

What's Included

• One high-strength forged steel shift lever with triple chrome plating
• Stamped Hurst logo
• Pre-drilled mounting holes (3/8-inch holes on 7/8-inch spacing)
• 3/8"-16 threaded top for knob attachment

Key Features

• 16.5 inches tall with 4.5-inch set-back - ideal for bench seat muscle cars and classic trucks
• High-strength steel construction with triple chrome plating for durability and show-quality finish
• Double-bend candy cane design pulls the shift knob closer to the driver
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on stick
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 3/8" mounting holes on 7/8" spacing

Description

Bench seat muscle cars and classic trucks present a unique challenge: getting the shift knob exactly where your hand naturally falls without awkward reaching or cramped positioning. This 16.5-inch Hurst Competition/Plus candy cane shift stick solves that problem with its double-bend design, delivering a 4.5-inch set-back that pulls the shifter closer to the driver while maintaining proper throw geometry for smooth, precise shifts.

Hurst bolt-on shifter sticks are the go-to solution for custom applications where a particular height or offset is required. This stick is constructed from high-strength steel and triple chrome plated for a mirror finish that resists corrosion and looks right at home in a show car or a weekend warrior. The iconic Hurst name stamped into the steel tells everyone exactly what's moving the gears.

The standard 3/8"-16 thread at the top accepts the full range of Hurst shift knobs and T-handles, so you can finish the setup with whatever grip style suits your driving. The two-bolt base with 3/8" holes on 7/8" spacing fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method - a direct bolt-on replacement or upgrade for your existing stick.

Whether you're building a bench seat hot rod, restoring a classic pickup, or just need more reach from your Hurst shifter, this candy cane stick delivers the height and offset to put the knob right where you need it.

What's Included

• One high-strength steel shift lever, triple chrome plated
• 16.5" tall with 4.5" set-back (candy cane/double-bend style)
• 3/8"-16 threaded top for shift knob attachment
• Two-bolt mounting base (3/8" holes on 7/8" spacing)

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Converts Ford-style slip-in speedometer drive to GM 7/8" threaded cable connection
• Fits Ford T5, all 3550/TKO transmissions, Ford T56 with cable drive, and all TREMEC Magnum six-speeds
• Double O-ring seal at the transmission case plus internal seal to prevent fluid leaks
• Steel construction for accurate readings and long service life
• Eliminates the need for expensive custom speedometer cables

Description

TREMEC T56 Magnum, TKX, and TKO transmissions all use a Ford-style mechanical speedometer drive, which creates a compatibility problem for GM muscle cars and hot rods equipped with traditional GM speedometers and 7/8" threaded cables. Rather than sourcing an expensive custom cable, this adapter assembly converts the Ford slip-in driven gear interface to accept a standard GM threaded speedometer cable directly.

The adapter features a double O-ring seal at the transmission case opening combined with an internal seal where the cable attaches. This dual-seal design addresses a common complaint with lesser adapters that allow transmission fluid to leak through the cable attachment point. Steel construction ensures the drive spindle maintains accuracy and durability under demanding conditions.

Installation is straightforward: the adapter inserts into the transmission's speedometer housing where the driven gear normally sits, and your existing GM speedometer cable threads onto the adapter's external 7/8" fitting. This assembly fits Ford T5, all 3550/TKO variants, Ford T56 transmissions with cable drive, and all TREMEC Magnum six-speed transmissions. Note that speedometer driven gears and retaining clips are sold separately and must be matched to your tire size and rear axle ratio for accurate speedometer readings. Made internationally.

What's Included

• Speedometer cable adapter assembly with steel drive spindle
• Full manufacturer's warranty

Key Features

• Converts Ford slip-in speedometer drive to GM 7/8" threaded cable connection
• Double O-ring seal system prevents transmission case leakage at the housing
• Internal seal stops fluid from traveling up the speedometer cable
• Swiss steel drive spindle delivers superior strength and accuracy
• Billet housing with naval brass bushing for smooth, long-lasting operation
• One-piece design eliminates multiple failure points found in cheaper adapters
• Made in the USA

Description

TREMEC T-56 Magnum, TKX, TKO, and T5 transmissions use a Ford-based mechanical speedometer drive, which creates a problem when you're running a GM chassis with a 7/8" threaded speedometer cable. Without an adapter, you're stuck either fabricating a custom cable or dealing with a leak-prone import solution that fails at the worst possible time.

This precision-machined adapter is engineered to eliminate the chronic leakage issues that plague cheaper alternatives. The double O-ring seal system addresses leaks at the transmission case opening, while a dedicated internal seal prevents fluid from wicking up through the cable attachment point—a common failure mode on single-seal designs. The Swiss steel drive spindle provides extra strength and accuracy for consistent speedometer readings over the life of the build.

The billet housing paired with a naval brass bushing ensures smooth cable rotation and extended service life, even in high-vibration environments. The one-piece construction eliminates the potential leak paths and wear points found in multi-piece adapter assemblies.

Fits Ford T5, all 3550/TKO models, TKX, Ford T56 with cable drive, all TREMEC Magnum six-speeds, and Ford three- and four-speed transmissions. Made in the USA with full warranty coverage.

Kit Includes

• Billet speedometer cable adapter housing
• Swiss steel drive spindle
• Naval brass bushing
• Dual O-ring seals for transmission case
• Internal cable seal
• Full manufacturer's warranty

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
