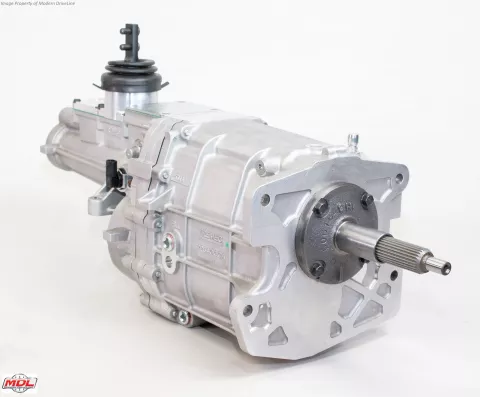

TREMEC Ford TKX 5-Speed Transmission | 2.87 First, 0.68 Overdrive | 26-Spline

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8-inch diameter), 31-spline output shaft
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21-inch Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Two shifter locations are standard; mid-position kit available separately
• High-performance billet aluminum short-throw shifter included
• Shifter Stub Locations: center line, 12.68”, 16.75” or 19.52” back from the bellhousing face
• Gaskets at all mating surfaces eliminate fluid leaks
• 99 lbs dry weight; 2.7-quart fluid capacity

Overview

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• High-performance short-throw billet aluminum shifter
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• OSS two-wire electronic speedometer sensor (built-in)
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27, first gear with 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.81 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

Key Features

• Adapts Ford wide pattern (Toploader-style) bellhousings to Ford 3550, TKO500, TKO600, and TKX transmissions
• CNC machined from 6061 billet aluminum for precision fit and durability
• Maintains bellhousing-to-transmission alignment with 0.001" tolerance
• No drilling, machining, or bellhousing modifications required
• Compatible with SBF and BBF applications: 289, 302, 351, 429, 460
• Machined-in logo and part number for authenticity verification
• Includes all mounting hardware
• Made in the USA

Description

Upgrading your classic Ford to a modern five-speed doesn't have to mean scrapping a perfectly good bellhousing. This spacer plate bridges the bolt pattern gap between your existing Ford wide pattern bellhousing (the Toploader bolt pattern found on post-1965 Ford car bellhousings) and the Ford 3550, TKO, or TKX transmission, eliminating the need for an expensive bellhousing swap or machine shop work.

CNC machined from 6061 billet aluminum, this spacer plate registers precisely to your bellhousing's centering bore, maintaining the critical transmission-to-bellhousing alignment required for proper clutch operation and input shaft bearing life. The design holds alignment to within 0.001" -- the same precision tolerance you'd expect from a purpose-built bellhousing. Longer mounting bolts pass through the transmission case, through the spacer plate, and thread into your existing bellhousing bolt holes. No cutting, no drilling, no modifications to your OEM or aftermarket bellhousing.

This spacer is engineered specifically for Ford wide pattern "car" bellhousings paired with Ford-pattern 3550, TKO500, TKO600, and TKX five-speeds. It supports SBF and BBF applications including the 289, 302, 351, 429, and 460. Note: This plate is designed for car-depth bellhousings only. Deeper truck bellhousings require a different input shaft solution -- if you're unsure which bellhousing you have, measure from the engine mounting face to the flat surface where the transmission mates. If you have a narrow Ford transmission pattern bellhousing, see our MD-401-2111 instead. Proudly made in the USA.

What's Included

• 6061 billet aluminum spacer plate with machined logo and part number
• Mounting hardware
• Installation instructions

Key Features

• Billet steel construction delivers superior strength and crack resistance over cast iron at high RPM
• Zero balance (0.0 oz) for internally balanced Ford FE 390, 427, and 428 engines
• 184-tooth ring gear for proper starter engagement
• 30-pound optimized weight balances reduced rotating mass with strong launch capability
• 11-inch clutch bolt pattern compatibility (Long and Big Block Chevy Offset patterns)
• Six-bolt crankshaft mounting configuration
• Precision-machined friction surface resists heat checking
• Made in the USA

Description

Factory cast iron flywheels served their purpose in stock applications, but they become a liability in performance builds. Cast iron is prone to stress cracking under high RPM and increased clutch clamping loads, and at elevated engine speeds, a failing iron flywheel can be catastrophic. This billet steel flywheel solves those problems while retaining the rotational mass needed for confident launches in torque-heavy Ford FE applications.

Billet construction starts with solid steel bar stock that is completely machined to final dimensions. This process eliminates the internal stresses and porosity inherent in castings, resulting in a flywheel that resists cracking and handles higher clamping forces from performance clutches. The material is significantly stronger than gray iron while maintaining the thermal stability needed for repeated heat cycles from aggressive driving.

At 30 pounds, this flywheel strikes the right balance for Ford FE street/strip builds. It is light enough to improve throttle response over a factory cast piece, yet heavy enough to store the rotational energy needed for smooth engagement and strong launches in heavier vehicles. The precision-machined friction surface works effectively with modern organic and ceramic clutch materials.

Designed as a direct bolt-in replacement for internally balanced (zero balance) Ford FE engines including the 390, 427, and 428. The 184-tooth ring gear ensures proper starter engagement, and the 11-inch clutch bolt pattern accepts standard pressure plates. Made in the USA with precision manufacturing standards.

What's Included

• Billet steel flywheel with 184-tooth ring gear
• Precision-machined friction surface
• Zero balance for internally balanced FE engines
• Lifetime technical support from MDL

Key Features

• Zero-balance design for internally balanced Ford 390 and 427 FE engines - no counterweights on flywheel required
• 184-tooth hardened ring gear with 15.5-inch diameter for reliable starter engagement
• Cast iron construction delivers OEM-style mass and durability for street and moderate performance use
• 11-1/2 inch clutch bolt pattern accepts standard FE pressure plates
• Six-bolt crankshaft attachment pattern
• NOT compatible with 428ci FE motors (428 requires externally balanced flywheel)

Description

Finding a quality replacement flywheel for your FE-powered Ford shouldn't mean hunting through junkyards or settling for questionable cores. This cast iron flywheel delivers the OEM-spec foundation your 390 or 427 FE drivetrain needs, with the correct zero-balance design that matches how Ford originally engineered these engines.

Ford's 332, 352, 360, 390, 406, and 427 FE engines are all internally balanced - the crankshaft counterweights handle all rotational balance, so the flywheel itself carries no offset weight. This zero-balance flywheel bolts directly to those engines without any machine work or balancing. The cast iron construction provides the rotational mass these big-blocks were designed around, offering smooth engagement and proven durability for street driving and weekend cruising.

The 184-tooth hardened ring gear measures 15.5 inches in diameter, matching the factory specification for proper starter clearance and reliable engagement in any weather. The 11-1/2 inch clutch surface accepts standard Ford FE pressure plates, making this a direct bolt-in replacement for stock or mildly modified applications.

Critical fitment note: This flywheel is designed exclusively for internally balanced 390ci and 427ci FE engines. The 428ci FE is externally balanced and requires a weighted flywheel - see part number MD-LBS-428 for 428 applications. Using this zero-balance flywheel on a 428 will cause vibration issues.

Kit Includes

• Cast iron flywheel with hardened 184-tooth ring gear
• Clutch pattern chart reference guide (PDF)

Key Features

• Billet steel construction eliminates stress cracks and withstands high RPM and heavy clutch clamping loads
• 28oz external balance matches Ford 428ci FE engine requirements
• 184-tooth ring gear for correct FE starter engagement
• 30-pound optimized weight balances rotational inertia with improved throttle response
• 6-bolt asymmetric crankshaft mounting ensures proper counterweight indexing
• 11" clutch bolt pattern compatible with Long style and BBCO pressure plates
• Precision-machined friction surface for consistent clutch engagement
• Made in the USA

Description

Ford's 428ci FE is one of the few FE engines that requires external balance - 28oz of counterweight on the flywheel to offset the longer stroke. Cast iron flywheels handle the job adequately in stock applications, but under performance conditions they become stress-crack liabilities. When you're running aggressive clutch clamping forces and high RPM, you need billet steel.

This Lighten Billet Steel flywheel is machined from solid steel bar stock, delivering the structural integrity that cast iron simply cannot match. The 30-pound weight is deliberately optimized - heavy enough to store adequate rotational energy for smooth launches and drivability, yet light enough to sharpen throttle response compared to stock cast units. The integrated 28oz counterweight is precision-positioned and indexed via Ford's asymmetric 6-bolt crankshaft pattern, ensuring proper balance alignment every time.

The 184-tooth ring gear is correct for Ford FE engines from 1965-on and engages properly with standard FE starters. The 11" friction surface is machined for 11" and 11.5" Long style pressure plate bolt patterns - the same configurations used on factory FE clutch systems. This gives you flexibility to run either traditional Long style three-pair bolt patterns or modern diaphragm-style pressure plates designed for the Long pattern.

Direct bolt-in replacement for Ford 428ci FE engines requiring 28oz external balance. Also fits externally balanced 410ci FE applications. Single-disc clutch compatible. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• One (1) Lighten Billet Steel flywheel, precision-machined from solid bar stock (30 lbs)
• 184-tooth ring gear, pressed and secured
• 28oz external counterweight, integrated
• Precision-machined 11" clutch friction surface
• 6-bolt asymmetric crankshaft mounting holes
• 11" Long style and BBCO pressure plate bolt pattern
• Lifetime technical support

Key Features

• Billet steel construction delivers superior strength and crack resistance over cast iron at high RPM
• Zero balance (0.0 oz) for internally balanced Ford FE 390, 427, and 428 engines
• 184-tooth ring gear for proper starter engagement
• 30-pound optimized weight balances reduced rotating mass with strong launch capability
• 11-inch clutch bolt pattern compatibility (Long and Big Block Chevy Offset patterns)
• Six-bolt crankshaft mounting configuration
• Precision-machined friction surface resists heat checking
• Made in the USA

Description

Factory cast iron flywheels served their purpose in stock applications, but they become a liability in performance builds. Cast iron is prone to stress cracking under high RPM and increased clutch clamping loads, and at elevated engine speeds, a failing iron flywheel can be catastrophic. This billet steel flywheel solves those problems while retaining the rotational mass needed for confident launches in torque-heavy Ford FE applications.

Billet construction starts with solid steel bar stock that is completely machined to final dimensions. This process eliminates the internal stresses and porosity inherent in castings, resulting in a flywheel that resists cracking and handles higher clamping forces from performance clutches. The material is significantly stronger than gray iron while maintaining the thermal stability needed for repeated heat cycles from aggressive driving.

At 30 pounds, this flywheel strikes the right balance for Ford FE street/strip builds. It is light enough to improve throttle response over a factory cast piece, yet heavy enough to store the rotational energy needed for smooth engagement and strong launches in heavier vehicles. The precision-machined friction surface works effectively with modern organic and ceramic clutch materials.

Designed as a direct bolt-in replacement for internally balanced (zero balance) Ford FE engines including the 390, 427, and 428. The 184-tooth ring gear ensures proper starter engagement, and the 11-inch clutch bolt pattern accepts standard pressure plates. Made in the USA with precision manufacturing standards.

What's Included

• Billet steel flywheel with 184-tooth ring gear
• Precision-machined friction surface
• Zero balance for internally balanced FE engines
• Lifetime technical support from MDL

Key Features

• Billet steel construction eliminates stress cracks and withstands high RPM and heavy clutch clamping loads
• 28oz external balance matches Ford 428ci FE engine requirements
• 184-tooth ring gear for correct FE starter engagement
• 30-pound optimized weight balances rotational inertia with improved throttle response
• 6-bolt asymmetric crankshaft mounting ensures proper counterweight indexing
• 11" clutch bolt pattern compatible with Long style and BBCO pressure plates
• Precision-machined friction surface for consistent clutch engagement
• Made in the USA

Description

Ford's 428ci FE is one of the few FE engines that requires external balance - 28oz of counterweight on the flywheel to offset the longer stroke. Cast iron flywheels handle the job adequately in stock applications, but under performance conditions they become stress-crack liabilities. When you're running aggressive clutch clamping forces and high RPM, you need billet steel.

This Lighten Billet Steel flywheel is machined from solid steel bar stock, delivering the structural integrity that cast iron simply cannot match. The 30-pound weight is deliberately optimized - heavy enough to store adequate rotational energy for smooth launches and drivability, yet light enough to sharpen throttle response compared to stock cast units. The integrated 28oz counterweight is precision-positioned and indexed via Ford's asymmetric 6-bolt crankshaft pattern, ensuring proper balance alignment every time.

The 184-tooth ring gear is correct for Ford FE engines from 1965-on and engages properly with standard FE starters. The 11" friction surface is machined for 11" and 11.5" Long style pressure plate bolt patterns - the same configurations used on factory FE clutch systems. This gives you flexibility to run either traditional Long style three-pair bolt patterns or modern diaphragm-style pressure plates designed for the Long pattern.

Direct bolt-in replacement for Ford 428ci FE engines requiring 28oz external balance. Also fits externally balanced 410ci FE applications. Single-disc clutch compatible. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• One (1) Lighten Billet Steel flywheel, precision-machined from solid bar stock (30 lbs)
• 184-tooth ring gear, pressed and secured
• 28oz external counterweight, integrated
• Precision-machined 11" clutch friction surface
• 6-bolt asymmetric crankshaft mounting holes
• 11" Long style and BBCO pressure plate bolt pattern
• Lifetime technical support

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Key Features

• Big Block Changeover (BBCO) 11.5" long pattern diaphragm pressure plate for Ford Big Block applications
• Organic/organic friction facings deliver smooth, predictable engagement for street driving
• 26-spline x 1-1/8" sprung hub clutch disk reduces driveline shock and improves shift quality
• 400 lb-ft torque capacity handles mild to moderate performance builds
• Hand-built in-house with double-checked tolerances for ready-to-install quality
• Mechanical release throwout bearing included for traditional fork-actuated setups
• Bronze Big Block Ford pilot bushing (1.850" OD x .590" ID x .900" wide) included
• Made in the USA with a 1-year free-from-defect warranty

Description

Ford's Big Block Changeover (BBCO) pattern solved a common problem: how to run an 11.5" clutch on a flywheel originally designed for a smaller unit. The 11.5" long pattern bolts to the existing flywheel bolt circle while delivering the increased clamping force and friction surface area of a larger clutch assembly. This Superior clutch kit brings that proven BBCO configuration together with organic friction facings and a 26-spline hub for Ford Big Block builds requiring the heavy-duty input shaft size.

The organic/organic friction material offers predictable engagement characteristics that street-driven and mild performance vehicles demand. Unlike aggressive ceramic or metallic facings, organic material grabs progressively rather than abruptly, making stop-and-go traffic and daily driving far more manageable. The diaphragm-style pressure plate provides consistent clamping force across the entire friction surface while requiring less pedal effort than Borg & Beck designs of similar holding capacity.

The 26-spline x 1-1/8" sprung hub is designed for transmissions like the Ford Toploader, TREMEC TKO, and TKX that utilize the larger input shaft spline count. The sprung hub design absorbs driveline shock during aggressive launches and reduces gear rattle at idle, extending transmission life while improving overall shift quality. With a 400 lb-ft torque rating, this kit handles stock to mildly built Big Block Ford combinations without breaking the bank.

Every Superior brand clutch disk is hand-assembled in-house at MDL's Caldwell, Idaho facility. Each assembly is checked and double-checked for accuracy before shipping, so what arrives is a ready-to-install premium piece right out of the box. The included bronze pilot bushing is precision-manufactured from oil-impregnated Oilite bronze for long-lasting support of the transmission input shaft snout. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

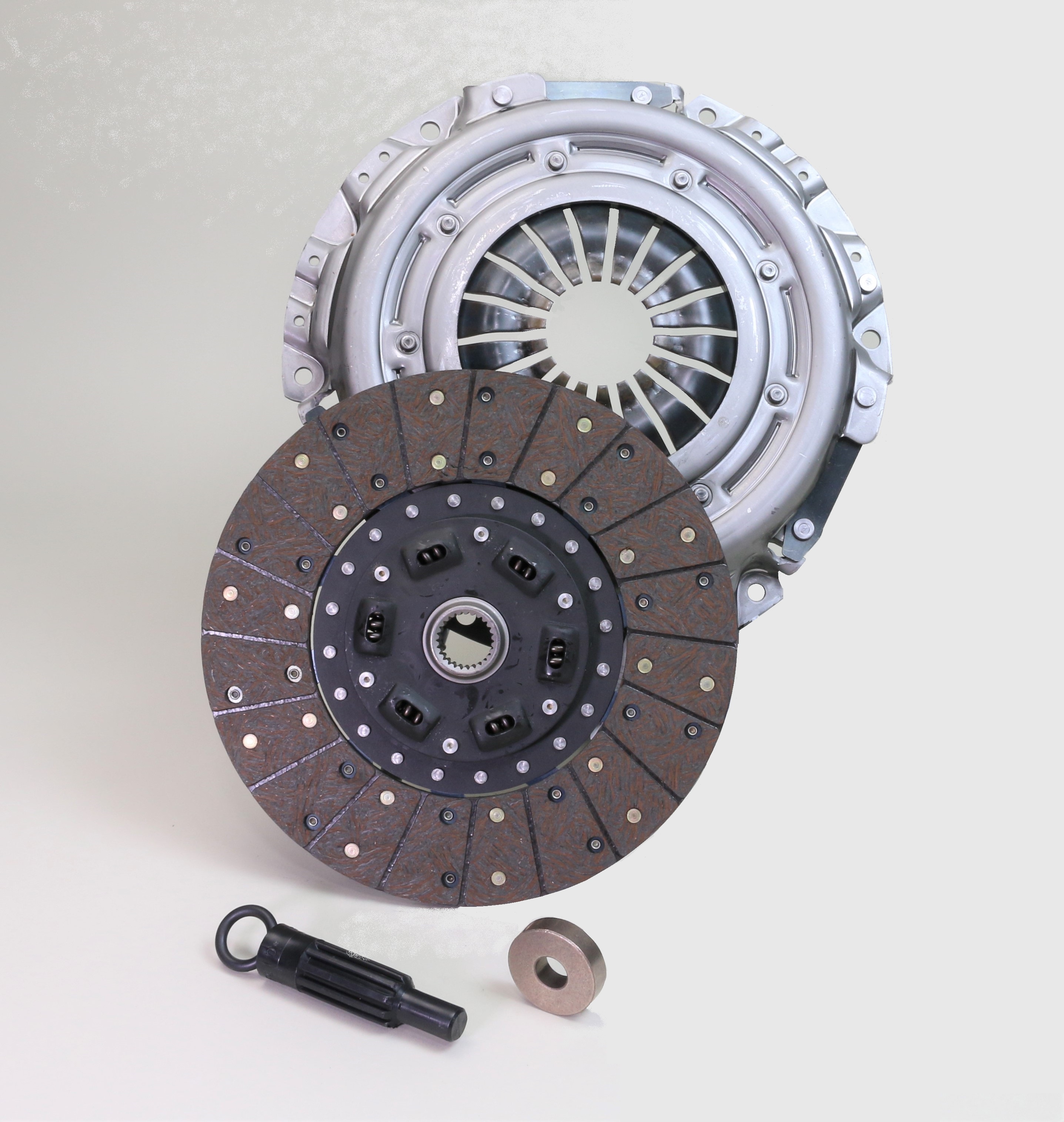

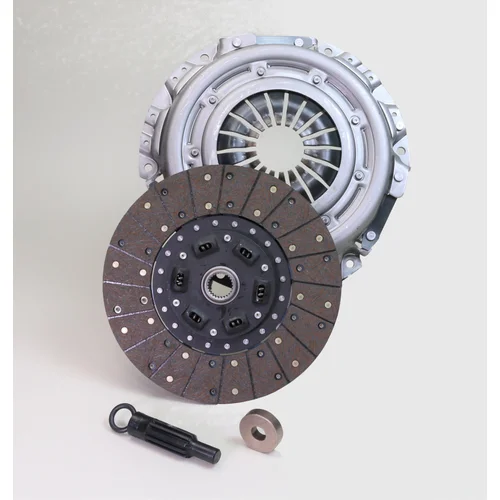

• 11.5" long pattern diaphragm pressure plate (BBCO pattern)
• 11" organic/organic clutch disk with 26-spline x 1-1/8" sprung hub
• Mechanical release throwout bearing
• Bronze Big Block Ford pilot bushing (1.850" OD x .590" ID x .900" wide)
• Clutch alignment tool (26-spline x 1-1/8")
• Installation and break-in instructions
• 1-year free-from-defect warranty

Key Features

• Big Block Change-Over 11.5-inch long pattern diaphragm pressure plate for Ford applications
• Kevlar/steel-backed organic facings - Kevlar on pressure plate side, steel-backed organic on flywheel side
• 26-spline x 1-1/8-inch clutch disc for high-torque Ford big block applications
• 500 lb-ft torque capacity rated for Performance Street Plus duty
• Sprung hub design absorbs driveline shock and reduces gear rattle
• Complete kit with mechanical throw-out bearing, Ford big block pilot bushing, and alignment tool
• Hand-assembled in-house and double-checked before shipping
• 1-year free-from-defect warranty
• Made in the USA

Description

When your Ford big block build demands a clutch upgrade that handles serious torque without compromise, this MDL Superior BBCO (Big Block Change-Over) clutch set delivers. The 11.5-inch long pattern pressure plate is specifically engineered for Ford big block applications requiring the change-over bolt pattern, bridging the gap between stock performance and serious power transmission with a 500 lb-ft torque capacity.

The engineering advantage lies in the dual-material disc construction: Kevlar facing on the pressure plate side provides aggressive initial bite and heat resistance, while the steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. This combination eliminates the harsh on-off engagement of full ceramic setups while maintaining the holding power needed for performance street applications. The sprung hub design absorbs driveline shock and reduces gear rattle - critical for street-driven performance builds where daily drivability matters.

Every Superior brand clutch disc is hand-built in-house at MDL's Caldwell, Idaho facility. Each assembly is checked and double-checked for quality, tolerances, and accuracy before it goes in the box. This isn't just marketing - it's the MDL difference that ensures you receive a ready-to-install premium piece right out of the box.

Designed for Ford big block applications requiring 26-spline input shafts and the 11.5-inch long bolt pattern. This complete kit includes a mechanical throw-out bearing, making it ready to install with your existing mechanical clutch linkage. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

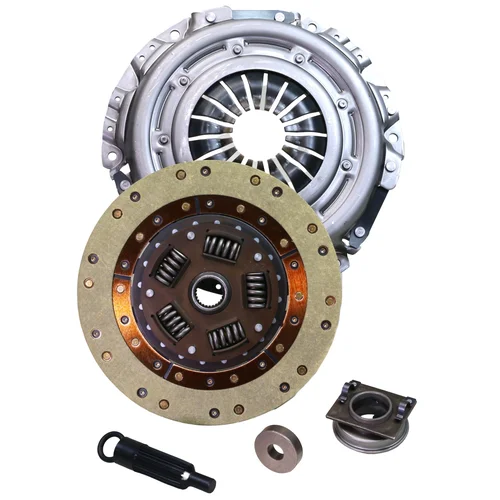

• 11.5-inch long pattern diaphragm pressure plate
• 26-spline x 1-1/8-inch clutch disc with Kevlar/steel-backed organic facings and sprung hub
• Mechanical throw-out bearing
• Big Block Ford pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty

Superior BBCO Clutch Kit | Ford Big Block | 11.5" Long | 26-Spline | Kevlar | Mechanical

Key Features

• 600 lb-ft torque capacity for performance street and open track applications
• Kevlar facings on both sides of clutch disk for heat resistance and consistent engagement
• 11.5" long pattern diaphragm pressure plate for Big Block Change Over applications
• 26-spline x 1-1/8" sprung hub for smooth driveline engagement
• Double-riveted, hand-assembled construction for quality assurance
• Complete kit with mechanical throw-out bearing, BBF pilot bushing, and alignment tool
• Made in the USA with 1-year free-from-defect warranty

Description

Ford Big Block builders making the swap to a modern overdrive transmission need a clutch that matches the 11.5" long pattern bolt configuration. This Superior BBCO (Big Block Change Over) clutch kit delivers exactly that--a complete, ready-to-install package with the correct pattern for transmission conversions while handling serious torque loads. Rated at 600 lb-ft, it bridges the gap between stock replacements and full-race setups, making it the go-to choice for performance street driving and open track days.

The clutch disk features Kevlar facings on both sides, providing the ideal balance of grip, modulation, and thermal stability. Kevlar handles the heat cycling of spirited driving better than organic materials while offering smoother engagement than ceramic compounds--you get aggressive holding power without the grabby, on-off feel that makes street driving a chore. The sprung hub dampens driveline shock for smoother operation, and the 26-spline x 1-1/8" center matches Big Block Ford transmission input shafts.

Every Superior clutch disk is hand-assembled at MDL's facility in Caldwell, Idaho. Components are double-riveted and checked twice for accuracy before shipping, so what arrives is a precision piece ready to bolt on--no sorting through mismatched parts or questionable quality. The diaphragm pressure plate provides consistent clamping force across the entire disk surface for even wear and predictable pedal feel.

This kit includes the mechanical throw-out bearing for cable or mechanical linkage systems, a Big Block Ford pilot bushing, and an alignment tool to simplify installation. Designed for Ford Big Block engines using the 11.5" long pattern bolt configuration. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 11.5" long pattern diaphragm pressure plate
• Clutch disk with Kevlar facings (both sides) and 26-spline x 1-1/8" sprung hub
• Mechanical throw-out bearing
• Big Block Ford pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

Key Features

• Steel roller bearings replace failure-prone factory plastic bushings
• Reduces clutch pedal effort and delivers smoother, more consistent pedal travel
• Zinc-plated pivot supports clip directly into factory pedal hanger openings
• Includes reinforcement washer for worn pedal hangers - weldable for permanent repair
• Direct replacement for Ford part number C5ZZ-2478-RB
• Fits 1965-1973 Mustang plus many other 1960s-70s Ford applications

Description

Factory plastic pedal bushings are one of the most common failure points in classic Mustang clutch systems. They wear quickly, creating sloppy pedal feel, increased effort, and inconsistent clutch engagement. This roller bearing kit permanently solves that problem by replacing those soft plastic pieces with steel roller bearings that deliver smooth, precise pedal action for years.

The roller bearing design dramatically reduces friction at the pivot point, translating directly to lighter pedal effort and more tactile clutch feel. Instead of fighting a sticky, binding pedal during spirited driving, you get consistent engagement every time. The zinc-plated roller bearing supports clip directly into your existing factory mounting points, maintaining OEM appearance while delivering superior durability.

For pedal hangers that show wear from years of use, the kit includes a reinforcement washer that can be welded in place to restore structural integrity before installing the new bearings. This is a straightforward upgrade once the pedal support assembly is removed from the vehicle. Note that 1969-1973 applications may require minor modification to the pedal bracket assembly for proper fitment.

Designed as a direct replacement for Ford part number C5ZZ-2478-RB, this kit fits 1965-1973 Mustangs and works with many other Ford applications from the same era. If your clutch pedal feels agricultural instead of precise, worn bushings are likely the culprit - and this kit is the permanent fix.

Kit Includes

• Steel roller bearing clutch pedal pivot supports (zinc-plated)
• Reinforcement washer for worn pedal hanger repair
• Mounting hardware

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Billet Aluminum Shift Lever | Black Anodized | 10 in. 30 Degree Kickback

Key Features

• Direct bolt-on for TREMEC TKO-500, TKO-600, TKX, and T56 transmissions with standard 2-bolt flange
• Precision-machined billet aluminum construction with black anodized finish
• 30-degree kickback design positions shift knob closer to the driver for improved ergonomics
• Industrial through-pocket design provides rigidity under aggressive shifting loads
• 10-inch overall length for optimal shift feel and knob positioning
• 0.890-inch center-to-center mounting holes with 3/8-inch bolt diameter
• 3/8-16 threaded stud accepts most aftermarket shift knobs

Description

Factory shift levers get the job done, but they rarely complement a custom interior or deliver the precise feel a performance build deserves. This billet aluminum shift lever from Bowler was purpose-built for the TREMEC enthusiast who demands both function and aesthetics. Machined from solid billet aluminum and finished in durable black anodize, it delivers the strength to handle aggressive shifts while adding a sleek, modern look to your cockpit.

The 30-degree kickback angle pulls the shift knob rearward and closer to the driver, improving reach and reducing fatigue during spirited driving or long cruises. At 10 inches tall, this lever strikes the ideal balance between throw reduction and mechanical advantage, giving you crisp gate engagement without requiring excessive effort. The industrial through-pocket design creates a rigid structure that eliminates flex under load, ensuring consistent shift feel whether you're rowing through traffic or banging gears at the track.

Installation is straightforward: the lever bolts directly to the standard 2-bolt flange found on TKO-500, TKO-600, TKX, and T56 transmissions using the included hardware. Mounting holes are spaced 0.890 inches center-to-center with 3/8-inch diameter. The 3/8-16 threaded stud at the top accepts virtually any aftermarket shift knob, allowing you to complete your interior upgrade with your preferred grip style. Pair this lever with one of MDL's shift bezels and knobs for a fully coordinated shifter assembly that matches the quality of your TREMEC transmission.

What's Included

• Black anodized billet aluminum shift lever (10 in., 30-degree kickback)
• Mounting hardware for 2-bolt flange installation
• 3/8-16 half nut for shift knob retention

Key Features

• Precision-machined from solid billet aluminum with brushed silver finish
• 30-degree kickback angle positions hand for natural, ergonomic shifting
• Direct bolt-on for TKO-500, TKO-600, TKX, and T-56 transmissions with standard 2-bolt flange
• Industrial through pocket design reduces weight while maintaining structural rigidity
• 10" overall length for balanced leverage and throw characteristics
• 3/8"-16 threaded stud accepts standard aftermarket shift knobs
• Mounting holes machined 0.890" center-to-center with 3/8" diameter for precise fitment

Description

Factory TREMEC shift levers get the job done, but they lack the style and ergonomic refinement that a performance build deserves. This Bowler billet aluminum shift lever transforms your interior with precision-machined construction and a sleek brushed silver finish that complements both classic and modern builds.

The 30-degree kickback angle is the key ergonomic feature here. Rather than forcing your wrist into an awkward position during aggressive shifts, the angled design places your hand naturally where it wants to be. The result is faster, more comfortable gear changes with reduced fatigue during spirited driving or track sessions.

Machined from solid billet aluminum using an industrial through pocket design, this lever delivers exceptional strength without unnecessary weight. The through pocket construction removes material strategically, creating visual interest while maintaining the structural integrity needed for hard shifts. At 10" in length, the lever provides optimal leverage for crisp gear engagement without excessive throw.

Installation is straightforward with direct bolt-on compatibility for TKO-500, TKO-600, TKX, and T-56 transmissions using the standard 2-bolt mounting flange. Mounting holes are precision-machined to 0.890" center-to-center with 3/8" diameter for perfect alignment. The 3/8"-16 threaded stud accepts most aftermarket shift knobs, so you can complete your interior with your preferred knob style.

Kit Includes

• Billet aluminum shift lever with brushed silver finish
• 3/8"-16 half nut for shift knob retention
• Mounting hardware

Note: Shift knob sold separately.

Lokar 10in Lay-Back Steel Shifter Lever | Black Powder-Coat | 3/8in-24 Thread

Key Features

• Lay-back design: 4in back offset x 9in tall with 30-degree bend for optimal hand position
• Tubular steel construction with black powder-coated finish
• Direct bolt-on fitment for TREMEC and Borg Warner shifters with standard 7/8in center-to-center 2-bolt flange
• Compatible with T5, T45, T56, TKO, and Magnum transmissions
• Machined mounting stud drilled and countersunk for included metric cap screws
• 3/8in-24 thread accepts most aftermarket shift knobs
• Made in the USA with lifetime warranty

Description

Stock shifter levers rarely put the shift knob where you actually want it. This Lokar lay-back steel shifter lever solves that problem with a 30-degree bend that positions your hand exactly where it needs to be for quick, confident shifts. The 4-inch back offset and 9-inch height put the knob in the optimal ergonomic position without sacrificing mechanical leverage.

Built from tubular steel with a durable black powder-coated finish, this lever delivers the rigidity serious shifting demands while resisting corrosion and looking sharp in any interior. The machined mounting stud features countersunk holes for a clean, smooth appearance that eliminates the exposed fastener look of lesser shifters.

Installation is straightforward bolt-on for any TREMEC or Borg Warner transmission using the standard 2-bolt flange measuring 7/8 inch center to center between bolt holes. That covers T5, T45, T56, TKO-500, TKO-600, and Magnum applications with both stock and aftermarket 5-speed and 6-speed shifter assemblies. The 3/8in-24 thread at the top accepts virtually any aftermarket shift knob, giving you full control over the final look and feel.

All Lokar products are made in the USA and backed by a lifetime warranty. Shift knob, boot, and trim ring are sold separately.

What's Included

• 10in tubular steel shifter lever with lay-back bend (black powder-coated)
• Machined mounting stud with countersunk cap screw holes
• Metric cap screws for installation

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• OEM Ford part number D0ZZ-7277-B for authentic fitment
• Compression molded EPDM rubber construction resists cracking and UV damage
• Textured skin surface matches original factory appearance exactly
• Integrated steel insert for secure mounting just like OE
• Rectangular base shape designed specifically for Hurst shifters
• Direct replacement for 4-speed manual transmissions

Description

That cracked, torn, or UV-damaged shift boot in your Hurst-equipped '69-'70 Mustang isn't just ugly - it lets dirt, debris, and moisture into your shifter mechanism. This OEM-spec reproduction restores the factory look and function that Ford engineers intended when they designed the original. Built to Ford part number D0ZZ-7277-B specifications, it drops right in without modification.

The boot is manufactured from compression molded EPDM rubber, the same material used in original Ford production. EPDM holds up to temperature extremes, resists UV degradation, and won't crack or tear like cheap vinyl alternatives. The textured skin surface replicates the original factory finish exactly - no smooth, generic appearance that screams "aftermarket" to anyone who knows these cars.

An integrated steel insert is molded into the base, providing the same secure mounting as the original equipment boot. This steel reinforcement prevents the flexing and tearing that kills generic universal boots within a few months of use. The rectangular opening is sized specifically for Hurst's distinctive rectangular shifter lever - this is not a round-lever boot, and it won't work with factory Ford shifters or other aftermarket units.

Fits 1969-1970 Mustangs equipped with Hurst 4-speed shifters. For a complete console restoration, pair this boot with the matching OEM-style shift boot bezel, available separately (see MD-321-1062-B).

What's Included

• EPDM rubber shift boot with rectangular opening for Hurst lever
• Integrated steel mounting insert

Key Features

• Billet aluminum trim ring with ball-milled edges for premium show-quality appearance
• Outer dimensions: 6-3/4" x 5-1/4" - fits standard floor-mount shifter openings
• Inner dimensions: 5-1/2" x 4" - accommodates most aftermarket shifter levers
• Black Naugahyde construction for durability and classic hot rod styling
• Foam rubber seal eliminates airflow and road noise through floor opening
• Boot hugs shifter lever cleanly - no unsightly pull ties or laces
• Includes stainless steel mounting screws for secure installation
• Made in the USA with lifetime warranty

Description

A cheap shift boot can ruin an otherwise clean interior build. This Lokar rectangular shift boot delivers the finishing touch your hot rod or muscle car deserves, combining durable black Naugahyde construction with a precision-machined billet aluminum trim ring featuring ball-milled edges. The result is a show-quality appearance that complements everything from traditional street rods to resto-mod builds.

The engineering centers on a smart billet bezel design that sits atop the boot and fits over the shifter lever. A foam rubber seal underneath blocks airflow and road noise from entering through the floor opening - a critical comfort detail that cheaper boots ignore. Unlike bargain alternatives that use visible pull ties or laces, this boot hugs the shifter lever for a clean, integrated look with no exposed fasteners marring your interior.

With outer dimensions of 6-3/4" x 5-1/4" and inner dimensions of 5-1/2" x 4", this rectangular boot fits standard floor-mount and cable-operated shifter applications. The rectangular footprint is specifically designed for floor-mount shifters rather than transmission-mounted units, making it the correct choice for TREMEC TKX, TKO, and T-56 Magnum installations in vehicles without center consoles. The complete kit includes everything needed for a straightforward installation.

Kit Includes

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Key Features

• 5-inch round black Naugahyde shift boot designed for hot rod builds
• Polished black stainless steel ring with ball-milled edge for refined appearance
• Foam rubber seal eliminates air flow from floor through boot
• Polished stainless bezel on top fits over shifter lever
• Boot hugs shifter lever with no unsightly pull ties or laces
• Made in the U.S.A. with lifetime warranty

Description

Turn an exposed shifter opening into a finished detail with this classic Lokar round shift boot designed specifically for hot rod builds. The polished stainless bezel fits over your shifter lever, creating a clean, professional appearance that matches the craftsmanship of your drivetrain. Whether you're running a TREMEC TKX, TKO, or any floor-mounted manual shifter, this boot delivers authentic hot rod styling while providing practical cockpit protection.

Constructed from durable black Naugahyde, this 5-inch round boot offers the timeless look builders expect from Lokar. The integrated foam rubber seal prevents air flow from the floor through the boot, eliminating drafts and reducing interior noise. Unlike lesser boots that rely on pull ties or laces, this design hugs the shifter lever cleanly for a seamless appearance.

The polished black stainless steel ring features a ball-milled edge for both visual appeal and secure floor mounting. Installation is straightforward with the included stainless steel screws. This round configuration works with most hot rod floor-mount shifter installations where you want clean styling without exposed hardware.

Ideal for hot rod builds where authentic styling meets modern function. Made in the U.S.A. and backed by a lifetime warranty.

Kit Includes

• Black Naugahyde shift boot
• Polished black stainless steel ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Speedometer Cable | 1967-1968 Mustang/Cougar | 5/8" Barrel | T5/TKO/TKX/AOD

Key Features

• 5/8" barrel-style connector matches factory Ford speedometer interface
• 63" overall length accommodates driver-side routing required by T5, TKO, and TKX transmissions [VERIFY: Product description states 63", key_features field states 59" - confirm correct length]
• Designed specifically for '67-'68 Mustang and Cougar five-speed and AOD conversions
• Compatible with Ford T5, TKO, TKX, and AOD transmissions
• Also fits Falcon conversions using MDL front-shift tailhousing or front-shift T5 packages

Description

When you swap from a factory four-speed to a modern T5, TKO, or TKX five-speed, the speedometer cable routing changes completely. These TREMEC transmissions position the mechanical speedometer drive on the driver's (left) side of the case, meaning your original cable won't reach - and trying to force an ill-fitting cable creates binding, premature wear, and inaccurate readings.

This application-specific speedometer cable solves that problem for '67-'68 Mustang and Cougar owners. The 5/8" barrel-style connector interfaces correctly with the Ford speedometer head, while the 63" overall length provides the reach needed for proper left-side routing without binding or excessive slack. The result is a clean installation that keeps your factory speedometer functioning accurately with your new overdrive transmission.

Beyond T5 and TKO/TKX manual swaps, this cable also works for AOD automatic conversions in '67-'68 Mustang and Cougar applications. Falcon owners converting to five-speed can use this cable when paired with MDL front-shift tailhousings or front-shift T5 packages. If you're upgrading to modern overdrive and want to keep your factory speedometer working, this is the cable that makes it happen.

What's Included

• Speedometer cable with 5/8" barrel connector (63" length)

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks
• Made in the USA

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made in the USA with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
