Key Features

• 700 lb-ft torque capacity with substantially increased gear face widths over original T56
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 with dual overdrive for street versatility
• 2-piece laser-beam welded gear construction for precise tooth angles, pitch, and alignment
• 26-spline input shaft, 31-spline output shaft
• Triple-cone synchronizers on gears 1-4; double-cone on 5th, 6th, and reverse
• Fully reversible TKO-style die-cast aluminum shifter with built-in mid-shift provisions
• Dual speedometer pickups for mechanical and electronic speedometers
• 140 lbs dry weight; 3.66-quart fluid capacity (Dexron III ATF)
• Cable release hardened steel guide tube and pivot stud included
• Max rated at 7,800 RPM

Description

The TREMEC T56 Magnum TUET16884 solves the torque limitation that plagued the original T56. Introduced in spring 2009, the Magnum delivers a massive 700 lb-ft torque capacity through substantially increased gear face widths and 2-piece laser-beam welded gear construction. Based heavily on the TR-6060 found in factory supercars like the ZR1 Corvette and ACR Viper, the Magnum combines TREMEC's OEM design and manufacturing technologies with the most popular features of the TKO 5-speed.

This TUET16884 features the wide-ratio gear set with 2.97 first gear and close-ratio 0.80/0.63 double overdrive—ideal for street-driven builds that need strong acceleration through the lower gears while maintaining relaxed highway cruising RPM. The 85mm center distance and bolstered one-piece countershaft resist distortion under load, while redesigned shift forks and fine-tooth synchronizer angles deliver incredibly short, low-effort throws with crisp engagement even at high RPM.

Triple-cone synchronizers on gears 1 through 4 and double-cone synchronizers on 5th, 6th, and reverse handle aggressive shifts with ease. The fully reversible TKO-style die-cast aluminum shifter provides smooth, positive shift action with two stock shifter positions, plus built-in mid-shift provisions under the inspection cover for simple forward shifter placement in bench-seat applications. Dual speedometer outputs accommodate both mechanical and electronic gauges, and the reverse lockout solenoid and reverse light switch are built in.

Configured for Ford applications with a 26-spline input shaft and 31-spline output shaft. Compatible with cable release clutch systems via the included hardened steel guide tube. The extensively modified transmission case prevents leaks under high-stress conditions and increases overall power-handling capabilities. Uses 3.66 quarts of TREMEC HP-MTF, Dexron III, or Mobil 1 Synthetic ATF.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET16884)
• Die-cast aluminum shifter assembly (fully reversible, TKO-style)
• Hardened steel cable release guide tube
• Cable fork pivot stud
• Mechanical speedometer output (gear-driven)
• 17-tooth electronic speedometer sensor
• Reverse lockout solenoid
• Reverse light switch
• Vent tube assembly
• TREMEC 1-year factory warranty
• MDL extended warranty (additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft effective torque capacity - handles serious power from big-block Fords to supercharged Coyotes
• Close-ratio gearing: 2.66, 1.78, 1.30, 1.00, 0.80, 0.63 - keeps the engine in its powerband through the gears
• Double overdrive (0.80 fifth, 0.63 sixth) - drops highway RPMs for improved fuel economy and reduced cruising noise
• 85mm center distance design for enhanced strength over original T56
• 135 lbs dry weight - reasonably light for a 700 lb-ft-rated 6-speed
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse for crisp, high-RPM shifts
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter with smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple conversions
• 1-1/8-inch 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups accommodate both mechanical and electronic speedometers
• Cable release hardened steel guide tube with pivot stud - accepts OE-style mechanical clutch fork
• Overall length: 34.03 inches
• Fluid capacity: 3.66 quarts Dexron III ATF

Description

When your Ford build demands more than a 5-speed can deliver but you refuse to compromise on shift quality, the TREMEC T56 Magnum answers the call. This close-ratio TUET11010 variant keeps RPM drops tight between gears - ideal for road racing, autocross, and spirited street driving where staying in the powerband matters. The 2.66 first gear pulls hard off the line, while the double overdrive (0.80 fifth, 0.63 sixth) drops highway RPMs dramatically for quiet, fuel-efficient cruising.

The Magnum is TREMEC's aftermarket version of the TR-6060 - the same transmission found in factory supercars like the Corvette ZR1 and Viper ACR. The 85mm center distance provides a larger gear contact patch and stronger case than the original T56, supporting 700 lb-ft of torque capacity. Triple-cone synchronizers on gears 1-4 and double-cone synchronizers on 5-6 and reverse deliver accurate, smooth shifts even at high RPM. The fully reversible die-cast aluminum shifter provides incredibly short, low-effort throws with crisp engagement.

This Ford-pattern Magnum requires a separate bellhousing and pairs with V8 Ford engines from small-block Windsors to modular 4.6/5.0 Coyote applications with the appropriate bellhousing. The hardened steel guide tube accepts standard mechanical clutch fork designs, making it a straightforward swap for classic Mustang builds. Dual speedometer provisions handle both electronic and mechanical gauges, while the built-in reverse lockout and reverse light switch simplify wiring.

MDL extends TREMEC's factory warranty by an additional year with a 1-year grace period when you purchase from us. That's the MDL difference - elite distributor pricing backed by lifetime technical support from people who actually know these transmissions inside and out.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET11010)
• OEM-grade die-cast aluminum reversible shifter assembly
• Hardened steel cable release guide tube
• Pivot stud for mechanical clutch fork
• 17-tooth analog/electric speedometer drive gear
• Reverse light switch
• Reverse lockout solenoid
• Drain and fill plugs
• TREMEC factory warranty plus MDL extended warranty (1 additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - handles serious power with confidence
• Based on TR-6060 OEM architecture - proven in factory supercars like the Dodge Viper and Camaro
• 135 lbs dry weight - light for a transmission this strong
• 2.97 first gear with 0.74/0.50 double overdrive - aggressive launch with relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse
• Fully reversible TKO-style die-cast aluminum shifter for smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple forward shifter placement
• 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups - mechanical and electronic
• 7,800 RPM rating
• 85mm center distance
• Cable release hardened steel guide tube included

Description

When TREMEC introduced the T56 Magnum in 2009, it solved the problem builders had been chasing for years: how to get bulletproof six-speed strength with OEM-level refinement in an aftermarket package. Based heavily on the TR-6060 - the same transmission found in factory supercars - the Magnum combines TREMEC's current OEM design and manufacturing technologies with the most popular features of their TKO 5-speed. The result is the smoothest-shifting, strongest, and most versatile 6-speed aftermarket transmission TREMEC has ever produced.

This TUET11011 features the wide-ratio 2.97 first gear, making it ideal for street-driven builds that want strong off-the-line acceleration without sacrificing highway drivability. The 0.74 fifth and 0.50 sixth gears deliver true double overdrive, dropping RPM for relaxed cruising and improved fuel economy. Spring-loaded ball-type synchronizer inserts reduce friction and eliminate notchy shifting, resulting in incredibly short, smooth shifts with crisp engagement.

The engineering upgrades over the original T56 are substantial. Face widths of the gears have been significantly widened to handle more torque, while redesigned one-piece shift forks with permanently mounted shift links eliminate the float and incomplete engagement that plagued earlier designs. The 85mm center distance provides the robust gear geometry needed to handle 700 lb-ft reliably. Multiple shifter locations accommodate different builds, and the reversible shifter assembly allows changing shift lever position simply by flipping the shift cover.

Compatible with Ford modular engines using the appropriate bellhousing (sold separately). Uses Dexron III ATF - no exotic fluids required. Made in the USA by TREMEC.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11011)
• Cable release hardened steel guide tube
• Reverse light switch
• 17-tooth electronic speedometer sensor
• Mechanical speedometer drive provision
• MDL extended warranty (extra year with 1-year grace period when purchased as part of a complete conversion package)
• MDL lifetime technical support

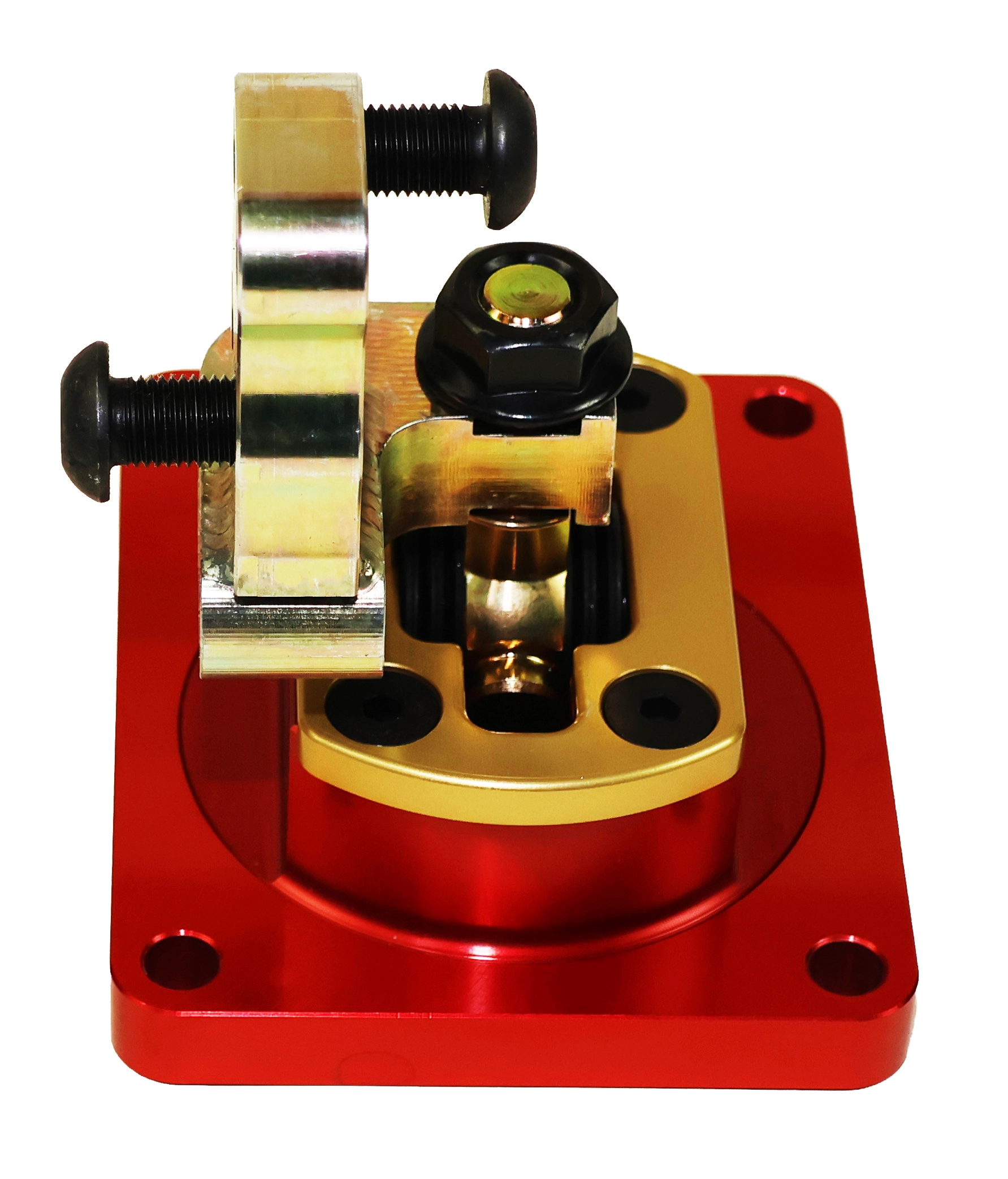

Key Features

• Precision-machined billet aluminum construction for superior weight savings and durability
• Close-ratio short-throw design delivers lightning-quick shift response
• 7/8-inch on-center mounting pattern fits most aftermarket shift levers
• Belleville washers provide excellent detent for crisp 2-3 shifts
• No-stop design with Belleville springs allows easy servicing when needed
• High-temperature lower dust boot prevents oil contamination
• Front shifter position for vehicles requiring forward shifter placement
• Straight-up stub with no offset
• Anodized finish for long-lasting corrosion resistance

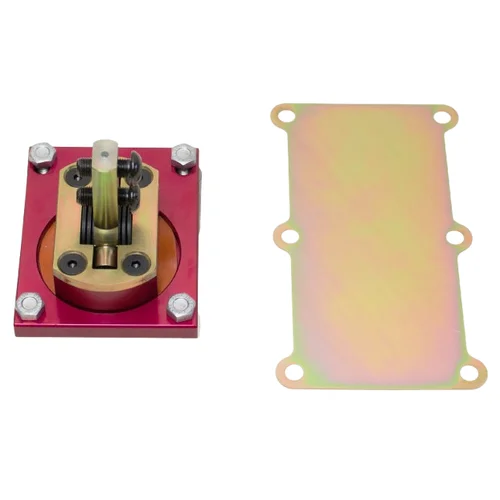

• Rear cover plate
• Proudly crafted 100% in the USA

Description

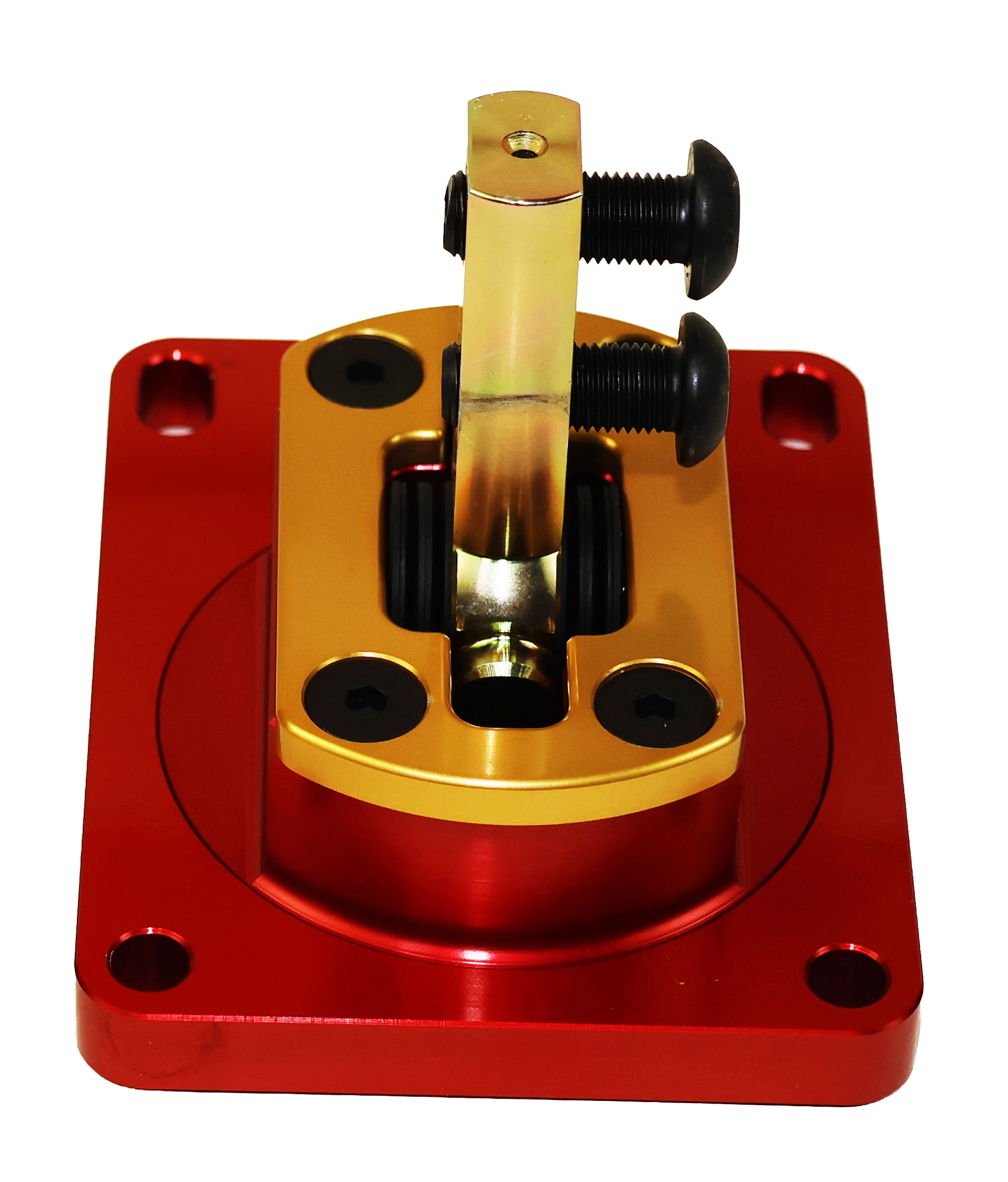

The Qwik Stik transforms your TREMEC Magnum 6-speed into a precision shifting machine. Designed specifically for builds where the shifter needs to be positioned further forward than standard locations, this close-ratio short-throw shifter eliminates the mushy feel and long throws of stock units while fitting through tighter tunnel openings thanks to its compact top turret design.

Precision-machined from billet aluminum, the Qwik Stik delivers significant weight savings while providing the structural integrity demanded by high-performance applications. The engineered Belleville washer detent system ensures crisp, positive engagement—especially critical for those demanding 2-3 shifts under power. Unlike traditional shifters with breakable stops, the Qwik Stik's no-stop design uses Belleville springs for smooth operation and simplified maintenance access when servicing is needed.

The high-temperature lower dust boot protects internal components from oil contamination, while the 7/8-inch on-center mounting accommodates most aftermarket shift levers on the market. Simply attach your preferred shift lever, boot, and shift knob to complete the installation. This straight-up, no-offset configuration is ideal for vehicles where console clearance or ergonomics require forward shifter positioning.

Compatible with TREMEC Magnum transmissions. Made in the USA with lifetime technical support from MDL.

Kit Includes

• Precision-machined billet aluminum Qwik Stik shifter assembly
• Rear cover plate
• High-temperature lower dust oil boot
• Belleville washer detent system

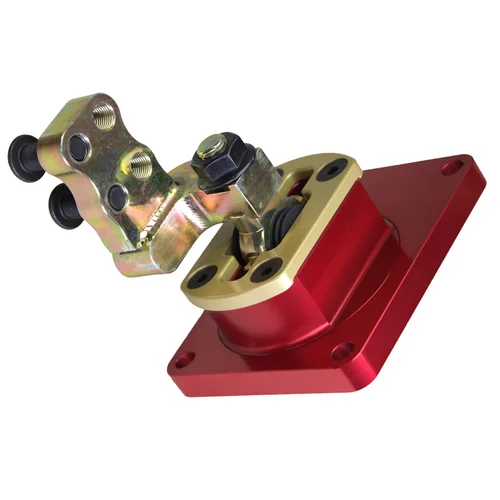

Qwik Stik Shifter | TREMEC Magnum Front Position | 1" Left, .65" or 1.15" backward

Key Features

• Precision-machined billet aluminum construction for weight savings and durability
• Small top turret clears narrow tunnel openings without cutting the floor
• 1" left offset with selectable .65" or 1.15" backward positioning
• 7/8in on-center mounting pattern fits most aftermarket shift levers
• Belleville washers deliver crisp, positive 2-3 shift detent feel
• No-stops design allows easy servicing without shifter removal
• High-temperature lower dust/oil boot included
• 3/8" lever mounting hardware for secure installation
• Red anodized finish for corrosion resistance
• Made in the USA

Description

The factory TREMEC Magnum shifter works great in modern applications, but classic Mustang tunnel openings are a different story. The Qwik Stik solves shifter placement headaches in '65-'73 Mustangs by combining a compact top turret with precise offset positioning - no floor surgery required. This front-position shifter puts your shift knob exactly where a factory lever would sit while delivering the short-throw, close-ratio response that makes rowing through six gears a pleasure.

The engineering starts with billet aluminum construction, precision-machined and anodized for long-term durability. The 1" left offset combined with your choice of .65" or 1.15" backward positioning dials in the exact lever location for front-mount applications. Need to clear a bench seat? The 7/8in on-center mounting pattern on the stub accepts virtually any aftermarket shift lever, so you can run your preferred handle and knob.

Shift quality comes from the Belleville washer detent system. Unlike traditional springs that wear out or stops that break, Belleville washers provide consistent, positive detent pressure for crisp 2-3 shifts under hard acceleration. The no-stops design also means internal servicing is straightforward - no removal required. A high-temperature dust/oil boot seals the assembly against contaminants that could compromise your 700 lb-ft-rated Magnum internals.

Compatible with all TREMEC Ford T56 Magnum 6-speed transmissions. Precision-machined mounting plates bolt directly to the transmission, taking the guesswork out of shifter placement. Proudly crafted in the USA.

Kit Includes

• Billet aluminum shifter assembly with anodized finish
• Rear cover plate
• 3/8" lever mounting hardware
• 1" left, .65" or 1.15" backward
• High-temperature lower dust/oil boot

Key Features

• SFI 6.1 certified steel scattershield for drag racing and high-performance applications
• Spun-cone construction -- not rolled or stamped -- for superior dimensional stability and concentricity
• Work-hardens to over 80,000 PSI -- more than twice the strength of other steel bellhousings
• 7 o'clock fork position for Ford-spec T56 mechanical fork or 4.6 cable fork installations
• Fits Ford FE engines: 352, 390, 427, 428
• Compatible with cable or hydraulic clutch operation using 12-inch clutch and 184-tooth flywheel
• 5.340-inch depth with 20-pound weight for compact, lightweight fitment
• Full engine plate and Grade 8 bolts included
• 100% built in the USA

Description

Mating a classic Ford FE big-block to a modern TREMEC T56 Magnum 6-speed demands more than a generic adapter -- it requires precision engineering that keeps your drivetrain aligned under full power. The QuickTime RM-8040-7 delivers that precision with a 7 o'clock fork position specifically designed for Ford-spec T56 transmissions using mechanical or 4.6 cable clutch forks.

QuickTime's signature spun-cone manufacturing process sets these bellhousings apart from anything made with rolled or stamped steel. The cone is spun from high-grade steel that work-hardens to over 80,000 PSI -- more than twice the strength of competing steel bellhousings. This process also delivers the pinpoint concentricity and parallelism that lesser manufacturing methods simply cannot achieve. The result: your engine and transmission stay in perfect alignment through the entire rpm range, eliminating the accelerated drivetrain wear caused by bellhousing flex.

This bellhousing fits all Ford FE engines including the 352, 390, 427, and 428, and mates them to Ford-pattern T56 and TREMEC Magnum 6-speed transmissions. It accepts standard 12-inch clutches with 184-tooth flywheels and works with both cable and hydraulic clutch actuation. The 5.340-inch depth and 20-pound weight keep the package compact while the included full engine plate and Grade 8 mounting hardware ensure rock-solid installation.

SFI 6.1 certification makes this bellhousing legal for sanctioned drag racing, and the patent-pending design incorporates input from OEM manufacturers, engine builders, transmission builders, racers, and hobbyists. Built 100% in the USA.

What's Included

• QuickTime RM-8040-7 steel bellhousing with 7 o'clock fork position
• Full engine plate
• Grade 8 mounting bolts
• Installation instructions

Key Features

• Complete transmission-to-bellhousing bolt set for Ford T56 Magnum installations
• Designed specifically for steel aftermarket bellhousings
• Metric fasteners with proper thread pitch for TREMEC T56 Magnum mounting holes
• Eliminates hardware sourcing headaches during your Ford 6-speed swap

Description

Aftermarket steel bellhousings typically ship with bellhousing-to-engine-block hardware only, leaving you to source the bolts needed to attach the transmission itself. This MDL hardware kit solves that problem for Ford T56 Magnum installations by providing the exact fasteners required to mount the transmission to any steel aftermarket bellhousing.

The kit is purpose-built for steel bellhousing applications. Steel bellhousings have different material thickness than aluminum units, requiring specific bolt lengths for proper thread engagement without bottoming out. Using the wrong hardware can result in insufficient thread engagement or bolts that bind before the transmission face seats flush. This kit takes the guesswork out of the equation.

Compatible with all steel aftermarket bellhousings that accept the Ford version of the TREMEC T56 Magnum 6-speed transmission. If you're pairing your Magnum with an aluminum bellhousing, you'll need the AL version of this kit instead, as aluminum bellhousings use different bolt lengths. This kit covers transmission-to-bellhousing mounting only; bellhousing-to-engine-block hardware is typically supplied by the bellhousing manufacturer.

What's Included

• Complete set of transmission-to-bellhousing mounting bolts [VERIFY: exact bolt count, thread size, and grade]

Key Features

• Billet steel construction delivers superior strength and crack resistance over cast iron at high RPM
• Zero balance (0.0 oz) for internally balanced Ford FE 390, 427, and 428 engines
• 184-tooth ring gear for proper starter engagement
• 30-pound optimized weight balances reduced rotating mass with strong launch capability
• 11-inch clutch bolt pattern compatibility (Long and Big Block Chevy Offset patterns)
• Six-bolt crankshaft mounting configuration
• Precision-machined friction surface resists heat checking
• Made in the USA

Description

Factory cast iron flywheels served their purpose in stock applications, but they become a liability in performance builds. Cast iron is prone to stress cracking under high RPM and increased clutch clamping loads, and at elevated engine speeds, a failing iron flywheel can be catastrophic. This billet steel flywheel solves those problems while retaining the rotational mass needed for confident launches in torque-heavy Ford FE applications.

Billet construction starts with solid steel bar stock that is completely machined to final dimensions. This process eliminates the internal stresses and porosity inherent in castings, resulting in a flywheel that resists cracking and handles higher clamping forces from performance clutches. The material is significantly stronger than gray iron while maintaining the thermal stability needed for repeated heat cycles from aggressive driving.

At 30 pounds, this flywheel strikes the right balance for Ford FE street/strip builds. It is light enough to improve throttle response over a factory cast piece, yet heavy enough to store the rotational energy needed for smooth engagement and strong launches in heavier vehicles. The precision-machined friction surface works effectively with modern organic and ceramic clutch materials.

Designed as a direct bolt-in replacement for internally balanced (zero balance) Ford FE engines including the 390, 427, and 428. The 184-tooth ring gear ensures proper starter engagement, and the 11-inch clutch bolt pattern accepts standard pressure plates. Made in the USA with precision manufacturing standards.

What's Included

• Billet steel flywheel with 184-tooth ring gear
• Precision-machined friction surface
• Zero balance for internally balanced FE engines
• Lifetime technical support from MDL

Key Features

• Billet steel construction eliminates stress cracks and withstands high RPM and heavy clutch clamping loads
• 28oz external balance matches Ford 428ci FE engine requirements
• 184-tooth ring gear for correct FE starter engagement
• 30-pound optimized weight balances rotational inertia with improved throttle response
• 6-bolt asymmetric crankshaft mounting ensures proper counterweight indexing
• 11" clutch bolt pattern compatible with Long style and BBCO pressure plates
• Precision-machined friction surface for consistent clutch engagement
• Made in the USA

Description

Ford's 428ci FE is one of the few FE engines that requires external balance - 28oz of counterweight on the flywheel to offset the longer stroke. Cast iron flywheels handle the job adequately in stock applications, but under performance conditions they become stress-crack liabilities. When you're running aggressive clutch clamping forces and high RPM, you need billet steel.

This Lighten Billet Steel flywheel is machined from solid steel bar stock, delivering the structural integrity that cast iron simply cannot match. The 30-pound weight is deliberately optimized - heavy enough to store adequate rotational energy for smooth launches and drivability, yet light enough to sharpen throttle response compared to stock cast units. The integrated 28oz counterweight is precision-positioned and indexed via Ford's asymmetric 6-bolt crankshaft pattern, ensuring proper balance alignment every time.

The 184-tooth ring gear is correct for Ford FE engines from 1965-on and engages properly with standard FE starters. The 11" friction surface is machined for 11" and 11.5" Long style pressure plate bolt patterns - the same configurations used on factory FE clutch systems. This gives you flexibility to run either traditional Long style three-pair bolt patterns or modern diaphragm-style pressure plates designed for the Long pattern.

Direct bolt-in replacement for Ford 428ci FE engines requiring 28oz external balance. Also fits externally balanced 410ci FE applications. Single-disc clutch compatible. Proudly made in the USA with lifetime technical support from MDL.

What's Included

• One (1) Lighten Billet Steel flywheel, precision-machined from solid bar stock (30 lbs)
• 184-tooth ring gear, pressed and secured
• 28oz external counterweight, integrated
• Precision-machined 11" clutch friction surface
• 6-bolt asymmetric crankshaft mounting holes
• 11" Long style and BBCO pressure plate bolt pattern
• Lifetime technical support

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

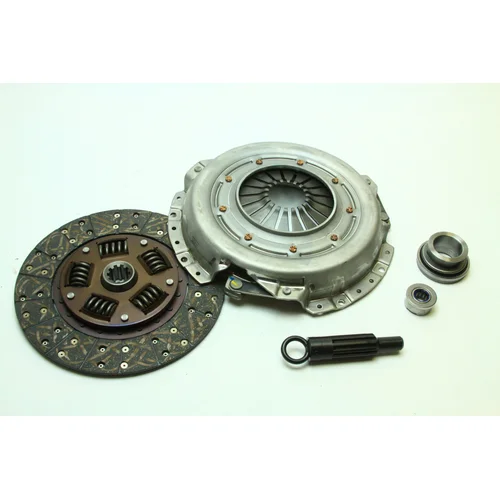

Key Features

• 11.5-inch long pattern diaphragm pressure plate for Ford Big Block Change Over applications
• Organic/organic facings deliver smooth engagement and progressive pedal feel
• 26-spline x 1-1/8-inch hub for TREMEC TKX, TKO, and T56 Magnum transmission compatibility
• 400 lb-ft torque rating ideal for street-driven Ford big blocks
• Hydraulic release design - no throwout bearing included (designed for hydraulic slave systems)
• Sprung hub design absorbs driveline shock and protects transmission synchronizers
• Hand-built in-house with double-checked quality control and exacting tolerances
• 1-year free-from-defect warranty
• Made in the USA

Description

When upgrading a Ford big block to a modern TREMEC transmission, the clutch has to bridge two worlds - the original Ford bolt pattern and a 26-spline input shaft that the factory never anticipated. The Big Block Change Over (BBCO) pattern solves this, and MDL's Superior series clutch set delivers the quality and precision that serious builders demand. Hand-assembled in-house at MDL's Caldwell, Idaho facility, every clutch disc is double-checked for accuracy and tolerances before shipping, so you get a ready-to-install premium piece right out of the box.

The organic/organic facing combination offers the ideal balance for street-driven Ford FE, 385-series, and other big block applications. Unlike harsh ceramic or metallic facings that grab aggressively, organic material provides smooth, progressive engagement that's forgiving in stop-and-go traffic while still delivering a solid 400 lb-ft torque capacity. The 11.5-inch long pattern diaphragm pressure plate delivers consistent clamping force across the full disc face with lighter pedal effort than traditional three-finger Long-style pressure plates.

The 26-spline x 1-1/8-inch hub is purpose-built for TREMEC transmission swaps, mating directly to TKX, TKO, and T56 Magnum input shafts. The sprung hub design dampens driveline shock that would otherwise stress synchronizers and input shaft bearings - critical protection when pairing big block torque with a high-performance manual gearbox. This kit is configured for hydraulic release systems (internal or external slave cylinders), so no mechanical throwout bearing is included.

Every Superior series clutch is backed by MDL's 1-year free-from-defect warranty and lifetime technical support. Made in the USA with the precision and attention to detail that Ford big block builders expect.

What's Included

• 11.5-inch long pattern diaphragm pressure plate
• 26-spline x 1-1/8-inch clutch disc with organic/organic facings and sprung hub
• Ford big block pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

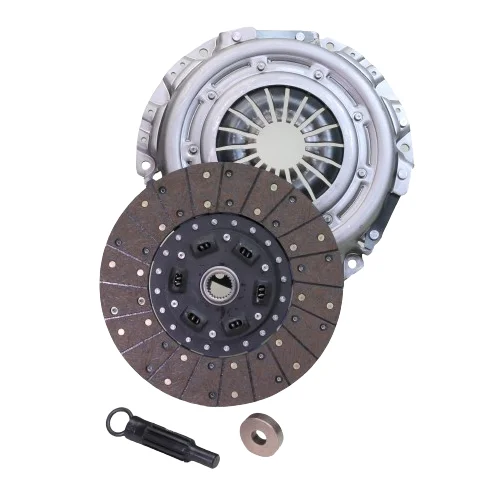

Key Features

• 11.5-inch long pattern diaphragm pressure plate for big block Ford changeover applications
• Kevlar/steel back organic faced clutch disk rated at 500 ft-lbs torque capacity
• 26-spline x 1-1/8-inch hub fits TREMEC TKO, TKX, and T-56 Magnum transmissions
• Hydraulic release profile on clutch fingers for smooth, consistent pedal feel
• Sprung hub design absorbs drivetrain shock and improves shift quality
• Hand-assembled in-house with precision tolerances and double-checked for accuracy
• Big Block Ford pilot bushing and clutch alignment tool included
• Performance Proven engineering - track-tested for street/strip reliability
• Made in the USA with 1-year free-from-defect warranty

Description

The MDL Superior Big Block Change Over (BBCO) clutch kit solves the fitment challenge of adapting modern TREMEC 5-speed and 6-speed transmissions to classic Ford big block engines. The 11.5-inch long pattern design provides the correct geometry for BBF-to-TREMEC swaps, delivering serious torque capacity without sacrificing the smooth engagement characteristics needed for street driving.

This clutch assembly features a diaphragm pressure plate with a hydraulic release finger profile, eliminating the binding and inconsistent pedal feel common with mechanical linkage setups. The Kevlar/steel back organic facing provides excellent heat resistance and progressive engagement - perfect for performance street applications where you need both durability and drivability. At 500 ft-lbs torque capacity, this clutch handles serious power while maintaining a predictable, streetable pedal.

The 26-spline x 1-1/8-inch hub matches TREMEC TKO, TKX, and T-56 Magnum input shafts, making this the ideal upgrade for Ford muscle car transmission conversions. The sprung hub design absorbs drivetrain shock during aggressive shifts, protecting both transmission and differential components while improving overall shift quality.

Every MDL Superior clutch disk is hand-built in-house to exacting tolerances, then inspected and double-checked before boxing. You receive a ready-to-install, Performance Proven clutch assembly backed by a 1-year free-from-defect warranty. Note: This kit is designed for hydraulic throwout bearing systems - throwout bearing sold separately. Made in the USA.

What's Included

• 11.5-inch long pattern diaphragm pressure plate with hydraulic release profile
• Kevlar/steel back organic faced clutch disk - 26-spline x 1-1/8-inch, sprung hub
• Big Block Ford (BBF) pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

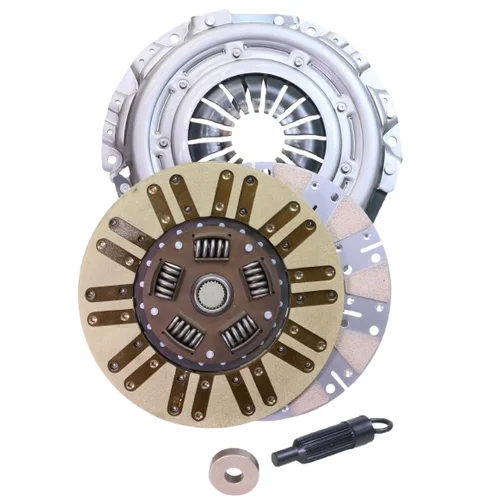

Key Features

• Big Block Change Over (BBCO) 11.5" long pattern diaphragm pressure plate for Ford 429/460 applications
• Hybrid facing design: Kevlar on pressure plate side, steel-backed organic on flywheel side
• 26-spline x 1-1/8" sprung hub disk for smooth engagement and transmission compatibility
• Profiled clutch fingers for reduced pedal effort in hydraulic release systems
• 650 ft-lbs torque capacity for performance street and strip use
• Hand-assembled in-house with double-riveted construction for durability
• Includes Big Block Ford pilot bushing and alignment tool
• Made in the USA with 1-year free-from-defect warranty

Description

Ford's 385-series big blocks--the 429 and 460--were designed as luxury-car torque monsters, but builders have been putting manual transmissions behind them for decades. The challenge? Finding a clutch that can handle serious torque without requiring a leg press workout at every stoplight. This Superior Series Big Block Change Over clutch kit delivers 650 ft-lbs of torque capacity through an 11.5" long pattern diaphragm pressure plate, giving you the clamping force needed for high-power street and strip duty while keeping pedal effort manageable in hydraulic release setups.

The hybrid friction material strategy is engineered for optimal performance and longevity. Kevlar on the pressure plate side handles initial engagement heat and provides excellent fade resistance under hard use, while the steel-backed organic facing on the flywheel side delivers smooth, progressive engagement for streetable manners. This combination gives you the best of both worlds--aggressive holding power when you need it, civilized behavior when you don't. The profiled clutch fingers ensure even pressure distribution across the entire friction surface.

Every MDL Superior clutch disk is hand-assembled in-house to exacting tolerances. Double-riveted construction ensures the facings stay put under repeated high-load cycles, and each assembly is inspected before it goes in the box. The 26-spline x 1-1/8" sprung hub provides proper damping and matches common Ford performance transmission input shafts. This kit is designed for hydraulic throwout bearing setups--note that the throwout bearing itself is not included.

Compatible with 11.5" long pattern flywheels on Ford big block applications. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

What's Included

• 11.5" long pattern diaphragm pressure plate
• Kevlar/steel-backed organic clutch disk, 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• Flywheel pattern reference chart
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Kevlar/ceramic dual-surface disc for aggressive street and drag applications
• 11.5" long pattern diaphragm pressure plate for Big Block Change Over (BBCO) applications
• 26-spline x 1-1/8" sprung hub absorbs driveline shock
• 650 ft-lb torque capacity rating
• Designed for hydraulic throwout bearing systems
• Big Block Ford pilot bushing included
• Hand-built in MDL's Idaho facility with double quality inspection
• Made in the USA with 1-year warranty

Description

When your Ford big block swap needs serious holding power but you're constrained by the 11.5" long pattern bolt circle, the Superior Kevlar/Ceramic clutch kit delivers. The Kevlar/ceramic friction surfaces provide a higher coefficient of friction than standard organic materials, allowing the same clamping force to hold significantly more power--rated at 650 ft-lb of torque capacity. This makes it ideal for high-horsepower street builds, drag racing launches, and road racing where aggressive engagement is critical.

The ceramic face is engineered for racing applications where quick engagement and extreme heat resistance are essential. MDL's ceramic formulation includes iron content that actually increases friction as temperatures rise, making this clutch stronger under punishment rather than weaker. The Kevlar backing provides smooth street manners while the ceramic face delivers race-proven bite.

The 11.5" long pattern diaphragm pressure plate is specifically designed for Ford Big Block Change Over (BBCO) applications. Every Superior clutch disc is hand-built in MDL's Idaho facility to exacting tolerances, then double-checked for accuracy before shipping. The 26-spline x 1-1/8" sprung hub accommodates common Ford transmission input shafts while absorbing driveline shock for smoother engagement.

This kit is designed for hydraulic release systems--throwout bearing is not included. Includes a Big Block Ford pilot bushing and alignment tool for proper installation. Made in the USA and backed by MDL's 1-year warranty.

What's Included

• 11.5" long pattern diaphragm pressure plate
• 11" Kevlar/ceramic clutch disc with 26-spline x 1-1/8" sprung hub
• Big Block Ford pilot bushing
• Clutch alignment tool
• 1-year warranty

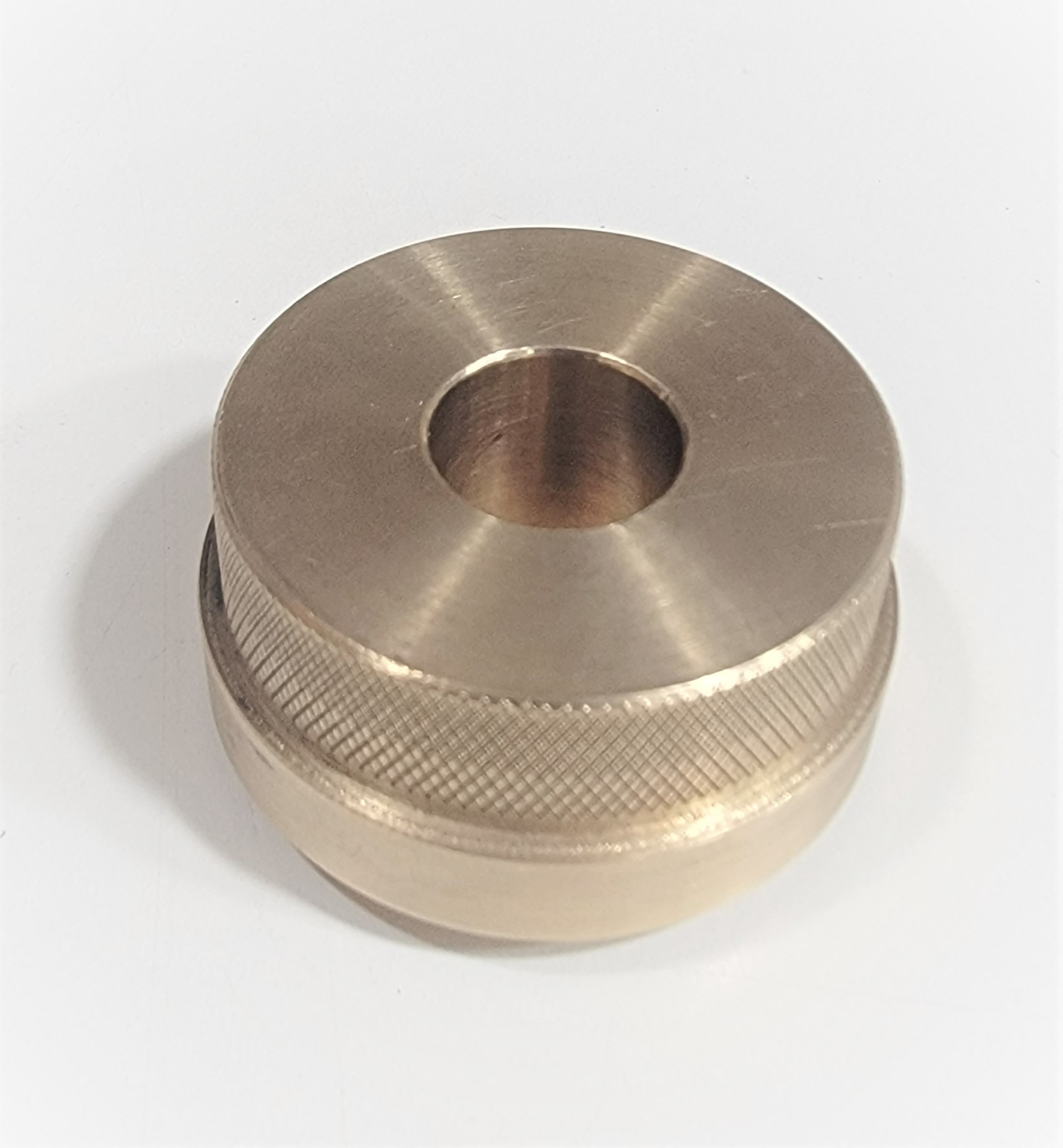

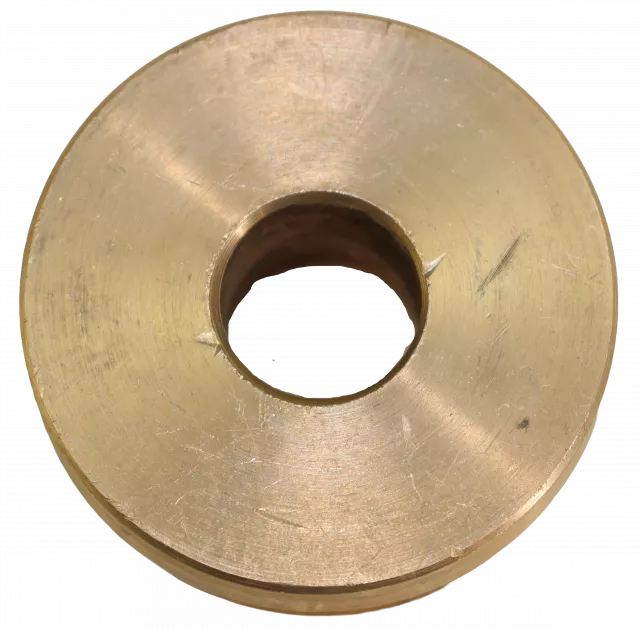

Key Features

• Extended 0.9" height with 0.400" step - designed for applications requiring additional input shaft engagement depth
• 1.850" outer diameter x 0.670" inner diameter - precision-machined to fit Ford FE big block crankshaft pilot bore
• Premium bronze construction with oil-impregnated material - self-lubricating design requires no external grease
• Direct fit for Ford FE engines (332, 352, 360, 361, 390, 406, 410, 427, 428)
• Essential wear item - replace with every clutch service to maintain proper input shaft support

Description

Ford FE big block engines require a larger-diameter pilot bushing than most other Ford V8s - a detail that trips up builders unfamiliar with the platform. This extended-height bronze bushing delivers the correct 1.850" OD to match the FE crankshaft's pilot bore while providing an extended 0.9" depth with a 0.400" step for applications where additional input shaft engagement is required, such as certain Toploader or aftermarket transmission conversions with longer input shafts.

Manufactured from premium-grade bronze alloy, this bushing is oil-impregnated for self-lubricating performance. Unlike roller or needle bearings that can shed rollers and damage input shafts, bronze bushings provide reliable, long-lasting support with zero maintenance. The precision-machined 0.670" inner diameter centers the transmission input shaft snout, preventing clutch chatter and ensuring smooth engagement.

Pilot bushings are wear items and should be replaced with every clutch service - even if the old bushing looks fine. For removal, stuff bread in the center of the bushing and drive it out. This old-school trick works better than grease and eliminates cleanup. For installation, freeze the bushing first to ease fitment into the crankshaft bore. Never apply grease to a bronze pilot bushing - the oil-impregnated material provides all the lubrication needed.

Fits all Ford FE big block V8 engines including 332, 352, 360, 361, 390, 406, 410, 427, and 428 cubic inch variants in manual transmission applications where the extended bushing height is required.

What's Included

• One bronze pilot bushing - 1.850" OD x 0.670" ID, 0.9" extended height with 0.400" step

LF Series Hydraulic Clutch Master Kit | 1957-1960 Ford F-Series | 0.700" Bore

Key Features

• 0.700" bore x 1.4" stroke master cylinder generates sufficient fluid volume for most internal and external slave systems
• Mounts in factory master cylinder location - no firewall modifications required
• Maintains stock clutch pedal pivot point for familiar pedal feel and geometry
• Firewall plate with mechanical linkage reduces firewall loading and pedal effort
• Remote plastic reservoir mounts separately on firewall for clean installation
• Compatible with T-5, TKX, and T-56 Magnum transmission conversions
• Includes One-Man-Bleeder Kit for simplified bleeding procedure
• Made in the USA

Description

Converting your 1957-1960 Ford F-Series to a modern manual transmission or upgrading from worn mechanical linkage? The MDL LF Series Hydraulic Clutch Master Kit delivers modern clutch actuation technology while preserving your truck's factory appearance and pedal feel. This engineered solution eliminates the binding, inconsistent pedal effort, and maintenance headaches that plague aging mechanical systems - all without cutting your firewall.

The heart of the system is a precision 0.700" bore master cylinder with 1.4" stroke that generates enough fluid volume to support most aftermarket external and internal slave cylinder systems. The revolutionary design utilizes your original master cylinder mounting location and clutch pedal pivot point, maintaining the stock pedal geometry for familiar feel while delivering the reliability of hydraulic actuation. The included firewall plate with mechanical linkage greatly reduces firewall loading and pedal effort, providing design flexibility while using the stock clutch rod hole where possible.

The remote plastic reservoir mounts cleanly on the firewall, separating fluid storage from the master cylinder for improved access and a clean underhood appearance. The long-stroke, small-bore design minimizes firewall stress while optimizing full pedal stroke for precise clutch control. Whether you're running a stock clutch or high-performance setup with a T-5, TKX, or T-56 Magnum transmission, this kit provides the fluid volume and actuation control your build demands.

This kit requires factory clutch pedal components to be in good working order for proper operation. Any modifications or damage to the firewall, pedal assembly, or pedal hanger will affect master cylinder performance. Made in the USA and backed by MDL technical support.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder
• Firewall plate with mechanical linkage
• Remote plastic reservoir with mounting hardware
• Hydraulic lines and fittings
• One-Man-Bleeder Kit
• Complete mounting hardware and brackets
• Comprehensive installation instructions

LF Series Hydraulic Clutch Master Kit | 1957-1960 Ford F-Series | 0.700" Bore

Key Features

• 0.700" bore x 1.4" stroke generates optimal fluid volume for modern slave cylinders
• Integral reservoir design eliminates firewall drilling and external fluid lines
• Bolts directly to factory master cylinder mounting location
• Maintains stock clutch pedal pivot point for OE pedal feel and geometry
• Optimizes full pedal stroke for maximum leverage and precise clutch modulation
• Compatible with most aftermarket external and internal slave cylinders
• Works with original factory pedals and OE reproduction aftermarket pedals
• Includes One-Man-Bleeder Kit for easy solo installation
• Made in the USA

Description

Converting your '57-'60 F-Series to a T-5, TKX, or T-56 Magnum? Or just tired of fighting that worn-out mechanical linkage on your factory four-speed? The LF Series Hydraulic Clutch Master Kit replaces archaic rods and levers with smooth, modern hydraulic actuation while maintaining the factory clutch pedal geometry Ford engineered into these trucks.

The heart of this system is the 0.700" bore x 1.4" stroke master cylinder, sized to generate the fluid volume required by today's external slaves and hydraulic release bearings. The integral reservoir keeps your firewall clean by eliminating separate reservoir mounting and the associated lines. Installation uses the original master cylinder mounting location, so there's no fabrication required on an unmodified truck.

What makes the LF Series different from generic master cylinder swaps is the engineering that preserves the stock pedal pivot point. This maintains the mechanical advantage Ford designed into the pedal assembly, translating to a light, controlled pedal effort with full modulation throughout the stroke. The system works with both original factory pedals and OE reproduction aftermarket pedals.

Uses standard DOT 3 or DOT 4 brake fluid. Every kit ships complete with the master cylinder, mounting hardware, linkage, lines, and MDL's unique One-Man-Bleeder Kit that lets you purge the system without a helper. Made in the USA with lifetime technical support.

Kit Includes

• Master cylinder with integral reservoir (0.700" bore x 1.4" stroke)
• Complete linkage assembly
• Hydraulic lines
• All mounting hardware and brackets
• One-Man-Bleeder Kit
• Comprehensive installation instructions
• Lifetime technical support

Important Note: This kit relies on factory components being in good working order. Any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

LF Series Hydraulic Clutch Master Kit | 1957-1960 Ford F-Series | 0.700" Bore

Key Features

• 0.700" bore with 1.4" stroke generates optimal fluid volume for external and internal slave cylinders
• Mechanical linkage with firewall plate greatly reduces firewall load and lightens pedal effort
• Utilizes factory master cylinder mounting location for clean, bolt-on installation
• Maintains stock clutch pedal pivot point for familiar pedal geometry and feel
• Remote black billet aluminum reservoir mounts anywhere on firewall
• Compatible with most aftermarket external slave cylinders and hydraulic release bearings
• Includes One-Man-Bleeder Kit for simplified system bleeding
• Made in the USA

Description

Converting your 1957-1960 Ford F-Series to a modern T5, TKX, or T56 Magnum transmission demands hydraulic clutch actuation that delivers precision and reliability without requiring extensive firewall modifications. The LF Series Hydraulic Clutch Master Kit solves this challenge by retrofitting modern hydraulic technology into classic truck architecture while preserving the original pedal feel and factory mounting points.

The engineering centers on a carefully calculated 0.700" bore paired with a 1.4" stroke, generating the precise fluid volume needed to operate most aftermarket slave cylinders and hydraulic release bearings. The smaller bore diameter combined with the included firewall plate and mechanical linkage dramatically reduces firewall loading while delivering light pedal effort. This design uses the stock clutch rod hole where possible, providing installation flexibility while maintaining structural integrity.

Installation leverages the factory master cylinder mounting location and preserves the stock clutch pedal pivot geometry, ensuring familiar pedal feel while adding modern hydraulic precision. The remote black billet aluminum reservoir eliminates firewall-mounted clearance issues and offers flexible mounting anywhere on the firewall for a clean appearance. The included One-Man-Bleeder Kit simplifies system bleeding, eliminating the traditional need for a helper during initial setup.

This kit requires factory components to be in good working order. Any modifications or damage to the firewall, pedal assembly, or pedal hanger will affect master cylinder performance. Fits 1957-1960 Ford F-Series trucks. Made in the USA.

Kit Includes

• Hydraulic clutch master cylinder (0.700" bore, 1.4" stroke)
• Pedal linkage assembly
• Remote black billet aluminum reservoir
• Hydraulic lines
• One-Man-Bleeder Kit
• All mounting hardware and brackets
• Comprehensive installation instructions

Key Features

• 0.700" bore with 1.4" stroke generates sufficient fluid volume for most internal and external slave systems
• Uses factory master cylinder mounting location for clean, direct-fit installation
• Remote silver billet aluminum reservoir mounts cleanly on firewall
• Maintains stock clutch pedal pivot point for original pedal feel
• Firewall plate with mechanical linkage greatly reduces firewall load and pedal effort
• Works with stock clutch pedal and rod hole where possible
• Includes One-Man-Bleeder Kit for easy, solo bleeding
• Made in the USA

Description

Converting your '57-'60 F-Series truck to a manual T-5, TKX, or T-56 Magnum transmission demands modern clutch actuation that won't compromise your classic's character. The LF Series Hydraulic Clutch Master Cylinder Kit delivers exactly that--a revolutionary design that utilizes your truck's original master cylinder mounting location while adding the precision and reliability of hydraulic clutch operation.

The 0.700" bore paired with 1.4" stroke generates the fluid volume needed to operate most aftermarket external or internal slave systems, including modern hydraulic release bearings. The firewall plate with mechanical linkage greatly reduces the load transferred to your truck's firewall--a critical consideration with heavy-duty clutches and performance transmissions. This engineering approach also provides the design flexibility to use your stock clutch rod hole where possible, simplifying installation and maintaining factory appearance.

The remote silver billet aluminum reservoir mounts cleanly on the firewall, eliminating cramped underhood placement. Unlike systems that require firewall modifications or pedal changes, this kit preserves your truck's stock clutch pedal pivot point for the original pedal feel Ford engineers intended. Each kit comes complete with comprehensive instructions and MDL's unique One-Man-Bleeder Kit, eliminating the frustration of traditional two-person hydraulic bleeding procedures.

Compatible with 1957-1960 Ford F-Series trucks. Works with TREMEC T-5, TKX, TKO, and T-56 Magnum transmissions when paired with appropriate slave cylinders. This kit relies on factory components being in good working order--any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Made in the USA with lifetime tech support.

What's Included

• 0.700" bore master cylinder with 1.4" stroke
• Silver billet aluminum remote reservoir
• Firewall mounting plate and mechanical linkage
• Pedal linkage components
• Hydraulic lines and fittings
• One-Man-Bleeder Kit
• Complete mounting hardware and brackets
• Comprehensive installation instructions
• Lifetime technical support

LF Series Hydraulic Clutch Master Kit | 1961-1966 Ford F-Series | 0.700 Bore

Key Features

• 0.700-inch bore x 1.4-inch stroke master cylinder generates 0.539 cubic inches of fluid displacement
• Revolutionary linkage design maintains stock clutch pedal pivot point for natural pedal feel
• Optimizes full pedal stroke to create mechanical advantage and reduce pedal effort
• Integral reservoir eliminates remote mounting and keeps firewall clean
• Compatible with most aftermarket external and internal slave cylinders and hydraulic release bearings
• Includes One-Man-Bleeder Kit for simplified bleeding
• Made in the USA

Description

Converting your 1961-1966 Ford F-Series to a manual transmission or upgrading from factory mechanical linkage? The LF Series Hydraulic Clutch Master Kit solves the heavy pedal problem that plagues most aftermarket hydraulic conversions with an innovative approach to master cylinder mounting and linkage geometry.

The common approach uses a 3/4 or 7/8-inch bore by 1-inch stroke master cylinder connected directly to the pedal. This direct-connection setup requires raising the cylinder higher than the stock clutch rod linkage hole, creating interference issues with the firewall and pedal assembly. The short stroke ultimately delivers heavy pedal effort that defeats the purpose of hydraulic actuation. MDL's revolutionary linkage eliminates these problems by matching pedal travel with a long-stroke master cylinder while maintaining the stock pedal pivot point.

The 0.700-inch bore paired with a 1.4-inch stroke generates 0.539 cubic inches of fluid displacement per stroke--enough volume to properly actuate most aftermarket external or internal slave cylinders and hydraulic release bearings. The linkage design creates mechanical advantage for a lighter, more progressive pedal feel with full control of clutch engagement. The integral reservoir simplifies installation and keeps your firewall clean.

This kit requires factory components to be in good working order. Any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Made in the USA.

Kit Includes

• 0.700-inch bore master cylinder with 1.4-inch stroke and integral reservoir
• Custom linkage assembly
• Hydraulic line
• All mounting hardware and brackets
• One-Man-Bleeder Kit
• Comprehensive installation instructions

LF Series Hydraulic Clutch Master Kit | 1961-1966 Ford F-Series | 0.700" Bore, Remote Plastic Reservoir

Key Features

• 0.700" bore x 1.4" stroke master cylinder generates 0.539 cubic inches of fluid volume
• Revolutionary pedal linkage maintains stock clutch pedal pivot point while reducing pedal effort
• Uses factory clutch rod hole location - no firewall modifications required
• Remote black plastic reservoir mounts separately on firewall for clean installation
• Firewall plate with mechanical linkage distributes load and reduces firewall stress
• Compatible with most aftermarket internal and external slave cylinder systems
• Includes MDL One-Man-Bleeder Kit for solo hydraulic bleeding
• Made in the USA with comprehensive installation instructions

Description

Converting your early Ford F-Series to hydraulic clutch actuation shouldn't mean sacrificing pedal feel or dealing with leg-crushing clutch effort. The MDL LF Series Master Cylinder Kit solves the fundamental problems that plague most hydraulic conversions: improper pedal pressure, firewall interference, and inadequate fluid volume for modern slave cylinders.

Traditional hydraulic conversions use oversized 3/4" or 7/8" bore cylinders with short 1" strokes, mounted directly to the pedal. This approach forces the master cylinder above the stock clutch rod hole, creating firewall clearance issues and requiring excessive pedal pressure. MDL's revolutionary linkage design changes everything. The innovative pedal linkage allows the 0.700" bore master cylinder to mount at the factory clutch rod location while providing mechanical advantage that dramatically reduces pedal effort. The linkage matches full pedal travel with the master cylinder's long 1.4" stroke, maximizing clutch modulation and generating 0.539 cubic inches of fluid volume - enough to support most aftermarket external slave cylinders and internal hydraulic release bearings.

The remote plastic reservoir mounts cleanly to the firewall, keeping fluid access convenient while eliminating clutter around the master cylinder. The firewall plate distributes loads evenly and keeps the cylinder perpendicular to the firewall for optimal performance. This system works seamlessly with stock or reproduction clutch pedals - the factory pivot point is preserved for familiar pedal feel.

Designed for 1961-1966 Ford F-Series trucks during T-5, TKX, TKO, or T-56 Magnum transmission swaps, or as an upgrade from existing mechanical clutch linkage. Requires factory pedal assembly and firewall to be in good working condition for proper operation. Uses DOT 3 or DOT 4 brake fluid.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder
• Mechanical pedal linkage assembly
• Firewall mounting plate
• Remote black plastic reservoir with mounting hardware
• Reservoir-to-master cylinder supply line
• Clevis and pedal connection hardware
• MDL One-Man-Bleeder Kit
• Complete mounting hardware and fasteners
• Comprehensive installation instructions

Key Features

• Revolutionary pedal linkage design maintains stock clutch pedal pivot point while dramatically reducing pedal effort
• Long-stroke 0.700" bore master cylinder with 1.4" stroke generates optimal fluid volume for external and internal slave systems
• Mounts using stock clutch rod linkage hole location - no firewall modifications required
• Remote black billet aluminum reservoir mounts separately on firewall for clean, professional installation
• Firewall-mounted linkage plate distributes load and reduces stress on original firewall structure
• Compatible with T-5, TKX, and T-56 Magnum transmission conversions plus most aftermarket hydraulic release bearings
• Includes One-Man-Bleeder Kit for simplified system bleeding
• Made in the USA

Description

Converting your classic '61-'66 Ford F-Series truck to a modern manual transmission shouldn't mean fighting a heavy clutch pedal. The Light Foot Series Hydraulic Master Kit solves the most common problem with hydraulic conversions: excessive pedal effort caused by improper bore sizing and mounting geometry. The common approach uses oversized 3/4" or 7/8" bore by 1" stroke masters connected directly to the clutch pedal, creating punishing pedal loads and requiring elevated mounting points that interfere with firewall structure and pedal assemblies.

MDL's revolutionary linkage design matches pedal travel with a long-stroke master cylinder for dramatically reduced clutch pedal load. The precision-engineered linkage creates mechanical advantage while allowing the 0.700" bore, 1.4" stroke master to operate at optimal efficiency. This combination delivers significantly reduced pedal effort without sacrificing clutch feel or control precision. The system maintains your truck's original clutch rod hole location and pedal pivot point, preserving the factory pedal geometry you're accustomed to while adding modern hydraulic actuation.

The 0.700" bore master cylinder generates ample fluid volume to operate most aftermarket external slave cylinders and hydraulic release bearings found in TREMEC transmission swaps. The remote black billet aluminum reservoir mounts independently on the firewall, eliminating the bulk and complexity of integral reservoir designs while providing easy access for fluid level monitoring. The firewall-mounted linkage plate distributes operating loads across a larger area, reducing stress concentrations on original firewall metal.

Installation leverages existing factory mounting points, making this kit compatible with original pedal assemblies and quality OE reproduction aftermarket pedals. The system works seamlessly with T-5, TKX, and T-56 Magnum transmission conversions, as well as stock clutch applications requiring hydraulic actuation. Note: This kit relies on factory components being in good working order - any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance.

What's Included

• Precision-machined master cylinder with 0.700" bore and 1.4" stroke
• Black billet aluminum remote reservoir with mounting hardware
• Custom-engineered pedal linkage assembly
• Firewall mounting plate
• Hydraulic lines with fittings
• Complete mounting hardware
• One-Man-Bleeder Kit
• Comprehensive installation instructions

LF Series Hydraulic Clutch Master Kit | 1961-1966 Ford F-Series | 0.700" Bore

Key Features

• 0.700" bore x 1.4" stroke master cylinder generates optimal fluid volume for most slave cylinders
• Revolutionary mechanical linkage multiplies leverage for dramatically reduced pedal effort
• Maintains stock clutch pedal pivot point and rod hole location for factory pedal feel
• Remote silver billet aluminum reservoir mounts cleanly on firewall
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Long-stroke design minimizes firewall loading compared to conventional short-stroke systems
• Includes One-Man-Bleeder kit for simplified installation and maintenance
• Made in the USA

Description

Converting your '61-'66 Ford F-Series to modern hydraulic clutch actuation typically means fighting heavy pedal pressure and firewall interference. Traditional hydraulic conversions bolt a 3/4" or 7/8" bore master cylinder directly to the pedal with a short 1" stroke--this creates excessive pedal effort, requires mounting the cylinder higher than the stock clutch rod hole, and causes interference with the firewall and pedal assembly. The LF Series solves all of these problems with a precision-engineered linkage system that transforms how hydraulic clutch actuation works in your classic truck.

The engineering breakthrough is MDL's mechanical pedal linkage. Instead of mounting the master cylinder directly to the pedal, this linkage creates leverage that matches pedal travel with the master cylinder's long 1.4" stroke. The result is dramatically reduced pedal effort while using the stock clutch rod hole location. The 0.700" bore paired with that long stroke generates sufficient fluid volume to actuate most aftermarket external slave cylinders and internal hydraulic release bearings without requiring excessive pedal travel.

The remote silver billet aluminum reservoir mounts separately on the firewall, eliminating the bulk of integral reservoir designs and providing a clean, professional installation. The system uses standard DOT 3 or 4 brake fluid and includes MDL's exclusive One-Man-Bleeder kit for straightforward bleeding without a helper. If your clutch pedal bottoms out or feels spongy, check the master cylinder throw distance (should be 1.4") and adjust the clevis and pedal height as needed.

This kit is designed for 1961-1966 Ford F-Series trucks and works with original factory clutch pedals and quality OE reproduction assemblies. Note that proper function depends on factory components being in good working order--any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Proudly made in the USA with lifetime technical support from MDL's drivetrain specialists.

Kit Includes

• 0.700" bore x 1.4" stroke aluminum master cylinder
• Mechanical pedal linkage assembly with clevis
• Remote silver billet aluminum reservoir
• Reservoir lines and fittings
• Complete mounting hardware and brackets
• One-Man-Bleeder kit
• Comprehensive installation instructions
• Lifetime technical support from MDL

LF Series Hydraulic Clutch Master Kit | 1967-1972 Ford F-Series | 0.700" Bore

Key Features

• 0.700" bore x 1.4" stroke master cylinder delivers 0.539 cubic inches of fluid volume - optimized for aftermarket external and internal slave systems
• Firewall-to-dash support bracket eliminates flex from thin OE sheet metal - creates a solid, bind-free mounting platform
• Direct-to-pedal mounting preserves stock clutch pedal pivot point for familiar pedal feel
• Integral reservoir design keeps the firewall clean and simplifies installation
• Optimizes full pedal stroke for maximum leverage and light pedal effort
• Compatible with industry-standard external slave cylinders and hydraulic release bearings
• Works with original factory clutch pedals and OE reproduction aftermarket pedals
• Includes MDL exclusive One-Man-Bleeder Kit for simplified system bleeding
• Made in the USA

Description

Converting your 1967-1972 Ford F-Series to hydraulic clutch actuation eliminates the slop, adjustment hassles, and inconsistent feel of worn mechanical linkage. The MDL LF Series Master Cylinder Kit delivers a complete bolt-on hydraulic retrofit engineered specifically for the structural limitations and space constraints of these classic trucks.

The core engineering challenge with '67-'72 F-Series trucks is the notoriously thin factory firewall sheet metal. Under clutch pedal load, that thin steel flexes - robbing you of consistent pedal feel and accelerating component wear. MDL's design solves this with a support bracket that spans from the firewall to the dash structure, creating a rigid mounting platform that eliminates flex and ensures consistent hydraulic pressure transfer every time you push the pedal.

The 0.700" bore paired with a 1.4" stroke generates 0.539 cubic inches of fluid volume per stroke - the sweet spot for modern aftermarket slave cylinders and hydraulic release bearings. This combination delivers smooth, light pedal effort while providing the fluid displacement needed for complete clutch release. The integral reservoir keeps brake fluid contained within the engine bay and eliminates the complexity and potential leak points of remote reservoir plumbing.

Direct pedal mounting preserves the stock pivot geometry, so the pedal feels familiar while optimizing the full stroke for maximum mechanical advantage. This kit requires factory firewall, pedal assembly, and pedal hanger to be in serviceable condition - any prior modifications or damage will affect master cylinder performance. Uses DOT 3 or DOT 4 brake fluid. Made in the USA with lifetime technical support included.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder with integral reservoir
• Firewall-to-dash support bracket
• Direct-to-pedal mounting linkage
• All mounting hardware and brackets
• MDL One-Man-Bleeder Kit
• Comprehensive installation instructions
• Lifetime technical support

Key Features

• Firewall-to-dash support bracket eliminates flex on thin F-Series sheet metal
• Mechanical linkage uses original clutch rod hole for seamless installation
• 0.700" bore with 1.4" stroke generates enough fluid volume for most aftermarket external or internal slave systems
• Remote black plastic reservoir mounts to firewall for clean installation
• Delivers smooth, light pedal feel with full clutch control
• Compatible with factory and reproduction clutch pedals
• Includes One-Man-Bleeder Kit for easy system bleeding
• Made in the USA

Description

Converting a '67-'72 Ford F-Series to hydraulic clutch actuation eliminates the heavy pedal effort and inconsistent engagement that plague mechanical linkage systems. The LF Series Master Cylinder Kit addresses the unique challenges of this truck generation, starting with Ford's notoriously thin firewall sheet metal that flexes under clutch pedal pressure--a common complaint that undermines pedal feel and clutch control.

The kit's engineering centers on a support bracket that ties the firewall to the dash structure, creating a rigid mounting point that eliminates flex entirely. The mechanical linkage design uses the original clutch rod hole, maintaining proper geometry while providing mechanical advantage to reduce pedal effort. The 0.700" bore paired with 1.4" stroke generates enough fluid volume to support most aftermarket external or internal slave systems while delivering a smooth, light pedal feel.

Unlike direct-mount systems that require firewall modifications and often result in binding, this kit's linkage allows the master cylinder to remain perpendicular to the firewall while maximizing pedal stroke utilization. The remote black plastic reservoir keeps brake fluid away from firewall heat and provides convenient access for maintenance. Every component is designed as part of a complete system--not a collection of universal parts adapted for the application.

Fits 1967-1972 Ford F-Series trucks using factory or reproduction clutch pedals. Uses DOT 3 or 4 brake fluid only. This kit relies on factory components being in good working order; any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Made in the USA with comprehensive installation instructions and lifetime technical support.

What's Included

• 0.700" bore master cylinder with 1.4" stroke
• Mechanical linkage assembly with clevis and hardware
• Firewall-to-dash support bracket with mounting hardware
• Black plastic remote reservoir with mounting bracket and hose
• Hydraulic lines
• One-Man-Bleeder Kit
• Comprehensive installation instructions
• Lifetime technical support

Key Features

• 0.700" bore x 1.4" stroke master cylinder delivers optimal fluid displacement for most slave systems
• Firewall support bracket ties directly to dash structure, eliminating flex in thin factory sheetmetal
• Direct pedal linkage retains factory clutch pedal and utilizes existing clutch rod hole where possible
• Remote-mount billet aluminum reservoir in black anodized finish for clean underhood appearance
• Small-bore, long-stroke design minimizes firewall loading while maximizing pedal effort reduction
• Compatible with most internal and external hydraulic slave cylinders
• One Man Bleeder Kit included for simplified system bleeding
• Made in the USA with one-year manufacturer's warranty and lifetime tech support

Description

Converting your 1967-1972 Ford F-Series pickup to modern hydraulic clutch control presents a unique engineering challenge: the factory firewall's thin-gauge steel flexes under pedal pressure, robbing you of consistent engagement and confident pedal feel. The MDL LF Series Master Cylinder Kit solves this problem with a purpose-built firewall support bracket that ties directly to the dash structure, creating a rock-solid, flex-free mounting point for precise, repeatable clutch actuation.

At the heart of this system is a 0.700" bore master cylinder with 1.4" stroke--a small-bore, long-stroke design that delivers the fluid volume most hydraulic slave systems require while keeping pedal effort light. The direct pedal linkage connects to your factory clutch pedal and retains proper geometry for unrestricted cylinder travel. By using the factory full swing of the pedal, the system provides maximum leverage and full clutch control, transforming the driving experience in your vintage truck.

The remote-mount billet aluminum reservoir features a black anodized finish for a clean, custom appearance under the hood while providing installation flexibility. The kit is designed to work with your factory clutch pedal assembly and utilizes the existing clutch rod hole where possible, making installation straightforward for both daily drivers and performance builds.

This kit requires factory components to be in good working order--any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Pair this master kit with MDL LF Series external slave cylinders or Tilton Engineering internal hydraulic release bearings for a complete hydraulic clutch solution. Made in the USA and backed by lifetime technical support from Modern Driveline.

What's Included

• 0.700" bore x 1.4" stroke master cylinder
• Firewall support bracket with mounting hardware
• Direct pedal linkage assembly
• Remote-mount billet aluminum reservoir, black anodized finish
• Hydraulic lines and fittings
• One Man Bleeder Kit
• Complete installation instructions
• Lifetime technical support

Key Features

• 0.700" bore x 1.4" stroke master cylinder generates 0.539 cubic inches of fluid volume per stroke
• Firewall support bracket ties firewall to dash structure, eliminating flex under pedal load
• Direct pedal linkage delivers light pedal effort and precise engagement feel
• Compatible with original factory clutch pedal and OE reproduction aftermarket pedals
• Silver billet aluminum remote reservoir keeps firewall clean and simplifies installation
• Works with most internal and external slave cylinder systems
• One-Man-Bleeder Kit included for solo bleeding without an assistant
• Made in the USA

Description

Converting your 1967-1972 Ford F-Series to modern hydraulic clutch actuation eliminates the binding, constant adjustment, and heavy pedal effort that plague mechanical linkages in these classic trucks. The MDL LF Series Master Kit addresses the unique challenges of F-Series installations—starting with the notoriously thin factory firewall that flexes under pedal pressure and robs you of consistent clutch feel.

The engineering centers on a firewall support bracket that ties the firewall to the dash structure, creating a rigid mounting platform that eliminates flex entirely. The 0.700" bore combined with 1.4" stroke delivers 0.539 cubic inches of fluid displacement per stroke—optimal volume for most aftermarket slave systems while the small bore and long stroke design keeps pedal effort light and controllable. The direct pedal linkage bypasses stock clutch rod complexity while preserving original pedal mounting points.

The silver billet aluminum remote reservoir mounts cleanly away from the firewall, simplifying both installation and ongoing maintenance access. The system runs on standard DOT 3 or DOT 4 brake fluid with no need for high-temperature formulations. Each kit includes comprehensive instructions and MDL's unique One-Man-Bleeder Kit that eliminates the need for an assistant during system bleeding.

This kit relies on factory components being in good working order—any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Made in the USA with lifetime technical support included.

What's Included

• 0.700" bore x 1.4" stroke master cylinder
• Firewall support bracket assembly
• Direct pedal linkage hardware
• Silver billet aluminum remote reservoir
• Hydraulic lines and fittings
• One-Man-Bleeder Kit
• Mounting hardware
• Comprehensive installation instructions
• Lifetime technical support

Key Features

• 30-inch length with 1/4-inch ID stainless steel braided construction
• Teflon (PTFE) inner lining for chemical resistance and smooth fluid flow
• Clear plastic outer coating protects braid while maintaining clean appearance
• Straight -4AN female stainless steel fittings permanently crimped on both ends
• Pressure tested for quality assurance
• 100% made in the USA

Description

Factory plastic clutch lines deteriorate under heat and age, leading to spongy pedal feel and inconsistent clutch engagement. This premium stainless steel braided hydraulic line eliminates that weak link with high-strength construction rated for racing and high-heat applications. The Teflon inner lining delivers chemical compatibility with all brake fluids while providing smooth, unrestricted fluid flow that translates directly to crisp pedal response.

The stainless steel braid resists expansion under pressure—a critical factor in hydraulic clutch performance. Unlike rubber lines that balloon slightly under load, braided stainless maintains consistent internal volume for immediate, predictable clutch actuation. The clear plastic outer coating shields the braid from road debris and corrosion while preserving the polished stainless appearance gearheads expect in a quality engine bay.

This is the same 30-inch hydraulic line included in MDL's LF Series slave cylinder kits, proven across thousands of transmission swaps from mild street builds to extreme-duty track cars. Straight -4AN female fittings on both ends provide universal compatibility with hydraulic clutch systems, master cylinders, and slave cylinders across Ford, GM, and Mopar applications. Whether you're completing a TREMEC five or six-speed swap or upgrading your existing hydraulic clutch setup, this line delivers the durability and pedal feel your build demands.

What's Included

• One 30-inch stainless steel braided hydraulic line with Teflon (PTFE) lining
• Clear plastic protective coating over stainless braid
• Two straight -4AN female stainless steel fittings (permanently crimped)
• Manufacturer's warranty

Key Features

• Stainless steel threaded adjustment sleeve provides nearly 1.25 inches of height adjustability
• 0.700-inch piston travel for reliable clutch engagement across diverse applications
• High-temperature monoseal design with quad tensioner ensures proper seal tension and maximum reliability
• Constant-contact design self-adjusts for clutch wear - no gap, no helper springs required
• Flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-inch to 11-inch bent-finger and lever-type clutches
• Bearing height adjustable from 1.77 inches to 3.00 inches to accommodate diverse clutch configurations
• Complete kit includes -4AN stainless braided supply and bleed lines, fittings, and anti-rotation hardware
• Requires 1.430-inch bearing retainer guide tube for proper fitment

Description

Eliminate the clearance issues and binding problems that plague external slave cylinders with this Tilton 6000 Series hydraulic release bearing, engineered specifically for Ford T56 and Magnum transmissions equipped with a guide tube. Where external slaves often create interference with headers, crossmembers, or bellhousing configurations, this internal slip-on design mounts directly onto the transmission input shaft bearing retainer - delivering consistent clutch actuation without the packaging headaches.

Tilton's precision-machined billet aluminum body and piston deliver race-proven reliability in a street-friendly package. The constant-contact design maintains continuous engagement with the pressure plate fingers - no gap to manage, no helper springs required. As your clutch wears, the bearing automatically compensates, maintaining identical pedal feel from installation through replacement. The high-temperature monoseal with quad tensioner provides maximum seal integrity under demanding conditions, while newly designed double O-ring swivel fittings have been extensively tested to prevent leakage.

The stainless steel threaded adjustment sleeve provides nearly 1.25 inches of adjustability, enabling compatibility with most 8.5-inch to 11-inch bent-finger and lever-type diaphragm clutches. Total bearing height ranges from 1.77 inches to 3.00 inches, giving you the flexibility to dial in precise preload regardless of clutch configuration. Compatibility extends to most bellhousings - unlike external slaves limited to specific applications, this internal design works with original 4-speed bells, big block bells, and aftermarket housings. Compatible with Ford T5s, Ford TKOs, Ford T56s with CSC hydraulic setup, and XL Magnum T56 for 2005+ Ford Mustangs. Tilton release bearings are DOT3 or DOT4 brake fluid compatible.

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection (24-inch line recommended for most applications)
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions

Key Features

• Premium black polymer resin construction formulated for performance-level torque and temperature requirements
• White 6-speed shift pattern embedded subsurface - cannot wear off
• Universal 16mm x 1.5 internal thread accepts standard thread reducers (sold separately)
• 2-1/8" diameter provides comfortable grip and positive control
• High-impact polymer resin resists cracking and fading under extreme conditions
• Made in the USA by a manufacturer with over 70 years of shift knob expertise

Description

Shift knobs with painted or surface-applied graphics eventually fade, peel, and look worn out. This 6-speed black shift ball solves that problem with subsurface graphics that are embedded during manufacturing - the white shift pattern literally cannot wear off, no matter how many miles you put on it or how aggressively you shift.

The specially formulated high-impact polymer resin handles serious abuse. Unlike cheap plastic knobs that crack under temperature extremes or hard use, this material is engineered specifically for performance applications where torque loads and heat cycling push lesser materials past their limits. The 2-1/8" diameter strikes the right balance between palm-filling grip and nimble throws during spirited driving.

Designed with a universal 16mm x 1.5 internal thread, this shift ball works with Ford, GM/Chevy, and Mopar applications when paired with the appropriate thread reducer. Standard SAE sizes like 1/2"-20, 3/8"-16, and 7/16"-20, plus metric options from 8mm to 12mm, are all compatible with readily available brass thread adapters. If you're unsure what thread size is on your shift lever, MDL's tech team can help you identify the correct reducer - just call 208-453-9800.

Built in the USA by a manufacturer that has been shifting gears since 1952, this shift ball delivers the quality, precision, and durability that OEM, aftermarket, and custom builders have relied on for over seven decades.

What's Included

• (1) Black polymer resin shift ball with white 6-speed pattern
• 16mm x 1.5 internal thread (thread reducers sold separately)

Key Features

• Subsurface 6-speed shift pattern permanently integrated into material - graphics cannot wear off, fade, or peel
• High-impact polymer resin engineered specifically for performance-level torque and temperature demands
• Universal 16mm x 1.5 internal threading accepts thread reducers for compatibility with virtually any shift lever
• 1-7/8" diameter provides substantial grip surface for positive engagement [VERIFY: Custom field shows 2-1/8in while description states 1-7/8in]
• Clean white finish with bold black 6-speed pattern graphics
• Made in the USA by a manufacturer producing shift knobs since 1952

Description

Put the correct gate positions right at your fingertips with this 6-speed shift knob. Whether you're learning a new transmission layout or making split-second shifts under pressure, the bold black shift pattern gives you instant visual reference without taking your eyes off the road. The graphics aren't a decal or printed surface - they're applied subsurface during manufacturing, making them permanently integrated into the knob material where they cannot wear off, fade, or peel regardless of use.

The polymer construction is engineered specifically for drivetrain duty. This specially formulated high-impact polymer resin is designed to meet performance-level torque and temperature requirements, handling the stress and heat cycles that come with hard shifting better than cheaper materials. The 1-7/8in diameter provides substantial surface area for a secure grip without being oversized or bulky.

Universal 16mm x 1.5 internal threading makes this knob compatible with virtually any shift lever when paired with the appropriate thread reducer (sold separately). Thread reducers allow adaptation to common metric sizes like 8mm, 10mm, and 12mm, as well as SAE thread pitches found on domestic Ford, GM, and Mopar applications. If you're unsure what thread size your shift lever uses, MDL's tech support can help you identify the correct adapter.

Manufactured in the USA by a company that's been producing quality shift knobs since 1952. Their commitment to quality, precision, and style has made them a trusted supplier to OEM, aftermarket, Classic, Custom, and Hot Rod industries. Compatible with Chevy, BOP (Buick/Oldsmobile/Pontiac), Ford, and Mopar transmissions when used with the appropriate thread reducer for your specific shift lever.

What's Included

• 1 white polymer shift knob with black 6-speed pattern
• 16mm x 1.5 female threading (thread reducer sold separately if needed)

Key Features

• High-impact polymer resin construction - specially formulated for performance-level torque and temperature requirements
• Subsurface white 6-speed shift pattern graphics - permanently embedded, will not wear off
• 16mm x 1.50 brass master insert - exceeds industry spec of 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• 1-7/8" diameter ergonomic design with high-gloss polished finish
• 4-ounce weight - balanced for precise shifting feel
• Jam nut included for secure installation
• Made in the USA

Description

Worn, faded shift knobs kill the look of an otherwise clean build - and cheap replacements crack, fade, or spin loose within a season. MDL's 6-Speed Black Shift Ball solves both problems with a high-impact polymer resin formulation specifically engineered for the automotive industry. This isn't generic plastic - it's a performance-grade compound designed to resist stress cracking with age while handling the torque and temperature extremes of hard driving.

The white 6-speed shift pattern is subsurface - meaning it's embedded beneath the outer layer, not printed or painted on top. It won't wear off from palm contact, won't fade from UV exposure, and won't peel at the edges. The 16mm x 1.50 brass master insert is equally overbuilt, exceeding the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque. Precision machining and polishing deliver a high-gloss finish that looks as good as it feels.

The 16mm thread pitch fits most aftermarket performance shifters directly. If your shifter uses a different thread size, MDL stocks thread adapters to match - just know your shifter's thread pitch when ordering so we can recommend the right reducer. This universal approach makes the shift ball compatible with Ford, GM, and Mopar applications when properly matched to your shifter.

At 4 ounces with a 1-7/8" diameter, this shift ball delivers ergonomic comfort and balanced weight for crisp, confident throws. Made in the USA with the quality standards serious builders demand.

What's Included

• MDL 6-speed black shift ball with white subsurface pattern graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure installation

Key Features

• Laser-etched 6-speed shift pattern - permanent, cannot wear off
• Brushed aluminum finish for superior grip and modern aesthetics
• 16mm x 1.5 thread with brass insert for secure mounting
• 1-7/8 in. diameter for comfortable, ergonomic grip
• Universal fitment with thread reducer adapters available separately
• Made in the USA

Description

When you're wrapping up a TREMEC swap or upgrading your 6-speed shifter setup, a flimsy plastic shift ball doesn't match the level of hardware underneath it. This brushed aluminum shift ball delivers the tactile feedback and professional appearance your build deserves, with a laser-etched 6-speed pattern that's permanently embedded into the surface - no fading, peeling, or wearing off over thousands of shifts.

The brushed aluminum finish provides superior grip compared to smooth plastic alternatives, giving you confident control during aggressive driving. The 16mm x 1.5 threaded brass insert ensures secure mounting and threads directly onto compatible shifters. For shift levers with different thread sizes, MDL stocks a full range of thread reducing adapters to match your specific application - whether you're running an '83-'04 Mustang lever (10mm x 1.50), a 2005+ Mustang setup (12mm x 1.25), or other configurations.

Built with precision and finished in the USA, this shift ball combines quality construction with the correct 6-speed gate pattern (reverse to the right and up) for TREMEC T56, Magnum, and similar transmissions. The universal 16mm master thread makes it adaptable to virtually any aftermarket shifter with the right reducer insert.

What's Included

• Brushed aluminum shift ball with laser-etched 6-speed pattern
• 16mm x 1.5 brass threaded insert
• Jam nut

Key Features

• Laser-etched 6-speed shift pattern - permanent marking that won't wear, fade, or rub off
• Gray brushed aluminum finish for a clean, modern cockpit aesthetic
• 2-1/8" diameter provides comfortable palm grip for quick, confident shifts
• Polymer resin construction resists wear while keeping weight down
• Universal 16mm thread accepts standard thread adapters (sold separately)
• Made in the USA

Description

Printed and painted shift patterns wear off - it's only a matter of time before your gate markings fade into an unreadable smear. MDL's 6-speed shift ball solves that problem permanently. The shift pattern is laser-etched directly into the surface, creating a crisp, deep marking that stays readable for the life of the knob regardless of how many shifts you put through it.

The gray brushed aluminum finish delivers a subdued, professional look that complements both classic and modern interiors without screaming for attention. At 2-1/8" diameter, the ball offers enough surface area for a solid palm grip while remaining ergonomic for quick gate-to-gate movement. Polymer resin construction keeps the ball durable and lightweight - you won't be fighting unnecessary mass when banging through gears.

The universal 16mm internal thread is designed to work with thread adapters, making this shift ball compatible with virtually any shifter application. MDL stocks adapters for the most common thread sizes - if you're not sure what thread your shifter has, contact the MDL tech team at 208-453-9800 before ordering to ensure you get the right adapter. Made in the USA.

What's Included

• One 6-speed shift ball with laser-etched pattern
• Gray brushed aluminum finish, polymer resin construction
• 16mm internal thread
• MDL lifetime technical support

Note: Thread adapters sold separately. Contact MDL at 208-453-9800 to determine the correct adapter for your shifter.

Key Features

• 2-1/8" diameter polished aluminum construction for optimal grip and control
• Laser-engraved 6-speed shift pattern on top -- won't fade, chip, or wear off
• MDL logo engraved on the side for authentic branding
• 16mm x 1.50 thread pitch -- compatible with most shifters when paired with MDL thread reducers
• 4-ounce weight provides solid, positive shifts without excessive mass
• Made in the USA

Description

Finish your 6-speed swap the right way. This polished aluminum shift ball from MDL delivers the premium look and feel that separates a proper build from a parts-bin project. The 2-1/8" diameter provides the ideal grip size -- large enough for confident throws under hard driving, compact enough to clear console-mounted components without interference.

The laser-engraved 6-speed shift pattern on top gives you clear gear position reference that will never fade, chip, or wear off over years of aggressive shifting. Unlike printed or embossed patterns that deteriorate with use, the engraving is cut directly into the aluminum surface for permanent legibility. The MDL logo on the side confirms you're running genuine Modern Driveline equipment.

This shift ball features 16mm x 1.50 threading, which is the universal standard for aftermarket shift knobs. MDL stocks thread reducing inserts that adapt the 16mm bore to fit popular shifter thread sizes including 8mm-1.25, 9mm-1.25, 12mm-1.75, and 3/8-24, ensuring compatibility across Ford, GM, and Mopar applications. The 4-ounce weight provides substantial feel in your palm without the excessive mass that can accelerate shifter wear or create unwanted momentum during rapid gear changes.

Proudly made in the USA, this shift ball represents the fit, finish, and attention to detail that serious builders expect from MDL. Grab it, shift it, go.

What's Included

• One polished aluminum shift ball (2-1/8" diameter)
• Laser-engraved 6-speed shift pattern on top
• MDL logo engraved on side
• 16mm x 1.50 internal threading

Note: Thread reducing insert sold separately -- see MDL thread reducers for your specific shifter application.

6-Speed White Shift Ball | 16mm x 1.50 Thread | High-Impact Polymer Resin

Key Features

• 1-7/8" diameter white polymer resin ball with crisp 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics embedded during manufacturing - cannot wear, fade, or peel
• High-impact polymer resin formulated for performance-level torque and temperature cycling
• 4-ounce weight for positive shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Thread adapters available for non-16mm shift levers
• Made in the USA

Description

Worn shift knobs with faded patterns and loose threads make every gear change feel sloppy. This 6-speed polymer resin shift ball delivers the crisp, confident feel your transmission deserves. The high-impact polymer resin is specifically formulated for automotive applications - engineered to resist stress cracking from temperature cycling and aging that destroys cheaper plastic alternatives.

The 16mm x 1.50 brass master insert is the heart of this shift ball's durability. Tested to exceed automotive industry standards of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, it won't strip, loosen, or fail under aggressive shifting. The included jam nut locks everything in place for rattle-free operation. At 4 ounces, the ball provides just enough heft for positive shift engagement without the excessive weight that can mask transmission feedback.

Unlike painted or applied graphics that wear off after a few months, the 6-speed shift pattern on this ball is subsurface - embedded during the manufacturing process where it's protected from your palm, UV exposure, and cleaning chemicals. The precision-machined surface is polished to a high-gloss finish that resists scratching and maintains its appearance over years of use.

This shift ball fits any 16mm threaded shift lever directly. Running a different thread size? MDL stocks thread adapters to fit most common shift lever configurations - just confirm your lever's thread pitch when ordering. Quality American manufacturing ensures consistent tolerances and reliable performance from a company that's been shifting gears since 1952.

What's Included

• White 6-speed high-impact polymer resin shift ball (1-7/8-inch diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics that cannot wear off from use
• 2-1/8" diameter with 6-speed shift pattern and pearl gray racing stripes
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shifting feel
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Cheap shift knobs crack, fade, and strip out under hard use. The R-Series shift ball solves those problems with a specially formulated high-impact polymer resin engineered specifically for the demands of performance driving. This isn't generic plasticit's purpose-built material that won't develop stress cracks with age and maintains its finish through years of daily driving and spirited shifting.

The 16mm x 1.50 brass master insert is where this shift ball proves its worth under load. It exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque test, so it won't strip out or work loose when you're rowing through gears hard. The 6-speed shift pattern and pearl gray racing stripes are subsurface graphicsembedded within the material itself rather than printed on topso they cannot wear off no matter how many miles you put on them.

At 2-1/8" diameter and 4 ounces, the R-Series delivers a substantial grip surface without adding excessive weight to your shift lever. The precision-machined construction is polished to a high-gloss finish that looks right at home in everything from a classic muscle car to a modern build. Thread adapters are available separately if your shift lever uses something other than the standard 16mm x 1.50 threading. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• R-Series black shift ball with pearl gray racing stripes and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• Premium 2-1/8" diameter high-impact polymer resin construction engineered for performance torque and temperature demands
• Subsurface red racing stripe graphics that cannot wear off, fade, or chip -- not surface-applied decals
• Precision-machined 16mm x 1.50 brass master insert for superior thread engagement and durability
• 6-speed shift pattern clearly marked -- stripe design does not interfere with pattern visibility
• Lightweight 4-ounce design for optimal shift feel and quick gear changes
• Includes brass jam nut for secure installation
• Thread adapters available separately for compatibility with various shifter lever thread sizes
• Made in the USA by a manufacturer with 65+ years of shift knob expertise

Description

The R-Series shift ball delivers premium quality and lasting durability for 6-speed manual transmission builds. Constructed from specially formulated high-impact polymer resin, this 2-1/8" diameter knob is engineered to withstand the torque loads and temperature extremes that come with spirited driving -- no cracking, fading, or degradation over time.

What sets the R-Series apart is its subsurface graphics. The red racing stripes are embedded beneath the surface, meaning they physically cannot wear off no matter how many thousands of shifts you throw. The stripe design is deliberately positioned so it does not run through the 6-speed shift pattern, keeping your gate reference clear and legible during aggressive driving. At just 4 ounces, the shift ball maintains optimal weight balance for crisp, precise shifts without excessive mass slowing down quick gear changes.

The precision-machined brass master insert features 16mm x 1.50 threading and comes with a brass jam nut for secure mounting. If your shifter lever uses a different thread pitch, thread adapters are available separately -- contact us with your specific shifter thread size and we'll recommend the correct adapter for your application.

This shift ball comes from a manufacturer that has been shifting gears since 1952. Their commitment to quality, precision, and style has made them a leading supplier for OEM, aftermarket, classic, custom, and hot rod applications. Made in the USA.

What's Included

• One (1) R-Series black shift ball with red racing stripe, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter for optimal palm grip and precise shift feel
• 6-speed shift pattern in contrasting white racing stripe design
• 4-ounce weight balances comfortable grip with controlled shift momentum
• High-gloss scratch-resistant finish maintains appearance through years of use
• Includes jam nut for secure lever mounting
• Made in the USA since 1952

Description

Worn shift knobs with faded patterns and stripped threads are more than cosmetic problems - they compromise shift accuracy and driver confidence. The R-Series 6-Speed Shift Ball delivers the durability and precision your build demands, constructed from specially formulated high-impact polymer resin designed to handle performance-level torque loads and temperature extremes without cracking, fading, or becoming tacky in summer heat.

What separates this shift ball from generic alternatives is the subsurface graphic process. The white racing stripe and 6-speed shift pattern are embedded within the polymer during manufacturing - not silk-screened, etched, or applied as a surface coating. They physically cannot wear off, no matter how many shifts you bang through. The 16mm x 1.50 brass master insert provides the foundation for this durability, exceeding the auto industry's specification of 200 ft-lb static pull and 20 ft-lb twist torque testing.

At 2-1/8" diameter and 4 ounces, this shift ball strikes the ideal balance between palm-filling grip and controlled shift momentum. The high-gloss black finish resists scratches and maintains its showroom appearance through daily driving or weekend track sessions. The included jam nut locks the ball securely to your shift lever, eliminating loosening during aggressive shifting.

Thread adapters are available separately if your shift lever uses a different thread pitch than the 16mm x 1.50 master insert - contact MDL's tech team if you need help identifying your lever's thread size. Built in the USA by a manufacturer that has been shifting gears since 1952, bringing OEM-level quality and precision to classic, custom, and hot rod applications.

What's Included

• One (1) R-Series black shift ball with white racing stripe and 6-speed pattern
• One (1) 16mm x 1.50 brass master insert (pre-installed)
• One (1) jam nut

Key Features

• 2-1/8" diameter gray polymer resin ball with white rally stripe that does not interfere with shift pattern visibility
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• High-impact polymer resin formulated for performance-level temperature and torque demands without stress cracking
• Subsurface graphics that cannot wear off during use
• 4-ounce weight for balanced shift feel
• Precision-machined construction with high-gloss polished finish
• Includes brass jam nut; thread reducers available separately for compatibility with various shifter applications
• Made in the USA

Description

Upgrade your 6-speed manual with this R Series shift ball that delivers classic rally aesthetics and engineered durability in a single package. The 2-1/8" diameter provides comfortable grip for spirited driving, while the white rally stripe adds period-correct styling without cluttering shift pattern visibility.

Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball withstands aggressive shifting and engine bay heat without developing the stress cracks common in inferior materials. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry specifications, tested to 200 ft. lbs. static pull and 20 ft. lbs. twist torque resistance for secure, worry-free mounting.

Subsurface graphics resist wear and fading, maintaining their appearance through years of hard use. At 4 ounces, this shift ball delivers the right balance of mass for crisp, positive shifts without excessive weight that could stress shifter components. The high-gloss polished finish adds a premium look to any interior.

Thread reducers are available separately to adapt the 16mm x 1.50 master insert to match your specific shifter thread size. Proudly made in the USA with the quality and precision that has been shifting gears since 1952.

What's Included

• Gray polymer resin shift ball with white rally stripe and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (factory installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics embedded into the material - will not wear off or fade
• 2-1/8" diameter white base with black rally stripes that wrap around the 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shift feel
• Precision machined and polished to a high gloss finish
• Made in the USA

Description

Factory plastic shift knobs crack, fade, and wear out - the graphics rub off, the threads strip, and the whole thing looks tired after a few seasons of hard use. The R-Series shift ball solves these problems with purpose-built construction designed for real driving conditions.

This 2-1/8" diameter shift knob is molded from a specially formulated high-impact polymer resin engineered specifically for automotive applications. Unlike generic plastics, this material is designed not to develop stress cracks with aging, handling the thermal cycling and mechanical stress of performance driving. The black rally stripes are subsurface - embedded into the white base material rather than printed or painted on top - creating a smooth finish that stays sharp shift after shift.

The 16mm x 1.50 brass master insert is the foundation of this knob's durability. This solid brass threading exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, ensuring it won't strip or fail when you're rowing through gears under load. At 4 ounces, the weight provides positive shift engagement without excessive mass that can stress your synchros. Each knob is precision machined and polished to a high gloss finish.

The 16mm master insert requires a thread reducing adapter (sold separately) to fit your specific shift lever thread size - contact MDL if you need help selecting the correct adapter for your application. A brass jam nut is included for secure installation that prevents loosening during spirited driving. Made in the USA with the quality and precision that serious builders demand.

What's Included

• One (1) R-Series 2-1/8" white polymer resin shift ball with black rally stripes and 6-speed shift pattern
• One (1) 16mm x 1.50 brass master insert (installed)
• One (1) brass jam nut

Thread reducing adapters sold separately - contact MDL to select the correct adapter for your shift lever thread size.

Key Features

• Premium 2-1/8" diameter white polymer resin construction with gray rally stripes
• Subsurface graphics bypass the 6-speed shift pattern and will not wear off
• 16mm x 1.50 brass master insert with included jam nut
• High-impact polymer resin formulated for performance torque and temperature demands
• 4-ounce weight delivers optimal shifting feel and inertia
• Master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add race-inspired style to your 6-speed manual with the R-Series shift ball. This premium 2-1/8" diameter white shift knob features crisp gray rally stripes that bypass the shift pattern for clean gear identification. Unlike painted or pad-printed graphics that wear away with use, the rally stripe graphics on this shift ball are subsurface-printed and physically cannot wear off, ensuring your interior looks sharp for years of spirited driving.

The R-Series is built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements. This isn't generic plastic that will crack, fade, or become brittle with age. The precision-machined construction is polished to a high-gloss finish that resists stress cracking even after years of exposure to heat cycles and UV. At 4 ounces, the shift ball provides just enough mass for crisp, satisfying throws without adding excessive weight that slows down quick shifts.

A 16mm x 1.50 brass master insert is pre-installed and includes a jam nut for secure, rattle-free mounting. The brass insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, meaning this knob stays put no matter how hard you row through the gears. For shifter levers with different thread pitches, MDL stocks a range of thread adapters. Know your shifter's thread size when ordering so the correct adapter can be recommended for proper fitment.

Made in the USA by a manufacturer that has been shifting gears since 1952, the R-Series represents decades of expertise in precision shift knob manufacturing. Compatible with any 6-speed manual transmission application when paired with the appropriate thread adapter.

Kit Includes

• White polymer resin shift ball with gray rally stripes (2-1/8" diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface flame graphics embedded beneath clear coat - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• 2-1/8" diameter translucent blue construction - 4 oz. total weight
• Precision machined and polished to high-gloss finish
• Stress-crack-resistant formula developed specifically for automotive applications
• Made in the USA

Description

Cheap shift knobs crack, fade, and spin loose. This Flame Series knob is built to handle real driving - the kind where you're banging through gears under load and your interior sees triple-digit heat cycles every summer. The specially formulated high-impact polymer resin was developed specifically for the automotive industry, engineered to resist stress cracking as it ages while standing up to the torque and temperature demands of performance shifting.

The bold flame graphics aren't printed or painted on top - they're embedded subsurface beneath the translucent blue finish. That means they physically cannot wear off, chip, or fade no matter how many miles you put on them. The 16mm x 1.50 brass master insert provides superior thread engagement and exceeds the auto industry's specification of 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance. This knob stays put.

Each 2-1/8" diameter knob is precision machined and polished to a high-gloss finish that catches light and complements any interior. At just 4 ounces, it adds visual impact without deadening shift feel. The included jam nut locks everything in place. Thread adapters are available separately if your shift lever uses a different thread pitch - just confirm your shifter's thread size when ordering so we can recommend the right adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

Kit Includes

• Translucent blue Flame Series shift knob (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Premium 2-1/8" diameter translucent green shift knob with bold flame graphics
• Specially formulated high-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics embedded into the material - cannot wear off or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Lightweight 4-ounce design for quick, precise shifts
• Thread adapters available for other shifter thread sizes
• Made in the USA with manufacturing heritage since 1952

Description

Add aggressive hot rod style to your shifter with this Flame Series translucent green shift knob. The vivid flame graphics aren't just printed on the surface - they're embedded beneath the outer layer using subsurface technology, which means they won't wear off, scratch away, or fade no matter how many miles you put on them.

This isn't bargain-bin plastic. The knob is molded from a specially formulated high-impact polymer resin developed specifically for automotive applications. The formula resists stress cracking as the material ages and handles the temperature swings inside a hot engine bay without degrading. The 16mm x 1.50 brass master insert provides serious holding power, exceeding auto industry specifications with 200 ft. lbs. of static pull resistance and 20 ft. lbs. of twist torque capacity - far beyond what you'll ever put through it during aggressive shifting.

At just 4 ounces, this knob delivers a premium feel without adding unnecessary mass to your shifter assembly. Each knob is precision machined and polished to a high-gloss finish for a smooth, professional look and feel. The 2-1/8" diameter provides comfortable grip and confident lever control during spirited driving.

This knob features a 16mm x 1.50 thread and includes a brass jam nut. Thread adapters are available separately to fit other shifter thread sizes - just confirm your shifter's thread pitch when ordering so we can recommend the correct adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series translucent green shift knob (2-1/8" diameter) with subsurface flame graphics
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Flame Series Shifter Ball | Ivory with Red Flames | 2-1/8" Polymer Resin | 16mm Thread

Key Features

• Premium high-impact polymer resin construction - formulated for performance-level torque and temperature demands
• Subsurface flame graphics that cannot wear off, peel, or fade
• 2-1/8-inch diameter for optimal grip and control
• 16mm x 1.50 brass master insert - exceeds industry specs for 200 ft-lbs static pull and 20 ft-lbs twist torque
• Lightweight 4-ounce design for crisper shifts
• High-gloss polished finish resists stress cracking with age
• Includes jam nut for secure installation
• Made in the USA

Description

Bring classic hot rod style to your shifter with this Flame Series ball featuring bold red flames over a translucent ivory base. The 16mm x 1.50 thread pattern works with MDL's thread adapters to fit virtually any manual transmission shifter stick, making this a universal upgrade for your interior.

The polymer resin construction is engineered specifically for automotive applications - formulated to handle the heat cycles, UV exposure, and stress loads that would crack lesser materials over time. Unlike cheap printed or painted knobs, the flame graphics are embedded beneath the surface during manufacturing, so they'll never peel, scratch, or fade no matter how many miles you put on your build. The brass master insert is precision-machined and tested beyond OEM requirements, exceeding 200 ft-lbs of static pull strength and 20 ft-lbs of twist torque resistance.

At 2-1/8 inches in diameter, this shifter ball delivers excellent grip without being cumbersome. The 4-ounce weight adds just enough mass for smooth, positive shifts without making the lever feel sluggish. Every knob is precision-polished to a high-gloss finish that resists the stress cracking common in cheaper plastic alternatives.

MDL stocks thread adapters for common shifter thread sizes including 3/8-16, 3/8-24, 5/16-18, 7/16-20, 1/2-13, and 1/2-20 - contact us with your shifter thread size if you need an adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series shifter ball - translucent ivory base with red flame graphics
• 16mm x 1.50 brass master insert - precision-machined
• Jam nut for secure mounting

Key Features

• Translucent red polymer resin with embedded flame graphics
• 2-1/8" diameter precision machined and polished to high gloss finish
• 16mm x 1.50 brass master insert with included jam nut
• Subsurface graphics that cannot wear off
• Exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specs
• High-impact polymer resin formulated to resist stress cracking with age
• 4 oz. weight for positive shift feel
• Made in the USA

Description

Add some heat to your shifter with the Flame Series shift knob in translucent red. This 2-1/8" diameter shift ball features embedded flame graphics beneath the surface, so your design stays sharp through years of hard shifting rather than wearing away like printed or painted alternatives.

Built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements, this shift knob resists the stress cracking that plagues lesser materials over time. The 16mm x 1.50 brass master insert exceeds automotive industry specifications, handling 200 ft. lbs. of static pull and 20 ft. lbs. of twist torque. Each knob is precision machined and polished to a high gloss finish that catches light through the translucent resin.

At 4 ounces, this shift ball adds just enough heft for a confident, weighted feel without slowing down your shifts. The 16mm master thread works with MDL's thread reducing inserts for universal compatibility with virtually any shift lever. Know your shift lever thread size when ordering so we can recommend the correct adapter if needed.

Manufactured in the USA by a company that has been shifting gears since 1952, these polymer shift knobs represent decades of refinement in quality, precision, and style for OEM, aftermarket, classic, custom, and hot rod applications.

What's Included

• One 2-1/8" diameter translucent red shift ball with flame graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Translucent yellow polymer with subsurface red flame graphics that cannot wear off
• 2-1/8" diameter for positive grip and confident shifts
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design reduces shift lever mass
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• High-impact polymer resin formulated to resist stress cracking with age
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add classic hot rod style to your shifter with the Flame Series shift ball. This 2-1/8" diameter knob features translucent yellow polymer construction with bold red flame graphics molded beneath the surface--they will never fade, chip, or wear off no matter how many miles you put on the car.

The shift ball is constructed from high-impact polymer resin specifically formulated for automotive applications to resist stress cracking as it ages. At its core is a precision-machined 16mm x 1.50 brass master insert that delivers rock-solid thread engagement. The brass insert is engineered to exceed automotive industry specifications, tested to 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque. At just 4 ounces, the knob provides positive feedback without adding unnecessary mass to your shift lever.

Thread adapters are available separately to fit various shift lever thread sizes--contact MDL with your shift lever thread pitch to get matched with the correct adapter. This shift ball comes from a manufacturer with over 70 years of experience serving OEM, aftermarket, classic, custom, and hot rod applications. Precision machined and polished to a high-gloss finish. Made in the USA.

Kit Includes

• Flame Series shift ball--translucent yellow polymer with red flames, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Direct bolt-on replacement for TREMEC T5, T45, TKX, T56 Magnum, TKO-500, and TKO-600 shifters
• Chrome-plated high-strength tubular steel construction
• 16-inch length with 30-degree single bend (6-inch back offset, 14.5-inch height)
• Standard 2-bolt flange with 3/8-inch holes on 7/8-inch center-to-center spacing
• Machined billet steel mounting stud, drilled and countersunk for clean appearance
• 3/8-24 threads for aftermarket shift knobs
• Includes metric cap screws for installation
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory shift levers leave a lot to be desired—cheap plastic components, weak finishes, and ergonomics that feel like an afterthought. This Lokar chrome-plated steel shift lever delivers a direct bolt-on upgrade for TREMEC manual transmission shifters, combining show-quality appearance with high-strength steel durability.

The 16-inch tubular steel lever features a 30-degree single bend that positions the shift knob with a 6-inch back offset and 14.5-inch overall height. This geometry puts the knob right where your hand naturally falls, improving shift feel and cockpit ergonomics. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering the clean, smooth appearance that distinguishes a quality build from a parts-bin special.

Fitment uses the standard TREMEC 2-bolt flange pattern with 3/8-inch mounting holes on 7/8-inch center-to-center spacing. This works with T5, T45, TKX, TKO-500, TKO-600, T56 Magnum, and all TREMEC shifters that share this common mounting configuration. The 3/8-24 threaded top accepts most quality aftermarket shift knobs, so you can match the lever to your interior. Shift boots, bezels, and knobs are sold separately.

Lokar builds these levers in the USA and backs them with a lifetime manufacturer warranty. When you want chrome that stays chrome and steel that can handle aggressive shifting for years, this is the lever.

What's Included

• Chrome-plated high-strength tubular steel shift lever (16-inch, 30-degree single bend)
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• 13.5-inch height with 3.5-inch setback -- classic candy cane design ideal for bench seat applications
• High-strength forged steel construction with triple chrome plating
• 3/8"-16 threaded top accepts all Hurst shift knobs and T-handles
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• Iconic "HURST" name stamped on the stick
• 3/8-inch mounting holes on 7/8-inch spacing bolt pattern

Description

When your bench seat setup demands proper shift lever reach and positioning, this Hurst Competition/Plus candy cane stick delivers the solution. The 13.5-inch height combined with a 3.5-inch setback puts the shift knob exactly where your hand naturally falls, eliminating the stretch and awkward positioning common with shorter, straighter sticks in bench seat cars and trucks.

Constructed from high-strength forged steel and finished with triple chrome plating, this lever offers both durability and show-quality appearance. The iconic Hurst name is stamped into the stick, maintaining the authentic Competition/Plus heritage that gearheads have trusted for decades. The 3/8"-16 threaded top accepts any Hurst shift knob or T-handle, letting you complete the setup with your preferred grip.

This stick fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method. The forged steel construction eliminates the flex and vibration issues found in cast alternatives, ensuring precise shift feel and long-term reliability. Installation is straightforward -- simply bolt on using the existing two-bolt pattern with 3/8-inch mounting holes on 7/8-inch spacing and you're ready for crisp, positive shifts.

What's Included

• One high-strength forged steel shift lever with triple chrome plating
• Stamped Hurst logo
• Pre-drilled mounting holes (3/8-inch holes on 7/8-inch spacing)
• 3/8"-16 threaded top for knob attachment

Key Features

• 16.5 inches tall with 4.5-inch set-back - ideal for bench seat muscle cars and classic trucks
• High-strength steel construction with triple chrome plating for durability and show-quality finish
• Double-bend candy cane design pulls the shift knob closer to the driver
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on stick
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 3/8" mounting holes on 7/8" spacing

Description

Bench seat muscle cars and classic trucks present a unique challenge: getting the shift knob exactly where your hand naturally falls without awkward reaching or cramped positioning. This 16.5-inch Hurst Competition/Plus candy cane shift stick solves that problem with its double-bend design, delivering a 4.5-inch set-back that pulls the shifter closer to the driver while maintaining proper throw geometry for smooth, precise shifts.

Hurst bolt-on shifter sticks are the go-to solution for custom applications where a particular height or offset is required. This stick is constructed from high-strength steel and triple chrome plated for a mirror finish that resists corrosion and looks right at home in a show car or a weekend warrior. The iconic Hurst name stamped into the steel tells everyone exactly what's moving the gears.

The standard 3/8"-16 thread at the top accepts the full range of Hurst shift knobs and T-handles, so you can finish the setup with whatever grip style suits your driving. The two-bolt base with 3/8" holes on 7/8" spacing fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method - a direct bolt-on replacement or upgrade for your existing stick.

Whether you're building a bench seat hot rod, restoring a classic pickup, or just need more reach from your Hurst shifter, this candy cane stick delivers the height and offset to put the knob right where you need it.

What's Included

• One high-strength steel shift lever, triple chrome plated
• 16.5" tall with 4.5" set-back (candy cane/double-bend style)
• 3/8"-16 threaded top for shift knob attachment
• Two-bolt mounting base (3/8" holes on 7/8" spacing)

Key Features

• 19-inch steel construction with durable black powder coat finish
• Engineered for OE shift placement in 1973-1979 Ford F-Series and 1978-1979 Bronco applications
• 3/8"-24 threads accommodate a wide range of aftermarket shift knobs
• Mounting holes positioned 7/8" on center for precise transmission connection
• Direct-fit design for TREMEC TR4050 5-speed transmissions

Description

When you're swapping a modern TREMEC TR4050 5-speed into your '73-'79 Ford truck or late '70s Bronco, shifter placement matters. Factory shift location keeps the cab ergonomics familiar and eliminates the need for console modifications or awkward reach. This MDL Steel Shift Lever delivers the precise 19-inch geometry needed to position your shift knob exactly where the original shifter sat while mating cleanly to the TR4050's shifter housing.

Steel construction handles the rigors of daily driving and heavy use without flexing or fatigue. The black powder coat finish resists corrosion and wear, standing up to harsh truck environments where mud, moisture, and temperature swings are part of the job. Unlike painted or plated finishes that chip and peel, powder coat bonds to the steel for long-term durability.

The 3/8"-24 threaded tip is the most common shift knob thread in the aftermarket, giving you complete flexibility to choose the knob that fits your hand and style. Mounting point holes are machined 7/8" on center to match TR4050 shifter housing specifications, ensuring smooth operation through all five gears plus reverse without binding or misalignment.

Direct-fit for 1973-1979 Ford F-Series pickups and 1978-1979 Ford Bronco with TR4050 transmission conversions. Made in the USA.

What's Included

• 19-inch steel shift lever with black powder coat finish
• 3/8"-24 threaded tip for shift knob mounting

Key Features

• Direct bolt-on replacement for TREMEC T5, T45, TKX, T56 Magnum, TKO-500, and TKO-600 shifters
• Chrome-plated high-strength tubular steel construction
• 16-inch length with 30-degree single bend (6-inch back offset, 14.5-inch height)
• Standard 2-bolt flange with 3/8-inch holes on 7/8-inch center-to-center spacing
• Machined billet steel mounting stud, drilled and countersunk for clean appearance
• 3/8-24 threads for aftermarket shift knobs
• Includes metric cap screws for installation
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory shift levers leave a lot to be desired—cheap plastic components, weak finishes, and ergonomics that feel like an afterthought. This Lokar chrome-plated steel shift lever delivers a direct bolt-on upgrade for TREMEC manual transmission shifters, combining show-quality appearance with high-strength steel durability.

The 16-inch tubular steel lever features a 30-degree single bend that positions the shift knob with a 6-inch back offset and 14.5-inch overall height. This geometry puts the knob right where your hand naturally falls, improving shift feel and cockpit ergonomics. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering the clean, smooth appearance that distinguishes a quality build from a parts-bin special.

Fitment uses the standard TREMEC 2-bolt flange pattern with 3/8-inch mounting holes on 7/8-inch center-to-center spacing. This works with T5, T45, TKX, TKO-500, TKO-600, T56 Magnum, and all TREMEC shifters that share this common mounting configuration. The 3/8-24 threaded top accepts most quality aftermarket shift knobs, so you can match the lever to your interior. Shift boots, bezels, and knobs are sold separately.

Lokar builds these levers in the USA and backs them with a lifetime manufacturer warranty. When you want chrome that stays chrome and steel that can handle aggressive shifting for years, this is the lever.

What's Included

• Chrome-plated high-strength tubular steel shift lever (16-inch, 30-degree single bend)
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, TKX, T56 Magnum, and Borg Warner transmissions
• Black powder-coated steel construction for durability and corrosion resistance
• Layback geometry: 6 in. back x 14.5 in. tall with 30-degree bend for optimal hand position
• 16 in. overall length for comfortable reach in most cockpit configurations
• Standard 2-bolt flange with 7/8 in. center-to-center mounting pattern
• Machined billet steel mounting stud with countersunk metric cap screws included
• 3/8"-24 thread for broad aftermarket shift knob compatibility
• Made in the USA with lifetime manufacturer warranty

Description

Factory shifter levers often leave you reaching awkwardly or fighting an uncomfortable angle. This Lokar steel shift lever solves that problem with a layback design that positions your knob exactly where your hand naturally falls. The 6-inch setback combined with a 14.5-inch height and 30-degree bend creates ergonomics that make rowing through gears feel effortless, even on long drives or spirited canyon runs.

Lokar builds these tubular steel levers specifically for TREMEC and Borg Warner manual transmissions. The standard 2-bolt flange measures 7/8 in. center to center between mounting holes, making it a direct bolt-on for T5, T45, TKX, T56 Magnum, and all TREMEC shifters using that common pattern. No adapter plates, no drilling, no fitment headaches.

The engineering shows in the details. A machined billet steel mounting stud replaces the sloppy stamped hardware found on lesser levers, eliminating play at the base for a solid, precise feel. The stud comes drilled and countersunk for the included metric cap screws, giving you a clean, finished appearance with no exposed bolt heads. Black powder coating protects the steel from corrosion and heat while delivering the blacked-out aesthetic that complements modern muscle car interiors.

The 3/8"-24 knob thread is the most common size in aftermarket shift knobs, so you have your pick of styles from weighted billets to classic round balls. Made in the USA and backed by Lokar's lifetime manufacturer warranty, this lever is built to perform for the life of your build.

What's Included

• 16 in. black powder-coated steel shifter lever (layback style)
• Machined billet steel mounting stud
• Metric cap screws for installation
• Lifetime manufacturer warranty

Key Features

• 16" layback design with double bend - 2" back x 14.5" tall configuration for optimal driver reach
• Black powder-coated steel construction for durability and corrosion resistance
• 3/8"-24 thread knob mount - compatible with most aftermarket shift knobs
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Machined mounting stud drilled and countersunk for included metric cap screws
• Made in the USA with lifetime manufacturer warranty

Description

Need a shifter lever that clears a bench seat or console while positioning the knob exactly where your hand naturally falls? This 16" Lokar double-bend shift lever solves fitment problems in classic cars and trucks by using a layback geometry - 2" back x 14.5" tall - that brings the shift knob closer to the driver without compromising throw mechanics.

Direct bolt-on compatibility with TREMEC and Borg Warner manual transmissions including the T5, T45, T56, TKO, and TKX using the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The black powder-coated steel construction resists corrosion and maintains its finish under hood heat and daily driving abuse. Unlike welded or threaded-stud designs, this lever features a machined mounting stud that's drilled and countersunk for the included metric cap screws - delivering a clean, flush appearance at the shifter base.

The 3/8"-24 thread at the top accepts virtually any aftermarket shift knob, while the robust tubular steel construction handles aggressive shifting without flex or deflection. Whether you're building a restomod with a modern 5- or 6-speed or upgrading from a worn factory stick, this Lokar lever delivers the reach, feel, and appearance your build demands.

Made in the USA and backed by Lokar's lifetime manufacturer warranty.

What's Included

• 16" black powder-coated steel double-bend shifter lever
• Machined mounting stud
• Metric cap screws for installation

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Lokar Rectangular Shift Boot | Black Naugahyde | Polished Black Stainless Ring

Key Features

• Black billet aluminum ring with precision ball-milled edge
• Rectangular ring dimensions: 6-3/4" x 5-1/4" outer, 5-1/2" x 4" inner
• Foam rubber seal eliminates airflow and debris from entering through floor
• Boot hugs shifter lever tightly with no pull ties or laces
• Polished stainless bezel fits over shifter lever for clean appearance
• Durable black Naugahyde boot material
• Stainless steel mounting screws included

Description

Exposed transmission openings and loose-fitting boots let hot air, exhaust fumes, and road debris into your cabin. This Lokar rectangular shift boot kit solves that problem while delivering a clean, finished look that complements traditional hot rod and custom interiors.

The black billet aluminum ring features a precision ball-milled edge that provides both visual appeal and a quality tactile feel. A polished stainless bezel fits precisely over the shifter lever, creating a clean transition point at the top of the boot. The included foam rubber seal sits beneath the assembly to block airflow from the floor, keeping heat and fumes where they belong.

Unlike cheaper boots that require unsightly pull ties or laces, this Lokar boot hugs the shifter lever tightly on its own, maintaining a clean appearance that won't loosen or sag over time. The rectangular ring measures 6-3/4" x 5-1/4" on the outside with a 5-1/2" x 4" inner opening, providing versatile fitment for most floor-mounted manual shifter applications. The rectangular profile is particularly well-suited for hot rod and street rod builds where it complements traditional console and tunnel designs.

Installation is straightforward with the included stainless steel mounting screws. When the details matter to your build, this boot kit delivers the fit and finish that sets professional-quality interiors apart from the rest.

What's Included

• Black Naugahyde shift boot
• Black billet aluminum ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Rectangular base measures 7-3/4 in. wide x 8-3/4 in. long, covers openings up to 6-3/4 in. wide x 7-3/4 in. long
• 6-pleat rubber boot design flexes smoothly with shifter movement
• Chrome ID plate and complete mounting hardware included
• Black rubber boot with chrome trim plate finish
• Designed specifically for large hole shifter installations
• Hurst part number 114-7494

Description

Large shifter openings in the tunnel present a real problem: standard boots don't cover them, leaving gaps that look unfinished and let noise, heat, and debris into the cabin. The Hurst Super Boot solves this with a rectangular footprint measuring 7-3/4 in. wide x 8-3/4 in. long, sized to cover tunnel openings up to 6-3/4 in. wide x 7-3/4 in. long. Whether you're finishing a custom shifter installation, a transmission swap, or replacing a worn original boot, this is the go-to solution for oversized openings.

The boot itself features 6 pleats molded from quality rubber, allowing full range of shifter movement without binding or excessive resistance. The pleated design maintains a tight seal around the shifter lever throughout its travel, keeping out road noise and debris while looking clean from the driver's seat. The rubber compound resists cracking and deterioration from heat and fluid exposure - critical for any boot sitting above a hot transmission tunnel.

Hurst packages this as a complete kit with the chrome ID trim plate and all necessary mounting hardware. That chrome plate is instantly recognizable - the industry standard for over 50 years. When gearheads see that black boot and chrome Hurst plate combination, they know the build is serious. Universal application fits any manual transmission installation where large tunnel openings need professional coverage.

What's Included

• Rectangular rubber shifter boot with 6 pleats (black)
• Chrome ID trim plate
• Complete mounting hardware

Shifter Boot | Ford Hi-Boy Truck | Twin-Stick Transfer Case

Key Features

• Hand-sewn construction using US-sourced automotive textured vinyl - not stiff marine vinyl
• Oil and sulfide resistant for long-term durability around drivetrain components
• Mildew resistant treatment prevents deterioration in moisture-prone floor areas
• Meets Motor Vehicle Safety Standard 302 flammability requirements
• Stainless steel trim ring included for a finished, professional appearance
• Designed for twin-stick transfer case and transmission shifter configurations
• Compatible with TKX transmission swaps in Ford 4WD applications

Description

Ford Hi-Boy trucks present unique shifter challenges with their divorced transfer case configurations and twin-stick setups. The separate transmission and transfer case shifters require a boot that accommodates multiple openings while sealing properly against dust, moisture, and debris. Standard single-opening boots simply cannot handle the Hi-Boy layout - this purpose-built shifter boot solves that problem for transmission and twin-stick transfer case applications in Ford 4WD builds, including TKX transmission swaps.

The engineering focuses on durability where it matters most. Hand-sewn construction uses US-sourced high-quality automotive textured vinyl rather than the stiff, heavy marine vinyl that cracks and splits under hood heat and constant flexing. The material formulation resists oil contamination and sulfide exposure - critical when dealing with transmission fluid and exhaust gases that plague floor-mounted shifters in working trucks. Mildew resistance prevents the deterioration common in moisture-prone areas around the transfer case tunnel.

Safety compliance meets Motor Vehicle Safety Standard 302 for flammability, a critical consideration for floor-mounted applications near the drivetrain. The included stainless steel trim ring provides both edge protection and a finished appearance that matches the utilitarian aesthetic Hi-Boy builders demand. Whether you are restoring a numbers-matching truck or modernizing with a TKX swap, this boot delivers the fit and durability the application requires.

Made in the USA with quality materials and hand-sewn craftsmanship - not a mass-produced overseas part that will deteriorate in a season.

What's Included

• Hand-sewn shifter boot in automotive textured vinyl
• Stainless steel trim ring
• Stainless steel self-tapping mounting screws

Key Features

• 5-inch round black Naugahyde boot with brushed billet aluminum trim ring featuring ball-milled edge detail
• Polished stainless steel bezel fits cleanly over shifter lever for a finished look
• Foam rubber seal eliminates air flow from floor through boot
• Boot hugs shifter lever tightly - no unsightly pull ties or laces
• Complete kit includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A quality hot rod build deserves details that match the craftsmanship under the hood. Cheap, floppy shift boots with visible pull ties or laces cheapen an otherwise well-executed interior. This Lokar Classic Shifter Boot solves that problem with a tight-fitting black Naugahyde boot that hugs the shifter lever cleanly - no ties, no laces, just a professional appearance that signals attention to detail.

The billet aluminum trim ring features Lokar's signature ball-milled edge, adding machined precision that complements polished or brushed interior accents. Up top, a polished stainless steel bezel fits over the shifter lever, creating a finished transition between boot and stick. The included foam rubber seal prevents air from flowing up through the floor - keeping road noise, heat, and debris where they belong.

At 5 inches round, this boot fits floor-mounted shifter applications in hot rods, customs, and classic builds. The round configuration accommodates round shifter levers and provides the clean, symmetric look traditional hot rod interiors demand. Lokar manufactures these boots in the USA and backs them with a lifetime warranty.

What's Included

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge (brushed finish)
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black anodized billet aluminum ring with ball-milled edge for coordinated hot rod styling
• 5-1/4-inch outer diameter with 4-inch inner diameter fits most floor shifter openings
• Black naugahyde boot construction delivers classic hot rod aesthetics
• Polished stainless bezel fits over shifter lever for clean transition
• Integrated foam rubber seal eliminates air flow from floor through boot
• Form-fitting design hugs shifter lever with no pull ties or laces
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

Gaps around shifter levers look sloppy and let road noise, dust, and exhaust fumes into the cabin. This Lokar Midnight Series shift boot kit solves both problems with a clean, form-fitting design that delivers classic hot rod styling while sealing the floor opening around your shifter.

The 5-inch round boot features a black anodized billet aluminum ring with ball-milled edges that provide both visual depth and tactile grip during installation. The ball-milled edge treatment creates shadow lines that enhance the three-dimensional appearance while coordinating with other black interior components. Unlike cheaper stainless options, the black anodized finish delivers the blacked-out look modern hot rodders demand.

Unlike inferior boots with visible drawstrings or laces, this design hugs the shifter lever naturally for a factory-quality appearance. The polished stainless bezel on top of the boot fits over the shifter lever, creating a seamless transition. An integrated foam rubber seal eliminates air flow from beneath the vehicle into the cabin, keeping dust, debris, and exhaust fumes where they belong.

The black naugahyde boot material provides authentic period-correct styling while offering excellent durability against heat, UV exposure, and daily use. Compatible with most transmission-mounted and floor-mounted manual shifters in hot rod and classic car applications. Made in the USA by Lokar and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot
• Black anodized billet aluminum ring with ball-milled edge (5-1/4" OD x 4" ID)
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 5-inch round black Naugahyde shift boot designed for hot rod builds
• Polished black stainless steel ring with ball-milled edge for refined appearance
• Foam rubber seal eliminates air flow from floor through boot
• Polished stainless bezel on top fits over shifter lever
• Boot hugs shifter lever with no unsightly pull ties or laces
• Made in the U.S.A. with lifetime warranty

Description

Turn an exposed shifter opening into a finished detail with this classic Lokar round shift boot designed specifically for hot rod builds. The polished stainless bezel fits over your shifter lever, creating a clean, professional appearance that matches the craftsmanship of your drivetrain. Whether you're running a TREMEC TKX, TKO, or any floor-mounted manual shifter, this boot delivers authentic hot rod styling while providing practical cockpit protection.

Constructed from durable black Naugahyde, this 5-inch round boot offers the timeless look builders expect from Lokar. The integrated foam rubber seal prevents air flow from the floor through the boot, eliminating drafts and reducing interior noise. Unlike lesser boots that rely on pull ties or laces, this design hugs the shifter lever cleanly for a seamless appearance.

The polished black stainless steel ring features a ball-milled edge for both visual appeal and secure floor mounting. Installation is straightforward with the included stainless steel screws. This round configuration works with most hot rod floor-mount shifter installations where you want clean styling without exposed hardware.

Ideal for hot rod builds where authentic styling meets modern function. Made in the U.S.A. and backed by a lifetime warranty.

Kit Includes

• Black Naugahyde shift boot
• Polished black stainless steel ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 83" overall length - application-specific sizing for 1965-1968 Mustang to Toploader routing
• 5/8" screw-type transmission connection - direct fit to Toploader speedometer drive housing
• Passenger-side routing design - matches factory Mustang 4-speed Toploader configuration
• OEM-style construction - maintains period-correct appearance and function for mechanical speedometers
• Direct replacement fitment - eliminates speedometer inaccuracy from worn or damaged cables

Description

Dead speedometers and inaccurate odometers almost always trace back to one failure point: the speedometer cable. When the inner cable breaks, binds, or wears out, your dash becomes useless for monitoring speed and mileage. This 83" speedometer cable delivers the exact length and connection type your 1965-1968 Mustang needs for proper Ford Toploader 4-speed interface.

The 5/8" screw-type connection threads directly into the Toploader's speedometer drive housing on the passenger side - exactly as Ford designed it. Mustang Toploaders feature the speedometer gear access hole on the passenger side of the transmission, and this cable is engineered specifically for that configuration. The driven gear mounts on the end of the cable and inserts into the transmission, where the drive gear on the output shaft spins it to turn your speedometer.

Unlike generic 80" cables that require awkward routing and extra securing points under the car, this 83" cable provides the correct length for clean, factory-style installation. The routing follows the passenger side of the transmission tunnel, maintaining appropriate bend radii that prevent binding and ensure smooth speedometer operation. When paired with the correct driven gear for your rear axle ratio and tire size, this cable restores accurate speed and mileage readings to your Mustang's instrument cluster.

Engineered specifically for Ford Toploader 4-speed transmissions in 1965-1968 Mustang applications. Direct replacement for original equipment cables that have failed due to age, wear, or damage. OEM style for mechanical gauges.

What's Included

• 83" speedometer cable assembly with inner cable and outer housing
• 5/8" screw-type transmission connection end
• Instrument cluster connection end

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• Integrates reverse lockout control, dual VSS outputs, and reverse light wiring into one harness
• Speed-based reverse lockout: locked above 4 MPH, unlocked at 0-3 MPH (user-adjustable via app)
• Dual independent speed sensor outputs with customizable pulse counts (default: 40-pulse and 16-pulse)
• Bluetooth-enabled epoxy-sealed controller mounts to existing VSS bolt
• Square wave output: -5V to +5V standard, auto-shifts to 0V to +10V for positive-only ECM inputs
• Replaces up to 5 separate components previously required for full functionality
• Free iOS and Android app for complete signal customization
• Compatible with Classic Instruments, Auto Meter, Dakota Digital, and GM Connect & Cruise packages

Description

Converting to a TREMEC 6-speed Magnum means wiring three critical electrical functions: the vehicle speed sensor, reverse lockout solenoid, and reverse lights. Traditionally, this required up to five separate components—signal converters, lockout controllers, pigtails, and individual harnesses—all needing integration. The Bowler 3-in-1 Harness consolidates everything into a single pre-wired solution with an intelligent, Bluetooth-configurable controller.

The T56 Magnum and TR6060 place reverse gear dangerously close to 5th gear, creating real potential for accidental engagement at highway speed. The reverse lockout solenoid uses a spring-loaded pin to resist shifts into reverse when de-energized. Most DIY wiring ties the solenoid to the brake light switch—a flawed approach since braking at speed still allows reverse engagement. This harness uses speed-based control like the OE system: the lockout engages above 4 MPH and releases only when the vehicle slows to 0-3 MPH. These thresholds are fully adjustable through the free smartphone app.

The dual speed sensor outputs solve one of the most frustrating wiring challenges in modern builds. Your ECM may need a different signal than your electronic speedometer or cruise control, forcing multiple converters. This harness provides two completely independent outputs—each calibrated separately with any pulse count and ratio you need. The outputs generate a square wave signal from approximately -5V to +5V, and automatically shift to 0V to +10V when your ECM requires a positive-only input. Works seamlessly with popular gauges from Classic Instruments, Auto Meter, and Dakota Digital.

The compact epoxy-sealed controller mounts directly to the VSS output using the existing bolt—no additional mounting hardware or locations needed. Power comes from a switched +12V circuit with ground to the negative battery post or engine block. This harness fits Ford & GM Standard T56 Magnum and Ford TR6060 transmissions. Note: Does not work with 2019 and newer Mustang ECM (Wavelength system).

What's Included

• Epoxy-sealed Bluetooth controller module
• Pre-wired harness with VSS connector
• Reverse lockout solenoid wiring and connector
• Dual vehicle speed sensor output leads (pre-set 40-pulse and 16-pulse)
• Reverse light activation wire
• Protective wiring loom
• Mounting hardware for VSS bolt installation
• Installation instructions and app guide
• Free iOS/Android Bowler app download

Key Features

• Direct-fit snap-in connector mates with the reverse lockout solenoid on all TREMEC T56 6-speed transmissions
• Generous 6-foot wiring length provides flexible routing through tunnels and firewalls
• Protective covering shields wiring from heat, abrasion, and moisture
• Designed for use with MDL's MD-700-0100-2 reverse lockout control module
• Fits Ford and GM T56 applications

Description

The TREMEC T56 utilizes a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a critical safety feature because reverse and 5th are located very close to each other on the shift pattern. When the solenoid isn't energized, spring pressure against the shift rail makes reverse engagement difficult. When powered, the solenoid retracts the pin, allowing smooth entry into reverse. The problem? Classic cars and restomod builds lack the factory PCM logic to control this solenoid, leaving builders to either muscle through the lockout or rig up makeshift solutions.

This 6-foot harness provides the factory-style snap-in connector that mates directly with the T56's reverse lockout solenoid. The extended length gives you the flexibility to route wiring cleanly through the transmission tunnel, up through the firewall, and to your control module location without splicing or extending. The protective covering shields the conductors from exhaust heat, sharp edges, and underbody moisture--critical for a harness that lives in a harsh environment.

This harness is designed to work with MDL's MD-700-0100-2 reverse lockout control module, which monitors vehicle speed via the VSS signal and automatically energizes the solenoid below approximately 5-10 MPH for easy reverse engagement, then de-energizes it at higher speeds to prevent accidental shifts. The result is OEM-style lockout behavior without relying on makeshift brake-light-switch wiring or manual override buttons. Fits all TREMEC T56 6-speed transmissions in Ford and GM applications.

What's Included

• 6-foot reverse lockout solenoid harness with protective covering
• Snap-in connector for TREMEC T56 reverse solenoid

Key Features

• Environmentally-sealed Weather Pack connector resists moisture, extreme temperatures, and corrosive engine bay vapors
• 14 AWG wires with 10-inch leads for flexible installation routing
• Male (tower) and female (shroud) housings with pin-and-socket configuration for secure connection
• 20-amp maximum capacity for reliable 12V electrical operation
• Direct-fit compatibility with GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions
• Complete terminal and pigtail assembly - no additional components needed

Description

When swapping to a T56 Magnum or Ford T5 transmission, connecting the reverse light circuit is critical for both legal compliance and safety. This reverse switch harness eliminates the guesswork and provides a clean, factory-grade electrical connection that integrates seamlessly with existing vehicle wiring.

Built around the proven Weather Pack connector system, this harness delivers outstanding reliability in demanding engine bay environments. The pin-and-socket design creates a positive mechanical lock while sealing out moisture, dirt, and corrosive chemical vapors that destroy standard electrical connections over time. Heavy-duty 14 AWG wire handles the full electrical load with headroom to spare, while the 10-inch leads provide flexibility for routing around headers, exhaust components, and other obstacles.

The complete terminal and pigtail assembly plugs directly into GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions without modification. On the vehicle side, the Weather Pack connector interfaces cleanly with existing reverse light circuits or aftermarket wiring harnesses. This eliminates the common problems of corroded connections, loose terminals, and failed reverse lights that plague cut-and-splice installations.

What's Included

• Weather Pack male (tower) housing with terminals
• Weather Pack female (shroud) housing with terminals
• 10-inch 14 AWG wire leads (pair)
• Complete pin-and-socket connector assembly

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
