Key Features

• 700 lb-ft torque capacity with substantially increased gear face widths over original T56
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 with dual overdrive for street versatility
• 2-piece laser-beam welded gear construction for precise tooth angles, pitch, and alignment
• 26-spline input shaft, 31-spline output shaft
• Triple-cone synchronizers on gears 1-4; double-cone on 5th, 6th, and reverse
• Fully reversible TKO-style die-cast aluminum shifter with built-in mid-shift provisions
• Dual speedometer pickups for mechanical and electronic speedometers
• 140 lbs dry weight; 3.66-quart fluid capacity (Dexron III ATF)
• Cable release hardened steel guide tube and pivot stud included
• Max rated at 7,800 RPM

Description

The TREMEC T56 Magnum TUET16884 solves the torque limitation that plagued the original T56. Introduced in spring 2009, the Magnum delivers a massive 700 lb-ft torque capacity through substantially increased gear face widths and 2-piece laser-beam welded gear construction. Based heavily on the TR-6060 found in factory supercars like the ZR1 Corvette and ACR Viper, the Magnum combines TREMEC's OEM design and manufacturing technologies with the most popular features of the TKO 5-speed.

This TUET16884 features the wide-ratio gear set with 2.97 first gear and close-ratio 0.80/0.63 double overdrive—ideal for street-driven builds that need strong acceleration through the lower gears while maintaining relaxed highway cruising RPM. The 85mm center distance and bolstered one-piece countershaft resist distortion under load, while redesigned shift forks and fine-tooth synchronizer angles deliver incredibly short, low-effort throws with crisp engagement even at high RPM.

Triple-cone synchronizers on gears 1 through 4 and double-cone synchronizers on 5th, 6th, and reverse handle aggressive shifts with ease. The fully reversible TKO-style die-cast aluminum shifter provides smooth, positive shift action with two stock shifter positions, plus built-in mid-shift provisions under the inspection cover for simple forward shifter placement in bench-seat applications. Dual speedometer outputs accommodate both mechanical and electronic gauges, and the reverse lockout solenoid and reverse light switch are built in.

Configured for Ford applications with a 26-spline input shaft and 31-spline output shaft. Compatible with cable release clutch systems via the included hardened steel guide tube. The extensively modified transmission case prevents leaks under high-stress conditions and increases overall power-handling capabilities. Uses 3.66 quarts of TREMEC HP-MTF, Dexron III, or Mobil 1 Synthetic ATF.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET16884)
• Die-cast aluminum shifter assembly (fully reversible, TKO-style)
• Hardened steel cable release guide tube
• Cable fork pivot stud
• Mechanical speedometer output (gear-driven)
• 17-tooth electronic speedometer sensor
• Reverse lockout solenoid
• Reverse light switch
• Vent tube assembly
• TREMEC 1-year factory warranty
• MDL extended warranty (additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft effective torque capacity - handles serious power from big-block Fords to supercharged Coyotes
• Close-ratio gearing: 2.66, 1.78, 1.30, 1.00, 0.80, 0.63 - keeps the engine in its powerband through the gears
• Double overdrive (0.80 fifth, 0.63 sixth) - drops highway RPMs for improved fuel economy and reduced cruising noise
• 85mm center distance design for enhanced strength over original T56
• 135 lbs dry weight - reasonably light for a 700 lb-ft-rated 6-speed
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse for crisp, high-RPM shifts
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter with smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple conversions
• 1-1/8-inch 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups accommodate both mechanical and electronic speedometers
• Cable release hardened steel guide tube with pivot stud - accepts OE-style mechanical clutch fork
• Overall length: 34.03 inches
• Fluid capacity: 3.66 quarts Dexron III ATF

Description

When your Ford build demands more than a 5-speed can deliver but you refuse to compromise on shift quality, the TREMEC T56 Magnum answers the call. This close-ratio TUET11010 variant keeps RPM drops tight between gears - ideal for road racing, autocross, and spirited street driving where staying in the powerband matters. The 2.66 first gear pulls hard off the line, while the double overdrive (0.80 fifth, 0.63 sixth) drops highway RPMs dramatically for quiet, fuel-efficient cruising.

The Magnum is TREMEC's aftermarket version of the TR-6060 - the same transmission found in factory supercars like the Corvette ZR1 and Viper ACR. The 85mm center distance provides a larger gear contact patch and stronger case than the original T56, supporting 700 lb-ft of torque capacity. Triple-cone synchronizers on gears 1-4 and double-cone synchronizers on 5-6 and reverse deliver accurate, smooth shifts even at high RPM. The fully reversible die-cast aluminum shifter provides incredibly short, low-effort throws with crisp engagement.

This Ford-pattern Magnum requires a separate bellhousing and pairs with V8 Ford engines from small-block Windsors to modular 4.6/5.0 Coyote applications with the appropriate bellhousing. The hardened steel guide tube accepts standard mechanical clutch fork designs, making it a straightforward swap for classic Mustang builds. Dual speedometer provisions handle both electronic and mechanical gauges, while the built-in reverse lockout and reverse light switch simplify wiring.

MDL extends TREMEC's factory warranty by an additional year with a 1-year grace period when you purchase from us. That's the MDL difference - elite distributor pricing backed by lifetime technical support from people who actually know these transmissions inside and out.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET11010)
• OEM-grade die-cast aluminum reversible shifter assembly
• Hardened steel cable release guide tube
• Pivot stud for mechanical clutch fork
• 17-tooth analog/electric speedometer drive gear
• Reverse light switch
• Reverse lockout solenoid
• Drain and fill plugs
• TREMEC factory warranty plus MDL extended warranty (1 additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - handles serious power with confidence
• Based on TR-6060 OEM architecture - proven in factory supercars like the Dodge Viper and Camaro
• 135 lbs dry weight - light for a transmission this strong
• 2.97 first gear with 0.74/0.50 double overdrive - aggressive launch with relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse
• Fully reversible TKO-style die-cast aluminum shifter for smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple forward shifter placement
• 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups - mechanical and electronic
• 7,800 RPM rating
• 85mm center distance
• Cable release hardened steel guide tube included

Description

When TREMEC introduced the T56 Magnum in 2009, it solved the problem builders had been chasing for years: how to get bulletproof six-speed strength with OEM-level refinement in an aftermarket package. Based heavily on the TR-6060 - the same transmission found in factory supercars - the Magnum combines TREMEC's current OEM design and manufacturing technologies with the most popular features of their TKO 5-speed. The result is the smoothest-shifting, strongest, and most versatile 6-speed aftermarket transmission TREMEC has ever produced.

This TUET11011 features the wide-ratio 2.97 first gear, making it ideal for street-driven builds that want strong off-the-line acceleration without sacrificing highway drivability. The 0.74 fifth and 0.50 sixth gears deliver true double overdrive, dropping RPM for relaxed cruising and improved fuel economy. Spring-loaded ball-type synchronizer inserts reduce friction and eliminate notchy shifting, resulting in incredibly short, smooth shifts with crisp engagement.

The engineering upgrades over the original T56 are substantial. Face widths of the gears have been significantly widened to handle more torque, while redesigned one-piece shift forks with permanently mounted shift links eliminate the float and incomplete engagement that plagued earlier designs. The 85mm center distance provides the robust gear geometry needed to handle 700 lb-ft reliably. Multiple shifter locations accommodate different builds, and the reversible shifter assembly allows changing shift lever position simply by flipping the shift cover.

Compatible with Ford modular engines using the appropriate bellhousing (sold separately). Uses Dexron III ATF - no exotic fluids required. Made in the USA by TREMEC.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11011)
• Cable release hardened steel guide tube
• Reverse light switch
• 17-tooth electronic speedometer sensor
• Mechanical speedometer drive provision
• MDL extended warranty (extra year with 1-year grace period when purchased as part of a complete conversion package)
• MDL lifetime technical support

Key Features

• SFI 6.1 certified -- required for quarter-mile times of 11.49 or faster
• High-grade steel construction work-hardens to over 80,000 PSI -- more than twice the strength of other steel bellhousings
• Spin-formed cone (not rolled or stamped) delivers superior dimensional stability and alignment accuracy
• 7:00 clutch fork position for cable or hydraulic clutch operation
• Designed for 157-tooth flywheel with maximum 10.5-inch clutch diameter
• 5.34-inch height with lightweight 20 lb. design
• Universal fit -- not vehicle-specific
• Patented design with 16 points of bellhousing innovation
• 100% built in the USA

Description

The QuickTime RM-8031 steel bellhousing connects Ford 289, 302, 351W, and 351C small block engines to Ford T-56 and T-56 Magnum 6-speed transmissions. When you're running deep into the elevens or faster, safety regulations demand an SFI 6.1 certified bellhousing -- and the RM-8031 delivers that certification along with engineering that sets the standard for the industry.

What separates QuickTime from the competition is their proprietary spin-forming process. Unlike rolled or stamped bellhousings that introduce stress concentrations and dimensional inconsistencies, the spun cone work-hardens during manufacturing to over 80,000 PSI tensile strength -- more than double the strength of conventional steel bellhousings. This high material strength allows the bellhousing to remain lightweight while providing the scatter shield protection that high-horsepower builds demand.

Dimensional accuracy matters because bellhousing flex and misalignment accelerate drivetrain wear and rob horsepower. QuickTime's manufacturing process produces the most dimensionally stable bellhousings available, keeping your engine and transmission in perfect alignment through the entire RPM range. The 7:00 clutch fork position accommodates both cable and hydraulic clutch linkages, while the 5.34-inch height and 157-tooth flywheel specification (10.5-inch maximum clutch diameter) ensure proper starter engagement and clutch clearance.

This is a universal-fit bellhousing designed for street, strip, and circle track applications -- not vehicle-specific. Note: Transmission mounting bolts are not included; QuickTime's RM-170 bolt kit (8pcs 10mm x 1.5 x 30mm) is available separately for T56 applications. Made in the USA.

What's Included

• QuickTime RM-8031 SFI 6.1 certified steel bellhousing
• Hardware and instructions

Key Features

• Complete transmission-to-bellhousing bolt set for Ford T56 Magnum installations
• Designed specifically for steel aftermarket bellhousings
• Metric fasteners with proper thread pitch for TREMEC T56 Magnum mounting holes
• Eliminates hardware sourcing headaches during your Ford 6-speed swap

Description

Aftermarket steel bellhousings typically ship with bellhousing-to-engine-block hardware only, leaving you to source the bolts needed to attach the transmission itself. This MDL hardware kit solves that problem for Ford T56 Magnum installations by providing the exact fasteners required to mount the transmission to any steel aftermarket bellhousing.

The kit is purpose-built for steel bellhousing applications. Steel bellhousings have different material thickness than aluminum units, requiring specific bolt lengths for proper thread engagement without bottoming out. Using the wrong hardware can result in insufficient thread engagement or bolts that bind before the transmission face seats flush. This kit takes the guesswork out of the equation.

Compatible with all steel aftermarket bellhousings that accept the Ford version of the TREMEC T56 Magnum 6-speed transmission. If you're pairing your Magnum with an aluminum bellhousing, you'll need the AL version of this kit instead, as aluminum bellhousings use different bolt lengths. This kit covers transmission-to-bellhousing mounting only; bellhousing-to-engine-block hardware is typically supplied by the bellhousing manufacturer.

What's Included

• Complete set of transmission-to-bellhousing mounting bolts

Clutch Lever | 1994-2004 Mustang | T5, T45, 3650, 4.6L T-56

Key Features

• Fits all 1994-2004 Mustang manual transmissions: T5, T45, 3650, and 4.6L T-56
• Designed for cable and external hydraulic clutch operation with compatible bellhousings
• SN95-specific geometry with longer overall length and extended pivot points versus Fox Body forks
• Stamped steel construction for durability and reduced flex under load
• Direct replacement for worn OE clutch forks on SN95 and New Edge Mustangs

Description

When you're replacing the clutch in your 1994-2004 Mustang, don't overlook the clutch fork. This frequently neglected component takes a beating every time you press the pedal, and a worn fork causes sloppy engagement, inconsistent pedal feel, and premature throwout bearing wear. This MDL clutch lever restores factory-correct geometry to your SN95 or New Edge drivetrain.

The SN95 clutch fork is not interchangeable with Fox Body forks. The 1994-2004 lever is longer overall with extended pivot points to match the deeper SN95 bellhousing depth and longer input shaft configuration. Using the wrong fork causes the clutch cable to exit at a severe angle, resulting in hard pedal effort, accelerated cable wear, and eventual cable failure. This lever provides the correct geometry for proper throwout bearing positioning and smooth clutch actuation.

Engineered for both stock cable-release setups and external hydraulic conversions, this fork works with OE and aftermarket bellhousings designed for '94-'04 applications. Whether you're running a T5 carryover, the T45 that served '96-'99 GTs, the 3650 that replaced it in 2000, or the T-56 behind your 4.6L Cobra, this clutch lever delivers the reliable operation your drivetrain demands.

Kit Includes

• Clutch lever/fork assembly
• Installation instructions

Key Features

• Dual clutch pattern accepts both 10" long-style and 10.4" metric diaphragm clutches — upgrade to high-performance clutch setups without swapping flywheels
• 157-tooth ring gear for compatibility with small-diameter bellhousings and starters
• 28oz external imbalance matches pre-1981 Ford small block engines (260, 289, 302, 351W, 351C)
• 6-bolt crank mounting pattern with 7/16" bolts
• Cast iron construction weighing 19 lbs for smooth idle characteristics and excellent heat absorption
• Precision machined to improve clutch performance, durability, and reduce vibration
• Pre-installed metric alignment pins for accurate 10.4" clutch indexing
• Replaces OEM part numbers C3AZ-6375-J and C3AZ-75-A

Description

Running a classic Ford small block and want flexibility in your clutch setup? This dual-pattern cast iron flywheel eliminates the one-flywheel-per-clutch-size limitation that plagues so many builds. The machined face accepts both the 10" long-style diaphragm clutches found in vintage applications and the 10.4" metric diaphragm clutches used on high-performance '79–'01 Mustangs — so you can start with a stock-style clutch and upgrade to a higher-capacity unit later without pulling the flywheel.

Cast iron construction delivers the rotating mass needed for civilized street manners: smooth idle, progressive engagement, and excellent heat absorption during stop-and-go driving. The 157-tooth ring gear mates with the smaller-diameter bellhousings and starters common on '64–'68 Mustangs and other early Ford small block applications. Precision machining ensures a flat, true friction surface that improves clutch performance and reduces vibration.

The 28oz external imbalance is correct for pre-1981 Ford Windsor and Cleveland engines — 260, 289, 302, 351W, and 351C. (Post-1981 5.0L engines use a 50oz imbalance; verify your engine's balance before ordering.) The 6-bolt crank pattern with 7/16" hardware provides a secure connection to the crankshaft flange.

Compatible with 3-speed, 4-speed, and T5 5-speed manual transmissions. While cast iron flywheels work for light motorsports use, understand the RPM and load limits — billet steel offers better stability for sustained high-RPM or competition applications.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and dual clutch pattern (10" long / 10.4" metric)
• Pre-installed metric alignment pins for 10.4" clutch pattern
• Clutch alignment pins

Key Features

• Cast iron construction for durability and heat dissipation in street applications
• 157-tooth ring gear for proper starter engagement with small-block Ford bellhousings
• 50oz external balance engineered specifically for 1981-1995 Ford 5.0L Windsor engines
• 10.4" metric clutch pattern with equalizing pin holes for diaphragm-style pressure plates
• 6-bolt crankshaft mounting pattern matches Ford factory configuration
• 19 lbs flywheel weight provides optimal rotational mass for smooth street driving
• Includes clutch alignment pins for precise pressure plate installation

Description

When Ford switched the 302 to the 5.0L designation in 1981, they also changed the external balance from 28oz to 50oz. That means every '81-'95 5.0L Windsor needs a flywheel with the correct counterweight to maintain proper engine balance and eliminate vibration. This cast iron flywheel delivers exactly that - the right balance for your late-model small-block Ford, with the 157-tooth ring gear that mates to standard small-block bellhousings and starters.

The 10.4" metric clutch pattern is a Ford-specific design that uses alignment pins rather than shouldered bolts to locate the pressure plate. These equalizing pins ensure precise concentricity between the pressure plate and flywheel - critical for smooth clutch engagement and even wear. The metric pattern accommodates modern diaphragm-style pressure plates with 8mm hardware, making it compatible with factory and aftermarket clutch assemblies designed for '83-'95 Mustangs and other 5.0L applications.

Cast iron provides the strength and thermal stability needed for street duty, absorbing and dissipating heat through repeated clutch engagements without the hot spots that can develop on lighter materials. At 19 lbs, this flywheel maintains enough rotational mass for smooth idle and progressive engagement - the kind of drivability you want in a daily driver or weekend cruiser. The 6-bolt crankshaft pattern bolts directly to the factory crank flange with no adapters or modifications required.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and 50oz counterweight
• Clutch alignment pins for 10.4" metric pressure plate installation

Key Features

• Billet steel construction weighing just 28 lbs
• 157 tooth ring gear for compatibility with small bellhousings and starters
• Zero balance (internally balanced) for stroker motors and Ford Racing crate engines
• Dual clutch bolt patterns for 10" and 10.5" diaphragm clutch assemblies
• 6-bolt crankshaft mounting pattern for direct Ford small block fitment
• Clutch alignment pins included for precision disc positioning
• Made in the USA

Description

The 157 tooth ring gear works with small-pattern bellhousings and corresponding starters, making it the right choice for classic Mustangs and other Ford applications using the compact bellhousing configuration. Zero balance (internally balanced) design means this flywheel pairs with internally balanced rotating assemblies - including stroker builds, aftermarket cranks, and Ford Racing's 363 and 427 cubic inch crate engines.

Dual clutch bolt patterns accept both 10" and 10.5" diaphragm clutch assemblies, giving you flexibility whether you're running a stock-replacement clutch or upgrading to a higher-capacity performance unit. The 6-bolt crankshaft pattern provides direct fitment to Ford 289, 302, and 351 Windsor engines. Included alignment pins ensure proper clutch disc positioning during installation.

Compatible with Ford 289, 302, and 351 Windsor engines requiring zero balance. Also fits Ford Racing 363ci and 427ci performance engines. Made in the USA.

Kit Includes

• Lighten Billet Steel Flywheel (28 lbs)
• Clutch alignment pins

Key Features

• SFI certified billet steel construction for high-RPM safety and durability
• 157-tooth ring gear for classic Ford small block applications
• Zero balance (internally balanced) - no external counterweight required
• Dual clutch pattern: 10" long and 10.4" metric diaphragm compatible
• 6.00" clutch damper counter-bore diameter
• 6-bolt crankshaft mounting pattern
• Weight: 28 lbs
• Pre-installed metric alignment pins for 10.4" clutch setup
• Made in the USA with US-milled steel

Description

When you're building a high-revving Ford small block, your flywheel needs to handle the abuse without becoming a liability. Cast iron flywheels can crack under stress, and non-certified components may not meet the safety standards required at the track. This SFI certified billet steel flywheel delivers the strength and peace of mind that serious builds demand - meeting the rigorous testing standards established by the SFI Foundation for replacement flywheels and clutch assemblies.

The billet steel construction provides superior tensile strength compared to cast alternatives, resisting the centrifugal forces that tear lesser flywheels apart at high RPM. The lightweight design reduces rotating mass for quicker throttle response and faster revs, while maintaining enough thermal mass for consistent clutch engagement. Zero balance (internal balance) simplifies installation on Ford 289, 302, 351W, and 351C engines that use internally balanced rotating assemblies.

Versatility is built into the design with dual clutch bolt patterns. The 10" long pattern accepts 5/16" pressure plate bolts, while the 10.4" metric pattern uses 8mm bolts - and the metric alignment pins come pre-installed so you're ready for either setup. The 6.00" clutch damper counter-bore provides proper clearance for diaphragm-style pressure plates. Note that 157-tooth flywheels require a 3/4" offset starter (often labeled as "automatic" in parts catalogs) for proper ring gear engagement.

Manufactured in the USA with US-milled steel, this flywheel delivers the quality and consistency that American craftsmanship is known for. Whether you're building a weekend warrior or a dedicated track car, SFI certification means this flywheel meets the standards required by most sanctioning bodies for competition use.

Kit Includes

• Billet steel flywheel with 157-tooth ring gear
• Pre-installed 10.4" metric clutch alignment pins

Key Features

• Lighten billet steel construction resists stress cracking and handles higher RPM loads than cast iron
• 157-tooth ring gear with 28oz external imbalance for pre-1982 Ford 289/302/351W engines
• Dual clutch bolt patterns accommodate both 10" and 10.5" pressure plates
• 28 lb weight balances reduced rotational mass with smooth street drivability
• 6-bolt crankshaft mounting pattern; clutch alignment pins included
• Compatible with Ford Racing 363/427ci crate engines
• Precision-machined from US-milled steel; Made in the USA

Overview

Factory cast iron flywheels have their limits. At high RPM or under aggressive clutch clamping loads, they can develop stress cracks that compromise both performance and safety. This lighten billet steel flywheel replaces that weak link with a material that's fundamentally stronger—billet steel resists cracking and remains stable under the demands of performance driving.

The "lighten" designation refers to strategic material removal that reduces rotational mass without sacrificing structural integrity. At 19 lbs, this flywheel strikes the sweet spot between weight reduction and street manners—light enough for improved throttle response and quicker revs, yet heavy enough to maintain smooth idle characteristics and prevent the stalling issues common with ultra-lightweight aluminum units. The result is a flywheel that feels responsive on throttle tip-in while still delivering civilized behavior in traffic.

Dual clutch bolt patterns machined into the friction surface eliminate fitment guesswork, accepting both 10" and 10.5" pressure plates. The 157-tooth ring gear and 28oz external imbalance match OE specifications for pre-December 1982 small block Fords, ensuring proper starter engagement and crankshaft balance. This flywheel fits Ford 289, 302, and 351W Windsor engines, plus Ford Racing 363ci and 427ci stroker crate motors that use the 28oz balance specification.

Six-bolt crankshaft mounting provides secure attachment, while included clutch alignment pins ensure proper disc positioning during installation. Every flywheel is precision-machined from US-milled steel and manufactured in the USA.

What's Included

• Lighten billet steel flywheel (28 lbs)
• 157-tooth ring gear (installed)
• Clutch alignment pins

Billet Steel SFI Flywheel | Ford Small Block | 157 Tooth | 28oz | 10"-10.5" Clutch

Key Features

• Lightened billet steel construction
• SFI certified for racing sanctioning bodies requiring SFI-rated drivetrain components
• 28oz external balance for pre-1982 Ford 221, 260, 289, 302, and 351W engines
• Dual bolt pattern accepts both 10" and 10.5" clutch assemblies
• 157-tooth hardened ring gear for proper starter engagement
• Six-bolt crankshaft mounting pattern -- standard Ford small block fitment
• CNC-machined friction surface for consistent clutch engagement
• Made in the USA with lifetime technical support from MDL

Description

Cast iron flywheels can't handle serious RPM or the repeated abuse of high-horsepower launches. This billet steel flywheel is precision CNC-machined from certified steel, engineered to survive the stress levels that crack and shatter cast units. At 19 pounds, it sheds significant rotating mass compared to heavy OEM flywheels -- translating to quicker revs, faster deceleration between shifts, and reduced parasitic drag on the crankshaft.

The 28oz external balance is critical: all Ford 221, 260, 289, 302, and 351W engines built before December 1982 use a 28-ounce offset balance. Mismatch the balance weight and you'll introduce severe harmonic vibration that punishes bearings and shortens engine life. Post-1981 5.0L High Output engines switched to a 50oz balance -- this flywheel is not for those applications. Match your balance weight to your engine's build date, not the vehicle year.

The dual bolt pattern accommodates both 10" and 10.5" clutch assemblies, giving you flexibility when selecting or upgrading your pressure plate without swapping flywheels. The 157-tooth ring gear is the standard configuration for most small block Ford manual transmission applications in vintage Mustangs, Falcons, Fairlanes, and similar platforms.

SFI certified for competition use where sanctioning bodies require rated flywheel and clutch assemblies. Compatible with Ford small block Windsor engines using the standard six-bolt crankshaft mounting pattern and requiring 28oz external balance. Made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel (28lbs) with CNC-machined friction surface
• 157-tooth hardened steel ring gear (installed)
• 28oz external balance weight (installed)
• Clutch alignment pins
• Lifetime technical support from MDL

Key Features

• Billet steel construction - stronger than cast iron, resists stress cracking at high RPM
• 50oz external balance - correct for factory 1981-1995 Ford 5.0L Windsor engines
• Dual clutch pattern - accommodates both 10.5" metric diaphragm and 10" long-style pressure plates
• 157-tooth ring gear for high-performance starter applications
• 6-bolt crankshaft mounting pattern
• 6.00" clutch damper counter-bore
• Metric alignment pins pre-installed - eliminates installation guesswork
• Made in the USA with domestically-milled steel

Description

Factory cast iron flywheels become the weak link when you push serious power through a 5.0L Windsor. Cast iron is prone to stress cracking under repeated high-RPM clutch engagement, and a cracked flywheel at speed is a catastrophic failure waiting to happen. This lightened billet steel flywheel delivers the strength needed for high-performance street builds and competition use while shaving weight to improve engine response.

Billet steel is considerably stronger than cast iron and remains free of the stress cracks that plague factory flywheels under heavy use. The lightened design reduces rotational mass compared to standard-weight flywheels, allowing faster throttle response on acceleration and quicker RPM drop on deceleration - a noticeable improvement whether you're rowing through gears on the street or chasing lap times. The 50oz external balance matches factory 5.0L engine specifications for 1981-1995 applications, ensuring smooth operation with no vibration.

The dual clutch pattern provides flexibility in clutch selection, accepting both 10.5" metric diaphragm pressure plates and 10" long-style setups. Metric alignment pins come pre-installed to ensure proper clutch disc centering during installation. Note that diaphragm clutches require metric pressure plate bolts (MD-403-2003 or MD-403-2003ARP), while the 10" long pattern uses 5/16" bolts (MD-403-2004).

Engineered for Ford small block Windsor engines with 157-tooth starter ring gear applications. Fits all 1981-1995 Ford 5.0L engines requiring 50oz external balance. Proudly made in the USA using US-milled billet steel.

What's Included

• Lightened billet steel flywheel with 157-tooth ring gear
• Metric clutch alignment pins (pre-installed)

Key Features

• Lightweight aluminum construction at 19 lbs - significantly lighter than cast iron for faster engine response
• Riveted steel clutch facing for superior durability and heat dissipation
• Dual clutch bolt pattern: 10" Long and 10.4" metric with dowel pins for maximum compatibility
• Zero balance configuration standard; can be ordered with 28 oz or 50 oz counterweight options
• 157-tooth steel ring gear mechanically fastened to flywheel body - prevents ring gear separation
• 6-bolt crankshaft mounting pattern for Ford small block engines
• Made in the USA

Description

Shed rotational mass without sacrificing reliability. This lightweight aluminum flywheel weighs just 19 lbs compared to heavy cast iron units, helping your engine reach higher RPMs quicker due to reduced rotating mass. That reduced inertia translates to improved throttle response and acceleration - the engine spends less energy spinning up the flywheel and more energy putting power to the wheels.

The riveted steel clutch facing provides superior heat dissipation and wear characteristics compared to bonded surfaces. Unlike cheaper aluminum flywheels that use pressed-on ring gears, this 157-tooth steel ring gear is mechanically fastened to the flywheel body, preventing the ring gear separation failures that can occur under high-stress conditions. The dual bolt pattern accommodates both vintage 10" Long-style and modern 10.4" metric pressure plates with dowel pins - eliminating compatibility guesswork across Ford's clutch evolution.

Engineered specifically for Ford small block 289, 302, and 351W Windsor engines, this flywheel comes standard as zero balance for internally balanced engines. For externally balanced applications, 28 oz or 50 oz counterweight options are available to match your specific crankshaft requirements - pre-1981 302s and all 351Ws use 28 oz imbalance, while 1981+ 302/5.0L engines require 50 oz.

Note: Aluminum flywheels spin up faster but have less stored energy than cast iron, which can make the engine easier to stall at low RPMs. If paired with a dual clutch set, this helps offset some of the characteristics. Aluminum flywheels should never be paired with ceramic or bronze clutches due to the added heat they generate. It is recommended to warm the flywheel before installing on the crank. Not SFI approved - intended for street performance and moderate competition use. Made in the USA with lifetime technical support.

What's Included

• CNC-machined aluminum flywheel body (19 lbs)
• Riveted steel clutch facing
• 157-tooth steel ring gear (mechanically fastened)
• Clutch alignment dowel pins for 10.5" clutch applications
• Lifetime technical support

Key Features

• Lightweight aluminum flywheel body with riveted steel clutch facing for superior heat dissipation
• 157-tooth ring gear for small bellhousing applications
• 28oz external balance for pre-1981 Ford 289, 302, and all 351W engines
• 6-bolt crankshaft mounting pattern
• Includes dowel pins for 10.5-inch diaphragm clutch pattern
• High-carbon steel ring gear riveted to flywheel body prevents slipping under load
• Made in the USA

Description

Ditch the heavy factory cast iron flywheel and drop serious rotating mass from your Ford small block. This aluminum flywheel delivers the weight reduction performance builds demand while maintaining the durability street engines require. Lighter rotating mass means quicker engine response and faster acceleration through the gears - your engine revs up and recovers faster between shifts.

The engineering here focuses on heat management and longevity. The riveted steel clutch facing provides a durable friction surface that handles heat far better than aluminum-on-aluminum contact, preventing warping and premature wear in spirited driving. The high-carbon steel ring gear is riveted to the aluminum body rather than pressed or shrunk on - this prevents the ring gear from walking off the flywheel under the repeated thermal cycling and shock loads of hard use.

This flywheel carries the correct 28oz external balance for pre-1981 Ford 289 and 302 engines, as well as all 351 Windsor engines regardless of year. The 157-tooth ring gear is sized for small bellhousing applications - the compact aluminum bellhousing, not the larger cast iron 164-tooth style. Includes dowel pins for proper clutch alignment with 10.5-inch diaphragm clutch kits.

Installation note: It is recommended to warm the flywheel before installing on the crankshaft for proper thermal expansion and fit. Aluminum flywheels should not be paired with ceramic or bronze-faced clutch discs due to the excessive heat these materials generate. Made in the USA.

What's Included

• Aluminum flywheel with steel clutch facing
• 157-tooth steel ring gear (riveted)
• Clutch alignment dowel pins for 10.5-inch clutch

Key Features

• Riveted steel clutch facing permanently fastened to aluminum body - prevents ring gear separation under high loads
• 157-tooth ring gear for proper starter engagement on 5.0L HO applications
• 50oz external counterweight matches factory balance on 1981-1995 Ford 5.0L HO engines
• 19 lb total weight - reduces rotating mass versus stock cast iron flywheels
• Six-bolt crankshaft mounting pattern for direct replacement installation
• 10.4" metric clutch bolt pattern with alignment pins
• Made in the USA

Description

Cut rotating mass from your 5.0L drivetrain with this aluminum flywheel, purpose-built for 1981-1995 Ford 5.0L HO engines. Weighing just 19 lbs, it delivers noticeably quicker throttle response and faster RPM changes compared to stock cast iron units - ideal for road racing, autocross, and spirited street driving where nimble engine response matters more than low-RPM grunt.

The critical engineering detail is the riveted steel clutch facing. Unlike cheaper aluminum flywheels that rely on shrink-fit alone, this design permanently fastens the steel ring gear to the aluminum body using mechanical fasteners. This prevents the ring gear from walking or separating under hard launches and high-heat clutch engagement - a common failure mode when differential thermal expansion rates cause the steel ring gear to loosen on an aluminum body.

The 50oz external imbalance is factory-correct for Ford 5.0L HO engines from 1981-1995, ensuring smooth operation without vibration. The 157-tooth ring gear matches OEM specifications for proper starter motor engagement. Six-bolt crankshaft attachment follows Ford's original pattern, and the 10.4" metric clutch bolt pattern with alignment pins accommodates most performance clutch upgrades.

Important: Aluminum flywheels reduce stored rotational energy, which can make low-RPM driving feel less forgiving - they're easier to stall from a stop. This flywheel should not be paired with ceramic or bronze clutch discs, as the excessive heat generated can damage the aluminum body. It is recommended to warm the flywheel before installing on the crankshaft for optimal fit. Made in the USA.

What's Included

• Aluminum flywheel with riveted steel clutch facing
• Clutch alignment pins

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Superior King Cobra Clutch Kit | Ford 10.4" Metric | 26-Spline | Cable

Key Features

• Steel-backed organic disc for 1-1/8" 26-spline input shaft
• 10.4" metric bolt pattern with alignment pins
• Heavy-duty diaphragm pressure plate for increased clamping force
• Sprung hub disc reduces drivetrain shock during engagement
• Cable throwout bearing for cable-actuated clutch systems
• 400 lb-ft torque capacity for street applications
• Hand-assembled in Caldwell, Idaho with dual quality inspections
• 1-year free-from-defect warranty
• Made in the USA

Description

Worn-out clutches kill power delivery and driving enjoyment. The MDL Superior King Cobra clutch kit restores confident engagement while delivering the upgraded holding power needed for modified Ford street machines. Built around a steel-backed organic disc and heavy-duty diaphragm pressure plate, this complete kit provides the durability and clamping force for spirited driving without the harsh pedal feel of aggressive racing clutches.

The steel backing on the organic friction material eliminates disc flexing under load, maintaining consistent engagement characteristics and extending service life compared to standard unbacked organic facings. The sprung hub design absorbs drivetrain shock during engagement, reducing wear on the transmission input shaft and providing the smooth, progressive feel daily drivers demand. The heavy-duty diaphragm pressure plate delivers increased clamp load over stock while keeping pedal effort reasonable for street use.

This kit fits Ford applications using the 10.4" metric clutch pattern with metric bolts and alignment pins. The 1-1/8" 26-spline disc mates directly to transmissions with matching input shaft specifications. The included cable throwout bearing ensures compatibility with cable-actuated clutch systems commonly found in Foxbody and SN95 Mustangs.

Every MDL Superior clutch is hand-assembled at the Caldwell, Idaho facility and undergoes quality checks before shipping. This kit arrives ready to install with all necessary components for a complete clutch replacement. Rated for street applications up to 400 lb-ft of torque. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 10.4" steel-backed organic clutch disc with sprung hub, 26-spline, 1-1/8" input
• Heavy-duty diaphragm pressure plate, 10.4" metric bolt pattern
• Cable throwout bearing
• Ford pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

Superior Ford 10.4" Metric HD Clutch Set | Kevlar/Steel-Backed Organic | 26-Spline Cable

Key Features

• Hybrid friction material - Kevlar facing on pressure plate side, steel-backed organic on flywheel side for aggressive bite with smooth engagement
• 450 ft-lbs torque capacity handles serious small-block Ford power
• Diaphragm-style pressure plate with 10.4" metric bolt pattern and alignment dowel pins
• 26-spline x 1-1/8" input shaft compatibility for TKO, TKX, 3550, and T-5 transmissions
• Sprung hub design absorbs driveline shock and protects transmission components
• Cable-actuated throw-out bearing included for mechanical release systems
• Hand-built in-house with double-checked tolerances for ready-to-install precision
• Made in the USA with 1-year defect-free warranty

Description

MDL's Superior Series clutch sets deliver the precise balance of engagement characteristics that performance street builds demand. This 10.4" metric clutch features a hybrid friction material strategy - Kevlar facing on the pressure plate side provides aggressive bite and exceptional heat resistance, while steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. The result is a clutch that hooks up decisively under power yet remains streetable for daily driving.

The diaphragm-style pressure plate uses Ford's 10.4" metric bolt pattern with 8mm bolts and precision dowel pins for rock-solid alignment and zero chatter. With a 450 ft-lbs torque capacity, this clutch handles serious small-block Ford power while the sprung hub absorbs the driveline shock that would otherwise stress transmission synchronizers and gears. The 26-spline x 1-1/8" disc fits TKO, TKX, 3550, and T-5 transmissions equipped with the larger input shaft.

Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where tolerances are verified twice before shipping. This attention to detail ensures proper balance, smooth engagement, and long service life right out of the box. The kit includes everything needed for installation - precision pilot bearing, cable-actuated throw-out bearing, and alignment tool. Backed by MDL's 1-year defect-free warranty and made in the USA.

Kit Includes

• Diaphragm pressure plate - 10.4" metric bolt pattern with alignment dowel pins, uses 8mm bolts
• Clutch disc - 26-spline x 1-1/8", sprung hub, Kevlar/steel-backed organic facings
• Cable-actuated throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

Key Features

• Dual Kevlar friction facings on both flywheel and pressure-plate sides for consistent engagement and heat resistance
• Heavy-duty diaphragm pressure plate matched to 26-spline x 1-1/8" input hub
• Cable-profile throwout bearing also compatible with hydraulic release systems
• 10.4" metric bolt pattern with alignment dowel pin holes - uses 8mm pressure plate bolts
• Hand-assembled in-house with double-riveted construction for balance and durability
• Sprung hub design absorbs driveline shock for smoother engagement
• 500 ft-lb torque capacity for performance street and open tracking applications
• 1-year free-from-defect warranty

Description

When you're building a Ford with a 26-spline transmission and need a clutch that handles real power without fighting you in traffic, this Superior 10.4" metric kit delivers. The dual Kevlar friction surfaces provide aggressive holding power with manageable street manners - Kevlar's thermal stability means consistent engagement under repeated hard use without the grabby, on-off characteristics of ceramic facings. This is the clutch for performance street builds and open track days where you need confidence in the drivetrain, not a sore left leg.

MDL builds every Superior clutch disk in-house with double-riveted construction - not bonded like cheaper alternatives. This assembly method ensures precise balance across the disc, eliminates hot spots that cause premature failure, and maintains structural integrity under high heat and repeated engagement cycles. The heavy-duty diaphragm pressure plate increases clamp load over stock units to support the 500 ft-lb torque rating.

The 26-spline x 1-1/8" input hub with sprung center fits modern TREMEC TKX, TKO-600, and T5 transmissions, as well as period-correct '86-'95 Ford 5.0L applications with upgraded transmissions. The cable-profile throwout bearing is designed for Ford cable-actuated systems but also works with hydraulic release setups, giving you flexibility for transmission swaps and clutch system upgrades.

Every component is checked and double-checked for accuracy before shipping - you receive a ready-to-install premium assembly right out of the box. Performance Proven products have survived the rigorous challenges of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pin holes
• 10.4" clutch disc with dual Kevlar friction facings - sprung hub
• 26-spline x 1-1/8" input shaft hub
• Cable-profile throwout bearing (hydraulic compatible)
• Pilot bearing
• Clutch disc alignment tool
• Installation and break-in instructions
• Lifetime technical support

Superior 10.4" Metric Clutch Kit | Ford 1986-1995 | Kevlar/Ceramic 26-Spline Cable

Key Features

• Kevlar facing on flywheel side, ceramic facing on pressure plate side for aggressive bite with smooth engagement
• 600 lb-ft torque rating handles serious street/strip power
• 26-spline, 1-1/8" hub diameter fits TREMEC TKO, TKX, and T5 with 26-spline input
• 10.4" metric bolt pattern with 3 alignment dowel pin holes
• Cable-style throw-out bearing included (also compatible with hydraulic systems)
• Diaphragm-style pressure plate with 8mm bolt holes
• Sprung hub design reduces drivetrain shock and chatter
• Hand-assembled and double-riveted in MDL's Caldwell, Idaho facility
• 1-year free-from-defect warranty

Description

When you need more holding power than a full-Kevlar disc can deliver but want to preserve some street manners, the Superior Kevlar/Ceramic clutch assembly is the answer. This hybrid design places Kevlar on the flywheel side for smooth engagement and extended life, while the ceramic facing on the pressure plate side delivers the aggressive bite and heat resistance demanded by drag launches and high-RPM road racing shifts. Great for 1986-1995 Ford applications running the 10.4" metric bolt pattern.

Ceramic friction material works harder as temperatures climb--the iron content in MDL's ceramic compound actually increases friction under heat, making this clutch stronger during abuse rather than weaker. That's why ceramic is the go-to choice for higher horsepower builds, quick shifts in road racing, and hard-launching drag cars. When a larger diameter disc isn't an option, the higher coefficient of friction delivers more holding power from the same surface area and clamp load.

Every Superior clutch assembly is hand-built in MDL's Caldwell facility using double-riveted construction and exacting quality standards. Each unit is checked and double-checked for accuracy before it ships, so you receive a ready-to-install premium product right out of the box. The 26-spline, 1-1/8" hub fits transmissions like the TREMEC TKO, TKX, or any 26-spline T5 variant. The included cable-profile throw-out bearing also works with hydraulic release systems, giving you flexibility in your drivetrain setup.

Designed for the 10.4" metric pressure plate pattern with 3 alignment dowel pin holes--uses 8mm pressure plate bolts. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Diaphragm-style pressure plate (8mm bolt holes, metric pattern)
• Clutch disc with Kevlar/ceramic hybrid facings, 26-spline x 1-1/8" sprung hub
• Cable-profile throw-out bearing (hydraulic compatible)
• Pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty

Key Features

• 800 horsepower capacity for high-performance street applications
• 26 x 1-1/8" input spline configuration with 246mm (9.687") disc diameter
• Economically priced twin disc design - uses your existing flywheel
• Organic/organic friction facings deliver smooth engagement with soft pedal effort
• Sprung hub discs for excellent release characteristics and driveability
• Diaphragm pressure plate with 10" Long bolt pattern and 8mm hardware
• Small ring adapter fits Ford 157T flywheels
• Street-focused design - not intended for competition use
• Made in the USA

Description

When you've built serious power but need a clutch that remains civilized on the street, the McLeod RST twin disc clutch kit delivers an economically priced solution for high-horsepower Ford applications. This kit solves the fundamental problem of single-disc clutches that either slip under power or become unbearably harsh for daily driving - without requiring you to purchase a new flywheel.

Capable of handling 800 horsepower, this clutch manages extreme power while remaining street-friendly. The twin-disc design spreads clamping loads across two organic friction surfaces, reducing pressure plate spring tension compared to equivalent single-disc setups. Organic-faced twin sprung hub friction discs provide smooth engagement with soft pedal effort and excellent release characteristics, making this ideal for enthusiasts who demand performance without sacrificing driveability.

The small ring adapter configuration works with Ford 157T flywheel bolt patterns. The 26 x 1-1/8" input spline accommodates transmissions like the TKO-500/600, TKX, and T56 Magnum. McLeod's patent-pending adapter ring ensures proper pressure plate positioning and prevents the binding issues common with universal adapters. This kit requires your existing flywheel, which must be properly resurfaced before installation. Flywheel surface must have a coarse texture from a stone grinder - if you run your fingernail across it, the texture should catch your nail.

Compatible with Ford applications using 10" Long bolt patterns with 8mm hardware for 10.5" bellhousing configurations. Note: This clutch is designed for high-horsepower street use and is not intended for competition environments. Made in the USA.

What's Included

• Diaphragm pressure plate (10" Long bolt pattern)
• Two organic friction discs (246mm diameter, 26 x 1-1/8" spline, sprung hub)
• Floater plate
• McLeod patent-pending small ring adapter
• Pilot alignment tool
• Installation instructions
• Flywheel clutch pattern chart

Note: This kit does not include a pilot bearing or throwout bearing.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• Premium-grade bronze construction with oil impregnation for self-lubricating, maintenance-free operation
• Precision-machined dimensions: 1.379" outer diameter, 0.670" inner diameter, 0.580" wide
• Full support of transmission input shaft snout eliminates vibration and premature wear
• Direct replacement for Ford Small Block V8 (289, 302, 351W) and Pontiac applications
• Matches OEM specifications for proper crankshaft bore fit and input shaft clearance

Description

A worn or sloppy pilot bushing causes hard shifting, input shaft misalignment, and accelerated transmission wear - problems that can sideline your build when you least expect it. This heavy-duty bronze pilot bushing delivers the precision fit and durability needed to keep your drivetrain running smooth, shift after shift.

Precision-manufactured from premium-grade bronze that's impregnated with oil lubricant, this bushing provides long-lasting performance without the maintenance headaches of grease-packed alternatives. The oil-impregnated bronze material creates a self-lubricating bearing surface that won't gum up or attract debris. Unlike cheap offshore bushings that may contain steel contamination, this bronze construction won't gall or seize on your input shaft.

The bushing's 1.379" outer diameter and 0.670" inner diameter match OEM specifications exactly, ensuring proper crankshaft bore fit and input shaft clearance. At 0.580" wide, it provides full support for transmission input shaft snouts without bottoming out in the crankshaft pocket. This precision fit eliminates the binding and misalignment that can destroy clutch components and transmission internals.

Compatible with Ford Small Block V8 engines and Pontiac small block applications. Always replace the pilot bushing with every clutch change - bushings are a wear item even when they look fine. Pro tip: freeze the bushing before installation for easier press-fit, and never apply grease to oil-impregnated bronze bushings as it will clog the pores and prevent proper lubrication.

What's Included

• (1) Heavy-duty oil-impregnated bronze pilot bushing (1.379" OD x 0.670" ID x 0.580" wide)

Key Features

• Needle roller construction reduces friction and parasitic drag versus bronze pilot bushings
• 1.379" outer diameter press-fits Ford small block crankshaft pilot bore
• 0.670" inner diameter supports transmission input shafts in the .669"-.672" range
• 0.500" width provides proper support without bottoming in crankshaft recess
• Pre-greased from factory - no additional lubrication required or recommended
• Direct fit for Ford 302 and 351 Windsor engines with manual transmissions

Description

A worn or incorrect pilot bearing causes grinding shifts, premature input shaft wear, and clutch drag that won't release. This needle bearing delivers the low-friction operation your Ford small block manual transmission swap demands, replacing high-drag bronze bushings with precision needle rollers that spin freely during clutch engagement and disengagement.

Needle roller bearings dramatically reduce the friction between your transmission input shaft and crankshaft compared to solid bronze bushings. Where a bronze bushing relies on an oil film that can break down under heat and load, needle rollers maintain consistent, low-drag rotation throughout the clutch cycle. The result is cleaner clutch release, smoother shifts, and longer input shaft life.

The 1.379" outer diameter press-fits the standard Ford small block crankshaft pilot bore found in 302 and 351 Windsor engines. The 0.670" inner diameter accommodates most manual transmission input shafts, including those found on TREMEC TKO, TKX, and T5 units that typically measure in the .669"-.672" range. The 0.500" width ensures the bearing seats properly without bottoming out in the crankshaft recess.

This bearing ships pre-greased from the factory. Do not add additional grease - excess lubrication can contaminate clutch disc facings and cause slippage or premature failure. Press the bearing into the crankshaft before flywheel installation, seating it until you notice a change in tone indicating full contact with the bore shoulder. A slight lip extending from the crankshaft face is normal and expected.

What's Included

• One needle roller pilot bearing with factory lubrication

Key Features

• Premium-grade 8740 chromoly construction hardened to 180,000 PSI tensile strength
• 8mm x 1.25 thread size with 10mm hex head for proper socket access
• Black oxide finish for corrosion resistance and professional appearance
• Application-specific design ensures optimum grip length for Ford 302/351W engines
• Large diameter, low profile design increases clamping force over stock hardware
• Complete kit includes washers for proper installation
• Set of 6 bolts replaces all factory pressure plate fasteners

Description

The importance of pressure plate bolts in racing or high-performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Factory pressure plate bolts are notorious weak points that can stretch or fail under power, leading to clutch slippage, pressure plate distortion, or catastrophic failure. When you're building serious power, the last thing you want is substandard hardware compromising your drivetrain.

ARP engineered these High Performance Series bolts specifically for 1986-1995 Ford 302 and 351 Windsor applications. Each bolt is forged from premium-grade 8740 chromoly steel and heat-treated prior to thread rolling and machining, achieving a nominal tensile strength of 180,000 PSI. The application-specific design ensures optimum grip length for your Ford V8, eliminating the guesswork that comes with generic hardware.

The 8mm x 1.25 threading matches factory specs while delivering vastly superior strength. Each bolt features a hex head design with 10mm socket access for easy installation and removal. The black oxide finish provides corrosion resistance while maintaining a clean appearance under the hood. The large diameter, low profile design increases clamping force compared to stock bolts, reducing the risk of pressure plate flex under high-load conditions.

Fits all 1986-1995 Ford applications equipped with 302 or 351W engines, including Mustang 5.0L, F-150 trucks, Bronco, E-Series vans, and Crown Victoria. Kit includes six pressure plate bolts with washers for complete replacement of all factory fasteners.

What's Included

• 6 x ARP pressure plate bolts (8mm x 1.25, 10mm hex head, black oxide finish)
• 6 x Washers

Key Features

• Grade 10.9 high-tensile alloy steel construction - 1,040 MPa minimum tensile strength
• 8mm diameter bolts engineered for pressure plate retention
• Complete set of 6 bolts with steel washers included
• Quenched and tempered for superior fatigue resistance under cyclic clutch loads
• Significantly stronger than Grade 8.8 hardware - approximately 30% more clamping force

Description

Pressure plate bolts are critical safety fasteners that secure your clutch assembly to the flywheel under extreme cyclic loads. Standard hardware can stretch or fail under the repeated stress of clutch engagement and disengagement, risking dangerous clutch separation and drivetrain damage. This Grade 10.9 bolt kit delivers the high-tensile strength required for both daily drivers and performance street machines.

Grade 10.9 fasteners provide 1,040 MPa minimum tensile strength and 940 MPa yield strength - roughly 30% stronger than common Grade 8.8 bolts. The quenched and tempered alloy steel construction resists fatigue under the demanding conditions of clutch operation, maintaining proper clamping force over thousands of engagement cycles. Each bolt is precision-manufactured to ensure consistent torque retention.

The included steel washers distribute load evenly across the pressure plate mounting surface, preventing galling and ensuring proper seating during installation. Always replace pressure plate bolts as a complete set to maintain uniform clamping force - mixing old and new bolts or different grades can cause uneven loading and premature failure.

Compatible with pressure plates using 8mm bolt patterns. Whether you are building a weekend cruiser or a high-performance street machine, these Grade 10.9 fasteners provide the reliability your drivetrain demands.

What's Included

• 6 x Grade 10.9 alloy steel bolts, 8mm diameter
• 6 x Steel washers
• Manufacturer's warranty against defects

Stealth Series Hydraulic Clutch Master Kit | 1981-1993 Mustang | Black Reservoir

Key Features

• Three-position master cylinder mounting for adjustable pedal ratio and feel - the only kit on the market with this tuning capability
• Mounts behind the dash on factory pedal hanger for a completely hidden installation
• Zero modifications to OEM pedal support required - retains stock clutch pedal pivot point
• Spherical mounting points eliminate binding and inconsistent clutch feel
• Sealed bulkhead assembly installs in the factory clutch cable hole to keep moisture and engine fumes out of the interior
• 2100 Series billet aluminum reservoir with black anodized finish and improved side-vent cap design to prevent water entry
• -4AN stainless steel braided lines for leak-free durability
• 1.4-inch master cylinder throw distance optimized for proper clutch disengagement
• Compatible with existing industry slave cylinders and hydraulic release bearings
• Uses DOT 3 or DOT 4 brake fluid
• Made in the USA

Description

The Stealth Series solves the compromises inherent in both cable-actuated clutches and conventional hydraulic conversions on Fox Body Mustangs. Cable systems bind, stretch, and create clearance nightmares with long-tube headers or high-clamp-load pressure plates. Most bolt-on hydraulic kits change pedal geometry, alter feel, or require cutting the firewall. This system does none of that - it mounts entirely behind the dash on your factory pedal hanger, uses the existing clutch cable hole for its sealed bulkhead, and retains the OEM pivot point for stock pedal feel.

The engineering centerpiece is the three-position master cylinder mounting system built into the custom clutch pedal arm. This is the only kit on the market that lets you tune pedal ratio to match your driving style and clutch setup - dial in quick engagement for autocross or progressive action for street cruising. Spherical mounting points ensure smooth, bind-free operation regardless of chassis flex, eliminating the inconsistent feel that plagues rigid-mount systems.

Installation uses existing OEM features with zero cutting or permanent modifications to the pedal support. The sealed bulkhead assembly threads into the factory clutch cable hole, keeping moisture and engine compartment fumes out of your interior while routing the -4AN stainless steel braided lines to your slave cylinder. The 2100 Series billet aluminum reservoir features a black anodized finish and redesigned cap with side-top vents to prevent water intrusion, with compact sizing for flexible mounting options.

This master cylinder kit works with most existing industry slave cylinders and hydraulic release bearings, making it compatible with T5, TKO, TKX, and T56 Magnum applications. The system requires a matching slave cylinder kit to complete the hydraulic clutch release system. Made in the USA and backed by lifetime technical support.

Kit Includes

• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three-position master cylinder mounting and spherical pivot points
• Black anodized firewall plate assembly with sealed bulkhead and -4AN fittings
• 2100 Series billet aluminum reservoir with black anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime technical support from trained technicians

Key Features

• Three adjustable master cylinder positions for precise pedal tuning - the ONLY kit on the market with this feature
• Maintains stock clutch pedal pivot point for familiar OEM pedal feel
• Zero modification required to factory pedal support bracket
• Spherical mounting points eliminate binding for smooth, consistent clutch action
• Sealed bulkhead assembly mounts in factory clutch cable hole to block moisture and engine fumes
• 2100 Series billet aluminum reservoir with clear anodized finish and side-vented cap
• -4AN stainless steel braided lines throughout for leak-free durability
• Compatible with most industry-standard slave cylinders and hydraulic release bearings
• Made in the USA

Description

Fox Body Mustang owners know the frustration of worn clutch cables - heavy pedal effort, inconsistent engagement, and clearance headaches around headers. The Stealth Series In-Dash Hydraulic Master System eliminates these problems while delivering the ultimate in clutch control precision. This kit transforms your mechanical linkage into a modern hydraulic system that mounts completely hidden behind the dashboard on your factory pedal hanger.

The engineering centerpiece is the adjustable pedal design with three distinct master cylinder mounting positions. This allows you to fine-tune pedal ratio and feel to match your specific clutch and driving style - something no other kit on the market offers. The spherical mounting points provide smooth, bind-free operation while the sealed bulkhead assembly uses your existing clutch cable hole to keep engine bay contaminants out of the cabin. The system maintains your stock pedal pivot point, preserving that familiar OEM pedal feel.

The kit includes the newly designed 2100 Series billet reservoir with a clear anodized finish and improved side-vented cap that prevents water intrusion while promoting flexible mounting options. Professional-grade -4AN stainless steel braided lines ensure leak-free operation and long service life. The system is engineered to work with most industry-standard slave cylinders and hydraulic release bearings, giving you flexibility in your clutch setup.

Designed specifically for 1981-1993 Ford Mustangs, this complete conversion requires zero modifications to your factory pedal support structure. Installation uses existing OEM mounting points and the factory clutch rod hole for a clean, professional result. Proudly made in the USA with lifetime technical support from trained technicians.

What's Included

• Silver anodized firewall plate assembly with bulkhead fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustment positions
• 2100 Series billet aluminum reservoir with clear anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Detailed installation instructions
• Lifetime technical support

Key Features

• Stainless steel threaded adjustment sleeve provides nearly 1.25 inches of height adjustability
• 0.700-inch piston travel for reliable clutch engagement across diverse applications
• High-temperature monoseal design with quad tensioner ensures proper seal tension and maximum reliability
• Constant-contact design self-adjusts for clutch wear - no gap, no helper springs required
• Flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-inch to 11-inch bent-finger and lever-type clutches
• Bearing height adjustable from 1.77 inches to 3.00 inches to accommodate diverse clutch configurations
• Complete kit includes -4AN stainless braided supply and bleed lines, fittings, and anti-rotation hardware
• Requires 1.430-inch bearing retainer guide tube for proper fitment

Description

Eliminate the clearance issues and binding problems that plague external slave cylinders with this Tilton 6000 Series hydraulic release bearing, engineered specifically for Ford T56 and Magnum transmissions equipped with a guide tube. Where external slaves often create interference with headers, crossmembers, or bellhousing configurations, this internal slip-on design mounts directly onto the transmission input shaft bearing retainer - delivering consistent clutch actuation without the packaging headaches.

Tilton's precision-machined billet aluminum body and piston deliver race-proven reliability in a street-friendly package. The constant-contact design maintains continuous engagement with the pressure plate fingers - no gap to manage, no helper springs required. As your clutch wears, the bearing automatically compensates, maintaining identical pedal feel from installation through replacement. The high-temperature monoseal with quad tensioner provides maximum seal integrity under demanding conditions, while newly designed double O-ring swivel fittings have been extensively tested to prevent leakage.

The stainless steel threaded adjustment sleeve provides nearly 1.25 inches of adjustability, enabling compatibility with most 8.5-inch to 11-inch bent-finger and lever-type diaphragm clutches. Total bearing height ranges from 1.77 inches to 3.00 inches, giving you the flexibility to dial in precise preload regardless of clutch configuration. Compatibility extends to most bellhousings - unlike external slaves limited to specific applications, this internal design works with original 4-speed bells, big block bells, and aftermarket housings. Compatible with Ford T5s, Ford TKOs, Ford T56s with CSC hydraulic setup, and XL Magnum T56 for 2005+ Ford Mustangs. Tilton release bearings are DOT3 or DOT4 brake fluid compatible.

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection (24-inch line recommended for most applications)
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions

Key Features

• 24-inch stainless steel braided hose with 1/4-inch I.D. and PTFE (Teflon) inner lining
• -4AN female straight fittings on both ends with stainless steel crimp sleeves
• Clear plastic outer coating protects braid and allows visual inspection
• Ideal length for Tilton 6000 HRB units with -4AN male union to firewall-mounted master cylinders
• Pressure tested before shipping for quality assurance
• 100% made in the USA

Description

Hydraulic clutch systems demand leak-free, pressure-resistant fluid lines that won't degrade over time or expand under load. This 24-inch stainless steel braided line delivers the durability and consistent pedal feel that separates a professional hydraulic clutch installation from a compromise. The PTFE (Teflon) inner lining provides excellent chemical compatibility with all common hydraulic fluids while resisting the swelling and deterioration that plague standard rubber lines.

The stainless steel braided construction prevents expansion under pressure, maintaining a firm, responsive clutch pedal. Unlike rubber hoses that can balloon and soften pedal feel, stainless braided PTFE lines keep the inner diameter uniform for efficient fluid transfer. The clear plastic outer coating shields the braid from abrasion, contamination, and corrosion while letting you visually inspect line condition at a glance.

At 24 inches with a 1/4-inch I.D., this line is sized specifically for hydraulic clutch applications. It's an excellent choice when pairing a Tilton 6000 HRB with an -4AN male union to a firewall-mounted or bulkhead-mounted master cylinder. The straight -4AN female fittings on both ends connect directly to standard -4AN male adapters without additional fittings, reducing potential leak points and simplifying installation.

Every line is pressure tested before leaving the facility to verify seal integrity. Premium stainless steel crimp sleeves and fittings ensure a permanent, vibration-resistant connection. Proudly manufactured in the United States.

What's Included

• One 24-inch stainless steel braided hydraulic line with PTFE inner lining
• -4AN female straight fittings pre-crimped on both ends
• Clear plastic protective coating (factory applied)
• Pressure tested before shipping

Key Features

• Subsurface 6-speed shift pattern permanently integrated into material - graphics cannot wear off, fade, or peel
• High-impact polymer resin engineered specifically for performance-level torque and temperature demands
• Universal 16mm x 1.5 internal threading accepts thread reducers for compatibility with virtually any shift lever
• 1-7/8" diameter provides substantial grip surface for positive engagement
• Clean white finish with bold black 6-speed pattern graphics
• Made in the USA by a manufacturer producing shift knobs since 1952

Description

Put the correct gate positions right at your fingertips with this 6-speed shift knob. Whether you're learning a new transmission layout or making split-second shifts under pressure, the bold black shift pattern gives you instant visual reference without taking your eyes off the road. The graphics aren't a decal or printed surface - they're applied subsurface during manufacturing, making them permanently integrated into the knob material where they cannot wear off, fade, or peel regardless of use.

The polymer construction is engineered specifically for drivetrain duty. This specially formulated high-impact polymer resin is designed to meet performance-level torque and temperature requirements, handling the stress and heat cycles that come with hard shifting better than cheaper materials. The 1-7/8in diameter provides substantial surface area for a secure grip without being oversized or bulky.

Universal 16mm x 1.5 internal threading makes this knob compatible with virtually any shift lever when paired with the appropriate thread reducer (sold separately). Thread reducers allow adaptation to common metric sizes like 8mm, 10mm, and 12mm, as well as SAE thread pitches found on domestic Ford, GM, and Mopar applications. If you're unsure what thread size your shift lever uses, MDL's tech support can help you identify the correct adapter.

Manufactured in the USA by a company that's been producing quality shift knobs since 1952. Their commitment to quality, precision, and style has made them a trusted supplier to OEM, aftermarket, Classic, Custom, and Hot Rod industries. Compatible with Chevy, BOP (Buick/Oldsmobile/Pontiac), Ford, and Mopar transmissions when used with the appropriate thread reducer for your specific shift lever.

What's Included

• 1 white polymer shift knob with black 6-speed pattern
• 16mm x 1.5 female threading (thread reducer sold separately if needed)

Key Features

• High-impact polymer resin construction - specially formulated for performance-level torque and temperature requirements
• Subsurface white 6-speed shift pattern graphics - permanently embedded, will not wear off
• 16mm x 1.50 brass master insert - exceeds industry spec of 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• 1-7/8" diameter ergonomic design with high-gloss polished finish
• 4-ounce weight - balanced for precise shifting feel
• Jam nut included for secure installation
• Made in the USA

Description

Worn, faded shift knobs kill the look of an otherwise clean build - and cheap replacements crack, fade, or spin loose within a season. MDL's 6-Speed Black Shift Ball solves both problems with a high-impact polymer resin formulation specifically engineered for the automotive industry. This isn't generic plastic - it's a performance-grade compound designed to resist stress cracking with age while handling the torque and temperature extremes of hard driving.

The white 6-speed shift pattern is subsurface - meaning it's embedded beneath the outer layer, not printed or painted on top. It won't wear off from palm contact, won't fade from UV exposure, and won't peel at the edges. The 16mm x 1.50 brass master insert is equally overbuilt, exceeding the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque. Precision machining and polishing deliver a high-gloss finish that looks as good as it feels.

The 16mm thread pitch fits most aftermarket performance shifters directly. If your shifter uses a different thread size, MDL stocks thread adapters to match - just know your shifter's thread pitch when ordering so we can recommend the right reducer. This universal approach makes the shift ball compatible with Ford, GM, and Mopar applications when properly matched to your shifter.

At 4 ounces with a 1-7/8" diameter, this shift ball delivers ergonomic comfort and balanced weight for crisp, confident throws. Made in the USA with the quality standards serious builders demand.

What's Included

• MDL 6-speed black shift ball with white subsurface pattern graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure installation

Key Features

• Laser-etched 6-speed shift pattern - permanent, cannot wear off
• Brushed aluminum finish for superior grip and modern aesthetics
• 16mm x 1.5 thread with brass insert for secure mounting
• 1-7/8 in. diameter for comfortable, ergonomic grip
• Universal fitment with thread reducer adapters available separately
• Made in the USA

Description

When you're wrapping up a TREMEC swap or upgrading your 6-speed shifter setup, a flimsy plastic shift ball doesn't match the level of hardware underneath it. This brushed aluminum shift ball delivers the tactile feedback and professional appearance your build deserves, with a laser-etched 6-speed pattern that's permanently embedded into the surface - no fading, peeling, or wearing off over thousands of shifts.

The brushed aluminum finish provides superior grip compared to smooth plastic alternatives, giving you confident control during aggressive driving. The 16mm x 1.5 threaded brass insert ensures secure mounting and threads directly onto compatible shifters. For shift levers with different thread sizes, MDL stocks a full range of thread reducing adapters to match your specific application - whether you're running an '83-'04 Mustang lever (10mm x 1.50), a 2005+ Mustang setup (12mm x 1.25), or other configurations.

Built with precision and finished in the USA, this shift ball combines quality construction with the correct 6-speed gate pattern (reverse to the right and up) for TREMEC T56, Magnum, and similar transmissions. The universal 16mm master thread makes it adaptable to virtually any aftermarket shifter with the right reducer insert.

What's Included

• Brushed aluminum shift ball with laser-etched 6-speed pattern
• 16mm x 1.5 brass threaded insert
• Jam nut

Key Features

• 2-1/8" diameter polished aluminum construction for optimal grip and control
• Laser-engraved 6-speed shift pattern on top -- won't fade, chip, or wear off
• MDL logo engraved on the side for authentic branding
• 16mm x 1.50 thread pitch -- compatible with most shifters when paired with MDL thread reducers
• 4-ounce weight provides solid, positive shifts without excessive mass
• Made in the USA

Description

Finish your 6-speed swap the right way. This polished aluminum shift ball from MDL delivers the premium look and feel that separates a proper build from a parts-bin project. The 2-1/8" diameter provides the ideal grip size -- large enough for confident throws under hard driving, compact enough to clear console-mounted components without interference.

The laser-engraved 6-speed shift pattern on top gives you clear gear position reference that will never fade, chip, or wear off over years of aggressive shifting. Unlike printed or embossed patterns that deteriorate with use, the engraving is cut directly into the aluminum surface for permanent legibility. The MDL logo on the side confirms you're running genuine Modern Driveline equipment.

This shift ball features 16mm x 1.50 threading, which is the universal standard for aftermarket shift knobs. MDL stocks thread reducing inserts that adapt the 16mm bore to fit popular shifter thread sizes including 8mm-1.25, 9mm-1.25, 12mm-1.75, and 3/8-24, ensuring compatibility across Ford, GM, and Mopar applications. The 4-ounce weight provides substantial feel in your palm without the excessive mass that can accelerate shifter wear or create unwanted momentum during rapid gear changes.

Proudly made in the USA, this shift ball represents the fit, finish, and attention to detail that serious builders expect from MDL. Grab it, shift it, go.

What's Included

• One polished aluminum shift ball (2-1/8" diameter)
• Laser-engraved 6-speed shift pattern on top
• MDL logo engraved on side
• 16mm x 1.50 internal threading

Note: Thread reducing insert sold separately -- see MDL thread reducers for your specific shifter application.

6-Speed White Shift Ball | 16mm x 1.50 Thread | High-Impact Polymer Resin

Key Features

• 1-7/8" diameter white polymer resin ball with crisp 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics embedded during manufacturing - cannot wear, fade, or peel
• High-impact polymer resin formulated for performance-level torque and temperature cycling
• 4-ounce weight for positive shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Thread adapters available for non-16mm shift levers
• Made in the USA

Description

Worn shift knobs with faded patterns and loose threads make every gear change feel sloppy. This 6-speed polymer resin shift ball delivers the crisp, confident feel your transmission deserves. The high-impact polymer resin is specifically formulated for automotive applications - engineered to resist stress cracking from temperature cycling and aging that destroys cheaper plastic alternatives.

The 16mm x 1.50 brass master insert is the heart of this shift ball's durability. Tested to exceed automotive industry standards of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, it won't strip, loosen, or fail under aggressive shifting. The included jam nut locks everything in place for rattle-free operation. At 4 ounces, the ball provides just enough heft for positive shift engagement without the excessive weight that can mask transmission feedback.

Unlike painted or applied graphics that wear off after a few months, the 6-speed shift pattern on this ball is subsurface - embedded during the manufacturing process where it's protected from your palm, UV exposure, and cleaning chemicals. The precision-machined surface is polished to a high-gloss finish that resists scratching and maintains its appearance over years of use.

This shift ball fits any 16mm threaded shift lever directly. Running a different thread size? MDL stocks thread adapters to fit most common shift lever configurations - just confirm your lever's thread pitch when ordering. Quality American manufacturing ensures consistent tolerances and reliable performance from a company that's been shifting gears since 1952.

What's Included

• White 6-speed high-impact polymer resin shift ball (1-7/8-inch diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics that cannot wear off from use
• 2-1/8" diameter with 6-speed shift pattern and pearl gray racing stripes
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shifting feel
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Cheap shift knobs crack, fade, and strip out under hard use. The R-Series shift ball solves those problems with a specially formulated high-impact polymer resin engineered specifically for the demands of performance driving. This isn't generic plasticit's purpose-built material that won't develop stress cracks with age and maintains its finish through years of daily driving and spirited shifting.

The 16mm x 1.50 brass master insert is where this shift ball proves its worth under load. It exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque test, so it won't strip out or work loose when you're rowing through gears hard. The 6-speed shift pattern and pearl gray racing stripes are subsurface graphicsembedded within the material itself rather than printed on topso they cannot wear off no matter how many miles you put on them.

At 2-1/8" diameter and 4 ounces, the R-Series delivers a substantial grip surface without adding excessive weight to your shift lever. The precision-machined construction is polished to a high-gloss finish that looks right at home in everything from a classic muscle car to a modern build. Thread adapters are available separately if your shift lever uses something other than the standard 16mm x 1.50 threading. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• R-Series black shift ball with pearl gray racing stripes and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter for optimal palm grip and precise shift feel
• 6-speed shift pattern in contrasting white racing stripe design
• 4-ounce weight balances comfortable grip with controlled shift momentum
• High-gloss scratch-resistant finish maintains appearance through years of use
• Includes jam nut for secure lever mounting
• Made in the USA since 1952

Description

Worn shift knobs with faded patterns and stripped threads are more than cosmetic problems - they compromise shift accuracy and driver confidence. The R-Series 6-Speed Shift Ball delivers the durability and precision your build demands, constructed from specially formulated high-impact polymer resin designed to handle performance-level torque loads and temperature extremes without cracking, fading, or becoming tacky in summer heat.

What separates this shift ball from generic alternatives is the subsurface graphic process. The white racing stripe and 6-speed shift pattern are embedded within the polymer during manufacturing - not silk-screened, etched, or applied as a surface coating. They physically cannot wear off, no matter how many shifts you bang through. The 16mm x 1.50 brass master insert provides the foundation for this durability, exceeding the auto industry's specification of 200 ft-lb static pull and 20 ft-lb twist torque testing.

At 2-1/8" diameter and 4 ounces, this shift ball strikes the ideal balance between palm-filling grip and controlled shift momentum. The high-gloss black finish resists scratches and maintains its showroom appearance through daily driving or weekend track sessions. The included jam nut locks the ball securely to your shift lever, eliminating loosening during aggressive shifting.

Thread adapters are available separately if your shift lever uses a different thread pitch than the 16mm x 1.50 master insert - contact MDL's tech team if you need help identifying your lever's thread size. Built in the USA by a manufacturer that has been shifting gears since 1952, bringing OEM-level quality and precision to classic, custom, and hot rod applications.

What's Included

• One (1) R-Series black shift ball with white racing stripe and 6-speed pattern
• One (1) 16mm x 1.50 brass master insert (pre-installed)
• One (1) jam nut

Key Features

• 2-1/8" diameter gray polymer resin ball with white rally stripe that does not interfere with shift pattern visibility
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• High-impact polymer resin formulated for performance-level temperature and torque demands without stress cracking
• Subsurface graphics that cannot wear off during use
• 4-ounce weight for balanced shift feel
• Precision-machined construction with high-gloss polished finish
• Includes brass jam nut; thread reducers available separately for compatibility with various shifter applications
• Made in the USA

Description

Upgrade your 6-speed manual with this R Series shift ball that delivers classic rally aesthetics and engineered durability in a single package. The 2-1/8" diameter provides comfortable grip for spirited driving, while the white rally stripe adds period-correct styling without cluttering shift pattern visibility.

Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball withstands aggressive shifting and engine bay heat without developing the stress cracks common in inferior materials. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry specifications, tested to 200 ft. lbs. static pull and 20 ft. lbs. twist torque resistance for secure, worry-free mounting.

Subsurface graphics resist wear and fading, maintaining their appearance through years of hard use. At 4 ounces, this shift ball delivers the right balance of mass for crisp, positive shifts without excessive weight that could stress shifter components. The high-gloss polished finish adds a premium look to any interior.

Thread reducers are available separately to adapt the 16mm x 1.50 master insert to match your specific shifter thread size. Proudly made in the USA with the quality and precision that has been shifting gears since 1952.

What's Included

• Gray polymer resin shift ball with white rally stripe and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (factory installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics embedded into the material - will not wear off or fade
• 2-1/8" diameter white base with black rally stripes that wrap around the 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shift feel
• Precision machined and polished to a high gloss finish
• Made in the USA

Description

Factory plastic shift knobs crack, fade, and wear out - the graphics rub off, the threads strip, and the whole thing looks tired after a few seasons of hard use. The R-Series shift ball solves these problems with purpose-built construction designed for real driving conditions.

This 2-1/8" diameter shift knob is molded from a specially formulated high-impact polymer resin engineered specifically for automotive applications. Unlike generic plastics, this material is designed not to develop stress cracks with aging, handling the thermal cycling and mechanical stress of performance driving. The black rally stripes are subsurface - embedded into the white base material rather than printed or painted on top - creating a smooth finish that stays sharp shift after shift.

The 16mm x 1.50 brass master insert is the foundation of this knob's durability. This solid brass threading exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, ensuring it won't strip or fail when you're rowing through gears under load. At 4 ounces, the weight provides positive shift engagement without excessive mass that can stress your synchros. Each knob is precision machined and polished to a high gloss finish.

The 16mm master insert requires a thread reducing adapter (sold separately) to fit your specific shift lever thread size - contact MDL if you need help selecting the correct adapter for your application. A brass jam nut is included for secure installation that prevents loosening during spirited driving. Made in the USA with the quality and precision that serious builders demand.

What's Included

• One (1) R-Series 2-1/8" white polymer resin shift ball with black rally stripes and 6-speed shift pattern
• One (1) 16mm x 1.50 brass master insert (installed)
• One (1) brass jam nut

Thread reducing adapters sold separately - contact MDL to select the correct adapter for your shift lever thread size.

Key Features

• Premium 2-1/8" diameter white polymer resin construction with gray rally stripes
• Subsurface graphics bypass the 6-speed shift pattern and will not wear off
• 16mm x 1.50 brass master insert with included jam nut
• High-impact polymer resin formulated for performance torque and temperature demands
• 4-ounce weight delivers optimal shifting feel and inertia
• Master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add race-inspired style to your 6-speed manual with the R-Series shift ball. This premium 2-1/8" diameter white shift knob features crisp gray rally stripes that bypass the shift pattern for clean gear identification. Unlike painted or pad-printed graphics that wear away with use, the rally stripe graphics on this shift ball are subsurface-printed and physically cannot wear off, ensuring your interior looks sharp for years of spirited driving.

The R-Series is built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements. This isn't generic plastic that will crack, fade, or become brittle with age. The precision-machined construction is polished to a high-gloss finish that resists stress cracking even after years of exposure to heat cycles and UV. At 4 ounces, the shift ball provides just enough mass for crisp, satisfying throws without adding excessive weight that slows down quick shifts.

A 16mm x 1.50 brass master insert is pre-installed and includes a jam nut for secure, rattle-free mounting. The brass insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, meaning this knob stays put no matter how hard you row through the gears. For shifter levers with different thread pitches, MDL stocks a range of thread adapters. Know your shifter's thread size when ordering so the correct adapter can be recommended for proper fitment.

Made in the USA by a manufacturer that has been shifting gears since 1952, the R-Series represents decades of expertise in precision shift knob manufacturing. Compatible with any 6-speed manual transmission application when paired with the appropriate thread adapter.

Kit Includes

• White polymer resin shift ball with gray rally stripes (2-1/8" diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• Converts 16mm x 1.50 shift knob threads to 10mm x 1.50 shift lever threads
• Direct fit for 1983-2004 Ford Mustang shift levers
• Includes jam nut to lock insert in place and prevent loosening
• Keep your favorite shift knob when upgrading to a new transmission or shifter
• Mount any 16mm-threaded knob to 10mm x 1.50 aftermarket or OEM levers

Description

Upgrading your transmission or shifter shouldn't mean giving up the shift knob you love. This thread reducing insert solves the common mismatch between 16mm x 1.50 shift knob threads and the 10mm x 1.50 threads found on 1983-2004 Ford Mustang shift levers. Whether you're swapping in a TREMEC transmission with a new lever or simply want to run a different aftermarket knob, this adapter bridges the gap.

The precision-machined insert threads into your 16mm shift knob, then accepts any 10mm x 1.50 shift lever. The included jam nut secures the insert, preventing it from backing out during spirited driving. Installation takes seconds and requires no modifications to your knob or lever.

This is the simple, inexpensive fix for thread compatibility issues. Works with both factory and aftermarket shift levers on Fox Body, SN95, and New Edge Mustangs from 1983-2004.

What's Included

• Thread reducing insert (16mm x 1.50 internal to 10mm x 1.50 external)
• Jam nut

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

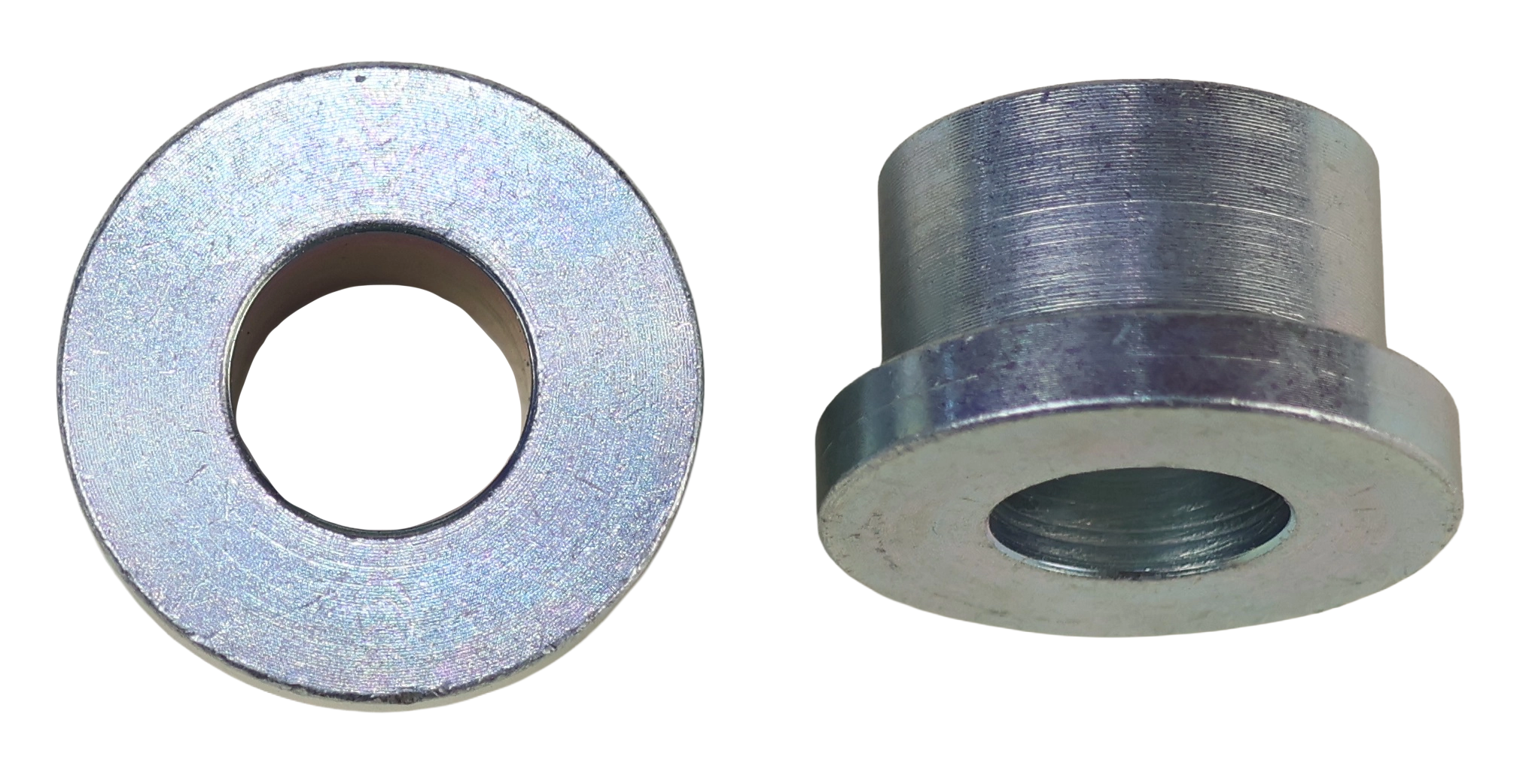

Key Features

• Solid steel construction replaces soft OEM rubber bushings for sharper, more precise shifts
• Converts OEM Mustang shift lever mounting points to 3/8" bolt compatibility
• Direct fit for 1983-2004 Mustang (Fox Body and SN95) shifter assemblies
• Compatible with TREMEC 3550, TKO, TKX, and Magnum six-speed transmissions
• Works with many aftermarket shifters using 3/8" mounting hardware
• Sold as a pair (Qty 2) - everything you need for one shifter
• Made in the USA

Description

Factory rubber shift bushings in '83-'04 Mustangs deteriorate over time, introducing slop and vagueness into every gear change. These steel replacement bushings eliminate the compliance that robs you of precise, positive shifts - whether you're upgrading to a TREMEC transmission or simply restoring crisp shifter feel to your factory drivetrain.

Engineered specifically for 1983-2004 Mustang shifter assemblies, these bushings convert your existing OEM mounting points to accept the 3/8" hardware standard used on TREMEC 3550, TKO, TKX, and Magnum six-speed transmissions. This makes them essential for any Fox Body or SN95 owner swapping in a TREMEC gearbox and wanting to retain their factory shifter location with modern performance hardware.

The solid steel construction creates a direct mechanical link between your shifter and the transmission, translating every input immediately to the gear selection mechanism. No more mushy engagement, no more wondering if you found the gate. This is a quick, easy upgrade that delivers an immediate improvement in shift quality - the kind of difference you feel on the first pull out of the driveway.

These bushings also work with many aftermarket shifters that use 3/8" mounting bolts, giving you flexibility whether you're building a street cruiser or a weekend track car. Made in the USA.

Kit Includes

• (2) Steel shift lever bushings

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Factory-style 2-wire connector plugs directly into T56 reverse lockout solenoid
• Pre-wired pigtail eliminates custom splicing and unreliable field connections
• Compatible with TREMEC T56 6-speed transmissions
• Essential for wiring to aftermarket reverse lockout control modules, brake switches, or manual toggles

Description

The TREMEC T56 6-speed uses a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a real concern because reverse and 5th are positioned dangerously close in the shift gate. When swapping a T56 into a classic vehicle originally equipped with a T5, T45, or older 4/5-speed transmission, the factory electronics lack support for this solenoid, leaving builders without a clean way to wire the lockout system.

This pre-wired solenoid harness provides the electrical connection your reverse lockout needs. The factory-style connector snaps directly onto the solenoid mounted on the transmission case, eliminating the guesswork and potential wiring errors that come with spliced connections. The solenoid operates simply: when energized at low vehicle speeds, the lockout retracts to allow reverse engagement; de-energized at higher speeds, it mechanically blocks the shift gate from entering reverse.

Use this harness to connect the solenoid to an aftermarket reverse lockout control module (speed-based), a brake pedal switch circuit, or a manual dashboard toggle. The harness gives you the clean starting point you need for whatever activation method you choose--just run your control wiring to this pigtail and plug into the transmission.

Compatible with all TREMEC T56 6-speed transmissions. A simple, inexpensive component that prevents frustrating wiring headaches during your swap or build.

Kit Includes

• Pre-wired 2-wire electrical harness with factory-style solenoid connector

Key Features

• Environmentally-sealed Weather Pack connector resists moisture, extreme temperatures, and corrosive engine bay vapors
• 14 AWG wires with 10-inch leads for flexible installation routing
• Male (tower) and female (shroud) housings with pin-and-socket configuration for secure connection
• 20-amp maximum capacity for reliable 12V electrical operation
• Direct-fit compatibility with GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions
• Complete terminal and pigtail assembly - no additional components needed

Description

When swapping to a T56 Magnum or Ford T5 transmission, connecting the reverse light circuit is critical for both legal compliance and safety. This reverse switch harness eliminates the guesswork and provides a clean, factory-grade electrical connection that integrates seamlessly with existing vehicle wiring.

Built around the proven Weather Pack connector system, this harness delivers outstanding reliability in demanding engine bay environments. The pin-and-socket design creates a positive mechanical lock while sealing out moisture, dirt, and corrosive chemical vapors that destroy standard electrical connections over time. Heavy-duty 14 AWG wire handles the full electrical load with headroom to spare, while the 10-inch leads provide flexibility for routing around headers, exhaust components, and other obstacles.

The complete terminal and pigtail assembly plugs directly into GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions without modification. On the vehicle side, the Weather Pack connector interfaces cleanly with existing reverse light circuits or aftermarket wiring harnesses. This eliminates the common problems of corroded connections, loose terminals, and failed reverse lights that plague cut-and-splice installations.

What's Included

• Weather Pack male (tower) housing with terminals
• Weather Pack female (shroud) housing with terminals
• 10-inch 14 AWG wire leads (pair)
• Complete pin-and-socket connector assembly

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Single-tube design delivers maximum stiffness without excess weight
• Adjustable design accommodates T45, T56, T56 Magnum, Magnum XL, and TR-3650 transmissions via sliding sleeves and repositionable spacers
• Uses factory-located 4.5" wide body mounts - no relocation or fabrication required
• Engineered to maintain current pinion angle with OEM or aftermarket transmission mounts
• Low-deflection polyurethane bushings dampen driveline vibrations and noise
• Slim profile allows more exhaust clearance than OEM-style crossmembers
• Polyurethane bushings replaceable with solid bushings for racing applications (sold separately)
• Black powder coat finish

Description

Upgrading your Fox Body to a modern TREMEC transmission means dealing with one persistent headache: the factory crossmember wasn't designed for it. This Stifflers tubular crossmember solves the fitment problem while delivering chassis stiffness and strength that the stamped-steel OEM unit simply cannot match.

The unique single-tube design is the key differentiator here. Where conventional crossmembers force you to choose a specific transmission fitment, Stifflers' adjustable sleeve-and-spacer system lets you configure one crossmember for multiple applications. Simply slide the mounting sleeves and reposition the spacers to dial in fitment for T45, T56, T56 Magnum, Magnum XL, or TR-3650 transmissions. This eliminates the guesswork and custom fabrication that plague most swap projects.

Engineering matters beyond just fitment. This crossmember bolts directly to your factory 4.5"-wide body mounts with zero modification required, while maintaining your existing pinion angle whether you're running OEM or aftermarket transmission mounts. The slim tubular profile also creates significantly more exhaust clearance than the bulky factory unit - a real advantage when running aftermarket headers or larger-diameter exhaust systems.

Low-deflection polyurethane bushings provide a firmer mount than factory rubber while still isolating driveline vibrations and NVH from the chassis. For dedicated track cars where maximum rigidity is required, the poly bushings can be swapped for solid bushings (sold separately). Compatible with 1982-1993 Ford Mustang and Mercury Capri Fox Body applications.

What's Included

• Stifflers single-tube crossmember with black powder coat finish
• Adjustable mounting sleeves
• Repositionable spacers for multi-transmission fitment
• Low-deflection polyurethane bushings
• Complete hardware pack
• Installation instructions

Key Features

• Precision welded steel construction for maximum durability and mounting integrity
• Rubber contact pad isolates drivetrain vibration while maintaining secure transmission support
• Protective coating resists corrosion from heat, oil, and road debris
• Direct bolt-in replacement for OEM mount - no modifications required
• Compatible with manual and automatic transmissions: T5, TKO, TKX, T45, and AOD
• Fits 1979-1995 Mustangs plus 1996-1997 GT models
• Made in the USA

Description

Factory rubber transmission mounts deteriorate over time from constant exposure to heat, oil, and the stress of supporting your transmission. A worn mount causes excessive drivetrain vibration, sloppy shifting under hard acceleration, and poor driveline alignment between your transmission tailshaft and crossmember. This precision-welded transmission mount restores solid mounting integrity while isolating vibration through its integrated rubber contact pad.

The welded steel construction delivers the rigidity your drivetrain demands, eliminating the flex and movement that plague degraded OEM mounts. Unlike cheap replacement mounts that sacrifice durability for cost savings, this mount features a protective coating that resists corrosion in harsh underhood and undercar environments. The rubber cushion absorbs vibration without the harshness of a solid mount, maintaining driving comfort while dramatically improving shift quality.

Designed as a direct bolt-in replacement for the factory mount, installation requires no modifications to your crossmember or transmission housing. This mount is compatible with all common manual and automatic transmissions including the T5, TKO, TKX, T45, and AOD - covering everything from stock rebuilds to TREMEC performance upgrades. Fits all 1979-1995 Mustangs as well as 1996 and 1997 GT models. Made in the USA and backed by MDL's commitment to quality drivetrain components.

What's Included

• Precision welded transmission mount with rubber cushion pad
• Protective coating applied

Key Features

• Custom-built 3.5" aluminum tube construction - lightweight alternative to traditional steel driveshafts
• 31-spline forged steel slip yoke - matches T56 Magnum output shaft
• 8.8" rear differential flange fitment - direct bolt-on to Ford's popular rear end
• 1330 series U-joints - 1.062" cap diameter with 3-5/8" overall width for proven torque transfer
• Professional balancing - eliminates vibration for smooth high-RPM operation
• Built to your exact measurements after transmission installation - ensures perfect length and driveline angles
• Made in the USA

Description

When you swap a TREMEC T56 Magnum six-speed into your Fox Body Mustang, the factory steel driveshaft becomes a liability. That heavy stock shaft robs power through rotational mass while potentially limiting the Magnum's 700 lb-ft torque capacity. This custom aluminum driveshaft solves both problems - dropping significant weight while delivering the strength your upgraded drivetrain demands.

A high-quality driveshaft plays a critical role in any performance vehicle. Your car needs a shaft that can withstand intense conditions, stresses, and high RPM without adding unnecessary weight. The 3.5" aluminum tube provides excellent torsional rigidity at a fraction of the weight of steel. The forged steel slip yoke delivers durability at the critical transmission connection point, with a 31-spline configuration that matches the Magnum's output shaft precisely. At the rear, the 8.8" flange bolts directly to Ford's popular differential.

The 1330 series U-joints handle torque transfer with proven reliability - featuring 1.062" cap diameter and 3-5/8" overall width. This series has been Ford's standard for performance applications since the late 1970s, offering an excellent balance of strength and driveline angle capability.

Each driveshaft is professionally built to your exact measurements after you've completed your transmission installation. This build-to-order approach ensures perfect length, eliminates vibration issues, and provides optimal driveline angles for smooth operation. Simply complete the MDL Driveshaft Build Sheet with your measurements and submit it to begin fabrication. Whether you're building a street cruiser or a weekend track car, this aluminum driveshaft delivers the lightweight strength your Fox Body T56 Magnum swap deserves. Fits 1979-1993 Ford Mustang with T56 Magnum transmission and 8.8" rear differential. Made in the USA.

How to Order

This driveshaft is custom-built to your vehicle's exact specifications. After placing your order, download and complete the MDL Driveshaft Build Sheet with measurements taken from your finished installation. Submit the completed form to [email protected] and we'll begin fabricating your driveshaft.

What's Included

• Custom aluminum driveshaft with 3.5" tube
• Forged steel 31-spline slip yoke
• 8.8" rear differential flange
• 1330 series U-joints installed at both ends
• Professional balancing
• Lifetime technical support

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/8" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/8" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
