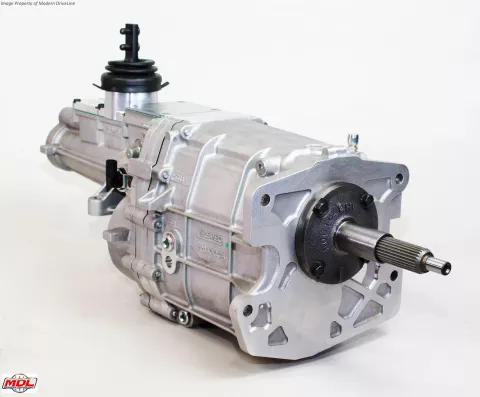

TREMEC Ford TKX 5-Speed Transmission | 2.87 First, 0.68 Overdrive | 26-Spline

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8-inch diameter), 31-spline output shaft
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21-inch Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Two shifter locations are standard; mid-position kit available separately
• High-performance billet aluminum short-throw shifter included
• Shifter Stub Locations: center line, 12.68”, 16.75” or 19.52” back from the bellhousing face
• Gaskets at all mating surfaces eliminate fluid leaks
• 99 lbs dry weight; 2.7-quart fluid capacity

Overview

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• High-performance short-throw billet aluminum shifter
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• OSS two-wire electronic speedometer sensor (built-in)
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27, first gear with 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.81 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

Key Features

• Short-throw design delivers crisp, precise shifts for TKX-equipped builds
• 1" or 1.5" backward offset positions shifter in factory location
• Precision-machined billet aluminum construction reduces weight
• 7/8 in. on-center mounting pattern fits most aftermarket shift levers
• Belleville washer detent system provides positive feedback for clean 2-3 shifts
• High-temperature lower dust boot seals transmission from contamination
• No-stops design allows easy servicing of the shifter when needed
• Rear shifter position with rear socket configuration
• Proudly crafted 100% in the USA

Description

Swapping a TREMEC TKX into your classic Mustang delivers modern shifting performance and 600 lb-ft torque capacity, but getting the shifter in the right spot can be a challenge. The Qwik Stik solves that problem with a precision-machined assembly that positions your shift lever exactly where Ford originally intended it to be in '65-'73 Mustangs.

The engineering starts with billet aluminum plates that mount directly to the TKX transmission case, eliminating guesswork and shimming. The 1" or 1.5" backward offset brings the shifter stub into the factory console location, maintaining proper ergonomics without hacking up your tunnel or console. Belleville washers provide the detent feel that makes 2-3 shifts crisp and confident under aggressive driving. Unlike designs that rely on internal stops, this stopless configuration simplifies maintenance when servicing is required.

The 7/8 in. on-center mounting pattern on the shifter stub accepts most aftermarket shift levers, so you can run the lever and knob that fits your build. A high-temperature lower dust boot protects the transmission internals from debris and contamination. Mount up, attach your shift lever, boot, and knob, and you are ready to go.

Engineered specifically for 1965-1973 Mustangs running TREMEC TKX transmissions. Proudly crafted 100% in the USA with lifetime technical support from Modern Driveline.

Kit Includes

• Precision-machined billet aluminum shifter base plate - anodized finish
• Shifter stub assembly with 7/8 in. on-center mounting
• Belleville washer detent system
• High-temperature lower dust boot
• Mounting hardware
• Lifetime technical support

Key Features

• Adapts Ford wide pattern (Toploader-style) bellhousings to Ford 3550, TKO500, TKO600, and TKX transmissions
• CNC machined from 6061 billet aluminum for precision fit and durability
• Maintains bellhousing-to-transmission alignment with 0.001" tolerance
• No drilling, machining, or bellhousing modifications required
• Compatible with SBF and BBF applications: 289, 302, 351, 429, 460
• Machined-in logo and part number for authenticity verification
• Includes all mounting hardware
• Made in the USA

Description

Upgrading your classic Ford to a modern five-speed doesn't have to mean scrapping a perfectly good bellhousing. This spacer plate bridges the bolt pattern gap between your existing Ford wide pattern bellhousing (the Toploader bolt pattern found on post-1965 Ford car bellhousings) and the Ford 3550, TKO, or TKX transmission, eliminating the need for an expensive bellhousing swap or machine shop work.

CNC machined from 6061 billet aluminum, this spacer plate registers precisely to your bellhousing's centering bore, maintaining the critical transmission-to-bellhousing alignment required for proper clutch operation and input shaft bearing life. The design holds alignment to within 0.001" -- the same precision tolerance you'd expect from a purpose-built bellhousing. Longer mounting bolts pass through the transmission case, through the spacer plate, and thread into your existing bellhousing bolt holes. No cutting, no drilling, no modifications to your OEM or aftermarket bellhousing.

This spacer is engineered specifically for Ford wide pattern "car" bellhousings paired with Ford-pattern 3550, TKO500, TKO600, and TKX five-speeds. It supports SBF and BBF applications including the 289, 302, 351, 429, and 460. Note: This plate is designed for car-depth bellhousings only. Deeper truck bellhousings require a different input shaft solution -- if you're unsure which bellhousing you have, measure from the engine mounting face to the flat surface where the transmission mates. If you have a narrow Ford transmission pattern bellhousing, see our MD-401-2111 instead. Proudly made in the USA.

What's Included

• 6061 billet aluminum spacer plate with machined logo and part number
• Mounting hardware
• Installation instructions

Key Features

• Dual clutch pattern accepts both 10" long-style and 10.4" metric diaphragm clutches — upgrade to high-performance clutch setups without swapping flywheels
• 157-tooth ring gear for compatibility with small-diameter bellhousings and starters
• 28oz external imbalance matches pre-1981 Ford small block engines (260, 289, 302, 351W, 351C)
• 6-bolt crank mounting pattern with 7/16" bolts
• Cast iron construction weighing 19 lbs for smooth idle characteristics and excellent heat absorption
• Precision machined to improve clutch performance, durability, and reduce vibration
• Pre-installed metric alignment pins for accurate 10.4" clutch indexing
• Replaces OEM part numbers C3AZ-6375-J and C3AZ-75-A

Description

Running a classic Ford small block and want flexibility in your clutch setup? This dual-pattern cast iron flywheel eliminates the one-flywheel-per-clutch-size limitation that plagues so many builds. The machined face accepts both the 10" long-style diaphragm clutches found in vintage applications and the 10.4" metric diaphragm clutches used on high-performance '79–'01 Mustangs — so you can start with a stock-style clutch and upgrade to a higher-capacity unit later without pulling the flywheel.

Cast iron construction delivers the rotating mass needed for civilized street manners: smooth idle, progressive engagement, and excellent heat absorption during stop-and-go driving. The 157-tooth ring gear mates with the smaller-diameter bellhousings and starters common on '64–'68 Mustangs and other early Ford small block applications. Precision machining ensures a flat, true friction surface that improves clutch performance and reduces vibration.

The 28oz external imbalance is correct for pre-1981 Ford Windsor and Cleveland engines — 260, 289, 302, 351W, and 351C. (Post-1981 5.0L engines use a 50oz imbalance; verify your engine's balance before ordering.) The 6-bolt crank pattern with 7/16" hardware provides a secure connection to the crankshaft flange.

Compatible with 3-speed, 4-speed, and T5 5-speed manual transmissions. While cast iron flywheels work for light motorsports use, understand the RPM and load limits — billet steel offers better stability for sustained high-RPM or competition applications.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and dual clutch pattern (10" long / 10.4" metric)
• Pre-installed metric alignment pins for 10.4" clutch pattern
• Clutch alignment pins

Key Features

• Cast iron construction for durability and heat dissipation in street applications
• 157-tooth ring gear for proper starter engagement with small-block Ford bellhousings
• 50oz external balance engineered specifically for 1981-1995 Ford 5.0L Windsor engines
• 10.4" metric clutch pattern with equalizing pin holes for diaphragm-style pressure plates
• 6-bolt crankshaft mounting pattern matches Ford factory configuration
• 19 lbs flywheel weight provides optimal rotational mass for smooth street driving
• Includes clutch alignment pins for precise pressure plate installation

Description

When Ford switched the 302 to the 5.0L designation in 1981, they also changed the external balance from 28oz to 50oz. That means every '81-'95 5.0L Windsor needs a flywheel with the correct counterweight to maintain proper engine balance and eliminate vibration. This cast iron flywheel delivers exactly that - the right balance for your late-model small-block Ford, with the 157-tooth ring gear that mates to standard small-block bellhousings and starters.

The 10.4" metric clutch pattern is a Ford-specific design that uses alignment pins rather than shouldered bolts to locate the pressure plate. These equalizing pins ensure precise concentricity between the pressure plate and flywheel - critical for smooth clutch engagement and even wear. The metric pattern accommodates modern diaphragm-style pressure plates with 8mm hardware, making it compatible with factory and aftermarket clutch assemblies designed for '83-'95 Mustangs and other 5.0L applications.

Cast iron provides the strength and thermal stability needed for street duty, absorbing and dissipating heat through repeated clutch engagements without the hot spots that can develop on lighter materials. At 19 lbs, this flywheel maintains enough rotational mass for smooth idle and progressive engagement - the kind of drivability you want in a daily driver or weekend cruiser. The 6-bolt crankshaft pattern bolts directly to the factory crank flange with no adapters or modifications required.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and 50oz counterweight
• Clutch alignment pins for 10.4" metric pressure plate installation

Key Features

• Billet steel construction weighing just 28 lbs
• 157 tooth ring gear for compatibility with small bellhousings and starters
• Zero balance (internally balanced) for stroker motors and Ford Racing crate engines
• Dual clutch bolt patterns for 10" and 10.5" diaphragm clutch assemblies
• 6-bolt crankshaft mounting pattern for direct Ford small block fitment
• Clutch alignment pins included for precision disc positioning
• Made in the USA

Description

The 157 tooth ring gear works with small-pattern bellhousings and corresponding starters, making it the right choice for classic Mustangs and other Ford applications using the compact bellhousing configuration. Zero balance (internally balanced) design means this flywheel pairs with internally balanced rotating assemblies - including stroker builds, aftermarket cranks, and Ford Racing's 363 and 427 cubic inch crate engines.

Dual clutch bolt patterns accept both 10" and 10.5" diaphragm clutch assemblies, giving you flexibility whether you're running a stock-replacement clutch or upgrading to a higher-capacity performance unit. The 6-bolt crankshaft pattern provides direct fitment to Ford 289, 302, and 351 Windsor engines. Included alignment pins ensure proper clutch disc positioning during installation.

Compatible with Ford 289, 302, and 351 Windsor engines requiring zero balance. Also fits Ford Racing 363ci and 427ci performance engines. Made in the USA.

Kit Includes

• Lighten Billet Steel Flywheel (28 lbs)
• Clutch alignment pins

Key Features

• Lighten billet steel construction resists stress cracking and handles higher RPM loads than cast iron
• 157-tooth ring gear with 28oz external imbalance for pre-1982 Ford 289/302/351W engines
• Dual clutch bolt patterns accommodate both 10" and 10.5" pressure plates
• 28 lb weight balances reduced rotational mass with smooth street drivability
• 6-bolt crankshaft mounting pattern; clutch alignment pins included
• Compatible with Ford Racing 363/427ci crate engines
• Precision-machined from US-milled steel; Made in the USA

Overview

Factory cast iron flywheels have their limits. At high RPM or under aggressive clutch clamping loads, they can develop stress cracks that compromise both performance and safety. This lighten billet steel flywheel replaces that weak link with a material that's fundamentally stronger—billet steel resists cracking and remains stable under the demands of performance driving.

The "lighten" designation refers to strategic material removal that reduces rotational mass without sacrificing structural integrity. At 19 lbs, this flywheel strikes the sweet spot between weight reduction and street manners—light enough for improved throttle response and quicker revs, yet heavy enough to maintain smooth idle characteristics and prevent the stalling issues common with ultra-lightweight aluminum units. The result is a flywheel that feels responsive on throttle tip-in while still delivering civilized behavior in traffic.

Dual clutch bolt patterns machined into the friction surface eliminate fitment guesswork, accepting both 10" and 10.5" pressure plates. The 157-tooth ring gear and 28oz external imbalance match OE specifications for pre-December 1982 small block Fords, ensuring proper starter engagement and crankshaft balance. This flywheel fits Ford 289, 302, and 351W Windsor engines, plus Ford Racing 363ci and 427ci stroker crate motors that use the 28oz balance specification.

Six-bolt crankshaft mounting provides secure attachment, while included clutch alignment pins ensure proper disc positioning during installation. Every flywheel is precision-machined from US-milled steel and manufactured in the USA.

What's Included

• Lighten billet steel flywheel (28 lbs)
• 157-tooth ring gear (installed)
• Clutch alignment pins

Key Features

• Billet steel construction - stronger than cast iron, resists stress cracking at high RPM
• 50oz external balance - correct for factory 1981-1995 Ford 5.0L Windsor engines
• Dual clutch pattern - accommodates both 10.5" metric diaphragm and 10" long-style pressure plates
• 157-tooth ring gear for high-performance starter applications
• 6-bolt crankshaft mounting pattern
• 6.00" clutch damper counter-bore
• Metric alignment pins pre-installed - eliminates installation guesswork
• Made in the USA with domestically-milled steel

Description

Factory cast iron flywheels become the weak link when you push serious power through a 5.0L Windsor. Cast iron is prone to stress cracking under repeated high-RPM clutch engagement, and a cracked flywheel at speed is a catastrophic failure waiting to happen. This lightened billet steel flywheel delivers the strength needed for high-performance street builds and competition use while shaving weight to improve engine response.

Billet steel is considerably stronger than cast iron and remains free of the stress cracks that plague factory flywheels under heavy use. The lightened design reduces rotational mass compared to standard-weight flywheels, allowing faster throttle response on acceleration and quicker RPM drop on deceleration - a noticeable improvement whether you're rowing through gears on the street or chasing lap times. The 50oz external balance matches factory 5.0L engine specifications for 1981-1995 applications, ensuring smooth operation with no vibration.

The dual clutch pattern provides flexibility in clutch selection, accepting both 10.5" metric diaphragm pressure plates and 10" long-style setups. Metric alignment pins come pre-installed to ensure proper clutch disc centering during installation. Note that diaphragm clutches require metric pressure plate bolts (MD-403-2003 or MD-403-2003ARP), while the 10" long pattern uses 5/16" bolts (MD-403-2004).

Engineered for Ford small block Windsor engines with 157-tooth starter ring gear applications. Fits all 1981-1995 Ford 5.0L engines requiring 50oz external balance. Proudly made in the USA using US-milled billet steel.

What's Included

• Lightened billet steel flywheel with 157-tooth ring gear
• Metric clutch alignment pins (pre-installed)

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Superior King Cobra Clutch Kit | Ford 10.4" Metric | 26-Spline | Cable

Key Features

• Steel-backed organic disc for 1-1/8" 26-spline input shaft
• 10.4" metric bolt pattern with alignment pins
• Heavy-duty diaphragm pressure plate for increased clamping force
• Sprung hub disc reduces drivetrain shock during engagement
• Cable throwout bearing for cable-actuated clutch systems
• 400 lb-ft torque capacity for street applications
• Hand-assembled in Caldwell, Idaho with dual quality inspections
• 1-year free-from-defect warranty
• Made in the USA

Description

Worn-out clutches kill power delivery and driving enjoyment. The MDL Superior King Cobra clutch kit restores confident engagement while delivering the upgraded holding power needed for modified Ford street machines. Built around a steel-backed organic disc and heavy-duty diaphragm pressure plate, this complete kit provides the durability and clamping force for spirited driving without the harsh pedal feel of aggressive racing clutches.

The steel backing on the organic friction material eliminates disc flexing under load, maintaining consistent engagement characteristics and extending service life compared to standard unbacked organic facings. The sprung hub design absorbs drivetrain shock during engagement, reducing wear on the transmission input shaft and providing the smooth, progressive feel daily drivers demand. The heavy-duty diaphragm pressure plate delivers increased clamp load over stock while keeping pedal effort reasonable for street use.

This kit fits Ford applications using the 10.4" metric clutch pattern with metric bolts and alignment pins. The 1-1/8" 26-spline disc mates directly to transmissions with matching input shaft specifications. The included cable throwout bearing ensures compatibility with cable-actuated clutch systems commonly found in Foxbody and SN95 Mustangs.

Every MDL Superior clutch is hand-assembled at the Caldwell, Idaho facility and undergoes quality checks before shipping. This kit arrives ready to install with all necessary components for a complete clutch replacement. Rated for street applications up to 400 lb-ft of torque. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 10.4" steel-backed organic clutch disc with sprung hub, 26-spline, 1-1/8" input
• Heavy-duty diaphragm pressure plate, 10.4" metric bolt pattern
• Cable throwout bearing
• Ford pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

Superior Ford 10.4" Metric HD Clutch Set | Kevlar/Steel-Backed Organic | 26-Spline Cable

Key Features

• Hybrid friction material - Kevlar facing on pressure plate side, steel-backed organic on flywheel side for aggressive bite with smooth engagement
• 450 ft-lbs torque capacity handles serious small-block Ford power
• Diaphragm-style pressure plate with 10.4" metric bolt pattern and alignment dowel pins
• 26-spline x 1-1/8" input shaft compatibility for TKO, TKX, 3550, and T-5 transmissions
• Sprung hub design absorbs driveline shock and protects transmission components
• Cable-actuated throw-out bearing included for mechanical release systems
• Hand-built in-house with double-checked tolerances for ready-to-install precision
• Made in the USA with 1-year defect-free warranty

Description

MDL's Superior Series clutch sets deliver the precise balance of engagement characteristics that performance street builds demand. This 10.4" metric clutch features a hybrid friction material strategy - Kevlar facing on the pressure plate side provides aggressive bite and exceptional heat resistance, while steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. The result is a clutch that hooks up decisively under power yet remains streetable for daily driving.

The diaphragm-style pressure plate uses Ford's 10.4" metric bolt pattern with 8mm bolts and precision dowel pins for rock-solid alignment and zero chatter. With a 450 ft-lbs torque capacity, this clutch handles serious small-block Ford power while the sprung hub absorbs the driveline shock that would otherwise stress transmission synchronizers and gears. The 26-spline x 1-1/8" disc fits TKO, TKX, 3550, and T-5 transmissions equipped with the larger input shaft.

Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where tolerances are verified twice before shipping. This attention to detail ensures proper balance, smooth engagement, and long service life right out of the box. The kit includes everything needed for installation - precision pilot bearing, cable-actuated throw-out bearing, and alignment tool. Backed by MDL's 1-year defect-free warranty and made in the USA.

Kit Includes

• Diaphragm pressure plate - 10.4" metric bolt pattern with alignment dowel pins, uses 8mm bolts
• Clutch disc - 26-spline x 1-1/8", sprung hub, Kevlar/steel-backed organic facings
• Cable-actuated throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

Key Features

• Dual Kevlar friction facings on both flywheel and pressure-plate sides for consistent engagement and heat resistance
• Heavy-duty diaphragm pressure plate matched to 26-spline x 1-1/8" input hub
• Cable-profile throwout bearing also compatible with hydraulic release systems
• 10.4" metric bolt pattern with alignment dowel pin holes - uses 8mm pressure plate bolts
• Hand-assembled in-house with double-riveted construction for balance and durability
• Sprung hub design absorbs driveline shock for smoother engagement
• 500 ft-lb torque capacity for performance street and open tracking applications
• 1-year free-from-defect warranty

Description

When you're building a Ford with a 26-spline transmission and need a clutch that handles real power without fighting you in traffic, this Superior 10.4" metric kit delivers. The dual Kevlar friction surfaces provide aggressive holding power with manageable street manners - Kevlar's thermal stability means consistent engagement under repeated hard use without the grabby, on-off characteristics of ceramic facings. This is the clutch for performance street builds and open track days where you need confidence in the drivetrain, not a sore left leg.

MDL builds every Superior clutch disk in-house with double-riveted construction - not bonded like cheaper alternatives. This assembly method ensures precise balance across the disc, eliminates hot spots that cause premature failure, and maintains structural integrity under high heat and repeated engagement cycles. The heavy-duty diaphragm pressure plate increases clamp load over stock units to support the 500 ft-lb torque rating.

The 26-spline x 1-1/8" input hub with sprung center fits modern TREMEC TKX, TKO-600, and T5 transmissions, as well as period-correct '86-'95 Ford 5.0L applications with upgraded transmissions. The cable-profile throwout bearing is designed for Ford cable-actuated systems but also works with hydraulic release setups, giving you flexibility for transmission swaps and clutch system upgrades.

Every component is checked and double-checked for accuracy before shipping - you receive a ready-to-install premium assembly right out of the box. Performance Proven products have survived the rigorous challenges of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pin holes
• 10.4" clutch disc with dual Kevlar friction facings - sprung hub
• 26-spline x 1-1/8" input shaft hub
• Cable-profile throwout bearing (hydraulic compatible)
• Pilot bearing
• Clutch disc alignment tool
• Installation and break-in instructions
• Lifetime technical support

Superior 10.4" Metric Clutch Kit | Ford 1986-1995 | Kevlar/Ceramic 26-Spline Cable

Key Features

• Kevlar facing on flywheel side, ceramic facing on pressure plate side for aggressive bite with smooth engagement
• 600 lb-ft torque rating handles serious street/strip power
• 26-spline, 1-1/8" hub diameter fits TREMEC TKO, TKX, and T5 with 26-spline input
• 10.4" metric bolt pattern with 3 alignment dowel pin holes
• Cable-style throw-out bearing included (also compatible with hydraulic systems)
• Diaphragm-style pressure plate with 8mm bolt holes
• Sprung hub design reduces drivetrain shock and chatter
• Hand-assembled and double-riveted in MDL's Caldwell, Idaho facility
• 1-year free-from-defect warranty

Description

When you need more holding power than a full-Kevlar disc can deliver but want to preserve some street manners, the Superior Kevlar/Ceramic clutch assembly is the answer. This hybrid design places Kevlar on the flywheel side for smooth engagement and extended life, while the ceramic facing on the pressure plate side delivers the aggressive bite and heat resistance demanded by drag launches and high-RPM road racing shifts. Great for 1986-1995 Ford applications running the 10.4" metric bolt pattern.

Ceramic friction material works harder as temperatures climb--the iron content in MDL's ceramic compound actually increases friction under heat, making this clutch stronger during abuse rather than weaker. That's why ceramic is the go-to choice for higher horsepower builds, quick shifts in road racing, and hard-launching drag cars. When a larger diameter disc isn't an option, the higher coefficient of friction delivers more holding power from the same surface area and clamp load.

Every Superior clutch assembly is hand-built in MDL's Caldwell facility using double-riveted construction and exacting quality standards. Each unit is checked and double-checked for accuracy before it ships, so you receive a ready-to-install premium product right out of the box. The 26-spline, 1-1/8" hub fits transmissions like the TREMEC TKO, TKX, or any 26-spline T5 variant. The included cable-profile throw-out bearing also works with hydraulic release systems, giving you flexibility in your drivetrain setup.

Designed for the 10.4" metric pressure plate pattern with 3 alignment dowel pin holes--uses 8mm pressure plate bolts. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Diaphragm-style pressure plate (8mm bolt holes, metric pattern)
• Clutch disc with Kevlar/ceramic hybrid facings, 26-spline x 1-1/8" sprung hub
• Cable-profile throw-out bearing (hydraulic compatible)
• Pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty

Key Features

• 800 horsepower capacity for high-performance street applications
• 26 x 1-1/8" input spline configuration with 246mm (9.687") disc diameter
• Economically priced twin disc design - uses your existing flywheel
• Organic/organic friction facings deliver smooth engagement with soft pedal effort
• Sprung hub discs for excellent release characteristics and driveability
• Diaphragm pressure plate with 10" Long bolt pattern and 8mm hardware
• Small ring adapter fits Ford 157T flywheels
• Street-focused design - not intended for competition use
• Made in the USA

Description

When you've built serious power but need a clutch that remains civilized on the street, the McLeod RST twin disc clutch kit delivers an economically priced solution for high-horsepower Ford applications. This kit solves the fundamental problem of single-disc clutches that either slip under power or become unbearably harsh for daily driving - without requiring you to purchase a new flywheel.

Capable of handling 800 horsepower, this clutch manages extreme power while remaining street-friendly. The twin-disc design spreads clamping loads across two organic friction surfaces, reducing pressure plate spring tension compared to equivalent single-disc setups. Organic-faced twin sprung hub friction discs provide smooth engagement with soft pedal effort and excellent release characteristics, making this ideal for enthusiasts who demand performance without sacrificing driveability.

The small ring adapter configuration works with Ford 157T flywheel bolt patterns. The 26 x 1-1/8" input spline accommodates transmissions like the TKO-500/600, TKX, and T56 Magnum. McLeod's patent-pending adapter ring ensures proper pressure plate positioning and prevents the binding issues common with universal adapters. This kit requires your existing flywheel, which must be properly resurfaced before installation. Flywheel surface must have a coarse texture from a stone grinder - if you run your fingernail across it, the texture should catch your nail.

Compatible with Ford applications using 10" Long bolt patterns with 8mm hardware for 10.5" bellhousing configurations. Note: This clutch is designed for high-horsepower street use and is not intended for competition environments. Made in the USA.

What's Included

• Diaphragm pressure plate (10" Long bolt pattern)
• Two organic friction discs (246mm diameter, 26 x 1-1/8" spline, sprung hub)
• Floater plate
• McLeod patent-pending small ring adapter
• Pilot alignment tool
• Installation instructions
• Flywheel clutch pattern chart

Note: This kit does not include a pilot bearing or throwout bearing.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• Premium-grade 8740 chromoly construction hardened to 180,000 PSI tensile strength
• 8mm x 1.25 thread size with 10mm hex head for proper socket access
• Black oxide finish for corrosion resistance and professional appearance
• Application-specific design ensures optimum grip length for Ford 302/351W engines
• Large diameter, low profile design increases clamping force over stock hardware
• Complete kit includes washers for proper installation
• Set of 6 bolts replaces all factory pressure plate fasteners

Description

The importance of pressure plate bolts in racing or high-performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Factory pressure plate bolts are notorious weak points that can stretch or fail under power, leading to clutch slippage, pressure plate distortion, or catastrophic failure. When you're building serious power, the last thing you want is substandard hardware compromising your drivetrain.

ARP engineered these High Performance Series bolts specifically for 1986-1995 Ford 302 and 351 Windsor applications. Each bolt is forged from premium-grade 8740 chromoly steel and heat-treated prior to thread rolling and machining, achieving a nominal tensile strength of 180,000 PSI. The application-specific design ensures optimum grip length for your Ford V8, eliminating the guesswork that comes with generic hardware.

The 8mm x 1.25 threading matches factory specs while delivering vastly superior strength. Each bolt features a hex head design with 10mm socket access for easy installation and removal. The black oxide finish provides corrosion resistance while maintaining a clean appearance under the hood. The large diameter, low profile design increases clamping force compared to stock bolts, reducing the risk of pressure plate flex under high-load conditions.

Fits all 1986-1995 Ford applications equipped with 302 or 351W engines, including Mustang 5.0L, F-150 trucks, Bronco, E-Series vans, and Crown Victoria. Kit includes six pressure plate bolts with washers for complete replacement of all factory fasteners.

What's Included

• 6 x ARP pressure plate bolts (8mm x 1.25, 10mm hex head, black oxide finish)
• 6 x Washers

Key Features

• Authentic OEM appearance matches original 1967-68 Mustang shift knobs
• Modern 5-speed shift pattern for TREMEC TKX, TKO, or T-5 conversions
• 1/2"-20 thread pitch fits original OEM shifter levers
• Round black plastic construction replicates factory materials
• White painted shift pattern for clear gear position identification
• Includes jam nut for secure installation
• Made in the USA

Description

Upgrading your classic Mustang to a modern 5-speed transmission shouldn't mean sacrificing the factory look of your interior. This OEM appearance shift knob delivers the authentic styling of the original 1967-68 Mustang knob while incorporating a clearly marked 5-speed shift pattern--perfect for TREMEC TKX, TKO, or T-5 conversions.

Manufactured by Scott Drake, this shift knob is constructed from the same black plastic material as the original factory knobs, featuring a round profile with a white painted shift pattern that matches the period-correct design language. The familiar shape and finish blend seamlessly with your Mustang's interior, letting you enjoy modern drivetrain performance without the visual mismatch of an aftermarket knob.

The knob threads directly onto original OEM shifter levers using the factory 1/2"-20 thread pitch--no adapters or modifications required. This ensures proper fitment and the correct feel that matches how Ford designed these cars from the factory. A jam nut is included for secure installation.

Compatible with 1967-1968 Ford Mustang and Mercury Cougar applications using OEM shifter levers. Made in the USA to ensure quality and fitment standards.

What's Included

• One round black plastic shift knob with 5-speed pattern
• White painted shift pattern graphics
• Jam nut for secure installation
• 1/2"-20 internal threads for OEM shifter lever fitment

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• 2-1/8 inch diameter black aluminum shift ball with brushed finish
• 16mm x 1.5 internal thread - designed for use with thread reducers to adapt to various shifter handle sizes
• Lightweight aluminum construction reduces shifter mass for quicker throws
• Black finish with brushed texture complements modern performance interiors
• 5-speed shift pattern engraving
• Compatible with MDL thread reducer inserts (sold separately) for SAE and metric applications

Description

Factory shift knobs rarely deliver the grip, weight, or aesthetics that a performance build deserves. This MDL 5-Speed Black Aluminum Shift Ball solves that problem with a 2-1/8 inch diameter that fills the palm for confident, positive shifts and a brushed black aluminum finish that looks at home in any performance-oriented cockpit.

The 16mm x 1.5 internal thread is engineered to work with MDL's line of thread reducer inserts, giving you the flexibility to mount this shift ball on virtually any shifter handle. Thread reducers are available in both SAE sizes (3/8-16, 3/8-24) and metric sizes (8mm-1.25, 9mm-1.25, 12mm-1.75) to accommodate Hurst, Lokar, TREMEC, and other popular shifter configurations. This universal approach means one shift ball works across multiple builds and applications.

Constructed from lightweight aluminum, this shift ball reduces rotating mass compared to heavier steel or weighted knobs - a deliberate choice for drivers who prioritize quick, precise shifts over added heft. The brushed aluminum base with black finish provides durability and corrosion resistance while maintaining a clean appearance that won't fade or chip under heavy use.

Note: This shift ball requires a separate thread reducer insert and jam nut (sold separately) to properly mount to your shifter handle. Check MDL's selection of thread reducers to find the correct adapter for your specific shifter lever thread size.

What's Included

• One 2-1/8 inch black aluminum shift ball with brushed finish and 5-speed pattern
• 16mm x 1.5 internal thread (thread reducer insert required - sold separately)

Key Features

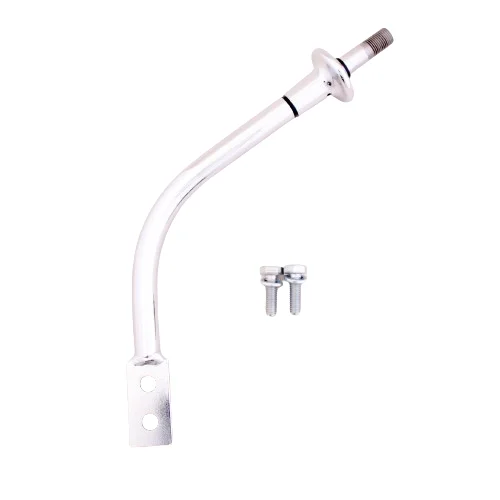

• OEM-style appearance matches original 1965-67 Mustang shifter aesthetic
• Chrome-plated high-strength steel construction for long-lasting finish
• Direct bolt-on compatibility with TREMEC T5, TKX, and T56 Magnum transmissions
• 8mm mounting holes on 7/8-inch center-to-center spacing
• 8.5-inch lever height for proper shift feel and reach
• 1/2-inch x 20 thread size for standard shift knob compatibility
• Includes complete mounting hardware for T5 shifters
• Simulated reverse lockout styling for period-correct appearance

Description

Swapping a modern five-speed into a classic Mustang creates a problem: the original shift lever won't bolt up to a TREMEC shifter, and generic levers look out of place in a period-correct interior. This OEM-appearance shift lever solves both issues by combining mid-'60s Mustang styling with the correct mounting pattern for modern TREMEC transmissions.

Built from high-strength steel with a chrome-plated finish, this lever replicates the factory design down to the simulated reverse lockout feature. The lockout is cosmetic only—it provides the correct visual cues without functional lockout action, since TREMEC transmissions handle reverse lockout internally. The 8mm mounting holes are precisely spaced at 7/8-inch center-to-center to bolt directly to stock T5 shifter mechanisms without modification.

At 8.5 inches tall, the lever delivers the proper shift feel and ergonomics that made the original setup intuitive. The 1/2-inch x 20 threaded tip accepts standard shift knobs, making it easy to complete your period-correct interior. If you're running an aftermarket shifter, you may need to enlarge the mounting holes to accommodate 3/8-inch bolts—but the included hardware covers stock T5 installations.

This lever is compatible with TREMEC T5, TKX, and T56 Magnum transmissions, making it ideal for vintage Mustang restorations and pro-touring builds that demand authentic styling without sacrificing modern driveline performance.

What's Included

• Chrome-plated high-strength steel shift lever (8.5-inch height)
• Complete mounting hardware for T5 shifter installation

OEM-Style Shift Lever | 1968 Mustang | T5, TKX, T56 Magnum

Key Features

• Authentic 1968 Mustang 4-speed appearance with simulated reverse lockout T-handle
• Chrome-plated high-strength steel construction for durability and show-quality finish
• 8mm mounting holes on 7/8-inch center-to-center spacing - bolts directly to stock T5 shifters
• 8.5-inch lever height positions the shift knob correctly for '68 interior ergonomics
• 1/2-20 thread accepts period-correct or modern shift knobs
• Compatible with TREMEC T5, TKX, and T56 Magnum transmissions
• Includes mounting hardware for OEM T5 shifter applications

Description

Five-speed swaps into classic Mustangs solve the highway droning problem, but they create a new one: a modern shift lever that looks completely out of place in a period-correct interior. This OEM-style shift lever delivers the authentic 1968 Mustang 4-speed appearance your build deserves while bolting directly to modern TREMEC transmissions.

The engineering centers on precision fitment. The 8mm mounting holes are positioned on 7/8-inch center-to-center spacing to bolt directly to stock T5 shifters without modification. When using aftermarket shifters, the mounting holes may need to be enlarged to accept 3/8-inch bolts. The chrome-plated high-strength steel construction provides both the durability for daily driving and the show-quality finish that restoration and restomod builds demand.

The simulated reverse lockout lever with T-handle captures the distinctive look of the original 1968 4-speed shifter. The lockout mechanism is non-functional since modern TREMEC transmissions don't use this feature, but the visual authenticity remains intact. The 8.5-inch lever height places the shift knob exactly where the factory intended, and the standard 1/2-20 thread accepts your choice of period-correct woodgrain knobs or modern alternatives.

This lever works with T5, TKX, and T56 Magnum transmissions, covering the most popular 5-speed and 6-speed conversion choices for classic Mustangs. If you're building a restomod that needs to look stock from the driver's seat, this is the shift lever that gets it done.

Kit Includes

• Chrome-plated high-strength steel shift lever with simulated reverse lockout
• Mounting hardware for OEM T5 shifters

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Exact reproduction of Ford OE part C5ZZ-7277-B - identical to original 3-speed and 4-speed boots
• Compression molded EPDM rubber construction with textured skin matching factory appearance
• Internal steel insert reinforcement - replicates OEM engineering for proper fit and durability
• Rectangular base with 4 mounting holes - uses existing factory hardware locations
• Designed for round OEM style shifter levers only
• Black finish matches original factory appearance
• Scott Drake quality - Ford-licensed reproduction parts manufacturer

Description

A cracked, dry-rotted, or missing shift boot ruins the cockpit appearance of your classic Mustang and lets dirt, debris, and noise flood through the transmission tunnel opening. This OEM style shift boot delivers an exact reproduction of Ford's original C5ZZ-7277-B part number, restoring the clean factory look to your shifter assembly while sealing the tunnel opening properly.

Scott Drake engineered this boot using compression molded EPDM rubber with a textured surface that precisely matches the original Ford piece. Unlike cheap aftermarket boots that look obviously wrong, this reproduction captures the exact appearance and feel of the factory component. The internal steel insert reinforces the base just like the originals, ensuring proper seating in the transmission tunnel opening and preventing the boot from collapsing or deforming during use.

The rectangular base mounts directly to your existing hardware locations with 4 mounting holes positioned to match the factory pattern. No cutting, trimming, or modification required - this is a direct replacement that installs in minutes. The upper opening is sized specifically for round OEM style shifter levers common to 3-speed and 4-speed manual transmissions of the era.

Compatible with 1965-1968 Ford Mustang models equipped with factory 3-speed or 4-speed manual transmissions using round shifter levers. For a complete restoration look, pair with the optional chrome bezel (see part number MD-321-1061-B).

Kit Includes

• 1 - Black EPDM rubber shift boot with internal steel insert (OE style reproduction)

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• OE-style chrome finish replicates factory appearance (OE# C5ZZ-7262-C)
• Steel construction with chrome plating for durability
• Rectangular/square base shape for correct fitment
• Designed for non-console manual transmission Mustangs
• Floater plate design for proper boot retention
• Compatible with shift boot MD-321-1061

Description

Nothing finishes off a manual transmission floor shift like a factory-correct bezel. This OE-style chrome shift boot retainer restores the clean, professional look Ford intended for 1965-1968 Mustang interiors equipped with manual transmissions and no center console. If your original bezel is pitted, scratched, or missing entirely, this reproduction brings back the polished detail that makes a restoration complete.

Constructed from steel with a bright chrome finish, this bezel matches the original Ford C5ZZ-7262-C part specification. The rectangular base shape and floater plate design ensure proper fitment and secure boot retention around the shifter opening. Unlike universal bezels that require modification, this piece drops in exactly where the factory part lived - no cutting, bending, or fabrication required.

Manufactured by Scott Drake - a leading supplier of classic Mustang reproduction parts - this bezel maintains the quality and dimensional accuracy restoration enthusiasts demand. Pair it with the matching MD-321-1061 shift boot for a complete, factory-correct shifter assembly that looks right whether you are building a concours show car or a weekend driver.

Direct fitment for 1965-1968 Ford Mustang models with manual transmission and no center console. Also compatible with Falcons and Cougars of the same era.

What's Included

• Chrome shift boot bezel/retainer - steel construction

Key Features

• OE reproduction of Ford part number C4ZB-7262-B with correct fitment
• High-quality chrome-accented surround trim over black camera case textured background
• Square base design for direct bolt-in installation on non-console applications
• Compatible with 3-speed, 4-speed, and 5-speed manual transmission shifters
• Includes period-correct mounting screw hardware

Description

If you're running a floor-mounted manual shifter in your '64-'68 Mustang without a console, the area around the shift lever can look unfinished or utilitarian. This deluxe chrome shift bezel solves that problem by framing your shifter with OEM-style trim that elevates the entire interior.

Originally designed for early Mustangs and Falcons, this reproduction bezel features the correct black camera case textured background with chrome-accented surround trim that matches the factory deluxe interior appearance. The square base configuration provides direct bolt-in fitment for non-console Mustang applications from 1964 through 1968.

Engineered for use with 3-speed and 4-speed factory shifters, this bezel also accommodates 5-speed conversion shifters, making it an ideal finishing piece whether you're restoring to stock or building a TKX or TKO swap. Purpose-built mounting screws are included for straightforward installation without sourcing additional hardware.

What's Included

• Deluxe shift bezel with chrome surround and black textured background
• Period-correct mounting screw hardware

Key Features

• OE-style deluxe shift bezel for non-console 1964-1968 Mustangs
• Satin chrome finish with black camera case textured background
• Die-cast zinc construction for long-lasting durability
• Square base shape fits 3-speed, 4-speed, and 5-speed manual shifters
• Purpose-built mounting screws included for direct installation
• Also fits 1967-1968 Mercury Cougar non-console applications
• OE part number C4ZB-7262-S

Description

Non-console Mustangs deserve better than a basic shifter boot floating on bare carpet. This deluxe floor-mounted shift bezel transforms the shifter area from utilitarian to upscale, providing the refined interior detailing that sets early Mustangs apart. Where standard bezels look plain and unfinished, this deluxe version adds show-quality trim without the bulk of a full center console.

The die-cast zinc construction delivers the heft and durability of the original Ford design, while the satin chrome finish strikes the perfect balance between show-quality appearance and daily-driver practicality. The black camera case textured background provides correct contrast to highlight the satin chrome trim ring, matching the factory aesthetic of deluxe-optioned Mustangs.

This OEM-style bezel is a direct-fit replacement for 1964-1968 Mustangs with standard manual transmissions. The square base shape works with 3-speed, 4-speed, and 5-speed manual shifters, making it equally suited for original restorations and modern 5-speed swaps. Installation is straightforward with the included purpose-built mounting screws that thread directly into the original floor pan holes. Also fits 1967-1968 Mercury Cougar non-console applications.

What's Included

• Deluxe shift bezel with satin chrome finish and black camera case textured background
• Purpose-built mounting screws

Speedometer Cable | 1967-1968 Mustang/Cougar | 5/8" Barrel | T5/TKO/TKX/AOD

Key Features

• 5/8" barrel-style connector matches factory Ford speedometer interface
• 63" overall length accommodates driver-side routing required by T5, TKO, and TKX transmissions [VERIFY: Product description states 63", key_features field states 59" - confirm correct length]
• Designed specifically for '67-'68 Mustang and Cougar five-speed and AOD conversions
• Compatible with Ford T5, TKO, TKX, and AOD transmissions
• Also fits Falcon conversions using MDL front-shift tailhousing or front-shift T5 packages

Description

When you swap from a factory four-speed to a modern T5, TKO, or TKX five-speed, the speedometer cable routing changes completely. These TREMEC transmissions position the mechanical speedometer drive on the driver's (left) side of the case, meaning your original cable won't reach - and trying to force an ill-fitting cable creates binding, premature wear, and inaccurate readings.

This application-specific speedometer cable solves that problem for '67-'68 Mustang and Cougar owners. The 5/8" barrel-style connector interfaces correctly with the Ford speedometer head, while the 63" overall length provides the reach needed for proper left-side routing without binding or excessive slack. The result is a clean installation that keeps your factory speedometer functioning accurately with your new overdrive transmission.

Beyond T5 and TKO/TKX manual swaps, this cable also works for AOD automatic conversions in '67-'68 Mustang and Cougar applications. Falcon owners converting to five-speed can use this cable when paired with MDL front-shift tailhousings or front-shift T5 packages. If you're upgrading to modern overdrive and want to keep your factory speedometer working, this is the cable that makes it happen.

What's Included

• Speedometer cable with 5/8" barrel connector (63" length)

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• Laser-cut steel construction with CNC bending for precise, repeatable fitment
• Designed for TREMEC TKX and low-profile TKO-500/TKO-600 transmissions
• Ideal for small block, big block, and Shaker Hood applications that must maintain engine placement
• Raises transmission height in the tunnel without requiring floor modifications
• Engineered for maximum exhaust system clearance
• Convertible-compatible design with generous speedometer cable clearance
• Also fits Ford AOD automatic transmissions
• Black powder coat finish for corrosion resistance and professional appearance
• Sub-frame mounting hardware included
• Made in the USA

Description

Swapping a TREMEC TKX or low-profile TKO into your '67-'73 Mustang or Cougar demands more than a generic crossmember. Shaker Hood cars and big block combinations require precise engine placement, and cutting up the tunnel to fit a modern 5-speed defeats the purpose of a clean swap. This MDL crossmember solves that problem by raising the transmission to the correct height in the tunnel without any floor modifications--keeping your firewall-to-bellhousing geometry intact and your sheet metal untouched.

Unlike bent-tube crossmembers that compromise on exhaust clearance, this laser-cut steel design is CNC bent for exacting fitment every time. The heavy-duty construction handles the demands of high-torque applications while the low-profile shape maximizes clearance for headers and dual exhaust systems. Convertible owners get the same bolt-in fit as coupe and fastback builders, and the design provides generous clearance for speedometer cable routing.

The black powder coat finish delivers lasting corrosion protection and a clean, professional appearance that matches the quality of your drivetrain upgrade. Complete sub-frame mounting hardware is included to simplify installation, and the crossmember also fits Ford AOD automatics for builders running automatic swaps. Manufactured by MDL in the USA, this crossmember delivers the precision fitment and structural integrity your build demands.

Kit Includes

• Laser-cut steel transmission crossmember with black powder coat finish
• Sub-frame mounting hardware
• Installation instructions

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
