TREMEC Ford TKX 5-Speed Transmission | 2.87 First, 0.68 Overdrive | 26-Spline

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) - deep overdrive drops highway RPM for improved cruising
• 26-spline input shaft (1-1/8-inch diameter), 31-spline output shaft
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21-inch Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Two shifter locations are standard; mid-position kit available separately
• High-performance billet aluminum short-throw shifter included
• Shifter Stub Locations: center line, 12.68”, 16.75” or 19.52” back from the bellhousing face
• Gaskets at all mating surfaces eliminate fluid leaks
• 99 lbs dry weight; 2.7-quart fluid capacity

Overview

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• High-performance short-throw billet aluminum shifter
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• OSS two-wire electronic speedometer sensor (built-in)
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (3.27, first gear with 0.72 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | 26-Spline Input, 31 Spline Output

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Shifter Stub Location: 16.75” or 19.52” back from the bellhousing face
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.81 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

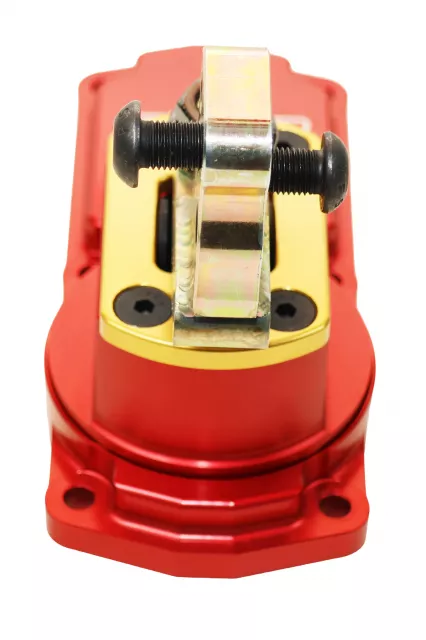

Key Features

• Short-throw design delivers crisp, precise shifts for TKX-equipped builds
• 1" or 1.5" backward offset positions shifter in factory location
• Precision-machined billet aluminum construction reduces weight
• 7/8 in. on-center mounting pattern fits most aftermarket shift levers
• Belleville washer detent system provides positive feedback for clean 2-3 shifts
• High-temperature lower dust boot seals transmission from contamination
• No-stops design allows easy servicing of the shifter when needed
• Rear shifter position with rear socket configuration
• Proudly crafted 100% in the USA

Description

Swapping a TREMEC TKX into your classic Mustang delivers modern shifting performance and 600 lb-ft torque capacity, but getting the shifter in the right spot can be a challenge. The Qwik Stik solves that problem with a precision-machined assembly that positions your shift lever exactly where Ford originally intended it to be in '65-'73 Mustangs.

The engineering starts with billet aluminum plates that mount directly to the TKX transmission case, eliminating guesswork and shimming. The 1" or 1.5" backward offset brings the shifter stub into the factory console location, maintaining proper ergonomics without hacking up your tunnel or console. Belleville washers provide the detent feel that makes 2-3 shifts crisp and confident under aggressive driving. Unlike designs that rely on internal stops, this stopless configuration simplifies maintenance when servicing is required.

The 7/8 in. on-center mounting pattern on the shifter stub accepts most aftermarket shift levers, so you can run the lever and knob that fits your build. A high-temperature lower dust boot protects the transmission internals from debris and contamination. Mount up, attach your shift lever, boot, and knob, and you are ready to go.

Engineered specifically for 1965-1973 Mustangs running TREMEC TKX transmissions. Proudly crafted 100% in the USA with lifetime technical support from Modern Driveline.

Kit Includes

• Precision-machined billet aluminum shifter base plate - anodized finish
• Shifter stub assembly with 7/8 in. on-center mounting
• Belleville washer detent system
• High-temperature lower dust boot
• Mounting hardware
• Lifetime technical support

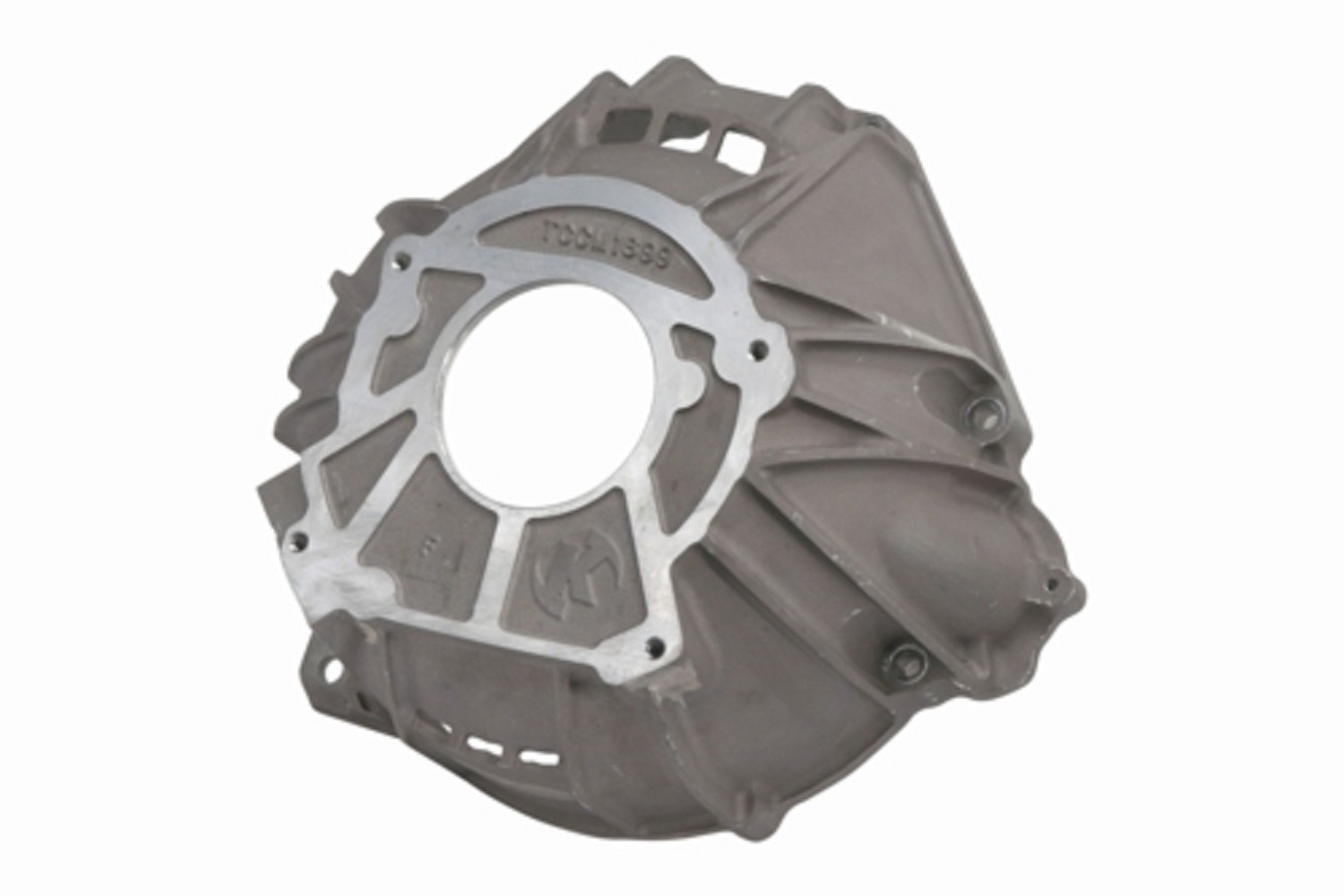

Key Features

• TREMEC model TCCM1899 / Ford Performance part number M-6392-M46
• Direct bolt-up to TREMEC 3550, TKO-500, TKO-600, and TKX transmissions - no adapters required
• Cast aluminum construction with all factory mounting positions
• 7:00 o'clock fork position for optimized header clearance
• Compatible with cable clutch release, internal hydraulic throwout bearings, and external slave cylinders
• Fits Ford 4.6L, 5.0L 4V Ti-VCT (Coyote), and 5.4L modular engines
• Made in the USA

Description

Upgrading your Ford Modular V8 to a TREMEC 5-speed? Factory Ford transmissions use a different bolt pattern than TREMEC units, making a proper bellhousing essential for any modular-to-TREMEC conversion. This Ford Performance cast aluminum bellhousing (M-6392-M46 / TREMEC TCCM1899) provides direct bolt-up compatibility between 4.6L, 5.0L 4V Ti-VCT, and 5.4L modular engines and TREMEC 3550, TKO-500, TKO-600, or TKX transmissions - no cutting, grinding, or adapter plates required.

Cast aluminum construction keeps weight down while maintaining OEM-level durability for street builds. All factory mounting positions are retained for straightforward installation, though minor modifications may be required for transmission clearance in some vehicle applications. The 7:00 o'clock fork opening position provides optimal clearance around long tube headers while maintaining proper clutch geometry.

This bellhousing supports multiple clutch actuation methods. Factory cable setups bolt right in, while internal hydraulic throwout bearings and external slave cylinders mount without modification. Whether you're building a street cruiser or track car, the versatility accommodates your preferred clutch release system.

Requires block plate MD-401-1106 for complete installation. Can also be used with Ford Performance starter index plate M-7007-A, clutch release lever M-7515-A, and bellhousing installation kit M-7771-A. Made in the USA with Ford Performance quality standards.

What's Included

• Cast aluminum bellhousing (Ford Performance M-6392-M46 / TREMEC TCCM1899)
• Clutch lever pivot
• Clutch lever cover and Hardware

Key Features

• Spun steel cone construction - not stamped or rolled - delivers twice the strength of conventional steel bellhousings while work hardening to over 80,000 PSI
• 6.925-inch depth clears 164-tooth flywheel with 11-inch clutch; transmission bore of 4.685/4.910 inches
• Lightweight 20-pound construction without sacrificing protection or dimensional stability
• Maintains pinpoint engine-to-transmission alignment through entire RPM range, eliminating drivetrain wear from bellhousing flex
• Patent pending on 16 points of bellhousing design and manufacturing process
• Universal fork bracket accommodates both diaphragm and cable-operated linkage
• 100% Made in the USA with Grade 8 hardware included

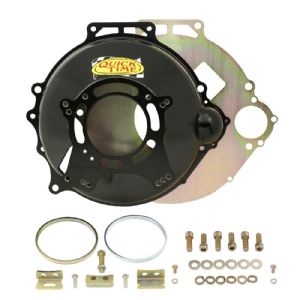

Description

When you're mating a Ford Modular engine to a TREMEC transmission, the bellhousing is the critical link that determines whether your drivetrain operates with precision or suffers from alignment issues that accelerate wear on input shaft bearings, pilot bushings, and clutch components. This QuickTime bellhousing eliminates those problems with spun steel cone construction that delivers dimensional accuracy lesser housings simply cannot match.

Unlike stamped or rolled bellhousings that can flex under load and lose concentricity, QuickTime's proprietary spin-forming process produces a cone that work-hardens to over 80,000 PSI - more than twice the strength of other steel bellhousings. That strength-to-weight ratio allows QuickTime to deliver a 20-pound bellhousing that keeps your engine and transmission in perfect alignment throughout the entire RPM range. The result is reduced drivetrain wear, smoother clutch engagement, and improved power transfer.

This bellhousing connects 4.6L, 5.0L (Coyote), 5.4L, 5.8L, and 6.2L Ford Modular engines to Ford TKX, TKO 500-600, TR3550, and T5 Mustang transmissions. With 6.925 inches of depth, it clears 164-tooth flywheels paired with 11-inch clutches. The universal transmission bore (4.685/4.910 inches) ensures proper fit across the supported transmission range. Universal shifter fork brackets work with both diaphragm and cable-operated linkage.

QuickTime was founded by former race car driver Ross McCombs, who developed his own bellhousings to withstand the rigors of dirt track racing. That racing DNA shows in every detail - from the patent-pending 16-point design to the Grade 8 hardware included with every kit. For SFI-certified applications, see part numbers RM-6081 and RM-6082.

What's Included

• QuickTime spun steel bellhousing, black painted finish
• Full engine block plate
• Pivot ball
• Universal fork brackets (for diaphragm or cable-operated linkage)
• Grade 8 mounting hardware
• Installation instructions
• Lifetime technical support from MDL

Key Features

• SFI 6.1 certified steel scatter shield - required for 11.49-second or quicker quarter-mile runs
• Spun cone construction - not rolled or stamped - delivers superior dimensional stability and concentricity
• High-grade steel work-hardens to over 80,000 PSI strength
• Over twice the strength of other steel bellhousings on the market
• 6.925-inch depth clears 157 or 164-tooth flywheels with 11-inch clutch assemblies
• Universal transmission bore: 4.685-4.910 inches accommodates TKO, TKX, T5, and TR3550 transmissions
• Universal fork brackets for cable or hydraulic clutch operation
• MIG-welded thread inserts for transmission mounting, pivot ball, and linkage brackets
• Durable powder-coated finish for corrosion resistance
• Weight: approximately 22 pounds
• 100% Made in the USA

Description

This QuickTime RM-6081 bellhousing bridges Ford's modular V8 engines to proven TREMEC 5-speed transmissions, delivering the strength and precision that serious builds demand. Designed for circle track, drag strip, or aggressive street duty, this SFI 6.1 certified scatter shield meets the safety requirements for vehicles running 11.49 seconds or quicker in the quarter mile - and provides peace of mind for any high-horsepower application where clutch containment matters.

The engineering advantage starts with QuickTime's proprietary manufacturing process. The cone is spun - not rolled or stamped like inferior bellhousings - creating the most dimensionally stable and accurate bellhousing available. This precision maintains perfect engine-to-transmission alignment through the entire RPM range, eliminating the flex-induced wear that kills pilot bearings, input shaft bushings, and synchronizers. Built from high-grade steel that work-hardens to over 80,000 PSI, this bellhousing delivers more than twice the strength of competing steel units while keeping weight to approximately 22 pounds.

Application coverage spans Ford 4.6L and 5.4L modular engines to Ford-pattern TREMEC transmissions including the TKO-500, TKO-600, TKX, TR3550, and T5 Mustang. The 6.925-inch bellhousing depth accommodates both 157-tooth and 164-tooth flywheels paired with clutches up to 11 inches in diameter. The universal transmission bore (4.685-4.910 inches) ensures compatibility across all supported transmission models without modification. Universal fork brackets accept both cable and hydraulic clutch release systems, giving you flexibility in your clutch actuation setup.

Every QuickTime bellhousing features MIG-welded thread inserts for the transmission mounting points, clutch fork pivot ball, and linkage brackets - delivering professional fit and long-term durability that riveted or pressed-in inserts cannot match. The durable powder-coated finish provides years of corrosion-free service. Engineered with input from OEMs, engine builders, transmission builders, and racers, this bellhousing represents the standard for Ford modular drivetrain conversions. Made 100% in the USA.

Kit Includes

• QuickTime RM-6081 steel bellhousing with powder-coated finish
• Full engine block plate
• Pivot ball
• Universal fork brackets
• Grade 8 mounting hardware (bellhousing to engine block)
• Installation instructions

Note: Transmission-to-bellhousing bolts sold separately (see QuickTime RM-172).

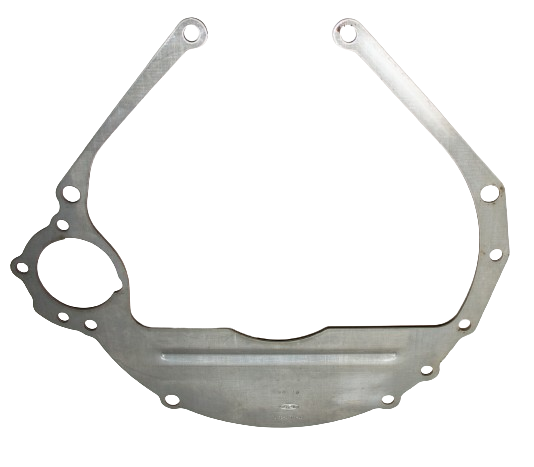

Key Features

• 0.080-inch steel construction for durability and flywheel/clutch containment
• Positions starter for precise ring gear alignment - eliminates grinding and premature wear
• Fits Ford Modular 4.6L, 5.0L Coyote, and 5.4L engines with manual transmissions
• Works with aluminum bellhousings for T45, 3650, and T56 Magnum transmissions
• Bolt-on installation - no modifications required to block or bellhousing
• Equivalent to Ford Racing M-7007-A specification
• Made in the USA

Description

Proper starter-to-flywheel alignment is non-negotiable on Ford Modular engines running manual transmissions. Misalignment causes grinding engagement, premature starter failure, and ring gear damage - problems that only get worse over time. This steel starter index plate solves the issue by positioning the starter precisely where it needs to be for clean, consistent engagement every time.

The plate installs between the engine block and bellhousing, indexing the starter to ensure optimal starter drive to flywheel ring gear alignment. Built from 0.080-inch steel, the plate provides the strength needed to help contain flywheel or clutch breakage while maintaining that critical starter position under all operating conditions. The steel construction also protects the engine block face from direct contact with the bellhousing.

Engineered specifically for Ford Modular 4.6L, 5.0L Coyote, and 5.4L engines, this plate works with aluminum bellhousings for T45, 3650, and T56 Magnum transmissions. Installation is straightforward bolt-on - no modifications to the bellhousing or engine block required. Equivalent to Ford Racing M-7007-A, so you get OEM-spec fitment and performance. Note: Does not fit the Ford GT supercar application.

What's Included

• Steel starter index plate (0.080-inch thick, natural finish)

Key Features

• Grade 8 fasteners with black phosphate and oil finish for corrosion resistance
• Complete hardware set eliminates hunting for individual bolts at the hardware store
• Designed specifically for Ford T5 transmissions paired with aluminum bellhousings
• Professional-grade strength for reliable transmission mounting

Description

Nothing derails a transmission swap faster than missing or mismatched hardware. This complete install hardware kit delivers all the fasteners needed to properly secure your Ford T5 transmission to an aluminum bellhousing, saving you from the frustration of chasing down individual bolts with oddball thread pitches and head sizes.

Every fastener in this kit is Grade 8 construction, providing superior tensile strength compared to factory hardware or generic hardware-store bolts. The black phosphate and oil treatment delivers excellent corrosion resistance, ensuring your installation hardware won't rust out and compromise critical mounting points over time. These fasteners are purpose-built for this application - no sorting through bins at the hardware store trying to find the right combination of thread pitch, length, and head size.

Whether you're completing a T5 swap, refreshing a tired installation, or replacing hardware that was lost or damaged during a teardown, this kit gets you back to wrenching instead of hunting parts. Compatible with Ford T5 transmissions and aluminum bellhousing applications across most Ford platforms.

What's Included

• Complete set of Grade 8 fasteners with black phosphate and oil treatment
• All necessary mounting hardware for Ford T5 to aluminum bellhousing installation

Key Features

• Complete fastener set for mounting Ford T5 transmission to Small Block Ford steel bellhousing
• Metric thread transmission-to-bellhousing bolts sized specifically for T5 applications
• Eliminates hardware store guesswork with correct thread pitch, length, and head style
• Proper fastener grade for secure drivetrain connection
• Direct replacement for worn, stripped, or missing factory hardware

Description

Installing a Ford T5 transmission with a steel bellhousing means dealing with hardware that's easy to get wrong. The T5's transmission-to-bellhousing bolts are metric thread--a detail that catches many builders off guard when mixing SAE and metric fasteners. This install hardware kit from MDL provides the correct fasteners for Small Block Ford steel bellhousing applications, so you're not hunting through bins at the hardware store trying to match thread pitch and head size.

Steel bellhousings require specific bolt lengths and configurations that differ from aluminum bellhousing setups. This kit is assembled specifically for SBF steel bellhousing applications, ensuring proper thread engagement and secure mounting. Whether you're completing a 5-speed swap, replacing corroded hardware during a rebuild, or upgrading from a worn factory set, having the right fasteners eliminates fitment headaches.

The kit includes all necessary fasteners to complete the bellhousing-to-transmission connection. Each component is selected for the correct thread size and grade to handle the loads a drivetrain connection demands.

What's Included

• Transmission-to-bellhousing mounting bolts (metric thread) [VERIFY: exact quantity and dimensions]
• Associated washers and hardware as required for steel bellhousing installation [VERIFY: complete contents list]

Key Features

• Cast iron construction for superior heat absorption and thermal stability in street-driven applications
• 164-tooth ring gear with 11-inch clutch pattern (10.4-inch metric bolt circle)
• 6-bolt crankshaft pattern for Ford 4.6L "large valley" Romeo-built engines
• Zero-balanced design for internally balanced 4.6L modular engines
• Includes alignment pins for precise clutch installation and proper component positioning
• Direct fitment for 1996-June 1999 and 2001-2010 Mustang GT applications

Description

Street-driven 4.6L Mustangs need a flywheel that can handle daily abuse without warping or developing hot spots. Cast iron's superior thermal mass absorbs repeated clutch engagements far better than lightweight alternatives, making it the ideal choice for commuter cars, weekend cruisers, and moderate-power builds where longevity matters more than shaving rotating weight.

This flywheel is engineered specifically for Ford's 4.6L modular engines with the 6-bolt "large valley" crankshaft configuration. Romeo-built 4.6L engines use this 6-bolt pattern, while Windsor-built and Cobra engines use an 8-bolt configuration--so verify your engine's build before ordering. The zero-balanced design works with the internally balanced rotating assembly found in all 4.6L SOHC engines, eliminating the external counterweights required by older Ford V8s.

The 164-tooth ring gear ensures reliable starter engagement across all temperature conditions, while the 11-inch clutch pattern with 10.4-inch metric bolt circle accommodates standard diaphragm pressure plates from the modular Mustang era. Alignment pins are included to guarantee proper clutch disc and pressure plate positioning during installation.

Compatible with 1996-June 1999 and 2001-2010 Mustang GT vehicles equipped with the 4.6L 2V SOHC engine. [VERIFY: Why is the year 2000 excluded from fitment? Confirm whether this is intentional due to a mid-year engineering change or if it should be included.]

What's Included

• Cast iron flywheel with 164-tooth ring gear
• Alignment pins for clutch installation

Key Features

• Cast steel construction with 164-tooth ring gear for reliable starter engagement
• 8-bolt crankshaft mounting pattern fits 1999-2010 Mustang GT, 2001-2004 Cobra, and 2011+ 5.0L Coyote engines
• Zero balance (internally balanced) design - no counterweight balancing required
• 11" clutch bolt pattern with 12-3/8" equal spacing for metric 11" diaphragm clutches
• Cost-effective OE-style replacement for street-driven applications
• Single-disc clutch compatible

Description

When your high-mileage Mustang starts showing signs of a worn clutch surface or you need a reliable flywheel for a stock rebuild, this cast steel unit delivers OE-quality fitment without the premium price of billet. Designed specifically for Ford's 4.6L and 5.0L modular engine family with the 8-bolt crankshaft pattern, this flywheel provides the mass and durability street-driven vehicles need for smooth engagement and everyday drivability.

The 164-tooth ring gear ensures proper starter motor mesh across the full range of compatible applications - from '99-'10 Mustang GTs and '01-'04 SVT Cobras to modern 5.0L Coyote swaps. Zero balance (internally balanced) construction means you won't need additional counterweight balancing during installation, simplifying the job whether you're working in a professional shop or your home garage.

Cast steel offers the ideal combination of rotating mass and affordability for daily drivers and mild performance builds. The added inertia helps smooth out clutch engagement at low speeds - a real advantage over lightweight aluminum or billet units that can feel grabby in stop-and-go traffic. For dedicated track cars or high-RPM racing applications, billet steel is the better choice, but for street use and moderate performance, cast steel delivers proven reliability.

The 11" clutch bolt pattern features 12-3/8" equal spacing holes drilled for metric diaphragm pressure plates, ensuring compatibility with both OEM and aftermarket 11" clutch systems. Direct bolt-on fitment for your 4.6L 2V/4V or 5.0L Coyote manual transmission application.

What's Included

• Cast steel flywheel with integrated 164-tooth ring gear
• 8-bolt crankshaft mounting pattern
• Zero balance design (no counterweight required)
• Pins included

Key Features

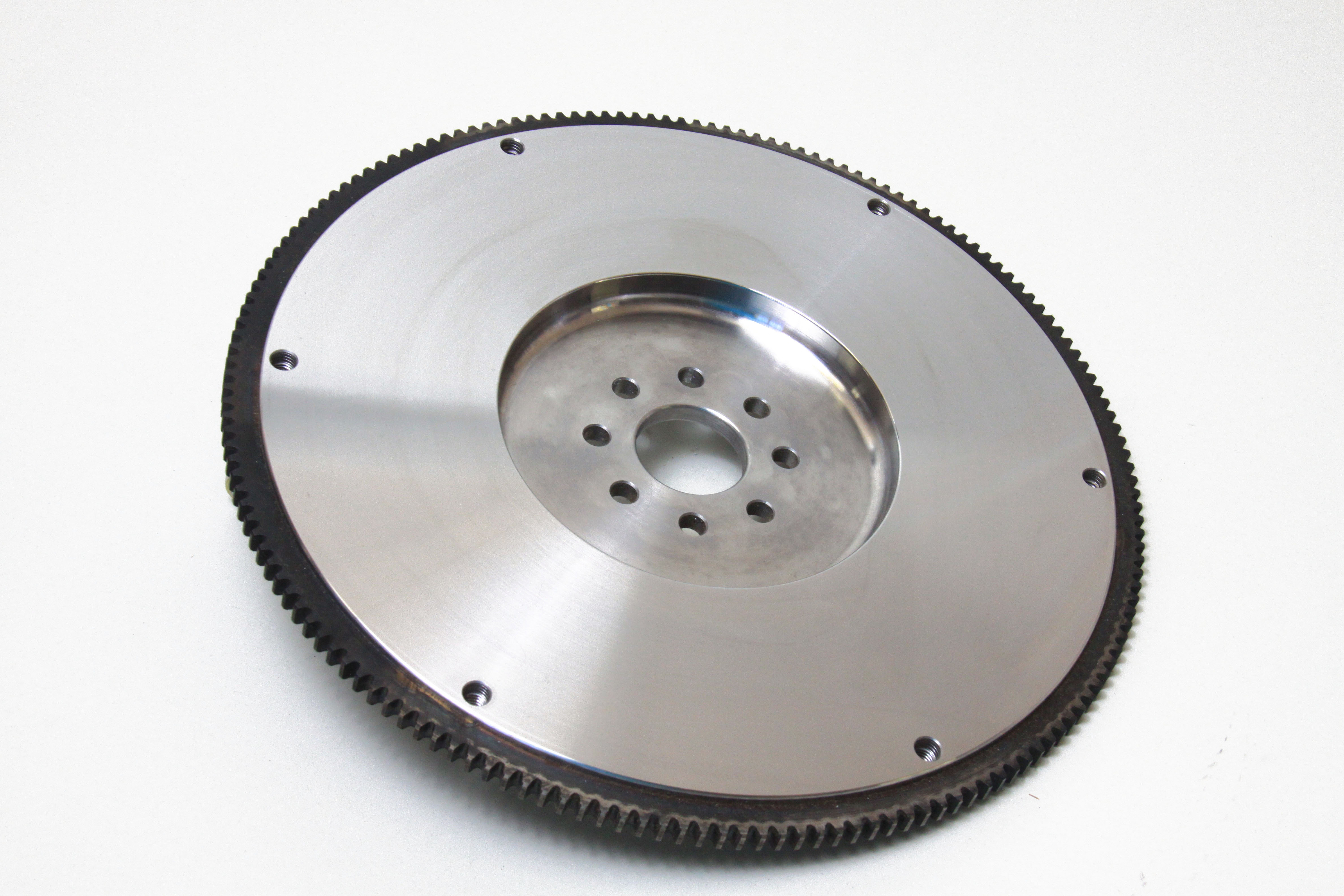

• 27-pound lightened billet steel construction reduces rotational mass versus heavy factory cast iron
• 8-bolt crank pattern for secure mounting to Ford Modular, Coyote, and Roadrunner crankshafts
• 164-tooth ring gear for proper starter engagement
• Dual clutch bolt patterns: 10.4" metric (8mm) and 11" metric (10mm) for maximum pressure plate compatibility
• Small clutch valley design accommodates single-disk and twin-disk aftermarket clutch systems
• Zero-balance design works with internally balanced Ford Modular engines
• Precision-machined alignment pins included for accurate clutch installation
• Made in the USA

Description

Factory cast iron flywheels add significant rotational mass that slows engine acceleration and dulls throttle response. This lightened billet steel flywheel cuts weight to just 27 pounds, reducing the rotating assembly mass your engine has to spin. The result is faster revs, sharper throttle response, and quicker shifts—whether you're running through the gears on the street or chasing lap times at the track.

Machined from billet steel, this flywheel delivers the durability needed for repeated high-RPM use while significantly undercutting factory weight. The 8-bolt crank pattern ensures secure attachment to the crankshaft, and the 164-tooth ring gear maintains compatibility with factory starters. Zero-balance design means no external weights are required—it bolts directly to internally balanced Ford Modular and Coyote engines.

The dual clutch bolt pattern is a standout feature. Both 10.4" metric (8mm) and 11" metric (10mm) patterns are machined into the friction surface, giving you the flexibility to run virtually any aftermarket clutch setup. The small clutch valley design takes compatibility further, accommodating everything from street-friendly single-disk clutches to high-performance twin-disk racing units. Precision-machined alignment pins ensure the clutch disc centers properly during installation.

This flywheel fits 1996-1999 and 2000-up Mustang Cobra models, 1999-2000 Mustang GT, 2005-2010 Mustang GT 4.6L, and 2011-current 5.0L/5.2L Coyote and Roadrunner V8 applications. Proudly made in the USA.

Kit Includes

• One (1) lightened billet steel flywheel with 164-tooth ring gear
• Precision-machined alignment pins

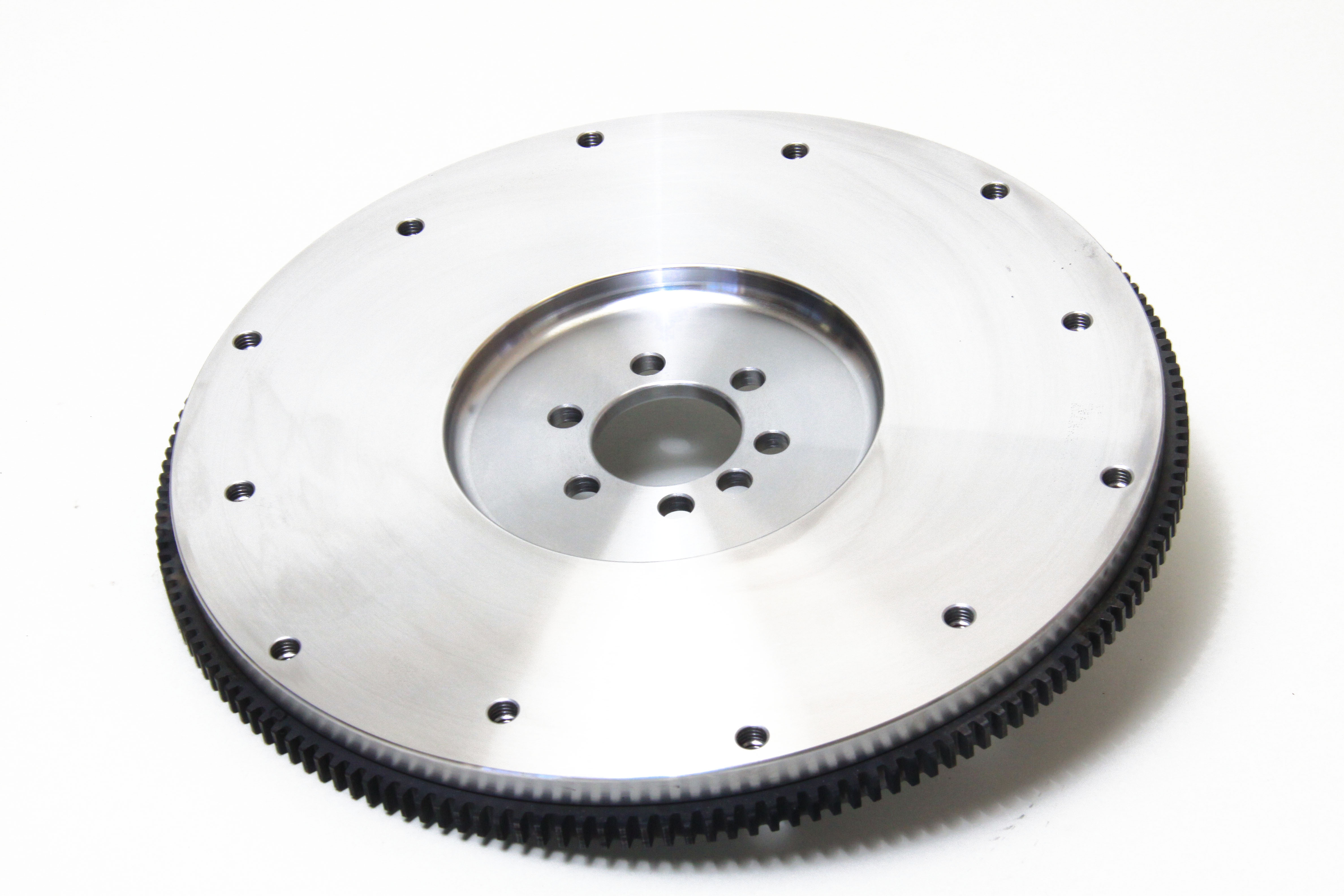

Key Features

• Designed for Ford 4.6L Modular engines with 6-bolt crankshaft configuration (Romeo-type engines)
• Dual clutch bolt pattern accepts both 10.4" and 11" pressure plates with metric bolts and dowel pins
• Lightened billet steel construction reduces rotational mass while maintaining strength for high-performance applications
• 164-tooth ring gear for proper starter motor engagement
• Zero balanced from the factory for smooth, vibration-free operation
• 27-pound weight optimizes throttle response and acceleration over heavier OEM flywheels
• Made in the USA with precision CNC machining

Description

Ford's 4.6L Modular V8 came from two different plants with distinct crankshaft configurations: Romeo engines use a 6-bolt flywheel flange, while Windsor engines use an 8-bolt pattern. This lightened billet steel flywheel is purpose-built for the 6-bolt Romeo configuration, giving you a drop-in solution for manual transmission conversions and clutch upgrades on properly matched 4.6L applications.

The dual bolt pattern design accommodates both 10.4" and 11" clutch assemblies, using metric pressure plate bolts and alignment dowel pins. This flexibility lets you choose the clutch setup that best matches your power level and driving style without buying a different flywheel. The 164-tooth ring gear ensures reliable starter engagement, and the zero-balance specification eliminates vibration concerns in your drivetrain.

Machined from billet steel rather than cast iron, this flywheel delivers superior strength for high-horsepower applications while shedding rotational mass. At 27 pounds, it provides noticeably quicker throttle response and faster acceleration compared to heavy factory flywheels, without sacrificing the durability needed for street driving or track use. CNC machining ensures precise tolerances and perfect crankshaft registration every time.

Made in the USA with MDL's commitment to quality and backed by lifetime technical support. Verify your engine's bolt count before ordering, as Romeo (6-bolt) and Windsor (8-bolt) engines are not interchangeable, even though both are 4.6L Modular V8s.

What's Included

• One lightened billet steel flywheel (27 lbs)
• 164-tooth ring gear pre-installed
• Zero balanced assembly
• Dowel pins included
• MDL lifetime technical support

Key Features

• 8740 chromoly steel construction rated at 180,000 psi tensile strength
• 12-point head design with 5/8" socket size for precise torque application
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• M10 x 1.00 thread pitch with 1.000" Under Head Length (UHL)
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• Black oxide finish for corrosion resistance
• 8-piece kit covers all Ford 4.6L and 5.4L modular V8 applications
• Made in the USA

Description

Factory flywheel bolts are the weak link in high-performance Ford modular builds. Stock hardware uses inferior metallurgy and undersized shanks that stretch under load, leading to flywheel movement, clutch chatter, and potential failure. These ARP flywheel bolts eliminate that vulnerability with aerospace-grade 8740 chromoly steel engineered specifically for the demanding duty cycle of performance applications.

These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining. They feature an exclusive, flat 12-point head design and larger-than-stock shank diameter for increased strength and improved flywheel register. The 12-point head provides superior grip and prevents rounding during installation, while the increased shank diameter distributes clamping loads more effectively across the flywheel mounting surface.

Each bolt is precision-machined to M10 x 1.00 specifications with a 1.000" Under Head Length designed specifically for Ford modular cranks. The chromoly construction delivers a 180,000 psi tensile strength rating--vastly superior fatigue resistance compared to factory hardware. This makes these bolts ideal for naturally aspirated engines, forced induction setups, and high-RPM applications where flywheel security is critical.

This kit fits all Ford 4.6L and 5.4L modular V8 engines. Installation requires proper torque sequencing in a star pattern. Made in the USA and backed by ARP's industry-leading quality standards.

What's Included

• 8 x ARP 8740 chromoly flywheel bolts (M10 x 1.00 x 1.000" UHL, 12-point head, black oxide finish)
• Installation grease packet for proper assembly lubrication
• Manufacturer's warranty against defects

Key Features

• Heat-treated chromoly steel forged from aerospace alloy for superior tensile strength
• Flat 12-point head design with larger-than-stock shank diameter for improved flywheel register
• M10 x 1.00 thread pitch with 0.975-inch under-head length
• Black oxide finish for corrosion resistance
• 3/4-inch 12-point socket size for professional installation
• Complete 8-piece kit with installation grease included
• Made in the USA

Description

Flywheel bolt failure is a catastrophic event that can destroy transmissions, flywheels, and pressure plates in seconds. These bolts secure the flywheel to the crankshaft, making their integrity critical to your drivetrain's safety and performance—especially when pushing the 5.0L Coyote to 7,000+ RPM. ARP's engineering addresses this vulnerability with fasteners that far exceed OEM specifications.

Forged from aerospace alloy and heat-treated prior to thread rolling and machining, these ARP flywheel bolts deliver the strength needed for high-RPM operation and competition use. The exclusive flat 12-point head design features a larger-than-stock shank diameter for increased strength and improved flywheel register. The wider diameter bolt head allows for more even distribution of torque across the flywheel to reduce stress, fatigue, and prevent cracking.

The black oxide finish provides corrosion protection while maintaining the precise tolerances required for proper clamping force distribution. Each bolt features rolled threads for superior fatigue resistance compared to cut threads, and the included installation grease ensures proper torque values during assembly.

Engineered specifically for Ford Coyote 5.0L applications. This is a direct replacement for factory flywheel bolts with significantly improved strength characteristics. Made in the USA with ARP's legendary quality control standards.

What's Included

• 8 ARP flywheel bolts—M10 x 1.00 thread, 0.975-inch UHL, chromoly steel
• Black oxide finish
• Installation grease packet
• Manufacturer's warranty against defects

[VERIFY: Sources conflict on whether part number 156-2801 is High Performance Series (180,000 psi tensile strength) or Pro Series (190,000-200,000 psi). Summit Racing and JEGS list as Pro Series, while Steeda lists as High Performance at 180,000 psi. Need to confirm actual series designation and tensile strength rating before publishing.]

Key Features

• Steel-backed organic facing rated at 450 ft-lb torque capacity for performance street applications
• 26-spline 1-1/8" hub designed for TREMEC TKX, TKO, and T56 Magnum transmission swaps
• Ford 11" metric 10mm diaphragm pressure plate with hydraulic release finger profile
• Hand-assembled in-house with precision tolerances and quality-controlled inspection
• Sprung hub design for smooth engagement and reduced drivetrain shock
• Made in the USA with 1-year warranty coverage

Description

Swapping a TREMEC 5- or 6-speed into your S197 or S550 Mustang means leaving behind the factory 10-spline clutch setup. This Superior Series steel-backed organic clutch kit delivers the 26-spline hub configuration and 450 ft-lb torque capacity your modern manual swap demands, with smooth engagement characteristics suited for aggressive street driving.

The steel backing plate construction provides superior heat dissipation compared to standard organic discs, extending clutch life under spirited driving conditions. The organic facing material maintains the progressive engagement feel that makes daily driving livable while still holding up to moderate power adders. Each clutch disc is hand-assembled in-house at MDL, with precision tolerances verified before shipping to ensure flawless operation straight out of the box.

The included diaphragm pressure plate features hydraulic release finger geometry optimized for modern slave cylinder actuation systems. The 11" metric 10mm bolt pattern provides the larger friction surface needed for increased holding power while maintaining compatibility with factory and aftermarket flywheels designed for this pattern. The sprung hub design absorbs drivetrain shock and smooths gear engagement.

This kit fits 4.6L and 5.0L Coyote engines in 2005-2025 Mustangs. Note that no throwout bearing is included; this kit is designed for hydraulic release systems using an internal or external slave cylinder. All MDL Superior clutches are Performance Proven through rigorous racing applications. Made in the USA.

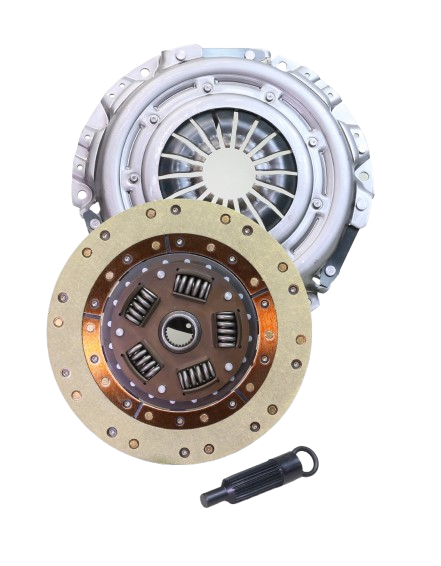

What's Included

• Ford 11" metric 10mm pattern diaphragm pressure plate with hydraulic release finger profile
• 26-spline 1-1/8" steel-backed organic clutch disc with sprung hub
• Pilot bearing
• Clutch alignment tool
• Lifetime technical support

Key Features

• 450 ft-lb torque rating - handles serious street performance builds
• Kevlar/steel backed organic facings - smooth engagement with enhanced durability
• Ford 11" metric 10mm pattern diaphragm pressure plate with clutch finger profile for hydraulic release
• 26-spline x 1-1/8" sprung hub disk - fits stock and upgraded transmissions
• Hand-built in-house with double-checked tolerances before shipping
• 1-year free-from-defect warranty
• Made in the USA

Description

Built for 2005-up Mustang owners who demand more than factory clutch performance, this Superior clutch set delivers the grip and longevity needed for modified 4.6L and 5.0L Coyote engines. The Kevlar facing paired with steel-backed organic material creates the ideal balance - aggressive enough to handle 450 ft-lb of torque yet smooth enough for daily driving without the harshness of a full race setup.

The engineering centers on the diaphragm pressure plate's clutch finger profile specifically designed for hydraulic release systems used in S197 and S550 Mustangs. This design ensures consistent clamp load and clean engagement across the full operating range, eliminating the binding and grabbiness common with generic aftermarket clutches that weren't designed around hydraulic actuation.

Each clutch disk is hand-built at MDL's facility in Caldwell, Idaho, and inspected twice for exacting tolerances before it goes in the box. The sprung hub design absorbs driveline shock and reduces gear rattle, keeping the clutch streetable while you're making power. This Performance Street Plus rated clutch handles bolt-ons, aggressive tuning, and spirited driving without compromise.

The 26-spline x 1-1/8" hub works with factory MT-82 transmissions as well as popular aftermarket swaps like the TKX, TKO, and T56 Magnum. Proudly made in the USA and backed by MDL's 1-year warranty.

What's Included

• Ford 11" metric 10mm pattern diaphragm pressure plate (hydraulic release finger profile)
• 26-spline x 1-1/8" clutch disk with Kevlar/steel backed organic facings and sprung hub
• Pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty

Note: No throwout bearing is included with this kit.

Key Features

• 550 ft-lbs torque capacity - engineered for performance street and open track applications
• Kevlar/Kevlar friction surfaces - smooth engagement with exceptional grip and heat resistance
• 26-spline x 1-1/8" input shaft compatibility - matches 2005-up Mustang transmissions
• 11" metric bolt pattern with 10mm hardware - direct fit for Ford modular engines with hydraulic actuation
• Sprung hub design - dampens drivetrain shock and reduces gear rattle
• Diaphragm pressure plate - consistent clamping force across the entire friction surface
• Hand-assembled in-house at MDL - double-riveted construction ensures precision and quality
• Performance Proven tested - validated through rigorous on-track and off-track racing
• 1-year defect-free warranty - backed by MDL commitment to quality

Description

When your 2005-up Mustang needs reliable power transfer for street performance or open track duty, this MDL Superior clutch kit delivers the grip and durability you need. Built specifically for Ford 4.6L and 5.0L modular engines making up to 550 ft-lbs of torque, this clutch solves the common problem of stock clutches slipping under power while maintaining the smooth engagement characteristics essential for daily driving.

The Kevlar/Kevlar friction material combination provides an ideal balance of holding power and heat dissipation. Unlike organic materials that fade under repeated high-heat cycles, Kevlar maintains its coefficient of friction even during aggressive driving. The dual Kevlar surfaces offer progressive engagement - firm enough to handle launches and power shifts, yet forgiving enough for smooth street manners. The sprung hub design absorbs drivetrain shock loads that would otherwise stress the transmission input shaft, while reducing the gear rattle common with solid hub designs.

Every MDL Superior clutch is hand-assembled in-house using precision manufacturing standards. The friction material is double-riveted to the backing plates - not bonded - ensuring the facings stay attached under extreme conditions. The diaphragm pressure plate provides consistent clamping force across the entire friction surface, while the hydraulic actuation system eliminates the cable stretch and adjustment issues associated with mechanical linkages.

Compatible with 2005 and newer Ford Mustang applications using the 26-spline x 1-1/8" input shaft configuration and 11" metric flywheel bolt pattern. This kit is designed for hydraulic release systems and fits 4.6L and 5.0L Coyote modular engines. Made in the USA and backed by MDL's 1-year defect-free warranty.

What's Included

• 11" diaphragm pressure plate - metric 10mm bolt pattern, hydraulic release
• Kevlar/Kevlar friction disk - 26-spline x 1-1/8", sprung hub, double-riveted
• Pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year defect-free warranty
• Lifetime technical support

Superior Kevlar/Ceramic Clutch Kit | 2005-2025 Mustang 4.6L/5.0L | 26-Spline

Key Features

• 600 lb-ft torque capacity for aggressive street/strip applications
• Kevlar/ceramic dual-compound disc combines durability with aggressive bite
• 11-inch metric diaphragm pressure plate with 10mm bolt pattern
• 26-spline, 1-1/8-inch disc for increased strength over factory 10-spline
• Sprung hub design dampens driveline shock for smoother engagement
• Hydraulic clutch finger profile engineered for factory-style hydraulic release
• Hand-built in-house with double-checked tolerances
• Made in the USA
• 1-year defect-free warranty

Description

When your modular Mustang needs a clutch that can survive hard launches without sacrificing daily drivability, the Superior Kevlar/Ceramic Clutch Kit delivers 600 lb-ft of torque capacity in a street-friendly package. This kit is engineered for the enthusiast who demands real holding power from their 4.6L or 5.0L Coyote without the harsh, on-off engagement of a full-ceramic disc.

The dual-compound Kevlar/ceramic disc is the heart of this upgrade. The Kevlar friction material provides exceptional durability and smooth engagement characteristics, while the ceramic compound delivers aggressive bite and superior heat resistance under hard use. This combination gives you the best of both worlds: a clutch that grabs hard when you need it but still behaves during stop-and-go traffic. The sprung hub design absorbs driveline shock, protecting your transmission input shaft and reducing gear chatter at idle.

The 26-spline, 1-1/8-inch disc is a significant step up from the factory 10-spline design, providing substantially more torque transfer area and improved durability under high-load conditions. The 11-inch metric diaphragm pressure plate features a clutch finger profile specifically designed for smooth, progressive release with factory-style hydraulic systems. The 10mm bolt pattern ensures proper fitment on 2005-and-up Mustang flywheels.

Every Superior clutch disc is hand-built in-house, with quality, tolerances, and operation double-checked before shipping. This kit fits 2005-2025 Mustang 4.6L and 5.0L engines using the OEM hydraulic release system. Made in the USA and backed by a 1-year defect-free warranty.

Kit Includes

• 11-inch metric diaphragm pressure plate (10mm bolt pattern)
• Kevlar/ceramic dual-compound disc, 26-spline x 1-1/8-inch, sprung hub
• Pilot bearing
• Clutch alignment tool

Note: Throwout bearing not included. Use OEM replacement for proper hydraulic release operation.

McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

Key Features

• 800 horsepower capacity for high-powered street builds
• Twin organic-lined friction discs deliver smooth engagement with soft pedal effort
• 26-spline hub with 1.125-inch input shaft diameter for TREMEC T-56 compatibility
• 246mm (9.687-inch) disc diameter for maximum clamping surface
• Sprung hub design with diaphragm-style pressure plate
• McLeod patented adapter ring fits Ford 164-tooth Modular flywheels
• Fits 2001-up Mustang V8 applications: 4.6L, 5.0L Coyote, and 5.4L
• Made in the USA

Description

When your Mustang's power output pushes past what a single-disc clutch can reliably hold, the McLeod RST Twin Disc delivers an economical twin-disc solution rated to 800 horsepower while maintaining genuine street manners. This clutch kit solves the common problem of choosing between holding capacity and daily driveability—you don't have to sacrifice one for the other.

The twin 246mm organic-lined friction discs double the engagement surface compared to single-disc setups. Organic facings provide smooth, progressive engagement with a soft pedal effort, making this clutch kit ideal for the street performance enthusiast who doesn't want the harsh, grabby engagement of metallic race compounds. The sprung hub design absorbs drivetrain shock, while the diaphragm-style pressure plate delivers consistent clamping force through the entire rpm range.

McLeod's patented adapter ring system allows this clutch to work with Ford 164-tooth Modular engine flywheels (4.6L, 5.0L Coyote, 5.4L). The 26-spline hub with 1.125-inch diameter pairs directly with TREMEC T-56 six-speed transmissions. Note that this kit requires a small valley ID flywheel configuration—it will not fit 2011-2017 factory flywheels. For GM LS-X applications, this kit works only with LS1/LS6 flat-style flywheels; recessed LS2/LS3/LS7 flywheels will not work.

This is a street performance clutch—not designed for competition use where sustained high-heat drag racing or track sessions demand more aggressive friction materials. Proper break-in requires 500-750 miles of stop-and-go city driving to actuate the clutch 1,200 to 1,500 times before any hard use. Made in the USA.

Kit Includes

• Diaphragm-style pressure plate
• Two organic-lined friction discs with sprung hubs
• Floater plate
• McLeod patented adapter ring (large gold metric ring)
• Pilot alignment tool
• Installation instructions

Note: Pilot bushing and throwout bearing not included. Flywheel resurfacing and bellhousing alignment check recommended during installation.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• M10 x 1.5mm x 23.5mm dimensions for precise Ford Modular and AMC V8 fitment
• 8740 chromoly steel construction with black oxide finish for corrosion resistance
• Tensile strength of 180,000 PSI — far exceeds OEM hardware
• Exclusive 12mm hex head design for improved wrench engagement
• Larger-than-stock shank diameter increases clamping strength and improves pressure plate register
• Aerospace alloy forged construction with heat treatment prior to thread rolling
• Application-specific grip length ensures proper thread engagement

Description

Pressure plate bolts are critical safety components that secure your clutch assembly under extreme clamp loads and heat cycles. Factory hardware is engineered for economy, not performance — it can stretch, fatigue, or fail under racing or aggressive street use. These ARP High Performance Series bolts solve that problem with premium 8740 chromoly steel hardened to a nominal tensile strength of 180,000 PSI, significantly stronger than OEM fasteners.

Each bolt is forged from aerospace-grade alloy and heat-treated before thread rolling and machining, ensuring maximum grain structure integrity and fatigue resistance. The black oxide finish provides corrosion protection while maintaining proper torque characteristics. The exclusive 12mm hex head design delivers better tool engagement than standard fasteners, reducing the risk of rounding during installation or removal at high torque values.

The larger-than-stock shank diameter increases clamping force and improves register accuracy between the pressure plate and flywheel — critical for maintaining concentricity and preventing clutch chatter. These bolts are application-specific for Ford 4.6L, 5.0L, and 5.4L Modular V8 engines, plus AMC V8 applications (call for AMC fitment details), ensuring proper grip length and thread engagement for your specific combination.

When you're building a high-performance drivetrain, don't let bargain-bin hardware be the weak link. ARP fasteners are the trusted choice of professional engine builders and racers worldwide. Backed by ARP's manufacturer warranty against defects.

What's Included

• Six (6) M10 x 1.5mm x 23.5mm pressure plate bolts
• 8740 chromoly steel construction with black oxide finish
• 12mm hex head design
• ARP manufacturer's warranty against defects

Key Features

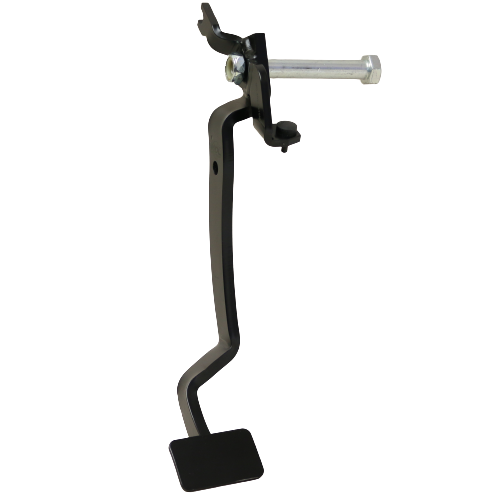

• Removable pivot shaft design - eliminates need to remove pedal support bracket during installation
• Direct OEM replacement for 1969-70 Ford Mustang and Mercury Cougar
• Compatible with stock automatic or manual transmission pedal supports
• Works with cable, hydraulic, or mechanical clutch release systems
• Includes spring pivot point for stock linkage compatibility (spring not used with cable or hydraulic systems)
• Rubber pedal stop included to prevent metal-to-metal contact and squeaking
• Made in the USA

Description

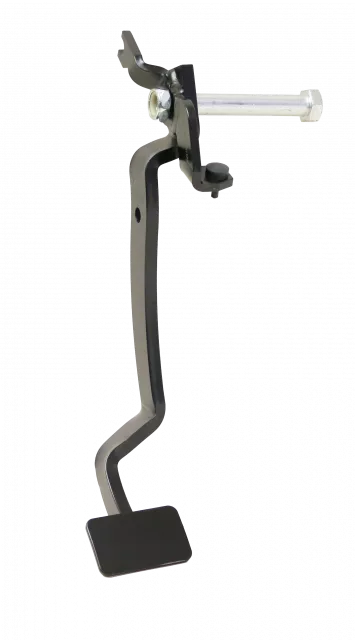

Converting a '69-'70 Mustang or Cougar from automatic to manual transmission? The biggest headache is wrestling the clutch pedal pivot shaft through the pedal support bracket in tight under-dash confines. MDL's clutch pedal solves that problem with a removable bolt-on pivot shaft that slides into place after the pedal arm is positioned - no need to drop the entire pedal support or contort yourself into impossible angles.

This OEM-spec replacement duplicates the original '69-'70 clutch pedal in every dimension and mounting point, with one critical improvement: the bolt-on pivot shaft design. It drops right into place whether you're working with an existing manual setup or converting from automatic. When converting, the stock pedal support is reused and the brake pedal simply gets trimmed on the left side to create the narrower manual-shift pad - no replacement brake pedal required.

The pedal includes all necessary mounting provisions for various clutch release systems. A spring pivot point comes installed for use with stock mechanical linkage, though the spring is not needed when running cable or hydraulic clutch release. The included rubber pedal stop prevents metal-to-metal contact that causes annoying squeaks and premature wear at the pedal travel limit.

Fits 1969-70 Ford Mustang and Mercury Cougar with all pedal support configurations. Engineered and manufactured in the United States to OEM specifications. Pair with MDL's complete hydraulic or cable clutch conversion kits for a seamless manual transmission swap.

Kit Includes

• Clutch pedal assembly with removable pivot shaft
• Spring pivot point (installed)
• Rubber pedal stop

Key Features

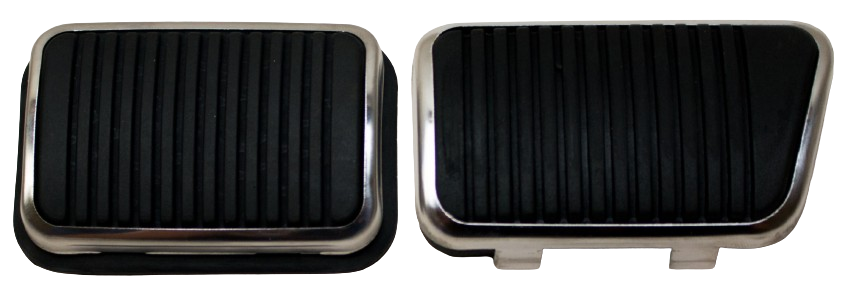

• Complete clutch and manual brake pedal pad kit for 1969-1973 Mustang and Cougar applications
• Heavy-duty rubber construction engineered for quality and long service life
• Stainless steel trim rings included for authentic factory appearance and corrosion resistance
• Correct ribbed design matches original factory specifications
• Proudly made in the USA

Description

Worn, cracked, or missing pedal pads are more than a cosmetic problem - they compromise grip and detract from the driver experience in your classic Ford. This complete pedal pad kit restores proper pedal feel and factory appearance to 1969-1973 Mustang and Cougar models equipped with manual transmissions and manual brake systems.

Each pedal pad is manufactured from heavy-duty rubber with the correct ribbed design that matches original equipment specifications. The robust construction is engineered for quality and long life, standing up to years of daily driving or weekend cruising. Included stainless steel trim rings deliver that authentic factory finish while resisting corrosion far better than the original stamped steel pieces.

This kit covers both pedals in one package - no hunting down separate components or mismatched parts. Whether you're completing a numbers-matching restoration or finishing a restomod build, these pedal pads provide the correct look and feel that distinguishes quality work. Made in the USA.

Kit Includes

• Heavy-duty rubber clutch pedal pad with correct ribbed design
• Heavy-duty rubber brake pedal pad with correct ribbed design
• Stainless steel clutch pedal trim ring
• Stainless steel brake pedal trim ring

Key Features

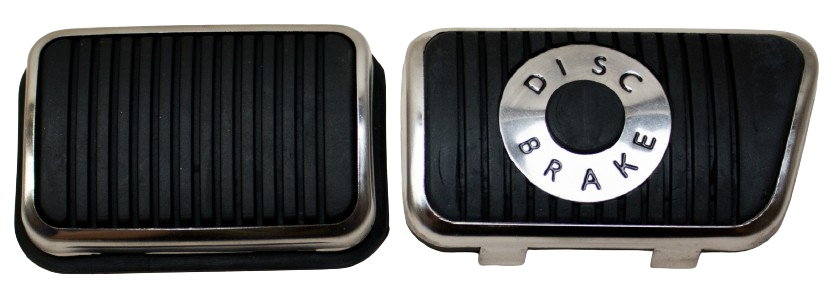

• Complete kit includes disc brake pedal pad and clutch pedal pad with stainless steel trim rings
• Direct-fit replacement for 1969-1973 Mustang and Cougar with manual transmission and disc brakes
• Stainless steel trim rings feature correct black lettering matching factory specifications
• Wear-resistant rubber construction engineered for long service life
• Proudly made in the USA

Description

Worn, cracked pedal pads and tarnished trim rings are one of the first things you notice when you drop into a classic Mustang or Cougar. This complete disc brake pedal pad kit restores factory appearance and function to your pedal assembly in one simple purchase, eliminating the hassle of sourcing individual pads and trim rings separately.

The kit covers both the brake and clutch pedals for manual-transmission cars equipped with disc brakes. Each pad is molded from wear-resistant rubber compound designed to deliver years of dependable grip underfoot. The stainless steel trim rings feature correct black lettering that replicates original factory appearance, resisting corrosion and maintaining their finish even in daily-driver duty.

Engineered and carefully crafted for quality and long life, every component is manufactured in the USA. Direct-fit design means the pads and trim rings install using your existing pedal hardware with no modifications required. Fits 1969-1973 Mustang and 1969-1973 Cougar applications.

What's Included

• Disc brake pedal pad - wear-resistant rubber construction
• Clutch pedal pad - wear-resistant rubber construction
• Stainless steel disc brake pedal trim ring with black lettering
• Stainless steel clutch pedal trim ring

Key Features

• High-strength, wear-resistant nylon construction outlasts original bushings
• 5/8" length matches original Ford B7AZ-2471-A specifications
• Fits 5/8" OD pedal pivot shafts
• Works in both clutch and brake pedal assemblies
• Manual transmission cars require six bushings; automatics require four
• Fits 1960-2004 Ford Mustang, Cougar, Fairlane, Falcon, and many Ford applications

Description

Worn pedal bushings create sloppy, imprecise pedal feel that only gets worse with every drive. This high-strength nylon bushing restores tight, responsive pedal action by eliminating the play and binding that develops when original bushings deteriorate over decades of use.

Made from durable, wear-resistant plastic, this bushing handles the constant pivoting forces of clutch and brake pedal operation without cracking or wearing out prematurely. The precise 5/8" length matches the original Ford B7AZ-2471-A specification for correct pedal geometry and feel.

This bushing works in both clutch and brake pedal assemblies that share the same 5/8" OD pivot shaft. Manual transmission cars require six bushings total—four in the common pivot shaft plus two additional at the clutch pedal. Automatic cars need four bushings. Note that '67 and later Mustangs with power brakes only require two bushings at the clutch pedal, since the power brake lever pivots on a separate shaft.

Direct replacement for Ford part number B7AZ-2471-A. Fits 1960-2004 Ford applications including Mustang, Cougar, Fairlane, Falcon, and many others.

** For GM application see part number MD-402-1009

What's Included

• One high-strength nylon pedal shaft bushing (5/8" length)

Key Features

• Steel roller bearings replace failure-prone factory plastic bushings
• Reduces clutch pedal effort and delivers smoother, more consistent pedal travel
• Zinc-plated pivot supports clip directly into factory pedal hanger openings
• Includes reinforcement washer for worn pedal hangers - weldable for permanent repair
• Direct replacement for Ford part number C5ZZ-2478-RB
• Fits 1965-1973 Mustang plus many other 1960s-70s Ford applications

Description

Factory plastic pedal bushings are one of the most common failure points in classic Mustang clutch systems. They wear quickly, creating sloppy pedal feel, increased effort, and inconsistent clutch engagement. This roller bearing kit permanently solves that problem by replacing those soft plastic pieces with steel roller bearings that deliver smooth, precise pedal action for years.

The roller bearing design dramatically reduces friction at the pivot point, translating directly to lighter pedal effort and more tactile clutch feel. Instead of fighting a sticky, binding pedal during spirited driving, you get consistent engagement every time. The zinc-plated roller bearing supports clip directly into your existing factory mounting points, maintaining OEM appearance while delivering superior durability.

For pedal hangers that show wear from years of use, the kit includes a reinforcement washer that can be welded in place to restore structural integrity before installing the new bearings. This is a straightforward upgrade once the pedal support assembly is removed from the vehicle. Note that 1969-1973 applications may require minor modification to the pedal bracket assembly for proper fitment.

Designed as a direct replacement for Ford part number C5ZZ-2478-RB, this kit fits 1965-1973 Mustangs and works with many other Ford applications from the same era. If your clutch pedal feels agricultural instead of precise, worn bushings are likely the culprit - and this kit is the permanent fix.

Kit Includes

• Steel roller bearing clutch pedal pivot supports (zinc-plated)
• Reinforcement washer for worn pedal hanger repair
• Mounting hardware

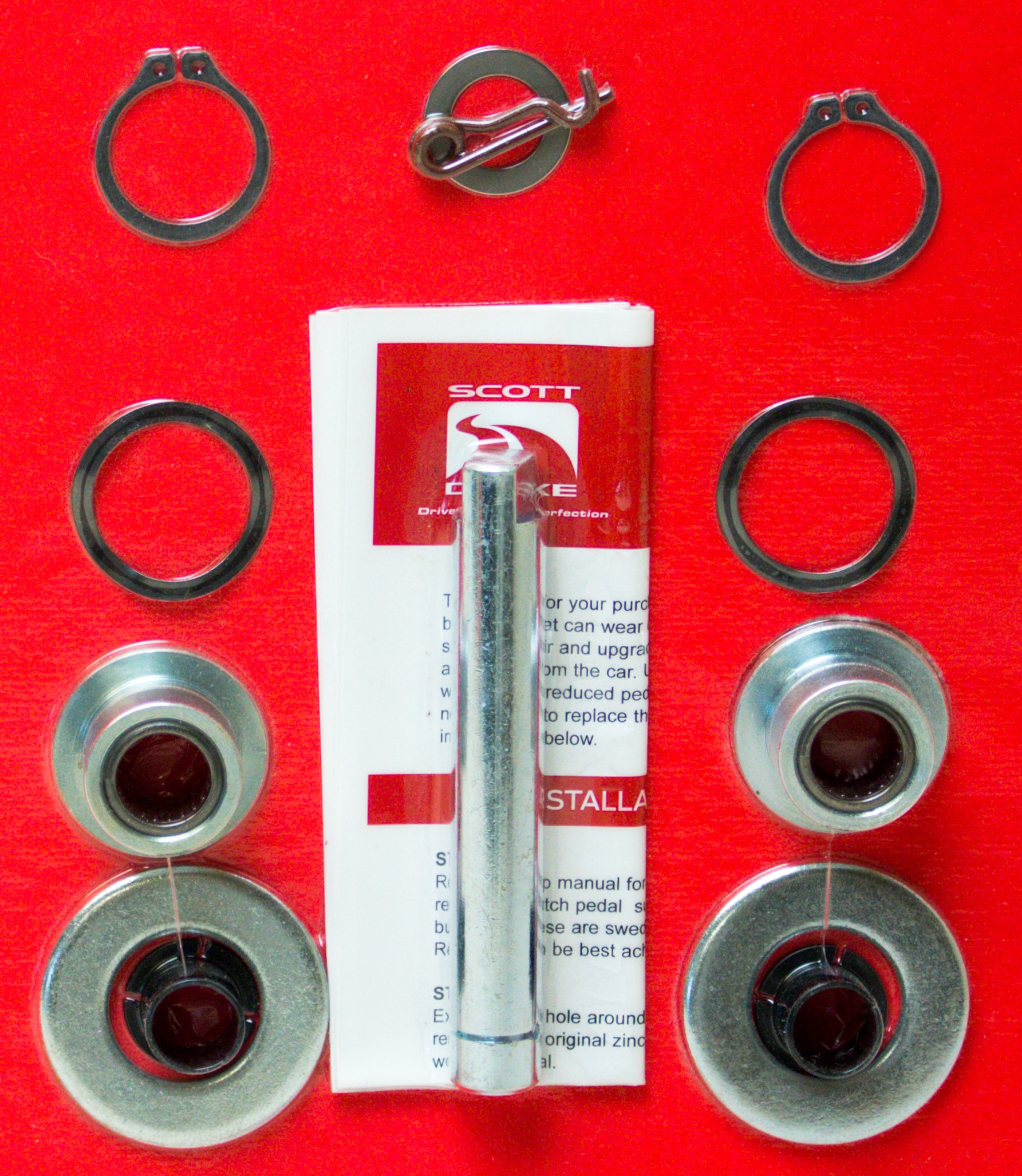

Key Features

• Steel roller bearings replace factory plastic bushings for lifetime reliability and dramatically reduced pedal effort
• Includes replacement clutch pedal shaft welded to the stock pedal arm for scored or worn shaft applications
• Roller bearing supports clip directly into factory pedal bracket openings
• Repair washer included for worn pedal support mounting surfaces
• Designed and manufactured by Scott Drake for proven quality
• Note: 1969-1973 applications may require minor modification to the pedal bracket assembly

Description

After decades of use, factory plastic clutch pedal bushings wear out, creating sloppy pedal feel and increased effort that makes every shift a chore. This premium roller bearing kit solves that problem permanently by replacing those worn plastic components with precision steel roller bearings that distribute load evenly and eliminate metal-on-metal contact.

The kit replaces the worn zinc clutch pedal pivot supports with steel roller bearing supports that clip directly into the factory openings in your pedal bracket. Unlike simple bushing replacements, roller bearings reduce friction dramatically, translating to noticeably lighter pedal pressure and smoother operation that will last for years. The included repair washer addresses situations where the pedal support itself has been damaged from worn bushings and can be welded in place.

What sets this kit apart is the included replacement clutch pedal shaft that comes pre-welded to the stock clutch pedal arm. This addresses the common issue where the original shaft becomes scored or damaged from years of worn bushings grinding against it. The new shaft ensures the roller bearings have a clean, undamaged surface to ride on for optimal performance.

Fits 1965-1973 Ford Mustang as well as many other 1960s-1970s Ford applications. Note that 1969-1973 Mustangs may require minor modification to the pedal bracket assembly for proper fitment. Designed and manufactured by Scott Drake.

What's Included

• Steel roller bearing pivot supports (2)
• Replacement clutch pedal shaft (pre-welded to pedal arm)
• Repair washer for worn pedal support
• Installation hardware
• Installation instructions

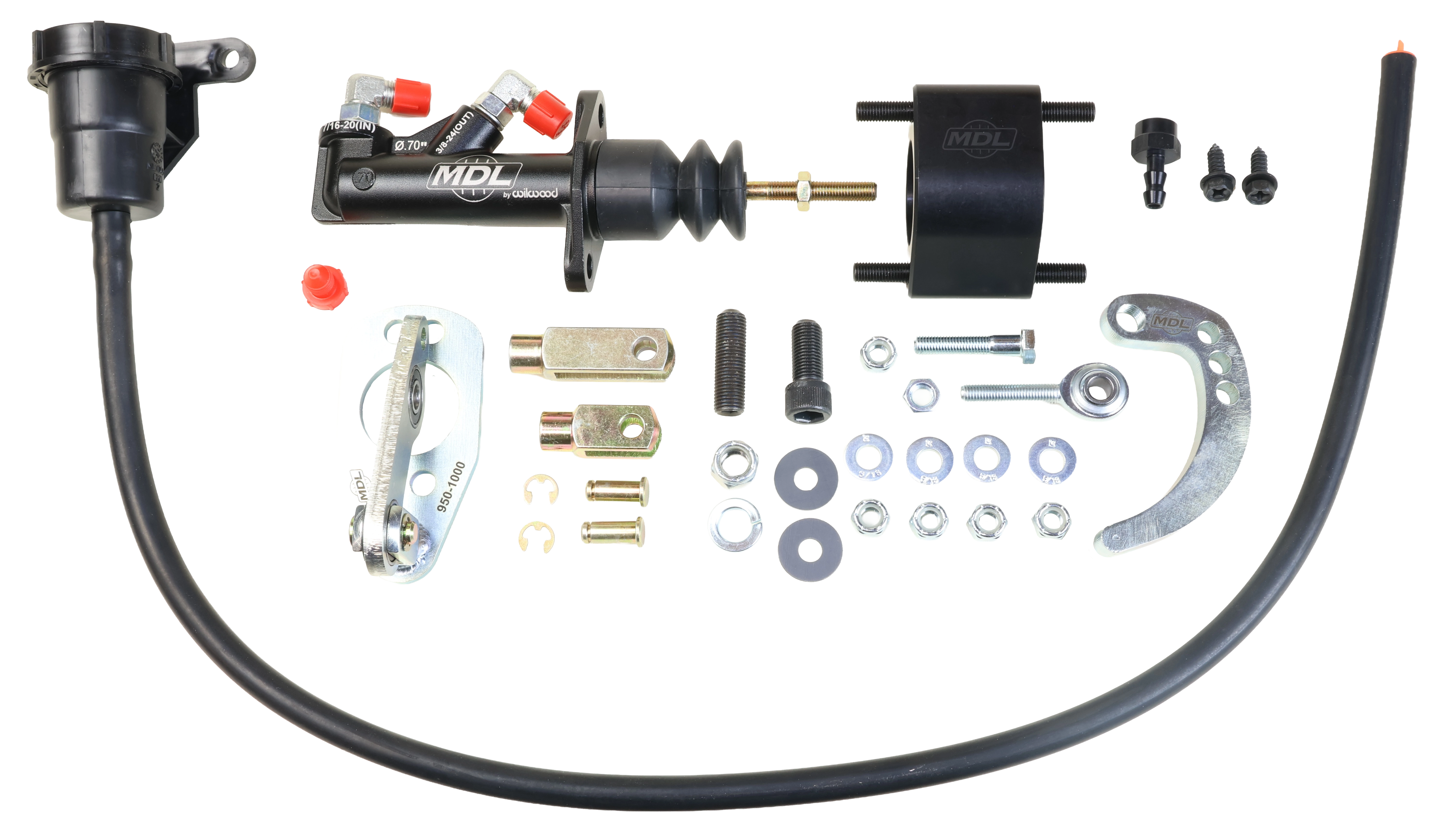

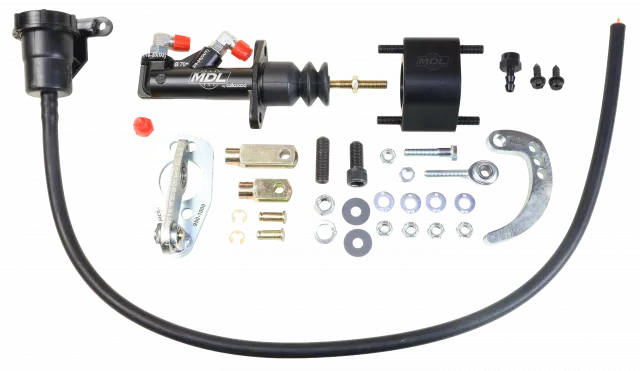

LF Series Hydraulic Clutch Master Kit | 1967-1970 Mustang/Cougar | Plastic Reservoir

Key Features

• 0.700" bore x 1.4" stroke master cylinder delivers optimal fluid volume with light pedal effort
• Revolutionary pedal linkage maintains stock clutch pedal pivot point for factory feel
• Linkage design creates mechanical advantage, dramatically reducing pedal pressure
• Uses existing mechanical clutch rod hole (where possible) for simplified installation
• Compatible with most aftermarket external and internal slave cylinders
• Remote black plastic reservoir mounts cleanly on firewall
• One-Man-Bleeder Kit included for easy system bleeding
• Made in the USA

Description

Converting your '67-'70 Mustang or Cougar to a modern transmission or upgrading from mechanical linkage demands a hydraulic clutch system engineered specifically for the job. Most retrofit kits bolt a short-stroke, large-bore master cylinder directly to your pedal, creating heavy pedal pressure, mounting interference at the firewall, and an overall poor driving experience. The LF Series solves these problems with an innovative linkage design that transforms pedal geometry and delivers a dramatically improved driver experience.

The common retrofit approach uses a 3/4" or 7/8" bore by 1" stroke master cylinder connected directly to the pedal. This short stroke combined with improper mounting angles results in excessive pedal effort and limited clutch control. The LF Series revolutionary linkage matches your full pedal travel with a long-stroke master cylinder, creating mechanical advantage that significantly reduces pedal effort while optimizing clutch engagement control. The linkage allows positioning perpendicular to the firewall using the mechanical clutch rod hole (where possible), eliminating the interference issues that plague direct-mount setups.

The 0.700" bore combined with 1.4" stroke generates enough fluid volume to properly actuate most aftermarket external slaves or internal hydraulic release bearings. The remote black plastic reservoir mounts separately on the firewall for clean installation and easy fluid level checks. Uses DOT 3 or 4 brake fluid only -- no special high-temp fluid required.

Fits 1967-1970 Ford Mustang and Mercury Cougar with factory pedal assemblies. Will NOT work with band-clamp brake boosters or certain aftermarket brake boosters 8" and larger. Requires factory firewall, pedal, and pedal hanger to be in good working order -- any modifications or damage to these components will affect master cylinder performance. Made in the USA with comprehensive installation instructions and lifetime tech support.

Kit Includes

• 0.700" bore x 1.4" stroke master cylinder
• Mechanical pedal linkage assembly
• Black plastic reservoir with mounting hardware
• Hydraulic lines
• One-Man-Bleeder Kit
• Comprehensive installation instructions
• Lifetime technical support

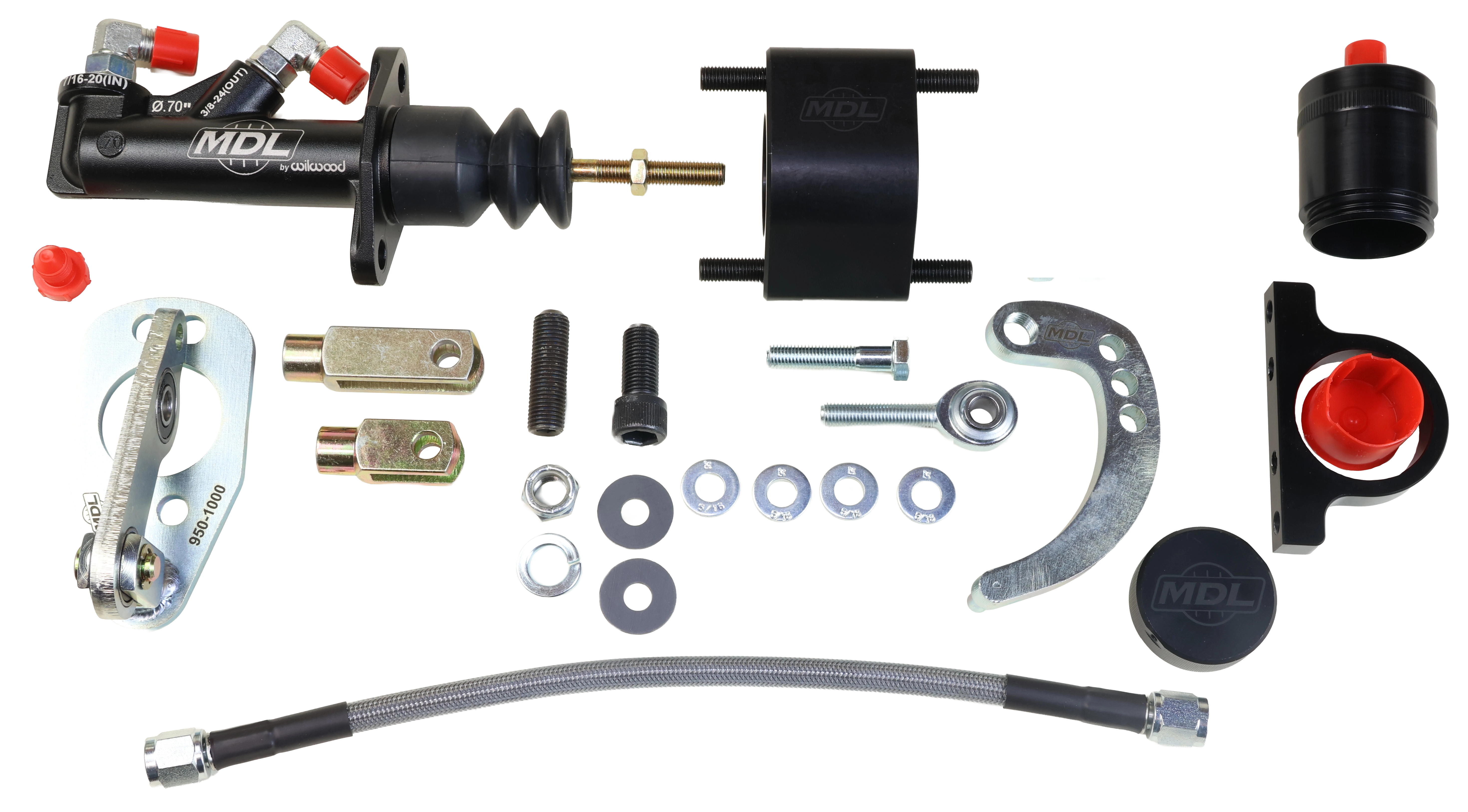

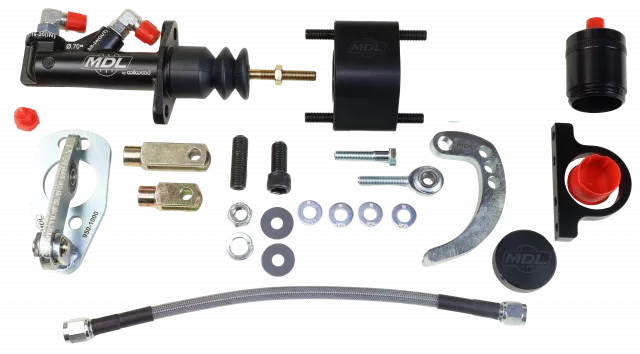

LF Series Hydraulic Clutch Master Kit | 1967-1970 Mustang/Cougar | Black Billet Reservoir

Key Features

• Revolutionary mechanical linkage maintains stock clutch pedal pivot point for factory pedal feel
• 0.700-inch bore x 1.4-inch stroke master cylinder generates sufficient fluid volume for most slave systems
• Long-stroke, small-bore design minimizes firewall loading and reduces pedal effort
• Firewall-mounted linkage plate creates mechanical advantage and eliminates binding
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Black anodized billet aluminum reservoir mounts remotely on firewall for clean installation
• Includes One-Man-Bleeder Kit for simplified bleeding procedure
• Works with original factory pedals and OE reproduction aftermarket pedals
• Made in the USA

Description

Converting your '67-'70 Mustang or Cougar to a modern TREMEC transmission or upgrading from worn mechanical linkage? The MDL LF Series Master Cylinder Kit solves the common problems that plague most hydraulic conversions. Traditional approaches use oversized 3/4-inch or 7/8-inch bore cylinders with short 1-inch strokes mounted directly to the pedal--creating heavy pedal pressure and firewall interference issues. The short stroke compounds the problem, requiring excessive force for proper clutch release.

The LF Series breaks this pattern with a revolutionary mechanical linkage system that allows the 0.700-inch bore master cylinder to utilize the full 1.4-inch stroke while maintaining the stock clutch pedal pivot point. This linkage creates mechanical advantage, dramatically reducing pedal effort while generating sufficient fluid volume for reliable clutch actuation. The firewall-mounted linkage plate distributes loads evenly and eliminates the binding that occurs with direct-mount systems.

The remote-mounted black anodized billet aluminum reservoir keeps brake fluid accessible while providing a clean, professional installation. The system works seamlessly with industry-standard slave cylinders and hydraulic release bearings, making it compatible with virtually any TREMEC transmission setup. Each kit includes comprehensive installation instructions and MDL's proprietary One-Man-Bleeder Kit for hassle-free system bleeding. Use DOT 3 or DOT 4 brake fluid only.

Compatibility Note: Will NOT work with band clamp brake boosters or certain aftermarket 8-inch and larger brake boosters. Requires factory components to be in good working order--modifications or damage to firewall, pedal, or pedal hanger will affect performance. Compatible with original factory pedals and OE reproduction aftermarket pedals.

Kit Includes

• 0.700-inch bore x 1.4-inch stroke master cylinder
• Firewall-mounted mechanical linkage assembly
• Black anodized billet aluminum reservoir with mounting hardware
• Hydraulic lines with fittings
• One-Man-Bleeder Kit
• Complete mounting hardware and brackets
• Comprehensive installation instructions
• Lifetime technical support

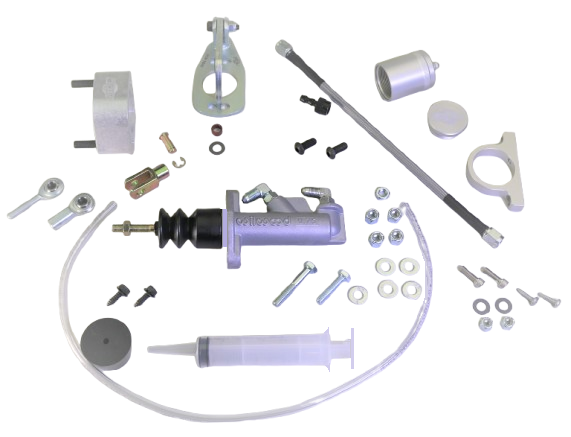

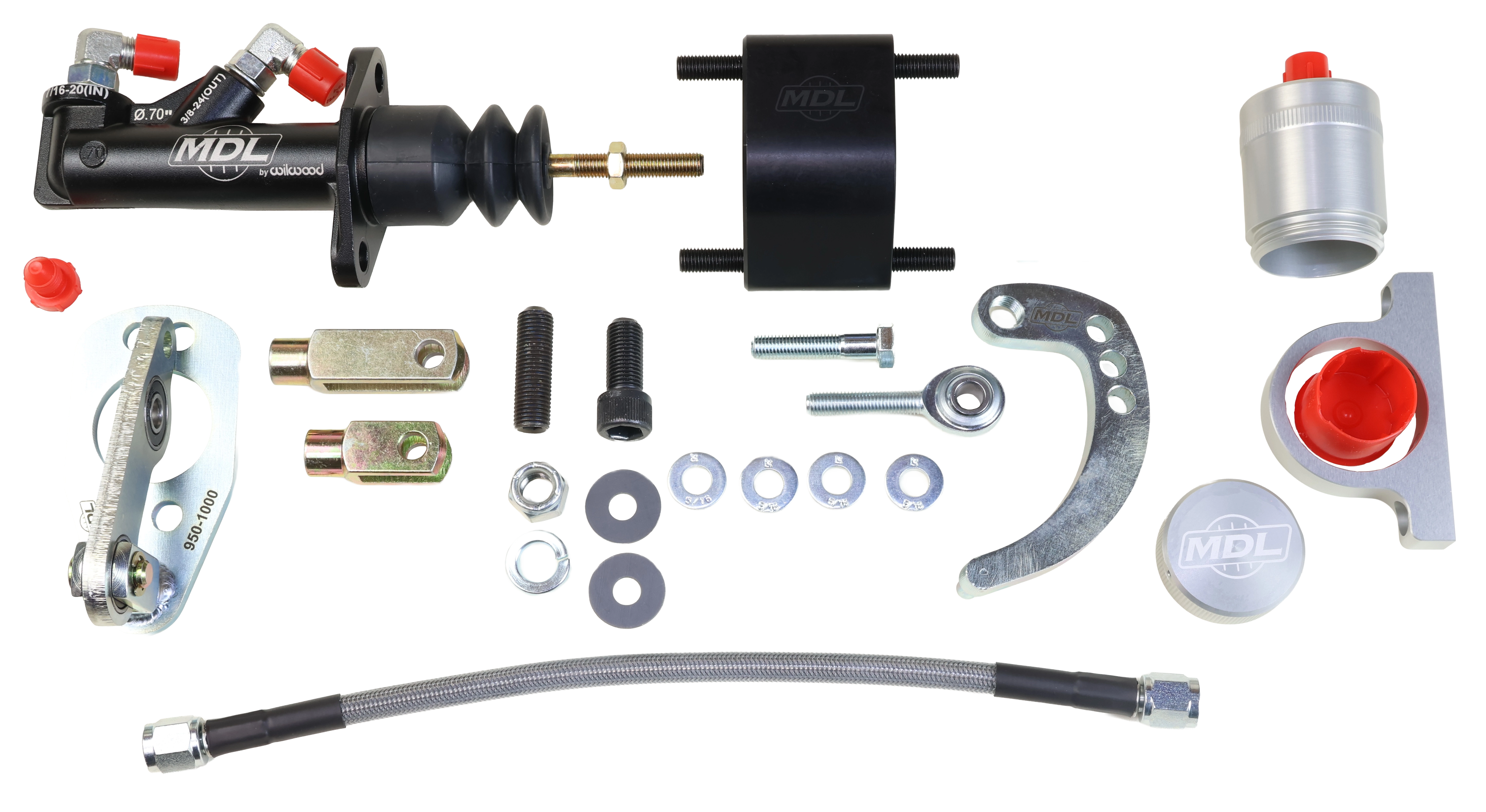

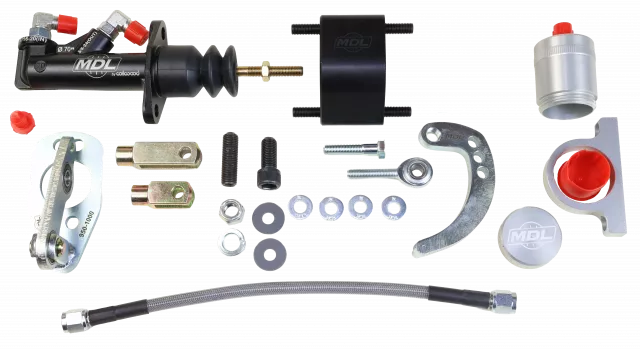

LF Series Hydraulic Clutch Master Kit | 1967-1970 Mustang/Cougar | Clear Billet Reservoir

Key Features

• 0.700-inch bore with 1.4-inch stroke for optimized fluid volume
• Innovative pedal linkage design reduces clutch pedal effort while maintaining full pedal stroke
• Maintains stock clutch pedal pivot point for OEM feel
• Clear anodized billet aluminum reservoir with remote firewall mount for easy fluid monitoring
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Includes One-Man-Bleeder Kit for easy system bleeding
• Made in the USA

Description

Converting your classic Mustang or Cougar to a modern TREMEC transmission—or simply upgrading from tired mechanical linkage—demands a hydraulic clutch system that delivers light pedal effort without compromising installation simplicity. The LF Series (Light Foot) Hydraulic Clutch Master Kit solves the engineering challenges that plague most conversion kits: heavy pedal pressure, firewall interference, and compatibility headaches.

The problem with conventional hydraulic conversions is simple math. A typical 3/4-inch or 7/8-inch bore master cylinder with a 1-inch stroke connects directly to the pedal, requiring the cylinder to mount higher than the stock clutch rod hole—creating interference issues with the firewall and pedal assembly while producing excessive pedal loads. The LF Series takes a fundamentally different approach: an innovative mechanical linkage that works with your existing clutch pedal and rod hole location, matching pedal travel to a long-stroke master cylinder for dramatically reduced pedal effort.

The 0.700-inch bore paired with a 1.4-inch stroke generates sufficient fluid volume to support most aftermarket external slave cylinders and internal hydraulic release bearings. The clear anodized billet aluminum reservoir mounts remotely on the firewall for a clean installation and allows instant visual confirmation of fluid level. The system uses DOT 3 or DOT 4 brake fluid—no need for expensive high-temperature fluid.

This kit fits 1967-1970 Mustangs and Cougars and works with both original factory clutch pedals and OE reproduction aftermarket pedals. Factory components must be in good working order—any modifications or damage to the firewall, pedal, or pedal hanger will affect master cylinder performance. Note: This kit will NOT work with band-clamp brake boosters or certain aftermarket brake boosters 8 inches and larger. Made in the USA with lifetime technical support from Modern Driveline.

Kit Includes

• 0.700-inch bore master cylinder with 1.4-inch stroke
• Innovative pedal linkage assembly
• Clear anodized billet aluminum reservoir
• Hydraulic lines
• One-Man-Bleeder Kit
• Complete installation instructions
• All necessary mounting hardware

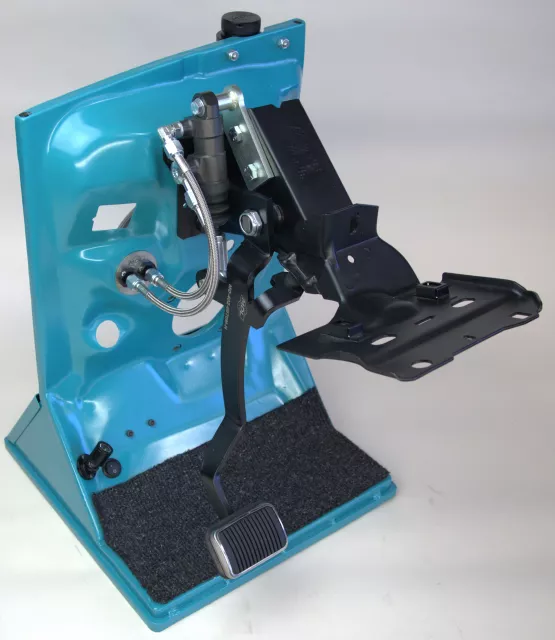

Stealth Series Hydraulic Clutch Master Kit | 1969-1970 Mustang | Black Reservoir

Key Features

• Three adjustable pedal positions to fine-tune clutch engagement, effort, and feel
• Spherical mounting points eliminate binding for smooth, consistent pedal action
• Maintains stock clutch pedal pivot point with zero OEM pedal support modifications
• Sealed reversible silver/black firewall plate mounts through factory clutch rod hole
• 2100 Series billet aluminum reservoir with black anodized finish and side-vent cap
• -4AN stainless steel braided lines throughout for leak-free performance
• Hidden behind-dash mounting for clean, factory-style appearance
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• One-man bleeder kit included for simplified installation
• Made in the USA

Description

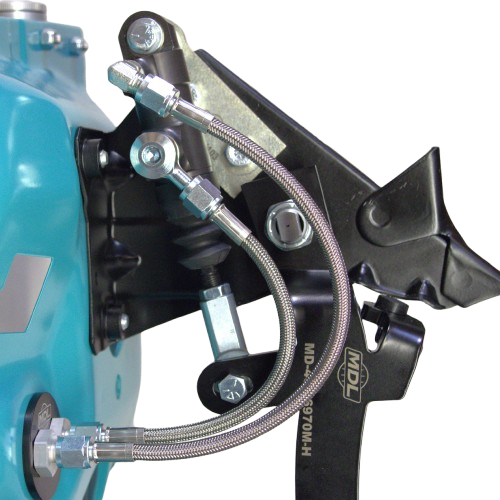

Converting your '69-'70 Mustang or Cougar to hydraulic clutch actuation usually means compromising on pedal feel, visible hardware, or both. The MDL Stealth Series eliminates these trade-offs with an innovative in-dash design that delivers modern hydraulic performance while preserving the stock driving experience and a clean engine bay.

This kit mounts the billet master cylinder behind the dash on the factory pedal hanger, completely hidden from view. The custom clutch pedal features three distinct master cylinder mounting positions, allowing you to dial in pedal effort and engagement characteristics to match your driving style and clutch setup. This is the only kit on the market offering this level of adjustability. Spherical mounting points ensure smooth operation and eliminate the binding common in rigid-mount systems, while the full pedal stroke is optimized for better clutch control.

The sealed bulkhead assembly uses the factory clutch rod hole, keeping moisture and engine fumes out of the interior. The reversible firewall plate offers both silver and black finish options to match your build. The included 2100 Series billet aluminum reservoir features a black anodized finish with an improved cap design that uses side-mounted vents to prevent water entry while allowing proper system breathing. Uses DOT 3 or 4 brake fluid.

This system works with most existing industry slave cylinders and hydraulic release bearings. Complete kit includes all mounting hardware, -4AN stainless steel braided lines, one-man bleeder kit, and comprehensive installation instructions. Lifetime technical support provided by trained technicians. Made in the USA.

What's Included

• Billet aluminum master cylinder [VERIFY: bore size and stroke not specified on product page]
• Custom clutch pedal arm with OEM appearance and three adjustable pivot positions
• Reversible silver/black firewall plate assembly with sealed bulkhead and -4AN fittings
• 2100 Series billet aluminum reservoir with black anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime technical support by trained technicians

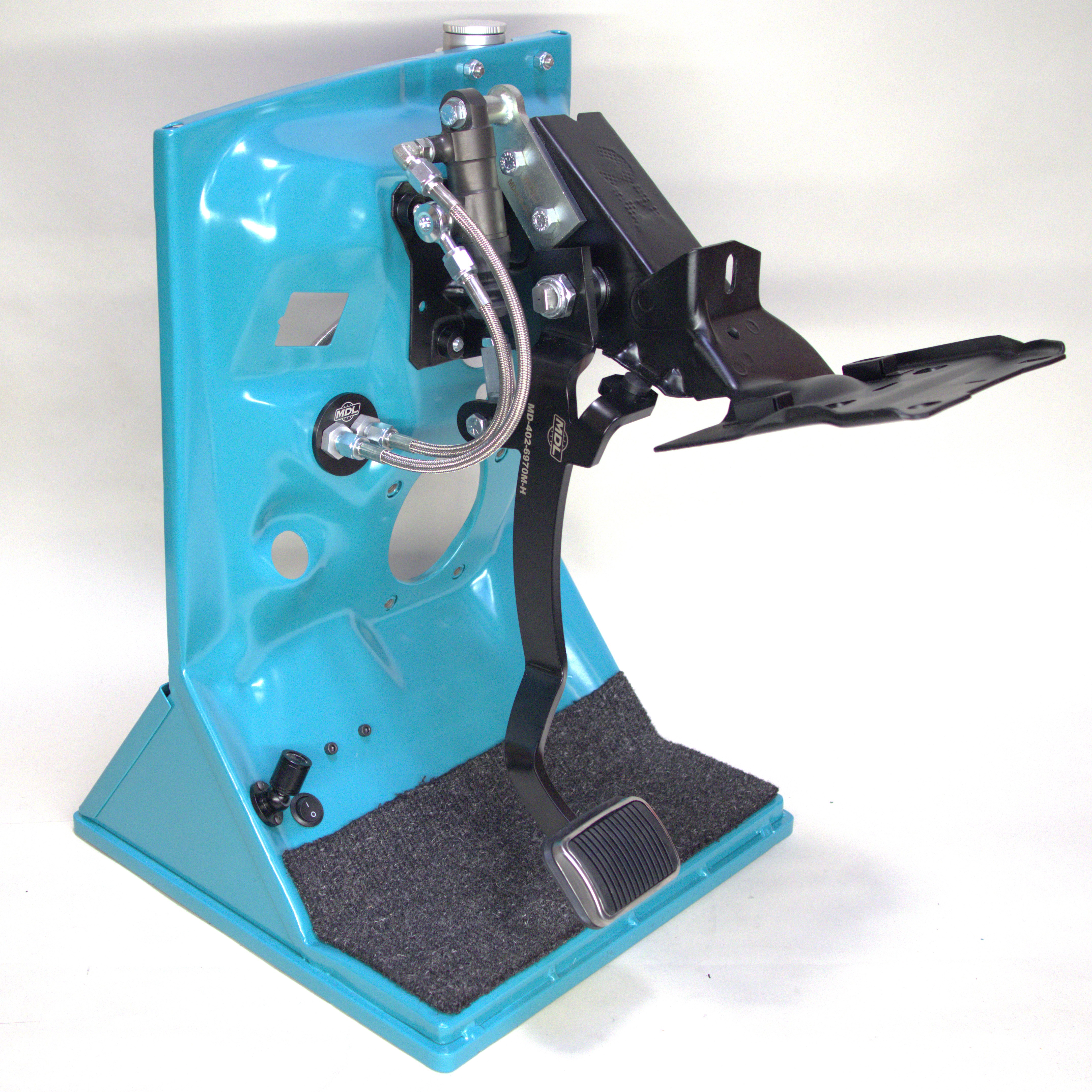

Stealth Series Hydraulic Clutch Master Kit | 1969-1970 Mustang | Silver Reservoir

Key Features

• Three adjustable master cylinder positions for precise pedal feel tuning - the only kit on the market with this adjustability
• Maintains stock clutch pedal pivot point with zero OEM pedal support modifications required
• Spherical mounting points eliminate binding for smooth, consistent clutch action throughout pedal stroke
• Sealed reversible firewall plate assembly mounts through factory clutch rod hole to prevent moisture and fume intrusion
• -4AN stainless steel braided lines for durability and leak-free performance
• 2100 Series billet aluminum reservoir with silver anodized finish and side-top vents to prevent water entry
• Compatible with most internal and external slave cylinders and hydraulic release bearings
• Made in the USA with lifetime technical support

Description

Ditch the weak factory mechanical clutch linkage and upgrade to the ultimate hydraulic technology for your '69-'70 Ford Mustang. The Stealth Series addresses the fundamental problem with generic hydraulic kits - they force compromises on pedal feel and require firewall modifications. This system was specifically engineered for 1969-1970 Mustangs to mount cleanly behind the dash using the factory pedal hanger while maintaining the original clutch pedal pivot point for authentic pedal feel.

The defining advantage is the three-position master cylinder mounting system that lets you fine-tune how your clutch responds. Move the master cylinder to adjust pedal effort and stroke - something no other kit offers. Spherical mounting points ensure smooth operation throughout the pedal stroke by eliminating the binding that plagues rigid-mount systems. The 1.4-inch master cylinder throw distance optimizes full pedal stroke for better clutch control.

The firewall plate assembly is reversible (silver/black finish) and sealed, using the factory clutch rod hole to maintain structural integrity while keeping moisture and engine fumes out of the cabin. Professional-grade -4AN braided stainless lines provide the durability and leak-proof performance your build demands. The 2100 Series billet reservoir features improved cap design with side-top vents that prevent water intrusion while promoting easy mounting wherever your engine bay layout requires.

Compatible with most industry slave cylinders and hydraulic release bearings for maximum flexibility in your drivetrain combination. Requires DOT 3 or DOT 4 brake fluid. Engineered and manufactured in the United States with complete installation hardware, detailed instructions, and lifetime technical support from trained technicians.

What's Included

• Reversible silver/black anodized firewall plate assembly with sealed bulkhead and -4AN fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustable master cylinder mounting positions
• -4AN stainless steel braided hydraulic lines
• 2100 Series billet aluminum reservoir with silver anodized finish
• All mounting hardware, brackets, and spherical joints
• One-man bleeder kit
• Complete installation instructions
• Lifetime technical support by trained technicians

Key Features

• Billet aluminum body and piston precision-machined in-house at Tilton Engineering
• Stainless steel threaded sleeve provides nearly 1.25" of height adjustment (1.77" to 3.00")
• Slip-on installation over stock bearing retainer - no modifications required
• High-temperature mono-seal design with quad tensioner ensures proper seal tension
• Constant contact design self-adjusts for clutch wear, maintaining consistent pedal feel
• Flat face bearing with 1.71" to 3.03" contact diameter fits 8.5" to 11" bent-finger and lever-type clutches
• Full 0.7" piston travel for maximum clutch engagement range
• Double O-ring swivel fittings thoroughly tested to prevent leakage
• Complete kit - steel braided lines, union fitting, and anti-rotation hardware included
• Requires 1.430" bearing retainer guide tube diameter

Description

External slave cylinders create clearance headaches and bellhousing compatibility issues that derail Ford TKO and TKX swaps. The Tilton 6000 Series Hydraulic Release Bearing eliminates those problems entirely. This internal hydraulic design slips directly over the transmission's bearing retainer - no machining, no adapter plates, no fighting for space. The result is a clean installation that works with most bellhousings, including original 4-speed and big block bells that external slaves can't accommodate.

Tilton builds this bearing to race-proven standards. The billet aluminum body and piston are precision-machined in-house at Tilton Engineering, then fitted with a high-temperature mono-seal that incorporates a quad tensioner to maintain proper seal tension under extreme conditions. The constant contact design keeps the bearing face against the pressure plate fingers at all times - no gap to manage, no adjustment as the clutch wears. Pedal feel stays consistent from fresh install through the clutch's entire service life.

The stainless steel threaded adjustment sleeve delivers nearly 1.25" of height adjustability, accommodating bearing heights from 1.77" to 3.00" to work with a wide range of clutch configurations. The flat face bearing design with 1.71" to 3.03" contact diameter is engineered for 8.5" to 11" bent-finger and lever-type pressure plates. With 0.7" of piston travel, this bearing handles aggressive clutch setups without running out of stroke.

Compatible with Ford TKO and TKX transmissions with 1.430" bearing retainer guide tube diameter. Will not work with big-input Toploaders. For a complete hydraulic clutch system, pair with an MDL LF Series Master Clutch Kit and a steel braided line of appropriate length (24" recommended for most applications).

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• Steel braided supply line with AN4 fittings
• Steel braided bleed line with fittings
• Union fitting for main supply line connection
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions
• MDL lifetime technical support

Key Features

• 24-inch stainless steel braided hose with 1/4-inch I.D. and PTFE (Teflon) inner lining
• -4AN female straight fittings on both ends with stainless steel crimp sleeves
• Clear plastic outer coating protects braid and allows visual inspection
• Ideal length for Tilton 6000 HRB units with -4AN male union to firewall-mounted master cylinders
• Pressure tested before shipping for quality assurance
• 100% made in the USA

Description

Hydraulic clutch systems demand leak-free, pressure-resistant fluid lines that won't degrade over time or expand under load. This 24-inch stainless steel braided line delivers the durability and consistent pedal feel that separates a professional hydraulic clutch installation from a compromise. The PTFE (Teflon) inner lining provides excellent chemical compatibility with all common hydraulic fluids while resisting the swelling and deterioration that plague standard rubber lines.

The stainless steel braided construction prevents expansion under pressure, maintaining a firm, responsive clutch pedal. Unlike rubber hoses that can balloon and soften pedal feel, stainless braided PTFE lines keep the inner diameter uniform for efficient fluid transfer. The clear plastic outer coating shields the braid from abrasion, contamination, and corrosion while letting you visually inspect line condition at a glance.

At 24 inches with a 1/4-inch I.D., this line is sized specifically for hydraulic clutch applications. It's an excellent choice when pairing a Tilton 6000 HRB with an -4AN male union to a firewall-mounted or bulkhead-mounted master cylinder. The straight -4AN female fittings on both ends connect directly to standard -4AN male adapters without additional fittings, reducing potential leak points and simplifying installation.

Every line is pressure tested before leaving the facility to verify seal integrity. Premium stainless steel crimp sleeves and fittings ensure a permanent, vibration-resistant connection. Proudly manufactured in the United States.

What's Included

• One 24-inch stainless steel braided hydraulic line with PTFE inner lining
• -4AN female straight fittings pre-crimped on both ends
• Clear plastic protective coating (factory applied)
• Pressure tested before shipping

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

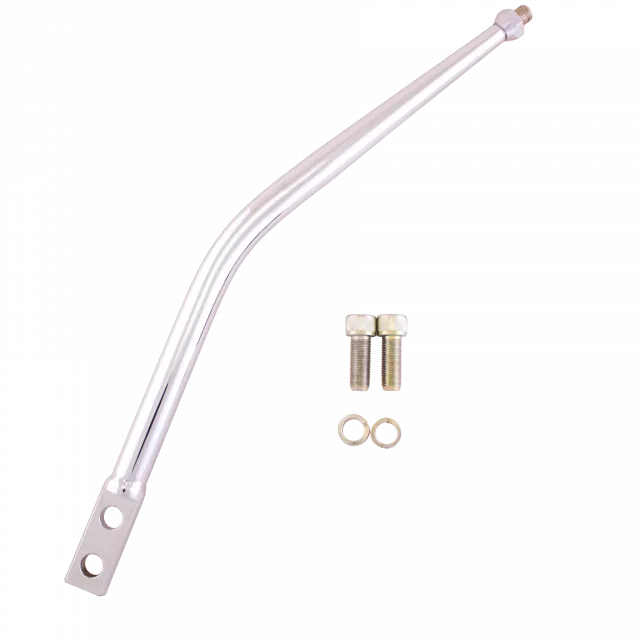

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Machined billet steel mounting stud for precision fitment and rock-solid attachment
• Chrome-plated high-strength steel construction for durability and corrosion resistance
• Direct bolt-on design with standard 2-bolt flange (3/8 in. holes on 7/8 in. center-to-center spacing)
• 12-inch overall length with 30-degree single bend (4 in. back x 11 in. tall)
• 3/8 in.-24 thread accepts virtually any aftermarket shift knob
• Countersunk mounting holes with included metric cap screws for clean, flush installation
• Fits TREMEC TKO-500, TKO-600, T5, T45, and T56 transmissions
• Lifetime manufacturer warranty
• Made in the USA

Description

Factory plastic shift levers flex under aggressive shifting and detract from the precise mechanical feel a performance transmission deserves. This Lokar tubular steel shift lever transforms your shifter into a solid, direct connection between driver and transmission, delivering crisp, positive engagement that matches the engineering in your TREMEC gearbox.

Built from high-strength steel with a chrome-plated finish, this lever is designed for durability and the classic hot rod aesthetic. The machined billet steel mounting stud is drilled and countersunk for the included 8mm socket head cap screws, creating a seamless, professional appearance with no exposed hardware at the shifter base. The 30-degree single bend positions the shift knob 4 inches rearward and 11 inches up from the mounting point—placing the grip in an ergonomically optimized position for most muscle car and pro-touring interiors.

Installation is straightforward: the standard 2-bolt flange pattern (3/8 in. holes on 7/8 in. center-to-center spacing) matches the shift towers on TREMEC TKO-500, TKO-600, T5, T45, and T56 transmissions, as well as Borg-Warner units using the same interface. The 3/8 in.-24 thread at the top accepts virtually any aftermarket shift knob, letting you dial in the exact grip style and weight that suits your driving. Backed by Lokar's lifetime warranty and manufactured in the USA, this lever is built to perform for the long haul. Boots, bezels, and shift knobs are sold separately.

Kit Includes

• Chrome-plated high-strength steel shift lever with machined billet steel mounting stud
• 8mm socket head cap screws
• Installation hardware

Lokar 10in Lay-Back Steel Shifter Lever | Black Powder-Coat | 3/8in-24 Thread

Key Features

• Lay-back design: 4in back offset x 9in tall with 30-degree bend for optimal hand position
• Tubular steel construction with black powder-coated finish
• Direct bolt-on fitment for TREMEC and Borg Warner shifters with standard 7/8in center-to-center 2-bolt flange
• Compatible with T5, T45, T56, TKO, and Magnum transmissions
• Machined mounting stud drilled and countersunk for included metric cap screws
• 3/8in-24 thread accepts most aftermarket shift knobs
• Made in the USA with lifetime warranty

Description

Stock shifter levers rarely put the shift knob where you actually want it. This Lokar lay-back steel shifter lever solves that problem with a 30-degree bend that positions your hand exactly where it needs to be for quick, confident shifts. The 4-inch back offset and 9-inch height put the knob in the optimal ergonomic position without sacrificing mechanical leverage.

Built from tubular steel with a durable black powder-coated finish, this lever delivers the rigidity serious shifting demands while resisting corrosion and looking sharp in any interior. The machined mounting stud features countersunk holes for a clean, smooth appearance that eliminates the exposed fastener look of lesser shifters.

Installation is straightforward bolt-on for any TREMEC or Borg Warner transmission using the standard 2-bolt flange measuring 7/8 inch center to center between bolt holes. That covers T5, T45, T56, TKO-500, TKO-600, and Magnum applications with both stock and aftermarket 5-speed and 6-speed shifter assemblies. The 3/8in-24 thread at the top accepts virtually any aftermarket shift knob, giving you full control over the final look and feel.

All Lokar products are made in the USA and backed by a lifetime warranty. Shift knob, boot, and trim ring are sold separately.

What's Included

• 10in tubular steel shifter lever with lay-back bend (black powder-coated)
• Machined mounting stud with countersunk cap screw holes
• Metric cap screws for installation

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Key Features

• Direct bolt-on for TREMEC T5, T45, T56, and Borg Warner shifters with standard 2-bolt flange
• 12-inch steel construction with layback geometry: 4-inch back offset, 11-inch height, 30-degree bend
• Fits standard 2-bolt flange measuring 7/8-inch center-to-center between bolt holes
• Durable black powder-coated finish for long-lasting appearance
• 3/8"-24 knob thread accepts most aftermarket shift knobs
• Machined mounting stud drilled and countersunk for included metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

When your stock shifter lever doesn't deliver the throw length, ergonomics, or style your build demands, this Lokar layback lever solves the problem with engineered precision. The direct bolt-on design eliminates guesswork--this lever mounts straight to TREMEC and Borg Warner manual transmission shifters without modifications or adapters.

The 12-inch layback configuration places the shift knob exactly where you want it--4 inches back and 11 inches up from the mounting point with a 30-degree bend that follows the natural arc of your shifting motion. This geometry puts the knob closer to the driver for shorter reaches and more comfortable throws, especially in tight interiors or deep bucket seat setups.

Built from steel tubing with a black powder-coated finish, this lever delivers the strength to handle aggressive shifting while maintaining a clean, professional appearance that resists chipping and fading. The machined mounting stud is drilled and countersunk for the included metric cap screws, ensuring a solid, vibration-free connection that won't work loose under hard use.

The standard 2-bolt flange measures 7/8-inch center-to-center, making it compatible with T5, T45, T56, TKO, TKX, and all TREMEC shifter assemblies that use the factory mounting pattern. The 3/8"-24 knob thread accepts a wide range of aftermarket shift knobs. Backed by Lokar's manufacturer lifetime warranty and Made in the USA.

Kit Includes

• 12-inch black powder-coated steel layback shifter lever
• Metric cap screws for mounting

Billet Aluminum Shift Lever | Black Anodized | 10 in. 30 Degree Kickback

Key Features

• Direct bolt-on for TREMEC TKO-500, TKO-600, TKX, and T56 transmissions with standard 2-bolt flange
• Precision-machined billet aluminum construction with black anodized finish
• 30-degree kickback design positions shift knob closer to the driver for improved ergonomics
• Industrial through-pocket design provides rigidity under aggressive shifting loads
• 10-inch overall length for optimal shift feel and knob positioning
• 0.890-inch center-to-center mounting holes with 3/8-inch bolt diameter
• 3/8-16 threaded stud accepts most aftermarket shift knobs

Description

Factory shift levers get the job done, but they rarely complement a custom interior or deliver the precise feel a performance build deserves. This billet aluminum shift lever from Bowler was purpose-built for the TREMEC enthusiast who demands both function and aesthetics. Machined from solid billet aluminum and finished in durable black anodize, it delivers the strength to handle aggressive shifts while adding a sleek, modern look to your cockpit.

The 30-degree kickback angle pulls the shift knob rearward and closer to the driver, improving reach and reducing fatigue during spirited driving or long cruises. At 10 inches tall, this lever strikes the ideal balance between throw reduction and mechanical advantage, giving you crisp gate engagement without requiring excessive effort. The industrial through-pocket design creates a rigid structure that eliminates flex under load, ensuring consistent shift feel whether you're rowing through traffic or banging gears at the track.

Installation is straightforward: the lever bolts directly to the standard 2-bolt flange found on TKO-500, TKO-600, TKX, and T56 transmissions using the included hardware. Mounting holes are spaced 0.890 inches center-to-center with 3/8-inch diameter. The 3/8-16 threaded stud at the top accepts virtually any aftermarket shift knob, allowing you to complete your interior upgrade with your preferred grip style. Pair this lever with one of MDL's shift bezels and knobs for a fully coordinated shifter assembly that matches the quality of your TREMEC transmission.

What's Included

• Black anodized billet aluminum shift lever (10 in., 30-degree kickback)
• Mounting hardware for 2-bolt flange installation
• 3/8-16 half nut for shift knob retention

Key Features

• Precision-machined from solid billet aluminum with brushed silver finish
• 30-degree kickback angle positions hand for natural, ergonomic shifting
• Direct bolt-on for TKO-500, TKO-600, TKX, and T-56 transmissions with standard 2-bolt flange
• Industrial through pocket design reduces weight while maintaining structural rigidity
• 10" overall length for balanced leverage and throw characteristics
• 3/8"-16 threaded stud accepts standard aftermarket shift knobs
• Mounting holes machined 0.890" center-to-center with 3/8" diameter for precise fitment

Description

Factory TREMEC shift levers get the job done, but they lack the style and ergonomic refinement that a performance build deserves. This Bowler billet aluminum shift lever transforms your interior with precision-machined construction and a sleek brushed silver finish that complements both classic and modern builds.

The 30-degree kickback angle is the key ergonomic feature here. Rather than forcing your wrist into an awkward position during aggressive shifts, the angled design places your hand naturally where it wants to be. The result is faster, more comfortable gear changes with reduced fatigue during spirited driving or track sessions.

Machined from solid billet aluminum using an industrial through pocket design, this lever delivers exceptional strength without unnecessary weight. The through pocket construction removes material strategically, creating visual interest while maintaining the structural integrity needed for hard shifts. At 10" in length, the lever provides optimal leverage for crisp gear engagement without excessive throw.

Installation is straightforward with direct bolt-on compatibility for TKO-500, TKO-600, TKX, and T-56 transmissions using the standard 2-bolt mounting flange. Mounting holes are precision-machined to 0.890" center-to-center with 3/8" diameter for perfect alignment. The 3/8"-16 threaded stud accepts most aftermarket shift knobs, so you can complete your interior with your preferred knob style.

Kit Includes

• Billet aluminum shift lever with brushed silver finish
• 3/8"-16 half nut for shift knob retention
• Mounting hardware

Note: Shift knob sold separately.

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• OEM Ford part number D0ZZ-7277-B for authentic fitment
• Compression molded EPDM rubber construction resists cracking and UV damage
• Textured skin surface matches original factory appearance exactly
• Integrated steel insert for secure mounting just like OE
• Rectangular base shape designed specifically for Hurst shifters
• Direct replacement for 4-speed manual transmissions

Description

That cracked, torn, or UV-damaged shift boot in your Hurst-equipped '69-'70 Mustang isn't just ugly - it lets dirt, debris, and moisture into your shifter mechanism. This OEM-spec reproduction restores the factory look and function that Ford engineers intended when they designed the original. Built to Ford part number D0ZZ-7277-B specifications, it drops right in without modification.

The boot is manufactured from compression molded EPDM rubber, the same material used in original Ford production. EPDM holds up to temperature extremes, resists UV degradation, and won't crack or tear like cheap vinyl alternatives. The textured skin surface replicates the original factory finish exactly - no smooth, generic appearance that screams "aftermarket" to anyone who knows these cars.

An integrated steel insert is molded into the base, providing the same secure mounting as the original equipment boot. This steel reinforcement prevents the flexing and tearing that kills generic universal boots within a few months of use. The rectangular opening is sized specifically for Hurst's distinctive rectangular shifter lever - this is not a round-lever boot, and it won't work with factory Ford shifters or other aftermarket units.

Fits 1969-1970 Mustangs equipped with Hurst 4-speed shifters. For a complete console restoration, pair this boot with the matching OEM-style shift boot bezel, available separately (see MD-321-1062-B).

What's Included

• EPDM rubber shift boot with rectangular opening for Hurst lever
• Integrated steel mounting insert

Key Features

• Compression molded E.P.D.M. rubber construction matches original Ford specification
• Textured skin finish replicates factory appearance
• Integrated steel insert mounting plate for secure installation
• Rectangle base shape with round hole fits OEM-style shift levers
• Dimensions: 6-3/4" x 4-7/8" for direct OEM replacement
• Compatible with both 3-speed and 4-speed manual transmissions
• Will NOT fit Hurst shifter applications

Description

A cracked, dried-out shift boot does more than look bad -- it lets dust, debris, and noise intrude into your classic Mustang's cabin every time you row through the gears. This Scott Drake reproduction shift boot restores the factory appearance and function with the same materials and construction Ford used originally.

The boot is compression molded from E.P.D.M. rubber, the same elastomer specified by Ford for its combination of heat resistance, flexibility, and long-term durability. The textured skin finish matches the original factory surface, so it looks correct whether you're building a concours restoration or a period-correct driver. An integrated steel insert mounting plate is molded into the base, providing solid attachment and simplifying installation -- no separate retainer to source.

Measuring 6-3/4" x 4-7/8" with a rectangle base shape and round center hole, this boot fits 1969-1973 Mustangs equipped with factory-style round shift levers and either 3-speed or 4-speed manual transmissions. Note that this boot will NOT fit Hurst shifter applications -- it's designed specifically for OEM-style lever configurations. Pair it with the matching chrome bezel (PN MD-321-1062-B, sold separately) for a complete, factory-correct restoration.

Scott Drake reproduction parts are manufactured to match original specifications, delivering the authentic details that separate a quality restoration from a parts-bin build. OE part number C9ZZ-7277-A.

[VERIFY: MDL page states 1969-73 fitment, but Scott Drake/manufacturer sources indicate 1969-70 Mustang. Confirm correct year range before publishing.]

Kit Includes

• Scott Drake C9ZZ-7277-A shift boot -- compression molded E.P.D.M. rubber
• Integrated steel insert mounting plate
• Textured skin finish matching original specification

Key Features

• Billet aluminum trim ring with ball-milled edges for premium show-quality appearance
• Outer dimensions: 6-3/4" x 5-1/4" - fits standard floor-mount shifter openings
• Inner dimensions: 5-1/2" x 4" - accommodates most aftermarket shifter levers
• Black Naugahyde construction for durability and classic hot rod styling
• Foam rubber seal eliminates airflow and road noise through floor opening
• Boot hugs shifter lever cleanly - no unsightly pull ties or laces
• Includes stainless steel mounting screws for secure installation
• Made in the USA with lifetime warranty

Description

A cheap shift boot can ruin an otherwise clean interior build. This Lokar rectangular shift boot delivers the finishing touch your hot rod or muscle car deserves, combining durable black Naugahyde construction with a precision-machined billet aluminum trim ring featuring ball-milled edges. The result is a show-quality appearance that complements everything from traditional street rods to resto-mod builds.

The engineering centers on a smart billet bezel design that sits atop the boot and fits over the shifter lever. A foam rubber seal underneath blocks airflow and road noise from entering through the floor opening - a critical comfort detail that cheaper boots ignore. Unlike bargain alternatives that use visible pull ties or laces, this boot hugs the shifter lever for a clean, integrated look with no exposed fasteners marring your interior.

With outer dimensions of 6-3/4" x 5-1/4" and inner dimensions of 5-1/2" x 4", this rectangular boot fits standard floor-mount and cable-operated shifter applications. The rectangular footprint is specifically designed for floor-mount shifters rather than transmission-mounted units, making it the correct choice for TREMEC TKX, TKO, and T-56 Magnum installations in vehicles without center consoles. The complete kit includes everything needed for a straightforward installation.

Kit Includes

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Lokar Rectangular Shift Boot | Black Naugahyde | Polished Black Stainless Ring

Key Features

• Black billet aluminum ring with precision ball-milled edge
• Rectangular ring dimensions: 6-3/4" x 5-1/4" outer, 5-1/2" x 4" inner
• Foam rubber seal eliminates airflow and debris from entering through floor
• Boot hugs shifter lever tightly with no pull ties or laces
• Polished stainless bezel fits over shifter lever for clean appearance
• Durable black Naugahyde boot material
• Stainless steel mounting screws included

Description

Exposed transmission openings and loose-fitting boots let hot air, exhaust fumes, and road debris into your cabin. This Lokar rectangular shift boot kit solves that problem while delivering a clean, finished look that complements traditional hot rod and custom interiors.

The black billet aluminum ring features a precision ball-milled edge that provides both visual appeal and a quality tactile feel. A polished stainless bezel fits precisely over the shifter lever, creating a clean transition point at the top of the boot. The included foam rubber seal sits beneath the assembly to block airflow from the floor, keeping heat and fumes where they belong.

Unlike cheaper boots that require unsightly pull ties or laces, this Lokar boot hugs the shifter lever tightly on its own, maintaining a clean appearance that won't loosen or sag over time. The rectangular ring measures 6-3/4" x 5-1/4" on the outside with a 5-1/2" x 4" inner opening, providing versatile fitment for most floor-mounted manual shifter applications. The rectangular profile is particularly well-suited for hot rod and street rod builds where it complements traditional console and tunnel designs.

Installation is straightforward with the included stainless steel mounting screws. When the details matter to your build, this boot kit delivers the fit and finish that sets professional-quality interiors apart from the rest.

What's Included

• Black Naugahyde shift boot
• Black billet aluminum ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Die-cast construction with triple chrome plating for show-quality durability
• Direct OEM replacement -- replicates Ford part number C9ZZ-7262-C
• Fits all 1969-1970 Mustangs equipped with manual transmissions (3-speed and 4-speed)
• Conceals shifter boot mounting hardware for a clean, factory-finished appearance
• Pair with matching shift boot (MD-321-1062) for complete OEM restoration

Description

Nothing spoils a clean interior like a missing or damaged shift boot bezel. This OEM-style reproduction restores the polished, finished look Ford intended around your '69-'70 Mustang's shifter. Whether you're completing a full restoration or just tidying up the cockpit, this bezel delivers the exact factory appearance without hunting through swap meets for a decent original.

Die-cast construction and triple chrome plating ensure this bezel holds up to years of use while maintaining a brilliant, show-quality finish. The rectangular design slides over the shifter lever and conceals the boot mounting screws, eliminating the unfinished look of exposed fasteners that plagues so many project cars.

Engineered specifically for 1969-1970 Mustangs with manual transmissions, this bezel works with both factory 3-speed and 4-speed applications. It directly replaces Ford OE part number C9ZZ-7262-C. For the complete OEM look, pair it with the matching rubber shift boot (see part number MD-321-1062).

Kit Includes

• One die-cast triple chrome plated shift boot bezel

Key Features

• 63" cable length engineered specifically for T5, TKO, TKX, and AOD transmission swaps
• OEM-style clip connection mates directly with factory mechanical speedometer
• Direct fitment for 1969-1973 Mustang and Cougar applications
• Ford slip-in driven gear connection at transmission end
• Drop-in solution for five-speed and AOD conversions

Description

Swapping a T5, TKO, TKX, or AOD into your '69-'73 Mustang or Cougar means the stock speedometer cable won't reach or route correctly. This 63" speedometer cable delivers the correct length for proper routing from the transmission to your factory mechanical speedometer, eliminating the binding, kinking, or slack that comes with using a generic or incorrect-length cable.

The cable features OEM-style clip connections at the speedometer head, ensuring direct compatibility with your factory gauge cluster without modification. At the transmission end, the cable uses a Ford slip-in connection that interfaces with the driven gear housing on T5, TKO, TKX, and AOD transmissions. This is the correct cable for maintaining your mechanical speedometer function after a modern drivetrain swap.

Unlike screw-on or barrel-style cables used in other Mustang years, '69-'73 models require this clip-style termination. If you're running long-tube headers, consider wrapping the cable where it routes near the exhaust to protect it from heat.

What's Included

• 63" speedometer cable with clip-style speedometer connection
• Ford slip-in transmission connection

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Direct-fit connector for Ford T5, all TKO variants, TKX, and T56 transmissions equipped with two-prong round body reverse switches
• Plug-and-play installation eliminates splicing, cutting, and custom wiring
• Factory-style connector ensures secure electrical contact for reliable backup light operation
• Does not fit Magnum or Magnum XL transmissions (different switch configuration)

Product Overview

Missing or damaged reverse light wiring is a common headache during TREMEC swaps and classic Ford restorations. This replacement harness provides the correct connector to mate with the two-prong round body reverse switch found on Ford T5, TKO, TKO-500, TKO-600, TKX, and T56 manual transmissions. No more hunting through junkyard harnesses or fabricating your own pigtail - just plug in and wire to your vehicle's backup light circuit.

The connector is engineered to match the OEM switch terminal configuration, providing a secure push-on fit that won't vibrate loose. This is a direct replacement for damaged factory harnesses, giving you a clean, professional connection point for your reverse light circuit. Wire colors may require matching to your specific vehicle's backup light wiring.

Note: This harness is specifically designed for transmissions using the two-prong round body style reverse switch. It is not compatible with T56 Magnum or Magnum XL transmissions, which utilize a different switch and connector configuration.

Kit Includes

• Reverse switch wiring harness with two-prong connector

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Laser-cut steel construction with CNC bending for precise, repeatable fitment
• Designed for TREMEC TKX and low-profile TKO-500/TKO-600 transmissions
• Ideal for small block, big block, and Shaker Hood applications that must maintain engine placement
• Raises transmission height in the tunnel without requiring floor modifications
• Engineered for maximum exhaust system clearance
• Convertible-compatible design with generous speedometer cable clearance
• Also fits Ford AOD automatic transmissions
• Black powder coat finish for corrosion resistance and professional appearance
• Sub-frame mounting hardware included
• Made in the USA

Description

Swapping a TREMEC TKX or low-profile TKO into your '67-'73 Mustang or Cougar demands more than a generic crossmember. Shaker Hood cars and big block combinations require precise engine placement, and cutting up the tunnel to fit a modern 5-speed defeats the purpose of a clean swap. This MDL crossmember solves that problem by raising the transmission to the correct height in the tunnel without any floor modifications--keeping your firewall-to-bellhousing geometry intact and your sheet metal untouched.

Unlike bent-tube crossmembers that compromise on exhaust clearance, this laser-cut steel design is CNC bent for exacting fitment every time. The heavy-duty construction handles the demands of high-torque applications while the low-profile shape maximizes clearance for headers and dual exhaust systems. Convertible owners get the same bolt-in fit as coupe and fastback builders, and the design provides generous clearance for speedometer cable routing.

The black powder coat finish delivers lasting corrosion protection and a clean, professional appearance that matches the quality of your drivetrain upgrade. Complete sub-frame mounting hardware is included to simplify installation, and the crossmember also fits Ford AOD automatics for builders running automatic swaps. Manufactured by MDL in the USA, this crossmember delivers the precision fitment and structural integrity your build demands.

Kit Includes

• Laser-cut steel transmission crossmember with black powder coat finish
• Sub-frame mounting hardware
• Installation instructions

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks
• Made in the USA

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made in the USA with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
