Key Features

• 700 lb-ft torque capacity with substantially increased gear face widths over original T56
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 with dual overdrive for street versatility
• 2-piece laser-beam welded gear construction for precise tooth angles, pitch, and alignment
• 26-spline input shaft, 31-spline output shaft
• Triple-cone synchronizers on gears 1-4; double-cone on 5th, 6th, and reverse
• Fully reversible TKO-style die-cast aluminum shifter with built-in mid-shift provisions
• Dual speedometer pickups for mechanical and electronic speedometers
• 140 lbs dry weight; 3.66-quart fluid capacity (Dexron III ATF)
• Cable release hardened steel guide tube and pivot stud included
• Max rated at 7,800 RPM

Description

The TREMEC T56 Magnum TUET16884 solves the torque limitation that plagued the original T56. Introduced in spring 2009, the Magnum delivers a massive 700 lb-ft torque capacity through substantially increased gear face widths and 2-piece laser-beam welded gear construction. Based heavily on the TR-6060 found in factory supercars like the ZR1 Corvette and ACR Viper, the Magnum combines TREMEC's OEM design and manufacturing technologies with the most popular features of the TKO 5-speed.

This TUET16884 features the wide-ratio gear set with 2.97 first gear and close-ratio 0.80/0.63 double overdrive—ideal for street-driven builds that need strong acceleration through the lower gears while maintaining relaxed highway cruising RPM. The 85mm center distance and bolstered one-piece countershaft resist distortion under load, while redesigned shift forks and fine-tooth synchronizer angles deliver incredibly short, low-effort throws with crisp engagement even at high RPM.

Triple-cone synchronizers on gears 1 through 4 and double-cone synchronizers on 5th, 6th, and reverse handle aggressive shifts with ease. The fully reversible TKO-style die-cast aluminum shifter provides smooth, positive shift action with two stock shifter positions, plus built-in mid-shift provisions under the inspection cover for simple forward shifter placement in bench-seat applications. Dual speedometer outputs accommodate both mechanical and electronic gauges, and the reverse lockout solenoid and reverse light switch are built in.

Configured for Ford applications with a 26-spline input shaft and 31-spline output shaft. Compatible with cable release clutch systems via the included hardened steel guide tube. The extensively modified transmission case prevents leaks under high-stress conditions and increases overall power-handling capabilities. Uses 3.66 quarts of TREMEC HP-MTF, Dexron III, or Mobil 1 Synthetic ATF.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET16884)
• Die-cast aluminum shifter assembly (fully reversible, TKO-style)
• Hardened steel cable release guide tube
• Cable fork pivot stud
• Mechanical speedometer output (gear-driven)
• 17-tooth electronic speedometer sensor

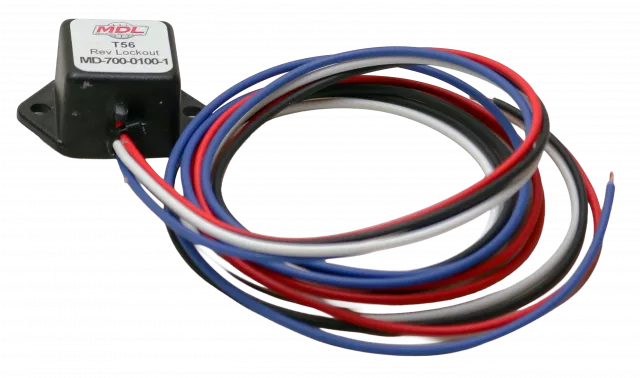

• Reverse lockout solenoid
• Reverse light switch
• Vent tube assembly
• TREMEC 1-year factory warranty
• MDL extended warranty (additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft effective torque capacity - handles serious power from big-block Fords to supercharged Coyotes
• Close-ratio gearing: 2.66, 1.78, 1.30, 1.00, 0.80, 0.63 - keeps the engine in its powerband through the gears
• Double overdrive (0.80 fifth, 0.63 sixth) - drops highway RPMs for improved fuel economy and reduced cruising noise
• 85mm center distance design for enhanced strength over original T56
• 135 lbs dry weight - reasonably light for a 700 lb-ft-rated 6-speed
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse for crisp, high-RPM shifts
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter with smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple conversions
• 1-1/8-inch 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups accommodate both mechanical and electronic speedometers
• Cable release hardened steel guide tube with pivot stud - accepts OE-style mechanical clutch fork
• Overall length: 34.03 inches
• Fluid capacity: 3.66 quarts Dexron III ATF

Description

When your Ford build demands more than a 5-speed can deliver but you refuse to compromise on shift quality, the TREMEC T56 Magnum answers the call. This close-ratio TUET11010 variant keeps RPM drops tight between gears - ideal for road racing, autocross, and spirited street driving where staying in the powerband matters. The 2.66 first gear pulls hard off the line, while the double overdrive (0.80 fifth, 0.63 sixth) drops highway RPMs dramatically for quiet, fuel-efficient cruising.

The Magnum is TREMEC's aftermarket version of the TR-6060 - the same transmission found in factory supercars like the Corvette ZR1 and Viper ACR. The 85mm center distance provides a larger gear contact patch and stronger case than the original T56, supporting 700 lb-ft of torque capacity. Triple-cone synchronizers on gears 1-4 and double-cone synchronizers on 5-6 and reverse deliver accurate, smooth shifts even at high RPM. The fully reversible die-cast aluminum shifter provides incredibly short, low-effort throws with crisp engagement.

This Ford-pattern Magnum requires a separate bellhousing and pairs with V8 Ford engines from small-block Windsors to modular 4.6/5.0 Coyote applications with the appropriate bellhousing. The hardened steel guide tube accepts standard mechanical clutch fork designs, making it a straightforward swap for classic Mustang builds. Dual speedometer provisions handle both electronic and mechanical gauges, while the built-in reverse lockout and reverse light switch simplify wiring.

MDL extends TREMEC's factory warranty by an additional year with a 1-year grace period when you purchase from us. That's the MDL difference - elite distributor pricing backed by lifetime technical support from people who actually know these transmissions inside and out.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET11010)
• OEM-grade die-cast aluminum reversible shifter assembly
• Hardened steel cable release guide tube
• Pivot stud for mechanical clutch fork
• 17-tooth analog/electric speedometer drive gear
• Reverse light switch
• Reverse lockout solenoid
• Drain and fill plugs
• TREMEC factory warranty plus MDL extended warranty (1 additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - handles serious power with confidence
• Based on TR-6060 OEM architecture - proven in factory supercars like the Dodge Viper and Camaro
• 135 lbs dry weight - light for a transmission this strong
• 2.97 first gear with 0.74/0.50 double overdrive - aggressive launch with relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse
• Fully reversible TKO-style die-cast aluminum shifter for smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple forward shifter placement
• 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups - mechanical and electronic
• 7,800 RPM rating
• 85mm center distance
• Cable release hardened steel guide tube included

Description

When TREMEC introduced the T56 Magnum in 2009, it solved the problem builders had been chasing for years: how to get bulletproof six-speed strength with OEM-level refinement in an aftermarket package. Based heavily on the TR-6060 - the same transmission found in factory supercars - the Magnum combines TREMEC's current OEM design and manufacturing technologies with the most popular features of their TKO 5-speed. The result is the smoothest-shifting, strongest, and most versatile 6-speed aftermarket transmission TREMEC has ever produced.

This TUET11011 features the wide-ratio 2.97 first gear, making it ideal for street-driven builds that want strong off-the-line acceleration without sacrificing highway drivability. The 0.74 fifth and 0.50 sixth gears deliver true double overdrive, dropping RPM for relaxed cruising and improved fuel economy. Spring-loaded ball-type synchronizer inserts reduce friction and eliminate notchy shifting, resulting in incredibly short, smooth shifts with crisp engagement.

The engineering upgrades over the original T56 are substantial. Face widths of the gears have been significantly widened to handle more torque, while redesigned one-piece shift forks with permanently mounted shift links eliminate the float and incomplete engagement that plagued earlier designs. The 85mm center distance provides the robust gear geometry needed to handle 700 lb-ft reliably. Multiple shifter locations accommodate different builds, and the reversible shifter assembly allows changing shift lever position simply by flipping the shift cover.

Compatible with Ford modular engines using the appropriate bellhousing (sold separately). Uses Dexron III ATF - no exotic fluids required. Made in the USA by TREMEC.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11011)
• Cable release hardened steel guide tube
• Reverse light switch
• 17-tooth electronic speedometer sensor
• Mechanical speedometer drive provision
• MDL extended warranty (extra year with 1-year grace period when purchased as part of a complete conversion package)
• MDL lifetime technical support

Key Features

• SFI 6.1 certified -- required for quarter-mile times of 11.49 or faster
• High-grade steel construction work-hardens to over 80,000 PSI -- more than twice the strength of other steel bellhousings
• Spin-formed cone (not rolled or stamped) delivers superior dimensional stability and alignment accuracy
• 7:00 clutch fork position for cable or hydraulic clutch operation
• Designed for 157-tooth flywheel with maximum 10.5-inch clutch diameter
• 5.34-inch height with lightweight 20 lb. design
• Universal fit -- not vehicle-specific
• Patented design with 16 points of bellhousing innovation
• 100% built in the USA

Description

The QuickTime RM-8031 steel bellhousing connects Ford 289, 302, 351W, and 351C small block engines to Ford T-56 and T-56 Magnum 6-speed transmissions. When you're running deep into the elevens or faster, safety regulations demand an SFI 6.1 certified bellhousing -- and the RM-8031 delivers that certification along with engineering that sets the standard for the industry.

What separates QuickTime from the competition is their proprietary spin-forming process. Unlike rolled or stamped bellhousings that introduce stress concentrations and dimensional inconsistencies, the spun cone work-hardens during manufacturing to over 80,000 PSI tensile strength -- more than double the strength of conventional steel bellhousings. This high material strength allows the bellhousing to remain lightweight while providing the scatter shield protection that high-horsepower builds demand.

Dimensional accuracy matters because bellhousing flex and misalignment accelerate drivetrain wear and rob horsepower. QuickTime's manufacturing process produces the most dimensionally stable bellhousings available, keeping your engine and transmission in perfect alignment through the entire RPM range. The 7:00 clutch fork position accommodates both cable and hydraulic clutch linkages, while the 5.34-inch height and 157-tooth flywheel specification (10.5-inch maximum clutch diameter) ensure proper starter engagement and clutch clearance.

This is a universal-fit bellhousing designed for street, strip, and circle track applications -- not vehicle-specific. Note: Transmission mounting bolts are not included; QuickTime's RM-170 bolt kit (8pcs 10mm x 1.5 x 30mm) is available separately for T56 applications. Made in the USA.

What's Included

• QuickTime RM-8031 SFI 6.1 certified steel bellhousing
• Hardware and instructions

Key Features

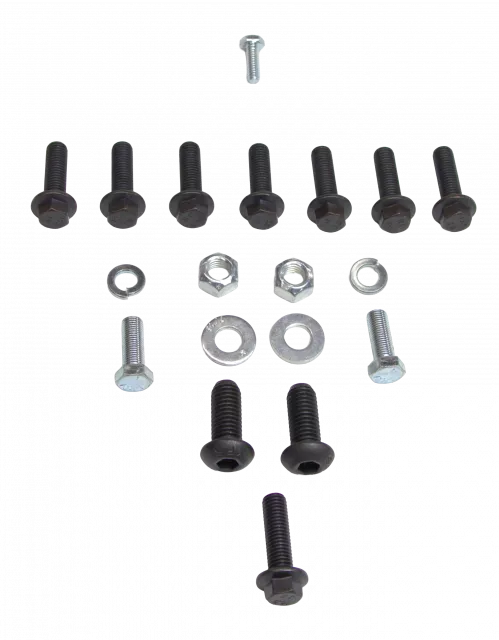

• Complete transmission-to-bellhousing bolt set for Ford T56 Magnum installations
• Designed specifically for steel aftermarket bellhousings
• Metric fasteners with proper thread pitch for TREMEC T56 Magnum mounting holes
• Eliminates hardware sourcing headaches during your Ford 6-speed swap

Description

Aftermarket steel bellhousings typically ship with bellhousing-to-engine-block hardware only, leaving you to source the bolts needed to attach the transmission itself. This MDL hardware kit solves that problem for Ford T56 Magnum installations by providing the exact fasteners required to mount the transmission to any steel aftermarket bellhousing.

The kit is purpose-built for steel bellhousing applications. Steel bellhousings have different material thickness than aluminum units, requiring specific bolt lengths for proper thread engagement without bottoming out. Using the wrong hardware can result in insufficient thread engagement or bolts that bind before the transmission face seats flush. This kit takes the guesswork out of the equation.

Compatible with all steel aftermarket bellhousings that accept the Ford version of the TREMEC T56 Magnum 6-speed transmission. If you're pairing your Magnum with an aluminum bellhousing, you'll need the AL version of this kit instead, as aluminum bellhousings use different bolt lengths. This kit covers transmission-to-bellhousing mounting only; bellhousing-to-engine-block hardware is typically supplied by the bellhousing manufacturer.

What's Included

• Complete set of transmission-to-bellhousing mounting bolts [VERIFY: exact bolt count, thread size, and grade]

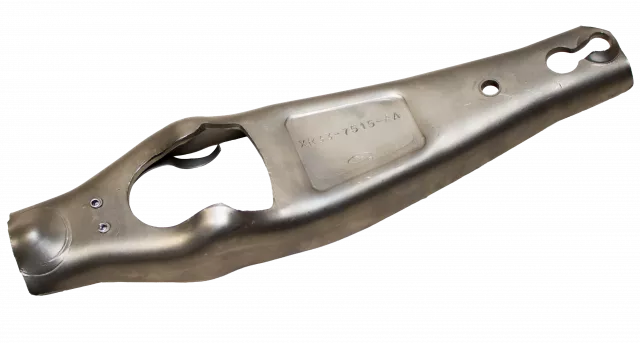

Clutch Lever | 1994-2004 Mustang | T5, T45, 3650, 4.6L T-56

Key Features

• Fits all 1994-2004 Mustang manual transmissions: T5, T45, 3650, and 4.6L T-56
• Designed for cable and external hydraulic clutch operation with compatible bellhousings
• SN95-specific geometry with longer overall length and extended pivot points versus Fox Body forks
• Stamped steel construction for durability and reduced flex under load
• Direct replacement for worn OE clutch forks on SN95 and New Edge Mustangs

Description

When you're replacing the clutch in your 1994-2004 Mustang, don't overlook the clutch fork. This frequently neglected component takes a beating every time you press the pedal, and a worn fork causes sloppy engagement, inconsistent pedal feel, and premature throwout bearing wear. This MDL clutch lever restores factory-correct geometry to your SN95 or New Edge drivetrain.

The SN95 clutch fork is not interchangeable with Fox Body forks. The 1994-2004 lever is longer overall with extended pivot points to match the deeper SN95 bellhousing depth and longer input shaft configuration. Using the wrong fork causes the clutch cable to exit at a severe angle, resulting in hard pedal effort, accelerated cable wear, and eventual cable failure. This lever provides the correct geometry for proper throwout bearing positioning and smooth clutch actuation.

Engineered for both stock cable-release setups and external hydraulic conversions, this fork works with OE and aftermarket bellhousings designed for '94-'04 applications. Whether you're running a T5 carryover, the T45 that served '96-'99 GTs, the 3650 that replaced it in 2000, or the T-56 behind your 4.6L Cobra, this clutch lever delivers the reliable operation your drivetrain demands.

Kit Includes

• Clutch lever/fork assembly
• Installation instructions

Key Features

• Dual clutch pattern accepts both 10" long-style and 10.4" metric diaphragm clutches — upgrade to high-performance clutch setups without swapping flywheels
• 157-tooth ring gear for compatibility with small-diameter bellhousings and starters
• 28oz external imbalance matches pre-1981 Ford small block engines (260, 289, 302, 351W, 351C)
• 6-bolt crank mounting pattern with 7/16" bolts
• Cast iron construction weighing 19 lbs for smooth idle characteristics and excellent heat absorption
• Precision machined to improve clutch performance, durability, and reduce vibration
• Pre-installed metric alignment pins for accurate 10.4" clutch indexing
• Replaces OEM part numbers C3AZ-6375-J and C3AZ-75-A

Description

Running a classic Ford small block and want flexibility in your clutch setup? This dual-pattern cast iron flywheel eliminates the one-flywheel-per-clutch-size limitation that plagues so many builds. The machined face accepts both the 10" long-style diaphragm clutches found in vintage applications and the 10.4" metric diaphragm clutches used on high-performance '79–'01 Mustangs — so you can start with a stock-style clutch and upgrade to a higher-capacity unit later without pulling the flywheel.

Cast iron construction delivers the rotating mass needed for civilized street manners: smooth idle, progressive engagement, and excellent heat absorption during stop-and-go driving. The 157-tooth ring gear mates with the smaller-diameter bellhousings and starters common on '64–'68 Mustangs and other early Ford small block applications. Precision machining ensures a flat, true friction surface that improves clutch performance and reduces vibration.

The 28oz external imbalance is correct for pre-1981 Ford Windsor and Cleveland engines — 260, 289, 302, 351W, and 351C. (Post-1981 5.0L engines use a 50oz imbalance; verify your engine's balance before ordering.) The 6-bolt crank pattern with 7/16" hardware provides a secure connection to the crankshaft flange.

Compatible with 3-speed, 4-speed, and T5 5-speed manual transmissions. While cast iron flywheels work for light motorsports use, understand the RPM and load limits — billet steel offers better stability for sustained high-RPM or competition applications.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and dual clutch pattern (10" long / 10.4" metric)
• Pre-installed metric alignment pins for 10.4" clutch pattern
• Clutch alignment pins

Key Features

• Cast iron construction for durability and heat dissipation in street applications
• 157-tooth ring gear for proper starter engagement with small-block Ford bellhousings
• 50oz external balance engineered specifically for 1981-1995 Ford 5.0L Windsor engines
• 10.4" metric clutch pattern with equalizing pin holes for diaphragm-style pressure plates
• 6-bolt crankshaft mounting pattern matches Ford factory configuration
• 19 lbs flywheel weight provides optimal rotational mass for smooth street driving
• Includes clutch alignment pins for precise pressure plate installation

Description

When Ford switched the 302 to the 5.0L designation in 1981, they also changed the external balance from 28oz to 50oz. That means every '81-'95 5.0L Windsor needs a flywheel with the correct counterweight to maintain proper engine balance and eliminate vibration. This cast iron flywheel delivers exactly that - the right balance for your late-model small-block Ford, with the 157-tooth ring gear that mates to standard small-block bellhousings and starters.

The 10.4" metric clutch pattern is a Ford-specific design that uses alignment pins rather than shouldered bolts to locate the pressure plate. These equalizing pins ensure precise concentricity between the pressure plate and flywheel - critical for smooth clutch engagement and even wear. The metric pattern accommodates modern diaphragm-style pressure plates with 8mm hardware, making it compatible with factory and aftermarket clutch assemblies designed for '83-'95 Mustangs and other 5.0L applications.

Cast iron provides the strength and thermal stability needed for street duty, absorbing and dissipating heat through repeated clutch engagements without the hot spots that can develop on lighter materials. At 19 lbs, this flywheel maintains enough rotational mass for smooth idle and progressive engagement - the kind of drivability you want in a daily driver or weekend cruiser. The 6-bolt crankshaft pattern bolts directly to the factory crank flange with no adapters or modifications required.

Kit Includes

• Cast iron flywheel with 157-tooth ring gear and 50oz counterweight
• Clutch alignment pins for 10.4" metric pressure plate installation

Key Features

• Billet steel construction weighing just 19 lbs - significantly lighter than cast iron OEM units
• 157 tooth ring gear for compatibility with small bellhousings and starters
• Zero balance (internally balanced) for stroker motors and Ford Racing crate engines
• Dual clutch bolt patterns for 10" and 10.5" diaphragm clutch assemblies
• 6-bolt crankshaft mounting pattern for direct Ford small block fitment
• Clutch alignment pins included for precision disc positioning
• Made in the USA

Description

When you're building a high-output Ford small block that needs to shed rotating mass without sacrificing durability, this Lighten Billet Steel Flywheel delivers. Machined from billet steel and weighing just 19 pounds, it removes significant weight compared to cast iron factory flywheels - translating to quicker engine response and faster acceleration through the gears.

The 157 tooth ring gear works with small-pattern bellhousings and corresponding starters, making it the right choice for classic Mustangs and other Ford applications using the compact bellhousing configuration. Zero balance (internally balanced) design means this flywheel pairs with internally balanced rotating assemblies - including stroker builds, aftermarket cranks, and Ford Racing's 363 and 427 cubic inch crate engines.

Dual clutch bolt patterns accept both 10" and 10.5" diaphragm clutch assemblies, giving you flexibility whether you're running a stock-replacement clutch or upgrading to a higher-capacity performance unit. The 6-bolt crankshaft pattern provides direct fitment to Ford 289, 302, and 351 Windsor engines. Included alignment pins ensure proper clutch disc positioning during installation.

Compatible with Ford 289, 302, and 351 Windsor engines requiring zero balance. Also fits Ford Racing 363ci and 427ci performance engines. Made in the USA.

Kit Includes

• Lighten Billet Steel Flywheel (19 lbs)
• Clutch alignment pins

Key Features

• SFI certified billet steel construction for high-RPM safety and durability
• 157-tooth ring gear for classic Ford small block applications
• Zero balance (internally balanced) - no external counterweight required
• Dual clutch pattern: 10" long and 10.4" metric diaphragm compatible
• 6.00" clutch damper counter-bore diameter
• 6-bolt crankshaft mounting pattern
• Weight: [VERIFY: Product description states 22 lbs, custom field states 19 lbs - confirm correct weight]
• Pre-installed metric alignment pins for 10.4" clutch setup
• Made in the USA with US-milled steel

Description

When you're building a high-revving Ford small block, your flywheel needs to handle the abuse without becoming a liability. Cast iron flywheels can crack under stress, and non-certified components may not meet the safety standards required at the track. This SFI certified billet steel flywheel delivers the strength and peace of mind that serious builds demand - meeting the rigorous testing standards established by the SFI Foundation for replacement flywheels and clutch assemblies.

The billet steel construction provides superior tensile strength compared to cast alternatives, resisting the centrifugal forces that tear lesser flywheels apart at high RPM. The lightweight design reduces rotating mass for quicker throttle response and faster revs, while maintaining enough thermal mass for consistent clutch engagement. Zero balance (internal balance) simplifies installation on Ford 289, 302, 351W, and 351C engines that use internally balanced rotating assemblies.

Versatility is built into the design with dual clutch bolt patterns. The 10" long pattern accepts 5/16" pressure plate bolts, while the 10.4" metric pattern uses 8mm bolts - and the metric alignment pins come pre-installed so you're ready for either setup. The 6.00" clutch damper counter-bore provides proper clearance for diaphragm-style pressure plates. Note that 157-tooth flywheels require a 3/4" offset starter (often labeled as "automatic" in parts catalogs) for proper ring gear engagement.

Manufactured in the USA with US-milled steel, this flywheel delivers the quality and consistency that American craftsmanship is known for. Whether you're building a weekend warrior or a dedicated track car, SFI certification means this flywheel meets the standards required by most sanctioning bodies for competition use.

Kit Includes

• Billet steel flywheel with 157-tooth ring gear
• Pre-installed 10.4" metric clutch alignment pins

Key Features

• Lighten billet steel construction resists stress cracking and handles higher RPM loads than cast iron
• 157-tooth ring gear with 28oz external imbalance for pre-1982 Ford 289/302/351W engines
• Dual clutch bolt patterns accommodate both 10" and 10.5" pressure plates
• 19 lb weight balances reduced rotational mass with smooth street drivability
• 6-bolt crankshaft mounting pattern; clutch alignment pins included
• Compatible with Ford Racing 363/427ci crate engines
• Precision-machined from US-milled steel; Made in the USA

Overview

Factory cast iron flywheels have their limits. At high RPM or under aggressive clutch clamping loads, they can develop stress cracks that compromise both performance and safety. This lighten billet steel flywheel replaces that weak link with a material that's fundamentally stronger—billet steel resists cracking and remains stable under the demands of performance driving.

The "lighten" designation refers to strategic material removal that reduces rotational mass without sacrificing structural integrity. At 19 lbs, this flywheel strikes the sweet spot between weight reduction and street manners—light enough for improved throttle response and quicker revs, yet heavy enough to maintain smooth idle characteristics and prevent the stalling issues common with ultra-lightweight aluminum units. The result is a flywheel that feels responsive on throttle tip-in while still delivering civilized behavior in traffic.

Dual clutch bolt patterns machined into the friction surface eliminate fitment guesswork, accepting both 10" and 10.5" pressure plates. The 157-tooth ring gear and 28oz external imbalance match OE specifications for pre-December 1982 small block Fords, ensuring proper starter engagement and crankshaft balance. This flywheel fits Ford 289, 302, and 351W Windsor engines, plus Ford Racing 363ci and 427ci stroker crate motors that use the 28oz balance specification.

Six-bolt crankshaft mounting provides secure attachment, while included clutch alignment pins ensure proper disc positioning during installation. Every flywheel is precision-machined from US-milled steel and manufactured in the USA.

What's Included

• Lighten billet steel flywheel (19 lbs)
• 157-tooth ring gear (installed)
• Clutch alignment pins

Billet Steel SFI Flywheel | Ford Small Block | 157 Tooth | 28oz | 10"-10.5" Clutch

Key Features

• Lightened billet steel construction -- stronger than cast iron with reduced rotational mass at just 19 lbs
• SFI certified for racing sanctioning bodies requiring SFI-rated drivetrain components
• 28oz external balance for pre-1982 Ford 221, 260, 289, 302, and 351W engines
• Dual bolt pattern accepts both 10" and 10.5" clutch assemblies
• 157-tooth hardened ring gear for proper starter engagement
• Six-bolt crankshaft mounting pattern -- standard Ford small block fitment
• CNC-machined friction surface for consistent clutch engagement
• Made in the USA with lifetime technical support from MDL

Description

Cast iron flywheels can't handle serious RPM or the repeated abuse of high-horsepower launches. This billet steel flywheel is precision CNC-machined from certified steel, engineered to survive the stress levels that crack and shatter cast units. At 19 pounds, it sheds significant rotating mass compared to heavy OEM flywheels -- translating to quicker revs, faster deceleration between shifts, and reduced parasitic drag on the crankshaft.

The 28oz external balance is critical: all Ford 221, 260, 289, 302, and 351W engines built before December 1982 use a 28-ounce offset balance. Mismatch the balance weight and you'll introduce severe harmonic vibration that punishes bearings and shortens engine life. Post-1981 5.0L High Output engines switched to a 50oz balance -- this flywheel is not for those applications. Match your balance weight to your engine's build date, not the vehicle year.

The dual bolt pattern accommodates both 10" and 10.5" clutch assemblies, giving you flexibility when selecting or upgrading your pressure plate without swapping flywheels. The 157-tooth ring gear is the standard configuration for most small block Ford manual transmission applications in vintage Mustangs, Falcons, Fairlanes, and similar platforms.

SFI certified for competition use where sanctioning bodies require rated flywheel and clutch assemblies. Compatible with Ford small block Windsor engines using the standard six-bolt crankshaft mounting pattern and requiring 28oz external balance. Made in the USA with lifetime technical support from MDL.

What's Included

• Lightened billet steel flywheel (19 lbs) with CNC-machined friction surface
• 157-tooth hardened steel ring gear (installed)
• 28oz external balance weight (installed)
• Clutch alignment pins
• Lifetime technical support from MDL

Key Features

• Billet steel construction - stronger than cast iron, resists stress cracking at high RPM
• Lightened design at 22 lbs. [VERIFY: custom field lists 19 lbs., description states 22 lbs.] - reduced rotational mass for improved throttle response
• 50oz external balance - correct for factory 1981-1995 Ford 5.0L Windsor engines
• Dual clutch pattern - accommodates both 10.5" metric diaphragm and 10" long-style pressure plates
• 157-tooth ring gear for high-performance starter applications
• 6-bolt crankshaft mounting pattern
• 6.00" clutch damper counter-bore
• Metric alignment pins pre-installed - eliminates installation guesswork
• Made in the USA with domestically-milled steel

Description

Factory cast iron flywheels become the weak link when you push serious power through a 5.0L Windsor. Cast iron is prone to stress cracking under repeated high-RPM clutch engagement, and a cracked flywheel at speed is a catastrophic failure waiting to happen. This lightened billet steel flywheel delivers the strength needed for high-performance street builds and competition use while shaving weight to improve engine response.

Billet steel is considerably stronger than cast iron and remains free of the stress cracks that plague factory flywheels under heavy use. The lightened design reduces rotational mass compared to standard-weight flywheels, allowing faster throttle response on acceleration and quicker RPM drop on deceleration - a noticeable improvement whether you're rowing through gears on the street or chasing lap times. The 50oz external balance matches factory 5.0L engine specifications for 1981-1995 applications, ensuring smooth operation with no vibration.

The dual clutch pattern provides flexibility in clutch selection, accepting both 10.5" metric diaphragm pressure plates and 10" long-style setups. Metric alignment pins come pre-installed to ensure proper clutch disc centering during installation. Note that diaphragm clutches require metric pressure plate bolts (MD-403-2003 or MD-403-2003ARP), while the 10" long pattern uses 5/16" bolts (MD-403-2004).

Engineered for Ford small block Windsor engines with 157-tooth starter ring gear applications. Fits all 1981-1995 Ford 5.0L engines requiring 50oz external balance. Proudly made in the USA using US-milled billet steel.

What's Included

• Lightened billet steel flywheel with 157-tooth ring gear
• Metric clutch alignment pins (pre-installed)

Key Features

• Lightweight aluminum construction at 19 lbs - significantly lighter than cast iron for faster engine response
• Riveted steel clutch facing for superior durability and heat dissipation
• Dual clutch bolt pattern: 10" Long and 10.4" metric with dowel pins for maximum compatibility
• Zero balance configuration standard; can be ordered with 28 oz or 50 oz counterweight options
• 157-tooth steel ring gear mechanically fastened to flywheel body - prevents ring gear separation
• 6-bolt crankshaft mounting pattern for Ford small block engines
• Made in the USA

Description

Shed rotational mass without sacrificing reliability. This lightweight aluminum flywheel weighs just 19 lbs compared to heavy cast iron units, helping your engine reach higher RPMs quicker due to reduced rotating mass. That reduced inertia translates to improved throttle response and acceleration - the engine spends less energy spinning up the flywheel and more energy putting power to the wheels.

The riveted steel clutch facing provides superior heat dissipation and wear characteristics compared to bonded surfaces. Unlike cheaper aluminum flywheels that use pressed-on ring gears, this 157-tooth steel ring gear is mechanically fastened to the flywheel body, preventing the ring gear separation failures that can occur under high-stress conditions. The dual bolt pattern accommodates both vintage 10" Long-style and modern 10.4" metric pressure plates with dowel pins - eliminating compatibility guesswork across Ford's clutch evolution.

Engineered specifically for Ford small block 289, 302, and 351W Windsor engines, this flywheel comes standard as zero balance for internally balanced engines. For externally balanced applications, 28 oz or 50 oz counterweight options are available to match your specific crankshaft requirements - pre-1981 302s and all 351Ws use 28 oz imbalance, while 1981+ 302/5.0L engines require 50 oz.

Note: Aluminum flywheels spin up faster but have less stored energy than cast iron, which can make the engine easier to stall at low RPMs. If paired with a dual clutch set, this helps offset some of the characteristics. Aluminum flywheels should never be paired with ceramic or bronze clutches due to the added heat they generate. It is recommended to warm the flywheel before installing on the crank. Not SFI approved - intended for street performance and moderate competition use. Made in the USA with lifetime technical support.

What's Included

• CNC-machined aluminum flywheel body (19 lbs)
• Riveted steel clutch facing
• 157-tooth steel ring gear (mechanically fastened)
• Clutch alignment dowel pins for 10.5" clutch applications
• Lifetime technical support

Key Features

• Lightweight aluminum flywheel body with riveted steel clutch facing for superior heat dissipation
• 157-tooth ring gear for small bellhousing applications
• 28oz external balance for pre-1981 Ford 289, 302, and all 351W engines
• 6-bolt crankshaft mounting pattern
• Includes dowel pins for 10.5-inch diaphragm clutch pattern
• High-carbon steel ring gear riveted to flywheel body prevents slipping under load
• Made in the USA

Description

Ditch the heavy factory cast iron flywheel and drop serious rotating mass from your Ford small block. This aluminum flywheel delivers the weight reduction performance builds demand while maintaining the durability street engines require. Lighter rotating mass means quicker engine response and faster acceleration through the gears - your engine revs up and recovers faster between shifts.

The engineering here focuses on heat management and longevity. The riveted steel clutch facing provides a durable friction surface that handles heat far better than aluminum-on-aluminum contact, preventing warping and premature wear in spirited driving. The high-carbon steel ring gear is riveted to the aluminum body rather than pressed or shrunk on - this prevents the ring gear from walking off the flywheel under the repeated thermal cycling and shock loads of hard use.

This flywheel carries the correct 28oz external balance for pre-1981 Ford 289 and 302 engines, as well as all 351 Windsor engines regardless of year. The 157-tooth ring gear is sized for small bellhousing applications - the compact aluminum bellhousing, not the larger cast iron 164-tooth style. Includes dowel pins for proper clutch alignment with 10.5-inch diaphragm clutch kits.

Installation note: It is recommended to warm the flywheel before installing on the crankshaft for proper thermal expansion and fit. Aluminum flywheels should not be paired with ceramic or bronze-faced clutch discs due to the excessive heat these materials generate. Made in the USA.

What's Included

• Aluminum flywheel with steel clutch facing
• 157-tooth steel ring gear (riveted)
• Clutch alignment dowel pins for 10.5-inch clutch

Key Features

• Riveted steel clutch facing permanently fastened to aluminum body - prevents ring gear separation under high loads
• 157-tooth ring gear for proper starter engagement on 5.0L HO applications
• 50oz external counterweight matches factory balance on 1981-1995 Ford 5.0L HO engines
• 19 lb total weight - reduces rotating mass versus stock cast iron flywheels
• Six-bolt crankshaft mounting pattern for direct replacement installation
• 10.4" metric clutch bolt pattern with alignment pins
• Made in the USA

Description

Cut rotating mass from your 5.0L drivetrain with this aluminum flywheel, purpose-built for 1981-1995 Ford 5.0L HO engines. Weighing just 19 lbs, it delivers noticeably quicker throttle response and faster RPM changes compared to stock cast iron units - ideal for road racing, autocross, and spirited street driving where nimble engine response matters more than low-RPM grunt.

The critical engineering detail is the riveted steel clutch facing. Unlike cheaper aluminum flywheels that rely on shrink-fit alone, this design permanently fastens the steel ring gear to the aluminum body using mechanical fasteners. This prevents the ring gear from walking or separating under hard launches and high-heat clutch engagement - a common failure mode when differential thermal expansion rates cause the steel ring gear to loosen on an aluminum body.

The 50oz external imbalance is factory-correct for Ford 5.0L HO engines from 1981-1995, ensuring smooth operation without vibration. The 157-tooth ring gear matches OEM specifications for proper starter motor engagement. Six-bolt crankshaft attachment follows Ford's original pattern, and the 10.4" metric clutch bolt pattern with alignment pins accommodates most performance clutch upgrades.

Important: Aluminum flywheels reduce stored rotational energy, which can make low-RPM driving feel less forgiving - they're easier to stall from a stop. This flywheel should not be paired with ceramic or bronze clutch discs, as the excessive heat generated can damage the aluminum body. It is recommended to warm the flywheel before installing on the crankshaft for optimal fit. Made in the USA.

What's Included

• Aluminum flywheel with riveted steel clutch facing
• Clutch alignment pins

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

Superior King Cobra Clutch Kit | Ford 10.4" Metric | 26-Spline | Cable

Key Features

• Steel-backed organic disc for 1-1/8" 26-spline input shaft
• 10.4" metric bolt pattern with alignment pins
• Heavy-duty diaphragm pressure plate for increased clamping force
• Sprung hub disc reduces drivetrain shock during engagement
• Cable throwout bearing for cable-actuated clutch systems
• 400 lb-ft torque capacity for street applications
• Hand-assembled in Caldwell, Idaho with dual quality inspections
• 1-year free-from-defect warranty
• Made in the USA

Description

Worn-out clutches kill power delivery and driving enjoyment. The MDL Superior King Cobra clutch kit restores confident engagement while delivering the upgraded holding power needed for modified Ford street machines. Built around a steel-backed organic disc and heavy-duty diaphragm pressure plate, this complete kit provides the durability and clamping force for spirited driving without the harsh pedal feel of aggressive racing clutches.

The steel backing on the organic friction material eliminates disc flexing under load, maintaining consistent engagement characteristics and extending service life compared to standard unbacked organic facings. The sprung hub design absorbs drivetrain shock during engagement, reducing wear on the transmission input shaft and providing the smooth, progressive feel daily drivers demand. The heavy-duty diaphragm pressure plate delivers increased clamp load over stock while keeping pedal effort reasonable for street use.

This kit fits Ford applications using the 10.4" metric clutch pattern with metric bolts and alignment pins. The 1-1/8" 26-spline disc mates directly to transmissions with matching input shaft specifications. The included cable throwout bearing ensures compatibility with cable-actuated clutch systems commonly found in Foxbody and SN95 Mustangs.

Every MDL Superior clutch is hand-assembled at the Caldwell, Idaho facility and undergoes quality checks before shipping. This kit arrives ready to install with all necessary components for a complete clutch replacement. Rated for street applications up to 400 lb-ft of torque. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 10.4" steel-backed organic clutch disc with sprung hub, 26-spline, 1-1/8" input
• Heavy-duty diaphragm pressure plate, 10.4" metric bolt pattern
• Cable throwout bearing
• Ford pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty
• MDL lifetime technical support

Superior Ford 10.4" Metric HD Clutch Set | Kevlar/Steel-Backed Organic | 26-Spline Cable

Key Features

• Hybrid friction material - Kevlar facing on pressure plate side, steel-backed organic on flywheel side for aggressive bite with smooth engagement
• 450 ft-lbs torque capacity handles serious small-block Ford power
• Diaphragm-style pressure plate with 10.4" metric bolt pattern and alignment dowel pins
• 26-spline x 1-1/8" input shaft compatibility for TKO, TKX, 3550, and T-5 transmissions
• Sprung hub design absorbs driveline shock and protects transmission components
• Cable-actuated throw-out bearing included for mechanical release systems
• Hand-built in-house with double-checked tolerances for ready-to-install precision
• Made in the USA with 1-year defect-free warranty

Description

MDL's Superior Series clutch sets deliver the precise balance of engagement characteristics that performance street builds demand. This 10.4" metric clutch features a hybrid friction material strategy - Kevlar facing on the pressure plate side provides aggressive bite and exceptional heat resistance, while steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. The result is a clutch that hooks up decisively under power yet remains streetable for daily driving.

The diaphragm-style pressure plate uses Ford's 10.4" metric bolt pattern with 8mm bolts and precision dowel pins for rock-solid alignment and zero chatter. With a 450 ft-lbs torque capacity, this clutch handles serious small-block Ford power while the sprung hub absorbs the driveline shock that would otherwise stress transmission synchronizers and gears. The 26-spline x 1-1/8" disc fits TKO, TKX, 3550, and T-5 transmissions equipped with the larger input shaft.

Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where tolerances are verified twice before shipping. This attention to detail ensures proper balance, smooth engagement, and long service life right out of the box. The kit includes everything needed for installation - precision pilot bearing, cable-actuated throw-out bearing, and alignment tool. Backed by MDL's 1-year defect-free warranty and made in the USA.

Kit Includes

• Diaphragm pressure plate - 10.4" metric bolt pattern with alignment dowel pins, uses 8mm bolts
• Clutch disc - 26-spline x 1-1/8", sprung hub, Kevlar/steel-backed organic facings
• Cable-actuated throw-out bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

Key Features

• Dual Kevlar friction facings on both flywheel and pressure-plate sides for consistent engagement and heat resistance
• Heavy-duty diaphragm pressure plate matched to 26-spline x 1-1/8" input hub
• Cable-profile throwout bearing also compatible with hydraulic release systems
• 10.4" metric bolt pattern with alignment dowel pin holes - uses 8mm pressure plate bolts
• Hand-assembled in-house with double-riveted construction for balance and durability
• Sprung hub design absorbs driveline shock for smoother engagement
• 500 ft-lb torque capacity for performance street and open tracking applications
• 1-year free-from-defect warranty

Description

When you're building a Ford with a 26-spline transmission and need a clutch that handles real power without fighting you in traffic, this Superior 10.4" metric kit delivers. The dual Kevlar friction surfaces provide aggressive holding power with manageable street manners - Kevlar's thermal stability means consistent engagement under repeated hard use without the grabby, on-off characteristics of ceramic facings. This is the clutch for performance street builds and open track days where you need confidence in the drivetrain, not a sore left leg.

MDL builds every Superior clutch disk in-house with double-riveted construction - not bonded like cheaper alternatives. This assembly method ensures precise balance across the disc, eliminates hot spots that cause premature failure, and maintains structural integrity under high heat and repeated engagement cycles. The heavy-duty diaphragm pressure plate increases clamp load over stock units to support the 500 ft-lb torque rating.

The 26-spline x 1-1/8" input hub with sprung center fits modern TREMEC TKX, TKO-600, and T5 transmissions, as well as period-correct '86-'95 Ford 5.0L applications with upgraded transmissions. The cable-profile throwout bearing is designed for Ford cable-actuated systems but also works with hydraulic release setups, giving you flexibility for transmission swaps and clutch system upgrades.

Every component is checked and double-checked for accuracy before shipping - you receive a ready-to-install premium assembly right out of the box. Performance Proven products have survived the rigorous challenges of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pin holes
• 10.4" clutch disc with dual Kevlar friction facings - sprung hub
• 26-spline x 1-1/8" input shaft hub
• Cable-profile throwout bearing (hydraulic compatible)
• Pilot bearing
• Clutch disc alignment tool
• Installation and break-in instructions
• Lifetime technical support

Superior 10.4" Metric Clutch Kit | Ford 1986-1995 | Kevlar/Ceramic 26-Spline Cable

Key Features

• Kevlar facing on flywheel side, ceramic facing on pressure plate side for aggressive bite with smooth engagement
• 600 lb-ft torque rating handles serious street/strip power
• 26-spline, 1-1/8" hub diameter fits TREMEC TKO, TKX, and T5 with 26-spline input
• 10.4" metric bolt pattern with 3 alignment dowel pin holes
• Cable-style throw-out bearing included (also compatible with hydraulic systems)
• Diaphragm-style pressure plate with 8mm bolt holes
• Sprung hub design reduces drivetrain shock and chatter
• Hand-assembled and double-riveted in MDL's Caldwell, Idaho facility
• 1-year free-from-defect warranty

Description

When you need more holding power than a full-Kevlar disc can deliver but want to preserve some street manners, the Superior Kevlar/Ceramic clutch assembly is the answer. This hybrid design places Kevlar on the flywheel side for smooth engagement and extended life, while the ceramic facing on the pressure plate side delivers the aggressive bite and heat resistance demanded by drag launches and high-RPM road racing shifts. Great for 1986-1995 Ford applications running the 10.4" metric bolt pattern.

Ceramic friction material works harder as temperatures climb--the iron content in MDL's ceramic compound actually increases friction under heat, making this clutch stronger during abuse rather than weaker. That's why ceramic is the go-to choice for higher horsepower builds, quick shifts in road racing, and hard-launching drag cars. When a larger diameter disc isn't an option, the higher coefficient of friction delivers more holding power from the same surface area and clamp load.

Every Superior clutch assembly is hand-built in MDL's Caldwell facility using double-riveted construction and exacting quality standards. Each unit is checked and double-checked for accuracy before it ships, so you receive a ready-to-install premium product right out of the box. The 26-spline, 1-1/8" hub fits transmissions like the TREMEC TKO, TKX, or any 26-spline T5 variant. The included cable-profile throw-out bearing also works with hydraulic release systems, giving you flexibility in your drivetrain setup.

Designed for the 10.4" metric pressure plate pattern with 3 alignment dowel pin holes--uses 8mm pressure plate bolts. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Diaphragm-style pressure plate (8mm bolt holes, metric pattern)
• Clutch disc with Kevlar/ceramic hybrid facings, 26-spline x 1-1/8" sprung hub
• Cable-profile throw-out bearing (hydraulic compatible)
• Pilot bearing
• Clutch alignment tool
• 1-year free-from-defect warranty

Key Features

• 800 horsepower capacity for high-performance street applications
• 26 x 1-1/8" input spline configuration with 246mm (9.687") disc diameter
• Economically priced twin disc design - uses your existing flywheel
• Organic/organic friction facings deliver smooth engagement with soft pedal effort
• Sprung hub discs for excellent release characteristics and driveability
• Diaphragm pressure plate with 10" Long bolt pattern and 8mm hardware
• Small ring adapter fits Ford 157T flywheels
• Street-focused design - not intended for competition use
• Made in the USA

Description

When you've built serious power but need a clutch that remains civilized on the street, the McLeod RST twin disc clutch kit delivers an economically priced solution for high-horsepower Ford applications. This kit solves the fundamental problem of single-disc clutches that either slip under power or become unbearably harsh for daily driving - without requiring you to purchase a new flywheel.

Capable of handling 800 horsepower, this clutch manages extreme power while remaining street-friendly. The twin-disc design spreads clamping loads across two organic friction surfaces, reducing pressure plate spring tension compared to equivalent single-disc setups. Organic-faced twin sprung hub friction discs provide smooth engagement with soft pedal effort and excellent release characteristics, making this ideal for enthusiasts who demand performance without sacrificing driveability.

The small ring adapter configuration works with Ford 157T flywheel bolt patterns. The 26 x 1-1/8" input spline accommodates transmissions like the TKO-500/600, TKX, and T56 Magnum. McLeod's patent-pending adapter ring ensures proper pressure plate positioning and prevents the binding issues common with universal adapters. This kit requires your existing flywheel, which must be properly resurfaced before installation. Flywheel surface must have a coarse texture from a stone grinder - if you run your fingernail across it, the texture should catch your nail.

Compatible with Ford applications using 10" Long bolt patterns with 8mm hardware for 10.5" bellhousing configurations. Note: This clutch is designed for high-horsepower street use and is not intended for competition environments. Made in the USA.

What's Included

• Diaphragm pressure plate (10" Long bolt pattern)
• Two organic friction discs (246mm diameter, 26 x 1-1/8" spline, sprung hub)
• Floater plate
• McLeod patent-pending small ring adapter
• Pilot alignment tool
• Installation instructions
• Flywheel clutch pattern chart

Note: This kit does not include a pilot bearing or throwout bearing.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• Premium-grade bronze construction with oil impregnation for self-lubricating, maintenance-free operation
• Precision-machined dimensions: 1.379" outer diameter, 0.670" inner diameter, 0.580" wide
• Full support of transmission input shaft snout eliminates vibration and premature wear
• Direct replacement for Ford Small Block V8 (289, 302, 351W) and Pontiac applications
• Matches OEM specifications for proper crankshaft bore fit and input shaft clearance

Description

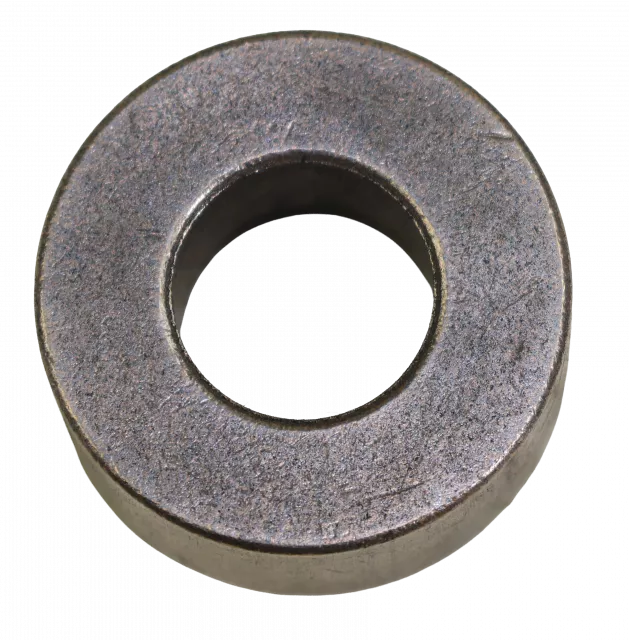

A worn or sloppy pilot bushing causes hard shifting, input shaft misalignment, and accelerated transmission wear - problems that can sideline your build when you least expect it. This heavy-duty bronze pilot bushing delivers the precision fit and durability needed to keep your drivetrain running smooth, shift after shift.

Precision-manufactured from premium-grade bronze that's impregnated with oil lubricant, this bushing provides long-lasting performance without the maintenance headaches of grease-packed alternatives. The oil-impregnated bronze material creates a self-lubricating bearing surface that won't gum up or attract debris. Unlike cheap offshore bushings that may contain steel contamination, this bronze construction won't gall or seize on your input shaft.

The bushing's 1.379" outer diameter and 0.670" inner diameter match OEM specifications exactly, ensuring proper crankshaft bore fit and input shaft clearance. At 0.580" wide, it provides full support for transmission input shaft snouts without bottoming out in the crankshaft pocket. This precision fit eliminates the binding and misalignment that can destroy clutch components and transmission internals.

Compatible with Ford Small Block V8 engines and Pontiac small block applications. Always replace the pilot bushing with every clutch change - bushings are a wear item even when they look fine. Pro tip: freeze the bushing before installation for easier press-fit, and never apply grease to oil-impregnated bronze bushings as it will clog the pores and prevent proper lubrication.

What's Included

• (1) Heavy-duty oil-impregnated bronze pilot bushing (1.379" OD x 0.670" ID x 0.580" wide)

Key Features

• Needle roller construction reduces friction and parasitic drag versus bronze pilot bushings
• 1.379" outer diameter press-fits Ford small block crankshaft pilot bore
• 0.670" inner diameter supports transmission input shafts in the .669"-.672" range
• 0.500" width provides proper support without bottoming in crankshaft recess
• Pre-greased from factory - no additional lubrication required or recommended
• Direct fit for Ford 302 and 351 Windsor engines with manual transmissions

Description

A worn or incorrect pilot bearing causes grinding shifts, premature input shaft wear, and clutch drag that won't release. This needle bearing delivers the low-friction operation your Ford small block manual transmission swap demands, replacing high-drag bronze bushings with precision needle rollers that spin freely during clutch engagement and disengagement.

Needle roller bearings dramatically reduce the friction between your transmission input shaft and crankshaft compared to solid bronze bushings. Where a bronze bushing relies on an oil film that can break down under heat and load, needle rollers maintain consistent, low-drag rotation throughout the clutch cycle. The result is cleaner clutch release, smoother shifts, and longer input shaft life.

The 1.379" outer diameter press-fits the standard Ford small block crankshaft pilot bore found in 302 and 351 Windsor engines. The 0.670" inner diameter accommodates most manual transmission input shafts, including those found on TREMEC TKO, TKX, and T5 units that typically measure in the .669"-.672" range. The 0.500" width ensures the bearing seats properly without bottoming out in the crankshaft recess.

This bearing ships pre-greased from the factory. Do not add additional grease - excess lubrication can contaminate clutch disc facings and cause slippage or premature failure. Press the bearing into the crankshaft before flywheel installation, seating it until you notice a change in tone indicating full contact with the bore shoulder. A slight lip extending from the crankshaft face is normal and expected.

What's Included

• One needle roller pilot bearing with factory lubrication

Key Features

• Premium-grade 8740 chromoly construction hardened to 180,000 PSI tensile strength
• 8mm x 1.25 thread size with 10mm hex head for proper socket access
• Black oxide finish for corrosion resistance and professional appearance
• Application-specific design ensures optimum grip length for Ford 302/351W engines
• Large diameter, low profile design increases clamping force over stock hardware
• Complete kit includes washers for proper installation
• Set of 6 bolts replaces all factory pressure plate fasteners

Description

The importance of pressure plate bolts in racing or high-performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Factory pressure plate bolts are notorious weak points that can stretch or fail under power, leading to clutch slippage, pressure plate distortion, or catastrophic failure. When you're building serious power, the last thing you want is substandard hardware compromising your drivetrain.

ARP engineered these High Performance Series bolts specifically for 1986-1995 Ford 302 and 351 Windsor applications. Each bolt is forged from premium-grade 8740 chromoly steel and heat-treated prior to thread rolling and machining, achieving a nominal tensile strength of 180,000 PSI. The application-specific design ensures optimum grip length for your Ford V8, eliminating the guesswork that comes with generic hardware.

The 8mm x 1.25 threading matches factory specs while delivering vastly superior strength. Each bolt features a hex head design with 10mm socket access for easy installation and removal. The black oxide finish provides corrosion resistance while maintaining a clean appearance under the hood. The large diameter, low profile design increases clamping force compared to stock bolts, reducing the risk of pressure plate flex under high-load conditions.

Fits all 1986-1995 Ford applications equipped with 302 or 351W engines, including Mustang 5.0L, F-150 trucks, Bronco, E-Series vans, and Crown Victoria. Kit includes six pressure plate bolts with washers for complete replacement of all factory fasteners.

What's Included

• 6 x ARP pressure plate bolts (8mm x 1.25, 10mm hex head, black oxide finish)
• 6 x Washers

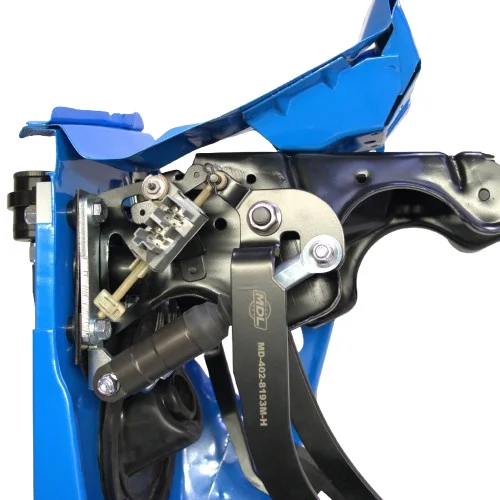

Stealth Series Hydraulic Clutch Master Kit | 1981-1993 Mustang | Black Reservoir

Key Features

• Three-position master cylinder mounting for adjustable pedal ratio and feel - the only kit on the market with this tuning capability
• Mounts behind the dash on factory pedal hanger for a completely hidden installation
• Zero modifications to OEM pedal support required - retains stock clutch pedal pivot point
• Spherical mounting points eliminate binding and inconsistent clutch feel
• Sealed bulkhead assembly installs in the factory clutch cable hole to keep moisture and engine fumes out of the interior
• 2100 Series billet aluminum reservoir with black anodized finish and improved side-vent cap design to prevent water entry
• -4AN stainless steel braided lines for leak-free durability
• 1.4-inch master cylinder throw distance optimized for proper clutch disengagement
• Compatible with existing industry slave cylinders and hydraulic release bearings
• Uses DOT 3 or DOT 4 brake fluid
• Made in the USA

Description

The Stealth Series solves the compromises inherent in both cable-actuated clutches and conventional hydraulic conversions on Fox Body Mustangs. Cable systems bind, stretch, and create clearance nightmares with long-tube headers or high-clamp-load pressure plates. Most bolt-on hydraulic kits change pedal geometry, alter feel, or require cutting the firewall. This system does none of that - it mounts entirely behind the dash on your factory pedal hanger, uses the existing clutch cable hole for its sealed bulkhead, and retains the OEM pivot point for stock pedal feel.

The engineering centerpiece is the three-position master cylinder mounting system built into the custom clutch pedal arm. This is the only kit on the market that lets you tune pedal ratio to match your driving style and clutch setup - dial in quick engagement for autocross or progressive action for street cruising. Spherical mounting points ensure smooth, bind-free operation regardless of chassis flex, eliminating the inconsistent feel that plagues rigid-mount systems.

Installation uses existing OEM features with zero cutting or permanent modifications to the pedal support. The sealed bulkhead assembly threads into the factory clutch cable hole, keeping moisture and engine compartment fumes out of your interior while routing the -4AN stainless steel braided lines to your slave cylinder. The 2100 Series billet aluminum reservoir features a black anodized finish and redesigned cap with side-top vents to prevent water intrusion, with compact sizing for flexible mounting options.

This master cylinder kit works with most existing industry slave cylinders and hydraulic release bearings, making it compatible with T5, TKO, TKX, and T56 Magnum applications. The system requires a matching slave cylinder kit to complete the hydraulic clutch release system. Made in the USA and backed by lifetime technical support.

Kit Includes

• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three-position master cylinder mounting and spherical pivot points
• Black anodized firewall plate assembly with sealed bulkhead and -4AN fittings
• 2100 Series billet aluminum reservoir with black anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime technical support from trained technicians

Key Features

• Three adjustable master cylinder positions for precise pedal tuning - the ONLY kit on the market with this feature
• Maintains stock clutch pedal pivot point for familiar OEM pedal feel
• Zero modification required to factory pedal support bracket
• Spherical mounting points eliminate binding for smooth, consistent clutch action
• Sealed bulkhead assembly mounts in factory clutch cable hole to block moisture and engine fumes
• 2100 Series billet aluminum reservoir with clear anodized finish and side-vented cap
• -4AN stainless steel braided lines throughout for leak-free durability
• Compatible with most industry-standard slave cylinders and hydraulic release bearings
• Made in the USA

Description

Fox Body Mustang owners know the frustration of worn clutch cables - heavy pedal effort, inconsistent engagement, and clearance headaches around headers. The Stealth Series In-Dash Hydraulic Master System eliminates these problems while delivering the ultimate in clutch control precision. This kit transforms your mechanical linkage into a modern hydraulic system that mounts completely hidden behind the dashboard on your factory pedal hanger.

The engineering centerpiece is the adjustable pedal design with three distinct master cylinder mounting positions. This allows you to fine-tune pedal ratio and feel to match your specific clutch and driving style - something no other kit on the market offers. The spherical mounting points provide smooth, bind-free operation while the sealed bulkhead assembly uses your existing clutch cable hole to keep engine bay contaminants out of the cabin. The system maintains your stock pedal pivot point, preserving that familiar OEM pedal feel.

The kit includes the newly designed 2100 Series billet reservoir with a clear anodized finish and improved side-vented cap that prevents water intrusion while promoting flexible mounting options. Professional-grade -4AN stainless steel braided lines ensure leak-free operation and long service life. The system is engineered to work with most industry-standard slave cylinders and hydraulic release bearings, giving you flexibility in your clutch setup.

Designed specifically for 1981-1993 Ford Mustangs, this complete conversion requires zero modifications to your factory pedal support structure. Installation uses existing OEM mounting points and the factory clutch rod hole for a clean, professional result. Proudly made in the USA with lifetime technical support from trained technicians.

What's Included

• Silver anodized firewall plate assembly with bulkhead fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustment positions
• 2100 Series billet aluminum reservoir with clear anodized finish
• -4AN stainless steel braided hydraulic lines
• Complete mounting hardware and brackets
• One-man bleeder kit
• Detailed installation instructions
• Lifetime technical support

Clutch & Brake Pedal Pad | 1979-1993 Mustang | Manual Transmission

Key Features

• Daniel Carpenter reproduction built to OEM specifications for factory fit
• Ribbed texture surface for positive pedal grip during shifting and braking
• Slip-on installation over factory metal pedal assembly - no tools required
• Direct replacement for OEM part number D1FZ-2457-B
• Also fits 1974-1978 Mustang II and 1979-1986 Mercury Capri
• Sold individually - order two for complete brake and clutch pedal refresh

Description

Worn-out pedal pads are a common problem on Fox Body Mustangs - after decades of hard shifting, heavy braking, and daily driving, the original rubber wears smooth or disappears entirely. When you can see metal through your pedal pad or your foot slips during aggressive driving, it's time to replace. This Daniel Carpenter reproduction pedal pad restores proper grip and factory appearance to your 1979-1993 Mustang's clutch and brake pedals.

Daniel Carpenter is a trusted name in the Mustang restoration community, known for producing high-quality reproduction parts built to OEM specifications. This pedal pad replicates the original D1FZ-2457-B design with ribbed texture that provides consistent traction whether you're heel-and-toeing through corners or modulating the clutch in stop-and-go traffic. The quality rubber construction delivers longer service life than worn factory pads.

Installation takes minutes with no special tools. Simply pull off the old pad (or what's left of it) and slip the new pad over the metal pedal until the retaining lips seat fully around the perimeter. The factory-style fit ensures the pad stays firmly in place without twisting or shifting during use.

Direct replacement for all 1979-1993 Mustangs with manual transmissions. Also fits 1974-1978 Mustang II and 1979-1986 Mercury Capri manual transmission applications. Sold individually - Ford used identical pads for both brake and clutch pedals on these models, so order two for a complete pedal refresh.

What's Included

• One (1) black rubber pedal pad with ribbed texture
• Slip-on design fits factory metal pedal assembly

Key Features

• 24-inch stainless steel braided hose with 1/4-inch I.D. and PTFE (Teflon) inner lining
• -4AN female straight fittings on both ends with stainless steel crimp sleeves
• Clear plastic outer coating protects braid and allows visual inspection
• Ideal length for Tilton 6000 HRB units with -4AN male union to firewall-mounted master cylinders
• Pressure tested before shipping for quality assurance
• 100% made in the USA

Description

Hydraulic clutch systems demand leak-free, pressure-resistant fluid lines that won't degrade over time or expand under load. This 24-inch stainless steel braided line delivers the durability and consistent pedal feel that separates a professional hydraulic clutch installation from a compromise. The PTFE (Teflon) inner lining provides excellent chemical compatibility with all common hydraulic fluids while resisting the swelling and deterioration that plague standard rubber lines.

The stainless steel braided construction prevents expansion under pressure, maintaining a firm, responsive clutch pedal. Unlike rubber hoses that can balloon and soften pedal feel, stainless braided PTFE lines keep the inner diameter uniform for efficient fluid transfer. The clear plastic outer coating shields the braid from abrasion, contamination, and corrosion while letting you visually inspect line condition at a glance.

At 24 inches with a 1/4-inch I.D., this line is sized specifically for hydraulic clutch applications. It's an excellent choice when pairing a Tilton 6000 HRB with an -4AN male union to a firewall-mounted or bulkhead-mounted master cylinder. The straight -4AN female fittings on both ends connect directly to standard -4AN male adapters without additional fittings, reducing potential leak points and simplifying installation.

Every line is pressure tested before leaving the facility to verify seal integrity. Premium stainless steel crimp sleeves and fittings ensure a permanent, vibration-resistant connection. Proudly manufactured in the United States.

What's Included

• One 24-inch stainless steel braided hydraulic line with PTFE inner lining
• -4AN female straight fittings pre-crimped on both ends
• Clear plastic protective coating (factory applied)
• Pressure tested before shipping

Key Features

• Stainless steel threaded adjustment sleeve provides nearly 1.25 inches of height adjustability
• 0.700-inch piston travel for reliable clutch engagement across diverse applications
• High-temperature monoseal design with quad tensioner ensures proper seal tension and maximum reliability
• Constant-contact design self-adjusts for clutch wear - no gap, no helper springs required
• Flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-inch to 11-inch bent-finger and lever-type clutches
• Bearing height adjustable from 1.77 inches to 3.00 inches to accommodate diverse clutch configurations
• Complete kit includes -4AN stainless braided supply and bleed lines, fittings, and anti-rotation hardware
• Requires 1.430-inch bearing retainer guide tube for proper fitment

Description

Eliminate the clearance issues and binding problems that plague external slave cylinders with this Tilton 6000 Series hydraulic release bearing, engineered specifically for Ford T56 and Magnum transmissions equipped with a guide tube. Where external slaves often create interference with headers, crossmembers, or bellhousing configurations, this internal slip-on design mounts directly onto the transmission input shaft bearing retainer - delivering consistent clutch actuation without the packaging headaches.

Tilton's precision-machined billet aluminum body and piston deliver race-proven reliability in a street-friendly package. The constant-contact design maintains continuous engagement with the pressure plate fingers - no gap to manage, no helper springs required. As your clutch wears, the bearing automatically compensates, maintaining identical pedal feel from installation through replacement. The high-temperature monoseal with quad tensioner provides maximum seal integrity under demanding conditions, while newly designed double O-ring swivel fittings have been extensively tested to prevent leakage.

The stainless steel threaded adjustment sleeve provides nearly 1.25 inches of adjustability, enabling compatibility with most 8.5-inch to 11-inch bent-finger and lever-type diaphragm clutches. Total bearing height ranges from 1.77 inches to 3.00 inches, giving you the flexibility to dial in precise preload regardless of clutch configuration. Compatibility extends to most bellhousings - unlike external slaves limited to specific applications, this internal design works with original 4-speed bells, big block bells, and aftermarket housings. Compatible with Ford T5s, Ford TKOs, Ford T56s with CSC hydraulic setup, and XL Magnum T56 for 2005+ Ford Mustangs. Tilton release bearings are DOT3 or DOT4 brake fluid compatible.

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection (24-inch line recommended for most applications)
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions

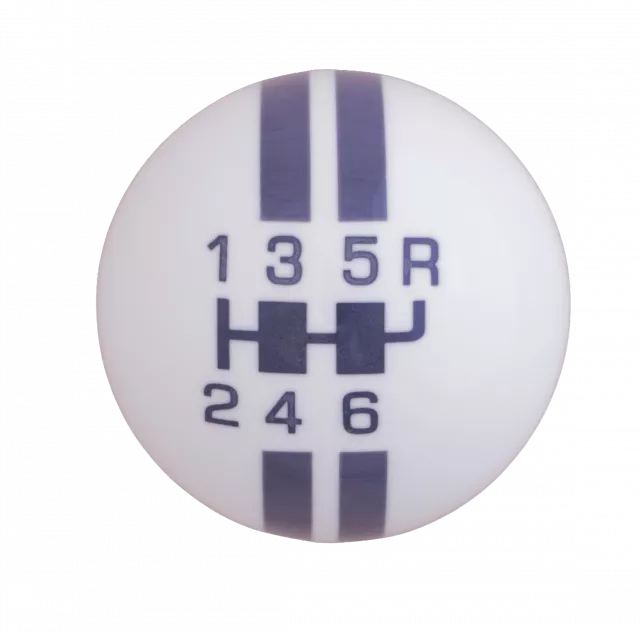

Key Features

• Subsurface 6-speed shift pattern permanently integrated into material - graphics cannot wear off, fade, or peel
• High-impact polymer resin engineered specifically for performance-level torque and temperature demands
• Universal 16mm x 1.5 internal threading accepts thread reducers for compatibility with virtually any shift lever
• 1-7/8" diameter provides substantial grip surface for positive engagement [VERIFY: Custom field shows 2-1/8in while description states 1-7/8in]
• Clean white finish with bold black 6-speed pattern graphics
• Made in the USA by a manufacturer producing shift knobs since 1952

Description

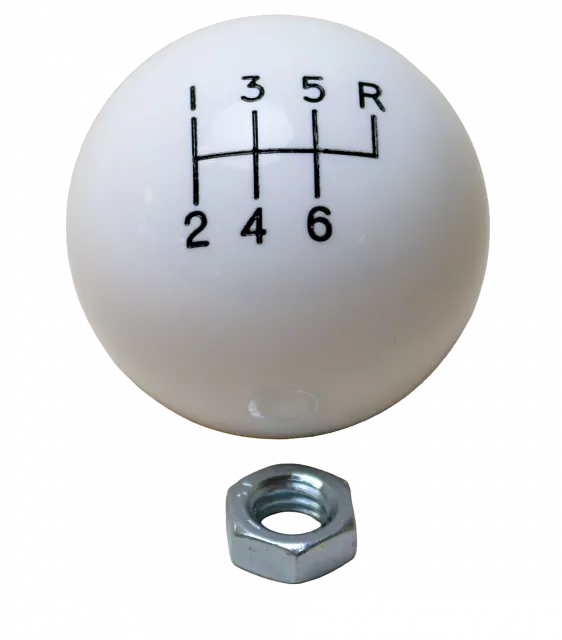

Put the correct gate positions right at your fingertips with this 6-speed shift knob. Whether you're learning a new transmission layout or making split-second shifts under pressure, the bold black shift pattern gives you instant visual reference without taking your eyes off the road. The graphics aren't a decal or printed surface - they're applied subsurface during manufacturing, making them permanently integrated into the knob material where they cannot wear off, fade, or peel regardless of use.

The polymer construction is engineered specifically for drivetrain duty. This specially formulated high-impact polymer resin is designed to meet performance-level torque and temperature requirements, handling the stress and heat cycles that come with hard shifting better than cheaper materials. The 1-7/8in diameter provides substantial surface area for a secure grip without being oversized or bulky.

Universal 16mm x 1.5 internal threading makes this knob compatible with virtually any shift lever when paired with the appropriate thread reducer (sold separately). Thread reducers allow adaptation to common metric sizes like 8mm, 10mm, and 12mm, as well as SAE thread pitches found on domestic Ford, GM, and Mopar applications. If you're unsure what thread size your shift lever uses, MDL's tech support can help you identify the correct adapter.

Manufactured in the USA by a company that's been producing quality shift knobs since 1952. Their commitment to quality, precision, and style has made them a trusted supplier to OEM, aftermarket, Classic, Custom, and Hot Rod industries. Compatible with Chevy, BOP (Buick/Oldsmobile/Pontiac), Ford, and Mopar transmissions when used with the appropriate thread reducer for your specific shift lever.

What's Included

• 1 white polymer shift knob with black 6-speed pattern
• 16mm x 1.5 female threading (thread reducer sold separately if needed)

Key Features

• High-impact polymer resin construction - specially formulated for performance-level torque and temperature requirements
• Subsurface white 6-speed shift pattern graphics - permanently embedded, will not wear off
• 16mm x 1.50 brass master insert - exceeds industry spec of 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• 1-7/8" diameter ergonomic design with high-gloss polished finish
• 4-ounce weight - balanced for precise shifting feel
• Jam nut included for secure installation
• Made in the USA

Description

Worn, faded shift knobs kill the look of an otherwise clean build - and cheap replacements crack, fade, or spin loose within a season. MDL's 6-Speed Black Shift Ball solves both problems with a high-impact polymer resin formulation specifically engineered for the automotive industry. This isn't generic plastic - it's a performance-grade compound designed to resist stress cracking with age while handling the torque and temperature extremes of hard driving.

The white 6-speed shift pattern is subsurface - meaning it's embedded beneath the outer layer, not printed or painted on top. It won't wear off from palm contact, won't fade from UV exposure, and won't peel at the edges. The 16mm x 1.50 brass master insert is equally overbuilt, exceeding the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque. Precision machining and polishing deliver a high-gloss finish that looks as good as it feels.

The 16mm thread pitch fits most aftermarket performance shifters directly. If your shifter uses a different thread size, MDL stocks thread adapters to match - just know your shifter's thread pitch when ordering so we can recommend the right reducer. This universal approach makes the shift ball compatible with Ford, GM, and Mopar applications when properly matched to your shifter.

At 4 ounces with a 1-7/8" diameter, this shift ball delivers ergonomic comfort and balanced weight for crisp, confident throws. Made in the USA with the quality standards serious builders demand.

What's Included

• MDL 6-speed black shift ball with white subsurface pattern graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure installation

Key Features

• Laser-etched 6-speed shift pattern - permanent, cannot wear off
• Brushed aluminum finish for superior grip and modern aesthetics
• 16mm x 1.5 thread with brass insert for secure mounting
• 1-7/8 in. diameter for comfortable, ergonomic grip
• Universal fitment with thread reducer adapters available separately
• Made in the USA

Description

When you're wrapping up a TREMEC swap or upgrading your 6-speed shifter setup, a flimsy plastic shift ball doesn't match the level of hardware underneath it. This brushed aluminum shift ball delivers the tactile feedback and professional appearance your build deserves, with a laser-etched 6-speed pattern that's permanently embedded into the surface - no fading, peeling, or wearing off over thousands of shifts.

The brushed aluminum finish provides superior grip compared to smooth plastic alternatives, giving you confident control during aggressive driving. The 16mm x 1.5 threaded brass insert ensures secure mounting and threads directly onto compatible shifters. For shift levers with different thread sizes, MDL stocks a full range of thread reducing adapters to match your specific application - whether you're running an '83-'04 Mustang lever (10mm x 1.50), a 2005+ Mustang setup (12mm x 1.25), or other configurations.

Built with precision and finished in the USA, this shift ball combines quality construction with the correct 6-speed gate pattern (reverse to the right and up) for TREMEC T56, Magnum, and similar transmissions. The universal 16mm master thread makes it adaptable to virtually any aftermarket shifter with the right reducer insert.

What's Included

• Brushed aluminum shift ball with laser-etched 6-speed pattern
• 16mm x 1.5 brass threaded insert
• Jam nut

Key Features

• Laser-etched 6-speed shift pattern - permanent marking that won't wear, fade, or rub off
• Gray brushed aluminum finish for a clean, modern cockpit aesthetic
• 2-1/8" diameter provides comfortable palm grip for quick, confident shifts
• Polymer resin construction resists wear while keeping weight down
• Universal 16mm thread accepts standard thread adapters (sold separately)
• Made in the USA

Description

Printed and painted shift patterns wear off - it's only a matter of time before your gate markings fade into an unreadable smear. MDL's 6-speed shift ball solves that problem permanently. The shift pattern is laser-etched directly into the surface, creating a crisp, deep marking that stays readable for the life of the knob regardless of how many shifts you put through it.

The gray brushed aluminum finish delivers a subdued, professional look that complements both classic and modern interiors without screaming for attention. At 2-1/8" diameter, the ball offers enough surface area for a solid palm grip while remaining ergonomic for quick gate-to-gate movement. Polymer resin construction keeps the ball durable and lightweight - you won't be fighting unnecessary mass when banging through gears.

The universal 16mm internal thread is designed to work with thread adapters, making this shift ball compatible with virtually any shifter application. MDL stocks adapters for the most common thread sizes - if you're not sure what thread your shifter has, contact the MDL tech team at 208-453-9800 before ordering to ensure you get the right adapter. Made in the USA.

What's Included

• One 6-speed shift ball with laser-etched pattern
• Gray brushed aluminum finish, polymer resin construction
• 16mm internal thread
• MDL lifetime technical support

Note: Thread adapters sold separately. Contact MDL at 208-453-9800 to determine the correct adapter for your shifter.

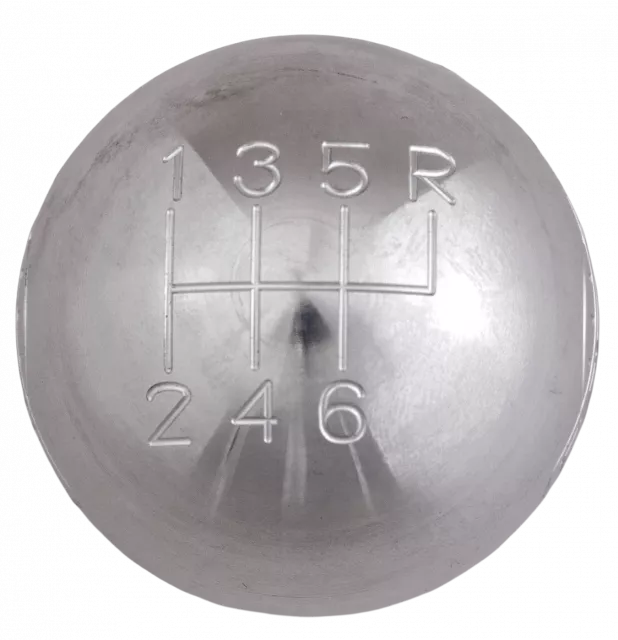

Key Features

• 2-1/8" diameter polished aluminum construction for optimal grip and control
• Laser-engraved 6-speed shift pattern on top -- won't fade, chip, or wear off
• MDL logo engraved on the side for authentic branding
• 16mm x 1.50 thread pitch -- compatible with most shifters when paired with MDL thread reducers
• 4-ounce weight provides solid, positive shifts without excessive mass
• Made in the USA

Description

Finish your 6-speed swap the right way. This polished aluminum shift ball from MDL delivers the premium look and feel that separates a proper build from a parts-bin project. The 2-1/8" diameter provides the ideal grip size -- large enough for confident throws under hard driving, compact enough to clear console-mounted components without interference.

The laser-engraved 6-speed shift pattern on top gives you clear gear position reference that will never fade, chip, or wear off over years of aggressive shifting. Unlike printed or embossed patterns that deteriorate with use, the engraving is cut directly into the aluminum surface for permanent legibility. The MDL logo on the side confirms you're running genuine Modern Driveline equipment.

This shift ball features 16mm x 1.50 threading, which is the universal standard for aftermarket shift knobs. MDL stocks thread reducing inserts that adapt the 16mm bore to fit popular shifter thread sizes including 8mm-1.25, 9mm-1.25, 12mm-1.75, and 3/8-24, ensuring compatibility across Ford, GM, and Mopar applications. The 4-ounce weight provides substantial feel in your palm without the excessive mass that can accelerate shifter wear or create unwanted momentum during rapid gear changes.

Proudly made in the USA, this shift ball represents the fit, finish, and attention to detail that serious builders expect from MDL. Grab it, shift it, go.

What's Included

• One polished aluminum shift ball (2-1/8" diameter)
• Laser-engraved 6-speed shift pattern on top
• MDL logo engraved on side
• 16mm x 1.50 internal threading

Note: Thread reducing insert sold separately -- see MDL thread reducers for your specific shifter application.

6-Speed White Shift Ball | 16mm x 1.50 Thread | High-Impact Polymer Resin

Key Features

• 1-7/8" diameter white polymer resin ball with crisp 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics embedded during manufacturing - cannot wear, fade, or peel
• High-impact polymer resin formulated for performance-level torque and temperature cycling
• 4-ounce weight for positive shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Thread adapters available for non-16mm shift levers
• Made in the USA

Description

Worn shift knobs with faded patterns and loose threads make every gear change feel sloppy. This 6-speed polymer resin shift ball delivers the crisp, confident feel your transmission deserves. The high-impact polymer resin is specifically formulated for automotive applications - engineered to resist stress cracking from temperature cycling and aging that destroys cheaper plastic alternatives.

The 16mm x 1.50 brass master insert is the heart of this shift ball's durability. Tested to exceed automotive industry standards of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, it won't strip, loosen, or fail under aggressive shifting. The included jam nut locks everything in place for rattle-free operation. At 4 ounces, the ball provides just enough heft for positive shift engagement without the excessive weight that can mask transmission feedback.

Unlike painted or applied graphics that wear off after a few months, the 6-speed shift pattern on this ball is subsurface - embedded during the manufacturing process where it's protected from your palm, UV exposure, and cleaning chemicals. The precision-machined surface is polished to a high-gloss finish that resists scratching and maintains its appearance over years of use.

This shift ball fits any 16mm threaded shift lever directly. Running a different thread size? MDL stocks thread adapters to fit most common shift lever configurations - just confirm your lever's thread pitch when ordering. Quality American manufacturing ensures consistent tolerances and reliable performance from a company that's been shifting gears since 1952.

What's Included

• White 6-speed high-impact polymer resin shift ball (1-7/8-inch diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics that cannot wear off from use
• 2-1/8" diameter with 6-speed shift pattern and pearl gray racing stripes
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shifting feel
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Cheap shift knobs crack, fade, and strip out under hard use. The R-Series shift ball solves those problems with a specially formulated high-impact polymer resin engineered specifically for the demands of performance driving. This isn't generic plasticit's purpose-built material that won't develop stress cracks with age and maintains its finish through years of daily driving and spirited shifting.

The 16mm x 1.50 brass master insert is where this shift ball proves its worth under load. It exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque test, so it won't strip out or work loose when you're rowing through gears hard. The 6-speed shift pattern and pearl gray racing stripes are subsurface graphicsembedded within the material itself rather than printed on topso they cannot wear off no matter how many miles you put on them.

At 2-1/8" diameter and 4 ounces, the R-Series delivers a substantial grip surface without adding excessive weight to your shift lever. The precision-machined construction is polished to a high-gloss finish that looks right at home in everything from a classic muscle car to a modern build. Thread adapters are available separately if your shift lever uses something other than the standard 16mm x 1.50 threading. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• R-Series black shift ball with pearl gray racing stripes and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter for optimal palm grip and precise shift feel
• 6-speed shift pattern in contrasting white racing stripe design
• 4-ounce weight balances comfortable grip with controlled shift momentum
• High-gloss scratch-resistant finish maintains appearance through years of use
• Includes jam nut for secure lever mounting
• Made in the USA since 1952

Description

Worn shift knobs with faded patterns and stripped threads are more than cosmetic problems - they compromise shift accuracy and driver confidence. The R-Series 6-Speed Shift Ball delivers the durability and precision your build demands, constructed from specially formulated high-impact polymer resin designed to handle performance-level torque loads and temperature extremes without cracking, fading, or becoming tacky in summer heat.

What separates this shift ball from generic alternatives is the subsurface graphic process. The white racing stripe and 6-speed shift pattern are embedded within the polymer during manufacturing - not silk-screened, etched, or applied as a surface coating. They physically cannot wear off, no matter how many shifts you bang through. The 16mm x 1.50 brass master insert provides the foundation for this durability, exceeding the auto industry's specification of 200 ft-lb static pull and 20 ft-lb twist torque testing.

At 2-1/8" diameter and 4 ounces, this shift ball strikes the ideal balance between palm-filling grip and controlled shift momentum. The high-gloss black finish resists scratches and maintains its showroom appearance through daily driving or weekend track sessions. The included jam nut locks the ball securely to your shift lever, eliminating loosening during aggressive shifting.

Thread adapters are available separately if your shift lever uses a different thread pitch than the 16mm x 1.50 master insert - contact MDL's tech team if you need help identifying your lever's thread size. Built in the USA by a manufacturer that has been shifting gears since 1952, bringing OEM-level quality and precision to classic, custom, and hot rod applications.

What's Included

• One (1) R-Series black shift ball with white racing stripe and 6-speed pattern
• One (1) 16mm x 1.50 brass master insert (pre-installed)
• One (1) jam nut

Key Features

• 2-1/8" diameter gray polymer resin ball with white rally stripe that does not interfere with shift pattern visibility
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• High-impact polymer resin formulated for performance-level temperature and torque demands without stress cracking
• Subsurface graphics that cannot wear off during use
• 4-ounce weight for balanced shift feel
• Precision-machined construction with high-gloss polished finish
• Includes brass jam nut; thread reducers available separately for compatibility with various shifter applications
• Made in the USA

Description

Upgrade your 6-speed manual with this R Series shift ball that delivers classic rally aesthetics and engineered durability in a single package. The 2-1/8" diameter provides comfortable grip for spirited driving, while the white rally stripe adds period-correct styling without cluttering shift pattern visibility.

Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball withstands aggressive shifting and engine bay heat without developing the stress cracks common in inferior materials. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry specifications, tested to 200 ft. lbs. static pull and 20 ft. lbs. twist torque resistance for secure, worry-free mounting.

Subsurface graphics resist wear and fading, maintaining their appearance through years of hard use. At 4 ounces, this shift ball delivers the right balance of mass for crisp, positive shifts without excessive weight that could stress shifter components. The high-gloss polished finish adds a premium look to any interior.

Thread reducers are available separately to adapt the 16mm x 1.50 master insert to match your specific shifter thread size. Proudly made in the USA with the quality and precision that has been shifting gears since 1952.

What's Included

• Gray polymer resin shift ball with white rally stripe and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (factory installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics embedded into the material - will not wear off or fade
• 2-1/8" diameter white base with black rally stripes that wrap around the 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shift feel
• Precision machined and polished to a high gloss finish
• Made in the USA

Description

Factory plastic shift knobs crack, fade, and wear out - the graphics rub off, the threads strip, and the whole thing looks tired after a few seasons of hard use. The R-Series shift ball solves these problems with purpose-built construction designed for real driving conditions.

This 2-1/8" diameter shift knob is molded from a specially formulated high-impact polymer resin engineered specifically for automotive applications. Unlike generic plastics, this material is designed not to develop stress cracks with aging, handling the thermal cycling and mechanical stress of performance driving. The black rally stripes are subsurface - embedded into the white base material rather than printed or painted on top - creating a smooth finish that stays sharp shift after shift.

The 16mm x 1.50 brass master insert is the foundation of this knob's durability. This solid brass threading exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, ensuring it won't strip or fail when you're rowing through gears under load. At 4 ounces, the weight provides positive shift engagement without excessive mass that can stress your synchros. Each knob is precision machined and polished to a high gloss finish.

The 16mm master insert requires a thread reducing adapter (sold separately) to fit your specific shift lever thread size - contact MDL if you need help selecting the correct adapter for your application. A brass jam nut is included for secure installation that prevents loosening during spirited driving. Made in the USA with the quality and precision that serious builders demand.

What's Included

• One (1) R-Series 2-1/8" white polymer resin shift ball with black rally stripes and 6-speed shift pattern
• One (1) 16mm x 1.50 brass master insert (installed)
• One (1) brass jam nut

Thread reducing adapters sold separately - contact MDL to select the correct adapter for your shift lever thread size.

Key Features

• Premium 2-1/8" diameter white polymer resin construction with gray rally stripes
• Subsurface graphics bypass the 6-speed shift pattern and will not wear off
• 16mm x 1.50 brass master insert with included jam nut
• High-impact polymer resin formulated for performance torque and temperature demands
• 4-ounce weight delivers optimal shifting feel and inertia
• Master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add race-inspired style to your 6-speed manual with the R-Series shift ball. This premium 2-1/8" diameter white shift knob features crisp gray rally stripes that bypass the shift pattern for clean gear identification. Unlike painted or pad-printed graphics that wear away with use, the rally stripe graphics on this shift ball are subsurface-printed and physically cannot wear off, ensuring your interior looks sharp for years of spirited driving.

The R-Series is built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements. This isn't generic plastic that will crack, fade, or become brittle with age. The precision-machined construction is polished to a high-gloss finish that resists stress cracking even after years of exposure to heat cycles and UV. At 4 ounces, the shift ball provides just enough mass for crisp, satisfying throws without adding excessive weight that slows down quick shifts.

A 16mm x 1.50 brass master insert is pre-installed and includes a jam nut for secure, rattle-free mounting. The brass insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, meaning this knob stays put no matter how hard you row through the gears. For shifter levers with different thread pitches, MDL stocks a range of thread adapters. Know your shifter's thread size when ordering so the correct adapter can be recommended for proper fitment.

Made in the USA by a manufacturer that has been shifting gears since 1952, the R-Series represents decades of expertise in precision shift knob manufacturing. Compatible with any 6-speed manual transmission application when paired with the appropriate thread adapter.

Kit Includes

• White polymer resin shift ball with gray rally stripes (2-1/8" diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface flame graphics embedded beneath clear coat - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• 2-1/8" diameter translucent blue construction - 4 oz. total weight
• Precision machined and polished to high-gloss finish
• Stress-crack-resistant formula developed specifically for automotive applications
• Made in the USA

Description

Cheap shift knobs crack, fade, and spin loose. This Flame Series knob is built to handle real driving - the kind where you're banging through gears under load and your interior sees triple-digit heat cycles every summer. The specially formulated high-impact polymer resin was developed specifically for the automotive industry, engineered to resist stress cracking as it ages while standing up to the torque and temperature demands of performance shifting.

The bold flame graphics aren't printed or painted on top - they're embedded subsurface beneath the translucent blue finish. That means they physically cannot wear off, chip, or fade no matter how many miles you put on them. The 16mm x 1.50 brass master insert provides superior thread engagement and exceeds the auto industry's specification of 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance. This knob stays put.

Each 2-1/8" diameter knob is precision machined and polished to a high-gloss finish that catches light and complements any interior. At just 4 ounces, it adds visual impact without deadening shift feel. The included jam nut locks everything in place. Thread adapters are available separately if your shift lever uses a different thread pitch - just confirm your shifter's thread size when ordering so we can recommend the right adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

Kit Includes

• Translucent blue Flame Series shift knob (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Premium 2-1/8" diameter translucent green shift knob with bold flame graphics
• Specially formulated high-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics embedded into the material - cannot wear off or fade
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Lightweight 4-ounce design for quick, precise shifts
• Thread adapters available for other shifter thread sizes
• Made in the USA with manufacturing heritage since 1952

Description

Add aggressive hot rod style to your shifter with this Flame Series translucent green shift knob. The vivid flame graphics aren't just printed on the surface - they're embedded beneath the outer layer using subsurface technology, which means they won't wear off, scratch away, or fade no matter how many miles you put on them.

This isn't bargain-bin plastic. The knob is molded from a specially formulated high-impact polymer resin developed specifically for automotive applications. The formula resists stress cracking as the material ages and handles the temperature swings inside a hot engine bay without degrading. The 16mm x 1.50 brass master insert provides serious holding power, exceeding auto industry specifications with 200 ft. lbs. of static pull resistance and 20 ft. lbs. of twist torque capacity - far beyond what you'll ever put through it during aggressive shifting.

At just 4 ounces, this knob delivers a premium feel without adding unnecessary mass to your shifter assembly. Each knob is precision machined and polished to a high-gloss finish for a smooth, professional look and feel. The 2-1/8" diameter provides comfortable grip and confident lever control during spirited driving.

This knob features a 16mm x 1.50 thread and includes a brass jam nut. Thread adapters are available separately to fit other shifter thread sizes - just confirm your shifter's thread pitch when ordering so we can recommend the correct adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series translucent green shift knob (2-1/8" diameter) with subsurface flame graphics
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Flame Series Shifter Ball | Ivory with Red Flames | 2-1/8" Polymer Resin | 16mm Thread

Key Features

• Premium high-impact polymer resin construction - formulated for performance-level torque and temperature demands
• Subsurface flame graphics that cannot wear off, peel, or fade
• 2-1/8-inch diameter for optimal grip and control
• 16mm x 1.50 brass master insert - exceeds industry specs for 200 ft-lbs static pull and 20 ft-lbs twist torque
• Lightweight 4-ounce design for crisper shifts
• High-gloss polished finish resists stress cracking with age
• Includes jam nut for secure installation
• Made in the USA

Description

Bring classic hot rod style to your shifter with this Flame Series ball featuring bold red flames over a translucent ivory base. The 16mm x 1.50 thread pattern works with MDL's thread adapters to fit virtually any manual transmission shifter stick, making this a universal upgrade for your interior.

The polymer resin construction is engineered specifically for automotive applications - formulated to handle the heat cycles, UV exposure, and stress loads that would crack lesser materials over time. Unlike cheap printed or painted knobs, the flame graphics are embedded beneath the surface during manufacturing, so they'll never peel, scratch, or fade no matter how many miles you put on your build. The brass master insert is precision-machined and tested beyond OEM requirements, exceeding 200 ft-lbs of static pull strength and 20 ft-lbs of twist torque resistance.

At 2-1/8 inches in diameter, this shifter ball delivers excellent grip without being cumbersome. The 4-ounce weight adds just enough mass for smooth, positive shifts without making the lever feel sluggish. Every knob is precision-polished to a high-gloss finish that resists the stress cracking common in cheaper plastic alternatives.

MDL stocks thread adapters for common shifter thread sizes including 3/8-16, 3/8-24, 5/16-18, 7/16-20, 1/2-13, and 1/2-20 - contact us with your shifter thread size if you need an adapter. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• Flame Series shifter ball - translucent ivory base with red flame graphics
• 16mm x 1.50 brass master insert - precision-machined
• Jam nut for secure mounting

Key Features

• Translucent red polymer resin with embedded flame graphics
• 2-1/8" diameter precision machined and polished to high gloss finish
• 16mm x 1.50 brass master insert with included jam nut
• Subsurface graphics that cannot wear off
• Exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specs
• High-impact polymer resin formulated to resist stress cracking with age
• 4 oz. weight for positive shift feel
• Made in the USA

Description

Add some heat to your shifter with the Flame Series shift knob in translucent red. This 2-1/8" diameter shift ball features embedded flame graphics beneath the surface, so your design stays sharp through years of hard shifting rather than wearing away like printed or painted alternatives.

Built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements, this shift knob resists the stress cracking that plagues lesser materials over time. The 16mm x 1.50 brass master insert exceeds automotive industry specifications, handling 200 ft. lbs. of static pull and 20 ft. lbs. of twist torque. Each knob is precision machined and polished to a high gloss finish that catches light through the translucent resin.

At 4 ounces, this shift ball adds just enough heft for a confident, weighted feel without slowing down your shifts. The 16mm master thread works with MDL's thread reducing inserts for universal compatibility with virtually any shift lever. Know your shift lever thread size when ordering so we can recommend the correct adapter if needed.

Manufactured in the USA by a company that has been shifting gears since 1952, these polymer shift knobs represent decades of refinement in quality, precision, and style for OEM, aftermarket, classic, custom, and hot rod applications.

What's Included

• One 2-1/8" diameter translucent red shift ball with flame graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Translucent yellow polymer with subsurface red flame graphics that cannot wear off
• 2-1/8" diameter for positive grip and confident shifts
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design reduces shift lever mass
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• High-impact polymer resin formulated to resist stress cracking with age
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add classic hot rod style to your shifter with the Flame Series shift ball. This 2-1/8" diameter knob features translucent yellow polymer construction with bold red flame graphics molded beneath the surface--they will never fade, chip, or wear off no matter how many miles you put on the car.

The shift ball is constructed from high-impact polymer resin specifically formulated for automotive applications to resist stress cracking as it ages. At its core is a precision-machined 16mm x 1.50 brass master insert that delivers rock-solid thread engagement. The brass insert is engineered to exceed automotive industry specifications, tested to 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque. At just 4 ounces, the knob provides positive feedback without adding unnecessary mass to your shift lever.

Thread adapters are available separately to fit various shift lever thread sizes--contact MDL with your shift lever thread pitch to get matched with the correct adapter. This shift ball comes from a manufacturer with over 70 years of experience serving OEM, aftermarket, classic, custom, and hot rod applications. Precision machined and polished to a high-gloss finish. Made in the USA.

Kit Includes

• Flame Series shift ball--translucent yellow polymer with red flames, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• Converts 16mm x 1.50 shift knob threads to 10mm x 1.50 shift lever threads
• Direct fit for 1983-2004 Ford Mustang shift levers
• Includes jam nut to lock insert in place and prevent loosening
• Keep your favorite shift knob when upgrading to a new transmission or shifter
• Mount any 16mm-threaded knob to 10mm x 1.50 aftermarket or OEM levers

Description

Upgrading your transmission or shifter shouldn't mean giving up the shift knob you love. This thread reducing insert solves the common mismatch between 16mm x 1.50 shift knob threads and the 10mm x 1.50 threads found on 1983-2004 Ford Mustang shift levers. Whether you're swapping in a TREMEC transmission with a new lever or simply want to run a different aftermarket knob, this adapter bridges the gap.

The precision-machined insert threads into your 16mm shift knob, then accepts any 10mm x 1.50 shift lever. The included jam nut secures the insert, preventing it from backing out during spirited driving. Installation takes seconds and requires no modifications to your knob or lever.

This is the simple, inexpensive fix for thread compatibility issues. Works with both factory and aftermarket shift levers on Fox Body, SN95, and New Edge Mustangs from 1983-2004.

What's Included

• Thread reducing insert (16mm x 1.50 internal to 10mm x 1.50 external)
• Jam nut

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Heavy-duty steel construction built to factory length and bends
• Correct M12x1.75 thread pitch works with factory and most aftermarket shift knobs
• Satin black e-coat finish - more rust-resistant than original paint
• Clamshell design with preinstalled rubber isolators reduces driveline vibration
• 7/8" on-center mounting hole spacing for precise OEM fit
• Includes rubber shift boot support to eliminate gaps below the knob
• Silver zinc-plated mounting bolts included
• Made to factory dimensions and tolerances

Description

On most Mustangs, the factory shifter lever is long gone - swapped out for an aftermarket unit that often creates an awkward shifting position due to shortened levers. This OEM-style reproduction shifter lever restores the comfortable, positive shifting feel your Mustang was designed to deliver. Whether you are restoring your Mustang to original condition or replacing a damaged lever, this factory-spec replacement gets the job done right.

Constructed from durable, heavy-duty steel to the factory length and bends, this shift lever features the correct M12x1.75 thread pitch for compatibility with both factory shift knobs and most aftermarket knobs. A satin black e-coat finish mimics the original black-painted shift lever while providing superior rust resistance for long-term durability.

The clamshell design with preinstalled rubber isolators and sleeves exactly replicates the original equipment. These rubber isolators on the handle and clamshell reduce driveline vibration felt through the shift lever while driving - a detail often overlooked on cheap replacements. A rubber shift boot support holds your shift boot up to the bottom of the knob, ensuring there are no unsightly gaps in your interior.

Mounting hole spacing is 7/8" on center. Installation can be performed with common hand tools using the supplied silver zinc-plated shifter bolts. Note: Mounting bushings are sold separately and required for installation - use MD-320-1043-B-3/8 for TKO applications or MD-320-1043-B-8mm for T5 applications. This shifter lever does not fit TREMEC-supplied TKX or T56 Magnum shifters.

What's Included

• (1) Steel shift lever with satin black e-coat finish and preinstalled rubber isolators
• (2) Silver zinc-plated mounting bolts
• Rubber shift boot support

Key Features

• Direct bolt-on for TREMEC T5, T45, TKO, and T56 Magnum transmissions with standard 2-bolt flange (7/8" center-to-center)
• 8-inch layback design machined from billet aluminum with brushed finish
• 3/8"-16 threaded stud accepts most aftermarket shift knobs
• Machined groove for secure shift boot attachment
• Includes metric cap screws with countersunk mounting stud
• Lokar manufacturer lifetime warranty
• Made in the USA

Description

Worn, bent, or poorly designed shift sticks rob you of precision and make every gear change feel sloppy. This 8-inch layback lever from Lokar solves the problem with machined billet aluminum construction that eliminates flex and delivers crisp, repeatable shifts. The layback design angles the knob toward the driver for improved ergonomics without compromising shift gate alignment or requiring modification to your console or interior.

Lokar engineers this lever specifically for TREMEC transmissions equipped with the standard 2-bolt flange measuring 7/8-inch center-to-center between bolt holes. That means direct bolt-on fitment for T5, T45, TKO, and T56 Magnum shifters with no adapter plates or modifications required. The machined mounting stud is drilled and countersunk for the included metric cap screws, giving you a clean, secure installation with a professional appearance.

Every detail reflects Lokar's commitment to quality. The brushed aluminum finish provides a clean look that resists fingerprints and complements both vintage and modern interiors. A machined groove around the lever body keeps your shift boot properly seated without clamps or tie-wraps. The 3/8"-16 threaded stud accepts most aftermarket shift knobs, giving you flexibility to match your interior. Built in the USA and backed by Lokar's manufacturer lifetime warranty, this lever delivers the precision and durability serious builders demand.

What's Included

• 8-inch billet aluminum layback shift lever with brushed finish
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• Billet aluminum construction with durable black anodized finish
• 8.3-inch overall length with 30-degree layback bend (4" back x 8" tall) for improved shift ergonomics
• Direct bolt-on design for T5, T45, T56, and all TREMEC/Borg Warner shifters
• Machined billet steel mounting stud eliminates flex under hard shifts
• Standard 2-bolt flange with 7/8" center-to-center bolt spacing
• 3/8"-16 threaded top accepts most aftermarket shift knobs
• Drilled and countersunk base with metric cap screws included
• Made in the USA with lifetime manufacturer warranty

Description

Factory shift levers flex, wobble, and cheapen the driving experience in your manual-trans build. This Lokar billet aluminum lever delivers the solid, mechanical connection your drivetrain deserves. The 30-degree layback geometry positions the shift knob closer to the driver—reducing reach and improving shift speed—while the 8.3-inch overall length provides optimal leverage for crisp, positive gate engagement.

Machined from billet aluminum and finished in corrosion-resistant black anodizing, this lever won't flex or bind like stamped steel or plastic units. The machined billet steel mounting stud provides a rock-solid foundation at the shifter base, while the drilled and countersunk flange accepts the included metric cap screws for a clean, professional appearance with no exposed hardware.

Engineered as a direct bolt-on for stock and aftermarket 5- and 6-speed shifter assemblies, this lever fits T5, T45, T56, and all TREMEC and Borg Warner transmissions equipped with the standard 2-bolt flange measuring 7/8" center-to-center between mounting holes. The 3/8"-16 threaded ball accepts virtually any aftermarket shift knob. Backed by a lifetime manufacturer warranty and made in the USA.

What's Included

• Billet aluminum shift lever with black anodized finish (8.3" overall length)
• Machined billet steel mounting stud
• Metric cap screws
• Lifetime manufacturer warranty

Key Features

• Black anodized billet aluminum construction for durability and corrosion resistance
• 8" straight design for optimal shift throw and comfortable operation
• 3/8"-16 thread accepts most popular aftermarket shift knobs
• Standard 2-bolt flange measuring 7/8" center-to-center between bolt holes
• Machined billet steel mounting stud for solid, reliable connection
• Drilled and countersunk for included metric cap screws
• Direct bolt-on fitment for TREMEC T5, T45, TKO, TKX, and T56 transmissions
• Compatible with Borg Warner manual transmissions and aftermarket 5- and 6-speed shifters
• Lokar lifetime manufacturer warranty
• Made in the USA

Description

Upgrade your shifter with this precision-machined Lokar billet aluminum lever that delivers clean aesthetics and rock-solid performance. The 8" straight design provides an ideal balance between reduced shift throw and ergonomic hand position, giving you confident, positive gear engagement every time.

Built from black anodized billet aluminum, this tubular lever resists wear and corrosion while maintaining a sleek appearance through years of hard use. The machined billet steel mounting stud ensures a solid connection to your shifter base, while the drilled and countersunk design accommodates the included metric cap screws for a clean, professional installation with no exposed hardware.

This direct bolt-on lever fits TREMEC T5, T45, TKO, TKX, and T56 transmissions, as well as Borg Warner manual gearboxes. The standard 2-bolt flange measures 7/8" center-to-center between bolt holes, ensuring compatibility with both stock and aftermarket shifter assemblies on 5- and 6-speed applications. The 3/8"-16 threaded top accepts most popular shift knobs for a personalized setup.

Manufactured by Lokar with their lifetime warranty and Made in the USA quality, this shift lever delivers the durability and precision that serious builders demand.

What's Included

• 8" straight black anodized billet aluminum shift lever
• Machined billet steel mounting stud
• Metric cap screws
• Lokar lifetime manufacturer warranty

Key Features

• Factory-style U-nut clips for secure lower shift boot mounting
• Set of four clips--complete hardware for one shift boot installation
• Direct fit for 1979-2004 Ford Mustang manual transmission applications
• Clips attach around shifter access hole on transmission tunnel

Description

Missing or corroded shift boot hardware is one of the most common issues when installing a new shifter or refreshing your Mustang's interior. These factory-style U-nut clips restore proper mounting for the lower shift boot extension, ensuring a tight seal around the shifter opening in the transmission tunnel.

The clips attach directly to the sheet metal around the shifter access hole, providing threaded receptacles for the mounting bolts. This design sandwiches the lower shift boot flange securely to the floor pan, sealing out road noise, moisture, and debris that would otherwise enter the cabin. Without properly functioning clip nuts, shift boots cannot maintain their seal--leading to rattles, drafts, and contaminants in the interior.

Sold as a set of four clips to provide complete hardware coverage for one shift boot installation. Direct replacement for 1979-2004 Ford Mustang models equipped with manual transmissions.

What's Included

• (4) Factory-style U-nut clips

Manual Transmission Tunnel Hump | 1979-2004 Mustang Fox-Body & SN95

Key Features

• Essential for any automatic-to-manual conversion on '79-'04 Fox-body and SN95 Mustangs
• Factory-correct reproduction of the manual transmission tunnel extension
• 18-gauge press-bent steel construction for precise fit and durability
• Pre-primed finish ready for paint to match your interior
• Pre-punched mounting holes for clutch cable retaining clips
• Compatible with T-5, TKO, TKX, and T-56 Magnum transmissions
• Installs with pop rivets, tap screws, or welding

Description

Factory automatic Fox-body and SN95 Mustangs used a completely different transmission tunnel height than their manual-equipped counterparts. Manual transmission cars came from the factory with a raised tunnel extension - often called the "hump" - that provides the extra clearance needed around the shifter area and gives the lower shifter boot a proper mounting surface. Without this hump, an automatic-to-manual swap forces you to hack up your floor pan or live with a shifter boot that doesn't seal correctly.

This high-quality tunnel hump is a factory-correct reproduction of the piece that Ford originally spot-welded to manual transmission Mustangs. Formed from 18-gauge press-bent steel, it matches the original factory dimensions and contours. The panel includes pre-punched mounting holes for clutch cable retaining clips, so your cable routing is correct from the start. A pre-primed finish provides corrosion protection and a clean base for painting to match your interior.

Installation is straightforward: the hump slides over your existing automatic transmission tunnel and can be secured with pop rivets, tap screws, or welded into place - your call on how permanent you want the installation. This panel provides the correct location and hole size for the lower shift boot, giving your conversion a factory-finished look.

Direct fit for 1979-1993 Fox-body Mustang, Capri, and Fairmont, as well as 1994-2004 SN95 Mustang conversions. Compatible with T-5, TKO, TKX, and T-56 Magnum transmission installations.

What's Included

• 18-gauge press-bent steel tunnel extension panel
• Pre-primed finish
• Pre-punched mounting holes for clutch cable clips

Key Features

• Grade 8.8 steel hex flange bolts - no separate flat washers required
• Zinc finish for corrosion resistance
• Complete 4-bolt set for full installation
• Direct replacement for worn, stripped, or missing factory hardware
• Fits all 1979-2004 Ford Mustang and Capri manual transmission applications

Description

Replacing damaged or missing lower shift boot bolts is one of those small details that makes a big difference in a finished interior. These Grade 8.8 steel hex flange bolts secure the lower shift boot to the transmission tunnel, maintaining the seal that keeps road noise, heat, and debris out of the cabin while protecting your shifter mechanism.

The hex flange head design integrates a built-in washer surface, eliminating the need for separate flat washers and simplifying installation. This design provides even clamping force distribution across the boot mounting surface. The zinc finish protects against corrosion - particularly important for hardware exposed to moisture and temperature swings inside the transmission tunnel.

Sold as a complete 4-bolt set, this kit gives you everything needed to properly secure the lower shift boot in one purchase. Compatible with all 1979-2004 Ford Mustang and Mercury Capri models equipped with manual transmissions, including Fox Body, SN95, and New Edge platforms. Works with both OEM shift boots and aftermarket replacements.

What's Included

• (4) Hex flange bolts, Grade 8.8 steel, zinc finish

Key Features

• Compression molded EPDM rubber construction with integrated metal retaining trim ring
• Exact OEM reproduction for perfect factory fit on all 1979-2004 manual transmission Mustangs
• Seals shifter opening to block road noise, exhaust fumes, and debris from entering cabin
• Mounts under exterior leather shift boot in stock location on transmission tunnel
• Improved shift movement and clearance compared to worn original boots

Description

After years of heat cycling from the exhaust and constant shifter movement, your factory lower shift boot cracks and deteriorates - letting road noise, exhaust fumes, and debris into the cabin every time you row through the gears. This OEM-spec replacement restores the critical seal between your shifter and the transmission tunnel, eliminating those unwanted intrusions while improving overall shift feel.

Manufactured from compression molded EPDM rubber, this lower dust boot replicates the original factory design with the durability to outlast the stock part. The integrated metal retaining trim ring provides structural rigidity and ensures proper mounting to the transmission tunnel, maintaining consistent seal compression around the shifter mechanism. Unlike worn-out original boots that flex and bind, a fresh boot delivers improved shift movement and clearance.

This boot mounts in the stock location on top of the transmission hump, underneath your center console and exterior leather shift boot. The four-bolt mounting pattern aligns with the factory holes in the tunnel for straightforward installation. Whether you are restoring a Fox Body or SN95 Mustang to factory condition or installing an aftermarket short throw shifter, replacing the lower boot is essential to maintaining a sealed, quiet interior.

Fits all 1979-2004 Ford Mustangs equipped with manual transmissions, including GT, LX, Cobra, and V6 models across the Fox Body (1979-1993) and SN95 (1994-2004) platforms.

What's Included

• Compression molded EPDM rubber lower dust boot
• Metal retaining trim ring/support frame

Key Features

• Genuine black leather construction with quality stitching
• Includes steel retaining plate for secure console mounting
• Square base shape designed specifically for Fox Body console opening
• Direct replacement for worn or damaged factory boot
• Compatible with factory and aftermarket shifters

Description

After 30+ years, that original Fox Body shift boot has likely seen better days. Cracked vinyl, torn seams, and faded material make even a clean interior look neglected. This genuine black leather shift boot restores your 1987-1993 Mustang's cockpit to factory-fresh condition while upgrading the material quality over the original vinyl boot.

The full-grain leather construction delivers the authentic look and feel that synthetic materials simply cannot replicate. Quality stitching ensures the seams hold up to years of daily shifting, while the included steel retaining plate provides secure mounting to your console. The zinc plating on the retaining plate prevents corrosion around the shifter opening where moisture can accumulate.

Designed as a direct replacement for all 1987-1993 Ford Mustangs equipped with manual transmissions, this shift boot features the correct square base geometry to fit the Fox Body console opening precisely. Installation is straightforward - remove the old boot and install this premium leather replacement using the included mounting plate. Works with both factory shifters and most aftermarket units.

Compatible with LX, GT, and SVT Cobra models from the final generation of Fox Body Mustangs.

Kit Includes

• Black genuine leather shift boot
• Steel retaining/mounting plate

Key Features

• Direct-fit OEM replacement for manual transmission Fox-body Mustangs
• Black textured finish matches factory console appearance
• Seals shifter opening to block road noise, debris, and exhaust fumes
• Provides mounting point for upper shifter boot
• Includes 4 mounting clips for secure console attachment
• Made in the USA

Description

After three decades of shifts, spills, and disassemblies, the original shift bezel on your Fox-body Mustang has likely cracked, faded, or broken altogether. This OEM-specification replacement restores the critical console trim piece that seals the shifter opening and provides a clean mounting surface for your upper shift boot.

This black plastic bezel seats into the center console opening and snaps securely into place using four integrated mounting clips. Beyond aesthetics, it serves a functional purpose: sealing off the shifter area to prevent road noise, tunnel heat, and exhaust fumes from entering the cabin through the gap around your shifter.

The textured finish matches the factory grain pattern found on original '87-'93 consoles, ensuring a seamless appearance whether you're doing a full interior restoration or simply replacing a worn-out part. Direct-fit design means no trimming, drilling, or modification required.

Fits all 1987-1993 Mustang GT, LX, and Cobra models equipped with manual transmissions. Made in the USA.

What's Included

• OEM-specification shift bezel in black textured finish
• 4 mounting clips for console attachment

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• OE replacement transmission tunnel harness for manual transmission Fox Body Mustangs
• Pre-installed body grommet for clean firewall pass-through
• Provides reverse light and speedometer circuits for proper function
• Compatible with T5, TKO, TKX, 3650, and T56 transmissions
• Direct plug-and-play installation with factory-style connectors
• Eliminates splicing and cobbled wiring during transmission swaps

Description

When you swap to an aftermarket manual transmission in your 1987-1993 Fox Body Mustang, your new gearbox may require different electrical connections to ensure your reverse lights and speedometer function properly. This OE replacement transmission tunnel harness solves that problem with a direct-fit solution that routes from the driver's side footwell, under the carpet, through the transmission tunnel, and out to the transmission.

The harness features a pre-installed body grommet for a clean, factory-style pass-through at the firewall. Unlike universal wiring that requires splicing and custom modifications, this harness utilizes factory-style connectors that plug directly into your transmission and existing vehicle wiring. The design eliminates the guesswork and potential electrical issues that come with pieced-together connections during a swap.

This harness is engineered to work with T5, TKO, TKX, 3650, and T56 manual transmissions. Whether you're rebuilding a stock T5 setup or upgrading to a high-performance TREMEC, this harness ensures your reverse lights illuminate when you shift into reverse and your speedometer receives the proper signal from the transmission's speed sensor.

Direct fit for 1987-1993 Fox Body Mustangs with manual transmissions. For applications requiring a separate reverse switch connector adaptation, see MD-700-0010.

What's Included

• Manual transmission main wiring harness with factory-style connectors
• Body grommet (pre-installed)
• Full installation instructions
• 1-year manufacturer's warranty

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• Integrates reverse lockout control, dual VSS outputs, and reverse light wiring into one harness
• Speed-based reverse lockout: locked above 4 MPH, unlocked at 0-3 MPH (user-adjustable via app)
• Dual independent speed sensor outputs with customizable pulse counts (default: 40-pulse and 16-pulse)
• Bluetooth-enabled epoxy-sealed controller mounts to existing VSS bolt
• Square wave output: -5V to +5V standard, auto-shifts to 0V to +10V for positive-only ECM inputs
• Replaces up to 5 separate components previously required for full functionality
• Free iOS and Android app for complete signal customization
• Compatible with Classic Instruments, Auto Meter, Dakota Digital, and GM Connect & Cruise packages

Description

Converting to a TREMEC 6-speed Magnum means wiring three critical electrical functions: the vehicle speed sensor, reverse lockout solenoid, and reverse lights. Traditionally, this required up to five separate components—signal converters, lockout controllers, pigtails, and individual harnesses—all needing integration. The Bowler 3-in-1 Harness consolidates everything into a single pre-wired solution with an intelligent, Bluetooth-configurable controller.

The T56 Magnum and TR6060 place reverse gear dangerously close to 5th gear, creating real potential for accidental engagement at highway speed. The reverse lockout solenoid uses a spring-loaded pin to resist shifts into reverse when de-energized. Most DIY wiring ties the solenoid to the brake light switch—a flawed approach since braking at speed still allows reverse engagement. This harness uses speed-based control like the OE system: the lockout engages above 4 MPH and releases only when the vehicle slows to 0-3 MPH. These thresholds are fully adjustable through the free smartphone app.

The dual speed sensor outputs solve one of the most frustrating wiring challenges in modern builds. Your ECM may need a different signal than your electronic speedometer or cruise control, forcing multiple converters. This harness provides two completely independent outputs—each calibrated separately with any pulse count and ratio you need. The outputs generate a square wave signal from approximately -5V to +5V, and automatically shift to 0V to +10V when your ECM requires a positive-only input. Works seamlessly with popular gauges from Classic Instruments, Auto Meter, and Dakota Digital.

The compact epoxy-sealed controller mounts directly to the VSS output using the existing bolt—no additional mounting hardware or locations needed. Power comes from a switched +12V circuit with ground to the negative battery post or engine block. This harness fits Ford & GM Standard T56 Magnum and Ford TR6060 transmissions. Note: Does not work with 2019 and newer Mustang ECM (Wavelength system).

What's Included

• Epoxy-sealed Bluetooth controller module
• Pre-wired harness with VSS connector
• Reverse lockout solenoid wiring and connector
• Dual vehicle speed sensor output leads (pre-set 40-pulse and 16-pulse)
• Reverse light activation wire
• Protective wiring loom
• Mounting hardware for VSS bolt installation
• Installation instructions and app guide
• Free iOS/Android Bowler app download

Key Features

• Direct-fit snap-in connector mates with the reverse lockout solenoid on all TREMEC T56 6-speed transmissions
• Generous 6-foot wiring length provides flexible routing through tunnels and firewalls
• Protective covering shields wiring from heat, abrasion, and moisture
• Designed for use with MDL's MD-700-0100-2 reverse lockout control module
• Fits Ford and GM T56 applications

Description

The TREMEC T56 utilizes a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a critical safety feature because reverse and 5th are located very close to each other on the shift pattern. When the solenoid isn't energized, spring pressure against the shift rail makes reverse engagement difficult. When powered, the solenoid retracts the pin, allowing smooth entry into reverse. The problem? Classic cars and restomod builds lack the factory PCM logic to control this solenoid, leaving builders to either muscle through the lockout or rig up makeshift solutions.

This 6-foot harness provides the factory-style snap-in connector that mates directly with the T56's reverse lockout solenoid. The extended length gives you the flexibility to route wiring cleanly through the transmission tunnel, up through the firewall, and to your control module location without splicing or extending. The protective covering shields the conductors from exhaust heat, sharp edges, and underbody moisture--critical for a harness that lives in a harsh environment.

This harness is designed to work with MDL's MD-700-0100-2 reverse lockout control module, which monitors vehicle speed via the VSS signal and automatically energizes the solenoid below approximately 5-10 MPH for easy reverse engagement, then de-energizes it at higher speeds to prevent accidental shifts. The result is OEM-style lockout behavior without relying on makeshift brake-light-switch wiring or manual override buttons. Fits all TREMEC T56 6-speed transmissions in Ford and GM applications.

What's Included

• 6-foot reverse lockout solenoid harness with protective covering
• Snap-in connector for TREMEC T56 reverse solenoid

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Reverse Switch Wiring Harness | 1987-1993 Mustang | Manual Transmission

Key Features

• Direct replacement for Ford OE part number F1ZZ-14405
• Fits all 1987-1993 Mustang models with 5-speed manual transmission
• 14-inch harness length with factory-style connector
• Includes retainer clip to secure harness away from moving components
• Plug-and-play installation - no splicing or wire modification required

Description

Dead backup lights on your Fox Body? The factory reverse switch harness is often the culprit. After three decades of heat cycles, road spray, and transmission vibration, the original wiring becomes brittle and the connector corrodes - leaving you without functional reverse lights when you need them most.

This replacement harness restores reliable backup light operation with a factory-correct pigtail connector that plugs directly into the reverse switch on your T5 transmission. Built to match Ford's original F1ZZ-14405 specification, the 14-inch harness provides the correct length to route cleanly from the transmission to the vehicle's main wiring harness without excess slack or tension.

The included retainer clip secures the harness away from the driveshaft and other rotating components - a detail often overlooked with generic replacements that can lead to chafing and premature failure. Installation takes minutes: disconnect the old harness from the reverse switch, connect the new one, and secure with the retainer. No splicing, no wire stripping, no electrical tape required.

Compatible with all 1987-1993 Mustang variants equipped with manual transmission, including LX, GT, and SVT Cobra models.

What's Included

• Reverse switch wiring harness with factory-style 2-pin connector (14 inches)
• Harness retainer clip

Key Features

• Single-tube design delivers maximum stiffness without excess weight
• Adjustable design accommodates T45, T56, T56 Magnum, Magnum XL, and TR-3650 transmissions via sliding sleeves and repositionable spacers
• Uses factory-located 4.5" wide body mounts - no relocation or fabrication required
• Engineered to maintain current pinion angle with OEM or aftermarket transmission mounts
• Low-deflection polyurethane bushings dampen driveline vibrations and noise
• Slim profile allows more exhaust clearance than OEM-style crossmembers
• Polyurethane bushings replaceable with solid bushings for racing applications (sold separately)
• Black powder coat finish

Description

Upgrading your Fox Body to a modern TREMEC transmission means dealing with one persistent headache: the factory crossmember wasn't designed for it. This Stifflers tubular crossmember solves the fitment problem while delivering chassis stiffness and strength that the stamped-steel OEM unit simply cannot match.

The unique single-tube design is the key differentiator here. Where conventional crossmembers force you to choose a specific transmission fitment, Stifflers' adjustable sleeve-and-spacer system lets you configure one crossmember for multiple applications. Simply slide the mounting sleeves and reposition the spacers to dial in fitment for T45, T56, T56 Magnum, Magnum XL, or TR-3650 transmissions. This eliminates the guesswork and custom fabrication that plague most swap projects.

Engineering matters beyond just fitment. This crossmember bolts directly to your factory 4.5"-wide body mounts with zero modification required, while maintaining your existing pinion angle whether you're running OEM or aftermarket transmission mounts. The slim tubular profile also creates significantly more exhaust clearance than the bulky factory unit - a real advantage when running aftermarket headers or larger-diameter exhaust systems.

Low-deflection polyurethane bushings provide a firmer mount than factory rubber while still isolating driveline vibrations and NVH from the chassis. For dedicated track cars where maximum rigidity is required, the poly bushings can be swapped for solid bushings (sold separately). Compatible with 1982-1993 Ford Mustang and Mercury Capri Fox Body applications.

What's Included

• Stifflers single-tube crossmember with black powder coat finish
• Adjustable mounting sleeves
• Repositionable spacers for multi-transmission fitment
• Low-deflection polyurethane bushings
• Complete hardware pack
• Installation instructions

Key Features

• Precision welded steel construction for maximum durability and mounting integrity
• Rubber contact pad isolates drivetrain vibration while maintaining secure transmission support
• Protective coating resists corrosion from heat, oil, and road debris
• Direct bolt-in replacement for OEM mount - no modifications required
• Compatible with manual and automatic transmissions: T5, TKO, TKX, T45, and AOD
• Fits 1979-1995 Mustangs plus 1996-1997 GT models
• Made in the USA

Description

Factory rubber transmission mounts deteriorate over time from constant exposure to heat, oil, and the stress of supporting your transmission. A worn mount causes excessive drivetrain vibration, sloppy shifting under hard acceleration, and poor driveline alignment between your transmission tailshaft and crossmember. This precision-welded transmission mount restores solid mounting integrity while isolating vibration through its integrated rubber contact pad.

The welded steel construction delivers the rigidity your drivetrain demands, eliminating the flex and movement that plague degraded OEM mounts. Unlike cheap replacement mounts that sacrifice durability for cost savings, this mount features a protective coating that resists corrosion in harsh underhood and undercar environments. The rubber cushion absorbs vibration without the harshness of a solid mount, maintaining driving comfort while dramatically improving shift quality.

Designed as a direct bolt-in replacement for the factory mount, installation requires no modifications to your crossmember or transmission housing. This mount is compatible with all common manual and automatic transmissions including the T5, TKO, TKX, T45, and AOD - covering everything from stock rebuilds to TREMEC performance upgrades. Fits all 1979-1995 Mustangs as well as 1996 and 1997 GT models. Made in the USA and backed by MDL's commitment to quality drivetrain components.

What's Included

• Precision welded transmission mount with rubber cushion pad
• Protective coating applied

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Custom-built 3.5" aluminum tube construction - lightweight alternative to traditional steel driveshafts
• 31-spline forged steel slip yoke - matches T56 Magnum output shaft
• 8.8" rear differential flange fitment - direct bolt-on to Ford's popular rear end
• 1330 series U-joints - 1.062" cap diameter with 3-5/8" overall width for proven torque transfer
• Professional balancing - eliminates vibration for smooth high-RPM operation
• Built to your exact measurements after transmission installation - ensures perfect length and driveline angles
• Made in the USA

Description

When you swap a TREMEC T56 Magnum six-speed into your Fox Body Mustang, the factory steel driveshaft becomes a liability. That heavy stock shaft robs power through rotational mass while potentially limiting the Magnum's 700 lb-ft torque capacity. This custom aluminum driveshaft solves both problems - dropping significant weight while delivering the strength your upgraded drivetrain demands.

A high-quality driveshaft plays a critical role in any performance vehicle. Your car needs a shaft that can withstand intense conditions, stresses, and high RPM without adding unnecessary weight. The 3.5" aluminum tube provides excellent torsional rigidity at a fraction of the weight of steel. The forged steel slip yoke delivers durability at the critical transmission connection point, with a 31-spline configuration that matches the Magnum's output shaft precisely. At the rear, the 8.8" flange bolts directly to Ford's popular differential.

The 1330 series U-joints handle torque transfer with proven reliability - featuring 1.062" cap diameter and 3-5/8" overall width. This series has been Ford's standard for performance applications since the late 1970s, offering an excellent balance of strength and driveline angle capability.

Each driveshaft is professionally built to your exact measurements after you've completed your transmission installation. This build-to-order approach ensures perfect length, eliminates vibration issues, and provides optimal driveline angles for smooth operation. Simply complete the MDL Driveshaft Build Sheet with your measurements and submit it to begin fabrication. Whether you're building a street cruiser or a weekend track car, this aluminum driveshaft delivers the lightweight strength your Fox Body T56 Magnum swap deserves. Fits 1979-1993 Ford Mustang with T56 Magnum transmission and 8.8" rear differential. Made in the USA.

How to Order

This driveshaft is custom-built to your vehicle's exact specifications. After placing your order, download and complete the MDL Driveshaft Build Sheet with measurements taken from your finished installation. Submit the completed form to info@moderndriveline.com and we'll begin fabricating your driveshaft.

What's Included

• Custom aluminum driveshaft with 3.5" tube
• Forged steel 31-spline slip yoke
• 8.8" rear differential flange
• 1330 series U-joints installed at both ends
• Professional balancing
• Lifetime technical support
