Modified TREMEC T5 5-Speed Super-Duty | Front Shift Forward Socket Shifter

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• Ford speedometer drive with 7-tooth gear (6 and 8-tooth available)
• Front Position Front socket Shifter at 11.75" from main case front. Ideal for '32 Ford hotrods and Rangers
• Compact platform fits below '32 Ford floor without cutting
• Uses GM transmission mount (MD-604-1102, sold separately)
• 2.75 quarts ATF Dexron III fluid capacity
• Just 75 lbs dry - TREMEC's most compact transmission
• Optional 0.73 overdrive ratio available

Description

The MDL Modified T5 with front position front socket location solves the space and gearing challenges of dropping overdrive into a Ford V8 flathead-powered '32 Ford. This custom front-shift configuration places the shifter socket just 11.75” from the main case front, positioning the lever exactly where you need it while the compact transmission platform tucks below the floor pan without cutting. The 2.95 first gear and deep 0.63 overdrive are geared correctly for flathead torque curves — strong launches without over-revving and relaxed highway cruising that drops RPMs, cuts noise, and extends engine life.

Built on TREMEC's proven T5z platform with Super-Duty upgrades, this transmission handles 330 ft-lb of torque — suitable for 450 hp streetcars on DOT-approved tires. Internal improvements include carbon fiber synchronizer rings on 3rd and 4th gears for smoother high-RPM shifts, Cobra-style pocket bearing for improved load distribution, a steel front bearing retainer for strength, and upgraded synchronizers and bearings throughout. The forward socket location makes this transmission ideal for hotrods and early Rangers where traditional shifter placement doesn't work.

An optional offset shift stub is available to fine-tune shifter position up to 2 inches forward or backward — contact MDL sales staff for details. The rear socket location option (13” from case front) is also available for '60–'65 Falcon and Comet applications. This transmission uses GM transmission mount MD-604-1102 (sold separately) and requires 2.75 quarts of ATF Dexron III. Ford speedometer drive with 7-tooth gear maintains accurate speed readings.

At approximately 75 pounds dry, the T5 is TREMEC's most compact transmission — fitting where others cannot while delivering smooth shifts, easy operation, and proven reliability backed by over 40 years of continuous development. Dollar for dollar, pound for pound, it remains the go-to overdrive solution for lightweight and moderate horsepower builds.

Call MDL at 208-453-9800 to discuss your specific application and verify fitment details for your particular chassis.

What's Included

• TREMEC T5z 5-speed Super-Duty transmission with custom front-shift tail housing
• MDL quick shifter (required for forward socket operation)
• 10-splined input shaft and 28-splined output shaft
• Steel front bearing retainer
• Cobra-style pocket bearing
• Carbon fiber 3-4 synchronizer rings
• Flat-machined mounting pad (4" wide, centered on centerline)
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Ford pattern mechanical speedometer drive assembly with 7-tooth gear (6 or 8-tooth available separately)
• Fill and drain plugs
• Installation instructions
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from Modern Driveline

Note: GM transmission mount MD-604-1102 required but not included. Front-shift tail housing also available separately in kit form: MD-510-1001 (forward position, requires MDL quick shifter) or MD-510-1000 (rear position, uses stock Mustang T5 shifter).

Modified TREMEC T5 5-Speed Super-Duty | Front Position Rear Socket Shifter | 1960-1965 Falcon and Comet

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• Ford speedometer drive with 7-tooth gear (6 and 8-tooth available)
• Front Position Rear Socket Shifter at 13.00" from main case front. Ideal for 1960-1965 Falcon and Comet without floor modifications
• Uses GM transmission mount (MD-604-1102, sold separately)
• 2.75 quarts ATF Dexron III fluid capacity
• Just 75 lbs dry - TREMEC's most compact transmission
• Optional 0.73 overdrive ratio available

Description

Early Falcon owners and hot rod builders face a common problem: standard T5 shifter placement lands behind the seat or requires cutting through the floor support. MDL engineered this front shift T5 specifically to eliminate that headache. The proprietary dual-socket tail housing moves the shifter 6 inches forward compared to a standard T5 - the same forward location used in S-10 Chevy pickup applications. For 1960-1965 Falcon and Comet owners, this puts the shifter at exactly 13.00” from the front of the main case, allowing installation without modifying the floor support structure.

This isn't just a relocated shifter bolted to a stock transmission. MDL's Super-Duty T5 handles 330 ft-lb of torque - a significant upgrade over the standard 300 ft-lb rating. The World Class internals include carbon fiber 3-4 synchro rings, improved synchronizers and bearings throughout, plus a Cobra-style pocket bearing for enhanced input shaft support. The steel front bearing retainer adds durability where standard units use aluminum. At just 75 lbs dry, this remains the most compact overdrive manual transmission for space-constrained builds.

The 2.95 first gear delivers strong launches while the deep 0.63 overdrive drops engine RPM significantly on the highway - reducing wear, lowering temperatures, and improving fuel economy. An optional 0.73 overdrive is available for builders who want an even taller fifth gear. The transmission is configured for Ford mechanical speedometer operation with the included 7-tooth speedo gear and uses a GM-style transmission mount (MD-604-1102, sold separately).

Prime candidates include 1960-1965 Falcons, hot rods, street rods, trucks of all years, kit cars, and Shelby 289 Cobras where traditional rear shift placement creates packaging or ergonomic problems. This transmission requires 2.75 quarts of Dexron III ATF. An optional offset shifter is available to move shifter position back up to 2 inches if needed - contact sales for details.

Call MDL at 208-453-9800 to discuss your specific application and verify fitment details for your particular chassis.

What's Included

• TREMEC T5z 5-speed Super-Duty transmission with custom front-shift tail housing
• 10-splined input shaft and 28-splined output shaft
• Steel front bearing retainer
• Cobra-style pocket bearing
• Carbon fiber 3-4 synchronizer rings
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Ford pattern mechanical speedometer drive assembly with 7-tooth gear (6 or 8-tooth available separately)
• Fill and drain plugs
• Installation instructions
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from Modern Driveline

Note: GM transmission mount MD-604-1102 required but not included. Front-shift tail housing also available separately in kit form: MD-510-1001 (forward position, requires MDL quick shifter) or MD-510-1000 (rear position, uses stock Mustang T5 shifter).

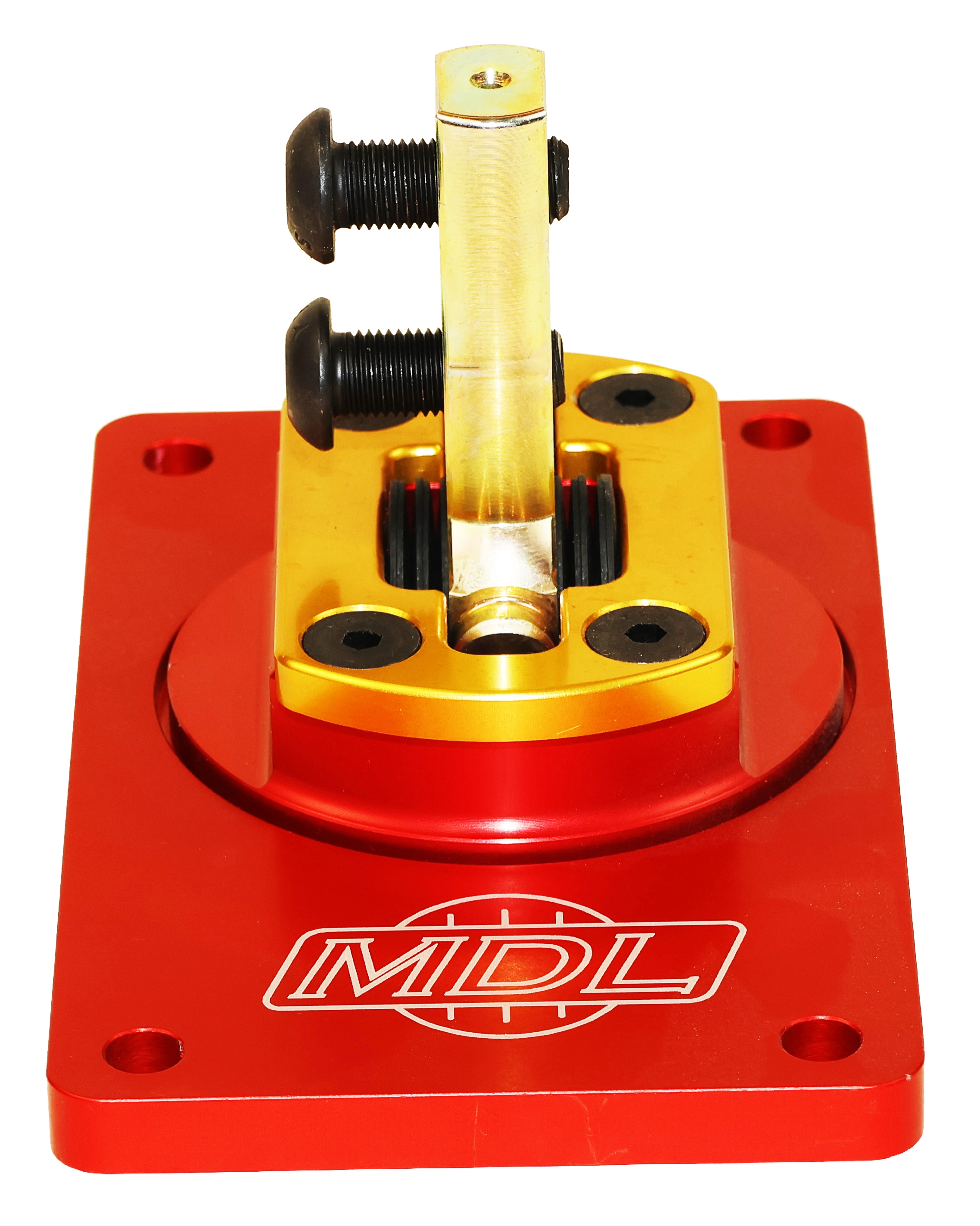

Key Features

• Close-ratio, short-throw shifter with Belleville washer detent for crisp 2-3 shifts
• Billet aluminum construction for lightweight durability
• Compact top turret engineered to clear restrictive floor openings
• 7/8-inch on-center mounting fits most aftermarket shift levers
• 1.950" or 2.450" forward offset positions the shift knob where you need it
• High-temperature lower dust boot handles engine bay heat cycles
• No shift stops - Belleville spring design eliminates failure points and simplifies servicing
• Works with front or rear shifter positions
• Made in the USA

Description

Front-shift T5 conversions create a shifter placement problem: the stock shifter sits too far back for hot rods, street rods, and tight-cockpit builds. The Qwik Stik solves this by pairing with MDL's front shift tail housings to move the shift lever exactly where classic car ergonomics demand - no compromises, no awkward reach.

This shifter has been specifically engineered to work exclusively with MDL's MD-510-1001 front shift T5 tail shaft housings or any MDL front shift T5 front position transmission. Standard shift position tail housings will not work. The front shift position places the shift pivot point at 11.75 inches back from the main case, and the 1.950" or 2.450" forward offset stub moves the shift knob even further into the driver's reach zone.

The engineering focus was clearance and control. The compact billet aluminum turret clears restrictive floor openings that trap larger shifters, while the close-ratio mechanism delivers short, precise throws. Belleville washers provide excellent detent feel - that crisp 2-3 shift feedback gearheads demand. Unlike designs with breakable stops, this shifter has no stops; the spring-loaded detent system eliminates failure points and makes servicing straightforward.

Positioning flexibility sets this shifter apart. The standard 7/8-inch on-center mounting accepts most aftermarket shift levers, so you can attach your preferred lever, boot, and shift knob. The high-temperature dust boot handles engine bay heat cycles without degrading. Precision machined and anodized for long life, proudly crafted 100% in the USA.

What's Included

• Billet aluminum Qwik Stik shifter assembly with anodized finish
• High-temperature lower dust oil boot
• Belleville washer detent system
• Complete mounting hardware
• Lifetime technical support: 208-453-9800

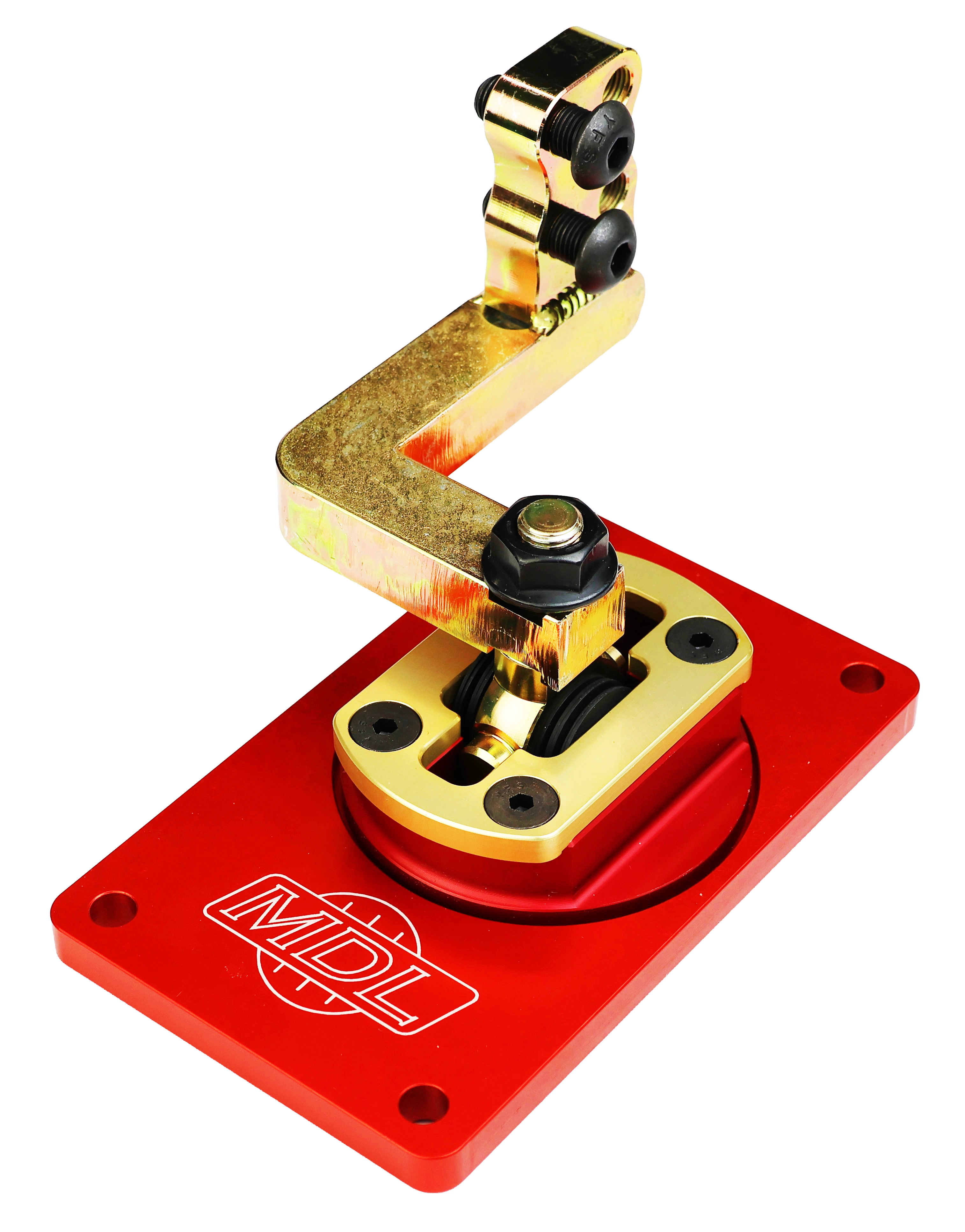

Qwik Stik Shifter | MDL Front Shift T5 | 2" Left, 1.950" or 2.450" Forward

Key Features

• Close-ratio, short-throw design for lightning-fast gear changes
• Billet aluminum construction for weight savings and durability
• Small top turret clears tight tunnel and floor openings
• Belleville washer detent system delivers crisp, positive 2-3 shifts
• 7/8-inch on-center stub mounting fits most aftermarket shift levers
• No-stops design eliminates breakage points and simplifies servicing
• High-temperature lower dust boot protects internals from contamination
• Stub offset: 2" left, 1.950" or 2.450" forward
• Proudly crafted 100% in the USA

Description

Relocating the shifter in a classic Mustang or hot rod often means the factory shifter won't clear the floor opening or land in the right spot. The MDL Qwik Stik is engineered specifically for MDL front shift T5 tail housings (MD-510-1001) and any MDL front shift T5 front-position transmission, putting the lever exactly where you need it while delivering the short-throw, close-ratio action serious drivers demand.

The compact top turret is sized to slip through restrictive tunnel openings that would interfere with bulkier shifters. Billet aluminum construction keeps mass low while standing up to aggressive shifting. A Belleville spring detent mechanism creates the positive, tactile feedback that makes the 2-3 shift feel crisp and precise, with no vague gate feel. The no-stops design means there are no plastic or metal stops to break or wear out, and it also makes internal service straightforward when the time comes.

This particular configuration provides a 2-inch left offset with your choice of 1.950" or 2.450" forward positioning from the front socket location. The 7/8-inch on-center stub pattern accepts most aftermarket shift levers, so you can select the lever length and knob that suit your driving style. A high-temperature dust boot seals out debris. Note that this shifter is compatible only with MDL front shift tail housings; it will not work with standard shift-position tail housings. Attach your lever, boot, and knob and you're ready to row gears.

What's Included

• Qwik Stik billet aluminum shifter assembly with offset stub (2" left, 1.950" or 2.450" forward)
• High-temperature lower dust boot
• Belleville washer detent system
• Mounting hardware

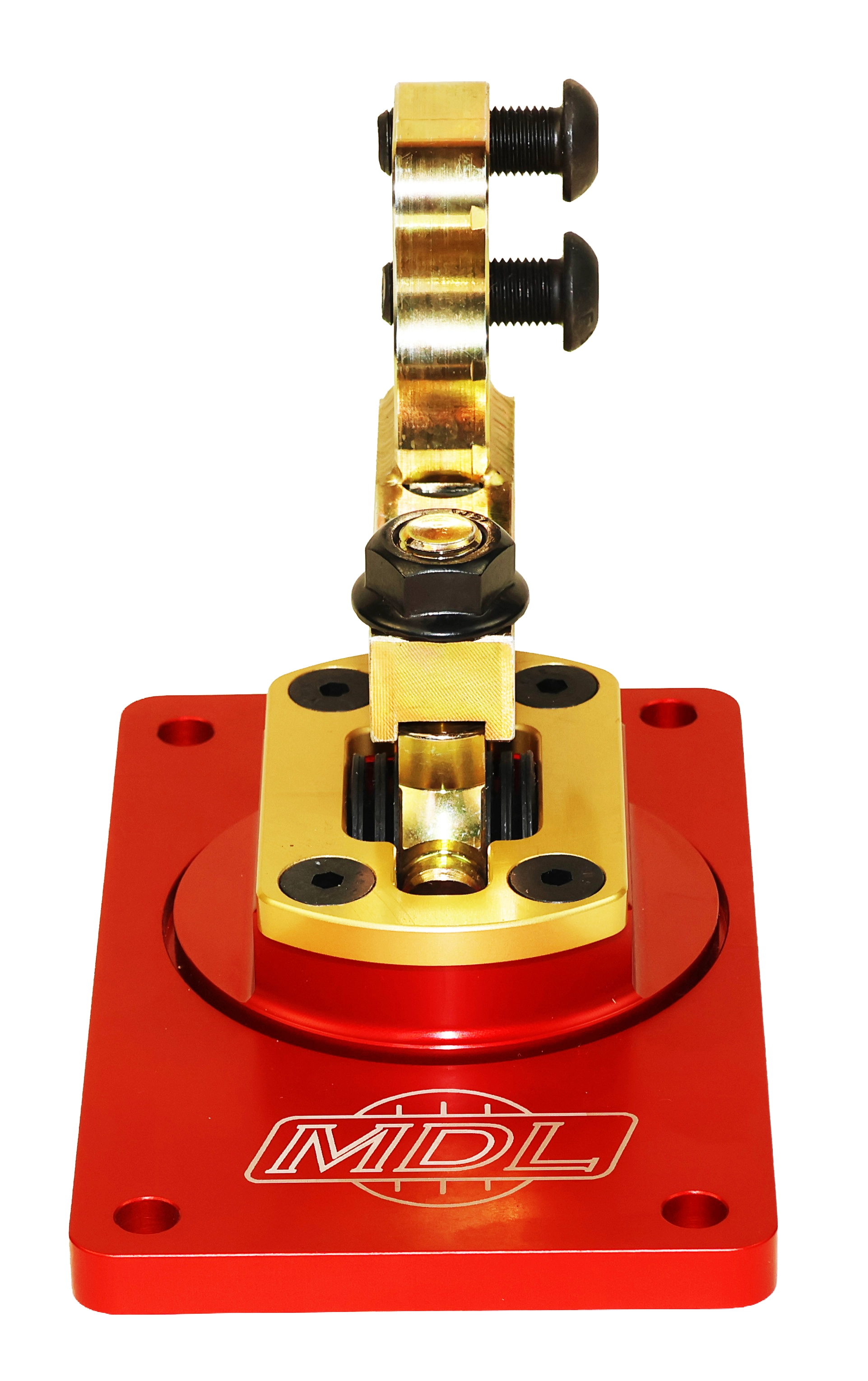

Qwik Stik Shifter | T5 Front Shift Position | 1" or 1.5" Forward Offset

Key Features

• Close-ratio, short-throw design for precision shifts
• 1" or 1.5" forward stub offset brings shifter to factory position
• Billet aluminum construction for weight savings and durability
• Compact turret profile clears tight floor pan openings
• 7/8" on-center mounting fits most aftermarket shift levers
• Belleville washer detent system delivers crisp 2-3 shifts
• No-stops design eliminates breakage points and simplifies servicing
• High-temperature lower dust boot included
• Front or rear shifter position compatibility
• Proudly crafted 100% in the USA

Description

When you run an MDL front-shift T5 tail housing or convert a Mustang tail housing to front position using an MDL shift block, factory shifters put your hand in the wrong spot. The Qwik Stik Shifter solves this problem with a 1" or 1.5" forward offset that moves the stick back to factory-feel ergonomics while delivering short-throw performance.

Engineered specifically for MDL front-shift applications, the Qwik Stik uses a compact billet aluminum turret designed to clear tight floor openings where larger shifters won't fit. The close-ratio throw reduces shift travel for lightning-quick gear changes without sacrificing accuracy. Belleville washers create positive detent that locks each gear with authority, eliminating the vague feel of worn-out factory shifters.

The no-stops design is a key advantage: there are no plastic or metal stops to break or replace, and servicing the shifter is straightforward when needed. The 7/8" on-center mounting accepts most aftermarket shift levers, so you can finish the installation with your preferred lever, boot, and shift knob.

This shifter works exclusively with MDL MD-510-1001 front-shift T5 tail housings or any MDL front-position T5 transmission. It does not work with standard shift position tail housings. Made in the USA with lifetime technical support from MDL.

Kit Includes

• Billet aluminum Qwik Stik shifter assembly
• High-temperature lower dust boot
• Belleville washer detent system
• Mounting hardware

Stub Offset: 1" or 1.5" Forward
Shifter Position: Front or Rear
Socket Position: Front

Note: This shifter does not have any stops. Does not work with standard shift position tail housings.

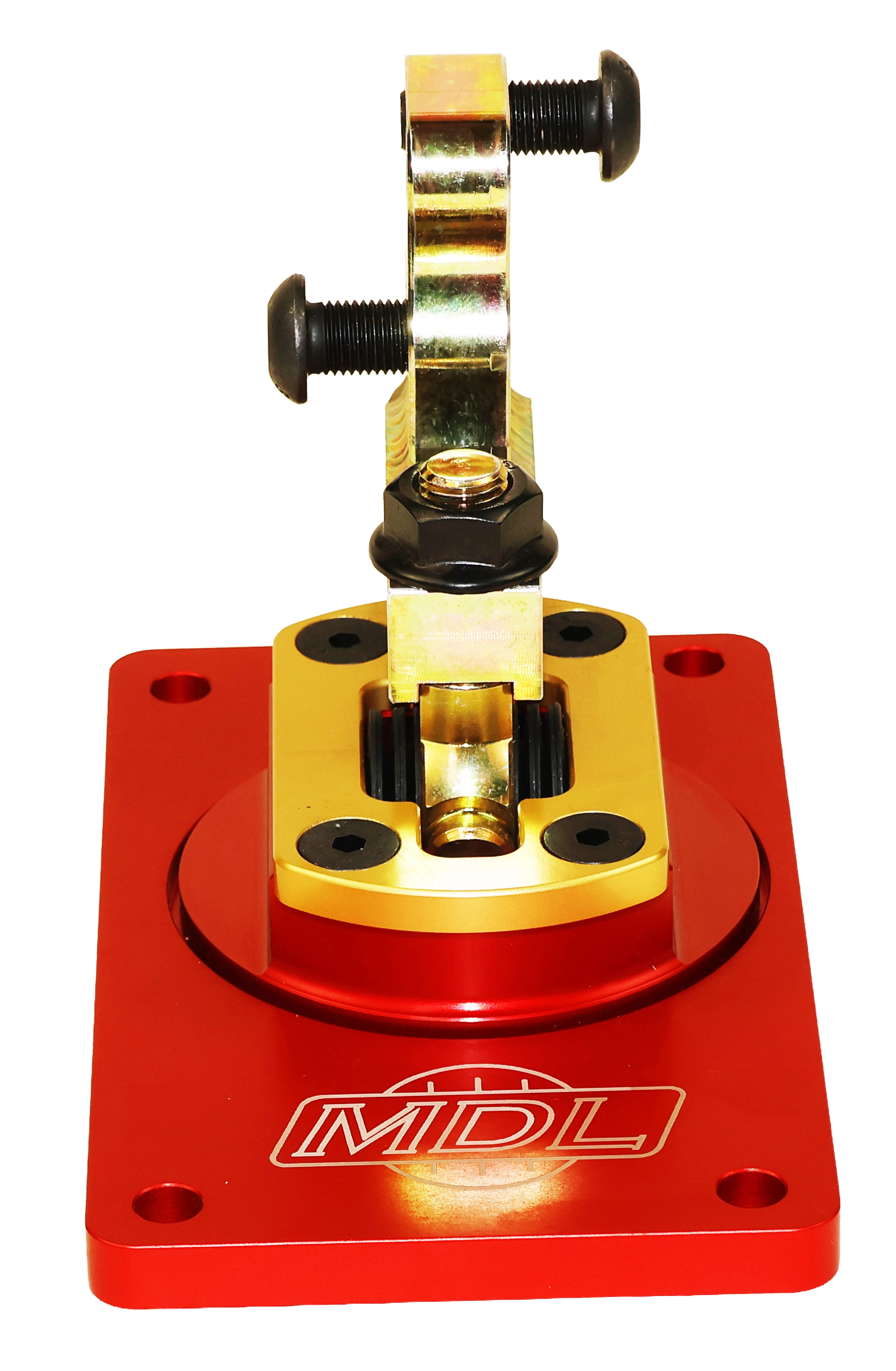

Key Features

• Close-ratio, short-throw design for precise, lightning-quick shifts
• Small top turret clears tight tunnel floor openings without modification
• Billet aluminum construction for weight savings and durability
• Belleville washers deliver crisp 2-3 shift detent feel
• 7/8-inch on-center mounting fits most aftermarket shift levers
• High-temperature lower dust boot protects internals from oil contamination
• No-stops design allows easy servicing without replacement parts
• Anodized finish for long-lasting corrosion resistance
• Made in the USA

Description

MDL's front shift T5 tail housings move the shifter pivot point forward for better ergonomics in classic builds - but that custom location means stock shifters won't work. The Qwik Stik solves that problem with a purpose-built short-throw design engineered specifically for MDL front shift applications.

The close-ratio geometry reduces throw distance for faster, more precise gear changes. A smaller top turret clears tunnel shifter openings that would bind larger units, eliminating the need for floor modifications. Billet aluminum construction sheds weight compared to cast alternatives while providing superior rigidity for a direct, mechanical feel at the lever.

Belleville washers replace conventional detent springs, delivering a crisp 2-3 shift feel that won't degrade over time. The no-stops design means there are no plastic components to break or replace - and when servicing is eventually needed, the Belleville spring system allows quick disassembly. The 7/8-inch on-center stub mounting accepts most aftermarket shift levers, giving you flexibility in handle and knob selection.

This shifter is compatible exclusively with the MD-510-1001 front shift T5 tail shaft housing or any MDL front shift T5 front position transmission. It will not work with standard shift position tail housings. Proudly crafted 100% in the USA with precision machining and anodized finish for durability.

What's Included

• Qwik Stik shifter assembly - billet aluminum, anodized finish
• High-temperature lower dust boot
• Belleville washers for shift detent

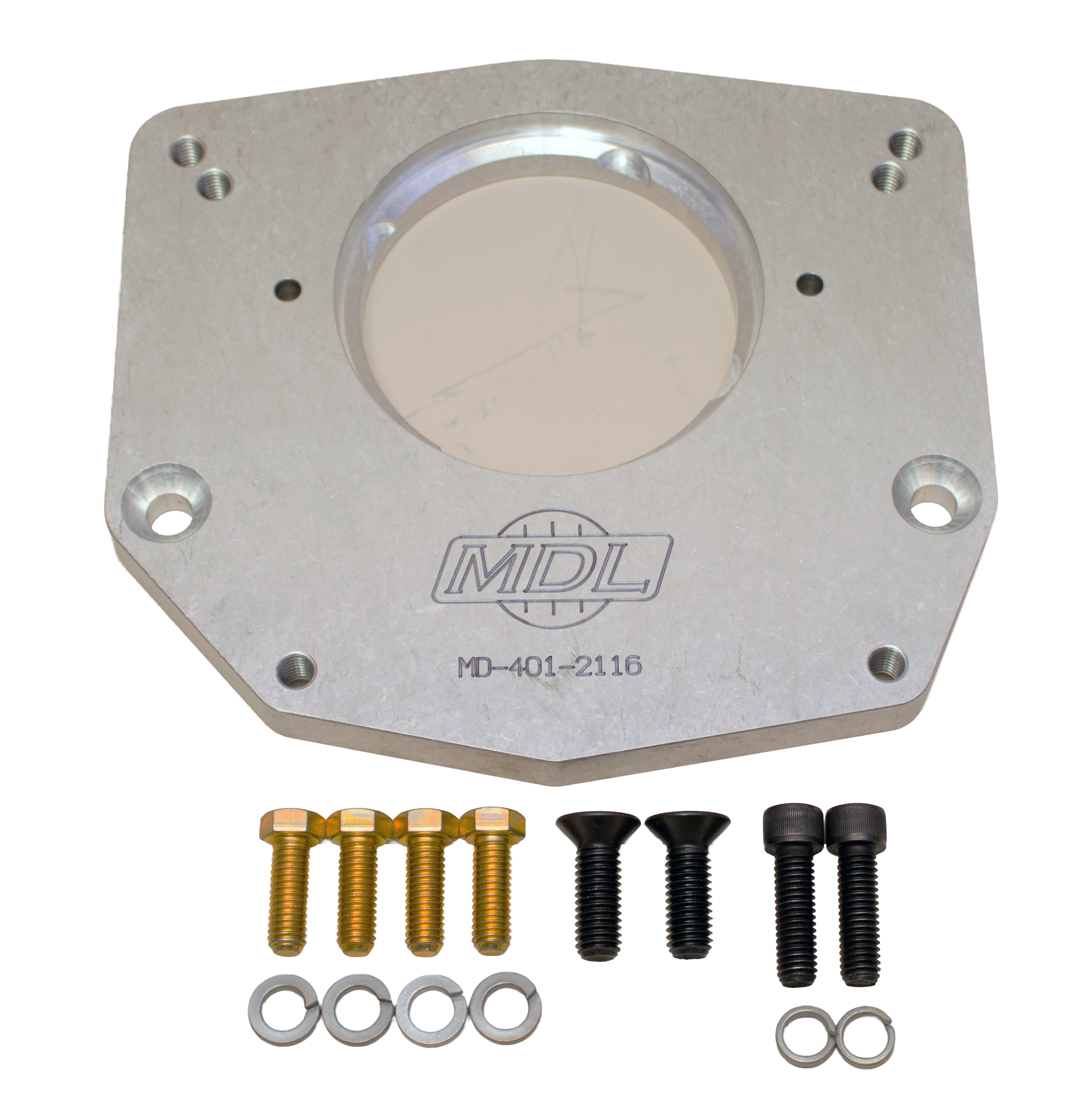

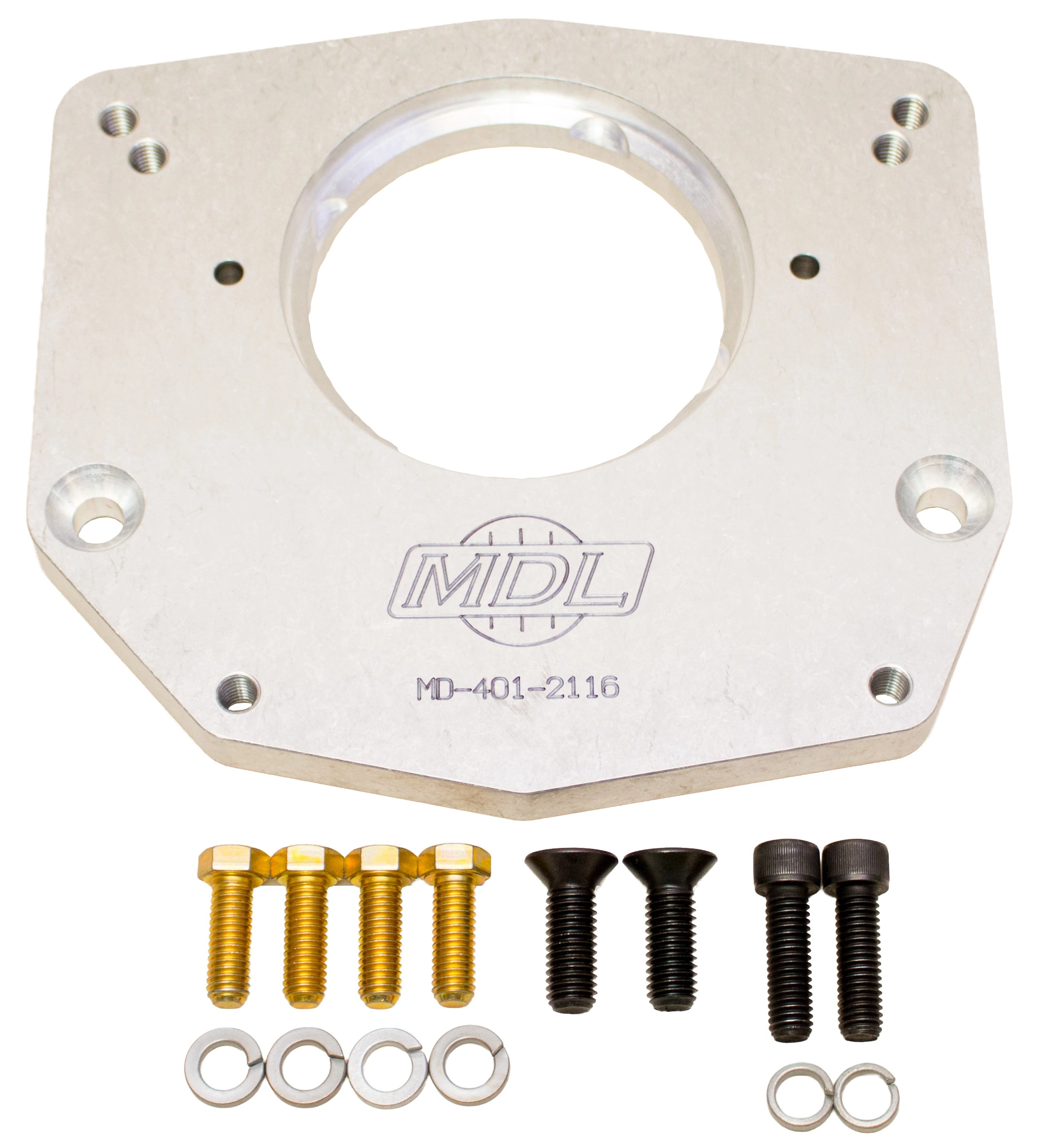

Key Features

• Precision CNC machined from 6061 billet aluminum for exact tolerances
• Compatible with Y-block truck bellhousings TBAB-7505-A and TCAL-7505-B
• Designed for 1994-2004 Ford T5 transmissions with the longer 7-7/8" input shaft
• Zero-degree rotation index keeps transmission mount flat for front-shift tailhousing
• Maintains precise transmission-to-bellhousing alignment
• Includes complete mounting hardware
• Machined logo and part number for identification
• Made in the USA

Description

Installing a modern T5 five-speed behind a Y-block in a classic Ford truck presents a specific challenge: truck bellhousings are both deeper and have integrated motor mount ears compared to car bellhousings. This adapter plate bridges that dimensional gap, allowing the use of 1994-2004 Ford T5 transmissions that feature the longer input shaft required by the deeper bellhousing depth.

Why the '94-'04 T5? Ford lengthened the input shaft by approximately 5/8" starting in 1994 to accommodate deeper SN95 bellhousings. That same longer shaft is exactly what Y-block truck applications demand. Shallower car bellhousings work with the shorter Fox-body T5 input shafts, but truck bellhousings need the extra reach. This adapter is machined specifically for that combination, with proper register bore alignment and mounting provisions.

The bolt pattern is clocked "straight up" with a zero-degree rotation index, keeping the transmission case in its natural orientation. This leaves the transmission mount flat when used with a front-shift T5 tailhousing. If you're running a standard Mustang T5 with case rotation instead, MDL offers the MD-401-2105CCR as an alternative. This adapter also pairs with MDL's purpose-built front-shifted Y-block T5 (part number MD-552-0251-YFSF).

Machined from 6061 billet aluminum using precision CNC equipment, this adapter delivers the dimensional accuracy required for proper drivetrain alignment. Each plate is machined specifically for Y-block truck bellhousing applications and includes MDL's logo and part number for easy identification. Made in the USA with lifetime technical support from MDL's drivetrain specialists.

What's Included

• 6061 billet aluminum adapter plate with machined logo and part number
• Complete mounting hardware
• Installation instructions
• Lifetime technical support

Install Hardware Kit | Ford Front Shift T5 | Steel Bellhousing or Adapter Plate

Key Features

• Complete mounting hardware for Ford front shift T5 with steel bellhousing or adapter plate applications
• Correct metric thread fasteners for T5 transmission-to-bellhousing attachment
• Specifically configured bolt lengths and grades for steel bellhousing installations
• Eliminates hardware-hunting when assembling your T5 swap
• Designed by MDL for proper Ford drivetrain fitment

Description

Sourcing the right fasteners for a Ford T5 installation can bring your project to a halt. T5 transmissions use metric threaded bellhousing bolts, which differ from the SAE threading used elsewhere in the Ford drivetrain. Grab the wrong hardware off the shelf and you risk cross-threading, loose connections, or inadequate clamping force under load.

This MDL install hardware kit is purpose-built for Ford front shift T5 installations using steel bellhousings or adapter plates. The included fasteners provide the correct metric thread pitch and appropriate lengths for secure transmission-to-bellhousing mounting. Each component is selected to deliver proper torque retention with steel bellhousing assemblies.

The difference between MDL's aluminum (AL) and steel (ST) hardware kits comes down to bellhousing bolt configuration. Aluminum bellhousings often ship with manufacturer-supplied fasteners or require different bolt lengths, so those kits are adjusted accordingly. This ST kit includes the correct hardware for steel bellhousing and adapter plate setups where the fasteners are not provided by the bellhousing manufacturer.

Stop digging through parts bins and hardware store drawers. This kit puts all the right fasteners in one bag so you can bolt up your T5 and move on to the next phase of your build.

Kit Includes

• Transmission-to-bellhousing mounting bolts (SAE thread)
• Complete fastener set for steel bellhousings

Key Features

• Hand-built Superior clutch disc with dual organic friction facings for smooth, progressive engagement
• 10-spline hub with 1-1/16" input shaft diameter - matches original Ford Flathead manual transmission input shafts
• 10" long pattern bolt circle - fits 59A engine and 8BA stamped or cast bell ring designs
• Pin-style release fork compatibility for 1949-1953 Flathead bellhousings
• Diaphragm pressure plate included for modern pedal feel and consistent clamping force
• 250 ft-lbs torque capacity - rated for street-driven Flathead builds
• Includes alignment tool for precise disc centering during installation
• Made in the USA with 1-year free-from-defect warranty

Description

Quality clutch components for Ford Flathead V8 builds are increasingly hard to source - especially when you need the correct pattern, spline count, and fork compatibility for your specific application. This Superior clutch kit is engineered specifically for Ford Flatheads using the 10" long pattern flywheel with pin-style release fork bellhousings, giving you a complete, bolt-on solution that eliminates the guesswork from your restoration or hot rod build.

The heart of this kit is the Superior organic clutch disc, hand-assembled in-house at MDL. Every disc is built to exacting tolerances using premium organic friction material on both sides, then double-checked for accuracy before shipping. Organic facings deliver smooth, predictable engagement that's ideal for street driving - no grabby starts or chatter. The 10-spline hub with 1-1/16" bore matches the original Ford Flathead transmission input shaft, while the 10" long pattern design fits the flywheel bolt circle found on 59A engines and 8BA stamped or cast bell ring configurations.

The included diaphragm pressure plate replaces heavy, inconsistent three-finger designs with modern clamping technology. You get consistent pedal effort and reliable release every time. Pin-style fork compatibility makes this kit the right choice for 1949-1953 Flathead bellhousings using the original mechanical release mechanism - no adapter or fork modification required.

Rated for 250 ft-lbs of torque, this clutch kit handles the output of most street-driven Flathead engines with margin to spare. Whether you're completing an authentic restoration or building a traditional hot rod, this kit delivers reliable performance backed by MDL's 1-year warranty and lifetime technical support. Made in the USA.

What's Included

• Superior organic clutch disc with dual organic friction facings (10-spline, 1-1/16" bore)
• 10" long pattern diaphragm pressure plate
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

Key Features

• 1-7/8-inch diameter black shift ball with white 5-speed shift pattern and MDL logo
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded beneath the surface - cannot wear off or fade
• Lightweight 4-ounce construction for reduced shift effort
• Precision-machined and polished to a high-gloss finish
• Includes jam nut for secure installation
• Thread adapters available for virtually any shift lever configuration
• Made in the USA

Description

Upgrade your interior with this premium 5-speed shift ball featuring the MDL logo - a clean, purposeful look that signals you mean business under the hood. Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball delivers the durability and temperature resistance needed for performance driving while maintaining a premium appearance that won't crack or fade over time.

The 1-7/8-inch diameter provides an ideal grip size for quick, confident shifts. Unlike cheap decals or surface printing, the white 5-speed shift pattern graphics are embedded beneath the surface - they're part of the ball itself and physically cannot wear away. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry standards with over 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring rock-solid attachment to your shift lever even under aggressive driving conditions.

At just 4 ounces, this lightweight design reduces shift effort while the polymer construction provides excellent grip characteristics in all weather conditions - no burning your hand on hot summer days or freezing on cold mornings. The included jam nut ensures secure installation. For shift levers with different thread sizes, MDL stocks a full range of thread adapters - just confirm your shift lever thread size when ordering so we can recommend the correct adapter for your application.

Manufactured in the USA by a company that has been producing precision shift knobs since 1952, this ball represents decades of engineering refinement focused on quality, precision, and style. The polymer resin is specifically formulated for the automobile industry to resist stress cracks with aging - a common failure point in lesser shift knobs.

What's Included

• Black polymer resin shift ball with white 5-speed pattern and MDL logo
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Premium 1-7/8" diameter white polymer shift ball with crisp 5-speed pattern graphics
• High-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics permanently embedded beneath the surface - cannot wear off or fade
• 16mm x 1.5mm brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque specs
• Compatible with metric and SAE shifter threads via thread reducers (sold separately)
• Lightweight 4-ounce design for reduced shifter mass and quicker throws
• Precision-machined and polished to a high-gloss finish
• Made in the USA

Description

Upgrade your shifter with this precision-engineered white 5-speed shift ball featuring the MDL logo. This isn't bargain-bin plastic - it's crafted from a specially formulated high-impact polymer resin developed specifically for automotive applications. The material resists stress cracking from temperature cycling and age, a common failure point in cheaper shift knobs that see years of daily use and abuse.

The 1-7/8" diameter provides optimal palm grip for aggressive shifting, while the 5-speed pattern graphics are permanently embedded below the polished surface where heat, UV exposure, and thousands of shifts can't touch them. The precision-machined brass master insert threads directly onto 16mm x 1.5mm shift levers, and with MDL's thread reducers, you can adapt this shift ball to virtually any metric or SAE threaded shifter - just know your shift lever's thread size when ordering so we can recommend the correct adapter.

At just 4 ounces, this shift ball reduces rotating mass compared to heavy solid alternatives, translating to slightly quicker shift action without sacrificing durability. The brass insert exceeds automotive industry specifications for 200 ft-lbs static pull and 20 ft-lbs twist torque resistance - it's not coming loose under hard use. Proudly made in the USA.

What's Included

• White 5-speed polymer shift ball with subsurface graphics and MDL logo
• 16mm x 1.5mm brass master insert (installed)
• Brass jam nut

Key Features

• 1-7/8in. diameter classic shift ball with authentic muscle car era styling
• High-gloss black polymer resin construction with molded-in brass thread insert
• Engraved 5-speed shift pattern with reverse lower right - permanent inlay design that won't wear off
• 16mm x 1.50 master thread for universal compatibility via thread reducing inserts (sold separately)
• Compatible with MD-313 series thread reducing inserts for fitment to most shifters
• Made in USA

Description

When your shifter needs the finishing touch that screams performance, this classic 5-speed black shift ball delivers the authentic muscle car aesthetic that's been the industry standard for over 50 years. The instant you grip this knob.

Constructed from high-gloss, high-strength polymer resin, this shift ball features an engraved 5-speed shift pattern (reverse lower right) that's permanently inlaid - the graphics are subsurface and cannot wear off from repeated use. The molded-in brass thread insert ensures the threads won't strip under hard shifting forces, while the 1-7/8in. diameter provides the perfect grip size for precise gear changes.

The 16mm x 1.50 master thread makes this shift ball universally compatible when paired with Modern Driveline's thread reducing inserts. Whether you're running a Mustang T5, GM transmission, or aftermarket shifter with different thread specs, the appropriate MD-313 series reducer (sold separately) allows this classic shift ball to mount securely on virtually any manual shifter. Simply select the reducing insert and jam nut kit that matches your shift lever's thread pitch.

Kit Includes

• One 5-speed black shift ball with engraved shift pattern (reverse lower right)
• Brass thread insert (16mm x 1.50) molded into ball
• Jam nut for secure mounting

Note: Thread reducing insert required for most applications - see MD-313 series kits sold separately.

Modern Driveline offers HURST shift knobsmatch the look and feel of the Classic knobs used in the muscle car era.1-7/8in. Diameter

The industry standard for over 50 years and universally recognized as the "shifter to have, it only takes one glance in the car to see your serious by that chrome stick and shift ball.Today the legacy continues. Through careful engineering and by using only high-quality components, Hurst shift levers & shift balls can complete your vehicle's look.All are backed by the history, heritage, and knowledge that Hurst has acquired over half of a century of shifter design. Made in USA.

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

R-Series 5-Speed Black Shift Ball with Pearl-Gray Racing Stripe

Key Features

• 2-1/8" diameter high-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface pearl-gray racing stripe graphics permanently inlaid beneath the surface - cannot wear, fade, or peel
• 16mm x 1.50 solid brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque industry specs
• Precision-machined and polished to a high-gloss finish
• 4-ounce weight for optimal shift feel without excessive mass
• Made in the USA with proprietary polymer resin formulated to resist stress cracking

Description

Ditch the factory plastic shift knob that cracks, fades, and looks tired after a few seasons. This R-Series shift ball is built from specially formulated high-impact polymer resin designed specifically for the automotive industry - engineered to handle performance-level torque loads and temperature extremes without developing stress cracks over time.

The pearl-gray racing stripes that wrap around this 2-1/8" diameter ball are not painted, printed, or applied as decals. They are permanently inlaid beneath the surface during manufacturing, giving you graphics that physically cannot wear off no matter how many miles you put on the car. The entire surface is precision-machined and polished to a high-gloss finish that maintains its showroom appearance under daily use.

At the core sits a 16mm x 1.50 solid brass master insert that exceeds the automotive industry specification of 200 ft-lbs static pull and 20 ft-lbs twist torque - this knob is not coming loose. The included brass jam nut locks everything down tight. Thread adapters are available if your shifter uses a different thread pattern.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Note: Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs (different thread pattern required). Made in the USA.

Kit Includes

• R-Series 2-1/8" black shift ball with pearl-gray racing stripe graphics
• 16mm x 1.50 solid brass master insert (installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction formulated for performance-level torque and temperature demands
• Subsurface red racing stripe graphics embedded during manufacturing--cannot chip, fade, or wear off
• Clean racing stripe design without 5-speed shift pattern graphics on surface
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce design for positive shifts without stressing shifter mechanisms
• Thread adapters available for non-16mm applications
• Made in the USA by a manufacturer shifting gears since 1952

Description

When your 5-speed build demands a clean, race-inspired aesthetic without the visual clutter of shift pattern graphics, the R-Series delivers. This premium shift knob features bold red racing stripes on a black body--nothing else. No numbers, no gate patterns, just the classic motorsport look that belongs in serious performance builds.

The construction isn't generic plastic. This knob is made from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Where cheap knobs crack under UV exposure and temperature cycling, this formulation stays solid season after season. The red racing stripes are subsurface--embedded during manufacturing rather than painted or printed on top--so they physically cannot chip, fade, or wear off no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert provides solid, rattle-free engagement with your shifter, and the included jam nut locks everything tight. At 4 ounces, this knob adds just enough mass for positive, confident shifts without the excessive weight that can stress shifter mechanisms over time. The 2-1/8" diameter provides excellent grip while maintaining classic proportions.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs due to different thread requirements (GT500 uses 10mm x 1.25). Thread adapters are available for other applications--contact us with your shifter's thread size. Made in the USA.

What's Included

• One 2-1/8" diameter black polymer resin shift knob with red racing stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• Subsurface white racing stripe graphics that cannot wear off
• Specially formulated high-impact polymer resin designed for performance-level torque and temperature requirements
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter professional racing design
• 4-ounce weight for optimal shift feel
• Precision machined and polished to a high-gloss finish
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

Upgrade your interior with this R-Series 5-speed shift ball featuring a classic white racing stripe on black polymer resin. The clean stripe graphic runs across the top of the ball without intersecting the 5-speed shift pattern, delivering a professional motorsport aesthetic that complements any performance build.

This shift ball is constructed from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Unlike cheap plastic alternatives, this polymer is formulated specifically for the automotive industry to resist stress cracking with age. The white stripe graphics are subsurface--embedded in the material itself--so they cannot wear off even after years of hard shifting.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, ensuring the knob stays locked to your shift lever under aggressive driving. At 4 ounces, this shift ball provides the right heft for positive shift engagement without being too heavy for rapid-fire gear changes. The polymer construction is precision machined and polished to a high-gloss finish for a quality look and feel.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Not compatible with 2010-2014 GT500 (requires 10mm x 1.25 thread) or 2015-2020 GT350/GT350R models. Thread reducers available separately for other applications. Made in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series black polymer shift ball with white racing stripe (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• 2-1/8" diameter with 4-ounce lightweight construction
• Subsurface graphics permanently embedded -- will not wear, chip, or fade
• 16mm x 1.50 brass master insert with jam nut included
• Clean racing stripe design without shift pattern markings
• Direct fit for 2011-2022 Mustang, Fiesta ST, Focus ST, and Focus RS applications
• Made in the USA by a manufacturer with 65+ years of shifter expertise

Description

The factory shift knob is one of the most-touched surfaces in your cockpit, and worn plastic or faded graphics detract from an otherwise clean interior. The R-Series 5-Speed Shift Knob delivers a premium upgrade with subsurface graphics that cannot wear off, chip, or fade under years of hard use. The gray base with white racing stripe offers a clean, period-correct aesthetic that works equally well in restored classics and modern performance builds.

Built from specially formulated high-impact polymer resin, this shift knob meets performance-level requirements for both torque resistance and temperature stability. The material will not develop stress cracks with age, and the brass master insert exceeds automotive industry specifications. At just 4 ounces, the lightweight construction delivers responsive shifting feel without adding unnecessary mass to the shift lever.

The 2-1/8" diameter provides an optimal grip size for quick, confident shifts. This design omits shift pattern markings, giving you a clean look that suits any 5-speed application. The 16mm x 1.50 brass master insert threads directly onto factory Ford shift levers, with a jam nut included for secure installation. Thread adapters are available separately for applications requiring different thread sizes.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread) or 2015-2020 Shelby GT350/GT350R. Made in the USA.

What's Included

• R-Series gray polymer resin shift knob with white racing stripe
• 16mm x 1.50 brass master insert (installed)
• Jam nut

R-Series 5-Speed White Shift Ball | Black Racing Stripe | 2-1/8" | 16mm Insert

Key Features

• R-Series premium 2-1/8" diameter white polymer resin with black racing stripes that do not intersect the shift pattern
• 16mm x 1.50 solid brass master insert exceeds auto industry specs: 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics that cannot wear off, fade, or peel
• High-impact polymer resin engineered to resist stress cracks and withstand performance-level torque and temperature
• 4-ounce weight provides positive shift engagement without excessive heat retention
• Compatible with 2011-2022 Mustang, Focus ST/RS, and Fiesta ST via thread reducers
• Made in the USA

Description

Ditch the hollow factory plastic and upgrade to an R-Series shift ball built to perform. This 2-1/8" diameter white shift knob features bold black racing stripes that frame the 5-speed shift pattern without crossing through it -- a clean, purposeful design that looks right in any classic muscle car, late-model pony car, or hot hatch interior.

The engineering starts where it counts: at the 16mm x 1.50 solid brass master insert. This insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, so it won't strip, spin, or work loose no matter how hard you bang through gears. The polymer resin body is specially formulated to resist stress cracks with aging and handles the temperature swings and abuse of daily driving and track use alike.

Unlike painted or printed shift knobs that wear through to bare plastic within a season, the R-Series uses subsurface graphics embedded beneath the polished surface. The stripes and shift pattern cannot wear off, fade, or peel -- they're part of the knob itself. At 4 ounces, the weight delivers positive shift engagement and tactile feedback without the palm-burning heat retention of metal alternatives on summer days.

Fits 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS when paired with appropriate thread reducers (sold separately). Not compatible with 2010-2014 Shelby GT500, 2015-2020 Shelby GT350, or GT350R Mustangs due to different thread requirements. Built in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series white shift ball with black racing stripes (2-1/8" diameter)
• 16mm x 1.50 solid brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin construction engineered for performance-level torque and temperature demands
• Subsurface graphics permanently embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert with included jam nut for secure, rattle-free mounting
• Lightweight 4-ounce design reduces shift effort and improves tactile feedback
• 2-1/8" diameter provides optimal palm grip for quick, confident shifts
• 5-speed shift pattern - gray rally stripes do not intersect the gear graphics
• Direct fit for 2011-2022 Mustang GT, V6, EcoBoost, Boss 302, plus Focus ST/RS and Fiesta ST
• Made in the USA

Description

Upgrade your interior with the R-Series 5-speed shift ball, combining classic rally-inspired aesthetics with materials engineered for years of aggressive shifting. The white polymer resin body with dual gray racing stripes delivers that authentic motorsports look while the specially formulated high-impact resin handles the thermal cycling and mechanical stress of performance driving without cracking, fading, or becoming brittle.

Unlike cheap printed or decal-based shift knobs, the R-Series features subsurface graphics that are embedded into the resin during manufacturing. The 5-speed shift pattern and racing stripes are part of the knob itself - they cannot wear off, chip, or fade no matter how many miles you put on them. The stripes are positioned to complement the shift pattern without crossing through the gear graphics, maintaining a clean, professional appearance.

The 16mm x 1.50 brass master insert threads securely onto your shift lever, and the included jam nut locks everything in place to eliminate loosening or rattle. At just 4 ounces, this shift ball keeps rotating mass low for quicker shifts and better feedback through your hand. The 2-1/8" diameter fits naturally in your palm - large enough for positive grip, not so big it becomes awkward during spirited driving.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread), 2015-2020 Shelby GT350, or GT350R. Thread adapters are available separately for applications with different shift lever threads. Made in the USA.

What's Included

• R-Series 5-speed shift ball in white high-impact polymer resin with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure mounting

Rally Series 5-Speed Shift Knob | Black with Pearl Gray Stripes | 2-1/8" | 16mm

Key Features

• 2-1/8" diameter high-impact polymer resin body -- formulated specifically for automotive performance temperature and torque demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Subsurface pearl gray rally stripe graphics embedded into the material -- will not chip, peel, or wear off
• Rally stripes follow the 5-speed shift pattern layout for classic racing aesthetics
• 4-ounce weight provides solid shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Compatible with thread reducers for universal shift lever fitment (sold separately)
• Made in the USA

Description

Cheap plastic shift knobs crack, fade, and lose their graphics after a few seasons of hard driving. The Rally Series solves that problem with a premium 2-1/8" diameter knob that combines classic rally racing aesthetics with materials engineered specifically for performance applications.

The knob body uses a specially formulated high-impact polymer resin developed for the automotive industry -- not generic plastic that develops stress cracks with age and temperature cycling. This material maintains structural integrity through years of daily driving and spirited shifting. The pearl gray rally stripes are applied subsurface during manufacturing, embedded into the material itself rather than painted on top. They will never chip, peel, or wear off no matter how many miles you put on the shifter.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications for static pull (200 ft-lb) and twist torque (20 ft-lb), ensuring rock-solid engagement with your shift lever. The included brass jam nut locks the knob securely in place. Thread reducers are available separately for compatibility with common shift lever threads including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, 1/2-20, and various metric sizes -- contact MDL to confirm the correct adapter for your application.

At 4 ounces, this knob delivers the right balance between a solid palm feel and quick, precise shifts. The precision-machined polymer is polished to a high-gloss finish that resists scratching and maintains its appearance through years of use. Made in the USA by a manufacturer that has been producing quality shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift knob -- black polymer resin with pearl gray rally stripes
• One 16mm x 1.50 brass master insert (pre-installed)
• One brass jam nut

Key Features

• Precision 2-1/8 in. diameter black polymer resin construction with subsurface red rally stripes through the 5-speed shift pattern
• 16mm x 1.50 brass master insert with jam nut - exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque
• Subsurface graphics are permanent - will not chip, fade, or wear off
• Rally stripe red closely matches MOPAR Bright Red/Stryker Red, Ford Vermilion Red/Fleet Red/Rangoon Red, and Corvette Rally Red/GM Victory Red
• High-impact polymer resin formulated for automotive temperature extremes and repeated high-torque shifting
• Lightweight 4-ounce design with precision-machined, high-gloss polished finish
• Compatible with thread reducing adapters for universal shift lever fitment
• Made in the USA

Description

Give your 5-speed manual a period-correct rally look with this premium shift ball featuring bold red racing stripes that flow through the engraved shift pattern. Unlike cheap aftermarket knobs with printed or painted graphics, the red stripes on this Rally Series ball are embedded subsurface during manufacturing - they're permanent and will never chip, peel, or fade no matter how many miles you put on the car.

The high-impact polymer resin is specifically formulated for automotive applications, engineered to resist stress cracking through years of temperature cycling and aggressive shifting. Unlike metal knobs that freeze your hand in winter and burn it in summer, polymer maintains a comfortable grip year-round. The precision-machined surface receives a high-gloss polish that holds up to daily use.

At the core sits a 16mm x 1.50 brass master insert that exceeds automotive industry specifications - tested to 200 ft-lbs static pull strength and 20 ft-lbs twist torque resistance. This isn't a threaded plastic insert that will strip or pull out; it's a solid brass core that will outlast the vehicle. The 16mm thread pitch works with reducing adapters (sold separately) to fit virtually any shift lever thread pattern from classic American iron to late-model applications. Know your shift lever's thread size when ordering so we can recommend the right adapter.

The rally stripe red is color-matched to factory racing colors including MOPAR Bright Red and Stryker Red, Ford Vermilion Red, Fleet Red, and Rangoon Red, plus Corvette Rally Red and GM Victory Red. At just 4 ounces, it provides positive feedback during shifts without adding unnecessary weight to your shifter assembly. Made in the USA by a manufacturer that has been producing precision shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift ball in black polymer resin with red rally stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut for secure mounting

Key Features

• 2-1/8" diameter high-impact polymer resin designed for performance torque and temperature demands
• Subsurface white rally stripe graphics with 5-speed shift pattern - cannot wear, fade, or chip off
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design for precise shift feel
• Precision-machined and polished to a high-gloss finish
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

The Rally Series shift ball delivers classic motorsport styling with graphics that will never let you down. Unlike surface-printed knobs that wear through after a few thousand shifts, this ball features subsurface white rally stripes that run through the complete 5-speed pattern. The graphics are embedded within the material itself, making them completely impervious to wear, heat, UV exposure, and the oils from your hands.

Construction is high-impact polymer resin specifically formulated for the automotive industry. This isn't generic plastic that develops stress cracks with age and thermal cycling - it's an engineered material designed to handle the torque loads and temperature swings of performance driving while maintaining its structural integrity and high-gloss finish for years. The 2-1/8" diameter provides a comfortable, substantial grip that fills your palm naturally for positive engagement.

The 16mm x 1.50 brass master insert accepts thread reducers (sold separately), allowing installation on virtually any shift lever regardless of thread pitch. The brass insert is engineered to exceed automotive industry standards with testing to 200 ft. lbs. static pull and 20 ft. lbs. twist torque - far beyond what any shift throw could generate. At just 4 ounces, the ball provides enough mass for a quality feel without excessive momentum that can cause overshoot on quick shifts.

This shift ball comes from a manufacturer that has been producing premium knobs since 1952 and supplies OEM, aftermarket, classic, custom, and hot rod industries. When ordering, know your shift lever's thread size so MDL can recommend the correct thread reducer for your application. Made in the USA.

What's Included

• One 2-1/8" black polymer shift ball with white rally stripes and 5-speed pattern
• One 16mm x 1.50 brass master insert (pre-installed)
• One jam nut

Note: Thread reducers required for most applications and sold separately. Contact MDL with your shift lever thread size for adapter recommendations.

Key Features

• High-impact polymer resin formulated for automotive use - resists stress cracking and exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface rally stripe graphics that cannot wear off, scratch away, or fade
• Precision machined and polished to a high gloss finish
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce construction for positive shifting feedback
• 2-1/8" diameter with 5-speed shift pattern
• Made in the USA

Description

The Rally Series shift ball replaces worn, faded, or uncomfortable OEM shift knobs with a premium upgrade that combines classic styling and serious durability. Built from high-impact polymer resin specifically formulated for the automobile industry, this knob delivers the longevity and tactile feel that daily drivers and performance builds demand.

The engineering behind this design centers on durability under real-world conditions. The polymer formulation won't develop stress cracks with aging - a common failure point with cheaper alternatives. The brass master insert exceeds automotive industry specifications with 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring the knob stays put through years of aggressive shifting. The white rally stripe graphics are embedded subsurface during manufacturing, so they won't wear off, scratch away, or fade under UV exposure like surface-applied decals or painted designs.

The 16mm x 1.50 threading is the industry standard for aftermarket shift knobs, compatible with thread adapters (sold separately) for common shift lever sizes including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, and 1/2-20. Know your shift lever's thread size before ordering - MDL stocks adapters to match. At just 4 ounces, the knob provides positive shifting feedback without excessive weight that can stress synchronizers on long throws.

Each knob is precision machined and polished to a high gloss finish for a premium appearance that complements both classic muscle cars and modern performance builds. Made in the USA with lifetime quality construction.

What's Included

• One 2-1/8" gray polymer shift ball with white rally stripes and 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction engineered for performance-level torque and temperature requirements
• 16mm x 1.5 brass master insert with jam nut -- exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface black rally stripe graphics and 5-speed shift pattern embedded during manufacturing -- cannot wear off
• Precision machined and polished to high-gloss ivory finish
• Lightweight 4-ounce design for quick, responsive shifts
• Universal compatibility via thread adapters (sold separately) for any shift lever
• Made in the USA since 1952

Description

Add motorsports-inspired style to your manual transmission with the Rally Series 5-speed shift knob. The classic white body with black rally stripes running through the shift pattern delivers authentic racing aesthetics -- not the generic look of painted-on graphics that chip and fade. These subsurface graphics are embedded into the polymer during manufacturing, making them a permanent part of the knob structure that will stay crisp for the life of your build.

This shift knob is built from a specially formulated high-impact polymer resin engineered specifically for the automotive industry -- not brittle plastic that develops stress cracks with age. The 2-1/8" diameter fills your palm for confident shifts, while the 4-ounce weight provides quick throw response without feeling flimsy. Every surface is precision machined and polished to a high-gloss finish that looks and feels premium.

The brass master insert is what separates quality shift knobs from the set-screw designs that wobble and fail. Threaded at 16mm x 1.5, this insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque -- it will not come loose or strip under aggressive driving. The included jam nut locks everything in place for a rock-solid feel every time you row through the gears. Unlike steel inserts, brass will not rust or corrode over time.

If your shift lever uses a different thread pitch, MDL stocks adapters to fit virtually any application. Simply confirm your shift lever's thread size when ordering so we can recommend the correct adapter if needed. Made in the USA by a manufacturer that has been building shift knobs since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with black rally stripes and shift pattern
• 16mm x 1.5 brass threaded master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• 2-1/8 inch diameter high-impact polymer resin engineered for performance torque and temperature demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• Subsurface rally stripe graphics embedded into the material -- cannot peel, chip, or wear off
• 5-speed shift pattern integrated into white finish with bold gray stripes
• 4-ounce weight delivers positive shift feel without excess mass
• Precision machined and polished to high-gloss finish
• Includes jam nut for secure positioning
• Made in the USA

Description

The Rally Series shift knob delivers authentic motorsport aesthetics with the durability to back it up. This 2-1/8 inch diameter knob features bold gray rally stripes running through a clean 5-speed shift pattern on a crisp white background -- giving your cockpit that classic competition look without the compromises of cheaper alternatives that crack, fade, or peel over time.

The knob is comprised of specially formulated high-impact polymer resin engineered specifically for automotive performance applications. This isn't generic plastic -- it's a purpose-built compound designed to handle the torque loads and temperature swings of real-world use while maintaining its finish for the long haul. The rally stripe graphics are subsurface, meaning they're embedded into the material itself rather than applied as decals or paint. They physically cannot wear off, no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert is the foundation of this knob's strength, exceeding automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque. The included brass jam nut allows you to clock the shift pattern exactly where you want it and lock it down tight. Since most shifter applications use different thread sizes, MDL stocks the complete range of SAE and metric thread adapters for proper fitment to your specific shift lever.

At 4 ounces, the weight provides positive shift feel without being overly heavy or sluggish. Precision machining and high-gloss polishing ensure smooth hand feel and a finish that complements any interior. Made in the USA by a manufacturer who has been shifting gears since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• Translucent yellow polymer with subsurface red flame graphics that cannot wear off
• 2-1/8" diameter for positive grip and confident shifts
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design reduces shift lever mass
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• High-impact polymer resin formulated to resist stress cracking with age
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add classic hot rod style to your shifter with the Flame Series shift ball. This 2-1/8" diameter knob features translucent yellow polymer construction with bold red flame graphics molded beneath the surface--they will never fade, chip, or wear off no matter how many miles you put on the car.

The shift ball is constructed from high-impact polymer resin specifically formulated for automotive applications to resist stress cracking as it ages. At its core is a precision-machined 16mm x 1.50 brass master insert that delivers rock-solid thread engagement. The brass insert is engineered to exceed automotive industry specifications, tested to 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque. At just 4 ounces, the knob provides positive feedback without adding unnecessary mass to your shift lever.

Thread adapters are available separately to fit various shift lever thread sizes--contact MDL with your shift lever thread pitch to get matched with the correct adapter. This shift ball comes from a manufacturer with over 70 years of experience serving OEM, aftermarket, classic, custom, and hot rod applications. Precision machined and polished to a high-gloss finish. Made in the USA.

Kit Includes

• Flame Series shift ball--translucent yellow polymer with red flames, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• 16.5 inches tall with 4.5-inch set-back - ideal for bench seat muscle cars and classic trucks
• High-strength steel construction with triple chrome plating for durability and show-quality finish
• Double-bend candy cane design pulls the shift knob closer to the driver
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on stick
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 3/8" mounting holes on 7/8" spacing

Description

Bench seat muscle cars and classic trucks present a unique challenge: getting the shift knob exactly where your hand naturally falls without awkward reaching or cramped positioning. This 16.5-inch Hurst Competition/Plus candy cane shift stick solves that problem with its double-bend design, delivering a 4.5-inch set-back that pulls the shifter closer to the driver while maintaining proper throw geometry for smooth, precise shifts.

Hurst bolt-on shifter sticks are the go-to solution for custom applications where a particular height or offset is required. This stick is constructed from high-strength steel and triple chrome plated for a mirror finish that resists corrosion and looks right at home in a show car or a weekend warrior. The iconic Hurst name stamped into the steel tells everyone exactly what's moving the gears.

The standard 3/8"-16 thread at the top accepts the full range of Hurst shift knobs and T-handles, so you can finish the setup with whatever grip style suits your driving. The two-bolt base with 3/8" holes on 7/8" spacing fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method - a direct bolt-on replacement or upgrade for your existing stick.

Whether you're building a bench seat hot rod, restoring a classic pickup, or just need more reach from your Hurst shifter, this candy cane stick delivers the height and offset to put the knob right where you need it.

What's Included

• One high-strength steel shift lever, triple chrome plated
• 16.5" tall with 4.5" set-back (candy cane/double-bend style)
• 3/8"-16 threaded top for shift knob attachment
• Two-bolt mounting base (3/8" holes on 7/8" spacing)

Key Features

• Direct bolt-on design for TREMEC T5, T45, TKO, and T56 Magnum transmissions with standard 2-bolt flange
• Chrome-plated steel tubular construction for durability and corrosion resistance
• Double-bend layback geometry: 2 inches back x 14.5 inches tall [VERIFY: Product name states 15" tall but specs list 14.5" tall]
• 16-inch overall length provides comfortable shift knob placement
• Standard 7/8-inch center-to-center bolt spacing fits stock and aftermarket shifter assemblies
• 3/8-24 thread for universal shift knob compatibility
• Machined mounting stud drilled and countersunk for included metric cap screws
• Machined groove for secure boot attachment
• Made in the USA with manufacturer lifetime warranty

Description

Upgrade your shifter with this Lokar chrome steel shift lever that delivers the clean, professional appearance serious builders demand. The double-bend design positions your shift knob with a 2-inch layback and 14.5-inch height from the mounting point, putting the knob exactly where your hand naturally falls during aggressive driving.

Lokar manual transmission shifter levers are direct bolt-on sticks for TREMEC and Borg Warner manual transmissions. These tubular steel levers are built for stock and aftermarket 5- and 6-speed shifters. They fit the T5, T45, TKO, T56 Magnum, and all TREMEC shifters with the standard 2-bolt flange that measures 7/8-inch center to center between bolt holes. The chrome-plated finish resists corrosion and maintains its appearance under hood heat and daily driving conditions.

To give you a clean, smooth appearance, these levers feature a machined mounting stud, drilled and countersunk for the included metric cap screws. The precision machining eliminates the play and flex common with factory pieces. A machined groove provides secure boot attachment while the 3/8-24 thread accepts any standard shift knob.

Made in the USA and backed by Lokar's manufacturer lifetime warranty. Direct bolt-on installation uses included metric cap screws--no modifications required.

What's Included

• Chrome-plated steel shift lever (16-inch double-bend)
• Metric cap screws for mounting

Key Features

• 16" layback design with double bend - 2" back x 14.5" tall configuration for optimal driver reach
• Black powder-coated steel construction for durability and corrosion resistance
• 3/8"-24 thread knob mount - compatible with most aftermarket shift knobs
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Machined mounting stud drilled and countersunk for included metric cap screws
• Made in the USA with lifetime manufacturer warranty

Description

Need a shifter lever that clears a bench seat or console while positioning the knob exactly where your hand naturally falls? This 16" Lokar double-bend shift lever solves fitment problems in classic cars and trucks by using a layback geometry - 2" back x 14.5" tall - that brings the shift knob closer to the driver without compromising throw mechanics.

Direct bolt-on compatibility with TREMEC and Borg Warner manual transmissions including the T5, T45, T56, TKO, and TKX using the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The black powder-coated steel construction resists corrosion and maintains its finish under hood heat and daily driving abuse. Unlike welded or threaded-stud designs, this lever features a machined mounting stud that's drilled and countersunk for the included metric cap screws - delivering a clean, flush appearance at the shifter base.

The 3/8"-24 thread at the top accepts virtually any aftermarket shift knob, while the robust tubular steel construction handles aggressive shifting without flex or deflection. Whether you're building a restomod with a modern 5- or 6-speed or upgrading from a worn factory stick, this Lokar lever delivers the reach, feel, and appearance your build demands.

Made in the USA and backed by Lokar's lifetime manufacturer warranty.

What's Included

• 16" black powder-coated steel double-bend shifter lever
• Machined mounting stud
• Metric cap screws for installation

Key Features

• Direct bolt-on replacement for TREMEC T5, T45, TKX, T56 Magnum, TKO-500, and TKO-600 shifters
• Chrome-plated high-strength tubular steel construction
• 16-inch length with 30-degree single bend (6-inch back offset, 14.5-inch height)
• Standard 2-bolt flange with 3/8-inch holes on 7/8-inch center-to-center spacing
• Machined billet steel mounting stud, drilled and countersunk for clean appearance
• 3/8-24 threads for aftermarket shift knobs
• Includes metric cap screws for installation
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory shift levers leave a lot to be desired—cheap plastic components, weak finishes, and ergonomics that feel like an afterthought. This Lokar chrome-plated steel shift lever delivers a direct bolt-on upgrade for TREMEC manual transmission shifters, combining show-quality appearance with high-strength steel durability.

The 16-inch tubular steel lever features a 30-degree single bend that positions the shift knob with a 6-inch back offset and 14.5-inch overall height. This geometry puts the knob right where your hand naturally falls, improving shift feel and cockpit ergonomics. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering the clean, smooth appearance that distinguishes a quality build from a parts-bin special.

Fitment uses the standard TREMEC 2-bolt flange pattern with 3/8-inch mounting holes on 7/8-inch center-to-center spacing. This works with T5, T45, TKX, TKO-500, TKO-600, T56 Magnum, and all TREMEC shifters that share this common mounting configuration. The 3/8-24 threaded top accepts most quality aftermarket shift knobs, so you can match the lever to your interior. Shift boots, bezels, and knobs are sold separately.

Lokar builds these levers in the USA and backs them with a lifetime manufacturer warranty. When you want chrome that stays chrome and steel that can handle aggressive shifting for years, this is the lever.

What's Included

• Chrome-plated high-strength tubular steel shift lever (16-inch, 30-degree single bend)
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, TKX, T56 Magnum, and Borg Warner transmissions
• Black powder-coated steel construction for durability and corrosion resistance
• Layback geometry: 6 in. back x 14.5 in. tall with 30-degree bend for optimal hand position
• 16 in. overall length for comfortable reach in most cockpit configurations
• Standard 2-bolt flange with 7/8 in. center-to-center mounting pattern
• Machined billet steel mounting stud with countersunk metric cap screws included
• 3/8"-24 thread for broad aftermarket shift knob compatibility
• Made in the USA with lifetime manufacturer warranty

Description

Factory shifter levers often leave you reaching awkwardly or fighting an uncomfortable angle. This Lokar steel shift lever solves that problem with a layback design that positions your knob exactly where your hand naturally falls. The 6-inch setback combined with a 14.5-inch height and 30-degree bend creates ergonomics that make rowing through gears feel effortless, even on long drives or spirited canyon runs.

Lokar builds these tubular steel levers specifically for TREMEC and Borg Warner manual transmissions. The standard 2-bolt flange measures 7/8 in. center to center between mounting holes, making it a direct bolt-on for T5, T45, TKX, T56 Magnum, and all TREMEC shifters using that common pattern. No adapter plates, no drilling, no fitment headaches.

The engineering shows in the details. A machined billet steel mounting stud replaces the sloppy stamped hardware found on lesser levers, eliminating play at the base for a solid, precise feel. The stud comes drilled and countersunk for the included metric cap screws, giving you a clean, finished appearance with no exposed bolt heads. Black powder coating protects the steel from corrosion and heat while delivering the blacked-out aesthetic that complements modern muscle car interiors.

The 3/8"-24 knob thread is the most common size in aftermarket shift knobs, so you have your pick of styles from weighted billets to classic round balls. Made in the USA and backed by Lokar's lifetime manufacturer warranty, this lever is built to perform for the life of your build.

What's Included

• 16 in. black powder-coated steel shifter lever (layback style)
• Machined billet steel mounting stud
• Metric cap screws for installation
• Lifetime manufacturer warranty

Key Features

• 19-inch steel construction with durable black powder coat finish
• Engineered for OE shift placement in 1973-1979 Ford F-Series and 1978-1979 Bronco applications
• 3/8"-24 threads accommodate a wide range of aftermarket shift knobs
• Mounting holes positioned 7/8" on center for precise transmission connection
• Direct-fit design for TREMEC TR4050 5-speed transmissions

Description

When you're swapping a modern TREMEC TR4050 5-speed into your '73-'79 Ford truck or late '70s Bronco, shifter placement matters. Factory shift location keeps the cab ergonomics familiar and eliminates the need for console modifications or awkward reach. This MDL Steel Shift Lever delivers the precise 19-inch geometry needed to position your shift knob exactly where the original shifter sat while mating cleanly to the TR4050's shifter housing.

Steel construction handles the rigors of daily driving and heavy use without flexing or fatigue. The black powder coat finish resists corrosion and wear, standing up to harsh truck environments where mud, moisture, and temperature swings are part of the job. Unlike painted or plated finishes that chip and peel, powder coat bonds to the steel for long-term durability.

The 3/8"-24 threaded tip is the most common shift knob thread in the aftermarket, giving you complete flexibility to choose the knob that fits your hand and style. Mounting point holes are machined 7/8" on center to match TR4050 shifter housing specifications, ensuring smooth operation through all five gears plus reverse without binding or misalignment.

Direct-fit for 1973-1979 Ford F-Series pickups and 1978-1979 Ford Bronco with TR4050 transmission conversions. Made in the USA.

What's Included

• 19-inch steel shift lever with black powder coat finish
• 3/8"-24 threaded tip for shift knob mounting

Key Features

• Designed specifically for Hurst round stick shifters
• Flat stainless steel mounting plate with embossed Hurst logo
• Compact 4-3/8" x 5-3/8" footprint with 3 pleats
• Molded rubber boot seals out dirt, debris, and moisture
• Chrome ID plate and mounting hardware included

Description

Round stick shifters require a dedicated boot design - universal rectangular boots bind against the stick and leave gaps that invite road grime into your shifter mechanism. The Hurst B-1 Boot and Plate Kit solves this problem with a purpose-built design engineered specifically for round stick applications, delivering a precise fit that protects internal components while maintaining smooth shifter travel.

The molded rubber boot features three strategically placed pleats that accommodate full shifter movement without restriction or binding. This allows the boot to flex through every shift pattern position while maintaining a tight seal around the stick. The compact 4-3/8" x 5-3/8" plate dimensions fit most console and floor-mount installations without requiring oversized cutouts or extensive trimming.

The flat stainless steel mounting plate carries the iconic embossed Hurst logo - the same mark that's graced muscle car interiors since the golden era of Detroit performance. This isn't stamped plastic or chrome-plated steel that pits and peels; it's genuine stainless with the Hurst heritage built right in. Installation is straightforward with the included mounting hardware - drill pilot holes and secure with the provided screws for a clean, professional finish.

What's Included

• Molded rubber shifter boot with 3 pleats
• Flat stainless steel mounting plate with embossed Hurst logo
• Mounting screws hardware pack

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Lokar Rectangular Shift Boot | Black Naugahyde | Polished Black Stainless Ring

Key Features

• Black billet aluminum ring with precision ball-milled edge
• Rectangular ring dimensions: 6-3/4" x 5-1/4" outer, 5-1/2" x 4" inner
• Foam rubber seal eliminates airflow and debris from entering through floor
• Boot hugs shifter lever tightly with no pull ties or laces
• Polished stainless bezel fits over shifter lever for clean appearance
• Durable black Naugahyde boot material
• Stainless steel mounting screws included

Description

Exposed transmission openings and loose-fitting boots let hot air, exhaust fumes, and road debris into your cabin. This Lokar rectangular shift boot kit solves that problem while delivering a clean, finished look that complements traditional hot rod and custom interiors.

The black billet aluminum ring features a precision ball-milled edge that provides both visual appeal and a quality tactile feel. A polished stainless bezel fits precisely over the shifter lever, creating a clean transition point at the top of the boot. The included foam rubber seal sits beneath the assembly to block airflow from the floor, keeping heat and fumes where they belong.

Unlike cheaper boots that require unsightly pull ties or laces, this Lokar boot hugs the shifter lever tightly on its own, maintaining a clean appearance that won't loosen or sag over time. The rectangular ring measures 6-3/4" x 5-1/4" on the outside with a 5-1/2" x 4" inner opening, providing versatile fitment for most floor-mounted manual shifter applications. The rectangular profile is particularly well-suited for hot rod and street rod builds where it complements traditional console and tunnel designs.

Installation is straightforward with the included stainless steel mounting screws. When the details matter to your build, this boot kit delivers the fit and finish that sets professional-quality interiors apart from the rest.

What's Included

• Black Naugahyde shift boot
• Black billet aluminum ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Converts Ford-style slip-in speedometer drive to GM 7/8" threaded cable connection
• Fits Ford T5, all 3550/TKO transmissions, Ford T56 with cable drive, and all TREMEC Magnum six-speeds
• Double O-ring seal at the transmission case plus internal seal to prevent fluid leaks
• Steel construction for accurate readings and long service life
• Eliminates the need for expensive custom speedometer cables

Description

TREMEC T56 Magnum, TKX, and TKO transmissions all use a Ford-style mechanical speedometer drive, which creates a compatibility problem for GM muscle cars and hot rods equipped with traditional GM speedometers and 7/8" threaded cables. Rather than sourcing an expensive custom cable, this adapter assembly converts the Ford slip-in driven gear interface to accept a standard GM threaded speedometer cable directly.

The adapter features a double O-ring seal at the transmission case opening combined with an internal seal where the cable attaches. This dual-seal design addresses a common complaint with lesser adapters that allow transmission fluid to leak through the cable attachment point. Steel construction ensures the drive spindle maintains accuracy and durability under demanding conditions.

Installation is straightforward: the adapter inserts into the transmission's speedometer housing where the driven gear normally sits, and your existing GM speedometer cable threads onto the adapter's external 7/8" fitting. This assembly fits Ford T5, all 3550/TKO variants, Ford T56 transmissions with cable drive, and all TREMEC Magnum six-speed transmissions. Note that speedometer driven gears and retaining clips are sold separately and must be matched to your tire size and rear axle ratio for accurate speedometer readings. Made internationally.

What's Included

• Speedometer cable adapter assembly with steel drive spindle
• Full manufacturer's warranty

Key Features

• Converts Ford slip-in speedometer drive to GM 7/8" threaded cable connection
• Double O-ring seal system prevents transmission case leakage at the housing
• Internal seal stops fluid from traveling up the speedometer cable
• Swiss steel drive spindle delivers superior strength and accuracy
• Billet housing with naval brass bushing for smooth, long-lasting operation
• One-piece design eliminates multiple failure points found in cheaper adapters
• Made in the USA

Description

TREMEC T-56 Magnum, TKX, TKO, and T5 transmissions use a Ford-based mechanical speedometer drive, which creates a problem when you're running a GM chassis with a 7/8" threaded speedometer cable. Without an adapter, you're stuck either fabricating a custom cable or dealing with a leak-prone import solution that fails at the worst possible time.

This precision-machined adapter is engineered to eliminate the chronic leakage issues that plague cheaper alternatives. The double O-ring seal system addresses leaks at the transmission case opening, while a dedicated internal seal prevents fluid from wicking up through the cable attachment point—a common failure mode on single-seal designs. The Swiss steel drive spindle provides extra strength and accuracy for consistent speedometer readings over the life of the build.

The billet housing paired with a naval brass bushing ensures smooth cable rotation and extended service life, even in high-vibration environments. The one-piece construction eliminates the potential leak paths and wear points found in multi-piece adapter assemblies.

Fits Ford T5, all 3550/TKO models, TKX, Ford T56 with cable drive, all TREMEC Magnum six-speeds, and Ford three- and four-speed transmissions. Made in the USA with full warranty coverage.

Kit Includes

• Billet speedometer cable adapter housing
• Swiss steel drive spindle
• Naval brass bushing
• Dual O-ring seals for transmission case
• Internal cable seal
• Full manufacturer's warranty

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• Forged chromoly steel construction for maximum strength in high-horsepower applications
• 28-spline internal configuration for TREMEC and Ford transmissions
• 1330 series U-joint with 1-1/16-inch bearing cups
• 5.910-inch centerline-to-end length with 4.500-inch barrel
• 1.499-inch journal diameter for proper seal contact
• Black oxide finish inhibits rust and pitting
• Precision-machined splines mate smoothly with output shaft
• Smooth outer journal promotes proper fore/aft yoke action and prevents leaks
• Made in the USA

Description

Converting to a TREMEC manual or Ford automatic transmission often requires upgrading your slip yoke to handle increased torque and ensure proper driveline function. Factory cast yokes can become the weak link in a high-performance build -- this Sonnax forged chromoly slip yoke delivers the strength and precision your drivetrain demands, whether you're on the street, drag strip, or dirt oval track.

Forged from chromoly steel rather than cast, this 28-spline slip yoke starts with a material that offers superior tensile strength under load. All dimensions are precision-machined to guarantee a consistent, concentric slip yoke that eliminates vibration and binding. The clean-cut splines mate smoothly with the transmission output shaft, while the smooth outer journal provides uniform contact with the tail housing seal to prevent leaks and promote proper fore/aft yoke action.

The 1330 series U-joint configuration accepts bearing caps measuring 1-1/16 inches, providing the right balance of strength and serviceability for most street and performance applications. With a centerline-to-end length of 5.910 inches, a 4.500-inch barrel, and a 1.499-inch journal diameter, this yoke is built to OEM dimensional standards while exceeding factory strength.

Compatible with TREMEC TKO, TKX, Magnum, select T56, Ford C6, FMX, C4, AOD/AODE, T5, and Toploader transmissions. The black oxide finish resists corrosion while maintaining the precision surface finish required for optimal seal performance. Made in the USA.

What's Included

• One Sonnax forged chromoly slip yoke with black oxide finish
• 28-spline internal configuration
• 1330 series U-joint bores (1-1/16-inch bearing cup size)
• Lifetime technical support from MDL

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)
