Tremec Super Duty T5 5-Speed | 1983-1993 Ford Mustang V8 | 2.95 First, 0.63 OD | Stock Shifter

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• 7-tooth speedometer drive gear (6 and 8-tooth available)
• Just 75 lbs dry - TREMEC's most compact transmission
• Direct replacement for 1983-1993 V8 Mustangs
• Optional 0.73:1 overdrive ratio available
• Shifter Stub Location: straight up on center line, 19.50” back from the bellhousing face

Description

Need overdrive performance in a tight engine bay? The TREMEC Super Duty T5 is the answer. As the smallest and lightest transmission in the TREMEC lineup, it fits where others simply cannot - making it the go-to choice for classic car retrofits, hot rods, and kit cars where space is at a premium. At just 75 lbs dry weight, you get 5-speed capability without the bulk of larger transmissions.

This Z-specification unit represents a significant upgrade over the original equipment T5s found in '83-'93 Mustangs. Where the '83-'84 non-World Class units ran a 2.95 first with 0.63 overdrive but suffered from weaker synchronizers, and the '85-'93 World Class versions switched to a 3.35 first with 0.68 overdrive, the Super Duty combines the best of both worlds: the preferred 2.95/0.63 gear set with World Class internals including carbon fiber synchro rings on gears 1-4, tapered carrier bearings, and main needle bearings. The steel front bearing retainer and Cobra-style pocket bearing eliminate common failure points that plagued earlier designs.

The 2.95 first gear provides strong acceleration off the line, while the deep 0.63 overdrive significantly reduces highway RPM - cutting noise, heat, and wear while improving fuel economy. This transmission safely handles 330 ft-lb of torque and is suitable for street cars up to 450 horsepower on DOT-approved tires. It serves as a direct replacement for 1983-1993 V8 Mustangs and is ideal behind any small-block Ford engine, or as an upgrade for inline-four and six-cylinder applications. Requires 2.75 quarts of ATF Dexron III fluid.

For 1994-1995 5.0L V8 Mustangs or 1994-1998 3.8L V6 Mustangs, see part number MD-552-0251-94 for the SN95 version with longer input shaft.

What's Included

• TREMEC Super Duty T5 transmission assembly (TREMEC part number 1352-251) with 2.95, 1.94, 1.34, 1.00, 0.63 gear ratios
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern)
• Fill and drain plugs
• Installation instructions
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from Modern Driveline

Key Features

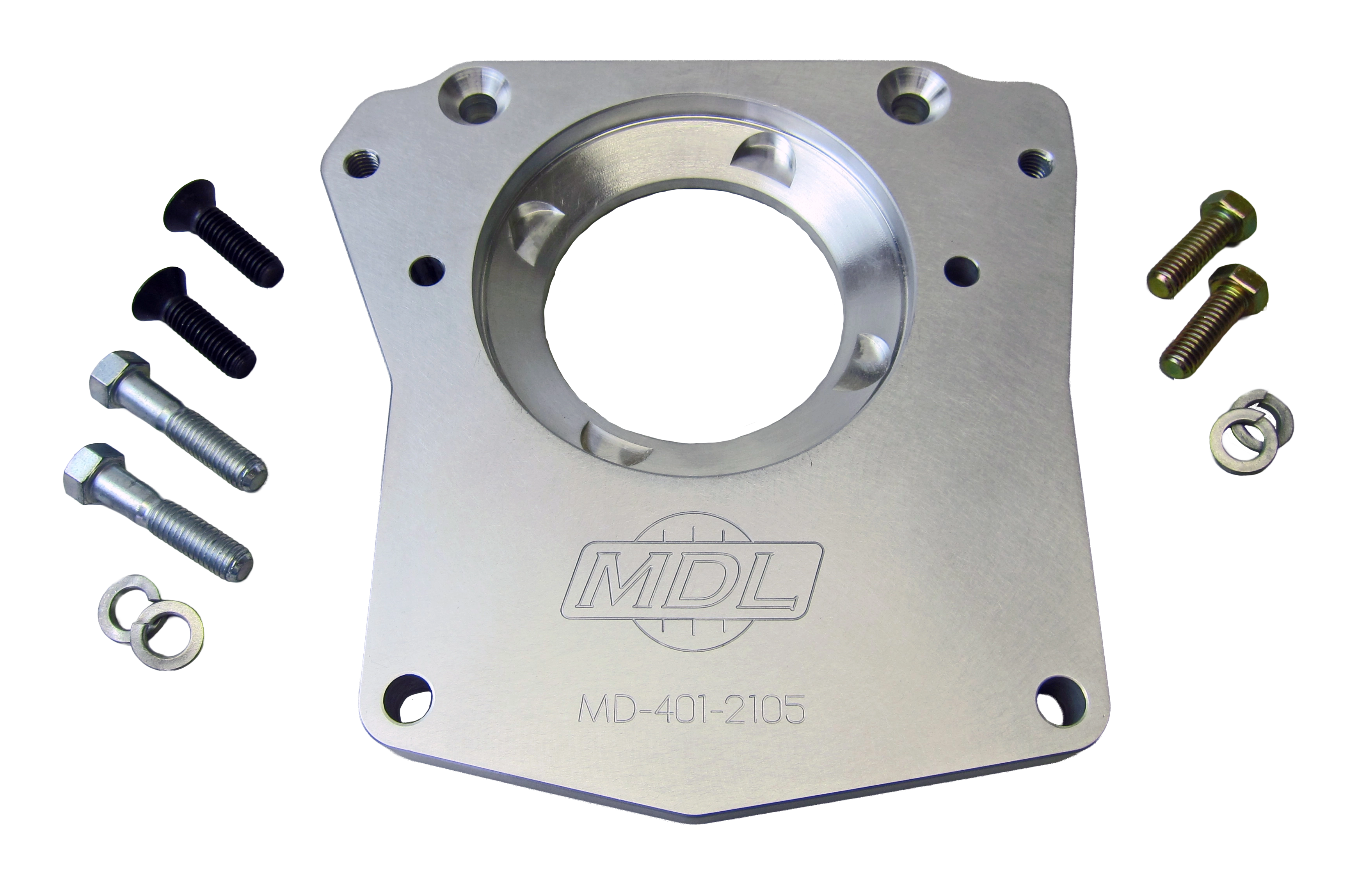

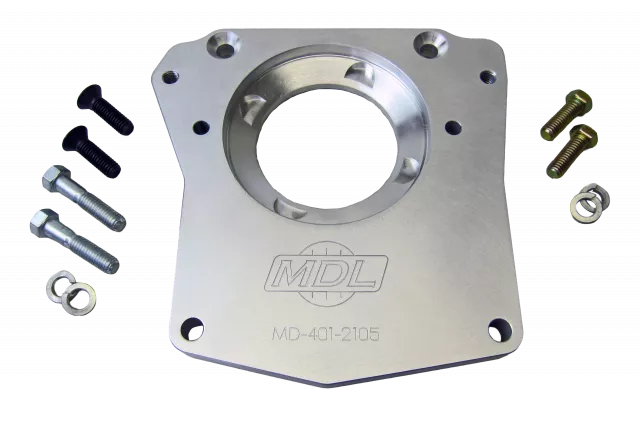

• Machined from 6061 billet aluminum for strength and corrosion resistance
• T5 bolt pattern clocked straight up (0 degrees CCW) for front shift T5 applications - keeps transmission mount flat
• Bellhousing-to-transmission alignment maintained to .001" tolerance
• Accommodates both 7.2" (1983-93) and 7-7/8" (1994-04) Ford T5 input shaft lengths
• Fits narrow pattern SBF 260-289 five-bolt bellhousings and early FE bellhousings
• Compatible with Y-block truck bellhousings: TAAB-7505, TAAC-7505-A, TAAM-7505-B
• Machined-in MDL logo and part number for authenticity
• Made in the USA

Description

Converting a Y-block or narrow pattern Ford to a modern T5 five-speed means bridging the gap between vintage bellhousing bolt patterns and later-model transmissions. This precision adapter plate makes that swap possible, allowing Y-block Ford engines and narrow pattern small block Fords to mate directly with Ford Front Shift T5 transmissions without case rotation.

The adapter's T5 mounting bolt pattern is clocked "straight up" - meaning 0 degrees CCW - specifically for front shift T5 tail shaft housing configurations. This orientation keeps the transmission mount flat, eliminating the need for custom mounting solutions. If you're running a standard Mustang T5 that requires the typical 5-degree CCW clocking, you'll need the MD-401-2105CCR instead.

This single adapter handles both generations of Ford T5 input shafts: '83-'93 Ford T5s with 7.2" input shafts when using passenger car Y-block bellhousings, and '94-'04 Ford T5s with the longer 7-7/8" input shafts when using Y-block truck bellhousings like the TAAB-7505 series. It also works with narrow pattern small block Ford 260-289 five-bolt bellhousings and early big block FE bellhousings that share the same bolt pattern.

Compatible Y-block applications include 1954-56 and 1961-64 223ci 6-cylinder engines using TAAA-7505-A and TAAK-7505-B bellhousings. Precision CNC machined from 6061 billet aluminum, this adapter maintains critical bellhousing-to-transmission alignment to ensure proper input shaft engagement and prevent premature bearing wear. Machined and assembled in the USA with lifetime technical support from MDL.

What's Included

• 6061 billet aluminum adapter plate with machined MDL logo and part number
• Complete mounting hardware
• Installation instructions
• Lifetime technical support from MDL

Key Features

• Complete fastener set for mounting Ford T5 transmission to Small Block Ford steel bellhousing
• Metric thread transmission-to-bellhousing bolts sized specifically for T5 applications
• Eliminates hardware store guesswork with correct thread pitch, length, and head style
• Proper fastener grade for secure drivetrain connection
• Direct replacement for worn, stripped, or missing factory hardware

Description

Installing a Ford T5 transmission with a steel bellhousing means dealing with hardware that's easy to get wrong. The T5's transmission-to-bellhousing bolts are metric thread--a detail that catches many builders off guard when mixing SAE and metric fasteners. This install hardware kit from MDL provides the correct fasteners for Small Block Ford steel bellhousing applications, so you're not hunting through bins at the hardware store trying to match thread pitch and head size.

Steel bellhousings require specific bolt lengths and configurations that differ from aluminum bellhousing setups. This kit is assembled specifically for SBF steel bellhousing applications, ensuring proper thread engagement and secure mounting. Whether you're completing a 5-speed swap, replacing corroded hardware during a rebuild, or upgrading from a worn factory set, having the right fasteners eliminates fitment headaches.

The kit includes all necessary fasteners to complete the bellhousing-to-transmission connection. Each component is selected for the correct thread size and grade to handle the loads a drivetrain connection demands.

What's Included

• Transmission-to-bellhousing mounting bolts (metric thread) [VERIFY: exact quantity and dimensions]
• Associated washers and hardware as required for steel bellhousing installation [VERIFY: complete contents list]

Key Features

• Lighten billet steel construction - weighs just 30 lbs for reduced rotating mass
• 146-tooth ring gear matches Y-Block-specific starter requirements
• Dual clutch bolt pattern: 10.4" equal pins and 11" long style pressure plates
• Zero balance design for internally balanced Y-Block engines
• 6-bolt crankshaft mounting with 7/16" fastener holes
• 11" clutch disk diameter compatibility
• 5/16" pressure plate bolt size
• Made in the USA

Description

Ford's Y-Block engines are unique in many ways - including their 146-tooth ring gear, which differs from both earlier flatheads and later small-blocks. This MDL Lighten Billet Steel flywheel delivers the correct ring gear tooth count for proper Y-Block starter engagement while cutting significant rotating mass from your drivetrain.

Machined from high-grade billet steel, this flywheel tips the scales at just 30 pounds - a substantial reduction over the factory cast iron unit. That lighter rotating assembly means quicker throttle response, faster revs, and more efficient power transfer to your transmission. The zero balance specification matches the internal balance characteristics of Y-Block engines, ensuring smooth, vibration-free operation.

The dual clutch bolt pattern accepts both 10.4" equal pin and 11" long style pressure plates, giving you flexibility in clutch selection for your build. Six 7/16" bolt holes secure the flywheel to your Y-Block crankshaft with proper torque distribution. Whether you're building a 292 truck engine or restoring a classic Thunderbird, this flywheel provides the durability and precision fit that performance applications demand.

Engineered specifically for Ford Y-Block engines including the 292ci, this flywheel is CNC-machined in the USA for exact tolerances and long-term reliability. Pair it with ARP 7/16" flywheel bolts (sold separately) for a complete high-performance rotating assembly.

What's Included

• MDL Lighten Billet Steel flywheel with 146-tooth ring gear
• Precision-machined dual clutch bolt pattern (10.4" EQ pins / 11" long)
• Zero balance specification for Y-Block applications

Key Features

• 11-inch Long Pattern diaphragm pressure plate with 3-3/8-inch bolt spacing
• Organic/Organic friction facings for smooth engagement and extended service life
• 10-spline x 1-1/16-inch clutch disk with sprung hub design
• 300 lb-ft torque rating - sized for street-driven Flatheads and Y-blocks
• Complete kit includes mechanical throw-out bearing, Y-block pilot bearing, and alignment tool
• Hand-built in-house by MDL technicians with quality-controlled tolerances
• Made in the USA with 1-year warranty

Description

Ford Y-block and Flathead V8s deserve a clutch that matches their classic character while delivering modern reliability. This MDL Superior clutch set is purpose-built for these early Ford engines, using the correct 11-inch Long Pattern bolt spacing (3-3/8-inch) to bolt directly to your existing flywheel. The diaphragm pressure plate design provides smoother pedal effort and more consistent clamping pressure than the original three-finger clutch systems these engines came with.

The organic/organic friction facings are engineered for street driving, cruising, and daily use - delivering progressive engagement without the harshness of racing compounds. The 10-spline x 1-1/16-inch disk uses a sprung hub to dampen drivetrain shock and reduce chatter, exactly what you want in a street-driven classic. With a 300 lb-ft torque rating, this clutch handles the output of stock and mildly modified Flathead and Y-block combinations with confidence.

Every MDL Superior clutch disk is hand-built in-house, not mass-produced overseas. This allows MDL to control quality and maintain exacting tolerances that off-the-shelf clutches simply cannot match. Each assembly is checked and double-checked for accuracy before shipping, so you receive a ready-to-install component right out of the box. The Performance Proven designation means this clutch has been validated in real-world applications - on the street and at the track.

This complete kit includes everything needed for installation: diaphragm pressure plate, organic-faced clutch disk, mechanical throw-out bearing, Y-block pilot bearing, and clutch alignment tool. Designed specifically for mechanical clutch actuation systems. Made in the USA and backed by MDL's 1-year free-from-defect warranty with lifetime technical support.

What's Included

• 11-inch Long Pattern diaphragm pressure plate (3-3/8-inch bolt spacing)
• Organic/Organic faced clutch disk with sprung hub
• 10-spline x 1-1/16-inch hub
• Mechanical throw-out bearing
• Y-block pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year warranty
• Lifetime technical support

Superior 11" Diaphragm Clutch Set | Ford Y-Block | Kevlar/SB Organic | 10 Spline

Key Features

• Hybrid facing compound: Kevlar on pressure plate side, steel-backed organic on flywheel side for balanced durability and smooth engagement
• 11" long pattern diaphragm pressure plate with 3-3/8" fingers for progressive clamping force and reduced pedal effort
• 10-spline, 1-1/16" input shaft hub sized for Ford Y-Block transmissions
• 400 lb-ft torque capacity rated for Performance Street Plus applications
• Sprung hub clutch disk absorbs drivetrain shock and delivers smooth engagement
• Hand-built clutch disks manufactured in-house for precise tolerances and quality control
• Complete kit with mechanical throw-out bearing, pilot bearing, and alignment tool
• Made in the USA with 1-year defect warranty

Description

The Ford Y-Block engine family powered Ford and Mercury vehicles from 1954 through 1964, spanning displacements from the original 239 cubic inches through the legendary 312 Thunderbird Special. Finding quality clutch components for these classic powerplants can be a challenge--most off-the-shelf kits use inferior materials or poor tolerances that lead to chatter, slippage, or premature wear. This MDL Superior clutch set delivers modern performance with period-correct fitment, engineered specifically for Y-Block applications where both street driveability and weekend performance matter.

The hybrid facing compound combines the best characteristics of two proven materials. Kevlar on the pressure plate side provides exceptional heat resistance and wear life under aggressive driving conditions, while steel-backed organic material on the flywheel side ensures smooth, progressive engagement without the harshness associated with full-race facings. This combination is specifically tuned for the 400 lb-ft torque capacity that Performance Street Plus applications demand--enough holding power for a built Y-Block without sacrificing daily driver manners.

The 11" long pattern diaphragm pressure plate delivers significant advantages over older coil spring designs. The diaphragm fingers provide progressive engagement characteristics and substantially reduce pedal effort, making this clutch a pleasure to operate in stop-and-go traffic. The 3-3/8" finger diameter is specifically sized for the mechanical release systems used in Y-Block applications. Every clutch disk is hand-built in MDL's facility, allowing complete control over quality and tolerances--each disk is double-checked for accuracy before shipping.

This kit fits Ford Y-Block engines including the 239, 256, 272, 292, and 312 cubic inch variants. Note that truck applications require a separate throw-out bearing (MD-406-16515) due to fork geometry differences. Made in the USA and backed by a 1-year warranty against manufacturing defects.

What's Included

• 11" long pattern diaphragm pressure plate with 3-3/8" fingers
• 10-spline, 1-1/16" sprung hub clutch disk with Kevlar/steel-backed organic facings
• Mechanical throw-out bearing (car applications; trucks require MD-406-16515)
• Ford pilot bearing
• Clutch alignment tool
• 1-year warranty coverage

Key Features

• Kevlar/Kevlar friction facings deliver superior heat resistance and extended service life
• 11" Long pattern with 3-3/8" diaphragm pressure plate for proper Y-Block bellhousing fit
• 10-spline 1-1/16" clutch disk engineered specifically for Ford Y-Block input shafts
• 400 ft-lb torque capacity rated for performance street and open track use
• Sprung hub design cushions engagement shock and protects vintage drivetrain components
• Hand-built clutch disks with in-house quality control and double-inspection before shipping
• Mechanical throwout bearing included for standard Y-Block clutch linkage systems
• Ford Flathead pilot bearing for proper crankshaft-to-transmission alignment
• Made in the USA with 1-year free-from-defect warranty

Description

Give your Ford Y-Block the clutch it deserves. The Y-Block was Ford's first overhead valve V8, powering everything from '54-'64 Fords and Mercurys to the iconic first-generation Thunderbird. Finding a quality clutch kit engineered specifically for this classic powerplant—rather than a generic assembly cobbled together from mismatched parts—has always been a challenge. The MDL Superior Clutch Kit solves that problem with purpose-built components that deliver consistent engagement, reliable holding power, and the durability these vintage V8s demand.

Every Superior clutch disk is hand-built in MDL's facility using Kevlar/Kevlar friction facings that provide excellent heat resistance without the grabby, on-off engagement characteristics of full-ceramic setups. The result is smooth, progressive pedal feel with 400 ft-lb of holding capacity—ideal for modified Y-Blocks making serious power while maintaining streetable manners. The 10-spline 1-1/16" hub matches Y-Block transmission input shafts precisely, and the sprung hub design absorbs drivetrain shock that can damage vintage components.

The 11" Long pattern diaphragm pressure plate with 3-3/8" diaphragm provides the correct bolt pattern and clamping characteristics for Y-Block bellhousing configurations. This kit includes the mechanical throwout bearing required for standard Y-Block clutch linkage, plus a Ford Flathead pilot bearing that ensures proper crankshaft-to-transmission alignment. Note: Ford trucks require the MD-406-16515 throwout bearing (sold separately).

Each assembly undergoes double-inspection before shipping to ensure flawless operation right out of the box. Compatible with Ford Y-Block 239, 256, 272, 292, and 312 cubic inch engines in passenger cars with mechanical clutch linkage. Proudly made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Kevlar/Kevlar faced clutch disk, 10-spline 1-1/16" hub, sprung hub design
• 11" Long pattern diaphragm pressure plate with 3-3/8" diaphragm
• Mechanical throwout bearing
• Ford Flathead pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

Key Features

• OE-style replacement compatible with C4DZ-6068-A applications
• Precision-welded steel bracket with protective coating for corrosion resistance
• Rubber insulator dampens vibration without transmitting harshness to the chassis
• Direct fit for T5, TKO, TKX, and Toploader manual transmissions, plus C4 automatics
• Compatible with mid-1960s and later Ford vehicles and 1977-up F-Series trucks

Description

Maintaining proper driveline angle is critical for smooth operation, reduced vibration, and long-term drivetrain component life. Whether you're swapping to a modern overdrive transmission or replacing a worn-out factory mount, this precision-engineered transmission mount delivers OE-quality fit and durability for multiple Ford transmission applications.

The precision-welded steel bracket provides a solid, secure mounting point while the protective coating guards against corrosion over the long haul. Unlike polyurethane mounts that can transmit drivetrain vibration directly into the chassis and cabin, this mount uses a rubber insulator that effectively dampens vibration for a quieter, more comfortable driving experience. It's the factory-style approach for a reason.

This mount fits T5, TKO, TKX, and Ford Toploader 4-speed manual transmissions as well as C4 automatics. Application coverage includes mid-1960s and newer Ford vehicles plus 1977-up F-Series trucks. Requires MD-201-Mount 1101 hardware kit, sold separately.

Made with quality materials and precision manufacturing for applications demanding proper fit and reliability.

What's Included

• Precision-welded steel transmission mount bracket with protective coating
• Rubber insulator for vibration dampening

Note: Hardware kit (MD-201-Mount 1101) sold separately.

Speedometer Cable | 1967-1968 Mustang/Cougar | 5/8" Barrel | T5/TKO/TKX/AOD

Key Features

• 5/8" barrel-style connector matches factory Ford speedometer interface
• 63" overall length accommodates driver-side routing required by T5, TKO, and TKX transmissions [VERIFY: Product description states 63", key_features field states 59" - confirm correct length]
• Designed specifically for '67-'68 Mustang and Cougar five-speed and AOD conversions
• Compatible with Ford T5, TKO, TKX, and AOD transmissions
• Also fits Falcon conversions using MDL front-shift tailhousing or front-shift T5 packages

Description

When you swap from a factory four-speed to a modern T5, TKO, or TKX five-speed, the speedometer cable routing changes completely. These TREMEC transmissions position the mechanical speedometer drive on the driver's (left) side of the case, meaning your original cable won't reach - and trying to force an ill-fitting cable creates binding, premature wear, and inaccurate readings.

This application-specific speedometer cable solves that problem for '67-'68 Mustang and Cougar owners. The 5/8" barrel-style connector interfaces correctly with the Ford speedometer head, while the 63" overall length provides the reach needed for proper left-side routing without binding or excessive slack. The result is a clean installation that keeps your factory speedometer functioning accurately with your new overdrive transmission.

Beyond T5 and TKO/TKX manual swaps, this cable also works for AOD automatic conversions in '67-'68 Mustang and Cougar applications. Falcon owners converting to five-speed can use this cable when paired with MDL front-shift tailhousings or front-shift T5 packages. If you're upgrading to modern overdrive and want to keep your factory speedometer working, this is the cable that makes it happen.

What's Included

• Speedometer cable with 5/8" barrel connector (63" length)

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• 1-7/8" diameter polymer resin ball with classic muscle car era styling
• Engraved 5-speed shift pattern inlaid in contrasting color for clear gear identification
• High-gloss finish resists wear while maintaining period-correct appearance
• 3/8" x 16 threads fit Hurst Competition Plus, Barton, and most aftermarket shifters
• Steel jam nut included for secure, rattle-free installation
• Made in the USA

Description

Your shift knob is the most frequently touched part of your interior--it should look right and feel right. This white 5-speed shift ball delivers authentic muscle car era styling in a durable polymer resin construction that holds up to years of aggressive shifting.

The 1-7/8" diameter ball features an engraved 5-speed shift pattern inlaid with contrasting color, making gear identification instant even in low-light conditions. The high-gloss finish provides the classic showroom look while resisting chips, scratches, and UV degradation that plague cheaper alternatives.

The 3/8" x 16 thread pitch fits a wide range of aftermarket shifters including Hurst Competition Plus (newer models), Hurst Auto/Stick, Billet/Plus, Barton Camaro shifters (pre-2013), Ford Racing short shifters, and many other popular performance shifter applications. This thread size also fits 1969-1981 Camaro factory shifters, making it an excellent choice for restorations or upgrades.

The included steel jam nut locks the ball firmly in place, preventing loosening under hard shifting. Whether you're finishing a period-correct restoration or adding classic style to a modern TREMEC swap, this USA-made shift ball delivers the authentic look and solid feel your build deserves.

Kit Includes

• White polymer resin shift ball with high-gloss finish (1-7/8" diameter)
• Steel jam nut

Key Features

• Black high-impact polymer resin with subsurface 5-speed pattern graphics that cannot wear off
• Brass master insert exceeds industry specs: 200 lb/ft static pull and 20 lb/ft twist torque
• Precision machined and polished to a high-gloss finish
• 3/8"-16 thread fits most aftermarket shifters
• 4-ounce weight for balanced shift feel
• Includes jam nut for secure installation
• Made in the USA

Description

This black 5-speed shift ball delivers the period-correct look and feel of the classic knobs used in the muscle car era. Whether you're finishing a concours-quality restoration or building a street machine that gets driven hard, this shift ball combines authentic styling with materials engineered to handle real-world abuse.

The 5-speed pattern graphics are subsurface-engraved into the black polymer resin, meaning they cannot wear off no matter how many miles you log. Unlike painted or printed shift knobs that fade and flake over time, this pattern stays crisp for the life of the knob. The high-impact polymer resin is specifically formulated to meet performance-level torque and temperature requirements without developing stress cracks as it ages.

Underneath the show-quality exterior, a brass master insert provides the structural backbone. This insert exceeds automotive industry specifications of 200 lb/ft static pull and 20 lb/ft twist torque, giving you the confidence to bang through gears without worrying about thread failure. The entire assembly is precision machined and polished to a high-gloss finish that looks right at home in any classic interior.

The 3/8"-16 thread pattern fits most aftermarket shifters and many OEM applications. If your shift lever uses a different thread size, MDL stocks adapters to make it work. Made in the USA.

Kit Includes

• Black high-impact polymer resin shift ball with subsurface 5-speed pattern
• Jam nut

Key Features

• High-impact polymer resin engineered to resist stress cracking, heat, and aggressive shifting
• 1-7/8"diameter with crisp 5-speed shift pattern and MDL logo
• Subsurface graphics permanently embedded beneath the surface - cannot wear, fade, or chip off
• 3/8"-16 internal threading with included jam nut for secure installation
• 4-ounce weight delivers balanced shift feel without excess mass
• Brass or aluminum master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Worn shift balls with faded graphics look cheap and undermine an otherwise clean build. This MDL 5-Speed Black Shift Ball solves that problem with subsurface graphics that are embedded below the polished surface - they physically cannot wear off, fade, or chip regardless of how many miles you put on the car or how aggressively you shift.

The ball is constructed from a specially formulated high-impact polymer resin developed specifically for automotive applications. Unlike generic plastics that crack and degrade with age and temperature cycling, this formulation resists stress cracking even after years of exposure to heat, cold, and UV light. At 4 ounces, the weight is calibrated to provide positive shift engagement without the excessive mass that can stress synchronizers or create unwanted momentum during quick shifts.

Inside, a brass or aluminum master insert provides the threaded mounting point and exceeds automotive industry specifications - tested to withstand 200 ft. lbs. of static pull force and 20 ft. lbs. of twist torque. The 3/8"-16 internal threading fits most domestic shifter applications, and MDL stocks thread adapters for virtually any shifter setup if your lever uses a different thread pitch. Each ball is precision machined and polished to a high-gloss finish that looks as good as it feels.

Made in the USA by a manufacturer that has been producing precision shift components since 1952, this shift ball delivers the quality and attention to detail that serious builds demand. Whether you are finishing a classic muscle car, a restomod, or a modern performance machine, the MDL logo and 5-speed pattern tell everyone you built it right.

What's Included

• One MDL 5-Speed Black Shift Ball with subsurface graphics 1-7/8" diameter
• Jam nut for secure installation

Key Features

• High-impact polymer resin construction formulated for performance torque and temperature demands
• 1-7/8" diameter ball with precision-machined 16mm x 1.50 brass master insert
• Subsurface 5-speed shift pattern graphics that cannot wear off
• Brass insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque testing
• 4-ounce weight provides positive shifting feedback without excessive mass
• Compatible with MDL thread reducing inserts for virtually any shift lever thread size
• Polished high-gloss finish for durability and professional appearance
• Made in the USA

Description

The shift knob is your primary connection point to the drivetrain during every gear change. This white 5-speed shift ball delivers the durability and feel you need with high-impact polymer resin specifically formulated for automotive applications. Unlike generic plastics that develop stress cracks over time from temperature cycling and repeated use, this material is engineered to handle real-world performance conditions.

The 1-7/8" diameter provides excellent grip surface and comfortable palm contact. The 5-speed shift pattern is applied subsurface, meaning the graphics are embedded within the material rather than printed on top -- they physically cannot wear off from years of shifting. The entire ball is precision machined and polished to a high-gloss finish that resists scratching and cleans easily.

At the core is a brass master insert machined to 16mm x 1.50 threading. This insert is tested to exceed automotive industry specifications: 200 ft-lbs of static pull and 20 ft-lbs of twist torque. Because the knob uses the common 16mm x 1.50 master insert, it accepts MDL's complete line of thread reducing inserts -- so you can adapt it to fit 3/8"-16, 3/8"-24, 5/16"-18, 12mm x 1.75, 10mm x 1.50, and other common shift lever thread sizes. If your shifter doesn't use 16mm x 1.50 threading, just add the appropriate reducer to make it work.

Weighing 4 ounces, this knob provides enough mass for positive shifting feedback without the excessive weight that can stress shift mechanisms or cause gear selection issues. Made in the USA with automotive-grade materials and quality craftsmanship.

What's Included

• White polymer resin shift ball with subsurface 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• CNC-machined from solid billet aluminum for maximum rigidity and precise shifts
• Black anodized finish for durable corrosion resistance and professional appearance
• 8-inch straight lever design for optimal reach and shift feel
• Direct bolt-on fitment for TREMEC TKO-500, TKO-600, T-5, T-45 and T-56 with standard 2-bolt flange
• Also compatible with Richmond LGT 700 transmissions
• 3/8"-16 threaded stud accepts most aftermarket shift knobs
• Mounting holes: 3/8-inch diameter on 7/8-inch center-to-center spacing

Description

Factory shift levers are stamped steel compromises. This Bowler Performance billet aluminum shift lever eliminates flex and delivers the solid, precise feel that serious builds demand. CNC-machined from solid billet aluminum, the 8-inch straight design provides clean aesthetics and ergonomic positioning without kickback angle, making it ideal for applications where a vertical lever orientation works best.

The black anodized finish resists corrosion and looks sharp against any interior, whether you are building a pro-touring restomod or a dedicated track car. Unlike hollow or stamped levers, this solid billet construction means zero flex under aggressive shifting, translating your input directly to the transmission for positive gear engagement every time.

Designed specifically for TREMEC transmissions, this lever features direct bolt-on fitment for TKO-500, TKO-600, and T-56 transmissions equipped with the standard 2-bolt mounting flange. It is also compatible with Richmond LGT 700 units. The 3/8"-16 threaded stud at the top accepts most aftermarket shift knobs, letting you complete your interior exactly how you want it. Mounting holes are 3/8-inch diameter on 7/8-inch center-to-center spacing for secure, vibration-free installation.

What's Included

• Black anodized billet aluminum shift lever (8-inch, straight)
• Installation hardware

Key Features

• Precision-machined billet aluminum construction for maximum rigidity and zero flex
• Direct bolt-on fitment for TKO-500, TKO-600, T56, and T-5 shifters with standard 2-bolt flange
• Industrial through pocket design for clean shift knob mounting and structural strength
• 3/8"-16 threaded stud with included half nut for secure knob attachment
• 0.890" center-to-center bolt pattern with 3/8" diameter mounting holes
• 8" straight lever length positions knob at optimal height without tunnel mods
• Brushed aluminum finish for a professional, refined appearance
• Complete mounting hardware included for bolt-on installation

Description

Factory plastic shift levers flex under hard shifts and look out of place in a performance build. This Bowler billet aluminum lever solves both problems with precision-machined construction that delivers direct, solid shift feel while upgrading your interior aesthetics. The 8" straight design maintains stock shift geometry and throw while eliminating the sloppy flex inherent in OEM plastic levers.

The industrial through pocket design is what sets this lever apart from cheap alternatives. Rather than a simple drilled hole for the shift knob stud, the through pocket provides superior strength at the critical stress point where flex would otherwise occur. The 3/8"-16 threaded stud is machined directly into the lever body, not pressed in—so it stays put for the life of the lever regardless of how often you swap knobs.

Fitment is direct bolt-on for TREMEC TKO-500, TKO-600, and T56 transmissions equipped with the standard 2-bolt shifter flange, as well as the LGT 700. The mounting holes measure 3/8" diameter on 0.890" center-to-center spacing—matching the TREMEC factory pattern exactly. The brushed aluminum finish resists corrosion and complements both classic muscle car interiors and modern pro-touring builds.

Kit Includes

• 8" straight brushed billet aluminum shift lever
• 3/8"-16 half nut for shift knob mounting
• Mounting hardware

Key Features

• Direct bolt-on billet aluminum shifter lever for TREMEC and Borg Warner transmissions
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Straight 6" design for traditional shifter positioning
• Machined groove for secure shifter boot attachment
• 3/8"-16 thread for universal shift knob compatibility
• Machined billet steel mounting stud, drilled and countersunk for included metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Worn, bent, or sloppy factory shift levers kill the driving experience in a performance build. This Lokar 6" straight billet aluminum shift lever delivers the solid, precise engagement that gearheads demand from their drivetrain. Machined from billet aluminum, this direct bolt-on lever replaces factory plastic or stamped steel sticks with a piece that looks as good as it feels in your hand.

Designed for TREMEC and Borg Warner manual transmissions, this lever fits the T5, T45, T56, TKO, and T56 Magnum with the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The straight 6" design provides classic shifter positioning, ideal for builds where you want the knob closer to the dash or a more upright throw.

Lokar engineered this lever with a machined mounting stud that's drilled and countersunk for the included metric cap screws, ensuring a clean, professional installation with no exposed bolt heads. The machined groove around the lever provides a secure attachment point for your shifter boot, keeping debris out and maintaining a finished interior appearance. The 3/8"-16 thread at the top accepts virtually any aftermarket shift knob.

Backed by a manufacturer lifetime warranty and made in the USA, this Lokar shift lever delivers the quality and precision that serious builders expect.

What's Included

• 6" straight billet aluminum shift lever
• Metric cap screws for mounting
• Jam nut

Key Features

• 6-inch straight billet aluminum lever with black anodized Midnight Series finish
• Direct bolt-on fitment for TREMEC and Borg Warner shifters with standard 2-bolt flange (7/8 in. center-to-center)
• Machined billet steel mounting stud, drilled and countersunk for included metric cap screws
• 3/8"-16 knob thread accepts most aftermarket shift knobs
• Fits T5, T45, T56, TKO-500, and TKO-600 transmissions
• Lifetime manufacturer warranty, made in the USA

Description

Stock shift levers often leave you reaching too far forward or fighting a bent design that compromises throw feel. This Lokar Midnight Series 6-inch straight shift lever solves that problem with a direct, no-bend design that puts the knob exactly where your hand naturally falls. The black anodized billet aluminum construction delivers the durability and precision that serious builds demand while complementing modern performance interiors.

Engineered as a direct bolt-on replacement for TREMEC and Borg Warner manual transmission shifters, this lever fits any shifter with the standard 2-bolt flange measuring 7/8 in. center-to-center between bolt holes. That covers T5, T45, T56, TKO-500, and TKO-600 applications. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering a clean installation with no visible fastener heads above the mounting plate.

The 6-inch length provides ideal leverage for quick, confident shifts without excessive throw. Standard 3/8"-16 threads at the top accept virtually any aftermarket shift knob, giving you full control over the final look and feel. Backed by Lokar's lifetime manufacturer warranty and made in the USA, this lever brings American craftsmanship to your drivetrain.

Kit Includes

• 6-inch straight black anodized billet aluminum shift lever
• Machined billet steel mounting stud
• Metric cap screws
• Lokar lifetime manufacturer warranty

Key Features

• Triple chrome-plated high-strength steel construction for lasting durability and show-quality appearance
• 6.38" tall with 0.75" setback
• 3/8"-16 thread accepts any Hurst shift knob or T-handle
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and compatible Hurst shifters
• Iconic Hurst name stamped directly into the stick
• 0.375" bolt holes with 0.875" center-to-center spacing
• 10-degree backset angle for improved ergonomics

Description

When your Hurst shifter needs a fresh stick or you're dialing in the perfect shift throw geometry, this chrome Competition/Plus shifter stick delivers the legendary feel Hurst has been known for since 1958. Built for applications where specific height or offset is required, this replacement stick gives you the exact dimensions needed to optimize your shift pattern and driver positioning.

The high-strength steel construction receives triple chrome plating that won't fade or flake under hard use. At 6.38" tall with a compact setback, it positions your shift knob exactly where your hand expects it during aggressive driving. The setback also reduces the forward reach required in tight cockpits, making rowing through gears more natural and less fatiguing.

The two-bolt attachment system ensures this stick bolts directly to Billet/Plus and Competition/Plus shifters without modifications. Standard 3/8"-16 threads at the top accept any Hurst shift knob or classic T-handle, letting you complete the setup with your preferred grip. Whether you're restoring a classic muscle car or maintaining a performance build, this stick maintains the authentic Hurst feel that separates real shifters from imitations.

What's Included

• Triple chrome-plated steel shifter stick - 6.38" tall
• Hurst name stamped into stick body
• 3/8"-16 threaded top for shift knobs
• Two mounting bolt holes - 0.375" diameter, 0.875" center-to-center spacing

Shoulder Bolt Kit | Hurst Levers on Stock T5 Shifters

Key Features

• Precision shoulder design eliminates slop and looseness in lever-to-shifter connection
• Eliminates the need to over-tighten mounting bolts, preventing thread damage
• Lock washers included to prevent loosening under vibration
• Sold as a pair - complete hardware for one installation
• Direct fit for mounting Hurst shift levers to stock T5 shifter assemblies

Description

Standard bolts create a frustrating problem when mounting Hurst shift levers to stock T5 shifters: slop and play in the connection that only gets worse over time. The typical fix - cranking down harder on the bolts - risks stripping threads and damaging shifter components. This shoulder bolt kit solves the problem the right way.

The precision shoulder on each bolt creates a positive mechanical stop that takes up the clearance between the lever and shifter body. This eliminates the looseness that plagues standard bolt-through installations without requiring excessive torque. The included lock washers maintain proper preload and resist vibration-induced loosening through thousands of shift cycles.

Designed specifically for mounting Hurst bolt-on shift levers (with 3/8-inch bolt holes on 7/8-inch centers) to stock T5 shifter assemblies. If you're upgrading to a Hurst lever on your stock T5 shifter and want tight, precise shifts without the slop, this is the hardware that makes it happen.

What's Included

• Precision shoulder bolts (pair)
• Lock washers

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black anodized billet aluminum ring with ball-milled edge for coordinated hot rod styling
• 5-1/4-inch outer diameter with 4-inch inner diameter fits most floor shifter openings
• Black naugahyde boot construction delivers classic hot rod aesthetics
• Polished stainless bezel fits over shifter lever for clean transition
• Integrated foam rubber seal eliminates air flow from floor through boot
• Form-fitting design hugs shifter lever with no pull ties or laces
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

Gaps around shifter levers look sloppy and let road noise, dust, and exhaust fumes into the cabin. This Lokar Midnight Series shift boot kit solves both problems with a clean, form-fitting design that delivers classic hot rod styling while sealing the floor opening around your shifter.

The 5-inch round boot features a black anodized billet aluminum ring with ball-milled edges that provide both visual depth and tactile grip during installation. The ball-milled edge treatment creates shadow lines that enhance the three-dimensional appearance while coordinating with other black interior components. Unlike cheaper stainless options, the black anodized finish delivers the blacked-out look modern hot rodders demand.

Unlike inferior boots with visible drawstrings or laces, this design hugs the shifter lever naturally for a factory-quality appearance. The polished stainless bezel on top of the boot fits over the shifter lever, creating a seamless transition. An integrated foam rubber seal eliminates air flow from beneath the vehicle into the cabin, keeping dust, debris, and exhaust fumes where they belong.

The black naugahyde boot material provides authentic period-correct styling while offering excellent durability against heat, UV exposure, and daily use. Compatible with most transmission-mounted and floor-mounted manual shifters in hot rod and classic car applications. Made in the USA by Lokar and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot
• Black anodized billet aluminum ring with ball-milled edge (5-1/4" OD x 4" ID)
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 5-inch round black Naugahyde shift boot designed for hot rod builds
• Polished black stainless steel ring with ball-milled edge for refined appearance
• Foam rubber seal eliminates air flow from floor through boot
• Polished stainless bezel on top fits over shifter lever
• Boot hugs shifter lever with no unsightly pull ties or laces
• Made in the U.S.A. with lifetime warranty

Description

Turn an exposed shifter opening into a finished detail with this classic Lokar round shift boot designed specifically for hot rod builds. The polished stainless bezel fits over your shifter lever, creating a clean, professional appearance that matches the craftsmanship of your drivetrain. Whether you're running a TREMEC TKX, TKO, or any floor-mounted manual shifter, this boot delivers authentic hot rod styling while providing practical cockpit protection.

Constructed from durable black Naugahyde, this 5-inch round boot offers the timeless look builders expect from Lokar. The integrated foam rubber seal prevents air flow from the floor through the boot, eliminating drafts and reducing interior noise. Unlike lesser boots that rely on pull ties or laces, this design hugs the shifter lever cleanly for a seamless appearance.

The polished black stainless steel ring features a ball-milled edge for both visual appeal and secure floor mounting. Installation is straightforward with the included stainless steel screws. This round configuration works with most hot rod floor-mount shifter installations where you want clean styling without exposed hardware.

Ideal for hot rod builds where authentic styling meets modern function. Made in the U.S.A. and backed by a lifetime warranty.

Kit Includes

• Black Naugahyde shift boot
• Polished black stainless steel ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• Round rubber construction for OE-correct restoration appearance
• Direct replacement for Ford OE# C2AZ-7277-A
• 4-7/8" diameter bolt pattern for precise fitment to factory floor shift assembly
• Designed for 4-speed manual transmissions without console
• Durable rubber material resists cracking and environmental degradation

Description

Cracked, missing, or deteriorated shift boots are more than an eyesore - they allow dust, debris, and road noise to enter the cabin through the transmission tunnel. This round rubber shift boot is a direct replacement for Ford OE# C2AZ-7277-A, restoring the factory seal and period-correct appearance to your classic Ford or Mercury build.

Engineered specifically for 4-speed manual transmission applications without console, this boot features a 4-7/8" diameter bolt pattern that matches your factory floor shift mounting points. The round base design slips directly over your shift lever and bolts down using the existing hardware locations - no modifications, adapters, or trimming required. Simply remove the old boot and install the new one for an instant interior upgrade.

The durable rubber construction maintains flexibility through temperature extremes while providing long-term resistance to UV exposure, ozone, and general wear. Whether you're completing a concours-level restoration or just tidying up a driver-quality cruiser, this shift boot delivers the authentic OE fitment that separates a professional build from a parts-store compromise.

Fits 1962-64 Ford Galaxie, Falcon, Ranchero, and Mercury Comet models equipped with 4-speed manual transmissions without console. Also fits Cobra applications of the same era.

Kit Includes

• Round rubber shift boot (OE# C2AZ-7277-A replacement)

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• Forged chromoly steel construction for maximum strength in high-horsepower applications
• 28-spline internal configuration for TREMEC and Ford transmissions
• 1330 series U-joint with 1-1/16-inch bearing cups
• 5.910-inch centerline-to-end length with 4.500-inch barrel
• 1.499-inch journal diameter for proper seal contact
• Black oxide finish inhibits rust and pitting
• Precision-machined splines mate smoothly with output shaft
• Smooth outer journal promotes proper fore/aft yoke action and prevents leaks
• Made in the USA

Description

Converting to a TREMEC manual or Ford automatic transmission often requires upgrading your slip yoke to handle increased torque and ensure proper driveline function. Factory cast yokes can become the weak link in a high-performance build -- this Sonnax forged chromoly slip yoke delivers the strength and precision your drivetrain demands, whether you're on the street, drag strip, or dirt oval track.

Forged from chromoly steel rather than cast, this 28-spline slip yoke starts with a material that offers superior tensile strength under load. All dimensions are precision-machined to guarantee a consistent, concentric slip yoke that eliminates vibration and binding. The clean-cut splines mate smoothly with the transmission output shaft, while the smooth outer journal provides uniform contact with the tail housing seal to prevent leaks and promote proper fore/aft yoke action.

The 1330 series U-joint configuration accepts bearing caps measuring 1-1/16 inches, providing the right balance of strength and serviceability for most street and performance applications. With a centerline-to-end length of 5.910 inches, a 4.500-inch barrel, and a 1.499-inch journal diameter, this yoke is built to OEM dimensional standards while exceeding factory strength.

Compatible with TREMEC TKO, TKX, Magnum, select T56, Ford C6, FMX, C4, AOD/AODE, T5, and Toploader transmissions. The black oxide finish resists corrosion while maintaining the precision surface finish required for optimal seal performance. Made in the USA.

What's Included

• One Sonnax forged chromoly slip yoke with black oxide finish
• 28-spline internal configuration
• 1330 series U-joint bores (1-1/16-inch bearing cup size)
• Lifetime technical support from MDL

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)
