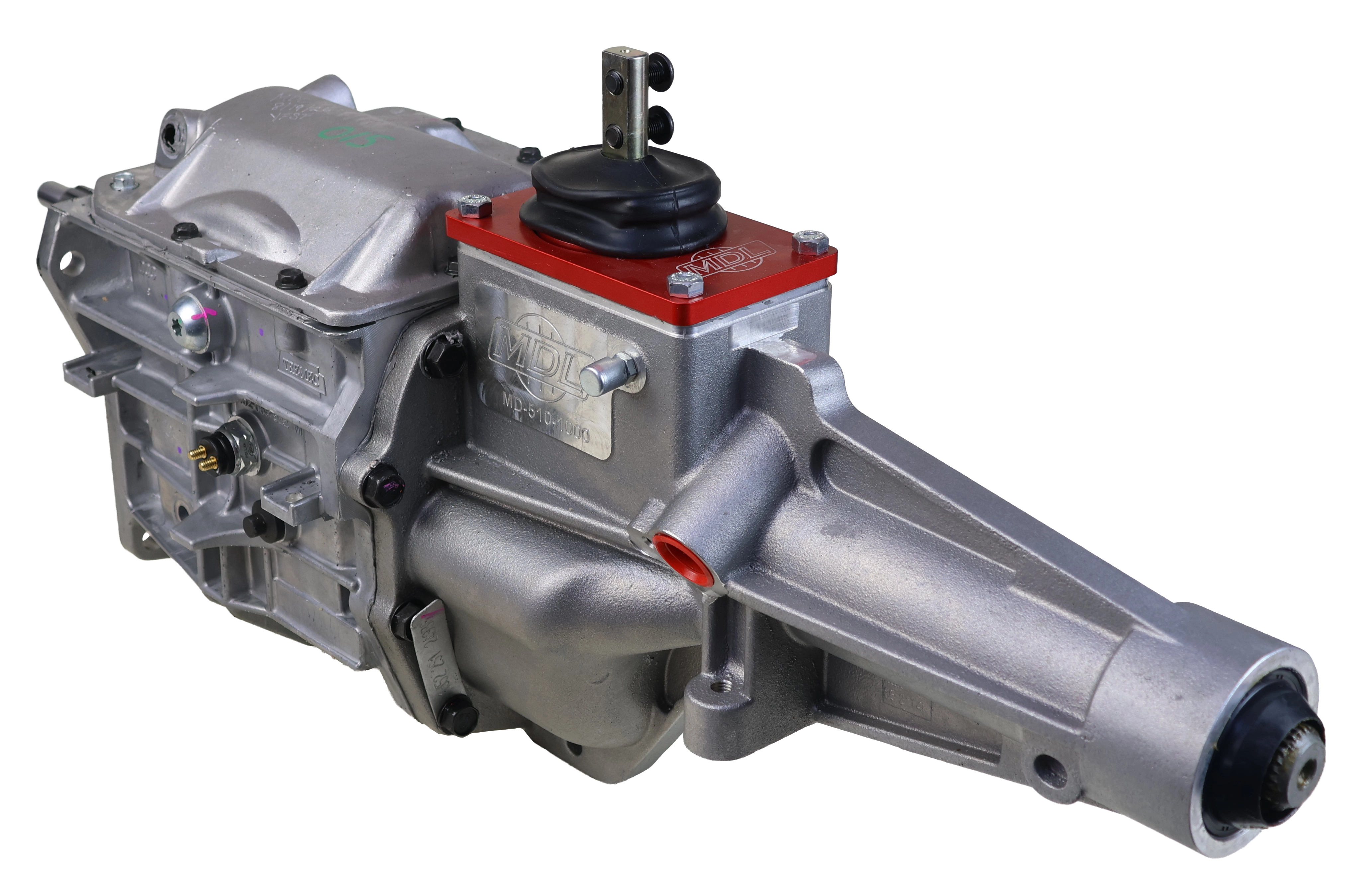

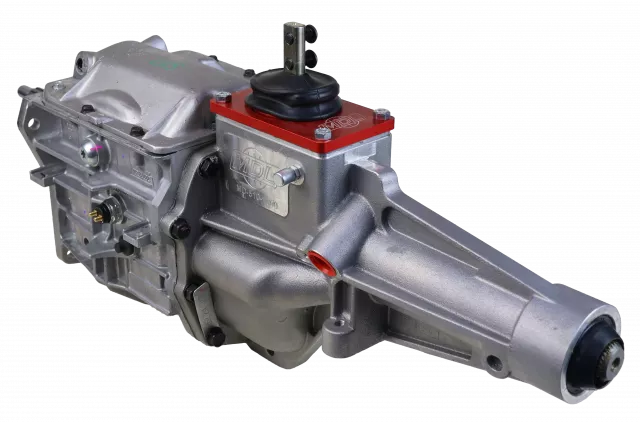

Modified TREMEC T5Z Front-Shift 5-Speed | Ford Y-Block Truck | Front Position Front Socket

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Extended 7-7/8-inch input shaft designed specifically for Ford truck Y-block bellhousings
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• Ford speedometer drive with 7-tooth gear (6 and 8-tooth available)
• Front Position Front Socket Shifter at 11.75" from main case front.
• Uses GM transmission mount (MD-604-1102, sold separately)
• 2.75 quarts ATF Dexron III fluid capacity
• Just 75 lbs dry - TREMEC's most compact transmission
• Optional 0.73 overdrive ratio available

Description

Ford Y-block truck installations present a unique challenge: standard transmission shifter locations end up behind the driver's seat, making comfortable operation nearly impossible. This MDL-modified TREMEC T5Z solves that problem by relocating the shift socket to the front position, placing the shifter approximately 8 inches forward from the standard T5Z location - right where your hand naturally falls.

The extended 7-7/8" input shaft addresses the deeper Ford pickup Y-block truck bellhousing requirements, working with MDL's MD-401-2105 adapter plate for a proper fit. With a 330 ft-lb torque capacity, this transmission handles serious power while delivering the drivability benefits of a 0.63 overdrive - lower cruising RPMs, reduced engine temperatures, and improved fuel economy on the highway.

MDL's front-shift design features a two-socket tail housing, giving builders flexibility in shifter placement. The shifter mounts 11.75" from the front of the main case, with optional offset shift stubs available to move the position up to 2" forward or rearward. Carbon fiber 3-4 blocker rings and improved synchronizers ensure crisp, reliable shifts, while the steel front bearing retainer adds durability where aluminum units would flex. The Cobra-style pocket bearing further enhances long-term reliability.

This same transmission works with 1994-1995 Mustang T5 bellhousings behind small-block Ford engines. For car Y-block bellhousing applications requiring a shorter input shaft, see model MD-552-0251-FSF. Uses GM transmission mount (MD-604-1102, sold separately). Requires 2.75 quarts of Dexron III ATF. [VERIFY: Product is currently listed as out of stock - confirm availability status before publishing]

MDL extends the manufacturer's warranty by an additional year with a 1-year grace period, and complete MDL conversion packages include lifetime technical support. Made in the USA.

What's Included

• TREMEC T5Z transmission with MDL front position shift tail housing (front socket position)
• Extended 7-7/8-inch input shaft (10-spline)
• 28-spline output shaft
• 7-tooth speedometer drive gear (mechanical speedo)
• Steel front bearing retainer
• Carbon fiber 3-4 synchro rings
• Cobra-style pocket bearing
• MDL extended warranty (manufacturer's warranty plus one additional year with 1-year grace period)
• Lifetime technical support when purchased as complete MDL conversion package

Note: GM transmission mount MD-604-1102 required but not included. Front-shift tail housing also available separately in kit form: MD-510-1001 (forward position, requires MDL quick shifter) or MD-510-1000 (rear position, uses stock Mustang T5 shifter).

Modified TREMEC T5Z 5-Speed | Ford Truck Y-Block | Front Position Rear Socket Shifter

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Extended 7-7/8-inch input shaft designed specifically for Ford truck Y-block bellhousings
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• Ford speedometer drive with 7-tooth gear (6 and 8-tooth available)
• Front Position Rear Socket Shifter at 13.00" from main case front.
• Uses GM transmission mount (MD-604-1102, sold separately)
• 2.75 quarts ATF Dexron III fluid capacity
• Just 75 lbs dry - TREMEC's most compact transmission
• Optional 0.73 overdrive ratio available

Description

Ford truck Y-block builders face a unique challenge: getting the shifter positioned ahead of the seat where it belongs. MDL tooled up and designed this two-socket, front-shift T5 specifically for pickup truck applications, moving the shifter forward to a usable location in cab configurations where the standard rear position simply does not work. This is not a compromised car transmission -- it is purpose-built for truck swaps with the extended input shaft and Front position rear socket shifter truck builders demand.

The engineering centers on MDL's custom front-shift tail housing that relocates the shifter mount 13.00” from the front of the case. This model was designed to be adapted behind a Ford pickup Y-block bellhousing using MDL's MD-401-2105 adapter plate. The extended 7-7/8-inch input shaft ensures proper pilot bearing engagement in truck bellhousings while maintaining front-shift benefits. If you are using a car Y-block bellhousing instead, see the shorter input shaft model (MD-552-0251-FSR).

Built on the proven Cobra-spec T5Z platform, this transmission safely handles 330 ft-lb of torque. The upgraded internals include carbon fiber 3-4 synchro rings, improved synchronizers and bearings, steel front bearing retainer, and the Cobra-style pocket bearing. The 2.95 first gear paired with 0.63 overdrive delivers strong launches off the line and significant fuel savings at highway speeds. Setup for mechanical speedometer operation with the 7-tooth drive gear. This same transmission can also be used with a 1994-1995 Mustang T5 bellhousing behind a small block Ford engine, making it versatile for both Y-block truck and SBF applications.

MDL extends the manufacturer's warranty by an additional year with a 1-year grace period, and complete MDL conversion packages include lifetime technical support. Made in the USA.

What's Included

• TREMEC T5Z transmission with MDL front position shift tail housing (rear socket position)
• Extended 7-7/8-inch input shaft (10-spline)
• 28-spline output shaft
• 7-tooth speedometer drive gear (mechanical speedo)
• Steel front bearing retainer
• Carbon fiber 3-4 synchro rings
• Cobra-style pocket bearing
• MDL extended warranty (manufacturer's warranty plus one additional year with 1-year grace period)
• Lifetime technical support when purchased as complete MDL conversion package

Note: GM transmission mount MD-604-1102 required but not included. Front-shift tail housing also available separately in kit form: MD-510-1001 (forward position, requires MDL quick shifter) or MD-510-1000 (rear position, uses stock Mustang T5 shifter).

Key Features

• Machined from 6061 billet aluminum for strength and corrosion resistance
• T5 bolt pattern clocked straight up (0 degrees CCW) for front shift T5 applications - keeps transmission mount flat
• Bellhousing-to-transmission alignment maintained to .001" tolerance
• Accommodates both 7.2" (1983-93) and 7-7/8" (1994-04) Ford T5 input shaft lengths
• Fits narrow pattern SBF 260-289 five-bolt bellhousings and early FE bellhousings
• Compatible with Y-block truck bellhousings: TAAB-7505, TAAC-7505-A, TAAM-7505-B
• Machined-in MDL logo and part number for authenticity
• Made in the USA

Description

Converting a Y-block or narrow pattern Ford to a modern T5 five-speed means bridging the gap between vintage bellhousing bolt patterns and later-model transmissions. This precision adapter plate makes that swap possible, allowing Y-block Ford engines and narrow pattern small block Fords to mate directly with Ford Front Shift T5 transmissions without case rotation.

The adapter's T5 mounting bolt pattern is clocked "straight up" - meaning 0 degrees CCW - specifically for front shift T5 tail shaft housing configurations. This orientation keeps the transmission mount flat, eliminating the need for custom mounting solutions. If you're running a standard Mustang T5 that requires the typical 5-degree CCW clocking, you'll need the MD-401-2105CCR instead.

This single adapter handles both generations of Ford T5 input shafts: '83-'93 Ford T5s with 7.2" input shafts when using passenger car Y-block bellhousings, and '94-'04 Ford T5s with the longer 7-7/8" input shafts when using Y-block truck bellhousings like the TAAB-7505 series. It also works with narrow pattern small block Ford 260-289 five-bolt bellhousings and early big block FE bellhousings that share the same bolt pattern.

Compatible Y-block applications include 1954-56 and 1961-64 223ci 6-cylinder engines using TAAA-7505-A and TAAK-7505-B bellhousings. Precision CNC machined from 6061 billet aluminum, this adapter maintains critical bellhousing-to-transmission alignment to ensure proper input shaft engagement and prevent premature bearing wear. Machined and assembled in the USA with lifetime technical support from MDL.

What's Included

• 6061 billet aluminum adapter plate with machined MDL logo and part number
• Complete mounting hardware
• Installation instructions
• Lifetime technical support from MDL

Install Hardware Kit | Ford Front Shift T5 | Steel Bellhousing or Adapter Plate

Key Features

• Complete mounting hardware for Ford front shift T5 with steel bellhousing or adapter plate applications
• Correct metric thread fasteners for T5 transmission-to-bellhousing attachment
• Specifically configured bolt lengths and grades for steel bellhousing installations
• Eliminates hardware-hunting when assembling your T5 swap
• Designed by MDL for proper Ford drivetrain fitment

Description

Sourcing the right fasteners for a Ford T5 installation can bring your project to a halt. T5 transmissions use metric threaded bellhousing bolts, which differ from the SAE threading used elsewhere in the Ford drivetrain. Grab the wrong hardware off the shelf and you risk cross-threading, loose connections, or inadequate clamping force under load.

This MDL install hardware kit is purpose-built for Ford front shift T5 installations using steel bellhousings or adapter plates. The included fasteners provide the correct metric thread pitch and appropriate lengths for secure transmission-to-bellhousing mounting. Each component is selected to deliver proper torque retention with steel bellhousing assemblies.

The difference between MDL's aluminum (AL) and steel (ST) hardware kits comes down to bellhousing bolt configuration. Aluminum bellhousings often ship with manufacturer-supplied fasteners or require different bolt lengths, so those kits are adjusted accordingly. This ST kit includes the correct hardware for steel bellhousing and adapter plate setups where the fasteners are not provided by the bellhousing manufacturer.

Stop digging through parts bins and hardware store drawers. This kit puts all the right fasteners in one bag so you can bolt up your T5 and move on to the next phase of your build.

Kit Includes

• Transmission-to-bellhousing mounting bolts (SAE thread)
• Complete fastener set for steel bellhousings

Key Features

• Hand-built Superior clutch disc with dual organic friction facings for smooth, progressive engagement
• 10-spline hub with 1-1/16" input shaft diameter - matches original Ford Flathead manual transmission input shafts
• 10" long pattern bolt circle - fits 59A engine and 8BA stamped or cast bell ring designs
• Pin-style release fork compatibility for 1949-1953 Flathead bellhousings
• Diaphragm pressure plate included for modern pedal feel and consistent clamping force
• 250 ft-lbs torque capacity - rated for street-driven Flathead builds
• Includes alignment tool for precise disc centering during installation
• Made in the USA with 1-year free-from-defect warranty

Description

Quality clutch components for Ford Flathead V8 builds are increasingly hard to source - especially when you need the correct pattern, spline count, and fork compatibility for your specific application. This Superior clutch kit is engineered specifically for Ford Flatheads using the 10" long pattern flywheel with pin-style release fork bellhousings, giving you a complete, bolt-on solution that eliminates the guesswork from your restoration or hot rod build.

The heart of this kit is the Superior organic clutch disc, hand-assembled in-house at MDL. Every disc is built to exacting tolerances using premium organic friction material on both sides, then double-checked for accuracy before shipping. Organic facings deliver smooth, predictable engagement that's ideal for street driving - no grabby starts or chatter. The 10-spline hub with 1-1/16" bore matches the original Ford Flathead transmission input shaft, while the 10" long pattern design fits the flywheel bolt circle found on 59A engines and 8BA stamped or cast bell ring configurations.

The included diaphragm pressure plate replaces heavy, inconsistent three-finger designs with modern clamping technology. You get consistent pedal effort and reliable release every time. Pin-style fork compatibility makes this kit the right choice for 1949-1953 Flathead bellhousings using the original mechanical release mechanism - no adapter or fork modification required.

Rated for 250 ft-lbs of torque, this clutch kit handles the output of most street-driven Flathead engines with margin to spare. Whether you're completing an authentic restoration or building a traditional hot rod, this kit delivers reliable performance backed by MDL's 1-year warranty and lifetime technical support. Made in the USA.

What's Included

• Superior organic clutch disc with dual organic friction facings (10-spline, 1-1/16" bore)
• 10" long pattern diaphragm pressure plate
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

R-Series 5-Speed Black Shift Ball with Pearl-Gray Racing Stripe

Key Features

• 2-1/8" diameter high-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface pearl-gray racing stripe graphics permanently inlaid beneath the surface - cannot wear, fade, or peel
• 16mm x 1.50 solid brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque industry specs
• Precision-machined and polished to a high-gloss finish
• 4-ounce weight for optimal shift feel without excessive mass
• Made in the USA with proprietary polymer resin formulated to resist stress cracking

Description

Ditch the factory plastic shift knob that cracks, fades, and looks tired after a few seasons. This R-Series shift ball is built from specially formulated high-impact polymer resin designed specifically for the automotive industry - engineered to handle performance-level torque loads and temperature extremes without developing stress cracks over time.

The pearl-gray racing stripes that wrap around this 2-1/8" diameter ball are not painted, printed, or applied as decals. They are permanently inlaid beneath the surface during manufacturing, giving you graphics that physically cannot wear off no matter how many miles you put on the car. The entire surface is precision-machined and polished to a high-gloss finish that maintains its showroom appearance under daily use.

At the core sits a 16mm x 1.50 solid brass master insert that exceeds the automotive industry specification of 200 ft-lbs static pull and 20 ft-lbs twist torque - this knob is not coming loose. The included brass jam nut locks everything down tight. Thread adapters are available if your shifter uses a different thread pattern.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Note: Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs (different thread pattern required). Made in the USA.

Kit Includes

• R-Series 2-1/8" black shift ball with pearl-gray racing stripe graphics
• 16mm x 1.50 solid brass master insert (installed)
• Brass jam nut

Key Features

• Subsurface white racing stripe graphics that cannot wear off
• Specially formulated high-impact polymer resin designed for performance-level torque and temperature requirements
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter professional racing design
• 4-ounce weight for optimal shift feel
• Precision machined and polished to a high-gloss finish
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

Upgrade your interior with this R-Series 5-speed shift ball featuring a classic white racing stripe on black polymer resin. The clean stripe graphic runs across the top of the ball without intersecting the 5-speed shift pattern, delivering a professional motorsport aesthetic that complements any performance build.

This shift ball is constructed from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Unlike cheap plastic alternatives, this polymer is formulated specifically for the automotive industry to resist stress cracking with age. The white stripe graphics are subsurface--embedded in the material itself--so they cannot wear off even after years of hard shifting.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, ensuring the knob stays locked to your shift lever under aggressive driving. At 4 ounces, this shift ball provides the right heft for positive shift engagement without being too heavy for rapid-fire gear changes. The polymer construction is precision machined and polished to a high-gloss finish for a quality look and feel.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Not compatible with 2010-2014 GT500 (requires 10mm x 1.25 thread) or 2015-2020 GT350/GT350R models. Thread reducers available separately for other applications. Made in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series black polymer shift ball with white racing stripe (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• 2-1/8" diameter with 4-ounce lightweight construction
• Subsurface graphics permanently embedded -- will not wear, chip, or fade
• 16mm x 1.50 brass master insert with jam nut included
• Clean racing stripe design without shift pattern markings
• Direct fit for 2011-2022 Mustang, Fiesta ST, Focus ST, and Focus RS applications
• Made in the USA by a manufacturer with 65+ years of shifter expertise

Description

The factory shift knob is one of the most-touched surfaces in your cockpit, and worn plastic or faded graphics detract from an otherwise clean interior. The R-Series 5-Speed Shift Knob delivers a premium upgrade with subsurface graphics that cannot wear off, chip, or fade under years of hard use. The gray base with white racing stripe offers a clean, period-correct aesthetic that works equally well in restored classics and modern performance builds.

Built from specially formulated high-impact polymer resin, this shift knob meets performance-level requirements for both torque resistance and temperature stability. The material will not develop stress cracks with age, and the brass master insert exceeds automotive industry specifications. At just 4 ounces, the lightweight construction delivers responsive shifting feel without adding unnecessary mass to the shift lever.

The 2-1/8" diameter provides an optimal grip size for quick, confident shifts. This design omits shift pattern markings, giving you a clean look that suits any 5-speed application. The 16mm x 1.50 brass master insert threads directly onto factory Ford shift levers, with a jam nut included for secure installation. Thread adapters are available separately for applications requiring different thread sizes.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread) or 2015-2020 Shelby GT350/GT350R. Made in the USA.

What's Included

• R-Series gray polymer resin shift knob with white racing stripe
• 16mm x 1.50 brass master insert (installed)
• Jam nut

R-Series 5-Speed White Shift Ball | Black Racing Stripe | 2-1/8" | 16mm Insert

Key Features

• R-Series premium 2-1/8" diameter white polymer resin with black racing stripes that do not intersect the shift pattern
• 16mm x 1.50 solid brass master insert exceeds auto industry specs: 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics that cannot wear off, fade, or peel
• High-impact polymer resin engineered to resist stress cracks and withstand performance-level torque and temperature
• 4-ounce weight provides positive shift engagement without excessive heat retention
• Compatible with 2011-2022 Mustang, Focus ST/RS, and Fiesta ST via thread reducers
• Made in the USA

Description

Ditch the hollow factory plastic and upgrade to an R-Series shift ball built to perform. This 2-1/8" diameter white shift knob features bold black racing stripes that frame the 5-speed shift pattern without crossing through it -- a clean, purposeful design that looks right in any classic muscle car, late-model pony car, or hot hatch interior.

The engineering starts where it counts: at the 16mm x 1.50 solid brass master insert. This insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, so it won't strip, spin, or work loose no matter how hard you bang through gears. The polymer resin body is specially formulated to resist stress cracks with aging and handles the temperature swings and abuse of daily driving and track use alike.

Unlike painted or printed shift knobs that wear through to bare plastic within a season, the R-Series uses subsurface graphics embedded beneath the polished surface. The stripes and shift pattern cannot wear off, fade, or peel -- they're part of the knob itself. At 4 ounces, the weight delivers positive shift engagement and tactile feedback without the palm-burning heat retention of metal alternatives on summer days.

Fits 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS when paired with appropriate thread reducers (sold separately). Not compatible with 2010-2014 Shelby GT500, 2015-2020 Shelby GT350, or GT350R Mustangs due to different thread requirements. Built in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series white shift ball with black racing stripes (2-1/8" diameter)
• 16mm x 1.50 solid brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin construction engineered for performance-level torque and temperature demands
• Subsurface graphics permanently embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert with included jam nut for secure, rattle-free mounting
• Lightweight 4-ounce design reduces shift effort and improves tactile feedback
• 2-1/8" diameter provides optimal palm grip for quick, confident shifts
• 5-speed shift pattern - gray rally stripes do not intersect the gear graphics
• Direct fit for 2011-2022 Mustang GT, V6, EcoBoost, Boss 302, plus Focus ST/RS and Fiesta ST
• Made in the USA

Description

Upgrade your interior with the R-Series 5-speed shift ball, combining classic rally-inspired aesthetics with materials engineered for years of aggressive shifting. The white polymer resin body with dual gray racing stripes delivers that authentic motorsports look while the specially formulated high-impact resin handles the thermal cycling and mechanical stress of performance driving without cracking, fading, or becoming brittle.

Unlike cheap printed or decal-based shift knobs, the R-Series features subsurface graphics that are embedded into the resin during manufacturing. The 5-speed shift pattern and racing stripes are part of the knob itself - they cannot wear off, chip, or fade no matter how many miles you put on them. The stripes are positioned to complement the shift pattern without crossing through the gear graphics, maintaining a clean, professional appearance.

The 16mm x 1.50 brass master insert threads securely onto your shift lever, and the included jam nut locks everything in place to eliminate loosening or rattle. At just 4 ounces, this shift ball keeps rotating mass low for quicker shifts and better feedback through your hand. The 2-1/8" diameter fits naturally in your palm - large enough for positive grip, not so big it becomes awkward during spirited driving.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread), 2015-2020 Shelby GT350, or GT350R. Thread adapters are available separately for applications with different shift lever threads. Made in the USA.

What's Included

• R-Series 5-speed shift ball in white high-impact polymer resin with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure mounting

Key Features

• 1-7/8in. diameter classic shift ball with authentic muscle car era styling
• High-gloss black polymer resin construction with molded-in brass thread insert
• Engraved 5-speed shift pattern with reverse lower right - permanent inlay design that won't wear off
• 16mm x 1.50 master thread for universal compatibility via thread reducing inserts (sold separately)
• Compatible with MD-313 series thread reducing inserts for fitment to most shifters
• Made in USA

Description

When your shifter needs the finishing touch that screams performance, this classic 5-speed black shift ball delivers the authentic muscle car aesthetic that's been the industry standard for over 50 years. The instant you grip this knob.

Constructed from high-gloss, high-strength polymer resin, this shift ball features an engraved 5-speed shift pattern (reverse lower right) that's permanently inlaid - the graphics are subsurface and cannot wear off from repeated use. The molded-in brass thread insert ensures the threads won't strip under hard shifting forces, while the 1-7/8in. diameter provides the perfect grip size for precise gear changes.

The 16mm x 1.50 master thread makes this shift ball universally compatible when paired with Modern Driveline's thread reducing inserts. Whether you're running a Mustang T5, GM transmission, or aftermarket shifter with different thread specs, the appropriate MD-313 series reducer (sold separately) allows this classic shift ball to mount securely on virtually any manual shifter. Simply select the reducing insert and jam nut kit that matches your shift lever's thread pitch.

Kit Includes

• One 5-speed black shift ball with engraved shift pattern (reverse lower right)
• Brass thread insert (16mm x 1.50) molded into ball
• Jam nut for secure mounting

Note: Thread reducing insert required for most applications - see MD-313 series kits sold separately.

Modern Driveline offers HURST shift knobsmatch the look and feel of the Classic knobs used in the muscle car era.1-7/8in. Diameter

The industry standard for over 50 years and universally recognized as the "shifter to have, it only takes one glance in the car to see your serious by that chrome stick and shift ball.Today the legacy continues. Through careful engineering and by using only high-quality components, Hurst shift levers & shift balls can complete your vehicle's look.All are backed by the history, heritage, and knowledge that Hurst has acquired over half of a century of shifter design. Made in USA.

Key Features

• 1-7/8-inch diameter black shift ball with white 5-speed shift pattern and MDL logo
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded beneath the surface - cannot wear off or fade
• Lightweight 4-ounce construction for reduced shift effort
• Precision-machined and polished to a high-gloss finish
• Includes jam nut for secure installation
• Thread adapters available for virtually any shift lever configuration
• Made in the USA

Description

Upgrade your interior with this premium 5-speed shift ball featuring the MDL logo - a clean, purposeful look that signals you mean business under the hood. Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball delivers the durability and temperature resistance needed for performance driving while maintaining a premium appearance that won't crack or fade over time.

The 1-7/8-inch diameter provides an ideal grip size for quick, confident shifts. Unlike cheap decals or surface printing, the white 5-speed shift pattern graphics are embedded beneath the surface - they're part of the ball itself and physically cannot wear away. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry standards with over 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring rock-solid attachment to your shift lever even under aggressive driving conditions.

At just 4 ounces, this lightweight design reduces shift effort while the polymer construction provides excellent grip characteristics in all weather conditions - no burning your hand on hot summer days or freezing on cold mornings. The included jam nut ensures secure installation. For shift levers with different thread sizes, MDL stocks a full range of thread adapters - just confirm your shift lever thread size when ordering so we can recommend the correct adapter for your application.

Manufactured in the USA by a company that has been producing precision shift knobs since 1952, this ball represents decades of engineering refinement focused on quality, precision, and style. The polymer resin is specifically formulated for the automobile industry to resist stress cracks with aging - a common failure point in lesser shift knobs.

What's Included

• Black polymer resin shift ball with white 5-speed pattern and MDL logo
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Premium 1-7/8" diameter white polymer shift ball with crisp 5-speed pattern graphics
• High-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics permanently embedded beneath the surface - cannot wear off or fade
• 16mm x 1.5mm brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque specs
• Compatible with metric and SAE shifter threads via thread reducers (sold separately)
• Lightweight 4-ounce design for reduced shifter mass and quicker throws
• Precision-machined and polished to a high-gloss finish
• Made in the USA

Description

Upgrade your shifter with this precision-engineered white 5-speed shift ball featuring the MDL logo. This isn't bargain-bin plastic - it's crafted from a specially formulated high-impact polymer resin developed specifically for automotive applications. The material resists stress cracking from temperature cycling and age, a common failure point in cheaper shift knobs that see years of daily use and abuse.

The 1-7/8" diameter provides optimal palm grip for aggressive shifting, while the 5-speed pattern graphics are permanently embedded below the polished surface where heat, UV exposure, and thousands of shifts can't touch them. The precision-machined brass master insert threads directly onto 16mm x 1.5mm shift levers, and with MDL's thread reducers, you can adapt this shift ball to virtually any metric or SAE threaded shifter - just know your shift lever's thread size when ordering so we can recommend the correct adapter.

At just 4 ounces, this shift ball reduces rotating mass compared to heavy solid alternatives, translating to slightly quicker shift action without sacrificing durability. The brass insert exceeds automotive industry specifications for 200 ft-lbs static pull and 20 ft-lbs twist torque resistance - it's not coming loose under hard use. Proudly made in the USA.

What's Included

• White 5-speed polymer shift ball with subsurface graphics and MDL logo
• 16mm x 1.5mm brass master insert (installed)
• Brass jam nut

Key Features

• Precision-machined polished aluminum construction for premium feel and lasting durability
• Laser-engraved 5-speed shift pattern with black highlighting for quick gear recognition
• 2-1/8" diameter provides optimal palm grip and positive shifter control
• 16mm x 1.50 threaded mounting compatible with MDL thread reducing adapters for universal fitment
• 4-ounce weight engineered for smooth, balanced shifts
• Black-filled pattern graphics resist wear and fading

Description

Ditch the factory plastic and upgrade to a shift ball that matches your build. This polished aluminum 5-speed shift ball delivers the premium feel and durability that serious drivers demand, with a mirror finish that looks as good as it shifts.

The 16mm x 1.50 thread mounting is designed to work with MDL's thread reducing adapters, allowing you to fit this ball on virtually any manual transmission shifter regardless of the original thread pitch. Whether you're running a TREMEC TKX, TKO, T5, or an OEM 5-speed, the right thread reducer gets this ball on your stick. MDL stocks adapters for common applications including 12mm-1.25, 12mm-1.75, 9mm-1.25, 5/16"-18, and 3/8"-16 shifter threads.

At 2-1/8" diameter, this shift ball fills your palm comfortably for confident gear changes during spirited driving. The laser-cut 5-speed pattern features black highlighting that makes gear selection intuitive even in low-light cockpits. The polished aluminum surface cleans up easily and won't degrade from heat or UV exposure like plastic alternatives.

What's Included

• Polished aluminum shift ball with laser-engraved 5-speed pattern and black-filled graphics
• 16mm x 1.50 threaded mounting insert

Note: Thread reducing adapters sold separately.

Key Features

• Adapts 16mm metric threaded shift knobs to 3/8"-16 SAE shift levers
• Includes jam nut for secure, rattle-free installation
• Compatible with many Hurst shift lever applications using 3/8"-16 threads
• Lightweight design at just 2 ounces
• Allows retention of your favorite knob when swapping shifters or levers

Description

Mismatched threads shouldn't force you to abandon a favorite shift knob or settle for one you don't want. This thread reducing insert solves the common fitment problem between 16mm metric shift knobs and the 3/8"-16 SAE threads found on many Hurst shift levers. Whether you're keeping a beloved original knob during a drivetrain upgrade or installing a new 16mm metric knob on your existing Hurst shifter, this adapter delivers a precision fit without modification to either component.

The insert threads into your 16mm shift knob while presenting a 3/8"-16 male thread to mate with the shift lever. The included jam nut locks everything in place, preventing loosening or rotation during aggressive shifting. This simple, effective design weighs just 2 ounces—adding virtually no mass to your shifter assembly.

Fits many popular Hurst shift lever applications commonly found in classic muscle cars and performance builds, including '69-'81 Camaro, '53-'62 Corvette, '36-'46 and '67-'72 Chevy Truck, and '87-'95 Jeep Wrangler YJ. Perfect for TREMEC transmission swaps where you want to retain the original interior appearance or match a specific shift knob to your Hurst Competition/Plus or other 3/8"-16 threaded shifter.

What's Included

• Thread reducing insert (16mm female to 3/8"-16 male)
• Jam nut

Key Features

• Converts 16mm internal knob threads to 3/8-24 external threads for Lokar shift lever compatibility
• Includes jam nut to lock knob securely and prevent loosening during aggressive shifting
• Allows you to retain your favorite shift knob when upgrading to Lokar shifters
• Fits Jeep CJ5, CJ6, CJ7, CJ8 later models and 1936-1946 & 1967-1972 Chevy trucks
• Simple thread-in installation with no modifications required

Description

Upgrading to a Lokar shift lever on your TREMEC-equipped build but don't want to give up your favorite shift knob? This thread reducing insert solves the compatibility problem. Lokar shifters use 3/8-24 threads at the top of the lever, while many OEM and aftermarket shift knobs--including popular universal 16mm-threaded styles--won't thread directly onto that pattern. This insert bridges the gap, letting you mate a 16mm-threaded knob to your new Lokar lever.

The insert threads into the internal 16mm threads of your shift knob, presenting external 3/8-24 threads that mate directly to the Lokar lever. The included jam nut cinches down against the lever to lock the assembly in place, preventing the knob from backing off during spirited driving or repeated shifting. It's a small piece of hardware that makes a big difference when you're mixing and matching components to get exactly the look and feel you want in your build.

This reducer is a common solution for classic Jeep CJ5, CJ6, CJ7, and CJ8 later models, as well as 1936-1946 and 1967-1972 Chevy truck builds where Lokar shifters are installed on TREMEC T5, T45, T56, TKO, or TKX transmissions. If you've got a knob you love and a Lokar lever on the way, this is the adapter you need.

What's Included

• Thread reducing insert (16mm internal threads, 3/8-24 external threads)
• Jam nut

Key Features

• Machined billet steel mounting stud for precision fitment and rock-solid attachment
• Chrome-plated high-strength steel construction for durability and corrosion resistance
• Direct bolt-on design with standard 2-bolt flange (3/8 in. holes on 7/8 in. center-to-center spacing)
• 12-inch overall length with 30-degree single bend (4 in. back x 11 in. tall)
• 3/8 in.-24 thread accepts virtually any aftermarket shift knob
• Countersunk mounting holes with included metric cap screws for clean, flush installation
• Fits TREMEC TKO-500, TKO-600, T5, T45, and T56 transmissions
• Lifetime manufacturer warranty
• Made in the USA

Description

Factory plastic shift levers flex under aggressive shifting and detract from the precise mechanical feel a performance transmission deserves. This Lokar tubular steel shift lever transforms your shifter into a solid, direct connection between driver and transmission, delivering crisp, positive engagement that matches the engineering in your TREMEC gearbox.

Built from high-strength steel with a chrome-plated finish, this lever is designed for durability and the classic hot rod aesthetic. The machined billet steel mounting stud is drilled and countersunk for the included 8mm socket head cap screws, creating a seamless, professional appearance with no exposed hardware at the shifter base. The 30-degree single bend positions the shift knob 4 inches rearward and 11 inches up from the mounting point—placing the grip in an ergonomically optimized position for most muscle car and pro-touring interiors.

Installation is straightforward: the standard 2-bolt flange pattern (3/8 in. holes on 7/8 in. center-to-center spacing) matches the shift towers on TREMEC TKO-500, TKO-600, T5, T45, and T56 transmissions, as well as Borg-Warner units using the same interface. The 3/8 in.-24 thread at the top accepts virtually any aftermarket shift knob, letting you dial in the exact grip style and weight that suits your driving. Backed by Lokar's lifetime warranty and manufactured in the USA, this lever is built to perform for the long haul. Boots, bezels, and shift knobs are sold separately.

Kit Includes

• Chrome-plated high-strength steel shift lever with machined billet steel mounting stud
• 8mm socket head cap screws
• Installation hardware

Key Features

• 13.5-inch height with 3.5-inch setback -- classic candy cane design ideal for bench seat applications
• High-strength forged steel construction with triple chrome plating
• 3/8"-16 threaded top accepts all Hurst shift knobs and T-handles
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• Iconic "HURST" name stamped on the stick
• 3/8-inch mounting holes on 7/8-inch spacing bolt pattern

Description

When your bench seat setup demands proper shift lever reach and positioning, this Hurst Competition/Plus candy cane stick delivers the solution. The 13.5-inch height combined with a 3.5-inch setback puts the shift knob exactly where your hand naturally falls, eliminating the stretch and awkward positioning common with shorter, straighter sticks in bench seat cars and trucks.

Constructed from high-strength forged steel and finished with triple chrome plating, this lever offers both durability and show-quality appearance. The iconic Hurst name is stamped into the stick, maintaining the authentic Competition/Plus heritage that gearheads have trusted for decades. The 3/8"-16 threaded top accepts any Hurst shift knob or T-handle, letting you complete the setup with your preferred grip.

This stick fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method. The forged steel construction eliminates the flex and vibration issues found in cast alternatives, ensuring precise shift feel and long-term reliability. Installation is straightforward -- simply bolt on using the existing two-bolt pattern with 3/8-inch mounting holes on 7/8-inch spacing and you're ready for crisp, positive shifts.

What's Included

• One high-strength forged steel shift lever with triple chrome plating
• Stamped Hurst logo
• Pre-drilled mounting holes (3/8-inch holes on 7/8-inch spacing)
• 3/8"-16 threaded top for knob attachment

Key Features

• 16.5 inches tall with 4.5-inch set-back - ideal for bench seat muscle cars and classic trucks
• High-strength steel construction with triple chrome plating for durability and show-quality finish
• Double-bend candy cane design pulls the shift knob closer to the driver
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on stick
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 3/8" mounting holes on 7/8" spacing

Description

Bench seat muscle cars and classic trucks present a unique challenge: getting the shift knob exactly where your hand naturally falls without awkward reaching or cramped positioning. This 16.5-inch Hurst Competition/Plus candy cane shift stick solves that problem with its double-bend design, delivering a 4.5-inch set-back that pulls the shifter closer to the driver while maintaining proper throw geometry for smooth, precise shifts.

Hurst bolt-on shifter sticks are the go-to solution for custom applications where a particular height or offset is required. This stick is constructed from high-strength steel and triple chrome plated for a mirror finish that resists corrosion and looks right at home in a show car or a weekend warrior. The iconic Hurst name stamped into the steel tells everyone exactly what's moving the gears.

The standard 3/8"-16 thread at the top accepts the full range of Hurst shift knobs and T-handles, so you can finish the setup with whatever grip style suits your driving. The two-bolt base with 3/8" holes on 7/8" spacing fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method - a direct bolt-on replacement or upgrade for your existing stick.

Whether you're building a bench seat hot rod, restoring a classic pickup, or just need more reach from your Hurst shifter, this candy cane stick delivers the height and offset to put the knob right where you need it.

What's Included

• One high-strength steel shift lever, triple chrome plated
• 16.5" tall with 4.5" set-back (candy cane/double-bend style)
• 3/8"-16 threaded top for shift knob attachment
• Two-bolt mounting base (3/8" holes on 7/8" spacing)

Key Features

• 19-inch steel construction with durable black powder coat finish
• Engineered for OE shift placement in 1973-1979 Ford F-Series and 1978-1979 Bronco applications
• 3/8"-24 threads accommodate a wide range of aftermarket shift knobs
• Mounting holes positioned 7/8" on center for precise transmission connection
• Direct-fit design for TREMEC TR4050 5-speed transmissions

Description

When you're swapping a modern TREMEC TR4050 5-speed into your '73-'79 Ford truck or late '70s Bronco, shifter placement matters. Factory shift location keeps the cab ergonomics familiar and eliminates the need for console modifications or awkward reach. This MDL Steel Shift Lever delivers the precise 19-inch geometry needed to position your shift knob exactly where the original shifter sat while mating cleanly to the TR4050's shifter housing.

Steel construction handles the rigors of daily driving and heavy use without flexing or fatigue. The black powder coat finish resists corrosion and wear, standing up to harsh truck environments where mud, moisture, and temperature swings are part of the job. Unlike painted or plated finishes that chip and peel, powder coat bonds to the steel for long-term durability.

The 3/8"-24 threaded tip is the most common shift knob thread in the aftermarket, giving you complete flexibility to choose the knob that fits your hand and style. Mounting point holes are machined 7/8" on center to match TR4050 shifter housing specifications, ensuring smooth operation through all five gears plus reverse without binding or misalignment.

Direct-fit for 1973-1979 Ford F-Series pickups and 1978-1979 Ford Bronco with TR4050 transmission conversions. Made in the USA.

What's Included

• 19-inch steel shift lever with black powder coat finish
• 3/8"-24 threaded tip for shift knob mounting

Key Features

• Direct bolt-on replacement for TREMEC T5, T45, TKX, T56 Magnum, TKO-500, and TKO-600 shifters
• Chrome-plated high-strength tubular steel construction
• 16-inch length with 30-degree single bend (6-inch back offset, 14.5-inch height)
• Standard 2-bolt flange with 3/8-inch holes on 7/8-inch center-to-center spacing
• Machined billet steel mounting stud, drilled and countersunk for clean appearance
• 3/8-24 threads for aftermarket shift knobs
• Includes metric cap screws for installation
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory shift levers leave a lot to be desired—cheap plastic components, weak finishes, and ergonomics that feel like an afterthought. This Lokar chrome-plated steel shift lever delivers a direct bolt-on upgrade for TREMEC manual transmission shifters, combining show-quality appearance with high-strength steel durability.

The 16-inch tubular steel lever features a 30-degree single bend that positions the shift knob with a 6-inch back offset and 14.5-inch overall height. This geometry puts the knob right where your hand naturally falls, improving shift feel and cockpit ergonomics. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering the clean, smooth appearance that distinguishes a quality build from a parts-bin special.

Fitment uses the standard TREMEC 2-bolt flange pattern with 3/8-inch mounting holes on 7/8-inch center-to-center spacing. This works with T5, T45, TKX, TKO-500, TKO-600, T56 Magnum, and all TREMEC shifters that share this common mounting configuration. The 3/8-24 threaded top accepts most quality aftermarket shift knobs, so you can match the lever to your interior. Shift boots, bezels, and knobs are sold separately.

Lokar builds these levers in the USA and backs them with a lifetime manufacturer warranty. When you want chrome that stays chrome and steel that can handle aggressive shifting for years, this is the lever.

What's Included

• Chrome-plated high-strength tubular steel shift lever (16-inch, 30-degree single bend)
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on design for TREMEC T5, T45, TKO, and T56 Magnum transmissions with standard 2-bolt flange
• Chrome-plated steel tubular construction for durability and corrosion resistance
• Double-bend layback geometry: 2 inches back x 14.5 inches tall [VERIFY: Product name states 15" tall but specs list 14.5" tall]
• 16-inch overall length provides comfortable shift knob placement
• Standard 7/8-inch center-to-center bolt spacing fits stock and aftermarket shifter assemblies
• 3/8-24 thread for universal shift knob compatibility
• Machined mounting stud drilled and countersunk for included metric cap screws
• Machined groove for secure boot attachment
• Made in the USA with manufacturer lifetime warranty

Description

Upgrade your shifter with this Lokar chrome steel shift lever that delivers the clean, professional appearance serious builders demand. The double-bend design positions your shift knob with a 2-inch layback and 14.5-inch height from the mounting point, putting the knob exactly where your hand naturally falls during aggressive driving.

Lokar manual transmission shifter levers are direct bolt-on sticks for TREMEC and Borg Warner manual transmissions. These tubular steel levers are built for stock and aftermarket 5- and 6-speed shifters. They fit the T5, T45, TKO, T56 Magnum, and all TREMEC shifters with the standard 2-bolt flange that measures 7/8-inch center to center between bolt holes. The chrome-plated finish resists corrosion and maintains its appearance under hood heat and daily driving conditions.

To give you a clean, smooth appearance, these levers feature a machined mounting stud, drilled and countersunk for the included metric cap screws. The precision machining eliminates the play and flex common with factory pieces. A machined groove provides secure boot attachment while the 3/8-24 thread accepts any standard shift knob.

Made in the USA and backed by Lokar's manufacturer lifetime warranty. Direct bolt-on installation uses included metric cap screws--no modifications required.

What's Included

• Chrome-plated steel shift lever (16-inch double-bend)
• Metric cap screws for mounting

Key Features

• Direct bolt-on for TREMEC T5, T45, T56, and Borg Warner shifters with standard 2-bolt flange
• 12-inch steel construction with layback geometry: 4-inch back offset, 11-inch height, 30-degree bend
• Fits standard 2-bolt flange measuring 7/8-inch center-to-center between bolt holes
• Durable black powder-coated finish for long-lasting appearance
• 3/8"-24 knob thread accepts most aftermarket shift knobs
• Machined mounting stud drilled and countersunk for included metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

When your stock shifter lever doesn't deliver the throw length, ergonomics, or style your build demands, this Lokar layback lever solves the problem with engineered precision. The direct bolt-on design eliminates guesswork--this lever mounts straight to TREMEC and Borg Warner manual transmission shifters without modifications or adapters.

The 12-inch layback configuration places the shift knob exactly where you want it--4 inches back and 11 inches up from the mounting point with a 30-degree bend that follows the natural arc of your shifting motion. This geometry puts the knob closer to the driver for shorter reaches and more comfortable throws, especially in tight interiors or deep bucket seat setups.

Built from steel tubing with a black powder-coated finish, this lever delivers the strength to handle aggressive shifting while maintaining a clean, professional appearance that resists chipping and fading. The machined mounting stud is drilled and countersunk for the included metric cap screws, ensuring a solid, vibration-free connection that won't work loose under hard use.

The standard 2-bolt flange measures 7/8-inch center-to-center, making it compatible with T5, T45, T56, TKO, TKX, and all TREMEC shifter assemblies that use the factory mounting pattern. The 3/8"-24 knob thread accepts a wide range of aftermarket shift knobs. Backed by Lokar's manufacturer lifetime warranty and Made in the USA.

Kit Includes

• 12-inch black powder-coated steel layback shifter lever
• Metric cap screws for mounting

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, TKX, T56 Magnum, and Borg Warner transmissions
• Black powder-coated steel construction for durability and corrosion resistance
• Layback geometry: 6 in. back x 14.5 in. tall with 30-degree bend for optimal hand position
• 16 in. overall length for comfortable reach in most cockpit configurations
• Standard 2-bolt flange with 7/8 in. center-to-center mounting pattern
• Machined billet steel mounting stud with countersunk metric cap screws included
• 3/8"-24 thread for broad aftermarket shift knob compatibility
• Made in the USA with lifetime manufacturer warranty

Description

Factory shifter levers often leave you reaching awkwardly or fighting an uncomfortable angle. This Lokar steel shift lever solves that problem with a layback design that positions your knob exactly where your hand naturally falls. The 6-inch setback combined with a 14.5-inch height and 30-degree bend creates ergonomics that make rowing through gears feel effortless, even on long drives or spirited canyon runs.

Lokar builds these tubular steel levers specifically for TREMEC and Borg Warner manual transmissions. The standard 2-bolt flange measures 7/8 in. center to center between mounting holes, making it a direct bolt-on for T5, T45, TKX, T56 Magnum, and all TREMEC shifters using that common pattern. No adapter plates, no drilling, no fitment headaches.

The engineering shows in the details. A machined billet steel mounting stud replaces the sloppy stamped hardware found on lesser levers, eliminating play at the base for a solid, precise feel. The stud comes drilled and countersunk for the included metric cap screws, giving you a clean, finished appearance with no exposed bolt heads. Black powder coating protects the steel from corrosion and heat while delivering the blacked-out aesthetic that complements modern muscle car interiors.

The 3/8"-24 knob thread is the most common size in aftermarket shift knobs, so you have your pick of styles from weighted billets to classic round balls. Made in the USA and backed by Lokar's lifetime manufacturer warranty, this lever is built to perform for the life of your build.

What's Included

• 16 in. black powder-coated steel shifter lever (layback style)
• Machined billet steel mounting stud
• Metric cap screws for installation
• Lifetime manufacturer warranty

Key Features

• 16" layback design with double bend - 2" back x 14.5" tall configuration for optimal driver reach
• Black powder-coated steel construction for durability and corrosion resistance
• 3/8"-24 thread knob mount - compatible with most aftermarket shift knobs
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Machined mounting stud drilled and countersunk for included metric cap screws
• Made in the USA with lifetime manufacturer warranty

Description

Need a shifter lever that clears a bench seat or console while positioning the knob exactly where your hand naturally falls? This 16" Lokar double-bend shift lever solves fitment problems in classic cars and trucks by using a layback geometry - 2" back x 14.5" tall - that brings the shift knob closer to the driver without compromising throw mechanics.

Direct bolt-on compatibility with TREMEC and Borg Warner manual transmissions including the T5, T45, T56, TKO, and TKX using the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The black powder-coated steel construction resists corrosion and maintains its finish under hood heat and daily driving abuse. Unlike welded or threaded-stud designs, this lever features a machined mounting stud that's drilled and countersunk for the included metric cap screws - delivering a clean, flush appearance at the shifter base.

The 3/8"-24 thread at the top accepts virtually any aftermarket shift knob, while the robust tubular steel construction handles aggressive shifting without flex or deflection. Whether you're building a restomod with a modern 5- or 6-speed or upgrading from a worn factory stick, this Lokar lever delivers the reach, feel, and appearance your build demands.

Made in the USA and backed by Lokar's lifetime manufacturer warranty.

What's Included

• 16" black powder-coated steel double-bend shifter lever
• Machined mounting stud
• Metric cap screws for installation

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Billet aluminum trim ring with ball-milled edges for premium show-quality appearance
• Outer dimensions: 6-3/4" x 5-1/4" - fits standard floor-mount shifter openings
• Inner dimensions: 5-1/2" x 4" - accommodates most aftermarket shifter levers
• Black Naugahyde construction for durability and classic hot rod styling
• Foam rubber seal eliminates airflow and road noise through floor opening
• Boot hugs shifter lever cleanly - no unsightly pull ties or laces
• Includes stainless steel mounting screws for secure installation
• Made in the USA with lifetime warranty

Description

A cheap shift boot can ruin an otherwise clean interior build. This Lokar rectangular shift boot delivers the finishing touch your hot rod or muscle car deserves, combining durable black Naugahyde construction with a precision-machined billet aluminum trim ring featuring ball-milled edges. The result is a show-quality appearance that complements everything from traditional street rods to resto-mod builds.

The engineering centers on a smart billet bezel design that sits atop the boot and fits over the shifter lever. A foam rubber seal underneath blocks airflow and road noise from entering through the floor opening - a critical comfort detail that cheaper boots ignore. Unlike bargain alternatives that use visible pull ties or laces, this boot hugs the shifter lever for a clean, integrated look with no exposed fasteners marring your interior.

With outer dimensions of 6-3/4" x 5-1/4" and inner dimensions of 5-1/2" x 4", this rectangular boot fits standard floor-mount and cable-operated shifter applications. The rectangular footprint is specifically designed for floor-mount shifters rather than transmission-mounted units, making it the correct choice for TREMEC TKX, TKO, and T-56 Magnum installations in vehicles without center consoles. The complete kit includes everything needed for a straightforward installation.

Kit Includes

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 5-inch round black Naugahyde boot with brushed billet aluminum trim ring featuring ball-milled edge detail
• Polished stainless steel bezel fits cleanly over shifter lever for a finished look
• Foam rubber seal eliminates air flow from floor through boot
• Boot hugs shifter lever tightly - no unsightly pull ties or laces
• Complete kit includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A quality hot rod build deserves details that match the craftsmanship under the hood. Cheap, floppy shift boots with visible pull ties or laces cheapen an otherwise well-executed interior. This Lokar Classic Shifter Boot solves that problem with a tight-fitting black Naugahyde boot that hugs the shifter lever cleanly - no ties, no laces, just a professional appearance that signals attention to detail.

The billet aluminum trim ring features Lokar's signature ball-milled edge, adding machined precision that complements polished or brushed interior accents. Up top, a polished stainless steel bezel fits over the shifter lever, creating a finished transition between boot and stick. The included foam rubber seal prevents air from flowing up through the floor - keeping road noise, heat, and debris where they belong.

At 5 inches round, this boot fits floor-mounted shifter applications in hot rods, customs, and classic builds. The round configuration accommodates round shifter levers and provides the clean, symmetric look traditional hot rod interiors demand. Lokar manufactures these boots in the USA and backs them with a lifetime warranty.

What's Included

• Black Naugahyde shift boot
• Billet aluminum trim ring with ball-milled edge (brushed finish)
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Key Features

• Black Naugahyde boot construction for durability and classic hot rod aesthetic
• Black anodized billet aluminum ring with ball-milled edges
• 5-1/4" x 6-3/4" outer ring dimensions for rectangular floor openings
• Foam rubber seal blocks airflow and road noise from the cabin
• No-lace design - boot hugs the shifter lever directly for a clean appearance
• Stainless steel flathead mounting screws included
• Made in the USA with lifetime warranty

Description

A sloppy, ill-fitting shift boot ruins the look of any interior - and a gap around the shifter lets hot transmission tunnel air, exhaust fumes, and road noise flood the cabin. This Lokar rectangular shift boot kit solves both problems with a premium black Naugahyde boot that hugs the shifter lever without unsightly pull ties or laces, plus a foam rubber seal that blocks airflow from below.

The black anodized billet aluminum ring features ball-milled edges that add visual depth and a machined quality you can see and feel. At 5-1/4" x 6-3/4" outer dimensions, this rectangular ring fits most floor-mount shifter installations in classic muscle cars, street rods, and custom builds. The black anodized finish resists fading and corrosion for years of abuse.

Lokar builds this kit entirely in the USA and backs it with a lifetime warranty - the kind of confidence that comes from decades of manufacturing shifter accessories for the performance aftermarket. The complete kit arrives ready to install with stainless steel flathead screws for a clean, professional look.

What's Included

• Black Naugahyde rectangular shift boot
• Black anodized billet aluminum ring with ball-milled edges (5-1/4" x 6-3/4" outer dimensions)
• Foam rubber floor seal
• Stainless steel flathead mounting screws

Key Features

• Black anodized billet aluminum ring with ball-milled edge for coordinated hot rod styling
• 5-1/4-inch outer diameter with 4-inch inner diameter fits most floor shifter openings
• Black naugahyde boot construction delivers classic hot rod aesthetics
• Polished stainless bezel fits over shifter lever for clean transition
• Integrated foam rubber seal eliminates air flow from floor through boot
• Form-fitting design hugs shifter lever with no pull ties or laces
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

Gaps around shifter levers look sloppy and let road noise, dust, and exhaust fumes into the cabin. This Lokar Midnight Series shift boot kit solves both problems with a clean, form-fitting design that delivers classic hot rod styling while sealing the floor opening around your shifter.

The 5-inch round boot features a black anodized billet aluminum ring with ball-milled edges that provide both visual depth and tactile grip during installation. The ball-milled edge treatment creates shadow lines that enhance the three-dimensional appearance while coordinating with other black interior components. Unlike cheaper stainless options, the black anodized finish delivers the blacked-out look modern hot rodders demand.

Unlike inferior boots with visible drawstrings or laces, this design hugs the shifter lever naturally for a factory-quality appearance. The polished stainless bezel on top of the boot fits over the shifter lever, creating a seamless transition. An integrated foam rubber seal eliminates air flow from beneath the vehicle into the cabin, keeping dust, debris, and exhaust fumes where they belong.

The black naugahyde boot material provides authentic period-correct styling while offering excellent durability against heat, UV exposure, and daily use. Compatible with most transmission-mounted and floor-mounted manual shifters in hot rod and classic car applications. Made in the USA by Lokar and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot
• Black anodized billet aluminum ring with ball-milled edge (5-1/4" OD x 4" ID)
• Polished stainless steel bezel
• Foam rubber floor seal
• Stainless steel mounting screws

Key Features

• 83" overall length - application-specific sizing for 1965-1968 Mustang to Toploader routing
• 5/8" screw-type transmission connection - direct fit to Toploader speedometer drive housing
• Passenger-side routing design - matches factory Mustang 4-speed Toploader configuration
• OEM-style construction - maintains period-correct appearance and function for mechanical speedometers
• Direct replacement fitment - eliminates speedometer inaccuracy from worn or damaged cables

Description

Dead speedometers and inaccurate odometers almost always trace back to one failure point: the speedometer cable. When the inner cable breaks, binds, or wears out, your dash becomes useless for monitoring speed and mileage. This 83" speedometer cable delivers the exact length and connection type your 1965-1968 Mustang needs for proper Ford Toploader 4-speed interface.

The 5/8" screw-type connection threads directly into the Toploader's speedometer drive housing on the passenger side - exactly as Ford designed it. Mustang Toploaders feature the speedometer gear access hole on the passenger side of the transmission, and this cable is engineered specifically for that configuration. The driven gear mounts on the end of the cable and inserts into the transmission, where the drive gear on the output shaft spins it to turn your speedometer.

Unlike generic 80" cables that require awkward routing and extra securing points under the car, this 83" cable provides the correct length for clean, factory-style installation. The routing follows the passenger side of the transmission tunnel, maintaining appropriate bend radii that prevent binding and ensure smooth speedometer operation. When paired with the correct driven gear for your rear axle ratio and tire size, this cable restores accurate speed and mileage readings to your Mustang's instrument cluster.

Engineered specifically for Ford Toploader 4-speed transmissions in 1965-1968 Mustang applications. Direct replacement for original equipment cables that have failed due to age, wear, or damage. OEM style for mechanical gauges.

What's Included

• 83" speedometer cable assembly with inner cable and outer housing
• 5/8" screw-type transmission connection end
• Instrument cluster connection end

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• 28-spline output shaft fitment for Ford T5, C4, Toploader, AOD, and AODE transmissions
• 1310 series universal joint compatibility with 1-1/16" bearing caps
• 6" overall length - short version for proper driveshaft geometry
• Cast steel construction for durability in street and performance applications
• Intentionally missing spline tooth allows transmission oil to circulate freely
• Manufactured by Neapco to OEM specifications

Description

The slip yoke is the critical link between your transmission output shaft and driveshaft - it has to match both ends perfectly or you're fighting vibration, binding, or accelerated wear. This Neapco 28-spline slip yoke solves the compatibility challenge for Ford drivetrains running T5 manual, C4 automatic, Toploader 4-speed, AOD, or AODE transmissions with 1310 series driveshafts.

At 6" overall length, this is the short variant designed for applications where existing driveshaft length is correct or close to correct. The cast steel body handles the torque demands of modified Ford powertrains while maintaining precise spline engagement with the transmission output shaft. The 1-1/16" bearing cap diameter fits standard 1310 series universal joints, making driveshaft service and U-joint replacement straightforward.

One detail you'll notice: there's a single tooth intentionally missing from the spline. This isn't a defect - it's engineered to allow transmission fluid to circulate freely within the yoke, preventing hydraulic lock and ensuring smooth operation. Neapco builds these yokes to tight tolerances for vibration-free performance.

A critical note for T5 conversions: if you're swapping from a C4 automatic or Toploader 4-speed, your existing driveshaft can often be reused if it's in good condition. However, C4 and Toploader driveshafts are typically too long for T5 applications and require cutting, re-welding, and rebalancing. Do not use this short yoke expecting it to compensate for incorrect driveshaft length - get the geometry right first. MDL provides a measuring guide to help you determine proper driveshaft dimensions for your application.

What's Included

• One 28-spline slip yoke, cast steel construction
• 1310 series U-joint mounting provision (1-1/16" caps)
• Access to MDL slip yoke measuring guide
• MDL lifetime technical support

Key Features

• Forged chromoly steel construction for maximum strength in high-horsepower applications
• 28-spline internal configuration for TREMEC and Ford transmissions
• 1330 series U-joint with 1-1/16-inch bearing cups
• 5.910-inch centerline-to-end length with 4.500-inch barrel
• 1.499-inch journal diameter for proper seal contact
• Black oxide finish inhibits rust and pitting
• Precision-machined splines mate smoothly with output shaft
• Smooth outer journal promotes proper fore/aft yoke action and prevents leaks
• Made in the USA

Description

Converting to a TREMEC manual or Ford automatic transmission often requires upgrading your slip yoke to handle increased torque and ensure proper driveline function. Factory cast yokes can become the weak link in a high-performance build -- this Sonnax forged chromoly slip yoke delivers the strength and precision your drivetrain demands, whether you're on the street, drag strip, or dirt oval track.

Forged from chromoly steel rather than cast, this 28-spline slip yoke starts with a material that offers superior tensile strength under load. All dimensions are precision-machined to guarantee a consistent, concentric slip yoke that eliminates vibration and binding. The clean-cut splines mate smoothly with the transmission output shaft, while the smooth outer journal provides uniform contact with the tail housing seal to prevent leaks and promote proper fore/aft yoke action.

The 1330 series U-joint configuration accepts bearing caps measuring 1-1/16 inches, providing the right balance of strength and serviceability for most street and performance applications. With a centerline-to-end length of 5.910 inches, a 4.500-inch barrel, and a 1.499-inch journal diameter, this yoke is built to OEM dimensional standards while exceeding factory strength.

Compatible with TREMEC TKO, TKX, Magnum, select T56, Ford C6, FMX, C4, AOD/AODE, T5, and Toploader transmissions. The black oxide finish resists corrosion while maintaining the precision surface finish required for optimal seal performance. Made in the USA.

What's Included

• One Sonnax forged chromoly slip yoke with black oxide finish
• 28-spline internal configuration
• 1330 series U-joint bores (1-1/16-inch bearing cup size)
• Lifetime technical support from MDL

Key Features

• Forged chromoly steel construction - significantly stronger than cast alternatives
• 28-spline internal configuration for secure output shaft engagement
• 1350 series U-joint compatibility with 1-3/16" cap diameter
• 5" barrel length for proper seal engagement and travel
• Precision machined from billet steel for exceptional balance and minimal runout
• Leak-tested to 40 PSI with O.D.-ground seal plug
• Clean-cut splines for smooth mating with output shaft
• Full-spline design (no counterbore)
• Fits C4, AOD, AODE, TREMEC T5, Ford Toploader, and BorgWarner T10 transmissions
• Made in the USA

Description

Upgrading your transmission often means your factory slip yoke becomes the weak link in the driveline. Whether you're converting to a TREMEC T5, Ford Toploader, C4, AOD, or AODE, this Sonnax forged chromoly slip yoke delivers the strength your high-horsepower application demands. Forged - not cast - chromoly steel handles the increased torque loads that modern builds produce, making this an essential upgrade for street, strip, and track duty.

Sonnax precision-machines every yoke from billet steel to guarantee exceptional balance and minimal runout. The 28-spline full-spline configuration engages securely with the transmission output shaft, while the clean-cut splines mate smoothly without the rough edges found on lesser yokes. The 1350 series U-joint ears accept 1-3/16" caps for compatibility with heavy-duty driveshaft assemblies.

Every Sonnax slip yoke is 100% leak-tested to 40 PSI, with the seal plug O.D.-ground for a superior seal against the transmission's rear output seal. The smooth outer journal provides uniform contact with the seal to prevent leaks and promote proper fore/aft yoke action. With a 5" barrel length, this yoke ensures adequate engagement in the tail housing bushing throughout the full range of suspension travel.

Compatible with C4, AOD, AODE automatics and TREMEC T5, Ford Toploader, and BorgWarner T10 manual transmissions equipped with 28-spline output shafts. Made in the USA by Sonnax at their ISO-9001 certified Vermont facility.

What's Included

• Sonnax forged chromoly slip yoke with 28-spline internal configuration
• Leak-tested seal plug (O.D.-ground for superior seal)
