Key Features

• 700 lb-ft torque capacity with substantially increased gear face widths over original T56
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 with dual overdrive for street versatility
• 2-piece laser-beam welded gear construction for precise tooth angles, pitch, and alignment
• 26-spline input shaft, 31-spline output shaft
• Triple-cone synchronizers on gears 1-4; double-cone on 5th, 6th, and reverse
• Fully reversible TKO-style die-cast aluminum shifter with built-in mid-shift provisions
• Dual speedometer pickups for mechanical and electronic speedometers
• 140 lbs dry weight; 3.66-quart fluid capacity (Dexron III ATF)
• Cable release hardened steel guide tube and pivot stud included
• Max rated at 7,800 RPM

Description

The TREMEC T56 Magnum TUET16884 solves the torque limitation that plagued the original T56. Introduced in spring 2009, the Magnum delivers a massive 700 lb-ft torque capacity through substantially increased gear face widths and 2-piece laser-beam welded gear construction. Based heavily on the TR-6060 found in factory supercars like the ZR1 Corvette and ACR Viper, the Magnum combines TREMEC's OEM design and manufacturing technologies with the most popular features of the TKO 5-speed.

This TUET16884 features the wide-ratio gear set with 2.97 first gear and close-ratio 0.80/0.63 double overdrive—ideal for street-driven builds that need strong acceleration through the lower gears while maintaining relaxed highway cruising RPM. The 85mm center distance and bolstered one-piece countershaft resist distortion under load, while redesigned shift forks and fine-tooth synchronizer angles deliver incredibly short, low-effort throws with crisp engagement even at high RPM.

Triple-cone synchronizers on gears 1 through 4 and double-cone synchronizers on 5th, 6th, and reverse handle aggressive shifts with ease. The fully reversible TKO-style die-cast aluminum shifter provides smooth, positive shift action with two stock shifter positions, plus built-in mid-shift provisions under the inspection cover for simple forward shifter placement in bench-seat applications. Dual speedometer outputs accommodate both mechanical and electronic gauges, and the reverse lockout solenoid and reverse light switch are built in.

Configured for Ford applications with a 26-spline input shaft and 31-spline output shaft. Compatible with cable release clutch systems via the included hardened steel guide tube. The extensively modified transmission case prevents leaks under high-stress conditions and increases overall power-handling capabilities. Uses 3.66 quarts of TREMEC HP-MTF, Dexron III, or Mobil 1 Synthetic ATF.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET16884)
• Die-cast aluminum shifter assembly (fully reversible, TKO-style)
• Hardened steel cable release guide tube
• Cable fork pivot stud
• Mechanical speedometer output (gear-driven)
• 17-tooth electronic speedometer sensor
• Reverse lockout solenoid
• Reverse light switch
• Vent tube assembly
• TREMEC 1-year factory warranty
• MDL extended warranty (additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft effective torque capacity - handles serious power from big-block Fords to supercharged Coyotes
• Close-ratio gearing: 2.66, 1.78, 1.30, 1.00, 0.80, 0.63 - keeps the engine in its powerband through the gears
• Double overdrive (0.80 fifth, 0.63 sixth) - drops highway RPMs for improved fuel economy and reduced cruising noise
• 85mm center distance design for enhanced strength over original T56
• 135 lbs dry weight - reasonably light for a 700 lb-ft-rated 6-speed
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse for crisp, high-RPM shifts
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter with smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple conversions
• 1-1/8-inch 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups accommodate both mechanical and electronic speedometers
• Cable release hardened steel guide tube with pivot stud - accepts OE-style mechanical clutch fork
• Overall length: 34.03 inches
• Fluid capacity: 3.66 quarts Dexron III ATF

Description

When your Ford build demands more than a 5-speed can deliver but you refuse to compromise on shift quality, the TREMEC T56 Magnum answers the call. This close-ratio TUET11010 variant keeps RPM drops tight between gears - ideal for road racing, autocross, and spirited street driving where staying in the powerband matters. The 2.66 first gear pulls hard off the line, while the double overdrive (0.80 fifth, 0.63 sixth) drops highway RPMs dramatically for quiet, fuel-efficient cruising.

The Magnum is TREMEC's aftermarket version of the TR-6060 - the same transmission found in factory supercars like the Corvette ZR1 and Viper ACR. The 85mm center distance provides a larger gear contact patch and stronger case than the original T56, supporting 700 lb-ft of torque capacity. Triple-cone synchronizers on gears 1-4 and double-cone synchronizers on 5-6 and reverse deliver accurate, smooth shifts even at high RPM. The fully reversible die-cast aluminum shifter provides incredibly short, low-effort throws with crisp engagement.

This Ford-pattern Magnum requires a separate bellhousing and pairs with V8 Ford engines from small-block Windsors to modular 4.6/5.0 Coyote applications with the appropriate bellhousing. The hardened steel guide tube accepts standard mechanical clutch fork designs, making it a straightforward swap for classic Mustang builds. Dual speedometer provisions handle both electronic and mechanical gauges, while the built-in reverse lockout and reverse light switch simplify wiring.

MDL extends TREMEC's factory warranty by an additional year with a 1-year grace period when you purchase from us. That's the MDL difference - elite distributor pricing backed by lifetime technical support from people who actually know these transmissions inside and out.

What's Included

• TREMEC T56 Magnum 6-speed transmission (TUET11010)
• OEM-grade die-cast aluminum reversible shifter assembly
• Hardened steel cable release guide tube
• Pivot stud for mechanical clutch fork
• 17-tooth analog/electric speedometer drive gear
• Reverse light switch
• Reverse lockout solenoid
• Drain and fill plugs
• TREMEC factory warranty plus MDL extended warranty (1 additional year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - handles serious power with confidence
• Based on TR-6060 OEM architecture - proven in factory supercars like the Dodge Viper and Camaro
• 135 lbs dry weight - light for a transmission this strong
• 2.97 first gear with 0.74/0.50 double overdrive - aggressive launch with relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse
• Fully reversible TKO-style die-cast aluminum shifter for smooth, positive shift action
• Built-in mid-shift provisions under inspection cover for simple forward shifter placement
• 26-spline input shaft, 31-spline output shaft
• Dual speedometer pickups - mechanical and electronic
• 7,800 RPM rating
• 85mm center distance
• Cable release hardened steel guide tube included

Description

When TREMEC introduced the T56 Magnum in 2009, it solved the problem builders had been chasing for years: how to get bulletproof six-speed strength with OEM-level refinement in an aftermarket package. Based heavily on the TR-6060 - the same transmission found in factory supercars - the Magnum combines TREMEC's current OEM design and manufacturing technologies with the most popular features of their TKO 5-speed. The result is the smoothest-shifting, strongest, and most versatile 6-speed aftermarket transmission TREMEC has ever produced.

This TUET11011 features the wide-ratio 2.97 first gear, making it ideal for street-driven builds that want strong off-the-line acceleration without sacrificing highway drivability. The 0.74 fifth and 0.50 sixth gears deliver true double overdrive, dropping RPM for relaxed cruising and improved fuel economy. Spring-loaded ball-type synchronizer inserts reduce friction and eliminate notchy shifting, resulting in incredibly short, smooth shifts with crisp engagement.

The engineering upgrades over the original T56 are substantial. Face widths of the gears have been significantly widened to handle more torque, while redesigned one-piece shift forks with permanently mounted shift links eliminate the float and incomplete engagement that plagued earlier designs. The 85mm center distance provides the robust gear geometry needed to handle 700 lb-ft reliably. Multiple shifter locations accommodate different builds, and the reversible shifter assembly allows changing shift lever position simply by flipping the shift cover.

Compatible with Ford modular engines using the appropriate bellhousing (sold separately). Uses Dexron III ATF - no exotic fluids required. Made in the USA by TREMEC.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11011)
• Cable release hardened steel guide tube
• Reverse light switch
• 17-tooth electronic speedometer sensor
• Mechanical speedometer drive provision
• MDL extended warranty (extra year with 1-year grace period when purchased as part of a complete conversion package)
• MDL lifetime technical support

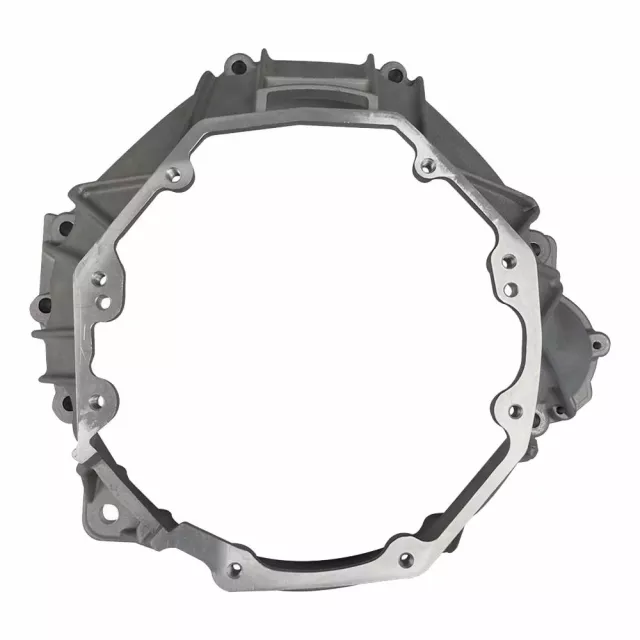

Key Features

• Cast aluminum construction with CNC-machined mounting surfaces for lightweight precision
• 7 o'clock clutch fork position - matches 2003-2004 Cobra T56 configuration
• Fits Ford 4.6L, 5.4L modular engines and 5.0L Coyote engines
• Compatible with 2003-2004 Cobra OE T56 and TREMEC T56 Magnum transmissions
• All mounting faces, dowels, and bolt locations fully CNC machined for precise fitment
• Works with fork-style clutch or hydraulic throwout bearing systems
• Non-SFI rated - ideal for street applications under 500 hp
• Pressure cast finish for clean appearance

Description

Converting your Ford modular or Coyote engine to a T56 Magnum requires precise bellhousing engineering - and this McLeod aluminum bellhousing delivers exactly that. Whether you're completing a Coyote swap or upgrading the transmission in your modular-powered Mustang, this bellhousing eliminates the guesswork of adapting newer transmissions to Ford's modular platform. Every mounting face, dowel pin location, and bolt hole is CNC machined to achieve precise, direct installation without the trial-and-error fitting common with lesser alternatives.

The 7 o'clock clutch fork position is engineered specifically to match 2003-2004 Cobra T56 configurations, ensuring proper fork geometry and clutch release operation. This bellhousing works with both traditional fork-style clutch setups and hydraulic throwout bearing systems, giving you flexibility in how you configure your clutch actuation. Cast from aluminum rather than fabricated steel, this bellhousing shaves critical weight from your drivetrain while maintaining the structural integrity needed for street and moderate performance applications.

Designed for Ford 4.6L, 5.4L modular engines and 5.0L Coyote applications, this bellhousing adapts seamlessly to both 2003-2004 Cobra OE T56 and modern TREMEC T56 Magnum 6-speed transmissions. This is a non-SFI bellhousing ideal for street use - for drag racing or applications over 500 hp, a steel SFI-rated bellhousing is recommended. The pressure cast finish provides a professional appearance that complements modern engine bay aesthetics. Made in the USA.

What's Included

• Cast aluminum bellhousing with CNC-machined mounting surfaces and pressure cast finish
• Installation hardware
• Installation instructions
• Lifetime technical support

Note: Bellhousing does not include transmission-to-bellhousing bolts or bellhousing-to-block bolts. 1979-1993 Mustang owners will need to use a 1996-2004 Mustang clutch fork.

Key Features

• SFI 6.1 certified steel scatter shield -- required for sanctioned racing at 11.49 or faster in the quarter mile
• Fits 4.6L, 5.0L Coyote, 5.4L, 5.8L, and 6.2L Ford Modular engines to Ford T56 and TREMEC Magnum transmissions
• Spun-formed cone construction (not rolled or stamped) delivers twice the strength of conventional steel bellhousings
• High-grade steel work-hardens to over 80,000 PSI for maximum dimensional stability
• 5.322-inch bellhousing depth with semi-gloss black finish
• Clutch fork positioned at 7:00 -- designed for Ford OE fork or cable-style throwout bearing
• Accommodates 164-tooth flywheels and clutches up to 11 inches
• OEM-style starter mounting location
• Universal fit design -- not vehicle specific
• Patent pending on 16 points of bellhousing design and process
• 20 lbs. product weight
• Made in the USA

Description

The QuickTime RM-8080 solves the critical challenge of mating Ford Modular engines to Ford T56 and TREMEC Magnum 6-speed transmissions in high-performance applications. SFI 6.1 certification makes this bellhousing mandatory for sanctioned drag racing with quarter-mile times of 11.49 or faster, while its engineered construction delivers the dimensional accuracy and burst protection that serious builds demand.

QuickTime's proprietary spin-forming process creates a cone that's dimensionally stable and accurate -- unlike rolled or stamped alternatives that flex under load. The high-grade steel work-hardens to over 80,000 PSI, delivering more than twice the strength of conventional steel bellhousings while maintaining a lightweight 20-pound profile. This rigidity keeps the engine and transmission in perfect alignment through the entire RPM range, eliminating the accelerated drivetrain wear caused by bellhousing flex in lesser designs.

The 5.322-inch depth positions the clutch fork at the 7:00 location, designed to work with Ford OE forks or cable-style throwout bearing setups. This bellhousing accommodates 164-tooth flywheels and clutches up to 11 inches in diameter, with OEM-style starter placement for straightforward installation. As a universal-fit design, the RM-8080 is not vehicle-specific -- it bridges any Ford Modular engine (4.6L through 6.2L) to the Ford T56 transmission bolt pattern used by both factory T56 units and the TREMEC Magnum.

Engineered with patent-pending innovations across 16 critical design elements and manufactured entirely in the USA. Note: Transmission mounting bolts are sold separately.

What's Included

• QuickTime RM-8080 steel bellhousing with semi-gloss black finish
• Engine block plate
• Grade 8 hardware
• Installation instructions

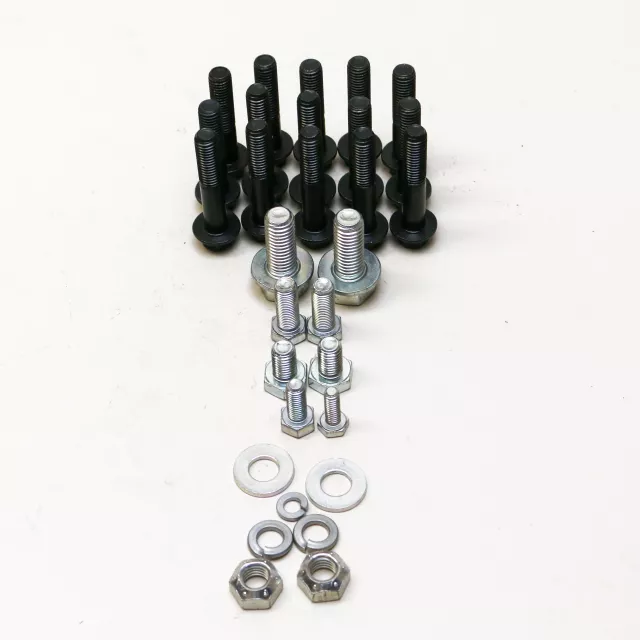

Key Features

• Application-specific bolt kit for TREMEC T56 Magnum transmission to aluminum bellhousing installations
• Engineered for Ford 4.6L and 5.4L modular engine applications
• Correct bolt lengths for aluminum bellhousing thickness--different from steel bellhousing hardware
• M10 x 1.5 threaded fasteners for proper T56 Magnum bellhousing bolt pattern
• Grade 8 fasteners with thread locker for maximum clamping force and vibration resistance

Description

Aluminum bellhousings require different bolt specifications than their steel counterparts. The wrong fastener length can result in bolts bottoming out before achieving proper clamping force, or insufficient thread engagement that compromises the transmission-to-bellhousing connection. When you're mating a TREMEC T56 Magnum to an aluminum bellhousing behind a Ford 4.6L or 5.4L modular engine, this hardware kit eliminates the guesswork.

This MDL Install Hardware Kit provides the exact transmission-to-bellhousing fasteners required for aluminum bellhousing applications. The kit uses M10 x 1.5 threaded bolts with lengths specifically calculated for aluminum bellhousing material thickness, ensuring full thread engagement without bottoming out. Each fastener is Grade 8 quality with factory-applied thread locker to prevent vibration-induced loosening under load.

Unlike steel bellhousings, which often use longer bolts to account for thicker material, aluminum bellhousings demand precision-matched hardware. Using the wrong bolts can lead to poor torque transfer, transmission misalignment, and accelerated drivetrain wear. This kit gives you exactly what you need for a professional-grade installation--nothing more, nothing less.

What's Included

• Complete set of transmission-to-bellhousing bolts (aluminum bellhousing specification)
• Grade 8 hex head fasteners with pre-applied thread locker

Key Features

• Complete transmission-to-bellhousing bolt set for Ford T56 Magnum installations
• Designed specifically for steel aftermarket bellhousings
• Metric fasteners with proper thread pitch for TREMEC T56 Magnum mounting holes
• Eliminates hardware sourcing headaches during your Ford 6-speed swap

Description

Aftermarket steel bellhousings typically ship with bellhousing-to-engine-block hardware only, leaving you to source the bolts needed to attach the transmission itself. This MDL hardware kit solves that problem for Ford T56 Magnum installations by providing the exact fasteners required to mount the transmission to any steel aftermarket bellhousing.

The kit is purpose-built for steel bellhousing applications. Steel bellhousings have different material thickness than aluminum units, requiring specific bolt lengths for proper thread engagement without bottoming out. Using the wrong hardware can result in insufficient thread engagement or bolts that bind before the transmission face seats flush. This kit takes the guesswork out of the equation.

Compatible with all steel aftermarket bellhousings that accept the Ford version of the TREMEC T56 Magnum 6-speed transmission. If you're pairing your Magnum with an aluminum bellhousing, you'll need the AL version of this kit instead, as aluminum bellhousings use different bolt lengths. This kit covers transmission-to-bellhousing mounting only; bellhousing-to-engine-block hardware is typically supplied by the bellhousing manufacturer.

What's Included

• Complete set of transmission-to-bellhousing mounting bolts [VERIFY: exact bolt count, thread size, and grade]

Clutch Lever | 1994-2004 Mustang | T5, T45, 3650, 4.6L T-56

Key Features

• Fits all 1994-2004 Mustang manual transmissions: T5, T45, 3650, and 4.6L T-56
• Designed for cable and external hydraulic clutch operation with compatible bellhousings
• SN95-specific geometry with longer overall length and extended pivot points versus Fox Body forks
• Stamped steel construction for durability and reduced flex under load
• Direct replacement for worn OE clutch forks on SN95 and New Edge Mustangs

Description

When you're replacing the clutch in your 1994-2004 Mustang, don't overlook the clutch fork. This frequently neglected component takes a beating every time you press the pedal, and a worn fork causes sloppy engagement, inconsistent pedal feel, and premature throwout bearing wear. This MDL clutch lever restores factory-correct geometry to your SN95 or New Edge drivetrain.

The SN95 clutch fork is not interchangeable with Fox Body forks. The 1994-2004 lever is longer overall with extended pivot points to match the deeper SN95 bellhousing depth and longer input shaft configuration. Using the wrong fork causes the clutch cable to exit at a severe angle, resulting in hard pedal effort, accelerated cable wear, and eventual cable failure. This lever provides the correct geometry for proper throwout bearing positioning and smooth clutch actuation.

Engineered for both stock cable-release setups and external hydraulic conversions, this fork works with OE and aftermarket bellhousings designed for '94-'04 applications. Whether you're running a T5 carryover, the T45 that served '96-'99 GTs, the 3650 that replaced it in 2000, or the T-56 behind your 4.6L Cobra, this clutch lever delivers the reliable operation your drivetrain demands.

Kit Includes

• Clutch lever/fork assembly
• Installation instructions

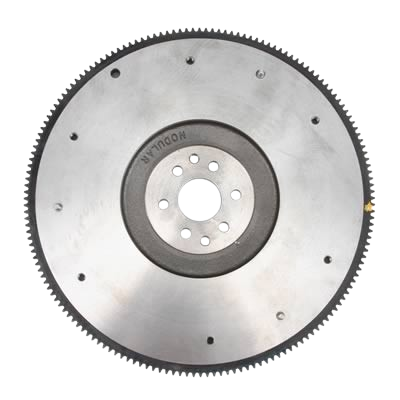

Key Features

• Cast iron construction for superior heat absorption and thermal stability in street-driven applications
• 164-tooth ring gear with 11-inch clutch pattern (10.4-inch metric bolt circle)
• 6-bolt crankshaft pattern for Ford 4.6L "large valley" Romeo-built engines
• Zero-balanced design for internally balanced 4.6L modular engines
• Includes alignment pins for precise clutch installation and proper component positioning
• Direct fitment for 1996-June 1999 and 2001-2010 Mustang GT applications

Description

Street-driven 4.6L Mustangs need a flywheel that can handle daily abuse without warping or developing hot spots. Cast iron's superior thermal mass absorbs repeated clutch engagements far better than lightweight alternatives, making it the ideal choice for commuter cars, weekend cruisers, and moderate-power builds where longevity matters more than shaving rotating weight.

This flywheel is engineered specifically for Ford's 4.6L modular engines with the 6-bolt "large valley" crankshaft configuration. Romeo-built 4.6L engines use this 6-bolt pattern, while Windsor-built and Cobra engines use an 8-bolt configuration--so verify your engine's build before ordering. The zero-balanced design works with the internally balanced rotating assembly found in all 4.6L SOHC engines, eliminating the external counterweights required by older Ford V8s.

The 164-tooth ring gear ensures reliable starter engagement across all temperature conditions, while the 11-inch clutch pattern with 10.4-inch metric bolt circle accommodates standard diaphragm pressure plates from the modular Mustang era. Alignment pins are included to guarantee proper clutch disc and pressure plate positioning during installation.

Compatible with 1996-June 1999 and 2001-2010 Mustang GT vehicles equipped with the 4.6L 2V SOHC engine. [VERIFY: Why is the year 2000 excluded from fitment? Confirm whether this is intentional due to a mid-year engineering change or if it should be included.]

What's Included

• Cast iron flywheel with 164-tooth ring gear
• Alignment pins for clutch installation

Key Features

• Cast steel construction with 164-tooth ring gear for reliable starter engagement
• 8-bolt crankshaft mounting pattern fits 1999-2010 Mustang GT, 2001-2004 Cobra, and 2011+ 5.0L Coyote engines
• Zero balance (internally balanced) design - no counterweight balancing required
• 11" clutch bolt pattern with 12-3/8" equal spacing for metric 11" diaphragm clutches
• Cost-effective OE-style replacement for street-driven applications
• Single-disc clutch compatible

Description

When your high-mileage Mustang starts showing signs of a worn clutch surface or you need a reliable flywheel for a stock rebuild, this cast steel unit delivers OE-quality fitment without the premium price of billet. Designed specifically for Ford's 4.6L and 5.0L modular engine family with the 8-bolt crankshaft pattern, this flywheel provides the mass and durability street-driven vehicles need for smooth engagement and everyday drivability.

The 164-tooth ring gear ensures proper starter motor mesh across the full range of compatible applications - from '99-'10 Mustang GTs and '01-'04 SVT Cobras to modern 5.0L Coyote swaps. Zero balance (internally balanced) construction means you won't need additional counterweight balancing during installation, simplifying the job whether you're working in a professional shop or your home garage.

Cast steel offers the ideal combination of rotating mass and affordability for daily drivers and mild performance builds. The added inertia helps smooth out clutch engagement at low speeds - a real advantage over lightweight aluminum or billet units that can feel grabby in stop-and-go traffic. For dedicated track cars or high-RPM racing applications, billet steel is the better choice, but for street use and moderate performance, cast steel delivers proven reliability.

The 11" clutch bolt pattern features 12-3/8" equal spacing holes drilled for metric diaphragm pressure plates, ensuring compatibility with both OEM and aftermarket 11" clutch systems. Direct bolt-on fitment for your 4.6L 2V/4V or 5.0L Coyote manual transmission application.

What's Included

• Cast steel flywheel with integrated 164-tooth ring gear
• 8-bolt crankshaft mounting pattern
• Zero balance design (no counterweight required)
• Pins included

Key Features

• Designed for Ford 4.6L Modular engines with 6-bolt crankshaft configuration (Romeo-type engines)
• Dual clutch bolt pattern accepts both 10.4" and 11" pressure plates with metric bolts and dowel pins
• Lightened billet steel construction reduces rotational mass while maintaining strength for high-performance applications
• 164-tooth ring gear for proper starter motor engagement
• Zero balanced from the factory for smooth, vibration-free operation
• 27-pound weight optimizes throttle response and acceleration over heavier OEM flywheels
• Made in the USA with precision CNC machining

Description

Ford's 4.6L Modular V8 came from two different plants with distinct crankshaft configurations: Romeo engines use a 6-bolt flywheel flange, while Windsor engines use an 8-bolt pattern. This lightened billet steel flywheel is purpose-built for the 6-bolt Romeo configuration, giving you a drop-in solution for manual transmission conversions and clutch upgrades on properly matched 4.6L applications.

The dual bolt pattern design accommodates both 10.4" and 11" clutch assemblies, using metric pressure plate bolts and alignment dowel pins. This flexibility lets you choose the clutch setup that best matches your power level and driving style without buying a different flywheel. The 164-tooth ring gear ensures reliable starter engagement, and the zero-balance specification eliminates vibration concerns in your drivetrain.

Machined from billet steel rather than cast iron, this flywheel delivers superior strength for high-horsepower applications while shedding rotational mass. At 27 pounds, it provides noticeably quicker throttle response and faster acceleration compared to heavy factory flywheels, without sacrificing the durability needed for street driving or track use. CNC machining ensures precise tolerances and perfect crankshaft registration every time.

Made in the USA with MDL's commitment to quality and backed by lifetime technical support. Verify your engine's bolt count before ordering, as Romeo (6-bolt) and Windsor (8-bolt) engines are not interchangeable, even though both are 4.6L Modular V8s.

What's Included

• One lightened billet steel flywheel (27 lbs)
• 164-tooth ring gear pre-installed
• Zero balanced assembly
• Dowel pins included
• MDL lifetime technical support

Key Features

• 27-pound lightened billet steel construction reduces rotational mass versus heavy factory cast iron
• 8-bolt crank pattern for secure mounting to Ford Modular, Coyote, and Roadrunner crankshafts
• 164-tooth ring gear for proper starter engagement
• Dual clutch bolt patterns: 10.4" metric (8mm) and 11" metric (10mm) for maximum pressure plate compatibility
• Small clutch valley design accommodates single-disk and twin-disk aftermarket clutch systems
• Zero-balance design works with internally balanced Ford Modular engines
• Precision-machined alignment pins included for accurate clutch installation
• Made in the USA

Description

Factory cast iron flywheels add significant rotational mass that slows engine acceleration and dulls throttle response. This lightened billet steel flywheel cuts weight to just 27 pounds, reducing the rotating assembly mass your engine has to spin. The result is faster revs, sharper throttle response, and quicker shifts—whether you're running through the gears on the street or chasing lap times at the track.

Machined from billet steel, this flywheel delivers the durability needed for repeated high-RPM use while significantly undercutting factory weight. The 8-bolt crank pattern ensures secure attachment to the crankshaft, and the 164-tooth ring gear maintains compatibility with factory starters. Zero-balance design means no external weights are required—it bolts directly to internally balanced Ford Modular and Coyote engines.

The dual clutch bolt pattern is a standout feature. Both 10.4" metric (8mm) and 11" metric (10mm) patterns are machined into the friction surface, giving you the flexibility to run virtually any aftermarket clutch setup. The small clutch valley design takes compatibility further, accommodating everything from street-friendly single-disk clutches to high-performance twin-disk racing units. Precision-machined alignment pins ensure the clutch disc centers properly during installation.

This flywheel fits 1996-1999 and 2000-up Mustang Cobra models, 1999-2000 Mustang GT, 2005-2010 Mustang GT 4.6L, and 2011-current 5.0L/5.2L Coyote and Roadrunner V8 applications. Proudly made in the USA.

Kit Includes

• One (1) lightened billet steel flywheel with 164-tooth ring gear
• Precision-machined alignment pins

Key Features

• Designed for Ford 4.6L Modular engines with 6-bolt crankshaft configuration (Romeo-type engines)
• Dual clutch bolt pattern accepts both 10.4" and 11" pressure plates with metric bolts and dowel pins
• Lightened billet steel construction reduces rotational mass while maintaining strength for high-performance applications
• 164-tooth ring gear for proper starter motor engagement
• Zero balanced from the factory for smooth, vibration-free operation
• 27-pound weight optimizes throttle response and acceleration over heavier OEM flywheels
• Made in the USA with precision CNC machining

Description

Ford's 4.6L Modular V8 came from two different plants with distinct crankshaft configurations: Romeo engines use a 6-bolt flywheel flange, while Windsor engines use an 8-bolt pattern. This lightened billet steel flywheel is purpose-built for the 6-bolt Romeo configuration, giving you a drop-in solution for manual transmission conversions and clutch upgrades on properly matched 4.6L applications.

The dual bolt pattern design accommodates both 10.4" and 11" clutch assemblies, using metric pressure plate bolts and alignment dowel pins. This flexibility lets you choose the clutch setup that best matches your power level and driving style without buying a different flywheel. The 164-tooth ring gear ensures reliable starter engagement, and the zero-balance specification eliminates vibration concerns in your drivetrain.

Machined from billet steel rather than cast iron, this flywheel delivers superior strength for high-horsepower applications while shedding rotational mass. At 27 pounds, it provides noticeably quicker throttle response and faster acceleration compared to heavy factory flywheels, without sacrificing the durability needed for street driving or track use. CNC machining ensures precise tolerances and perfect crankshaft registration every time.

Made in the USA with MDL's commitment to quality and backed by lifetime technical support. Verify your engine's bolt count before ordering, as Romeo (6-bolt) and Windsor (8-bolt) engines are not interchangeable, even though both are 4.6L Modular V8s.

What's Included

• One lightened billet steel flywheel (27 lbs)
• 164-tooth ring gear pre-installed
• Zero balanced assembly
• Dowel pins included
• MDL lifetime technical support

Key Features

• 8740 chromoly steel construction rated at 180,000 psi tensile strength
• 12-point head design with 5/8" socket size for precise torque application
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• M10 x 1.00 thread pitch with 1.000" Under Head Length (UHL)
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• Black oxide finish for corrosion resistance
• 8-piece kit covers all Ford 4.6L and 5.4L modular V8 applications
• Made in the USA

Description

Factory flywheel bolts are the weak link in high-performance Ford modular builds. Stock hardware uses inferior metallurgy and undersized shanks that stretch under load, leading to flywheel movement, clutch chatter, and potential failure. These ARP flywheel bolts eliminate that vulnerability with aerospace-grade 8740 chromoly steel engineered specifically for the demanding duty cycle of performance applications.

These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining. They feature an exclusive, flat 12-point head design and larger-than-stock shank diameter for increased strength and improved flywheel register. The 12-point head provides superior grip and prevents rounding during installation, while the increased shank diameter distributes clamping loads more effectively across the flywheel mounting surface.

Each bolt is precision-machined to M10 x 1.00 specifications with a 1.000" Under Head Length designed specifically for Ford modular cranks. The chromoly construction delivers a 180,000 psi tensile strength rating--vastly superior fatigue resistance compared to factory hardware. This makes these bolts ideal for naturally aspirated engines, forced induction setups, and high-RPM applications where flywheel security is critical.

This kit fits all Ford 4.6L and 5.4L modular V8 engines. Installation requires proper torque sequencing in a star pattern. Made in the USA and backed by ARP's industry-leading quality standards.

What's Included

• 8 x ARP 8740 chromoly flywheel bolts (M10 x 1.00 x 1.000" UHL, 12-point head, black oxide finish)
• Installation grease packet for proper assembly lubrication
• Manufacturer's warranty against defects

Key Features

• Heat-treated chromoly steel forged from aerospace alloy for superior tensile strength
• Flat 12-point head design with larger-than-stock shank diameter for improved flywheel register
• M10 x 1.00 thread pitch with 0.975-inch under-head length
• Black oxide finish for corrosion resistance
• 3/4-inch 12-point socket size for professional installation
• Complete 8-piece kit with installation grease included
• Made in the USA

Description

Flywheel bolt failure is a catastrophic event that can destroy transmissions, flywheels, and pressure plates in seconds. These bolts secure the flywheel to the crankshaft, making their integrity critical to your drivetrain's safety and performance—especially when pushing the 5.0L Coyote to 7,000+ RPM. ARP's engineering addresses this vulnerability with fasteners that far exceed OEM specifications.

Forged from aerospace alloy and heat-treated prior to thread rolling and machining, these ARP flywheel bolts deliver the strength needed for high-RPM operation and competition use. The exclusive flat 12-point head design features a larger-than-stock shank diameter for increased strength and improved flywheel register. The wider diameter bolt head allows for more even distribution of torque across the flywheel to reduce stress, fatigue, and prevent cracking.

The black oxide finish provides corrosion protection while maintaining the precise tolerances required for proper clamping force distribution. Each bolt features rolled threads for superior fatigue resistance compared to cut threads, and the included installation grease ensures proper torque values during assembly.

Engineered specifically for Ford Coyote 5.0L applications. This is a direct replacement for factory flywheel bolts with significantly improved strength characteristics. Made in the USA with ARP's legendary quality control standards.

What's Included

• 8 ARP flywheel bolts—M10 x 1.00 thread, 0.975-inch UHL, chromoly steel
• Black oxide finish
• Installation grease packet
• Manufacturer's warranty against defects

[VERIFY: Sources conflict on whether part number 156-2801 is High Performance Series (180,000 psi tensile strength) or Pro Series (190,000-200,000 psi). Summit Racing and JEGS list as Pro Series, while Steeda lists as High Performance at 180,000 psi. Need to confirm actual series designation and tensile strength rating before publishing.]

Superior Steel-Back Organic Clutch Kit | 2003-2004 Ford Mustang Cobra | Cable Release

Key Features

• 400 ft-lb torque capacity - handles moderate power upgrades beyond the factory supercharged 4.6L output
• Steel-backed organic facing - improved durability and heat dissipation over standard organic discs with smooth, street-friendly engagement
• Ford Metric 10mm bolt pattern nodular diaphragm pressure plate - direct replacement for factory Terminator Cobra applications
• Cable release finger profile - pressure plate machined specifically for mechanical cable clutch actuation
• 11-inch clutch disc, 26-spline x 1-1/8-inch hub - maximizes surface area for smooth power transfer [VERIFY: Product listing states 26-spline, but factory Terminator T56 used 10-spline input shaft - confirm correct spline count for intended application]
• Hand-built in Caldwell, Idaho - each disc assembled and inspected in-house for precise tolerances
• Complete kit - includes all components needed for installation

Description

The 2003-2004 Terminator Cobra arrived from the factory with 390 hp and 390 lb-ft of torque from its supercharged 4.6L DOHC V8 - and most owners don't leave it there. Once you start adding boost or supporting modifications, the stock clutch becomes the weak link. This Superior Series steel-backed organic clutch kit delivers 400 ft-lb of holding capacity while preserving the smooth, progressive engagement characteristics that make a Terminator livable on the street.

The steel backing plate behind the organic friction material provides two key advantages over standard organic discs: increased structural rigidity under high clamp loads and better heat dissipation during aggressive driving. The result is longer clutch life without the harsh engagement or chatter that comes with full-metallic or ceramic facings. The nodular iron diaphragm pressure plate uses Ford's Metric 10mm bolt pattern and features clutch fingers specifically profiled for cable release operation, ensuring consistent pedal feel and proper throwout bearing geometry.

Every Superior clutch disc is hand-assembled at MDL's facility, where technicians verify spring tension, rivet placement, and balance before shipping. The 11-inch disc diameter provides ample surface area for smooth torque transfer, and the kit includes a cable-style throwout bearing, pilot bearing, and alignment tool - everything needed for a complete installation. This kit is designed for Terminator Cobra owners who want a clutch upgrade that handles bolt-on power levels while maintaining daily-driver manners.

Fits 2003-2004 Ford Mustang SVT Cobra with cable clutch actuation. Made in the USA and backed by a 1-year warranty against manufacturing defects.

Kit Includes

• Ford Metric 10mm pattern nodular diaphragm pressure plate with cable release finger profile
• 11-inch steel-backed organic clutch disc, 26-spline x 1-1/8-inch [VERIFY: confirm spline count matches intended transmission application]
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• 1-year warranty coverage
• Lifetime technical support

Key Features

• Dual Kevlar friction facings deliver 550 ft-lb torque capacity with smooth, progressive engagement
• 26-spline x 1-1/8" sprung hub for upgraded input shaft compatibility
• Ford 11" metric 10mm bolt pattern with dowel pin alignment
• Nodular iron diaphragm pressure plate profiled for cable release actuation
• Sprung hub design absorbs drivetrain shock and reduces gear rattle
• Hand-built in-house with exacting tolerances and double-checked quality control
• Performance Proven designation validated through on- and off-track racing
• Made in the USA with 1-year free-from-defect warranty

Description

Stock clutches in modified 1999-2004 4.6L Cobras become the weak link as soon as power modifications enter the picture. This Superior Kevlar/Kevlar clutch kit delivers 550 ft-lb torque capacity to handle supercharged, nitrous, or aggressive naturally aspirated builds while maintaining street-friendly pedal feel and engagement characteristics.

The dual Kevlar friction facings on both sides of the 11" disk provide superior heat resistance and longer service life compared to organic materials, without the harsh engagement of full ceramic setups. The sprung hub isolates drivetrain shock loads and dampens gear rattle for improved drivability in daily-driven applications. The 26-spline x 1-1/8" hub provides significantly more strength than the factory 10-spline design, though it requires a matching upgraded input shaft.

The nodular iron diaphragm pressure plate uses the Ford 11" metric 10mm bolt pattern with dowel pin positioning for precise alignment. The diaphragm design is specifically profiled for cable release actuation, ensuring proper throwout bearing travel and consistent pedal effort throughout the clutch's service life.

Every Superior clutch disk is hand-built at MDL's facility with exacting tolerances and undergoes quality inspection before shipping. The Performance Proven designation means this kit has survived the rigorous demands of real-world racing, both on track and off. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

What's Included

• 11" dual Kevlar friction clutch disk with 26-spline x 1-1/8" sprung hub
• Nodular iron diaphragm pressure plate (cable release design)
• Cable-type throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Superior Kevlar/Ceramic Clutch Kit | 2001-2004 4.6L Mustang Cobra | 11" Metric

Key Features

• Kevlar/ceramic dual-faced disk delivers smooth engagement with aggressive high-torque holding power
• 600 lb-ft torque rating for aggressive street and street-drag applications
• 11" metric diaphragm pressure plate with 10mm bolt pattern
• Finger profile machined specifically for cable release systems
• 26-spline x 1-1/8" hub configuration with sprung center for smooth engagement
• Hand-assembled in Caldwell, Idaho with double-riveted construction
• Complete kit with cable throwout bearing, pilot bearing, and alignment tool
• Performance Proven designation - tested in on-track and off-track racing
• Made in the USA with 1-year warranty

Description

Stock clutches can't keep pace with modified 4.6L Cobra engines - and when you're running cable actuation, your options get even more limited. The MDL Superior Kevlar/Ceramic clutch kit solves both problems with a purpose-built upgrade designed specifically for 2001-2004 Mustang Cobra (will also fit Modular 5.0L with cable release) applications using cable clutch release.

The dual-faced disk design is where this clutch earns its reputation. The Kevlar face provides the smooth, progressive engagement characteristics you need for street driving and traffic, while the ceramic face delivers the high coefficient of friction required for hard launches and high-torque applications. As temperatures climb under aggressive use, the ceramic material actually increases its grip - ideal for repeated pulls at the strip or spirited canyon runs.

The 11" metric pressure plate uses a 10mm bolt pattern with a diaphragm design that's been finger-profiled specifically for cable release geometry. The 26-spline x 1-1/8" disk hub matches upgraded input shaft configurations, and the sprung hub design dampens drivetrain shock while maintaining crisp engagement. Every Superior disk is hand-assembled at MDL's Idaho facility using double-riveted construction and the finest available components - then double-checked for tolerances before shipping.

This kit carries MDL's Performance Proven designation, meaning it's been validated in real-world racing conditions both on and off the track. Fits 2001-2004 Ford Mustang Cobra with 4.6L DOHC engine and cable clutch actuation. Made in the USA and backed by a 1-year warranty.

What's Included

• 11" metric diaphragm pressure plate with 10mm bolt pattern and cable release finger profile
• 11" Kevlar/ceramic dual-faced clutch disk with 26-spline x 1-1/8" sprung hub
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• Clutch installation and break-in instructions
• 1-year warranty against defects
• Lifetime technical support

Key Features

• Kevlar/steel backed organic facings with integrally bonded steel backing for strength under high clamp loads and temperatures
• 450 ft-lb torque capacity rated for Performance Street Plus applications
• Nodular diaphragm pressure plate with clutch finger profile optimized for cable release
• 26-spline x 1-1/8-inch input shaft compatibility
• Ford 11-inch Metric 10mm bolt pattern with pins
• Sprung hub design for smooth engagement and vibration dampening
• Hand-built in-house with double-checked tolerances before shipping
• 1-year free-from-defect warranty

Description

When your 4.6L Cobra demands more than stock clutch performance, the MDL Superior Kevlar/Steel Back Organic clutch delivers the balance of streetability and enhanced torque capacity that modified engines require. This isn't your typical organic clutch--the advanced Kevlar/steel backed facings provide significantly better heat resistance and clamp load strength compared to standard organic materials, while maintaining the smooth engagement characteristics enthusiasts expect from a daily driver.

The engineering advantage starts with the integrally bonded steel backing that prevents facing delamination under high temperatures and aggressive launches. The Kevlar fibers woven into the organic compound create a friction surface that grips progressively rather than grabbing, eliminating the harsh engagement common with full-race clutches. The nodular diaphragm pressure plate features specifically profiled clutch fingers designed for cable actuation systems, ensuring proper release geometry and consistent pedal feel throughout the clutch's service life.

Every MDL Superior clutch assembly is hand-built at our Caldwell, Idaho facility, where each component undergoes double-checking for dimensional accuracy and proper assembly before packaging. This quality control process ensures your clutch arrives ready for installation without the fitment issues or premature wear that plague mass-produced units. The sprung hub design absorbs drivetrain shock while maintaining precise torque transmission--critical for preserving synchronizers and preventing driveline vibration.

Designed specifically for 1999-2004 4.6L Cobra applications with 26-spline input shafts and the Ford 11-inch Metric 10mm bolt pattern. Rated at 450 ft-lb torque capacity, this clutch bridges the gap between stock replacement and full race applications, making it ideal for Cobras with intake, exhaust, and tune modifications that push power beyond factory limits. Made in the USA and backed by MDL's comprehensive 1-year warranty.

What's Included

• Nodular diaphragm pressure plate with 11-inch Metric 10mm bolt pattern
• Kevlar/steel backed organic clutch disk--26-spline x 1-1/8-inch with sprung hub
• Cable throwout bearing
• Pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

Key Features

• 800 horsepower capacity for high-powered street builds
• Twin organic-lined friction discs deliver smooth engagement with soft pedal effort
• 26-spline hub with 1.125-inch input shaft diameter for TREMEC T-56 compatibility
• 246mm (9.687-inch) disc diameter for maximum clamping surface
• Sprung hub design with diaphragm-style pressure plate
• McLeod patented adapter ring fits Ford 164-tooth Modular flywheels
• Fits 2001-up Mustang V8 applications: 4.6L, 5.0L Coyote, and 5.4L
• Made in the USA

Description

When your Mustang's power output pushes past what a single-disc clutch can reliably hold, the McLeod RST Twin Disc delivers an economical twin-disc solution rated to 800 horsepower while maintaining genuine street manners. This clutch kit solves the common problem of choosing between holding capacity and daily driveability—you don't have to sacrifice one for the other.

The twin 246mm organic-lined friction discs double the engagement surface compared to single-disc setups. Organic facings provide smooth, progressive engagement with a soft pedal effort, making this clutch kit ideal for the street performance enthusiast who doesn't want the harsh, grabby engagement of metallic race compounds. The sprung hub design absorbs drivetrain shock, while the diaphragm-style pressure plate delivers consistent clamping force through the entire rpm range.

McLeod's patented adapter ring system allows this clutch to work with Ford 164-tooth Modular engine flywheels (4.6L, 5.0L Coyote, 5.4L). The 26-spline hub with 1.125-inch diameter pairs directly with TREMEC T-56 six-speed transmissions. Note that this kit requires a small valley ID flywheel configuration—it will not fit 2011-2017 factory flywheels. For GM LS-X applications, this kit works only with LS1/LS6 flat-style flywheels; recessed LS2/LS3/LS7 flywheels will not work.

This is a street performance clutch—not designed for competition use where sustained high-heat drag racing or track sessions demand more aggressive friction materials. Proper break-in requires 500-750 miles of stop-and-go city driving to actuate the clutch 1,200 to 1,500 times before any hard use. Made in the USA.

Kit Includes

• Diaphragm-style pressure plate
• Two organic-lined friction discs with sprung hubs
• Floater plate
• McLeod patented adapter ring (large gold metric ring)
• Pilot alignment tool
• Installation instructions

Note: Pilot bushing and throwout bearing not included. Flywheel resurfacing and bellhousing alignment check recommended during installation.

Key Features

• 1,000hp torque capacity - built for extreme horsepower street/strip applications
• Dual ceramic friction discs provide slightly aggressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter with 1-1/8-inch x 26-spline input shaft
• Patent-pending large gold metric adapter ring - bolts to your existing flywheel
• Blanchard ground floater plate distributes heat evenly and reduces driveline noise
• Diaphragm pressure plate delivers consistent clamping force with lighter-than-stock pedal feel
• Solid hub design for maximum torque transfer
• Fits Ford 164T Modular (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 flat-style flywheels
• No dedicated flywheel required - economical upgrade path for high-power builds

Description

When your build pushes past 500hp and you still want to drive it on the street, single-disc clutches start showing their limits. The McLeod RXT twin disc clutch kit delivers 1,000hp holding capacity in a package that maintains street manners - soft pedal effort, smooth engagement, and the kind of durability that lets you drive to the track, run quarter-mile passes, and drive home without drama.

The engineering centers on dual ceramic friction discs mounted to a Blanchard ground floater plate. The ceramic facings provide slightly aggressive engagement with excellent release characteristics - enough grip for serious power without the on-off grabbiness that makes some racing clutches miserable in traffic. The floater plate distributes heat across both friction surfaces, preventing the hot spots that kill single-disc setups under sustained abuse. McLeod's diaphragm pressure plate maintains consistent clamping force throughout the disc's lifespan while actually delivering lighter-than-stock pedal effort.

This kit uses McLeod's patent-pending large gold metric adapter ring, eliminating the need for a dedicated flywheel. The adapter ring bolts directly to flat-style metric flywheels found on Ford 164T Modular engines (4.6L, 5.0L Coyote, 5.4L) and GM 168T LS1/LS6 applications. Critical note: this kit will NOT fit factory 2011-17 Coyote flywheels, recessed LS2/LS3/LS7 flywheels, or flywheels with crank reliefs larger than 6.250 inches in diameter. The 1-1/8-inch x 26-spline input shaft fits T-45, TR-3650, T-56, TR-6060, and TREMEC Magnum transmissions with 26-spline inputs.

Break-in requires 500-750 miles of stop-and-go city driving to properly seat the friction surfaces - no drag racing or dyno pulls until you've actuated the clutch 1,200-1,500 times. Always resurface the flywheel with a coarse stone-ground finish, replace the pilot bearing, and verify bellhousing alignment during installation. This kit does not include a pilot bearing or throwout bearing.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs (9.687-inch diameter, solid hub)
• Blanchard ground floater plate with noise-reducing straps
• Large gold metric adapter ring - CNC-machined and anodized (patent-pending)
• Pilot alignment tool
• Installation instructions
• Lifetime tech support from Modern Driveline

Note: Pilot bearing and throwout bearing not included - must be sourced separately for your application.

Key Features

• 850 lb-ft torque capacity with dual organic discs and sprung hubs for smooth street engagement
• Precision-machined aluminum clutch cover delivers superior strength, stiffness, and balance versus stamped steel competitors
• High-mass pressure plate and floater plate machined from proprietary racing-grade materials resist warpage under sustained loads
• Heavy-duty straps connect plates to cover, minimizing noise and ensuring clean clutch release
• Chromoly steel flywheel with 164-tooth integrated ring gear and precision register for optimal balance
• 246mm (9.7-inch) twin-disc design doubles friction surface area without increasing pedal effort
• Floater plate twice the thickness of most competitors for improved heat dissipation and gear chatter elimination
• 26-spline x 1-1/8-inch hub for TREMEC TKO, TKX, T56 Magnum, and Magnum XL compatibility
• Zero-balance configuration for Ford 4.6L and 5.0L modular engines with 8-bolt crank flanges
• Compatible with most OEM release bearings

Description

When your Ford 4.6L or 5.0L modular engine is making serious power, OEM-style clutches and their stamped steel pressure plates become the weak link. The Tilton ST-246 was designed from the ground up as a true performance twin-disc clutch -- not an OEM-type stamped steel pressure plate with a floater tacked on. Tilton Engineering has been the leading supplier of small-diameter racing clutches since 1972, winning championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. That racing pedigree is engineered directly into this street-capable assembly.

The aluminum clutch cover shares technology from Tilton's championship-winning OT-Series racing clutches, delivering superior strength and stiffness compared to stamped steel alternatives. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warpage resistance under sustained high-torque loads. The floater plate is twice the thickness of most competing twin-disc designs, which allows for the sprung-hub disc configuration, eliminates gear chatter, and provides dramatically better heat dissipation. Heavy-duty straps connecting the plates to the cover eliminate the noise and inconsistent engagement plaguing lesser twin-disc designs.

This assembly's dual 246mm organic discs with sprung center hubs deliver 850 lb-ft capacity while dampening engine vibrations and reducing gearbox noise for smooth street engagement. The chromoly steel flywheel features an integrated 164-tooth ring gear and precision register that locates the clutch for optimal balance -- a critical upgrade over the loose-fitting bolts and dowels used with stamped steel clutches. The result is a clutch system that handles serious power while maintaining street manners.

Fits Ford 4.6L and 5.0L modular engines with 8-bolt crank flanges. The 26-spline x 1-1/8-inch hub works with TREMEC TKO, TKX, T56 Magnum, and Magnum XL transmissions. Note: TREMEC transmission models 11010, 11011, and 16884 require the guide tube to be trimmed 0.5 inches to prevent disc interference. Magnum XL applications require hydraulic kit MD-900-2505-A, hose, and fitting (sold separately). Does not include pilot bearing or throwout bearing. Made in the USA.

What's Included

• Chromoly steel flywheel with integrated 164-tooth ring gear (zero balance)
• Precision-machined aluminum clutch cover with heavy-duty straps
• High-mass pressure plate machined from proprietary racing materials
• High-mass floater plate machined from proprietary racing materials
• Two 246mm organic clutch discs with 26-spline x 1-1/8-inch sprung center hubs
• Flywheel mounting bolt set
• Clutch cover mounting bolt set
• Clutch alignment tool
• Installation instructions

Key Features

• 1250 lb-ft torque capacity with solid-hub cerametallic discs for precise street/strip engagement
• 246mm twin-disk design with double-thick floater plate eliminates gear clatter and improves heat dissipation
• Precision-machined aluminum cover shares technology with Tilton's championship-winning OT-Series racing clutches
• Billet chromoly flywheel with 164-tooth ring gear and precision register for optimal balance
• Heavy-duty straps attach pressure plate and floater to cover, minimizing noise and ensuring clean release
• Fits Ford 4.6L/5.0L/5.2L Voodoo engines with 8-bolt cranks and 1-1/8" x 26-spline input shafts
• High-mass pressure plate and floater machined from proprietary racing materials resist warpage
• Zero-balance flywheel design

Description

When you're pushing serious power through a Ford modular engine and need clutch engagement that won't slip under load, you don't compromise on components. This Tilton ST-246 twin-disk assembly delivers 1250 lb-ft of holding power with the precise, positive engagement characteristics that high-horsepower street/strip applications demand. Unlike stamped steel performance clutches that simply add a floater plate as an afterthought, the ST-246 was engineered from the ground up as a true twin-disk clutch system.

The precision-machined aluminum pressure plate cover incorporates technology proven in Tilton's championship-winning OT-Series racing clutches, providing superior strength, stiffness, and dynamic balance compared to OEM-type stamped steel covers. The high-mass pressure plate and floater plate are machined from the same proprietary materials used in Tilton's motorsport applications—delivering exceptional heat capacity and warpage resistance under hard use. The floater plate is twice the thickness of most twin-disk competitors, which allows for the solid hub construction while eliminating gear clatter and providing superior heat dissipation.

The cerametallic discs feature solid center hubs for maximum strength and positive engagement—essential for high-horsepower applications where precise modulation matters more than street comfort. Heavy-duty straps attach both the pressure plate and floater plate to the aluminum cover, minimizing noise and providing fast, clean release between shifts.

Designed for Ford 4.6L/5.0L/5.2L Voodoo engines with 8-bolt cranks and TREMEC transmissions with 1-1/8" x 26-spline input shafts. The billet chromoly flywheel features a 164-tooth ring gear with zero balance and a precision register to locate the clutch for optimal assembly balance. Note: TREMEC models 11010, 11011, and 16884 require guide tube trimming by 0.5" to prevent disc interference. Magnum XL kits require MD-900-2505-A adapter, hose, and fitting. This assembly does not include a pilot bearing or hydraulic release bearing. Made in the USA by Tilton Engineering.

What's Included

• Precision-machined aluminum clutch cover with heavy-duty straps
• High-mass pressure plate (proprietary racing materials)
• Double-thick floater plate (proprietary racing materials)
• Two 246mm cerametallic discs with solid center hubs (26-spline)
• Billet chromoly flywheel with integrated 164-tooth ring gear (zero balance, 8-bolt)
• Flywheel bolt kit
• Clutch mounting bolt kit
• Alignment tool

Key Features

• M10 x 1.5mm x 23.5mm dimensions for precise Ford Modular and AMC V8 fitment
• 8740 chromoly steel construction with black oxide finish for corrosion resistance
• Tensile strength of 180,000 PSI — far exceeds OEM hardware
• Exclusive 12mm hex head design for improved wrench engagement
• Larger-than-stock shank diameter increases clamping strength and improves pressure plate register
• Aerospace alloy forged construction with heat treatment prior to thread rolling
• Application-specific grip length ensures proper thread engagement

Description

Pressure plate bolts are critical safety components that secure your clutch assembly under extreme clamp loads and heat cycles. Factory hardware is engineered for economy, not performance — it can stretch, fatigue, or fail under racing or aggressive street use. These ARP High Performance Series bolts solve that problem with premium 8740 chromoly steel hardened to a nominal tensile strength of 180,000 PSI, significantly stronger than OEM fasteners.

Each bolt is forged from aerospace-grade alloy and heat-treated before thread rolling and machining, ensuring maximum grain structure integrity and fatigue resistance. The black oxide finish provides corrosion protection while maintaining proper torque characteristics. The exclusive 12mm hex head design delivers better tool engagement than standard fasteners, reducing the risk of rounding during installation or removal at high torque values.

The larger-than-stock shank diameter increases clamping force and improves register accuracy between the pressure plate and flywheel — critical for maintaining concentricity and preventing clutch chatter. These bolts are application-specific for Ford 4.6L, 5.0L, and 5.4L Modular V8 engines, plus AMC V8 applications (call for AMC fitment details), ensuring proper grip length and thread engagement for your specific combination.

When you're building a high-performance drivetrain, don't let bargain-bin hardware be the weak link. ARP fasteners are the trusted choice of professional engine builders and racers worldwide. Backed by ARP's manufacturer warranty against defects.

What's Included

• Six (6) M10 x 1.5mm x 23.5mm pressure plate bolts
• 8740 chromoly steel construction with black oxide finish
• 12mm hex head design
• ARP manufacturer's warranty against defects

Key Features

• Direct replacement for Ford OEM part number F4ZZ-2457-A
• Fits both clutch and brake pedal applications
• Black rubber construction matches factory appearance
• Works with all 1994-2004 Mustang models equipped with manual transmission
• Sold individually - two required per vehicle

Description

Worn or missing pedal pads create a dangerous situation when your foot slips during hard braking or aggressive clutch engagement. This reproduction pedal pad restores the factory grip and pedal feel that deteriorates over years of use, giving you confident pedal control whether you're daily driving or hitting the track.

This black rubber pedal pad is a direct replacement for Ford OEM part number F4ZZ-2457-A. The rubber construction provides the same grip pattern and durability as the original factory pads, ensuring your foot stays planted on the pedal surface during spirited driving. Installation is straightforward - the pad simply presses onto the pedal arm with no adhesives or special tools required.

Designed to fit all 1994-2004 Ford Mustangs with manual transmission, this pedal pad works on both the clutch and brake pedals. The same pad is used for both applications, so two pads are required to complete a full pedal refresh on your SN95 or New Edge Mustang.

Kit Includes

• One black rubber pedal pad (replaces Ford F4ZZ-2457-A)

Key Features

• Only kit on the market with three adjustable master cylinder positions to fine-tune pedal action and engagement
• In-dash mounting hides behind firewall on factory pedal hanger - no fighting for engine bay space
• Maintains stock clutch pedal pivot point for OEM pedal feel with zero modifications to pedal support
• Spherical mounting points eliminate binding for smooth, consistent clutch operation
• 1.4-inch master cylinder throw distance for optimal slave cylinder compatibility
• Sealed bulkhead assembly uses factory clutch cable hole - keeps moisture and engine fumes out of interior
• -4AN stainless steel braided lines throughout for leak-free durability
• 2100 Series billet aluminum reservoir with black anodized finish and improved side-top vents
• Compatible with existing industry slave cylinders and hydraulic release bearings
• Made in the USA

Description

SN95 and New Edge Mustang owners know the factory clutch cable becomes a liability as power levels climb. Cable stretch demands constant adjustment, heat from headers degrades the cable, and stiff performance clutches turn stop-and-go traffic into a workout. The Stealth Series In-Dash Hydraulic Clutch Master Kit eliminates these problems by converting to a fully hydraulic system that hides entirely behind the dash - freeing up valuable firewall real estate for engine swaps and keeping the engine bay clean.

This is the only kit on the market that lets you tune clutch engagement to your preference. The custom clutch pedal arm offers three distinct master cylinder mounting positions, allowing you to adjust where the clutch grabs and how fast it responds. Want engagement higher off the floor? Move the pivot point. Need to slow down an aggressive release? Adjust accordingly. Spherical mounting points at the pedal ensure the linkage operates without binding or inconsistent feel, regardless of which position you select.

Installation leverages the factory architecture. The master cylinder and pedal assembly mount directly to the OEM pedal support with zero drilling or modifications. The sealed bulkhead assembly routes the -4AN stainless steel braided lines through the existing clutch cable hole in the firewall, maintaining the factory firewall seal while keeping moisture and engine fumes out of the cabin. The included 2100 Series billet aluminum reservoir features an improved cap design with side-top vents to prevent water entry and can be mounted wherever packaging demands.

Engineered to work with existing industry slave cylinders and hydraulic release bearings, the Stealth Series integrates with your current setup or pairs with any slave you choose. Requires DOT 3 or DOT 4 brake fluid - no high-temp fluid necessary. Designed exclusively for 1994-2004 Ford Mustang applications and made in the USA.

Kit Includes

• Silver/black finished firewall plate assembly with sealed bulkhead and AN4 fittings
• Billet aluminum master cylinder
• OEM-appearance clutch pedal arm with three adjustable pivot positions
• -4AN stainless steel braided lines
• 2100 Series billet aluminum reservoir with black anodized finish
• Complete mounting hardware and brackets
• One-man bleeder kit
• Installation instructions
• Lifetime technical support by trained technicians

Key Features

• Stainless steel threaded adjustment sleeve provides nearly 1.25 inches of height adjustability
• 0.700-inch piston travel for reliable clutch engagement across diverse applications
• High-temperature monoseal design with quad tensioner ensures proper seal tension and maximum reliability
• Constant-contact design self-adjusts for clutch wear - no gap, no helper springs required
• Flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-inch to 11-inch bent-finger and lever-type clutches
• Bearing height adjustable from 1.77 inches to 3.00 inches to accommodate diverse clutch configurations
• Complete kit includes -4AN stainless braided supply and bleed lines, fittings, and anti-rotation hardware
• Requires 1.430-inch bearing retainer guide tube for proper fitment

Description

Eliminate the clearance issues and binding problems that plague external slave cylinders with this Tilton 6000 Series hydraulic release bearing, engineered specifically for Ford T56 and Magnum transmissions equipped with a guide tube. Where external slaves often create interference with headers, crossmembers, or bellhousing configurations, this internal slip-on design mounts directly onto the transmission input shaft bearing retainer - delivering consistent clutch actuation without the packaging headaches.

Tilton's precision-machined billet aluminum body and piston deliver race-proven reliability in a street-friendly package. The constant-contact design maintains continuous engagement with the pressure plate fingers - no gap to manage, no helper springs required. As your clutch wears, the bearing automatically compensates, maintaining identical pedal feel from installation through replacement. The high-temperature monoseal with quad tensioner provides maximum seal integrity under demanding conditions, while newly designed double O-ring swivel fittings have been extensively tested to prevent leakage.

The stainless steel threaded adjustment sleeve provides nearly 1.25 inches of adjustability, enabling compatibility with most 8.5-inch to 11-inch bent-finger and lever-type diaphragm clutches. Total bearing height ranges from 1.77 inches to 3.00 inches, giving you the flexibility to dial in precise preload regardless of clutch configuration. Compatibility extends to most bellhousings - unlike external slaves limited to specific applications, this internal design works with original 4-speed bells, big block bells, and aftermarket housings. Compatible with Ford T5s, Ford TKOs, Ford T56s with CSC hydraulic setup, and XL Magnum T56 for 2005+ Ford Mustangs. Tilton release bearings are DOT3 or DOT4 brake fluid compatible.

What's Included

• Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
• Stainless steel threaded adjustment sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection (24-inch line recommended for most applications)
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Installation instructions

Key Features

• 24-inch stainless steel braided hose with 1/4-inch I.D. and PTFE (Teflon) inner lining
• -4AN female straight fittings on both ends with stainless steel crimp sleeves
• Clear plastic outer coating protects braid and allows visual inspection
• Ideal length for Tilton 6000 HRB units with -4AN male union to firewall-mounted master cylinders
• Pressure tested before shipping for quality assurance
• 100% made in the USA

Description

Hydraulic clutch systems demand leak-free, pressure-resistant fluid lines that won't degrade over time or expand under load. This 24-inch stainless steel braided line delivers the durability and consistent pedal feel that separates a professional hydraulic clutch installation from a compromise. The PTFE (Teflon) inner lining provides excellent chemical compatibility with all common hydraulic fluids while resisting the swelling and deterioration that plague standard rubber lines.

The stainless steel braided construction prevents expansion under pressure, maintaining a firm, responsive clutch pedal. Unlike rubber hoses that can balloon and soften pedal feel, stainless braided PTFE lines keep the inner diameter uniform for efficient fluid transfer. The clear plastic outer coating shields the braid from abrasion, contamination, and corrosion while letting you visually inspect line condition at a glance.

At 24 inches with a 1/4-inch I.D., this line is sized specifically for hydraulic clutch applications. It's an excellent choice when pairing a Tilton 6000 HRB with an -4AN male union to a firewall-mounted or bulkhead-mounted master cylinder. The straight -4AN female fittings on both ends connect directly to standard -4AN male adapters without additional fittings, reducing potential leak points and simplifying installation.

Every line is pressure tested before leaving the facility to verify seal integrity. Premium stainless steel crimp sleeves and fittings ensure a permanent, vibration-resistant connection. Proudly manufactured in the United States.

What's Included

• One 24-inch stainless steel braided hydraulic line with PTFE inner lining
• -4AN female straight fittings pre-crimped on both ends
• Clear plastic protective coating (factory applied)
• Pressure tested before shipping

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics that cannot wear off from use
• 2-1/8" diameter with 6-speed shift pattern and pearl gray racing stripes
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shifting feel
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Cheap shift knobs crack, fade, and strip out under hard use. The R-Series shift ball solves those problems with a specially formulated high-impact polymer resin engineered specifically for the demands of performance driving. This isn't generic plasticit's purpose-built material that won't develop stress cracks with age and maintains its finish through years of daily driving and spirited shifting.

The 16mm x 1.50 brass master insert is where this shift ball proves its worth under load. It exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque test, so it won't strip out or work loose when you're rowing through gears hard. The 6-speed shift pattern and pearl gray racing stripes are subsurface graphicsembedded within the material itself rather than printed on topso they cannot wear off no matter how many miles you put on them.

At 2-1/8" diameter and 4 ounces, the R-Series delivers a substantial grip surface without adding excessive weight to your shift lever. The precision-machined construction is polished to a high-gloss finish that looks right at home in everything from a classic muscle car to a modern build. Thread adapters are available separately if your shift lever uses something other than the standard 16mm x 1.50 threading. Made in the USA by a manufacturer that's been shifting gears since 1952.

What's Included

• R-Series black shift ball with pearl gray racing stripes and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• Premium 2-1/8" diameter high-impact polymer resin construction engineered for performance torque and temperature demands
• Subsurface red racing stripe graphics that cannot wear off, fade, or chip -- not surface-applied decals
• Precision-machined 16mm x 1.50 brass master insert for superior thread engagement and durability
• 6-speed shift pattern clearly marked -- stripe design does not interfere with pattern visibility
• Lightweight 4-ounce design for optimal shift feel and quick gear changes
• Includes brass jam nut for secure installation
• Thread adapters available separately for compatibility with various shifter lever thread sizes
• Made in the USA by a manufacturer with 65+ years of shift knob expertise

Description

The R-Series shift ball delivers premium quality and lasting durability for 6-speed manual transmission builds. Constructed from specially formulated high-impact polymer resin, this 2-1/8" diameter knob is engineered to withstand the torque loads and temperature extremes that come with spirited driving -- no cracking, fading, or degradation over time.

What sets the R-Series apart is its subsurface graphics. The red racing stripes are embedded beneath the surface, meaning they physically cannot wear off no matter how many thousands of shifts you throw. The stripe design is deliberately positioned so it does not run through the 6-speed shift pattern, keeping your gate reference clear and legible during aggressive driving. At just 4 ounces, the shift ball maintains optimal weight balance for crisp, precise shifts without excessive mass slowing down quick gear changes.

The precision-machined brass master insert features 16mm x 1.50 threading and comes with a brass jam nut for secure mounting. If your shifter lever uses a different thread pitch, thread adapters are available separately -- contact us with your specific shifter thread size and we'll recommend the correct adapter for your application.

This shift ball comes from a manufacturer that has been shifting gears since 1952. Their commitment to quality, precision, and style has made them a leading supplier for OEM, aftermarket, classic, custom, and hot rod applications. Made in the USA.

What's Included

• One (1) R-Series black shift ball with red racing stripe, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter for optimal palm grip and precise shift feel
• 6-speed shift pattern in contrasting white racing stripe design
• 4-ounce weight balances comfortable grip with controlled shift momentum
• High-gloss scratch-resistant finish maintains appearance through years of use
• Includes jam nut for secure lever mounting
• Made in the USA since 1952

Description

Worn shift knobs with faded patterns and stripped threads are more than cosmetic problems - they compromise shift accuracy and driver confidence. The R-Series 6-Speed Shift Ball delivers the durability and precision your build demands, constructed from specially formulated high-impact polymer resin designed to handle performance-level torque loads and temperature extremes without cracking, fading, or becoming tacky in summer heat.

What separates this shift ball from generic alternatives is the subsurface graphic process. The white racing stripe and 6-speed shift pattern are embedded within the polymer during manufacturing - not silk-screened, etched, or applied as a surface coating. They physically cannot wear off, no matter how many shifts you bang through. The 16mm x 1.50 brass master insert provides the foundation for this durability, exceeding the auto industry's specification of 200 ft-lb static pull and 20 ft-lb twist torque testing.

At 2-1/8" diameter and 4 ounces, this shift ball strikes the ideal balance between palm-filling grip and controlled shift momentum. The high-gloss black finish resists scratches and maintains its showroom appearance through daily driving or weekend track sessions. The included jam nut locks the ball securely to your shift lever, eliminating loosening during aggressive shifting.

Thread adapters are available separately if your shift lever uses a different thread pitch than the 16mm x 1.50 master insert - contact MDL's tech team if you need help identifying your lever's thread size. Built in the USA by a manufacturer that has been shifting gears since 1952, bringing OEM-level quality and precision to classic, custom, and hot rod applications.

What's Included

• One (1) R-Series black shift ball with white racing stripe and 6-speed pattern
• One (1) 16mm x 1.50 brass master insert (pre-installed)
• One (1) jam nut

Key Features

• 2-1/8" diameter gray polymer resin ball with white rally stripe that does not interfere with shift pattern visibility
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• High-impact polymer resin formulated for performance-level temperature and torque demands without stress cracking
• Subsurface graphics that cannot wear off during use
• 4-ounce weight for balanced shift feel
• Precision-machined construction with high-gloss polished finish
• Includes brass jam nut; thread reducers available separately for compatibility with various shifter applications
• Made in the USA

Description

Upgrade your 6-speed manual with this R Series shift ball that delivers classic rally aesthetics and engineered durability in a single package. The 2-1/8" diameter provides comfortable grip for spirited driving, while the white rally stripe adds period-correct styling without cluttering shift pattern visibility.

Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball withstands aggressive shifting and engine bay heat without developing the stress cracks common in inferior materials. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry specifications, tested to 200 ft. lbs. static pull and 20 ft. lbs. twist torque resistance for secure, worry-free mounting.

Subsurface graphics resist wear and fading, maintaining their appearance through years of hard use. At 4 ounces, this shift ball delivers the right balance of mass for crisp, positive shifts without excessive weight that could stress shifter components. The high-gloss polished finish adds a premium look to any interior.

Thread reducers are available separately to adapt the 16mm x 1.50 master insert to match your specific shifter thread size. Proudly made in the USA with the quality and precision that has been shifting gears since 1952.

What's Included

• Gray polymer resin shift ball with white rally stripe and 6-speed pattern (2-1/8" diameter)
• 16mm x 1.50 brass master insert (factory installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface graphics embedded into the material - will not wear off or fade
• 2-1/8" diameter white base with black rally stripes that wrap around the 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• 4-ounce weight for balanced shift feel
• Precision machined and polished to a high gloss finish
• Made in the USA

Description

Factory plastic shift knobs crack, fade, and wear out - the graphics rub off, the threads strip, and the whole thing looks tired after a few seasons of hard use. The R-Series shift ball solves these problems with purpose-built construction designed for real driving conditions.

This 2-1/8" diameter shift knob is molded from a specially formulated high-impact polymer resin engineered specifically for automotive applications. Unlike generic plastics, this material is designed not to develop stress cracks with aging, handling the thermal cycling and mechanical stress of performance driving. The black rally stripes are subsurface - embedded into the white base material rather than printed or painted on top - creating a smooth finish that stays sharp shift after shift.

The 16mm x 1.50 brass master insert is the foundation of this knob's durability. This solid brass threading exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, ensuring it won't strip or fail when you're rowing through gears under load. At 4 ounces, the weight provides positive shift engagement without excessive mass that can stress your synchros. Each knob is precision machined and polished to a high gloss finish.

The 16mm master insert requires a thread reducing adapter (sold separately) to fit your specific shift lever thread size - contact MDL if you need help selecting the correct adapter for your application. A brass jam nut is included for secure installation that prevents loosening during spirited driving. Made in the USA with the quality and precision that serious builders demand.

What's Included

• One (1) R-Series 2-1/8" white polymer resin shift ball with black rally stripes and 6-speed shift pattern
• One (1) 16mm x 1.50 brass master insert (installed)
• One (1) brass jam nut

Thread reducing adapters sold separately - contact MDL to select the correct adapter for your shift lever thread size.

Key Features

• Premium 2-1/8" diameter white polymer resin construction with gray rally stripes
• Subsurface graphics bypass the 6-speed shift pattern and will not wear off
• 16mm x 1.50 brass master insert with included jam nut
• High-impact polymer resin formulated for performance torque and temperature demands
• 4-ounce weight delivers optimal shifting feel and inertia
• Master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add race-inspired style to your 6-speed manual with the R-Series shift ball. This premium 2-1/8" diameter white shift knob features crisp gray rally stripes that bypass the shift pattern for clean gear identification. Unlike painted or pad-printed graphics that wear away with use, the rally stripe graphics on this shift ball are subsurface-printed and physically cannot wear off, ensuring your interior looks sharp for years of spirited driving.

The R-Series is built from specially formulated high-impact polymer resin designed to meet performance-level torque and temperature requirements. This isn't generic plastic that will crack, fade, or become brittle with age. The precision-machined construction is polished to a high-gloss finish that resists stress cracking even after years of exposure to heat cycles and UV. At 4 ounces, the shift ball provides just enough mass for crisp, satisfying throws without adding excessive weight that slows down quick shifts.

A 16mm x 1.50 brass master insert is pre-installed and includes a jam nut for secure, rattle-free mounting. The brass insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, meaning this knob stays put no matter how hard you row through the gears. For shifter levers with different thread pitches, MDL stocks a range of thread adapters. Know your shifter's thread size when ordering so the correct adapter can be recommended for proper fitment.

Made in the USA by a manufacturer that has been shifting gears since 1952, the R-Series represents decades of expertise in precision shift knob manufacturing. Compatible with any 6-speed manual transmission application when paired with the appropriate thread adapter.

Kit Includes

• White polymer resin shift ball with gray rally stripes (2-1/8" diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• Subsurface 6-speed shift pattern permanently integrated into material - graphics cannot wear off, fade, or peel
• High-impact polymer resin engineered specifically for performance-level torque and temperature demands
• Universal 16mm x 1.5 internal threading accepts thread reducers for compatibility with virtually any shift lever
• 1-7/8" diameter provides substantial grip surface for positive engagement [VERIFY: Custom field shows 2-1/8in while description states 1-7/8in]
• Clean white finish with bold black 6-speed pattern graphics
• Made in the USA by a manufacturer producing shift knobs since 1952

Description

Put the correct gate positions right at your fingertips with this 6-speed shift knob. Whether you're learning a new transmission layout or making split-second shifts under pressure, the bold black shift pattern gives you instant visual reference without taking your eyes off the road. The graphics aren't a decal or printed surface - they're applied subsurface during manufacturing, making them permanently integrated into the knob material where they cannot wear off, fade, or peel regardless of use.

The polymer construction is engineered specifically for drivetrain duty. This specially formulated high-impact polymer resin is designed to meet performance-level torque and temperature requirements, handling the stress and heat cycles that come with hard shifting better than cheaper materials. The 1-7/8in diameter provides substantial surface area for a secure grip without being oversized or bulky.

Universal 16mm x 1.5 internal threading makes this knob compatible with virtually any shift lever when paired with the appropriate thread reducer (sold separately). Thread reducers allow adaptation to common metric sizes like 8mm, 10mm, and 12mm, as well as SAE thread pitches found on domestic Ford, GM, and Mopar applications. If you're unsure what thread size your shift lever uses, MDL's tech support can help you identify the correct adapter.

Manufactured in the USA by a company that's been producing quality shift knobs since 1952. Their commitment to quality, precision, and style has made them a trusted supplier to OEM, aftermarket, Classic, Custom, and Hot Rod industries. Compatible with Chevy, BOP (Buick/Oldsmobile/Pontiac), Ford, and Mopar transmissions when used with the appropriate thread reducer for your specific shift lever.

What's Included

• 1 white polymer shift knob with black 6-speed pattern
• 16mm x 1.5 female threading (thread reducer sold separately if needed)

Key Features

• High-impact polymer resin construction - specially formulated for performance-level torque and temperature requirements
• Subsurface white 6-speed shift pattern graphics - permanently embedded, will not wear off
• 16mm x 1.50 brass master insert - exceeds industry spec of 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• 1-7/8" diameter ergonomic design with high-gloss polished finish
• 4-ounce weight - balanced for precise shifting feel
• Jam nut included for secure installation
• Made in the USA

Description

Worn, faded shift knobs kill the look of an otherwise clean build - and cheap replacements crack, fade, or spin loose within a season. MDL's 6-Speed Black Shift Ball solves both problems with a high-impact polymer resin formulation specifically engineered for the automotive industry. This isn't generic plastic - it's a performance-grade compound designed to resist stress cracking with age while handling the torque and temperature extremes of hard driving.

The white 6-speed shift pattern is subsurface - meaning it's embedded beneath the outer layer, not printed or painted on top. It won't wear off from palm contact, won't fade from UV exposure, and won't peel at the edges. The 16mm x 1.50 brass master insert is equally overbuilt, exceeding the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque. Precision machining and polishing deliver a high-gloss finish that looks as good as it feels.

The 16mm thread pitch fits most aftermarket performance shifters directly. If your shifter uses a different thread size, MDL stocks thread adapters to match - just know your shifter's thread pitch when ordering so we can recommend the right reducer. This universal approach makes the shift ball compatible with Ford, GM, and Mopar applications when properly matched to your shifter.

At 4 ounces with a 1-7/8" diameter, this shift ball delivers ergonomic comfort and balanced weight for crisp, confident throws. Made in the USA with the quality standards serious builders demand.

What's Included

• MDL 6-speed black shift ball with white subsurface pattern graphics
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure installation

Key Features

• Laser-etched 6-speed shift pattern - permanent, cannot wear off
• Brushed aluminum finish for superior grip and modern aesthetics
• 16mm x 1.5 thread with brass insert for secure mounting
• 1-7/8 in. diameter for comfortable, ergonomic grip
• Universal fitment with thread reducer adapters available separately
• Made in the USA

Description

When you're wrapping up a TREMEC swap or upgrading your 6-speed shifter setup, a flimsy plastic shift ball doesn't match the level of hardware underneath it. This brushed aluminum shift ball delivers the tactile feedback and professional appearance your build deserves, with a laser-etched 6-speed pattern that's permanently embedded into the surface - no fading, peeling, or wearing off over thousands of shifts.

The brushed aluminum finish provides superior grip compared to smooth plastic alternatives, giving you confident control during aggressive driving. The 16mm x 1.5 threaded brass insert ensures secure mounting and threads directly onto compatible shifters. For shift levers with different thread sizes, MDL stocks a full range of thread reducing adapters to match your specific application - whether you're running an '83-'04 Mustang lever (10mm x 1.50), a 2005+ Mustang setup (12mm x 1.25), or other configurations.

Built with precision and finished in the USA, this shift ball combines quality construction with the correct 6-speed gate pattern (reverse to the right and up) for TREMEC T56, Magnum, and similar transmissions. The universal 16mm master thread makes it adaptable to virtually any aftermarket shifter with the right reducer insert.

What's Included

• Brushed aluminum shift ball with laser-etched 6-speed pattern
• 16mm x 1.5 brass threaded insert
• Jam nut

Key Features

• 2-1/8" diameter polished aluminum construction for optimal grip and control
• Laser-engraved 6-speed shift pattern on top -- won't fade, chip, or wear off
• MDL logo engraved on the side for authentic branding
• 16mm x 1.50 thread pitch -- compatible with most shifters when paired with MDL thread reducers
• 4-ounce weight provides solid, positive shifts without excessive mass
• Made in the USA

Description

Finish your 6-speed swap the right way. This polished aluminum shift ball from MDL delivers the premium look and feel that separates a proper build from a parts-bin project. The 2-1/8" diameter provides the ideal grip size -- large enough for confident throws under hard driving, compact enough to clear console-mounted components without interference.

The laser-engraved 6-speed shift pattern on top gives you clear gear position reference that will never fade, chip, or wear off over years of aggressive shifting. Unlike printed or embossed patterns that deteriorate with use, the engraving is cut directly into the aluminum surface for permanent legibility. The MDL logo on the side confirms you're running genuine Modern Driveline equipment.

This shift ball features 16mm x 1.50 threading, which is the universal standard for aftermarket shift knobs. MDL stocks thread reducing inserts that adapt the 16mm bore to fit popular shifter thread sizes including 8mm-1.25, 9mm-1.25, 12mm-1.75, and 3/8-24, ensuring compatibility across Ford, GM, and Mopar applications. The 4-ounce weight provides substantial feel in your palm without the excessive mass that can accelerate shifter wear or create unwanted momentum during rapid gear changes.

Proudly made in the USA, this shift ball represents the fit, finish, and attention to detail that serious builders expect from MDL. Grab it, shift it, go.

What's Included

• One polished aluminum shift ball (2-1/8" diameter)
• Laser-engraved 6-speed shift pattern on top
• MDL logo engraved on side
• 16mm x 1.50 internal threading

Note: Thread reducing insert sold separately -- see MDL thread reducers for your specific shifter application.

6-Speed White Shift Ball | 16mm x 1.50 Thread | High-Impact Polymer Resin

Key Features

• 1-7/8" diameter white polymer resin ball with crisp 6-speed shift pattern
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics embedded during manufacturing - cannot wear, fade, or peel
• High-impact polymer resin formulated for performance-level torque and temperature cycling
• 4-ounce weight for positive shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Thread adapters available for non-16mm shift levers
• Made in the USA

Description

Worn shift knobs with faded patterns and loose threads make every gear change feel sloppy. This 6-speed polymer resin shift ball delivers the crisp, confident feel your transmission deserves. The high-impact polymer resin is specifically formulated for automotive applications - engineered to resist stress cracking from temperature cycling and aging that destroys cheaper plastic alternatives.

The 16mm x 1.50 brass master insert is the heart of this shift ball's durability. Tested to exceed automotive industry standards of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, it won't strip, loosen, or fail under aggressive shifting. The included jam nut locks everything in place for rattle-free operation. At 4 ounces, the ball provides just enough heft for positive shift engagement without the excessive weight that can mask transmission feedback.

Unlike painted or applied graphics that wear off after a few months, the 6-speed shift pattern on this ball is subsurface - embedded during the manufacturing process where it's protected from your palm, UV exposure, and cleaning chemicals. The precision-machined surface is polished to a high-gloss finish that resists scratching and maintains its appearance over years of use.

This shift ball fits any 16mm threaded shift lever directly. Running a different thread size? MDL stocks thread adapters to fit most common shift lever configurations - just confirm your lever's thread pitch when ordering. Quality American manufacturing ensures consistent tolerances and reliable performance from a company that's been shifting gears since 1952.

What's Included

• White 6-speed high-impact polymer resin shift ball (1-7/8-inch diameter)
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Precision-machined thread adapter converts 16mm shift knob threads to 12mm x 1.75 shift lever threads
• Includes matching jam nut for secure retention under hard shifting
• Allows you to keep your favorite shift knob when upgrading to a new shifter or lever
• Compatible with '83-'04 Mustang levers, Ford GT, Shelby KR/Super Snake, Shelby American Gen 1, Steeda Tri-ax, and MDG Camaro Retro shaft handles
• Lightweight 2-ounce design adds minimal mass to shifter assembly

Description

Thread mismatches between shift knobs and performance shifters have frustrated builders for years. This precision thread reducing insert solves the compatibility problem, letting you retain your favorite shift knob when upgrading to a new shifter or mate a new knob to the threads you already have. The adapter bridges the gap between the common 16mm knob threading and the 12mm x 1.75 metric threads found on many performance shifters and OEM applications.

The insert provides a clean, permanent solution that maintains proper shift knob height and feel. Unlike bulky universal adapters that introduce play, this reducing insert threads directly into 16mm-threaded knobs and accepts 12mm x 1.75 shift lever threads with a precision fit. The included jam nut locks the knob in position under aggressive shifting and prevents loosening during spirited driving.

This adapter fits popular performance shifter applications including '83-'04 Mustang levers, Ford GT, Shelby KR/Super Snake, Shelby American Generation 1 shifters, Steeda Tri-ax units, and MDG Camaro Retro shaft handles. At just 2 ounces, the adapter adds negligible mass while delivering the threading solution you need for a proper fit. If you don't see your application listed, call MDL at 208-453-9800 for assistance.

What's Included

• Thread reducing insert - 16mm external to 12mm x 1.75 internal threading
• Jam nut - matching thread pitch for secure retention

Key Features

• Heavy-duty steel construction built to factory length and bends
• Correct M12x1.75 thread pitch works with factory and most aftermarket shift knobs
• Satin black e-coat finish - more rust-resistant than original paint
• Clamshell design with preinstalled rubber isolators reduces driveline vibration
• 7/8" on-center mounting hole spacing for precise OEM fit
• Includes rubber shift boot support to eliminate gaps below the knob
• Silver zinc-plated mounting bolts included
• Made to factory dimensions and tolerances

Description

On most Mustangs, the factory shifter lever is long gone - swapped out for an aftermarket unit that often creates an awkward shifting position due to shortened levers. This OEM-style reproduction shifter lever restores the comfortable, positive shifting feel your Mustang was designed to deliver. Whether you are restoring your Mustang to original condition or replacing a damaged lever, this factory-spec replacement gets the job done right.

Constructed from durable, heavy-duty steel to the factory length and bends, this shift lever features the correct M12x1.75 thread pitch for compatibility with both factory shift knobs and most aftermarket knobs. A satin black e-coat finish mimics the original black-painted shift lever while providing superior rust resistance for long-term durability.

The clamshell design with preinstalled rubber isolators and sleeves exactly replicates the original equipment. These rubber isolators on the handle and clamshell reduce driveline vibration felt through the shift lever while driving - a detail often overlooked on cheap replacements. A rubber shift boot support holds your shift boot up to the bottom of the knob, ensuring there are no unsightly gaps in your interior.

Mounting hole spacing is 7/8" on center. Installation can be performed with common hand tools using the supplied silver zinc-plated shifter bolts. Note: Mounting bushings are sold separately and required for installation - use MD-320-1043-B-3/8 for TKO applications or MD-320-1043-B-8mm for T5 applications. This shifter lever does not fit TREMEC-supplied TKX or T56 Magnum shifters.

What's Included

• (1) Steel shift lever with satin black e-coat finish and preinstalled rubber isolators
• (2) Silver zinc-plated mounting bolts
• Rubber shift boot support

Key Features

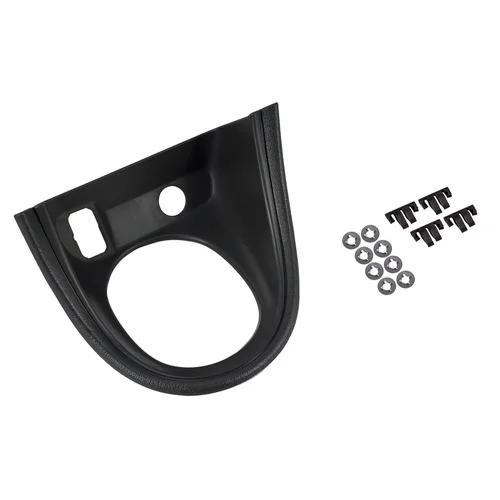

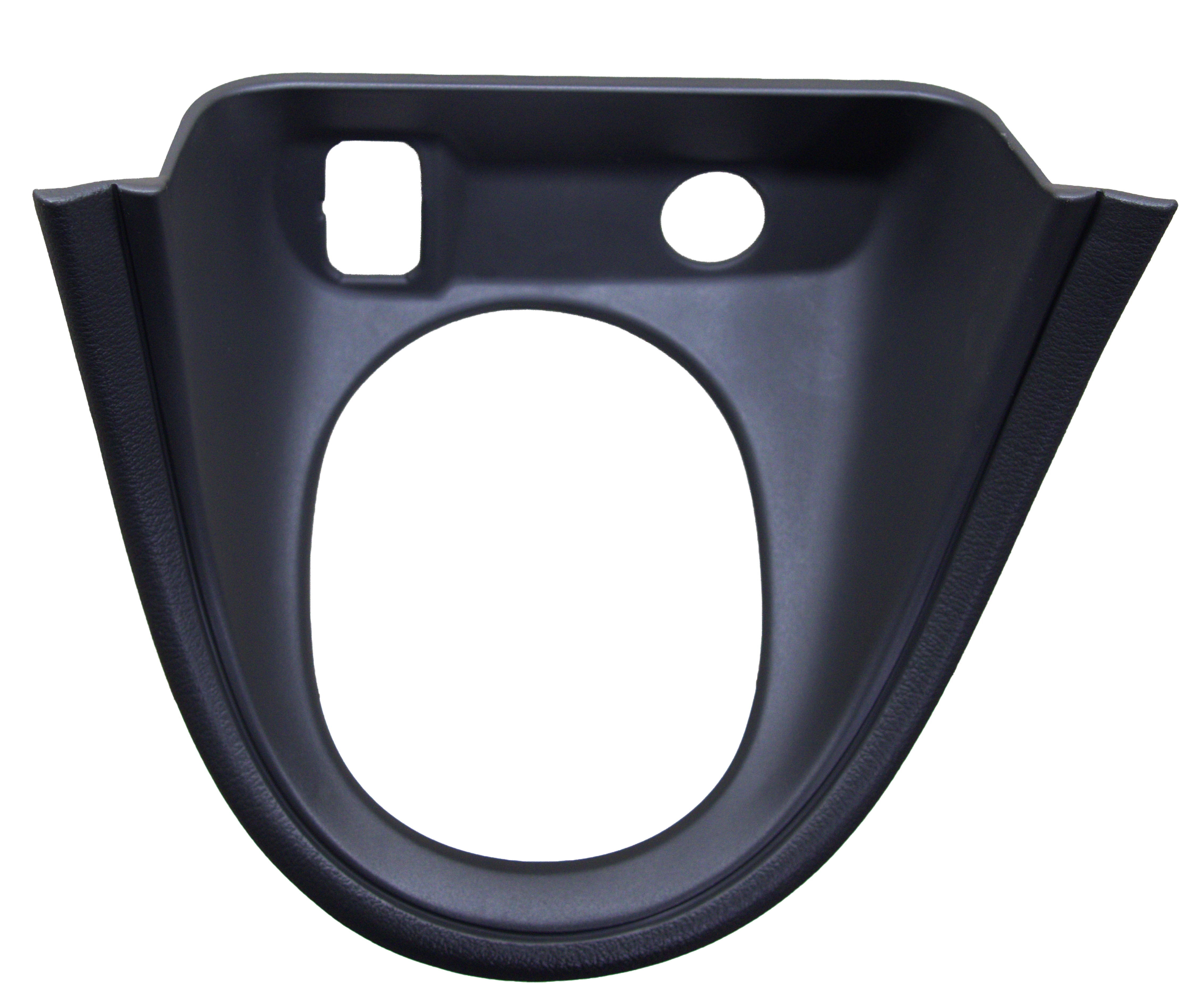

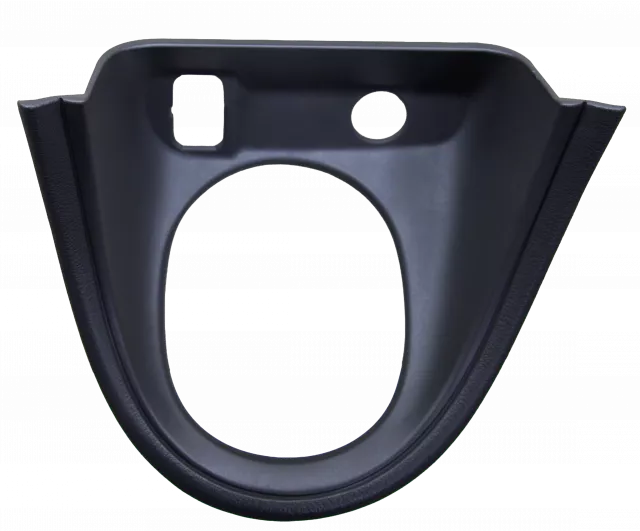

• Correct cutouts for traction control switch (driver side) and cigarette lighter (passenger side)
• OE-style textured finish matches factory center console trim
• Direct replacement for cracked, faded, or broken original bezels
• Durable ABS plastic construction resists cracking and UV fading
• Paintable surface accepts interior paints for precise color matching
• Includes all mounting hardware for console and shifter boot attachment

Description

The factory shifter bezel on 1999-2004 Mustangs takes a beating. Years of shifting, console contact, and UV exposure leave the original plastic cracked, faded, or broken at the mounting tabs. Once those tabs snap, the bezel rattles loose and the shifter boot won't stay secured--a constant annoyance that ruins an otherwise clean interior.

This reproduction bezel is a direct-fit replacement for 1999-2004 Mustangs equipped with manual transmissions and factory traction control. It features the correct cutout for the traction control switch on the driver side and the cigarette lighter on the passenger side, matching the OE configuration exactly. The outer perimeter maintains the factory textured finish that blends seamlessly with your center console trim.

Constructed from durable ABS plastic, this bezel stands up to daily use without the cracking and fading issues that plague original units. The surface accepts solvent-based interior paints, allowing you to color-match Dark Charcoal, Medium Parchment, or any other factory interior shade. Installation uses the factory mounting locations with no modifications required--the included hardware attaches the bezel to the console and secures your shifter boot in place.

Fits 1999-2004 Ford Mustang GT, V6, Cobra, Mach 1, and Bullitt models with manual transmission and traction control. Note: Vehicles without traction control require a different bezel without the switch cutout.

What's Included

• Manual shifter bezel with traction control switch and cigarette lighter cutouts
• Four mounting clips for console attachment
• Eight push-nut retainers for shifter boot installation

Key Features

• Grade 8.8 steel hex flange bolts - no separate flat washers required
• Zinc finish for corrosion resistance
• Complete 4-bolt set for full installation
• Direct replacement for worn, stripped, or missing factory hardware
• Fits all 1979-2004 Ford Mustang and Capri manual transmission applications

Description

Replacing damaged or missing lower shift boot bolts is one of those small details that makes a big difference in a finished interior. These Grade 8.8 steel hex flange bolts secure the lower shift boot to the transmission tunnel, maintaining the seal that keeps road noise, heat, and debris out of the cabin while protecting your shifter mechanism.

The hex flange head design integrates a built-in washer surface, eliminating the need for separate flat washers and simplifying installation. This design provides even clamping force distribution across the boot mounting surface. The zinc finish protects against corrosion - particularly important for hardware exposed to moisture and temperature swings inside the transmission tunnel.

Sold as a complete 4-bolt set, this kit gives you everything needed to properly secure the lower shift boot in one purchase. Compatible with all 1979-2004 Ford Mustang and Mercury Capri models equipped with manual transmissions, including Fox Body, SN95, and New Edge platforms. Works with both OEM shift boots and aftermarket replacements.

What's Included

• (4) Hex flange bolts, Grade 8.8 steel, zinc finish

Key Features

• Factory-style U-nut clips for secure lower shift boot mounting
• Set of four clips--complete hardware for one shift boot installation
• Direct fit for 1979-2004 Ford Mustang manual transmission applications
• Clips attach around shifter access hole on transmission tunnel

Description

Missing or corroded shift boot hardware is one of the most common issues when installing a new shifter or refreshing your Mustang's interior. These factory-style U-nut clips restore proper mounting for the lower shift boot extension, ensuring a tight seal around the shifter opening in the transmission tunnel.

The clips attach directly to the sheet metal around the shifter access hole, providing threaded receptacles for the mounting bolts. This design sandwiches the lower shift boot flange securely to the floor pan, sealing out road noise, moisture, and debris that would otherwise enter the cabin. Without properly functioning clip nuts, shift boots cannot maintain their seal--leading to rattles, drafts, and contaminants in the interior.

Sold as a set of four clips to provide complete hardware coverage for one shift boot installation. Direct replacement for 1979-2004 Ford Mustang models equipped with manual transmissions.

What's Included

• (4) Factory-style U-nut clips

Key Features

• Compression molded EPDM rubber construction with integrated metal retaining trim ring
• Exact OEM reproduction for perfect factory fit on all 1979-2004 manual transmission Mustangs
• Seals shifter opening to block road noise, exhaust fumes, and debris from entering cabin
• Mounts under exterior leather shift boot in stock location on transmission tunnel
• Improved shift movement and clearance compared to worn original boots

Description

After years of heat cycling from the exhaust and constant shifter movement, your factory lower shift boot cracks and deteriorates - letting road noise, exhaust fumes, and debris into the cabin every time you row through the gears. This OEM-spec replacement restores the critical seal between your shifter and the transmission tunnel, eliminating those unwanted intrusions while improving overall shift feel.

Manufactured from compression molded EPDM rubber, this lower dust boot replicates the original factory design with the durability to outlast the stock part. The integrated metal retaining trim ring provides structural rigidity and ensures proper mounting to the transmission tunnel, maintaining consistent seal compression around the shifter mechanism. Unlike worn-out original boots that flex and bind, a fresh boot delivers improved shift movement and clearance.

This boot mounts in the stock location on top of the transmission hump, underneath your center console and exterior leather shift boot. The four-bolt mounting pattern aligns with the factory holes in the tunnel for straightforward installation. Whether you are restoring a Fox Body or SN95 Mustang to factory condition or installing an aftermarket short throw shifter, replacing the lower boot is essential to maintaining a sealed, quiet interior.

Fits all 1979-2004 Ford Mustangs equipped with manual transmissions, including GT, LX, Cobra, and V6 models across the Fox Body (1979-1993) and SN95 (1994-2004) platforms.

What's Included

• Compression molded EPDM rubber lower dust boot
• Metal retaining trim ring/support frame

Key Features

• Black leather construction for durability and refined appearance
• Oval base design fits factory console opening
• Direct replacement for 1994-2004 Mustang manual transmissions
• Steel retaining plate included for secure mounting
• Boot only - bezel sold separately

Description

A worn, torn, or stained shift boot drags down the entire look of your SN95 or New Edge interior. This black leather shift boot delivers factory-correct fitment and a premium upgrade for your '94-'04 Mustang, restoring that clean cockpit appearance without the vinyl feel of the original equipment.

Constructed from black leather, this upper shift boot offers improved durability and a more refined look compared to factory vinyl boots. The oval base configuration matches the factory console opening, ensuring seamless installation with no modifications required. Beyond aesthetics, the boot serves a functional purpose - keeping the area surrounding your shifter lever clean and providing structural support during shifts.

Engineered as a direct replacement for all 1994-2004 Mustang models equipped with manual transmissions, this boot installs using the included steel retaining plate and factory mounting points. Compatible with GT, Cobra, and V6 models running 5-speed or 6-speed manual gearboxes. This is the boot only - console bezel sold separately.

What's Included

• Black leather shift boot with oval base
• Steel retaining plate

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Direct-fit snap-in connector mates with the reverse lockout solenoid on all TREMEC T56 6-speed transmissions
• Generous 6-foot wiring length provides flexible routing through tunnels and firewalls
• Protective covering shields wiring from heat, abrasion, and moisture
• Designed for use with MDL's MD-700-0100-2 reverse lockout control module
• Fits Ford and GM T56 applications

Description

The TREMEC T56 utilizes a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a critical safety feature because reverse and 5th are located very close to each other on the shift pattern. When the solenoid isn't energized, spring pressure against the shift rail makes reverse engagement difficult. When powered, the solenoid retracts the pin, allowing smooth entry into reverse. The problem? Classic cars and restomod builds lack the factory PCM logic to control this solenoid, leaving builders to either muscle through the lockout or rig up makeshift solutions.

This 6-foot harness provides the factory-style snap-in connector that mates directly with the T56's reverse lockout solenoid. The extended length gives you the flexibility to route wiring cleanly through the transmission tunnel, up through the firewall, and to your control module location without splicing or extending. The protective covering shields the conductors from exhaust heat, sharp edges, and underbody moisture--critical for a harness that lives in a harsh environment.

This harness is designed to work with MDL's MD-700-0100-2 reverse lockout control module, which monitors vehicle speed via the VSS signal and automatically energizes the solenoid below approximately 5-10 MPH for easy reverse engagement, then de-energizes it at higher speeds to prevent accidental shifts. The result is OEM-style lockout behavior without relying on makeshift brake-light-switch wiring or manual override buttons. Fits all TREMEC T56 6-speed transmissions in Ford and GM applications.

What's Included

• 6-foot reverse lockout solenoid harness with protective covering
• Snap-in connector for TREMEC T56 reverse solenoid

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Adjustable single-tube design fits TKO, TKX, TR-3550, T-5, T-45, T-56, TR-3650, TR-6060, C4, AOD, AODE, 4R70W, PowerGlide, TH350, TH400, and T-45 Cobra Spec transmissions
• Direct bolt-in to factory crossmember mounting points - no fabrication or modification required
• Low-profile design delivers more exhaust clearance and reduced weight versus OEM
• Maintains proper pinion angle with OEM or aftermarket transmission mounts
• Polyurethane bushings replace factory rubber for firmer shifts with vibration dampening
• Compatible with setback engine installations
• Black powdercoat finish for corrosion resistance

Description

The factory transmission crossmember in your '99-'04 Mustang creates clearance headaches when you add aftermarket exhaust or swap transmissions. The Stifflers adjustable crossmember solves both problems with a compact single-tube design that works with virtually every popular manual and automatic transmission on the New Edge platform. Slide the mounting sleeves and reposition the spacers to accommodate TKO, TKX, T-5, T-45, T-56, TR-3550, TR-3650, TR-6060, C4, AOD, AODE, 4R70W, PowerGlide, TH350, TH400, and T-45 Cobra Spec applications - all while maintaining your current pinion angle.

The low-profile design sits tighter to the tunnel than the bulky OEM stamped crossmember, delivering more clearance for headers, X-pipes, and performance exhaust systems. The single-tube construction cuts weight without sacrificing rigidity. Whether you're running stock mounts or aftermarket transmission mounts, the adjustable design lets you dial in exact positioning without welding, cutting, or fabrication of any kind - direct bolt-in to the factory mounting points.

Polyurethane bushings replace the soft factory rubber, delivering a noticeably firmer shift feel and improved transmission control while still dampening driveline vibrations and noise. Unlike solid mounts, the poly bushings keep NVH in check for street-driven cars. The crossmember also works with setback engine installations, making it ideal for Coyote swaps and other engine conversions.

Note: Does not work with T-56 Viper Spec or GT500 Spec transmissions due to their unique mounting requirements. Fits 1999-2004 Mustang GT and Cobra.

Kit Includes

• Stifflers single-tube adjustable transmission crossmember with black powdercoat finish
• Polyurethane mounting bushings
• Installation hardware
• Installation instructions

Key Features

• Lightweight 3.5" aluminum tube construction for reduced rotating mass
• Custom-built 43.65" center-to-center length for precise '94-'95 Mustang T56 Magnum fitment
• 31-spline forged steel slip yoke matches T56 Magnum output shaft
• Ford 3.50" bolt circle flange yoke for 8.8 small flange differential
• 1310 series universal joints for reliable power transfer
• Professionally balanced for smooth, vibration-free operation
• Built by Inland Empire to your vehicle's specific measurements
• Made in the USA

Description

Swapping a 700 lb-ft TREMEC T56 Magnum into your '94-'95 Mustang creates a driveline length mismatch that your factory driveshaft cannot solve. The Magnum's 31-spline output shaft requires a correctly-sized slip yoke, and the overall transmission length differs from the original T-5 or AOD. This custom aluminum driveshaft is purpose-built for that exact scenario -- engineered at 43.65" center-to-center specifically for the SN95 chassis with a T56 Magnum installation.

The lightweight aluminum tube dramatically reduces rotating mass compared to steel, freeing up power for acceleration while lowering stress on the drivetrain during high-rpm operation. The forged steel 31-spline slip yoke mates directly to the Magnum's output shaft, while the Ford 3.50" bolt circle flange yoke connects to your 8.8 small flange pinion without adapters or modifications. This is the factory-style flange configuration found on '94-'98 Mustang 8.8 rear ends -- the smaller bolt pattern that uses 1310 series U-joints rather than the larger 1330 pattern found on some Explorer and later applications.

Because every swap is slightly different based on transmission mount location, crossmember choice, and rear end positioning, MDL builds each driveshaft to your vehicle's actual measurements. Submit the completed Driveshaft Build Sheet with your measurements to info@moderndriveline.com and MDL will fabricate a balanced, ready-to-install driveshaft tailored to your specific build. Note: Yokes for these driveshafts are currently on backorder and may extend lead times -- inquire about current availability before ordering.

Compatible with 1994-1995 Ford Mustangs equipped with TREMEC T56 Magnum transmissions and Ford 8.8 small flange differentials. Made in the USA.

Kit Includes

• Custom-length 3.5" aluminum driveshaft tube
• 31-spline forged steel slip yoke
• Ford 3.50" bolt circle flange yoke (8.8 small flange)
• 1310 series universal joints
• Professional balancing

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
