Key Features

• 700 lb-ft torque capacity - handles serious power from LS, big-block, and small-block builds
• Close ratio gear set (2.66, 1.78, 1.30, 1.00, 0.80, 0.63) - keeps you in the powerband through every shift
• Double overdrive design with 0.80 fifth and 0.63 sixth - lower cruising RPM and improved fuel economy
• 26-spline input shaft and 31-spline output shaft - compatible with a wide range of clutch and driveline combinations
• Triple cone synchronizers on gears 1-4, double cone on 5-6 and reverse - crisp, precise shifts at high RPM
• 4616 chromoly gears and shafts with substantially increased face widths - built to survive high-stress applications
• One-piece countershaft resists distortion under load
• Fully reversible TKO-style die-cast aluminum shifter - smooth, positive action with multiple mounting positions
• Dual speedometer pickups - accommodates both electronic and mechanical speedometers
• Built-in mid-shift provisions - relocate the shifter forward without hassle
• 85mm center distance - matches TKO positioning for proven conversion fitment
• Approximately 135 lbs dry weight - reasonable weight for a transmission this strong
• 3.65-quart fluid capacity - uses Dexron III ATF

Description

When TREMEC set out to replace the legendary T56, they didn't just update it - they engineered the Magnum from the ground up using TR-6060 architecture found in factory supercars like the C6 ZR1 Corvette and Viper ACR. The result is the strongest, smoothest-shifting 6-speed manual transmission available for the aftermarket, purpose-built for GM LS engines as well as big-block and small-block applications when paired with the correct bellhousing.

This close ratio version (TUET11009) features gear ratios optimized for high-performance street driving and road racing. The 2.66 first gear launches hard without being too aggressive, while the tightly-spaced 1.78 second, 1.30 third, and 1:1 fourth keep you in the meat of your powerband. The double overdrive - 0.80 fifth and 0.63 sixth - drops highway RPM dramatically, improving both cruising comfort and fuel economy. The 4616 chromoly gears feature two-piece laser-beam welded construction with increased face widths for greater strength and more precise tooth geometry.

Inside, the Magnum benefits from modern OEM synchronizer technology: triple cone units on gears 1-4 and double cone on 5-6 and reverse deliver incredibly short, low-effort shift throws with precise engagement even at high RPM. The redesigned shift forks eliminate the wear issues that plagued earlier T56 designs, and the extensively modified case prevents leaks under high-stress conditions. The fully reversible TKO-style aluminum shifter provides multiple mounting positions, and built-in mid-shift provisions under the inspection cover make forward shifter relocation simple for bench-seat classics.

Compatible with GM big-block, small-block, and LS engines using the appropriate bellhousing. Uses standard T56 bellhousing bolt pattern with internal CSC (concentric slave cylinder) mounting provisions. Requires Dexron III ATF. Rated to 7,800 RPM.

Kit Includes

• TREMEC T56 Magnum 6-speed transmission assembly (TUET11009)
• Fully reversible die-cast aluminum shifter with reverse lockout
• Dual speedometer pickup provisions (electronic and mechanical)
• 7-tooth internal speedometer drive gear
• TREMEC factory warranty
• MDL extended warranty - additional year with 1-year grace period when purchased as part of a complete conversion package
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - built to handle high-power GM small block, big block, and LS engine combinations
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 - aggressive 2.97:1 first for hard launches with double overdrive for relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse - precise, high-rpm shifting under load
• 26-spline input shaft, 31-spline output shaft - robust spline counts for serious torque handling
• 85mm center distance with substantially increased gear face widths - wider gears and laser-beam welded 2-piece construction for durability
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter - smooth, positive shift action with multiple mounting positions
• Dual speedometer pickups - accommodates both electric and mechanical speedometers
• Built-in mid-shift provisions under inspection cover - simple forward shifter relocation for early cars with bench seats
• 135 lbs dry weight - lighter than competing 6-speeds
• 3.66 quart fluid capacity - uses Dexron III ATF or TREMEC HP-MTF
• Overall length: 34.85 inches (GM version)

Description

The TREMEC T-56 Magnum eliminates the compromise between strength and driveability that plagued earlier 6-speed conversions. Introduced in 2009 as the long-awaited replacement for the original T-56, the Magnum combined the best of TREMEC's OEM TR-6060 design with the most popular features of their TKO 5-speed. Known in OEM form as the TR-6060, this is the same transmission architecture found in factory supercars including the Dodge Challenger and Viper, and the Chevrolet Camaro - now available for your GM-powered build.

The TUET16885 wide-ratio gear set delivers a 2.97:1 first gear for aggressive launches paired with closely-spaced 5th (0.80:1) and 6th (0.63:1) overdrives for comfortable highway cruising at lower RPMs. This ratio spread makes the wide-ratio Magnum ideal for street machines, restomods, and pro-tourers where you want strong off-the-line acceleration without screaming RPMs at 70 mph.

Engineering improvements over the original T-56 are substantial. Gear face widths have been significantly increased, and 2-piece laser-beam welded gear construction allows greater control of tooth angles, pitch, and alignment. The bolstered one-piece countershaft resists distortion, while redesigned shift forks with permanently mounted shift links eliminate the wear and float that caused incomplete shifts in earlier designs. Spring-loaded ball-type inserts replace the stamped-steel shift keys of previous generations, delivering short, smooth shifts without the notchy feel.

The Magnum works with GM small block, big block, and LS engines when paired with the correct bellhousing. Clutch release provisions are modeled after the T-56 in 1998-2002 Camaros and Firebirds, designed for use with hydraulic throwout bearings. Multiple shift stub relocation kits are available for use with factory 4-speed consoles. When you purchase from MDL, you get our extended warranty coverage plus lifetime technical support from drivetrain experts who actually use these parts.

What's Included

• TREMEC T-56 Magnum 6-speed transmission (TUET16885)
• OEM-grade die-cast aluminum reversible shifter assembly
• Dual speedometer pickup provisions (electric and mechanical)
• Built-in reverse light switch
• Built-in reverse lockout
• MDL extended warranty - 1 additional year beyond manufacturer warranty with 1-year grace period
• Lifetime technical support

Key Features

• 700 lb-ft torque capacity - handles serious power from LS swaps and big-block builds
• Wide ratio gear set (2.97, 2.10, 1.46, 1.00, 0.74, 0.50) - aggressive first gear for hard launches, double overdrive for highway cruising
• 26-spline input shaft, 31-spline output shaft - direct compatibility with GM LS-series engines
• 4616 chromoly gears and shafts - significantly increased face widths with 2-piece laser-beam welded construction
• Triple-cone synchronizers (1st-4th) - smooth, high-rpm shifts without balking
• Double-cone synchronizers (5th-6th and Reverse) - crisp engagement across all gears
• Fully reversible TKX-style die-cast aluminum shifter - OEM-grade construction with multiple mounting positions
• Dual speedometer outputs - accommodates both mechanical and electronic speedometers
• Built-in mid-shift provisions - accessible under inspection cover for easy conversions
• One-piece countershaft - bolstered design resists distortion under load
• 34.85" overall length (GM version) - plan your tunnel modifications accordingly
• 135 lbs dry weight - manageable for a transmission rated at 700 lb-ft
• 3.66 qt fluid capacity - uses ATF Dexron III, TREMEC HP-MTF, or Synchromesh

Description

The original T56 topped out around 450 lb-ft - fine for stock applications, but a liability once you started adding power. The TREMEC T56 Magnum solves that problem decisively, delivering 700 lb-ft of torque capacity in a purpose-built aftermarket package based on the TR-6060 architecture found in factory supercars like the Corvette ZR1 and Dodge Viper ACR.

This wide-ratio version (TUET11012) features a 2.97 first gear for aggressive launches and street-light acceleration, while the double overdrive - 0.74 in fifth and 0.50 in sixth - drops highway RPM significantly for better fuel economy and reduced engine wear. TREMEC widened the gear faces substantially over the original T56, then added 2-piece laser-beam welded construction for precise control of tooth angles, pitch, and alignment. Triple-cone synchronizers on gears 1-4 and double-cone on 5-6 deliver smooth, high-rpm shifts without grinding or balking - even when you're banging through the gears hard.

The reversible die-cast aluminum shifter eliminates the limitations of earlier cast-iron designs, providing TKX-style precision with short, low-effort throws. Dual speedometer pickups handle both mechanical cable-driven and electronic setups without adapters. Built-in provisions for mid-shift conversions sit under the inspection cover, ready when your application demands a different shifter location. The T56-style bellhousing bolt pattern makes installation with various late-model GM engines straightforward.

At 34.85 inches overall length, tunnel modification is required for most classic muscle car conversions - this is not a drop-in for '98-'02 F-bodies or '04-'06 GTOs. The 26-spline input matches LS-series engines directly, while the 31-spline output handles serious driveline torque. When you purchase through MDL, you get the standard TREMEC warranty plus an additional year of coverage, along with lifetime technical support to help you get your conversion dialed in right.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11012)
• Die-cast aluminum reversible shifter with mounting hardware
• Dual speedometer output provisions (mechanical and 17-tooth electronic)
• Internal hydraulic throwout bearing mounting provisions
• Inspection cover with mid-shift conversion access
• TREMEC factory 1-year warranty plus MDL extended warranty (additional 1 year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• SFI 6.1 certified - required for cars running 11.49 or faster in the quarter mile
• High-grade steel construction work-hardened to over 80,000 PSI strength
• Spun cone construction (not rolled or stamped) for maximum dimensional stability
• Over twice the strength of other steel bellhousings
• Patent pending on 16 points of bellhousing design and process
• Mates Buick, Oldsmobile, and Pontiac V8 engines to LS T56 and Magnum transmissions
• Compatible with 166-tooth flywheels
• Ideal for internal hydraulic clutch actuation
• 100% built in the USA

Description

Swapping a modern T56 or Magnum six-speed behind a classic Buick, Oldsmobile, or Pontiac V8 demands a bellhousing that delivers both precision alignment and real safety protection. The QuickTime RM-8072 is SFI 6.1 certified - the standard required by sanctioning bodies for cars running 11.49 or faster in the quarter mile - so you can build for the street knowing you're ready for the strip.

The engineering difference is in the manufacturing. QuickTime cones are spun, not rolled or stamped like lesser bellhousings. This spin-forming process work-hardens the high-grade steel to over 80,000 PSI strength, delivering more than twice the strength of other steel bellhousings while maintaining pinpoint dimensional accuracy. That accuracy keeps your engine and transmission in alignment through the entire rpm range, eliminating accelerated drivetrain wear caused by bellhousing flex.

QuickTime holds patents pending on 16 points of bellhousing design and process, developed with input from OEMs, engine builders, transmission builders, racers, and hobbyists. The result is the most dimensionally stable bellhousing available - parallelism and concentricity that other manufacturers claim but QuickTime actually delivers. This bellhousing is specifically engineered for Buick, Oldsmobile, and Pontiac V8 engines mating to LS T56 or GM Magnum transmissions, with compatibility for 166-tooth flywheels and ideal clearance for internal hydraulic clutch actuation setups.

Built 100% in the USA, this bellhousing comes complete with everything you need for installation: engine block plate, fork bracket, Grade 8 mounting hardware, and instructions. When you're bridging a classic muscle car powertrain to a modern overdrive transmission, the bellhousing is no place to compromise.

What's Included

• QuickTime RM-8072 steel bellhousing with black finish
• Engine block plate
• Fork bracket
• Grade 8 mounting hardware
• Installation instructions

Key Features

• Complete bolt set for mounting Chevy LS steel bellhousing to engine and T56 Magnum transmission
• 26 total fasteners including 10mm hex flange bolts and Grade 8 hardware
• Black finish on primary 10mm mounting bolts for corrosion resistance
• Grade 8 7/16-14 x 1 inch UNC bolts for high-stress mounting points
• Includes all necessary lock washers in 7/16-inch sizing
• Designed specifically for steel bellhousing applications - aluminum bellhousings require different hardware

Description

Sourcing the correct hardware for a T56 Magnum installation can derail an otherwise straightforward build. Different bolt lengths, thread pitches, and grades are required at various mounting points throughout the bellhousing assembly, and mixing up specifications leads to stripped threads, improper clamping force, or worse. This hardware kit eliminates the guesswork by providing every fastener needed to properly mount your steel bellhousing to an LS engine block and bolt the T56 Magnum transmission to the bellhousing.

The kit includes eight 10mm-1.5 x 50mm hex flange bolts with black finish for the primary bellhousing-to-engine connection, along with eight 10mm-1.5 x 40mm black hex flange bolts for transmission-to-bellhousing mounting. Two shorter 10mm-1.5 x 30mm hex flange bolts handle secondary mounting locations. For high-stress connection points, two Grade 8 7/16-14 x 1 inch UNC hex bolts deliver the strength needed to handle drivetrain loads without stretching or backing out.

Two Grade 5 6mm-1.0 x 16mm hex bolts round out the fastener selection for accessory mounting points. Lock washers in 7/16-inch sizing are included to prevent loosening under vibration. Each fastener is sized and graded for its specific location in the assembly - the right hardware in the right place every time.

This kit is designed specifically for steel bellhousing installations. Aluminum bellhousings use different bolt lengths due to material thickness differences. Compatible with Chevrolet LS engines paired with TREMEC T56 Magnum transmissions.

What's Included

• (8) 10mm-1.5 x 50mm hex flange bolts, black finish
• (8) 10mm-1.5 x 40mm hex flange bolts, black finish
• (2) 10mm-1.5 x 30mm hex flange bolts
• (2) 6mm-1.0 x 16mm hex bolts, Grade 5
• (2) 7/16-14 x 1 inch UNC hex bolts, Grade 8
• (2) 7/16-inch lock washers
• (1) Bolt, 1/4"-20 thread
• (2) Lock washers

Key Features

• Complete 11-inch GM clutch set with organic friction facings for smooth, progressive engagement
• 26-spline x 1-1/8-inch input shaft configuration for TREMEC TKX, TKO, and T-56 compatibility
• Diaphragm-style pressure plate with 12-5/8-inch equal bolt pattern and 3/8"-16 hardware
• Low lever height design provides increased bellhousing clearance for concentric slave cylinders
• 350 ft-lb torque capacity sized for street cruisers and mildly modified V8s
• Sprung hub design isolates drivetrain shock and reduces noise transmission
• Hand-assembled and double-checked in-house at MDL in Caldwell, Idaho
• Backed by a 1-year free-from-defect warranty

Description

Running a hydraulic release system in your GM build? Standard pressure plate lever heights can quickly eat into your bellhousing clearance when paired with a concentric slave cylinder. The MDL Superior 11-inch GM clutch set solves that problem with a low lever height pressure plate engineered specifically for hydraulic actuation, giving you the room you need without compromising clamp load or engagement feel.

The organic friction facings deliver the smooth, progressive engagement that makes street driving enjoyable. Unlike aggressive ceramic or metallic facings that grab hard and chatter at low speeds, organic material provides predictable modulation for stop-and-go traffic, parking lot maneuvers, and spirited cruising alike. Rated at 350 ft-lb of torque, this clutch is properly sized for naturally aspirated small blocks and mildly modified V8s where drivability matters as much as capability.

The 26-spline x 1-1/8-inch hub mates directly to TREMEC transmissions including the TKX, TKO, and T-56 Magnum. The 12-5/8-inch equal bolt pattern with 3/8"-16 hardware fits GM 11-inch and 12-inch flywheels. A sprung hub design absorbs torsional shock and dampens gear rattle, translating to a quieter, more refined driving experience. Complete with pilot bushing and alignment tool, this kit arrives ready to install.

Every MDL Superior clutch is hand-assembled in our Caldwell, Idaho facility using the finest available components. Each unit is double-checked for accuracy and quality before shipping, so you receive a ready-to-install premium piece right out of the box. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

What's Included

• Diaphragm-style pressure plate with low lever height for hydraulic actuation
• Organic-faced clutch disc with sprung hub - 11-inch diameter, 26-spline x 1-1/8-inch
• Pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• 500 ft-lb torque capacity for performance street-plus applications
• Dual-friction design: Kevlar facing on pressure plate side, steel-backed organic on flywheel side
• 26-spline input, 1-1/8-inch diameter hub
• Low lever height optimized for hydraulic concentric slave cylinder clearance
• 12-5/8-inch EQ bolt pattern fits early GM applications
• Diaphragm-style pressure plate for consistent clamping force
• Sprung hub design absorbs driveline shock and reduces gear rattle
• Hand-assembled and double-checked in-house at MDL
• 1-year warranty against manufacturing defects
• Made in the USA

Description

Hydraulic clutch conversions in early GM muscle cars often run into the same problem: standard clutch assemblies interfere with concentric slave cylinders, forcing builders to compromise on actuation or clearance. The MDL Superior 11-inch Clutch Kit solves this with a specifically engineered low lever height that provides the room needed for clean hydraulic operation without binding or interference.

The dual-friction disc combines Kevlar facing on the pressure plate side with steel-backed organic material on the flywheel side. This pairing delivers smooth, progressive engagement for streetable daily driving while providing the grip to handle 500 ft-lb of torque. The sprung hub absorbs driveline shock loads and dampens gear rattle--critical for performance street builds where drivability matters as much as power capacity. The diaphragm-style pressure plate maintains consistent clamping force across the full range of clutch wear.

Every MDL Superior clutch is hand-assembled in-house in Caldwell, Idaho. Components are double-checked for accuracy and quality before they go in the box, so you receive a ready-to-install kit with no surprises. The 12-5/8-inch EQ bolt pattern fits 1960-1990 Chevrolet, Pontiac, Oldsmobile, and Buick applications. Backed by a 1-year warranty against manufacturing defects and MDL's lifetime technical support.

What's Included

• Diaphragm-style pressure plate with low lever height for hydraulic CSC clearance
• Dual-friction clutch disc with Kevlar/steel-backed organic facings and sprung hub
• Pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year warranty against manufacturing defects
• Lifetime technical support

Key Features

• 500 HP torque capacity - Rated for high-output street and track builds
• Kevlar/Kevlar disc facings - Superior heat resistance and consistent engagement under demanding conditions
• 11-inch diaphragm pressure plate - 12-5/8-inch equidistant bolt pattern for GM applications
• 26 x 1-1/8-inch spline configuration - Compatible with TREMEC TKX, TKO, and T56 Magnum transmissions
• Low lever height pressure plate - Engineered for clearance with hydraulic concentric slave cylinders
• Sprung hub design - Smooth engagement and drivetrain vibration damping
• Hand-assembled in-house at MDL - Double-riveted construction with exacting quality control
• 1-year free-from-defect warranty - Backed by MDL's quality guarantee

Description

Running a hydraulic release bearing setup in your GM-powered build? Standard clutch kits weren't designed with concentric slave cylinder clearance in mind, leading to fitment headaches and binding issues. The MDL Superior 11-inch GM clutch kit solves this problem with a diaphragm pressure plate specifically engineered with a lower lever height, providing the clearance hydraulic CSC systems demand while delivering 500 HP capacity for serious performance applications.

The disc features Kevlar/Kevlar facings on both friction surfaces - a material choice that delivers exceptional heat dissipation, consistent bite characteristics, and extended service life compared to organic facings. This makes the kit equally at home on the street, at open track days, or road course events where repeated hard launches and sustained high-temperature operation are the norm. The sprung hub design absorbs drivetrain shock loads and smooths out engagement, eliminating the harshness that plagues many high-performance clutch setups.

Every Superior clutch is hand-assembled at MDL's Caldwell, Idaho facility. The discs are double-riveted to maintain quality and flawless operation - no shortcuts, no outsourced assembly. The 26 x 1-1/8-inch spline configuration matches GM TREMEC TKX and TKO input shafts, while the 12-5/8-inch equidistant bolt pattern fits flywheels for classic GM V8 applications. This is a Performance Proven product - it has survived the rigorous challenges of racing on and off the track.

Designed for street, cruising, road course, and racing applications. Proudly made in the USA.

What's Included

• 11-inch diaphragm pressure plate with low lever height for hydraulic CSC clearance
• 11-inch clutch disc with Kevlar/Kevlar facings and sprung hub (26 x 1-1/8-inch spline)
• Pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• 11" diameter clutch with 12-5/8" equalizer bolt pattern for GM applications
• Dual-compound friction disc: Kevlar facing on pressure plate side, ceramic facing on flywheel side
• 26-spline, 1-1/8" input shaft compatibility for TREMEC TKX, TKO, and T56 Magnum transmissions
• Low lever height pressure plate optimized for hydraulic concentric slave cylinder clearance
• 600 lb-ft torque rating for aggressive street and drag applications
• Sprung hub design absorbs driveline shock for smoother engagement
• Hand-assembled in-house with double-riveted construction
• Diaphragm-style pressure plate for consistent clamping force
• Performance Proven designation--tested in racing conditions on and off the track
• Made in the USA with 1-year free-from-defect warranty

Description

High-output GM builds often face a clutch dilemma: maximum holding power is required, but engine bay constraints prevent stepping up to a larger diameter disc. The Superior 11" Kevlar/Ceramic clutch set solves this problem by combining aggressive friction materials with a low lever height design specifically engineered for hydraulic concentric slave cylinder applications. The result is 600 lb-ft of torque capacity in a package that clears modern hydraulic release systems without binding or inconsistent pedal feel.

The dual-compound friction disc places Kevlar on the pressure plate side and ceramic on the flywheel side--a combination that delivers the best of both materials. Ceramic's higher coefficient of friction provides the hard-hitting bite needed for drag launches and quick shifts, while Kevlar contributes smoother engagement characteristics. The ceramic material contains iron particles that actually increase friction as temperatures rise, making this clutch thrive under sustained abuse in road course and strip conditions where lesser friction materials would fade.

Every Superior clutch disc is hand-assembled in MDL's facility to exacting tolerances. Double-riveted construction ensures the friction material stays put under repeated high-load cycles, while the sprung hub design absorbs driveline shock and smooths power delivery. The diaphragm-style pressure plate provides consistent clamping force across the entire disc surface. This clutch set fits GM bellhousing patterns with a 12-5/8" equalizer bolt pattern and mates to any 26-spline, 1-1/8" input shaft--including TREMEC TKX, TKO, and T56 Magnum transmissions.

MDL's Performance Proven designation means this clutch has survived the rigorous challenges of racing on and off the track. Backed by a 1-year free-from-defect warranty and Made in the USA.

What's Included

• 11" diaphragm-style pressure plate with low lever height
• Kevlar/ceramic friction disc with sprung hub (26-spline, 1-1/8")
• Pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

Key Features

• 800hp torque capacity for serious street builds
• Twin organic friction discs (9.687" diameter) for smooth engagement
• 26-spline x 1-1/8" input shaft compatibility
• Universal fitment: GM V8 ('55-'85), BOP ('59-'79), Ford 11"/11.5"/12" Long patterns
• Sprung hub design absorbs driveline shock while maintaining engagement control
• Large red adapter ring (6911/6921 series) fits 168T GM, Ford 164T/176T/180T/184T, BOP 160T/166T flywheels
• Soft pedal effort with excellent release characteristics
• Diaphragm-style pressure plate for consistent clamp load

Description

The McLeod RST twin disc clutch delivers 800hp holding power in a street-friendly package--no harsh engagement, no leg-day pedal effort, no excuses. It's engineered for the enthusiast running serious power who still wants to daily-drive their build without fighting the clutch in traffic.

The twin organic friction discs provide the clamping force of a multi-disc setup while maintaining the smooth, progressive engagement characteristics you expect from a streetable clutch. Sprung hubs absorb driveline shock during aggressive launches, protecting the transmission input shaft while delivering precise pedal modulation. The diaphragm pressure plate maintains consistent clamp load across the RPM range with a lighter pedal feel than Borg & Beck designs.

McLeod's patented adapter ring system is the key to the RST's universal fitment. The large red adapter ring included with this kit bolts directly to large-diameter flywheels--Chevy 168-tooth, Ford 164T/176T/180T/184T, and BOP 160T/166T--eliminating the need for a dedicated flywheel. This covers GM V8 applications from '55-'85, Buick/Olds/Pontiac from '59-'79, and Ford 11"/11.5"/12" Long bolt patterns.

This clutch kit is designed for high-horsepower street use and is not intended for competition. For drag racing or sustained track use, step up to the RXT or RXT 1200 series. Pilot bushing and throwout bearing sold separately. Professional installation with proper flywheel resurfacing recommended. Backed by McLeod's 90-day limited warranty.

What's Included

• Diaphragm pressure plate assembly
• Two organic friction discs (9.687" diameter, 26-spline x 1-1/8", sprung hub)
• Floater plate
• Large red adapter ring for large-diameter flywheels
• Pilot alignment tool, (Pilot bushing sold separately)
• Installation instructions
• Lifetime technical support from MDL

Key Features

• 1,000 HP torque capacity - handles extreme horsepower while remaining street-driveable
• Two ceramic friction discs (9.687" diameter) with slightly aggressive engagement and soft pedal effort
• Solid hub design for maximum durability under high-torque loads
• Floater plate architecture for dual-disc holding power with excellent release characteristics
• 26-spline, 1-1/8" input shaft compatibility for T56, TKX, and similar transmissions
• McLeod patent-pending large diameter adapter ring - fits existing large-diameter flywheels without dedicated flywheel purchase
• Diaphragm-style pressure plate for lighter-than-stock pedal feel
• Compatible with multiple flywheel bolt patterns: 11" Long, 11-5/8" EQ, 11-5/12" Long, 12-3/8" EQ

Description

Street-legal performance cars are making more power than ever, and if you're rowing your own gears past the 500 HP mark, you need a clutch that can handle the abuse without sacrificing daily driveability. The McLeod RXT Twin Disc Clutch Kit solves the classic high-horsepower dilemma - massive holding power without the harsh engagement and heavy pedal effort that make twin-disc setups miserable in traffic.

Rated at 1,000 HP, the RXT uses two ceramic-faced 9.687" friction discs mounted to a solid hub, distributing clamping loads across four friction surfaces for superior heat dissipation and consistent engagement under hard launches. The ceramic facings provide slightly aggressive engagement - enough bite to transfer serious torque without the on/off grabbiness that plagues race-only clutches. The diaphragm-style pressure plate delivers lighter-than-stock pedal effort, making this a genuinely streetable setup for stop-and-go driving.

This economical kit uses McLeod's patent-pending large diameter adapter ring system, allowing you to retain your existing large-diameter flywheel rather than purchasing a dedicated unit. The large red adapter ring fits common big-flywheel applications including Chevy 168T, Ford 164T/176T/180T/184T, Chrysler 143T/172T, and Buick/Olds/Pontiac 160T/166T configurations. The 26-spline, 1-1/8" input shaft configuration matches T56, TKX, and other performance transmissions.

Compatible with 1955-85 Chevy V8 engines equipped with large diameter flywheels. Note: McLeod street performance clutches require a 500-750 mile break-in period of stop-and-go city driving (1,200-1,500 clutch cycles) before wide-open-throttle use or dyno tuning. This kit does not include a pilot bearing or throwout bearing. Made in the USA.

What's Included

• Diaphragm-style pressure plate
• Two ceramic friction discs (9.687" diameter, 26-spline, 1-1/8" hub)
• Solid hub assembly
• Steel floater plate
• McLeod patent-pending large diameter adapter ring
• Clutch alignment pilot tool
• Installation instructions with break-in procedure

Note: Pilot bearing and throwout bearing not included - inspect and replace as needed during installation.

Key Features

• 1,200 horsepower capacity for extreme street/strip builds
• Twin ceramic friction discs with slightly aggressive engagement and soft pedal effort
• Patent-pending large red adapter ring fits large-diameter flywheels including Chevy 168T
• 26-spline x 1-1/8" input shaft compatibility for aftermarket transmissions
• Diaphragm-style pressure plate for consistent clamping force
• Blanchard-ground floater plate with multiple straps reduces noise for streetability
• Economically priced kit without flywheel - uses your existing flat-style flywheel
• Made in the USA

Description

When you have pushed past 1,000 horsepower and still need to drive to the track, run hard, and drive home, the McLeod RXT 1200 delivers the holding power without the leg cramps. This twin-disc clutch handles up to 1,200 crank horsepower while maintaining a comfortable pedal feel that will not leave you massaging a charlie horse after a trip through downtown at rush hour.

The RXT 1200 features ceramic-lined clutch discs that provide slightly aggressive engagement with soft pedal effort. The higher clamp load compared to the standard RXT gives you the grip needed for serious power while the twin-disc design keeps rotating mass low for quick revs. The Blanchard-ground floater plate with multiple straps minimizes driveline noise - you may hear some feedback tones between 1200-1900 RPM, which is normal for twin-disc applications.

McLeod's patent-pending large red adapter ring system eliminates the need for a dedicated flywheel. The ring mounts to your existing large-diameter flat-style flywheel (Chevy 168T and similar) and provides the proper mounting surface for the twin-disc assembly. This adapter ring approach reduces cost while maintaining strength. Note: This kit requires a flat-style flywheel with a crank relief of 6.250" or less for proper fitment - it will not work with recessed or stepped flywheels.

Compatible with 1955-1985 Chevy V8 applications using transmissions with a 26-spline x 1-1/8" input shaft. Break-in requires 500-750 miles of stop-and-go city driving to properly seat the discs - actuate the clutch 1,200-1,500 times before any wide-open throttle driving. Pilot and throwout bearings sold separately. Backed by lifetime technical support from Modern Driveline.

What's Included

• Diaphragm pressure plate
• Two ceramic friction discs
• Blanchard-ground floater plate
• McLeod patent-pending large red adapter ring
• Pilot alignment tool
• Installation instructions
• Lifetime technical support

Note: Pilot bearing and throwout bearing not included. Flywheel not included - kit uses existing flat-style flywheel with adapter ring.

Key Features

• 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
• 246mm (9.7-inch) twin-disc design doubles clutch surface area versus single-disc units
• Precision-machined aluminum clutch cover shares technology with Tilton's OT-Series racing clutches
• Billet chromoly steel flywheel with integrated 153-tooth ring gear and 6-bolt crankshaft mounting
• Internally balanced for early Chevy small block and big block V8 engines
• High-mass pressure plate and floater plate machined from proprietary racing materials for superior heat capacity
• Heavy-duty straps attach plates to cover for noise reduction and clean clutch release
• 26-spline, 1-1/8-inch input shaft compatibility for TREMEC T56 Magnum and TKO transmissions
• Works with OEM release bearings—no hydraulic release bearing required
• Complete kit includes clutch bolts, flywheel bolts, and alignment tool

Description

When your small block or big block Chevy build demands serious torque capacity without sacrificing street manners, the Tilton ST-246 twin-disc clutch delivers. Rated at 850 lb-ft with its sprung-hub organic discs, this assembly provides the holding power of a race clutch with engagement smooth enough for daily driving. The sprung center hub dampens engine vibrations and reduces gearbox noise—critical for street applications where you want performance without the harshness of a solid-hub setup.

Unlike many performance clutches that bolt a floater plate onto an OEM-type stamped steel pressure plate, the ST-246 was engineered from the ground up as a true twin-disc clutch. The precision-machined aluminum clutch cover shares technology directly from Tilton's championship-winning OT-Series racing clutches, delivering superior strength, stiffness, and dynamic balance compared to stamped steel alternatives. The high-mass main pressure plate and floater plate—machined from the same proprietary materials used in Tilton's racing clutches—provide exceptional heat capacity and resist warpage under hard use. The floater plate runs twice the thickness of most competing twin-disc designs, which eliminates gear clatter and dramatically improves heat dissipation.

The billet chromoly steel flywheel features a precision register that locates the clutch for optimal balance of the entire assembly—a significant improvement over the loose-fitting bolts and dowels typical of stamped steel clutch setups. The integrated 153-tooth chromoly ring gear matches early Chevy starters and eliminates the failure point of separate ring gear assemblies. Internal balance configuration suits traditional small block and big block Chevy engines.

This kit fits TREMEC T56 Magnum and TKO transmissions with 26-spline, 1-1/8-inch input shafts. Compatible with OEM release bearings for straightforward installation. Since 1972, Tilton Engineering has supplied small-diameter racing clutches to championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE—the ST-246 brings that same engineering to high-performance street applications.

Kit Includes

• Billet chromoly steel flywheel with integrated 153-tooth ring gear (internally balanced)
• Precision-machined aluminum pressure plate cover
• High-mass main pressure plate
• Strapped steel floater plate
• Two organic clutch discs with sprung center hubs (26-spline, 1-1/8-inch)
• Clutch mounting bolts
• Flywheel mounting bolts
• Clutch alignment tool

Note: Does not include pilot bushing or throwout bearing. Works with OEM release bearings.

Tilton ST-246 Twin-Disc Clutch & Flywheel Assembly | SBC & BBC 6-Bolt | 1250 lb-ft

Key Features

• 1250 lb-ft torque capacity with solid-hub cerametallic discs for street/strip applications
• Precision-machined aluminum clutch cover shares technology from Tilton's OT-Series racing clutches
• Double-thickness floater plate eliminates gear clatter and improves heat dissipation
• Chromoly steel flywheel with integrated ring gear and precision register for optimal balance
• Heavy-duty straps connect pressure plate and floater plate to minimize noise and ensure clean clutch release
• 26-spline, 1-1/8" input designed for Chevy Small Block and Big Block applications
• Internally balanced flywheel with 6-bolt crank pattern - ready to install
• Compatible with OEM throwout bearings (pilot bearing and throwout bearing not included)

Description

When your Small Block or Big Block Chevy build demands serious holding power, generic twin-disc setups with stamped steel pressure plates fall short. The Tilton ST-246 was engineered from the ground up as a true performance twin-disc clutch - not an OEM-type stamped steel pressure plate with a floater added. This complete clutch and flywheel assembly handles 1250 lb-ft of torque through advanced engineering that Tilton has proven across nearly 50 years of racing clutch development.

The precision-machined aluminum clutch cover shares technology from Tilton's championship-winning OT-Series racing clutches, featuring heavy-duty straps that attach the pressure plate and floater plate to minimize noise and provide clean clutch release. The floater plate is twice the thickness of most competitors, which eliminates the gear rattle that plagues thin-plate designs while providing superior heat dissipation for consistent performance under demanding street/strip use.

The high-mass main pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing high heat capacity and resistance to warpage. The solid-hub cerametallic discs deliver positive, precise engagement characteristics ideal for street/strip applications where maximum holding power is non-negotiable. Unlike sprung-hub organic designs, the solid hub construction provides the strength required for high-torque applications.

The chromoly steel flywheel features an integrated ring gear and precision register that locates the clutch for optimal balance - eliminating the loose-fitting bolts and dowels used with stamped steel designs. This assembly is internally balanced and ready to install on any Chevy Small Block or Big Block with a 6-bolt crankshaft pattern. Compatible with OEM release bearings; for GM TKO/TKX applications with hydraulic release, see item# MD-900-2507-A for an HRB. Pilot bearing and throwout bearing sold separately. Since 1972, Tilton Engineering has been the leading supplier of small-diameter racing clutches, winning championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE.

Kit Includes

• Precision-machined aluminum clutch cover with heavy-duty straps
• High-mass pressure plate (proprietary racing clutch material)
• Double-thickness strapped steel floater plate
• Two solid-hub cerametallic clutch discs (26-spline, 1-1/8")
• Chromoly steel flywheel with integrated ring gear (internally balanced, 6-bolt)
• Clutch bolts
• Flywheel bolts
• Clutch alignment tool

Note: Pilot bearing and throwout bearing not included.

[VERIFY: Ring gear tooth count - description states 153-tooth but product attributes show 168-tooth. Please confirm correct tooth count for SBC/BBC 6-bolt application.]

Key Features

• Lighten billet steel construction delivers superior strength and crack resistance over cast iron alternatives
• Zero balance design simplifies installation on internally balanced Buick 300 engines
• 160-tooth ring gear matches factory Buick 300 starter engagement
• Precision-machined 2.487" crank registration bore ensures accurate crankshaft alignment
• 11-5/8" equal bolt pattern accommodates 10.5" clutch disc and pressure plate assemblies
• Six-bolt crankshaft mounting with 7/16" bolt holes; 3/8" pressure plate bolt holes
• 27-pound weight reduces rotating mass compared to stock iron units while maintaining adequate inertia for street driving
• CNC-machined in the USA to exacting tolerances

Description

Finding a quality flywheel for a Buick 300 engine can be a challenge. Stock cast iron units are heavy, prone to stress cracking under repeated heat cycles, and getting harder to source. This MDL lighten billet steel flywheel solves those problems with modern materials and precision manufacturing, giving you a durable, high-performance replacement that bolts right in.

Billet steel construction delivers significant advantages over cast iron flywheels. Machined from solid steel stock rather than poured into a mold, billet flywheels exhibit superior strength and are far less susceptible to the stress cracks that plague cast iron units over time. The alloy content and manufacturing process create a flywheel that handles higher torque loads and more aggressive clutch materials without the risk of catastrophic failure. For street-driven Buicks that see spirited driving or occasional track time, billet steel is the smart upgrade.

The zero balance design is purpose-built for the internally balanced Buick 300 engine architecture. Unlike externally balanced engines that require weighted flywheels, the Buick 300 uses a zero-balance flywheel that simplifies installation and eliminates concerns about weight migration at high RPM. The 160-tooth ring gear is the correct specification for Buick 300, 340, early 350, and 231/3.8L V6 applications, ensuring proper starter motor engagement.

At 27 pounds, this flywheel strikes a balance between reduced rotating mass and adequate inertia for smooth street driving. The 11-5/8" equal bolt pattern accepts 10.5" clutch assemblies, and the precision-machined 2.487" crank registration bore guarantees accurate crankshaft fitment. Made in the USA with CNC machining for exact specifications and consistent quality.

What's Included

• One MDL lighten billet steel flywheel, CNC-machined from solid billet stock
• 160-tooth ring gear, heat-shrunk and aligned
• Precision-machined friction surface ready for clutch installation
• Flywheel bolts sold separately (ARP 7/16" flywheel bolt kit recommended)
• MDL lifetime technical support

Key Features

• Precision CNC-machined from lighten billet steel for superior strength and stress-crack resistance over cast iron
• 27 lb weight - lighter than cast iron stock flywheels while retaining enough mass for smooth street drivability
• External balance design specifically engineered for Buick 455 applications
• 166-tooth ring gear for proper starter motor engagement
• 11" clutch disc compatibility with single-disc pressure plate setups
• 12-5/8" equalizer (EQ) pressure plate bolt pattern for standard performance clutch systems
• 3/8" pressure plate bolt size
• 6-bolt crankshaft mounting pattern with 1/2" bolts
• Made in the USA with precision balancing

Description

Heavy cast iron flywheels rob your Buick 455 of throttle response and acceleration. This Lighten Billet Steel Flywheel delivers a meaningful weight reduction over stock castings while avoiding the low-speed drivability compromises that come with ultra-lightweight aluminum alternatives. Billet steel construction resists the stress cracking that plagues cast iron under aggressive clutch clamping forces, and the precision CNC machining ensures consistent balance and true runout.

Buick 455 big blocks use external balance, meaning the flywheel carries counterweight mass that's part of the engine's rotating assembly balance equation. This flywheel is engineered specifically for that external balance requirement - you cannot substitute an internally balanced flywheel and expect smooth operation. At 27 pounds, it sheds significant rotating mass compared to stock castings while retaining enough inertia for smooth engagement in stop-and-go traffic and confident launches from a dead stop.

The 12-5/8" equalizer bolt pattern accepts standard performance pressure plates, and the 166-tooth ring gear ensures correct starter engagement with factory or aftermarket starters. Six 1/2" bolts secure the flywheel to the Buick 455 crankshaft flange, and the 3/8" pressure plate bolt holes match common performance clutch assemblies. Whether you're building a street/strip Skylark GS, Riviera, or Electra, this flywheel delivers measurable performance gains without sacrificing daily drivability.

Proudly made in the USA with precision manufacturing and balance verification.

What's Included

• One Lighten Billet Steel Flywheel - precision CNC-machined and balanced, 27 lb
• 166-tooth ring gear - pre-installed and heat-treated
• Lifetime technical support

Key Features

• Lightened billet steel construction -- superior strength and crack resistance versus cast iron
• 30-pound weight -- optimized for street performance and smooth drivability
• 166-tooth ring gear -- correct tooth count for pre-1968 Oldsmobile applications
• 2.489" crank register bore -- ensures precise crankshaft centering
• 12-5/8" equalizer bolt pattern -- fits 11" single-disc clutches
• External balance -- matches Oldsmobile small block and big block balance requirements
• 6-bolt crankshaft mounting pattern
• Made in the USA

Description

Finding a flywheel that properly fits early Oldsmobile V8s can be a challenge -- most aftermarket options are built for the more common 1968-and-later engines. This lightened billet steel flywheel solves that problem with application-specific dimensions engineered for 1964-1967 Oldsmobile V8s, featuring the correct 166-tooth ring gear and 2.489" crank register bore that these engines require.

Billet steel construction delivers a significant strength advantage over factory cast iron flywheels. The billet material resists the stress cracks that commonly plague cast iron units under high-torque loads and elevated RPM, making it a smarter choice for any performance build. At 30 pounds, this flywheel maintains enough rotating mass to preserve smooth idle characteristics and low-speed drivability -- critical for a street-driven muscle car -- while shedding unnecessary weight that would slow throttle response.

The 12-5/8" equalizer pressure plate bolt pattern accommodates 11" single-disc clutch assemblies, and the external balance design is correct for Oldsmobile small block (260, 307, 330, 350, 403) and big block (400, 425, 455) engines. The 6-bolt crankshaft mounting ensures secure attachment to the crankshaft flange.

Precision-machined in the USA, this flywheel delivers the reliability and long-term durability that classic Oldsmobile builds demand. If you are converting an early Olds to a manual transmission or upgrading an existing clutch setup, this flywheel provides the proper fitment and billet-steel strength that off-the-shelf solutions often lack.

What's Included

• Lightened billet steel flywheel -- 30-pound weight, precision-balanced
• 166-tooth ring gear -- machined and heat-treated

Key Features

• Lightened billet steel construction reduces rotating mass to 30 lbs while maintaining durability
• External balance design with integrated counterweight for Oldsmobile 260-455 V8 crankshafts
• 166-tooth ring gear for reliable starter engagement
• 2.489" precision-machined crank register bore ensures accurate centering
• 6-bolt crankshaft mounting pattern
• Accepts 11" clutch disc with 12-5/8" pressure plate bolt pattern
• Made in the USA

Description

Oldsmobile V8s from 1968-1985 are externally balanced engines, meaning the flywheel must carry a counterweight to achieve proper crankshaft balance. A mismatched flywheel creates vibration that can damage bearings, gears, and clutch components. This lightened billet steel flywheel is purpose-built for Olds 260, 307, 350, 400, 403, and 455 cubic inch V8s, delivering the correct external balance your engine requires.

Billet steel construction offers significant advantages over cast iron flywheels. The material machines to tighter tolerances, resists cracking under high heat and repeated clutch engagement, and allows strategic material removal to reduce rotating mass without compromising strength. At 30 pounds, this flywheel strikes the ideal balance between reduced inertia for quicker throttle response and enough mass for smooth engagement and streetable manners.

The 2.489" crank register bore is precision-machined to center the flywheel accurately on your crankshaft, eliminating runout that causes clutch chatter and uneven wear. The 6-bolt mounting pattern secures the flywheel to your Oldsmobile crankshaft flange, and the 166-tooth ring gear ensures proper starter motor engagement. The clutch surface is machined for 11" clutch discs and drilled for the 12-5/8" pressure plate bolt pattern used by most performance clutch kits.

Designed and manufactured in the USA for Oldsmobile applications from 1968 through 1985.

What's Included

• One lightened billet steel flywheel with 166-tooth ring gear
• Integrated external balance counterweight

Key Features

• Lightened billet steel construction at 24 lbs reduces rotating mass for improved throttle response
• External balance design for 1964-1976 Pontiac 326, 350, 389, 400, 421, 428, and 455 engines with counterbalance
• 166-tooth hardened ring gear for reliable starter engagement
• 2.75-inch crank registration bore fits large register Pontiac crankshafts
• Compatible with 11-5/8-inch and 12-5/8-inch pressure plate bolt patterns
• Single-disc clutch compatible for 11-inch clutch assemblies
• Six-bolt crankshaft mounting pattern
• Requires 1/2-inch pressure plate bolts for proper installation
• Made in the USA

Description

Factory Pontiac flywheels carry more rotating mass than performance applications demand. That extra weight slows engine response on acceleration, delays RPM drop between shifts, and absorbs power that should be going to the rear wheels. This MDL Lightened Billet Steel Flywheel cuts rotating weight to 24 lbs while maintaining the durability billet steel construction provides, delivering noticeably sharper throttle response and quicker rev recovery throughout the powerband.

Precision CNC-machined from quality billet steel, this flywheel is engineered specifically for 1964-1976 Pontiac V8s ranging from the 326 to the mighty 455. The external balance design matches original Pontiac factory specifications--critical because Pontiac engines use offset flywheel weighting to complete the rotating assembly balance. This flywheel is intended for externally balanced engines; internally balanced (neutral balance) engines require a different unit.

The 2.75-inch crank registration bore ensures proper centering on large register Pontiac crankshafts, while the 166-tooth hardened ring gear guarantees consistent starter engagement. Dual pressure plate bolt patterns--11-5/8-inch and 12-5/8-inch--accommodate a wide range of diaphragm and Borg & Beck style clutch assemblies. The six-bolt crankshaft mounting pattern and 1/2-inch pressure plate bolt requirement ensure secure installation with proper clamping force.

Whether you're building a GTO, Firebird, LeMans, or full-size Pontiac for weekend cruising or spirited driving, this lightweight flywheel delivers improved engine response without the drivability compromises of ultra-light aluminum units. Billet steel construction handles the thermal demands of aggressive clutch materials and high-torque applications. Proudly made in the USA.

What's Included

• One (1) lightened billet steel flywheel (24 lbs)
• 166-tooth hardened steel ring gear (installed)
• MDL lifetime technical support

Key Features

• Lightened billet steel construction reduces rotating mass while maintaining durability for high-torque applications
• Neutral (internal) balance design--bolts directly onto internally balanced Pontiac 326, 350, 389, 400, 421, 428, and 455 engines with no counterweights required
• 166-tooth hardened steel ring gear for proper starter engagement
• 6-bolt crankshaft mounting pattern matches Pontiac V8 specifications
• Designed for 11-inch clutch applications; requires 1/2-inch pressure plate bolts
• Made in the USA

Description

Stock cast iron flywheels add unnecessary rotating mass to your Pontiac drivetrain, robbing throttle response and slowing RPM transitions. This lightened billet steel flywheel solves that problem while retaining the durability advantage steel holds over aluminum in street and moderate performance applications where heat management and longevity matter.

Precision CNC-machined from billet steel, this flywheel is strategically lightened to reduce rotational inertia without compromising structural integrity. The result is quicker revving, crisper throttle response, and faster shifts--all without sacrificing the thermal capacity that keeps your clutch surface temperature in check during spirited driving or repeated launches.

The neutral (internally balanced) configuration eliminates the need for external counterweights, making this flywheel a direct bolt-on for any Pontiac V8 from 326 to 455 cubic inches that has been internally balanced--which includes most professionally rebuilt engines. The 6-bolt crankshaft mounting pattern matches factory Pontiac specifications, and the integral 166-tooth ring gear ensures reliable starter engagement. Note that this flywheel requires 1/2-inch pressure plate bolts for proper installation.

Built to MDL's exacting standards and manufactured in the United States, this flywheel delivers the strength and precision your Pontiac build demands.

What's Included

• One lightened billet steel flywheel with integral 166-tooth hardened steel ring gear
• Lifetime technical support from MDL

Note: Flywheel bolts and pressure plate bolts sold separately. [VERIFY: Confirm crank register bore size--similar MDL Pontiac flywheels list 2.75-inch or 2.485-inch register; this listing does not specify.]

Key Features

• Lightened billet steel construction - 24 lbs for improved throttle response over heavy cast iron units
• External balance configuration for 1976-1984 Pontiac 326-455 cubic inch engines with counterbalanced crankshafts
• 166-tooth ring gear for standard starter compatibility
• 2.489" crank registration diameter for precise crankshaft fitment
• Dual pressure plate bolt pattern accepts both 10.5", 11-5/8", and 12-5/8" clutches
• 6-bolt crankshaft mounting pattern
• Single-disc compatible
• Requires 1/2" pressure plate bolts for proper installation
• CNC-machined in the USA

Description

Heavy factory cast iron flywheels soak up horsepower and dull throttle response. This MDL Lightened Billet Steel Flywheel delivers the solution - a precision-machined 24-pound flywheel that sheds rotating mass while maintaining enough inertia for smooth street drivability. The reduced weight means faster engine acceleration and deceleration, sharper throttle response, and less parasitic loss robbing your Pontiac V8 of its potential.

Machined from premium billet steel alloy, this flywheel delivers superior strength and durability compared to cast iron alternatives. Billet steel resists the stress cracks that develop in iron flywheels under repeated thermal cycling and high clamping loads from performance clutches. The consistent material properties throughout eliminate weak points and porosity issues found in castings, making this the right choice for high-performance street engines and spirited driving.

Engineered specifically for 1976-1984 Pontiac V8 engines from 326 to 455 cubic inches with counterbalanced (externally balanced) crankshafts, this flywheel features the correct 2.489" crank registration diameter and external balance configuration. The 166-tooth ring gear ensures compatibility with standard starters, while the dual bolt pattern accommodates 10.5", 11-5/8", and 12-5/8" pressure plates for maximum clutch selection flexibility.

Installation requires 1/2" pressure plate bolts for proper torque retention with the billet steel construction. The 6-bolt crankshaft mounting pattern provides a direct bolt-on fit with no modifications required. CNC-machined in the USA to exacting tolerances, this flywheel delivers the performance upgrade your Pontiac build demands.

What's Included

• One (1) lightened billet steel flywheel, CNC-machined (24 lbs)
• 166-tooth steel ring gear, press-fitted

Key Features

• Heat-treated Grade 8 steel construction with 120,000 psi tensile strength for critical clutch safety
• 3/8-16 thread pitch with 1.000-inch underhead length fits dozens of Ford and Chevy applications
• Black oxide finish resists rust and corrosion in harsh automotive environments
• Hex head design with 9/16-inch wrench diameter for standard tool compatibility
• Lock washers included for secure assembly — companion nuts sold separately
• Set of 6 bolts covers complete pressure plate installation

Description

Pressure plate bolts are often overlooked until they fail — and that failure can destroy your clutch, flywheel, and bellhousing in seconds. These pressure plate bolts eliminate that risk with precision-machined Grade 8 steel construction that delivers the strength and reliability your drivetrain demands.

Each bolt is heat-treated to Grade 8 specifications, providing 120,000 psi tensile strength — the benchmark for high-stress fastener applications. The black oxide finish provides corrosion resistance while maintaining the precise tolerances needed for proper clutch operation. The hex head design uses standard 9/16-inch tooling, and the 1.000-inch underhead length ensures proper thread engagement in Ford and Chevy bellhousing applications from the ’50s forward.

These Ultra-Seal specialty fasteners replace factory hardware that may have stretched, corroded, or been lost during rebuilds. The included lock washers prevent loosening under the extreme forces generated by clutch engagement, while the precise 3/8-16 thread pitch ensures proper fit in OEM pressure plate bolt holes.

Compatible with dozens of Ford and Chevy engine applications spanning multiple decades. Each kit includes six bolts and lock washers — everything needed for complete pressure plate installation. Companion nuts are sold separately.

What's Included

• Six (6) Grade 8 steel pressure plate bolts with black oxide finish
• Six (6) steel lock washers
• 3/8-16 thread pitch x 1.000-inch underhead length
• Hex head design with 9/16-inch wrench diameter

ARP Pressure Plate Bolt Kit | GM 265-502 V8 | 3/8-16 Chrome Moly (Set of 6)

Key Features

• Premium chrome moly construction hardened to 180,000 PSI tensile strength
• 3/8-16 thread pitch with 9/16" hex head for secure tool engagement
• Black oxide finish for corrosion resistance
• Application-specific engineering ensures optimum grip length for GM V8 applications
• Forged from aerospace alloy and heat-treated prior to thread rolling
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• Set of 6 bolts for complete pressure plate installation

Description

Pressure plate bolts play a critical role in the performance and safety of any high-performance street machine or race car. Stock fasteners are engineered for economy, not durability under extreme clamping loads and high-RPM operation. When your clutch system needs to handle serious power, ARP's High-Performance Series pressure plate bolts deliver the strength and reliability that OEM hardware simply cannot match.

These bolts are manufactured from premium-grade chrome moly steel and hardened to a nominal tensile strength of 180,000 PSI--far exceeding standard factory hardware. The forging process uses aerospace alloy material that is heat-treated prior to thread rolling and machining, resulting in exceptional toughness under repeated thermal cycling and mechanical stress. ARP engineered these fasteners to be application-specific for Chevrolet 265-502 V8 engines, ensuring the optimum grip length for proper pressure plate clamping across small block and big block applications.

The exclusive hex head design with 9/16" wrench size provides superior tool engagement during installation, while the larger-than-stock shank diameter increases overall strength and improves flywheel register integrity. Black oxide finish protects against corrosion for long-term durability in demanding environments. Whether you're building a weekend warrior or a dedicated track car, these ARP fasteners eliminate the weak link in your clutch system.

Originally developed for NASCAR Cup competition, ARP fasteners are trusted by professional engine builders and racers worldwide. This kit includes everything needed for a complete pressure plate bolt replacement on GM V8 engines.

Kit Includes

• 6 - ARP chrome moly pressure plate bolts (3/8-16 thread, 9/16" hex head)
• Black oxide finish
• Manufacturer's warranty against defects

LF Series Hydraulic Clutch Master Kit | Remote Reservoir | 0.700 Bore

Key Features

• 0.540 cubic inch displacement volume - properly moves most slave cylinders on the market
• 0.700-inch bore with full 1.4-inch stroke for complete clutch disengagement
• Remote reservoir design for flexible mounting in tight engine bays
• Hand-assembled in-house for controlled quality and tolerances
• Includes 1-man bleeder kit for simplified system bleeding
• Tested, proven, and double-checked for fit and finish before shipping
• Compatible with DOT 3 or DOT 4 brake fluid
• Works with stock clutch pedals and OE reproduction aftermarket pedals
• Made in the USA

Description

When you're building a hydraulic clutch system from scratch, piecing together individual components wastes time and often leads to compatibility headaches. MDL bundles this complete master cylinder kit for builders who want everything needed to install a hydraulic clutch master without hunting down fittings, rods, and hardware separately. The LF Series represents MDL's engineered approach to hydraulic clutch actuation - every component selected and tested to work together seamlessly.

This cylinder's 0.700-inch bore paired with a full 1.4-inch stroke delivers 0.540 cubic inches of displacement volume - the sweet spot for actuating most hydraulic throwout bearings and slave cylinders without over-pressurizing the system or requiring excessive pedal travel. Don't confuse this with the Wilwood GS that has a shorter stroke - MDL's full 1.4-inch stroke ensures complete clutch disengagement even with high-clamp-load pressure plates.

The remote reservoir design allows flexible mounting options when firewall space is limited or when you need to keep the fluid reservoir away from engine heat. All MDL hydraulic kits are hand-assembled in-house so that quality and tolerances can be controlled, then tested and double-checked for fit and finish before they go in the box. If you don't use the full stroke of the cylinder, MDL offers 3/4-inch and 7/8-inch bore masters for applications requiring different volume characteristics.

This universal kit works across Ford, GM/Chevy, and Mopar applications with stock clutch pedals or aftermarket reproduction pedals. Uses DOT 3 or DOT 4 brake fluid. Made in the USA with lifetime technical support available at 208-453-9800.

Kit Includes

• 0.700-inch bore x 1.4-inch stroke master cylinder
• Remote reservoir with mounting hardware
• Complete hydraulic line set with fittings
• Pushrod assembly
• 1-man bleeder kit for system bleeding
• Installation instructions
• Lifetime technical support

Key Features

• 0.750-inch bore x 1.2-inch stroke master cylinder delivers 0.530 cubic inch fluid displacement
• Remote reservoir design enables flexible mounting in tight engine compartments
• Full 1.2-inch stroke provides adequate volume to actuate most internal and external slave cylinders on the market
• One-man bleeder kit included for simplified bleeding and future maintenance
• Compatible with stock factory clutch pedals and OE reproduction aftermarket pedals
• Complete kit eliminates sourcing individual fittings, rods, and hardware
• Made in the USA with lifetime technical support

Description

Converting to hydraulic clutch actuation delivers smooth, consistent pedal feel by eliminating binding mechanical linkages and cable stretch—but sourcing compatible components individually can be overwhelming. This LF Series Generic Master Kit solves that problem by bundling a proven master cylinder with all the fittings, lines, and hardware needed for a complete installation in one box.

The heart of this kit is a 0.750-inch bore master cylinder with a full 1.2-inch stroke, engineered to generate 0.530 cubic inch displacement per stroke. That volume is specifically sized to properly actuate most slave cylinders on the market while maintaining excellent pedal modulation. Don't confuse this with Wilwood GS cylinders that feature a shorter stroke—this master provides the full displacement needed for complete clutch disengagement across a wide range of applications.

The remote reservoir configuration offers critical installation flexibility, allowing you to mount the reservoir away from the master cylinder when firewall space is limited. This is particularly valuable in engine swaps, hot rods, and custom builds where headers or other components crowd the traditional mounting area. The kit works with both stock factory clutch pedals and OE reproduction aftermarket pedals, making it ideal for classic restorations and custom projects alike.

Every MDL hydraulic kit includes a one-man bleeder system that eliminates the need for an assistant during bleeding and makes future maintenance straightforward. Uses standard DOT 3 or DOT 4 brake fluid—no exotic fluids required. Made in the USA and backed by MDL technical support at 208-453-9800.

What's Included

• 0.750-inch bore x 1.2-inch stroke master cylinder
• Remote reservoir with mounting hardware
• Hydraulic supply lines and fittings
• One-man bleeder kit
• Complete installation hardware
• Detailed installation instructions
• Lifetime technical support

Generic Hydraulic Clutch Master Kit | 0.700-Inch Bore | Integral Reservoir

Key Features

• 0.700-inch bore Wilwood master cylinder delivers precise pedal modulation and proper slave cylinder displacement
• Integral reservoir design eliminates external reservoir mounting and extra plumbing
• Uses stock clutch rod opening - no clutch pedal modifications required
• Single-angle mounting block simplifies engine compartment installation with no reduction linkage needed
• Only 3 small holes required for complete installation
• Achieves full pedal stroke for consistent clutch engagement
• Includes 1-man bleeder kit for simplified solo bleeding
• Hand-assembled and tested in-house at MDL for quality control
• Made in the USA

Description

Mechanical clutch linkages introduce flex, binding, and constant adjustment headaches into your drivetrain. This Generic Hydraulic Clutch Master Kit converts your clutch actuation to smooth, self-adjusting hydraulic operation using a 0.700-inch bore Wilwood master cylinder with integral reservoir. The compact integral reservoir design consolidates components, eliminating the need for remote reservoir mounting and reducing potential leak points in the system.

The single-angle mounting block positions the master cylinder in the engine compartment without complex reduction linkage, simplifying installation while maintaining proper pedal geometry. This universal kit uses the stock clutch rod opening and requires no modifications to your clutch pedal - only 3 small mounting holes need to be drilled for complete installation. The result is full pedal stroke with consistent, predictable clutch feel every time.

Every MDL hydraulic kit is hand-assembled in-house to control quality and tolerances. Each unit is tested and double-checked for fit and finish before shipping. The included 1-man bleeder kit makes initial setup and future maintenance straightforward - no helper needed to pump the pedal while you work the bleeder valve.

Note: Clearance with your brake booster may require verification depending on booster profile and mounting distance from the firewall. This system uses DOT 3 or 4 brake fluid. Made in the USA with lifetime technical support from MDL.

What's Included

• Wilwood 0.700-inch bore hydraulic clutch master cylinder with integral reservoir
• Single-angle firewall mounting block
• Hydraulic lines
• 1-man bleeder kit for solo bleeding
• Complete installation instructions
• Lifetime technical support

Key Features

• 0.750-inch bore with full 1.4-inch stroke delivers 0.620 cubic inch displacement volume
• Integral reservoir design eliminates remote reservoir mounting and external lines
• Full stroke design moves most slave cylinders on the market - not a short-stroke GS unit
• Hand-assembled in-house for controlled quality and tolerances
• Tested and proven, double-checked for fit and finish before shipping
• Includes one-man bleeder kit for solo installation
• Compatible with factory clutch pedals and OE reproduction aftermarket pedals
• Uses DOT 3 or 4 brake fluid - no high-temp fluid required
• Made in the USA

Description

Converting to hydraulic clutch actuation means tracking down a master cylinder, then hunting for the right fittings, pushrods, and hardware to make it work. This complete LF Series master cylinder kit bundles everything needed for the conversion, eliminating the parts-chasing headache and ensuring component compatibility from the start.

The 0.750-inch bore paired with a full 1.4-inch stroke generates 0.620 cubic inches of displacement volume per stroke - enough fluid movement to properly actuate most internal and external slave cylinders on the market. Don't confuse this with the shorter-stroke Wilwood GS compact masters that limit displacement. If your application doesn't require the full stroke, MDL also offers a 7/8-inch bore master for higher-volume applications.

The integral reservoir design keeps everything in one compact, self-contained unit. No remote reservoir mounting, no external lines between reservoir and cylinder - just a clean installation with fewer potential leak points. Every MDL hydraulic master kit is hand-assembled in-house where tolerances and quality are controlled directly. Each unit is tested and proven, then double-checked for fit and finish before it goes in the box.

This universal kit works with factory clutch pedals and OE reproduction aftermarket units. Standard DOT 3 or 4 brake fluid is all that's required - no expensive high-temp racing fluid necessary. The included one-man bleeder kit means you can get the air out solo, no assistant needed to pump the pedal. Made in the USA and backed by MDL technical support at 208-453-9800.

What's Included

• 0.750-inch bore x 1.4-inch stroke master cylinder with integral reservoir
• Hydraulic lines with fittings
• Pushrod and hardware
• One-man bleeder kit
• Installation instructions
• Lifetime technical support

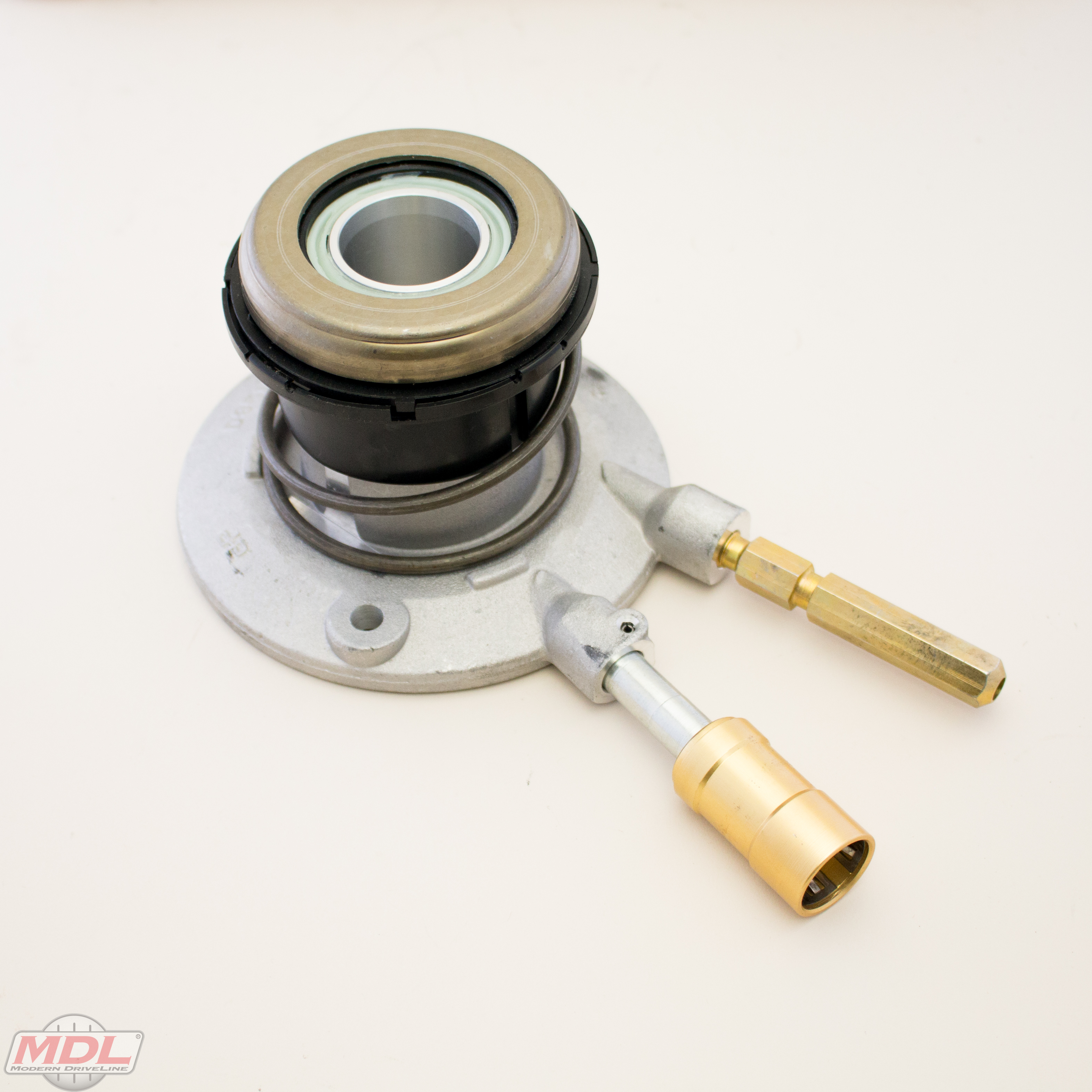

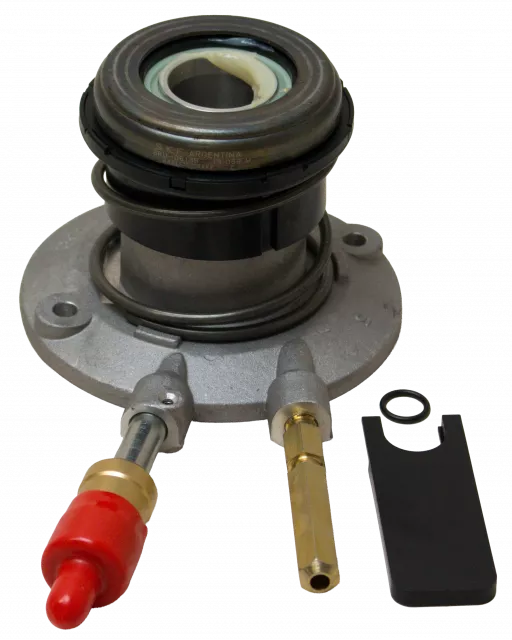

Key Features

• OE-style concentric slave cylinder (CSC) with integrated hydraulic throwout bearing
• GM quick disconnect fitting for easy high-pressure line connection
• Remote vent fitting allows bleeding outside the bellhousing
• Bolt-on installation to GM T56, Magnum, and Super Magnum six-speed transmissions
• Designed for LS engine swaps and performance builds in hot rods, muscle cars, and street rods

Description

GM-style T56 and Magnum transmissions use a concentric slave cylinder to operate the clutch release mechanism -- the CSC combines the slave cylinder and throwout bearing into a single unit that mounts to the transmission input shaft bearing retainer. This OE-style hydraulic release bearing from MDL delivers reliable clutch actuation for your LS swap or performance build, featuring a GM quick disconnect fitting that makes high-pressure line routing straightforward.

The quick disconnect fitting snaps directly onto the CSC body for fast, leak-free connections to your hydraulic clutch line. A remote vent fitting routes the bleeder port outside the bellhousing, eliminating the messy and time-consuming process of bleeding the system from inside the bell. This design is ideal for aftermarket applications where bellhousing access is limited or where you need to service the hydraulics without pulling the transmission.

Fitment includes GM LS-pattern T56, T56 Magnum, and Super Magnum six-speed transmissions when installed in aftermarket hot rod, muscle car, or street rod applications. Note that the quick disconnect fitting does protrude from the bellhousing -- if clearance is an issue in your chassis, MDL also offers a low-clearance version (MD-900-2100-LC) with flexible braided lines instead of the quick disconnect.

What's Included

• OE-style hydraulic concentric slave cylinder with integrated throwout bearing
• GM quick disconnect fitting
• Remote vent fitting

Key Features

• 24-inch stainless steel braided line with 1/4-inch ID and clear plastic coating over Teflon inner lining
• GM male quick disconnect fitting to -4AN female straight fitting configuration
• Premium stainless steel crimp sleeves and stainless fittings throughout
• Pressure tested for quality assurance
• Direct replacement for failure-prone OEM plastic clutch lines
• 100% made in the USA

Description

Factory plastic hydraulic clutch lines are notorious failure points in TREMEC swaps and high-performance applications. Under heat and pressure, the OEM plastic hose expands and eventually fails--right when you need clutch actuation most. This MDL stainless steel braided line eliminates that weakness with a premium construction designed for serious drivetrain builds.

The 24-inch length with 1/4-inch ID provides flexibility for routing around exhaust components and headers while the stainless steel braided construction with Teflon inner lining delivers superior durability and heat resistance. The clear plastic coating protects the stainless braid from abrasion while providing a clean, professional appearance that lasts. Premium stainless steel crimp sleeves and stainless fittings ensure reliable connections that won't fail under high-heat racing conditions or extreme-duty street applications.

One end features a GM male quick disconnect fitting that connects directly to GM hydraulic release bearings and slave cylinders found on TREMEC applications. The other end terminates in a straight -4AN female fitting for connection to aftermarket master cylinders or additional hydraulic components. This conversion hose configuration makes it ideal for transmission swaps where you need to bridge OEM-style connections to AN-style plumbing.

Each line is pressure tested for quality assurance and manufactured to precise tolerances. Compatible with most internal and external slave cylinder setups. Proudly made in the USA.

What's Included

• 24-inch stainless steel braided hydraulic line with clear plastic coating and Teflon lining
• GM male quick disconnect fitting (transmission end)
• -4AN female straight stainless steel fitting

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Converts Ford-style slip-in speedometer drive to GM 7/8" threaded cable connection
• Fits Ford T5, all 3550/TKO transmissions, Ford T56 with cable drive, and all TREMEC Magnum six-speeds
• Double O-ring seal at the transmission case plus internal seal to prevent fluid leaks
• Steel construction for accurate readings and long service life
• Eliminates the need for expensive custom speedometer cables

Description

TREMEC T56 Magnum, TKX, and TKO transmissions all use a Ford-style mechanical speedometer drive, which creates a compatibility problem for GM muscle cars and hot rods equipped with traditional GM speedometers and 7/8" threaded cables. Rather than sourcing an expensive custom cable, this adapter assembly converts the Ford slip-in driven gear interface to accept a standard GM threaded speedometer cable directly.

The adapter features a double O-ring seal at the transmission case opening combined with an internal seal where the cable attaches. This dual-seal design addresses a common complaint with lesser adapters that allow transmission fluid to leak through the cable attachment point. Steel construction ensures the drive spindle maintains accuracy and durability under demanding conditions.

Installation is straightforward: the adapter inserts into the transmission's speedometer housing where the driven gear normally sits, and your existing GM speedometer cable threads onto the adapter's external 7/8" fitting. This assembly fits Ford T5, all 3550/TKO variants, Ford T56 transmissions with cable drive, and all TREMEC Magnum six-speed transmissions. Note that speedometer driven gears and retaining clips are sold separately and must be matched to your tire size and rear axle ratio for accurate speedometer readings. Made internationally.

What's Included

• Speedometer cable adapter assembly with steel drive spindle
• Full manufacturer's warranty

Key Features

• Converts Ford slip-in speedometer drive to GM 7/8" threaded cable connection
• Double O-ring seal system prevents transmission case leakage at the housing
• Internal seal stops fluid from traveling up the speedometer cable
• Swiss steel drive spindle delivers superior strength and accuracy
• Billet housing with naval brass bushing for smooth, long-lasting operation
• One-piece design eliminates multiple failure points found in cheaper adapters
• Made in the USA

Description

TREMEC T-56 Magnum, TKX, TKO, and T5 transmissions use a Ford-based mechanical speedometer drive, which creates a problem when you're running a GM chassis with a 7/8" threaded speedometer cable. Without an adapter, you're stuck either fabricating a custom cable or dealing with a leak-prone import solution that fails at the worst possible time.

This precision-machined adapter is engineered to eliminate the chronic leakage issues that plague cheaper alternatives. The double O-ring seal system addresses leaks at the transmission case opening, while a dedicated internal seal prevents fluid from wicking up through the cable attachment point—a common failure mode on single-seal designs. The Swiss steel drive spindle provides extra strength and accuracy for consistent speedometer readings over the life of the build.

The billet housing paired with a naval brass bushing ensures smooth cable rotation and extended service life, even in high-vibration environments. The one-piece construction eliminates the potential leak paths and wear points found in multi-piece adapter assemblies.

Fits Ford T5, all 3550/TKO models, TKX, Ford T56 with cable drive, all TREMEC Magnum six-speeds, and Ford three- and four-speed transmissions. Made in the USA with full warranty coverage.

Kit Includes

• Billet speedometer cable adapter housing
• Swiss steel drive spindle
• Naval brass bushing
• Dual O-ring seals for transmission case
• Internal cable seal
• Full manufacturer's warranty

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Direct-fit snap-in connector mates with the reverse lockout solenoid on all TREMEC T56 6-speed transmissions
• Generous 6-foot wiring length provides flexible routing through tunnels and firewalls
• Protective covering shields wiring from heat, abrasion, and moisture
• Designed for use with MDL's MD-700-0100-2 reverse lockout control module
• Fits Ford and GM T56 applications

Description

The TREMEC T56 utilizes a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a critical safety feature because reverse and 5th are located very close to each other on the shift pattern. When the solenoid isn't energized, spring pressure against the shift rail makes reverse engagement difficult. When powered, the solenoid retracts the pin, allowing smooth entry into reverse. The problem? Classic cars and restomod builds lack the factory PCM logic to control this solenoid, leaving builders to either muscle through the lockout or rig up makeshift solutions.

This 6-foot harness provides the factory-style snap-in connector that mates directly with the T56's reverse lockout solenoid. The extended length gives you the flexibility to route wiring cleanly through the transmission tunnel, up through the firewall, and to your control module location without splicing or extending. The protective covering shields the conductors from exhaust heat, sharp edges, and underbody moisture--critical for a harness that lives in a harsh environment.

This harness is designed to work with MDL's MD-700-0100-2 reverse lockout control module, which monitors vehicle speed via the VSS signal and automatically energizes the solenoid below approximately 5-10 MPH for easy reverse engagement, then de-energizes it at higher speeds to prevent accidental shifts. The result is OEM-style lockout behavior without relying on makeshift brake-light-switch wiring or manual override buttons. Fits all TREMEC T56 6-speed transmissions in Ford and GM applications.

What's Included

• 6-foot reverse lockout solenoid harness with protective covering
• Snap-in connector for TREMEC T56 reverse solenoid

Key Features

• Environmentally-sealed Weather Pack connector resists moisture, extreme temperatures, and corrosive engine bay vapors
• 14 AWG wires with 10-inch leads for flexible installation routing
• Male (tower) and female (shroud) housings with pin-and-socket configuration for secure connection
• 20-amp maximum capacity for reliable 12V electrical operation
• Direct-fit compatibility with GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions
• Complete terminal and pigtail assembly - no additional components needed

Description

When swapping to a T56 Magnum or Ford T5 transmission, connecting the reverse light circuit is critical for both legal compliance and safety. This reverse switch harness eliminates the guesswork and provides a clean, factory-grade electrical connection that integrates seamlessly with existing vehicle wiring.

Built around the proven Weather Pack connector system, this harness delivers outstanding reliability in demanding engine bay environments. The pin-and-socket design creates a positive mechanical lock while sealing out moisture, dirt, and corrosive chemical vapors that destroy standard electrical connections over time. Heavy-duty 14 AWG wire handles the full electrical load with headroom to spare, while the 10-inch leads provide flexibility for routing around headers, exhaust components, and other obstacles.

The complete terminal and pigtail assembly plugs directly into GM T56 Magnum, Ford T56 Magnum, and V6 Ford T5 transmissions without modification. On the vehicle side, the Weather Pack connector interfaces cleanly with existing reverse light circuits or aftermarket wiring harnesses. This eliminates the common problems of corroded connections, loose terminals, and failed reverse lights that plague cut-and-splice installations.

What's Included

• Weather Pack male (tower) housing with terminals
• Weather Pack female (shroud) housing with terminals
• 10-inch 14 AWG wire leads (pair)
• Complete pin-and-socket connector assembly

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
