Key Features

• 700 lb-ft torque capacity - handles serious power from LS, big-block, and small-block builds
• Close ratio gear set (2.66, 1.78, 1.30, 1.00, 0.80, 0.63) - keeps you in the powerband through every shift
• Double overdrive design with 0.80 fifth and 0.63 sixth - lower cruising RPM and improved fuel economy
• 26-spline input shaft and 31-spline output shaft - compatible with a wide range of clutch and driveline combinations
• Triple cone synchronizers on gears 1-4, double cone on 5-6 and reverse - crisp, precise shifts at high RPM
• 4616 chromoly gears and shafts with substantially increased face widths - built to survive high-stress applications
• One-piece countershaft resists distortion under load
• Fully reversible TKO-style die-cast aluminum shifter - smooth, positive action with multiple mounting positions
• Dual speedometer pickups - accommodates both electronic and mechanical speedometers
• Built-in mid-shift provisions - relocate the shifter forward without hassle
• 85mm center distance - matches TKO positioning for proven conversion fitment
• Approximately 135 lbs dry weight - reasonable weight for a transmission this strong
• 3.65-quart fluid capacity - uses Dexron III ATF

Description

When TREMEC set out to replace the legendary T56, they didn't just update it - they engineered the Magnum from the ground up using TR-6060 architecture found in factory supercars like the C6 ZR1 Corvette and Viper ACR. The result is the strongest, smoothest-shifting 6-speed manual transmission available for the aftermarket, purpose-built for GM LS engines as well as big-block and small-block applications when paired with the correct bellhousing.

This close ratio version (TUET11009) features gear ratios optimized for high-performance street driving and road racing. The 2.66 first gear launches hard without being too aggressive, while the tightly-spaced 1.78 second, 1.30 third, and 1:1 fourth keep you in the meat of your powerband. The double overdrive - 0.80 fifth and 0.63 sixth - drops highway RPM dramatically, improving both cruising comfort and fuel economy. The 4616 chromoly gears feature two-piece laser-beam welded construction with increased face widths for greater strength and more precise tooth geometry.

Inside, the Magnum benefits from modern OEM synchronizer technology: triple cone units on gears 1-4 and double cone on 5-6 and reverse deliver incredibly short, low-effort shift throws with precise engagement even at high RPM. The redesigned shift forks eliminate the wear issues that plagued earlier T56 designs, and the extensively modified case prevents leaks under high-stress conditions. The fully reversible TKO-style aluminum shifter provides multiple mounting positions, and built-in mid-shift provisions under the inspection cover make forward shifter relocation simple for bench-seat classics.

Compatible with GM big-block, small-block, and LS engines using the appropriate bellhousing. Uses standard T56 bellhousing bolt pattern with internal CSC (concentric slave cylinder) mounting provisions. Requires Dexron III ATF. Rated to 7,800 RPM.

Kit Includes

• TREMEC T56 Magnum 6-speed transmission assembly (TUET11009)
• Fully reversible die-cast aluminum shifter with reverse lockout
• Dual speedometer pickup provisions (electronic and mechanical)
• 7-tooth internal speedometer drive gear
• TREMEC factory warranty
• MDL extended warranty - additional year with 1-year grace period when purchased as part of a complete conversion package
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - handles serious power from LS swaps and big-block builds
• Wide ratio gear set (2.97, 2.10, 1.46, 1.00, 0.74, 0.50) - aggressive first gear for hard launches, double overdrive for highway cruising
• 26-spline input shaft, 31-spline output shaft - direct compatibility with GM LS-series engines
• 4616 chromoly gears and shafts - significantly increased face widths with 2-piece laser-beam welded construction
• Triple-cone synchronizers (1st-4th) - smooth, high-rpm shifts without balking
• Double-cone synchronizers (5th-6th and Reverse) - crisp engagement across all gears
• Fully reversible TKX-style die-cast aluminum shifter - OEM-grade construction with multiple mounting positions
• Dual speedometer outputs - accommodates both mechanical and electronic speedometers
• Built-in mid-shift provisions - accessible under inspection cover for easy conversions
• One-piece countershaft - bolstered design resists distortion under load
• 34.85" overall length (GM version) - plan your tunnel modifications accordingly
• 135 lbs dry weight - manageable for a transmission rated at 700 lb-ft
• 3.66 qt fluid capacity - uses ATF Dexron III, TREMEC HP-MTF, or Synchromesh

Description

The original T56 topped out around 450 lb-ft - fine for stock applications, but a liability once you started adding power. The TREMEC T56 Magnum solves that problem decisively, delivering 700 lb-ft of torque capacity in a purpose-built aftermarket package based on the TR-6060 architecture found in factory supercars like the Corvette ZR1 and Dodge Viper ACR.

This wide-ratio version (TUET11012) features a 2.97 first gear for aggressive launches and street-light acceleration, while the double overdrive - 0.74 in fifth and 0.50 in sixth - drops highway RPM significantly for better fuel economy and reduced engine wear. TREMEC widened the gear faces substantially over the original T56, then added 2-piece laser-beam welded construction for precise control of tooth angles, pitch, and alignment. Triple-cone synchronizers on gears 1-4 and double-cone on 5-6 deliver smooth, high-rpm shifts without grinding or balking - even when you're banging through the gears hard.

The reversible die-cast aluminum shifter eliminates the limitations of earlier cast-iron designs, providing TKX-style precision with short, low-effort throws. Dual speedometer pickups handle both mechanical cable-driven and electronic setups without adapters. Built-in provisions for mid-shift conversions sit under the inspection cover, ready when your application demands a different shifter location. The T56-style bellhousing bolt pattern makes installation with various late-model GM engines straightforward.

At 34.85 inches overall length, tunnel modification is required for most classic muscle car conversions - this is not a drop-in for '98-'02 F-bodies or '04-'06 GTOs. The 26-spline input matches LS-series engines directly, while the 31-spline output handles serious driveline torque. When you purchase through MDL, you get the standard TREMEC warranty plus an additional year of coverage, along with lifetime technical support to help you get your conversion dialed in right.

What's Included

• TREMEC T56 Magnum transmission assembly (TUET11012)
• Die-cast aluminum reversible shifter with mounting hardware
• Dual speedometer output provisions (mechanical and 17-tooth electronic)
• Internal hydraulic throwout bearing mounting provisions
• Inspection cover with mid-shift conversion access
• TREMEC factory 1-year warranty plus MDL extended warranty (additional 1 year with 1-year grace period)
• Lifetime technical support from MDL

Key Features

• 700 lb-ft torque capacity - built to handle high-power GM small block, big block, and LS engine combinations
• Wide-ratio gear set: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 - aggressive 2.97:1 first for hard launches with double overdrive for relaxed highway cruising
• Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse - precise, high-rpm shifting under load
• 26-spline input shaft, 31-spline output shaft - robust spline counts for serious torque handling
• 85mm center distance with substantially increased gear face widths - wider gears and laser-beam welded 2-piece construction for durability
• Fully reversible TKO-style OEM-grade die-cast aluminum shifter - smooth, positive shift action with multiple mounting positions
• Dual speedometer pickups - accommodates both electric and mechanical speedometers
• Built-in mid-shift provisions under inspection cover - simple forward shifter relocation for early cars with bench seats
• 135 lbs dry weight - lighter than competing 6-speeds
• 3.66 quart fluid capacity - uses Dexron III ATF or TREMEC HP-MTF
• Overall length: 34.85 inches (GM version)

Description

The TREMEC T-56 Magnum eliminates the compromise between strength and driveability that plagued earlier 6-speed conversions. Introduced in 2009 as the long-awaited replacement for the original T-56, the Magnum combined the best of TREMEC's OEM TR-6060 design with the most popular features of their TKO 5-speed. Known in OEM form as the TR-6060, this is the same transmission architecture found in factory supercars including the Dodge Challenger and Viper, and the Chevrolet Camaro - now available for your GM-powered build.

The TUET16885 wide-ratio gear set delivers a 2.97:1 first gear for aggressive launches paired with closely-spaced 5th (0.80:1) and 6th (0.63:1) overdrives for comfortable highway cruising at lower RPMs. This ratio spread makes the wide-ratio Magnum ideal for street machines, restomods, and pro-tourers where you want strong off-the-line acceleration without screaming RPMs at 70 mph.

Engineering improvements over the original T-56 are substantial. Gear face widths have been significantly increased, and 2-piece laser-beam welded gear construction allows greater control of tooth angles, pitch, and alignment. The bolstered one-piece countershaft resists distortion, while redesigned shift forks with permanently mounted shift links eliminate the wear and float that caused incomplete shifts in earlier designs. Spring-loaded ball-type inserts replace the stamped-steel shift keys of previous generations, delivering short, smooth shifts without the notchy feel.

The Magnum works with GM small block, big block, and LS engines when paired with the correct bellhousing. Clutch release provisions are modeled after the T-56 in 1998-2002 Camaros and Firebirds, designed for use with hydraulic throwout bearings. Multiple shift stub relocation kits are available for use with factory 4-speed consoles. When you purchase from MDL, you get our extended warranty coverage plus lifetime technical support from drivetrain experts who actually use these parts.

What's Included

• TREMEC T-56 Magnum 6-speed transmission (TUET16885)
• OEM-grade die-cast aluminum reversible shifter assembly
• Dual speedometer pickup provisions (electric and mechanical)
• Built-in reverse light switch
• Built-in reverse lockout
• MDL extended warranty - 1 additional year beyond manufacturer warranty with 1-year grace period
• Lifetime technical support

Key Features

• SFI 6.1 certified for single disc clutch applications with naturally aspirated engines
• High-grade steel construction work-hardens to over 80,000 PSI -- more than twice the strength of other steel bellhousings
• Spun cone manufacturing (not rolled or stamped) delivers unmatched dimensional stability and concentricity
• Height: 6.697 inches | Weight: 20 pounds
• Accommodates up to 10.5-inch clutch disc with 130-tooth flywheel
• Hydraulic clutch release compatible
• NOT compatible with T56 Magnum or TR-6060 transmissions
• 100% built in the USA

Description

When you're mating a modern T56 Viper six-speed to your Mopar small block, you need a bellhousing that delivers both precision alignment and containment-level safety. This QuickTime steel bellhousing connects Chrysler 273/318/340/360 small blocks to Dodge Viper T56 or LS1 T56 transmissions while meeting SFI 6.1 certification requirements -- making it track-legal for drag racing where 11.49 or quicker passes require certified containment equipment.

QuickTime's spun cone manufacturing process sets this bellhousing apart from competitors using rolled or stamped steel. The spinning process creates the most dimensionally stable bellhousing available, maintaining perfect concentricity and parallelism throughout the entire RPM range. This eliminates the drivetrain wear that results from bellhousing flex under power -- your engine and transmission stay in alignment precisely where they belong.

The high-grade steel construction work-hardens to over 80,000 PSI tensile strength, delivering more than twice the strength of other steel bellhousings on the market. This superior strength provides real containment capability should a clutch or flywheel failure occur -- protection that matters when you're pushing serious horsepower. QuickTime holds patents on 16 points of bellhousing design and manufacturing process, representing the culmination of input from OEM engineers, engine builders, transmission builders, and racers.

The 6.697-inch height accommodates hydraulic clutch systems with clutch discs up to 10.5 inches and 130-tooth flywheels. Important: This bellhousing is designed specifically for Dodge Viper T56 and LS1 T56 transmissions -- it will NOT work with T56 Magnum or TR-6060 transmissions, which require different bolt patterns. Includes full engine plate and Grade 8 mounting hardware. Made in the USA.

What's Included

• QuickTime steel bellhousing (RM-8074)
• Full engine plate
• Grade 8 mounting bolt set
• Installation instructions
• SFI 6.1 certification label

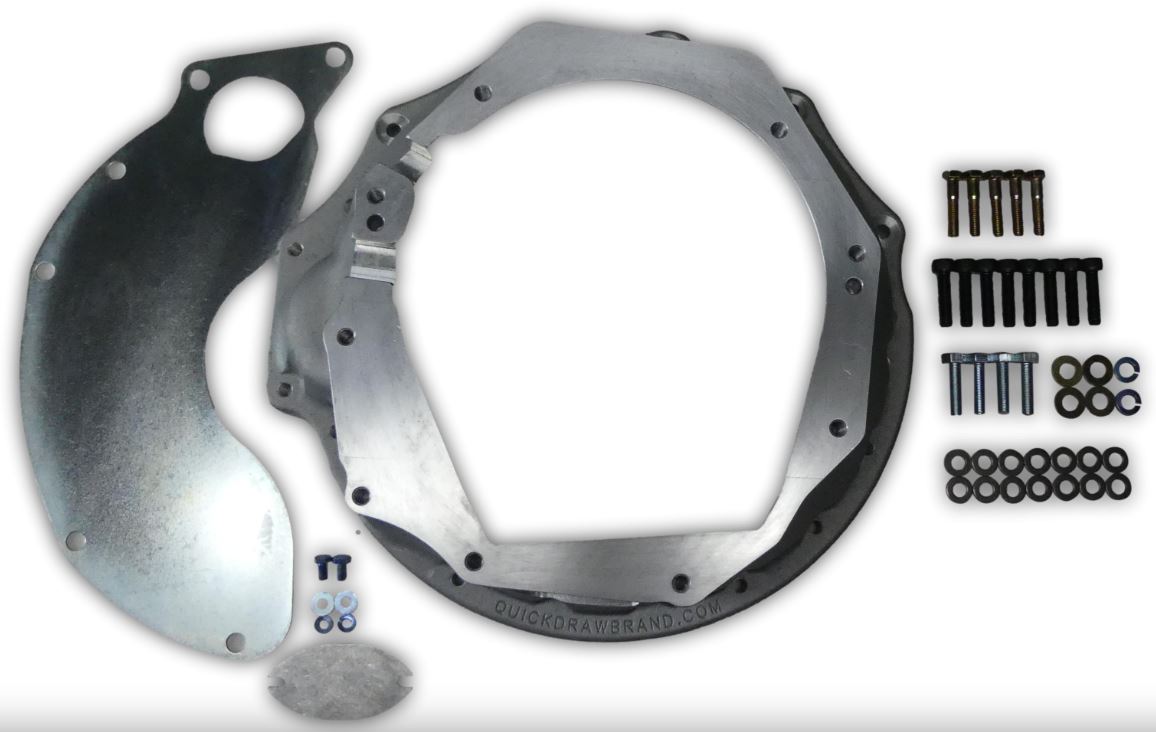

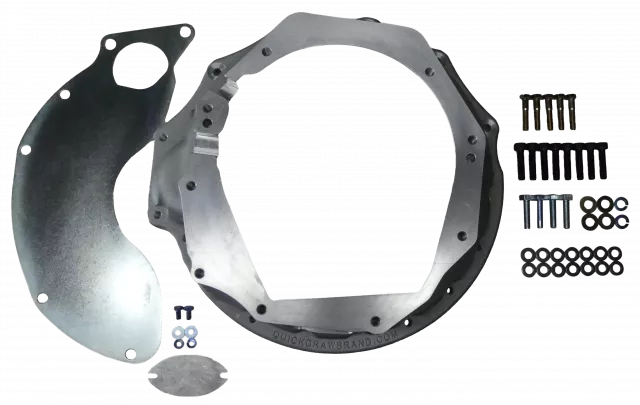

Key Features

• Heavy Duty Aluminum construction for weight reduction over steel alternatives
• Fits Mopar small block 318/340/360 and Gen III Hemi 5.7L/6.1L/6.4L/7.0L/7.2L/392ci engines
• Compatible with LS T56 and GM Magnum transmission bolt patterns
• Hydraulic clutch release design
• Universal application - not vehicle-specific
• Made in the USA

Description

Swapping a modern TREMEC six-speed behind your classic Mopar small block or Gen III Hemi? This aluminum bellhousing bridges the gap between Chrysler engine bolt patterns and GM-style transmission faceplates, giving builders a lightweight solution for serious drivetrain upgrades. Whether you're running a classic 318, 340, or 360 or a modern 5.7L, 6.1L, 6.4L, 7.0L, 7.2L, or 392ci Hemi, this bellhousing delivers the dimensional accuracy your build demands.

QuickTime's spin-forming manufacturing process sets these bellhousings apart from competitors using rolled or stamped cones. Spinning the cone produces superior dimensional stability and concentricity - critical when you're aligning an input shaft to a crankshaft centerline. Any runout at the bellhousing translates directly to premature input shaft bearing wear, pilot bushing failure, and clutch chatter. The aluminum construction shaves significant weight compared to steel alternatives while maintaining the structural integrity required for street and performance applications.

This bellhousing is designed for hydraulic clutch release systems and accommodates LS T56 and GM Magnum transmission bolt patterns. The universal design means it's not tied to a specific chassis - ideal for custom builds, restomods, and engine swap projects where factory bellhousings simply don't exist. [VERIFY: Clutch disc size compatibility, flywheel tooth count requirements, and bellhousing depth - these specs available for steel RM-8074 (11-inch clutch, 130-tooth flywheel, 6.465-inch height) but not confirmed for aluminum version]

Made in the USA, this bellhousing arrives with hardware and installation instructions to get your build moving forward.

What's Included

• Aluminum bellhousing with spun cone construction
• Mounting hardware
• Installation instructions
• MDL lifetime technical support

Key Features

• Complete bolt set for mounting Chevy LS steel bellhousing to engine and T56 Magnum transmission
• 26 total fasteners including 10mm hex flange bolts and Grade 8 hardware
• Black finish on primary 10mm mounting bolts for corrosion resistance
• Grade 8 7/16-14 x 1 inch UNC bolts for high-stress mounting points
• Includes all necessary lock washers in 7/16-inch sizing
• Designed specifically for steel bellhousing applications - aluminum bellhousings require different hardware

Description

Sourcing the correct hardware for a T56 Magnum installation can derail an otherwise straightforward build. Different bolt lengths, thread pitches, and grades are required at various mounting points throughout the bellhousing assembly, and mixing up specifications leads to stripped threads, improper clamping force, or worse. This hardware kit eliminates the guesswork by providing every fastener needed to properly mount your steel bellhousing to an LS engine block and bolt the T56 Magnum transmission to the bellhousing.

The kit includes eight 10mm-1.5 x 50mm hex flange bolts with black finish for the primary bellhousing-to-engine connection, along with eight 10mm-1.5 x 40mm black hex flange bolts for transmission-to-bellhousing mounting. Two shorter 10mm-1.5 x 30mm hex flange bolts handle secondary mounting locations. For high-stress connection points, two Grade 8 7/16-14 x 1 inch UNC hex bolts deliver the strength needed to handle drivetrain loads without stretching or backing out.

Two Grade 5 6mm-1.0 x 16mm hex bolts round out the fastener selection for accessory mounting points. Lock washers in 7/16-inch sizing are included to prevent loosening under vibration. Each fastener is sized and graded for its specific location in the assembly - the right hardware in the right place every time.

This kit is designed specifically for steel bellhousing installations. Aluminum bellhousings use different bolt lengths due to material thickness differences. Compatible with Chevrolet LS engines paired with TREMEC T56 Magnum transmissions.

What's Included

• (8) 10mm-1.5 x 50mm hex flange bolts, black finish
• (8) 10mm-1.5 x 40mm hex flange bolts, black finish
• (2) 10mm-1.5 x 30mm hex flange bolts
• (2) 6mm-1.0 x 16mm hex bolts, Grade 5
• (2) 7/16-14 x 1 inch UNC hex bolts, Grade 8
• (2) 7/16-inch lock washers
• (1) Bolt, 1/4"-20 thread
• (2) Lock washers

Key Features

• Hand-assembled in-house at MDL with double-checked quality control and 1-year free-from-defect warranty
• Severe-duty diaphragm pressure plate delivers increased clamp load with reasonable pedal effort
• Steel-backed organic facings provide smooth, progressive engagement and extended service life
• 10.5" diameter disc with 26-spline 1-1/8" hub configuration
• 11-5/8" equidistant bolt pattern pressure plate fits standard Mopar applications
• .670" ID pilot bushing and matching alignment tool included for proper installation
• Sprung hub disc absorbs driveline shock for smoother streetability
• Rated for 300 lb-ft torque capacity -- ideal for performance street applications
• Performance Proven -- tested in racing applications on and off track

Description

Give your Mopar the clutch upgrade it deserves with a precision-built severe-duty unit engineered for performance street driving. This single-disc clutch set pairs a heavy-duty diaphragm pressure plate with steel-backed organic facings -- a combination that delivers substantially increased clamp load over stock while maintaining the smooth, progressive engagement characteristics that make daily driving enjoyable. The steel backing adds structural rigidity to the friction material, reducing heat-related warping and extending service life under spirited use.

Every MDL Superior clutch is hand-assembled in-house to ensure quality and flawless operation before shipping. Each component is checked and double-checked for accuracy, delivering a ready-to-install premium piece right out of the box. The sprung hub disc absorbs driveline shock and chatter, while the diaphragm-style pressure plate provides consistent clamp force across the entire engagement range. Rated at 300 lb-ft torque capacity, this clutch set is purpose-built for performance street applications where reliability and drivability matter as much as holding power.

This clutch set features a 10.5" diameter disc with 26-spline 1-1/8" hub configuration and 11-5/8" equidistant bolt pattern pressure plate for standard Mopar applications. The included .670" ID pilot bushing and matching alignment tool ensure proper installation and concentricity. Designed for mechanical clutch actuation systems. Proudly crafted with care in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• Severe-duty diaphragm pressure plate -- 11-5/8" equidistant bolt pattern
• 10.5" steel-backed organic clutch disc -- 26-spline 1-1/8" sprung hub
• .670" ID pilot bushing
• .670" OD pilot tip clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime MDL tech support

Note: Throwout bearing not included with this kit.

Key Features

• Super-duty diaphragm pressure plate delivers 450 ft-lbs torque capacity
• Kevlar/steel-backed organic facings balance aggressive grip with smooth street engagement
• 10.5" clutch disk with 26 x 1-1/8" spline hub fits Mopar 26-spline transmissions
• 11-5/8" EQ bolt pattern for Mopar 10.5" flywheel applications
• .670" ID pilot bushing ensures precise crankshaft alignment
• Sprung hub absorbs drivetrain shock and reduces chatter
• Engineered for mechanical (Z-bar) clutch actuation
• Hand-assembled in-house with double-checked quality control
• Made in the USA

Description

When your Mopar build outgrows a stock clutch but you still want civilized street manners, this Superior super-duty clutch set delivers the holding power for serious torque without sacrificing driveability. Rated at 450 ft-lbs, it handles the demands of performance street applications, towing, and occasional track duty while maintaining the smooth engagement characteristics that make daily driving enjoyable.

The multi-friction disk design places Kevlar facing against the pressure plate for aggressive bite and superior heat resistance, while the steel-backed organic facing against the flywheel provides smooth engagement and long service life. This hybrid approach gives you the best of both worlds: the grip you need when you're on it, and the modulation you want in traffic. The sprung hub design absorbs torsional vibrations that cause drivetrain damage and clutch chatter in high-torque applications.

The super-duty diaphragm pressure plate generates maximum clamping force while maintaining reasonable pedal effort for mechanical Z-bar linkage systems. The 11-5/8" EQ bolt pattern fits standard Mopar 10.5" flywheel applications, and the 26 x 1-1/8" spline hub matches Mopar transmissions including the A833 and modern TREMEC conversions using 26-spline input shafts.

Every Superior clutch disk is hand-assembled at MDL's facility in Caldwell, Idaho. Each assembly is checked and double-checked for accuracy before shipping, ensuring you receive a ready-to-install piece backed by a 1-year free-from-defect warranty. Note: Throwout bearing not included with this kit.

What's Included

• Super-duty diaphragm pressure plate (11-5/8" EQ bolt pattern)
• 10.5" clutch disk with Kevlar/steel-backed organic facings
• 26 x 1-1/8" spline sprung hub
• .670" ID pilot bushing
• Clutch alignment tool
• 1-year free-from-defect warranty
• Lifetime tech support

Key Features

• Kevlar/Kevlar friction facings deliver smooth engagement and 2-3x longer life than organic materials
• 450 lb-ft torque capacity for performance street and open tracking use
• 10.5" clutch disc with 26-spline, 1-1/8" input shaft compatibility
• Diaphragm pressure plate with 11-5/8" bolt pattern
• Sprung hub dampens engagement shock to protect your drivetrain
• 0.670" ID pilot bushing included for precise crankshaft alignment
• Pilot tip clutch alignment tool eliminates guesswork during installation
• Hand-assembled and double-checked at MDL before shipping
• Made in the USA with 1-year free-from-defect warranty

Description

When your Mopar needs a clutch that can handle serious street performance and occasional track duty, this Superior severe-duty kit delivers the grip and longevity that organic facings simply cannot match. The Kevlar/Kevlar friction material provides exceptional durability and heat resistance while maintaining the smooth engagement characteristics essential for street driving. Unlike puck-style discs that chatter and grab, this full-face design keeps your muscle car civilized in traffic while standing up to hard launches and high-RPM shifts.

The diaphragm pressure plate is engineered for street performance applications, providing the increased clamp pressure necessary for high-torque muscle car engines. This design balances aggressive holding power with reasonable pedal effort, making it suitable for daily-driven performance builds. The 26-spline disc handles increased torque loads while the sprung hub absorbs engagement shock, protecting your transmission input shaft and reducing drivetrain harshness.

Every Superior clutch disc is hand-built in-house at MDL, ensuring quality control that mass-produced units cannot match. Each assembly is checked and double-checked for accuracy before boxing, so you get a ready-to-install premium piece that has been proven on both street and track. The included 0.670" ID pilot bushing and alignment tool eliminate guesswork during installation.

Designed for mechanical clutch actuation systems. Note: Throw-out bearing sold separately. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

What's Included

• Diaphragm pressure plate with 11-5/8" bolt pattern
• 10.5" clutch disc with Kevlar/Kevlar facings and sprung hub (26-spline, 1-1/8" input)
• 0.670" ID pilot bushing
• Pilot tip clutch alignment tool
• Installation and break-in instructions
• Lifetime technical support

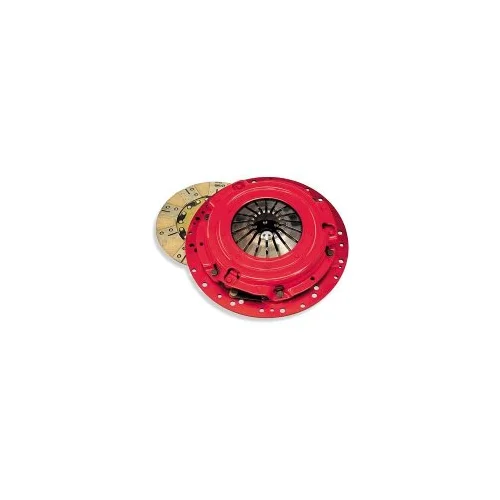

Key Features

• 800 horsepower capacity for high-performance street applications
• 26 x 1-1/8" input spline configuration with 246mm (9.687") disc diameter
• Economically priced twin disc design - uses your existing flywheel
• Organic/organic friction facings deliver smooth engagement with soft pedal effort
• Sprung hub discs for excellent release characteristics and driveability
• Diaphragm pressure plate with 10" Long bolt pattern and 8mm hardware
• Small ring adapter fits Ford 157T flywheels
• Street-focused design - not intended for competition use
• Made in the USA

Description

When you've built serious power but need a clutch that remains civilized on the street, the McLeod RST twin disc clutch kit delivers an economically priced solution for high-horsepower Ford applications. This kit solves the fundamental problem of single-disc clutches that either slip under power or become unbearably harsh for daily driving - without requiring you to purchase a new flywheel.

Capable of handling 800 horsepower, this clutch manages extreme power while remaining street-friendly. The twin-disc design spreads clamping loads across two organic friction surfaces, reducing pressure plate spring tension compared to equivalent single-disc setups. Organic-faced twin sprung hub friction discs provide smooth engagement with soft pedal effort and excellent release characteristics, making this ideal for enthusiasts who demand performance without sacrificing driveability.

The small ring adapter configuration works with Ford 157T flywheel bolt patterns. The 26 x 1-1/8" input spline accommodates transmissions like the TKO-500/600, TKX, and T56 Magnum. McLeod's patent-pending adapter ring ensures proper pressure plate positioning and prevents the binding issues common with universal adapters. This kit requires your existing flywheel, which must be properly resurfaced before installation. Flywheel surface must have a coarse texture from a stone grinder - if you run your fingernail across it, the texture should catch your nail.

Compatible with Ford applications using 10" Long bolt patterns with 8mm hardware for 10.5" bellhousing configurations. Note: This clutch is designed for high-horsepower street use and is not intended for competition environments. Made in the USA.

What's Included

• Diaphragm pressure plate (10" Long bolt pattern)
• Two organic friction discs (246mm diameter, 26 x 1-1/8" spline, sprung hub)
• Floater plate
• McLeod patent-pending small ring adapter
• Pilot alignment tool
• Installation instructions
• Flywheel clutch pattern chart

Note: This kit does not include a pilot bearing or throwout bearing.

Key Features

• 1,000 HP torque capacity for high-horsepower street/strip applications
• Twin 9.687" ceramic friction discs with solid hub design for maximum holding power
• 26 x 1-1/8" spline input shaft compatibility
• 10.4" metric bolt pattern with small-diameter flywheel adapter ring
• Patent-pending CNC-machined and anodized adapter ring mounts to your existing flywheel
• Lighter-than-stock pedal effort with slightly aggressive engagement characteristics
• Blanchard ground floater plate with multiple straps reduces noise for street driveability
• Made in the USA by McLeod Racing

Description

When your build is pushing serious power, a stock clutch becomes the weak link. The McLeod RXT Street Twin solves that problem with a twin-disc design rated for 1,000 HP—enough capacity for supercharged or turbocharged Ford builds while maintaining genuine street manners. The ceramic-faced friction discs deliver slightly aggressive engagement without the harsh, chattery behavior of full-race clutches, and the smaller 9.687" disc diameter requires less diaphragm pressure, resulting in pedal effort that's actually lighter than stock.

The twin-disc design doubles your friction surface area compared to single-disc clutches, distributing clamping loads across four contact surfaces instead of two. Each solid-hub ceramic disc provides superior heat resistance and consistent torque transfer under hard launches and high-RPM shifts. McLeod's patent-pending adapter ring system bolts directly to your existing flywheel, eliminating the need for a dedicated flywheel purchase and keeping costs down without sacrificing performance.

This kit is configured for Ford applications using 26 x 1-1/8" input shafts and small-diameter flywheels (157-tooth) with the 10.4" metric bolt pattern. The Blanchard-ground floater plate incorporates multiple drive straps to minimize gear rattle and noise—a critical feature for street-driven cars. Compatible with both cable and hydraulic actuation systems.

Requires proper break-in: 500-750 miles of stop-and-go city driving (1,200-1,500 clutch actuations) before any wide-open-throttle or dyno use. Always resurface the flywheel with a coarse stone-ground finish before installation to prevent chatter. Pilot bearing and throwout bearing not included—replace both during installation. [VERIFY: Title/description mentions both 10.4" and 10.5" metric—confirm correct bolt pattern designation]

What's Included

• Diaphragm-style pressure plate
• Two ceramic friction discs with solid hubs (9.687" diameter)
• Blanchard-ground floater plate with drive straps
• McLeod patent-pending CNC-machined and anodized adapter ring
• Pilot alignment tool
• Installation instructions
• Lifetime technical support from MDL

Note: Flywheel, pilot bearing, and throwout bearing sold separately.

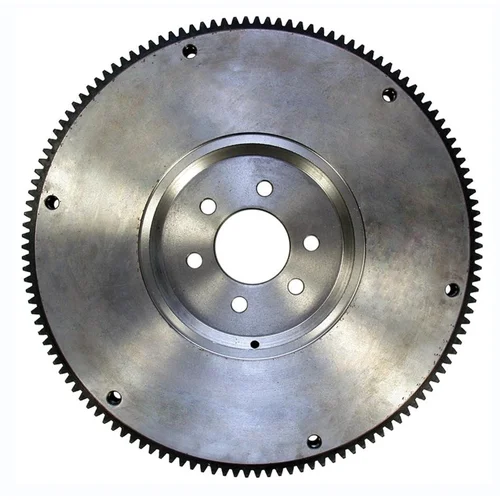

Key Features

• Lightened billet steel construction - 22 lbs versus 30+ lbs factory cast iron
• 130-tooth ring gear for 10.5-inch clutch applications
• Zero balance design for internally balanced 318, 340, 383, and 400ci engines
• 6-bolt crankshaft mounting pattern with 1/2" x .875" flywheel bolts
• 11-5/8-inch pressure plate bolt pattern accepts 3/8-inch shouldered bolts
• Single-disc clutch compatible
• Made in the USA

Description

Reducing rotational mass is one of the fastest ways to sharpen throttle response and free up power in any Mopar V8 build. This lightened billet steel flywheel shaves roughly 8 pounds off the factory cast iron unit - dropping from 30+ lbs to just 22 lbs - while maintaining the durability and heat capacity that billet steel provides over aluminum alternatives. The result is an engine that revs faster, decelerates quicker between shifts, and puts less load on the rest of your drivetrain.

Precision-machined for 1968-1979 Mopar small and big block applications, this flywheel features zero (neutral) balance for use with internally balanced 318, 340, 383, and 400ci engines. The 130-tooth ring gear ensures direct compatibility with your existing starter motor, while the 11-5/8-inch pressure plate bolt pattern accepts most aftermarket clutch packages designed for 10.5-inch disc applications.

The 6-bolt crankshaft mounting pattern uses 1/2" x .875" flywheel bolts for secure attachment, and the machined clutch face accommodates single-disc clutch assemblies with 3/8-inch shouldered pressure plate bolts. Whether you are building a weekend cruiser or a dedicated strip car, this flywheel delivers meaningful weight savings without compromising reliability.

Fits 1968-1979 factory engines and 1968-2002 aftermarket engine builds. Proudly made in the USA.

What's Included

• Lightened billet steel flywheel - 22 lbs
• 130-tooth ring gear - pressed and ready to install
• Zero balanced for internally balanced Mopar engines
• Machined for 10.5-inch single-disc clutch applications

Key Features

• Heat-treated Grade 8 steel construction with 120,000 psi tensile strength for critical clutch safety
• 3/8-16 thread pitch with 1.000-inch underhead length fits dozens of Ford and Chevy applications
• Black oxide finish resists rust and corrosion in harsh automotive environments
• Hex head design with 9/16-inch wrench diameter for standard tool compatibility
• Lock washers included for secure assembly — companion nuts sold separately
• Set of 6 bolts covers complete pressure plate installation

Description

Pressure plate bolts are often overlooked until they fail — and that failure can destroy your clutch, flywheel, and bellhousing in seconds. These pressure plate bolts eliminate that risk with precision-machined Grade 8 steel construction that delivers the strength and reliability your drivetrain demands.

Each bolt is heat-treated to Grade 8 specifications, providing 120,000 psi tensile strength — the benchmark for high-stress fastener applications. The black oxide finish provides corrosion resistance while maintaining the precise tolerances needed for proper clutch operation. The hex head design uses standard 9/16-inch tooling, and the 1.000-inch underhead length ensures proper thread engagement in Ford and Chevy bellhousing applications from the ’50s forward.

These Ultra-Seal specialty fasteners replace factory hardware that may have stretched, corroded, or been lost during rebuilds. The included lock washers prevent loosening under the extreme forces generated by clutch engagement, while the precise 3/8-16 thread pitch ensures proper fit in OEM pressure plate bolt holes.

Compatible with dozens of Ford and Chevy engine applications spanning multiple decades. Each kit includes six bolts and lock washers — everything needed for complete pressure plate installation. Companion nuts are sold separately.

What's Included

• Six (6) Grade 8 steel pressure plate bolts with black oxide finish
• Six (6) steel lock washers
• 3/8-16 thread pitch x 1.000-inch underhead length
• Hex head design with 9/16-inch wrench diameter

ARP Pressure Plate Bolt Kit | GM 265-502 V8 | 3/8-16 Chrome Moly (Set of 6)

Key Features

• Premium chrome moly construction hardened to 180,000 PSI tensile strength
• 3/8-16 thread pitch with 9/16" hex head for secure tool engagement
• Black oxide finish for corrosion resistance
• Application-specific engineering ensures optimum grip length for GM V8 applications
• Forged from aerospace alloy and heat-treated prior to thread rolling
• Larger-than-stock shank diameter for increased strength and improved flywheel register
• Set of 6 bolts for complete pressure plate installation

Description

Pressure plate bolts play a critical role in the performance and safety of any high-performance street machine or race car. Stock fasteners are engineered for economy, not durability under extreme clamping loads and high-RPM operation. When your clutch system needs to handle serious power, ARP's High-Performance Series pressure plate bolts deliver the strength and reliability that OEM hardware simply cannot match.

These bolts are manufactured from premium-grade chrome moly steel and hardened to a nominal tensile strength of 180,000 PSI--far exceeding standard factory hardware. The forging process uses aerospace alloy material that is heat-treated prior to thread rolling and machining, resulting in exceptional toughness under repeated thermal cycling and mechanical stress. ARP engineered these fasteners to be application-specific for Chevrolet 265-502 V8 engines, ensuring the optimum grip length for proper pressure plate clamping across small block and big block applications.

The exclusive hex head design with 9/16" wrench size provides superior tool engagement during installation, while the larger-than-stock shank diameter increases overall strength and improves flywheel register integrity. Black oxide finish protects against corrosion for long-term durability in demanding environments. Whether you're building a weekend warrior or a dedicated track car, these ARP fasteners eliminate the weak link in your clutch system.

Originally developed for NASCAR Cup competition, ARP fasteners are trusted by professional engine builders and racers worldwide. This kit includes everything needed for a complete pressure plate bolt replacement on GM V8 engines.

Kit Includes

• 6 - ARP chrome moly pressure plate bolts (3/8-16 thread, 9/16" hex head)
• Black oxide finish
• Manufacturer's warranty against defects

ARP High Performance Flywheel Bolt Kit | 7/16-20 x 1.000 | Ford & GM | Set of 6

Key Features

• 180,000 psi tensile strength -- far exceeds OEM hardware specs
• Flat 12-point head design with 3/4-inch socket for positive engagement
• Larger-than-stock shank diameter for improved flywheel register and crank alignment
• Forged from aerospace alloy and heat-treated prior to thread rolling and machining
• 7/16-20 thread pitch with 1.000-inch under-head length
• Black oxide finish for corrosion resistance
• Fits Chevy 90-degree V6 and 265-454 V8 (2-piece rear seal) plus Ford 289-460 V8
• Made in the USA

Description

Flywheel bolts play a critical role in the safety and performance of any high-output engine. OEM hardware simply is not engineered for the repeated heat cycles, high RPM loads, and sustained torque demands of a performance build. ARP High Performance Series flywheel bolts deliver the strength and reliability that serious drivetrains require -- rated at 180,000 psi tensile strength.

The engineering difference starts at the material level. These bolts are forged from aerospace alloy and heat-treated prior to thread rolling and machining, a process that ensures maximum grain structure integrity and fatigue resistance. The exclusive flat 12-point head design provides superior tool engagement while resisting rounding under high-torque installation. Equally important, the larger-than-stock shank diameter improves flywheel register for precise crank-to-flywheel alignment -- critical for eliminating runout and vibration in performance applications.

This six-bolt kit is sized at 7/16-20 thread with a 1.000-inch under-head length, requiring a 3/4-inch 12-point socket for installation. Fitment covers Chevy 90-degree V6 and 265-454 V8 engines with 2-piece rear main seals, plus Ford 289-460 V8 engines. Whether you are building a weekend cruiser or a dedicated track car, these bolts are a straightforward upgrade from stock hardware. Made in the USA.

Kit Includes

• Six (6) ARP High Performance Series flywheel bolts
• Chromoly steel construction with black oxide finish
• 7/16-20 x 1.000-inch UHL
• Installation lubricant included
• Torque specifications provided
• Manufacturer warranty against defects

LF Series Hydraulic Clutch Master Kit | Remote Reservoir | 0.700 Bore

Key Features

• 0.540 cubic inch displacement volume - properly moves most slave cylinders on the market
• 0.700-inch bore with full 1.4-inch stroke for complete clutch disengagement
• Remote reservoir design for flexible mounting in tight engine bays
• Hand-assembled in-house for controlled quality and tolerances
• Includes 1-man bleeder kit for simplified system bleeding
• Tested, proven, and double-checked for fit and finish before shipping
• Compatible with DOT 3 or DOT 4 brake fluid
• Works with stock clutch pedals and OE reproduction aftermarket pedals
• Made in the USA

Description

When you're building a hydraulic clutch system from scratch, piecing together individual components wastes time and often leads to compatibility headaches. MDL bundles this complete master cylinder kit for builders who want everything needed to install a hydraulic clutch master without hunting down fittings, rods, and hardware separately. The LF Series represents MDL's engineered approach to hydraulic clutch actuation - every component selected and tested to work together seamlessly.

This cylinder's 0.700-inch bore paired with a full 1.4-inch stroke delivers 0.540 cubic inches of displacement volume - the sweet spot for actuating most hydraulic throwout bearings and slave cylinders without over-pressurizing the system or requiring excessive pedal travel. Don't confuse this with the Wilwood GS that has a shorter stroke - MDL's full 1.4-inch stroke ensures complete clutch disengagement even with high-clamp-load pressure plates.

The remote reservoir design allows flexible mounting options when firewall space is limited or when you need to keep the fluid reservoir away from engine heat. All MDL hydraulic kits are hand-assembled in-house so that quality and tolerances can be controlled, then tested and double-checked for fit and finish before they go in the box. If you don't use the full stroke of the cylinder, MDL offers 3/4-inch and 7/8-inch bore masters for applications requiring different volume characteristics.

This universal kit works across Ford, GM/Chevy, and Mopar applications with stock clutch pedals or aftermarket reproduction pedals. Uses DOT 3 or DOT 4 brake fluid. Made in the USA with lifetime technical support available at 208-453-9800.

Kit Includes

• 0.700-inch bore x 1.4-inch stroke master cylinder
• Remote reservoir with mounting hardware
• Complete hydraulic line set with fittings
• Pushrod assembly
• 1-man bleeder kit for system bleeding
• Installation instructions
• Lifetime technical support

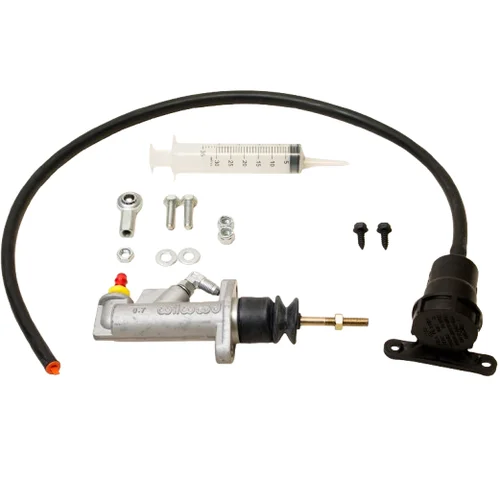

Key Features

• 0.750-inch bore x 1.2-inch stroke master cylinder delivers 0.530 cubic inch fluid displacement
• Remote reservoir design enables flexible mounting in tight engine compartments
• Full 1.2-inch stroke provides adequate volume to actuate most internal and external slave cylinders on the market
• One-man bleeder kit included for simplified bleeding and future maintenance
• Compatible with stock factory clutch pedals and OE reproduction aftermarket pedals
• Complete kit eliminates sourcing individual fittings, rods, and hardware
• Made in the USA with lifetime technical support

Description

Converting to hydraulic clutch actuation delivers smooth, consistent pedal feel by eliminating binding mechanical linkages and cable stretch—but sourcing compatible components individually can be overwhelming. This LF Series Generic Master Kit solves that problem by bundling a proven master cylinder with all the fittings, lines, and hardware needed for a complete installation in one box.

The heart of this kit is a 0.750-inch bore master cylinder with a full 1.2-inch stroke, engineered to generate 0.530 cubic inch displacement per stroke. That volume is specifically sized to properly actuate most slave cylinders on the market while maintaining excellent pedal modulation. Don't confuse this with Wilwood GS cylinders that feature a shorter stroke—this master provides the full displacement needed for complete clutch disengagement across a wide range of applications.

The remote reservoir configuration offers critical installation flexibility, allowing you to mount the reservoir away from the master cylinder when firewall space is limited. This is particularly valuable in engine swaps, hot rods, and custom builds where headers or other components crowd the traditional mounting area. The kit works with both stock factory clutch pedals and OE reproduction aftermarket pedals, making it ideal for classic restorations and custom projects alike.

Every MDL hydraulic kit includes a one-man bleeder system that eliminates the need for an assistant during bleeding and makes future maintenance straightforward. Uses standard DOT 3 or DOT 4 brake fluid—no exotic fluids required. Made in the USA and backed by MDL technical support at 208-453-9800.

What's Included

• 0.750-inch bore x 1.2-inch stroke master cylinder
• Remote reservoir with mounting hardware
• Hydraulic supply lines and fittings
• One-man bleeder kit
• Complete installation hardware
• Detailed installation instructions
• Lifetime technical support

Generic Hydraulic Clutch Master Kit | 0.700-Inch Bore | Integral Reservoir

Key Features

• 0.700-inch bore Wilwood master cylinder delivers precise pedal modulation and proper slave cylinder displacement
• Integral reservoir design eliminates external reservoir mounting and extra plumbing
• Uses stock clutch rod opening - no clutch pedal modifications required
• Single-angle mounting block simplifies engine compartment installation with no reduction linkage needed
• Only 3 small holes required for complete installation
• Achieves full pedal stroke for consistent clutch engagement
• Includes 1-man bleeder kit for simplified solo bleeding
• Hand-assembled and tested in-house at MDL for quality control
• Made in the USA

Description

Mechanical clutch linkages introduce flex, binding, and constant adjustment headaches into your drivetrain. This Generic Hydraulic Clutch Master Kit converts your clutch actuation to smooth, self-adjusting hydraulic operation using a 0.700-inch bore Wilwood master cylinder with integral reservoir. The compact integral reservoir design consolidates components, eliminating the need for remote reservoir mounting and reducing potential leak points in the system.

The single-angle mounting block positions the master cylinder in the engine compartment without complex reduction linkage, simplifying installation while maintaining proper pedal geometry. This universal kit uses the stock clutch rod opening and requires no modifications to your clutch pedal - only 3 small mounting holes need to be drilled for complete installation. The result is full pedal stroke with consistent, predictable clutch feel every time.

Every MDL hydraulic kit is hand-assembled in-house to control quality and tolerances. Each unit is tested and double-checked for fit and finish before shipping. The included 1-man bleeder kit makes initial setup and future maintenance straightforward - no helper needed to pump the pedal while you work the bleeder valve.

Note: Clearance with your brake booster may require verification depending on booster profile and mounting distance from the firewall. This system uses DOT 3 or 4 brake fluid. Made in the USA with lifetime technical support from MDL.

What's Included

• Wilwood 0.700-inch bore hydraulic clutch master cylinder with integral reservoir
• Single-angle firewall mounting block
• Hydraulic lines
• 1-man bleeder kit for solo bleeding
• Complete installation instructions
• Lifetime technical support

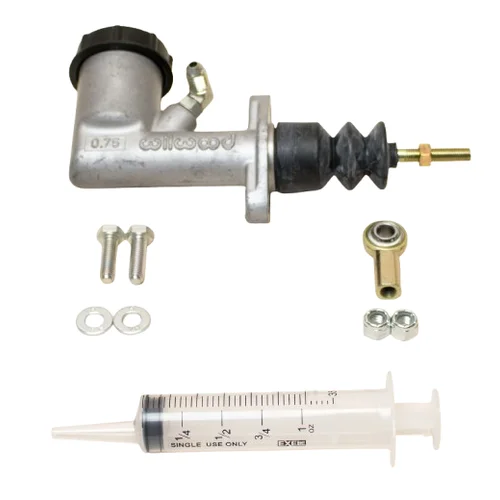

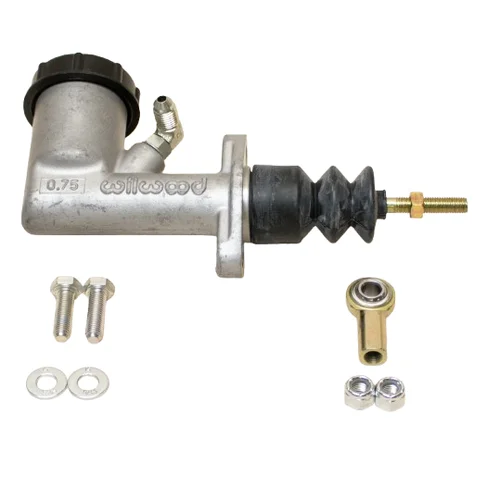

Key Features

• 0.750-inch bore with full 1.4-inch stroke delivers 0.620 cubic inch displacement volume
• Integral reservoir design eliminates remote reservoir mounting and external lines
• Full stroke design moves most slave cylinders on the market - not a short-stroke GS unit
• Hand-assembled in-house for controlled quality and tolerances
• Tested and proven, double-checked for fit and finish before shipping
• Includes one-man bleeder kit for solo installation
• Compatible with factory clutch pedals and OE reproduction aftermarket pedals
• Uses DOT 3 or 4 brake fluid - no high-temp fluid required
• Made in the USA

Description

Converting to hydraulic clutch actuation means tracking down a master cylinder, then hunting for the right fittings, pushrods, and hardware to make it work. This complete LF Series master cylinder kit bundles everything needed for the conversion, eliminating the parts-chasing headache and ensuring component compatibility from the start.

The 0.750-inch bore paired with a full 1.4-inch stroke generates 0.620 cubic inches of displacement volume per stroke - enough fluid movement to properly actuate most internal and external slave cylinders on the market. Don't confuse this with the shorter-stroke Wilwood GS compact masters that limit displacement. If your application doesn't require the full stroke, MDL also offers a 7/8-inch bore master for higher-volume applications.

The integral reservoir design keeps everything in one compact, self-contained unit. No remote reservoir mounting, no external lines between reservoir and cylinder - just a clean installation with fewer potential leak points. Every MDL hydraulic master kit is hand-assembled in-house where tolerances and quality are controlled directly. Each unit is tested and proven, then double-checked for fit and finish before it goes in the box.

This universal kit works with factory clutch pedals and OE reproduction aftermarket units. Standard DOT 3 or 4 brake fluid is all that's required - no expensive high-temp racing fluid necessary. The included one-man bleeder kit means you can get the air out solo, no assistant needed to pump the pedal. Made in the USA and backed by MDL technical support at 208-453-9800.

What's Included

• 0.750-inch bore x 1.4-inch stroke master cylinder with integral reservoir
• Hydraulic lines with fittings
• Pushrod and hardware
• One-man bleeder kit
• Installation instructions
• Lifetime technical support

LF Series GM LS CSC Bearing | T56/Magnum Low-Clearance | Braided Lines

Key Features

• Eliminates quick-disconnect clearance issues in tight transmission tunnels
• Flexible stainless steel braided lines replace rigid quick-disconnect fittings
• Remote bleed port provides easy access for system maintenance
• -4AN fittings with stainless steel braid construction
• Coupled lines stay tidy and secure during installation and operation
• Bolt-on mounting directly to T56/Magnum CSC provisions
• Fits GM LS T56, Magnum, and Super Magnum six-speed transmissions

Description

When installing a TREMEC T56 or Magnum six-speed behind an LS engine, the standard GM CSC bearing with its quick-disconnect fitting often creates clearance nightmares. The rigid quick-disconnect protrudes from the bellhousing and frequently interferes with transmission tunnel walls, forcing builders into costly bodywork or frustrating component relocation.

Modern Driveline took the ever-popular GM LS CSC bearing and made it better. This low-clearance design eliminates the problematic quick-disconnect entirely, replacing it with flexible stainless steel braided lines that bend and route around obstacles. The flexible lines allow the braided assembly to make the turn out of the bellhousing without tunnel interference, while maintaining full hydraulic functionality and OE-quality clutch release performance.

The braided lines feature -4AN fittings and stainless steel construction for durability and consistent pedal feel. The remote bleed line provides easy access to the vent/bleed port, eliminating the need to access tight bellhousing areas during system bleeding and maintenance. The coupled line design keeps both supply and bleed lines organized and secure during installation and operation.

Compatible with GM LS engines paired with T56, Magnum, or Super Magnum six-speed transmissions. The bolt-on design mounts directly to the transmission's CSC mounting provisions using OE-spec hardware.

What's Included

• OE-style hydraulic release bearing with low-clearance design
• Stainless steel braided supply line with -4AN fittings
• Stainless steel braided bleed line with -4AN fittings
• Line coupling hardware for secure routing
• Installation instructions

Key Features

• Billet aluminum body and piston precision-machined in-house at Tilton for race-proven street reliability
• Nearly 1.25 inches of height adjustment via stainless steel threaded sleeve - accommodates wide variety of clutch setups
• Adjustable bearing height from 1.77 inches to 3.00 inches covers most performance applications
• Full 0.700 inches of piston travel (0.450 inches typical) for complete clutch disengagement
• High-temperature mono-seal design with quad tensioner ensures proper seal tension and maximum reliability
• Dual -4AN stainless steel braided supply and bleed lines - stable pedal feel with easy bleeding access
• Direct bolt-on replacement for OE CSC mounting point on T56/Magnum front plate - no modifications required
• High-quality flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-11 inch bent-finger and lever-type clutches
• Constant-contact design self-adjusts for clutch wear and maintains consistent pedal feel throughout clutch life

Description

OEM concentric slave cylinders in GM T56 applications are notorious for heat-related failures and inconsistent pedal feel under hard use. The MD-900-2505-A solves these problems with Tilton's race-proven 6000-Series hydraulic release bearing technology, packaged as a complete bolt-on kit for GM T56, Magnum, and Magnum XL six-speed transmissions.

The engineering starts with a billet aluminum body and piston, precision-machined at Tilton's California facility. Unlike plastic-bodied OEM units that distort under heat cycling, the all-metal construction maintains tight tolerances even in demanding conditions. The high-temperature mono-seal design incorporates a quad tensioner to maintain proper seal loading - critical for consistent hydraulic pressure and long service life. This constant-contact bearing self-adjusts as your clutch wears, eliminating the need for periodic adjustment and maintaining the same pedal feel throughout the clutch's lifespan.

Installation leverages the OE CSC mounting feature on the T56/Magnum front plate, so this kit bolts directly in place of your factory hydraulic release bearing. The stainless steel threaded sleeve provides nearly 1.25 inches of height adjustability (1.77 to 3.00 inches total bearing height), accommodating everything from stock replacement clutches to aggressive racing setups. The full 0.700 inches of piston travel handles even high-clamp-load pressure plates. Dual braided stainless lines with swivel fittings provide both supply and dedicated bleed access, making system bleeding and maintenance straightforward.

Compatible with GM LS T56 and Magnum six-speed transmissions to replace the stock CSC. Also fits 2005-10 Mustang with T5/TR3650, 2007-14 Shelby GT500 TR6060, and 2011+ Mustang with MT-82/GT350 3160. The flat face bearing suits most 8.5 to 11-inch bent-finger and lever-type clutches. This is a complete kit - with MDL, there are no extras to buy.

What's Included

• Tilton 6000-Series billet aluminum hydraulic release bearing assembly
• Bolt-on adjustment mounting base with stainless steel threaded sleeve
• -4AN stainless steel braided supply line
• -4AN stainless steel braided bleed line
• Union fitting for main supply line connection
• Anti-rotation bolt
• High-strength transmission retainer bolt
• Complete installation instructions

Key Features

• 0.625" spacer thickness for proper OE concentric slave cylinder positioning
• Maintains minimum 0.500" cylinder compression to prevent travel issues
• Complete mounting hardware included for bolt-on installation
• Designed for OE spring-loaded hydraulic release bearing applications
• Easy installation difficulty--no special tools or modifications required

Description

OEM spring-loaded hydraulic release bearings require the cylinder to be compressed at least 0.500" to avoid running out of travel during clutch actuation. When aftermarket clutches, flywheels, or other drivetrain components alter the original stack height, your concentric slave cylinder can end up positioned incorrectly--leading to incomplete clutch release, premature bearing failure, or a pedal that drops to the floor.

This MDL hydraulic spacer kit provides precisely 0.625" of spacing to restore proper CSC positioning in OE applications. Most OEM spring-loaded bearings have approximately 1" of total travel before bottoming out, so maintaining correct preload is critical for reliable operation. The spacer ensures your concentric slave cylinder operates within its optimal travel range, giving you consistent clutch engagement feel and protecting the bearing from over-extension.

Installation is straightforward with all necessary mounting hardware included in the kit. The bolt-on design requires no special tools or permanent modifications, making this an easy difficulty install for most home builders. If you're unsure which spacer thickness your application requires, contact MDL's tech support at 208-453-9800 for guidance.

What's Included

• 0.625" thick hydraulic spacer
• Complete mounting hardware

Key Features

• 30-inch length with 1/4-inch ID stainless steel braided construction
• Teflon (PTFE) inner lining for chemical resistance and smooth fluid flow
• Clear plastic outer coating protects braid while maintaining clean appearance
• Straight -4AN female stainless steel fittings permanently crimped on both ends
• Pressure tested for quality assurance
• 100% made in the USA

Description

Factory plastic clutch lines deteriorate under heat and age, leading to spongy pedal feel and inconsistent clutch engagement. This premium stainless steel braided hydraulic line eliminates that weak link with high-strength construction rated for racing and high-heat applications. The Teflon inner lining delivers chemical compatibility with all brake fluids while providing smooth, unrestricted fluid flow that translates directly to crisp pedal response.

The stainless steel braid resists expansion under pressure—a critical factor in hydraulic clutch performance. Unlike rubber lines that balloon slightly under load, braided stainless maintains consistent internal volume for immediate, predictable clutch actuation. The clear plastic outer coating shields the braid from road debris and corrosion while preserving the polished stainless appearance gearheads expect in a quality engine bay.

This is the same 30-inch hydraulic line included in MDL's LF Series slave cylinder kits, proven across thousands of transmission swaps from mild street builds to extreme-duty track cars. Straight -4AN female fittings on both ends provide universal compatibility with hydraulic clutch systems, master cylinders, and slave cylinders across Ford, GM, and Mopar applications. Whether you're completing a TREMEC five or six-speed swap or upgrading your existing hydraulic clutch setup, this line delivers the durability and pedal feel your build demands.

What's Included

• One 30-inch stainless steel braided hydraulic line with Teflon (PTFE) lining
• Clear plastic protective coating over stainless braid
• Two straight -4AN female stainless steel fittings (permanently crimped)
• Manufacturer's warranty

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• Direct bolt-on design for standard 2-bolt flange measuring 7/8-inch center to center
• 10-inch length billet aluminum construction with natural silver finish
• 3/8-16 thread for shift knob attachment with included jam nut
• Machined groove for secure boot attachment
• Machined billet steel mounting stud, drilled and countersunk for metric cap screws
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory plastic shifter sticks flex under hard shifts and wear out over time, leaving you with a sloppy, imprecise feel that undermines the driving experience. This Lokar billet aluminum shift lever delivers the solid, precise feedback your manual transmission deserves. Direct bolt-on for TREMEC and Borg Warner manual transmissions, this lever fits stock and aftermarket 5- and 6-speed shifters without modification.

The 7/8-inch center-to-center 2-bolt flange ensures proper fitment on TREMEC T5, T45, TKO, and T56 Magnum transmissions. Billet aluminum construction eliminates flex while keeping weight down, and the machined groove provides a clean attachment point for your shifter boot. The machined billet steel mounting stud is drilled and countersunk to accept the included metric cap screws, giving you a professional installation that eliminates the loose feel of worn factory parts.

At 10 inches, this lever provides optimal reach and leverage for confident gear changes. The 3/8-16 thread at the top accepts most aftermarket shift knobs, and the included jam nut secures your knob in place. Clean lines and a natural silver finish complement any interior. Made in the USA with a manufacturer lifetime warranty.

What's Included

• 10-inch billet aluminum shift lever with natural silver finish
• Machined billet steel mounting stud
• Metric cap screws
• 3/8-16 jam nut
• Manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility - Fits TREMEC and Borg Warner T5, T45, and T56 transmissions with standard 7/8" center-to-center mounting holes
• Premium billet aluminum construction - Black anodized finish resists corrosion and delivers show-quality appearance
• Machined billet steel mounting stud - Superior strength compared to cast alternatives, drilled and countersunk for flush-mount cap screws
• 30-degree layback design - 5" back x 10" tall configuration positions the shift knob ergonomically for natural hand placement
• Standard 3/8"-16 knob threads - Compatible with most aftermarket shift knobs
• Complete hardware included - Metric cap screws included for immediate installation
• Lifetime warranty - Made in the USA by Lokar

Description

Replace your worn or missing factory shift lever with this precision-machined Lokar billet aluminum unit. Whether you're building a TREMEC swap that didn't come with a lever or upgrading a tired stocker with sloppy engagement, this black anodized shift lever delivers the crisp, solid feel your manual transmission deserves.

The engineering details set this lever apart from cheaper alternatives. Machined from solid billet aluminum rather than cast or stamped, the lever body eliminates flex under aggressive shifting. The billet steel mounting stud provides a rock-solid foundation that won't strip threads or crack under stress - a common failure point on lesser designs. Lokar drills and countersinks the mounting holes so the included metric cap screws sit flush, giving you a clean, professional appearance without exposed fastener heads.

The 30-degree layback bend positions the shift ball naturally where your hand expects it. At 10.4" overall length with a 5" back x 10" tall geometry, this lever places the knob in an ergonomic location that reduces fatigue during spirited driving or long cruises. The standard 3/8"-16 thread at the top accepts the vast majority of aftermarket shift knobs, so you can personalize the look to match your interior.

This lever fits all TREMEC and Borg Warner T5, T45, and T56 transmissions using the standard 2-bolt flange with 7/8" center-to-center bolt spacing. It works with both stock and aftermarket shifter assemblies. Made in the USA with Lokar's manufacturer lifetime warranty.

What's Included

• Black anodized billet aluminum shift lever (10.4" overall length, 30-degree layback design)
• Machined billet steel mounting stud
• Metric cap screws (drilled and countersunk)
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, T56, TKO-500, TKO-600, and all TREMEC/Borg Warner shifters with 7/8 in. center-to-center bolt spacing
• 10 in. overall length with 30-degree single bend geometry - 4 in. back, 9 in. tall
• High-strength tubular steel construction with chrome-plated finish
• Machined billet steel mounting stud, drilled and countersunk for included 3/8-24 socket head cap screws
• Standard 3/8-24 knob threads for universal shift knob compatibility
• Standard 2-bolt flange with 3/8 in. holes on 7/8 in. center-to-center spacing
• Lokar lifetime warranty
• Made in the USA

Description

When you need a precise, durable shift lever that delivers both performance and classic chrome aesthetics, this Lokar MSL603D shift lever is the solution. Built specifically for TREMEC and Borg Warner manual transmissions, these direct bolt-on tubular shifter levers are engineered for stock and aftermarket 5-speed and 6-speed applications.

The lever fits TKO-500, TKO-600, T5, T45, and T56 transmissions with the standard 2-bolt flange measuring 7/8 in. center-to-center with metric bolt holes. The machined billet steel mounting stud is countersunk for socket head cap screws, delivering a clean, smooth appearance while ensuring a secure, vibration-free connection to your transmission. The lever features a 3/8-24 thread for shift knob compatibility and maintains the precise geometry needed for optimal shift feel.

The 10-inch length with 30-degree single bend provides an ergonomic reach that works well in most applications, positioning the shift knob 4 inches back and 9 inches tall from the mounting point. The high-strength tubular steel construction handles the loads of aggressive shifting while the chrome finish resists corrosion and maintains its appearance over time.

Shift boots, bezels, and knobs are sold separately. Backed by Lokar's lifetime warranty and made in the USA.

What's Included

• Lokar MSL603D chrome tubular steel shift lever
• 3/8-24 socket head cap screws for installation
• Lifetime technical support

Hurst Competition/Plus Shift Lever | Chrome Steel | 10 x 5.5 x 1.3-Inch

Key Features

• 10-inch length with 5.5-inch setback and 1.3-inch offset for optimal hand positioning
• Triple chrome-plated high-strength steel construction
• Iconic Hurst name stamped on lever
• 3/8"-16 threaded tip accepts all Hurst T-handles and shift knobs
• 0.375-inch bolt holes with 0.875-inch center-to-center spacing
• Fits all Hurst shifters with two-bolt attachment
• Works with T5, T56, and TKX transmissions

Description

When your factory shifter stick wears out or you need a different height and offset for your custom build, this genuine Hurst Competition/Plus lever delivers the classic positioning muscle car enthusiasts demand. The 10-inch length combined with the 5.5-inch setback and 1.3-inch offset puts the shift knob exactly where you need it for comfortable, precise gear changes in most '60s muscle car applications.

Constructed from high-strength steel and triple chrome plated, this lever provides the durability and corrosion resistance required for daily driving and weekend performance use. The iconic Hurst name is stamped directly into the steel, marking this as a genuine piece of shifter heritage from America's Number 1 Shifter Company.

The 3/8"-16 threaded tip accepts any Hurst T-handle or shift knob, letting you complete your interior with your preferred grip style. The 0.375-inch bolt holes with 0.875-inch center-to-center spacing ensure direct fitment to all Hurst Competition/Plus shifters with two-bolt attachment. This lever works with T5, T56, and TKX transmissions, making it ideal for both restoration and swap applications.

For over 60 years, Hurst has been the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, and Ford Mustang Boss 302. When you install a Hurst shifter stick, you're getting the same engineering that equipped those iconic factory hot rods.

Kit Includes

• 1 - Hurst Competition/Plus shift lever (Hurst Model #5384106)
• Triple chrome-plated high-strength steel construction
• Hurst name stamping

Key Features

• Iconic Hurst round bar design with chrome-plated forged steel construction and "HURST" name stamped on stick
• 11.21-inch height with 3.75-inch setback - the classic OEM-style geometry originally supplied on factory Hurst-equipped muscle cars
• 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles
• Works with all Hurst two-bolt style shifter assemblies - ideal for 1969 Camaro, SS, RS, Z28, and Firebird builds
• Compatible with factory console installations and modern TREMEC TKX, TKO, and T56 Magnum transmissions
• 3/8" mounting holes on 7/8" spacing for secure two-bolt attachment

Description

This is the shift lever that defined an era. The Hurst chrome-plated round bar stick was the upper bolt-on stick originally supplied from Detroit factories for vehicles that were "Hurst Equipped." The chrome round bar design, bolt-on construction, Hurst logos, and white ball knob were the identifying features that signified a Hurst shifter was installed at the factory as original equipment. For years, these OEM round bar sticks were never sold to the general public - they were only available if you bought a vehicle optioned with a Hurst shifter from the dealer.

Now this OE-style stick is available directly from Hurst, with all the great features exactly as originally designed. Built from forged steel with high-quality chrome plating, this shift lever delivers the authentic look and durability that made Hurst "America's Number 1 Shifter Company." The iconic "HURST" name is stamped directly into the stick, providing the period-correct detail that separates genuine Hurst hardware from generic alternatives.

The 11.21-inch height with 3.75-inch setback creates the classic curved geometry that puts the shift knob exactly where it belongs for smooth, confident shifts. This lever is particularly popular for 1969 Camaro and Firebird builds, fitting factory console installations as well as period-correct Muncie 4-speed shifters. Modern builders will appreciate that it also works perfectly with TREMEC TKX, TKO, and T56 Magnum transmissions paired with Hurst-pattern shifter mechanisms.

The universal 3/8"-16 TPI thread accepts all Hurst shift knobs and T-handles, giving you complete control over the final appearance. Whether you're completing a concours-level restoration or building a restomod that honors classic muscle car heritage, this chrome round bar shift lever delivers the authentic Hurst experience.

What's Included

• One Hurst round bar shift lever (Part #5387438)
• Forged steel construction with chrome plating
• "HURST" logo stamped on lever
• 3/8"-16 TPI threaded tip for shift knobs

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Complete kit with chrome-plated steel trim plate and mounting hardware
• Black rubber boot with rectangular shape for square/rectangular shift levers
• Universal design adapts to most shifter installations
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole spacing: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure mounting
• Popular choice for classic muscle car and street rod conversions

Description

Aftermarket shifter installations leave an exposed floor opening that invites dust, debris, and road noise into your interior. The Hurst Indy Shifter Boot and Chrome Plate Kit delivers a clean, finished appearance while sealing out the elements. This popular economy boot has been a go-to solution for classic conversions and custom builds for decades.

The rectangular black rubber boot is designed to accommodate square and rectangular shift lever shapes, making it ideal for Hurst Indy shifters and compatible with most aftermarket manual transmission shifters. The universal design adapts to a wide variety of applications, from vintage muscle cars to modern street rods. At 6-3/8" long by 5-1/4" wide outside dimensions with mounting holes spaced 5-5/16" by 4-1/4" center-to-center, this boot covers most factory and custom-cut floor openings.

The included chrome-plated steel trim plate adds a professional finishing touch, concealing rough floor cuts and giving your interior that showroom-ready look. With 0.375" diameter bolt holes and all necessary mounting hardware included, installation is straightforward. This kit works equally well as original equipment on a new shifter install or as a replacement boot on an existing setup.

Hurst has been an American icon since 1958, serving as the OEM shifter supplier for legendary muscle cars including the Pontiac GTO, Plymouth Barracuda, Plymouth Super Bird, Ford Mustang Boss 302, and Ford Mustang Shelby GT500 KR. When you install a Hurst boot, you're getting the same quality that came factory in some of the most iconic performance cars ever built.

What's Included

• Black rubber shifter boot (rectangular shape, 4-pleat design)
• Chrome-plated steel trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Converts Ford-style slip-in speedometer drive to GM 7/8" threaded cable connection
• Fits Ford T5, all 3550/TKO transmissions, Ford T56 with cable drive, and all TREMEC Magnum six-speeds
• Double O-ring seal at the transmission case plus internal seal to prevent fluid leaks
• Steel construction for accurate readings and long service life
• Eliminates the need for expensive custom speedometer cables

Description

TREMEC T56 Magnum, TKX, and TKO transmissions all use a Ford-style mechanical speedometer drive, which creates a compatibility problem for GM muscle cars and hot rods equipped with traditional GM speedometers and 7/8" threaded cables. Rather than sourcing an expensive custom cable, this adapter assembly converts the Ford slip-in driven gear interface to accept a standard GM threaded speedometer cable directly.

The adapter features a double O-ring seal at the transmission case opening combined with an internal seal where the cable attaches. This dual-seal design addresses a common complaint with lesser adapters that allow transmission fluid to leak through the cable attachment point. Steel construction ensures the drive spindle maintains accuracy and durability under demanding conditions.

Installation is straightforward: the adapter inserts into the transmission's speedometer housing where the driven gear normally sits, and your existing GM speedometer cable threads onto the adapter's external 7/8" fitting. This assembly fits Ford T5, all 3550/TKO variants, Ford T56 transmissions with cable drive, and all TREMEC Magnum six-speed transmissions. Note that speedometer driven gears and retaining clips are sold separately and must be matched to your tire size and rear axle ratio for accurate speedometer readings. Made internationally.

What's Included

• Speedometer cable adapter assembly with steel drive spindle
• Full manufacturer's warranty

Key Features

• Converts Ford slip-in speedometer drive to GM 7/8" threaded cable connection
• Double O-ring seal system prevents transmission case leakage at the housing
• Internal seal stops fluid from traveling up the speedometer cable
• Swiss steel drive spindle delivers superior strength and accuracy
• Billet housing with naval brass bushing for smooth, long-lasting operation
• One-piece design eliminates multiple failure points found in cheaper adapters
• Made in the USA

Description

TREMEC T-56 Magnum, TKX, TKO, and T5 transmissions use a Ford-based mechanical speedometer drive, which creates a problem when you're running a GM chassis with a 7/8" threaded speedometer cable. Without an adapter, you're stuck either fabricating a custom cable or dealing with a leak-prone import solution that fails at the worst possible time.

This precision-machined adapter is engineered to eliminate the chronic leakage issues that plague cheaper alternatives. The double O-ring seal system addresses leaks at the transmission case opening, while a dedicated internal seal prevents fluid from wicking up through the cable attachment point—a common failure mode on single-seal designs. The Swiss steel drive spindle provides extra strength and accuracy for consistent speedometer readings over the life of the build.

The billet housing paired with a naval brass bushing ensures smooth cable rotation and extended service life, even in high-vibration environments. The one-piece construction eliminates the potential leak paths and wear points found in multi-piece adapter assemblies.

Fits Ford T5, all 3550/TKO models, TKX, Ford T56 with cable drive, all TREMEC Magnum six-speeds, and Ford three- and four-speed transmissions. Made in the USA with full warranty coverage.

Kit Includes

• Billet speedometer cable adapter housing
• Swiss steel drive spindle
• Naval brass bushing
• Dual O-ring seals for transmission case
• Internal cable seal
• Full manufacturer's warranty

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T-45, T-56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Tin-plated brass terminals for corrosion resistance and reliable signal transmission
• Compatible with Ford VSS connector style used in 1987-1995 Mustangs
• Works with Ford and GM TREMEC Magnum two-wire analog OSS output
• Fits Ford TKO/TKO 500-600, TKX, and T45/3650 transmissions
• Two-wire design matches OE Ford VSS signal format

Description

When you install a TREMEC transmission in your build, you need a clean way to send speed data to your electronic speedometer or ECU. This harness provides the critical link between your transmission's output speed sensor (OSS) and your vehicle's existing Ford-style VSS wiring. It's designed specifically for the two-wire analog speed sensor output found on Ford and GM TREMEC Magnum transmissions, as well as Ford TKX, TKO, and T45/3650 units.

The terminals are constructed from tin-plated brass, which resists corrosion and maintains solid electrical contact even in harsh underhood environments. This matters because intermittent speed signals cause erratic speedometer readings and can throw off ECU calculations that rely on vehicle speed data. The Ford VSS connector style was used across a wide range of 1987-1995 Ford vehicles, making this harness the right choice when you're tying into an existing Ford wiring harness or EFI system from that era.

This harness is the simple, direct solution for builders running electronic speedometers with TREMEC 5- and 6-speed transmissions. Whether you're completing a resto-mod Mustang with modern gauges or wiring a GM-pattern Magnum into a classic muscle car, this connector eliminates guesswork and custom splicing.

What's Included

• Electronic speedometer harness with tin-plated brass terminals
• Ford VSS-style two-wire connector

Key Features

• Direct-fit snap-in connector mates with the reverse lockout solenoid on all TREMEC T56 6-speed transmissions
• Generous 6-foot wiring length provides flexible routing through tunnels and firewalls
• Protective covering shields wiring from heat, abrasion, and moisture
• Designed for use with MDL's MD-700-0100-2 reverse lockout control module
• Fits Ford and GM T56 applications

Description

The TREMEC T56 utilizes a reverse lockout solenoid to prevent accidental shifts into reverse while attempting to engage 5th gear--a critical safety feature because reverse and 5th are located very close to each other on the shift pattern. When the solenoid isn't energized, spring pressure against the shift rail makes reverse engagement difficult. When powered, the solenoid retracts the pin, allowing smooth entry into reverse. The problem? Classic cars and restomod builds lack the factory PCM logic to control this solenoid, leaving builders to either muscle through the lockout or rig up makeshift solutions.

This 6-foot harness provides the factory-style snap-in connector that mates directly with the T56's reverse lockout solenoid. The extended length gives you the flexibility to route wiring cleanly through the transmission tunnel, up through the firewall, and to your control module location without splicing or extending. The protective covering shields the conductors from exhaust heat, sharp edges, and underbody moisture--critical for a harness that lives in a harsh environment.

This harness is designed to work with MDL's MD-700-0100-2 reverse lockout control module, which monitors vehicle speed via the VSS signal and automatically energizes the solenoid below approximately 5-10 MPH for easy reverse engagement, then de-energizes it at higher speeds to prevent accidental shifts. The result is OEM-style lockout behavior without relying on makeshift brake-light-switch wiring or manual override buttons. Fits all TREMEC T56 6-speed transmissions in Ford and GM applications.

What's Included

• 6-foot reverse lockout solenoid harness with protective covering
• Snap-in connector for TREMEC T56 reverse solenoid

Key Features

• Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
• Six-wire harness with integrated inline fuse for complete installation
• Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
• Weather-resistant construction - interior mounting recommended for maximum longevity
• Two dedicated wires for solenoid output control
• Two wires for VSS (vehicle speed sensor) signal input
• Switched power and ground connections included
• Eliminates need for brake light switch or manual button workarounds
• Factory-like speed-based operation without requiring an OEM computer

Description

When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.

This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.

The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.

This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.

What's Included

• Reverse lockout control module with microprocessor
• Six-wire harness with color-coded leads
• Inline fuse
• Installation instructions
• MDL lifetime technical support

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/16" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/16" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Note: U-joint sold separately. See related products for compatible 1330 series u-joints with 1-1/16" caps. [VERIFY: Product description states "with a 1330 U-joint and 1-1/16in. cups" suggesting u-joint is included, but "Kit Includes" is not explicitly listed on product page. Also, MDL specs page shows "1-1/8" Driveline U-Joint Cap Size" while description states 1-1/16" - confirm correct cap size and whether u-joint is pre-installed.]

Key Features

• Forged steel construction for superior strength and durability over cast yokes
• 31-spline full spline type with no counter bore
• 1330 series U-joint with 1-1/16" bearing cups
• 6.000" centerline to end length with 4.500" barrel length
• 1.685" journal diameter for proper seal contact
• Precision ground and pressure tested to 40 PSI for leak-free sealing
• Fits TKO, TKX, T56 Magnum, C6, FMX, and some T56 applications
• Weighs 2.900 lbs

Description

Converting to a TREMEC TKX or T56 Magnum often means driveline modifications are in order -- including upgrading to an aftermarket slip yoke that can handle the torque output of a modern 5 or 6-speed manual transmission. This Sonnax forged steel slip yoke delivers the strength and precision your high-performance drivetrain demands, engineered to never be the weak link between your transmission and driveshaft.

Sonnax slip yokes are forged -- not cast -- for greater strength, then undergo a precision-machining process that guarantees exceptional balance and minimal runout. Clean-cut splines mate smoothly with the transmission output shaft, while all dimensions are precision machined to ensure a consistent, concentric fit. The smooth outer journal provides uniform contact with the tail housing seal, preventing leaks and promoting proper fore/aft yoke action during suspension travel.

Every yoke is 100 percent leak-tested, with the seal plug O.D. ground for superior sealing performance and air-tested to 40 PSI. This attention to detail eliminates common comeback complaints like transmission leaks, NVH issues, and driveline clunking or shudder. Whether you're building a street car, street rod, drag machine, or dirt oval racer, this slip yoke delivers superior strength and durability for high horsepower and torque capacity applications.

This 31-spline slip yoke fits a variety of applications including TREMEC TKO-500, TKO-600, TKX, T56 Magnum, Ford C6, and FMX transmissions, as well as some T56 units. Always verify your transmission's output shaft spline count and style before ordering. Made in the USA.

What's Included

• One Sonnax T2-3-6041HP forged steel 31-spline slip yoke
• Accepts 1330 series U-joints with 1-1/16" bearing cups (U-joint sold separately)
• Lifetime MDL technical support

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)

Key Features

• Forged chromoly construction delivers superior strength over cast factory yokes
• 31-spline configuration fits TREMEC TKX, TKO-500, TKO-600, T56 Magnum, plus Ford C6 and FMX automatics
• 1350 series U-joint with 1-3/16" caps handles higher torque loads than 1330 series
• Precision-machined for exceptional balance and minimal runout
• 100% leak-tested and air-tested to 40 psi for optimum sealing
• O.D. ground seal journal ensures uniform contact and prevents leaks
• 6.440" centerline-to-end length with 1.685" barrel diameter
• Outside snap ring style U-joint retention

Description

Converting to a modern TREMEC transmission demands a slip yoke that won't become the weak link in your drivetrain. Factory cast yokes are prone to spline twisting and failure under the torque output of high-performance engines. This Sonnax forged chromoly slip yoke is engineered to handle serious power without compromise, making it the go-to upgrade for street, strip, and track applications.

Sonnax slip yokes are forged, not cast, for greater strength, and they undergo a precision-machining process to guarantee exceptional balance and minimal runout. The 1350 series U-joint capability provides a significant strength upgrade over 1330 applications--crucial for builds pushing serious horsepower. With a 3-5/8" U-joint width and 1-3/16" caps, the 1350 series delivers the torque capacity needed for modern high-output engines.

Every yoke is 100% leak-tested with the seal plug O.D. ground for superior seal, then air-tested to 40 psi to ensure optimum sealing. The smooth outer journal ensures uniform contact with the transmission seal, preventing leaks while promoting proper slip action during suspension travel. This attention to detail eliminates the fluid weeping common with lesser yokes.

This 31-spline configuration directly fits TREMEC TKX, TKO-500, TKO-600, and T56 Magnum transmissions, as well as Ford C6 and FMX automatics, Ford Toploader 4-speeds, and ZF 5-speed transmissions. Whether you're building a restomod, pro-touring car, or weekend warrior, this Sonnax slip yoke delivers the strength and durability your drivetrain demands.

What's Included

• (1) Sonnax forged chromoly 31-spline slip yoke (Sonnax P/N T3-3-2491HP)

Note: U-joint sold separately. This yoke accepts 1350 series U-joints with 1-3/16" caps and 3-5/8" width.
