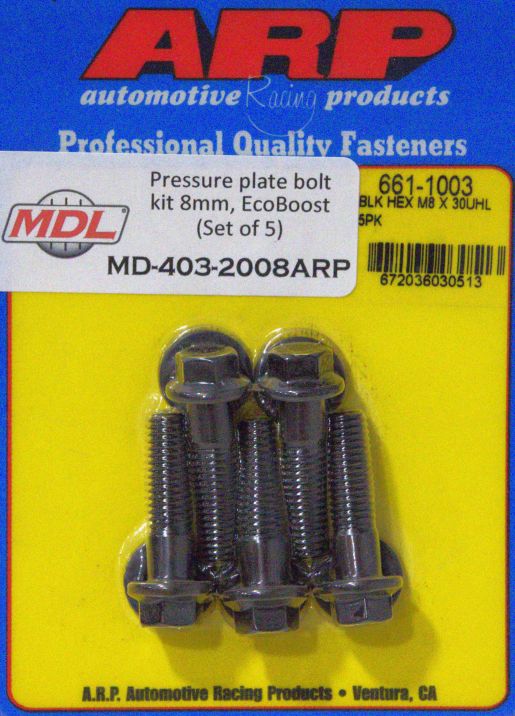

ARP 8mm Chromoly Pressure Plate Bolt Set
for Ford EcoBoost
(Set of 5)
(Set of 5)
Metric Thread Bolt Kit
8740 Chrome Moly
M8 x 1.25
30mm UHL
Socket Size: 10mm hex
Torque Value*: 24 ft-lbs (32.5 Nm)
| 1 | UHL | 30mm | 5 | Grip Diameter | 8mm |
| 2 | Thread Length | 22mm | 6 | Wrenching | 10mm |
| 3 | Grip Length | 8mm | 7 | Head Height | 7.4mm |
| 4 | Thread Diameter-Spacing | M8 x 1.25mm | 8 | Collar Diameter | 15.0mm |
NOTE:
*Torque notes: The torque values represented here are intended to be for general information only, not for specific installations.
On specific installations, where the supplied instructions deviate from the torque values listed here, always follow the specific instructions packaged with the kit.
Always lubricate the fastener prior to applying torque to ensure accurate readings. The values above are for use with ARP Ultra-Torque®.
For set of 6 use MD-403-2008-ARP-6
