Key Features
- Microprocessor-controlled lockout system prevents accidental reverse engagement above approximately 5 MPH
- Six-wire harness with integrated inline fuse for complete installation
- Universal fitment for all T56, T56 Magnum, and TR6060 transmissions
- Weather-resistant construction - interior mounting recommended for maximum longevity
- Two dedicated wires for solenoid output control
- Two wires for VSS (vehicle speed sensor) signal input
- Switched power and ground connections included
- Eliminates need for brake light switch or manual button workarounds
- Factory-like speed-based operation without requiring an OEM computer
Description
When you swap a TREMEC T56, T56 Magnum, or TR6060 into a classic or performance build, you lose the factory computer's ability to control the reverse lockout solenoid. Without proper control, the transmission becomes prone to inadvertent grinding into reverse gear while attempting to shift into 5th - a common problem since these gears are located very close to each other in the shift pattern. Manual workarounds like wiring to the brake light switch create their own problems: you can step on the brake at highway speed and still accidentally engage reverse.
This Reverse Lockout Control Module solves the problem with intelligent speed-based control. The heart of this module is a microprocessor that continuously monitors vehicle speed through the VSS signal. At low vehicle speeds, the reverse lockout solenoid is energized, retracting the blocking pin and allowing you to shift smoothly into reverse. Above approximately 5 MPH, the module de-energizes the solenoid, locking out reverse gear access and preventing costly transmission damage from an accidental shift. This creates factory-like operation without the need for an OEM PCM or ECM.
The six-wire harness simplifies installation with dedicated circuits: two wires for switched power and ground, two wires for VSS signal input from the transmission speed sensor, and two wires for solenoid output. The integrated inline fuse protects the circuit. While the module features weather-resistant construction, mounting inside the vehicle interior is recommended for maximum longevity. The system requires no special programming or calibration - wire it up and it works.
This module is essential for any T56-family transmission swap where the factory computer control is unavailable. It controls the reverse lockout solenoid found on all Borg Warner and TREMEC T56, Magnum, and TR6060 transmissions, restoring the safety and convenience of proper reverse lockout operation that these transmissions were designed to have.
Kit Includes

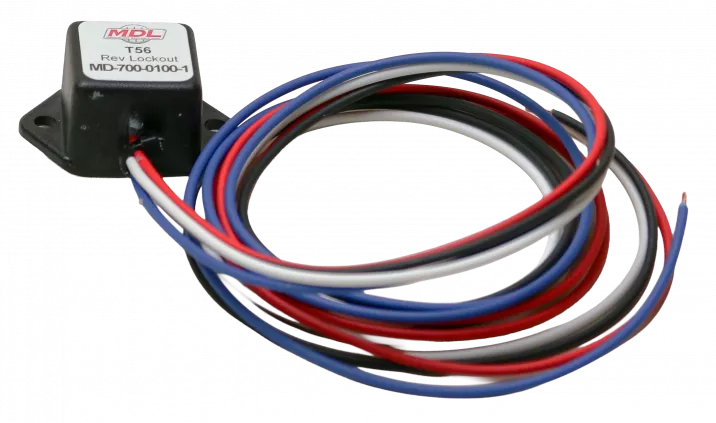

- Reverse lockout control module with microprocessor
- Six-wire harness with color-coded leads
- Inline fuse
- Installation instructions
- MDL lifetime technical support
