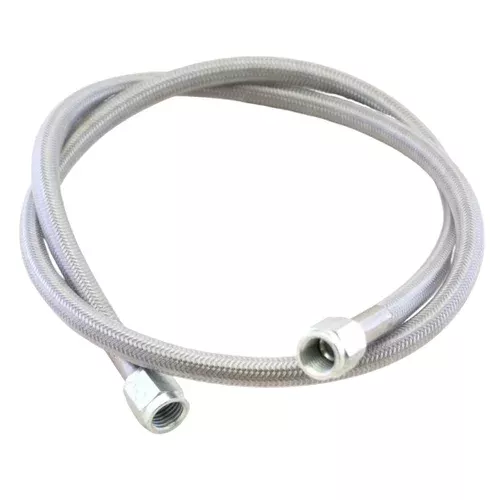

Key Features
- Stainless steel braided construction over Teflon inner liner with clear protective coating
- AN4 female straight fitting on one end, AN3 female straight fitting on the other for size conversion
- 1/4-inch inner diameter, 30 inches overall length
- Premium stainless steel crimp sleeves for leak-free, permanent connections
- Pressure tested for quality assurance
- Ideal for hydraulic clutch systems, racing applications, and high-heat environments
- 100% made in the USA
Description
Bridging different AN fitting sizes in a hydraulic clutch system used to mean clunky adapters or settling for mismatched components. This 30-inch steel braided line solves that problem with a purpose-built AN4-to-AN3 conversion design that maintains full flow and pressure integrity from end to end.
The Teflon inner liner delivers the chemical resistance and smooth bore that high-performance hydraulic systems demand, while the stainless steel outer braid handles pressure spikes and protects against abrasion from engine bay heat and vibration. A clear plastic coating over the braid preserves the clean stainless finish and extends service life without hiding the line's quality construction. Premium stainless steel crimp sleeves at both fittings eliminate the weak points and potential leak paths found in cheaper hose assemblies.
At 30 inches, this line provides the routing flexibility needed for transmission swaps, custom clutch hydraulic setups, or any application where you need to transition between AN4 and AN3 fitting sizes. Both ends feature straight female fittings that mount cleanly without adding bulk to tight spaces around bellhousings and firewalls. Every line is pressure tested before it leaves the shop.
100% made in the USA with components engineered for demanding performance applications.
Kit Includes
- 30-inch stainless steel braided hydraulic line with Teflon inner liner (1/4-inch ID)
- AN4 female straight fitting with stainless steel crimp sleeve (pre-assembled)
- AN3 female straight fitting with stainless steel crimp sleeve (pre-assembled)
- Clear protective coating applied
