Key Features

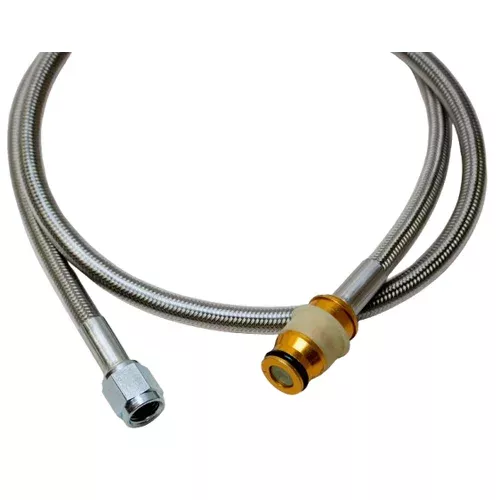

- 24-inch stainless steel braided line with 1/4-inch ID and clear plastic coating over Teflon inner lining
- GM male quick disconnect fitting to -4AN female straight fitting configuration
- Premium stainless steel crimp sleeves and stainless fittings throughout
- Pressure tested for quality assurance
- Direct replacement for failure-prone OEM plastic clutch lines
- 100% made in the USA
Description
Factory plastic hydraulic clutch lines are notorious failure points in TREMEC swaps and high-performance applications. Under heat and pressure, the OEM plastic hose expands and eventually fails--right when you need clutch actuation most. This MDL stainless steel braided line eliminates that weakness with a premium construction designed for serious drivetrain builds.
The 24-inch length with 1/4-inch ID provides flexibility for routing around exhaust components and headers while the stainless steel braided construction with Teflon inner lining delivers superior durability and heat resistance. The clear plastic coating protects the stainless braid from abrasion while providing a clean, professional appearance that lasts. Premium stainless steel crimp sleeves and stainless fittings ensure reliable connections that won't fail under high-heat racing conditions or extreme-duty street applications.
One end features a GM male quick disconnect fitting that connects directly to GM hydraulic release bearings and slave cylinders found on TREMEC applications. The other end terminates in a straight -4AN female fitting for connection to aftermarket master cylinders or additional hydraulic components. This conversion hose configuration makes it ideal for transmission swaps where you need to bridge OEM-style connections to AN-style plumbing.
Each line is pressure tested for quality assurance and manufactured to precise tolerances. Compatible with most internal and external slave cylinder setups. Proudly made in the USA.
Kit Includes
- 24-inch stainless steel braided hydraulic line with clear plastic coating and Teflon lining
- GM male quick disconnect fitting (transmission end)
- -4AN female straight stainless steel fitting
