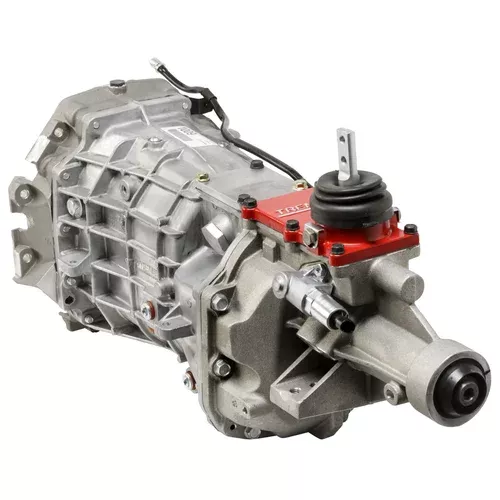

Purchase Tremec Magnum Ford 6-Speed Transmission, 2.66 First, .80/.63 od

Tremec Magnum Ford 6-Speed Transmission, 2.66 First, .80/.63 od

SKU: MD-586-11010

No reviews yet. Write a review!
$3,545.00 Original Price
Price excludes tax

 TUET11010
  • Gear Ratios 2.66, 1.78, 1.30, 1, .80, .63
  • 26 spline input, 31 spline output Shafts
  • Cable Release guide tube and pivot stud
  • Torque rated 700+ft/lbs
  • 17 tooth Analog Electric speedo


Join Waitlist

Sign up with your email to be notified when this is back in stock!



TREMEC T56 Magnum 6-Speed Double Overdrive Transmission TUET11010 2.66 first gear ratio .80/.63 OD
Introduced in the spring of 2009, the TREMEC T56 Magnum 6-speed manual transmission, was the long-awaited and highly anticipated replacement for the original T56.Based heavily on the TR6060, the all-new Magnum took the best of TREMECs current OEM design and manufacturing technologies and combined them with the most popular features of their intensely popular TKO 5-speed.The result is the smoothest shifting, greatest driving, strongest and most versatile 6-speed aftermarket transmission TREMEC has ever produced.
Features & Bene
Fits:

TREMEC Elite logo
  • 85mm center distance.
  • 700 lb-ft effective torque capacity.
  • Fully reversible TKO-style OEM-grade die-cast aluminum shifter for smooth, positive shift action.
  • Built-in mid-shift provisions under inspection cover for simple, pain-free mid-shift conversions.
  • Triple cone synchronizers on gears 1-4, double cone synchronizers on gears 5-6, as well as reverse.
  • Accurate, smooth, high-rpm shift capabilities.
  • 26 Spline input shaft
  • 31 Spline output shaft
  • Cable release hardened steel guide tube
  • Dual speedo pick-ups to accommodate both electric and mechanical type speedometers.
  • Reverse light Switch
  • Required oil = ATF Dextron III
Experience the MDL difference: When you purchase a complete MDL Conversion Package you get
    • We extend the manufacturers warranty by an extra year with a 1-year grace period.
    • We have the best in the industry customer service.
    • life-time technical support.
  • The aftermarket's premier 6-speed performance manual transmission
  • 700 lb-ft. of torque capacity
  • Reasonably light at 135 lbs. dry
  • Multiple shifter locations & dual speedo pickups for unmatched versatility
  • Choice of two different gear ratio sets (2.66 or 2.97), with unique double overdrive ratios
  • Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
  • Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.
Click here for a Quote
TREMECPart NumberApplicationTorque Cap.(lbs-ft)Gear Ratio Chart
1st2nd3rd4th5th6thRev
TUET11430FORD7002.661.781.301.000.740.502.90
TUET11011FORD7002.972.101.461.000.740.502.90
TUET16884FORD7002.972.101.461.000.800.632.90
TUET11940FORD7002.971.781.301.000.800.632.90

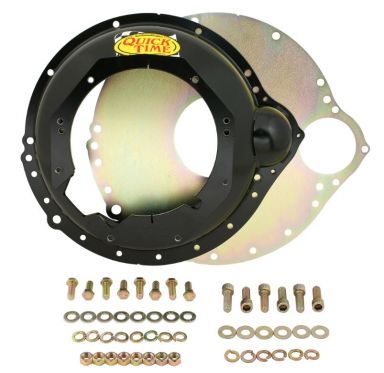

Get your new T56 Magnum on the road with our Performance T56 Magnum Installation kit featuring bell-housing, flywheel, clutch, clutch release we have mechanical or hydraulic actuation, bearings, pressure plate, with all the supporting hardware and more.Please see our Solutions section for whatever you hit the road with.

If you have questions, please call208-453-9800 Related Articles & VideosVIDEO: Toughness Meet Drive-ability / BIG MUSCLE

Specifications

Gear Ratio 1st Gear
2.66
Gear Ratio 2nd Gear
1.78
Gear Ratio 3rd Gear
1.3
Gear Ratio 4th Gear
1
Gear Ratio 5th Gear
0.8
Gear Ratio 6th Gear
0.63
Input spline count
26
Number of Gears
6
Oil Type Requirements
ATF Dextron III
Output spline count
31
Transmission
Magnum
