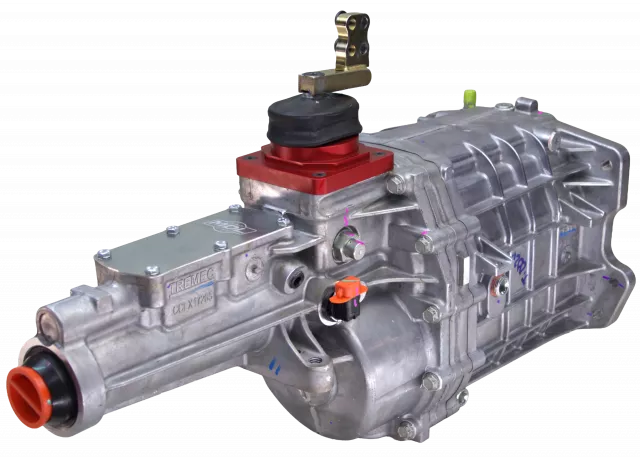

MDL TREMEC Ford TKX 5-Speed | 2.87 First, 0.68 OD | Tall Body Front Shifter, 2.3” or 2.8” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21" Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670" pilot tip with 1.430" OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 2.3” or 2.8” forward Offset
• Shifter Stub Location: 9.88” or 10.38” back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• High-performance short-throw billet aluminum shifter (front position tall body, 2.3” or 2.8” offset)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

Key Features

• MDL exclusive modification -- not available through TREMEC -- brings shifter stub to straight-up position with no offset
• Front mount tall body configuration designed for truck applications requiring additional shifter height
• 600 lb-ft torque capacity with 8,000 RPM capability and 7,500 RPM shift rating
• Close-ratio gear set: 2.87:1, 1.89:1, 1.28:1, 1.00:1, 0.68:1 overdrive -- strong launch, relaxed cruising
• 26-spline input shaft (1-1/8" diameter), 31-spline output shaft -- maximum strength where it counts
• Multi-cone synchronizers with hybrid carbon/bronze rings for smooth, fast shifts under power
• Mechanical 7-tooth speedometer drive and electronic OSS sensor built-in -- works with analog or digital gauges
• Slim, end-loaded 3-piece aluminum case provides transmission tunnel clearance and structural stiffness
• 99 lbs dry weight, 2.7-quart fluid capacity

Description

When your Ford truck build demands a TKX with the shifter in the straight-up OE position, this MDL exclusive modification delivers exactly that. Standard TREMEC TKX shifter locations work great for many applications, but some builds -- particularly trucks with floor-mounted shifters or specific console clearances -- need the stub positioned differently. MDL solves this problem through careful machining and component integration that brings the shifter stub straight up with no offset, all while maintaining the TKX's legendary durability and shift quality.

The front mount tall body configuration provides additional shifter height, making this transmission ideal for truck installations where the standard shifter housing sits too low. MDL's engineering team hand-prepares each transmission, ensuring precise shifter positioning and flawless operation before it ships. This level of customization simply isn't available from TREMEC's standard catalog.

Built on TREMEC's proven TKX platform, this transmission delivers 600 lb-ft of torque capacity with engine speeds capable of 8,000 RPM and shifts at 7,500 RPM. The close-ratio gear set features a strong 2.87:1 first gear for confident launches and a deep 0.68:1 overdrive that drops highway RPM for relaxed cruising and improved fuel economy. Multi-cone synchronizers with hybrid carbon/bronze rings deliver superior shift quality at high RPM, while the ribbed 3-piece aluminum housing provides outstanding structural stiffness with reduced NVH. Tapered roller bearings on input, output, and countershafts combined with caged needle bearings on the mainshaft ensure long-term durability.

This Ford-pattern TKX requires a Ford Wide Pattern bellhousing and 26-spline clutch disc. The 0.670-inch pilot tip fits standard Ford applications. Both mechanical (7-tooth cable drive) and electronic (OSS two-wire analog sensor) speedometer outputs are included. Fill with 2.7 quarts of Dexron-III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF.

What's Included

• MDL modified TREMEC TKX 5-speed transmission assembly (TCET17765 base)
• Front mount tall body shifter housing
• Straight-up shifter stub with no offset
• High-performance short-throw billet aluminum shifter
• MDL lifetime technical support

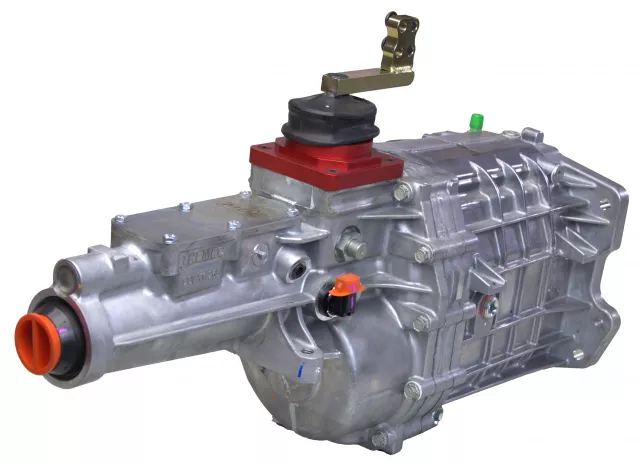

MDL TREMEC Ford TKX 5-Speed | 2.87 First, 0.68 OD | Tall Body Front Shifter, 1.65” or 2.15” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.68) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• 7.21" Ford input shaft length - bolts to Ford TKO/4-speed bellhousing pattern
• 0.670" pilot tip with 1.430" OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1.65” or 2.15” forward Offset
• Shifter Stub Location: 10.53" or 11.03" back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

If you are making over 400 horsepower and need to upgrade from a tired four-speed, the TREMEC TKX delivers everything your Ford build demands. Unlike repurposed OE transmissions, the TKX was engineered from the ground up specifically for the aftermarket - designed to handle serious power while fitting into classic Mustangs and other vintage Fords without the floor surgery typically required by larger transmissions.

The end-loaded case design is the key to the TKX's compact footprint. TREMEC eliminated the traditional side-loading architecture, resulting in a slimmer, more streamlined case that clears tight transmission tunnels. The three-piece ribbed aluminum housing (main case, intermediate plate, and rear extension) delivers outstanding structural stiffness while reducing overall weight to just 99 lbs dry. Fewer case seams mean fewer potential leak points, and gaskets at all flanges simplify installation.

Inside, the TKX punches well above its weight class. Wide gear widths increase gear life and torque capacity, while tapered roller bearings on the input, output, and countershafts reduce noise and improve durability. Caged needle bearings on the mainshaft optimize performance at all gear positions. The internal three-rail shift system provides robust, precise gear engagement, and the rear mainshaft support bushing has been relocated closer to the gearbox for improved support. Hybrid triple-cone synchronizers made from sintered bronze and carbon deliver smooth, notch-free shifts even at 7,500 RPM.

This close-ratio configuration (2.87 first gear with 0.68 overdrive) keeps your engine in its powerband during spirited driving while dropping highway RPM for improved fuel economy and reduced wear. Short input shaft kits are available for Ford 3-speed and 4-speed bellhousing applications. Made from 100% brand-new OEM-quality components.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET17765) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• High-performance short-throw billet aluminum shifter (front position tall body, 1.65” or 2.15” offset)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

Key Features

• MDL-exclusive road race tall body shifter in furthest forward position with zero offset on shift stub - not available from TREMEC
• 600 lb-ft torque capacity handles serious power builds
• Close-ratio gears: 2.87 first, 1.89 second, 1.28 third, 1.00 fourth, 0.68 overdrive
• 26-spline input shaft (1.125-inch diameter), 31-spline output shaft
• Multi-cone synchronizers rated for 8,000 RPM engine speed with 7,500 RPM shift capability
• Slim-line end-loading 3-piece aluminum case for superior tunnel clearance
• Mechanical 7-tooth speedometer drive and analog electric speedometer sensor built in
• 2.7-quart fluid capacity - uses Dexron III ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF
• 99 lbs dry weight
• Bolts to Ford wide-pattern (Toploader-style) bellhousings

Description

When track time demands maximum shifter precision and your Ford build needs the most aggressive shift position possible, this MDL-modified TKX delivers road race-ready performance in an exclusive configuration you cannot buy from TREMEC. The tall body shifter mounts in the furthest forward position on the case with zero offset on the shift stub, placing the shift lever exactly where a road racer needs it during hard cornering and aggressive downshifts.

The TKX platform represents TREMEC's ground-up redesign of the five-speed manual for the aftermarket. Its end-loading three-piece aluminum case reduces overall height and width compared to the TKO it replaces, eliminating tunnel modifications in many classic applications while increasing structural rigidity. The close-ratio gear set opens with a 2.87 first gear to keep the engine in its powerband through technical sections, while the 0.68 overdrive delivers highway cruising capability for track day drives. Multi-cone synchronizers with sintered carbon/bronze hybrid rings and double-lined carbon-fiber facings enable clean, positive shifts at 7,500 RPM - a major improvement over older five-speeds.

TREMEC engineered the TKX with special gate chamfers and ball detents on all three shift rails for improved shift quality with reduced notchiness. All gears and shafts are manufactured from ASTM 4615 special-grade steel with oversized gear widths for maximum durability. Tapered roller bearings on the input, output, and countershafts reduce noise while caged needle bearings support all gear positions. The internal three-rail shift system with steel shift forks keeps all linkage lubricated and protected.

This Ford-pattern TKX bolts directly to Toploader-style bellhousings and shares crossmember mounting points with TKO transmissions for straightforward swaps. The 31-spline output shaft accepts Ford C6-style slip yokes with 1310, 1330, or 1350 U-joints. Both mechanical and electronic speedometer outputs are built in. Short input shaft kits are available separately for applications using original four-speed bellhousings.

Kit Includes

• MDL-modified TREMEC TKX 5-speed transmission with road race shifter configuration
• Tall body shifter assembly in front mounting position with no offset shift stub
• Factory TREMEC installation and service documentation
• MDL lifetime technical support

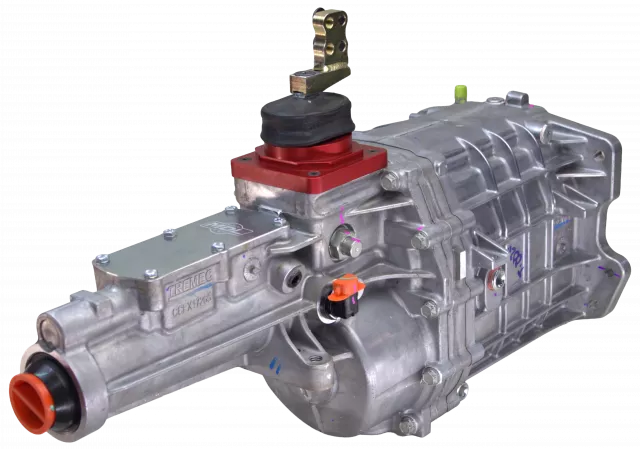

MDL TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | Tall Body Front Shifter, 1.5” or 2.15” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1.65” or 2.15” Forward Offset
• Shifter Stub Location: 10.53” or 11.03” Back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

When your truck shifter lands in the wrong spot, the whole driving experience suffers. This MDL-exclusive Ford TKX solves that problem with a custom 1.65” or 2.15” forward offset shift stub that repositions your shifter exactly where it belongs for perfect ergonomics. The slimline shift body clears stock shifter holes without cutting the floor, taking all the guesswork and hassle out of shifter placement. This is not available through TREMEC -- it is an MDL exclusive modification.

The TKX represents TREMEC's ground-up redesign of the five-speed platform, engineered specifically for the aftermarket. Enhanced gear sizes and revised double-lined carbon-fiber synchronizer packages eliminate the stiff, notched shifter feel of older designs while enabling safe shifts at 7,500 RPM and engine speeds up to 8,000 RPM. Durability comes from oversized gear widths, gaskets at all flanges, caged needle bearings in all gear positions, and a ribbed three-piece aluminum housing that delivers outstanding structural stiffness.

The compact end-loading case design provides superior clearance in narrow transmission tunnels -- TREMEC specifically engineered this case profile to fit tight classic car tunnels without floor modifications. Close-ratio gearing (2.87 first through 0.81 overdrive) delivers strong acceleration with highway-friendly cruising RPMs. The 31-spline output shaft accepts Ford C6-style slip yokes for straightforward driveshaft fitment.

Uses TREMEC High Performance Manual Transmission Fluid, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh. Utilizes the Ford TKO bolt pattern for direct compatibility with Ford wide pattern bellhousings. Made in the USA.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

MDL TREMEC Ford TKX 5-Speed | 2.87 First, 0.81 OD | Tall Body Front Shifter, 2.3” or 2.5” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 2.3” or 2.8” Forward Offset
• Shifter Stub Location: 9.88” or 10.38” Back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

When your truck shifter lands in the wrong spot, the whole driving experience suffers. This MDL-exclusive Ford TKX solves that problem with a custom 2.3” or 2.8” forward offset shift stub that repositions your shifter exactly where it belongs for perfect ergonomics. The slimline shift body clears stock shifter holes without cutting the floor, taking all the guesswork and hassle out of shifter placement. This is not available through TREMEC -- it is an MDL exclusive modification.

The TKX represents TREMEC's ground-up redesign of the five-speed platform, engineered specifically for the aftermarket. Enhanced gear sizes and revised double-lined carbon-fiber synchronizer packages eliminate the stiff, notched shifter feel of older designs while enabling safe shifts at 7,500 RPM and engine speeds up to 8,000 RPM. Durability comes from oversized gear widths, gaskets at all flanges, caged needle bearings in all gear positions, and a ribbed three-piece aluminum housing that delivers outstanding structural stiffness.

The compact end-loading case design provides superior clearance in narrow transmission tunnels -- TREMEC specifically engineered this case profile to fit tight classic car tunnels without floor modifications. Close-ratio gearing (2.87 first through 0.81 overdrive) delivers strong acceleration with highway-friendly cruising RPMs. The 31-spline output shaft accepts Ford C6-style slip yokes for straightforward driveshaft fitment.

Uses TREMEC High Performance Manual Transmission Fluid, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh. Utilizes the Ford TKO bolt pattern for direct compatibility with Ford wide pattern bellhousings. Made in the USA.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18084) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

MDL Modified TREMEC TKX 5-Speed | Ford | Front Mount Tall Body Shifter | No Offset

Key Features

• MDL-exclusive front mount tall body shifter positions the shift stub in OE truck location - not available from TREMEC
• Wide-ratio gear set: 3.27, 1.98, 1.34, 1.00, 0.72 overdrive for street/strip versatility
• 600 lb-ft torque capacity with 8,000 RPM engine capability and 7,500 RPM shift rating
• 99 lbs dry weight with 2.7 qt fluid capacity
• 26-spline input shaft and 31-spline output shaft for maximum strength
• Sintered carbon/bronze hybrid triple-cone synchros with non-leading tooth profile for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts for increased torque capacity
• Internal three-rail shift system with steel shift forks
• Ford Wide Pattern bellhousing bolt pattern
• Built-in reverse light switch and cruise control safety switch
• Ford mechanical 7-tooth speedometer drive and OSS two-wire analog electronic speedometer output
• 17-tooth reluctor wheel for electronic speedometer applications

Description

When your truck build demands factory shifter positioning, standard TKX configurations fall short. MDL's modified TREMEC TKX solves the tall body shifter challenge with precision machining and custom component integration that brings the shifter stub up to the OE truck position. This isn't a bolt-on shifter - it's a completely reworked transmission with the tall body shifter housing integrated as part of the unit. Every modified TKX is hand-prepared at MDL's Caldwell, Idaho facility to ensure quality and precision.

The TREMEC TKX represents the next generation in 5-speed design with its compact end-loading architecture. This layout delivers greater tunnel clearance, increased case strength from the ribbed three-piece aluminum housing, and fewer case seams with gaskets at all mating surfaces to eliminate fluid leaks. The slim profile fits most transmission tunnels without floor modifications while the robust internal design handles serious power.

Shifting performance comes from multi-cone synchronizers and sintered carbon/bronze hybrid synchronizer rings with a non-leading tooth profile - enabling smooth, positive engagement even at 7,500 RPM. Tapered roller bearings on the input, output, and countershafts reduce noise and improve performance, while a caged needle bearing supports the mainshaft. The single-piece countershaft and oversized gear widths increase torque-carrying capacity across all gears.

The Ford Wide Pattern bellhousing interface provides broad compatibility with Ford applications. Both mechanical (7-tooth cable drive) and electronic (OSS two-wire analog) speedometer outputs are built in, along with a reverse light switch on the left side and cruise control safety switch on the right. MDL extends TREMEC's manufacturer warranty by an extra year with a 1-year grace period and includes lifetime technical support. Recommended lubricants include Dexron III ATF, Amsoil ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF.

Kit Includes

• MDL-modified TREMEC TKX 5-speed transmission with integrated front mount tall body shifter (no offset)
• Billet aluminum short-throw shifter assembly
• Built-in reverse light switch
• Built-in cruise control safety switch
• OSS two-wire analog electronic speedometer sensor
• Ford 7-tooth mechanical speedometer drive gear
• Extended manufacturer warranty (additional year with 1-year grace period)
• Lifetime technical support from MDL

MDL TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | Tall Body Front Shifter, 1” or 1.5” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1” or 1.5” Forward Offset
• Shifter Stub Location: 11.18” or 11.68” Back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

When your truck shifter lands in the wrong spot, the whole driving experience suffers. This MDL-exclusive Ford TKX solves that problem with a custom 1” or 1.5” forward offset shift stub that repositions your shifter exactly where it belongs for perfect ergonomics. The slimline shift body clears stock shifter holes without cutting the floor, taking all the guesswork and hassle out of shifter placement. This is not available through TREMEC -- it is an MDL exclusive modification.

The TKX represents TREMEC's ground-up redesign of the five-speed platform, engineered specifically for the aftermarket. Enhanced gear sizes and revised double-lined carbon-fiber synchronizer packages eliminate the stiff, notched shifter feel of older designs while enabling safe shifts at 7,500 RPM and engine speeds up to 8,000 RPM. Durability comes from oversized gear widths, gaskets at all flanges, caged needle bearings in all gear positions, and a ribbed three-piece aluminum housing that delivers outstanding structural stiffness.

The compact end-loading case design provides superior clearance in narrow transmission tunnels -- TREMEC specifically engineered this case profile to fit tight classic car tunnels without floor modifications. Close-ratio gearing (3.27 first through 0.72 overdrive) delivers strong acceleration with highway-friendly cruising RPMs. The 31-spline output shaft accepts Ford C6-style slip yokes for straightforward driveshaft fitment.

Uses TREMEC High Performance Manual Transmission Fluid, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh. Utilizes the Ford TKO bolt pattern for direct compatibility with Ford wide pattern bellhousings. Made in the USA.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

MDL TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | Tall Body Front Shifter, 1.65” or 2.15” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1.65” or 2.15” Forward Offset
• Shifter Stub Location: 10.53” or 11.03” Back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

When your truck shifter lands in the wrong spot, the whole driving experience suffers. This MDL-exclusive Ford TKX solves that problem with a custom 1.65” or 2.15” forward offset shift stub that repositions your shifter exactly where it belongs for perfect ergonomics. The slimline shift body clears stock shifter holes without cutting the floor, taking all the guesswork and hassle out of shifter placement. This is not available through TREMEC -- it is an MDL exclusive modification.

The TKX represents TREMEC's ground-up redesign of the five-speed platform, engineered specifically for the aftermarket. Enhanced gear sizes and revised double-lined carbon-fiber synchronizer packages eliminate the stiff, notched shifter feel of older designs while enabling safe shifts at 7,500 RPM and engine speeds up to 8,000 RPM. Durability comes from oversized gear widths, gaskets at all flanges, caged needle bearings in all gear positions, and a ribbed three-piece aluminum housing that delivers outstanding structural stiffness.

The compact end-loading case design provides superior clearance in narrow transmission tunnels -- TREMEC specifically engineered this case profile to fit tight classic car tunnels without floor modifications. Close-ratio gearing (3.27 first through 0.72 overdrive) delivers strong acceleration with highway-friendly cruising RPMs. The 31-spline output shaft accepts Ford C6-style slip yokes for straightforward driveshaft fitment.

Uses TREMEC High Performance Manual Transmission Fluid, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh. Utilizes the Ford TKO bolt pattern for direct compatibility with Ford wide pattern bellhousings. Made in the USA.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

MDL TREMEC Ford TKX 5-Speed | 3.27 First, 0.72 OD | Tall Body Front Shifter, 2.3” or 2.8” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded case design fits most transmission tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• Ford TKO/Toploader bellhousing bolt pattern - direct upgrade path from 4-speeds
• 7.21-inch Ford input shaft length 0.670-inch pilot tip with 1.430-inch OD throwout bearing guide tube
• Built-in reverse light switch (left side) and cruise control safety switch (right side)
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• Gaskets at all mating surfaces eliminate fluid leaks
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 2.3” or 2.8” Forward Offset
• Shifter Stub Location: 9.88” or 10.38” Back from the bellhousing face
• MDL Exclusive - not available through TREMEC
• 99 lbs dry weight; 2.7-quart fluid capacity

Description

When your truck shifter lands in the wrong spot, the whole driving experience suffers. This MDL-exclusive Ford TKX solves that problem with a custom 2.3” or 2.8” forward offset shift stub that repositions your shifter exactly where it belongs for perfect ergonomics. The slimline shift body clears stock shifter holes without cutting the floor, taking all the guesswork and hassle out of shifter placement. This is not available through TREMEC -- it is an MDL exclusive modification.

The TKX represents TREMEC's ground-up redesign of the five-speed platform, engineered specifically for the aftermarket. Enhanced gear sizes and revised double-lined carbon-fiber synchronizer packages eliminate the stiff, notched shifter feel of older designs while enabling safe shifts at 7,500 RPM and engine speeds up to 8,000 RPM. Durability comes from oversized gear widths, gaskets at all flanges, caged needle bearings in all gear positions, and a ribbed three-piece aluminum housing that delivers outstanding structural stiffness.

The compact end-loading case design provides superior clearance in narrow transmission tunnels -- TREMEC specifically engineered this case profile to fit tight classic car tunnels without floor modifications. Close-ratio gearing (3.27 first through 0.72 overdrive) delivers strong acceleration with highway-friendly cruising RPMs. The 31-spline output shaft accepts Ford C6-style slip yokes for straightforward driveshaft fitment.

Uses TREMEC High Performance Manual Transmission Fluid, Dexron-III, GM Synchromesh, Mobil 1 Synthetic ATF, or Pennzoil Synchromesh. Utilizes the Ford TKO bolt pattern for direct compatibility with Ford wide pattern bellhousings. Made in the USA.

What's Included

• TREMEC TKX 5-speed transmission assembly (TCET18085) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from MDL

Install Hardware Kit | Ford Front Shift T5 | Steel Bellhousing or Adapter Plate

Key Features

• Complete mounting hardware for Ford front shift T5 with steel bellhousing or adapter plate applications
• Correct metric thread fasteners for T5 transmission-to-bellhousing attachment
• Specifically configured bolt lengths and grades for steel bellhousing installations
• Eliminates hardware-hunting when assembling your T5 swap
• Designed by MDL for proper Ford drivetrain fitment

Description

Sourcing the right fasteners for a Ford T5 installation can bring your project to a halt. T5 transmissions use metric threaded bellhousing bolts, which differ from the SAE threading used elsewhere in the Ford drivetrain. Grab the wrong hardware off the shelf and you risk cross-threading, loose connections, or inadequate clamping force under load.

This MDL install hardware kit is purpose-built for Ford front shift T5 installations using steel bellhousings or adapter plates. The included fasteners provide the correct metric thread pitch and appropriate lengths for secure transmission-to-bellhousing mounting. Each component is selected to deliver proper torque retention with steel bellhousing assemblies.

The difference between MDL's aluminum (AL) and steel (ST) hardware kits comes down to bellhousing bolt configuration. Aluminum bellhousings often ship with manufacturer-supplied fasteners or require different bolt lengths, so those kits are adjusted accordingly. This ST kit includes the correct hardware for steel bellhousing and adapter plate setups where the fasteners are not provided by the bellhousing manufacturer.

Stop digging through parts bins and hardware store drawers. This kit puts all the right fasteners in one bag so you can bolt up your T5 and move on to the next phase of your build.

Kit Includes

• Transmission-to-bellhousing mounting bolts (SAE thread)
• Complete fastener set for steel bellhousings

Key Features

• Hand-built Superior clutch disc with dual organic friction facings for smooth, progressive engagement
• 10-spline hub with 1-1/16" input shaft diameter - matches original Ford Flathead manual transmission input shafts
• 10" long pattern bolt circle - fits 59A engine and 8BA stamped or cast bell ring designs
• Pin-style release fork compatibility for 1949-1953 Flathead bellhousings
• Diaphragm pressure plate included for modern pedal feel and consistent clamping force
• 250 ft-lbs torque capacity - rated for street-driven Flathead builds
• Includes alignment tool for precise disc centering during installation
• Made in the USA with 1-year free-from-defect warranty

Description

Quality clutch components for Ford Flathead V8 builds are increasingly hard to source - especially when you need the correct pattern, spline count, and fork compatibility for your specific application. This Superior clutch kit is engineered specifically for Ford Flatheads using the 10" long pattern flywheel with pin-style release fork bellhousings, giving you a complete, bolt-on solution that eliminates the guesswork from your restoration or hot rod build.

The heart of this kit is the Superior organic clutch disc, hand-assembled in-house at MDL. Every disc is built to exacting tolerances using premium organic friction material on both sides, then double-checked for accuracy before shipping. Organic facings deliver smooth, predictable engagement that's ideal for street driving - no grabby starts or chatter. The 10-spline hub with 1-1/16" bore matches the original Ford Flathead transmission input shaft, while the 10" long pattern design fits the flywheel bolt circle found on 59A engines and 8BA stamped or cast bell ring configurations.

The included diaphragm pressure plate replaces heavy, inconsistent three-finger designs with modern clamping technology. You get consistent pedal effort and reliable release every time. Pin-style fork compatibility makes this kit the right choice for 1949-1953 Flathead bellhousings using the original mechanical release mechanism - no adapter or fork modification required.

Rated for 250 ft-lbs of torque, this clutch kit handles the output of most street-driven Flathead engines with margin to spare. Whether you're completing an authentic restoration or building a traditional hot rod, this kit delivers reliable performance backed by MDL's 1-year warranty and lifetime technical support. Made in the USA.

What's Included

• Superior organic clutch disc with dual organic friction facings (10-spline, 1-1/16" bore)
• 10" long pattern diaphragm pressure plate
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Key Features

• Hand-built 10-spline, 1-1/16" clutch disk with organic/organic friction facings for smooth street engagement
• 11" long pattern 3-finger pressure plate rated for 300 lb-ft torque capacity
• Pin fork-type MDL cable-style mechanical throw-out bearing for precise actuation
• Sprung hub design absorbs torsional vibrations and reduces drivetrain shock
• Direct fit for Ford Y-Block and Flathead V8 engines using the 11" long clutch pattern
• Changeover fork pins included for bellhousing compatibility
• Performance Proven components tested in racing environments on and off track
• Made in the USA with 1-year warranty and lifetime technical support

Description

Ford's Flathead V8 and the Y-Block that succeeded it share the same 11" long clutch bolt pattern on many applications, making clutch sourcing a headache for restorers, hot rodders, and swap builders alike. This MDL Superior clutch set solves that problem with a complete, ready-to-install package engineered specifically for these classic powerplants. Whether you're rebuilding a '48-'53 Flathead truck, freshening up a '54-'64 Y-Block, or dropping a period-correct mill into a street rod, this kit delivers everything you need in one box.

Every Superior clutch disk is hand-assembled at MDL's Caldwell, Idaho facility using premium organic friction materials on both sides. The dual organic facings provide progressive engagement and excellent modulation for street driving, while the sprung hub design absorbs the torsional spikes that can hammer synchros and stress driveline components. The 10-spline, 1-1/16" input shaft configuration matches original Y-Block and late Flathead transmissions, ensuring drop-in compatibility with your existing gearbox.

The 3-finger pressure plate uses the 11" long bolt pattern with a 3-3/8" register bore, fitting flywheels drilled for this heavy-duty configuration. MDL's pin fork-type mechanical throw-out bearing uses cable-style actuation for reliable, repeatable clutch engagement without hydraulic complexity. Changeover fork pins are supplied to accommodate different bellhousing variants, and the included Flathead pilot bearing centers the input shaft for smooth operation.

Each component undergoes MDL's quality control process with double-checking before shipping, ensuring you receive a ready-to-install clutch set that meets Performance Proven standards. Backed by a 1-year warranty against manufacturing defects and lifetime technical support. Made in the USA.

What's Included

• 10-spline, 1-1/16" clutch disk with organic/organic friction facings and sprung hub
• 11" long pattern 3-finger pressure plate (3-3/8" register bore)
• Pin fork-type MDL cable-style mechanical throw-out bearing
• Changeover fork pins
• Flathead pilot bearing
• Clutch alignment tool
• 1-year warranty
• Lifetime technical support

Key Features

• 11" long pattern three-finger pressure plate with 3-3/8" register for consistent clamping force
• Organic-faced 10-spline clutch disk with 1-1/16" input shaft bore for smooth, progressive engagement
• Hand-built clutch disk assembled in-house for precise tolerances and rigorous quality control
• Upgraded mechanical throw-out bearing for reliable clutch release
• Sprung hub design dampens drivetrain vibration for smoother operation
• 300 lb-ft torque capacity handles stock and mildly modified engines
• Flathead pilot bearing included for proper input shaft support
• Complete kit with clutch alignment tool for accurate installation
• Made in the USA with 1-year warranty

Description

Finding quality clutch components for Ford Y-Block and Flathead V8 engines gets harder every year. This MDL Superior clutch set solves that problem with a complete, ready-to-install kit that matches the original 11" long pattern three-finger configuration while upgrading every component for improved performance and longevity.

All Superior clutch disks are hand-built in-house at MDL's Caldwell, Idaho facility. Each disk is checked and double-checked for accuracy before shipping, so you receive a ready-to-install component that fits right the first time. The organic facing material provides excellent street manners with smooth engagement and progressive pedal feel, while the sprung hub design dampens drivetrain shock and reduces gear rattle at idle. At 300 lb-ft torque capacity, this clutch handles stock Y-Block and Flathead applications with confidence.

The three-finger pressure plate design maintains original Ford engineering while delivering improved clamping force distribution compared to worn-out factory units. This mechanical release system works with original Ford bellhousings and clutch linkage, preserving the authentic drivetrain feel these classics are known for. No modifications to your existing clutch housing or linkage required.

This is a Performance Proven product--it has survived the rigorous challenges of racing on and off track. When you see that logo, you know you're getting a tried and true component, not an untested import. Made in the USA and backed by MDL's 1-year warranty.

What's Included

• 11" long pattern three-finger pressure plate (3-3/8" register)
• Organic-faced 10-spline clutch disk (1-1/16" bore)
• Upgraded mechanical throw-out bearing
• Flathead pilot bearing
• Clutch alignment tool
• 1-year warranty

Key Features

• Hand-built Superior clutch disk with organic/organic facings for smooth street engagement
• 11" long pattern 3-3/8" 3-finger pressure plate for period-correct applications
• 10-spline, 1-1/16" sprung hub fits stock Ford 3-speed and 4-speed transmissions
• 300 ft-lb torque rating sized for Y-Block and Flathead power levels
• Upgraded large mechanical throwout bearing eliminates worn release component failures
• FH pilot bearing included for proper input shaft support
• Single-disk design maintains authentic mechanical clutch feel
• Performance Proven -- tested on track and street for proven reliability
• Made in the USA with 1-year free-from-defect warranty

Description

Finding a quality clutch for your Ford Y-Block or Flathead build is challenging -- most aftermarket kits ignore these classic applications entirely. This Superior clutch set solves that problem with a complete, ready-to-install assembly engineered specifically for Ford's early overhead-valve and flathead V-8s. The 11" long pattern bolt configuration and 10-spline, 1-1/16" hub match original Ford 3-speed and 4-speed transmission input shafts, eliminating the guesswork from parts matching.

Every Superior clutch disk is hand-built in-house at MDL, ensuring exacting tolerances and flawless operation before it ships. The organic/organic facings deliver smooth, progressive engagement ideal for street driving -- no grabby, on-off behavior that makes traffic miserable. The 3-3/8" 3-finger pressure plate provides consistent clamping force with the traditional release characteristics Y-Block and Flathead enthusiasts expect, while the sprung hub absorbs drivetrain shock for quieter operation.

The kit includes an upgraded large mechanical throwout bearing that addresses one of the most common failure points in aging clutch systems. Combined with the included FH pilot bearing for proper input shaft centering, you're getting a complete release system refresh -- not just friction components. Rated at 300 ft-lbs, this clutch handles the torque output of stock and mildly modified Y-Block and Flathead engines without the harsh engagement of race-oriented setups.

This is a Performance Proven product that has survived the rigorous challenges of racing on and off the track. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

What's Included

• Hand-built Superior clutch disk with organic/organic facings, 10-spline 1-1/16" sprung hub
• 3-finger pressure plate, 11" long pattern, 3-3/8" release diameter
• Upgraded large mechanical throwout bearing
• FH pilot bearing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty

Superior Kevlar/Kevlar Clutch Kit | Ford 10.5" Long Pattern | 10-Spline 3-Finger

Key Features

• Dual Kevlar friction facings on both sides for 2-3x longer service life than organic discs
• Ford 10.5-inch long bolt pattern with 3-1/8" pressure plate spacing
• 3-finger pressure plate design for classic Ford mechanical linkage compatibility
• 10-spline, 1-1/16" input shaft hub fits T5 and four-speed transmissions
• Sprung hub construction with damper springs absorbs drivetrain shock loads
• 500 ft-lbs torque capacity for performance street and open track use
• Complete kit includes mechanical throwout bearing, pilot bushing, and alignment tool
• Hand-built in Caldwell, Idaho with double-checked tolerances
• 1-year free-from-defect warranty
• Made in the USA

Description

Finding quality clutch components for early Ford applications with the 10.5-inch long bolt pattern can be a challenge -- especially when you want performance that goes beyond stock. The MDL Superior Kevlar/Kevlar clutch kit solves this problem with a complete, ready-to-install package engineered for smooth engagement and exceptional durability in performance street and light track duty.

The engineering advantage of dual Kevlar friction facings comes down to material science. Kevlar's low static-to-dynamic friction coefficient delivers smooth, predictable engagement that makes daily driving comfortable while its inherent heat resistance and wear characteristics provide 2-3 times the service life of organic facings. Unlike ceramic materials that can grab aggressively, Kevlar offers manageable take-off characteristics that won't fight you in traffic or at the dragstrip staging lanes.

The 3-finger pressure plate is designed specifically for classic Ford mechanical clutch linkage, featuring the correct 3-1/8" pattern diameter for proper long-style fitment. The sprung hub construction incorporates damper springs that absorb engagement shock loads, protecting your drivetrain components while providing full clutch control. With a 500 ft-lb torque rating, this clutch handles serious performance street applications and open tracking without sacrificing street manners.

Every Superior clutch disc is hand-built at MDL's Caldwell, Idaho facility. Each assembly is double-checked for exacting tolerances and flawless operation before shipping, so you receive a ready-to-install premium piece right out of the box. This kit is designed for Ford applications requiring the 10.5-inch long bolt pattern with 10-spline input shafts and mechanical throwout bearing actuation. Made in the USA and backed by a 1-year free-from-defect warranty.

What's Included

• 3-finger pressure plate with 3-1/8" pattern diameter
• 10.5" Kevlar/Kevlar friction disc with sprung hub (10-spline, 1-1/16" hub)
• Mechanical throwout bearing
• Pilot bushing
• Clutch alignment tool
• Installation and break-in instructions
• 1-year free-from-defect warranty
• Lifetime technical support

Pressure Plate Bolt Kit | 5/16"-18 x 3/4" | Set of 6

Key Features

• 5/16"-18 thread pitch with 3/4" under-head length
• Complete six-bolt set for standard pressure plate mounting
• Universal fitment for Ford, GM, and Mopar applications using 5/16" hardware
• Critical safety hardware for reliable clutch assembly retention
• Backed by manufacturer's warranty against defects

Description

Pressure plate bolts are among the most critical safety components in any drivetrain. These six fasteners are all that stands between a properly functioning clutch and a catastrophic failure that can destroy transmissions, scatter debris through the bellhousing, or worse. This isn't the place to grab whatever's sitting in the hardware drawer.

This six-bolt kit delivers the 5/16"-18 x 3/4" specification needed for the majority of domestic muscle cars and classic performance applications. The 5/16"-18 thread pitch provides the strength-to-weight balance that made this specification an OEM standard across Ford, GM, and Mopar platforms. The 3/4" under-head length accommodates most standard pressure plate thicknesses without bottoming out in flywheel threads or leaving inadequate engagement.

Unlike generic hardware-store fasteners, these bolts are designed specifically for clutch applications where vibration resistance, proper thread engagement, and precise clamping loads are essential. Proper pressure plate hardware prevents the loosening and shearing that leads to clutch separation under high-RPM loads. Whether you're rebuilding a numbers-matching classic or assembling a street/strip performer, using the correct pressure plate bolts isn't optional.

Compatible with most domestic clutch applications using 5/16" pressure plate bolts. Verify thread specification and length requirements for your specific application before installation.

What's Included

• Six (6) pressure plate bolts, 5/16"-18 x 3/4"
• Manufacturer's warranty against defects

Key Features

• 8740 chromoly steel hardened to 180,000 PSI tensile strength - far exceeds Grade 8 hardware
• 5/16-18 thread with 0.780-inch underhead length for optimal grip on Ford V8 flywheels
• Black oxide finish resists corrosion and delivers a clean, professional appearance
• 1/2-inch hex head for secure wrench engagement during installation
• Large-diameter, low-profile design improves flywheel register engagement
• Application-specific engineering ensures proper thread engagement and clamping force
• Made in the USA with ARP's aerospace-grade quality standards

Description

Every time you stab the throttle, your pressure plate bolts absorb the rotational forces trying to tear your clutch apart. Factory hardware is engineered to a price point - not a performance standard. ARP's High Performance Series pressure plate bolts are forged from premium 8740 chromoly steel and heat-treated to 180,000 PSI tensile strength, delivering a substantial margin of safety over standard Grade 8 fasteners that simply can't match this level of clamping force under stress.

These aren't generic bolts cut to length. Each fastener features a precisely engineered 0.780-inch underhead length optimized specifically for Ford 289-460 V8 applications (1985 and earlier). The large-diameter, low-profile hex head design provides increased shank strength and improved flywheel register engagement compared to OEM hardware. The black oxide finish not only resists corrosion in the harsh bellhousing environment but also looks right on a performance build.

Whether you're building a weekend warrior that sees occasional strip duty or a dedicated road course car that lives at high RPM, these bolts eliminate a critical weak point in your drivetrain. The included hardened washers distribute clamping load evenly across the pressure plate mounting surface, preventing galling and ensuring consistent torque values. For best results, ARP recommends using their Ultra-Torque assembly lubricant to achieve accurate, repeatable torque readings.

Direct fitment for Ford 289, 302, 351W, 351C, 351M, 400, 390, 427, 428, 429, and 460 V8 engines using the standard 5/16-18 six-bolt pressure plate pattern. Compatible with OEM and aftermarket 10-inch clutches. Made in the USA by the same company that supplies fasteners to NASCAR, NHRA, IndyCar, and Formula 1 teams.

What's Included

• Six (6) ARP 8740 chromoly pressure plate bolts - 5/16-18 x 0.780-inch underhead length, hex head, black oxide finish
• Six (6) hardened washers - black oxide finish
• Manufacturer's warranty against defects

Key Features

• 1-7/8-inch diameter black shift ball with white 5-speed shift pattern and MDL logo
• 16mm x 1.50 brass master insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• High-impact polymer resin formulated for performance-level torque and temperature demands
• Subsurface graphics embedded beneath the surface - cannot wear off or fade
• Lightweight 4-ounce construction for reduced shift effort
• Precision-machined and polished to a high-gloss finish
• Includes jam nut for secure installation
• Thread adapters available for virtually any shift lever configuration
• Made in the USA

Description

Upgrade your interior with this premium 5-speed shift ball featuring the MDL logo - a clean, purposeful look that signals you mean business under the hood. Built from specially formulated high-impact polymer resin designed specifically for automotive applications, this shift ball delivers the durability and temperature resistance needed for performance driving while maintaining a premium appearance that won't crack or fade over time.

The 1-7/8-inch diameter provides an ideal grip size for quick, confident shifts. Unlike cheap decals or surface printing, the white 5-speed shift pattern graphics are embedded beneath the surface - they're part of the ball itself and physically cannot wear away. The precision-machined 16mm x 1.50 brass master insert exceeds automotive industry standards with over 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring rock-solid attachment to your shift lever even under aggressive driving conditions.

At just 4 ounces, this lightweight design reduces shift effort while the polymer construction provides excellent grip characteristics in all weather conditions - no burning your hand on hot summer days or freezing on cold mornings. The included jam nut ensures secure installation. For shift levers with different thread sizes, MDL stocks a full range of thread adapters - just confirm your shift lever thread size when ordering so we can recommend the correct adapter for your application.

Manufactured in the USA by a company that has been producing precision shift knobs since 1952, this ball represents decades of engineering refinement focused on quality, precision, and style. The polymer resin is specifically formulated for the automobile industry to resist stress cracks with aging - a common failure point in lesser shift knobs.

What's Included

• Black polymer resin shift ball with white 5-speed pattern and MDL logo
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut

Key Features

• Premium 1-7/8" diameter white polymer shift ball with crisp 5-speed pattern graphics
• High-impact polymer resin engineered for performance torque and temperature demands
• Subsurface graphics permanently embedded beneath the surface - cannot wear off or fade
• 16mm x 1.5mm brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque specs
• Compatible with metric and SAE shifter threads via thread reducers (sold separately)
• Lightweight 4-ounce design for reduced shifter mass and quicker throws
• Precision-machined and polished to a high-gloss finish
• Made in the USA

Description

Upgrade your shifter with this precision-engineered white 5-speed shift ball featuring the MDL logo. This isn't bargain-bin plastic - it's crafted from a specially formulated high-impact polymer resin developed specifically for automotive applications. The material resists stress cracking from temperature cycling and age, a common failure point in cheaper shift knobs that see years of daily use and abuse.

The 1-7/8" diameter provides optimal palm grip for aggressive shifting, while the 5-speed pattern graphics are permanently embedded below the polished surface where heat, UV exposure, and thousands of shifts can't touch them. The precision-machined brass master insert threads directly onto 16mm x 1.5mm shift levers, and with MDL's thread reducers, you can adapt this shift ball to virtually any metric or SAE threaded shifter - just know your shift lever's thread size when ordering so we can recommend the correct adapter.

At just 4 ounces, this shift ball reduces rotating mass compared to heavy solid alternatives, translating to slightly quicker shift action without sacrificing durability. The brass insert exceeds automotive industry specifications for 200 ft-lbs static pull and 20 ft-lbs twist torque resistance - it's not coming loose under hard use. Proudly made in the USA.

What's Included

• White 5-speed polymer shift ball with subsurface graphics and MDL logo
• 16mm x 1.5mm brass master insert (installed)
• Brass jam nut

Key Features

• 1-7/8in. diameter classic shift ball with authentic muscle car era styling
• High-gloss black polymer resin construction with molded-in brass thread insert
• Engraved 5-speed shift pattern with reverse lower right - permanent inlay design that won't wear off
• 16mm x 1.50 master thread for universal compatibility via thread reducing inserts (sold separately)
• Compatible with MD-313 series thread reducing inserts for fitment to most shifters
• Made in USA

Description

When your shifter needs the finishing touch that screams performance, this classic 5-speed black shift ball delivers the authentic muscle car aesthetic that's been the industry standard for over 50 years. The instant you grip this knob.

Constructed from high-gloss, high-strength polymer resin, this shift ball features an engraved 5-speed shift pattern (reverse lower right) that's permanently inlaid - the graphics are subsurface and cannot wear off from repeated use. The molded-in brass thread insert ensures the threads won't strip under hard shifting forces, while the 1-7/8in. diameter provides the perfect grip size for precise gear changes.

The 16mm x 1.50 master thread makes this shift ball universally compatible when paired with Modern Driveline's thread reducing inserts. Whether you're running a Mustang T5, GM transmission, or aftermarket shifter with different thread specs, the appropriate MD-313 series reducer (sold separately) allows this classic shift ball to mount securely on virtually any manual shifter. Simply select the reducing insert and jam nut kit that matches your shift lever's thread pitch.

Kit Includes

• One 5-speed black shift ball with engraved shift pattern (reverse lower right)
• Brass thread insert (16mm x 1.50) molded into ball
• Jam nut for secure mounting

Note: Thread reducing insert required for most applications - see MD-313 series kits sold separately.

Key Features

• Classic HURST white shift ball with engraved 5-speed pattern (reverse lower right)
• 1-7/8" diameter [VERIFY: product data shows 2-1/8" but description states 1-7/8"]
• Universal 16mm threads - adaptable to multiple shifter lever thread sizes via reducing inserts
• Compatible with MD-313 series thread reducing insert kits (10mm x 1.50 for '83-'04 Mustang, 3/8-24, and others)
• High-strength polymer resin construction with high-gloss finish
• Industry standard for over 50 years - the unmistakable muscle car era look
• Made in the USA

Description

Nothing announces your commitment to rowing your own gears like a classic HURST shift ball. The industry standard for over 50 years and universally recognized as "the shifter to have," that unmistakable white ball sitting atop a chrome stick tells everyone you're serious about your drivetrain. This 5-speed version carries crisp black engraved markings with reverse in the lower right position - instant gear reference at a glance.

This HURST shift ball features universal 16mm threads, making it compatible with MDL's thread reducing insert system for broad application coverage. Need to fit an '83-'04 Mustang T5 or T45 lever? Grab the MD-313-10mm-1.50 reducing insert kit and you're set. Other common thread sizes like 3/8-24 are similarly accommodated through the appropriate insert and jam nut combination - see the MD-313-T200M series kits for options.

Constructed from high-strength polymer resin with a high-gloss white finish, this shift ball handles the demands of daily driving and spirited performance use. Through careful engineering and high-quality components, HURST shift balls complete your vehicle's interior with authentic muscle car era styling. All HURST products are backed by more than half a century of shifter design heritage. Made in the USA.

What's Included

• White polymer resin shift ball with engraved 5-speed pattern
• Pre-installed 16mm threaded brass insert

Note: Thread reducing inserts and jam nuts sold separately - see MD-313-T200M series kits for your application.

Key Features

• Side-mounted push button lockout prevents accidental reverse gear engagement
• High-impact polymer resin construction engineered for performance torque and temperature demands
• 1/7/8" diameter with polished white finish
• 16mm x 1.50 brass master insert with jam nut for secure mounting
• Includes wiring for various reverse lockout applications
• Compatible with thread reducers for adapting to other shifter thread sizes
• Made in the USA

Description

Slamming into reverse at speed is a quick way to grenade a gearbox. This 5-speed shift ball eliminates that risk with an integrated side-mounted push button lockout that requires deliberate activation before reverse can be selected. The button includes wiring for connection to various shifter configurations that utilize electronic or mechanical reverse lockout functionality.

The ball itself is built from specially formulated high-impact polymer resin designed specifically for the automotive industry. Unlike cheap plastic knobs that crack under stress or go chalky from heat cycles, this material resists stress cracking with age while handling the torque and temperature swings of hard driving. The 1-7/8" diameter provides solid palm contact for confident shifting, and the polished white finish cleans up easily.

Mounting uses a 16mm x 1.50 brass master insert with an included brass jam nut. This thread size is common on 1982-2002 Camaro and Firebird shifters, Pontiac Fiero applications, and various aftermarket shifters. For other thread sizes, pair this shift ball with MDL thread reducers to adapt down to your specific shifter requirements.

Made in the USA from a manufacturer that has been producing quality shift knobs for decades.

What's Included

• White 5-speed shift ball with polished finish
• Side-mounted push button with wiring
• 16mm x 1.50 brass master insert
• Brass jam nut

Key Features

• Side-mounted momentary push button with 18" wire harness for nitrous, line lock, or accessory control
• 16mm x 1.5 threads accept MDL thread reducing inserts for universal shifter compatibility
• Black polymer resin construction for durability and a comfortable grip
• 2-1/8" diameter fits naturally in the palm for confident shifts
• 5-speed shift pattern designation

Description

Adding switch control to your shifter shouldn't mean clunky add-ons or taking your hand off the lever mid-shift. This 5-speed black shift ball puts a side-mounted momentary push button exactly where your thumb naturally rests, giving you instant access to nitrous activation, line lock, or other electrical accessories without fumbling for a dashboard switch or console button.

The side-mount placement is intentional: unlike top-mounted buttons that can be accidentally triggered during aggressive shifts, this configuration requires deliberate engagement. The included 18" wire harness gives you plenty of length to route to your relay or control module, with terminals ready for connection. Whether you're staging at the strip or wiring in a secondary system, the button is right there when you need it.

Built from black polymer resin, this 2-1/8" diameter shift ball delivers comfortable ergonomics for extended driving sessions while standing up to the abuse of street and track duty. The 16mm x 1.5 threads are the industry-standard size for shift knob adapters, which means you can pair this ball with MDL's thread reducing inserts to fit virtually any shift lever thread pitch -- from 3/8"-16 to 5/16"-18 and beyond.

Perfect for street/strip builds, drag applications, or any 5-speed manual transmission setup where you need reliable switch control at your fingertips.

What's Included

• Black polymer resin shift ball with 5-speed pattern
• Side-mounted momentary push button switch
• 18" wire harness with terminals

R-Series 5-Speed Black Shift Ball with Pearl-Gray Racing Stripe

Key Features

• 2-1/8" diameter high-impact polymer resin engineered for performance-level torque and temperature demands
• Subsurface pearl-gray racing stripe graphics permanently inlaid beneath the surface - cannot wear, fade, or peel
• 16mm x 1.50 solid brass master insert exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque industry specs
• Precision-machined and polished to a high-gloss finish
• 4-ounce weight for optimal shift feel without excessive mass
• Made in the USA with proprietary polymer resin formulated to resist stress cracking

Description

Ditch the factory plastic shift knob that cracks, fades, and looks tired after a few seasons. This R-Series shift ball is built from specially formulated high-impact polymer resin designed specifically for the automotive industry - engineered to handle performance-level torque loads and temperature extremes without developing stress cracks over time.

The pearl-gray racing stripes that wrap around this 2-1/8" diameter ball are not painted, printed, or applied as decals. They are permanently inlaid beneath the surface during manufacturing, giving you graphics that physically cannot wear off no matter how many miles you put on the car. The entire surface is precision-machined and polished to a high-gloss finish that maintains its showroom appearance under daily use.

At the core sits a 16mm x 1.50 solid brass master insert that exceeds the automotive industry specification of 200 ft-lbs static pull and 20 ft-lbs twist torque - this knob is not coming loose. The included brass jam nut locks everything down tight. Thread adapters are available if your shifter uses a different thread pattern.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Note: Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs (different thread pattern required). Made in the USA.

Kit Includes

• R-Series 2-1/8" black shift ball with pearl-gray racing stripe graphics
• 16mm x 1.50 solid brass master insert (installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction formulated for performance-level torque and temperature demands
• Subsurface red racing stripe graphics embedded during manufacturing--cannot chip, fade, or wear off
• Clean racing stripe design without 5-speed shift pattern graphics on surface
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce design for positive shifts without stressing shifter mechanisms
• Thread adapters available for non-16mm applications
• Made in the USA by a manufacturer shifting gears since 1952

Description

When your 5-speed build demands a clean, race-inspired aesthetic without the visual clutter of shift pattern graphics, the R-Series delivers. This premium shift knob features bold red racing stripes on a black body--nothing else. No numbers, no gate patterns, just the classic motorsport look that belongs in serious performance builds.

The construction isn't generic plastic. This knob is made from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Where cheap knobs crack under UV exposure and temperature cycling, this formulation stays solid season after season. The red racing stripes are subsurface--embedded during manufacturing rather than painted or printed on top--so they physically cannot chip, fade, or wear off no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert provides solid, rattle-free engagement with your shifter, and the included jam nut locks everything tight. At 4 ounces, this knob adds just enough mass for positive, confident shifts without the excessive weight that can stress shifter mechanisms over time. The 2-1/8" diameter provides excellent grip while maintaining classic proportions.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500s or 2015-2020 Shelby GT350/GT350R Mustangs due to different thread requirements (GT500 uses 10mm x 1.25). Thread adapters are available for other applications--contact us with your shifter's thread size. Made in the USA.

What's Included

• One 2-1/8" diameter black polymer resin shift knob with red racing stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• Subsurface white racing stripe graphics that cannot wear off
• Specially formulated high-impact polymer resin designed for performance-level torque and temperature requirements
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• 2-1/8" diameter professional racing design
• 4-ounce weight for optimal shift feel
• Precision machined and polished to a high-gloss finish
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

Upgrade your interior with this R-Series 5-speed shift ball featuring a classic white racing stripe on black polymer resin. The clean stripe graphic runs across the top of the ball without intersecting the 5-speed shift pattern, delivering a professional motorsport aesthetic that complements any performance build.

This shift ball is constructed from specially formulated high-impact polymer resin specifically designed to meet performance-level torque and temperature requirements. Unlike cheap plastic alternatives, this polymer is formulated specifically for the automotive industry to resist stress cracking with age. The white stripe graphics are subsurface--embedded in the material itself--so they cannot wear off even after years of hard shifting.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque, ensuring the knob stays locked to your shift lever under aggressive driving. At 4 ounces, this shift ball provides the right heft for positive shift engagement without being too heavy for rapid-fire gear changes. The polymer construction is precision machined and polished to a high-gloss finish for a quality look and feel.

Direct fitment for 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS models. Not compatible with 2010-2014 GT500 (requires 10mm x 1.25 thread) or 2015-2020 GT350/GT350R models. Thread reducers available separately for other applications. Made in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series black polymer shift ball with white racing stripe (2-1/8" diameter)
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut

Key Features

• High-impact polymer resin engineered for performance-level torque and temperature demands
• 2-1/8" diameter with 4-ounce lightweight construction
• Subsurface graphics permanently embedded -- will not wear, chip, or fade
• 16mm x 1.50 brass master insert with jam nut included
• Clean racing stripe design without shift pattern markings
• Direct fit for 2011-2022 Mustang, Fiesta ST, Focus ST, and Focus RS applications
• Made in the USA by a manufacturer with 65+ years of shifter expertise

Description

The factory shift knob is one of the most-touched surfaces in your cockpit, and worn plastic or faded graphics detract from an otherwise clean interior. The R-Series 5-Speed Shift Knob delivers a premium upgrade with subsurface graphics that cannot wear off, chip, or fade under years of hard use. The gray base with white racing stripe offers a clean, period-correct aesthetic that works equally well in restored classics and modern performance builds.

Built from specially formulated high-impact polymer resin, this shift knob meets performance-level requirements for both torque resistance and temperature stability. The material will not develop stress cracks with age, and the brass master insert exceeds automotive industry specifications. At just 4 ounces, the lightweight construction delivers responsive shifting feel without adding unnecessary mass to the shift lever.

The 2-1/8" diameter provides an optimal grip size for quick, confident shifts. This design omits shift pattern markings, giving you a clean look that suits any 5-speed application. The 16mm x 1.50 brass master insert threads directly onto factory Ford shift levers, with a jam nut included for secure installation. Thread adapters are available separately for applications requiring different thread sizes.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread) or 2015-2020 Shelby GT350/GT350R. Made in the USA.

What's Included

• R-Series gray polymer resin shift knob with white racing stripe
• 16mm x 1.50 brass master insert (installed)
• Jam nut

R-Series 5-Speed White Shift Ball | Black Racing Stripe | 2-1/8" | 16mm Insert

Key Features

• R-Series premium 2-1/8" diameter white polymer resin with black racing stripes that do not intersect the shift pattern
• 16mm x 1.50 solid brass master insert exceeds auto industry specs: 200 ft. lbs. static pull and 20 ft. lbs. twist torque
• Subsurface graphics that cannot wear off, fade, or peel
• High-impact polymer resin engineered to resist stress cracks and withstand performance-level torque and temperature
• 4-ounce weight provides positive shift engagement without excessive heat retention
• Compatible with 2011-2022 Mustang, Focus ST/RS, and Fiesta ST via thread reducers
• Made in the USA

Description

Ditch the hollow factory plastic and upgrade to an R-Series shift ball built to perform. This 2-1/8" diameter white shift knob features bold black racing stripes that frame the 5-speed shift pattern without crossing through it -- a clean, purposeful design that looks right in any classic muscle car, late-model pony car, or hot hatch interior.

The engineering starts where it counts: at the 16mm x 1.50 solid brass master insert. This insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque, so it won't strip, spin, or work loose no matter how hard you bang through gears. The polymer resin body is specially formulated to resist stress cracks with aging and handles the temperature swings and abuse of daily driving and track use alike.

Unlike painted or printed shift knobs that wear through to bare plastic within a season, the R-Series uses subsurface graphics embedded beneath the polished surface. The stripes and shift pattern cannot wear off, fade, or peel -- they're part of the knob itself. At 4 ounces, the weight delivers positive shift engagement and tactile feedback without the palm-burning heat retention of metal alternatives on summer days.

Fits 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Mustang Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS when paired with appropriate thread reducers (sold separately). Not compatible with 2010-2014 Shelby GT500, 2015-2020 Shelby GT350, or GT350R Mustangs due to different thread requirements. Built in the USA by a manufacturer that has been shifting gears since 1952.

What's Included

• R-Series white shift ball with black racing stripes (2-1/8" diameter)
• 16mm x 1.50 solid brass master insert (pre-installed)
• Brass jam nut

Key Features

• High-impact polymer resin construction engineered for performance-level torque and temperature demands
• Subsurface graphics permanently embedded during manufacturing - cannot wear, chip, or fade
• 16mm x 1.50 brass master insert with included jam nut for secure, rattle-free mounting
• Lightweight 4-ounce design reduces shift effort and improves tactile feedback
• 2-1/8" diameter provides optimal palm grip for quick, confident shifts
• 5-speed shift pattern - gray rally stripes do not intersect the gear graphics
• Direct fit for 2011-2022 Mustang GT, V6, EcoBoost, Boss 302, plus Focus ST/RS and Fiesta ST
• Made in the USA

Description

Upgrade your interior with the R-Series 5-speed shift ball, combining classic rally-inspired aesthetics with materials engineered for years of aggressive shifting. The white polymer resin body with dual gray racing stripes delivers that authentic motorsports look while the specially formulated high-impact resin handles the thermal cycling and mechanical stress of performance driving without cracking, fading, or becoming brittle.

Unlike cheap printed or decal-based shift knobs, the R-Series features subsurface graphics that are embedded into the resin during manufacturing. The 5-speed shift pattern and racing stripes are part of the knob itself - they cannot wear off, chip, or fade no matter how many miles you put on them. The stripes are positioned to complement the shift pattern without crossing through the gear graphics, maintaining a clean, professional appearance.

The 16mm x 1.50 brass master insert threads securely onto your shift lever, and the included jam nut locks everything in place to eliminate loosening or rattle. At just 4 ounces, this shift ball keeps rotating mass low for quicker shifts and better feedback through your hand. The 2-1/8" diameter fits naturally in your palm - large enough for positive grip, not so big it becomes awkward during spirited driving.

Compatible with 2011-2017 Mustang V6, 2015-2022 Mustang EcoBoost, 2011-2022 Mustang GT, 2012-2013 Boss 302, 2014-2019 Fiesta ST, 2013-2018 Focus ST, and 2016-2018 Focus RS. Not compatible with 2011-2014 Shelby GT500 (requires 10mm x 1.25 thread), 2015-2020 Shelby GT350, or GT350R. Thread adapters are available separately for applications with different shift lever threads. Made in the USA.

What's Included

• R-Series 5-speed shift ball in white high-impact polymer resin with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Jam nut for secure mounting

Rally Series 5-Speed Shift Knob | Black with Pearl Gray Stripes | 2-1/8" | 16mm

Key Features

• 2-1/8" diameter high-impact polymer resin body -- formulated specifically for automotive performance temperature and torque demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specifications
• Subsurface pearl gray rally stripe graphics embedded into the material -- will not chip, peel, or wear off
• Rally stripes follow the 5-speed shift pattern layout for classic racing aesthetics
• 4-ounce weight provides solid shift feel without excessive mass
• Precision machined and polished to high-gloss finish
• Compatible with thread reducers for universal shift lever fitment (sold separately)
• Made in the USA

Description

Cheap plastic shift knobs crack, fade, and lose their graphics after a few seasons of hard driving. The Rally Series solves that problem with a premium 2-1/8" diameter knob that combines classic rally racing aesthetics with materials engineered specifically for performance applications.

The knob body uses a specially formulated high-impact polymer resin developed for the automotive industry -- not generic plastic that develops stress cracks with age and temperature cycling. This material maintains structural integrity through years of daily driving and spirited shifting. The pearl gray rally stripes are applied subsurface during manufacturing, embedded into the material itself rather than painted on top. They will never chip, peel, or wear off no matter how many miles you put on the shifter.

The 16mm x 1.50 brass master insert exceeds automotive industry specifications for static pull (200 ft-lb) and twist torque (20 ft-lb), ensuring rock-solid engagement with your shift lever. The included brass jam nut locks the knob securely in place. Thread reducers are available separately for compatibility with common shift lever threads including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, 1/2-20, and various metric sizes -- contact MDL to confirm the correct adapter for your application.

At 4 ounces, this knob delivers the right balance between a solid palm feel and quick, precise shifts. The precision-machined polymer is polished to a high-gloss finish that resists scratching and maintains its appearance through years of use. Made in the USA by a manufacturer that has been producing quality shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift knob -- black polymer resin with pearl gray rally stripes
• One 16mm x 1.50 brass master insert (pre-installed)
• One brass jam nut

Key Features

• Precision 2-1/8 in. diameter black polymer resin construction with subsurface red rally stripes through the 5-speed shift pattern
• 16mm x 1.50 brass master insert with jam nut - exceeds 200 ft-lbs static pull and 20 ft-lbs twist torque
• Subsurface graphics are permanent - will not chip, fade, or wear off
• Rally stripe red closely matches MOPAR Bright Red/Stryker Red, Ford Vermilion Red/Fleet Red/Rangoon Red, and Corvette Rally Red/GM Victory Red
• High-impact polymer resin formulated for automotive temperature extremes and repeated high-torque shifting
• Lightweight 4-ounce design with precision-machined, high-gloss polished finish
• Compatible with thread reducing adapters for universal shift lever fitment
• Made in the USA

Description

Give your 5-speed manual a period-correct rally look with this premium shift ball featuring bold red racing stripes that flow through the engraved shift pattern. Unlike cheap aftermarket knobs with printed or painted graphics, the red stripes on this Rally Series ball are embedded subsurface during manufacturing - they're permanent and will never chip, peel, or fade no matter how many miles you put on the car.

The high-impact polymer resin is specifically formulated for automotive applications, engineered to resist stress cracking through years of temperature cycling and aggressive shifting. Unlike metal knobs that freeze your hand in winter and burn it in summer, polymer maintains a comfortable grip year-round. The precision-machined surface receives a high-gloss polish that holds up to daily use.

At the core sits a 16mm x 1.50 brass master insert that exceeds automotive industry specifications - tested to 200 ft-lbs static pull strength and 20 ft-lbs twist torque resistance. This isn't a threaded plastic insert that will strip or pull out; it's a solid brass core that will outlast the vehicle. The 16mm thread pitch works with reducing adapters (sold separately) to fit virtually any shift lever thread pattern from classic American iron to late-model applications. Know your shift lever's thread size when ordering so we can recommend the right adapter.

The rally stripe red is color-matched to factory racing colors including MOPAR Bright Red and Stryker Red, Ford Vermilion Red, Fleet Red, and Rangoon Red, plus Corvette Rally Red and GM Victory Red. At just 4 ounces, it provides positive feedback during shifts without adding unnecessary weight to your shifter assembly. Made in the USA by a manufacturer that has been producing precision shift knobs since 1952.

What's Included

• One Rally Series 5-speed shift ball in black polymer resin with red rally stripes
• 16mm x 1.50 brass master insert (pre-installed)
• Jam nut for secure mounting

Key Features

• 2-1/8" diameter high-impact polymer resin designed for performance torque and temperature demands
• Subsurface white rally stripe graphics with 5-speed shift pattern - cannot wear, fade, or chip off
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design for precise shift feel
• Precision-machined and polished to a high-gloss finish
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque industry specifications
• Stress-crack resistant polymer formulated specifically for automotive use
• Made in the USA

Description

The Rally Series shift ball delivers classic motorsport styling with graphics that will never let you down. Unlike surface-printed knobs that wear through after a few thousand shifts, this ball features subsurface white rally stripes that run through the complete 5-speed pattern. The graphics are embedded within the material itself, making them completely impervious to wear, heat, UV exposure, and the oils from your hands.

Construction is high-impact polymer resin specifically formulated for the automotive industry. This isn't generic plastic that develops stress cracks with age and thermal cycling - it's an engineered material designed to handle the torque loads and temperature swings of performance driving while maintaining its structural integrity and high-gloss finish for years. The 2-1/8" diameter provides a comfortable, substantial grip that fills your palm naturally for positive engagement.

The 16mm x 1.50 brass master insert accepts thread reducers (sold separately), allowing installation on virtually any shift lever regardless of thread pitch. The brass insert is engineered to exceed automotive industry standards with testing to 200 ft. lbs. static pull and 20 ft. lbs. twist torque - far beyond what any shift throw could generate. At just 4 ounces, the ball provides enough mass for a quality feel without excessive momentum that can cause overshoot on quick shifts.

This shift ball comes from a manufacturer that has been producing premium knobs since 1952 and supplies OEM, aftermarket, classic, custom, and hot rod industries. When ordering, know your shift lever's thread size so MDL can recommend the correct thread reducer for your application. Made in the USA.

What's Included

• One 2-1/8" black polymer shift ball with white rally stripes and 5-speed pattern
• One 16mm x 1.50 brass master insert (pre-installed)
• One jam nut

Note: Thread reducers required for most applications and sold separately. Contact MDL with your shift lever thread size for adapter recommendations.

Key Features

• High-impact polymer resin formulated for automotive use - resists stress cracking and exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface rally stripe graphics that cannot wear off, scratch away, or fade
• Precision machined and polished to a high gloss finish
• 16mm x 1.50 brass master insert with jam nut included
• Lightweight 4-ounce construction for positive shifting feedback
• 2-1/8" diameter with 5-speed shift pattern
• Made in the USA

Description

The Rally Series shift ball replaces worn, faded, or uncomfortable OEM shift knobs with a premium upgrade that combines classic styling and serious durability. Built from high-impact polymer resin specifically formulated for the automobile industry, this knob delivers the longevity and tactile feel that daily drivers and performance builds demand.

The engineering behind this design centers on durability under real-world conditions. The polymer formulation won't develop stress cracks with aging - a common failure point with cheaper alternatives. The brass master insert exceeds automotive industry specifications with 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque resistance, ensuring the knob stays put through years of aggressive shifting. The white rally stripe graphics are embedded subsurface during manufacturing, so they won't wear off, scratch away, or fade under UV exposure like surface-applied decals or painted designs.

The 16mm x 1.50 threading is the industry standard for aftermarket shift knobs, compatible with thread adapters (sold separately) for common shift lever sizes including 5/16-18, 3/8-16, 3/8-24, 7/16-20, 1/2-13, and 1/2-20. Know your shift lever's thread size before ordering - MDL stocks adapters to match. At just 4 ounces, the knob provides positive shifting feedback without excessive weight that can stress synchronizers on long throws.

Each knob is precision machined and polished to a high gloss finish for a premium appearance that complements both classic muscle cars and modern performance builds. Made in the USA with lifetime quality construction.

What's Included

• One 2-1/8" gray polymer shift ball with white rally stripes and 5-speed pattern
• 16mm x 1.50 brass master insert (pre-installed)
• Brass jam nut

Key Features

• 2-1/8" diameter high-impact polymer resin construction engineered for performance-level torque and temperature requirements
• 16mm x 1.5 brass master insert with jam nut -- exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specs
• Subsurface black rally stripe graphics and 5-speed shift pattern embedded during manufacturing -- cannot wear off
• Precision machined and polished to high-gloss ivory finish
• Lightweight 4-ounce design for quick, responsive shifts
• Universal compatibility via thread adapters (sold separately) for any shift lever
• Made in the USA since 1952

Description

Add motorsports-inspired style to your manual transmission with the Rally Series 5-speed shift knob. The classic white body with black rally stripes running through the shift pattern delivers authentic racing aesthetics -- not the generic look of painted-on graphics that chip and fade. These subsurface graphics are embedded into the polymer during manufacturing, making them a permanent part of the knob structure that will stay crisp for the life of your build.

This shift knob is built from a specially formulated high-impact polymer resin engineered specifically for the automotive industry -- not brittle plastic that develops stress cracks with age. The 2-1/8" diameter fills your palm for confident shifts, while the 4-ounce weight provides quick throw response without feeling flimsy. Every surface is precision machined and polished to a high-gloss finish that looks and feels premium.

The brass master insert is what separates quality shift knobs from the set-screw designs that wobble and fail. Threaded at 16mm x 1.5, this insert exceeds the auto industry's specification of 200 ft. lbs. static pull and 20 ft. lbs. twist torque -- it will not come loose or strip under aggressive driving. The included jam nut locks everything in place for a rock-solid feel every time you row through the gears. Unlike steel inserts, brass will not rust or corrode over time.

If your shift lever uses a different thread pitch, MDL stocks adapters to fit virtually any application. Simply confirm your shift lever's thread size when ordering so we can recommend the correct adapter if needed. Made in the USA by a manufacturer that has been building shift knobs since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with black rally stripes and shift pattern
• 16mm x 1.5 brass threaded master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• 2-1/8 inch diameter high-impact polymer resin engineered for performance torque and temperature demands
• 16mm x 1.50 brass master insert exceeds 200 ft-lb static pull and 20 ft-lb twist torque specs
• Subsurface rally stripe graphics embedded into the material -- cannot peel, chip, or wear off
• 5-speed shift pattern integrated into white finish with bold gray stripes
• 4-ounce weight delivers positive shift feel without excess mass
• Precision machined and polished to high-gloss finish
• Includes jam nut for secure positioning
• Made in the USA

Description

The Rally Series shift knob delivers authentic motorsport aesthetics with the durability to back it up. This 2-1/8 inch diameter knob features bold gray rally stripes running through a clean 5-speed shift pattern on a crisp white background -- giving your cockpit that classic competition look without the compromises of cheaper alternatives that crack, fade, or peel over time.

The knob is comprised of specially formulated high-impact polymer resin engineered specifically for automotive performance applications. This isn't generic plastic -- it's a purpose-built compound designed to handle the torque loads and temperature swings of real-world use while maintaining its finish for the long haul. The rally stripe graphics are subsurface, meaning they're embedded into the material itself rather than applied as decals or paint. They physically cannot wear off, no matter how many shifts you bang through.

The 16mm x 1.50 brass master insert is the foundation of this knob's strength, exceeding automotive industry specifications of 200 ft-lb static pull and 20 ft-lb twist torque. The included brass jam nut allows you to clock the shift pattern exactly where you want it and lock it down tight. Since most shifter applications use different thread sizes, MDL stocks the complete range of SAE and metric thread adapters for proper fitment to your specific shift lever.

At 4 ounces, the weight provides positive shift feel without being overly heavy or sluggish. Precision machining and high-gloss polishing ensure smooth hand feel and a finish that complements any interior. Made in the USA by a manufacturer who has been shifting gears since 1952.

What's Included

• Rally Series 5-speed shift knob -- white with gray rally stripes
• 16mm x 1.50 brass master insert (installed)
• Brass jam nut
• Lifetime technical support

Key Features

• Translucent yellow polymer with subsurface red flame graphics that cannot wear off
• 2-1/8" diameter for positive grip and confident shifts
• 16mm x 1.50 brass master insert with included jam nut
• Lightweight 4-ounce design reduces shift lever mass
• Brass insert exceeds 200 ft. lbs. static pull and 20 ft. lbs. twist torque specifications
• High-impact polymer resin formulated to resist stress cracking with age
• Precision machined and polished to a high-gloss finish
• Made in the USA

Description

Add classic hot rod style to your shifter with the Flame Series shift ball. This 2-1/8" diameter knob features translucent yellow polymer construction with bold red flame graphics molded beneath the surface--they will never fade, chip, or wear off no matter how many miles you put on the car.

The shift ball is constructed from high-impact polymer resin specifically formulated for automotive applications to resist stress cracking as it ages. At its core is a precision-machined 16mm x 1.50 brass master insert that delivers rock-solid thread engagement. The brass insert is engineered to exceed automotive industry specifications, tested to 200 ft. lbs. static pull strength and 20 ft. lbs. twist torque. At just 4 ounces, the knob provides positive feedback without adding unnecessary mass to your shift lever.

Thread adapters are available separately to fit various shift lever thread sizes--contact MDL with your shift lever thread pitch to get matched with the correct adapter. This shift ball comes from a manufacturer with over 70 years of experience serving OEM, aftermarket, classic, custom, and hot rod applications. Precision machined and polished to a high-gloss finish. Made in the USA.

Kit Includes

• Flame Series shift ball--translucent yellow polymer with red flames, 2-1/8" diameter
• 16mm x 1.50 brass master insert (installed)
• Jam nut

Key Features

• 16.5 inches tall with 4.5-inch set-back - ideal for bench seat muscle cars and classic trucks
• High-strength steel construction with triple chrome plating for durability and show-quality finish
• Double-bend candy cane design pulls the shift knob closer to the driver
• 3/8"-16 thread accepts all Hurst shift knobs and T-handles
• Iconic Hurst name stamped on stick
• Two-bolt attachment fits Billet/Plus, Competition/Plus, and other Hurst shifters
• 3/8" mounting holes on 7/8" spacing

Description

Bench seat muscle cars and classic trucks present a unique challenge: getting the shift knob exactly where your hand naturally falls without awkward reaching or cramped positioning. This 16.5-inch Hurst Competition/Plus candy cane shift stick solves that problem with its double-bend design, delivering a 4.5-inch set-back that pulls the shifter closer to the driver while maintaining proper throw geometry for smooth, precise shifts.

Hurst bolt-on shifter sticks are the go-to solution for custom applications where a particular height or offset is required. This stick is constructed from high-strength steel and triple chrome plated for a mirror finish that resists corrosion and looks right at home in a show car or a weekend warrior. The iconic Hurst name stamped into the steel tells everyone exactly what's moving the gears.

The standard 3/8"-16 thread at the top accepts the full range of Hurst shift knobs and T-handles, so you can finish the setup with whatever grip style suits your driving. The two-bolt base with 3/8" holes on 7/8" spacing fits Billet/Plus, Competition/Plus, and other Hurst shifters that use the two-bolt stick attachment method - a direct bolt-on replacement or upgrade for your existing stick.

Whether you're building a bench seat hot rod, restoring a classic pickup, or just need more reach from your Hurst shifter, this candy cane stick delivers the height and offset to put the knob right where you need it.

What's Included

• One high-strength steel shift lever, triple chrome plated
• 16.5" tall with 4.5" set-back (candy cane/double-bend style)
• 3/8"-16 threaded top for shift knob attachment
• Two-bolt mounting base (3/8" holes on 7/8" spacing)

Key Features

• Direct bolt-on design for TREMEC T5, T45, TKO, and T56 Magnum transmissions with standard 2-bolt flange
• Chrome-plated steel tubular construction for durability and corrosion resistance
• Double-bend layback geometry: 2 inches back x 14.5 inches tall
• 16-inch overall length provides comfortable shift knob placement
• Standard 7/8-inch center-to-center bolt spacing fits stock and aftermarket shifter assemblies
• 3/8-24 thread for universal shift knob compatibility
• Machined mounting stud drilled and countersunk for included metric cap screws
• Machined groove for secure boot attachment
• Made in the USA with manufacturer lifetime warranty

Description

Upgrade your shifter with this Lokar chrome steel shift lever that delivers the clean, professional appearance serious builders demand. The double-bend design positions your shift knob with a 2-inch layback and 14.5-inch height from the mounting point, putting the knob exactly where your hand naturally falls during aggressive driving.

Lokar manual transmission shifter levers are direct bolt-on sticks for TREMEC and Borg Warner manual transmissions. These tubular steel levers are built for stock and aftermarket 5- and 6-speed shifters. They fit the T5, T45, TKO, T56 Magnum, and all TREMEC shifters with the standard 2-bolt flange that measures 7/8-inch center to center between bolt holes. The chrome-plated finish resists corrosion and maintains its appearance under hood heat and daily driving conditions.

To give you a clean, smooth appearance, these levers feature a machined mounting stud, drilled and countersunk for the included metric cap screws. The precision machining eliminates the play and flex common with factory pieces. A machined groove provides secure boot attachment while the 3/8-24 thread accepts any standard shift knob.

Made in the USA and backed by Lokar's manufacturer lifetime warranty. Direct bolt-on installation uses included metric cap screws--no modifications required.

What's Included

• Chrome-plated steel shift lever (16-inch double-bend)
• Metric cap screws for mounting

Key Features

• 16" layback design with double bend - 2" back x 14.5" tall configuration for optimal driver reach
• Black powder-coated steel construction for durability and corrosion resistance
• 3/8"-24 thread knob mount - compatible with most aftermarket shift knobs
• Standard 2-bolt flange measuring 7/8" center to center between bolt holes
• Machined mounting stud drilled and countersunk for included metric cap screws
• Made in the USA with lifetime manufacturer warranty

Description

Need a shifter lever that clears a bench seat or console while positioning the knob exactly where your hand naturally falls? This 16" Lokar double-bend shift lever solves fitment problems in classic cars and trucks by using a layback geometry - 2" back x 14.5" tall - that brings the shift knob closer to the driver without compromising throw mechanics.

Direct bolt-on compatibility with TREMEC and Borg Warner manual transmissions including the T5, T45, T56, TKO, and TKX using the standard 2-bolt flange that measures 7/8" center to center between bolt holes. The black powder-coated steel construction resists corrosion and maintains its finish under hood heat and daily driving abuse. Unlike welded or threaded-stud designs, this lever features a machined mounting stud that's drilled and countersunk for the included metric cap screws - delivering a clean, flush appearance at the shifter base.

The 3/8"-24 thread at the top accepts virtually any aftermarket shift knob, while the robust tubular steel construction handles aggressive shifting without flex or deflection. Whether you're building a restomod with a modern 5- or 6-speed or upgrading from a worn factory stick, this Lokar lever delivers the reach, feel, and appearance your build demands.

Made in the USA and backed by Lokar's lifetime manufacturer warranty.

What's Included

• 16" black powder-coated steel double-bend shifter lever
• Machined mounting stud
• Metric cap screws for installation

Key Features

• Direct bolt-on replacement for TREMEC T5, T45, TKX, T56 Magnum, TKO-500, and TKO-600 shifters
• Chrome-plated high-strength tubular steel construction
• 16-inch length with 30-degree single bend (6-inch back offset, 14.5-inch height)
• Standard 2-bolt flange with 3/8-inch holes on 7/8-inch center-to-center spacing
• Machined billet steel mounting stud, drilled and countersunk for clean appearance
• 3/8-24 threads for aftermarket shift knobs
• Includes metric cap screws for installation
• Manufacturer lifetime warranty
• Made in the USA

Description

Factory shift levers leave a lot to be desired—cheap plastic components, weak finishes, and ergonomics that feel like an afterthought. This Lokar chrome-plated steel shift lever delivers a direct bolt-on upgrade for TREMEC manual transmission shifters, combining show-quality appearance with high-strength steel durability.

The 16-inch tubular steel lever features a 30-degree single bend that positions the shift knob with a 6-inch back offset and 14.5-inch overall height. This geometry puts the knob right where your hand naturally falls, improving shift feel and cockpit ergonomics. The machined billet steel mounting stud is drilled and countersunk for the included metric cap screws, delivering the clean, smooth appearance that distinguishes a quality build from a parts-bin special.

Fitment uses the standard TREMEC 2-bolt flange pattern with 3/8-inch mounting holes on 7/8-inch center-to-center spacing. This works with T5, T45, TKX, TKO-500, TKO-600, T56 Magnum, and all TREMEC shifters that share this common mounting configuration. The 3/8-24 threaded top accepts most quality aftermarket shift knobs, so you can match the lever to your interior. Shift boots, bezels, and knobs are sold separately.

Lokar builds these levers in the USA and backs them with a lifetime manufacturer warranty. When you want chrome that stays chrome and steel that can handle aggressive shifting for years, this is the lever.

What's Included

• Chrome-plated high-strength tubular steel shift lever (16-inch, 30-degree single bend)
• Metric cap screws for mounting
• Lokar manufacturer lifetime warranty

Key Features

• Direct bolt-on compatibility with TREMEC T5, T45, TKX, T56 Magnum, and Borg Warner transmissions
• Black powder-coated steel construction for durability and corrosion resistance
• Layback geometry: 6 in. back x 14.5 in. tall with 30-degree bend for optimal hand position
• 16 in. overall length for comfortable reach in most cockpit configurations
• Standard 2-bolt flange with 7/8 in. center-to-center mounting pattern
• Machined billet steel mounting stud with countersunk metric cap screws included
• 3/8"-24 thread for broad aftermarket shift knob compatibility
• Made in the USA with lifetime manufacturer warranty

Description

Factory shifter levers often leave you reaching awkwardly or fighting an uncomfortable angle. This Lokar steel shift lever solves that problem with a layback design that positions your knob exactly where your hand naturally falls. The 6-inch setback combined with a 14.5-inch height and 30-degree bend creates ergonomics that make rowing through gears feel effortless, even on long drives or spirited canyon runs.

Lokar builds these tubular steel levers specifically for TREMEC and Borg Warner manual transmissions. The standard 2-bolt flange measures 7/8 in. center to center between mounting holes, making it a direct bolt-on for T5, T45, TKX, T56 Magnum, and all TREMEC shifters using that common pattern. No adapter plates, no drilling, no fitment headaches.

The engineering shows in the details. A machined billet steel mounting stud replaces the sloppy stamped hardware found on lesser levers, eliminating play at the base for a solid, precise feel. The stud comes drilled and countersunk for the included metric cap screws, giving you a clean, finished appearance with no exposed bolt heads. Black powder coating protects the steel from corrosion and heat while delivering the blacked-out aesthetic that complements modern muscle car interiors.

The 3/8"-24 knob thread is the most common size in aftermarket shift knobs, so you have your pick of styles from weighted billets to classic round balls. Made in the USA and backed by Lokar's lifetime manufacturer warranty, this lever is built to perform for the life of your build.

What's Included

• 16 in. black powder-coated steel shifter lever (layback style)
• Machined billet steel mounting stud
• Metric cap screws for installation
• Lifetime manufacturer warranty

Key Features

• 19-inch steel construction with durable black powder coat finish
• Engineered for OE shift placement in 1973-1979 Ford F-Series and 1978-1979 Bronco applications
• 3/8"-24 threads accommodate a wide range of aftermarket shift knobs
• Mounting holes positioned 7/8" on center for precise transmission connection
• Direct-fit design for TREMEC TR4050 5-speed transmissions

Description

When you're swapping a modern TREMEC TR4050 5-speed into your '73-'79 Ford truck or late '70s Bronco, shifter placement matters. Factory shift location keeps the cab ergonomics familiar and eliminates the need for console modifications or awkward reach. This MDL Steel Shift Lever delivers the precise 19-inch geometry needed to position your shift knob exactly where the original shifter sat while mating cleanly to the TR4050's shifter housing.

Steel construction handles the rigors of daily driving and heavy use without flexing or fatigue. The black powder coat finish resists corrosion and wear, standing up to harsh truck environments where mud, moisture, and temperature swings are part of the job. Unlike painted or plated finishes that chip and peel, powder coat bonds to the steel for long-term durability.

The 3/8"-24 threaded tip is the most common shift knob thread in the aftermarket, giving you complete flexibility to choose the knob that fits your hand and style. Mounting point holes are machined 7/8" on center to match TR4050 shifter housing specifications, ensuring smooth operation through all five gears plus reverse without binding or misalignment.

Direct-fit for 1973-1979 Ford F-Series pickups and 1978-1979 Ford Bronco with TR4050 transmission conversions. Made in the USA.

What's Included

• 19-inch steel shift lever with black powder coat finish
• 3/8"-24 threaded tip for shift knob mounting

Key Features

• Designed specifically for Hurst round stick shifters
• Flat stainless steel mounting plate with embossed Hurst logo
• Compact 4-3/8" x 5-3/8" footprint with 3 pleats
• Molded rubber boot seals out dirt, debris, and moisture
• Chrome ID plate and mounting hardware included

Description

Round stick shifters require a dedicated boot design - universal rectangular boots bind against the stick and leave gaps that invite road grime into your shifter mechanism. The Hurst B-1 Boot and Plate Kit solves this problem with a purpose-built design engineered specifically for round stick applications, delivering a precise fit that protects internal components while maintaining smooth shifter travel.

The molded rubber boot features three strategically placed pleats that accommodate full shifter movement without restriction or binding. This allows the boot to flex through every shift pattern position while maintaining a tight seal around the stick. The compact 4-3/8" x 5-3/8" plate dimensions fit most console and floor-mount installations without requiring oversized cutouts or extensive trimming.

The flat stainless steel mounting plate carries the iconic embossed Hurst logo - the same mark that's graced muscle car interiors since the golden era of Detroit performance. This isn't stamped plastic or chrome-plated steel that pits and peels; it's genuine stainless with the Hurst heritage built right in. Installation is straightforward with the included mounting hardware - drill pilot holes and secure with the provided screws for a clean, professional finish.

What's Included

• Molded rubber shifter boot with 3 pleats
• Flat stainless steel mounting plate with embossed Hurst logo
• Mounting screws hardware pack

Key Features

• Hurst's most popular shift boot - adaptable to most aftermarket and OEM shifter installations
• Black rubber construction with iconic embossed Hurst 'H' logo
• Chrome trim plate and complete mounting hardware included
• Rectangular boot shape designed for square/rectangular shift levers
• Outside boot dimensions: 6-3/8" long x 5-1/4" wide
• Mounting hole pattern: 5-5/16" x 4-1/4" center-to-center
• 0.375" diameter bolt holes for secure fastening

Description

Finish your shifter installation with the most popular shift boot in the Hurst lineup. This genuine Hurst B-4 shift boot and chrome trim plate kit delivers the authentic muscle car look that enthusiasts have trusted since 1958. The durable black rubber boot features the iconic embossed Hurst 'H' logo - a detail that instantly signals performance heritage in any interior.

Engineered for versatility, the rectangular boot design accommodates square or rectangular shift lever configurations, making it compatible with a wide range of aftermarket and factory shifter setups. The boot measures 6-3/8 inches long by 5-1/4 inches wide on the outside, with a mounting hole pattern of 5-5/16 inches by 4-1/4 inches center-to-center. Each of the four mounting holes is 0.375 inches in diameter, providing secure bolt-down installation.

Beyond aesthetics, this boot serves a functional purpose - sealing off the transmission tunnel to keep road noise, dust, and debris out of your cabin. The included chrome trim plate delivers a clean, professional finished appearance that complements everything from vintage muscle cars to modern resto-mod builds. Whether you're completing a TREMEC swap or refreshing an original four-speed installation, this kit provides the classic Hurst look with the quality construction the brand is known for.

What's Included

• Black rubber shift boot with embossed Hurst 'H' logo
• Chrome trim plate
• Complete mounting hardware
• Installation instructions

Key Features

• Black naugahyde boot with 5-inch outer diameter and 4-inch inner diameter
• Polished stainless steel trim ring with ball-milled edge detail
• Foam rubber seal eliminates air flow and drafts from floor through boot
• Boot hugs shifter lever
• 5.25-inch boot height for clean coverage
• Includes stainless steel mounting screws
• Made in the USA with lifetime warranty

Description

A well-built hot rod interior demands clean, period-correct details -- and nothing ruins the look faster than a cheap boot with elastic bands or exposed ties around your shifter. This Lokar shift boot solves that problem with classic naugahyde construction and a polished stainless steel ring that fits cleanly over your shifter lever for a finished appearance that matches the craftsmanship of the rest of your build.

The 5-inch round design features precise dimensions -- 5-inch outer diameter, 4-inch inner diameter, and 5.25-inch boot height -- giving you the coverage you need without excess bulk. The polished stainless steel trim ring showcases a ball-milled edge that adds machined detail, speaking to the quality hot rodders expect from Lokar.

Beyond looks, the engineering addresses real-world concerns. The included foam rubber seal eliminates air flow from the floor through the boot, cutting down on drafts, road noise, and debris infiltration into your transmission tunnel. The boot itself hugs your shifter lever snugly without requiring pull ties or laces, maintaining clean lines while providing a secure seal that won't loosen over time.

Perfect for transmission-mounted shifters in hot rods, street rods, and classic builds where authentic styling matters. Made in the USA and backed by a lifetime warranty.

What's Included

• Black naugahyde shift boot (5.25" height)
• Polished stainless steel trim ring with ball-milled edge (5" OD x 4" ID)
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• Black Naugahyde construction - durable, weather-resistant material that maintains appearance in high-heat environments
• Polished stainless steel trim ring - 6-3/4 x 5-1/4 inch outer dimensions, 5-1/2 x 4 inch inner dimensions
• Integrated foam rubber seal blocks airflow, dust, and heat from entering through the floor
• Stainless steel mounting screws included for secure, corrosion-resistant installation
• Boot hugs shifter lever directly - no pull ties or laces required for a clean, streamlined appearance
• Rectangular design ideal for floor-mount and cable-operated shifters

Description

Finish your manual transmission build with this Lokar rectangular shift boot that delivers both a clean, professional appearance and functional air sealing. The black Naugahyde construction offers superior durability compared to standard vinyl, maintaining flexibility and appearance even under high cabin temperatures. A polished stainless steel trim ring provides a premium look that complements both traditional hot rod and modern performance interiors.

The rectangular footprint makes this boot particularly well-suited for floor-mount shifters and cable-operated systems where a traditional round boot won't provide proper coverage. Unlike cheaper alternatives with exposed pull ties or laces, this boot hugs the shifter lever directly for a streamlined, factory-quality finish. The included foam rubber seal eliminates air flow from the floor through the boot, blocking road noise, dust, and heat from entering the cabin.

Installation is straightforward with the included stainless steel mounting screws. The stainless bezel sits on top of the boot for a finished appearance. Whether you're wrapping up a TREMEC swap or finishing a custom hot rod interior, this shift boot delivers the polished look your build deserves.

What's Included

• Black Naugahyde rectangular shift boot
• Polished stainless steel trim ring (6-3/4 x 5-1/4 inch outer, 5-1/2 x 4 inch inner)
• Stainless steel mounting screws
• Foam rubber seal

Lokar Rectangular Shift Boot | Black Naugahyde | Polished Black Stainless Ring

Key Features

• Black billet aluminum ring with precision ball-milled edge
• Rectangular ring dimensions: 6-3/4" x 5-1/4" outer, 5-1/2" x 4" inner
• Foam rubber seal eliminates airflow and debris from entering through floor
• Boot hugs shifter lever tightly with no pull ties or laces
• Polished stainless bezel fits over shifter lever for clean appearance
• Durable black Naugahyde boot material
• Stainless steel mounting screws included

Description

Exposed transmission openings and loose-fitting boots let hot air, exhaust fumes, and road debris into your cabin. This Lokar rectangular shift boot kit solves that problem while delivering a clean, finished look that complements traditional hot rod and custom interiors.

The black billet aluminum ring features a precision ball-milled edge that provides both visual appeal and a quality tactile feel. A polished stainless bezel fits precisely over the shifter lever, creating a clean transition point at the top of the boot. The included foam rubber seal sits beneath the assembly to block airflow from the floor, keeping heat and fumes where they belong.

Unlike cheaper boots that require unsightly pull ties or laces, this Lokar boot hugs the shifter lever tightly on its own, maintaining a clean appearance that won't loosen or sag over time. The rectangular ring measures 6-3/4" x 5-1/4" on the outside with a 5-1/2" x 4" inner opening, providing versatile fitment for most floor-mounted manual shifter applications. The rectangular profile is particularly well-suited for hot rod and street rod builds where it complements traditional console and tunnel designs.

Installation is straightforward with the included stainless steel mounting screws. When the details matter to your build, this boot kit delivers the fit and finish that sets professional-quality interiors apart from the rest.

What's Included

• Black Naugahyde shift boot
• Black billet aluminum ring with ball-milled edge
• Polished stainless steel bezel
• Foam rubber seal
• Stainless steel mounting screws

Key Features

• 16-tooth driven gear corrects speedometer accuracy for Ford manual transmission swaps
• Wine color coding for easy tooth count identification during installation and service
• Direct fit for Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision-molded construction for smooth, reliable operation

Description

When you swap to a 5- or 6-speed transmission, your original speedometer gear won't work with the new final drive ratio, throwing off your speedometer readings. This 16-tooth driven gear provides the correct gear ratio match to restore accurate speedometer operation in Ford T5, T45, TKO, TKX, and T56 Magnum applications.

Selecting the correct driven gear depends on your rear axle ratio and tire diameter. The wine-colored housing provides instant visual confirmation of the 16-tooth count during installation and future service, eliminating guesswork when fine-tuning your speedometer calibration. Each tooth change adjusts the speedometer reading approximately 4-5 mph, so selecting the right gear for your combination is critical.

This is the correct driven gear for all Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. Whether you're building a street machine that sees daily driving or a weekend cruiser that needs reliable instrumentation, this precision-molded gear delivers smooth, accurate speedometer operation mile after mile.

What's Included

• 16-tooth speedometer driven gear with wine-colored housing

Key Features

• 17-tooth driven gear with white color coding for easy identification
• Direct fit for Ford TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum
• Precision-molded plastic construction for smooth, quiet operation
• Lower tooth count for higher axle ratios and/or taller tires
• Works with cable-driven mechanical speedometer systems

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which means your factory speedometer gear combination no longer reads accurately. This 17-tooth white driven gear lets you recalibrate your mechanical speedometer to match your new drivetrain setup.

Speedometer driven gear selection depends on four variables: drive gear tooth count (on the output shaft), driven gear tooth count, tire diameter, and axle ratio. The 17-tooth count is typically paired with lower-numerical axle ratios or taller tires. Use a speedometer gear calculator to determine the correct tooth count for your specific combination of drive gear, rear end ratio, and tire height.

The white color coding makes this gear instantly identifiable, both in your parts bin and during installation. This precision-molded plastic gear meshes smoothly with the transmission's output shaft drive gear, delivering reliable operation without the noise or wear issues that can plague poorly-manufactured replacements.

This driven gear fits all Ford TREMEC transmissions including T5, T45, TKO, TKX, and T56 Magnum. Whether you're building a classic Mustang, Fairlane, or any Ford platform with a mechanical speedometer, this gear helps dial in accurate speed readings after your manual transmission conversion.

Kit Includes

• 17-tooth speedometer driven gear, white plastic

Speedometer Driven Gear | Ford T5/T45/TKO/TKX/Magnum | 18-Tooth Yellow

Key Features

• 18-tooth driven gear for speedometer calibration on Ford-pattern transmissions
• Yellow color-coded for quick identification during installation and service
• Fits Ford T5, T45, TKO, TKX, and T56 Magnum transmissions
• Precision molded for accurate tooth engagement and long service life
• Direct replacement--installs into existing speedometer drive housing without modification

Description

When you swap in a 5- or 6-speed manual transmission, your factory speedometer gear ratio goes out the window. The new transmission's final drive ratio won't mesh with your original speedo gear, leaving your speedometer reading inaccurately--sometimes wildly so. This 18-tooth yellow driven gear lets you dial in the correct speedometer calibration for your specific tire size and rear axle ratio combination.

This driven gear fits the full range of Ford-pattern TREMEC transmissions: T5, T45, TKO, TKX, and T56 Magnum. The industry-standard yellow color coding makes identification simple--no guessing which tooth count you're running when it's time for service or recalibration after a gear ratio change. The precision-molded construction ensures consistent tooth engagement with the drive gear for accurate, reliable speedometer readings mile after mile.

Installation is straightforward--the gear slides directly into the transmission's speedometer drive housing. If your speedometer calibration calculations call for more than 21 teeth (the maximum available driven gear size), you'll need to reduce the drive gear tooth count instead. Use a speedometer gear calculator with your tire diameter, axle ratio, and transmission drive gear tooth count to determine the correct driven gear for your application.

Kit Includes

• 18-tooth yellow speedometer driven gear

Key Features

• 19-tooth driven gear for precise speedometer calibration
• Pink color-coded for instant tooth count identification
• Fits Ford T5, T45, TKO, TKX, and TREMEC T56 Magnum transmissions
• Essential for correcting speedometer accuracy after gear ratio or tire size changes
• Precision molded construction for reliable, long-lasting operation

Description

When you swap transmissions, change rear axle ratios, or bolt on different tire sizes, your speedometer no longer reads correctly. This 19-tooth driven gear lets you recalibrate for accurate readings by changing the gear ratio between your transmission's output and the speedometer cable. It's the driven gear -- the one that mounts to the speedometer cable end and inserts into the transmission tailhousing.

The pink color follows Ford's standardized identification system, making it easy to confirm the tooth count at a glance when you're sorting through your parts bin or comparing against your current setup. If your speedometer reads too fast with your current gear, stepping up to this 19-tooth unit will slow the reading. Each additional tooth changes the speedometer reading by approximately 5-6%. If you need an even higher tooth count, 21-tooth is the largest available in the driven gear; beyond that, you'll need to reduce the drive gear size instead.

This gear fits all Ford T5, T45, and Ford T56 transmissions, as well as all TREMEC TKO, TKX, and T56 Magnum units. Installation is straightforward: remove the speedometer cable from the tailhousing, swap the driven gear, and reinstall.

What's Included

• One 19-tooth speedometer driven gear (pink)

Key Features

• 20-tooth driven gear for precise speedometer calibration
• Black color-coded for easy identification per Ford specification
• Fits Ford T5, T45, Ford T56, TREMEC T56 Magnum, TKO, and TKX transmissions
• Direct replacement for worn or incorrect factory gears
• Precision-molded plastic construction for durability and accurate engagement

Description

Transmission swaps and axle gear changes throw off speedometer accuracy - this 20-tooth driven gear gets your needle reading true again. When you install a five- or six-speed manual, the final drive ratio no longer matches your original speedometer gear, leaving you guessing at your actual speed. The correct driven gear restores accurate instrumentation so you know exactly how fast you're going.

This precision-molded driven gear is color-coded black for 20-tooth identification, following the standard Ford speedometer gear system. It pairs with the 7-tooth drive gear found on TREMEC TKO 500, TKO 600, TKX, and T56 Magnum transmissions to dial in speedometer accuracy for specific tire and axle combinations. Calculate your correct tooth count based on your tire diameter and rear axle ratio - if your math points to 20 teeth, this is your gear.

Note that 21 tooth is the largest driven gear size available for these applications. If your calculations call for a larger tooth count beyond 21, reducing the drive gear size provides the necessary calibration adjustment. Compatible with all Ford T5, T45, Ford T56, TREMEC T56 Magnum, and all TKO and TKX variants.

What's Included

• One 20-tooth driven speedometer gear (black)

Key Features

• 21-tooth red gear follows Ford's factory color-coding system for manual transmissions
• Largest standard driven gear tooth count available for maximum speedometer correction
• Fits all TREMEC transmissions using Ford-style speedometer systems: T5, T45, TKO, TKX, and T56 Magnum
• Precision molded nylon construction for smooth, quiet operation and long service life
• Direct drop-in replacement--no modifications required

Description

Swapping to a 5 or 6-speed TREMEC transmission changes your final drive ratio, which throws off your factory speedometer calibration. This 21-tooth red driven gear lets you recalibrate your mechanical speedometer to read accurately with your specific tire size and rear axle ratio combination--no electronic tuner required.

Ford has used a consistent color-coding system for manual transmission speedometer gears since the 1960s: 16-tooth wine, 17-tooth white, 18-tooth yellow, 19-tooth pink, 20-tooth black, and 21-tooth red. As the largest tooth count in the standard range, this red 21-tooth gear provides maximum correction for applications with taller tires or numerically higher axle ratios. Each tooth of difference adjusts your speedometer reading approximately 5-6%, so selecting the correct count is critical for accuracy.

The driven gear installs into the speedometer housing on the tailshaft of your transmission, where it meshes with the drive gear on the output shaft. TKO, TKX, and T56 Magnum transmissions come from the factory with a 7-tooth drive gear, making this 21-tooth driven gear the correct starting point for common combinations like 3.55 or 3.73 rear gears with 26-inch or taller tires. Use a speedometer gear calculator with your actual tire diameter and axle ratio to confirm the correct tooth count for your build.

This gear is compatible with Ford T5, T45, TKO, TKX, and T56 Magnum transmissions. The driven gear works with both cable-driven and VSS-equipped speedometer systems--just swap it into your existing housing.

What's Included

• 21-tooth red speedometer driven gear (precision molded nylon)

Key Features

• Converts Ford-style slip-in speedometer drive to GM 7/8" threaded cable connection
• Fits Ford T5, all 3550/TKO transmissions, Ford T56 with cable drive, and all TREMEC Magnum six-speeds
• Double O-ring seal at the transmission case plus internal seal to prevent fluid leaks
• Steel construction for accurate readings and long service life
• Eliminates the need for expensive custom speedometer cables

Description

TREMEC T56 Magnum, TKX, and TKO transmissions all use a Ford-style mechanical speedometer drive, which creates a compatibility problem for GM muscle cars and hot rods equipped with traditional GM speedometers and 7/8" threaded cables. Rather than sourcing an expensive custom cable, this adapter assembly converts the Ford slip-in driven gear interface to accept a standard GM threaded speedometer cable directly.

The adapter features a double O-ring seal at the transmission case opening combined with an internal seal where the cable attaches. This dual-seal design addresses a common complaint with lesser adapters that allow transmission fluid to leak through the cable attachment point. Steel construction ensures the drive spindle maintains accuracy and durability under demanding conditions.

Installation is straightforward: the adapter inserts into the transmission's speedometer housing where the driven gear normally sits, and your existing GM speedometer cable threads onto the adapter's external 7/8" fitting. This assembly fits Ford T5, all 3550/TKO variants, Ford T56 transmissions with cable drive, and all TREMEC Magnum six-speed transmissions. Note that speedometer driven gears and retaining clips are sold separately and must be matched to your tire size and rear axle ratio for accurate speedometer readings. Made internationally.

What's Included

• Speedometer cable adapter assembly with steel drive spindle
• Full manufacturer's warranty

Key Features

• Converts Ford slip-in speedometer drive to GM 7/8" threaded cable connection
• Double O-ring seal system prevents transmission case leakage at the housing
• Internal seal stops fluid from traveling up the speedometer cable
• Swiss steel drive spindle delivers superior strength and accuracy
• Billet housing with naval brass bushing for smooth, long-lasting operation
• One-piece design eliminates multiple failure points found in cheaper adapters
• Made in the USA

Description

TREMEC T-56 Magnum, TKX, TKO, and T5 transmissions use a Ford-based mechanical speedometer drive, which creates a problem when you're running a GM chassis with a 7/8" threaded speedometer cable. Without an adapter, you're stuck either fabricating a custom cable or dealing with a leak-prone import solution that fails at the worst possible time.

This precision-machined adapter is engineered to eliminate the chronic leakage issues that plague cheaper alternatives. The double O-ring seal system addresses leaks at the transmission case opening, while a dedicated internal seal prevents fluid from wicking up through the cable attachment point—a common failure mode on single-seal designs. The Swiss steel drive spindle provides extra strength and accuracy for consistent speedometer readings over the life of the build.

The billet housing paired with a naval brass bushing ensures smooth cable rotation and extended service life, even in high-vibration environments. The one-piece construction eliminates the potential leak paths and wear points found in multi-piece adapter assemblies.

Fits Ford T5, all 3550/TKO models, TKX, Ford T56 with cable drive, all TREMEC Magnum six-speeds, and Ford three- and four-speed transmissions. Made in the USA with full warranty coverage.

Kit Includes

• Billet speedometer cable adapter housing
• Swiss steel drive spindle
• Naval brass bushing
• Dual O-ring seals for transmission case
• Internal cable seal
• Full manufacturer's warranty

Key Features

• Secures driven speedometer gear for proper placement and operation in Ford T5 transmissions
• Direct replacement for original clips that have become brittle from heat exposure
• Essential component for automatic-to-manual conversions where no clip exists
• Compatible with all Ford T5 transmissions

Description

Clip-style speedometer gears require a retaining clip to lock the driven gear securely in the transmission housing, and this replacement clip delivers the secure fit your Ford T5 needs. Without a properly functioning clip, the driven speedometer gear can back out of the housing during operation, causing inaccurate speedometer readings and potential fluid loss.

Original retaining clips often become brittle after years of heat cycling in the transmission environment. If you're servicing your Ford T5, T45, T56, TKO/TKX, and Magnum speedometer gear or coming from an automatic transmission that didn't use a mechanical speedometer setup, a new retaining clip ensures your driven gear stays exactly where it needs to be. This is an inexpensive detail that makes the difference between a speedometer that works reliably and one that gives you trouble down the road.

This clip is the correct fitment for all Ford T5 transmissions and works with standard Ford-style driven speedometer gears. Keep one on hand whenever you're doing speedo gear service work.

What's Included

• One (1) retaining clip for Ford driven speedometer gear

Key Features

• 16-pulse Hall effect sensor delivers 16,000 pulses-per-mile output for accurate electronic speedometer calibration
• Direct bolt-in fitment for Ford gear drive TKO and TKX transmissions
• Three-wire design with included 10-foot pigtail harness for flexible routing and clean signal transmission
• Allen-head mounting bolt provides body clearance in tight transmission tunnel applications
• Uses standard T5 driven speedometer gears - no adapter required for low-profile installation.
• Compatible with Ford T-5, T-45, TR3550, 5-speed and 6-speed Ford T-56, and Magnum transmissions (requires Ford-driven speedometer gears and retainer clip)

Description

Swapping to a TKO or TKX five-speed means ditching the factory mechanical speedometer cable - but your electronic dash, engine management system, or cruise control still needs a reliable speed signal. This digital speedometer sensor plugs directly into the Ford-style VSS port on your TREMEC transmission's passenger-side tail housing and delivers a clean 16-pulse signal that works with the industry-standard 16,000 pulses-per-mile input most aftermarket speedometers and ECUs expect.

The three-wire Hall effect design provides a stable square wave output that won't degrade over long wire runs. The included 10-foot pigtail harness gives you plenty of length to route wiring cleanly through the tunnel and up to your dash or ECU, with a three-pin connector for easy hookup. The Allen-head mounting bolt is a thoughtful detail - standard hex-head fasteners can interfere with the sensor body in tight quarters, so this design ensures proper installation without clearance issues.

Beyond the TKO and TKX, this sensor also works with T-5z 5-speed and 6-speed Magnum transmissions when paired with Ford-driven speedometer gears and a retainer clip. Note that it does not fit Super Magnum, Magnum XL, or Magnum F transmissions - those use a different VSS configuration. If you're running a Dakota Digital, Classic Instruments, Auto Meter, or other programmable electronic speedometer, this sensor's 16,000 PPM output drops right into their standard calibration range.

What's Included

• 16-pulse digital speedometer sensor with three-pin connector
• 10-foot three-wire pigtail harness
• Allen-head mounting bolt

Key Features

• Precision-welded steel construction for maximum strength and durability
• Three-hole mounting pattern for secure attachment to GM-style crossmembers
• Compatible with GM T5 and MDL Front-Shift T5 transmissions
• Protective coating resists corrosion in harsh underbody environments
• Rubber contact pad isolates drivetrain vibration
• Requires MD-201-Mount 1102 hardware kit (sold separately)

Description

Maintaining the correct driveline angle between your transmission and driveshaft is critical for smooth operation and component longevity. This GM & Front-Shift T5 Transmission Mount provides the secure, vibration-damping connection point your drivetrain demands, whether you're running a factory GM T5 or MDL's specialized Front-Shift T5 conversion.

Built from precision-welded steel and finished with a durable protective coating, this mount handles transmission loads while shrugging off road grime, moisture, and corrosion. The integrated rubber contact pad isolates vibration, keeping NVH out of the cabin and reducing stress on surrounding components. The three-hole mounting pattern ensures proper load distribution and secure positioning on GM-style crossmembers and tail housings.

This mount is engineered specifically for GM-pattern tail housings and MDL's popular Front-Shift T5 tailhousing conversions, making it the ideal choice for builders working with either configuration. The robust construction eliminates flex under load, protecting your transmission investment and ensuring consistent driveline geometry.

Complete your installation with the MD-201-Mount 1102 hardware kit, sold separately.

Kit Includes

• One precision-welded steel transmission mount with protective coating
• Bonded rubber contact pad for vibration isolation

Note: MD-201-Mount 1102 hardware kit required for installation, sold separately.

Key Features

• 100% synthetic ATF formulated for TREMEC manual transmissions requiring Dexron III specification
• Resists wear to valve body, gears, clutch plates and synchronizers in normal and severe service
• Friction modifiers promote fast, smooth clutch engagement and shudder-free shifts
• Thermally stable formulation resists heat-related breakdown, evaporation and viscosity loss
• Excellent cold-weather fluidity for reliable shifts during cold starts
• Resists harmful sludge formation with seal conditioning to guard against leaks
• Compatible with T5 World-Class, T45, TR3650, TKX, T56, TR6060 and Magnum transmissions

Description

Modern manual transmissions feature complex internal components -- multiple gear sets, clutch packs and narrow oil passageways -- that demand a steady supply of high-quality fluid to function properly. Without it, wear and sludge formation can lead to reduced performance and even catastrophic failure requiring thousands of dollars in repairs. This AMSOIL Synthetic Automatic Transmission Fluid delivers the Dexron III specification required by TREMEC transmissions while providing protection that exceeds conventional fluids.

In both normal and severe service, this synthetic ATF resists wear to the transmission's valve body, gears, clutch plates and synchronizers, helping your TREMEC achieve long service life. The thermally stable formulation guards against the harmful effects of thermal breakdown in elevated heat conditions, while resisting heat-related evaporation and viscosity loss to keep internal components clean and protected.

Formulated with friction modifiers that promote fast, smooth clutch engagement, this fluid delivers responsive shift feel and efficient torque transfer. It remains fluid in sub-zero temperatures, resisting thickening and flowing quickly for reliable shifts during cold starts. The excellent low-temperature fluidity also maximizes fuel efficiency. Seal conditioners help guard against leaks at input shaft seals and other critical points.

TREMEC TKX transmissions use Dexron III or Dexron III/Mercon specification ATF fluid, and Dexron III ATF is also recommended for T56 and TR3650 models. The T5, TKO and TKX five-speed transmissions require approximately 2.75 quarts, while six-speed Magnum transmissions require approximately 3.45 quarts. TREMEC recommends changing fluid after the initial 500-1000 mile break-in period, then every 30,000 miles thereafter.

What's Included

• One (1) quart bottle AMSOIL Synthetic Automatic Transmission Fluid (Dexron III compatible)

Key Features

• Forged steel construction for superior strength over cast alternatives
• 31-spline output shaft compatibility for Ford TKO, C6, and FMX transmissions
• 1310 Series U-joint with 1-1/16" bearing caps and 3-1/4" width
• 1310 Series rated for 400 lb-ft continuous torque, 800 lb-ft short-duration--suitable for street builds up to approximately 500 hp
• Precision-broached splines for tight-tolerance fit and vibration-free operation
• Outside snap ring retention style
• Manufactured by Neapco--a leading OEM and aftermarket driveline supplier

Description

Connecting your transmission to the driveshaft demands a slip yoke that can handle real power without becoming a weak link. This Neapco 31-spline forged steel slip yoke delivers the strength and precision fit required for Ford TKO, C6, and FMX transmissions, providing a direct-fit solution for street performance builds.

Forged steel construction eliminates the porosity and stress risers inherent in cast yokes. The result is a stronger, more consistent part that handles torque loads without cracking or deformation. The 1310 Series U-joint is rated for 400 lb-ft of continuous torque and 800 lb-ft short-duration loads--making this combination well-suited for street-driven cars producing up to approximately 500 hp, provided traction is managed with street tires rather than slicks.

Neapco's precision broaching process produces tight-tolerance spline fits that mate smoothly with the transmission output shaft. This accuracy, combined with reduced end play in the universal joint, minimizes driveline vibration and extends component life. The outside snap ring design allows for straightforward U-joint service when maintenance is eventually needed.

This slip yoke fits Ford transmissions with 31-spline output shafts, including the Ford TKO, C6 automatic, and FMX automatic. If your application requires higher torque capacity, consider upgrading to a 1330 or 1350 Series yoke and matching driveshaft components.

What's Included

• One Neapco forged steel 31-spline slip yoke
• One 1310 Series universal joint (1-1/16" bearing caps, 3-1/4" width)

Key Features

• 31-spline internal configuration - matches TREMEC TKX, TKO, and Magnum output shafts
• 1330 series u-joint dimensions (3-5/8" width x 1-1/8" cap diameter) - proven balance of strength and driveline angle capability
• D550 ductile iron construction - forged for high tensile strength and durability
• Outside snap ring retention - secure, serviceable u-joint mounting without special tools
• Direct fit for TKX, TKO, Magnum, some T56, C6, and FMX transmissions
• Made by Neapco - trusted OE supplier quality built to factory standards

Description

Converting to a TREMEC TKX, TKO, or Magnum often means your factory slip yoke is no longer up to the task. The increased torque from a modern 5-speed or 6-speed manual transmission demands a properly matched slip yoke that can handle the load without becoming a weak link in your driveline. This 31-spline slip yoke solves that problem with the proven 1330 series dimensions and D550 ductile iron construction.

The forged steel construction provides the tensile strength needed for high-torque applications while maintaining the precise tolerances required for smooth, vibration-free operation. The 1330 series u-joint dimensions - 3-5/8" overall width with 1-1/8" bearing caps - deliver more driveline angle capability than the smaller 1310 series while keeping overall packaging compact. Outside snap rings secure the u-joint caps, making future service straightforward without specialized tools.

The 31-spline internal configuration directly matches the output shaft splines on TREMEC TKX, TKO, and Magnum transmissions, as well as some T56 variants, Ford C6 automatics, and FMX transmissions. Built by Neapco to OEM standards, this slip yoke bridges the gap between your transmission upgrade and your existing driveshaft, accepting standard 1330-series u-joints for flexibility in choosing greaseable or sealed units based on your application.

What's Included

• 31-spline slip yoke, D550 ductile iron forged steel construction

Key Features

• 31-spline output shaft compatibility for all TREMEC TKO, TKX, and Magnum transmissions
• 1350 series U-joint capacity with 1-3/16" cap diameter and 3.625" overall width
• Cast steel construction for strength under high-torque loads
• Ford C6-style slip yoke design matches TREMEC 31-spline output shaft diameter
• Direct upgrade from smaller 1310 series yokes found in many stock applications

Description

Upgrading to a TREMEC transmission puts serious torque capacity in your drivetrain, but your existing slip yoke often becomes the weak link. TREMEC TKO, TKX, and Magnum transmissions all feature a 31-spline output shaft that requires a matching slip yoke to handle the increased power these transmissions deliver. This MDL slip yoke solves that problem with cast steel construction and 1350 series U-joint capacity.

The 31-spline output shaft on TREMEC performance transmissions uses the same diameter as Ford C6 automatics—a proven design that has been handling serious torque for decades. The 1350 series U-joint provides a 1-3/16" cap diameter and 3.625" overall width, delivering significantly more strength than the smaller 1310 series joints found in many factory drivelines. When you're pushing 600 lb-ft of torque capacity through a TKO or TKX, you need driveline components that can keep up.

This slip yoke is designed for Ford applications but works with any TREMEC transmission featuring the standard 31-spline output shaft, including the TKO-500, TKO-600, TKX, and T56 Magnum. Whether you're building a street machine that sees weekend abuse or a dedicated track car, this yoke provides the strength and reliability your upgraded drivetrain demands.

What's Included

• 31-spline cast steel slip yoke
• 1350 series U-joint (1-3/16" bearing caps, 3.625" width)
