Key Features
- Fits Ford T5, TR3550, C4, Toploader, or any transmission with 28-spline slip yoke and 1.5-inch OD sleeve
- Bushing features machined oil slot for proper lubrication distribution
- Kit includes tail housing seal #8850X and bushing #MD-505-1032
- Bushing installs flush with tailstock recess for correct depth positioning
- Requires press installation to prevent deformation -- tapping or driving not recommended
Description
Worn tailshaft bushings cause driveline vibration, seal leaks, and premature wear that kills smooth operation and makes a mess of your garage floor. This service kit delivers a precision-fit solution -- the correct bushing and seal together to restore proper yoke support and stop fluid leaks at their source.
The included bushing features a critical oil slot that must align with the oiling valley in the tailstock housing for proper lubrication. When pressed into position, the bushing should sit flush with the tailstock recess -- this is your depth indicator for correct installation. Press-fitting is essential; tapping or driving the bushing risks deformation that will compromise fit and yoke clearance.
Installation typically requires removing the tailstock housing or using specialized bushing puller/installer tooling to extract the old bushing and seat the new one. This is not a driveway job with a hammer and drift -- the precision fit demands proper technique to avoid housing damage.
This kit covers the most common Ford manual and automatic transmissions sharing the 28-spline, 1.5-inch OD slip yoke configuration: T5, TR3550, C4, and Toploader. One kit handles them all, so you can stock your shelf or tackle multiple projects with the same part number.
Kit Includes

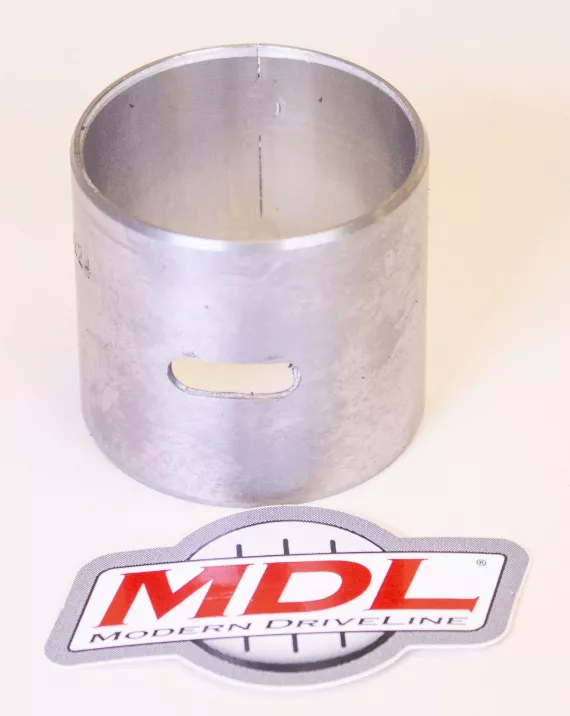

- Tailshaft bushing #MD-505-1032 with machined oil slot
- Tail housing seal #8850X
