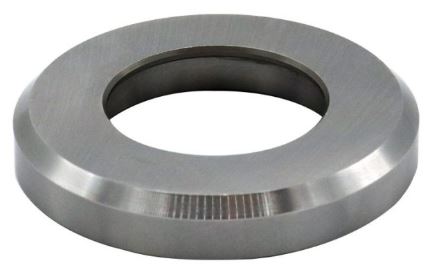

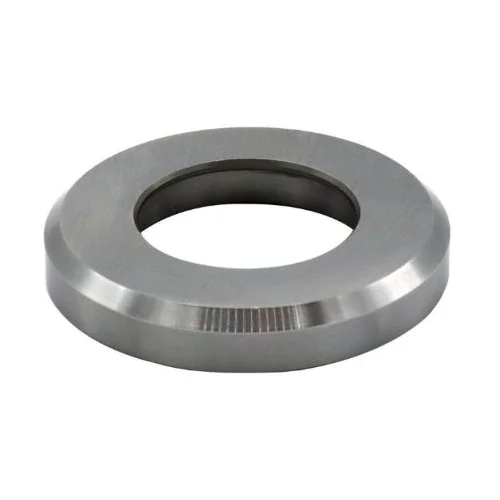

Tilton 62-618 Replacement Flat Face Throwout Bearing | 47-66mm
Key Features
- Flat-face bearing with 47mm-66mm contact diameter for optimal pressure plate engagement
- OD spinning bearing design that press fits onto existing release bearing piston
- Tapered outer edge for improved clearance during clutch cycling
- Compatible with Tilton HRB part numbers: 60-1100, 60-3100, 60-4100, 60-5100, 60-61xx, 60-8100
- Factory-quality replacement using the same long-life bearings found in new Tilton HRBs
- Service replacement bearing only - does not include hydraulic piston or fittings
Description
When your Tilton 6000 Series hydraulic release bearing develops roughness or notchy rotation, this 62-618 replacement bearing restores full function without replacing the entire unit. The flat-face bearing replacement kits are the same long-life, high-quality bearings used in every Tilton hydraulic release bearing - genuine Tilton engineering at a fraction of the cost of a complete HRB assembly.
The 47mm-66mm contact diameter provides the optimal interface with bent-finger diaphragm clutches, while the tapered outer edge design prevents binding during clutch engagement and release cycles. This bearing features an outer-race spinning design that reduces friction and wear, extending service life in high-performance applications. The bearing press fits onto your existing release bearing piston for a straightforward service procedure.
This is a service replacement bearing only and does not include the hydraulic piston assembly, lines, or fittings. It is compatible with Tilton hydraulic release bearing part numbers 60-1100, 60-3100, 60-4100, 60-5100, 60-61xx, and 60-8100. If your HRB has higher than normal resistance or a notchy feel when spinning the bearing race, this is the exact replacement you need - Tilton part number 62-618.
Kit Includes
- Tilton 62-618 flat-face release bearing (47-66mm contact diameter)
- Tapered outer edge design
