Key Features
- 2.4" shorter than 74-Series master cylinders while maintaining full 1.1" stroke for tight-clearance applications
- 0.750" (3/4") bore size with AN3 outlet port (3/8"-24 thread)
- Black anodized aluminum alloy body for corrosion resistance and durability
- Industry-standard 2.25" center-to-center mounting studs for flange-mount installation
- Remote reservoir configuration allows flexible placement for access and capacity
- Direct compatibility with Tilton 600-Series and 800-Series (clutch only) pedal assemblies and balance bars
- Cylinder body length: 5.6" (mounting flange to port)
- Lightweight design at 0.84 lbs
Description

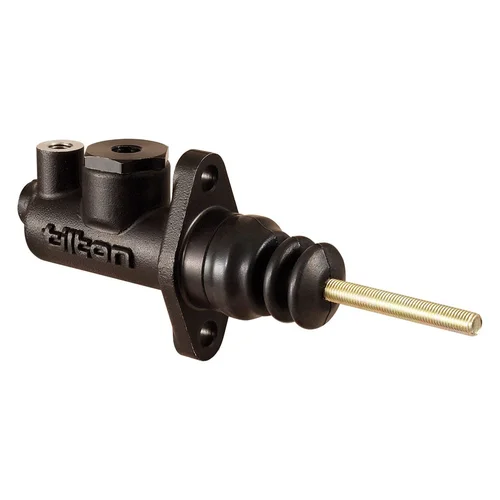

When your build demands precise hydraulic clutch control but pedal box space is at a premium, the Tilton 75-Series master cylinder delivers race-proven performance in a compact package. Designed specifically for applications where space limitations require a shorter master cylinder, this 3/4" bore unit solves packaging challenges in tight engine bays, rally cages, and custom cockpits without compromising hydraulic performance.
The engineering advantage of the 75-Series centers on its compact envelope. At 2.4" shorter than Tilton's 74-Series master cylinders, it maintains a full 1.1" of stroke -- delivering the fluid displacement needed for consistent clutch engagement and release. The cylinder body measures just 5.6" from mounting flange to port, making it ideal for setups where every inch matters. The black anodized aluminum alloy construction resists corrosion in harsh underhood environments while keeping weight to just 0.84 lbs.
This remote reservoir configuration separates the fluid storage from the cylinder body, allowing you to mount the reservoir wherever it provides optimal access for inspection and top-offs. The AN3 outlet port (3/8"-24 thread) accepts standard braided stainless lines for clean, reliable hydraulic plumbing. The industry-standard 2.25" center-to-center mounting pattern ensures direct bolt-on compatibility with Tilton 600-Series and 800-Series (clutch only) pedal assemblies and balance bars.
Whether you're building a dedicated road racer, autocross weapon, or high-performance street machine, the Tilton 75-Series delivers the compact footprint and precise hydraulic control that serious builds demand.
Kit Includes
- Tilton 75-Series master cylinder with 0.750" (3/4") bore
- 6.8 oz remote reservoir with filter and clamp
- Remote reservoir mounting components
- AN3 and 3/16" inverted flare fittings
- 5/16"-24 UNF pushrod
