Key Features
- Precision mount adapter and collar engineered specifically for Tilton 6000-Series hydraulic release bearings
- Adjustable height range: 2.50" to 2.75" measured from transmission face to bearing contact surface
- Bolt-on design replaces stock bearing retainer for proper HRB positioning on GM TKO/TKX transmissions
- Provides correct setup height when stock retainer dimensions are inadequate for your clutch configuration
- Compatible with TREMEC TKO-500, TKO-600, and TKX transmissions in GM applications
Description
Installing a Tilton 6000-Series hydraulic release bearing on a GM TKO or TKX transmission requires precise bearing height to achieve proper clutch clearance and engagement. When the stock bearing retainer doesn't provide the correct height for your specific clutch setup, this Tilton mount adapter delivers the solution - providing an adjustable range of 2.50" to 2.75" to position the HRB exactly where it needs to be.
Proper bearing height is critical for hydraulic release bearing operation. Set the bearing too low and you'll have excessive preload that accelerates wear and creates a heavy pedal; set it too high and the bearing won't fully engage the clutch fingers. This adjustable retainer eliminates the guesswork by providing a quarter-inch of adjustment range, allowing you to dial in the precise height required for your diaphragm or bent-finger clutch setup.
The bolt-on design replaces the OEM input shaft bearing retainer, mounting directly to the transmission front face. This ensures solid, concentric positioning of the HRB around the input shaft - critical for consistent clutch operation and preventing binding. Designed specifically for Tilton 6000-Series hydraulic release bearings on GM-pattern TKO-500, TKO-600, and TKX transmissions.
Note: When replacing the bearing retainer, checking input shaft bearing end play is highly recommended to ensure proper transmission operation.
Kit Includes

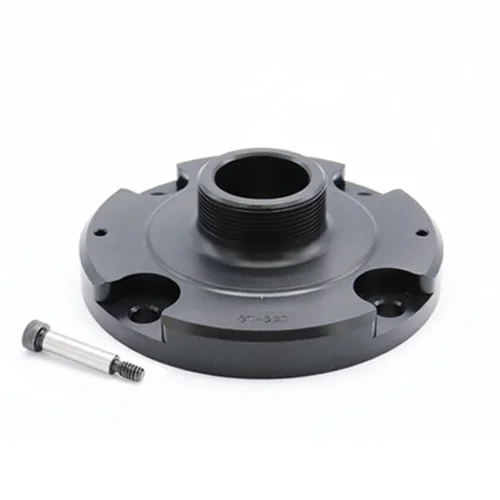

- Tilton hydraulic bearing retainer mount adapter
- Adjustment collar for 2.50"-2.75" height range
- [VERIFY: Confirm if mounting hardware and/or installation instructions are included]
