Tilton ST-246 Twin-Disc Clutch/Flywheel Assembly | 2007+ Dodge Challenger | TR6060 8-Bolt
Key Features
- 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
- Billet chromoly steel flywheel with integrated 130-tooth ring gear and precision register for optimal balance
- Precision-machined aluminum pressure plate cover delivers superior strength and stiffness versus stamped steel designs
- High-mass pressure plate and floater plate machined from proprietary racing materials resist warpage and provide high heat capacity
- Floater plate thickness is double that of most competitors--eliminating gear chatter and improving heat dissipation
- Heavy-duty straps connect plates to cover, minimizing noise and ensuring clean clutch release
- 246mm organic discs with 1-1/8" x 26-spline hub configuration for TR6060 compatibility [VERIFY: Original listing shows "1-5/32in. (1-1/8in.)"--confirm correct spline diameter]
- Direct fit for factory 8-bolt crankshaft pattern on Gen 3 Hemi engines
- Made in the USA
Description
When your Challenger's factory clutch can't handle the power, this isn't just an upgrade--it's a complete engineering solution. The Tilton ST-246 twin-disc assembly is built for builders, racers, and high-horsepower street cars that need real holding power without unpredictable engagement. Rated for 850 lb-ft of engine torque, this clutch is proven in applications where failure is not an option.
Since 1972, Tilton Engineering has been the leading supplier of small-diameter racing clutches, winning championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. The ST-246 applies that nearly 50 years of racing experience to the high-performance street market. Unlike stamped steel "performance" clutches with an afterthought floater plate, the ST-246 was designed from the ground up as a true twin-disc system. The aluminum pressure plate cover shares technology from Tilton's championship-winning OT-Series racing clutches, while the floater plate thickness is double that of most competitors--eliminating gear chatter and providing superior heat dissipation.
The sprung-hub organic discs dampen engine vibrations and reduce gearbox noise while providing smooth engagement characteristics that make this clutch completely streetable at its full 850 lb-ft capacity. The billet chromoly flywheel features an integrated ring gear and precision register that eliminates the loose-fitting bolts and dowels used in stamped steel designs, delivering optimal balance right out of the box. The hydraulic release design works with your existing CSC, and the included alignment spacer ensures proper positioning.
Direct fit for 2007 and newer Dodge Challengers equipped with TREMEC TR6060 transmissions and 8-bolt Gen 3 Hemi crankshafts. Note: Pilot bearing is not included with this assembly--verify your application's pilot bearing requirements before installation. Engineered and manufactured in the USA by Tilton Engineering.

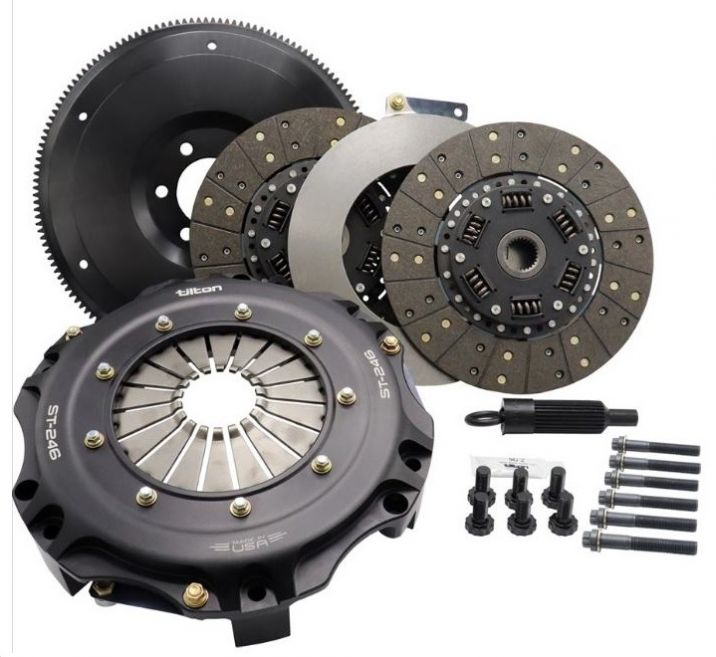

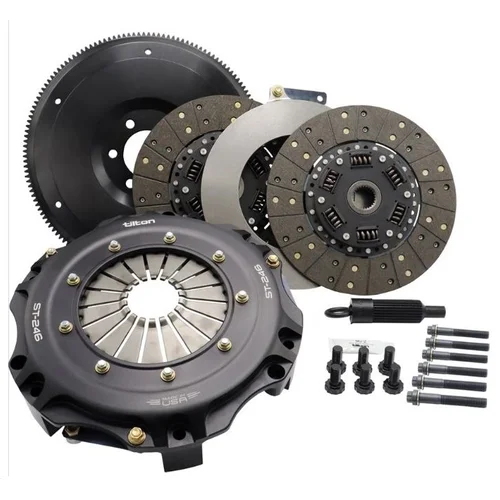

Kit Includes
- Billet chromoly steel flywheel with integrated 130-tooth ring gear
- Precision-machined aluminum pressure plate cover
- Two 246mm organic clutch discs with sprung hubs (1-1/8" x 26-spline)
- Strapped steel floater plate (double-thickness design)
- Flywheel bolts
- Clutch cover bolts
- CSC alignment spacer
- Lifetime technical support from MDL
Note: Pilot bearing is NOT included with this assembly.
