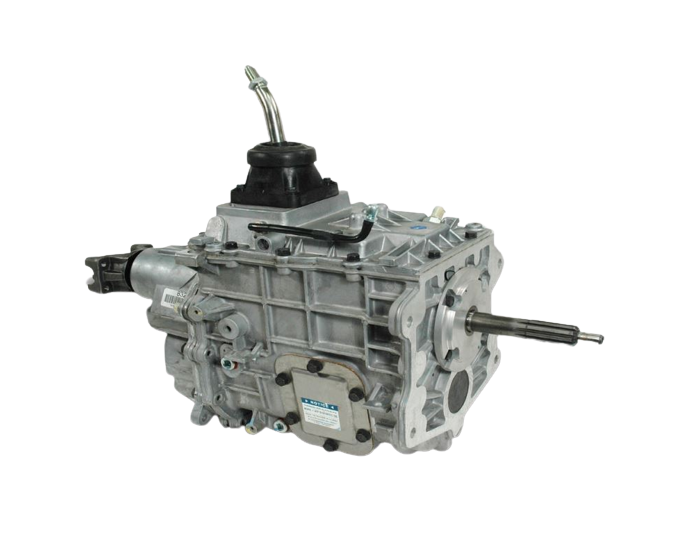

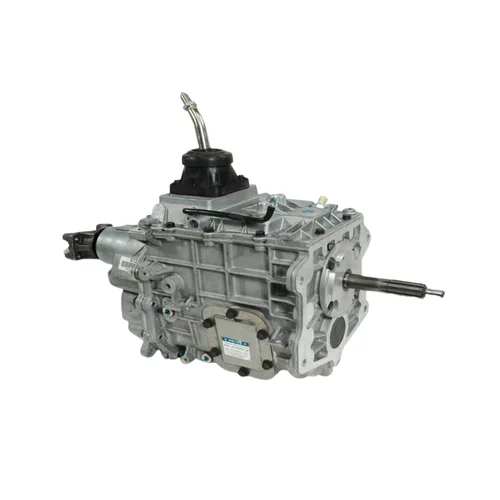

TR4050 Tremec 5-speed GM 2WD Transmission

TR4050 Tremec 5-speed GM 2WD Transmission, 5-speed by Tremec TDET18574Offers an impressive blend of strength, refinement, and above all driver control. If you are Hauling, Overlanding, or just touring the tarmac.The 4050 is practical enough for everyday use and robust enough for off-road weekend adventures. And like all TREMEC aftermarket transmissions, the TR4050 is made from 100% brand-new OEM-quality materials and features a 12-month/12,000-mile warranty from Tremec All TR4050 Transmissions are shipped via UPS only they cannot be shipped via USPS due to weight limit restrictions. Experience the MDL Difference,

• We extend Tremec's factory warranty by an extra year, ... from the date of installAnd add a 1-year grace period.
• We offer the best in the industry customer service.
• When you purchase a complete MDL Conversion Package you get, lifetime technical support.

A TREMEC manual transmission for performance cars, muscle cars, and hot rods, that's been done for years, now upgrade your pickup truck to a class-leading5-speed with that same smoothness and confidence Get the job done with the TREMEC TR-4050 5-Speed from MDL


Features:

• Standard Right side PTO 6 Bolt offers the ability to run hydraulic pumps
• Massive 109mm center distance
• Chrysler/Jeep Transfer case bolt circle with 23 spline output shaft
• High-contact constant-mesh helical gears for maximum strength
• Die-cast aluminum alloy housing saves weight & offers considerable rigidity
• Standard right-hand six-bolt PTO offers the ability to run hydraulic pumps
• The multiple-rail internal shifter provides an excellent shift feel and performance
• Tapered bearings on input, main and counter shafts provide excellent internal stability
• Needle bearings under gears reduce friction and noise output
• All forward and reverse gears are synchronized
• Advanced synchronizer technology promotes smoother shifting and reduced shift effort
• Counter shaft-mounted 5th gear synchronizer improves NVH in overdrive.

Details: Gear ratios: 6.16, 3.11, 1.71, 1, .76 od. rev 6.03- 10-spline input shaft / Output 31-spline- Torque rating 600lb-ft - A 6-bolt PTO mount location 6-bolt circle output flange.- NV4500 bolt pattern

Specs:

• Torque Capacity 600 lb.ft / 813 n/m
• Oil Capacity 3.7 QT / 3.5ltr.
• Weighs 164 lbs. / 74kg
• 19.5? overall length
• .590? Pilot diameter
• 5.125? Index retainer diameter
• 1.125? Input shaft diameter, 10-spline, 6.5? length

And like all TREMEC aftermarket transmissions, the TR4050 is made from 100% brand-new OEM-quality content and features a 12-month/12,000-mile warranty from Tremec MDL carries 'Quick Draw' Brand Bell Housing adapters for Chevy small-block (4.3-liter 305ci, 350ci), LS (4.8-liter 5.3-liter 6.0-liter, and 6.2-; other), 6.5-liter Duramax, 8.1-liter and older big-blockFord small-block (Windsor), Modular (5.0-liter Coyote, 4.6-liter, 5.4-liter, 6.8-liter, 6.0-liter diesel, and 6.7-liter diesel); Mopar small-block (318ci, 360ci) and Hemi gen-three; Cummins R2.8-liter 3.3m 12- and 24-valve 6BT, 4BT and 5.0L; Isuzu 4BD1T and 4BB2T; IH Scout engines and four-cylinder 196ci; Detroit 353 and 453.The TR-4050 has a transfer case mounting pattern of 23-spline six-bolt. So that opens up late-model Jeep transfer cases (NP231, NP241, and similar Magna parts)

---

TREMEC TR-4050 Transmission Specifications TDET18574 GM
Type	Rear-wheel drive, 5-speed manual overdrive
Maximum Gross vehicle weight	10,000kg (22,000lb)** for reference only, not applicable to a specific application **
Case	Die-cast aluminum alloy end-loading design
Center distance	109mm
Overall Length	737mm / 19.5"
Clutch housing	Separate
Synchronizer type	Double & single cone
Lubricant type	T-M99 Synthetic ATF
Lubricant capacity	3.5L (3.7qt)
Transmission weight	74kg (164lb)
Power take-off	Six-bolt located right side
Available gear ratios	GEAR	Ratio
	1	6.16
	2	3.11
	3	1.71
	4	1.00
	5	0.76
	R	6.03
	Input torque	813Nm 600lb/ft

MDL's latest offering of this TR4050 brings to the forefront, Trucks...Both 2WD & 4WD.As one of the top Tremec Elite dealers transmission specialists in the country, with over 24 years of Service and knowledge in the business have earned us a 'Guys to Go To' reputation for advice & tech help, as well as a solution center for those looking to stuff modern drivelines into older automobiles & trucks.

Turning classic & vintage pick-ups vehicles into clean restomod machines is the new HOT build for many AmericansWith modified versions of the classic Squarebody C10's & 20's leading the pack.But to be honest...who doesnt love seeing old-school body linesblended with modern performance perks?

MODEL	NV4500	TR-4050
Torque Capacity	460 ft/lb	600 lb.ft
Length	18.9"	19.5
Weight	195 lbs	164 lbs.
Case	Cast iron	Die-Cast Aluminum
Oil capacity	1 gallon	3.67 Quarts
Availability	Used / Hard to find	Currently in production

The TR-4050 provides an essential option for a market that has been missing.Lower gearing is preferred for off-road use where you want to crawl, climb or go through obstacles.Hauling and work environments are also best served with a purpose-geared transmission.The existing 2wd models simply do not offer the low gearing needed for off-road use and larger-diameter tires.The TR-4050s combination of 6.16 low gear and .76 overdrive (24% rpm reduction) is a win/win. The TR-4050 can be mated to a variety of different O.E. transfer casesThe TR-4050 will have parts and warranty support for quite some time unlike the popular NV4500, which has been out of production since 2007. The TR-4050 is a proven design that has been in production since the early 1990s.A rugged, die-cast, aluminum-alloy case forms the foundation.The gears have a high-contact, constant-mesh, helical design for maximum strength It has a torque-handling capacity of up to 425 lb-ft on a working GCVW of more than 15,000 pounds.For increased internal stability under load, the input, main and counter shafts feature tapered roller bearings.A counter-shaftmounted 5th gear synchronizer improves noise, vibration, and harshness in overdrive.

With gear ratios of 6.16 first, 3.11 second gear, 1.71 third gear, 1.00 fourth gear, and .76 overdrive fifth gear.The TR-4050 is more capable than either the NV4500 or NP430 transmissions at off-road use, while still being capable of highway and everyday driving.Single- and double-cone synchronizers give the driver silky-smooth shifts.If PTO capability is needed, the TR-4050 has a standard, right-hand, six-bolt PTO hookup. The TR-4050 can be mated to a multitude of engines:Cummins 4BT, 6BT, 5.0, and R2.8; Ford Windsor small-block and Coyote; small- and big-block Chevy and LS Series; and small-block Mopar and Gen III Hemi.Its an ideal replacement for the AX15, NV3500, NV3550, and NV4500 5-speeds, as well as NP435A, NP435L, NP435D, NP435E, T18, T19, T98, SM420, and SM465 4-speeds.

...

BELLHOUSINGS AND ADAPTERS INFO

Quick Draw Brand has bell housing adapters for Chevy small-block(4.3-liter 305ci, 350ci), LS (4.8-liter 5.3-liter 6.0-liter, and 6.2-;other), 6.5-liter Duramax, 8.1-liter, and older big-blockFord small-block (Windsor), Modular (5.0-liter Coyote, 4.6-liter, 5.4-liter, 6.8-liter, 6.0-liter diesel, and 6.7-liter diesel)Mopar small-block (318ci, 360ci) and Hemi gen-threeCummins R2.8-liter 3.3m 12- and 24-valve 6BT, 4BT and 5.0LIsuzu 4BD1T and 4BB2T; IH Scout engines and four-cylinder 196ci; Detroit 353 and 453.The TR-4050 has a transfer case mounting pattern of 23-spline six-bolt. the NV4500 has been out of production since 2007.Consumers can only get used/rebuilt transmissions, and parts are becoming harder and harder to locate.The TR-4050 is a brand-new transmission that comes with a factory-backed 12-month warranty. Fluid Maintenance LINK for Tremec Transmissions

Here's a helpful link to a calculator below. TREMEC GEAR CALCULATOR LINK
