Key Features
- 700 lb-ft torque capacity - handles serious power with confidence
- Based on TR-6060 OEM architecture - proven in factory supercars like the Dodge Viper and Camaro
- 135 lbs dry weight - light for a transmission this strong
- 2.97 first gear with 0.74/0.50 double overdrive - aggressive launch with relaxed highway cruising
- Triple-cone synchronizers on gears 1-4, double-cone on 5-6 and reverse
- Fully reversible TKO-style die-cast aluminum shifter for smooth, positive shift action
- Built-in mid-shift provisions under inspection cover for simple forward shifter placement
- 26-spline input shaft, 31-spline output shaft
- Dual speedometer pickups - mechanical and electronic
- 7,800 RPM rating
- 85mm center distance
- Cable release hardened steel guide tube included
Description

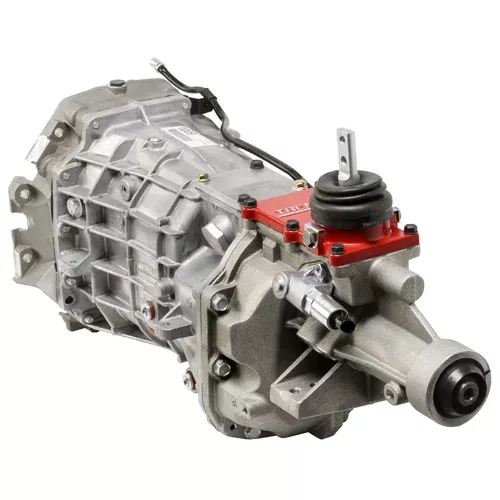

When TREMEC introduced the T56 Magnum in 2009, it solved the problem builders had been chasing for years: how to get bulletproof six-speed strength with OEM-level refinement in an aftermarket package. Based heavily on the TR-6060 - the same transmission found in factory supercars - the Magnum combines TREMEC's current OEM design and manufacturing technologies with the most popular features of their TKO 5-speed. The result is the smoothest-shifting, strongest, and most versatile 6-speed aftermarket transmission TREMEC has ever produced.
This TUET11011 features the wide-ratio 2.97 first gear, making it ideal for street-driven builds that want strong off-the-line acceleration without sacrificing highway drivability. The 0.74 fifth and 0.50 sixth gears deliver true double overdrive, dropping RPM for relaxed cruising and improved fuel economy. Spring-loaded ball-type synchronizer inserts reduce friction and eliminate notchy shifting, resulting in incredibly short, smooth shifts with crisp engagement.
The engineering upgrades over the original T56 are substantial. Face widths of the gears have been significantly widened to handle more torque, while redesigned one-piece shift forks with permanently mounted shift links eliminate the float and incomplete engagement that plagued earlier designs. The 85mm center distance provides the robust gear geometry needed to handle 700 lb-ft reliably. Multiple shifter locations accommodate different builds, and the reversible shifter assembly allows changing shift lever position simply by flipping the shift cover.
Compatible with Ford modular engines using the appropriate bellhousing (sold separately). Uses Dexron III ATF - no exotic fluids required. Made in the USA by TREMEC.
Kit Includes
- TREMEC T56 Magnum transmission assembly (TUET11011)
- Cable release hardened steel guide tube
- Reverse light switch
- 17-tooth electronic speedometer sensor
- Mechanical speedometer drive provision
- MDL extended warranty (extra year with 1-year grace period when purchased as part of a complete conversion package)
- MDL lifetime technical support
