Key Features
- 700 lb-ft torque capacity - handles serious power from LS swaps and big-block builds
- Wide ratio gear set (2.97, 2.10, 1.46, 1.00, 0.74, 0.50) - aggressive first gear for hard launches, double overdrive for highway cruising
- 26-spline input shaft, 31-spline output shaft - direct compatibility with GM LS-series engines
- 4616 chromoly gears and shafts - significantly increased face widths with 2-piece laser-beam welded construction
- Triple-cone synchronizers (1st-4th) - smooth, high-rpm shifts without balking
- Double-cone synchronizers (5th-6th and Reverse) - crisp engagement across all gears
- Fully reversible TKX-style die-cast aluminum shifter - OEM-grade construction with multiple mounting positions
- Dual speedometer outputs - accommodates both mechanical and electronic speedometers
- Built-in mid-shift provisions - accessible under inspection cover for easy conversions
- One-piece countershaft - bolstered design resists distortion under load
- 34.85" overall length (GM version) - plan your tunnel modifications accordingly
- 135 lbs dry weight - manageable for a transmission rated at 700 lb-ft
- 3.66 qt fluid capacity - uses ATF Dexron III, TREMEC HP-MTF, or Synchromesh
Description

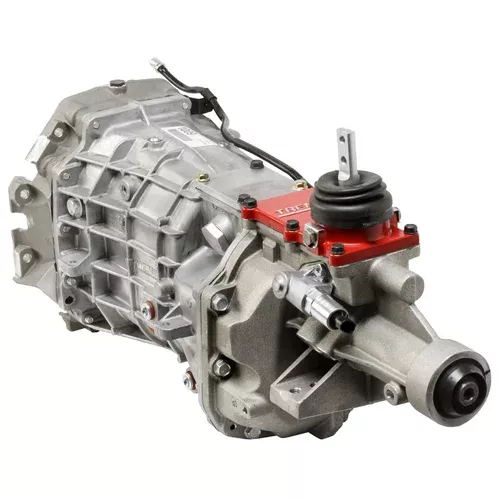

The original T56 topped out around 450 lb-ft - fine for stock applications, but a liability once you started adding power. The TREMEC T56 Magnum solves that problem decisively, delivering 700 lb-ft of torque capacity in a purpose-built aftermarket package based on the TR-6060 architecture found in factory supercars like the Corvette ZR1 and Dodge Viper ACR.
This wide-ratio version (TUET11012) features a 2.97 first gear for aggressive launches and street-light acceleration, while the double overdrive - 0.74 in fifth and 0.50 in sixth - drops highway RPM significantly for better fuel economy and reduced engine wear. TREMEC widened the gear faces substantially over the original T56, then added 2-piece laser-beam welded construction for precise control of tooth angles, pitch, and alignment. Triple-cone synchronizers on gears 1-4 and double-cone on 5-6 deliver smooth, high-rpm shifts without grinding or balking - even when you're banging through the gears hard.
The reversible die-cast aluminum shifter eliminates the limitations of earlier cast-iron designs, providing TKX-style precision with short, low-effort throws. Dual speedometer pickups handle both mechanical cable-driven and electronic setups without adapters. Built-in provisions for mid-shift conversions sit under the inspection cover, ready when your application demands a different shifter location. The T56-style bellhousing bolt pattern makes installation with various late-model GM engines straightforward.
At 34.85 inches overall length, tunnel modification is required for most classic muscle car conversions - this is not a drop-in for '98-'02 F-bodies or '04-'06 GTOs. The 26-spline input matches LS-series engines directly, while the 31-spline output handles serious driveline torque. When you purchase through MDL, you get the standard TREMEC warranty plus an additional year of coverage, along with lifetime technical support to help you get your conversion dialed in right.
Kit Includes
- TREMEC T56 Magnum transmission assembly (TUET11012)
- Die-cast aluminum reversible shifter with mounting hardware
- Dual speedometer output provisions (mechanical and 17-tooth electronic)
- Internal hydraulic throwout bearing mounting provisions
- Inspection cover with mid-shift conversion access
- TREMEC factory 1-year warranty plus MDL extended warranty (additional 1 year with 1-year grace period)
- Lifetime technical support from MDL
